使用tinyply.net保存ply格式点云

easyboot2026-02-06 9:10

1.github项目地址

https://github.com/yk35/tinyply.net/tree/master

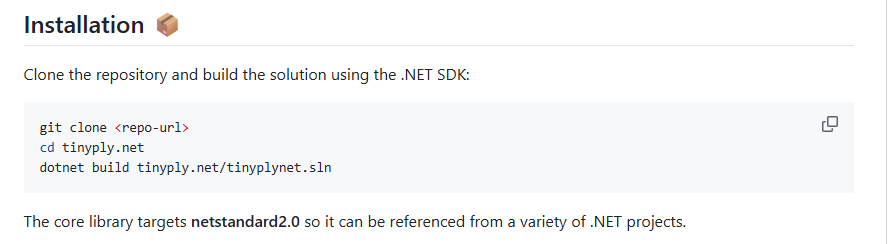

2.安装方式。文档说明需要下载项目后编译生成dll文件

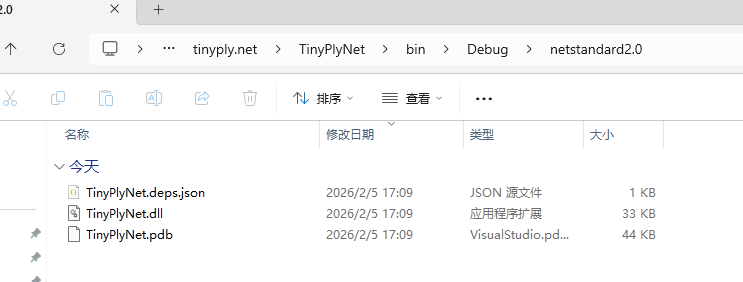

3.按文档说明生产dll文件

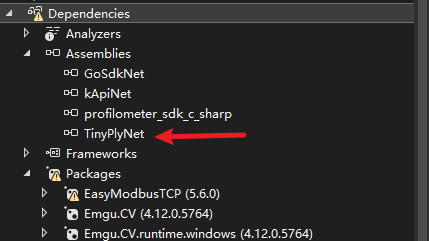

4.在自己的项目中引用tinyplynet.dll即可

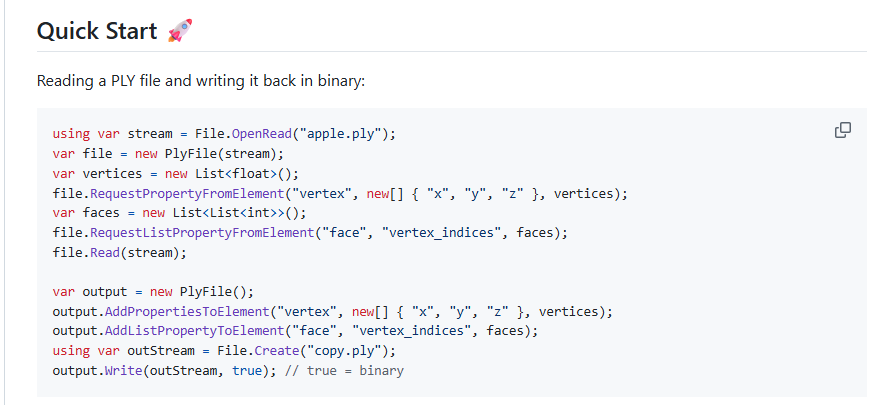

5.github文档中的使用说明

6.我的代码示例

复制代码

     public static async Task<string> SavePointCloudToPLYV4(string PlyName, SurfacePoint[] surfaceBuffer, bool isAsync,bool isBinary)
     {
         string result = "";

         try
         {
             string PlyDir = "";

             PlyDir = AppDomain.CurrentDomain.BaseDirectory + "AppPLY";
             if (!Directory.Exists(PlyDir))
             {
                 Directory.CreateDirectory(PlyDir);
             }

             string PLYFile = $@"{PlyDir}/{PlyName}.ply";


                 _ = Task.Run(async () =>
                 {
                     Serilog.Log.Logger.Debug($"开始异步拼接PLY文件内容");

                     try
                     {
                         var vertices = new List<double>();
                         foreach(var item in surfaceBuffer)
                         {
                             vertices.Add(item.x);
                             vertices.Add(item.y);
                             vertices.Add(item.z);
                         }

                         var output = new PlyFile();
                         output.AddPropertiesToElement("vertex", new[] { "x", "y", "z" }, vertices);
                         //output.AddListPropertyToElement("face", "vertex_indices", faces);
                         using var outStream = File.Create(PLYFile);
                         output.Write(outStream, isBinary); // true = binary

                     }
                     catch (Exception ex)
                     {
                         Serilog.Log.Logger.Error($" 异步点云保存出现异常 [{PLYFile}] {ex.Message} {ex.StackTrace}");
                     }

                     Serilog.Log.Logger.Debug($" 异步点云保存完成 [{PLYFile}]");
                 });


             result = PLYFile;

         }
         catch (Exception ex)
         {
             Serilog.Log.Logger.Error($" 保存点云出现异常[{PlyName}] {ex.Message}");

         }


         return result;
     }

使用二进制格式ply文件保存和读取速度会比ascii码格式快很多
