1.Nginx-高性能的 Web 服务端

Nginx是由1994年毕业于俄罗斯国立莫斯科鲍曼科技大学的同学 伊戈尔·赛索耶夫 为俄罗斯著名搜索网站 rambler.ru开发的，开发工作 早从2002年开始，第一次公开发布时间是2004年10月4日，版本号是 0.1.0

2019年3月11日F5 与 NGINX达成协议,F5 将收购 NGINX 的所有已发行股票，总价值约为 6.7 亿美元。 6.7亿美金约合44.97亿人民币,nginx核心模块代码长度198430（包括空格、注释），所以一行代码约为 2.2万人民币

官网地址 www.nginx.org

Nginx历经十几年的迭代更新（https://nginx.org/en/CHANGES）， 目前功能已经非常完善且运行稳定，另外Nginx的版本分为开发版、稳定版和过期版，nginx以功能丰富著称，它即可以作为http服务器，也可以作为反向代理服务器或者邮件服务器能够快速的响应静态网页的请求 支持FastCGI/SSL/Virtual Host/URL Rwrite /Gzip / HTTP Basic Auth/http或者TCP的负载均衡(1.9版本以上且开启stream模块)等功能，并且支持第三方的功能扩展。

天猫 淘宝 京东 小米 163 新浪等一线互联网公司都在用Nginx或者进行二次开发基于Nginx的工作场景：

2.Nginx 介绍

Nginx：engine X ，2002年开发，分为社区版和商业版(nginx plus )

2019年3月11日 F5 Networks 6.7亿美元的价格收购

Nginx是免费的、开源的、高性能的HTTP和反向代理服务器、邮件代理服务器、以及TCP/UDP代理服务器

解决C10K问题（10K Connections）

Nginx官网：http://nginx.org nginx的其它的二次发行版：

Tengine：由淘宝网发起的Web服务器项目。它在Nginx的基础上，针对大访问量网站的需求，添加了很多高级功能和特性。Tengine的性能和稳定性已经在大型的网站如淘宝网，天猫商城等得到了 很好的检验。它的 终目标是打造一个高效、稳定、安全、易用的Web平台。从2011年12月开始， Tengine成为一个开源项目官网: http://tengine.taobao.org/

OpenResty：基于 Nginx 与 Lua 语言的高性能 Web 平台， 章亦春团队开发，官网：http://openr esty.org/cn/

Nginx 功能介绍

静态的web资源服务器HTML，图片，js，CSS，txt等静态资源 http/https协议的反向代理 结合FastCGI/uWSGI/SCGI等协议反向代理动态资源请求 tcp/udp协议的请求转发（反向代理） imap4/pop3协议的反向代理

基础特性

模块化设计，较好的扩展性高可靠性 支持热部署：不停机更新配置文件，升级版本，更换日志文件 低内存消耗：10000个keep-alive连接模式下的非活动连接，仅需2.5M内存 event-driven,aio,mmap，sendfile

Web 服务相关的功能

虚拟主机（server） 支持 keep-alive 和管道连接(利用一个连接做多次请求) 访问日志（支持基于日志缓冲提高其性能） url rewirte 路径别名 基于IP及用户的访问控制支持速率限制及并发数限制 重新配置和在线升级而无须中断客户的工作进程

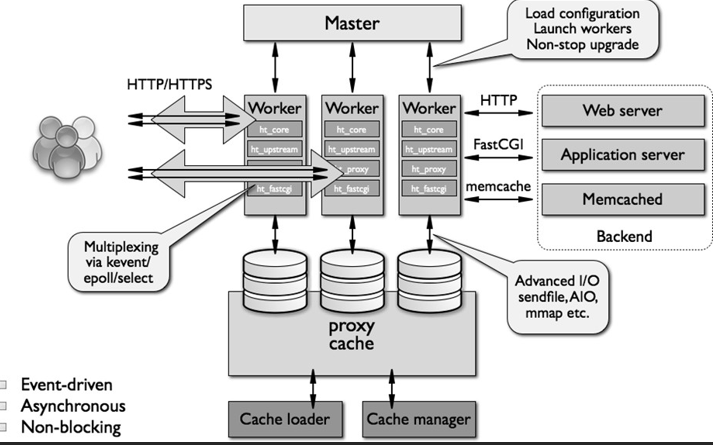

Nginx 架构和进程

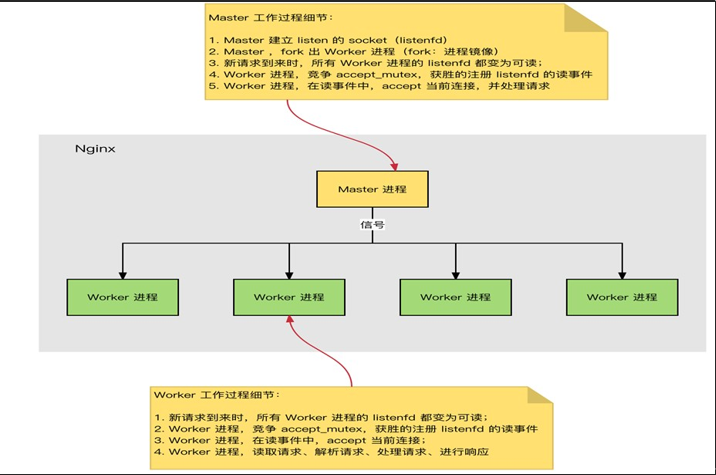

Nginx 进程结构

web请求处理机制

多进程方式：服务器每接收到一个客户端请求就有服务器的主进程生成一个子进程响应客户端，直到用户关闭连接，这样的优势是处理速度快，子进程之间相互独立，但是如果访问过大会导致服务器资源耗尽而无法提供请求

多线程方式：与多进程方式类似，但是每收到一个客户端请求会有服务进程派生出一个线程和此客户端进行交互，一个线程的开销远远小于一个进程，因此多线程方式在很大程度减轻了web服务器对系统资源的要求，但是多线程也有自己的缺点，即当多个线程位于同一个进程内工作的时候，可以相互访问同样的内存地址空间，所以他们相互影响，一旦主进程挂掉则所有子线程都不能工作了，IIS服务器使用了多线程的方式，需要间隔一段时间就重启一次才能稳定。

Nginx是多进程组织模型，而且是一个由Master主进程和Worker工作进程组成。

主进程(master process)的功能：

对外接口：接收外部的操作（信号）

对内转发：根据外部的操作的不同，通过信号管理 Worker

监控：监控 worker 进程的运行状态，worker 进程异常终止后，自动重启 worker 进程读取Nginx 配置文件并验证其有效性和正确性建立、绑定和关闭socket连接 按照配置生成、管理和结束工作进程 接受外界指令，比如重启、升级及退出服务器等指令不中断服务，实现平滑升级，重启服务并应用新的配置开启日志文件，获取文件描述符 不中断服务，实现平滑升级，升级失败进行回滚处理编译和处理perl脚本

工作进程（worker process）的功能： 所有 Worker 进程都是平等的

实际处理：网络请求，由 Worker 进程处理

Worker进程数量：一般设置为核心数，充分利用CPU资源，同时避免进程数量过多，导致进程竞争 CPU资源， 增加上下文切换的损耗接受处理客户的请求 将请求依次送入各个功能模块进行处理 I/O调用，获取响应数据 与后端服务器通信，接收后端服务器的处理结果缓存数据，访问缓存索引，查询和调用缓存数据发送请求结果，响应客户的请求 接收主程序指令，比如重启、升级和退出等

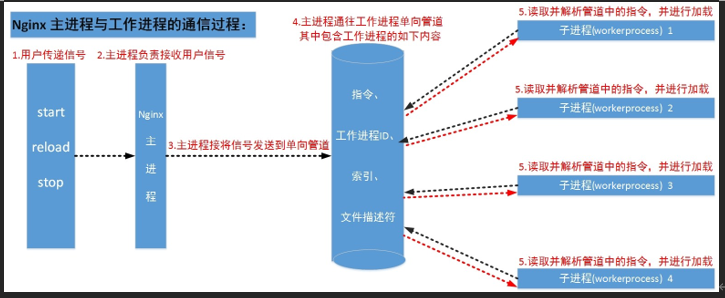

Nginx 进程间通信

工作进程是由主进程生成的，主进程使用fork()函数，在Nginx服务器启动过程中主进程根据配置文件决定启动工作进程的数量，然后建立一张全局的工作表用于存放当前未退出的所有的工作进程，主进程生成工作进程后会将新生成的工作进程加入到工作进程表中，并建立一个单向的管道并将其传递给工作进程，该管道与普通的管道不同，它是由主进程指向工作进程的单向通道，包含了主进程向工作进程发出的指令、工作进程ID、工作进程在工作进程表中的索引和必要的文件描述符等信息。

主进程与外界通过信号机制进行通信，当接收到需要处理的信号时，它通过管道向相关的工作进程发送正确的指令，每个工作进程都有能力捕获管道中的可读事件，当管道中有可读事件的时候，工作进程就会从管道中读取并解析指令，然后采取相应的执行动作，这样就完成了主进程与工作进程的交互。

Nginx 启动和 HTTP 连接建立

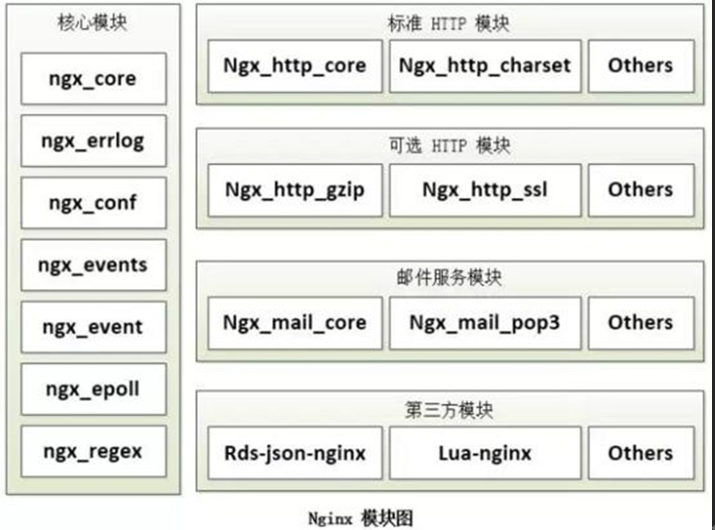

Nginx 模块介绍

nginx 有多种模块

核心模块：是 Nginx 服务器正常运行必不可少的模块，提供错误日志记录 、配置文件解析 、事件驱动机制 、进程管理等核心功能

标准HTTP模块：提供 HTTP 协议解析相关的功能，比如： 端口配置 、 网页编码设置 、 HTTP响应头设置 等等

可选HTTP模块：主要用于扩展标准的 HTTP 功能，让 Nginx 能处理一些特殊的服务，比如： Flash 多媒体传输 、解析 GeoIP 请求、 网络传输压缩 、 安全协议 SSL 支持等

邮件服务模块：主要用于支持 Nginx 的 邮件服务 ，包括对 POP3 协议、 IMAP 协议和 SMTP协议的支持

Stream服务模块: 实现反向代理功能,包括TCP协议代理

第三方模块：是为了扩展 Nginx 服务器应用，完成开发者自定义功能，比如： Json 支持、 Lua 支持等

nginx高度模块化，但其模块早期不支持DSO机制;1.9.11 版本支持动态装载和卸载模块分类：

3..Nginx 核心配置详解

（1）配置文件说明

nginx 官方帮助文档：http://nginx.org/en/docs/

Nginx的配置文件的组成部分：

主配置文件：nginx.conf

子配置文件: include conf.d/*.conf fastcgi， uwsgi，scgi 等协议相关的配置文件

mime.types：支持的mime类型，MIME(Multipurpose Internet Mail Extensions)多用途互联网邮件扩展类型，MIME消息能包含文本、图像、音频、视频以及其他应用程序专用的数据，是设定某种扩展名的文件用一种应用程序来打开的方式类型，当该扩展名文件被访问的时候，浏览器会自动使用指定应用程序来打开。多用于指定一些客户端自定义的文件名，以及一些媒体文件打开方式。

nginx 配置文件格式说明：

配置文件由指令与指令块构成

每条指令以分号结尾，指令与值之间以空格符号分隔

可以将多条指令放在同一行用分号分隔即可，但可读性差，不推荐

指令块以{ }大括号组合多个指令组织在一起且可以嵌套指令块

include语句允许组合多个 配置文件以提升可维护性

使用符号添加注释，提高可读性

使用符号使用变量

部分指令的参数支持正则表达式

Nginx 主配置文件的配置指令方式：

directive value 【value2 ...】；

注意：

（1）指令必须以分号结尾

（2）支持使用配置变量

内建变量：由Nginx模块引入，可直接引用

自定义变量：由用户使用set命令定义，格式：set variable_name value;

引用变量：$variable_name

4.Nginx的源码编译

1.下载软件

root@Nginx \~# wget https://nginx.org/download/nginx-1.28.1.tar.gz

2.解压

root@Nginx \~# tar zxf nginx-1.28.1.tar.gz

root@Nginx \~# cd nginx-1.28.1/

root@Nginx nginx-1.28.1# ls

auto CHANGES.ru conf contrib html man SECURITY.md

CHANGES CODE_OF_CONDUCT.md configure CONTRIBUTING.md LICENSE README.md src

3.检测环境

#安装依赖性

root@Nginx \~# dnf install gcc openssl-devel.x86_64 pcre2-devel.x86_64 zlib-devel -y

root@Nginx nginx-1.28.1# ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

4.编译

root@Nginx nginx-1.28.1# make

root@Nginx nginx-1.28.1# make install

5.nginx启动

#设定环境变量

root@Nginx sbin# vim ~/.bash_profile

export PATH=$PATH:/usr/local/nginx/sbin

root@Nginx sbin# source ~/.bash_profile

root@Nginx logs# useradd -s /sbin/nologin -M nginx

root@Nginx logs# nginx

root@Nginx logs# ps aux | grep nginx

root 44012 0.0 0.1 14688 2356 ? Ss 17:01 0:00 nginx: master process nginx

nginx 44013 0.0 0.2 14888 3892 ? S 17:01 0:00 nginx: worker process

root 44015 0.0 0.1 6636 2176 pts/0 S+ 17:01 0:00 grep --color=auto nginx

#测试

root@Nginx logs# echo timinglee > /usr/local/nginx/html/index.html

6.编写启动文件

root@Nginx \~# vim /lib/systemd/system/nginx.service

Unit

Description=The NGINX HTTP and reverse proxy server

After=syslog.target network-online.target remote-fs.target nss-lookup.target

Wants=network-online.target

Service

Type=forking

ExecStartPre=/usr/local/nginx/sbin/nginx -t

ExecStart=/usr/local/nginx/sbin/nginx

ExecReload=/usr/local/nginx/sbin/nginx -s reload

ExecStop=/bin/kill -s QUIT $MAINPID

PrivateTmp=true

Install

WantedBy=multi-user.target

root@Nginx \~# systemctl daemon-reload

#验证

root@Nginx \~# systemctl status nginx.service

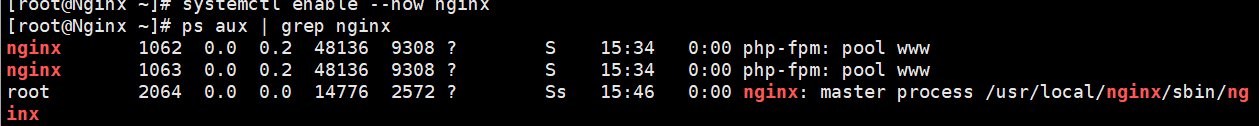

root@Nginx \~# systemctl enable --now nginx

root@Nginx \~# ps aux | grep nginx

root@Nginx \~# reboot

root@Nginx \~# systemctl status nginx.service

5.Nginx的平滑升级及回滚

1.下载高版本的软件

root@Nginx \~# wget https://nginx.org/download/nginx-1.29.4.tar.gz

#编译nginx隐藏版本

root@Nginx \~# tar zxf nginx-1.29.4.tar.gz

root@Nginx \~# cd nginx-1.29.4/src/core/

root@Nginx core# vim nginx.h

#define nginx_version 1029004

#define NGINX_VERSION ""

#define NGINX_VER "TIMINGLEE/" NGINX_VERSION

#文件编辑完成后进行源码编译即可

root@Nginx core# cd ../../

root@Nginx nginx-1.29.4# ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

root@Nginx nginx-1.29.4# make

root@Nginx nginx-1.29.4# cd objs/

root@Nginx objs# ls

autoconf.err nginx ngx_auto_config.h ngx_modules.c src

Makefile nginx.8 ngx_auto_headers.h ngx_modules.o

root@Nginx objs# cd /usr/local/nginx/sbin/

root@Nginx sbin# ls

nginx

root@Nginx sbin# \cp -f /root/nginx-1.29.4/objs/nginx /usr/local/nginx/sbin/nginx

root@Nginx sbin# ls /usr/local/nginx/logs/

access.log error.log nginx.pid

root@Nginx sbin# ps aux | grep nginx

root 1643 0.0 0.1 14688 2360 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 1644 0.0 0.2 14888 3896 ? S 09:55 0:00 nginx: worker process

root@Nginx sbin# kill -USR2 1643 #nginx master进程id

root@Nginx sbin# ps aux | grep nginx

root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 1644 0.0 0.2 14888 3896 ? S 09:55 0:00 nginx: worker process

root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process

root 4923 0.0 0.1 6636 2176 pts/0 S+ 10:25 0:00 grep --color=auto nginx

root@Nginx sbin# ls /usr/local/nginx/logs/

access.log error.log nginx.pid nginx.pid.oldbin

#测试效果

root@Nginx sbin# nginx -V

#回收旧版本子进程

root@Nginx sbin# ps aux | grep nginx

root@Nginx sbin# kill -WINCH 1643

root@Nginx sbin# ps aux | grep nginx

3.版本回退|版本回滚

root@Nginx sbin# cd /usr/local/nginx/sbin/

root@Nginx sbin# cp nginx nginx.new -p

root@Nginx sbin# \cp nginx.old nginx -pf

root@Nginx sbin# ps aux | grep nginx

root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process

root@Nginx sbin# kill -HUP 1643

root@Nginx sbin# ps aux | grep nginx

root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx

root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx

nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process

nginx 4963 0.0 0.2 14888 3896 ? S 10:32 0:00 nginx: worker process

root 4965 0.0 0.1 6636 2176 pts/0 S+ 10:32 0:00 grep --color=auto nginx

root@Nginx sbin# nginx -V

#回收新版本进程

root@Nginx sbin# kill -WINCH 4919

root@Nginx sbin# ps aux | grep nginx

6.Nginx配置文件的管理及优化参数

root@Nginx \~# vim /usr/local/nginx/conf/nginx.conf

user nginx;

root@Nginx \~# nginx -t

nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok

nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful

root@Nginx \~# nginx -s reload

root@Nginx \~# ps aux | grep nginx

root@Nginx \~# vim /usr/local/nginx/conf/nginx.conf

worker_processes 2;

root@Nginx \~# nginx -s reload

root@Nginx \~# ps aux | grep nginx

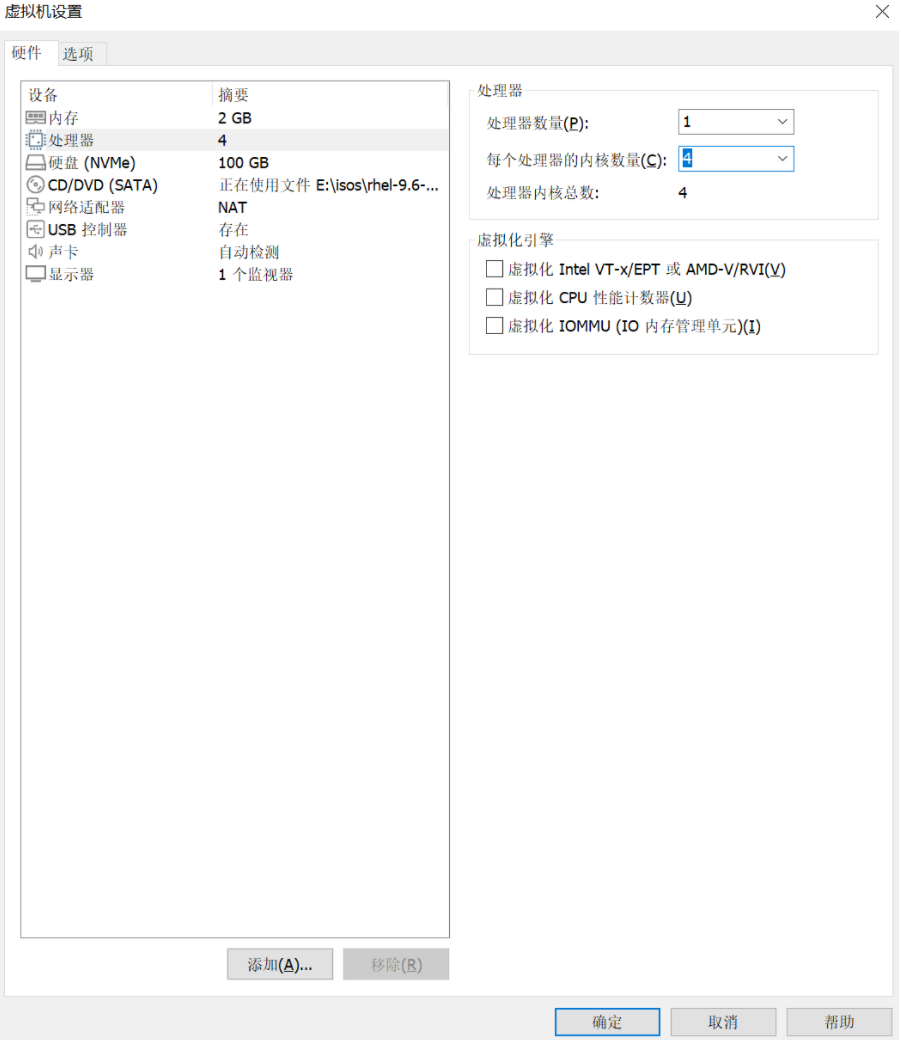

#在vmware中更改硬件cpu核心个数，然后重启

root@Nginx \~# vim /usr/local/nginx/conf/nginx.conf

worker_processes auto;

worker_cpu_affinity 0001 0010 0100 1000;

root@Nginx \~# ps aux | grep nginx

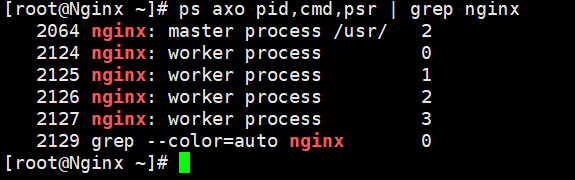

root@Nginx \~# ps axo pid,cmd,psr | grep nginx

root@Nginx \~# vim /usr/local/nginx/conf/nginx.conf

events {

worker_connections 10000;

use epoll;

accept_mutex on;

multi_accept on;

}

root@Nginx \~# nginx -s reload

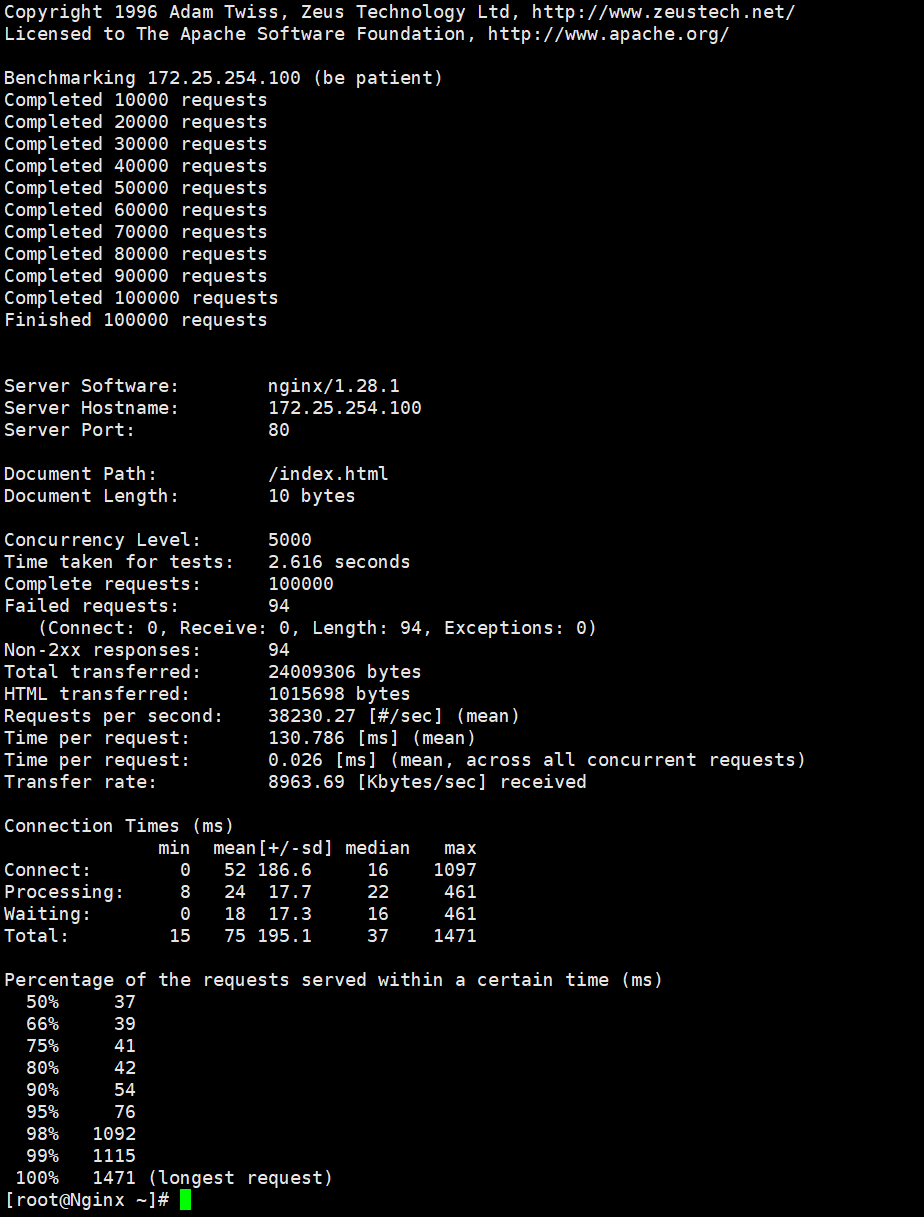

#测试并发

root@Nginx \~# dnf install httpd-tools -y

root@Nginx \~# ab -n 100000 -c5000 http://172.25.254.100/index.html

#处理本地文件系统的并发文件数量

root@Nginx \~# vim /etc/security/limits.conf

* - nofile 100000

* - noproc 100000

root - nofile 100000

root@Nginx \~# sudo -u nginx ulimit -n

100000

root@Nginx \~# ulimit -n 10000

100000

#测试

root@Nginx \~# ab -n 100000 -c10000 http://172.25.254.100/index.html

7.Nginx下构建PC站点

1.location中的root

root@Nginx conf# cd /usr/local/nginx/conf/

root@Nginx conf# mkdir conf.d

root@Nginx conf# vim nginx.conf

82 include "/usr/local/nginx/conf/conf.d/*.conf";

root@Nginx conf# nginx -s reload

root@Nginx conf# cd conf.d/

root@Nginx \~# mkdir -p /webdata/nginx/timinglee.org/lee/html

root@Nginx \~# echo lee.timinglee.org > /webdata/nginx/timinglee.org/lee/html/index.html

root@Nginx conf.d# vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

root /webdata/nginx/timinglee.org/lee/html;

}

}

root@Nginx conf.d]# systemctl restart nginx.service

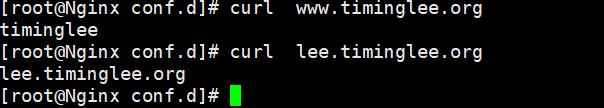

#测试

root@Nginx conf.d# vim /etc/hosts

172.25.254.100 Nginx www.timinglee.org lee.timinglee.org

#local示例需要访问lee.timinglee.org/lee/目录

root@Nginx conf.d# vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

root /webdata/nginx/timinglee.org/lee/html;

}

location /lee { #lee标识location中的root值+location 后面指定的值代表目录的路径

root /webdata/nginx/timinglee.org/lee/html;

}

}

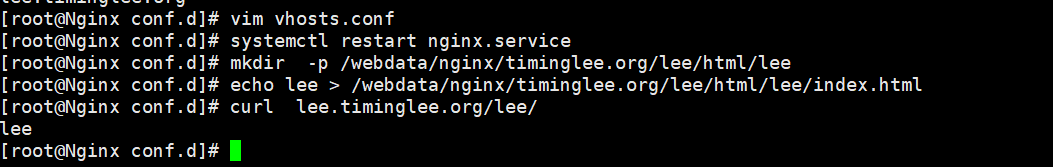

root@Nginx conf.d# systemctl restart nginx.service

root@Nginx conf.d# mkdir -p /webdata/nginx/timinglee.org/lee/html/lee

root@Nginx conf.d# echo lee > /webdata/nginx/timinglee.org/lee/html/lee/index.html

root@Nginx conf.d# curl lee.timinglee.org/lee/

lee

2.location中的alias

root@Nginx conf.d# vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /passwd { #标识文件

alias /etc/passwd;

}

location /passwd/ { #表示目录

alias /mnt/;

}

}

root@Nginx conf.d# nginx -s reload

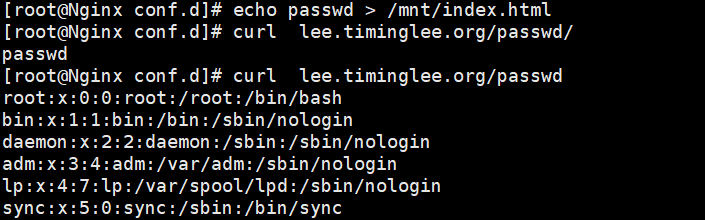

root@Nginx conf.d# echo passwd > /mnt/index.html

#测试

root@Nginx conf.d# curl lee.timinglee.org/passwd/

passwd

root@Nginx conf.d# curl lee.timinglee.org/passwd

8.KeepAlived长链接优化

1.设定长链接时间

root@Nginx \~# vim /usr/local/nginx/conf/nginx.conf

keepalive_timeout 5;

root@Nginx \~# nginx -s reload

#测试

root@Nginx \~# dnf install telnet -y

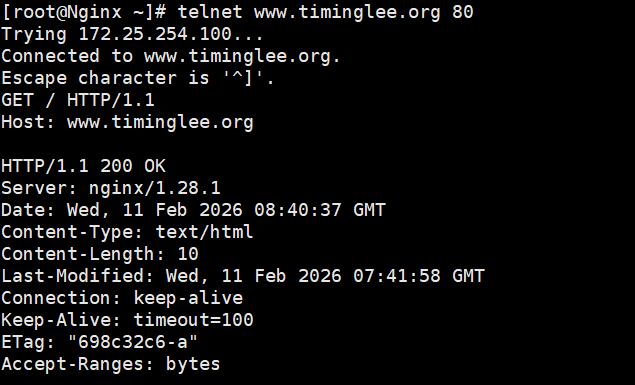

root@Nginx \~# telnet www.timinglee.org 80

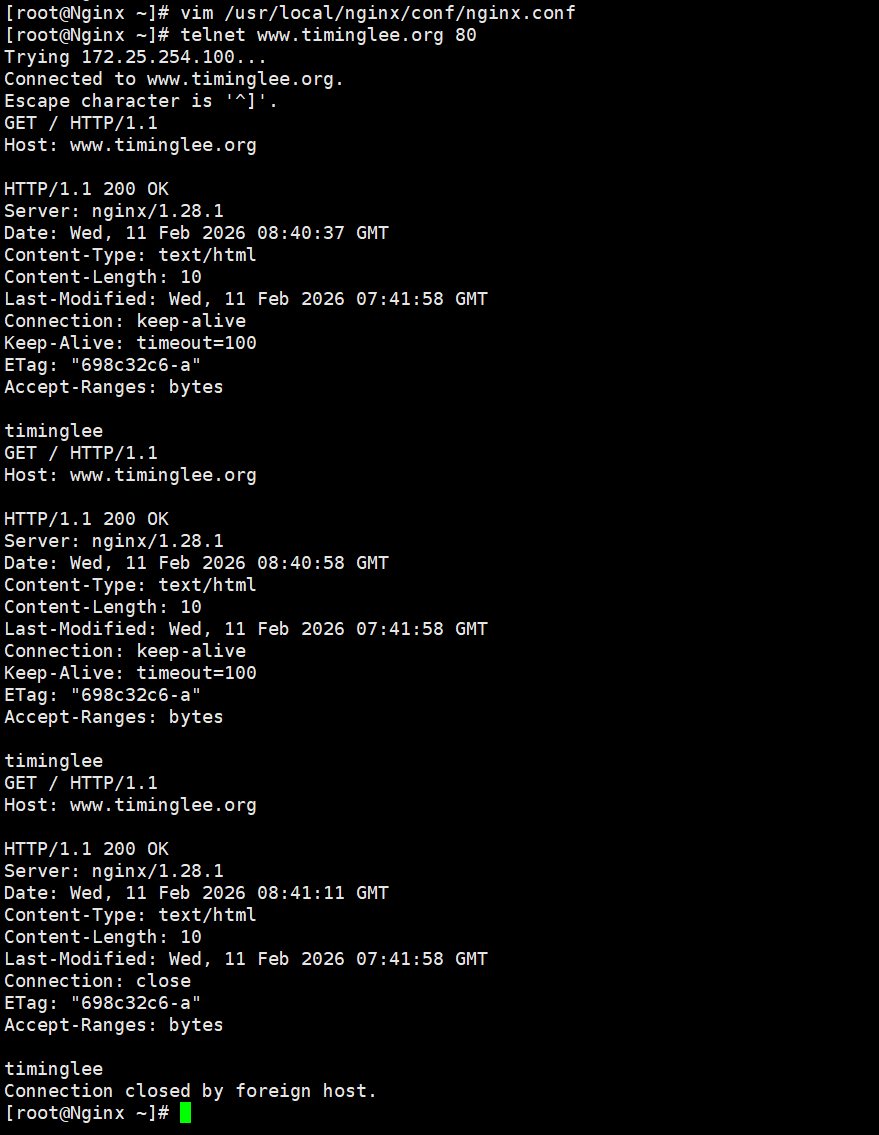

2.设定长链接次数

root@Nginx \~# vim /usr/local/nginx/conf/nginx.conf

keepalive_requests 3;

root@Nginx \~# nginx -s reload

#测试

root@Nginx \~# telnet www.timinglee.org 80

9.Location 字符匹配详解

1.Location后什么都不带直接指定目录

root@Nginx conf.d# vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "/null-1";

}

}

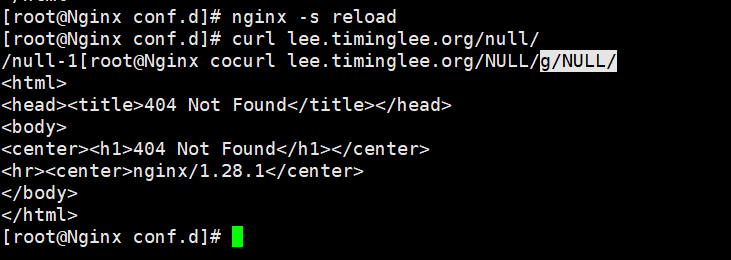

root@Nginx conf.d# curl lee.timinglee.org/null/

/null-1

root@Nginx conf.d# curl lee.timinglee.org/NULL/

2.location 后用 =

root@Nginx conf.d# vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null { #精确匹配到此结束

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

}

root@Nginx conf.d# nginx -s reload

root@Nginx conf.d# curl lee.timinglee.org/null

3.location 后用"^~"

root@Nginx conf.d# vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null {

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

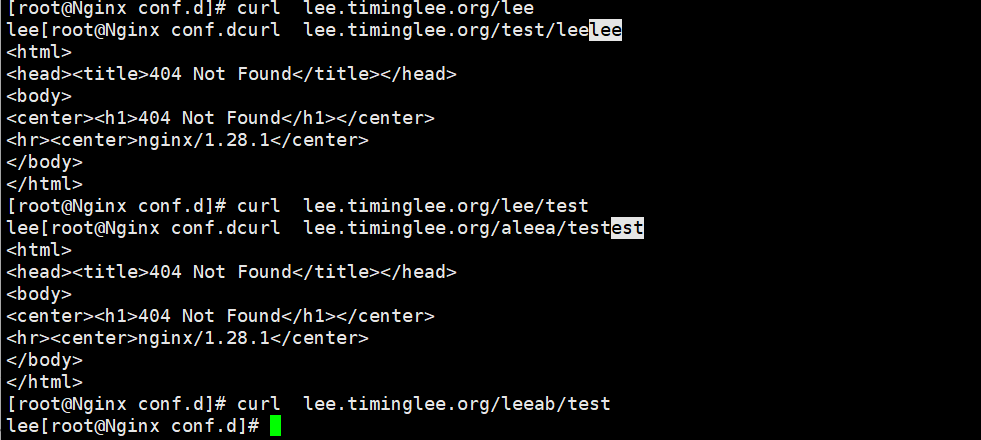

location ^~ /lee {

return 200 "lee";

}

}

root@Nginx conf.d# nginx -s reload

lee

root@Nginx conf.d# curl lee.timinglee.org/lee

lee

root@Nginx conf.d# curl lee.timinglee.org/test/lee

4.location 后用"~"

root@Nginx conf.d# vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null {

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

location ^~ /lee {

return 200 "lee";

}

location ~ /timing/ {

return 200 "timing";

}

}

root@Nginx conf.d# nginx -s reload

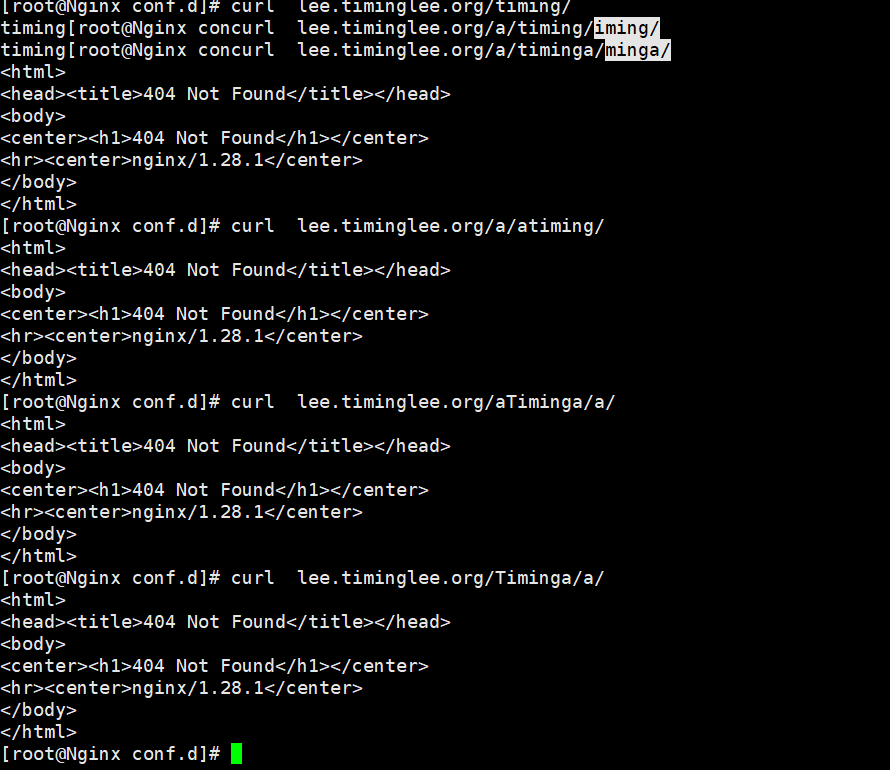

root@Nginx conf.d# curl lee.timinglee.org/timinga/

timing

root@Nginx conf.d# curl lee.timinglee.org/timing/

timing

root@Nginx conf.d# curl lee.timinglee.org/a/timing/

timing

root@Nginx conf.d# curl lee.timinglee.org/a/timinga/

timing

root@Nginx conf.d# curl lee.timinglee.org/a/atiming/

5.location 后用"~*"

root@Nginx conf.d# vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null {

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

location ^~ /lee {

return 200 "lee";

}

location ~ /timing/ {

return 200 "timing";

}

location ~* /timinglee {

return 200 "timinglee";

}

}

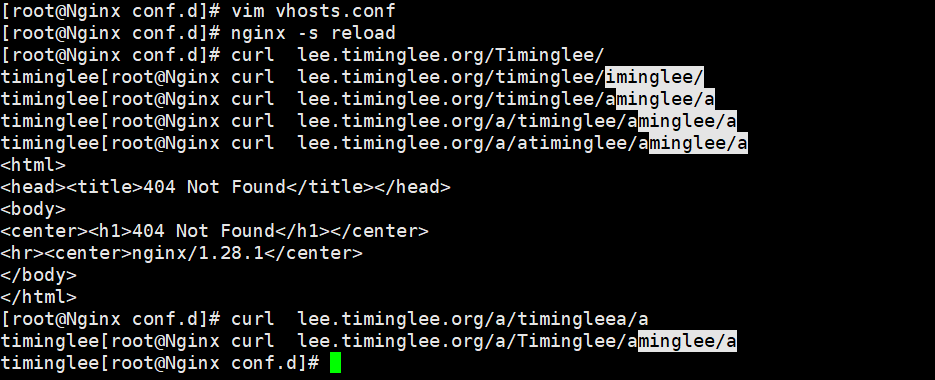

root@Nginx conf.d# nginx -s reload

root@Nginx conf.d# curl lee.timinglee.org/Timinglee/

timinglee

root@Nginx conf.d# curl lee.timinglee.org/timinglee/

timinglee

root@Nginx conf.d# curl lee.timinglee.org/timinglee/a

timinglee

root@Nginx conf.d# curl lee.timinglee.org/a/timinglee/a

timinglee

root@Nginx conf.d# curl lee.timinglee.org/a/atiminglee/a

6.location 后用"\"

root@Nginx conf.d# vim vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /null {

return 200 "null-1";

}

location = /null {

return 200 "null-2";

}

location ~ /null {

return 200 "null-3";

}

location ^~ /lee {

return 200 "lee";

}

location ~ /timing/ {

return 200 "timing";

}

location ~* /timinglee {

return 200 "timinglee";

}

location ~* \.(img|php|jsp)$ {

return 200 "app";

}

}

root@Nginx conf.d# nginx -s reload

root@Nginx conf.d# curl lee.timinglee.org/test.php

app

root@Nginx conf.d# curl lee.timinglee.org/test.jsp

app

10.服务访问的用户认证

root@Nginx \~# htpasswd -cmb /usr/local/nginx/conf/.htpasswd admin lee

Adding password for user admin

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /admin {

root /usr/local/nginx/html;

auth_basic "login passwd";

auth_basic_user_file "/usr/local/nginx/conf/.htpasswd";

}

}

root@Nginx \~# systemctl restart nginx.service

#测试：

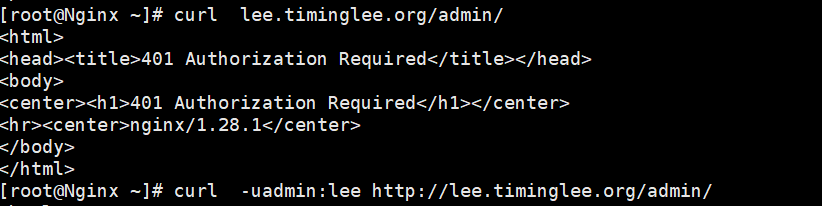

root@Nginx ~]# curl lee.timinglee.org/admin/

root@Nginx \~# curl -uadmin:lee http://lee.timinglee.org/admin/

11.自定义错误页面

root@Nginx \~# mkdir /usr/local/nginx/errorpage

root@Nginx \~# echo "太不巧了，你要访问的页面辞职了！！" > /usr/local/nginx/errorpage/errormessage

root@Nginx \~# cat /usr/local/nginx/errorpage/errormessage

太不巧了，你要访问的页面辞职了！！

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

}

root@Nginx \~# curl lee.timinglee.org/lee/

12.自定义错误日志

root@Nginx \~# mkdir -p /usr/local/nginx/logs/timinglee.org/

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

}

root@Nginx \~# systemctl restart nginx.service

#测试

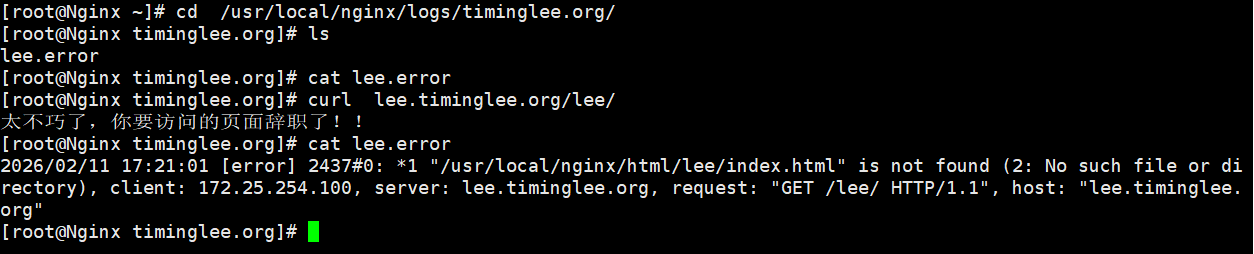

root@Nginx \~# cd /usr/local/nginx/logs/timinglee.org/

root@Nginx timinglee.org# ls

lee.error

root@Nginx timinglee.org# cat lee.error

root@Nginx timinglee.org# curl lee.timinglee.org/lee/

太不巧了，你要访问的页面辞职了！！

root@Nginx timinglee.org# cat lee.error

13.Nginx中建立下载服务器

root@Nginx \~# mkdir -p /usr/local/nginx/download

root@Nginx \~# cp /etc/passwd /usr/local/nginx/download/

root@Nginx \~# dd if=/dev/zero of=/usr/local/nginx/download/bigfile bs=1M count=100

记录了100+0 的读入

记录了100+0 的写出

104857600字节（105 MB，100 MiB）已复制，0.152409 s，688 MB/s

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

}

}

root@Nginx \~# nginx -s reload

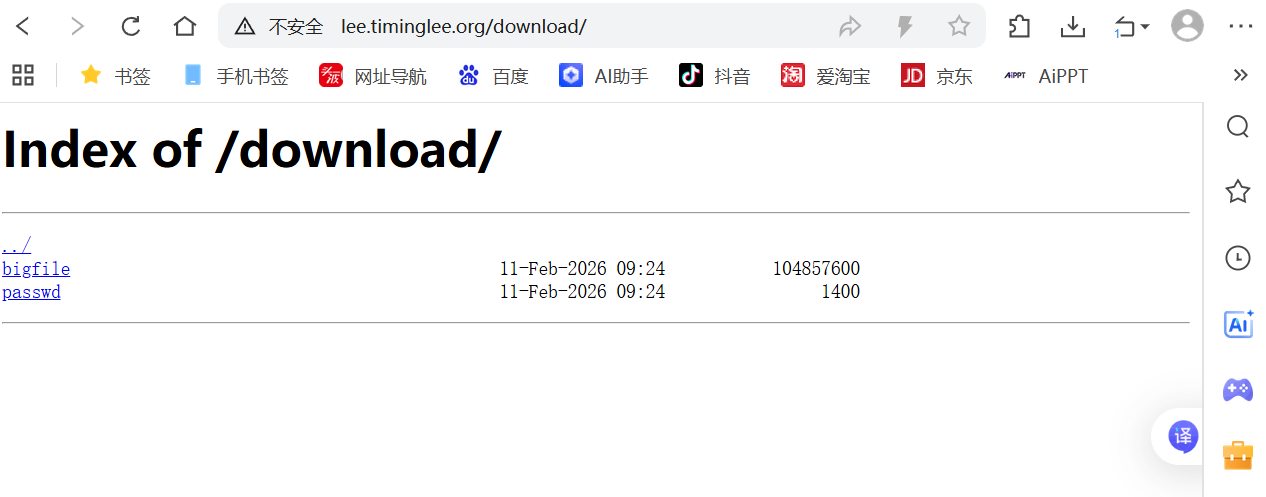

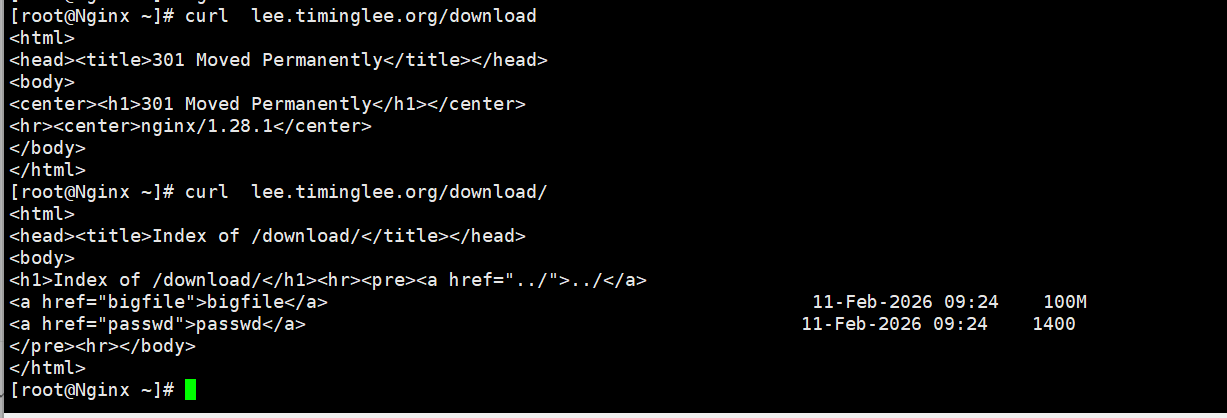

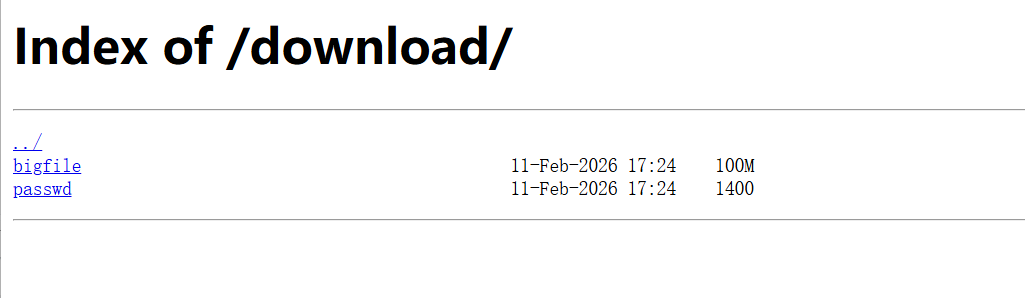

1.启用列表功能

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

autoindex on;

}

}

root@Nginx \~# nginx -s reload

2.下载控速

root@Nginx \~# wget http://lee.timinglee.org/download/bigfile

root@Nginx \~# rm -fr bigfile

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

autoindex on;

limit_rate 1024k;

}

}

root@Nginx \~# nginx -s reload

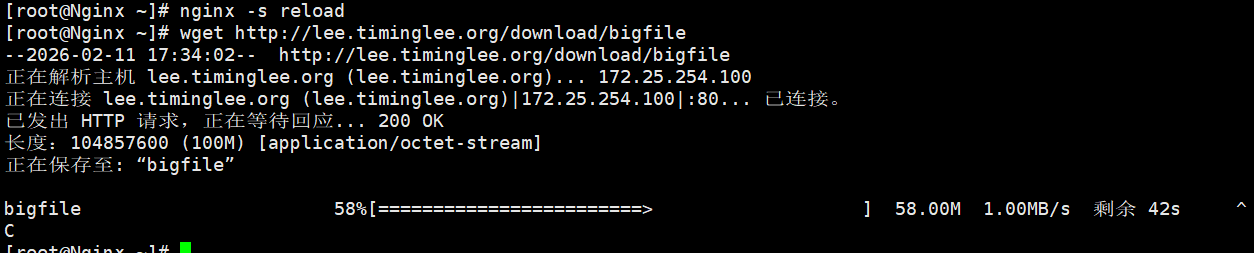

root@Nginx \~# wget http://lee.timinglee.org/download/bigfile

3.显示文件大小优化

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

autoindex on;

limit_rate 1024k;

autoindex_exact_size off;

}

}

root@Nginx \~# nginx -s reload

4.时间显示调整

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

autoindex on;

limit_rate 1024k;

autoindex_exact_size off;

autoindex_localtime on;

}

}

root@Nginx \~# nginx -s reload

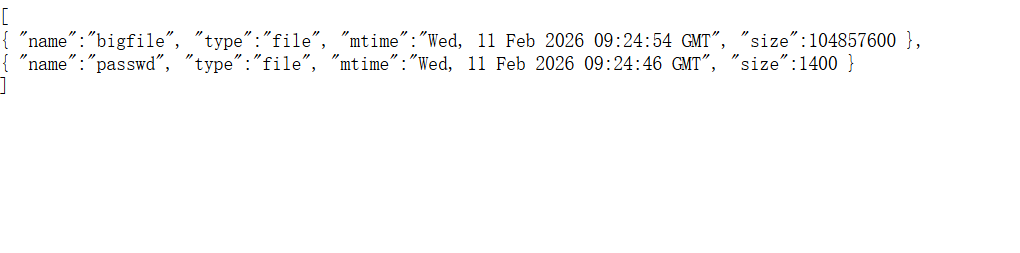

5.设定页面风格

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

location /lee {

root /usr/local/nginx/html;

}

location /error {

alias /usr/local/nginx/errorpage/errormessage;

}

location /download {

root /usr/local/nginx;

autoindex on;

limit_rate 1024k;

autoindex_exact_size off;

autoindex_localtime on;

autoindex_format html | xml | json | jsonp;

}

}

root@Nginx \~# nginx -s reload

14.Nginx的文件检测

root@Nginx \~# echo default > /usr/local/nginx/errorpage/default.html

root@Nginx \~# cat /usr/local/nginx/errorpage/default.html

default

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

error_page 404 405 503 502 /error;

error_log logs/timinglee.org/lee.error error;

root /usr/local/nginx/errorpage;

try_files uri uri.html $uri/index.html /default.html;

}

root@Nginx \~# nginx -s reload

#测试：

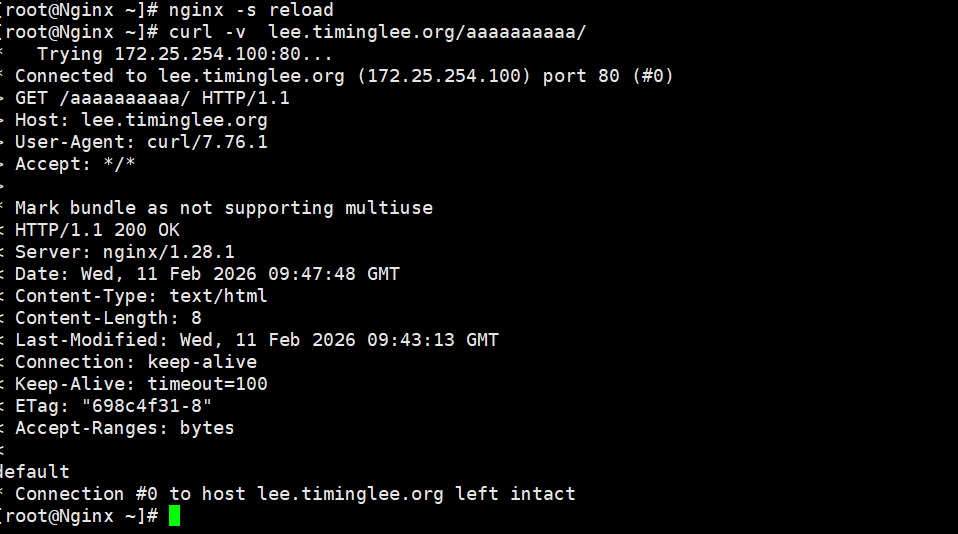

root@Nginx \~# curl -v lee.timinglee.org/aaaaaaaaaa/

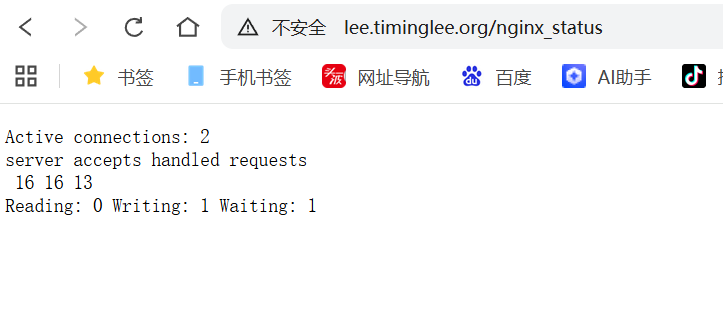

15.Nginx的状态页

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location /nginx_status{

stub_status;

auth_basic "auth login";

auth_basic_user_file /usr/local/nginx/conf/.htpasswd;

allow 172.25.254.0/24;

deny all;

}

}

root@Nginx \~# nginx -s reload

16.Nginx的压缩功能

root@Nginx \~# mkdir /usr/local/nginx/timinglee.org/lee/html -p

root@Nginx \~# echo hello lee > /usr/local/nginx/timinglee.org/lee/html/index.html

root@Nginx html# cp /usr/local/nginx/logs/access.log /usr/local/nginx/timinglee.org/lee/html/bigfile.txt

root@Nginx \~# vim /usr/local/nginx/conf/nginx.conf

gzip on;

gzip_comp_level 4;

gzip_disable "MSIE 1-6\.";

gzip_min_length 1024k;

gzip_buffers 32 1024k

gzip_types text/plain application/javascript application/x-javascript text/css application/xml text/javascript application/x-httpd-php image/gif image/png;

gzip_vary on;

gzip_static on;

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /nginx_status{

stub_status;

auth_basic "auth login";

auth_basic_user_file /usr/local/nginx/conf/.htpasswd;

allow 172.25.254.0/24;

deny all;

}

}

root@Nginx \~# nginx -s reload

#测试

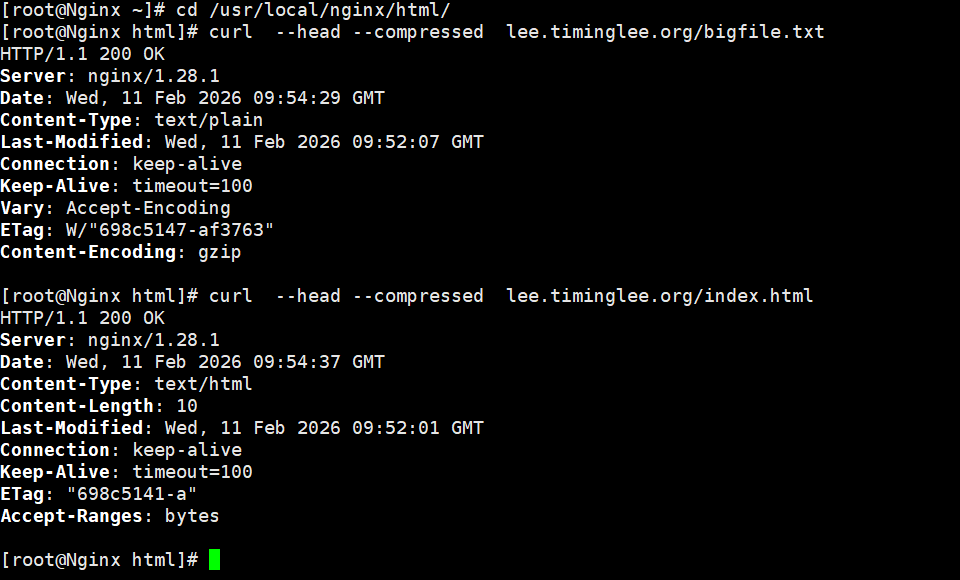

root@Nginx html# curl --head --compressed lee.timinglee.org/bigfile.txt

17.Nginx 变量

1.升级Nginx支持echo

root@Nginx \~# systemctl stop nginx.service

root@Nginx \~# ps aux | grep nginx

root 5193 0.0 0.1 6636 2176 pts/1 S+ 16:08 0:00 grep --color=auto nginx

root@Nginx \~# tar zxf echo-nginx-module-0.64.tar.gz

root@Nginx \~# cd nginx-1.28.1/

root@Nginx nginx-1.28.1# make clean

root@Nginx nginx-1.28.1# ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module --add-module=/root/echo-nginx-module-0.64

root@Nginx nginx-1.28.1# make

root@Nginx nginx-1.28.1# rm -rf /usr/local/nginx/sbin/nginx

root@Nginx nginx-1.28.1# cp objs/nginx /usr/local/nginx/sbin/ -p

#测试

root@Nginx nginx-1.28.1# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $remote_addr;

}

}

root@Nginx nginx-1.28.1# nginx -t

nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok

nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful

root@Nginx nginx-1.28.1# systemctl start nginx.service

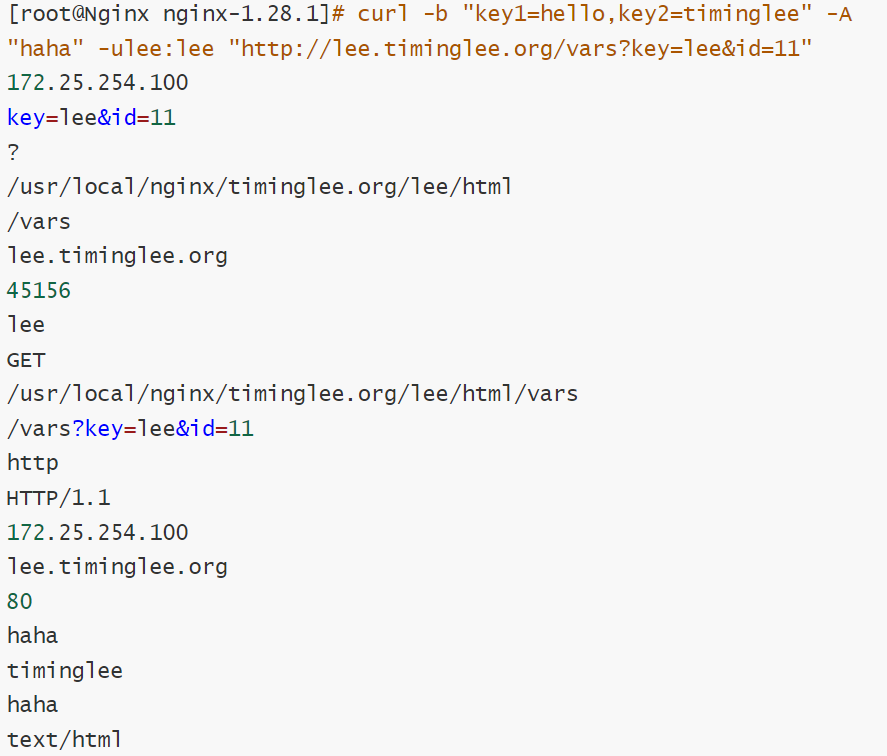

2.理解内建变量

root@Nginx nginx-1.28.1# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $remote_addr;

}

}

root@Nginx nginx-1.28.1# nginx -s reload

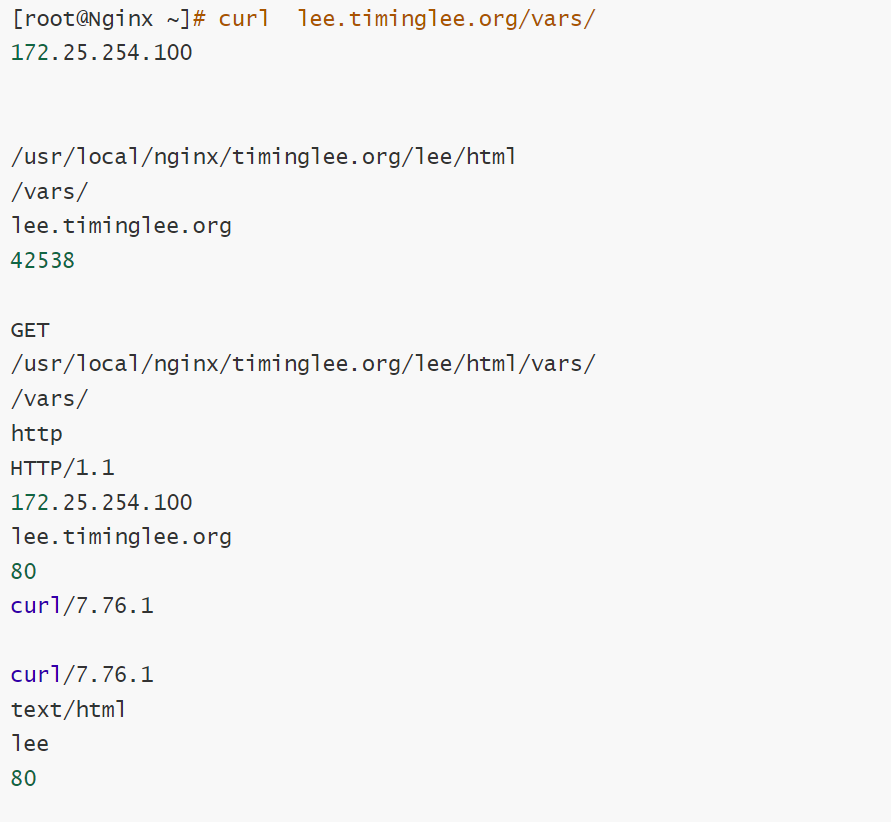

root@Nginx nginx-1.28.1# curl lee.timinglee.org/vars/

172.25.254.100

root@Nginx nginx-1.28.1# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $args;

}

}

root@Nginx nginx-1.28.1# nginx -s reload

root@Nginx nginx-1.28.1# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $args;

echo $is_args;

}

}

root@Nginx nginx-1.28.1# nginx -s reload

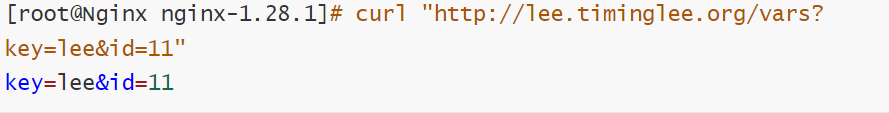

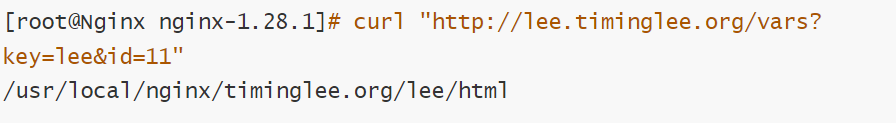

root@Nginx nginx-1.28.1# curl "http://lee.timinglee.org/vars?

root@Nginx nginx-1.28.1# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $document_root;

}

}

root@Nginx nginx-1.28.1# nginx -s reload

root@Nginx nginx-1.28.1# vim /usr/local/nginx/conf/conf.d/vhosts.conf

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $remote_addr;

echo $args;

echo $is_args;

echo $document_root;

echo $document_uri;

echo $host;

echo $remote_port;

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

echo $server_protocol;

echo $server_addr;

echo $server_name;

echo $server_port;

echo $http_user_agent;

echo $cookie_key2;

echo $http_user_agent;

echo $sent_http_content_type;

}

}

root@Nginx nginx-1.28.1# nginx -s reload

root@Nginx nginx-1.28.1# curl -b "key1=hello,key2=timinglee" -A "haha" -ulee:lee "http://lee.timinglee.org/vars?key=lee\&id=11"

18.自定义变量

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /usr/local/nginx/timinglee.org/lee/html;

location /vars {

default_type text/html;

echo $remote_addr;

echo $args;

echo $is_args;

echo $document_root;

echo $document_uri;

echo $host;

echo $remote_port;

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

echo $server_protocol;

echo $server_addr;

echo $server_name;

echo $server_port;

echo $http_user_agent;

echo $cookie_key2;

echo $http_user_agent;

echo $sent_http_content_type;

set $test lee; #手动设定变量值

echo $test;

set web_port server_port; #变量个传递

echo $web_port;

}

}

root@Nginx \~# nginx -s reload

root@Nginx \~# curl lee.timinglee.org/vars/

19.Nginx利用网页重写实现全站加密

1.制作key

root@Nginx \~# openssl req -newkey rsa:2048 -nodes -sha256 -keyout /usr/local/nginx/certs/timinglee.org.key -x509 -days 365 -out /usr/local/nginx/certs/timinglee.org.crt

2.编辑加密配置文件

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

listen 443 ssl;

ssl_certificate /usr/local/nginx/certs/timinglee.org.crt;

ssl_certificate_key /usr/local/nginx/certs/timinglee.org.key;

ssl_session_cache shared:sslcache:20m;

ssl_session_timeout 10m;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location / {

if ($scheme = http ){

rewrite /(.*) https://$host/$1 redirect;

}

}

}

root@Nginx \~# systemctl restart nginx.service

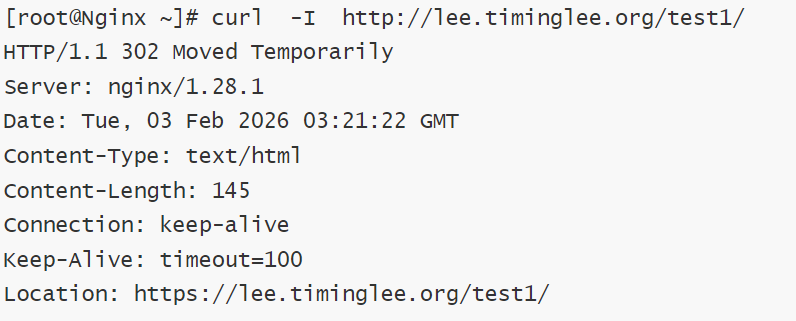

#测试

root@Nginx \~# curl -I http://lee.timinglee.org/test1/

20.网页从写

1.网页重写中的指令

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

if ( $http_user_agent ~* firefox ) {

return 200 "test if messages";

}

}

}

root@Nginx \~# nginx -s reload

root@Nginx \~# curl lee.timinglee.org

lee page

root@Nginx \~# curl -A "firefox" lee.timinglee.org

test if messagesroot@Nginx \~#

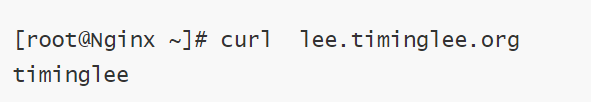

#set

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

set $testname timinglee;

echo $testname;

}

}

root@Nginx \~# nginx -s reload

#return

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

return 200 "hello world";

}

}

root@Nginx \~# nginx -s reload

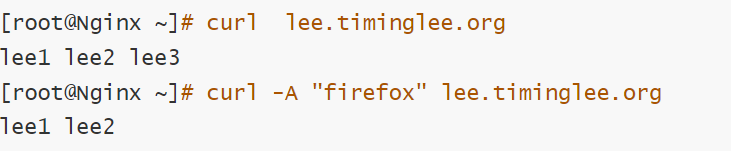

#break

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

set $test1 lee1;

set $test2 lee2;

if ($http_user_agent = firefox){

break;

}

set $test3 lee3;

echo test1 test2 $test3;

}

}

root@Nginx \~# nginx -s reload

2 flag

#redirect;

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

rewrite / http://www.baidu.com redirect;

}

}

root@Nginx \~# nginx -s reload

root@Nginx \~# curl -I lee.timinglee.org

HTTP/1.1 302 Moved Temporarily #定向方式返回值

Server: nginx/1.28.1

Date: Tue, 03 Feb 2026 02:43:47 GMT

Content-Type: text/html

Content-Length: 145

Connection: keep-alive

Keep-Alive: timeout=100

Location: http://www.baidu.com #定向效果

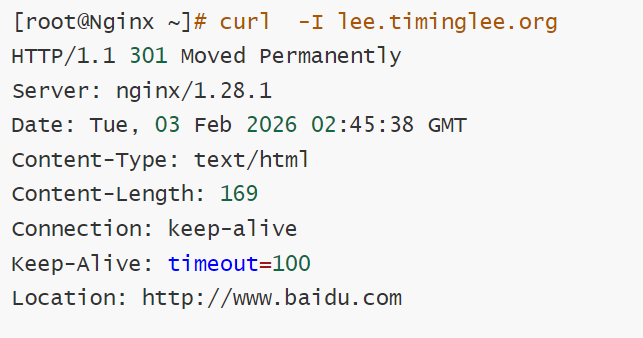

#permanent

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location / {

rewrite / http://www.baidu.com permanent;

}

}

root@Nginx \~# nginx -s reload

#break 和 last

root@Nginx \~# mkdir /webdir/timinglee.org/lee/html/{break,last,test1,test2}

root@Nginx \~# echo break > /webdir/timinglee.org/lee/html/break/index.html

root@Nginx \~# echo last > /webdir/timinglee.org/lee/html/last/index.html

root@Nginx \~# echo test1 > /webdir/timinglee.org/lee/html/test1/index.html

root@Nginx \~# echo test2 > /webdir/timinglee.org/lee/html/test2/index.html

#break

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location /break {

rewrite /break/(.*) /test1/$1 break;

rewrite /test1 /test2;

}

location /test1 {

return 200 "test1 end page";

}

location /test2 {

return 200 "TEST2 END PAGE";

}

}

root@Nginx ~]# nginx -s reload

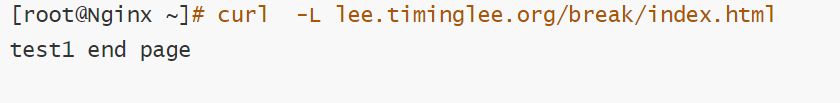

root@Nginx \~# curl -L lee.timinglee.org/break/index.html

test1

#last

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location /vars {

echo $remote_user;

echo $request_method;

echo $request_filename;

echo $request_uri;

echo $scheme;

}

location /break {

rewrite /break/(.*) /test1/$1 last;

rewrite /test1 /test2;

}

location /test1 {

return 200 "test1 end page";

}

location /test2 {

return 200 "TEST2 END PAGE";

}

}

root@Nginx ~]# nginx -s reload

21.防盗链

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

root /webdir/timinglee.org/lee/html;

location / {

valid_referers none blocked server_names *.timinglee.org ~/.baidu/.;

if ($invalid_referer){

return 404;

}

}

location /img {

valid_referers none blocked server_names *.timinglee.org ~/.baidu/.;

if ($invalid_referer){

rewrite ^/ http://lee.timinglee.org/daolian/daolian.png;

}

}

}

root@Nginx \~# nginx -s reload

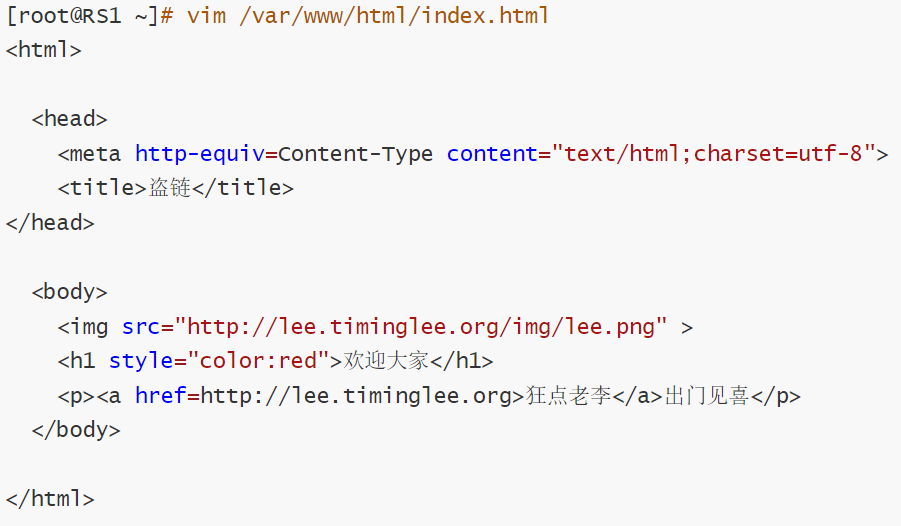

#另外的web服务器

root@RS1 \~# vim /var/www/html/index.html

#在浏览器中访问看效果

22.Nginx反向代理

#172.25.254.10 RS1 172.25.254.20 RS2

root@RSX \~# dnf install httpd -y

root@RSX \~# systemctl enable --now httpd

root@RSX \~# echo 172.25.254.20 > /var/www/html/index.html

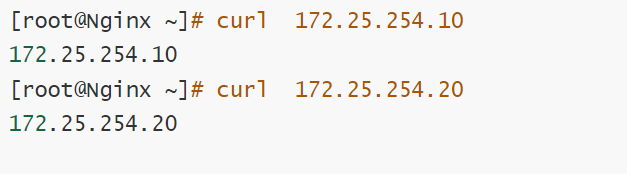

#测试 在Nginx主机中

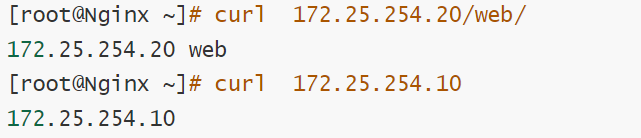

2.简单的代理方法

root@RS2 \~# mkdir /var/www/html/web

root@RS2 \~# echo 172.25.254.20 web > /var/www/html/web/index.html

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.10:80;

}

location /web {

proxy_pass http://172.25.254.20:80;

}

}

root@Nginx \~# nginx -s reload

3.proxy_hide_header filed

Administrator.DESKTOP-VJ307M3 ➤ curl -v lee.timinglee.org

* Trying 172.25.254.100:80...

* TCP_NODELAY set

* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)

> GET / HTTP/1.1

> Host: lee.timinglee.org

> User-Agent: curl/7.65.0

> Accept: */*

>

* Mark bundle as not supporting multiuse

< HTTP/1.1 200 OK

< Server: nginx/1.28.1

< Date: Tue, 03 Feb 2026 06:31:03 GMT

< Content-Type: text/html; charset=UTF-8

< Content-Length: 14

< Connection: keep-alive

< Keep-Alive: timeout=100

< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT

< ETag: "e-649e570e8a49f" #可以看到ETAG信息

< Accept-Ranges: bytes

<

172.25.254.10

* Connection #0 to host lee.timinglee.org left intact

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.10:80;

proxy_hide_header ETag;

}

location /web {

proxy_pass http://172.25.254.20:80;

}

}

root@Nginx \~# nginx -s reload

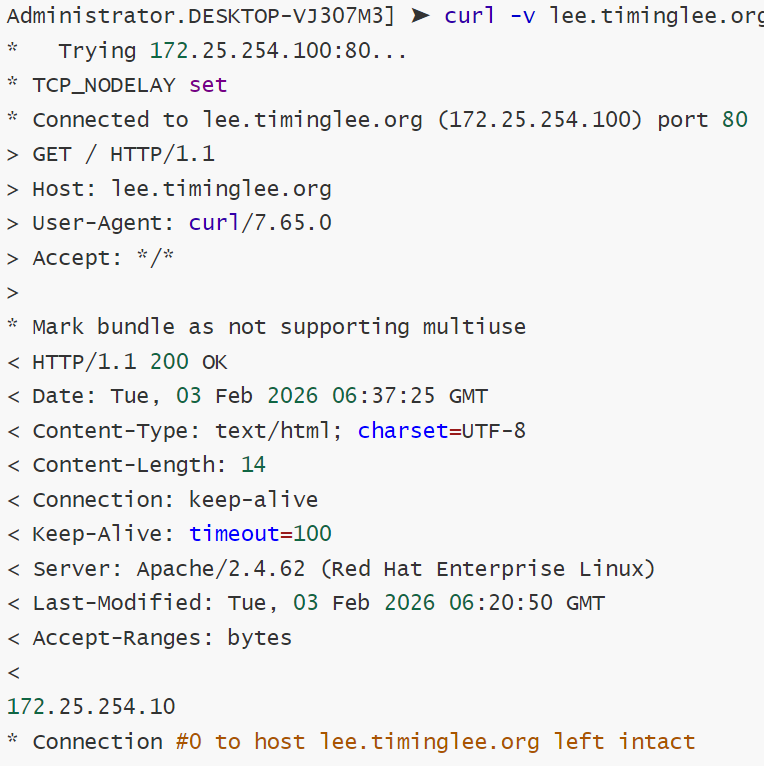

4.proxy_pass_header

Administrator.DESKTOP-VJ307M3 ➤ curl -v lee.timinglee.org

* Trying 172.25.254.100:80...

* TCP_NODELAY set

* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)

> GET / HTTP/1.1

> Host: lee.timinglee.org

> User-Agent: curl/7.65.0

> Accept: */*

>

* Mark bundle as not supporting multiuse

< HTTP/1.1 200 OK

< Server: nginx/1.28.1 #默认访问不透传server信息

< Date: Tue, 03 Feb 2026 06:35:35 GMT

< Content-Type: text/html; charset=UTF-8

< Content-Length: 14

< Connection: keep-alive

< Keep-Alive: timeout=100

< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT

< Accept-Ranges: bytes

<

172.25.254.10

* Connection #0 to host lee.timinglee.org left intact

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.10:80;

proxy_pass_header Server;

}

location /web {

proxy_pass http://172.25.254.20:80;

}

}

root@Nginx \~# nginx -s reload

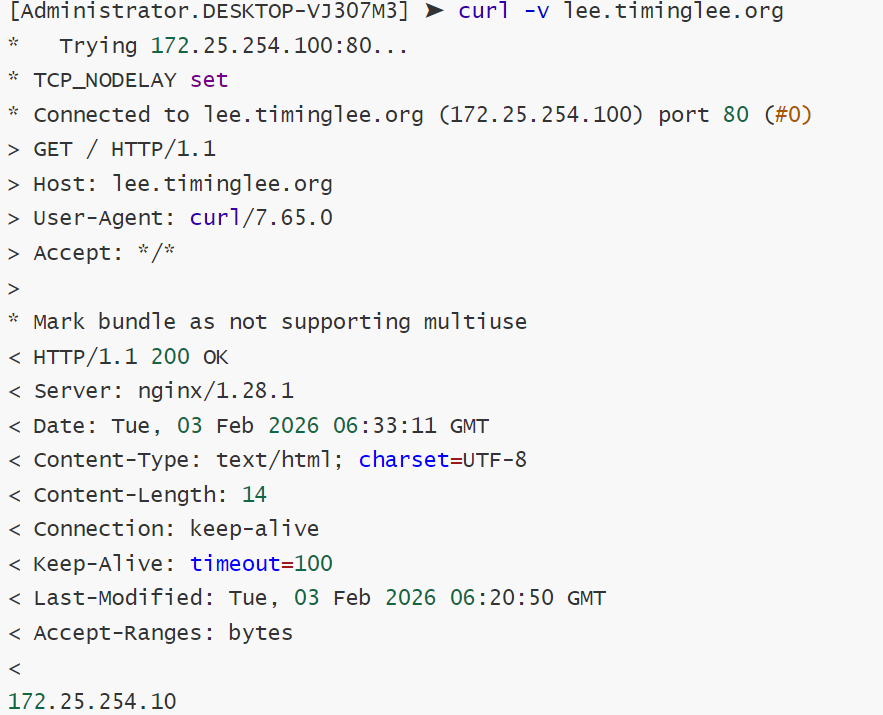

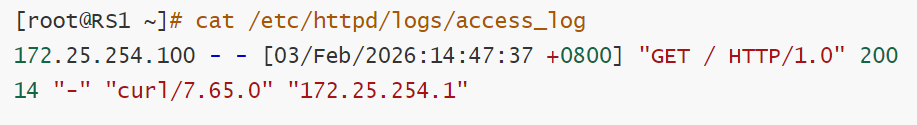

4.透传信息

root@RS1 \~# vim /etc/httpd/conf/httpd.conf

LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\" \"%{X-Forwarded-For}i\"" combined

root@RS1 \~# systemctl restart httpd

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.10:80;

proxy_set_header X-Forwarded-For $remote_addr;

}

location /web {

proxy_pass http://172.25.254.20:80;

}

root@Nginx \~# nginx -s reload

Administrator.DESKTOP-VJ307M3 ➤ curl lee.timinglee.org

172.25.254.10

23.利用反向代理实现动静分离

1.试验机环境

root@RS1 \~# dnf install php -y

root@RS1 \~# systemctl restart httpd

root@RS1 \~# vim /var/www/html/index.php

<?php

echo "<h2>172.25.254.10</h2>";

phpinfo();

?>

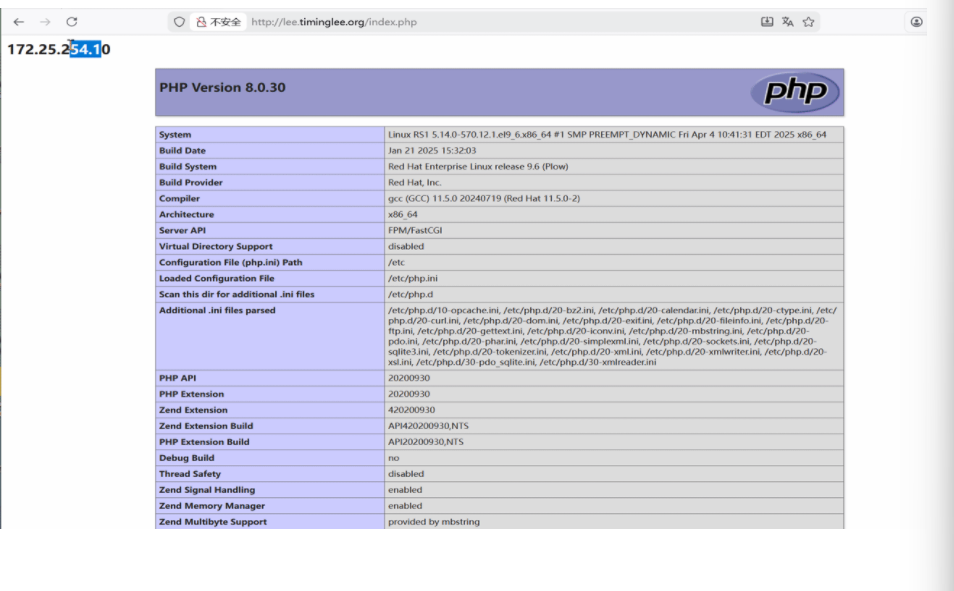

2.动静分离的实现

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.20:80;

}

location ~* \.(php|js)$ {

proxy_pass http://172.25.254.10:80;

}

}

root@Nginx \~# nginx -s reload

24.缓存加速

1.当未启用缓存时进行压测

Administrator.DESKTOP-VJ307M3 ➤ ab -n 10000 -c 50 lee.timinglee.org/index.php

This is ApacheBench, Version 2.3 <Revision: 1807734 >

Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking lee.timinglee.org (be patient)

Completed 1000 requests

Completed 2000 requests

Completed 3000 requests

Completed 4000 requests

Completed 5000 requests

Completed 6000 requests

Completed 7000 requests

Completed 8000 requests

Completed 9000 requests

Completed 10000 requests

Finished 10000 requests

Server Software: nginx/1.28.1

Server Hostname: lee.timinglee.org

Server Port: 80

Document Path: /index.php

Document Length: 72921 bytes

Concurrency Level: 50

Time taken for tests: 13.678 seconds

Complete requests: 10000

Failed requests: 9963 #失败的

(Connect: 0, Receive: 0, Length: 9963, Exceptions: 0)

Total transferred: 731097819 bytes

HTML transferred: 729237819 bytes

Requests per second: 731.10 #/sec (mean)

Time per request: 68.390 ms (mean)

Time per request: 1.368 ms (mean, across all concurrent requests)

Transfer rate: 52197.72 Kbytes/sec received

Connection Times (ms)

min mean+/-sd median max

Connect: 0 7 4.0 6 26

Processing: 4 61 168.8 44 3405

Waiting: 2 38 129.9 26 3316

Total: 5 68 168.7 51 3405

Percentage of the requests served within a certain time (ms)

50% 51

66% 61

75% 68

80% 71

90% 83

95% 92

98% 105

99% 506

100% 3405 (longest request)

2.设定缓存加速

root@Nginx \~# vim /usr/local/nginx/conf/nginx.conf

proxy_cache_path /usr/local/nginx/proxy_cache levels=1:2:2 keys_zone=proxycache:20m inactive=120s max_size=1g;

server {

listen 80;

server_name lee.timinglee.org;

location / {

proxy_pass http://172.25.254.20:80;

}

location ~* \.(php|js)$ {

proxy_pass http://172.25.254.10:80;

proxy_cache proxycache;

proxy_cache_key $request_uri;

proxy_cache_valid 200 302 301 10m;

proxy_cache_valid any 1m;

}

}

root@Nginx \~# systemctl restart nginx.service

root@Nginx \~# tree /usr/local/nginx/proxy_cache/

/usr/local/nginx/proxy_cache/

0 directories, 0 files

#测试

Administrator.DESKTOP-VJ307M3 ➤ ab -n 10000 -c 50 lee.timinglee.org/index.php

This is ApacheBench, Version 2.3 <Revision: 1807734 >

Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking lee.timinglee.org (be patient)

Completed 1000 requests

Completed 2000 requests

Completed 3000 requests

Completed 4000 requests

Completed 5000 requests

Completed 6000 requests

Completed 7000 requests

Completed 8000 requests

Completed 9000 requests

Completed 10000 requests

Finished 10000 requests

Server Software: nginx/1.28.1

Server Hostname: lee.timinglee.org

Server Port: 80

Document Path: /index.php

Document Length: 72925 bytes

Concurrency Level: 50

Time taken for tests: 4.365 seconds

Complete requests: 10000

Failed requests: 0

Total transferred: 731110000 bytes

HTML transferred: 729250000 bytes

Requests per second: 2290.76 #/sec (mean)

Time per request: 21.827 ms (mean)

Time per request: 0.437 ms (mean, across all concurrent requests)

Transfer rate: 163554.31 Kbytes/sec received

Connection Times (ms)

min mean+/-sd median max

Connect: 0 4 1.8 4 11

Processing: 4 18 31.3 15 734

Waiting: 1 9 30.7 5 726

Total: 6 22 31.2 20 734

Percentage of the requests served within a certain time (ms)

50% 20

66% 21

75% 21

80% 22

90% 27

95% 32

98% 41

99% 46

100% 734 (longest request)

root@Nginx \~# tree /usr/local/nginx/proxy_cache/

25.反向代理负载均衡

1.实验环境

172.25.254.100 #Nginx 代理服务器

172.25.254.10 #后端web A，Apache部署

172.25.254.20 #后端web B，Apache部署

2.实现负载均衡

root@Nginx \~# mkdir /usr/local/nginx/conf/upstream/

root@Nginx \~# vim /usr/local/nginx/conf/nginx.conf

events {

worker_connections 10000;

use epoll;

accept_mutex on;

multi_accept on;

}

http {

include mime.types;

default_type application/octet-stream;

include "/usr/local/nginx/conf/upstream/*.conf"; #子配置目录

root@Nginx \~# vim /usr/local/nginx/conf/upstream/loadbalance.conf

upstream webserver {

server 172.25.254.10:80 weight=1 fail_timeout=15s max_fails=3;

server 172.25.254.20:80 weight=1 fail_timeout=15s max_fails=3;

server 172.25.254.100:8888 backup;

}

server {

listen 80;

server_name www.timinglee.org;

location ~ / {

proxy_pass http://webserver;

}

}

root@Nginx \~# mkdir /webdir/timinglee.org/error/html -p

root@Nginx \~# echo error > /webdir/timinglee.org/error/html/index.html

root@Nginx \~# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {

listen 8888;

root /webdir/timinglee.org/error/html;

}

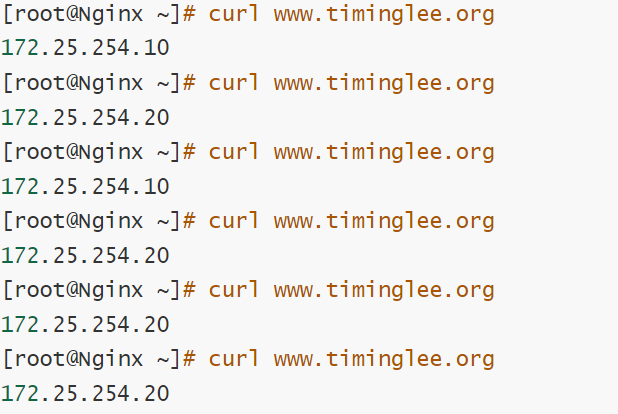

#测试：

root@RS1+2 \~# systemctl stop httpd

root@Nginx \~# curl www.timinglee.org

error

26.Nginx负载均衡算法

root@Nginx \~# vim /usr/local/nginx/conf/upstream/loadbalance.conf

upstream webserver {

#ip_hash;

#hash $request_uri consistent;

#least_conn;

hash $cookie_lee;

server 172.25.254.10:80 weight=1 fail_timeout=15s max_fails=3;

server 172.25.254.20:80 weight=1 fail_timeout=15s max_fails=3;

#server 172.25.254.100:8888 backup;

}

server {

listen 80;

server_name www.timinglee.org;

location ~ / {

proxy_pass http://webserver;

}

}

root@Nginx \~# curl -b lee=20 www.timinglee.org

root@Nginx \~# curl www.timinglee.org/web1/index.html

root@Nginx \~# curl www.timinglee.org/

27.PHP的源码编译

1.下载源码包

root@Nginx \~# wget https://www.php.net/distributions/php-8.3.30.tar.gz

root@Nginx \~# wget https://mirrors.aliyun.com/rockylinux/9.7/devel/x86_64/os/Packages/o/oniguruma-devel-6.9.6-1.el9.6.x86_64.rpm #依赖

2.解压

root@Nginx \~# tar zxf php-8.3.30.tar.gz

root@Nginx \~# ls

anaconda-ks.cfg lee.png nginx-1.29.4.tar.gz test.c

daolian.png nginx-1.28.1 php-8.3.30

echo-nginx-module-0.64 nginx-1.28.1.tar.gz php-8.3.30.tar.gz

echo-nginx-module-0.64.tar.gz nginx-1.29.4 test

root@Nginx \~# cd php-8.3.30

3.源码编译

root@Nginx \~# dnf install gcc systemd-devel-252-51.el9.x86_64 libxml2-devel.x86_64 sqlite-devel.x86_64 libcurl-devel.x86_64 libpng-devel.x86_64 oniguruma-devel-6.9.6-1.el9.6.x86_64.rpm -y

root@Nginx \~# cd php-8.3.30/

root@Nginx php-8.3.30# ./configure \

--prefix=/usr/local/php \ #安装路径

--with-config-file-path=/usr/local/php/etc \ #指定配置路径

--enable-fpm \ #用cgi方式启动程序

--with-fpm-user=nginx \ #指定运行用户身份

--with-fpm-group=nginx \

--with-curl \ #打开curl浏览器支持

--with-iconv \ #启用iconv函数，转换字符编码

--with-mhash \ #mhash加密方式扩展库

--with-zlib \ #支持zlib库，用于压缩http压缩传输

--with-openssl \ #支持ssl加密

--enable-mysqlnd \ #mysql数据库

--with-mysqli \

--with-pdo-mysql \

--disable-debug \ #关闭debug功能

--enable-sockets \ #支持套接字访问

--enable-soap \ #支持soap扩展协议

--enable-xml \ #支持xml

--enable-ftp \ #支持ftp

--enable-gd \ #支持gd库

--enable-exif \ #支持图片元数据

--enable-mbstring \ #支持多字节字符串

--enable-bcmath \ #打开图片大小调整,用到zabbix监控的时候用到了这个模块

--with-fpm-systemd #支持systemctl 管理cgi

root@Nginx php-8.3.30# make && make instsall

4.配置PHP

root@Nginx php-8.3.30# cd /usr/local/php/etc

root@Nginx etc# cp -p php-fpm.conf.default php-fpm.conf

root@Nginx etc# vim php-fpm.conf

global

; Pid file

; Note: the default prefix is /usr/local/php/var

; Default Value: none

pid = run/php-fpm.pid

root@Nginx etc# cd php-fpm.d/

root@Nginx php-fpm.d# cp www.conf.default www.conf

root@Nginx php-fpm.d# vim www.conf

41 listen = 0.0.0.0:9000

root@Nginx php-fpm.d# cp /root/php-8.3.30/php.ini-production /usr/local/php/etc/php.ini

root@Nginx php-fpm.d# vim /usr/local/php/etc/php.ini

989 date.timezone = Asia/Shangha

root@Nginx \~# cp /root/php-8.3.30/sapi/fpm/php-fpm.service /lib/systemd/system/

root@Nginx \~# vim /lib/systemd/system/php-fpm.service

Mounts the /usr, /boot, and /etc directories read-only for processes invoked by this unit.

#ProtectSystem=full #注释此参数

root@Nginx \~# systemctl daemon-reload

root@Nginx \~# systemctl enable --now php-fpm

root@Nginx \~# netstat -antlupe | grep php

tcp 0 0 0.0.0.0:9000 0.0.0.0:* LISTEN 0 329917 165562/php-fpm: mas

5.为php设定环境变量

root@Nginx \~# vim ~/.bash_profile

export PATH=$PATH:/usr/local/nginx/sbin:/usr/local/php/sbin:/usr/local/php/bin

root@Nginx \~# source ~/.bash_profile

root@Nginx \~# php -m

28.Nginx整合PHP

root@Nginx conf.d# mkdir /webdir/timinglee.org/php/html -p

root@Nginx conf.d# vim /webdir/timinglee.org/php/html/index.html

php.timinglee.org

root@Nginx conf.d# vim /webdir/timinglee.org/php/html/index.php

<?php

phpinfo();

?>

root@Nginx \~# cd /usr/local/nginx/conf/conf.d/

root@Nginx conf.d# vim php.conf

server {

listen 80;

server_name php.timinglee.org;

root /webdir/timinglee.org/php/html;

location ~ \.php$ {

fastcgi_pass 127.0.0.1:9000;

fastcgi_index index.php;

include fastcgi.conf;

}

}

root@Nginx conf.d# nginx -s reload

#测试

http://php.timinglee.org

http://php.timinglee.org/index.php

29.nginx+memcache实现高速缓存解

1.重新编译nginx

root@Nginx \~# systemctl stop nginx.service

root@Nginx \~# cp /usr/local/nginx/conf/ /mnt/ -r

root@Nginx \~# rm -fr /usr/local/nginx/

root@Nginx \~# rm -rf nginx-1.29.4 nginx-1.28.1

root@Nginx \~# tar zxf nginx-1.28.1.tar.gz

root@Nginx \~# cd nginx-1.28.1/

root@Nginx \~# tar zxf srcache-nginx-module-0.33.tar.gz

root@Nginx \~# tar zxf memc-nginx-module-0.20.tar.gz

root@Nginx \~# cd nginx-1.28.1/

root@Nginx nginx-1.28.1# ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module --add-module=/root/echo-nginx-module-0.64 --add-module=/root/memc-nginx-module-0.20 --add-module=/root/srcache-nginx-module-0.33

root@Nginx nginx-1.28.1# make && make install

root@Nginx \~# cd /usr/local/nginx/conf

root@Nginx conf# rm -fr nginx.conf

root@Nginx conf# cp /mnt/conf/nginx.conf /mnt/conf/conf.d/ . -r

root@Nginx conf# systemctl start nginx.service

2.整合memcache

root@Nginx conf# vim /usr/local/nginx/conf/conf.d/php.conf

upstream memcache {

server 127.0.0.1:11211;

keepalive 512;

}

server {

listen 80;

server_name php.timinglee.org;

root /webdir/timinglee.org/php/html;

index index.php index.html;

location /memc {

internal;

memc_connect_timeout 100ms;

memc_send_timeout 100ms;

memc_read_timeout 100ms;

set memc_key query_string;

set $memc_exptime 300;

memc_pass memcache;

}

location ~ \.php$ {

set key uri$args;

srcache_fetch GET /memc $key;

srcache_store PUT /memc $key;

fastcgi_pass 127.0.0.1:9000;

fastcgi_index index.php;

include fastcgi.conf;

}

}

root@Nginx conf# nginx -s reload

29.Nginx的四层负载均衡代理

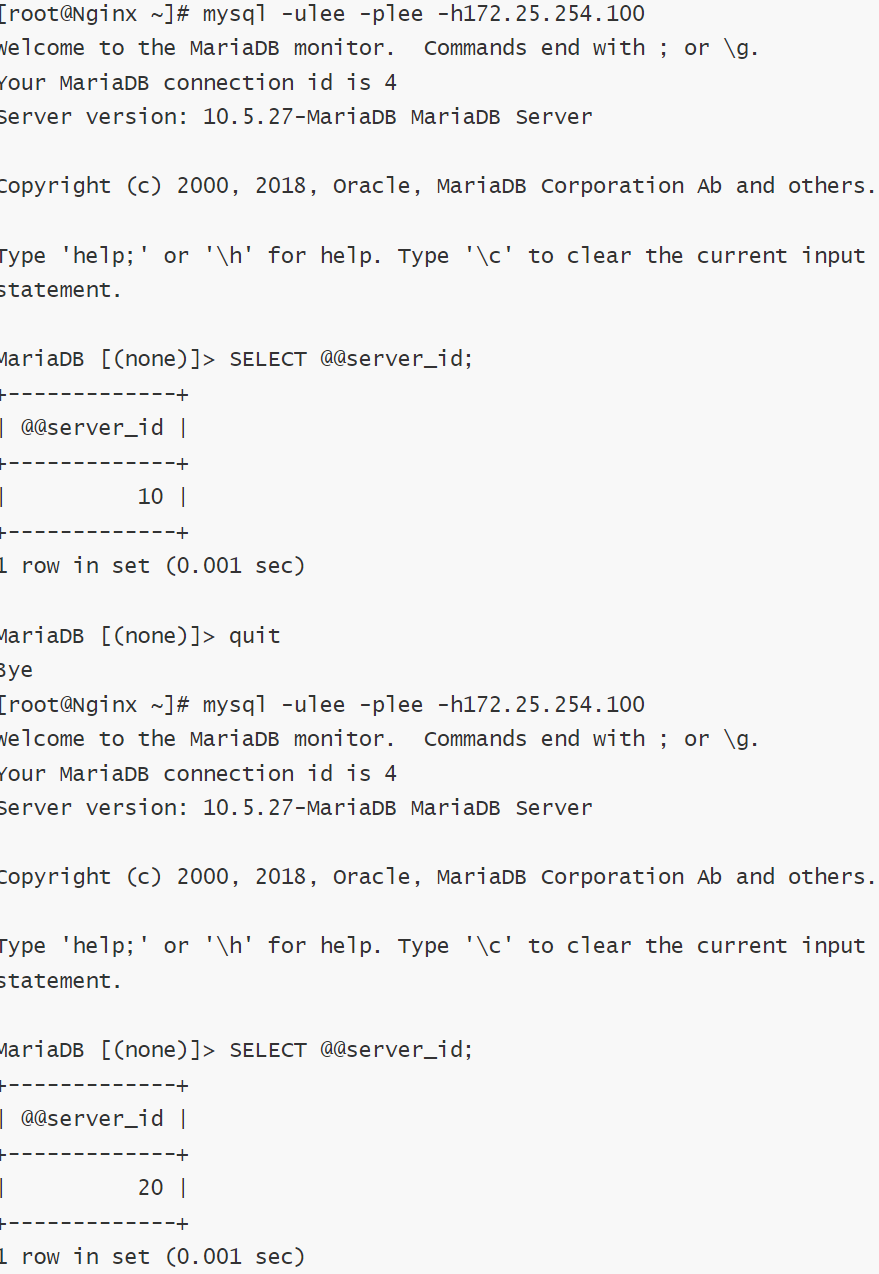

1.实验环境（Mysql）

root@RS1 \~# dnf install mariadb-server -y

root@RS2 \~# dnf install mariadb-server -y

root@RS1 \~# vim /etc/my.cnf.d/mariadb-server.cnf

server-id=10

root@RS2 \~# vim /etc/my.cnf.d/mariadb-server.cnf

server-id=20

root@RS1 \~# systemctl enable --now mariadb

root@RS2 \~# systemctl enable --now mariadb

root@RS1 \~# mysql

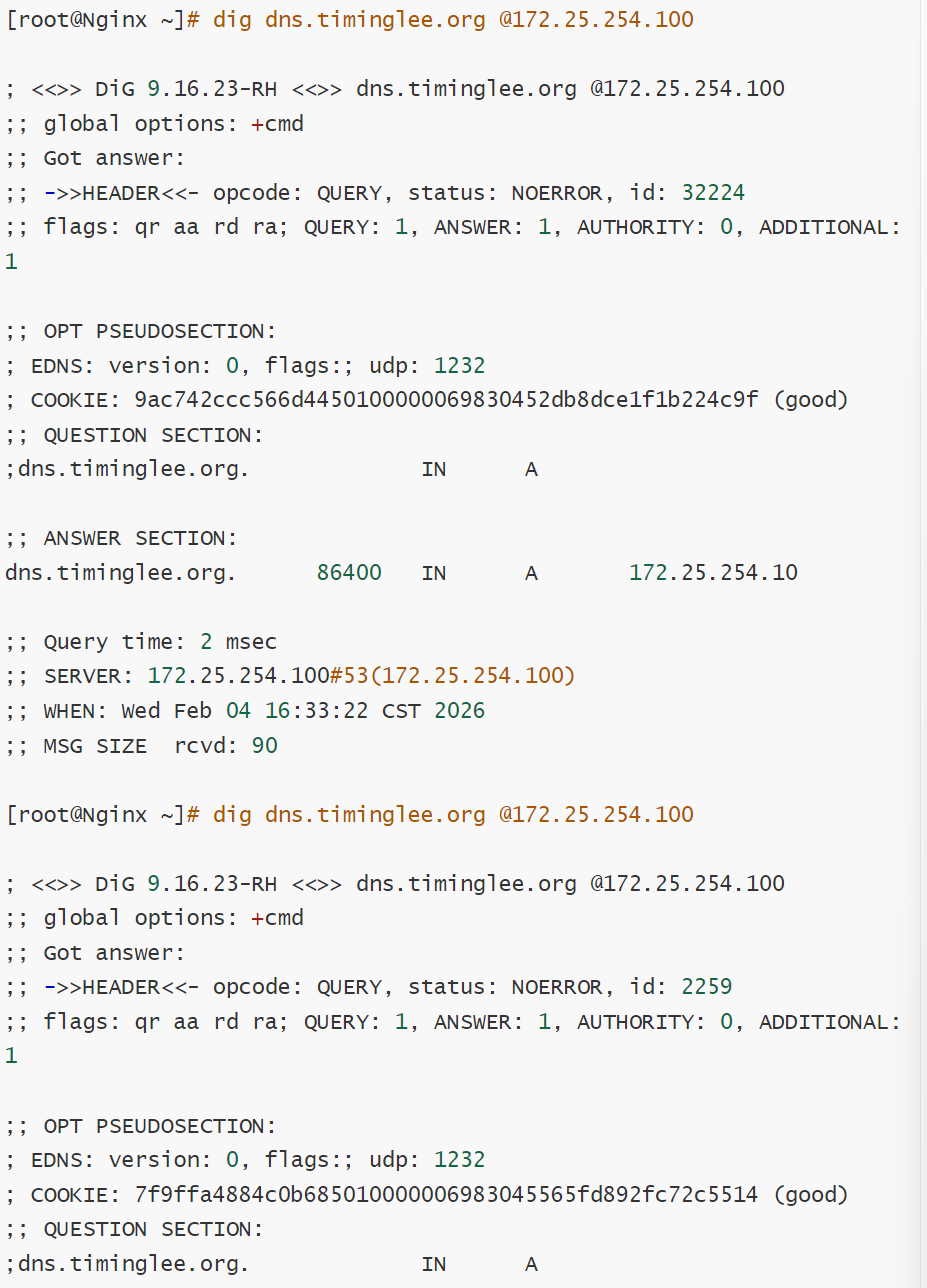

2.实验环境（dns）

root@RS1 \~# dnf install bind -y

root@RS2 \~# dnf install bind -y

root@RS1 \~# vim /etc/named.conf

root@RS2 \~# vim /etc/named.conf

options {

// listen-on port 53 { 127.0.0.1; };

// listen-on-v6 port 53 { ::1; };

directory "/var/named";

dump-file "/var/named/data/cache_dump.db";

statistics-file "/var/named/data/named_stats.txt";

memstatistics-file "/var/named/data/named_mem_stats.txt";

secroots-file "/var/named/data/named.secroots";

recursing-file "/var/named/data/named.recursing";

// allow-query { localhost; };

dnssec-validation no;

root@RS1 \~# vim /etc/named.rfc1912.zones

root@RS2 \~# vim /etc/named.rfc1912.zones

zone "timinglee.org" IN {

type master;

file "timinglee.org.zone";

allow-update { none; };

};

root@RS1 \~# cd /var/named/

root@RS2 \~# cd /var/named/

root@RS1 named# cp -p named.localhost timinglee.org.zone

root@RS2 named# cp -p named.localhost timinglee.org.zone

root@RS1 named# vim timinglee.org.zone

$TTL 1D

@ IN SOA dns.timingle.org. rname.invalid. (

0 ; serial

1D ; refresh

1H ; retry

1W ; expire

3H ) ; minimum

NS dns.timinglee.org.

dns A 172.25.254.10

root@RS2 named# vim timinglee.org.zone

$TTL 1D

@ IN SOA dns.timingle.org. rname.invalid. (

0 ; serial

1D ; refresh

1H ; retry

1W ; expire

3H ) ; minimum

NS dns.timinglee.org.

dns A 172.25.254.20

root@RS2 named# systemctl enable --now named

#测试

3.tcp四层负载

root@Nginx conf# mkdir /usr/local/nginx/conf/tcp -p

root@Nginx conf# mkdir /usr/local/nginx/conf/udp -p

root@Nginx conf# vim /usr/local/nginx/conf/nginx.conf

include "/usr/local/nginx/conf/tcp/*.conf";

root@Nginx conf# vim /usr/local/nginx/conf/tcp/mariadb.conf

stream {

upstream mysql_server {

server 172.25.254.10:3306 max_fails=3 fail_timeout=30s;

server 172.25.254.20:3306 max_fails=3 fail_timeout=30s;

}

server {

listen 172.25.254.100:3306;

proxy_pass mysql_server;

proxy_connect_timeout 30s;

proxy_timeout 300s;

}

}

root@Nginx conf# nginx -s reload

#检测

root@Nginx \~# mysql -ulee -plee -h172.25.254.100

4.udp四层负载

root@Nginx \~# vim /usr/local/nginx/conf/tcp/mariadb.conf

stream {

upstream mysql_server {

server 172.25.254.10:3306 max_fails=3 fail_timeout=30s;

server 172.25.254.20:3306 max_fails=3 fail_timeout=30s;

}

upstream dns_server{

server 172.25.254.10:53 max_fails=3 fail_timeout=30s;

server 172.25.254.20:53 max_fails=3 fail_timeout=30s;

}

server {

listen 172.25.254.100:3306;

proxy_pass mysql_server;

proxy_connect_timeout 30s;

proxy_timeout 300s;

}

server {

listen 172.25.254.100:53 udp;

proxy_pass dns_server;

proxy_timeout 1s;

proxy_responses 1;

error_log logs/dns.log;

}

}

root@Nginx \~# nginx -s reload

30.编译安装 openresty

root@Nginx src#wget https://openresty.org/download/openresty-1.27.1.2.tar.gz

root@Nginx \~#dnf -yq install gcc pcre-devel openssl-devel perl zlib-devel

root@Nginx \~#useradd -r -s /sbin/nologin nginx

root@Nginx \~#tar zxf openresty-1.27.1.2

root@webserver \~# cd openresty-1.27.1.2/

root@Nginx openresty-1.17.8.2#./configure \

--prefix=/apps/openresty \

--user=nginx --group=nginx \

--with-http_ssl_module \

--with-http_v2_module \

--with-http_stub_status_module \

--with-http_gzip_static_module

--with-pcre --with-stream \

--with-stream_ssl_module \

--with-stream_realip_module

root@Nginx openresty-1.17.8.2#gmake && gmake install

root@webserver openresty# vim ~/.bash_profile

export PATH=$PATH:/usr/local/openresty/bin

source ~/.bash_profile

root@Nginx openresty-1.17.8.2#openresty -v

nginx version: openresty/1.17.8.2

root@Nginx openresty-1.17.8.2#openresty

root@Nginx openresty-1.17.8.2#ps -ef |grep nginx

root@webserver openresty# echo hello test > /usr/local/openresty/nginx/html/index.html

相关推荐
为思念酝酿的痛7 小时前
POSIX信号量
linux·运维·服务器·后端
专业白嫖怪8 小时前
什么是docker
运维·docker·容器
隔窗听雨眠8 小时前
Nginx网关响应慢排查手记
java·服务器·nginx
人还是要有梦想的9 小时前
linux下用搜狗输入法，中英文切换
linux·运维·服务器
北京智和信通9 小时前
某部队IT基础设施及机房动环统一运维建设实例
运维·网管平台·网管软件·网络管理系统·网络运维平台·网络运维系统
乐维_lwops9 小时前
从 “救火运维” 到 “自动驾驶”：运维智能体到底解决了什么？
运维·人工智能·运维智能体
bush49 小时前
嵌入式linux学习记录二
linux·运维·学习
weixin_468466859 小时前
MoneyPrinterTurbo 短视频自动化生产实战指南
运维·人工智能·自动化·大模型·音视频·moneyprinter
難釋懷10 小时前
Nginx自签名-图形化工具 XCA
运维·nginx
志栋智能12 小时前
小步快跑：从单一场景开启超自动化巡检之旅
运维·网络·人工智能·自动化
热门推荐
01GitHub 镜像站点02DeepSeek V4 + Claude Code thinking mode 400 错误修复方案03Codex 接入 DeepSeek API 完整配置文档04【AI】2026 年具身智能模型和世界模型总结05【踩坑记录 | 第一篇】微软商店无法使用时，如何手动安装 OpenAI Codex？附`.msix`文件系统错误解决方法06裂开！ChatGPT 居然开始要手机号验证，附详细解决方法07CC-Switch & Claude 基于 Linux 服务器安装使用指南08几个好用的ip纯净度检测网站09CC-Switch 全平台下载、安装与使用全指南（Windows/macOS/Linux）10API Key 登录 Codex 也能用插件了，还支持会话删除和导出
