KEEPALIVED介绍与实验与介绍

SakitamaX2026-02-21 19:05

Keepalived 是 Linux 下轻量级、开源、基于 VRRP 协议 的高可用（HA）与负载均衡管理工具，核心解决单点故障 与自动故障转移 问题，广泛用于构建高可用集群；是构建 轻量级、低成本、高可靠 集群的首选工具，尤其适合 主备模式 与 LVS/Nginx 负载均衡 场景。它通过 VRRP 实现 VIP 漂移，配合健康检查与脚本扩展，可快速实现服务高可用，是 Linux 运维中解决单点故障的核心方案。

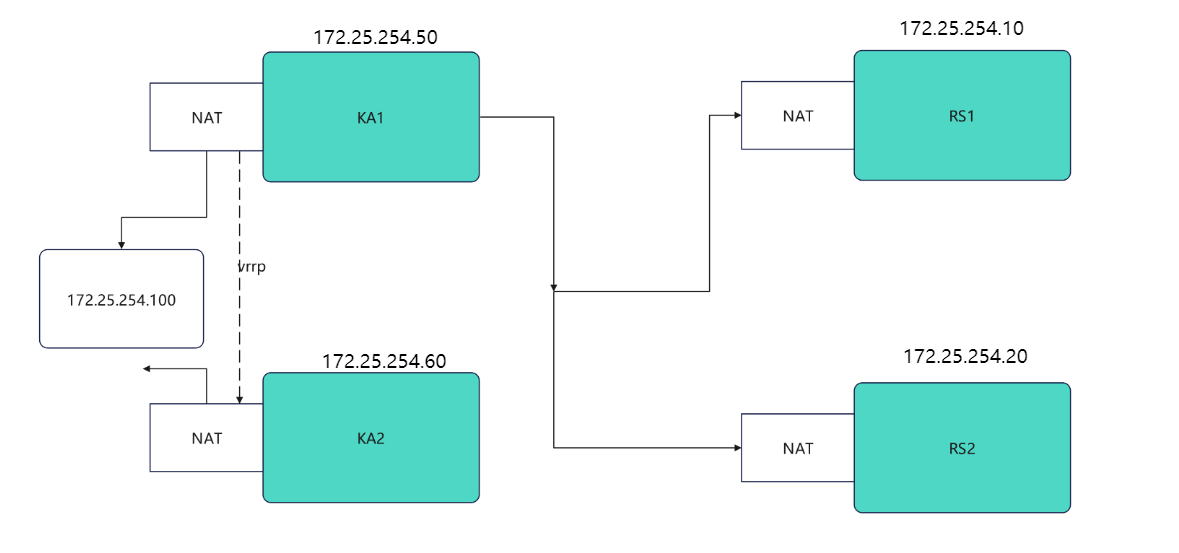

一.环境配置

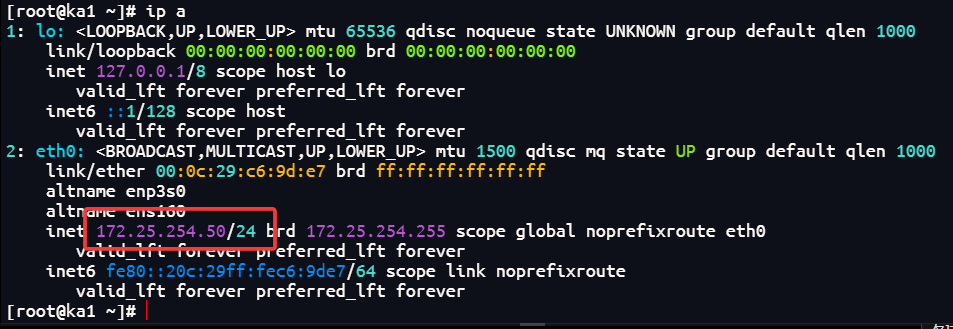

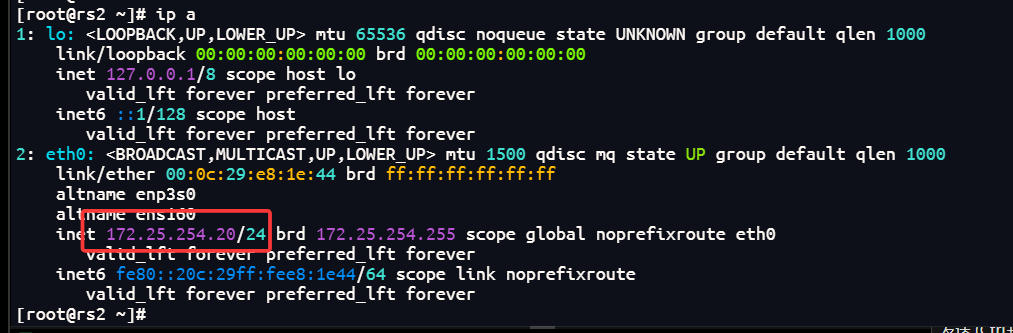

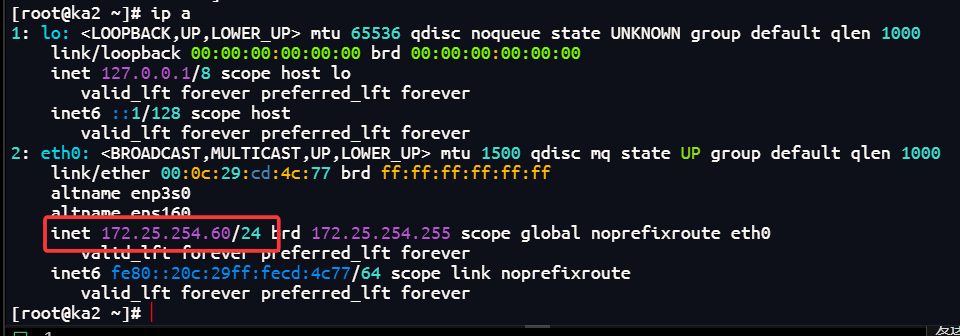

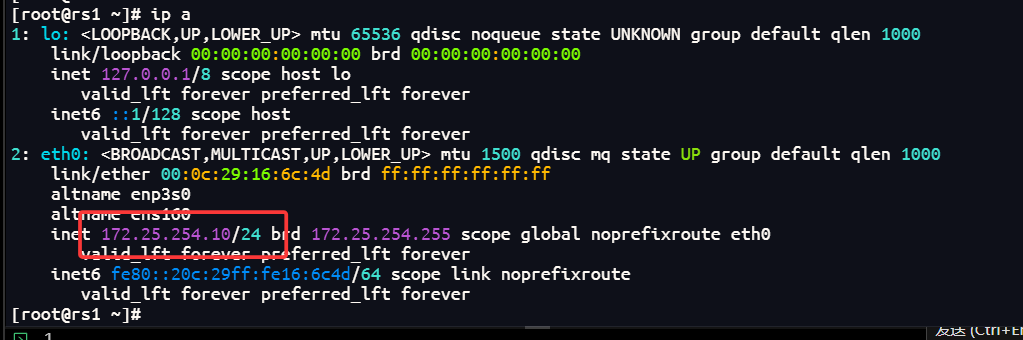

为ka1,ka2,rs1,rs2配置ip地址：

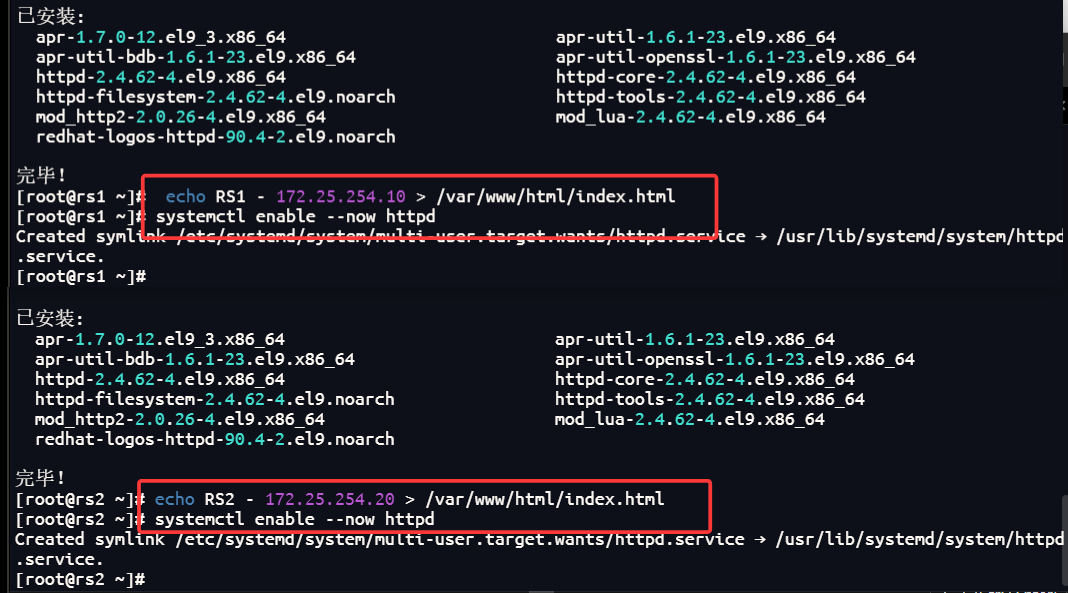

在rs1和rs2上部署httpd:

bash 复制代码
[root@rs1 ~] dnf install httpd -y
[root@rs1 ~] echo RS1 - 172.25.254.10 > /var/www/html/index.html
[root@rs1 ~] systemctl enable --now httpd

[root@rs2 ~] dnf install httpd -y
[root@rs2 ~] echo RS2 - 172.25.254.20 > /var/www/html/index.html
[root@rs2 ~] systemctl enable --now httpd

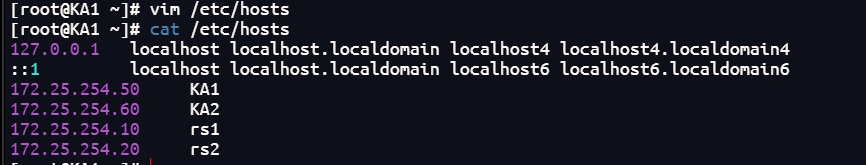

在ka1,ka2,rs1,rs2上设定本地解析：

bash 复制代码
[root@KA1 ~] vim /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
172.25.254.50     KA1
172.25.254.60     KA2
172.25.254.10     rs1
172.25.254.20     rs2

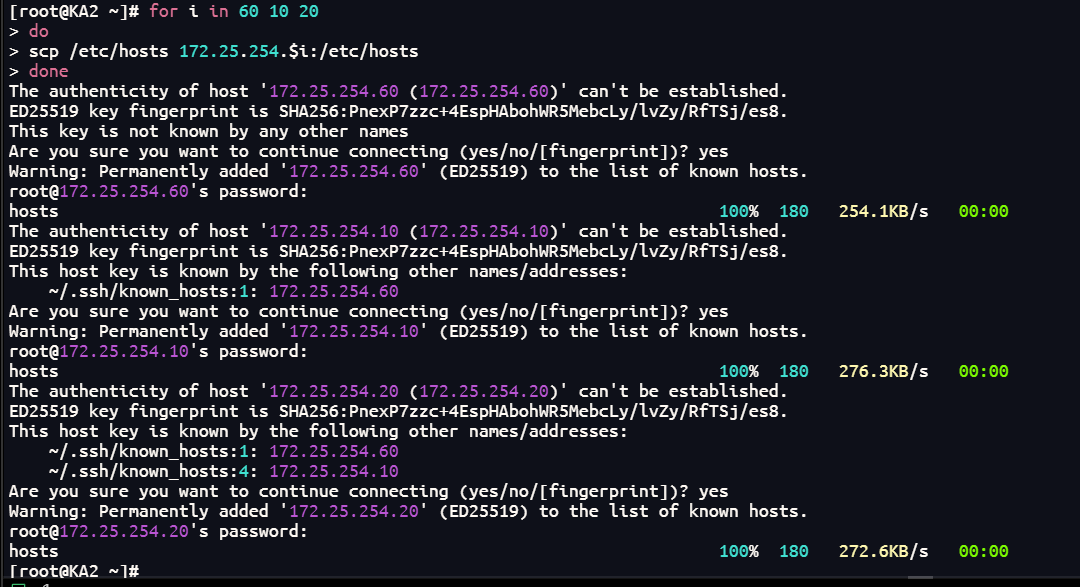

# 同步到ka2,rs1,rs2
[root@KA1 ~] for i in 60 10 20
> do
> scp /etc/hosts 172.25.254.$i:/etc/hosts
> done

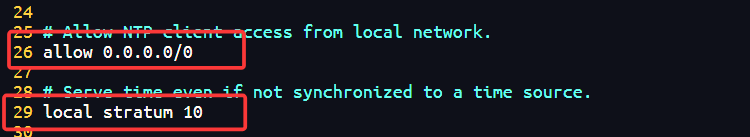

在ka1中开启时间同步服务:

bash 复制代码
[root@KA1 ~] vim /etc/chrony.conf
 allow 0.0.0.0/0
 local stratum 10

[root@KA1 ~] systemctl restart chronyd
[root@KA1 ~] systemctl enable --now chronyd

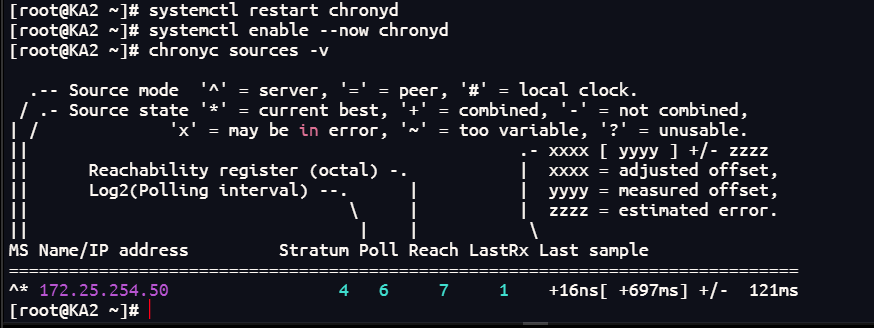

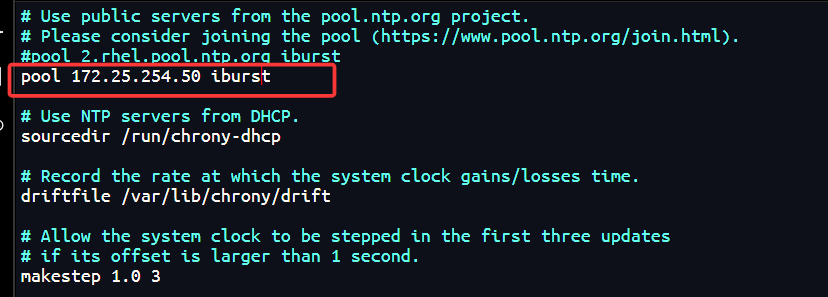

在ka2中使用ka1的时间同步服务:

bash 复制代码
[root@KA2 ~] vim /etc/chrony.conf
pool 172.25.254.50 iburst

[root@KA2 ~] systemctl restart chronyd
[root@KA2 ~] systemctl enable --now chronyd

二.Keepalived虚拟路由配置

1.Keepalived安装

bash 复制代码
[root@KA1 ~] dnf install keepalived.x86_64 -y

[root@KA2 ~]  dnf install keepalived.x86_64 -y

2.配置虚拟路由

bash 复制代码
#在master
[root@KA1 ~] vim /etc/keepalived/keepalived.conf
global_defs {
   notification_email {
     timinglee_zln@163.com
   }
   notification_email_from timinglee_zln@163.com
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.44
}
vrrp_instance WEB_VIP {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

[root@KA1 ~] systemctl enable --now keepalived.service

在KA2中设定：

bash 复制代码

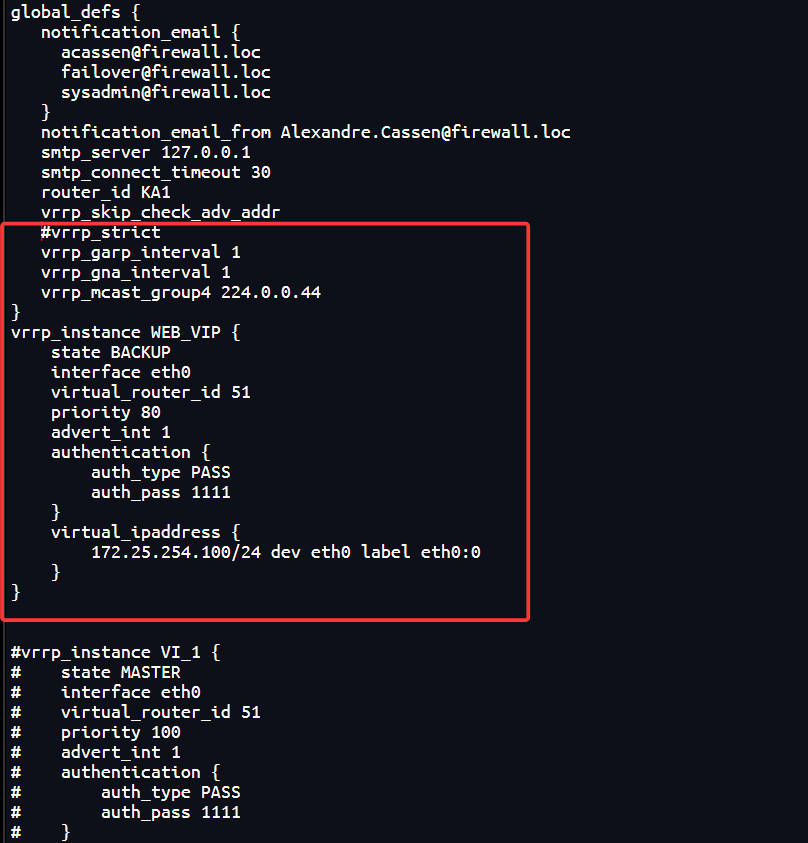

[root@KA2 ~] vim /etc/keepalived/keepalived.conf
global_defs {
   notification_email {
     timinglee_zln@163.com
   }
   notification_email_from timinglee_zln@163.com
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.44
}
vrrp_instance WEB_VIP {
    state BACKUP
    interface eth0
    virtual_router_id 51
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

[root@KA2 ~] systemctl enable --now keepalived.service

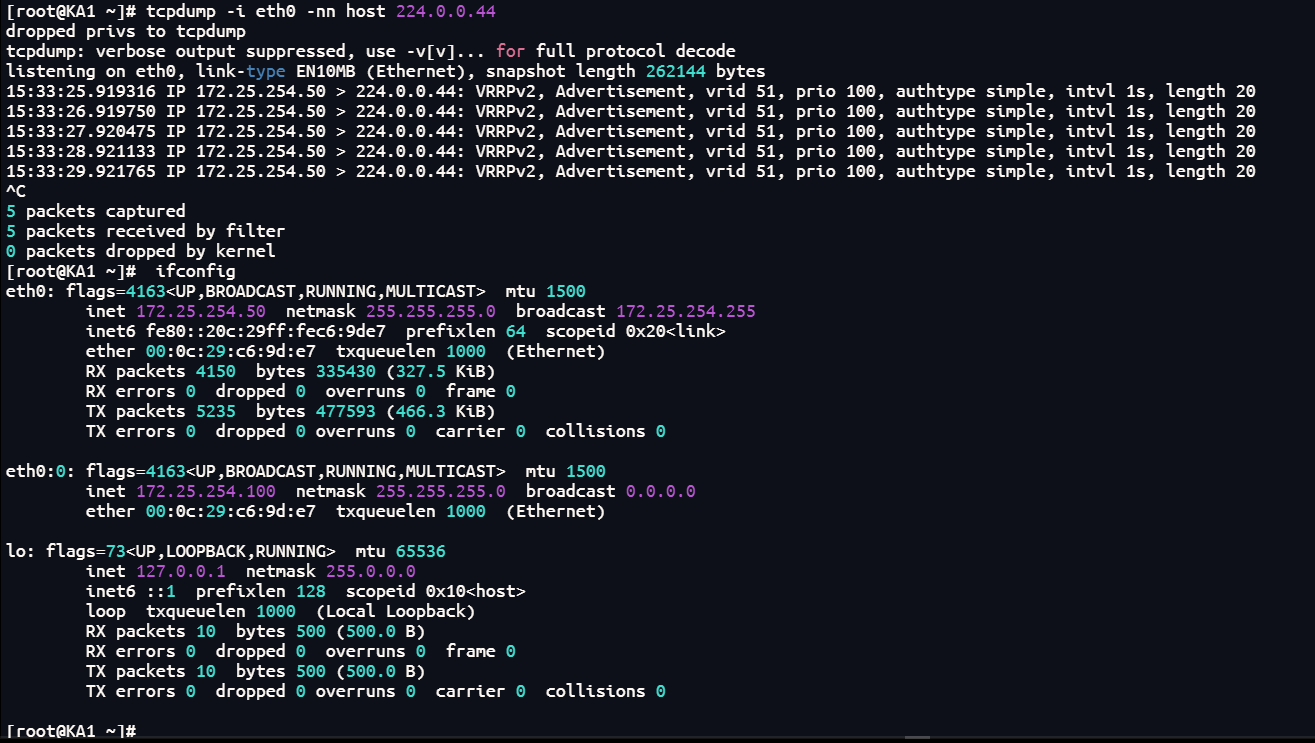

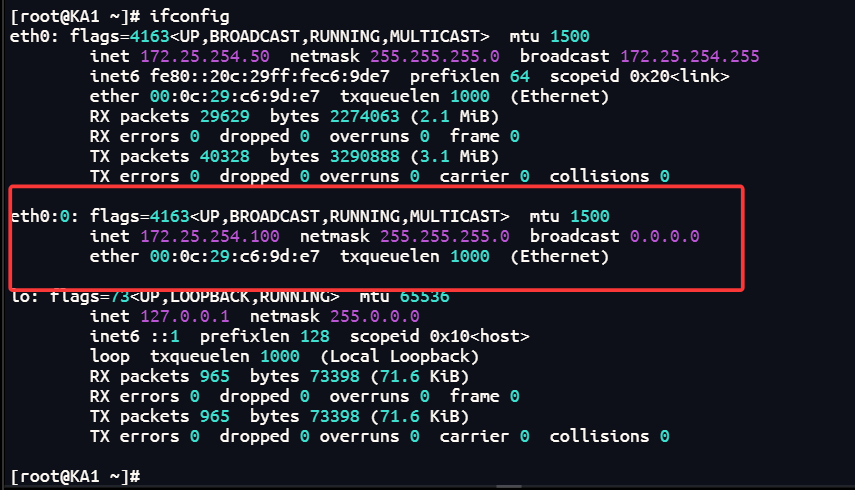

验证：

测试故障：

#在kA1中模拟故障

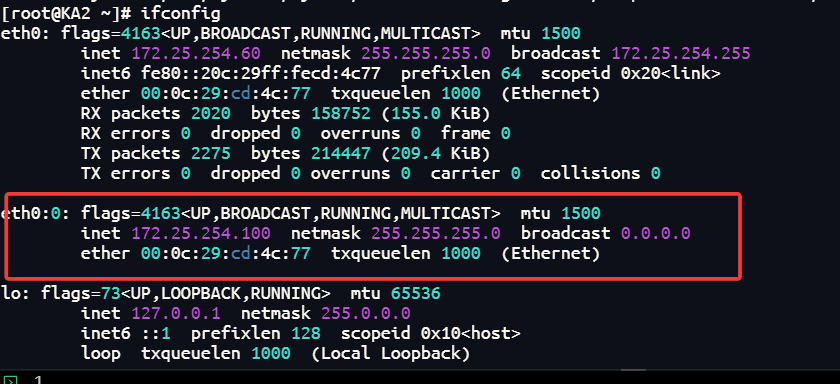

在KA2中看vip是否被迁移到当前主机：

3.Keepalived日志分离

默认情况下。keepalived的日志会被保存在/var/log/messages文件中，这个文件中除了含有keepalived的日志外，还有其他服务的日志信息，这样不利于对于keepalived的日志进行查看。

bash 复制代码
[root@KA1 ~] vim /etc/sysconfig/keepalived
KEEPALIVED_OPTIONS="-D -S 6"
[root@KA1 ~] systemctl restart keepalived.service

[root@KA1 ~] vim /etc/rsyslog.conf
local7.*             /var/log/keepalived.log
[root@KA1 ~] systemctl restart rsyslog.service

三.Keepalived的子配置文件设定

复制代码

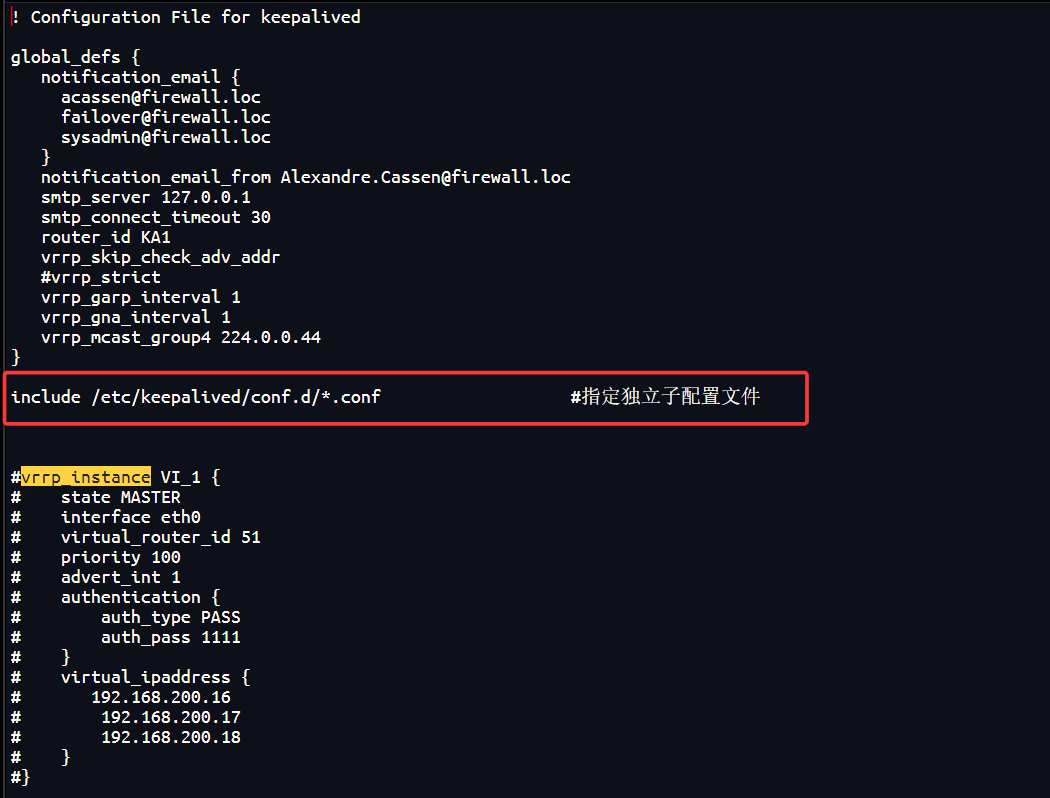

[root@KA1 ~] vim /etc/keepalived/keepalived.conf

include /etc/keepalived/conf.d/*.conf			#指定独立子配置文件
复制代码
[root@KA1 ~] mkdir  /etc/keepalived/conf.d -p
[root@KA1 ~] vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

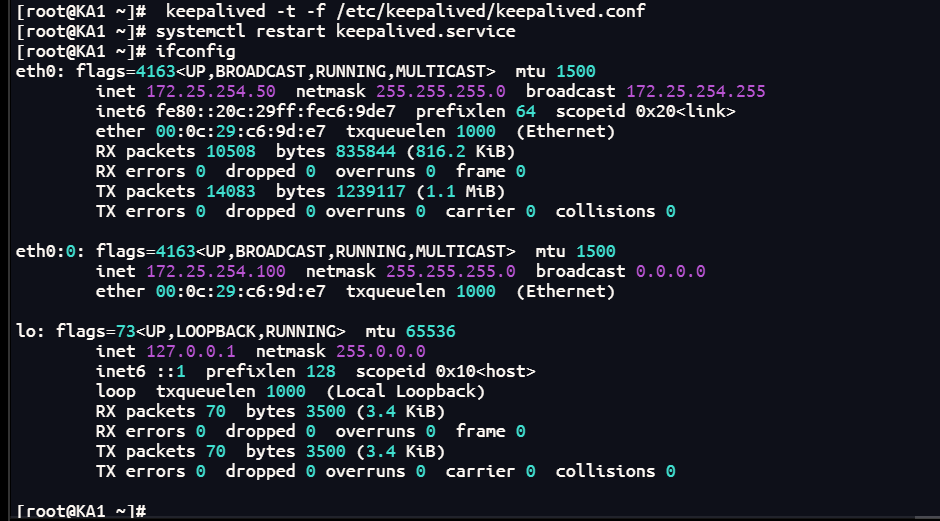

[root@KA1 ~] keepalived -t -f /etc/keepalived/keepalived.conf  #语法检查
[root@KA1 ~] systemctl restart keepalived.service

四.抢占模式和非抢占模式

1.抢占模式( 默认的，谁优先级高就把vip放到哪里)

2.非抢占模式（持有vip只要vrrp通告正常就不做vip迁移）

bash 复制代码

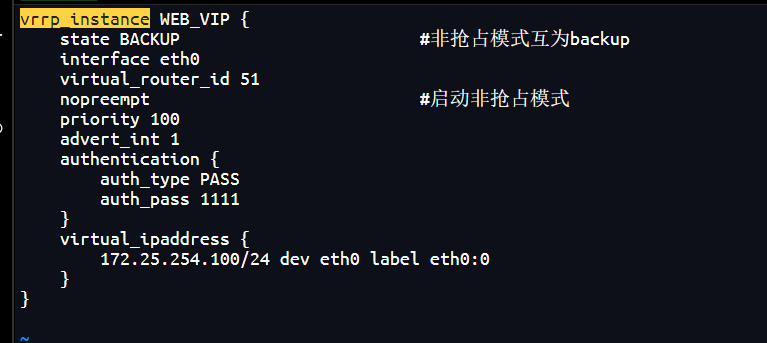

[root@KA1 ~] vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
    state BACKUP			#非抢占模式互为backup
    interface eth0
    virtual_router_id 51
    nopreempt				#启动非抢占模式
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

[root@KA1 ~] systemctl stop keepalived.service

#KA2中

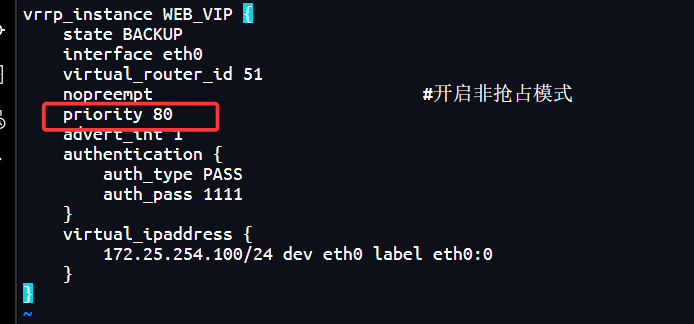

[root@KA2 ~] vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
    state BACKUP
    interface eth0
    virtual_router_id 51
    nopreempt				#开启非抢占模式
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}
[root@KA2 ~] systemctl stop keepalived.service

ka1中：

ka2中：

测试：

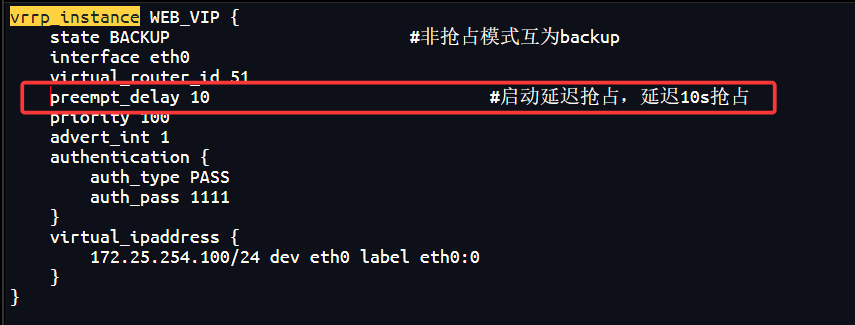

3.延迟抢占(抢占延迟模式，即优先级高的主机恢复后，不会立即抢回VIP，而是延迟一段时间（默认300s）再抢回 VIP)

bash 复制代码
#kA1中
[root@KA1 ~] vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
    state BACKUP			#非抢占模式互为backup
    interface eth0
    virtual_router_id 51
    preempt_delay 10				#启动延迟抢占，延迟10s抢占
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

[root@KA1 ~] systemctl stop keepalived.service

#KA2中

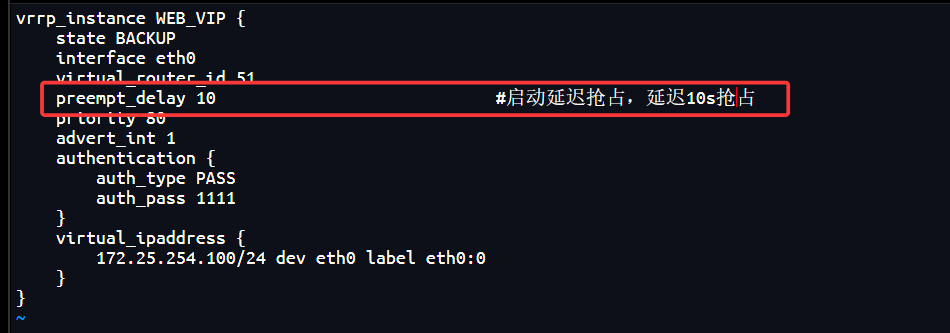

[root@KA2 ~] vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
    state BACKUP
    interface eth0
    virtual_router_id 51
    preempt_delay 10				#启动延迟抢占，延迟10s抢占
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}
[root@KA2 ~] systemctl stop keepalived.service

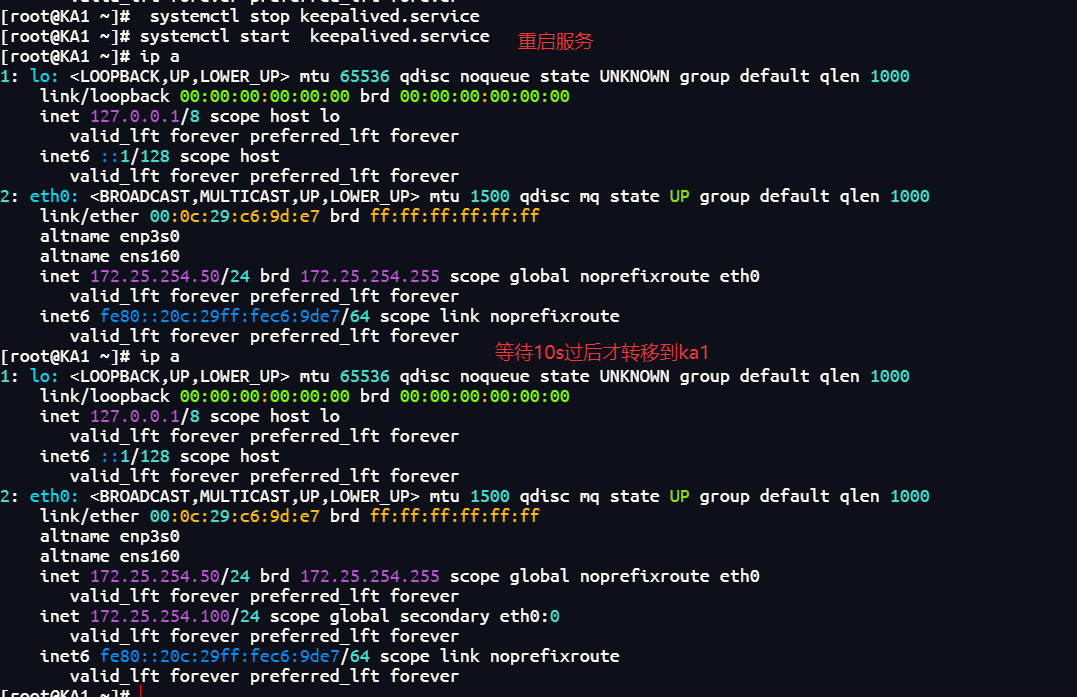

ka1：

ka2:

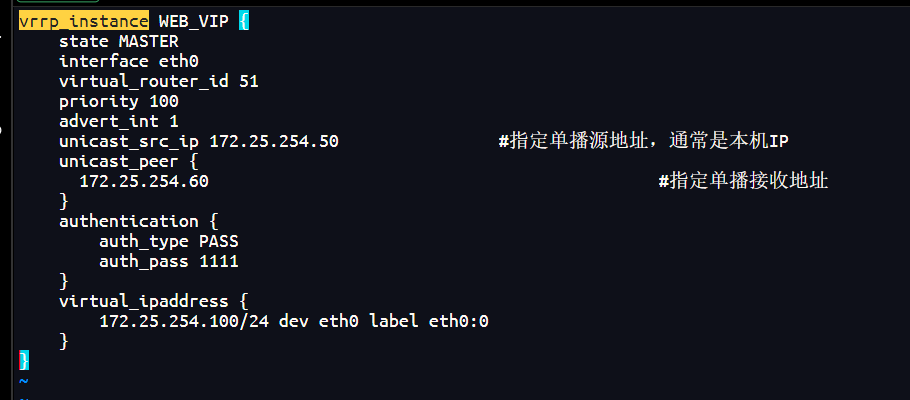

五.keepalived的单播模式

为什么要单播，组播模式使用的网址资源最少，但是不能跨网络，如果主备两台主机是跨网络的，那么只能启用单播来实现vrrp通告

bash 复制代码
#在KA1中

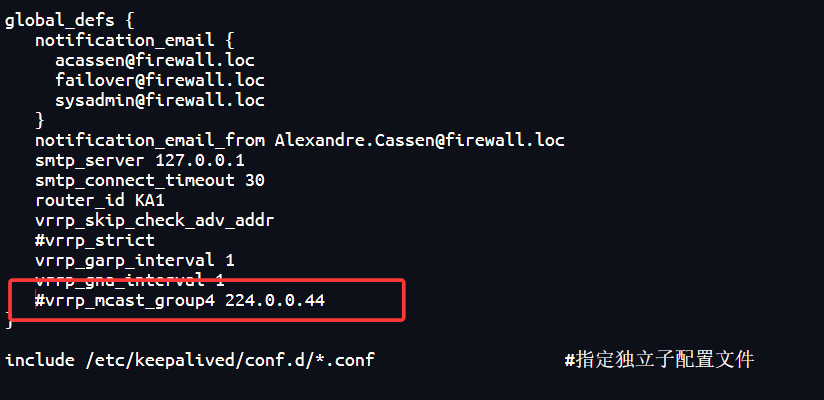

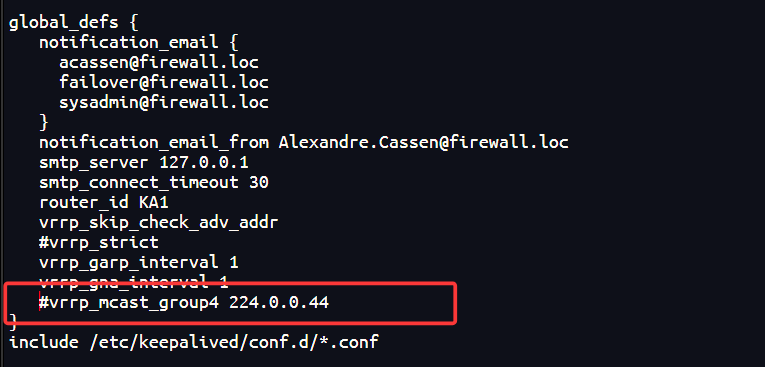

[root@KA1 ~] vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
     timinglee_zln@163.com
   }
   notification_email_from timinglee_zln@163.com
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   #vrrp_mcast_group4 224.0.0.44			#关闭组播
}

[root@KA1 ~] vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    unicast_src_ip 172.25.254.50		#指定单播源地址，通常是本机IP
    unicast_peer {
      172.25.254.60						#指定单播接收地址
    }
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

#在KA2中
[root@KA2 ~] vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
     timinglee_zln@163.com
   }
   notification_email_from timinglee_zln@163.com
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   #vrrp_mcast_group4 224.0.0.44			#关闭组播
}

[root@KA2 ~] vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    unicast_src_ip 172.25.254.60		#指定单播源地址，通常是本机IP
    unicast_peer {
      172.25.254.50						#指定单播接收地址
    }
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

[root@KA1 ~] systemctl restart keepalived.service
[root@KA2 ~] systemctl restart keepalived.service

ka1中：

ka2中：

bash 复制代码
#测试
#在KA1中开启独立shell监控播报信息
[root@KA1 ~] tcpdump -i eth0 -nn src host 172.25.254.50 and dst 172.25.254.60

#在KA2中开启独立shell监控播报信息
[root@KA2 ~] tcpdump -i eth0 -nn src host 172.25.254.60 and dst 172.25.254.50


#在KA1正常时
#ka2播报信息不显示通告内容

[root@KA1 ~] systemctl stop keepalived.service

#vip会被迁移到KA2,KA2上开始显示播报内容

[root@KA1 ~] systemctl start keepalived.service

#vip因为优先级被KA1抢占，KA2中播报停止

六.Keepalived 通知

1.Keepalived业务vip迁移告警

bash 复制代码
#安装邮件软件
[root@KA1 ~]  dnf install s-nail postfix   -y
[root@KA2 ~]  dnf install s-nail postfix   -y
#启动邮件代理
[root@KA1 ~] systemctl start postfix.service
[root@KA2 ~] systemctl start postfix.service

设定sendmail可以通过公网邮箱发送邮件

bash 复制代码
#在Linux主机中配置mailrc（KA1+KA2）
[root@KA1+KA2 ~] vim /etc/mail.rc
set smtp=smtp.qq.com
set smtp-auth=login
set smtp-auth-user=邮箱@qqcom
set smtp-auth-password=（个人授权码）
set from=邮箱@qq.com
set ssl-verify=ignore
[root@KA1+KA2 ~] systemctl restart postfix.service

#测试邮件
[root@KA1 mail] echo hello | mailx -s test 邮箱@qq.com

[root@KA1 mail] mailq		#查看邮件队列
Mail queue is empty


[root@KA1 mail] mail		#查看是否又退信
s-nail version v14.9.22.  Type `?' for help
/var/spool/mail/root: 1 message
▸   1 Mail Delivery Subsys  2026-01-28 16:26   69/2210  "Returned mail: see transcript for details  "
&q 退出

2.设定keepalived告警脚本

bash 复制代码
[root@KA1 ~] mkdir  -p /etc/keepalived/scripts
[root@KA2 ~]  mkdir  -p /etc/keepalived/scripts

#编写告警脚本
[root@KA1+2 ~]  vim /etc/keepalived/scripts/waring.sh
#!/bin/bash
mail_dest='邮箱@qq.com'

mail_send()
{
    mail_subj="$HOSTNAME to be $1 vip 转移"
    mail_mess="`date +%F\ %T`: vrrp 转移,$HOSTNAME 变为 $1"
    echo "$mail_mess" | mail -s "$mail_subj" $mail_dest
}
case $1 in
    master)
    mail_send master
    ;;
    backup)
    mail_send backup
    ;;
    fault)
    mail_send fault
    ;;
    *)
    exit 1
    ;;
esac

[root@KA1+2 ~] chmod  +x /etc/keepalived/scripts/waring.sh
[root@KA1 ~] /etc/keepalived/scripts/waring.sh master
#对应邮箱中会出现邮件

3.配置keepalived告警

bash 复制代码
#在KA1和KA2中设定配置文件

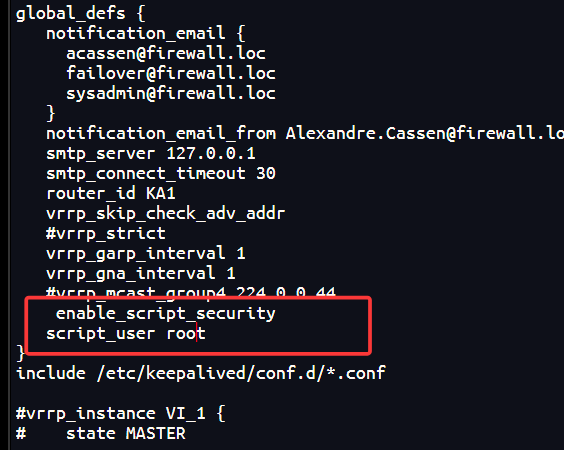

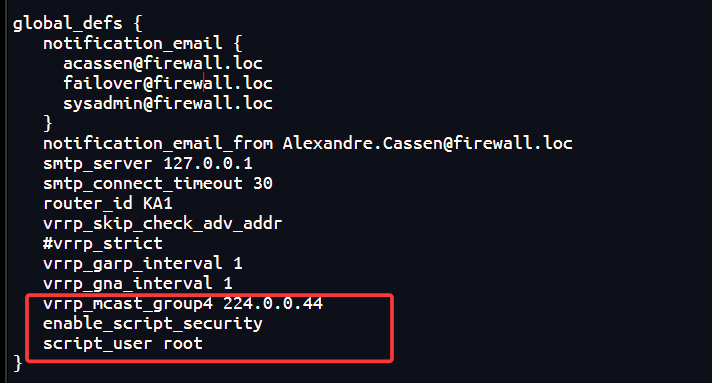

[root@KA1+KA2 ~] vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
     timinglee_zln@163.com
   }
   notification_email_from timinglee_zln@163.com
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.44
   enable_script_security
   script_user root
}

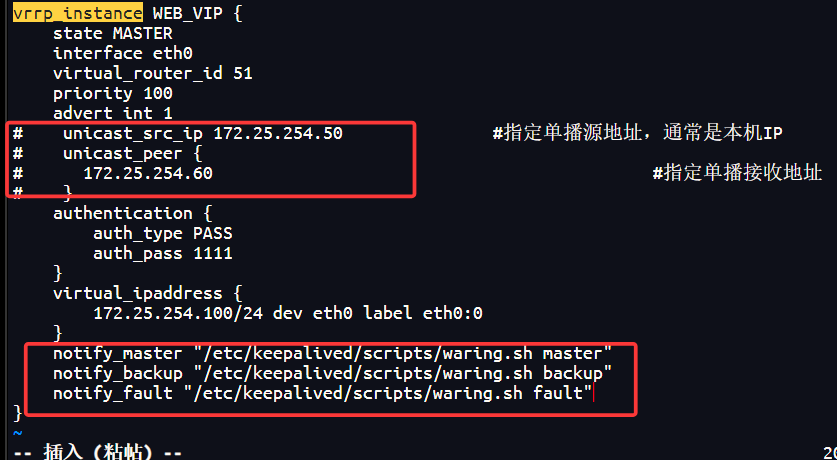

[root@KA1+KA2 ~] vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
  # unicast_src_ip 172.25.254.50
  # unicast_peer {
  #   172.25.254.60
#   }
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
    notify_master "/etc/keepalived/scripts/waring.sh master"
    notify_backup "/etc/keepalived/scripts/waring.sh backup"
    notify_fault "/etc/keepalived/scripts/waring.sh fault"
}


[root@KA1+2 ~]# systemctl restart keepalived.service

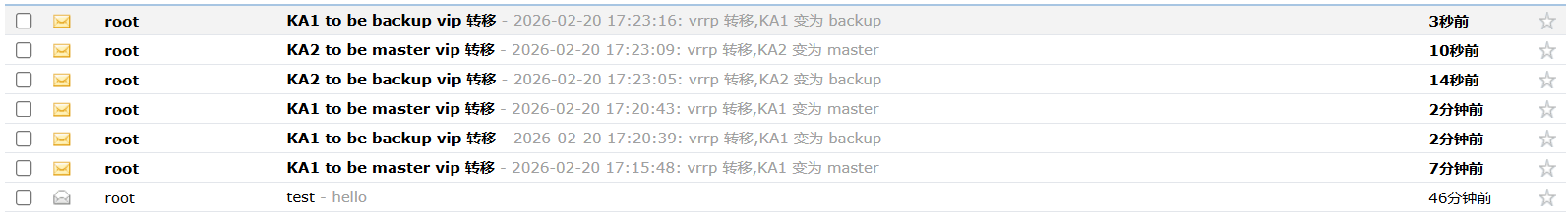

#测试
[root@KA1 ~]# systemctl stop keepalived.service		#停止服务后查看邮件
[root@KA1 ~]# systemctl start keepalived.service	#开启服务后查看邮件

ka1:

ka2:

测试：

bash 复制代码
[root@KA1 ~] systemctl stop keepalived.service		#停止服务后查看邮件
[root@KA1 ~] systemctl start keepalived.service	    #开启服务后查看邮件

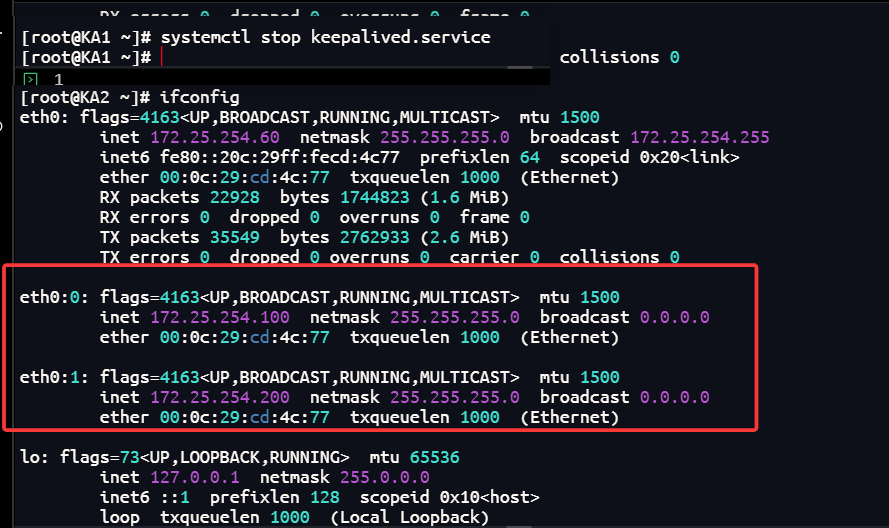

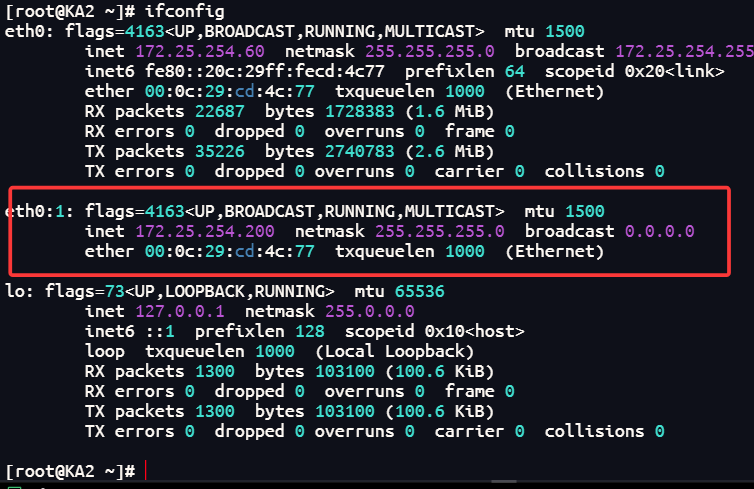

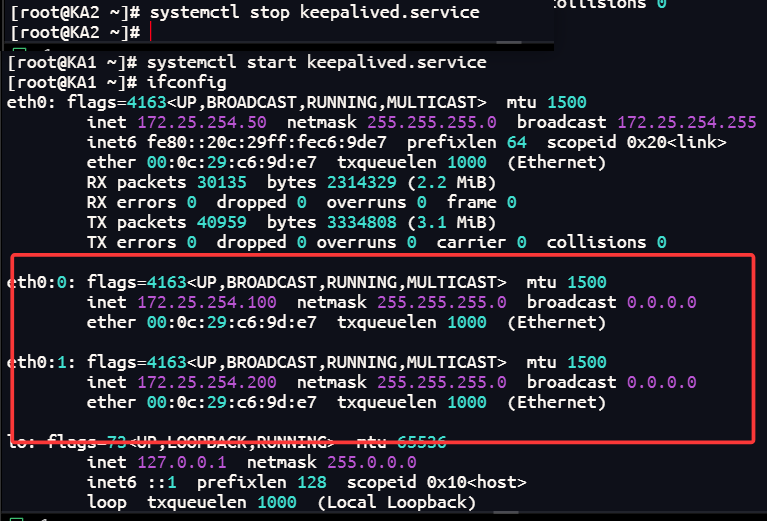

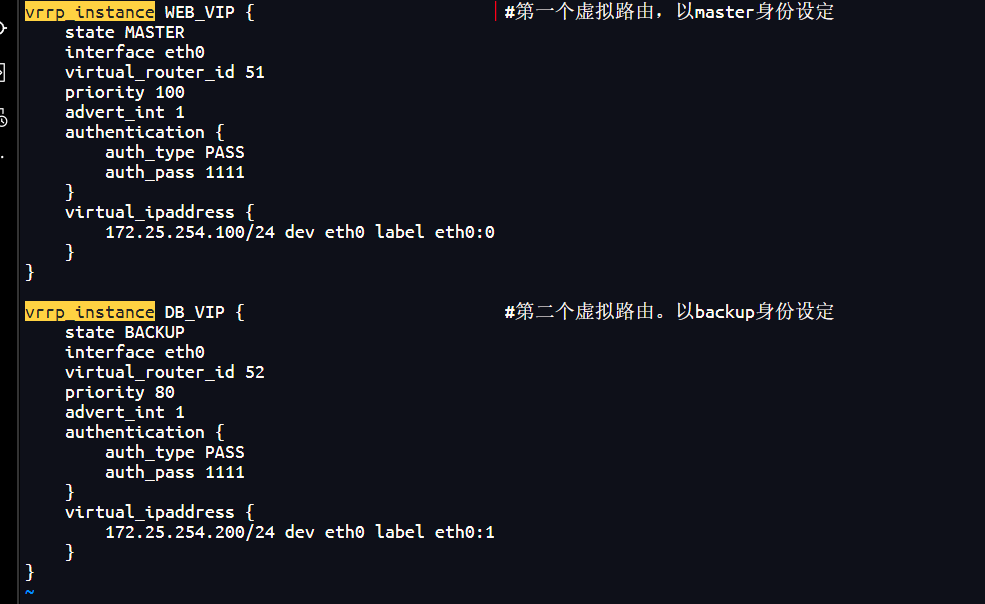

七.Keepalived双主模式

复制代码
#在KA1中
[root@KA1 ~] vim vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {						#第一个虚拟路由，以master身份设定
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

vrrp_instance DB_VIP {				#第二个虚拟路由。以backup身份设定
    state BACKUP
    interface eth0
    virtual_router_id 52
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.200/24 dev eth0 label eth0:1
    }
}


#KA2中
[root@KA2 ~] vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
    state BACKUP
    interface eth0
    virtual_router_id 51
    preempt_delay 10
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
      172.25.254.100/24 dev eth0 label eth0:0
    }
}
vrrp_instance DB_VIP {
    state MASTER
    interface eth0
    virtual_router_id 52
    preempt_delay 10
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
      172.25.254.200/24 dev eth0 label eth0:1
    }
}
[root@KA1 ~] systemctl restart keepalived.service
[root@KA2 ~] systemctl restart keepalived.service

ka1中：

ka2中：

关闭ka1服务后：

关闭ka2服务后：

八.实现IPVS的高可用性

1.配置RS

bash 复制代码
root@rs1+2 ~] cd /etc/NetworkManager/system-connections/
[root@rs1+2] system-connections]# ls
eth0.nmconnection
[root@rs1+2 system-connections] cp eth0.nmconnection lo.nmconnection -p
[root@rs1+2 system-connections] vim lo.nmconnection

[connection]
id=lo
type=loopback
interface-name=lo

[ipv4]
method=manual
address1=127.0.0.1/8
address2=172.25.254.100/32

[root@rs1+2 system-connections] nmcli connection reload
[root@rs1+2 system-connections] nmcli connection up lo

[root@rs1+2 system-connections] vim /etc/sysctl.conf
net.ipv4.conf.all.arp_ignore=1
net.ipv4.conf.all.arp_announce=2
net.ipv4.conf.lo.arp_announce=2
net.ipv4.conf.lo.arp_ignore=1

[root@rs1+2 system-connections] sysctl  -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1

#安装ipvsadm
[root@KA1+KA2 ~] dnf install ipvsadm -y

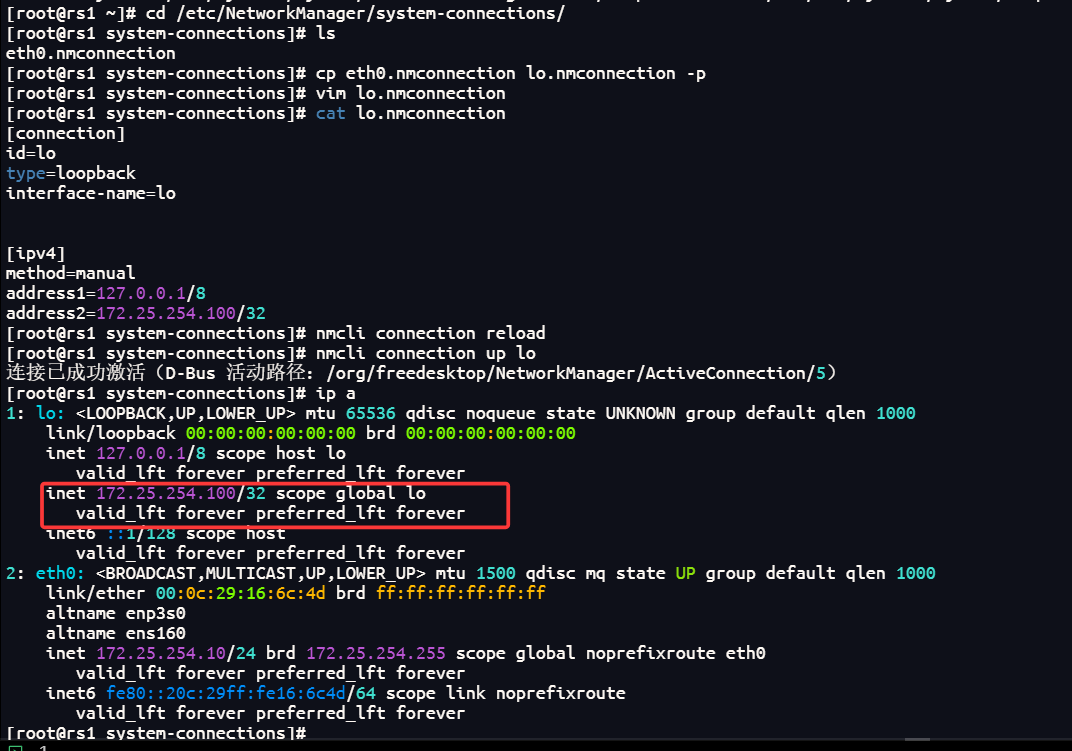

rs1:

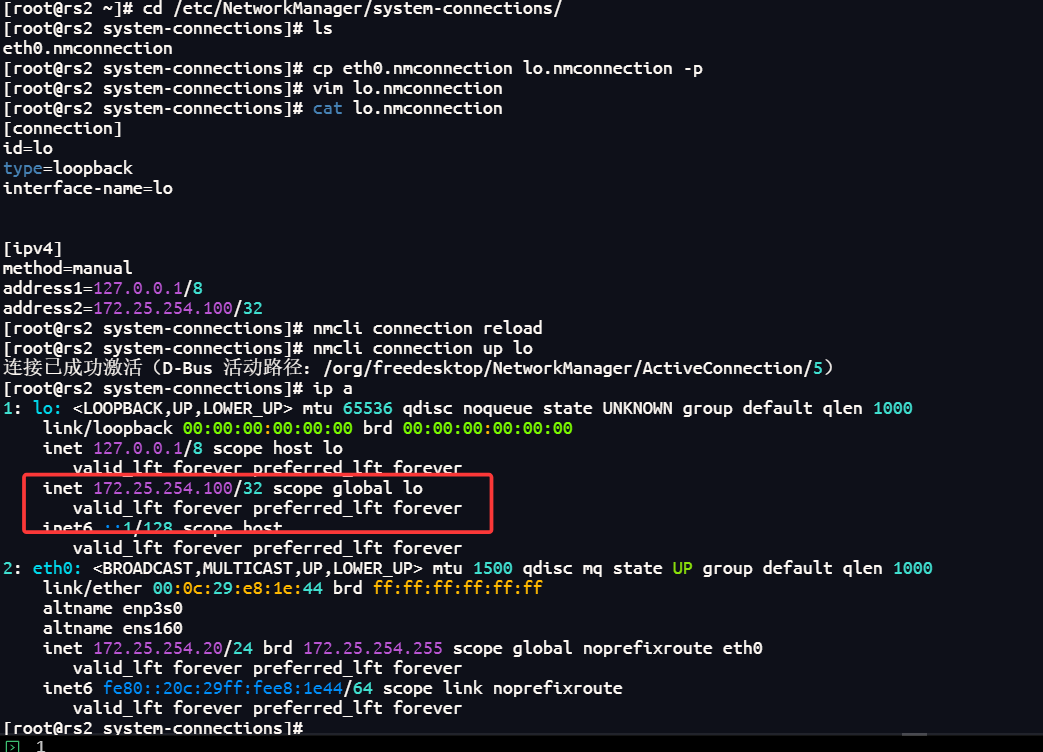

rs2:

2.实现方法

bash 复制代码
[root@KA1 ~] vim /etc/keepalived/keepalived.conf

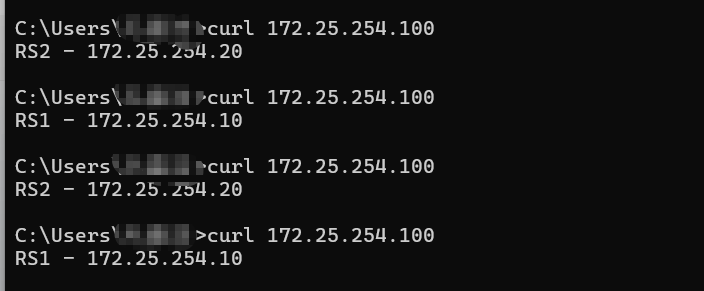

测试:

bash 复制代码
[root@KA1 ~] yum install -y ipvsadm

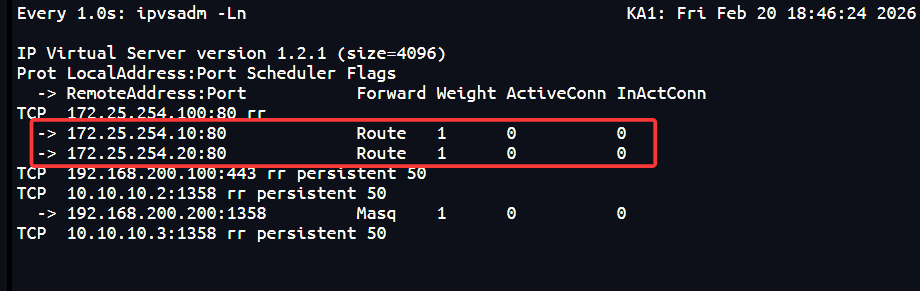

[root@KA1 ~] watch -n 1 ipvsadm -Ln

在RS1中关闭web服务查看lvs策略是否变化:

bash 复制代码
[root@rs1 ~] systemctl stop httpd.service

把ka1中的keepalived关闭查看ka2中是否自动生成lvs策略:

九.双主模式代理不同业务实现高可用

1.实验环境

bash 复制代码
#web服务设定在上个实验已经设定完成
#在rs中设定lo添加vip2 172.25.254.200、32
#在rs中搭建数据库

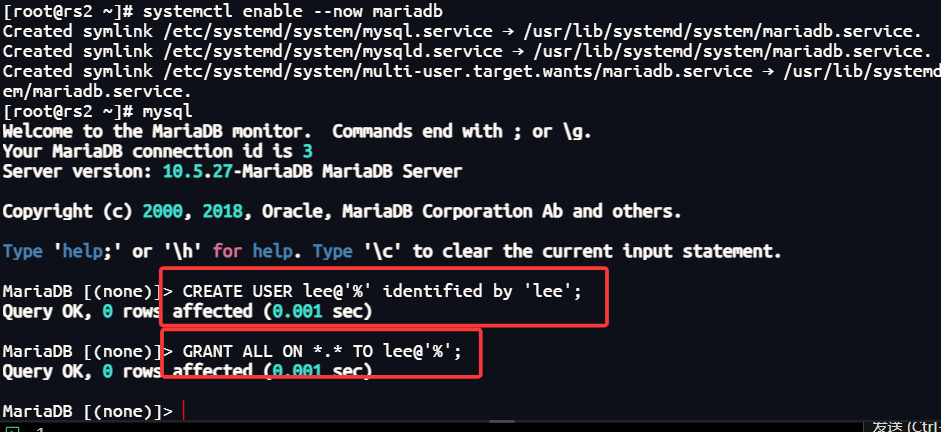

[root@rs1+2 ~] dnf install mariadb-server -y
[root@rs1+2 ~] systemctl enable --now mariadb
[root@rs1+2 ~] mysql
MariaDB [(none)]> CREATE USER lee@'%' identified by 'lee';
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> GRANT ALL ON *.* TO lee@'%';
Query OK, 0 rows affected (0.001 sec)

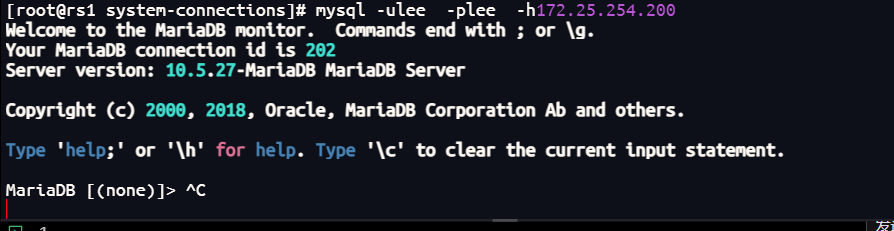

测试:

2.实现不同vip代理不同业务

bash 复制代码
#KA1和KA2

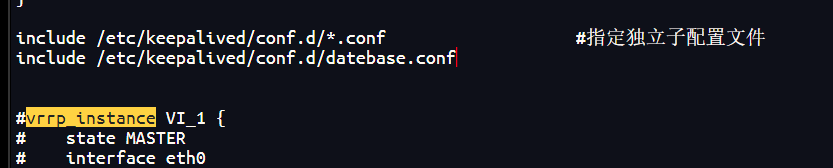

[root@KA1+2 ~] vim /etc/keepalived/keepalived.conf
include /etc/keepalived/conf.d/webserver.conf
include /etc/keepalived/conf.d/datebase.conf

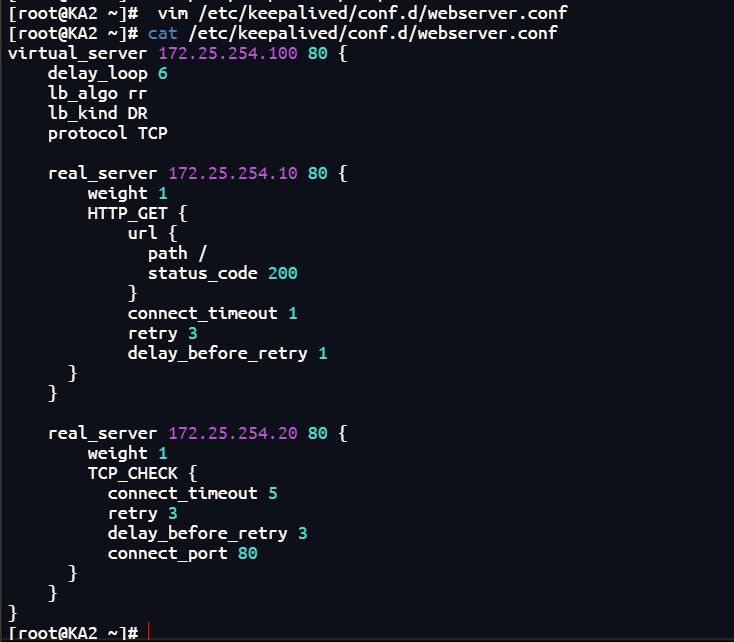

[root@KA1+2 ~] vim /etc/keepalived/conf.d/webserver.conf
virtual_server 172.25.254.100 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    protocol TCP

    real_server 172.25.254.10 80 {
        weight 1
        HTTP_GET {
            url {
              path /
              status_code 200
            }
            connect_timeout 1
            retry 3
            delay_before_retry 1
      }
    }

    real_server 172.25.254.20 80 {
        weight 1
        TCP_CHECK {
          connect_timeout 5
          retry 3
          delay_before_retry 3
          connect_port 80
      }
    }
}

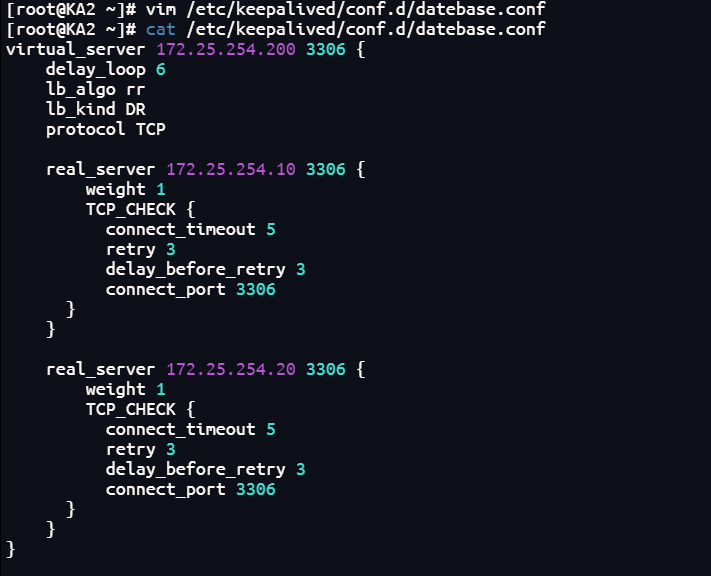

[root@KA1 ~] vim /etc/keepalived/conf.d/datebase.conf
virtual_server 172.25.254.200 3306 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    protocol TCP

    real_server 172.25.254.10 3306 {
        weight 1
        TCP_CHECK {
          connect_timeout 5
          retry 3
          delay_before_retry 3
          connect_port 3306
      }
    }

    real_server 172.25.254.20 3306 {
        weight 1
        TCP_CHECK {
          connect_timeout 5
          retry 3
          delay_before_retry 3
          connect_port 3306
      }
    }
}

[root@KA1+2 ~] systemctl restart keepalived.service

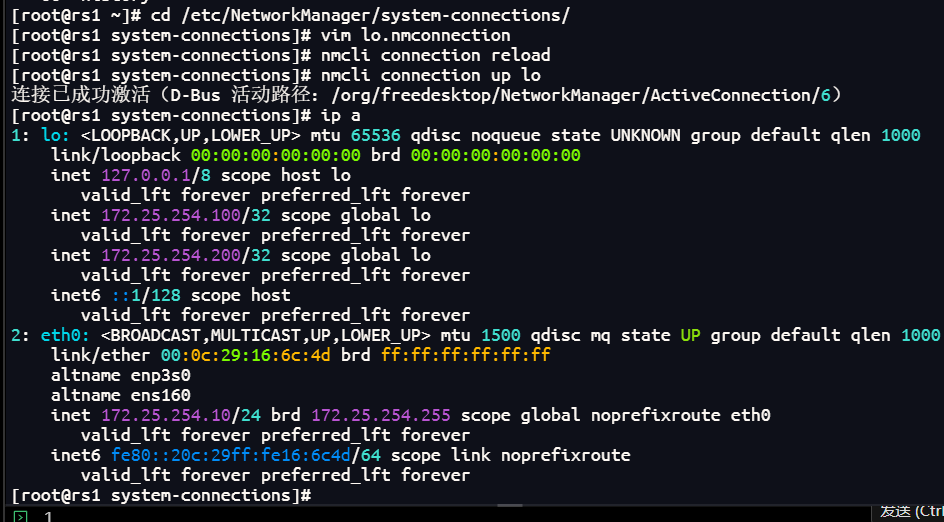

在rs1,rs2中设定lo添加vip2 172.25.254.200/32

测试：

相关推荐
楼田莉子3 小时前
Linux学习：线程的同步与互斥
linux·运维·c++·学习
小草儿7993 小时前
PG18备份恢复
linux·运维·服务器
Mikowoo0073 小时前
KaLi系统基本使用
运维·服务器
Starry_hello world4 小时前
Linux http代码
linux·运维·http
wuxi_joe6 小时前
中国装备制造企业如何出海：以“配置管理”为核心构建全球竞争力
运维·人工智能·制造
开开心心_Every6 小时前
全屏程序切换工具，激活选中窗口快速切换
linux·运维·服务器·pdf·ocr·测试用例·模块测试
星星乘坐的船7 小时前
Centos7.9系统下docker安装
运维·docker·容器
dust_and_stars7 小时前
APT vs Snap vs Flatpak 核心对比表
运维·服务器·数据库
未来之窗软件服务7 小时前
AI人工智能(四)本地部署vosk-ASR环境命令—东方仙盟练气期
linux·运维·人工智能·本地模型·仙盟创梦ide·东方仙盟
热门推荐
01GitHub 镜像站点02Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services03AI Agent 平台横评：ZeroClaw vs OpenClaw vs Nanobot04全面体验 Grok API 中转站（2025 · Grok 4 系列最新版）05MIUI显示/隐藏5G开关的方法，信号弱时开启手机Wifi通话方法06如何解决 OpenClaw “Pairing required” 报错：两种官方解决方案详解07配置 OpenClaw 使用 Ollama 本地模型08从零搭建一个 PHP 登录注册系统（含完整源码）09openClaw安装飞书插件｜核心踩坑：spawn EINVAL 错误终极解决指南10使用 1panel面板 部署 php网站
