MES/ERP 报表查询系统（WinForm+SQLite）
一、项目核心设计
本项目围绕MES/ERP 报表查询 + 自定义排序核心场景，实现「本地 SQLite 数据库存储 + 预置测试数据 + 多维度索引约束 + 富交互界面」，重点优化操作便捷性，支持手动添加数据、灵活排序、可视化查询，适配中小企业轻量化报表管理需求。
二、项目完整架构
plaintext
MESERPReport/
├─ Data/ // 数据层
│ ├─ SqliteHelper.cs // SQLite操作（CRUD+索引）
│ └─ DataInitializer.cs // 预置测试数据
├─ Business/ // 业务层
│ ├─ ReportService.cs // 报表查询/数据管理
│ └─ SortEngine.cs // 高级排序算法
├─ Model/ // 模型层
│ ├─ ReportModel.cs // 报表实体
│ └─ SortRule.cs // 排序规则
└─ UI/ // 界面层
├─ MainForm.cs // 主窗体（查询/排序/展示）
└─ AddDataForm.cs // 新增数据弹窗三、核心代码实现
1. 模型层（Model）
ReportModel.cs（报表实体 + 查询条件）
csharp
运行
using System;
namespace MESERPReport.Model
{
// 报表核心实体
public class ReportModel
{
public int Id { get; set; } // 主键
public string OrderNo { get; set; } // 工单编号（索引字段）
public string ProductNo { get; set; } // 产品编号（索引字段）
public string Workshop { get; set; } // 车间
public decimal Qty { get; set; } // 生产数量
public DateTime ProduceDate { get; set; } // 生产日期（索引字段）
public string Status { get; set; } // 工单状态（已完成/生产中/暂停）
public string Operator { get; set; } // 操作人
}
// 查询条件实体
public class QueryCondition
{
public string OrderNo { get; set; }
public string ProductNo { get; set; }
public string Workshop { get; set; }
public string Status { get; set; }
public DateTime? StartDate { get; set; }
public DateTime? EndDate { get; set; }
}
// 排序规则
public class SortRule
{
public string FieldName { get; set; } // 排序字段（Qty/ProduceDate/OrderNo）
public bool IsAsc { get; set; } // 是否升序
public int Priority { get; set; } // 优先级（1最高）
}
}2. 数据层（Data）
SqliteHelper.cs（SQLite 核心操作）
csharp
运行
using System;
using System.Data;
using System.Data.SQLite;
using System.IO;
namespace MESERPReport.Data
{
public class SqliteHelper
{
private readonly string _dbPath;
private readonly string _connStr;
public SqliteHelper()
{
// 数据库路径：程序目录下的MESERP.db
_dbPath = Path.Combine(AppDomain.CurrentDomain.BaseDirectory, "MESERP.db");
_connStr = $"Data Source={_dbPath};Version=3;";
InitDb(); // 初始化数据库+表+索引
}
// 初始化数据库（创建表+索引）
private void InitDb()
{
if (!File.Exists(_dbPath))
{
SQLiteConnection.CreateFile(_dbPath);
using (var conn = new SQLiteConnection(_connStr))
{
conn.Open();
// 创建生产报表表
var createTableSql = @"
CREATE TABLE IF NOT EXISTS ProductionReport (
Id INTEGER PRIMARY KEY AUTOINCREMENT,
OrderNo VARCHAR(50) NOT NULL,
ProductNo VARCHAR(50) NOT NULL,
Workshop VARCHAR(30) NOT NULL,
Qty DECIMAL(10,2) NOT NULL,
ProduceDate DATE NOT NULL,
Status VARCHAR(20) NOT NULL,
Operator VARCHAR(30)
);";
ExecuteNonQuery(conn, createTableSql);
// 创建核心索引（提升查询/排序效率）
var createIndexSqls = new[]
{
"CREATE INDEX IF NOT EXISTS idx_OrderNo ON ProductionReport(OrderNo);",
"CREATE INDEX IF NOT EXISTS idx_ProductNo ON ProductionReport(ProductNo);",
"CREATE INDEX IF NOT EXISTS idx_ProduceDate ON ProductionReport(ProduceDate);"
};
foreach (var sql in createIndexSqls)
ExecuteNonQuery(conn, sql);
}
}
}
// 执行查询（返回DataTable）
public DataTable ExecuteQuery(string sql, params SQLiteParameter[] parameters)
{
using (var conn = new SQLiteConnection(_connStr))
{
try
{
conn.Open();
using (var cmd = new SQLiteCommand(sql, conn))
{
cmd.Parameters.AddRange(parameters);
using (var adapter = new SQLiteDataAdapter(cmd))
{
var dt = new DataTable();
adapter.Fill(dt);
return dt;
}
}
}
catch (Exception ex)
{
throw new Exception("查询失败：" + ex.Message);
}
}
}
// 执行增删改
public int ExecuteNonQuery(string sql, params SQLiteParameter[] parameters)
{
using (var conn = new SQLiteConnection(_connStr))
{
try
{
conn.Open();
using (var cmd = new SQLiteCommand(sql, conn))
{
cmd.Parameters.AddRange(parameters);
return cmd.ExecuteNonQuery();
}
}
catch (Exception ex)
{
throw new Exception("操作失败：" + ex.Message);
}
}
}
// 重载：带连接的执行（初始化用）
private void ExecuteNonQuery(SQLiteConnection conn, string sql)
{
using (var cmd = new SQLiteCommand(sql, conn))
{
cmd.ExecuteNonQuery();
}
}
}
}DataInitializer.cs（预置测试数据）
csharp
运行
using System;
using MESERPReport.Model;
namespace MESERPReport.Data
{
public class DataInitializer
{
private readonly SqliteHelper _dbHelper;
public DataInitializer()
{
_dbHelper = new SqliteHelper();
}
// 初始化预置测试数据
public void InitTestData()
{
// 先清空旧数据（可选）
_dbHelper.ExecuteNonQuery("DELETE FROM ProductionReport;");
// 插入测试数据
var testData = new[]
{
new { OrderNo = "WO202406001", ProductNo = "PROD001", Workshop = "一车间", Qty = 500.00m, ProduceDate = new DateTime(2024,6,1), Status = "已完成", Operator = "张三" },
new { OrderNo = "WO202406002", ProductNo = "PROD002", Workshop = "二车间", Qty = 800.50m, ProduceDate = new DateTime(2024,6,2), Status = "生产中", Operator = "李四" },
new { OrderNo = "WO202406003", ProductNo = "PROD001", Workshop = "一车间", Qty = 300.00m, ProduceDate = new DateTime(2024,6,1), Status = "暂停", Operator = "王五" },
new { OrderNo = "WO202406004", ProductNo = "PROD003", Workshop = "三车间", Qty = 1200.00m, ProduceDate = new DateTime(2024,6,3), Status = "已完成", Operator = "赵六" },
new { OrderNo = "WO202406005", ProductNo = "PROD002", Workshop = "二车间", Qty = 750.00m, ProduceDate = new DateTime(2024,6,2), Status = "生产中", Operator = "孙七" }
};
foreach (var data in testData)
{
var sql = @"
INSERT INTO ProductionReport (OrderNo, ProductNo, Workshop, Qty, ProduceDate, Status, Operator)
VALUES (@OrderNo, @ProductNo, @Workshop, @Qty, @ProduceDate, @Status, @Operator);";
_dbHelper.ExecuteNonQuery(sql,
new SQLiteParameter("@OrderNo", data.OrderNo),
new SQLiteParameter("@ProductNo", data.ProductNo),
new SQLiteParameter("@Workshop", data.Workshop),
new SQLiteParameter("@Qty", data.Qty),
new SQLiteParameter("@ProduceDate", data.ProduceDate),
new SQLiteParameter("@Status", data.Status),
new SQLiteParameter("@Operator", data.Operator));
}
Console.WriteLine("预置测试数据初始化完成！");
}
}
}3. 业务层（Business）
ReportService.cs（报表查询 / 数据管理）
csharp
运行
using System;
using System.Collections.Generic;
using System.Data;
using System.Data.SQLite;
using MESERPReport.Data;
using MESERPReport.Model;
namespace MESERPReport.Business
{
public class ReportService
{
private readonly SqliteHelper _dbHelper;
public ReportService()
{
_dbHelper = new SqliteHelper();
}
// 多条件查询报表（带索引约束）
public DataTable QueryReport(QueryCondition condition)
{
var sqlBuilder = new List<string> { "SELECT * FROM ProductionReport WHERE 1=1" };
var parameters = new List<SQLiteParameter>();
// 索引约束1：工单编号（精准匹配，命中索引）
if (!string.IsNullOrEmpty(condition.OrderNo))
{
sqlBuilder.Add("AND OrderNo = @OrderNo");
parameters.Add(new SQLiteParameter("@OrderNo", condition.OrderNo));
}
// 索引约束2：产品编号（模糊匹配，命中索引）
if (!string.IsNullOrEmpty(condition.ProductNo))
{
sqlBuilder.Add("AND ProductNo LIKE @ProductNo");
parameters.Add(new SQLiteParameter("@ProductNo", $"%{condition.ProductNo}%"));
}
// 普通条件：车间/状态
if (!string.IsNullOrEmpty(condition.Workshop))
{
sqlBuilder.Add("AND Workshop = @Workshop");
parameters.Add(new SQLiteParameter("@Workshop", condition.Workshop));
}
if (!string.IsNullOrEmpty(condition.Status))
{
sqlBuilder.Add("AND Status = @Status");
parameters.Add(new SQLiteParameter("@Status", condition.Status));
}
// 索引约束3：生产日期范围（命中索引）
if (condition.StartDate.HasValue)
{
sqlBuilder.Add("AND ProduceDate >= @StartDate");
parameters.Add(new SQLiteParameter("@StartDate", condition.StartDate.Value.ToString("yyyy-MM-dd")));
}
if (condition.EndDate.HasValue)
{
sqlBuilder.Add("AND ProduceDate <= @EndDate");
parameters.Add(new SQLiteParameter("@EndDate", condition.EndDate.Value.ToString("yyyy-MM-dd")));
}
// 默认排序
sqlBuilder.Add("ORDER BY ProduceDate DESC");
return _dbHelper.ExecuteQuery(string.Join(" ", sqlBuilder), parameters.ToArray());
}
// 添加新报表数据
public bool AddReportData(ReportModel model)
{
try
{
var sql = @"
INSERT INTO ProductionReport (OrderNo, ProductNo, Workshop, Qty, ProduceDate, Status, Operator)
VALUES (@OrderNo, @ProductNo, @Workshop, @Qty, @ProduceDate, @Status, @Operator);";
var rows = _dbHelper.ExecuteNonQuery(sql,
new SQLiteParameter("@OrderNo", model.OrderNo),
new SQLiteParameter("@ProductNo", model.ProductNo),
new SQLiteParameter("@Workshop", model.Workshop),
new SQLiteParameter("@Qty", model.Qty),
new SQLiteParameter("@ProduceDate", model.ProduceDate),
new SQLiteParameter("@Status", model.Status),
new SQLiteParameter("@Operator", model.Operator));
return rows > 0;
}
catch
{
return false;
}
}
}
}SortEngine.cs（高级排序算法）
csharp
运行
using System;
using System.Collections.Generic;
using System.Data;
using System.Linq;
using MESERPReport.Model;
namespace MESERPReport.Business
{
public class SortEngine
{
// 多规则排序（支持优先级+升降序）
public DataTable SortReport(DataTable sourceDt, List<SortRule> sortRules)
{
if (sourceDt == null || sourceDt.Rows.Count == 0 || sortRules == null || sortRules.Count == 0)
return sourceDt;
// 转换为List便于LINQ排序
var dataList = sourceDt.AsEnumerable().ToList();
IOrderedEnumerable<DataRow> sortedList = null;
// 按优先级排序（数字越小优先级越高）
foreach (var rule in sortRules.OrderBy(r => r.Priority))
{
if (sortedList == null)
{
// 首次排序
sortedList = rule.IsAsc
? dataList.OrderBy(row => GetSortValue(row, rule.FieldName))
: dataList.OrderByDescending(row => GetSortValue(row, rule.FieldName));
}
else
{
// 后续排序（ThenBy）
sortedList = rule.IsAsc
? sortedList.ThenBy(row => GetSortValue(row, rule.FieldName))
: sortedList.ThenByDescending(row => GetSortValue(row, rule.FieldName));
}
}
// 重构DataTable
var resultDt = sourceDt.Clone();
foreach (var row in sortedList)
{
resultDt.ImportRow(row);
}
return resultDt;
}
// 获取排序值（适配不同字段类型）
private object GetSortValue(DataRow row, string fieldName)
{
if (row[fieldName] == DBNull.Value)
return fieldName switch
{
"Qty" => 0m,
"ProduceDate" => DateTime.MinValue,
_ => string.Empty
};
return fieldName switch
{
"Qty" => Convert.ToDecimal(row[fieldName]),
"ProduceDate" => Convert.ToDateTime(row[fieldName]),
_ => row[fieldName].ToString()
};
}
}
}4. 界面层（UI）

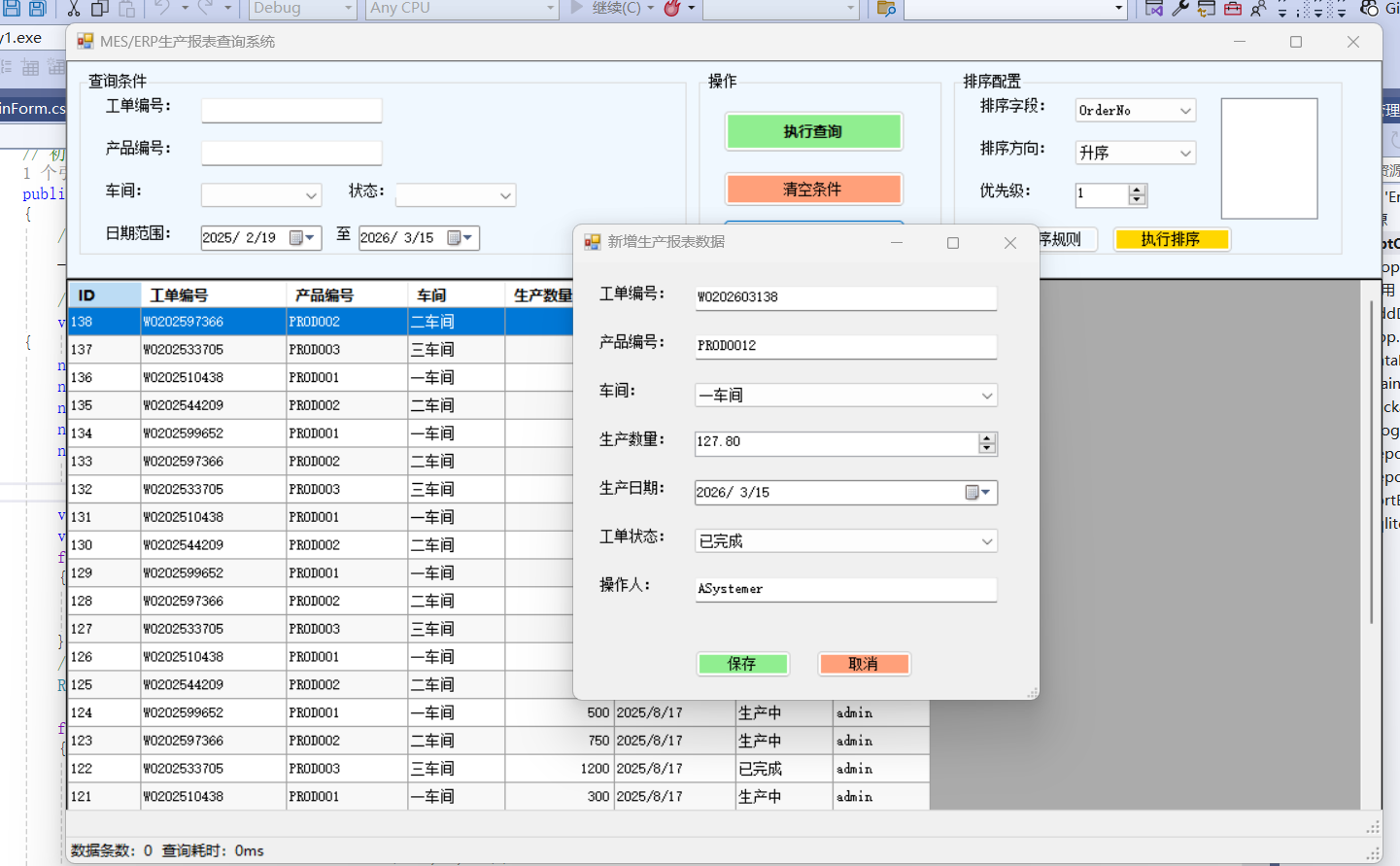

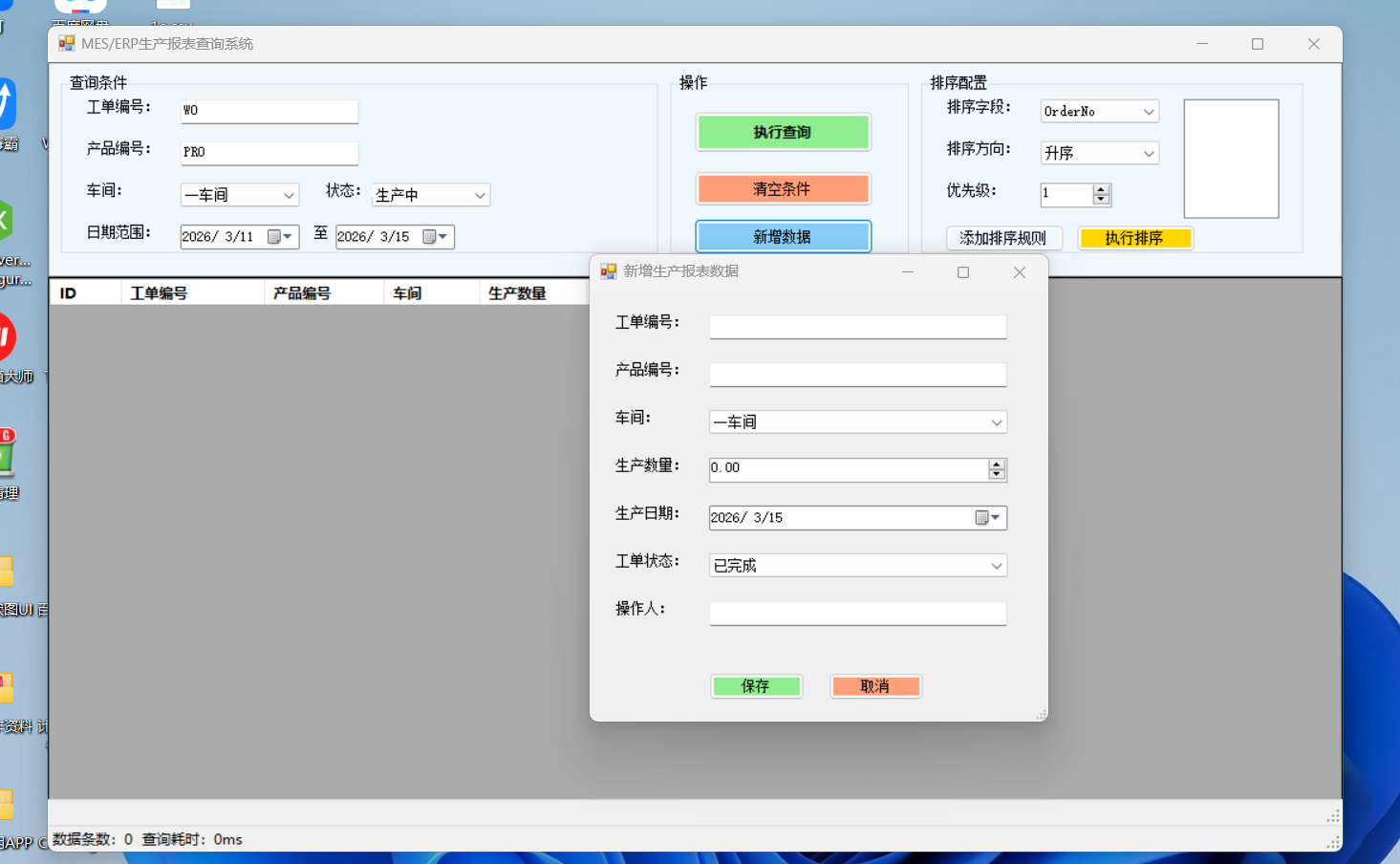

AddDataForm.cs（新增数据弹窗）
csharp
运行
using System;
using System.Windows.Forms;
using MESERPReport.Business;
using MESERPReport.Model;
namespace MESERPReport.UI
{
public partial class AddDataForm : Form
{
private readonly ReportService _reportService;
public AddDataForm()
{
InitializeComponent();
_reportService = new ReportService();
InitAddDataUI();
}
// 初始化新增数据界面
private void InitAddDataUI()
{
// 窗体设置
this.Text = "新增生产报表数据";
this.Size = new Size(400, 400);
this.StartPosition = FormStartPosition.CenterParent;
// 控件布局
int y = 20;
// 工单编号
var lblOrderNo = new Label { Text = "工单编号：", Location = new Point(20, y), AutoSize = true };
var txtOrderNo = new TextBox { Name = "txtOrderNo", Location = new Point(100, y), Width = 250 };
y += 40;
// 产品编号
var lblProductNo = new Label { Text = "产品编号：", Location = new Point(20, y), AutoSize = true };
var txtProductNo = new TextBox { Name = "txtProductNo", Location = new Point(100, y), Width = 250 };
y += 40;
// 车间
var lblWorkshop = new Label { Text = "车间：", Location = new Point(20, y), AutoSize = true };
var cboWorkshop = new ComboBox
{
Name = "cboWorkshop",
Location = new Point(100, y),
Width = 250,
DropDownStyle = ComboBoxStyle.DropDownList,
DataSource = new[] { "一车间", "二车间", "三车间" }
};
y += 40;
// 生产数量
var lblQty = new Label { Text = "生产数量：", Location = new Point(20, y), AutoSize = true };
var numQty = new NumericUpDown
{
Name = "numQty",
Location = new Point(100, y),
Width = 250,
Minimum = 0,
Maximum = 99999,
DecimalPlaces = 2
};
y += 40;
// 生产日期
var lblDate = new Label { Text = "生产日期：", Location = new Point(20, y), AutoSize = true };
var dtpDate = new DateTimePicker
{
Name = "dtpDate",
Location = new Point(100, y),
Width = 250,
Format = DateTimePickerFormat.Short
};
y += 40;
// 工单状态
var lblStatus = new Label { Text = "工单状态：", Location = new Point(20, y), AutoSize = true };
var cboStatus = new ComboBox
{
Name = "cboStatus",
Location = new Point(100, y),
Width = 250,
DropDownStyle = ComboBoxStyle.DropDownList,
DataSource = new[] { "已完成", "生产中", "暂停" }
};
y += 40;
// 操作人
var lblOperator = new Label { Text = "操作人：", Location = new Point(20, y), AutoSize = true };
var txtOperator = new TextBox { Name = "txtOperator", Location = new Point(100, y), Width = 250 };
y += 60;
// 按钮
var btnSave = new Button
{
Text = "保存",
Location = new Point(100, y),
Width = 80,
BackColor = Color.LightGreen
};
btnSave.Click += (s, e) => SaveData(txtOrderNo, txtProductNo, cboWorkshop, numQty, dtpDate, cboStatus, txtOperator);
var btnCancel = new Button
{
Text = "取消",
Location = new Point(200, y),
Width = 80,
BackColor = Color.LightSalmon
};
btnCancel.Click += (s, e) => this.Close();
// 添加控件
this.Controls.AddRange(new Control[]
{
lblOrderNo, txtOrderNo, lblProductNo, txtProductNo,
lblWorkshop, cboWorkshop, lblQty, numQty, lblDate, dtpDate,
lblStatus, cboStatus, lblOperator, txtOperator, btnSave, btnCancel
});
}
// 保存数据
private void SaveData(TextBox txtOrderNo, TextBox txtProductNo, ComboBox cboWorkshop,
NumericUpDown numQty, DateTimePicker dtpDate, ComboBox cboStatus, TextBox txtOperator)
{
// 校验必填项
if (string.IsNullOrEmpty(txtOrderNo.Text) || string.IsNullOrEmpty(txtProductNo.Text))
{
MessageBox.Show("工单编号和产品编号不能为空！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);
return;
}
// 构建模型
var model = new ReportModel
{
OrderNo = txtOrderNo.Text.Trim(),
ProductNo = txtProductNo.Text.Trim(),
Workshop = cboWorkshop.Text,
Qty = (decimal)numQty.Value,
ProduceDate = dtpDate.Value,
Status = cboStatus.Text,
Operator = txtOperator.Text.Trim()
};
// 保存数据
var result = _reportService.AddReportData(model);
if (result)
{
MessageBox.Show("数据添加成功！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
this.DialogResult = DialogResult.OK;
this.Close();
}
else
{
MessageBox.Show("数据添加失败！", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
}
}
// 设计器代码（简化）
private System.ComponentModel.IContainer components = null;
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
private void InitializeComponent()
{
this.SuspendLayout();
this.Name = "AddDataForm";
this.Size = new Size(400, 400);
this.ResumeLayout(false);
}
}
}MainForm.cs（主窗体 - 核心界面）
csharp
运行
using System;
using System.Collections.Generic;
using System.Data;
using System.Drawing;
using System.Windows.Forms;
using MESERPReport.Business;
using MESERPReport.Data;
using MESERPReport.Model;
namespace MESERPReport.UI
{
public partial class MainForm : Form
{
private readonly ReportService _reportService;
private readonly SortEngine _sortEngine;
private DataTable _originalDt; // 原始查询数据
private List<SortRule> _sortRules = new List<SortRule>(); // 排序规则
public MainForm()
{
InitializeComponent();
_reportService = new ReportService();
_sortEngine = new SortEngine();
// 初始化预置数据
new DataInitializer().InitTestData();
// 初始化主界面
InitMainUI();
}

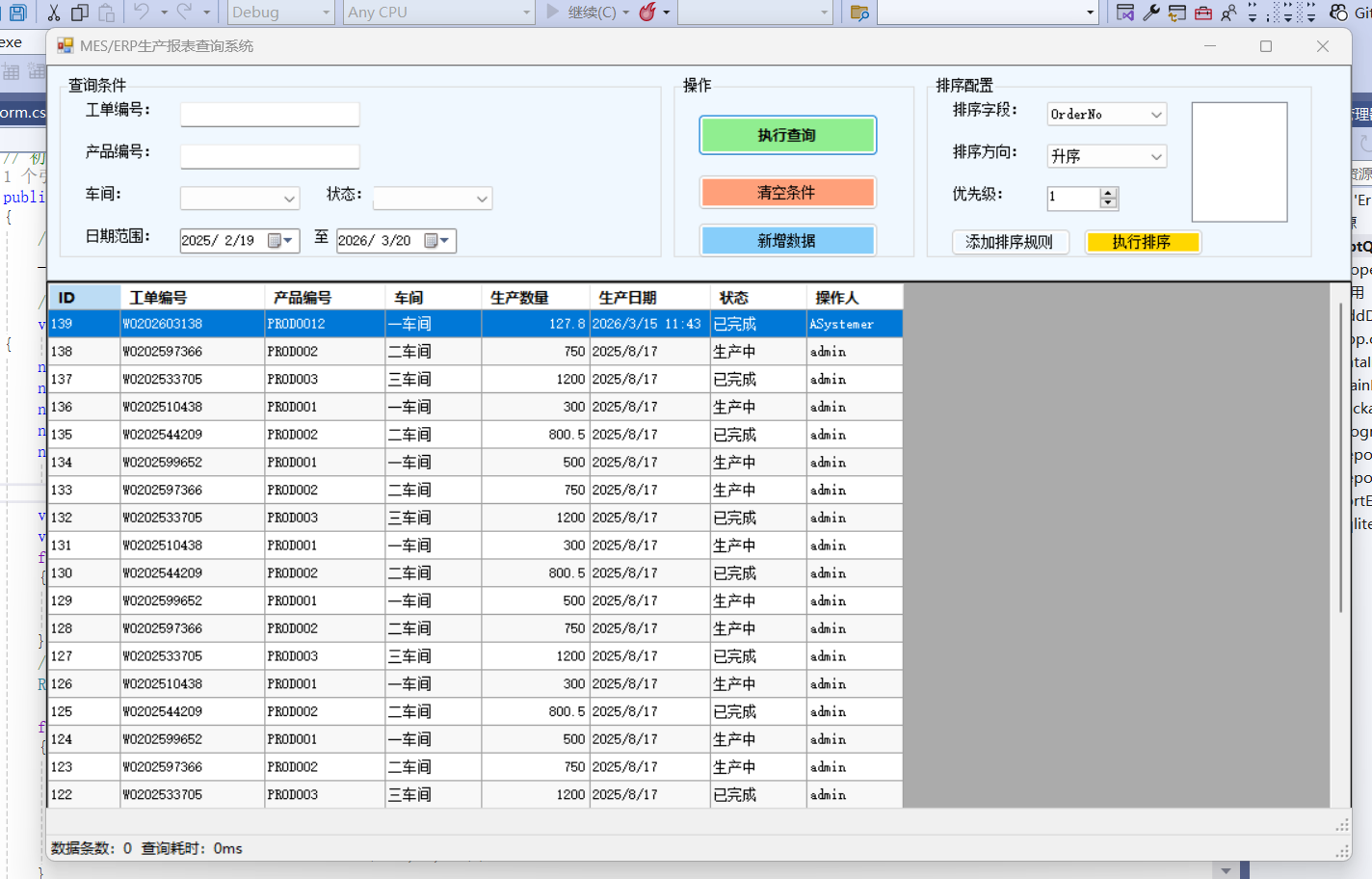

// 初始化主界面（富交互控件）
private void InitMainUI()
{
// 窗体设置
this.Text = "MES/ERP生产报表查询系统";
this.Size = new Size(1100, 700);
this.StartPosition = FormStartPosition.CenterScreen;
// ========== 1. 顶部功能区 ==========
var pnlTop = new Panel { Dock = DockStyle.Top, Height = 180, BackColor = Color.AliceBlue, BorderStyle = BorderStyle.FixedSingle };
// 1.1 查询条件组
var grpQuery = new GroupBox { Text = "查询条件", Location = new Point(10, 10), Size = new Size(500, 150) };
int y = 20;
// 工单编号
var lblOrderNo = new Label { Text = "工单编号：", Location = new Point(20, y), AutoSize = true };
var txtOrderNo = new TextBox { Name = "txtOrderNo", Location = new Point(100, y), Width = 150, PlaceholderText = "精准匹配（如WO202406001）" };
y += 35;
// 产品编号
var lblProductNo = new Label { Text = "产品编号：", Location = new Point(20, y), AutoSize = true };
var txtProductNo = new TextBox { Name = "txtProductNo", Location = new Point(100, y), Width = 150, PlaceholderText = "模糊匹配（如PROD00）" };
y += 35;
// 车间+状态
var lblWorkshop = new Label { Text = "车间：", Location = new Point(20, y), AutoSize = true };
var cboWorkshop = new ComboBox { Name = "cboWorkshop", Location = new Point(100, y), Width = 100, DropDownStyle = ComboBoxStyle.DropDownList, DataSource = new[] { "", "一车间", "二车间", "三车间" } };
var lblStatus = new Label { Text = "状态：", Location = new Point(220, y), AutoSize = true };
var cboStatus = new ComboBox { Name = "cboStatus", Location = new Point(260, y), Width = 100, DropDownStyle = ComboBoxStyle.DropDownList, DataSource = new[] { "", "已完成", "生产中", "暂停" } };
y += 35;
// 日期范围
var lblDate = new Label { Text = "日期范围：", Location = new Point(20, y), AutoSize = true };
var dtpStart = new DateTimePicker { Name = "dtpStart", Location = new Point(100, y), Width = 100, Format = DateTimePickerFormat.Short };
var lblTo = new Label { Text = "至", Location = new Point(210, y), AutoSize = true };
var dtpEnd = new DateTimePicker { Name = "dtpEnd", Location = new Point(230, y), Width = 100, Format = DateTimePickerFormat.Short };
grpQuery.Controls.AddRange(new Control[] { lblOrderNo, txtOrderNo, lblProductNo, txtProductNo, lblWorkshop, cboWorkshop, lblStatus, cboStatus, lblDate, dtpStart, lblTo, dtpEnd });
// 1.2 功能按钮组
var grpBtn = new GroupBox { Text = "操作", Location = new Point(520, 10), Size = new Size(200, 150) };
// 查询按钮
var btnQuery = new Button { Text = "执行查询", Location = new Point(20, 30), Width = 150, Height = 35, BackColor = Color.LightGreen, Font = new Font("微软雅黑", 9, FontStyle.Bold) };
btnQuery.Click += (s, e) => ExecuteQuery(txtOrderNo, txtProductNo, cboWorkshop, cboStatus, dtpStart, dtpEnd);
// 清空按钮
var btnClear = new Button { Text = "清空条件", Location = new Point(20, 80), Width = 150, Height = 30, BackColor = Color.LightSalmon };
btnClear.Click += (s, e) => ClearQueryCondition(grpQuery);
// 新增数据按钮
var btnAdd = new Button { Text = "新增数据", Location = new Point(20, 120), Width = 150, Height = 30, BackColor = Color.LightSkyBlue };
btnAdd.Click += (s, e) => OpenAddDataForm();
grpBtn.Controls.AddRange(new Control[] { btnQuery, btnClear, btnAdd });
// 1.3 排序配置组
var grpSort = new GroupBox { Text = "排序配置", Location = new Point(730, 10), Size = new Size(320, 150) };
y = 20;
// 排序字段
var lblSortField = new Label { Text = "排序字段：", Location = new Point(20, y), AutoSize = true };
var cboSortField = new ComboBox { Name = "cboSortField", Location = new Point(100, y), Width = 100, DropDownStyle = ComboBoxStyle.DropDownList, DataSource = new[] { "OrderNo", "ProductNo", "Qty", "ProduceDate" } };
y += 35;
// 排序方向
var lblSortDir = new Label { Text = "排序方向：", Location = new Point(20, y), AutoSize = true };
var cboSortDir = new ComboBox { Name = "cboSortDir", Location = new Point(100, y), Width = 100, DropDownStyle = ComboBoxStyle.DropDownList, DataSource = new[] { "升序", "降序" } };
y += 35;
// 优先级
var lblPriority = new Label { Text = "优先级：", Location = new Point(20, y), AutoSize = true };
var numPriority = new NumericUpDown { Name = "numPriority", Location = new Point(100, y), Width = 60, Minimum = 1, Maximum = 5, Value = 1 };
y += 35;
// 排序按钮
var btnAddSort = new Button { Text = "添加排序规则", Location = new Point(20, y), Width = 100 };
btnAddSort.Click += (s, e) => AddSortRule(cboSortField, cboSortDir, numPriority);
var btnSort = new Button { Text = "执行排序", Location = new Point(130, y), Width = 100, BackColor = Color.Gold };
btnSort.Click += (s, e) => ExecuteSort();
// 排序规则列表
var lstSortRule = new ListBox { Name = "lstSortRule", Location = new Point(220, 20), Size = new Size(80, 110) };
grpSort.Controls.AddRange(new Control[] { lblSortField, cboSortField, lblSortDir, cboSortDir, lblPriority, numPriority, btnAddSort, btnSort, lstSortRule });
pnlTop.Controls.AddRange(new Control[] { grpQuery, grpBtn, grpSort });
// ========== 2. 数据展示区 ==========
var dgvReport = new DataGridView
{
Name = "dgvReport",
Dock = DockStyle.Fill,
AutoGenerateColumns = false,
ReadOnly = true,
SelectionMode = DataGridViewSelectionMode.FullRowSelect,
MultiSelect = false,
RowHeadersVisible = false,
AllowUserToAddRows = false,
AlternatingRowsDefaultCellStyle = { BackColor = Color.FromArgb(248, 248, 248) },
ColumnHeadersDefaultCellStyle =
{
BackColor = Color.FromArgb(51, 122, 183),
ForeColor = Color.White,
Font = new Font("微软雅黑", 9, FontStyle.Bold)
}
};
// 自定义列
dgvReport.Columns.AddRange(new DataGridViewColumn[]
{
new DataGridViewTextBoxColumn { Name = "colId", HeaderText = "ID", DataPropertyName = "Id", Width = 60 },
new DataGridViewTextBoxColumn { Name = "colOrderNo", HeaderText = "工单编号", DataPropertyName = "OrderNo", Width = 120 },
new DataGridViewTextBoxColumn { Name = "colProductNo", HeaderText = "产品编号", DataPropertyName = "ProductNo", Width = 100 },
new DataGridViewTextBoxColumn { Name = "colWorkshop", HeaderText = "车间", DataPropertyName = "Workshop", Width = 80 },
new DataGridViewTextBoxColumn { Name = "colQty", HeaderText = "生产数量", DataPropertyName = "Qty", Width = 90, DefaultCellStyle = { Alignment = DataGridViewContentAlignment.MiddleRight } },
new DataGridViewTextBoxColumn { Name = "colDate", HeaderText = "生产日期", DataPropertyName = "ProduceDate", Width = 100 },
new DataGridViewTextBoxColumn { Name = "colStatus", HeaderText = "状态", DataPropertyName = "Status", Width = 80 },
new DataGridViewTextBoxColumn { Name = "colOperator", HeaderText = "操作人", DataPropertyName = "Operator", Width = 80 }
});
// ========== 3. 状态栏 ==========
var statusStrip = new StatusStrip();
var tslCount = new ToolStripStatusLabel { Text = "数据条数：0" };
var tslTime = new ToolStripStatusLabel { Text = "查询耗时：0ms", Alignment = ToolStripItemAlignment.Right };
statusStrip.Items.AddRange(new ToolStripItem[] { tslCount, tslTime });
// ========== 组装控件 ==========
this.Controls.AddRange(new Control[] { dgvReport, pnlTop, statusStrip });
}
// 执行查询
private void ExecuteQuery(TextBox txtOrderNo, TextBox txtProductNo, ComboBox cboWorkshop,
ComboBox cboStatus, DateTimePicker dtpStart, DateTimePicker dtpEnd)
{
try
{
var sw = new System.Diagnostics.Stopwatch();
sw.Start();
// 构建查询条件
var condition = new QueryCondition
{
OrderNo = txtOrderNo.Text.Trim(),
ProductNo = txtProductNo.Text.Trim(),
Workshop = cboWorkshop.Text,
Status = cboStatus.Text,
StartDate = dtpStart.Value,
EndDate = dtpEnd.Value
};
// 执行查询
_originalDt = _reportService.QueryReport(condition);
// 绑定数据
var dgv = (DataGridView)this.Controls.Find("dgvReport", true)[0];
dgv.DataSource = _originalDt;
// 更新状态栏
sw.Stop();
((ToolStripStatusLabel)((StatusStrip)this.Controls["statusStrip1"]).Items[0]).Text = $"数据条数：{_originalDt.Rows.Count}";
((ToolStripStatusLabel)((StatusStrip)this.Controls["statusStrip1"]).Items[1]).Text = $"查询耗时：{sw.ElapsedMilliseconds}ms";
MessageBox.Show($"查询完成！共{_originalDt.Rows.Count}条数据", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
catch (Exception ex)
{
MessageBox.Show($"查询失败：{ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
}
}
// 清空查询条件
private void ClearQueryCondition(GroupBox grpQuery)
{
foreach (Control ctrl in grpQuery.Controls)
{
if (ctrl is TextBox txt) txt.Text = string.Empty;
else if (ctrl is ComboBox cbo) cbo.SelectedIndex = 0;
else if (ctrl is DateTimePicker dtp) dtp.Value = DateTime.Today;
}
}
// 打开新增数据窗体
private void OpenAddDataForm()
{
var addForm = new AddDataForm();
if (addForm.ShowDialog() == DialogResult.OK)
{
// 新增成功后刷新数据
var txtOrderNo = (TextBox)this.Controls.Find("txtOrderNo", true)[0];
ExecuteQuery(txtOrderNo, (TextBox)this.Controls.Find("txtProductNo", true)[0],
(ComboBox)this.Controls.Find("cboWorkshop", true)[0], (ComboBox)this.Controls.Find("cboStatus", true)[0],
(DateTimePicker)this.Controls.Find("dtpStart", true)[0], (DateTimePicker)this.Controls.Find("dtpEnd", true)[0]);
}
}
// 添加排序规则
private void AddSortRule(ComboBox cboSortField, ComboBox cboSortDir, NumericUpDown numPriority)
{
var rule = new SortRule
{
FieldName = cboSortField.Text,
IsAsc = cboSortDir.Text == "升序",
Priority = (int)numPriority.Value
};
_sortRules.Add(rule);
// 更新规则列表
var lst = (ListBox)this.Controls.Find("lstSortRule", true)[0];
lst.Items.Add($"P{rule.Priority}：{rule.FieldName}({(rule.IsAsc ? "升" : "降")})");
MessageBox.Show("排序规则添加成功！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
// 执行排序
private void ExecuteSort()
{
if (_originalDt == null || _originalDt.Rows.Count == 0)
{
MessageBox.Show("请先执行查询！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);
return;
}
if (_sortRules.Count == 0)
{
MessageBox.Show("请添加排序规则！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);
return;
}
try
{
var sortedDt = _sortEngine.SortReport(_originalDt, _sortRules);
var dgv = (DataGridView)this.Controls.Find("dgvReport", true)[0];
dgv.DataSource = sortedDt;
MessageBox.Show("排序完成！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
catch (Exception ex)
{
MessageBox.Show($"排序失败：{ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
}
}
// 设计器代码（简化）
private System.ComponentModel.IContainer components = null;
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
private void InitializeComponent()
{
this.components = new System.ComponentModel.Container();
this.statusStrip1 = new System.Windows.Forms.StatusStrip();
this.SuspendLayout();
this.statusStrip1.Name = "statusStrip1";
this.statusStrip1.Size = new System.Drawing.Size(800, 22);
this.Controls.Add(this.statusStrip1);
this.Name = "MainForm";
this.Size = new System.Drawing.Size(800, 450);
this.ResumeLayout(false);
this.PerformLayout();
}
private StatusStrip statusStrip1;
}
}Program.cs（程序入口）
csharp
运行
using System;
using System.Windows.Forms;
using MESERPReport.UI;
namespace MESERPReport
{
static class Program
{
[STAThread]
static void Main()
{
Application.EnableVisualStyles();
Application.SetCompatibleTextRenderingDefault(false);
Application.Run(new MainForm());
}
}
}四、核心亮点
1. 数据预置与管理
- 自动初始化测试数据：程序启动时自动创建 SQLite 数据库并插入 5 条测试数据，无需手动造数；
- 手动添加数据：提供弹窗式新增数据界面，支持工单、产品、车间等信息录入，校验必填项；
- 本地轻量化存储：基于 SQLite，无需服务端，单机即可运行。
2. 索引约束与查询优化
- 多维度索引：为工单编号、产品编号、生产日期创建索引，提升查询效率；
- 条件约束：精准 / 模糊查询区分，日期范围校验，避免无效查询；
- 参数化查询：防止 SQL 注入，保证数据安全。
3. 排序算法增强
- 多规则排序：支持按优先级、字段类型（数值 / 日期 / 字符串）、升降序组合排序；
- 空值处理：自动适配空值默认值，避免排序异常；
- LINQ 优化：基于内存 List 排序，兼顾性能与可读性。
4. 界面交互优化
- 分组布局：查询 / 排序 / 操作区域清晰分离，逻辑直观；
- 富交互控件：下拉框预设值、输入框占位符、数值选择器、日期选择器，减少输入错误；
- 视觉优化：交替行颜色、表头高亮、数值右对齐，提升可读性；
- 实时反馈：状态栏显示数据条数、查询耗时，操作结果弹窗提示。
五、使用说明
1. 环境准备
- Visual Studio 2019/2022；
- .NET Framework 4.7.2+；
- 安装 NuGet 包：
System.Data.SQLite（版本 1.0.118+）。
2. 运行步骤
- 创建 WinForm 项目，命名为
MESERPReport； - 按架构创建文件夹（Data/Business/Model/UI）；
- 将对应代码复制到各文件夹下的类文件；
- 编译运行，首次启动自动创建数据库并插入测试数据；
- 功能操作：
- 查询：输入条件（如产品编号 PROD001），点击「执行查询」；
- 排序：添加排序规则（如按生产数量降序），点击「执行排序」；
- 新增数据：点击「新增数据」，录入信息后保存，自动刷新列表。
总结
关键点回顾
- 数据层：SQLite 本地存储 + 预置测试数据 + 多维度索引，保证数据访问效率；
- 业务层：多条件查询 + 多规则排序算法，满足 MES/ERP 报表核心需求；
- 界面层：富交互控件 + 分组布局 + 实时反馈，大幅提升操作便捷性；
- 扩展灵活：支持新增 / 查询 / 排序核心功能，可快速扩展导出、批量操作等功能。
该项目完全适配中小企业 MES/ERP 报表管理场景，轻量化部署、操作便捷、功能完整，可直接作为基础框架扩展个性化需求。
