后端返回ws的流数据 前端需要播放
1.需要 web-view 创建一个单独的web-view
2.需要单独一个h5页面，是从unapp通过webplayerUrl跳转出来到这个h5中 h5就是我们播放视频的地方 接受流的地方

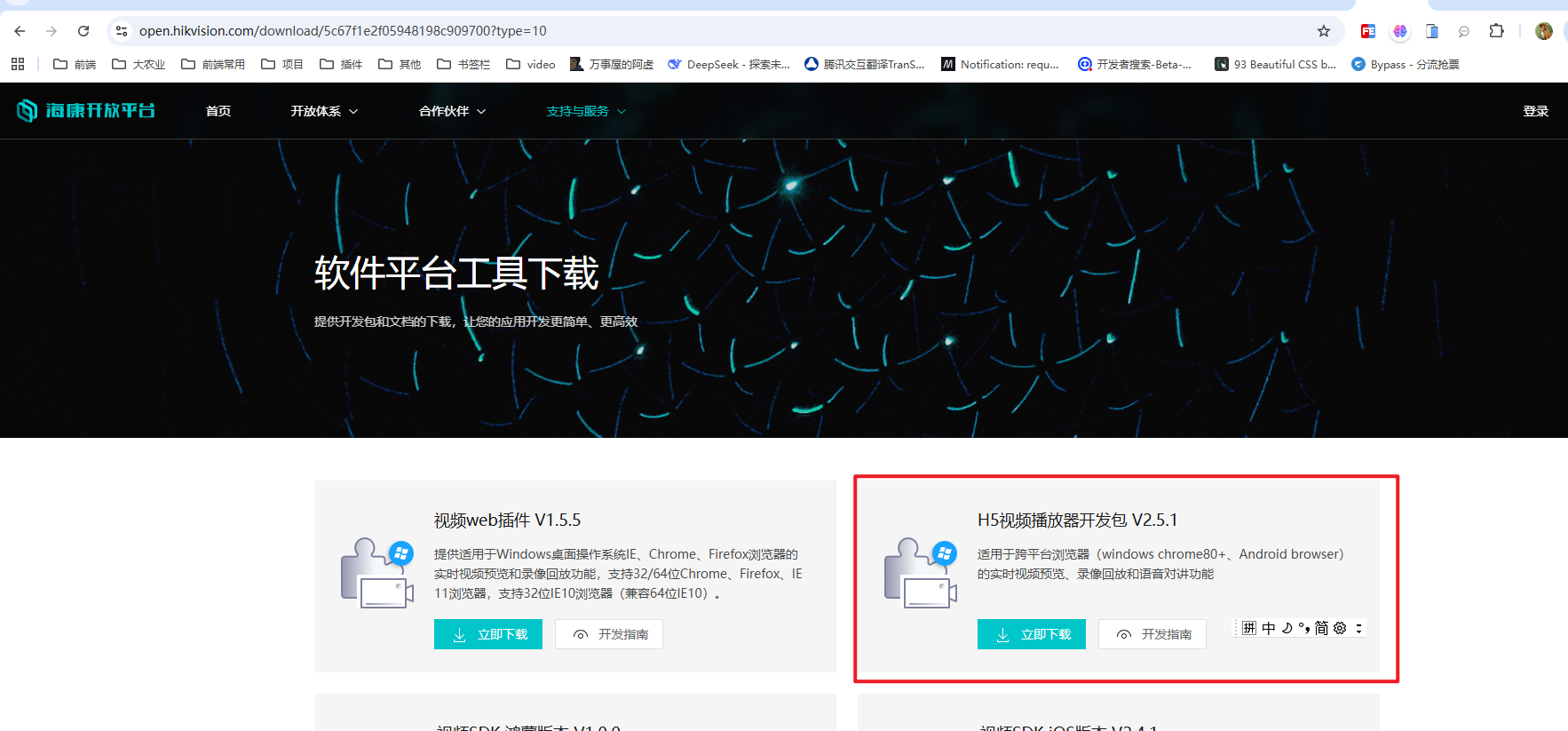

3.h5中需要到海康提供的插件 插件

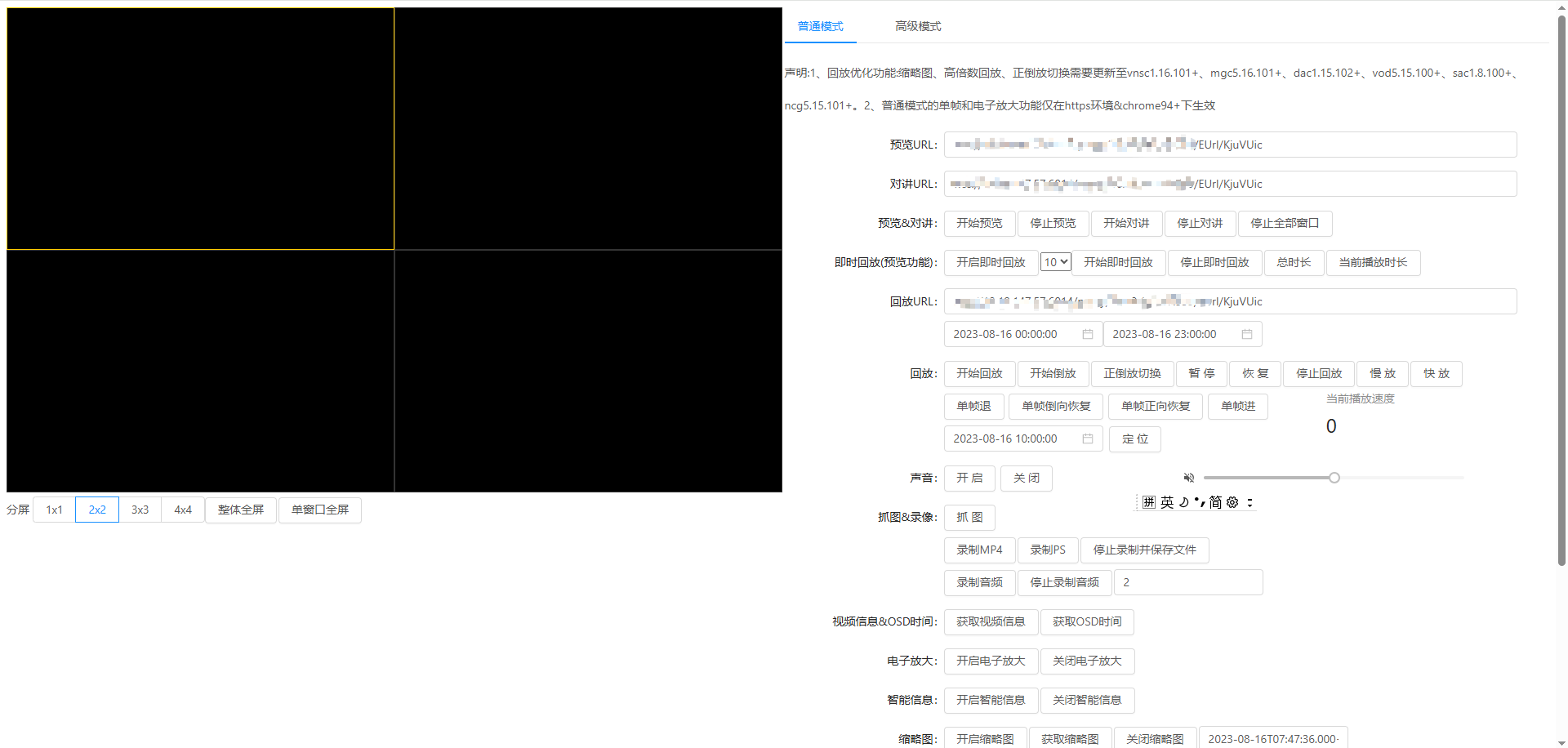

4.H5可以使用海康给提供的列子，或者自己改造下，注意在引入一些js文件要放在public\static下还有utils下面也放了h5player.min.js
拿来我改造了下
<template>
<view class="content-pages">
<web-view :src="webplayerUrl"></web-view>
</view>
</template>
<script>
import { deviceList, previewUrl } from "@/api/ship";
export default {
components: {
},
data() {
return {
ws: null,
webplayerUrl: null,
canvas: null,
ctx: null,
canvasWidth: 375,
canvasHeight: 210,
isConnected: false,
error: '',
cameraIndexCode: '',
wsUrl: "",
};
},
onPageScroll({ scrollTop }) {
const max = 60;
if (scrollTop < max) {
const num = scrollTop / max;
const c = 255 - parseInt((255 - 51) * num);
this.navBarColor = `rgb(${c}, ${c}, ${c})`;
this.navBarBgColor = `rgba(255, 255, 255,${num})`;
this.navBarOpacity = num.toFixed(3);
} else {
this.navBarColor = "rgb(51, 51, 51)";
this.navBarBgColor = "rgba(255, 255, 255,1)";
this.navBarOpacity = 1;
}
},
onLoad(options) {
console.log(options.deviceCode,'deviceCodedeviceCode');

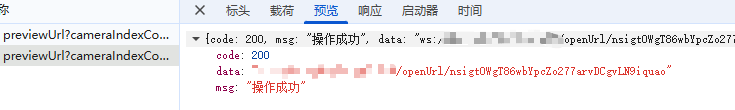

previewUrl({cameraIndexCode: options.deviceCode}).then((res) => {
console.log(res.data, 'previewUrl');
this.wsUrl = res.data;
this.previewURLs();
});
// this.previewURLs();
},
methods: {
// 获取视频流
previewURLs(){
console.log("previewURLs",this.wsUrl);
//本地起起来的h5地址
this.webplayerUrl="http://10.96.105.182:8080/#/video?cameraUrl="+this.wsUrl
},
back() {
uni.navigateBack();
},
},
};
</script>
<style lang="scss">
</style>h5代码
<template>
<div :class="['bg', activePage == 1 ? 'page-bg1' : '']">
<div class="uns-navbar">
<div class="f_h_x">
<div class="lefts "><span class="el-icon-arrow-left icons" @click="balcks"></span></div>

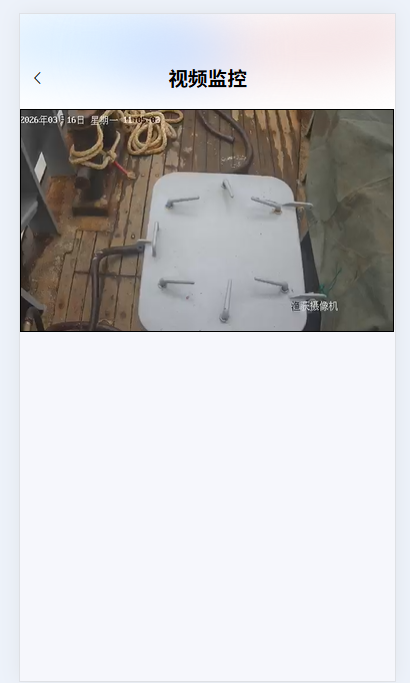

<div class="titles">视频监控</div>
<div class="rights"></div>
</div>
</div>
<div >
<div id="player"></div>
</div>
</div>
</template>
<script>
const IS_MOVE_DEVICE = document.body.clientWidth < 992 // 是否移动设备
const MSE_IS_SUPPORT = !!window.MediaSource // 是否支持mse
import {
getShipTrajectory,
getShipingLog,
getShipVideoList,
choose,
listWarning,
handleWarning,
errorTouchWarning,dictTypeES,dictList,appWarningAnalysies,getInfo
} from "@/api/ship";
import '@/utils/h5player.min.js'
export default {
data() {
let self = this;
return {
activePage: 1,
imgids: ["1972602088056504321"], // 修改这里，从null改为空数组
handlingMethod: null,
dialogVisible: false,
showchuli: true,
active: 1,
timeArr: [new Date((+new Date()-7*24*60*60*1000)).toISOString().split("T")[0], new Date().toISOString().split("T")[0]],
options1: [],
options: [],
options2: [],
warningStatus:"",
status: {
"1971097454083141633": "未处理",
"1971097505111044097": "已处理:已提醒",
"1971097629816090626": " 误触",
},
arr1: [
// {
// name: "检测到1人未穿救生衣",
// time1: "2025-09-14",
// time2: "10:00:00",
// status: "未处理",
// status1: "1",
// id: 1,
// },
],
arr2: [
// {
// name: "岗位状态检测",
// num: "20",
// id: 1,
// },
],
startDatePicker: {
disabledDate(time, timeArr) {
return self.timeArr[1]
? time.getTime() > new Date(self.timeArr[1]) - 24 * 60 * 60 * 1000
: false;
},
},
endDatePicker: {
disabledDate(time, timeArr) {
return self.timeArr[0]
? time.getTime() < new Date(self.timeArr[0])
: false;
},
},
pointList: [], // 船舶轨迹
shipingLogData: {}, // 捕捞日志
videoList: [], // 监控列表
shipName: "", // 船舶名称
selectBreed: "jqy", // 选择的种类
selectedItem: null, // 选中的告警项ID
region: null, // 选中的告警项ID
shipBaseInfo:null,
itemInfo: null,
form: {
name: "",
date: "",
},
};
},
watch: {},
mounted() {
this.$el.style.setProperty('display', 'block')
this.init()
this.createPlayer()
this.realplay()
},
methods: {
wholeFullScreen() {
this.player.JS_FullScreenDisplay(true).then(
() => { console.log(`wholeFullScreen success`) },
e => { console.error(e) }
)
},
//取url中的参数值
GetQueryString(name) {
var reg = new RegExp("(^|&)" + name + "=([^&]*)(&|$)", "i");
var r = window.location.search.substr(1).match(reg);
if (r != null) return unescape(r[2]);
return null;
},
init() {
// 设置播放容器的宽高并监听窗口大小变化
window.addEventListener('resize', () => {
this.player.JS_Resize()
})
},
createPlayer() {
this.player = new JSPlugin({
szId: 'player',//父窗口id，需要英文字母开头 必填
szBasePath: "./",// 必填,与h5player.min.js的引用路径一致
iMaxSplit: 1,
iCurrentSplit: 1,
openDebug: true,
mseWorkerEnable: false,//是否开启多线程解码，分辨率大于1080P建议开启，否则可能卡顿
bSupporDoubleClickFull: true,//是否支持双击全屏，true-双击是全屏；false-双击无响应
oStyle: {
borderSelect: IS_MOVE_DEVICE ? '#000' : '#FFCC00',
}
})
// 事件回调绑定
this.player.JS_SetWindowControlCallback({
windowEventSelect: function (iWndIndex) { //插件选中窗口回调
console.log('windowSelect callback: ', iWndIndex);
},
pluginErrorHandler: function (iWndIndex, iErrorCode, oError) { //插件错误回调
console.log('pluginError callback: ', iWndIndex, iErrorCode, oError);
},
windowEventOver: function (iWndIndex) { //鼠标移过回调
//console.log(iWndIndex);
},
windowEventOut: function (iWndIndex) { //鼠标移出回调
//console.log(iWndIndex);
},
windowEventUp: function (iWndIndex) { //鼠标mouseup事件回调
//console.log(iWndIndex);
},
windowFullCcreenChange: function (bFull) { //全屏切换回调
console.log('fullScreen callback: ', bFull);
},
firstFrameDisplay: function (iWndIndex, iWidth, iHeight) { //首帧显示回调
console.log('firstFrame loaded callback: ', iWndIndex, iWidth, iHeight);
},
performanceLack: function (iWndIndex) { //性能不足回调
console.log('performanceLack callback: ', iWndIndex);
},
StreamEnd: function (iWndIndex) { //性能不足回调
console.log('recv StreamEnd: ', iWndIndex);
},
StreamHeadChanged: function (iWndIndex) {
console.log('recv StreamHeadChanged: ', iWndIndex);
},
ThumbnailsEvent: (iWndIndex, eventType, eventCode) => {
console.log('recv ThumbnailsEvent: ' + iWndIndex + ", eventType:" + eventType + ", eventCode:" + eventCode);
},
InterruptStream: (iWndIndex, iTime) => {
console.log('recv InterruptStream: ' + iWndIndex + ", iTime:" + iTime);
},
ElementChanged: (iWndIndex, szElementType) => {//回调采用的是video还是canvas
console.log('recv ElementChanged: ' + iWndIndex + ", szElementType:" + szElementType);
},
});
},
/* 预览&对讲 */
realplay() {
let { cameraUrl }=this.$route.query
console.log(cameraUrl,'cameraUrl----------------------');
let { player, mode, token } = this,
index = player.currentWindowIndex,
playURL = cameraUrl
player.JS_SetTraceId(index, true)
player.JS_Play(playURL, { playURL, mode, keepDecoder: 0, token }, index).then(
() => {
console.log('realplay success');
player.JS_GetTraceId(index).then((id) => { console.log("traceid:", id) })
},
e => { console.error(e) }
)
},
stopPlay() {
this.player.JS_Stop().then(
() => { this.playback.rate = 0; console.log('stop realplay success') },
e => { console.error(e) }
)
},
getInfo() {
getInfo().then((res) => {
if (res.code == 200) {
let {user} = res.data;
localStorage.setItem("userInfoApp", JSON.stringify(user));
}
});
},
balcks() {
if (window.uni && window.uni.postMessage) {
// uni.reLaunch({
// url: '/entry/detail/index'
// })
uni.navigateBack();
}
},
wuchu(id) {
errorTouchWarning({ id: id }).then((res) => {
if (res.code == 200) {
this.handleClose();
this.$toast.success('操作成功')
this.listWarningList();
}
});
},
changedictTypeES() {
dictList({dictTypes: "handling_method"}).then((res) => {
if (res.code == 200) {
this.options1 = res.data.handling_method.map((item) => {
return {
...item,
label: item.dictLabel,
value: item.dictCode,
};
});
}
});
},
changedictdetection() {
dictList({dictTypes: "detection_type"}).then((res) => {
if (res.code == 200) {
this.options2= res.data.detection_type.map((item) => {
return {
...item,
label: item.dictLabel,
value: item.dictCode,
};
});
}
});
},
tijiao(id) {
if (!this.handlingMethod) {
this.$toast({
message: '请选择处理方式',
icon: ''
})
return;
}
this.$confirm("确认处理？")
.then((_) => {
handleWarning({ id: id,handlingMethod: this.handlingMethod }).then((res) => {
if (res.code == 200) {
this.handleClose();
this.$toast({
message: '操作成功',
icon: ''
})
this.listWarningList();
}
});
})
.catch((_) => {});
},
listWarningList() {
this.arr1 = []
// 如果imgids数组为空，则传入空数组，否则使用imgids数组
let arr = this.imgids.length > 0 ? this.imgids : []
let id = this.options.find(item => item.value == this.form.region)?.id
listWarning({
trawlerId: id,
startTime: this.timeArr[0]||'',
endTime: this.timeArr[1]||'',
detectionTypes: arr
}).then((res) => {
if (res.code == 200) {
this.arr1 = res.data.map((item) => {
return {
...item,
name: item.warningAnalysisName,
time1: item.triggerTime.split(" ")[0],
time2: item.triggerTime.split(" ")[1],
status: item.warningStatusName,
status1: item.warningStatus,
id: item.id,
};
});
}
});
},
getUrlParams(type) {
// 通过 ? 分割获取后面的参数字符串
let urlStr = location.href.split("?")[1];
// 创建空对象存储参数
let obj = {};
// 再通过 & 将每一个参数单独分割出来
let paramsArr = urlStr.split("&");
for (let i = 0, len = paramsArr.length; i < len; i++) {
// 再通过 = 将每一个参数分割为 key:value 的形式
let arr = paramsArr[i].split("=");
obj[arr[0]] = arr[1] || "";
}
if (typeof type === "string") {
return obj[type] || "";
}
return obj;
},
handleClose(done) {
this.handlingMethod = null;
this.warningStatus = "";
this.showchuli = true;
this.dialogVisible = false;
},
selectItems(id) {
console.log('id', id);
// 检查id是否已经在数组中
const index = this.imgids.indexOf(id);
if (index > -1) {
// 如果已经存在，则移除（取消选择）
this.imgids.splice(index, 1);
} else {
// 如果不存在，则添加（选择）
this.imgids.push(id);
}
this.listWarningList();
},
changeTime(val, type) {
this.timeArr[type] = val;
type==1&&this.$refs.kMap.getShipLine(this.form.region);
},
selectData(value) {
this.active = value;
},
selectChange() {
this.region = this.form.region;
console.log('region',this.region);
// this.getShipLine(this.form.region);
this.getappWarningAnalysies();
},
chooseAee() {
choose().then((res) => {
if (res.code == 200) {
this.options = res.data.map((item) => {
return {
...item,
label: item.name,
value: item.registryNumber,
};
});
}
});
},
getappWarningAnalysies() {
let id = this.options.find(item => item.value == this.form.region)?.id
appWarningAnalysies({trawlerId: id||''}).then((res) => {
if (res.code == 200) {
this.options2= res.data.map((item) => {
return {
...item,
label: item.dictLabel,
value: item.dictCount,
};
});
}
});
},
// 获取船舶监控列表
getShipVideos(id) {
const param = {
trawlerId: id,
deviceType: "1914262743520473089",
};
// const left = [38, 40, 38, 53, 61]
// const top = [60, 70, 39, 62, 55]
const left = [44, 50, 30, 70, 61];
const top = [40, 50, 50, 40, 35];
getShipVideoList(param).then((res) => {
if (res.code == 200) {
const list = res.rows.map((item, index) => {
item.left = left[index];
item.top = top[index];
return item;
});
this.videoList = list;
}
});
},
// 根据监控id获取视频地址
handleVideoUrl(code) {},
// 船舶轨迹v
getShipLine(v) {
getShipTrajectory(v).then((res) => {
if (res.code == 200) {
this.pointList = res.data;
}
});
},
// 获取捕捞日志
getShiping() {
const param = {
trawlerId: "1970416265257103362",
};
getShipingLog(param).then((res) => {
if (res.code == 200) {
this.shipingLogData = res.data.map((item) => {
return {
...item,
time: item.workStartTime.split(" ")[1],
date: item.workStartTime.split(" ")[0].split("-")[2],
};
})[0];
}
});
},
back() {
this.$router.push({ path: "/am" });
},
changeActive(value) {
const name = this.$route.query.shipName;
this.shipName = name;
this.activePage = value;
},
// 处理告警项点击事件
handleItemClick(item) {
this.selectedItem = item.id; // 设置选中项
this.itemInfo = item; // 设置选中项
this.warningStatus = item.warningStatus; // 设置选中项
setTimeout(() => {
this.dialogVisible = true; // 显示弹窗
this.changedictTypeES(); // 告警状态字典
}, 300);
// 这里可以添加具体的点击逻辑
// 比如：显示详情、跳转页面、播放视频等
},
},
};
</script>
<style>
@media (max-width: 730px) {
.el-message-box {
width: 15rem !important;
margin: 100px auto !important; /* 水平居中 */
}
}
@media screen and (max-width: 991px) {
#player {
width: 100vw;
height: calc((100vw - 16px) * 5 / 8);
}
}
@media screen and (min-width: 992px) {
#player {
width: 100vw;
height: calc((50vw - 8px) * 5 / 8);
}
}
</style>
<style lang="scss" scoped>
.bg {
width: 100%;
height: 100%;
// background: url("~@/assets/pageBg_new.png") no-repeat;
// background-size: 100% 100%;
}
::v-deep .el-form-item {
margin-bottom: 8px;
}
::v-deep .el-message-box {
width: 15rem;
}
::v-deep .el-input--prefix .el-input__inner
{
padding-right: 10px;
padding-left: 25px;
}
.f_ate{
width: 100%;
height: 100%;
display: flex;
flex-wrap: wrap;
}
.box1{
height: 23px;
margin: 0 5px 5px 0;
flex: 0 0 calc((100% - 10px)/2);
}
.box1:nth-child(2n) {
margin-right: 0;
}
.uns-navbar{
width: 100%;
height: 5.9375rem;
background: url("~@/assets/img/top_bg.png") no-repeat;
background-size: cover;
position: sticky;
top: 0;
z-index: 999;
.f_h_x{
display: flex;
// justify-content: space-between;
}
.lefts{
flex: 1;
.icons{
display: inline-block;
font-size: 16px;
height: 6rem;
line-height: 8rem;
padding-left: 10px;
}
}
.titles{
flex: 3;
font-family: YouSheBiaoTiHei, YouSheBiaoTiHei;
font-weight: 600;
font-size: 1.23rem;
color: #000;
line-height: 8rem;
height: 5rem;
text-align: center;
font-style: normal;
}
.rights{
flex: 1;
}
}
.status_x {
width: 100%;
height: 30px;
line-height: 30px;
text-align: center;
border-radius: 5px;
font-size: 14px;
}
.cc1 {
border: 1px solid #82e611c4;
color: #82e611c4;
}
.cc2 {
border: 1px solid #e6a700;
color: #e6a700;
}
::v-deep .el-dialog__footer {
text-align: center;
}
.cont_txt {
font-family: PingFang SC, PingFang SC;
font-weight: 400;
font-size: 14px;
color: #333333;
line-height: 30px;
text-align: left;
font-style: normal;
margin-left: 10px;
}
.txt_timer {
font-family: PingFang SC, PingFang SC;
font-weight: 400;
font-size: 14px;
color: #333333;
line-height: 30px;
text-align: left;
font-style: normal;
margin-left: 10px;
}
.cont_txt1 {
border-bottom: 1px dashed #cccccc;
}
.txt_time {
font-family: PingFang SC, PingFang SC;
font-weight: 400;
font-size: 18px;
color: #ec4c57;
line-height: 39px;
margin-left: 6px;
}
.dia_content {
.dix_ff {
display: flex;
justify-content: space-between;
.one {
width: 19rem;
height: 21rem;
overflow: hidden;
}
.two {
width: 100px;
height: 90px;
overflow: hidden;
}
}
}
::v-deep .el-dialog__body {
padding: 10px;
}
::v-deep .el-dialog__header {
// display: none;
}
.container {
width: 100%;
max-width: 100%;
margin: 0 auto;
background: #fff;
}
</style>
