滑动拼图验证组件
- [1. 前提介绍](#1. 前提介绍)
1. 前提介绍
本项目是应用taro框架，使用Canvas 画布组件微信开发文档，来实现的
（注：此组件目前是纯前端校验，没涉及后端）

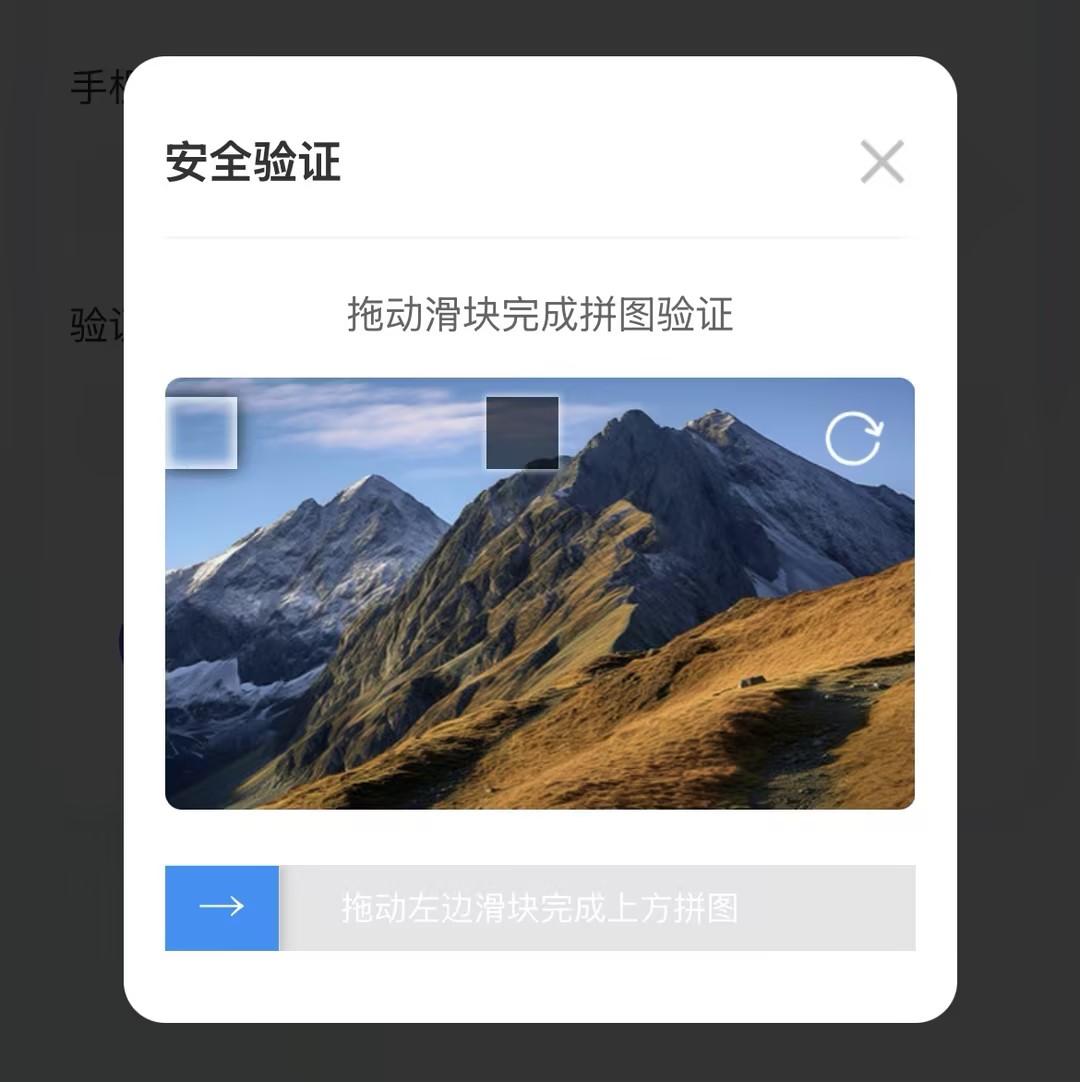

2. 最终实现效果图
3. 封装验证组件并使用
1.编写组件
话不多说，直接上代码
bash
view
<template>
<!-- 滑动验证弹窗 -->
<view class="mask puzzleVerify-mask" v-if="visible" :catch-move="true">
<view class="continer_box puzzleVerify-content">
<!-- 弹窗头部 -->
<view class="modal-header">
<text class="modal-title">安全验证</text>
<view class="modal-close" @tap="onClose">
<image
style="width: 100%; height: 100%"
src="https://yunqi-dy-public.tos-cn-beijing.volces.com/files/20260317/13bb166726b5446fba307934cdb0bf71.png"
/>
</view>
</view>
<view class="puzzleVerify-box">
<!-- 提示文字 -->
<view class="puzzle-tip">
<text class="tip-text">拖动滑块完成拼图验证</text>
</view>
<!-- 拼图图片部分 -->
<view
class="canvas_img"
id="canvas_img"
:style="{ position: 'relative', zIndex: 0 }"
>
<!-- 背景图片 -->
<!-- <canvas
:style="{
width: canvas_width + 'px',
height: canvas_height + 'px',
border: '1rpx solid transparent',
}"
id="firstCanvas"
type="2d"
></canvas> -->
<canvas id="firstCanvas" type="2d"></canvas>
<!-- 被抠方块 -->
<view
class="canvas_view"
:style="{
left: canfile_x + 'px',
top: canfile_y + 'px',
position: 'absolute',
zIndex: 3,
}"
></view>
<!-- 可移动空格 -->
<image
class="canfile_image"
:style="{
top: canfile_y + 'px',
left:
(slide_clientX > canvas_width - 50
? canvas_width - 50
: slide_clientX) + 'px',
position: 'absolute',
zIndex: 4,
}"
:src="canfile_image"
/>
<image
class="refresg-icon"
src="https://yunqi-dy-public.tos-cn-beijing.volces.com/files/20260317/27a0a2ac09074b62b941f0e1288ed3b7.png"
@tap="onDrawCanvas"
/>
</view>
</view>
<!-- 滑块 -->
<view class="canvas-slide">
<view
class="canvas-slide-width"
:style="{
width: [2, 3].includes(slide_status)
? '100%'
: slide_clientX > canvas_width
? canvas_width
: slide_clientX + 'px',
background:
slide_status == 2
? '#52CCBA'
: slide_status == 3
? '#F57A7A'
: '',
}"
>
</view>
<view
v-if="slide_status == 0 || slide_status == 1"
class="canvas-slide-btn fcc"
@touchstart="onSliderStart"
@touchmove="onSliderMove"
@touchend="onSliderEnd"
:style="{
left:
slide_clientX > canvas_width
? canvas_width
: slide_clientX + 'px',
}"
>
<view>→</view>
</view>
<view
class="canvas-slide-tip"
v-if="slide_status == 0 || slide_status == 1"
>拖动左边滑块完成上方拼图</view
>
<view v-else class="canvas-slide-tip canvas-slide-tip2">
{{ slide_status == 2 ? "验证成功" : "验证失败，请重试" }}
</view>
</view>
</view>
</view>
</template>
<script>
import Taro from "@tarojs/taro";
import "./puzzleVerify.scss";
export default {
props: {
value: {
type: Boolean,
default: false,
},
},
data() {
return {
visible: false,
canvas_width: 0,
canvas_height: 0,
slidebel: false, //滑动弹窗
canfile_image: "", //裁剪图片
canfile_x: "", //被抠方块的水平位置
canfile_y: "", //被抠方块的垂直位置
slide_clientX: 0, //移动位置
slide_status: 0, //0 停止操作 1 触发长按 2 正确 3 错误
puzzleImages: [
"https://i.postimg.cc/JDjqt4tw/bg1.jpg",
"https://i.postimg.cc/3J5HYcPP/bg4.png",
"https://i.postimg.cc/zBs4DyPQ/bg2.png",
],
};
},
watch: {
value(newVal) {
this.visible = newVal;
if (newVal) {
setTimeout(() => {
const query = Taro.createSelectorQuery();
query
.select("#canvas_img")
.boundingClientRect((rect) => {
if (rect) {
console.log("rect>>", rect);
this.canvas_width = rect.width;
this.canvas_height = Math.floor(rect.width * 0.5); // 宽高比 2:1
setTimeout(() => {
this.onDrawCanvas();
}, 200);
}
})
.exec((rect) => {});
}, 500);
}
},
},
methods: {
onClose() {
this.$emit("input", false);
},
// 画布
onDrawCanvas(e) {
var that = this;
//获取图片条数的随机数
var imgIndex = Math.floor(Math.random() * this.puzzleImages.length);
this.canfile_x = Math.round(
Math.random() * (this.canvas_width - 120) + 60
);
this.canfile_y = Math.round(
Math.random() * ((this.canvas_width * 13) / 28 - 60)
);
this.canfile_image = "";
Taro.createSelectorQuery()
.select("#firstCanvas") // 在 WXML 中填入的 id
.fields({ node: true, size: true })
.exec((res) => {
// Canvas 对象
const canvas = res[0].node;
// 渲染上下文
const ctx = canvas.getContext("2d");
// Canvas 画布的实际绘制宽高
const width = res[0].width;
const height = res[0].height;
// 初始化画布大小
const dpr = wx.getWindowInfo().pixelRatio;
canvas.width = width * dpr;
canvas.height = height * dpr;
ctx.scale(dpr, dpr);
const image = canvas.createImage();
// 设置图片src
image.src = this.puzzleImages[imgIndex];
// 图片加载完成回调
image.onload = () => {
// 将图片完整绘制到 canvas 上
ctx.drawImage(image, 0, 0, width, height);
// 绘制完成后，可以添加一些调试信息
console.log("图片绘制完成，尺寸:", image.width, image.height);
console.log("Canvas尺寸:", width, height);
};
//一定要加延时器，不然图片会生成失败
setTimeout(() => {
// 生成图片
Taro.canvasToTempFilePath(
{
canvas,
x: that.canfile_x,
y: that.canfile_y,
width: 60,
height: 60,
success: (res) => {
// 生成的图片临时文件路径
that.canfile_image = res.tempFilePath;
console.log("tempFilePath>>", that.canfile_image);
},
},
this
);
}, 500);
});
},
// 滑动开始
onSliderStart(e) {
this.slide_status = 1;
},
// 滑动中
onSliderMove(e) {
this.slide_clientX =
e.touches[0].clientX - 30 < 1 ? 0 : e.touches[0].clientX - 30;
},
//滑动结束
onSliderEnd(e) {
var that = this;
var cliextX;
var maxX = this.canvas_width - 30;
if (that.slide_clientX < 1) {
that.slide_status = 0;
return false;
}
if (that.slide_clientX > maxX) {
cliextX = maxX;
} else {
cliextX = that.slide_clientX;
}
if (that.canfile_x + 5 > cliextX && that.canfile_x - 5 < cliextX) {
that.slide_status = 2;
that.slide_clientX = that.canfile_x;
setTimeout(function () {
that.slidebel = false;
}, 500);
wx.showToast({
icon: "success",
title: "验证成功",
});
this.$emit("onSuccess");
this.onClose();
} else {
that.slide_status = 3;
}
setTimeout(function () {
that.slide_status = 0;
that.slide_clientX = 0;
}, 500);
},
},
};
</script>
bash
/* 拼图滑动验证 */
.puzzleVerify-mask {
.puzzleVerify-content {
position: relative;
padding: 50rpx 30rpx !important;
box-sizing: border-box;
}
/* 弹窗头部 */
.modal-header {
display: flex;
align-items: center;
justify-content: space-between;
padding: 0rpx 0rpx 30rpx;
border-bottom: 2rpx solid #f5f5f5;
.modal-title {
font-size: 32rpx;
font-weight: 600;
color: #333333;
}
.modal-close {
width: 48rpx;
height: 48rpx;
}
}
.puzzleVerify-box {
padding-top: 30rpx;
.puzzle-tip {
text-align: center;
margin-bottom: 24rpx;
.tip-text {
font-size: 28rpx;
color: #666666;
}
}
.canvas_img {
position: relative;
width: 100%;
height: 300rpx;
margin-bottom: 40rpx;
border-radius: 12rpx;
overflow: hidden;
background: #f8f9fa;
}
#firstCanvas {
z-index: 1 !important;
width: 100%;
height: 100%;
}
/* 被抠的空格 */
.canvas_view {
width: 50px;
height: 50px;
position: absolute;
background: rgba(0, 0, 0, 0.6);
z-index: 2;
box-shadow: 0 0 5px 2px rgba(255, 255, 255, 0.5);
}
/* 移动的空格 */
.canfile_image {
width: 50px;
height: 50px;
position: absolute;
left: 0;
z-index: 3;
box-shadow: 0px 0px 15px rgba(0, 0, 0, 0.8);
box-sizing: border-box;
}
.canfile_image::before {
content: "";
position: absolute;
width: 100%;
height: 100%;
box-shadow: 0 0 8px 5px rgba(255, 255, 255, 0.8) inset;
}
.refresg-icon {
position: absolute;
top: 20rpx;
right: 20rpx;
width: 48rpx;
height: 48rpx;
z-index: 5;
}
}
}
.canvas-slide {
width: 100%;
height: 60rpx;
background: #e5e5e5;
text-align: center;
position: relative;
font-size: 26rpx;
overflow: hidden;
/* 滑条上滑块经过的部分 */
.canvas-slide-width {
position: absolute;
left: 0;
top: 0;
height: 60rpx;
background-color: #1991fa;
width: 0;
border-top: 1px solid #ddd;
border-bottom: 1px solid #ddd;
z-index: 2;
}
/* 滑块 */
.canvas-slide-btn {
width: 80rpx;
height: 60rpx;
background-color: #1991fa;
font-size: 36rpx;
font-weight: 700;
position: absolute;
left: 0;
top: 0;
border: 1px solid #ddd;
color: #fff;
box-shadow: 0 0 10px rgba(0, 0, 0, 0.3);
z-index: 2;
}
.canvas-slide-tip {
width: 100%;
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
text-align: center;
font-size: 24rpx;
color: #fff;
transition: color 0.3s ease;
z-index: 1;
}
.canvas-slide-tip.canvas-slide-tip2 {
z-index: 4;
}
}2.引入并使用
bash
<template>
<view>
<view @tap="onShowVerity">获取验证码</view>
<puzzleVerify v-model="isShowVerify" @onSuccess="onVerifySuccess" />
</view>
</template>
<script>
import puzzleVerify from "@/components/puzzleVerify/puzzleVerify.vue";
export default {
components: {
puzzleVerify
},
data() {
return {
isShowVerify: false, //安全校验弹窗
};
},
methods: {
onVerifySuccess() {
console.log("验证通过-------------");
},
onShowVerity() {
this.isShowVerify = true;
},
}
};
</script>4. 总结
注：上面的方式是有应用到实际项目当中去的，正常获取流程是没问题的，如果在开发在过程中遇到问题可以发出来一起交流呢
