in short 四步走
-
Srping 如何从配置中加载的入口
-
Spring 声明式事务的相关的 BeanDefinition加载流程
-
Spring 声明式事务的相关对象创建流程
-
Spring 声明式事务的拦截调用的过程(包括: 方法嵌套, 事务传播属性的处理过程)
最后再看看第三方的框架是如何支持 Spring 声明式事务, 给Spring 托管事务的
一、Spring 声明式事务的入口点
对于XML入口点
XML配置定义
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/tx
https://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/aop
https://www.springframework.org/schema/aop/spring-aop.xsd">
<tx:annotation-driven></tx:annotation-driven>
<!-- dao bean-->
<bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate" >
<property name="dataSource" ref = "dataSource"></property>
</bean>
<!-- service bean-->
<bean id="bookService" class="org.yang.learn.spring.tx.BookService" >
<property name="jdbcTemplate" ref="jdbcTemplate"></property>
</bean>
<!-- 数据源 bean-->
<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" >
<property name="driverClassName" value="com.mysql.cj.jdbc.Driver"></property>
<property name="url"
value="jdbc:mysql://192.168.40.171:3306/workflow_test?serverTimezone=Asia/Shanghai&characterEncoding=utf8&useSSL=false"/>
<property name="username" value="user_dev"></property>
<property name="password" value="dev-sny.com"></property>
</bean>
<!-- 事务管理bean-->
<bean id="transactionManager" class="org.springframework.jdbc.support.JdbcTransactionManager" >
<constructor-arg ref="dataSource"></constructor-arg>
</bean>
<aop:config>
<!--切点配置 -->
<aop:pointcut id="serviceOperation"
expression="execution(* org.yang.learn.spring.tx.BookService.*(..))"/>
<!-- 通知/增强 配置 (关键是这个通知指向 txAdvice '事务增强')-->
<aop:advisor pointcut-ref="serviceOperation" advice-ref="txAdvice"/>
</aop:config>
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<tx:attributes>
<tx:method name="get*" read-only="true"/>
<tx:method name="insertWithTransaction" propagation="REQUIRED" />
<tx:method name="insertWithNoTransaction" propagation="NEVER" />
</tx:attributes>
</tx:advice>

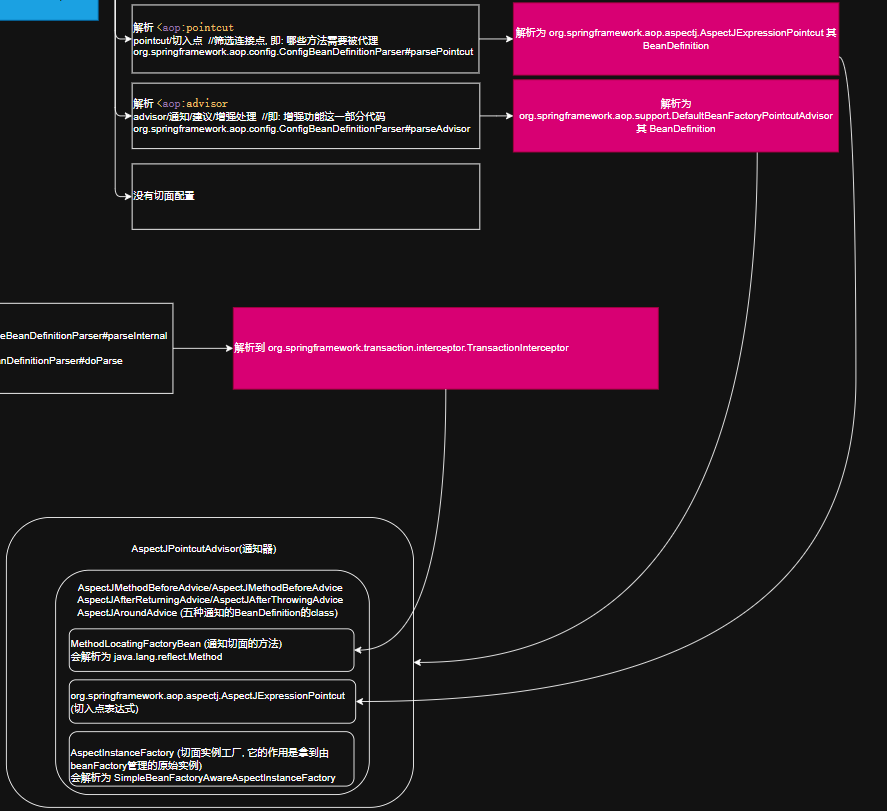

</beans>在XML中配置 tx:.. 启用tx标签, 在解析XML自定义标签时, 会拿到 TxNamespaceHandler 命名空间处理器, 其主要工作就是注册事务相关的标签的解析器
-
tx:advice 标签解析器：负责XML相关的标签解析
TxAdviceBeanDefinitionParser -
tx:annotation-driven 标签解析器：负责注解相关的解析
AnnotationDrivenBeanDefinitionPar
org.springframework.transaction.config.TxNamespaceHandler
public class TxNamespaceHandler extends NamespaceHandlerSupport {
static final String TRANSACTION_MANAGER_ATTRIBUTE = "transaction-manager";
static final String DEFAULT_TRANSACTION_MANAGER_BEAN_NAME = "transactionManager";
static String getTransactionManagerName(Element element) {
return (element.hasAttribute(TRANSACTION_MANAGER_ATTRIBUTE) ?
element.getAttribute(TRANSACTION_MANAGER_ATTRIBUTE) : DEFAULT_TRANSACTION_MANAGER_BEAN_NAME);
}
@Override
public void init() {
// <tx:advice> 标签解析器：负责解析XML <tx:advice> 事务标签配置 TxAdviceBeanDefinitionParser
registerBeanDefinitionParser("advice", new TxAdviceBeanDefinitionParser());
// <tx:annotation-driven> 标签解析器：负责解析注解相关的事务配置 AnnotationDrivenBeanDefinitionParser
registerBeanDefinitionParser("annotation-driven", new AnnotationDrivenBeanDefinitionParser());
// JTA 规范的分布式事务管理器(管理跨多个资源的事务) TODO
registerBeanDefinitionParser("jta-transaction-manager", new JtaTransactionManagerBeanDefinitionParser());
}
}启用事务注解支持
class AnnotationDrivenBeanDefinitionParser implements BeanDefinitionParser {
/**
* Parses the {@code <tx:annotation-driven/>} tag. Will
* {@link AopNamespaceUtils#registerAutoProxyCreatorIfNecessary register an AutoProxyCreator}
* with the container as necessary.
*/
@Override
@Nullable
public BeanDefinition parse(Element element, ParserContext parserContext) {
registerTransactionalEventListenerFactory(parserContext);
String mode = element.getAttribute("mode");
if ("aspectj".equals(mode)) {
// mode="aspectj"
registerTransactionAspect(element, parserContext);
if (ClassUtils.isPresent("jakarta.transaction.Transactional", getClass().getClassLoader())) {
registerJtaTransactionAspect(element, parserContext);
}
}
else {
// 默认是 proxy 模式
// mode="proxy"
AopAutoProxyConfigurer.configureAutoProxyCreator(element, parserContext);
}
return null;
}
/**
* Inner class to just introduce an AOP framework dependency when actually in proxy mode.
*/
private static class AopAutoProxyConfigurer {
public static void configureAutoProxyCreator(Element element, ParserContext parserContext) {
AopNamespaceUtils.registerAutoProxyCreatorIfNecessary(parserContext, element);
String txAdvisorBeanName = TransactionManagementConfigUtils.TRANSACTION_ADVISOR_BEAN_NAME;
if (!parserContext.getRegistry().containsBeanDefinition(txAdvisorBeanName)) {
Object eleSource = parserContext.extractSource(element);
// Create the TransactionAttributeSource definition.
RootBeanDefinition sourceDef = new RootBeanDefinition(
"org.springframework.transaction.annotation.AnnotationTransactionAttributeSource");
sourceDef.setSource(eleSource);
sourceDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
String sourceName = parserContext.getReaderContext().registerWithGeneratedName(sourceDef);
// Create the TransactionInterceptor definition.
RootBeanDefinition interceptorDef = new RootBeanDefinition(TransactionInterceptor.class);
interceptorDef.setSource(eleSource);
interceptorDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
registerTransactionManager(element, interceptorDef);
interceptorDef.getPropertyValues().add("transactionAttributeSource", new RuntimeBeanReference(sourceName));
String interceptorName = parserContext.getReaderContext().registerWithGeneratedName(interceptorDef);
/**
* 其中构建事务增强器(BeanFactoryTransactionAttributeSourceAdvisor)
* - **Pointcut（切点）**: 默认匹配所有标注 `@Transactional` 的类 / 方法（由 `TransactionAttributeSourcePointcut` 实现）
* - **Advice（通知）**: 即 `TransactionInterceptor`（事务拦截器）
* - **TransactionAttributeSource（注解解析器）**:即 `AnnotationTransactionAttributeSource`, 负责解析 `@Transactional` 注解的属性（传播行为、隔离级别等）。
*/
// Create the TransactionAttributeSourceAdvisor definition.
RootBeanDefinition advisorDef = new RootBeanDefinition(BeanFactoryTransactionAttributeSourceAdvisor.class);
advisorDef.setSource(eleSource);
advisorDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
advisorDef.getPropertyValues().add("transactionAttributeSource", new RuntimeBeanReference(sourceName));
advisorDef.getPropertyValues().add("adviceBeanName", interceptorName);
if (element.hasAttribute("order")) {
advisorDef.getPropertyValues().add("order", element.getAttribute("order"));
}
parserContext.getRegistry().registerBeanDefinition(txAdvisorBeanName, advisorDef);
CompositeComponentDefinition compositeDef = new CompositeComponentDefinition(element.getTagName(), eleSource);
compositeDef.addNestedComponent(new BeanComponentDefinition(sourceDef, sourceName));
compositeDef.addNestedComponent(new BeanComponentDefinition(interceptorDef, interceptorName));
compositeDef.addNestedComponent(new BeanComponentDefinition(advisorDef, txAdvisorBeanName));
parserContext.registerComponent(compositeDef);
}
}
}事务注解支持的三剑客
AnnotationTransactionAttributeSource
↓（解析注解）
TransactionInterceptor
↓（执行事务逻辑）
BeanFactoryTransactionAttributeSourceAdvisor
↓（组装切点+通知）
总结一下XML入口, 就是无论 xml 支持 还是注解支持都会构造 org.springframework.transaction.interceptor.TransactionInterceptor 这个核心 advice 事务拦截器
对于注解的入口
@EnableTransactionManagement
public class TXMain {
@Transactional
public static void main(String[] args) throws Exception {
System.out.println("==========================================================");
//ApplicationContext context = new ClassPathXmlApplicationContext("application-tx.xml");
AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(TXMain.class);
BookService bookService = context.getBean("bookService", BookService.class);
Book book = new Book();
book.setName("30秒精通javascript,一分钟精通java");
book.setCode(""+System.currentTimeMillis());
// bookService.insertWithTransaction(book );
bookService.insertWithNoTransaction(book);
System.out.println("bookService = "+bookService);
System.out.println("bookService getList = "+bookService.getList());
System.out.println("==========================================================");
}
}@EnableTransactionManagement 注解导入了 TransactionManagementConfigurationSelector 默认选中的是 ProxyTransactionManagementConfiguration
public class TransactionManagementConfigurationSelector extends AdviceModeImportSelector<EnableTransactionManagement> {
/**
* Returns {@link ProxyTransactionManagementConfiguration} or
* {@code AspectJ(Jta)TransactionManagementConfiguration} for {@code PROXY}
* and {@code ASPECTJ} values of {@link EnableTransactionManagement#mode()},
* respectively.
*/
@Override
protected String[] selectImports(AdviceMode adviceMode) {
return switch (adviceMode) {
case PROXY -> new String[] {AutoProxyRegistrar.class.getName(),
ProxyTransactionManagementConfiguration.class.getName()};
case ASPECTJ -> new String[] {determineTransactionAspectClass()};
};
}
private String determineTransactionAspectClass() {
return (ClassUtils.isPresent("jakarta.transaction.Transactional", getClass().getClassLoader()) ?
TransactionManagementConfigUtils.JTA_TRANSACTION_ASPECT_CONFIGURATION_CLASS_NAME :
TransactionManagementConfigUtils.TRANSACTION_ASPECT_CONFIGURATION_CLASS_NAME);
}
}同样注解的三剑客
AnnotationTransactionAttributeSource
↓（解析注解）
TransactionInterceptor
↓（执行事务逻辑）
BeanFactoryTransactionAttributeSourceAdvisor
↓（组装切点+通知）
org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration
/*
* Copyright 2002-2021 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package org.springframework.transaction.annotation;
import org.springframework.beans.factory.config.BeanDefinition;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.ImportRuntimeHints;
import org.springframework.context.annotation.Role;
import org.springframework.transaction.config.TransactionManagementConfigUtils;
import org.springframework.transaction.interceptor.BeanFactoryTransactionAttributeSourceAdvisor;
import org.springframework.transaction.interceptor.TransactionAttributeSource;
import org.springframework.transaction.interceptor.TransactionInterceptor;
/**
* {@code @Configuration} class that registers the Spring infrastructure beans
* necessary to enable proxy-based annotation-driven transaction management.
*
* @author Chris Beams
* @author Sebastien Deleuze
* @since 3.1
* @see EnableTransactionManagement
* @see TransactionManagementConfigurationSelector
*/
@Configuration(proxyBeanMethods = false)
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
@ImportRuntimeHints(TransactionRuntimeHints.class)
public class ProxyTransactionManagementConfiguration extends AbstractTransactionManagementConfiguration {
@Bean(name = TransactionManagementConfigUtils.TRANSACTION_ADVISOR_BEAN_NAME)
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
public BeanFactoryTransactionAttributeSourceAdvisor transactionAdvisor(
TransactionAttributeSource transactionAttributeSource, TransactionInterceptor transactionInterceptor) {
BeanFactoryTransactionAttributeSourceAdvisor advisor = new BeanFactoryTransactionAttributeSourceAdvisor();
advisor.setTransactionAttributeSource(transactionAttributeSource);
advisor.setAdvice(transactionInterceptor);
if (this.enableTx != null) {
advisor.setOrder(this.enableTx.<Integer>getNumber("order"));
}
return advisor;
}
@Bean
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
public TransactionAttributeSource transactionAttributeSource() {
// Accept protected @Transactional methods on CGLIB proxies, as of 6.0.
return new AnnotationTransactionAttributeSource(false);
}
@Bean
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
public TransactionInterceptor transactionInterceptor(TransactionAttributeSource transactionAttributeSource) {
TransactionInterceptor interceptor = new TransactionInterceptor();
interceptor.setTransactionAttributeSource(transactionAttributeSource);
if (this.txManager != null) {
interceptor.setTransactionManager(this.txManager);
}
return interceptor;
}
}二、事务相关的 BeanDefinition 解析过程 (XML)
bean 标签
对于 jdbcTemplate transactionManager dataSource bookService 走的是默认命名空间的处理器, IOC标准解析流程, 不再啰嗦了[[Spring IOC 源码学习 XML详细加载流程总结]]org.springframework.beans.factory.xml.DefaultBeanDefinitionDocumentReader#parseBeanDefinitions
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
if (delegate.isDefaultNamespace(root)) {
NodeList nl = root.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (node instanceof Element ele) {//是否 是元素标签
/**
* 处理默认命名空间的标签, 有如下四个
* <import></import>, <alias> </alias>, <bean></bean>, <beans></beans>
*
*/
if (delegate.isDefaultNamespace(ele)) {
parseDefaultElement(ele, delegate);
}
else {
/**
* 处理 非默认命名空间的标签;
* 注意这里包括 <context:bean ...> <aop:xx ...> <tx:xx ...> 等等所有指定命名空间的xml配置
* 主要逻辑是: 拿到元素的命名空间URI, 再从 XmlReaderContext 找到对应的 NamespaceHandler 调用解析 `parse`方法解析到 BeanDefinition 返回
*/
delegate.parseCustomElement(ele);
}
}
}
}
else {
delegate.parseCustomElement(root);
}
}aop 标签
对于 aop 部分的标签则的是 AOP 的流程
<aop:config>
<!--切点配置 -->
<aop:pointcut id="serviceOperation"
expression="execution(* org.yang.learn.spring.tx.BookService.*(..))"/>
<!-- 通知/增强 配置 (关键是这个通知指向 txAdvice '事务增强')-->
<aop:advisor pointcut-ref="serviceOperation" advice-ref="txAdvice"/>
</aop:config>-
<aop:pointcut...: 解析为 org.springframework.aop.aspectj.AspectJExpressionPointcut 其 BeanDefinition -
<aop:advisor...: 解析为 org.springframework.aop.support.DefaultBeanFactoryPointcutAdvisor 其 BeanDefinition
internalAutoProxyCreator 的注册
\[Spring AOP 源码学习 详细流程总结\]
这里要注意AOP 的 ConfigBeanDefinitionParser 在解析时是会注册的一个internalAutoProxyCreator! (AOP解析流程, 在BPP回调时创建代理对象的)org.springframework.aop.config.ConfigBeanDefinitionParser#parse
@Override
@Nullable
public BeanDefinition parse(Element element, ParserContext parserContext) {
CompositeComponentDefinition compositeDef =
new CompositeComponentDefinition(element.getTagName(), parserContext.extractSource(element));
parserContext.pushContainingComponent(compositeDef);
/**
* 1. 注册一个名称为`org.springframework.aop.config.internalAutoProxyCreator` 对AOP处理的Bean Definition; 它是实现 InstantiationAwareBeanPostProcessor 接口的
* 名称是: org.springframework.aop.config.internalAutoProxyCreator
* 对应的类, 根据情况有以下三个可能: org.springframework.aop.config.AopConfigUtils#APC_PRIORITY_LIST
* InfrastructureAdvisorAutoProxyCreator.class,AspectJAwareAdvisorAutoProxyCreator.class, AnnotationAwareAspectJAutoProxyCreator.class
* 注册一个名称为`org.springframework.aop.config.internalAutoProxyCreator` 对AOP处理的Bean Definition; 它是实现 InstantiationAwareBeanPostProcessor 接口的
*
*/
configureAutoProxyCreator(parserContext, element);解析 aop:pointcut, aop:advisor, 没有切面标签org.springframework.aop.config.ConfigBeanDefinitionParser#parse
@Override
@Nullable
public BeanDefinition parse(Element element, ParserContext parserContext) {
CompositeComponentDefinition compositeDef =
new CompositeComponentDefinition(element.getTagName(), parserContext.extractSource(element));
parserContext.pushContainingComponent(compositeDef);
/**
* 1. 注册一个名称为`org.springframework.aop.config.internalAutoProxyCreator` 对AOP处理的Bean Definition; 它是实现 InstantiationAwareBeanPostProcessor 接口的
* 名称是: org.springframework.aop.config.internalAutoProxyCreator
* 对应的类, 根据情况有以下三个可能: org.springframework.aop.config.AopConfigUtils#APC_PRIORITY_LIST
* InfrastructureAdvisorAutoProxyCreator.class,AspectJAwareAdvisorAutoProxyCreator.class, AnnotationAwareAspectJAutoProxyCreator.class
* 注册一个名称为`org.springframework.aop.config.internalAutoProxyCreator` 对AOP处理的Bean Definition; 它是实现 InstantiationAwareBeanPostProcessor 接口的
*
*/
configureAutoProxyCreator(parserContext, element);
/**
* 2. 解析 <aop:config> 标签的子元素 (pointcut, advisor, aspect)
* 解析 <aspect ...>:
* 每一个通知(Advice) 都会封装为一个 AspectJPointcutAdvisor 的BeanDefinition 然后将其注册到 BeanFactory
*

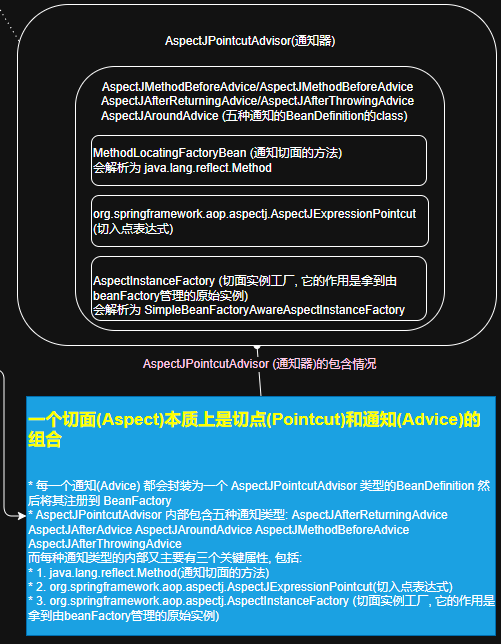

* AspectJPointcutAdvisor 的包含情况
* 每一个通知(Advice) 都会封装为一个 AspectJPointcutAdvisor(通知器) 类型的BeanDefinition 然后将其注册到 BeanFactory
* AspectJPointcutAdvisor 内部包含五种通知类类型: AspectJAfterReturningAdvice AspectJAfterAdvice AspectJAroundAdvice AspectJMethodBeforeAdvice AspectJAfterThrowingAdvice
* 而每种通知类型的内部又主要有三个关键属性,包括:
* 1. java.lang.reflect.Method(通知切面的方法)
* 2. org.springframework.aop.aspectj.AspectJExpressionPointcut(切入点表达式)
* 3. org.springframework.aop.aspectj.AspectInstanceFactory (切面实例工厂)
*/
List<Element> childElts = DomUtils.getChildElements(element);
for (Element elt: childElts) {
String localName = parserContext.getDelegate().getLocalName(elt);
switch (localName) {
/**
* 解析 pointcut/切入点 //筛选连接点, 即: 哪些方法需要被代理
* 解析为 org.springframework.aop.aspectj.AspectJExpressionPointcut 注册其 BeanDefinition
*/
case POINTCUT -> parsePointcut(elt, parserContext);
/**
* 解析 advisor/通知/建议/增强处理 //即: 增强功能这一部分代码
* 解析为 org.springframework.aop.support.DefaultBeanFactoryPointcutAdvisor 注册其 BeanDefinition
*/
case ADVISOR -> parseAdvisor(elt, parserContext);
/**
*/
case ASPECT -> parseAspect(elt, parserContext);
}
}
parserContext.popAndRegisterContainingComponent();
return null;
}tx 标签
前文说了由 org.springframework.transaction.config.TxAdviceBeanDefinitionParser 负责XML解析
先来到父类方法解析 TransactionInterceptor
org.springframework.beans.factory.xml.AbstractSingleBeanDefinitionParser#parseInternal
/**
* Creates a {@link BeanDefinitionBuilder} instance for the
* {@link #getBeanClass bean Class} and passes it to the
* {@link #doParse} strategy method.
* @param element the element that is to be parsed into a single BeanDefinition
* @param parserContext the object encapsulating the current state of the parsing process
* @return the BeanDefinition resulting from the parsing of the supplied {@link Element}
* @throws IllegalStateException if the bean {@link Class} returned from
* {@link #getBeanClass(org.w3c.dom.Element)} is {@code null}
* @see #doParse
*
*/
@Override
protected final AbstractBeanDefinition parseInternal(Element element, ParserContext parserContext) {
/**
*
* 1. 解析 <tx:advice ... 标签 封装为`GenericBeanDefinition`
* 其名称和class为org.springframework.transaction.interceptor.TransactionInterceptor
* 注意这个 TransactionInterceptor 实现了MethodInterceptor相当于是个Advice
*
* org.springframework.beans.factory.xml.AbstractSingleBeanDefinitionParser
* #parseInternal(org.w3c.dom.Element, org.springframework.beans.factory.xml.ParserContext)
* org.springframework.beans.factory.xml.AbstractSingleBeanDefinitionParser#parseInternal
*
*
*/
BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition();
String parentName = getParentName(element);
if (parentName != null) {
builder.getRawBeanDefinition().setParentName(parentName);
}
Class<?> beanClass = getBeanClass(element);
if (beanClass != null) {
builder.getRawBeanDefinition().setBeanClass(beanClass);
}
else {
String beanClassName = getBeanClassName(element);
if (beanClassName != null) {
builder.getRawBeanDefinition().setBeanClassName(beanClassName);
}
}
builder.getRawBeanDefinition().setSource(parserContext.extractSource(element));
BeanDefinition containingBd = parserContext.getContainingBeanDefinition();
if (containingBd != null) {
// Inner bean definition must receive same scope as containing bean.
builder.setScope(containingBd.getScope());
}
if (parserContext.isDefaultLazyInit()) {
// Default-lazy-init applies to custom bean definitions as well.
builder.setLazyInit(true);
}
doParse(element, parserContext, builder);
return builder.getBeanDefinition();
}在回来解析到 transactionAttributeSource
org.springframework.transaction.config.TxAdviceBeanDefinitionParser#doParse
@Override
protected void doParse(Element element, ParserContext parserContext, BeanDefinitionBuilder builder) {
/**
* 添加 transactionManager (事务管理)的 ref
*/
builder.addPropertyReference("transactionManager", TxNamespaceHandler.getTransactionManagerName(element));
List<Element> txAttributes = DomUtils.getChildElementsByTagName(element, ATTRIBUTES_ELEMENT);
if (txAttributes.size() > 1) {
parserContext.getReaderContext().error(
"Element <attributes> is allowed at most once inside element <advice>", element);
}
else if (txAttributes.size() == 1) {
/**
* 解析 <tx:attributes> ... 子标签
* 包括: 匹配的目标方法, 事务的传播属性, 是否只读..
* 类型是 `org.springframework.transaction.interceptor.NameMatchTransactionAttributeSource`
*/
// Using attributes source.
Element attributeSourceElement = txAttributes.get(0);
RootBeanDefinition attributeSourceDefinition = parseAttributeSource(attributeSourceElement, parserContext);
builder.addPropertyValue("transactionAttributeSource", attributeSourceDefinition);
}
else {
// Assume annotations source.
builder.addPropertyValue("transactionAttributeSource",
new RootBeanDefinition("org.springframework.transaction.annotation.AnnotationTransactionAttributeSource"));
}
}事务相关对象的BeanDefinition 对应AOP的三剑客
首先一点事务增强, 本质上就是AOP的逻辑, 在AOP最重要的就是AspectJPointcutAdvisor包含的三剑客
对应关系
可以看到少了AspectInstanceFactory 在事务这里的逻辑中不需它; 因为切面的逻辑是硬编码在TransactionInterceptor中了;
至此在事务相关的AOP对象已经齐了
三、事务增强 相关的对象创建
internalAutoProxyCreator 对象
首先是 internalAutoProxyCreator 它是负责创建AOP对象 它本身是BPP, 它会在 registerBeanPostProcessors(beanFactory); 过程中被实例化org.springframework.context.support.PostProcessorRegistrationDelegate#registerBeanPostProcessors(org.springframework.beans.factory.config.ConfigurableListableBeanFactory, org.springframework.context.support.AbstractApplicationContext)
/**
* in short:
* 1. 拿到所有实现 BeanPostProcessor 的 bean, 然后进行分类存起来
* 这有一点, Spring 对 BeanDefinition 分成三种角色:
* 1. 用户定义的 Bean (ROLE_APPLICATION)
* 2. 较复杂的 (ROLE_SUPPORT) 较复杂的? 通常是一个外部配置
* 3. Spring 内置的(ROLE_INFRASTRUCTURE)
* 2. 如果实现了 BeanPostProcessor 则会实例化这个bean, 但注意这里只是注册,并不会调用BeanPostProcessor的相关方法
*
* 另外 BeanPostProcessor 粗粒度太大, Spring 还细分一些子接口:
* - SmartInstantiationAwareBeanPostProcessor 它提供了更高级的Bean实例化控制方法。主要作用在于允许对Bean的实例化过程进行更精细的控制和定制。
* - MergedBeanDefinitionPostProcessor 在合并Bean定义（MergedBeanDefinition）之后但在实例化Bean之前，允许对合并后的Bean定义进行修改、调整或附加元数据。
* - DestructionAwareBeanPostProcessor 它允许在Bean被销毁之前（例如，容器关闭或特定作用域的Bean销毁）执行一些操作。
*/
public static void registerBeanPostProcessors(
ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {
// WARNING: Although it may appear that the body of this method can be easily
// refactored to avoid the use of multiple loops and multiple lists, the use
// of multiple lists and multiple passes over the names of processors is
// intentional. We must ensure that we honor the contracts for PriorityOrdered
// and Ordered processors. Specifically, we must NOT cause processors to be
// instantiated (via getBean() invocations) or registered in the ApplicationContext
// in the wrong order.
//
// Before submitting a pull request (PR) to change this method, please review the
// list of all declined PRs involving changes to PostProcessorRegistrationDelegate
// to ensure that your proposal does not result in a breaking change:
// https://github.com/spring-projects/spring-framework/issues?q=PostProcessorRegistrationDelegate+is%3Aclosed+label%3A%22status%3A+declined%22
/**
* 拿到所有实现 BeanPostProcessor 的 bean名称
*/
String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);
// Register BeanPostProcessorChecker that logs an info message when
// a bean is created during BeanPostProcessor instantiation, i.e. when
// a bean is not eligible for getting processed by all BeanPostProcessors.
/**
* 计算 BeanPostProcessor(BPP) 的总数.
* +1 是什么操作? 原因是: 下一行,又加了一个 BeanPostProcessorChecker
*/
int beanProcessorTargetCount = beanFactory.getBeanPostProcessorCount() + 1 + postProcessorNames.length;
// BeanPostProcessorChecker 这个BeanPostProcessor, 没啥实际作用, 就是记录了一些日志;
beanFactory.addBeanPostProcessor(
new BeanPostProcessorChecker(beanFactory, postProcessorNames, beanProcessorTargetCount));
// Separate between BeanPostProcessors that implement PriorityOrdered,
// Ordered, and the rest.
/**
* 对 BeanPostProcessor 进行分类存起来, 再调用, 每个集合分别是
* 1. priorityOrderedPostProcessors //有实现(PriorityOrdered)排序接口的
* 2. internalPostProcessors //Spring内部的bean, 见: Spring将bean分为三种角色
* 3. orderedPostProcessorNames //实现 Ordered 接口
* 4. nonOrderedPostProcessorNames //没有指定顺序, 无序的
*/
List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
List<BeanPostProcessor> internalPostProcessors = new ArrayList<>();
List<String> orderedPostProcessorNames = new ArrayList<>();
List<String> nonOrderedPostProcessorNames = new ArrayList<>();
for (String ppName : postProcessorNames) {
if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
/**
* 注意, 若 bean 实现了 PriorityOrdered 接口, 则会优先实例化它;
*/
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
priorityOrderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
orderedPostProcessorNames.add(ppName);
}
else {
nonOrderedPostProcessorNames.add(ppName);
}
}
// First, register the BeanPostProcessors that implement PriorityOrdered.
sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);
// Next, register the BeanPostProcessors that implement Ordered.
List<BeanPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
for (String ppName : orderedPostProcessorNames) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
orderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
sortPostProcessors(orderedPostProcessors, beanFactory);
registerBeanPostProcessors(beanFactory, orderedPostProcessors);
/**
* 注册所有常规BeanPostProcessors
* 这里 getBean 实例化bean !;
*/
// Now, register all regular(常规) BeanPostProcessors.
List<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
for (String ppName : nonOrderedPostProcessorNames) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
nonOrderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
registerBeanPostProcessors(beanFactory, nonOrderedPostProcessors);
/**
* 最后, 注册所有 内置 BeanPostProcessor
*/
// Finally, re-register all internal BeanPostProcessors.
sortPostProcessors(internalPostProcessors, beanFactory);
registerBeanPostProcessors(beanFactory, internalPostProcessors);
//最后再放一个 ApplicationListenerDetector 让它在最后 (不是重点, 见名应该是事件相关的)
// Re-register post-processor for detecting inner beans as ApplicationListeners,
// moving it to the end of the processor chain (for picking up proxies etc).
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(applicationContext));
}DefaultBeanFactoryPointcutAdvisor 和 AspectJExpressionPointcut 对象
internalAutoProxyCreator 会在 postProcessBeforeInstantiation 回调中的org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#shouldSkip判断时实例化所有的 Advisor
在实例化 Advisor 填充属性时也会把 AspectJExpressionPointcut 也实例化
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessBeforeInstantiation
@Override
public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
/**
* 常规情况下: 这里只是检查下缓存和标记缓存
* 对于真正的AOP代理创建见:
* {@link AbstractAutoProxyCreator#postProcessAfterInitialization(java.lang.Object, java.lang.String)}
*/
Object cacheKey = getCacheKey(beanClass, beanName);
if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
/**
*
* 不管需不需要, 只要处理过了就缓存
* advisedBeans 这个变量, 缓存所有处理过的 bean名称;
* value 为 boolean值, 如果为false 则不处理
*/
if (this.advisedBeans.containsKey(cacheKey)) {
return null;
}
/**
* isInfrastructureClass 是否是基础功能类,即 AOP相关的几个类:
* Advice.class Pointcut.class Advisor.class AopInfrastructureBean.class 都为true
*
* shouldSkip 判断时, 拿到容器的所有 Advisor, 并且实例化 `getBean()` 这个 Advisor
*/
if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return null;
}
}
// Create proxy here if we have a custom TargetSource.
// Suppresses unnecessary default instantiation of the target bean:
// The TargetSource will handle target instances in a custom fashion.
TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
if (targetSource != null) {
if (StringUtils.hasLength(beanName)) {
this.targetSourcedBeans.add(beanName);
}
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
return null;
}TransactionInterceptort 对象
是在 internalAutoProxyCreator 遇到需要增强代理的对象时, 这里是 bookService 去 getAdvicesAndAdvisorsForBean 查找到其匹配 bookService 的 Advisor这里若 Advisor 匹配, 会调用 getAdvice 获取其切面, 此时切面不存在则会实例化它
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#wrapIfNecessary
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
return bean;
}
if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
return bean;
}
if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
/**
* 拿到所有匹配织入当前bean的 所有通知器(Advisor)
* 做了三件事, 见: {@link org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#getAdvicesAndAdvisorsForBean(java.lang.Class, java.lang.String, org.springframework.aop.TargetSource)}
* 1. 往返回 `AspectJXXXAdvice`列表数组`0`索引 插入一个{@link org.springframework.aop.interceptor.ExposeInvocationInterceptor} 实例
* 方便传递参数用的
*
* 2. 怎么匹配(Advisor)?
* Advisor中的 `AspectJExpressionPointcut` 是实现 {@link ClassFilter} 和 {@link org.springframework.aop.MethodMatcher} 接口
* 一个进行类匹配, 一个进行方法匹配. Advisor 匹配会调用 getAdvice 获取其切面, 此时切面不存在则会实例化
*
* 3. 排序, 基于 `有向无环` 图进行排序; 可能匹配到多个切面(aspect)
*
*/
// Create proxy if we have advice.
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
if (specificInterceptors != DO_NOT_PROXY) {
/**
*{@link org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#advisedBeans}
* 这个变量缓存所有处理过的 bean名称, value 为 boolean值, 如果为false 则不处理
*/
this.advisedBeans.put(cacheKey, Boolean.TRUE);//缓存, 表示已处理
/**
* 创建代理
*
*/
Object proxy = createProxy(
bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}文章转载自： ++daidaidaiyu++
