Visionpro-blob工具-骰子的应用

斑点寻找工具Blob

Blob的概述

CogBlobTool 工具，俗称斑点工具；经常应用于工业的一些检测类型的项目。

斑点分析探测并且分析图像中的二维形状

Blob 是先根据用户设定好的灰阶范围对图像进行分割，然后对目标进行查找和分析

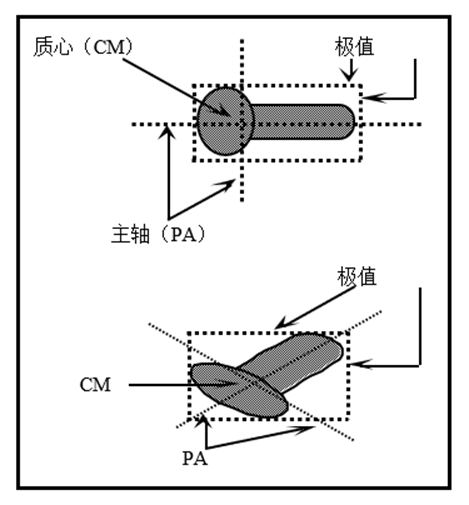

面积

质心

周长

主轴

......

应用场景

------>Blob 分析非常合适以下场合的应用:
- ------> 对象在尺寸、形状/或方向上差异很大（训练模型很难或者不可能）
- ------> 对象在背景中找不到的截然不同的灰度
- ------> 对象没有重叠或者接触
------> 应用案例：
- ------> 检查环氧树脂点分配的数量、尺寸和形状
- ------> 检查表示坏薄片模型的墨水点的正常位置和大小
- ------> 检查药片的破碎和大小
- ------> 根据对象的尺寸、形状或位置整理或者分类对象

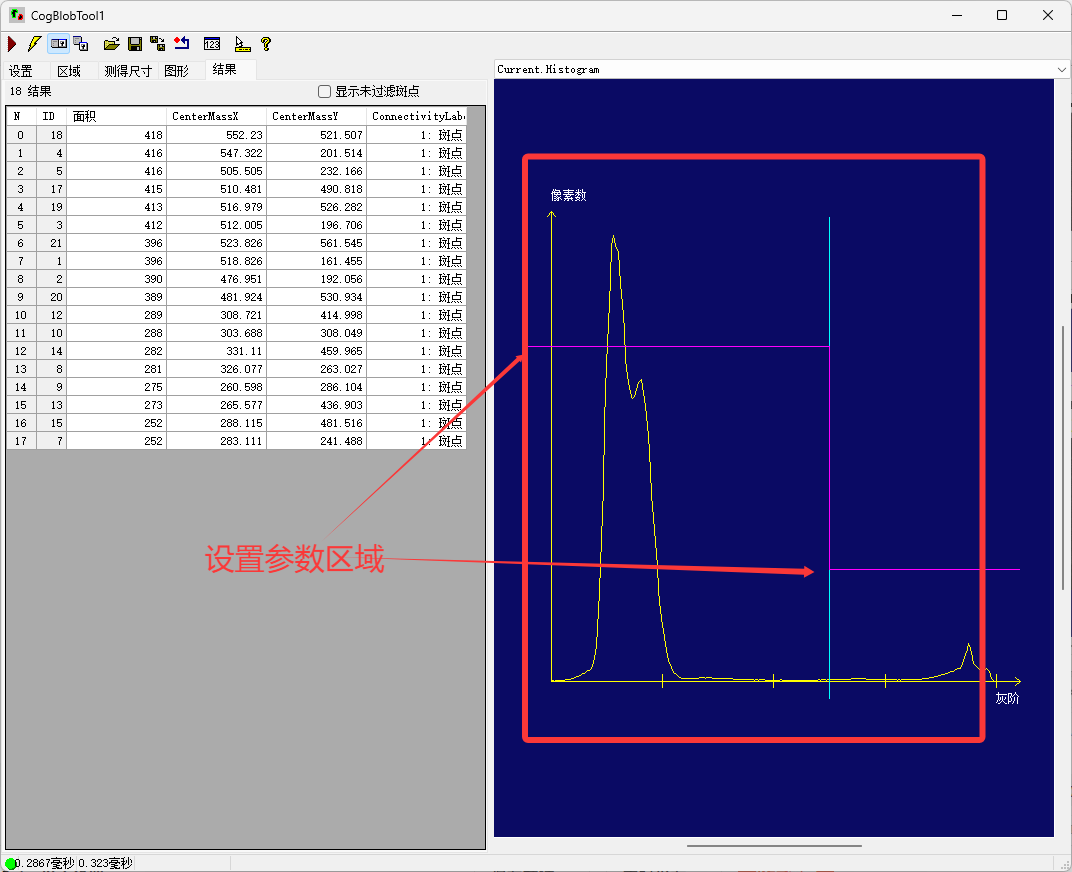

Blob_参数

主要用于检测和分析图像中的斑点特征:

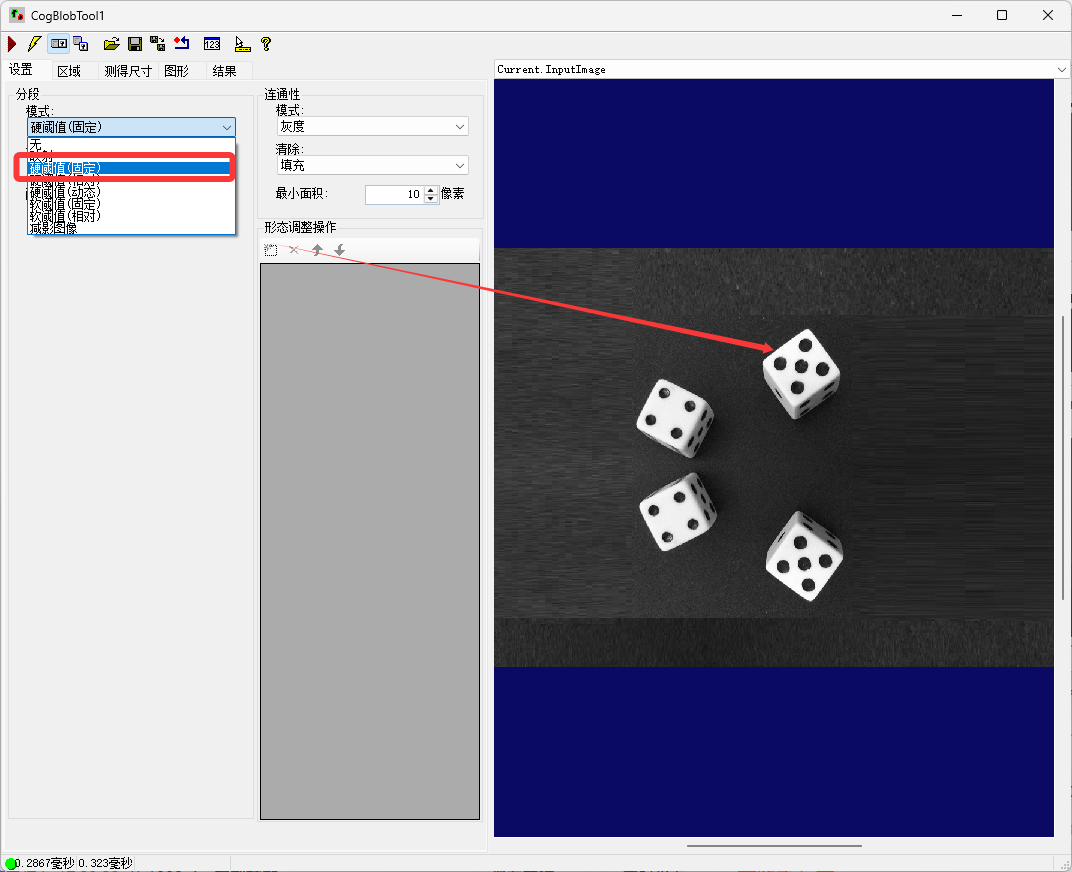

**SegmentationParams.Mode：**设置图像分割模式，包括固定阈值（HardFixedThreshold）、动态阈值（HardDynamicThreshold）、相对阈值（HardRelativeThreshold）等。

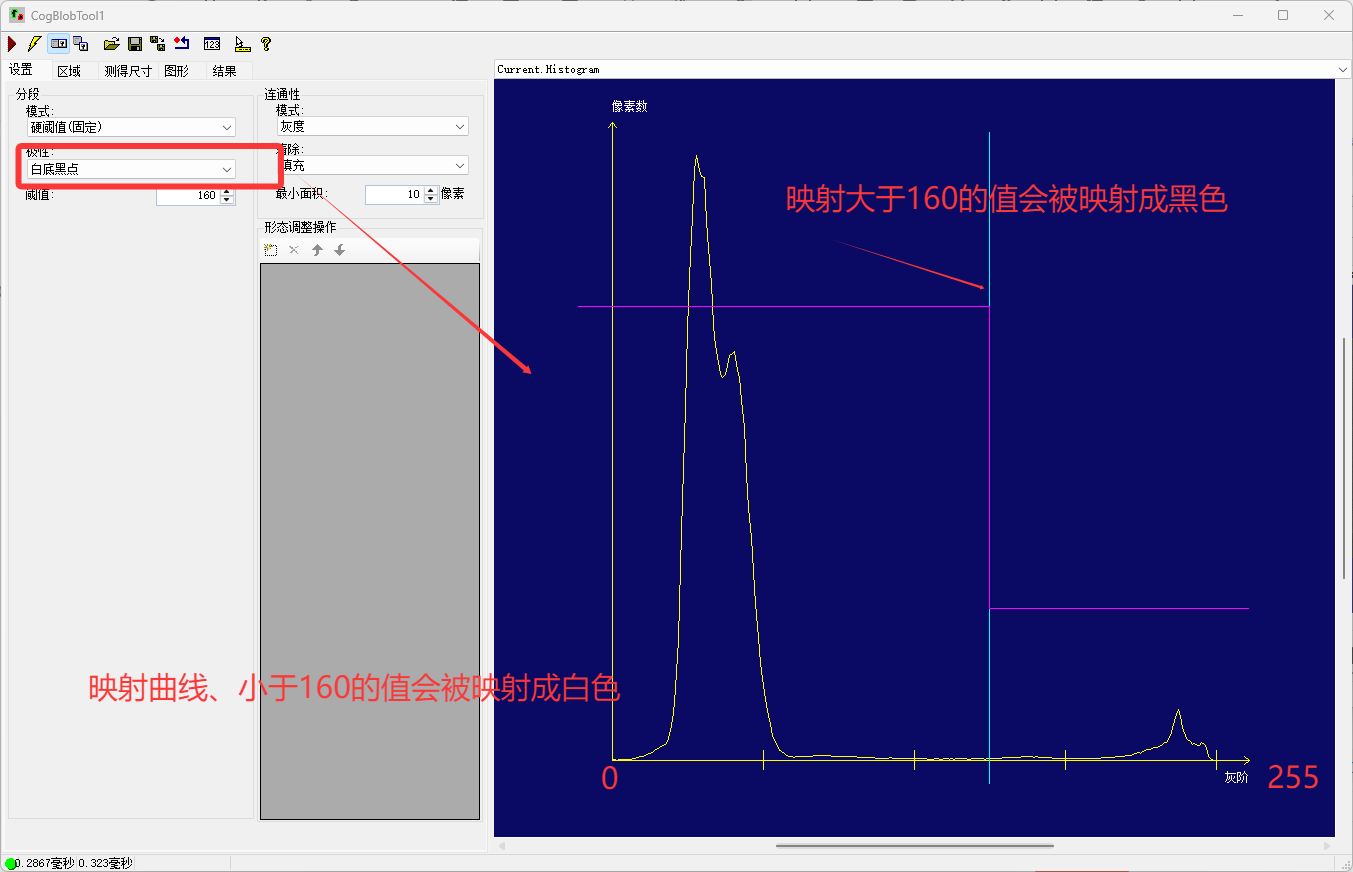

**SegmentationParam.Polarity：**设置斑点的极性，包括白底黑点（DarkBlobs）和黑底白点（LightBlobs）
ConnectivityCleanup： 设置连通性清理模式、包括修剪（Prune）、填充（Fill）等
ConnectivityMinPixels： 设置最小面积，用于过滤过小的斑点
ConnectivityMode： 设置连通性，包括已标记（Labeled）、灰度（GreyScale）等
Region： 设置检测区域的形状、包括圆形（CogCircle）、椭圆（CogEllipse）、多边形（CogPolygon）等
RunTimeMeasures： 设置测试属性，包括面积（Area）、质心坐标（CenterMassX、CenterMassY）等

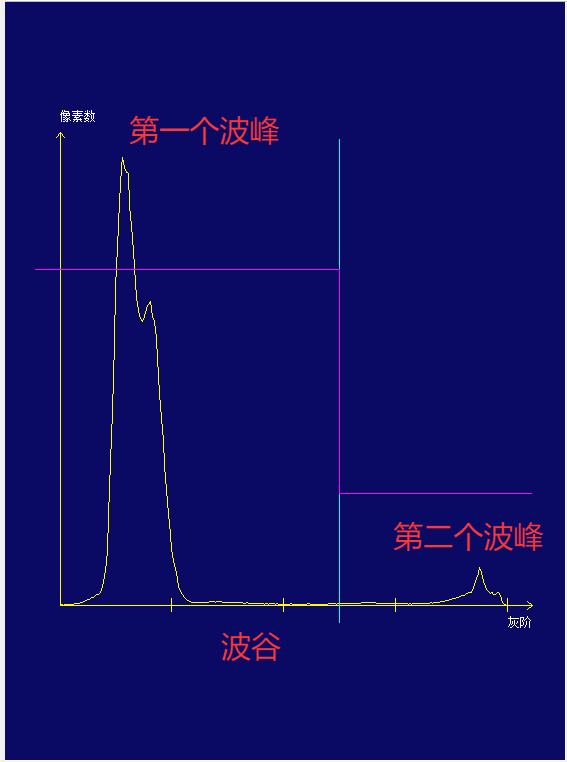

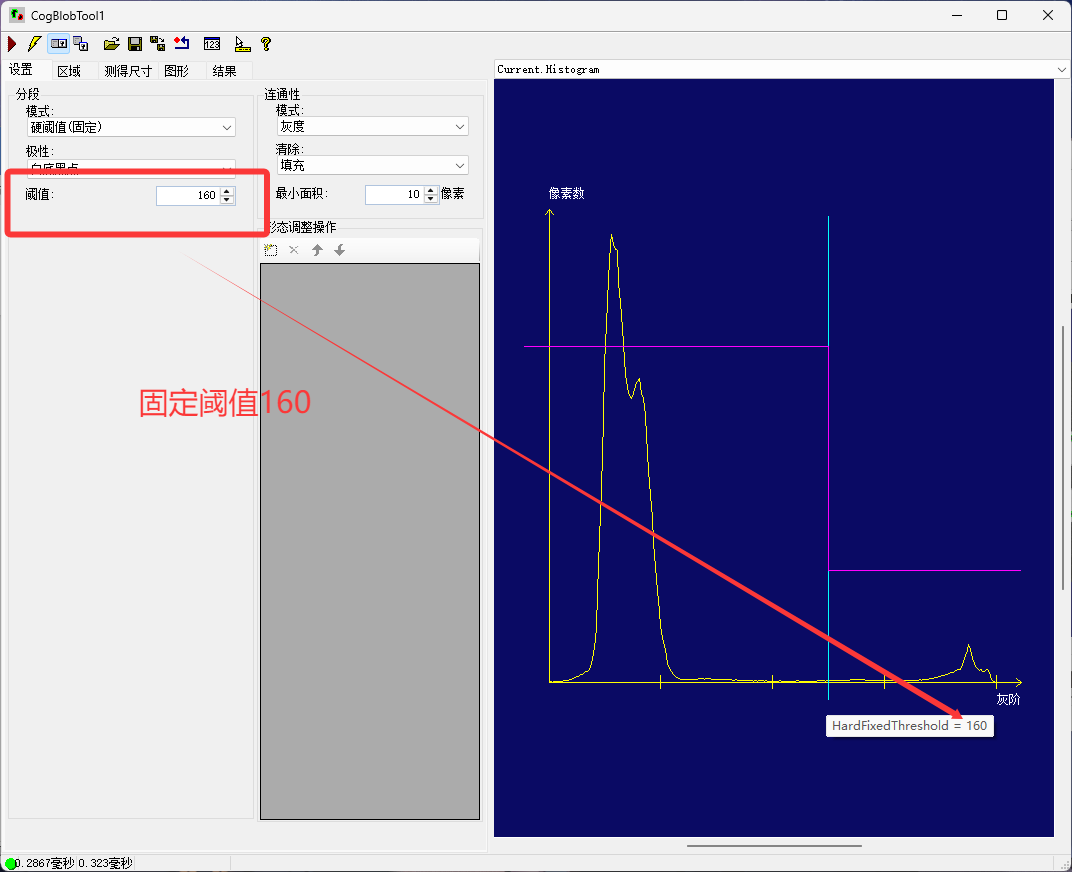

**阈值模式：**选择合适的阈值模式（固定阈值、动态阈值、相对阈值）来分割图像中的斑点和背景

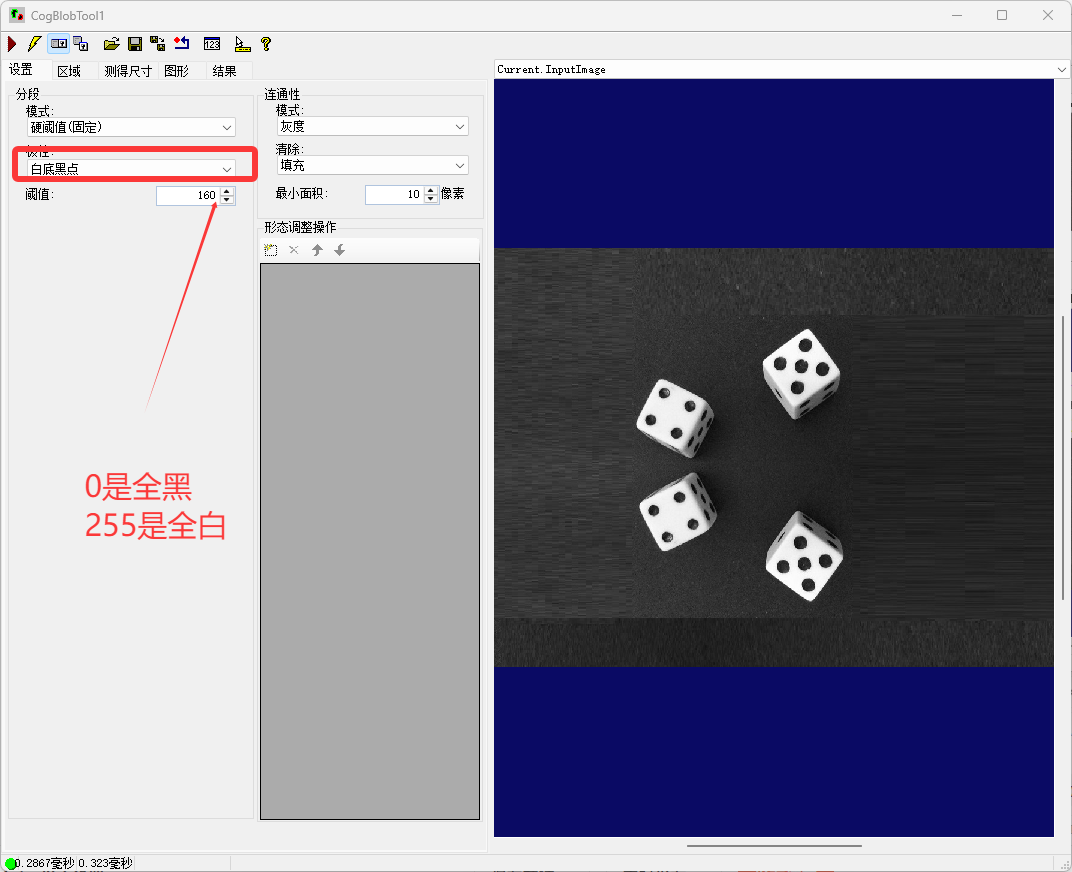

极性设置： 根据斑点的灰度特征，选择白底黑点或黑底白点的极性
连通性处理： 通过设置连通性模式和清理模式，处理斑点的连通性问题
区域设置： 指定检测区域、以限制斑点检测的范围

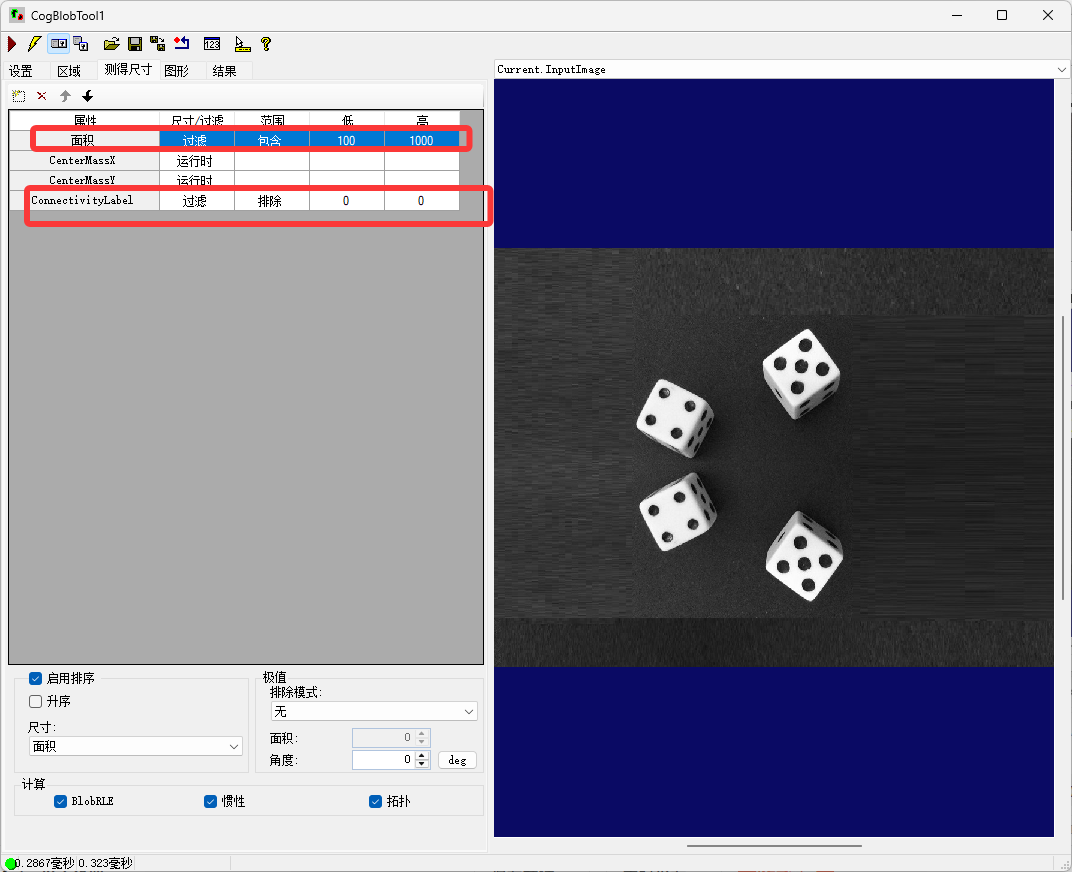

面积过滤： 通过设置最小面积和最大面积，过滤不符合要求的斑点
形状筛选： 通过设置形状参数，如非环形值、筛选出特定形状的斑点

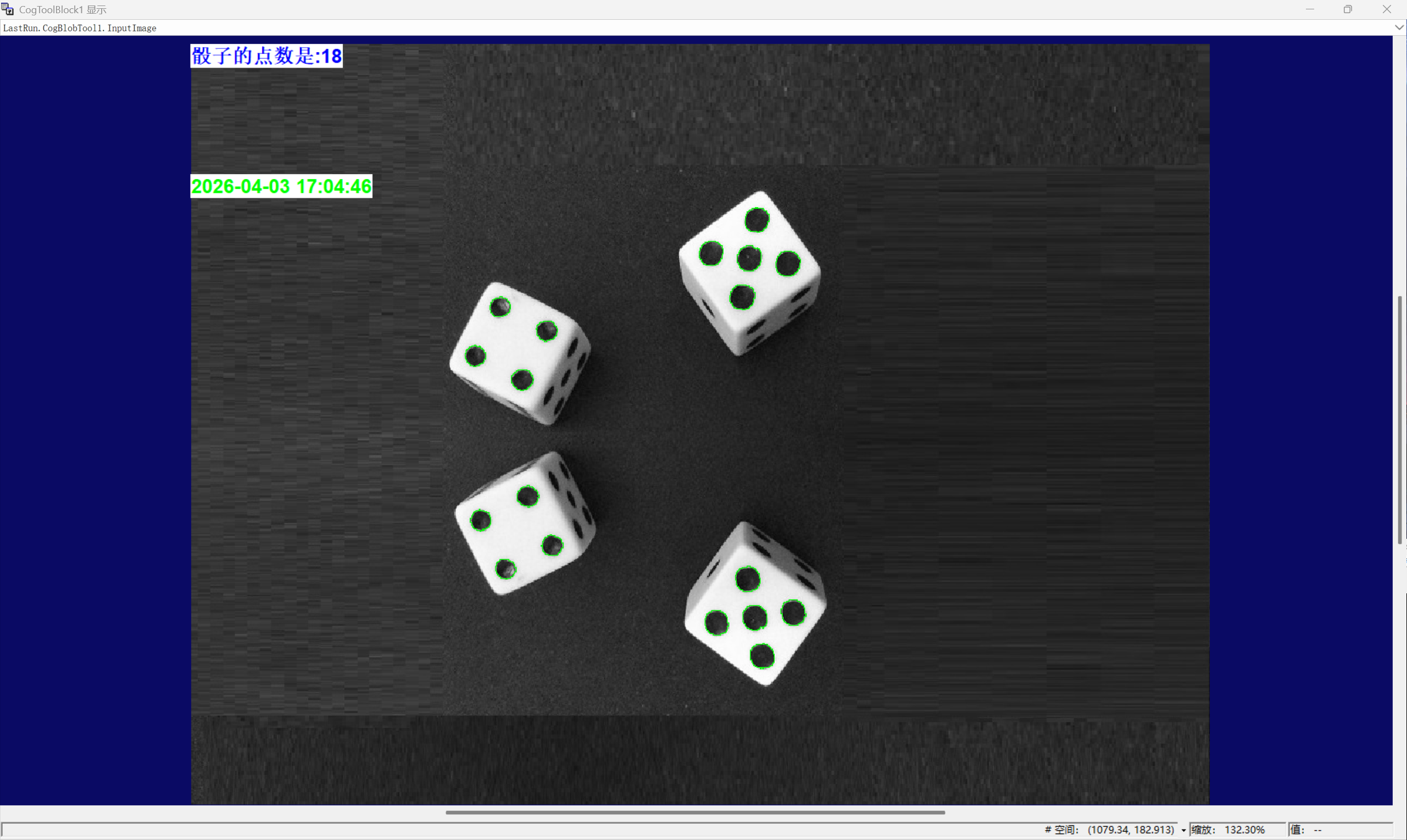

骰子案例：

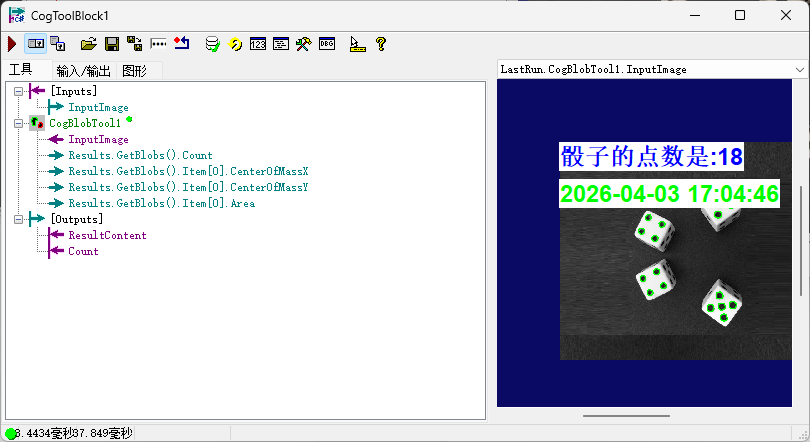

工具使用（CogBlobTool）

脚本

声明label集合

cs 复制代码

private CogGraphicCollection dt = new CogGraphicCollection();
dt.Clear();

封装label

cs 复制代码

private CogGraphicLabel createlabel(string text, float size, double x, double y, CogColorConstants color)
  {
    CogGraphicLabel label = new CogGraphicLabel();
    label.Font = new Font("Arial", size, FontStyle.Bold, GraphicsUnit.Pixel);
    label.Color = color;
    label.Alignment = CogGraphicLabelAlignmentConstants.TopLeft;
    label.BackgroundColor = CogColorConstants.White;
    label.SetXYText(x, y, text);
    return label;
  }

实例化转黑白图像

cs 复制代码

CogImageConvertTool imageconvert = new CogImageConvertTool();
    imageconvert.InputImage = null;
    imageconvert.InputImage = mToolBlock.Inputs["InputImage"].Value as ICogImage;
    imageconvert.RunParams.RunMode = CogImageConvertRunModeConstants.Intensity;
    imageconvert.Run();

声明工具，清空变量

cs 复制代码

CogBlobTool blob = mToolBlock.Tools["CogBlobTool1"]as CogBlobTool;
    mToolBlock.Outputs["ResultContent"].Value = "";
    mToolBlock.Outputs["Count"].Value = "";

赋值

cs 复制代码

if(imageconvert.RunStatus.Result == CogToolResultConstants.Accept)
    {
      blob.InputImage = imageconvert.OutputImage;
      blob.Run();

      foreach(ICogTool tool in mToolBlock.Tools)
      if(tool.RunStatus.Result == CogToolResultConstants.Accept)
      {
          mToolBlock.RunTool(tool, ref message, ref result);
          mToolBlock.Outputs["Count"].Value = blob.Results.GetBlobs().Count;
          mToolBlock.Outputs["ResultContent"].Value ="骰子的点数是:"+mToolBlock.Outputs["Count"].Value;
          string text = mToolBlock.Outputs["ResultContent"].Value as string;
        dt.Add(createlabel(text, 25, 0, 0, CogColorConstants.Blue));
          dt.Add(createlabel(DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss"), 25, 0, 120, CogColorConstants.Green));
      }
    }

All脚本

cs 复制代码

#region namespace imports
using System;
using System.Collections;
using System.Drawing;
using System.IO;
using System.Windows.Forms;
using Cognex.VisionPro;
using Cognex.VisionPro.ToolBlock;
using Cognex.VisionPro3D;
using Cognex.VisionPro.Dimensioning;
using Cognex.VisionPro.ImageProcessing;
using Cognex.VisionPro.Blob;
#endregion

public class CogToolBlockAdvancedScript : CogToolBlockAdvancedScriptBase
{
  #region Private Member Variables
  private Cognex.VisionPro.ToolBlock.CogToolBlock mToolBlock;
  #endregion
  private CogGraphicCollection dt = new CogGraphicCollection();

  /// <summary>
  /// Called when the parent tool is run.
  /// Add code here to customize or replace the normal run behavior.
  /// </summary>
  /// <param name="message">Sets the Message in the tool's RunStatus.</param>
  /// <param name="result">Sets the Result in the tool's RunStatus</param>
  /// <returns>True if the tool should run normally,
  ///          False if GroupRun customizes run behavior</returns>
  public override bool GroupRun(ref string message, ref CogToolResultConstants result)
  {
    // To let the execution stop in this script when a debugger is attached, uncomment the following lines.
    // #if DEBUG
    // if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();
    // #endif
    dt.Clear();
    CogImageConvertTool imageconvert = new CogImageConvertTool();
    imageconvert.InputImage = null;
    imageconvert.InputImage = mToolBlock.Inputs["InputImage"].Value as ICogImage;
    imageconvert.RunParams.RunMode = CogImageConvertRunModeConstants.Intensity;
    imageconvert.Run();
    CogBlobTool blob = mToolBlock.Tools["CogBlobTool1"]as CogBlobTool;
    mToolBlock.Outputs["ResultContent"].Value = "";
    mToolBlock.Outputs["Count"].Value = "";


    // Run each tool using the RunTool function
    if(imageconvert.RunStatus.Result == CogToolResultConstants.Accept)
    {
      blob.InputImage = imageconvert.OutputImage;
      blob.Run();

      foreach(ICogTool tool in mToolBlock.Tools)
      if(tool.RunStatus.Result == CogToolResultConstants.Accept)
      {
          mToolBlock.RunTool(tool, ref message, ref result);
          mToolBlock.Outputs["Count"].Value = blob.Results.GetBlobs().Count;
          mToolBlock.Outputs["ResultContent"].Value ="骰子的点数是:"+mToolBlock.Outputs["Count"].Value;
          string text = mToolBlock.Outputs["ResultContent"].Value as string;
        dt.Add(createlabel(text, 25, 0, 0, CogColorConstants.Blue));
          dt.Add(createlabel(DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss"), 25, 0, 120, CogColorConstants.Green));
      }
    }

    return false;
  }
  private CogGraphicLabel createlabel(string text, float size, double x, double y, CogColorConstants color)
  {
    CogGraphicLabel label = new CogGraphicLabel();
    label.Font = new Font("Arial", size, FontStyle.Bold, GraphicsUnit.Pixel);
    label.Color = color;
    label.Alignment = CogGraphicLabelAlignmentConstants.TopLeft;
    label.BackgroundColor = CogColorConstants.White;
    label.SetXYText(x, y, text);
    return label;
  }

  #region When the Current Run Record is Created
  /// <summary>
  /// Called when the current record may have changed and is being reconstructed
  /// </summary>
  /// <param name="currentRecord">
  /// The new currentRecord is available to be initialized or customized.</param>
  public override void ModifyCurrentRunRecord(Cognex.VisionPro.ICogRecord currentRecord)
  {
  }
  #endregion

  #region When the Last Run Record is Created
  /// <summary>
  /// Called when the last run record may have changed and is being reconstructed
  /// </summary>
  /// <param name="lastRecord">
  /// The new last run record is available to be initialized or customized.</param>
  public override void ModifyLastRunRecord(Cognex.VisionPro.ICogRecord lastRecord)
  {
    foreach(ICogGraphic s in dt)
    {
      mToolBlock.AddGraphicToRunRecord(s, lastRecord, "CogBlobTool1.InputImage", "script");
    }
  }
  #endregion

  #region When the Script is Initialized
  /// <summary>
  /// Perform any initialization required by your script here
  /// </summary>
  /// <param name="host">The host tool</param>
  public override void Initialize(Cognex.VisionPro.ToolGroup.CogToolGroup host)
  {
    // DO NOT REMOVE - Call the base class implementation first - DO NOT REMOVE
    base.Initialize(host);


    // Store a local copy of the script host
    this.mToolBlock = ((Cognex.VisionPro.ToolBlock.CogToolBlock)(host));
  }
  #endregion

}

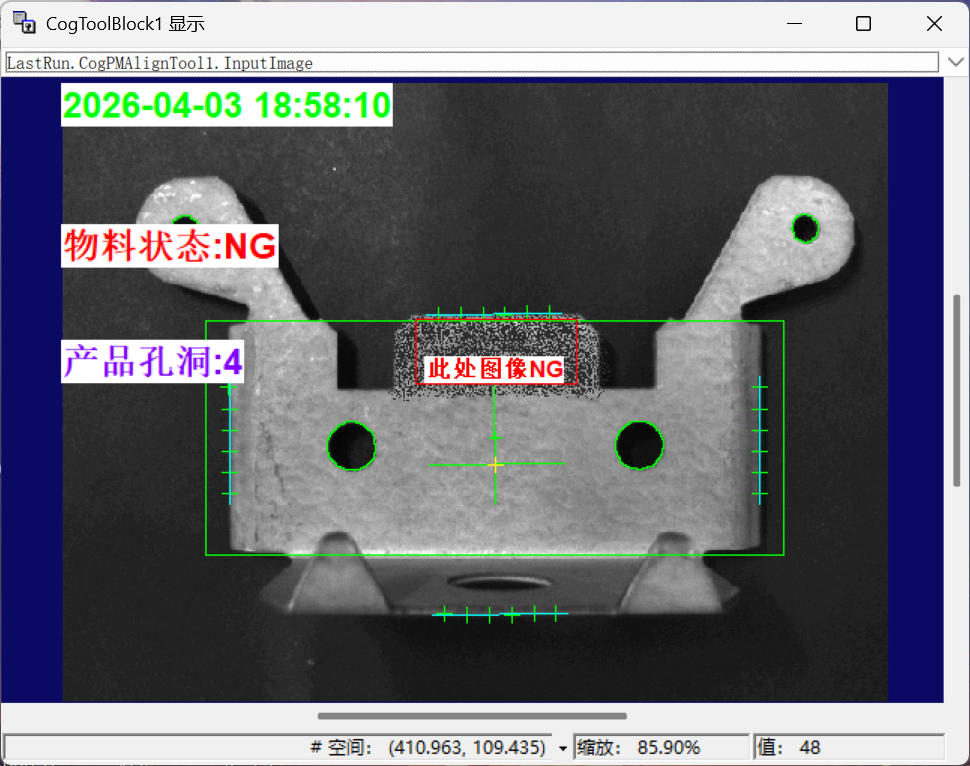

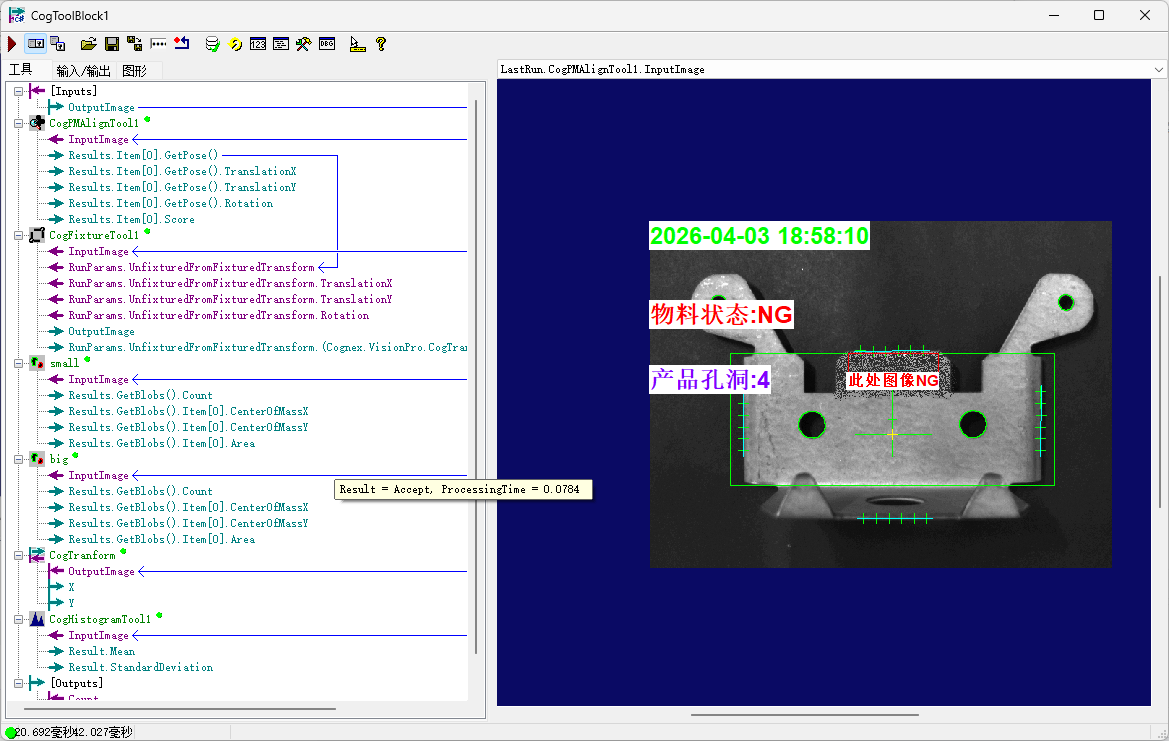

载具判断案例

工具

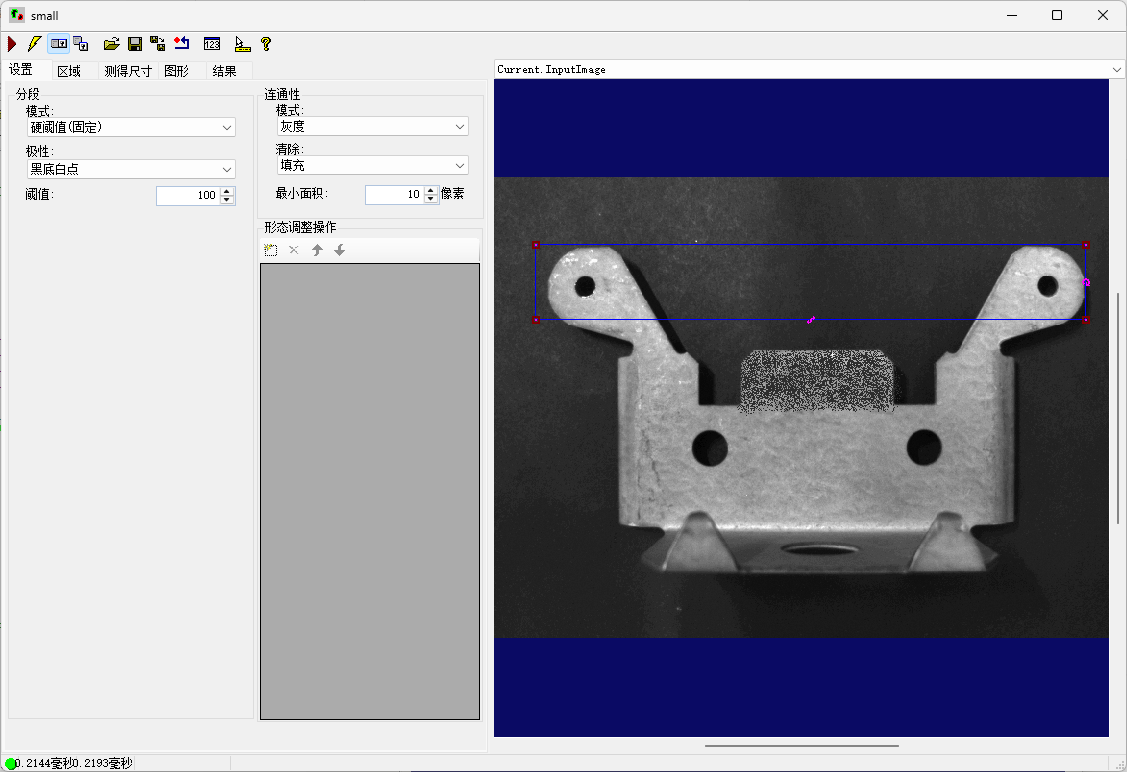

Blob

脚本

声明工具· 并添加集合

cs 复制代码

private CogGraphicCollection dt = new CogGraphicCollection();
 dt.Clear();
    mToolBlock.Outputs["Count"].Value = "";
    mToolBlock.Outputs["Result"].Value = "";
    CogPMAlignTool pma = mToolBlock.Tools["CogPMAlignTool1"]as CogPMAlignTool;

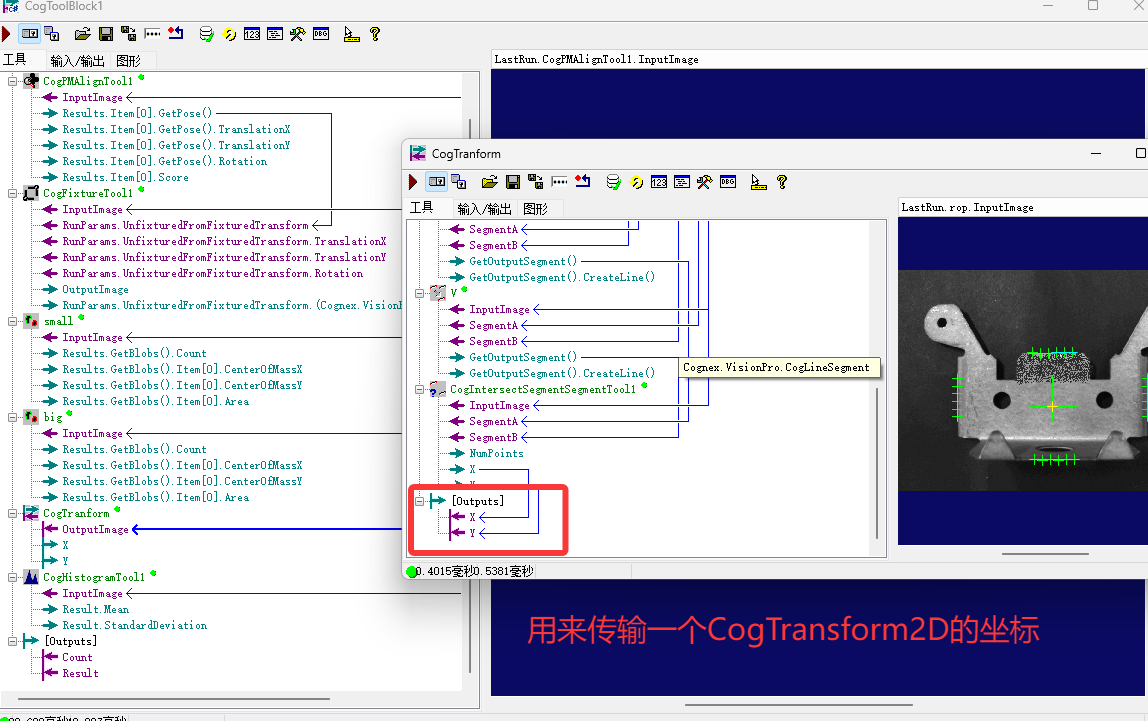

    CogToolBlock tb = mToolBlock.Tools["CogTranform"]as CogToolBlock;

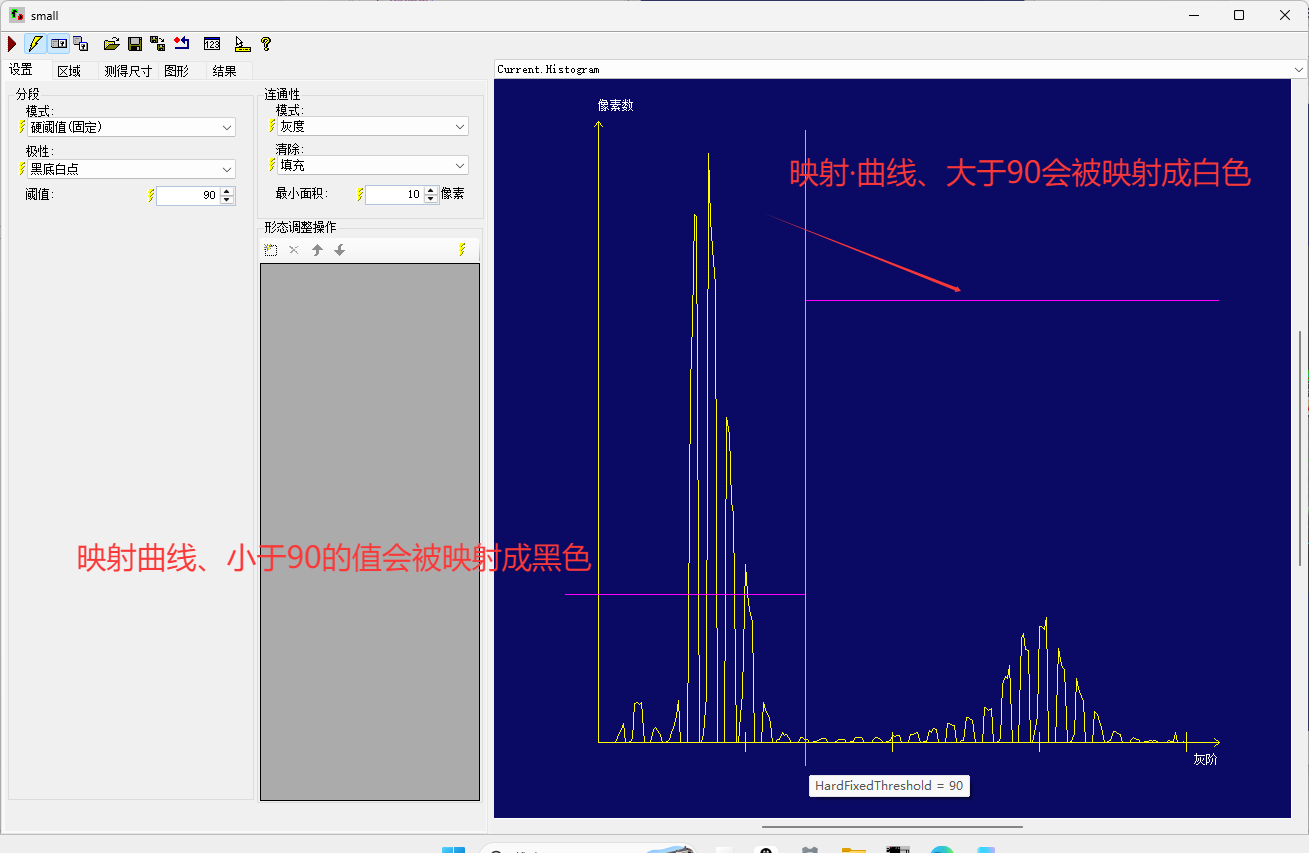

    CogBlobTool small = mToolBlock.Tools["small"]as CogBlobTool;
    CogBlobTool big = mToolBlock.Tools["big"]as CogBlobTool;
    CogHistogramTool histogram = mToolBlock.Tools["CogHistogramTool1"]as CogHistogramTool;
 pma.Run();
    int count = 0;
    bool state = true;
    double x = (double)tb.Outputs["X"].Value;
    double y = (double)tb.Outputs["Y"].Value;

判断值并圈写框

cs 复制代码

if(pma.RunStatus.Result == CogToolResultConstants.Accept)
    {
      foreach(ICogTool tool in mToolBlock.Tools)
        mToolBlock.RunTool(tool, ref message, ref result);
       count = small.Results.GetBlobs().Count + big.Results.GetBlobs().Count;
      if(histogram.Result.Mean < 110)
      {
        state = false;
        CogTransform2DLinear transform1 = new CogTransform2DLinear();

        CogRectangleAffine res = histogram.Region as CogRectangleAffine;
        transform1.TranslationX = res.CenterX + x;
        transform1.TranslationY = res.CenterY + y;
        res.Color = CogColorConstants.Red;

        CogHistogramTool his = new CogHistogramTool();
        his.Name = histogram.Name;
        his.Region = res;
        dt.Add(res);
        dt.Add(createlabel("此处图像NG", 15, transform1.TranslationX, transform1.TranslationY, CogColorConstants.Red));
      }

    }

声明结果在图像

cs 复制代码

dt.Add(createlabel(DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss"), 25, 0, 0, CogColorConstants.Green));
    dt.Add(createlabel("物料状态:" + (state ? "OK" : "NG"), 25, 0, 110, state ? CogColorConstants.Blue : CogColorConstants.Red));
    dt.Add(createlabel("产品孔洞:" + count, 25, 0, 200, CogColorConstants.Purple));
    mToolBlock.Outputs["Count"].Value = count;
    mToolBlock.Outputs["Result"].Value = state ? "OK" : "NG";

创建label

cs 复制代码

 private CogGraphicLabel createlabel(string text, float size, double x, double y, CogColorConstants color)
  {
    CogGraphicLabel label = new CogGraphicLabel();
    label.Color = color;
    if(!text.Contains("此处图像"))
    {
      label.Alignment = CogGraphicLabelAlignmentConstants.TopLeft;
    }
    label.BackgroundColor = CogColorConstants.White;
    label.Font = new Font("Arial", size, FontStyle.Bold, GraphicsUnit.Pixel);
    label.SetXYText(x, y, text);
    return label;
  }

输出集合

cs 复制代码

foreach(ICogGraphic s in dt)
    {
      mToolBlock.AddGraphicToRunRecord(s, lastRecord, "CogPMAlignTool1.InputImage", "lastRecord");
    }

All_脚本

cs 复制代码

#region namespace imports
using System;
using System.Collections;
using System.Drawing;
using System.IO;
using System.Windows.Forms;
using Cognex.VisionPro;
using Cognex.VisionPro.ToolBlock;
using Cognex.VisionPro3D;
using Cognex.VisionPro.PMAlign;
using Cognex.VisionPro.CalibFix;
using Cognex.VisionPro.Blob;
using Cognex.VisionPro.ImageProcessing;
#endregion

public class CogToolBlockAdvancedScript : CogToolBlockAdvancedScriptBase
{
  #region Private Member Variables
  private Cognex.VisionPro.ToolBlock.CogToolBlock mToolBlock;
  #endregion
  private CogGraphicCollection dt = new CogGraphicCollection();

  /// <summary>
  /// Called when the parent tool is run.
  /// Add code here to customize or replace the normal run behavior.
  /// </summary>
  /// <param name="message">Sets the Message in the tool's RunStatus.</param>
  /// <param name="result">Sets the Result in the tool's RunStatus</param>
  /// <returns>True if the tool should run normally,
  ///          False if GroupRun customizes run behavior</returns>
  public override bool GroupRun(ref string message, ref CogToolResultConstants result)
  {
    // To let the execution stop in this script when a debugger is attached, uncomment the following lines.
    // #if DEBUG
    // if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();
    // #endif
    dt.Clear();
    mToolBlock.Outputs["Count"].Value = "";
    mToolBlock.Outputs["Result"].Value = "";
    CogPMAlignTool pma = mToolBlock.Tools["CogPMAlignTool1"]as CogPMAlignTool;
    CogToolBlock tb = mToolBlock.Tools["CogTranform"]as CogToolBlock;
    CogBlobTool small = mToolBlock.Tools["small"]as CogBlobTool;
    CogBlobTool big = mToolBlock.Tools["big"]as CogBlobTool;
    CogHistogramTool histogram = mToolBlock.Tools["CogHistogramTool1"]as CogHistogramTool;


    // Run each tool using the RunTool function
    pma.Run();
    int count = 0;
    bool state = true;
    double x = (double)tb.Outputs["X"].Value;
    double y = (double)tb.Outputs["Y"].Value;
    if(pma.RunStatus.Result == CogToolResultConstants.Accept)
    {
      foreach(ICogTool tool in mToolBlock.Tools)
        mToolBlock.RunTool(tool, ref message, ref result);
       count = small.Results.GetBlobs().Count + big.Results.GetBlobs().Count;
      if(histogram.Result.Mean < 110)
      {
        state = false;
        CogTransform2DLinear transform1 = new CogTransform2DLinear();

        CogRectangleAffine res = histogram.Region as CogRectangleAffine;
        transform1.TranslationX = res.CenterX + x;
        transform1.TranslationY = res.CenterY + y;
        res.Color = CogColorConstants.Red;

        CogHistogramTool his = new CogHistogramTool();
        his.Name = histogram.Name;
        his.Region = res;
        dt.Add(res);
        dt.Add(createlabel("此处图像NG", 15, transform1.TranslationX, transform1.TranslationY, CogColorConstants.Red));
      }

    }
    dt.Add(createlabel(DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss"), 25, 0, 0, CogColorConstants.Green));
    dt.Add(createlabel("物料状态:" + (state ? "OK" : "NG"), 25, 0, 110, state ? CogColorConstants.Blue : CogColorConstants.Red));
    dt.Add(createlabel("产品孔洞:" + count, 25, 0, 200, CogColorConstants.Purple));
    mToolBlock.Outputs["Count"].Value = count;
    mToolBlock.Outputs["Result"].Value = state ? "OK" : "NG";

    return false;
  }
  private CogGraphicLabel createlabel(string text, float size, double x, double y, CogColorConstants color)
  {
    CogGraphicLabel label = new CogGraphicLabel();
    label.Color = color;
    if(!text.Contains("此处图像"))
    {
      label.Alignment = CogGraphicLabelAlignmentConstants.TopLeft;
    }
    label.BackgroundColor = CogColorConstants.White;
    label.Font = new Font("Arial", size, FontStyle.Bold, GraphicsUnit.Pixel);
    label.SetXYText(x, y, text);
    return label;
  }

  #region When the Current Run Record is Created
  /// <summary>
  /// Called when the current record may have changed and is being reconstructed
  /// </summary>
  /// <param name="currentRecord">
  /// The new currentRecord is available to be initialized or customized.</param>
  public override void ModifyCurrentRunRecord(Cognex.VisionPro.ICogRecord currentRecord)
  {
  }
  #endregion

  #region When the Last Run Record is Created
  /// <summary>
  /// Called when the last run record may have changed and is being reconstructed
  /// </summary>
  /// <param name="lastRecord">
  /// The new last run record is available to be initialized or customized.</param>
  public override void ModifyLastRunRecord(Cognex.VisionPro.ICogRecord lastRecord)
  {
    foreach(ICogGraphic s in dt)
    {
      mToolBlock.AddGraphicToRunRecord(s, lastRecord, "CogPMAlignTool1.InputImage", "lastRecord");
    }
  }
  #endregion

  #region When the Script is Initialized
  /// <summary>
  /// Perform any initialization required by your script here
  /// </summary>
  /// <param name="host">The host tool</param>
  public override void Initialize(Cognex.VisionPro.ToolGroup.CogToolGroup host)
  {
    // DO NOT REMOVE - Call the base class implementation first - DO NOT REMOVE
    base.Initialize(host);


    // Store a local copy of the script host
    this.mToolBlock = ((Cognex.VisionPro.ToolBlock.CogToolBlock)(host));
  }
  #endregion

}
