java+三角测量(两个工业级)+人体3d骨骼关键点获取(yolov8+HRNET_w48_2d)
摄像头用的是迈德威视的api
这里主要写三角测量方面的
1.标定图片
准备好人体2d关键点识别模型
摄像头固定后开始标定图片(要使用标定板,根据自己的需求直接去打印店用哑光的硬的材料打印就行,因为这里不用太精准,专业的太贵了)
需要精准的标定板(黑白表格),多角度照片
1.要手动曝光,不能自动,增益要低,曝光时间<=2ms,需场地无强光干扰
2.对焦和光圈调整到最佳后要锁紧螺丝
其他如下
关闭：自动曝光 AE、自动增益 AGC、自动白平衡 AWB
固定：曝光时间、增益、白平衡、色温
关闭：强降噪、锐化过度、图像增强
运动场景：硬件触发 + 全局快门
图像：灰度模式 > 彩色模式
光照：均匀、无反光、无过曝
标定建议20-30张合格的图片
package com.common.util.test;
import com.common.service.MultiCameraMvService;//这个是相机调用的封装
import org.opencv.calib3d.Calib3d;
import org.opencv.core.Mat;
import org.opencv.core.MatOfPoint2f;
import org.opencv.core.Size;
import org.opencv.core.TermCriteria;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;
import org.opencv.core.Scalar;
import org.opencv.core.Point;
import javax.swing.*;
import java.awt.*;
import java.awt.event.KeyAdapter;
import java.awt.event.KeyEvent;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import java.awt.image.BufferedImage;
import java.io.File;
import java.util.concurrent.BlockingQueue;
import java.util.concurrent.LinkedBlockingQueue;
/**采集图片
* 描述：
* 1. 采集标定图片
* 2. 批量保存图片
*/
public class a_CalibrationCollectorSwing {
private static final int BOARD_W = 9;
private static final int BOARD_H = 6;
private static final File SAVE_DIR = new File("./data/calibration/images");
private static final double SCALE = 0.5;
private final MultiCameraMvService service = new MultiCameraMvService();
private final JLabel label0 = new JLabel();
private final JLabel label1 = new JLabel();
// 🔥 修复：保存序号（确保全局唯一）
private int saveCount = 0;
private volatile boolean running = true;
private final BlockingQueue<Mat> frameQueue0 = new LinkedBlockingQueue<>(1);
private final BlockingQueue<Mat> frameQueue1 = new LinkedBlockingQueue<>(1);
public static void main(String[] args) {
nu.pattern.OpenCV.loadLocally();
SwingUtilities.invokeLater(() -> new a_CalibrationCollectorSwing().start());
}
public void start() {
// 添加JVM关闭钩子，确保在IDE中关闭程序时也能正确释放相机
Runtime.getRuntime().addShutdownHook(new Thread(() -> {
System.out.println("🛑 JVM关闭钩子：正在安全关闭相机...");
running = false;
try {
Thread.sleep(100);
} catch (Exception ignored) {}
service.shutdownAllCameras();
System.out.println("✅ 所有相机已关闭");
}));
service.startCamera(0);
service.startCamera(1);
SAVE_DIR.mkdirs();
new File(SAVE_DIR, "cam0").mkdirs();
new File(SAVE_DIR, "cam1").mkdirs();
JFrame frame = new JFrame("迈德威视标定采集");
frame.setLayout(new GridLayout(1, 2));
frame.add(new JScrollPane(label0));
frame.add(new JScrollPane(label1));
frame.setSize(2448, 2048);
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.out.println("🛑 正在安全关闭相机...");
running = false;
try {
Thread.sleep(1000);
} catch (Exception ignored) {
}
service.shutdownAllCameras();
frame.dispose();
// 强制退出 JVM，确保相机彻底释放
new Thread(() -> {
try {
Thread.sleep(1000);
} catch (Exception ignored) {
}
System.exit(0);
}).start();
}
});
frame.setVisible(true);
frame.addKeyListener(new KeyAdapter() {
@Override
public void keyPressed(KeyEvent e) {
if (e.getKeyCode() == KeyEvent.VK_ESCAPE) {
running = false;
service.shutdownAllCameras();
frame.dispose();
System.exit(0);
}
if (e.getKeyCode() == KeyEvent.VK_SPACE) {
saveImages();
}
}
});
new Thread(this::captureLoop, "CaptureThread").start();
new Thread(this::displayLoop, "DisplayThread").start();
}
private void captureLoop() {
while (running) {
Mat f0 = service.captureFrame(0);
Mat f1 = service.captureFrame(1);
if (f0 == null || f1 == null || f0.empty() || f1.empty()) {
try {
Thread.sleep(5);
} catch (Exception ignored) {
}
continue;
}
frameQueue0.poll();
frameQueue1.poll();
frameQueue0.offer(f0);
frameQueue1.offer(f1);
}
}
private void displayLoop() {
while (running) {
Mat f0 = frameQueue0.peek();
Mat f1 = frameQueue1.peek();
if (f0 == null || f1 == null) {
try {
Thread.sleep(5);
} catch (Exception ignored) {
}
continue;
}
Mat small0 = new Mat();
Mat small1 = new Mat();
Imgproc.resize(f0, small0, new Size(), SCALE, SCALE);
Imgproc.resize(f1, small1, new Size(), SCALE, SCALE);
processFrame(small0);
processFrame(small1);
label0.setIcon(new ImageIcon(matToImage(small0)));
label1.setIcon(new ImageIcon(matToImage(small1)));
small0.release();
small1.release();
try {
Thread.sleep(10);
} catch (Exception ignored) {
}
}
}
// =======================
// 🔥 完全修复：序号正常自增
// =======================
private synchronized void saveImages() {
Mat f0 = frameQueue0.peek();
Mat f1 = frameQueue1.peek();
if (f0 == null || f1 == null || f0.empty() || f1.empty()) {
System.out.println("暂无画面，跳过保存");
return;
}
// ------------------------------
// 🔥 关键：缩放到小图，判断两个相机是否都检测到棋盘格
// ------------------------------
Mat clone0 = f0.clone();
Mat clone1 = f1.clone();
Mat small0 = new Mat();
Mat small1 = new Mat();
Imgproc.resize(clone0, small0, new Size(), SCALE, SCALE);
Imgproc.resize(clone1, small1, new Size(), SCALE, SCALE);
boolean detected0 = isChessboardDetected(small0);
boolean detected1 = isChessboardDetected(small1);
// 全部释放临时图
small0.release();
small1.release();
clone0.release();
clone1.release();
// ------------------------------
// 保存用原图（安全）
// ------------------------------
Mat save0 = f0.clone();
Mat save1 = f1.clone();
// ------------------------------
// 🔥 判断：两个都检测到 → 正常命名；否则加 error_ 前缀
// ------------------------------
String prefix = (detected0 && detected1) ? "" : "error_";
String p0 = String.format("%s/cam0/%simage_%03d.png", SAVE_DIR, prefix, saveCount);
String p1 = String.format("%s/cam1/%simage_%03d.png", SAVE_DIR, prefix, saveCount);
Imgcodecs.imwrite(p0, save0);
Imgcodecs.imwrite(p1, save1);
save0.release();
save1.release();
// ------------------------------
// 日志输出
// ------------------------------
if (detected0 && detected1) {
System.out.println("✅ 保存成功（双相机均检测到棋盘格）：" + saveCount);
} else {
System.out.println("⚠️ 保存成功（未检测到棋盘格）：error_" + saveCount);
}
saveCount++;
}
// =======================
// 棋盘格检测（只读，绝不修改图像、不持有资源）
// =======================
private boolean isChessboardDetected(Mat mat) {
if (mat == null || mat.empty()) return false;
Mat gray = new Mat();
Imgproc.cvtColor(mat, gray, Imgproc.COLOR_BGR2GRAY);
MatOfPoint2f corners = new MatOfPoint2f();
boolean found = Calib3d.findChessboardCorners(gray, new Size(BOARD_W, BOARD_H), corners, Calib3d.CALIB_CB_ADAPTIVE_THRESH + Calib3d.CALIB_CB_NORMALIZE_IMAGE + Calib3d.CALIB_CB_FILTER_QUADS);
gray.release();
corners.release();
return found;
}
private void processFrame(Mat mat) {
Mat gray =new Mat();
Imgproc.cvtColor(mat, gray, Imgproc.COLOR_BGR2GRAY);//灰度
MatOfPoint2f corners = new MatOfPoint2f();
boolean found = Calib3d.findChessboardCorners(gray, new Size(BOARD_W, BOARD_H), corners, Calib3d.CALIB_CB_ADAPTIVE_THRESH | Calib3d.CALIB_CB_NORMALIZE_IMAGE | Calib3d.CALIB_CB_FILTER_QUADS);
if (found) {
Imgproc.cornerSubPix(gray, corners, new Size(11, 11), new Size(-1, -1), new TermCriteria(TermCriteria.EPS + TermCriteria.COUNT, 30, 0.001));
Calib3d.drawChessboardCorners(mat, new Size(BOARD_W, BOARD_H), corners, found);
Imgproc.putText(mat, "DETECTED", new Point(20, 50), Imgproc.FONT_HERSHEY_SIMPLEX, 1.2, new Scalar(0, 255, 0), 2);
} else {
Imgproc.putText(mat, "NO BOARD", new Point(20, 50), Imgproc.FONT_HERSHEY_SIMPLEX, 1.2, new Scalar(0, 0, 255), 2);
}
gray.release();
corners.release();
}
private BufferedImage matToImage(Mat mat) {
Mat rgbMat = new Mat();
Imgproc.cvtColor(mat, rgbMat, Imgproc.COLOR_BGR2RGB); // 修复预览红蓝反色
int w = mat.cols();
int h = mat.rows();
BufferedImage image = new BufferedImage(w, h, BufferedImage.TYPE_3BYTE_BGR);
byte[] data = new byte[w * h * 3];
rgbMat.get(0, 0, data);
image.getRaster().setDataElements(0, 0, w, h, data);
rgbMat.release();
return image;
}
}2.生成标定数据
根据标定好的图片生成三角测量要用到的相机参数数据
这个是结果类
/**
* 摄像头标定结果
*/
@Data
public class CalibrationResult {
private String calibrationId;
private long timestamp;
private double reprojectionError; // 平均重投影误差
private Map<String, Double> cameraErrors; // 每个相机的误差
private Mat reprojectionImage; // 重投影误差可视化图像
private List<String> calibrationImages; // 用于标定的图像路径
private int boardWidth; // 棋盘格宽度
private int boardHeight; // 棋盘格高度
private double squareSize; // 方格尺寸(mm)
private int validImageCount; // 有效图像数量
private boolean isStereoCalibrated; // 是否进行了立体标定
// 单目标定结果
private Map<String, CameraCalibration> cameraCalibrations;
// 立体标定结果（如果进行了立体标定）
private StereoCalibration stereoCalibration;
@Data
public static class CameraCalibration {
private String cameraId;
private Mat cameraMatrix; // 3x3 内参矩阵
private Mat distCoeffs; // 畸变系数
private double reprojectionError; // 该相机的重投影误差
private List<Mat> rvecs; // 每张图像的旋转向量
private List<Mat> tvecs; // 每张图像的平移向量
private List<MatOfPoint2f> imagePoints; // 保存每张有效图像的角点
private List<String> validImagePaths;
}
@Data
public static class StereoCalibration {
private Mat R; // 旋转矩阵
private Mat T; // 平移向量
private Mat E; // 本质矩阵
private Mat F; // 基础矩阵
private double stereoError; // 立体标定误差
private double baseline; // 基线距离(mm)
}
}直接运行会根据前面的图片生成标定数据
package com.common.util.test;
import nu.pattern.OpenCV;
import org.opencv.core.Mat;
import java.io.File;
import java.util.*;
/**
* 标定第二步
* 多[相机标定]
*/
public class b_CalibrationExample {
private static final int BOARD_WIDTH = 9;//棋盘格横向的内角点个数
private static final int BOARD_HEIGHT = 6;//棋盘格纵向的内角点个数
private static final double BOARD_SQUARE_SIZE = 50;//棋盘格方块边长 (mm)
private static final String CAMERA_DIR = "./data/calibration/images";
public static void main(String[] args) {
// 初始化OpenCV
OpenCV.loadLocally();
System.out.println("📷 相机标定示例");
// 创建标定管理器
EnhancedCalibrationManager calibrationManager = new EnhancedCalibrationManager();
// 1. 收集标定图像
Map<String, List<String>> cameraImagePaths = collectCalibrationImages();
if (cameraImagePaths.isEmpty()) {
System.out.println("❌ 未找到标定图像");
return;
}
// 2. 执行多相机标定
System.out.println("开始多相机标定...");
CalibrationResult result = calibrationManager.calibrateMultipleCameras(
cameraImagePaths,
BOARD_WIDTH, BOARD_HEIGHT, BOARD_SQUARE_SIZE // 棋盘格参数：9x6内角点，每个方格23.77mm
);
if (result == null) {
System.out.println("❌ 标定失败");
return;
}
System.out.println("✅ 标定成功");
System.out.printf("平均重投影误差: %.3f 像素%n", result.getReprojectionError());
System.out.printf("有效图像数量: %d%n", result.getValidImageCount());
// 3. 如果多于1个相机，执行立体标定
if (cameraImagePaths.size() >= 2) {
System.out.println("\n开始立体标定...");
List<String> cameraIds = new ArrayList<>(cameraImagePaths.keySet());
String camera1 = cameraIds.get(0);
String camera2 = cameraIds.get(1);
CalibrationResult.StereoCalibration stereoCalib =
calibrationManager.calibrateStereo(
camera1, camera2,
cameraImagePaths.get(camera1),
cameraImagePaths.get(camera2),
result.getCameraCalibrations().get(camera1),
result.getCameraCalibrations().get(camera2),
BOARD_WIDTH, BOARD_HEIGHT, BOARD_SQUARE_SIZE
);
if (stereoCalib != null) {
result.setStereoCalibration(stereoCalib);
result.setStereoCalibrated(true);
System.out.printf("立体标定完成，基线距离: %.1fmm%n", stereoCalib.getBaseline());
System.out.printf("立体标定误差: %.3f 像素%n", stereoCalib.getStereoError());
// 更新标定结果
calibrationManager.saveCalibrationResult(result);
}
}
// 4. 加载并验证标定结果
System.out.println("\n验证标定结果...");
CalibrationResult loadedResult = calibrationManager.loadCalibrationResult(
result.getCalibrationId());
if (loadedResult != null) {
System.out.println("标定结果加载成功");
System.out.println("标定ID: " + loadedResult.getCalibrationId());
// 显示相机参数
for (Map.Entry<String, CalibrationResult.CameraCalibration> entry :
loadedResult.getCameraCalibrations().entrySet()) {
System.out.printf("\n相机: %s%n", entry.getKey());
CalibrationResult.CameraCalibration calib = entry.getValue();
Mat cameraMatrix = calib.getCameraMatrix();
System.out.println("内参矩阵:");
for (int i = 0; i < 3; i++) {
System.out.printf(" [%.2f, %.2f, %.2f]%n",
cameraMatrix.get(i, 0)[0],
cameraMatrix.get(i, 1)[0],
cameraMatrix.get(i, 2)[0]);
}
System.out.printf("重投影误差: %.3f 像素%n", calib.getReprojectionError());
}
}
// 5. 获取标定历史
System.out.println("\n标定历史:");
List<CalibrationResult> history = calibrationManager.getCalibrationHistory();
for (int i = 0; i < history.size(); i++) {
CalibrationResult histResult = history.get(i);
System.out.printf("%d. ID: %s, 时间: %s, 误差: %.3f%n",
i + 1,
histResult.getCalibrationId().substring(0, 8),
new Date(histResult.getTimestamp()),
histResult.getReprojectionError());
}
}
/**
* 收集标定图像
*/
private static Map<String, List<String>> collectCalibrationImages() {
Map<String, List<String>> imagePaths = new HashMap<>();
// 假设图像存储在特定目录结构下
File baseDir = new File(CAMERA_DIR);
if (!baseDir.exists()) {
System.out.println("标定图像目录不存在: " + baseDir.getPath());
return imagePaths;
}
// 遍历相机目录
for (File cameraDir : baseDir.listFiles(File::isDirectory)) {
String cameraId = cameraDir.getName();
List<String> paths = new ArrayList<>();
// 收集所有图像文件
File[] imageFiles = cameraDir.listFiles((dir, name) ->
name.toLowerCase().endsWith(".jpg") ||
name.toLowerCase().endsWith(".png"));
if (imageFiles != null) {
for (File imageFile : imageFiles) {
paths.add(imageFile.getAbsolutePath());
}
}
if (!paths.isEmpty()) {
imagePaths.put(cameraId, paths);
System.out.printf("找到相机 %s 的 %d 张标定图像%n",
cameraId, paths.size());
}
}
return imagePaths;
}

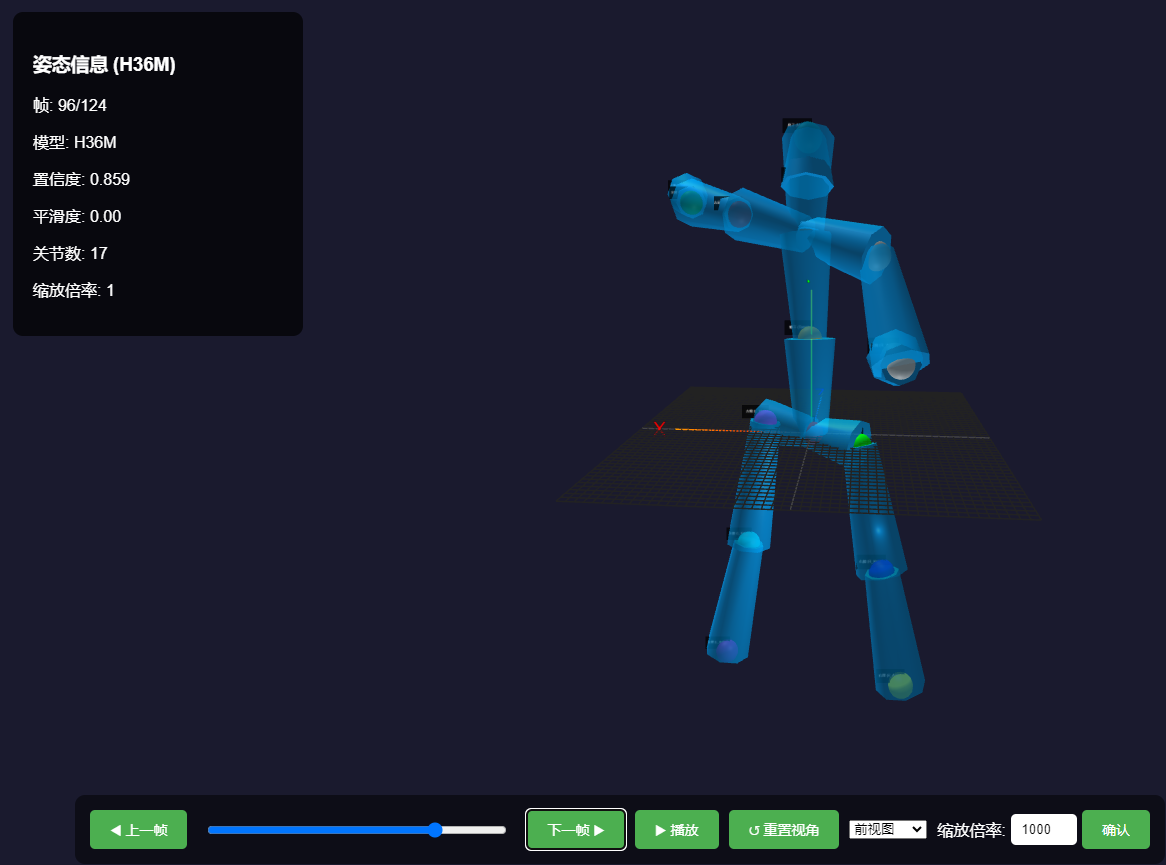

}3.生成实时3D的json数据并查看调试
1.主体代码
拍视频并生成json数据
import ai.onnxruntime.OrtException;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.opencv.calib3d.Calib3d;
import org.opencv.core.*;
import org.opencv.core.Point;
import org.opencv.imgproc.Imgproc;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import javax.swing.*;
import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import java.awt.image.BufferedImage;
import java.io.File;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.nio.file.StandardOpenOption;
import java.util.*;
import java.util.List;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.ConcurrentLinkedDeque;
import java.util.concurrent.atomic.AtomicBoolean;
public class d_Test_HRNet_MV {
private static final Logger log = LoggerFactory.getLogger(d_Test_HRNet_MV.class);
static {
nu.pattern.OpenCV.loadLocally();
}
// 🔥 相机ID与标定目录一致
private static final String CAM0_ID = "cam0";
private static final String CAM1_ID = "cam1";
// 🔥 500W 工业相机标准分辨率
private static final int CAM_WIDTH = 2448;
private static final int CAM_HEIGHT = 2048;
private static final String CALIBRATION_DIR = "./data/calibration";
private static final String JSON_FILE = "cd5d8a07-6f0f-4954-8f51-8833f7ab8241.json";//标定文件
private static final long SYNC_TOLERANCE_MS = 33;
private static Mat P0_CACHED, P1_CACHED;
private static Mat map1_0, map2_0, map1_1, map2_1;
private static final Deque<TimestampedFrame> buffer0 = new ConcurrentLinkedDeque<>();
private static final Deque<TimestampedFrame> buffer1 = new ConcurrentLinkedDeque<>();
private static final int[][] SKELETON = PoseVisualizer.getH36mSkeleton();
private static final String[] KEYPOINT_NAMES = PoseVisualizer.getH36mKeypointNames();
private static final ObjectMapper jsonMapper = new ObjectMapper();
private static final String OUTPUT_JSON_FILE = "./3d_pose_result.json";
private static int globalSequenceIndex = 0; // 全局序列索引，每次运行重置
// 🔥 迈德威视服务 + 开关控制（完全同 c_ 类）
private static final MultiCameraMvService mvService = new MultiCameraMvService();
private static final AtomicBoolean running = new AtomicBoolean(true);
// Swing 显示
private static JFrame frame;
private static JLabel label0, label1;
// 姿势优化器
private static PoseOptimizer poseOptimizer = new PoseOptimizer();
public static void main(String[] args) {
// 初始化模型
HRNet_2DPeopleDetector keypointDetector = new HRNet_2DPeopleDetector();
YOLOv8_Detector yolo8sDetector = new YOLOv8_Detector();
try {
keypointDetector.init();
yolo8sDetector.init();
} catch (Exception e) {
log.error("模型初始化失败", e);
return;
}
// 🔥 每次运行前清空JSON文件，覆盖之前的记录
try {
File outputFile = new File(OUTPUT_JSON_FILE);
if (outputFile.exists()) {
outputFile.delete(); // 删除旧文件
log.info("已删除旧的JSON结果文件");
}
} catch (Exception e) {
log.warn("清理旧JSON文件失败", e);
}
// 退出钩子 - 确保JSON文件格式正确
Runtime.getRuntime().addShutdownHook(new Thread(() -> {
try {
File f = new File(OUTPUT_JSON_FILE);
if (f.exists()) {
// 如果文件不为空，需要确保JSON格式正确
String content = new String(Files.readAllBytes(f.toPath()));
if (!content.trim().isEmpty() && !content.trim().endsWith("]")) {
// 添加数组结束符
if (content.endsWith(",")) {
content = content.substring(0, content.length() - 1) + "]";
} else {
content += "]";
}
Files.write(f.toPath(), content.getBytes(StandardCharsets.UTF_8));
} else if (content.trim().isEmpty()) {
// 如果文件为空，写入空数组
Files.write(f.toPath(), "[]".getBytes(StandardCharsets.UTF_8));
}
System.out.println("✅ JSON 已安全闭合");
}
} catch (Exception e) {
log.error("关闭时处理JSON文件失败", e);
}
// 强制关闭相机
try {
mvService.shutdownAllCameras();
log.info("✅ 相机服务已关闭");
} catch (Exception e) {
log.error("关闭相机服务失败", e);
}
}));
// 加载标定
Map<String, CameraInfo> calibMap = loadCalibrationData();
CameraInfo cam0Info = calibMap.get(CAM0_ID);
CameraInfo cam1Info = calibMap.get(CAM1_ID);
if (cam0Info == null || cam1Info == null) {
System.err.println("❌ 未找到 cam0 / cam1 标定");
return;
}
// 预计算去畸变映射
map1_0 = new Mat();
map2_0 = new Mat();
map1_1 = new Mat();
map2_1 = new Mat();
Calib3d.initUndistortRectifyMap(
cam0Info.getCameraMatrix(), cam0Info.getDistCoeffs(), new Mat(),
cam0Info.getCameraMatrix(), new Size(CAM_WIDTH, CAM_HEIGHT), CvType.CV_16SC2, map1_0, map2_0);
Calib3d.initUndistortRectifyMap(
cam1Info.getCameraMatrix(), cam1Info.getDistCoeffs(), new Mat(),
cam1Info.getCameraMatrix(), new Size(CAM_WIDTH, CAM_HEIGHT), CvType.CV_16SC2, map1_1, map2_1);
// 投影矩阵
P0_CACHED = buildProjectionMatrix(cam0Info.getCameraMatrix(), cam0Info.getRvec(), cam0Info.getTvec());
P1_CACHED = buildProjectionMatrix(cam1Info.getCameraMatrix(), cam1Info.getRvec(), cam1Info.getTvec());
// ====================== Swing 界面（双相机同步显示） ======================
frame = new JFrame("迈德威视 500W 双相机同步显示");
frame.setDefaultCloseOperation(JFrame.DO_NOTHING_ON_CLOSE);
frame.setSize(2448, 1024);
frame.setLayout(new BorderLayout());
label0 = new JLabel();
label1 = new JLabel();
label0.setHorizontalAlignment(SwingConstants.CENTER);
label1.setHorizontalAlignment(SwingConstants.CENTER);
JPanel cameraPanel = new JPanel(new GridLayout(1, 2));
cameraPanel.add(new JScrollPane(label0));
cameraPanel.add(new JScrollPane(label1));
frame.add(cameraPanel, BorderLayout.CENTER);
// ====================== 安全关闭（参考 c_DualCameraRecorderMVSDK） ======================
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.out.println("🛑 安全关闭相机...");
running.set(false);
try {
Thread.sleep(100);
} catch (Exception ignored) {
}
// 关闭取流线程
closeCaptureThreads();
// 关闭相机
mvService.shutdownAllCameras();
frame.dispose();
// 强制退出，彻底释放相机
new Thread(() -> {
try {
Thread.sleep(500);
} catch (Exception ignored) {
}
System.exit(0);
}).start();
}
});
frame.setVisible(true);
// 🔥 启动相机
if (!mvService.startCamera(0) || !mvService.startCamera(1)) {
System.err.println("❌ 相机启动失败");
System.exit(1);
}
// 启动取流线程
new Thread(() -> captureLoop(0, buffer0), "Cam0-Thread").start();
new Thread(() -> captureLoop(1, buffer1), "Cam1-Thread").start();
// 🔥 不再启动3D显示
log.info("✅ 3D界面已禁用，仅使用双相机同步显示和JSON输出");
Mat frame0 = new Mat();
Mat frame1 = new Mat();
Mat undist0 = new Mat();
Mat undist1 = new Mat();
Mat show0 = new Mat();
Mat show1 = new Mat();
log.info("开始运行...");
try {
while (running.get()) {
SyncedPair pair = findSyncedPair(SYNC_TOLERANCE_MS);
if (pair == null) {
try {
Thread.sleep(5);
} catch (Exception ignored) {
}
continue;
}
pair.f0.copyTo(frame0);
pair.f1.copyTo(frame1);
// 去畸变
Imgproc.remap(frame0, undist0, map1_0, map2_0, Imgproc.INTER_LINEAR);
Imgproc.remap(frame1, undist1, map1_1, map2_1, Imgproc.INTER_LINEAR);
// 缩放到 0.5 显示（500W直接显示太大）
Imgproc.resize(undist0, show0, new Size(), 0.5, 0.5);
Imgproc.resize(undist1, show1, new Size(), 0.5, 0.5);
long ts = System.currentTimeMillis();
byte[] img0 = CommonUtils.encodeImage(undist0);
byte[] img1 = CommonUtils.encodeImage(undist1);
// 检测主体
Rect box0 = yolo8sDetector.detectMainPerson(img0);
Rect box1 = yolo8sDetector.detectMainPerson(img1);
if (box0 == null) box0 = new Rect(0, 0, undist0.cols(), undist0.rows());
if (box1 == null) box1 = new Rect(0, 0, undist1.cols(), undist1.rows());
Rect e0 = CommonUtils.expandRect(box0, 1.2, undist0.cols(), undist0.rows());
Rect e1 = CommonUtils.expandRect(box1, 1.2, undist1.cols(), undist1.rows());
// 2D关键点 - 并行处理以提高性能
CompletableFuture<Pose2DResult> f0 = CompletableFuture.supplyAsync(() -> {
try {
return keypointDetector.detectKeypoints(img0, e0, 0, ts);
} catch (OrtException e) {
throw new RuntimeException(e);
}
});
CompletableFuture<Pose2DResult> f1 = CompletableFuture.supplyAsync(() -> {
try {
return keypointDetector.detectKeypoints(img1, e1, 0, ts);
} catch (OrtException e) {
throw new RuntimeException(e);
}
});
Pose2DResult pose0 = f0.get();
Pose2DResult pose1 = f1.get();
if (pose0 != null && pose1 != null && pose0.getKeypoints().size() > 10 && pose1.getKeypoints().size() > 10) {
List<Keypoint3D> points3D = triangulate3D(pose0, pose1, cam0Info, cam1Info, P0_CACHED, P1_CACHED, 500.0);
long count = points3D.stream().filter(p -> !(p.getX() == -1 && p.getY() == -1 && p.getZ() == -1)).count();
log.info("有效3D关键点数量: {}", count);
if (!points3D.isEmpty() && count > 10) {
// List<Keypoint3D> optimizedPose = poseOptimizer.optimizePose(points3D);
// 保存到JSON文件
saveFrameAsJSON(points3D, ts);
log.debug("已保存第 {} 帧的姿态数据", globalSequenceIndex - 1);
}
// 绘制到小图（同步显示）
Imgproc.rectangle(show0, new Rect(
e0.x / 2, e0.y / 2, e0.width / 2, e0.height / 2
), new Scalar(0, 255, 0), 2);
Imgproc.rectangle(show1, new Rect(
e1.x / 2, e1.y / 2, e1.width / 2, e1.height / 2
), new Scalar(0, 255, 0), 2);
drawSkeleton(show0, pose0, 0.3f);
drawSkeleton(show1, pose1, 0.3f);
}
// Swing 显示 - 确保线程安全，双相机同步显示
SwingUtilities.invokeLater(() -> {
label0.setIcon(new ImageIcon(matToBufferedImage(show0)));
label1.setIcon(new ImageIcon(matToBufferedImage(show1)));
});
try {
Thread.sleep(10);
} catch (Exception ignored) {
}
}
} catch (Exception e) {
log.error("运行过程中出现异常", e);
} finally {
running.set(false);
closeCaptureThreads();
mvService.shutdownAllCameras();
frame.dispose();
System.exit(0);
}
}
// ====================== 新增：关闭取流线程 ======================
private static void closeCaptureThreads() {
// 清空缓冲区并释放资源
TimestampedFrame frame;
while ((frame = buffer0.pollFirst()) != null) {
if (frame.frame != null) {
frame.frame.release();
}
}
while ((frame = buffer1.pollFirst()) != null) {
if (frame.frame != null) {
frame.frame.release();
}
}
}
// 相机取流（同 c_）
private static void captureLoop(int camIdx, Deque<TimestampedFrame> buffer) {
while (running.get()) {
Mat mat = mvService.captureFrame(camIdx);
if (mat == null || mat.empty()) {
try {
Thread.sleep(5);
} catch (Exception ignored) {
}
continue;
}
Mat clone = mat.clone();
buffer.offerLast(new TimestampedFrame(clone, System.currentTimeMillis()));
// 限制缓冲区大小，防止内存溢出
while (buffer.size() > 5) {
TimestampedFrame old = buffer.pollFirst();
if (old != null && old.frame != null) old.frame.release();
}
}
}
// ======================================================================
// 同步帧查找 - 改进算法，确保双相机同步
// ======================================================================
static class TimestampedFrame {
Mat frame;
long timestamp;
TimestampedFrame(Mat f, long ts) {
frame = f;
timestamp = ts;
}
}
static class SyncedPair {
Mat f0, f1;
SyncedPair(Mat a, Mat b) {
f0 = a;
f1 = b;
}
}
static SyncedPair findSyncedPair(long tolerance) {
// 确保缓冲区中有足够的帧
if (buffer0.size() < 1 || buffer1.size() < 1) {
return null;
}
// 尝试找到时间戳最接近的帧对
TimestampedFrame bestF0 = null, bestF1 = null;
long minTimeDiff = Long.MAX_VALUE;
// 查找最佳匹配
for (TimestampedFrame f0 : buffer0) {
for (TimestampedFrame f1 : buffer1) {
long diff = Math.abs(f0.timestamp - f1.timestamp);
if (diff <= tolerance && diff < minTimeDiff) {
minTimeDiff = diff;
bestF0 = f0;
bestF1 = f1;
}
}
}
if (bestF0 != null && bestF1 != null) {
// 移除已使用的帧
buffer0.remove(bestF0);
buffer1.remove(bestF1);
return new SyncedPair(bestF0.frame, bestF1.frame);
}
return null;
}
// ======================================================================
// 加载标定（修复空指针 + 正确分辨率）
// ======================================================================
public static Map<String, CameraInfo> loadCalibrationData() {
Map<String, CameraInfo> cameraInfos = new HashMap<>();
try {
File calibrationFile = new File(CALIBRATION_DIR, JSON_FILE);
if (!calibrationFile.exists()) {
log.error("标定文件不存在: {}", calibrationFile.getAbsolutePath());
return cameraInfos;
}
ObjectMapper objectMapper = new ObjectMapper();
Map<String, Object> root = objectMapper.readValue(calibrationFile, Map.class);
Map<String, Map<String, Object>> camCalibs = (Map) root.get("cameraCalibrations");
for (Map.Entry<String, Map<String, Object>> entry : camCalibs.entrySet()) {
String camId = entry.getKey();
Map<String, Object> data = entry.getValue();
CameraInfo info = new CameraInfo();
info.setCameraId(camId);
// 内参
List<Double> kData = (List) data.get("cameraMatrix");
Mat K = new Mat(3, 3, CvType.CV_64F);
int idx = 0;
for (int i = 0; i < 3; i++)
for (int j = 0; j < 3; j++)
K.put(i, j, kData.get(idx++));
info.setCameraMatrix(K);
// 畸变系数
List<Double> distData = (List) data.get("distCoeffs");
Mat D = new Mat(1, distData.size(), CvType.CV_64F);
for (int i = 0; i < distData.size(); i++)
D.put(0, i, distData.get(i));
info.setDistCoeffs(D);
// 🔥 500W 分辨率设置
info.setWidth(CAM_WIDTH);
info.setHeight(CAM_HEIGHT);
info.setRvec(Mat.zeros(3, 1, CvType.CV_64F));
info.setTvec(Mat.zeros(3, 1, CvType.CV_64F));
cameraInfos.put(camId, info);
}
// 立体标定参数
if (root.containsKey("stereoCalibration")) {
Map<String, Object> stereo = (Map) root.get("stereoCalibration");
List<Double> R = (List) stereo.get("R");
List<Double> T = (List) stereo.get("T");
if (R != null && T != null) {
// 🔥 修复空指针：cam1
CameraInfo c1 = cameraInfos.get("cam1");
if (c1 != null) {
Mat Rm = new Mat(3, 3, CvType.CV_64F);
int idx = 0;
for (int i = 0; i < 3; i++)
for (int j = 0; j < 3; j++)
Rm.put(i, j, R.get(idx++));
Mat rvec = new Mat();
Calib3d.Rodrigues(Rm, rvec);
Mat tvec = new Mat(3, 1, CvType.CV_64F);
for (int i = 0; i < 3; i++)
tvec.put(i, 0, T.get(i));
c1.setRvec(rvec);
c1.setTvec(tvec);
}
}
}
log.info("成功加载相机标定参数: cam0={}, cam1={}",
cameraInfos.containsKey("cam0"), cameraInfos.containsKey("cam1"));
} catch (Exception e) {
log.error("加载标定数据失败", e);
}
return cameraInfos;
}
// ======================================================================
// 三角化 - 3D姿态重建核心算法
// 使用双目标定参数将两组2D关键点三角化为3D点
// ======================================================================
static List<Keypoint3D> triangulate3D(Pose2DResult p0, Pose2DResult p1, CameraInfo c0, CameraInfo c1, Mat P0, Mat P1, double threshold) {
List<Keypoint3D> result = new ArrayList<>();
int n = Math.min(p0.getKeypoints().size(), p1.getKeypoints().size());
for (int i = 0; i < n; i++) {
Keypoint2D k0 = p0.getKeypoints().get(i);
Keypoint2D k1 = p1.getKeypoints().get(i);
// 低置信度的关键点直接标记为无效
if (k0.getConfidence() < 0.3f || k1.getConfidence() < 0.3f) {
result.add(new Keypoint3D(i, KEYPOINT_NAMES[i], -1, -1, -1, 0));
continue;
}
// 准备2D点坐标
Mat m0 = new Mat(2, 1, CvType.CV_64F);
Mat m1 = new Mat(2, 1, CvType.CV_64F);
m0.put(0, 0, k0.getX(), k0.getY());
m1.put(0, 0, k1.getX(), k1.getY());
// 三角测量
Mat X = new Mat(4, 1, CvType.CV_64F);
Calib3d.triangulatePoints(P0, P1, m0, m1, X);
double w = X.get(3, 0)[0];
// 转换为欧几里得坐标
double x = X.get(0, 0)[0] / w;
double y = X.get(1, 0)[0] / w;
double z = X.get(2, 0)[0] / w;
// 创建3D关键点
Keypoint3D keypoint3D = new Keypoint3D(i, KEYPOINT_NAMES[i], x, y, z, (k0.getConfidence() + k1.getConfidence()) / 2);
// 验证重投影误差
boolean isValid = isReprojectionValid(keypoint3D, k0, k1, c0, c1, threshold);
// 只有满足条件的点才保留
if (isValid && z > 0) {
result.add(keypoint3D);
} else {
// 无效点用-1表示
result.add(new Keypoint3D(i, KEYPOINT_NAMES[i], -1, -1, -1, 0));
}
// 释放临时矩阵
m0.release();
m1.release();
X.release();
}
return result;
}
// ======================================================================
// 重投影验证 - 确保3D点的准确性
// ======================================================================
static boolean isReprojectionValid(Keypoint3D p3, Keypoint2D kp0, Keypoint2D kp1, CameraInfo c0, CameraInfo c1, double threshold) {
MatOfPoint3f obj = new MatOfPoint3f(new Point3(p3.getX(), p3.getY(), p3.getZ()));
MatOfPoint2f img0 = new MatOfPoint2f();
MatOfPoint2f img1 = new MatOfPoint2f();
// 重投影到两台相机
Calib3d.projectPoints(obj, c0.getRvec(), c0.getTvec(), c0.getCameraMatrix(), new MatOfDouble(c0.getDistCoeffs()), img0);
Calib3d.projectPoints(obj, c1.getRvec(), c1.getTvec(), c1.getCameraMatrix(), new MatOfDouble(c1.getDistCoeffs()), img1);
List<Point> l0 = img0.toList();
List<Point> l1 = img1.toList();
if (l0.isEmpty() || l1.isEmpty()) {
obj.release();
img0.release();
img1.release();
return false;
}
// 计算重投影误差
double error0 = Math.hypot(l0.get(0).x - kp0.getX(), l0.get(0).y - kp0.getY());
double error1 = Math.hypot(l1.get(0).x - kp1.getX(), l1.get(0).y - kp1.getY());
obj.release();
img0.release();
img1.release();
// 误差都小于阈值才认为有效
boolean b = error0 < threshold && error1 < threshold;
if (!b) {
System.out.println("相机1误差: " + error0 + ", 相机2误差: " + error1);
}
return b;
}
// ======================================================================
// 构建投影矩阵
// ======================================================================
static Mat buildProjectionMatrix(Mat K, Mat rvec, Mat tvec) {
Mat R = new Mat();
Calib3d.Rodrigues(rvec, R);
// 构建 [R|t] 矩阵
Mat Rt = new Mat(3, 4, CvType.CV_64F);
R.col(0).copyTo(Rt.col(0));
R.col(1).copyTo(Rt.col(1));
R.col(2).copyTo(Rt.col(2));
tvec.copyTo(Rt.col(3));
// P = K * [R|t]
Mat P = new Mat();
Core.gemm(K, Rt, 1, new Mat(), 0, P);
R.release();
Rt.release();
return P;
}
// ======================================================================
// 保存3D姿态结果到JSON文件 - 改进版本，确保JSON格式正确
// ======================================================================
static void saveFrameAsJSON(List<Keypoint3D> pts, long ts) {
try {
if (pts.isEmpty() || pts.get(0).getX() == -1) {
log.debug("跳过无效的帧数据");
return;
}
Keypoint3D pelvis = pts.get(0); // 骨盆作为参考点
List<Keypoint3D> normalizedPoints = new ArrayList<>();
float sumConfidence = 0;//用于计算平均置信度
String[] keypointNames = PoseVisualizer.getH36mKeypointNames();
// 标准化3D点，相对于骨盆位置
for (int i = 0; i < Math.min(pts.size(), keypointNames.length); i++) {
Keypoint3D originalPoint = pts.get(i);
// 更新最小置信度
sumConfidence = sumConfidence + originalPoint.getConfidence();
if (originalPoint.getX() == -1 && originalPoint.getY() == -1) {
// 无效点用原点表示，置信度为0
normalizedPoints.add(new Keypoint3D(i, keypointNames[i], 0, 0, 0, 0));
continue;
}
// 相对骨盆坐标的转换（MotionBERT标准格式）
double relativeX = originalPoint.getX() - pelvis.getX();
double relativeY = originalPoint.getY() - pelvis.getY();
double relativeZ = originalPoint.getZ() - pelvis.getZ();
normalizedPoints.add(new Keypoint3D(i, keypointNames[i], relativeX, relativeY, relativeZ, originalPoint.getConfidence()));
}
// 创建结果对象
Pose3DResult result = new Pose3DResult();
result.setSequenceIndex(globalSequenceIndex++); // 递增序列号
result.setKeypoints(normalizedPoints);// 保存3D点
result.setConfidence(sumConfidence / pts.size());//总体的平均置信度
//假数据
result.setStartTime(ts);
result.setEndTime(ts + 33); // 假设帧间隔为33ms
result.setModelName("mv_hrnet_coco_H36m");
String jsonString = jsonMapper.writeValueAsString(result);
// 写入JSON文件，确保格式正确
File file = new File(OUTPUT_JSON_FILE);
if (!file.exists()) {
// 第一次写入，添加数组开始符
Files.write(Paths.get(OUTPUT_JSON_FILE), ("[\n" + jsonString).getBytes(), StandardOpenOption.CREATE);
} else {
// 追加模式，先添加逗号分隔符
Files.write(Paths.get(OUTPUT_JSON_FILE), (",\n" + jsonString).getBytes(), StandardOpenOption.APPEND);
}
} catch (Exception e) {
log.error("保存JSON数据失败", e);
}
}
// ======================================================================
// 绘制骨架到图像上 - 用于同步显示
// ======================================================================
static void drawSkeleton(Mat img, Pose2DResult pose, float threshold) {
if (pose == null) return;
java.util.List<Keypoint2D> keypoints = pose.getKeypoints();
// 1. 绘制关节点
for (Keypoint2D keypoint : keypoints) {
if (keypoint.getConfidence() > threshold) {
// 在缩放后的图像上绘制（除以2）
Imgproc.circle(img, new Point(keypoint.getX() / 2, keypoint.getY() / 2), 4, new Scalar(0, 255, 255), -1);
}
}
// 2. 绘制骨骼连线（H36M骨架）
Scalar[] colors = PoseVisualizer.JOINT_COLORS.clone();
for (int i = 0; i < SKELETON.length; i++) {
int[] bone = SKELETON[i];
if (bone[0] >= keypoints.size() || bone[1] >= keypoints.size()) continue;
Keypoint2D point1 = keypoints.get(bone[0]);
Keypoint2D point2 = keypoints.get(bone[1]);
if (point1.getConfidence() > threshold && point2.getConfidence() > threshold) {
// 在缩放后的图像上绘制（除以2）
Imgproc.line(img,
new Point(point1.getX() / 2, point1.getY() / 2),
new Point(point2.getX() / 2, point2.getY() / 2),
colors[i % colors.length], 2);
}
}
}
// ======================================================================
// 工具方法：Mat转BufferedImage - 参考 c_DualCameraRecorderMVSDK 的稳定方法
// ======================================================================
static BufferedImage matToBufferedImage(Mat mat) {
int width = mat.cols();
int height = mat.rows();
int channels = mat.channels();
byte[] data = new byte[width * height * channels];
mat.get(0, 0, data);
BufferedImage image;
if (channels == 3) {
image = new BufferedImage(width, height, BufferedImage.TYPE_3BYTE_BGR);
byte[] buffer = ((java.awt.image.DataBufferByte) image.getRaster().getDataBuffer()).getData();
System.arraycopy(data, 0, buffer, 0, data.length);
} else {
image = new BufferedImage(width, height, BufferedImage.TYPE_BYTE_GRAY);
byte[] buffer = ((java.awt.image.DataBufferByte) image.getRaster().getDataBuffer()).getData();
System.arraycopy(data, 0, buffer, 0, data.length);
}
return image;
}
}2.相关实体类
@Data
public class Keypoint2D {
private int id; // 关节ID (0-16)
private String name; // 关节名称
private float x; // X坐标
private float y; // Y坐标
private float confidence; // 关节置信度
public Keypoint2D() {
}
public Keypoint2D(int id, String name, float x, float y, float confidence) {
this.id = id;
this.name = name;
this.x = x;
this.y = y;
this.confidence = confidence;
}
}
java
@Data
public class Keypoint3D {
private int id; // 关节ID
private String name; // 关节名称
private float x; // X坐标 (mm)
private float y; // Y坐标 (mm)
private float z; // Z坐标 (mm)
private float confidence; // 关节置信度
public Keypoint3D(int id, String name, float x, float y, float z, float confidence) {
this.id = id;
this.name = name;
this.x = x;
this.y = y;
this.z = z;
this.confidence = confidence;
}
public Keypoint3D() {
}
public Keypoint3D(int id, String name, int x, int y, int z, float confidence) {
this.id = id;
this.name = name;
this.x = x;
this.y = y;
this.z = z;
this.confidence = confidence;
}
public Keypoint3D(int id, String name, double x, double y, double z, float confidence) {
this.id = id;
this.name = name;
this.x = (float) x;
this.y = (float) y;
this.z = (float) z;
this.confidence = confidence;
}
}
java
@Data
public class Pose2DResult {
private int frameIndex; // 帧索引
private long timestamp; // 时间戳
private List<Keypoint2D> keypoints; // 关键点列表
private float confidence; // 模型置信度
private BBox bbox; // 检测框
private String handType; // "left" 或 "right"
}
java
/**
* 3D Pose结果
*/
@Data
public class Pose3DResult {
private int sequenceIndex; // 动作序列索引
private long startTime; // 动作开始时间
private long endTime; // 动作结束时间
private List<Keypoint3D> keypoints; // 关键点列表
private float smoothness; // 动作平滑度
private float confidence; // 动作置信度
private int startFrameIndex; // 动作开始帧索引（新增日期25/12/22）
private float motionRange; // 动作幅度（新增日期25/12/23）
private String modelName; // 模型名称（新增日期25/12/23）
private int windowSize; // 窗口大小 (新增日期25/12/25）
private int windowStep; // 窗口步长 (新增日期25/12/25）)
public Pose3DResult(List<Keypoint3D> keypoints3D, float avgConfidence, int i) {
this.keypoints = keypoints3D;
this.confidence = avgConfidence;
this.sequenceIndex = i;
}
public Pose3DResult() {
}
}
java
/**
* 相机信息
*/
@Data
public class CameraInfo {
private String cameraId;
private Mat cameraMatrix; // 内参矩阵 3x3
private Mat distCoeffs; // 畸变系数
private Mat rvec; // 旋转向量 (如果相对于世界坐标系)
private Mat tvec; // 平移向量
private int width;
private int height;
private double timestamp; // 用于同步的时间戳
public void release() {
if (cameraMatrix != null) cameraMatrix.release();
if (distCoeffs != null) distCoeffs.release();
if (rvec != null) rvec.release();
if (tvec != null) tvec.release();
}
}3.工具方法和对应模型关键点类型
java
public static byte[] encodeImage(Mat mat) {
return encodeImage(mat, ".jpg");
}
/**
* 扩大边界框(有些检测框太小需要按比例扩大一点)
*
* @param rect // 边界框
* @param scale // 缩放比例 一般最好不要超过1.3
* @param maxWidth // 最大宽度
* @param maxHeight // 最大高度
* @return // 扩大后的边界框
*/
public static Rect expandRect(Rect rect, double scale, int maxWidth, int maxHeight) {
int cx = rect.x + rect.width / 2;
int cy = rect.y + rect.height / 2;
int newW = (int) (rect.width * scale);
int newH = (int) (rect.height * scale);
int x = Math.max(0, cx - newW / 2);
int y = Math.max(0, cy - newH / 2);
newW = Math.min(newW, maxWidth - x);
newH = Math.min(newH, maxHeight - y);
return new Rect(x, y, newW, newH);
}
java
@Component
public class PoseVisualizer {
private static final Logger logger = LoggerFactory.getLogger(PoseVisualizer.class);
// COCO关键点类别名称 (17个)
private static final String[] COCO_KEYPOINT_NAMES = {"nose", "left_eye", "right_eye", "left_ear", "right_ear", "left_shoulder", "right_shoulder", "left_elbow", "right_elbow", "left_wrist", "right_wrist", "left_hip", "right_hip", "left_knee", "right_knee", "left_ankle", "right_ankle"};
// H36M 关键点名称 (顺序必须与模型期望一致) (17个)
private static final String[] H36M_KEYPOINT_NAMES = {"Pelvis", "R_Hip", "R_Knee", "R_Ankle", "L_Hip", "L_Knee", "L_Ankle", "Torso", "Neck", "Nose", "Head", "L_Shoulder", "L_Elbow", "L_Wrist", "R_Shoulder", "R_Elbow", "R_Wrist"};
//NTU关键点关键点名称 (25个)
private static final String[] NTU_KEYPOINT_NAMES = {"pelvis", "spine_mid", "neck", "head", "left_shoulder", "left_elbow", "left_wrist", "left_hand", "right_shoulder", "right_elbow", "right_wrist", "right_hand", "left_hip", "left_knee", "left_ankle", "left_foot", "right_hip", "right_knee", "right_ankle", "right_foot", "spine_shoulder", "left_hand_tip", "left_thumb", "right_hand_tip", "right_thumb"};
//HAND关键点名称
private static final String[] HAND_KEYPOINT_NAMES = {"wrist", "thumb_mcp", "thumb_pip", "thumb_dip", "thumb_tip", "index_mcp", "index_pip", "index_dip", "index_tip", "middle_mcp", "middle_pip", "middle_dip", "middle_tip", "ring_mcp", "ring_pip", "ring_dip", "ring_tip", "pinky_mcp", "pinky_pip", "pinky_dip", "pinky_tip"};
// 创建 COCO 名称到索引的映射，方便查找
private static final Map<String, Integer> COCO_NAME_TO_INDEX = new HashMap<>();
static {
for (int i = 0; i < COCO_KEYPOINT_NAMES.length; i++) {
COCO_NAME_TO_INDEX.put(COCO_KEYPOINT_NAMES[i], i);
}
}
// 骨架连接关系(COCO 的 17点)
private static final int[][] COCO_SKELETON = {{15, 13}, {13, 11}, {16, 14}, {14, 12}, {11, 12}, {5, 11}, {6, 12}, {5, 6}, {5, 7}, {6, 8}, {7, 9}, {8, 10}, {1, 2}, {0, 1}, {0, 2}, {1, 3}, {2, 4}, {3, 5}, {4, 6}};
// 3D 骨架连接关系 (H36M 17 点索引 0-16)
private static final int[][] H36M_SKELETON = {{0, 1}, {0, 4}, // 骨盆到左右髋
{1, 2}, {2, 3}, // 右腿
{4, 5}, {5, 6}, // 左腿
{0, 7}, {7, 8}, // 骨盆到躯干到颈部
{8, 9}, // 颈部到鼻子
{8, 11}, {8, 14}, // 颈部到左右肩
{9, 10}, // 鼻子到头
{11, 12}, {12, 13}, // 左臂
{14, 15}, {15, 16} // 右臂
};
//NTU 骨架连接关系 (25点)
private static final int[][] NTU_SKELETON = {{0, 1}, {1, 20}, {20, 2}, {2, 3},// 脊柱与中心部分
// 左臂
{20, 4}, {4, 5}, {5, 6}, {6, 7}, {7, 21}, // 左手到左手指尖
{6, 22}, // 左腕到左拇指
// 右臂
{20, 8}, {8, 9}, {9, 10}, {10, 11}, {11, 23}, // 右手到右手指尖
{10, 24}, // 右腕到右拇指
{0, 12}, {12, 13}, {13, 14}, {14, 15}, // 左腿
{0, 16}, {16, 17}, {17, 18}, {18, 19} // 右腿
};
// 手部骨架连接（COCO-WholeBody-Hand 的 20 条边）
private static final int[][] HAND_SKELETON = {{0, 1}, {1, 2}, {2, 3}, {3, 4}, // thumb
{0, 5}, {5, 6}, {6, 7}, {7, 8}, // index
{0, 9}, {9, 10}, {10, 11}, {11, 12}, // middle
{0, 13}, {13, 14}, {14, 15}, {15, 16}, // ring
{0, 17}, {17, 18}, {18, 19}, {19, 20} // pinky
, {5, 9}, {9, 13}, {13, 17}//yolo手部连接
};
/**
* 获取关键点名称
*/
public static String[] getCocoKeypointNames() {
return COCO_KEYPOINT_NAMES.clone();
}
public static String[] getH36mKeypointNames() {
return H36M_KEYPOINT_NAMES.clone();
}
public static String[] getNtuKeypointNames() {
return NTU_KEYPOINT_NAMES.clone();
}
public static String[] getHandKeypointNames() {
return HAND_KEYPOINT_NAMES.clone();
}
/**
* 获取骨架连接关系
*/
public static int[][] getCocoSkeleton() {
return COCO_SKELETON.clone();
}
public static int[][] getH36mSkeleton() {
return H36M_SKELETON.clone();
}
public static int[][] getNtuSkeleton() {
return NTU_SKELETON.clone();
}
public static int[][] getHandSkeleton() {
return HAND_SKELETON.clone();
}
// 关节颜色
public static final Scalar[] JOINT_COLORS = {new Scalar(255, 0, 0), // 红色 - 鼻子
new Scalar(0, 255, 0), // 绿色 - 左眼
new Scalar(0, 0, 255), // 蓝色 - 右眼
new Scalar(255, 255, 0), // 青色 - 左耳
new Scalar(255, 0, 255), // 洋红 - 右耳
new Scalar(0, 255, 255), // 黄色 - 左肩
new Scalar(128, 0, 128), // 紫色 - 右肩
new Scalar(255, 165, 0), // 橙色 - 左肘
new Scalar(139, 69, 19), // 棕色 - 右肘
new Scalar(0, 128, 128), // 青色 - 左手腕
new Scalar(128, 128, 0), // 橄榄色 - 右手腕
new Scalar(128, 0, 0), // 栗色 - 左臀
new Scalar(0, 128, 0), // 绿色 - 右臀
new Scalar(0, 0, 128), // 海军蓝 - 左膝
new Scalar(128, 128, 128),// 灰色 - 右膝
new Scalar(192, 192, 192),// 银色 - 左脚踝
new Scalar(64, 64, 64) // 深灰 - 右脚踝
};
private static final Scalar SKELETON_COLOR = new Scalar(0, 255, 0); // 绿色
private static final Scalar JOINT_COLOR = new Scalar(0, 0, 255); // 红色
private static final Scalar TEXT_COLOR = new Scalar(255, 255, 255); // 白色
//置信度
private static final double MIN_CONFIDENCE = 0.25;
...
}4.关于模型
1.yolo直接用官方的pose模型导出就可以
yolo export model=yolov8s.pt format=onnx imgsz=640 simplify=True opset=21
2.关于hrnet_w48我好像是从MMPOSE里面下载的
5.关于测试
我让模型生成了一个预览3djson的代码
python.bat 和 3d_pose_result 和 三角测量预览(版本一).html
以上3个文件在一个目录就行,启动bat文件后就可以打开
http://localhost:8000/三角测量(标准版本一).html
预览你拍的效果
1.启动 python.bat 文件
@echo off
echo 启动 Python HTTP 服务器，端口 8000...
python -m http.server 8000
pause2.生成了一个html的文件用来预览json
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<title>3D姿态可视化 - 警训分析系统 (H36M版)</title>
<style>
body {
margin: 0;
overflow: hidden;
font-family: Arial, sans-serif;
background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
}
#container {
position: relative;
width: 100vw;
height: 100vh;
}
#info-panel {
position: absolute;
top: 20px;
left: 20px;
background: rgba(0, 0, 0, 0.7);
color: white;
padding: 20px;
border-radius: 10px;
min-width: 250px;
z-index: 1000;
}
#controls {
position: absolute;
bottom: 10px;
left: 5%;
background: rgba(0, 0, 0, 0.5);
padding: 15px;
border-radius: 10px;
display: flex;
gap: 10px;
z-index: 1000;
align-items: center;
}
/* 新增倍率控制样式 */
#scale-controls {
display: flex;
align-items: center;
gap: 5px;
}
#scale-input {
width: 50px;
padding: 8px;
border-radius: 5px;
border: none;
text-align: center;
}
button {
background: #4CAF50;
color: white;
border: none;
padding: 10px 20px;
border-radius: 5px;
cursor: pointer;
font-size: 14px;
}
button:hover {
background: #45a049;
}
#frame-slider {
width: 300px;
margin: 0 10px;
}
#loading {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
color: white;
font-size: 24px;
}
</style>
<script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/r128/three.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/three@0.128.0/examples/js/controls/OrbitControls.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/three@0.128.0/examples/js/loaders/GLTFLoader.min.js"></script>
</head>
<body>
<div id="container">
<div id="loading">加载3D可视化中...</div>
<div id="info-panel" style="display: none;">
<h3>姿态信息 (H36M)</h3>
<p>帧: <span id="frame-info">0/0</span></p>
<p>模型: <span id="model-info">H36M</span></p>
<p>置信度: <span id="confidence-info">0.00</span></p>
<p>平滑度: <span id="smoothness-info">0.00</span></p>
<p>关节数: <span id="joints-info">0</span></p>
<p>缩放倍率: <span id="scale-info">1000</span></p> <!-- 新增倍率显示 -->
</div>
<div id="controls" style="display: none;">
<button onclick="prevFrame()">◀ 上一帧</button>
<input type="range" id="frame-slider" min="0" max="0" value="0">
<button onclick="nextFrame()">下一帧 ▶</button>
<button onclick="togglePlay()" id="play-btn">▶ 播放</button>
<button onclick="resetView()">↺ 重置视角</button>
<select id="view-select" onchange="changeView(this.value)">
<option value="front">前视图</option>
<option value="side">侧视图</option>
<option value="top">俯视图</option>
<option value="free">自由视角</option>
</select>
<!-- 新增倍率控制输入框 -->
<div id="scale-controls">
<span style="color: white;">缩放倍率:</span>
<input type="number" id="scale-input" value="1000" min="1" step="10">
<button onclick="applyScale()">确认</button>
</div>
</div>
</div>
<script>
// 全局变量
let scene, camera, renderer, controls;
let poseData = [];
let currentFrame = 0;
let isPlaying = false;
let playInterval;
let jointSpheres = [];
let boneCylinders = [];
let scaleMultiplier = 1; // 新增缩放倍率变量，默认1
// H36M 骨架连接关系 (基于 H36M 17 点索引 0-16)
const SKELETON = [
[0, 1], [0, 4], // 骨盆到左右髋
[1, 2], [2, 3], // 右腿
[4, 5], [5, 6], // 左腿
[0, 7], [7, 8], // 骨盆到躯干到颈部
[8, 9], // 颈部到鼻子
[8, 11], [8, 14], // 颈部到左右肩
[9, 10], // 鼻子到头
[11, 12], [12, 13], // 左臂
[14, 15], [15, 16] // 右臂
];
// 关节颜色映射 (保持不变，用于区分不同关节点)
const JOINT_COLORS = [
0xFF0000, 0x00FF00, 0x0000FF, 0xFFFF00, 0xFF00FF,
0x00FFFF, 0x800080, 0xFFA500, 0x8B4513, 0x008080,
0x808000, 0x800000, 0x008000, 0x000080, 0x808080,
0xC0C0C0, 0x404040
];
// H36M 关节名称 (对应索引 0-16)
const JOINT_NAMES = [
"骨盆 (Pelvis)",
"右髋 (R_Hip)",
"右膝 (R_Knee)",
"右踝 (R_Ankle)",
"左髋 (L_Hip)",
"左膝 (L_Knee)",
"左踝 (L_Ankle)",
"躯干 (Torso)",
"颈部 (Neck)",
"鼻子 (Nose)",
"头 (Head)",
"左肩 (L_Shoulder)",
"左肘 (L_Elbow)",
"左腕 (L_Wrist)",
"右肩 (R_Shoulder)",
"右肘 (R_Elbow)",
"右腕 (R_Wrist)"
];
// 初始化Three.js场景
function init() {
// 创建场景
scene = new THREE.Scene();
scene.background = new THREE.Color(0x1a1a2e);
// 创建相机
camera = new THREE.PerspectiveCamera(75, window.innerWidth / window.innerHeight, 0.1, 5000);
camera.position.set(300, 300, 300);
// 创建渲染器
renderer = new THREE.WebGLRenderer({ antialias: true });
renderer.setSize(window.innerWidth, window.innerHeight);
renderer.shadowMap.enabled = true;
renderer.shadowMap.type = THREE.PCFSoftShadowMap;
// 添加到容器
document.getElementById('container').appendChild(renderer.domElement);
// 添加轨道控制
controls = new THREE.OrbitControls(camera, renderer.domElement);
controls.enableDamping = true;
controls.dampingFactor = 0.05;
// 添加光源
addLights();
// 添加坐标轴
addCoordinateAxes();
// 添加网格地面
addGrid();
// 加载姿态数据
loadPoseData();
// 窗口大小调整
window.addEventListener('resize', onWindowResize);
// 开始渲染
animate();
}
// 添加光源
function addLights() {
// 环境光
const ambientLight = new THREE.AmbientLight(0xffffff, 0.5);
scene.add(ambientLight);
// 平行光
const directionalLight = new THREE.DirectionalLight(0xffffff, 0.8);
directionalLight.position.set(100, 200, 100);
directionalLight.castShadow = true;
scene.add(directionalLight);
// 点光源
const pointLight = new THREE.PointLight(0xffffff, 0.5);
pointLight.position.set(-100, -100, -100);
scene.add(pointLight);
}
// 添加坐标轴
function addCoordinateAxes() {
const axesHelper = new THREE.AxesHelper(200);
scene.add(axesHelper);
// 添加坐标轴标签
addAxisLabel('X', [220, 0, 0], 0xFF0000);
addAxisLabel('Y', [0, 220, 0], 0x00FF00);
addAxisLabel('Z', [0, 0, 220], 0x0000FF);
}
function addAxisLabel(text, position, color) {
const canvas = document.createElement('canvas');
const context = canvas.getContext('2d');
canvas.width = 64;
canvas.height = 64;
context.fillStyle = 'rgba(0, 0, 0, 0)';
context.fillRect(0, 0, canvas.width, canvas.height);
context.font = '48px Arial';
context.fillStyle = `rgb(${(color >> 16) & 255}, ${(color >> 8) & 255}, ${color & 255})`;
context.fillText(text, 10, 50);
const texture = new THREE.CanvasTexture(canvas);
const material = new THREE.SpriteMaterial({ map: texture });
const sprite = new THREE.Sprite(material);
sprite.position.set(...position);
sprite.scale.set(40, 40, 1);
scene.add(sprite);
}
// 添加网格地面
function addGrid() {
const gridHelper = new THREE.GridHelper(500, 50, 0x444444, 0x222222);
scene.add(gridHelper);
}
// 加载姿态数据
async function loadPoseData() {
try {
// 替换为你的 H36M JSON 数据文件路径
//const response = await fetch('pose3d_data_1766651742977.json');
const response = await fetch('3d_pose_result.json');
// 修正：确保获取到正确的响应文本
const text = await response.text();
poseData = JSON.parse(text);
if (poseData.length > 0) {
// 初始化UI
document.getElementById('frame-slider').max = poseData.length - 1;
document.getElementById('loading').style.display = 'none';
document.getElementById('info-panel').style.display = 'block';
document.getElementById('controls').style.display = 'flex';
// 显示当前缩放倍率
document.getElementById('scale-info').textContent = scaleMultiplier;
// 显示第一帧
updateFrameDisplay();
updatePoseVisualization();
}
} catch (error) {
console.error('加载姿态数据失败:', error);
document.getElementById('loading').innerHTML = '加载失败，请检查控制台';
}
}
// 新增：应用缩放倍率
function applyScale() {
const input = document.getElementById('scale-input');
const newScale = parseInt(input.value);
if (!isNaN(newScale) && newScale > 0) {
scaleMultiplier = newScale;
// 更新显示
document.getElementById('scale-info').textContent = scaleMultiplier;
// 重新渲染当前帧
updatePoseVisualization();
} else {
alert('请输入有效的正整数倍率');
// 恢复原值
input.value = scaleMultiplier;
}
}
// 更新帧显示
function updateFrameDisplay() {
if (poseData.length === 0) return;
const pose = poseData[currentFrame];
document.getElementById('frame-info').textContent =
`${currentFrame + 1}/${poseData.length}`;
// 模型信息固定为 H36M
document.getElementById('model-info').textContent = 'H36M';
// 假设 pose 对象包含 confidence 和 smoothness 属性
// 如果你的数据结构不同，请相应修改
document.getElementById('confidence-info').textContent =
(pose.keypoints && pose.keypoints.length > 0) ?
(pose.keypoints.reduce((sum, kp) => sum + kp.confidence, 0) / pose.keypoints.length).toFixed(3) : '0.00';
document.getElementById('smoothness-info').textContent = '0.00'; // 假设值
document.getElementById('joints-info').textContent =
pose.keypoints ? pose.keypoints.length : 0;
document.getElementById('frame-slider').value = currentFrame;
}
// 更新姿态可视化
function updatePoseVisualization() {
if (poseData.length === 0) return;
const pose = poseData[currentFrame];
// 清除之前的可视化
clearPreviousVisualization();
if (pose.keypoints && pose.keypoints.length > 0) {
// 绘制关节
drawJoints(pose.keypoints);
// 绘制骨架
drawSkeleton(pose.keypoints);
// 添加关节标签
addJointLabels(pose.keypoints);
}
}
// 清除之前的可视化
function clearPreviousVisualization() {
jointSpheres.forEach(sphere => scene.remove(sphere));
boneCylinders.forEach(cylinder => scene.remove(cylinder));
jointSpheres = [];
boneCylinders = [];
// 清除标签
scene.children = scene.children.filter(child =>
!child.userData || !child.userData.isLabel
);
}
// 绘制关节 - 修改为使用自定义倍率
function drawJoints(keypoints) {
for (let i = 0; i < keypoints.length; i++) {
const kp = keypoints[i];
if (i >= JOINT_COLORS.length) break; // 防止索引超出颜色数组
// 根据置信度调整球体大小
const radius = 5 + kp.confidence * 15;
const color = JOINT_COLORS[i % JOINT_COLORS.length];
const opacity = 0.3 + kp.confidence * 0.7;
const geometry = new THREE.SphereGeometry(radius, 16, 16);
const material = new THREE.MeshPhongMaterial({
color: color,
transparent: true,
opacity: opacity
});
const sphere = new THREE.Mesh(geometry, material);
// 使用自定义缩放倍率
sphere.position.set(kp.x * scaleMultiplier, -kp.y * scaleMultiplier, kp.z * scaleMultiplier);
sphere.castShadow = true;
scene.add(sphere);
jointSpheres.push(sphere);
}
}
// 绘制骨骼
function drawSkeleton(keypoints) {
for (const [start, end] of SKELETON) {
if (start < keypoints.length && end < keypoints.length) {
const kp1 = keypoints[start];
const kp2 = keypoints[end];
if (kp1.confidence > 0.3 && kp2.confidence > 0.3) {
drawBone(kp1, kp2);
}
}
}
}
// 绘制骨骼 - 修改为使用自定义倍率
function drawBone(kp1, kp2) {
// 使用自定义缩放倍率
const start = new THREE.Vector3(kp1.x * scaleMultiplier, -kp1.y * scaleMultiplier, kp1.z * scaleMultiplier);
const end = new THREE.Vector3(kp2.x * scaleMultiplier, -kp2.y * scaleMultiplier, kp2.z * scaleMultiplier);
const length = start.distanceTo(end);
if (length < 0.1) return;
const direction = new THREE.Vector3().subVectors(end, start).normalize();
const orientation = new THREE.Matrix4();
orientation.lookAt(start, end, new THREE.Vector3(0, 1, 0)); // Up vector for orientation
orientation.multiply(new THREE.Matrix4().makeRotationX(Math.PI / 2));
const geometry = new THREE.CylinderGeometry(24, 36, length, 8);
const material = new THREE.MeshPhongMaterial({
color: 0x00a8ff,
transparent: true,
opacity: 0.7
});
const cylinder = new THREE.Mesh(geometry, material);
cylinder.applyMatrix4(orientation);
cylinder.position.copy(start).add(direction.clone().multiplyScalar(length / 2));
scene.add(cylinder);
boneCylinders.push(cylinder);
}
// 添加关节标签 - 修改为使用自定义倍率
function addJointLabels(keypoints) {
for (let i = 0; i < keypoints.length && i < JOINT_NAMES.length; i++) {
const kp = keypoints[i];
if (kp.confidence > 0.3) {
// 使用自定义缩放倍率
addLabel(JOINT_NAMES[i], kp.x * scaleMultiplier, -kp.y * scaleMultiplier, kp.z * scaleMultiplier);
}
}
}
function addLabel(text, x, y, z) {
const canvas = document.createElement('canvas');
const context = canvas.getContext('2d');
canvas.width = 128;
canvas.height = 64;
context.fillStyle = 'rgba(0, 0, 0, 0.7)';
context.fillRect(0, 0, canvas.width, canvas.height);
context.font = '16px Arial'; // 标签字体稍小
context.fillStyle = 'white';
context.textAlign = 'center';
context.fillText(text, canvas.width / 2, 35); // 调整文本位置
const texture = new THREE.CanvasTexture(canvas);
const material = new THREE.SpriteMaterial({ map: texture });
const sprite = new THREE.Sprite(material);
// 标签位置稍微偏移，避免遮挡
sprite.position.set(x + 15, y + 15, z);
sprite.scale.set(40, 20, 1);
sprite.userData = { isLabel: true };
scene.add(sprite);
}
// UI控制函数
function prevFrame() {
currentFrame = Math.max(0, currentFrame - 1);
updateFrameDisplay();
updatePoseVisualization();
}
function nextFrame() {
currentFrame = Math.min(poseData.length - 1, currentFrame + 1);
updateFrameDisplay();
updatePoseVisualization();
}
function togglePlay() {
isPlaying = !isPlaying;
const playBtn = document.getElementById('play-btn');
if (isPlaying) {
playBtn.textContent = '⏸ 暂停';
playInterval = setInterval(() => {
currentFrame = (currentFrame + 1) % poseData.length;
updateFrameDisplay();
updatePoseVisualization();
}, 100); // 10 FPS
} else {
playBtn.textContent = '▶ 播放';
clearInterval(playInterval);
}
}
function resetView() {
controls.reset();
camera.position.set(300, 300, 300);
}
function changeView(viewType) {
switch(viewType) {
case 'front':
camera.position.set(0, 0, 500);
break;
case 'side':
camera.position.set(500, 0, 0);
break;
case 'top':
camera.position.set(0, 500, 0);
break;
case 'free':
// 自由视角，不改变位置
break;
}
controls.update();
}
// 滑块变化
document.getElementById('frame-slider').addEventListener('input', function(e) {
currentFrame = parseInt(e.target.value);
updateFrameDisplay();
updatePoseVisualization();
});
// 窗口大小调整
function onWindowResize() {
camera.aspect = window.innerWidth / window.innerHeight;
camera.updateProjectionMatrix();
renderer.setSize(window.innerWidth, window.innerHeight);
}
// 动画循环
function animate() {
requestAnimationFrame(animate);
controls.update();
renderer.render(scene, camera);
}
// 页面加载完成后初始化
window.onload = init;
</script>
</body>
</html>
