cat /sys/kernel/debug/pinctrl/pinctrl-rockchip-pinctrl/pinmux-pins
cat /sys/kernel/debug/gpio

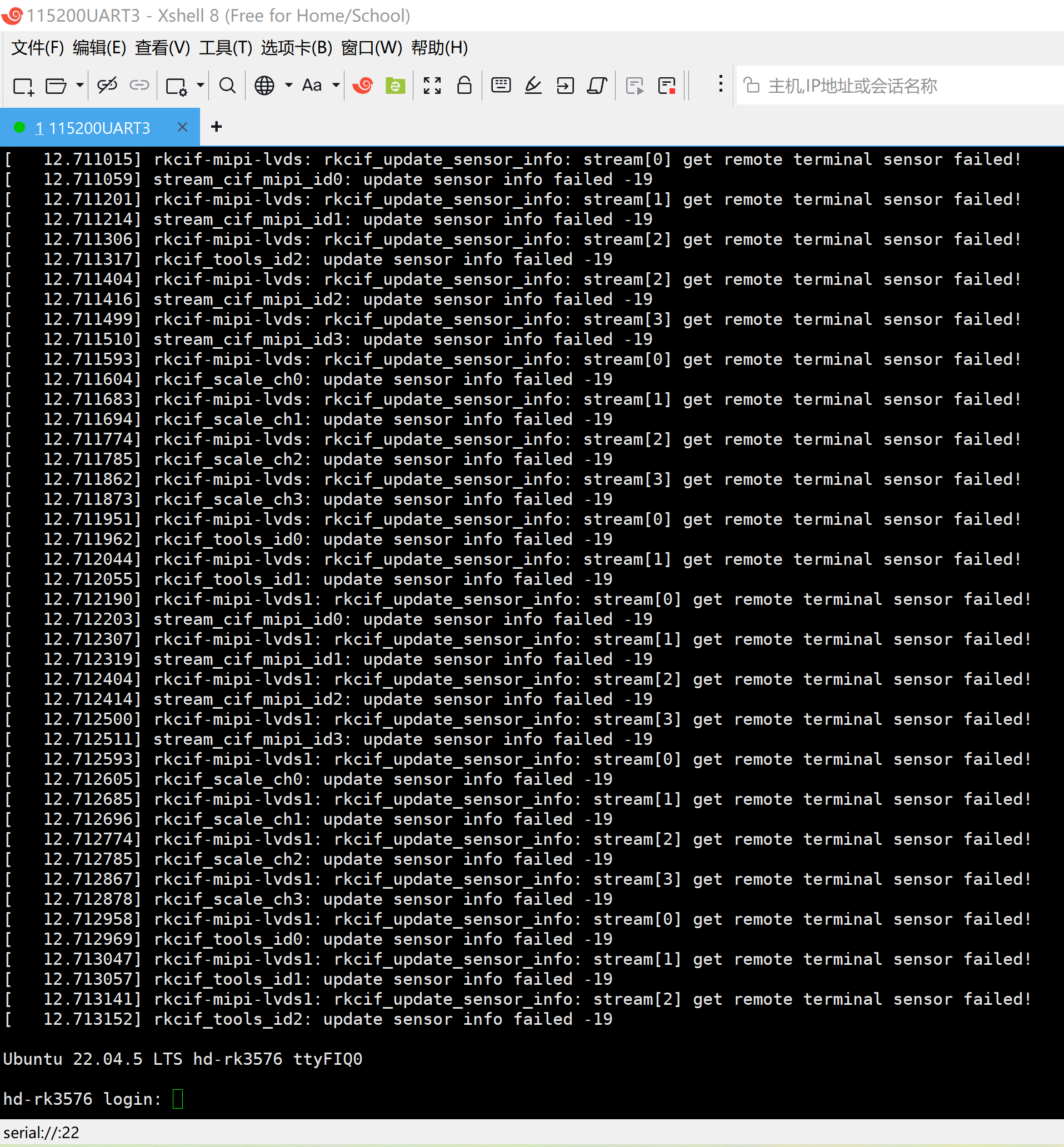

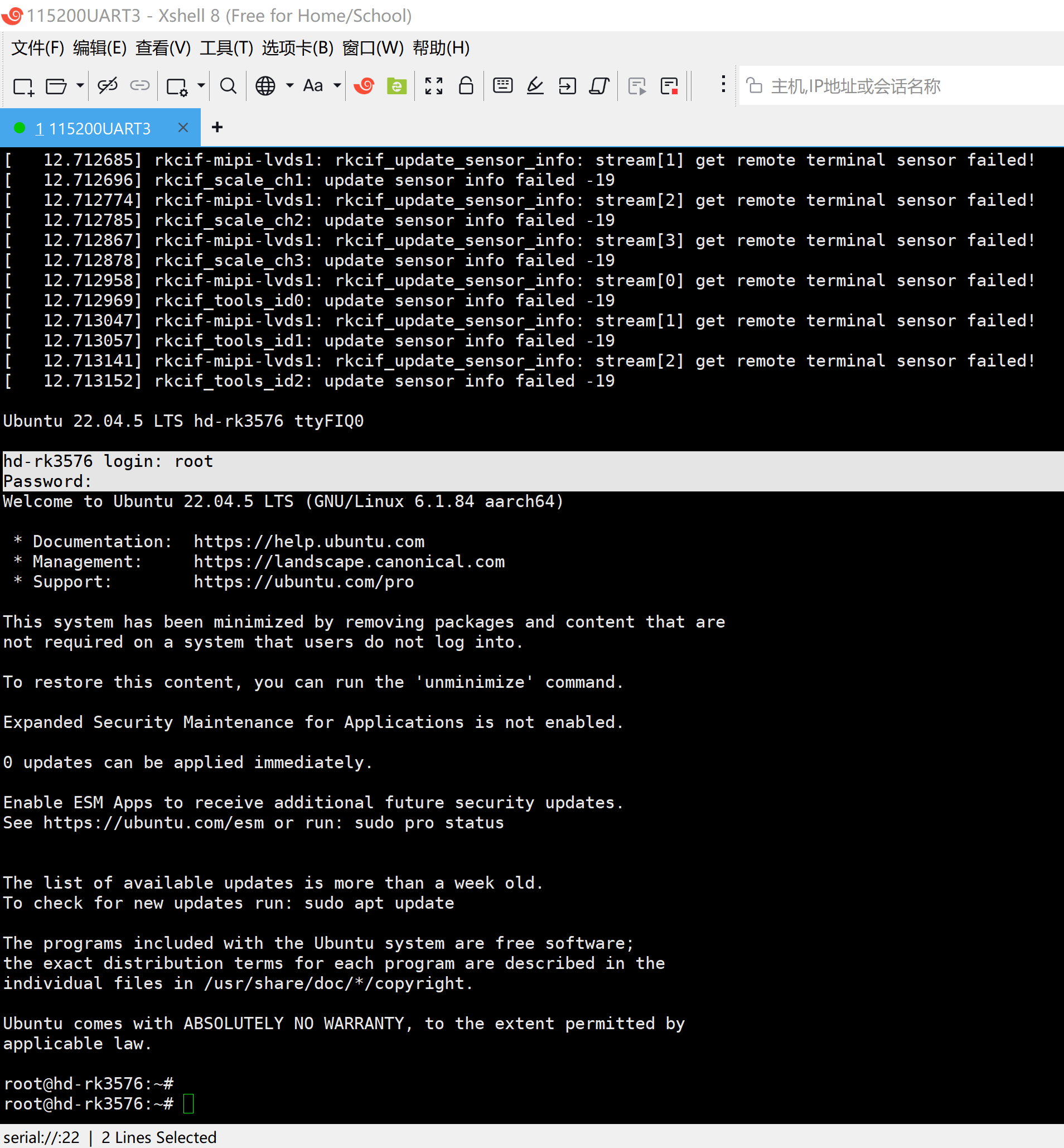

用户名/密码：root/root
20260411给万象奥科的开发板HD-RK3576-PI刷机出厂固件ImageUbuntu-HD-RK3576-PI-v1.0.zip
2026/4/11 20:24
缘起：万象奥科的开发板HD-RK3576-PI没有提供官方的Android14/Buildroot【linux-6.1内核】
既然这样，作为专业人士的我只好勉为其难的给它适配一份了！
DTS来自，kernel-pi-v1.0.tar.gz（226.7MB）
https://vanxoak.yuque.com/wb353n/hd-rk3576-pi/mg1yh7k1hgmmgtew
开发资料下载

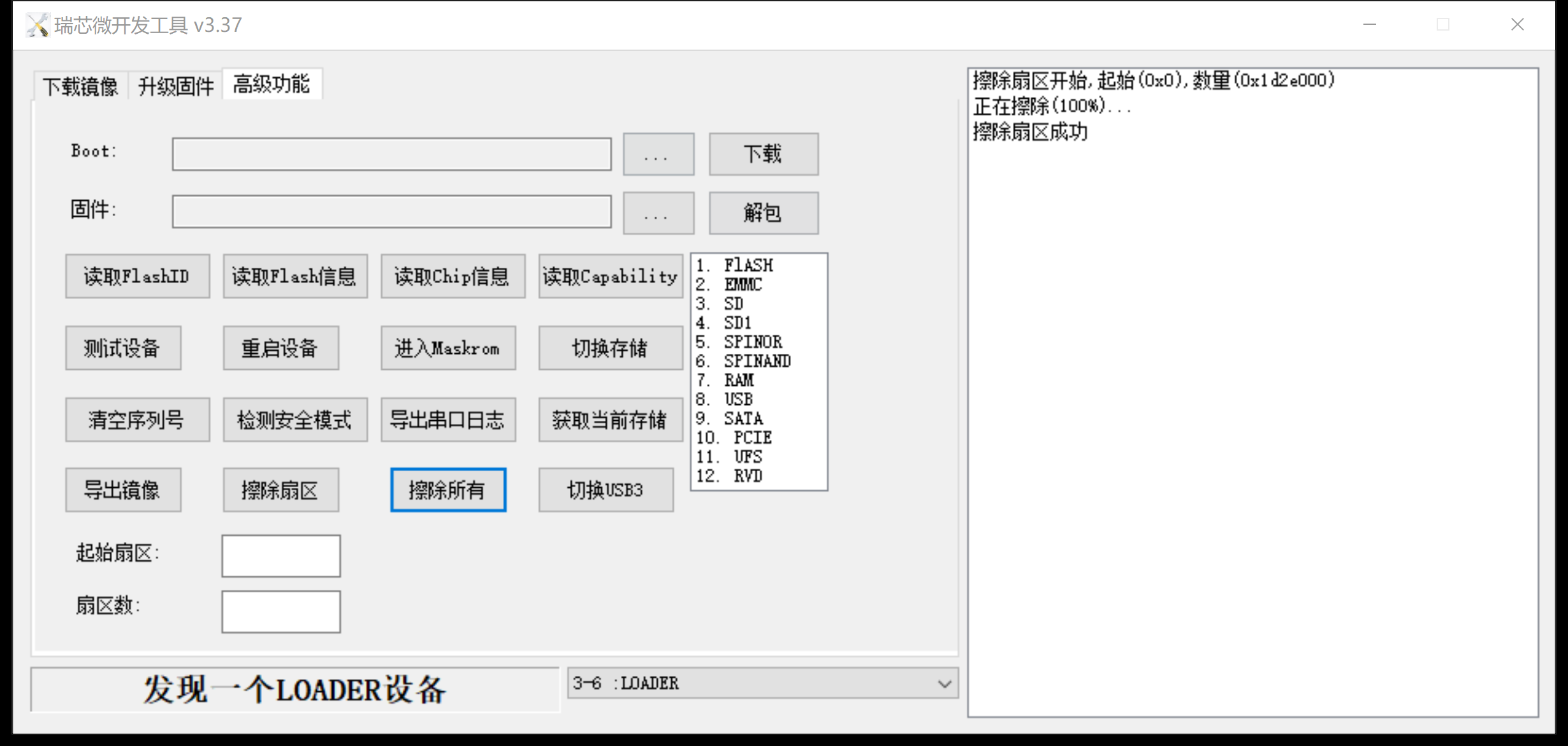

刷机方式：reboot loader
上电按recovery/MASKROM按键！
【进入刷机模式】
root@rk3576-buildroot:/#
reboot: Waiting for SIGTERM
root@rk3576-buildroot:/# Stopping input-event-daemon: done
stop auto-reboot finished
Stopping dnsmasq: OK
starting usbdevice service, log saved to /var/log/usbdevice.log
Stopping pulseaudio: E: [pulseaudio] main.c: Failed to kill daemon: No such process
OK
Stopping dropbear sshd: OK
stoping weston... Date: 2026-04-11 UTC
11:40:39.107\] caught signal 15
done.
\[11:40:39.109\] event0 - 27330000.pwm: device removed
\[11:40:39.109\] event1 - rk805 pwrkey: device removed
\[11:40:39.109\] event3 - adc-keys: device removed
Stopping chrony: OK
Stopping dhcpcd...
no /sbin/dhcpcd found; none killed
killall: rkaiq_3A_server: no process killed
Stopping network: ifdown: interface lo not configured
OK
\[ 2313.371260\] rockchip-vop2 27d00000.vop: \[drm:vop2_crtc_atomic_disable\] Crtc atomic disable vp0
Stopping bluetoothd: OK
Stopping Wi-Fi/BT...\[ 2313.389352\] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx_ropll_cmn_config bus_width:8 rate:1485000
\[ 2313.389569\] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
\[ 2313.409722\] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx_ropll_cmn_config bus_width:8 rate:1485000
Done
\[ 2313.409916\] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
Stopping system message bus: done
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
arm_release_ver: g24p0-00eac0, rk_so_ver: 7
Stopping klogd: OK
Stopping syslogd: OK
Seeding 256 bits and crediting
Saving 256 bits of creditable seed for next boot
log-guardian: Stopping log-guardian (392)...
umount: /dev/usb-ffs/adb: target is busy.
\[ 2313.550094\] EXT4-fs (mmcblk0p6): unmounting filesystem.
umount: /var/log: target is busy.
umount: /run: target is busy.
\[ 2313.560491\] EXT4-fs (mmcblk0p7): re-mounted. Quota mode: disabled.
\[ 2313.563778\] dwc3 23000000.usb: request 00000000b3a0926e was not queued to ep0out
The system is going down NOW!
\[ 2313.563825\] android_work: did not send uevent (0 0 0000000000000000)
Sent SIGTERM to all processes
reboot: Caught signal 15
reboot: Ready to reboot
Terminated
\[ 2313.566950\] MCLK/LRCK 256
W: \[pulseaudio\] pid.c: Failed to open PID file '/tmp/pulse-43sGkBNSiJ9R/pid': Read-only file system
W: \[pulseaudio\] pid.c: Failed to open PID file '/tmp/pulse-43sGkBNSiJ9R/pid': Read-only file system
reboot: Rebooting with arg(loader)
\[ 2313.775957\] mpp_rkvenc2 27a10000.rkvenc-core: shutdown device
\[ 2313.776484\] mpp_rkvenc2 27a10000.rkvenc-core: shutdown success
\[ 2313.777007\] mpp_rkvenc2 27a00000.rkvenc-core: shutdown device
\[ 2313.777514\] mpp_rkvenc2 27a00000.rkvenc-core: shutdown success
\[ 2313.778037\] mpp_rkvdec2 27b00100.rkvdec: shutdown device
\[ 2313.778511\] mpp_rkvdec2 27b00100.rkvdec: shutdown success
\[ 2313.779021\] mpp_jpgenc 27910800.jpege: shutdown device
\[ 2313.779484\] mpp_jpgenc 27910800.jpege: shutdown success
\[ 2313.779966\] mpp_jpgdec 27910000.jpegd: shutdown device
\[ 2313.780420\] mpp_jpgdec 27910000.jpegd: shutdown success
\[ 2313.780888\] mpp-iep2 27960000.iep: shutdown device
\[ 2313.781308\] mpp-iep2 27960000.iep: shutdown success
\[ 2313.781929\] rga2 27930000.rga: shutdown success
\[ 2313.782411\] rga2 27920000.rga: shutdown success
\[ 2313.790166\] Set signal voltage to initial state
\[ 2313.790654\] rkisp_hw 27c00000.isp: rkisp_hw_shutdown
\[ 2313.914454\] xhci-hcd xhci-hcd.0.auto: remove, state 4
\[ 2313.914906\] usb usb2: USB disconnect, device number 1
\[ 2313.915707\] xhci-hcd xhci-hcd.0.auto: USB bus 2 deregistered
\[ 2313.916388\] xhci-hcd xhci-hcd.0.auto: remove, state 4
\[ 2313.916834\] usb usb1: USB disconnect, device number 1
\[ 2313.917676\] xhci-hcd xhci-hcd.0.auto: USB bus 1 deregistered
\[ 2313.918675\] \[WLAN_RFKILL\]: Enter rfkill_wlan_shutdown
\[ 2313.919133\] \[WLAN_RFKILL\]: rockchip_wifi_power: 0
\[ 2313.919553\] \[BT_RFKILL\]: rfkill_get_bt_power_state: rfkill-bt driver has not Successful initialized
\[ 2313.920345\] wifi power off
\[ 2314.027058\] \[BT_RFKILL\]: rfkill_get_bt_power_state: rfkill-bt driver has not Successful initialized
\[ 2314.027852\] \[WLAN_RFKILL\]: wifi shut off power \[GPIO54-0
2314.028327\] \[WLAN_RFKILL\]: rfkill_set_wifi_bt_power: 0
\[ 2314.229169\] reboot: Restarting system with command 'loader'
DDR 2f85f4b2d4 cym 24/11/07-19:07:28,fwver: v1.09
In
ch0 ttot10
ch1 ttot10
ch0 ttot14
LPDDR4X, 1560MHz
channel\[0\] BW=16 Col=10 Bk=8 CS0 Row=16 CS=1 Die BW=16 Size=1024MB
ch1 ttot14
channel\[1\] BW=16 Col=10 Bk=8 CS0 Row=16 CS=1 Die BW=16 Size=1024MB
Manufacturer ID:0x13
CH0 RX Vref:27.4%, RX DQS Vref:31.2%, TX Vref:23.8%,0.0%
DQ roc:
p6 n0, p0 n0, p0 n0, p0 n0, p7 n0, p1 n0, p3 n0, p1 n0, p1 n1,
p3 n0, p5 n0, p1 n0, p0 n0, p6 n0, p0 n1, p6 n0, p2 n0, p3 n0,
DQ rds:h2 l0 h1 l0 l0 l0 h2 h1, l0 l0 h1 l0 h1 h1 l0 l0
DQS roc: p0, n0, p2, n0
CH1 RX Vref:25.3%, RX DQS Vref:29.6%, TX Vref:24.8%,0.0%
DQ roc:
p6 n0, p4 n0, p4 n0, p4 n0, p5 n0, p2 n0, p4 n0, p3 n0, p2 n0,
p2 n0, p6 n0, p1 n0, p0 n0, p6 n0, p2 n0, p2 n0, p3 n0, p3 n0,
DQ rds:h1 h4 h1 l0 h3 h1 h2 h2, h1 l0 h2 h1 l0 h1 h2 l0
DQS roc: p2, n0, p2, n0
stride=0x3, ddr_config=0x0
hash bank_mask0-3 0x0 0x880 0x1100 0x2200, rank_mask0 0x0
change to F1: 528MHz
ch0 ttot10
ch1 ttot10
change to F2: 1068MHz
ch0 ttot12
ch1 ttot12
change to F3: 1560MHz
ch0 ttot14
ch1 ttot14
change to F0: 1560MHz
ch0 ttot14
ch1 ttot14
out
U-Boot SPL board init
U-Boot SPL 2017.09 (Apr 09 2026 - 20:55:12)
sfc cmd=00H(6BH-x4)
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
part_get_info_efi: \*\*\* ERROR: Invalid GPT \*\*\*
part_get_info_efi: \*\*\* Using Backup GPT \*\*\*
No bootable slots found, use lastboot.
Trying fit image at 0x4000 sector
Not fit magic
Trying fit image at 0x5000 sector
Not fit magic
A/B: no bootable slot
Trying fit image at 0x4000 sector
Not fit magic
Trying fit image at 0x5000 sector
Not fit magic
A/B: no bootable slot
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x40040000 ... sha256(1c50b242b2...) + OK
## Checking uboot 0x40200000 ... sha256(36014209fb...) + OK
## Checking fdt 0x4034b288 ... sha256(9dfd444689...) + OK
## Checking atf-2 0x400f0000 ... sha256(8afb712810...) + OK
## Checking atf-3 0x3fe70000 ... sha256(3af1bf762b...) + OK
## Checking optee 0x48400000 ... sha256(010f86355a...) + OK
Jumping to U-Boot(0x40200000) via ARM Trusted Firmware(0x40040000)
Total: 136.998/257.330 ms
INFO: Preloader serial: 0
NOTICE: BL31: v2.3():v2.3-859-gc481e5368:derrick.huang, fwver: v1.14
NOTICE: BL31: Built : 09:37:28, Nov 8 2024
INFO: ext 32k is not detected
INFO: SOC (0x35760101)
INFO: spec: 0x1
INFO: soc warm boot, reset status: 0x1
INFO: ARM GICv2 driver initialized
INFO: bypass memory repair
INFO: dfs DDR fsp_params\[0\].freq_mhz= 1560MHz
INFO: dfs DDR fsp_params\[1\].freq_mhz= 528MHz
INFO: dfs DDR fsp_params\[2\].freq_mhz= 1068MHz
INFO: dfs DDR fsp_params\[3\].freq_mhz= 1560MHz
INFO: Using opteed sec cpu_context!
INFO: boot cpu mask: 1
INFO: BL31: Initializing runtime services
INFO: BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-891-g9f2aca7d1 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #2 Thu Oct 31 16:14:37 CST 2024 aarch64, fwver: v1.05
I/TC: OP-TEE memory: TEEOS 0x200000 TA 0xc00000 SHM 0x200000
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0x40200000
INFO: SPSR = 0x3c9
U-Boot 2017.09 (Apr 09 2026 - 20:55:12 +0800)
Model: Rockchip RK3576 Evaluation board
MPIDR: 0x0
PreSerial: 0, raw, 0x2ad40000
DRAM: 2 GiB
Sysmem: init
Relocation Offset: 7da12000
Relocation fdt: bb9f9f70 - bb9fece8
CR: M/C/I
Using default environment
optee api revision: 2.0
mmc@2a310000: 1, mmc@2a330000: 0
Bootdev(atags): mmc 0
MMC0: HS400 Enhanced Strobe, 200Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v2
boot mode: loader
RESC: 'boot', blk@0x0001b1a5
resource: sha256+
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(ce): OK

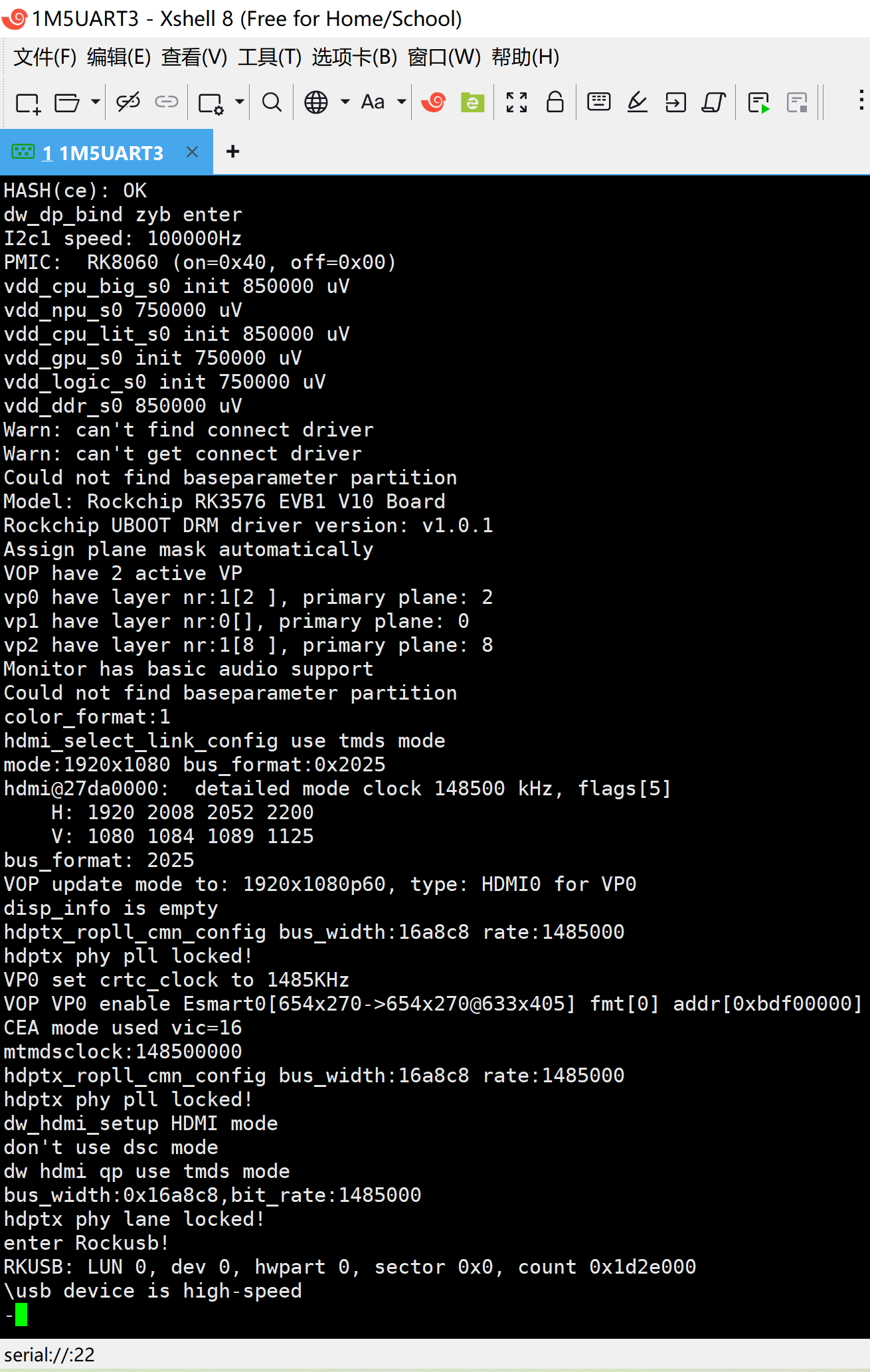

dw_dp_bind zyb enter
I2c1 speed: 100000Hz
PMIC: RK8060 (on=0x40, off=0x00)
vdd_cpu_big_s0 init 850000 uV
vdd_npu_s0 750000 uV
vdd_cpu_lit_s0 init 850000 uV
vdd_gpu_s0 init 750000 uV
vdd_logic_s0 init 750000 uV
vdd_ddr_s0 850000 uV
Warn: can't find connect driver
Warn: can't get connect driver
Could not find baseparameter partition
Model: Rockchip RK3576 EVB1 V10 Board
Rockchip UBOOT DRM driver version: v1.0.1
Assign plane mask automatically
VOP have 2 active VP
vp0 have layer nr:1\[2 \], primary plane: 2
vp1 have layer nr:0\[\], primary plane: 0
vp2 have layer nr:1\[8 \], primary plane: 8
Monitor has basic audio support
Could not find baseparameter partition
color_format:1
hdmi_select_link_config use tmds mode
mode:1920x1080 bus_format:0x2025
hdmi@27da0000: detailed mode clock 148500 kHz, flags\[5
H: 1920 2008 2052 2200
V: 1080 1084 1089 1125
bus_format: 2025
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
disp_info is empty
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
VP0 set crtc_clock to 1485KHz
VOP VP0 enable Esmart0[654x270->654x270@633x405] fmt[0] addr[0xbdf00000]
CEA mode used vic=16
mtmdsclock:148500000
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
dw_hdmi_setup HDMI mode
don't use dsc mode
dw hdmi qp use tmds mode
bus_width:0x16a8c8,bit_rate:1485000
hdptx phy lane locked!
enter Rockusb!
RKUSB: LUN 0, dev 0, hwpart 0, sector 0x0, count 0x1d2e000
\usb device is high-speed
【刷机到重启】
BEGIN\] 2026/4/11 19:48:07
.07
In
ch0 ttot10
ch1 ttot10
ch0 ttot16
LPDDR4X, 2112MHz
channel\[0\] BW=16 Col=10 Bk=8 CS0 Row=16 CS=1 Die BW=16 Size=1024MB
ch1 ttot16
channel\[1\] BW=16 Col=10 Bk=8 CS0 Row=16 CS=1 Die BW=16 Size=1024MB
Manufacturer ID:0x13
CH0 RX Vref:26.9%, RX DQS Vref:31.2%, TX Vref:22.8%,0.0%
DQ roc:
p5 n0, p1 n4, p0 n0, p0 n2, p3 n0, p1 n0, p6 n0, p2 n0, p7 n4,
p3 n0, p2 n0, p1 n0, p0 n0, p3 n0, p0 n1, p2 n0, p2 n1, p7 n0,
DQ rds:h1 l0 l0 l0 l0 l0 h1 l0, l0 l0 h1 l0 l0 h1 l0 l0
DQS roc: p2, n0, p3, n0
CH1 RX Vref:24.1%, RX DQS Vref:29.2%, TX Vref:24.8%,0.0%
DQ roc:
p1 n0, p7 n0, p1 n0, p0 n5, p2 n0, p0 n0, p2 n1, p1 n0, p0 n0,
p0 n0, p6 n0, p0 n0, p0 n2, p2 n0, p5 n0, p0 n0, p0 n0, p0 n0,
DQ rds:l0 l0 l0 l0 h1 l0 l0 l0, l0 l0 h1 l0 l0 l0 h1 l0
DQS roc: p2, n1, p2, n0
stride=0x3, ddr_config=0x0
hash bank_mask0-3 0x0 0x880 0x1100 0x2200, rank_mask0 0x0
change to F1: 528MHz
ch0 ttot10
ch1 ttot10
change to F2: 1068MHz
ch0 ttot12
ch1 ttot12
change to F3: 1560MHz
ch0 ttot14
ch1 ttot14
change to F0: 2112MHz
ch0 ttot16
ch1 ttot16
out
U-Boot SPL board init
U-Boot SPL 2017.09-gdd7bc40861-240923 #vanxoak (Apr 25 2025 - 12:25:48)
sfc cmd=00H(6BH-x4)
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC error: The cmd index is 13, ret is -110
MMC error: The cmd index is 13, ret is -110
MMC error: The cmd index is 13, ret is -110
MMC error: The cmd index is 13, ret is -110
mmc_init: -110, time 61
spl: mmc init failed with error: -110
Trying to boot from MMC1
Magic is incorrect.
Error validating A/B metadata from disk. Resetting and writing new A/B metadata to disk.
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x40040000 ... sha256(b0289677a4...) + OK
## Checking uboot 0x40200000 ... sha256(bc786bbd69...) + OK
## Checking fdt 0x4034a190 ... sha256(bc34a07574...) + OK
## Checking atf-2 0x400f0000 ... sha256(d483c14eed...) + OK
## Checking atf-3 0x3fe70000 ... sha256(1a47edbdd7...) + OK
## Checking optee 0x48400000 ... sha256(3854141a68...) + OK
Jumping to U-Boot(0x40200000) via ARM Trusted Firmware(0x40040000)
Total: 229.869/404.889 ms
INFO: Preloader serial: 0
NOTICE: BL31: v2.3():v2.3-837-g5ed489867:derrick.huang, fwver: v1.11
NOTICE: BL31: Built : 16:57:37, Sep 14 2024
INFO: ext 32k is not detected
INFO: cost 437309 us before hptimer restart
INFO: soc warm boot, reset status: 0x1
INFO: ARM GICv2 driver initialized
INFO: bypass memory repair
INFO: dfs DDR fsp_params\[0\].freq_mhz= 2112MHz
INFO: dfs DDR fsp_params\[1\].freq_mhz= 528MHz
INFO: dfs DDR fsp_params\[2\].freq_mhz= 1068MHz
INFO: dfs DDR fsp_params\[3\].freq_mhz= 1560MHz
INFO: Using opteed sec cpu_context!
INFO: boot cpu mask: 1
INFO: BL31: Initializing runtime services
INFO: BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-860-g6c78a7d8c #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #2 Mon Sep 2 11:19:55 CST 2024 aarch64, fwver: v1.04
I/TC: OP-TEE memory: TEEOS 0x200000 TA 0xc00000 SHM 0x200000
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0x40200000
INFO: SPSR = 0x3c9
U-Boot 2017.09-gdd7bc40861-240923 #vanxoak (Apr 25 2025 - 12:25:48 +0800)
Model: Rockchip RK3576 Evaluation board
MPIDR: 0x0
PreSerial: 0, raw, 0x2ad40000
DRAM: 2 GiB
Sysmem: init
Relocation Offset: 7da13000
Relocation fdt: bb9f9e70 - bb9fece0
CR: M/C/I
Using default environment
optee api revision: 2.0
mmc@2a310000: 1, mmc@2a330000: 0
Bootdev(atags): mmc 0
MMC0: HS400 Enhanced Strobe, 200Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v2
boot mode: normal
RESC: 'boot', blk@0x00021484
lib/avb/libavb_user/avb_ops_user.c: trusty_read_lock_state failed
Error determining whether device is unlocked.
Device is: UNLOCKED
DTB: rk-kernel.dtb
HASH(ce): OK
dw_dp_bind zyb enter
I2c1 speed: 100000Hz
PMIC: RK8060 (on=0x40, off=0x00)
vdd_cpu_big_s0 init 850000 uV
vdd_npu_s0 750000 uV
vdd_cpu_lit_s0 init 850000 uV
vdd_gpu_s0 init 750000 uV
vdd_logic_s0 init 750000 uV
vdd_ddr_s0 850000 uV
Could not find baseparameter partition
Model: HD-RK3576-PI Board
\*\* File not found logo/logo.bmp \*\*
Rockchip UBOOT DRM driver version: v1.0.1
Assign plane mask automatically
VOP have 3 active VP
vp0 have layer nr:1\[2 \], primary plane: 2
vp1 have layer nr:1\[3 \], primary plane: 3
vp2 have layer nr:1\[8 \], primary plane: 8
Monitor has basic audio support
Could not find baseparameter partition
color_format:1
hdmi_select_link_config use tmds mode
mode:1920x1080 bus_format:0x2025
hdmi@27da0000: detailed mode clock 148500 kHz, flags\[5
H: 1920 2008 2052 2200
V: 1080 1084 1089 1125
bus_format: 2025
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
disp_info is empty
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
VP0 set crtc_clock to 1485KHz
VOP VP0 enable Esmart0[535x147->535x147@692x466] fmt[0] addr[0xbdf00000]
CEA mode used vic=16
mtmdsclock:148500000
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
dw_hdmi_setup HDMI mode
don't use dsc mode
dw hdmi qp use tmds mode
bus_width:0x16a8c8,bit_rate:1485000
hdptx phy lane locked!
CLK: (uboot. arm: enter 1008000 KHz, init 1008000 KHz, kernel 0N/A)
bpll 816000 KHz
lpll 816000 KHz
vpll 594000 KHz
aupll 786432 KHz
cpll 1000000 KHz
gpll 1188000 KHz
ppll 1300000 KHz
aclk_bus_root 396000 KHz
pclk_bus_root 100000 KHz
hclk_bus_root 198000 KHz
aclk_top 786432 KHz
aclk_top_mid 396000 KHz
pclk_top 100000 KHz
hclk_top 200000 KHz
Net: eth0: ethernet@2a220000
Hit key to stop autoboot('CTRL+C'): 0
ANDROID: reboot reason: "(none)"
Not AVB images, AVB skip
ANDROID: sha1(bd675f0001...) + OK
Booting IMAGE kernel at 0x40400000 with fdt at 0x48300000...
Fdt Ramdisk skip relocation
Booting Android Image at 0x403ff800 ...
Kernel: 0x40400000 - 0x42be3a00 (40847 KiB)
ramdisk: 0x4a200000 - 0x4acabbc8 (10927 KiB)
Flattened Device Tree blob at 0x48300000
Booting using the fdt blob at 0x48300000
XIP Kernel Image from 0x40400000 to 0x40400000 ... OK
kernel loaded at 0x40400000, end = 0x42be3a00
Using Device Tree in place at 0000000048300000, end 0000000048344eb1
scanning bus for devices...
ufshcd_link_startup: Device not present
link startup failed -6
ufshcd_pltfrm_init() failed -6
FDT: UFS was not detected, disabling UFS.
** File not found logo/logo_kernel.bmp **
vp0, plane_mask:0x4, primary-id:2, curser-id:-1
vp1, plane_mask:0x8, primary-id:3, curser-id:-1
vp2, plane_mask:0x100, primary-id:8, curser-id:-1
reserved-memory:
drm-logo@0: addr=bdf00000 size=9a000
ramoops@40110000: addr=40110000 size=e0000
Adding bank: 0x40200000 - 0x48400000 (size: 0x08200000)
Adding bank: 0x49400000 - 0xc0000000 (size: 0x76c00000)
Total: 47237.529/52166.390 ms
Starting kernel ...
1.262961\] Booting Linux on physical CPU 0x0000000000 \[0x410fd034
1.262985\] Linux version 6.1.84 (vanxoak@fb9e42e3417d) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #52 SMP Fri Apr 25 12:55:18 CST 2025
\[ 1.265813\] random: crng init done
\[ 1.270393\] Machine model: HD-RK3576-PI Board
\[ 1.283242\] earlycon: uart8250 at MMIO32 0x000000002ad40000 (options '')
\[ 1.335516\] printk: bootconsole \[uart8250\] enabled
\[ 1.343141\] efi: UEFI not found.
\[ 1.348965\] OF: fdt: Reserved memory: failed to reserve memory for node 'drm-cubic-lut@0': base 0x0000000000000000, size 0 MiB
\[ 1.412733\] Zone ranges:
\[ 1.415517\] DMA \[mem 0x0000000040200000-0x00000000bfffffff
1.422297\] DMA32 empty
\[ 1.425448\] Normal empty
\[ 1.428598\] Movable zone start for each node
\[ 1.433273\] Early memory node ranges
\[ 1.437184\] node 0: \[mem 0x0000000040200000-0x00000000483fffff
1.444056\] node 0: \[mem 0x0000000049400000-0x00000000bfffffff
1.450928\] Initmem setup node 0 \[mem 0x0000000040200000-0x00000000bfffffff
1.459238\] On node 0, zone DMA: 512 pages in unavailable ranges
\[ 1.467444\] On node 0, zone DMA: 4096 pages in unavailable ranges
\[ 1.474041\] cma: Reserved 16 MiB at 0x00000000be800000
\[ 1.486489\] psci: probing for conduit method from DT.
\[ 1.492029\] psci: PSCIv1.1 detected in firmware.
\[ 1.497088\] psci: Using standard PSCI v0.2 function IDs
\[ 1.502814\] psci: Trusted OS migration not required
\[ 1.508166\] psci: SMC Calling Convention v1.2
\[ 1.513258\] percpu: Embedded 26 pages/cpu s68968 r8192 d29336 u106496
\[ 1.520454\] Detected VIPT I-cache on CPU0
\[ 1.524886\] CPU features: detected: ARM erratum 845719
\[ 1.530518\] alternatives: applying boot alternatives
\[ 1.536321\] Built 1 zonelists, mobility grouping on. Total pages: 511496
\[ 1.543772\] Kernel command line: storagemedia=emmc androidboot.storagemedia=emmc androidboot.mode=normal androidboot.verifiedbootstate=orange androidboot.serialno=c8ce0e22d503cd05 ro rootwait earlycon=uart8250,mmio32,0x2ad40000 console=ttyFIQ0 root=PARTLABEL=rootfs rootfstype=ext4 overlayroot=device:dev=PARTLABEL=userdata,fstype=ext4,mkfs=1 coherent_pool=1m systemd.gpt_auto=0 cgroup_enable=memory swapaccount=1 swiotlb=0x10000 net.ifnames=0 rcupdate.rcu_expedited=1 rcu_nocbs=all androidboot.fwver=ddr-v1.07-584efc13bf,bl31-v1.11,bl32-v1.04,uboot-dd7bc40861-04/25/2025
\[ 1.599270\] Unknown kernel command line parameters "storagemedia=emmc overlayroot=device:dev=PARTLABEL=userdata,fstype=ext4,mkfs=1 cgroup_enable=memory swapaccount=1", will be passed to user space.
\[ 1.618801\] Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
\[ 1.627512\] Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes, linear)
\[ 1.636008\] mem auto-init: stack:off, heap alloc:off, heap free:off
\[ 1.663863\] Memory: 1966812K/2078720K available (21504K kernel code, 3662K rwdata, 7788K rodata, 7744K init, 694K bss, 95524K reserved, 16384K cma-reserved)
\[ 1.679329\] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1
\[ 1.686516\] ftrace: allocating 65410 entries in 256 pages
\[ 1.779812\] ftrace: allocated 256 pages with 1 groups
\[ 1.785457\] trace event string verifier disabled
\[ 1.790692\] rcu: Hierarchical RCU implementation.
\[ 1.795848\] rcu: RCU event tracing is enabled.
\[ 1.800810\] All grace periods are expedited (rcu_expedited).
\[ 1.807106\] Rude variant of Tasks RCU enabled.
\[ 1.812067\] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
\[ 1.827936\] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
\[ 1.837065\] Root IRQ handler: gic_handle_irq
\[ 1.841760\] GIC: Using split EOI/Deactivate mode
\[ 1.848300\] rcu: Offload RCU callbacks from CPUs: 0-7.
\[ 1.854052\] rcu: srcu_init: Setting srcu_struct sizes based on contention.
\[ 1.889904\] arch_timer: cp15 timer(s) running at 1000.00MHz (phys).
\[ 1.896648\] clocksource: arch_sys_counter: mask: 0x1fffffffffffffff max_cycles: 0x1cd42e4dffb, max_idle_ns: 881590591483 ns
\[ 1.908569\] sched_clock: 61 bits at 1000MHz, resolution 1ns, wraps every 4398046511103ns
\[ 1.919245\] Console: colour dummy device 80x25
\[ 1.924026\] Calibrating delay loop (skipped), value calculated using timer frequency.. 2000.00 BogoMIPS (lpj=4000000)
\[ 1.935449\] pid_max: default: 32768 minimum: 301
\[ 1.940535\] Mount-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)
\[ 1.948484\] Mountpoint-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)
\[ 1.957601\] cacheinfo: Unable to detect cache hierarchy for CPU 0
\[ 1.964572\] cblist_init_generic: Setting adjustable number of callback queues.
\[ 1.972336\] cblist_init_generic: Setting shift to 3 and lim to 1.
\[ 1.978960\] rcu: Hierarchical SRCU implementation.
\[ 1.984146\] rcu: Max phase no-delay instances is 1000.
\[ 1.992407\] EFI services will not be available.
\[ 1.997631\] smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
I/TC: Secondary CPU 4 initializing
I/TC: Secondary CPU 4 switching to normal world boot
I/TC: Secondary CPU 5 initializing
I/TC: Secondary CPU 5 switching to normal world boot
I/TC: Secondary CPU 6 initializing
I/TC: Secondary CPU 6 switching to normal world boot
I/TC: Secondary CPU 7 initializing
I/TC: Secondary CPU 7 switching to normal world boot
\[ 2.010644\] Detected VIPT I-cache on CPU1
\[ 2.010711\] cacheinfo: Unable to detect cache hierarchy for CPU 1
\[ 2.010746\] CPU1: Booted secondary processor 0x0000000001 \[0x410fd034
2.018893\] Detected VIPT I-cache on CPU2
\[ 2.018938\] cacheinfo: Unable to detect cache hierarchy for CPU 2
\[ 2.018960\] CPU2: Booted secondary processor 0x0000000002 \[0x410fd034
2.027093\] Detected VIPT I-cache on CPU3
\[ 2.027134\] cacheinfo: Unable to detect cache hierarchy for CPU 3
\[ 2.027152\] CPU3: Booted secondary processor 0x0000000003 \[0x410fd034
2.035325\] CPU features: detected: Spectre-BHB
\[ 2.035332\] CPU features: detected: ARM erratum 1742098
\[ 2.035335\] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
\[ 2.035337\] Detected PIPT I-cache on CPU4
\[ 2.035385\] cacheinfo: Unable to detect cache hierarchy for CPU 4
\[ 2.035406\] CPU4: Booted secondary processor 0x0000000100 \[0x411fd080
2.043524\] Detected PIPT I-cache on CPU5
\[ 2.043564\] cacheinfo: Unable to detect cache hierarchy for CPU 5
\[ 2.043576\] CPU5: Booted secondary processor 0x0000000101 \[0x411fd080
2.051678\] Detected PIPT I-cache on CPU6
\[ 2.051719\] cacheinfo: Unable to detect cache hierarchy for CPU 6
\[ 2.051731\] CPU6: Booted secondary processor 0x0000000102 \[0x411fd080
2.059840\] Detected PIPT I-cache on CPU7
\[ 2.059881\] cacheinfo: Unable to detect cache hierarchy for CPU 7
\[ 2.059893\] CPU7: Booted secondary processor 0x0000000103 \[0x411fd080
2.059948\] smp: Brought up 1 node, 8 CPUs
\[ 2.207236\] SMP: Total of 8 processors activated.
\[ 2.212308\] CPU features: detected: 32-bit EL0 Support
\[ 2.217865\] CPU features: detected: CRC32 instructions
\[ 2.223443\] CPU: All CPU(s) started at EL2
\[ 2.227840\] alternatives: applying system-wide alternatives
\[ 2.235245\] devtmpfs: initialized
\[ 2.255475\] Registered cp15_barrier emulation handler
\[ 2.260784\] Registered setend emulation handler
\[ 2.265626\] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
\[ 2.275878\] futex hash table entries: 2048 (order: 5, 131072 bytes, linear)
\[ 2.283476\] pinctrl core: initialized pinctrl subsystem
\[ 2.289236\] DMI not present or invalid.
\[ 2.293573\] NET: Registered PF_NETLINK/PF_ROUTE protocol family
\[ 2.300701\] DMA: preallocated 1024 KiB GFP_KERNEL pool for atomic allocations
\[ 2.308469\] DMA: preallocated 1024 KiB GFP_KERNEL\|GFP_DMA pool for atomic allocations
\[ 2.317035\] DMA: preallocated 1024 KiB GFP_KERNEL\|GFP_DMA32 pool for atomic allocations
\[ 2.328751\] Registered FIQ tty driver
\[ 2.332799\] thermal_sys: Registered thermal governor 'fair_share'
\[ 2.332803\] thermal_sys: Registered thermal governor 'step_wise'
\[ 2.339190\] thermal_sys: Registered thermal governor 'user_space'
\[ 2.345514\] thermal_sys: Registered thermal governor 'power_allocator'
\[ 2.351993\] cpuidle: using governor menu
\[ 2.363169\] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
\[ 2.370412\] ASID allocator initialised with 65536 entries
\[ 2.378264\] ramoops: dmesg-0 0x18000@0x0000000040110000
\[ 2.383753\] ramoops: dmesg-1 0x18000@0x0000000040128000
\[ 2.389745\] ramoops: console 0x80000@0x0000000040140000
\[ 2.395239\] ramoops: pmsg 0x30000@0x00000000401c0000
\[ 2.400688\] printk: console \[ramoops-1\] enabled
\[ 2.405438\] pstore: Registered ramoops as persistent store backend
\[ 2.411920\] ramoops: using 0xe0000@0x40110000, ecc: 0
\[ 2.419070\] platform csi2-dcphy0: Fixed dependency cycle(s) with /mipi0-csi2
\[ 2.426506\] platform mipi0-csi2: Fixed dependency cycle(s) with /csi2-dcphy0
\[ 2.434026\] platform csi2-dphy1: Fixed dependency cycle(s) with /mipi1-csi2
\[ 2.441380\] platform mipi1-csi2: Fixed dependency cycle(s) with /csi2-dphy1
\[ 2.449048\] platform mipi0-csi2: Fixed dependency cycle(s) with /rkcif-mipi-lvds
\[ 2.456844\] platform rkcif-mipi-lvds: Fixed dependency cycle(s) with /mipi0-csi2
\[ 2.464759\] platform mipi1-csi2: Fixed dependency cycle(s) with /rkcif-mipi-lvds1
\[ 2.472623\] platform rkcif-mipi-lvds1: Fixed dependency cycle(s) with /mipi1-csi2
\[ 2.480661\] platform rkcif-mipi-lvds-sditf: Fixed dependency cycle(s) with /rkisp-vir0
\[ 2.489043\] platform rkisp-vir0: Fixed dependency cycle(s) with /rkcif-mipi-lvds-sditf
\[ 2.497440\] platform rkcif-mipi-lvds1-sditf: Fixed dependency cycle(s) with /rkisp-vir1
\[ 2.505859\] platform rkisp-vir1: Fixed dependency cycle(s) with /rkcif-mipi-lvds1-sditf
\[ 2.514523\] platform rkisp-vir0-sditf: Fixed dependency cycle(s) with /rkvpss-vir0
\[ 2.522525\] platform rkvpss-vir0: Fixed dependency cycle(s) with /rkisp-vir0-sditf
\[ 2.530909\] platform rkisp-vir1-sditf: Fixed dependency cycle(s) with /rkvpss-vir1
\[ 2.538908\] platform rkvpss-vir1: Fixed dependency cycle(s) with /rkisp-vir1-sditf
\[ 2.556625\] platform 27d00000.vop: Fixed dependency cycle(s) with /dsi@27d80000
\[ 2.564366\] platform 27d80000.dsi: Fixed dependency cycle(s) with /dsi@27d80000/dsi-panel@0
\[ 2.573122\] platform 27d80000.dsi: Fixed dependency cycle(s) with /vop@27d00000
\[ 2.581255\] platform 27d00000.vop: Fixed dependency cycle(s) with /hdmi@27da0000
\[ 2.589063\] platform 27da0000.hdmi: Fixed dependency cycle(s) with /vop@27d00000
\[ 2.597051\] platform 27e40000.dp: Fixed dependency cycle(s) with /vop@27d00000
\[ 2.625906\] rockchip-gpio 27320000.gpio: probed /pinctrl/gpio@27320000
\[ 2.633013\] rockchip-gpio 2ae10000.gpio: probed /pinctrl/gpio@2ae10000
\[ 2.640119\] rockchip-gpio 2ae20000.gpio: probed /pinctrl/gpio@2ae20000
\[ 2.647199\] rockchip-gpio 2ae30000.gpio: probed /pinctrl/gpio@2ae30000
\[ 2.654358\] rockchip-gpio 2ae40000.gpio: probed /pinctrl/gpio@2ae40000
\[ 2.661333\] rockchip-pinctrl pinctrl: probed pinctrl
\[ 2.669688\] OF: /sdio-pwrseq: could not get #clock-cells for /i2c@2ac40000/pmic@23
\[ 2.685618\] fiq_debugger fiq_debugger.0: error -ENXIO: IRQ fiq not found
\[ 2.692670\] fiq_debugger fiq_debugger.0: error -ENXIO: IRQ wakeup not found
\[ 2.699964\] fiq_debugger_probe: could not install nmi irq handler
\[\[ 2.706416\] printk: console \[ttyFIQ0\] enabled
2.706416\] printk: console \[ttyFIQ0\] enabled
\[ 2.715323\] printk: bootconsole \[uart8250\] disabled
\[ 2.715323\] printk: bootconsole \[uart8250\] disabled
\[ 2.720533\] Registered fiq debugger ttyFIQ0
\[ 2.722556\] iommu: Default domain type: Translated
\[ 2.722569\] iommu: DMA domain TLB invalidation policy: strict mode
\[ 2.722735\] SCSI subsystem initialized
\[ 2.722833\] usbcore: registered new interface driver usbfs
\[ 2.722854\] usbcore: registered new interface driver hub
\[ 2.722875\] usbcore: registered new device driver usb
\[ 2.722944\] mc: Linux media interface: v0.10
\[ 2.722966\] videodev: Linux video capture interface: v2.00
\[ 2.723006\] pps_core: LinuxPPS API ver. 1 registered
\[ 2.723013\] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti \
\[ 2.723023\] PTP clock support registered
\[ 2.723047\] EDAC MC: Ver: 3.0.0
\[ 2.723545\] arm-scmi firmware:scmi: Enabled polling mode TX channel - prot_id:16
\[ 2.723613\] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
\[ 2.723654\] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
\[ 2.725022\] Advanced Linux Sound Architecture Driver Initialized.
\[ 2.725248\] Bluetooth: Core ver 2.22
\[ 2.725270\] NET: Registered PF_BLUETOOTH protocol family
\[ 2.725276\] Bluetooth: HCI device and connection manager initialized
\[ 2.725284\] Bluetooth: HCI socket layer initialized
\[ 2.725291\] Bluetooth: L2CAP socket layer initialized
\[ 2.725310\] Bluetooth: SCO socket layer initialized
\[ 2.726666\] rockchip-cpuinfo cpuinfo: SoC : 35760000
\[ 2.726676\] rockchip-cpuinfo cpuinfo: Serial : c8ce0e22d503cd05
\[ 2.727240\] clocksource: Switched to clocksource arch_sys_counter
\[ 2.731733\] NET: Registered PF_INET protocol family
\[ 2.731817\] IP idents hash table entries: 32768 (order: 6, 262144 bytes, linear)
\[ 2.732875\] tcp_listen_portaddr_hash hash table entries: 1024 (order: 2, 16384 bytes, linear)
\[ 2.732898\] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
\[ 2.732928\] TCP established hash table entries: 16384 (order: 5, 131072 bytes, linear)
\[ 2.733010\] TCP bind hash table entries: 16384 (order: 7, 524288 bytes, linear)
\[ 2.733289\] TCP: Hash tables configured (established 16384 bind 16384)
\[ 2.733348\] UDP hash table entries: 1024 (order: 3, 32768 bytes, linear)
\[ 2.733386\] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes, linear)
\[ 2.733484\] NET: Registered PF_UNIX/PF_LOCAL protocol family
\[ 2.733703\] RPC: Registered named UNIX socket transport module.
\[ 2.733711\] RPC: Registered udp transport module.
\[ 2.733717\] RPC: Registered tcp transport module.
\[ 2.733722\] RPC: Registered tcp NFSv4.1 backchannel transport module.
\[ 2.734210\] PCI: CLS 0 bytes, default 64
\[ 2.734584\] Trying to unpack rootfs image as initramfs...
\[ 2.734937\] rockchip-thermal 2ae70000.tsadc: Missing rockchip,grf property
\[ 2.737165\] thermal thermal_zone0: power_allocator: sustainable_power will be estimated
\[ 2.737263\] thermal thermal_zone1: power_allocator: sustainable_power will be estimated
\[ 2.737444\] thermal thermal_zone3: power_allocator: sustainable_power will be estimated
\[ 2.737529\] thermal thermal_zone4: power_allocator: sustainable_power will be estimated
\[ 2.737615\] thermal thermal_zone5: power_allocator: sustainable_power will be estimated
\[ 2.737872\] rockchip-thermal 2ae70000.tsadc: tsadc is probed successfully!
\[ 2.740123\] hw perfevents: enabled with armv8_cortex_a53 PMU driver, 7 counters available
\[ 2.740648\] hw perfevents: enabled with armv8_cortex_a72 PMU driver, 7 counters available
\[ 3.029050\] Freeing initrd memory: 10924K
\[ 3.058288\] Initialise system trusted keyrings
\[ 3.058474\] workingset: timestamp_bits=62 max_order=19 bucket_order=0
\[ 3.060881\] squashfs: version 4.0 (2009/01/31) Phillip Lougher
\[ 3.061206\] NFS: Registering the id_resolver key type
\[ 3.061223\] Key type id_resolver registered
\[ 3.061230\] Key type id_legacy registered
\[ 3.061252\] ntfs: driver 2.1.32 \[Flags: R/O\].
\[ 3.061326\] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
\[ 3.061560\] fuse: init (API version 7.37)
\[ 3.061714\] SGI XFS with security attributes, no debug enabled
\[ 3.089713\] NET: Registered PF_ALG protocol family
\[ 3.089726\] Key type asymmetric registered
\[ 3.089733\] Asymmetric key parser 'x509' registered
\[ 3.089768\] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
\[ 3.089776\] io scheduler mq-deadline registered
\[ 3.089782\] io scheduler kyber registered
\[ 3.091007\] rockchip-csi2-dphy-hw 2b030000.csi2-dphy0-hw: csi2 dphy hw probe successfully!
\[ 3.091119\] rockchip-csi2-dphy-hw 2b070000.csi2-dphy1-hw: csi2 dphy hw probe successfully!
\[ 3.092291\] rockchip-usb2phy 2602e000.syscon:usb2-phy@0: error -ENXIO: IRQ index 0 not found
\[ 3.092381\] rockchip-usb2phy 2602e000.syscon:usb2-phy@0: refclk freq 24000000
\[ 3.093313\] rockchip-usb2phy 2602e000.syscon:usb2-phy@2000: error -ENXIO: IRQ index 0 not found
\[ 3.093392\] rockchip-usb2phy 2602e000.syscon:usb2-phy@2000: refclk freq 24000000
\[ 3.097373\] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy init success
\[ 3.099943\] rk-pcie 2a200000.pcie: invalid prsnt-gpios property in node
\[ 3.100407\] iep: Module initialized.
\[ 3.100521\] mpp_service mpp-srv: e1116856058d author: Chandler Chen 2024-09-27 video: rockchip: mpp: rk3562 use cru reset
\[ 3.100530\] mpp_service mpp-srv: probe start
\[ 3.100752\] rk-pcie 2a200000.pcie: max MSI vector is 32
\[ 3.100802\] rk-pcie 2a200000.pcie: host bridge /pcie@2a200000 ranges:
\[ 3.100832\] rk-pcie 2a200000.pcie: err 0x0020000000..0x00200fffff -\> 0x0020000000
\[ 3.100851\] rk-pcie 2a200000.pcie: IO 0x0020100000..0x00201fffff -\> 0x0020100000
\[ 3.100869\] rk-pcie 2a200000.pcie: MEM 0x0020200000..0x0020ffffff -\> 0x0020200000
\[ 3.100883\] rk-pcie 2a200000.pcie: MEM 0x0900000000..0x097fffffff -\> 0x0900000000
\[ 3.101014\] rk-pcie 2a200000.pcie: iATU unroll: enabled
\[ 3.101025\] rk-pcie 2a200000.pcie: iATU regions: 8 ob, 8 ib, align 64K, limit 8G
\[ 3.102669\] mpp_rkvenc2 rkvenc-ccu: probing start
\[ 3.102680\] mpp_rkvenc2 rkvenc-ccu: probing finish
\[ 3.103092\] mpp_service mpp-srv: probe success
\[ 3.112313\] dma-pl330 2ab90000.dma-controller: Loaded driver for PL330 DMAC-241330
\[ 3.112324\] dma-pl330 2ab90000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
\[ 3.113056\] dma-pl330 2abb0000.dma-controller: Loaded driver for PL330 DMAC-241330
\[ 3.113064\] dma-pl330 2abb0000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
\[ 3.113802\] dma-pl330 2abd0000.dma-controller: Loaded driver for PL330 DMAC-241330
\[ 3.113810\] dma-pl330 2abd0000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
\[ 3.114543\] rockchip-system-monitor rockchip-system-monitor: system monitor probe
\[ 3.114878\] arm-scmi firmware:scmi: Failed. SCMI protocol 22 not active.
\[ 3.114982\] Serial: 8250/16550 driver, 15 ports, IRQ sharing disabled
\[ 3.115521\] 2ad80000.serial: ttyS5 at MMIO 0x2ad80000 (irq = 43, base_baud = 11718) is a 16550A
\[ 3.121954\] dw-mipi-dsi2 27d80000.dsi: Fixed dependency cycle(s) with /dsi@27d80000/dsi-panel@0
\[ 3.121994\] mipi-dsi 27d80000.dsi.0: Fixed dependency cycle(s) with /dsi@27d80000
\[ 3.123126\] OF: graph: no port node found in /dp@27e40000
\[ 3.123465\] platform 27d00000.vop: Fixed dependency cycle(s) with /dp@27e40000
\[ 3.128109\] find panel: luckfox,tc358762
\[ 3.129101\] cacheinfo: Unable to detect cache hierarchy for CPU 0
\[ 3.129423\] brd: module loaded
\[ 3.131685\] loop: module loaded
\[ 3.131842\] zram: Added device: zram0
\[ 3.131976\] lkdtm: No crash points registered, enable through debugfs
\[ 3.133962\] CAN device driver interface
\[ 3.134086\] igb: Intel(R) Gigabit Ethernet Network Driver
\[ 3.134092\] igb: Copyright (c) 2007-2014 Intel Corporation.
\[ 3.134776\] rk_gmac-dwmac 2a220000.ethernet: IRQ eth_lpi not found
\[ 3.134921\] rk_gmac-dwmac 2a220000.ethernet: supply phy not found, using dummy regulator
\[ 3.134981\] rk_gmac-dwmac 2a220000.ethernet: clock input or output? (output).
\[ 3.134989\] rk_gmac-dwmac 2a220000.ethernet: TX delay(0x1b).
\[ 3.134996\] rk_gmac-dwmac 2a220000.ethernet: Can not read property: rx_delay.
\[ 3.135002\] rk_gmac-dwmac 2a220000.ethernet: set rx_delay to 0xffffffff
\[ 3.135063\] rk_gmac-dwmac 2a220000.ethernet: integrated PHY? (no).
\[ 3.135072\] rk_gmac-dwmac 2a220000.ethernet: cannot get clock mac_clk_rx
\[ 3.135079\] rk_gmac-dwmac 2a220000.ethernet: cannot get clock mac_clk_tx
\[ 3.135093\] rk_gmac-dwmac 2a220000.ethernet: cannot get clock clk_mac_speed
\[ 3.135333\] rk_gmac-dwmac 2a220000.ethernet: init for RGMII_RXID
\[ 3.135424\] rk_gmac-dwmac 2a220000.ethernet: User ID: 0x30, Synopsys ID: 0x51
\[ 3.135433\] rk_gmac-dwmac 2a220000.ethernet: DWMAC4/5
\[ 3.135441\] rk_gmac-dwmac 2a220000.ethernet: DMA HW capability register supported
\[ 3.135446\] rk_gmac-dwmac 2a220000.ethernet: RX Checksum Offload Engine supported
\[ 3.135452\] rk_gmac-dwmac 2a220000.ethernet: TX Checksum insertion supported
\[ 3.135457\] rk_gmac-dwmac 2a220000.ethernet: Wake-Up On Lan supported
\[ 3.135490\] rk_gmac-dwmac 2a220000.ethernet: TSO supported
\[ 3.135496\] rk_gmac-dwmac 2a220000.ethernet: Enable RX Mitigation via HW Watchdog Timer
\[ 3.135502\] rk_gmac-dwmac 2a220000.ethernet: Enabled L3L4 Flow TC (entries=2)
\[ 3.135508\] rk_gmac-dwmac 2a220000.ethernet: Enabled RFS Flow TC (entries=10)
\[ 3.135515\] rk_gmac-dwmac 2a220000.ethernet: TSO feature enabled
\[ 3.135520\] rk_gmac-dwmac 2a220000.ethernet: Using 40/40 bits DMA host/device width
\[ 3.274573\] usbcore: registered new interface driver rtl8150
\[ 3.274592\] usbcore: registered new device driver r8152-cfgselector
\[ 3.274610\] usbcore: registered new interface driver r8152
\[ 3.274626\] usbcore: registered new interface driver asix
\[ 3.274645\] usbcore: registered new interface driver ax88179_178a
\[ 3.274661\] usbcore: registered new interface driver cdc_ether
\[ 3.274677\] usbcore: registered new interface driver net1080
\[ 3.274692\] usbcore: registered new interface driver cdc_subset
\[ 3.274708\] usbcore: registered new interface driver zaurus
\[ 3.274729\] usbcore: registered new interface driver cdc_ncm
\[ 3.274745\] usbcore: registered new interface driver qmi_wwan
\[ 3.274762\] usbcore: registered new interface driver r8153_ecm
\[ 3.283320\] phy phy-2602e000.syscon:usb2-phy@0.0: illegal mode
\[ 3.283335\] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
\[ 3.283408\] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
\[ 3.283490\] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000808002010010
\[ 3.283520\] xhci-hcd xhci-hcd.0.auto: irq 61, io mem 0x23000000
\[ 3.283592\] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
\[ 3.283664\] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
\[ 3.283676\] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed
\[ 3.283738\] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01
\[ 3.283746\] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
\[ 3.283752\] usb usb1: Product: xHCI Host Controller
\[ 3.283758\] usb usb1: Manufacturer: Linux 6.1.84 xhci-hcd
\[ 3.283764\] usb usb1: SerialNumber: xhci-hcd.0.auto
\[ 3.283963\] hub 1-0:1.0: USB hub found
\[ 3.283981\] hub 1-0:1.0: 1 port detected
\[ 3.284124\] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
\[ 3.284169\] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.01
\[ 3.284177\] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
\[ 3.284183\] usb usb2: Product: xHCI Host Controller
\[ 3.284189\] usb usb2: Manufacturer: Linux 6.1.84 xhci-hcd
\[ 3.284194\] usb usb2: SerialNumber: xhci-hcd.0.auto
\[ 3.284360\] hub 2-0:1.0: USB hub found
\[ 3.284377\] hub 2-0:1.0: 1 port detected
\[ 3.284564\] phy phy-2602e000.syscon:usb2-phy@2000.1: illegal mode
\[ 3.284572\] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
\[ 3.284639\] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 3
\[ 3.284705\] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000808002010010
\[ 3.284729\] xhci-hcd xhci-hcd.1.auto: irq 62, io mem 0x23400000
\[ 3.284797\] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
\[ 3.284855\] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 4
\[ 3.284865\] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed
\[ 3.284921\] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01
\[ 3.284929\] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
\[ 3.284935\] usb usb3: Product: xHCI Host Controller
\[ 3.284941\] usb usb3: Manufacturer: Linux 6.1.84 xhci-hcd
\[ 3.284946\] usb usb3: SerialNumber: xhci-hcd.1.auto
\[ 3.285112\] hub 3-0:1.0: USB hub found
\[ 3.285128\] hub 3-0:1.0: 1 port detected
\[ 3.285262\] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
\[ 3.285304\] usb usb4: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.01
\[ 3.285312\] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
\[ 3.285318\] usb usb4: Product: xHCI Host Controller
\[ 3.285324\] usb usb4: Manufacturer: Linux 6.1.84 xhci-hcd
\[ 3.285329\] usb usb4: SerialNumber: xhci-hcd.1.auto
\[ 3.285495\] hub 4-0:1.0: USB hub found
\[ 3.285510\] hub 4-0:1.0: 1 port detected
\[ 3.285684\] usbcore: registered new interface driver cdc_acm
\[ 3.285691\] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
\[ 3.285709\] usbcore: registered new interface driver cdc_wdm
\[ 3.285820\] usbcore: registered new interface driver uas
\[ 3.285856\] usbcore: registered new interface driver usb-storage
\[ 3.285892\] usbcore: registered new interface driver usbserial_generic
\[ 3.285903\] usbserial: USB Serial support registered for generic
\[ 3.285922\] usbcore: registered new interface driver cp210x
\[ 3.285932\] usbserial: USB Serial support registered for cp210x
\[ 3.285958\] usbcore: registered new interface driver ftdi_sio
\[ 3.285969\] usbserial: USB Serial support registered for FTDI USB Serial Device
\[ 3.286013\] usbcore: registered new interface driver keyspan
\[ 3.286032\] usbserial: USB Serial support registered for Keyspan - (without firmware)
\[ 3.286043\] usbserial: USB Serial support registered for Keyspan 1 port adapter
\[ 3.286053\] usbserial: USB Serial support registered for Keyspan 2 port adapter
\[ 3.286063\] usbserial: USB Serial support registered for Keyspan 4 port adapter
\[ 3.286083\] usbcore: registered new interface driver option
\[ 3.286093\] usbserial: USB Serial support registered for GSM modem (1-port)
\[ 3.286150\] usbcore: registered new interface driver oti6858
\[ 3.286160\] usbserial: USB Serial support registered for oti6858
\[ 3.286179\] usbcore: registered new interface driver pl2303
\[ 3.286190\] usbserial: USB Serial support registered for pl2303
\[ 3.286211\] usbcore: registered new interface driver qcserial
\[ 3.286222\] usbserial: USB Serial support registered for Qualcomm USB modem
\[ 3.286245\] usbcore: registered new interface driver sierra
\[ 3.286255\] usbserial: USB Serial support registered for Sierra USB modem
\[ 3.286666\] SPI driver ads7846 has no spi_device_id for ti,tsc2046
\[ 3.286675\] SPI driver ads7846 has no spi_device_id for ti,ads7843
\[ 3.286679\] SPI driver ads7846 has no spi_device_id for ti,ads7845
\[ 3.286684\] SPI driver ads7846 has no spi_device_id for ti,ads7873
\[ 3.286710\] cyttsp5_loader_init: Parade TTSP FW Loader Driver (Built TTDA.03.08.874312) rc=0
\[ 3.286717\] cyttsp5_device_access_init: Parade TTSP Device Access Driver (Built TTDA.03.08.874312) rc=0
\[ 3.286766\] usbcore: registered new interface driver usbtouchscreen
\[ 3.287016\] .. rk pwm remotectl v2.0 init
\[ 3.287155\] input: 27330000.pwm as /devices/platform/27330000.pwm/input/input0
\[ 3.287313\] remotectl-pwm 27330000.pwm: pwm sip wakeup config error!!
\[ 3.287322\] remotectl-pwm 27330000.pwm: Donot support ATF Wakeup
\[ 3.287698\] i2c_dev: i2c /dev entries driver
\[ 3.288344\] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs1_pwrdn
\[ 3.288362\] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs3_null
\[ 3.288375\] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs2_null
\[ 3.288388\] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs1_null
\[ 3.289991\] rk806 1-0023: chip id: RK806,ver:0xa, 0x5
\[ 3.290880\] rk806 1-0023: ON: 0x40 OFF:0x0
\[ 3.300355\] input: rk805 pwrkey as /devices/platform/2ac40000.i2c/i2c-1/1-0023/rk805-pwrkey.3.auto/input/input1
\[ 3.308364\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.335247\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.358403\] rk806 1-0023: no sleep-setting state
\[ 3.358414\] rk806 1-0023: no reset-setting pinctrl state
\[ 3.358420\] rk806 1-0023: no dvs-setting pinctrl state
Loading, please wait...
\[ 3.363246\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
/dev/console is Ok
\[ 3.369083\] rtc-ds1307 2-0068: SET TIME!
\[ 3.371607\] rtc-ds1307 2-0068: registered as rtc0
\[ 3.372635\] rtc-ds1307 2-0068: setting system clock to 2160-08-11T09:09:49 UTC (6015114589)
\[ 3.372707\] platform csi2-dcphy0: Fixed dependency cycle(s) with /i2c@2ac50000/imx219@10
starting version 237
\[ 3.372741\] i2c 2-0010: Fixed dependency cycle(s) with /csi2-dcphy0
\[ 3.373508\] platform csi2-dphy1: Fixed dependency cycle(s) with /i2c@2ac60000/imx219_b@10
\[ 3.373545\] i2c 3-0010: Fixed dependency cycle(s) with /csi2-dphy1
\[ 3.374235\] luckfox_mcu: luckfox_mcu_probe: address = 0x45
\[ 3.374245\] luckfox_mcu: send_cmds: 80
\[ 3.374395\] send command failed, ret = -6
\[ 3.374400\] luckfox_mcu: luckfox_mcu_probe: init_cmd_check failed, -6
\[ 3.374488\] luckfox-ft5406: luckfox_ft5406_probe: address = 0x38
\[ 3.391247\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.419246\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.447245\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.475246\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.503247\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.531248\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.559247\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.971239\] luckfox-ft5406: luckfox_ft5406_probe: wait connected timeout
\[ 3.971830\] imx219 2-0010: driver version: 00.01.01
\[ 3.972041\] imx219 2-0010: Reading register 100 from 10 failed
\[ 3.972193\] imx219 2-0010: Reading register 100 from 10 failed
\[ 3.978626\] imx219 2-0010: Error -5 setting default controls
\[ 3.978648\] imx219: probe of 2-0010 failed with error -5
\[ 3.978875\] imx219 3-0010: driver version: 00.01.01
\[ 3.979072\] imx219 3-0010: Reading register 100 from 10 failed
\[ 3.979223\] imx219 3-0010: Reading register 100 from 10 failed
\[ 3.985663\] imx219 3-0010: Error -5 setting default controls
\[ 3.985682\] imx219: probe of 3-0010 failed with error -5
\[ 3.986240\] rkcifhw 27c10000.rkcif: Adding to iommu group 9
\[ 3.986596\] rkcifhw 27c10000.rkcif: No reserved memory region assign to CIF
\[ 3.986709\] rkcif rkcif-mipi-lvds: Adding to iommu group 9
\[ 3.986726\] rkcif rkcif-mipi-lvds: rkcif driver version: v00.02.00
\[ 3.986802\] rkcif rkcif-mipi-lvds: attach to cif hw node
\[ 3.986809\] rkcif rkcif-mipi-lvds: rkcif wait line 0
\[ 3.986815\] rkcif rkcif-mipi-lvds: rkcif fastboot reserve bufs num 3
\[ 3.986824\] : terminal subdev does not exist
\[ 3.986830\] : terminal subdev does not exist
\[ 3.986836\] : terminal subdev does not exist
\[ 3.986842\] : terminal subdev does not exist
\[ 3.986847\] : get_remote_sensor: video pad\[0\] is null
\[ 3.986852\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.986858\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.986865\] : get_remote_sensor: video pad\[0\] is null
\[ 3.986870\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.986875\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.986881\] : get_remote_sensor: video pad\[0\] is null
\[ 3.986885\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.986890\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.986896\] : get_remote_sensor: video pad\[0\] is null
\[ 3.986900\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.986905\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.987636\] rkcif rkcif-mipi-lvds: No memory-region-thunderboot specified
\[ 3.987808\] rkcif rkcif-mipi-lvds1: Adding to iommu group 9
\[ 3.987826\] rkcif rkcif-mipi-lvds1: rkcif driver version: v00.02.00
\[ 3.987878\] rkcif rkcif-mipi-lvds1: attach to cif hw node
\[ 3.987884\] rkcif rkcif-mipi-lvds1: rkcif wait line 0
\[ 3.987890\] rkcif rkcif-mipi-lvds1: rkcif fastboot reserve bufs num 3
\[ 3.987898\] : terminal subdev does not exist
\[ 3.987904\] : terminal subdev does not exist
\[ 3.987910\] : terminal subdev does not exist
\[ 3.987915\] : terminal subdev does not exist
\[ 3.987921\] : get_remote_sensor: video pad\[0\] is null
\[ 3.987925\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.987931\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.987937\] : get_remote_sensor: video pad\[0\] is null
\[ 3.987942\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.987947\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.987953\] : get_remote_sensor: video pad\[0\] is null
\[ 3.987957\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.987962\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.987968\] : get_remote_sensor: video pad\[0\] is null
\[ 3.987972\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.987977\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.988635\] rkcif rkcif-mipi-lvds1: No memory-region-thunderboot specified
\[ 3.989453\] rockchip-mipi-csi2-hw 27c80000.mipi0-csi2-hw: enter mipi csi2 hw probe!
\[ 3.989573\] rockchip-mipi-csi2-hw 27c80000.mipi0-csi2-hw: probe success, v4l2_dev:mipi0-csi2-hw!
\[ 3.989611\] rockchip-mipi-csi2-hw 27c90000.mipi1-csi2-hw: enter mipi csi2 hw probe!
\[ 3.989686\] rockchip-mipi-csi2-hw 27c90000.mipi1-csi2-hw: probe success, v4l2_dev:mipi1-csi2-hw!
\[ 3.989721\] rockchip-mipi-csi2-hw 27ca0000.mipi2-csi2-hw: enter mipi csi2 hw probe!
\[ 3.989794\] rockchip-mipi-csi2-hw 27ca0000.mipi2-csi2-hw: probe success, v4l2_dev:mipi2-csi2-hw!
\[ 3.989827\] rockchip-mipi-csi2-hw 27cb0000.mipi3-csi2-hw: enter mipi csi2 hw probe!
\[ 3.989897\] rockchip-mipi-csi2-hw 27cb0000.mipi3-csi2-hw: probe success, v4l2_dev:mipi3-csi2-hw!
\[ 3.989929\] rockchip-mipi-csi2-hw 27cc0000.mipi4-csi2-hw: enter mipi csi2 hw probe!
\[ 3.989997\] rockchip-mipi-csi2-hw 27cc0000.mipi4-csi2-hw: probe success, v4l2_dev:mipi4-csi2-hw!
\[ 3.990367\] rockchip-mipi-csi2 mipi0-csi2: attach to csi2 hw node
\[ 3.990395\] rkcif rkcif-mipi-lvds: Entity type for entity rockchip-mipi-csi2 was not initialized!
\[ 3.990404\] rockchip-mipi-csi2: Async registered subdev
\[ 3.990409\] rockchip-mipi-csi2: probe success, v4l2_dev:rkcif-mipi-lvds!
\[ 3.990577\] rockchip-mipi-csi2 mipi1-csi2: attach to csi2 hw node
\[ 3.990597\] rkcif rkcif-mipi-lvds1: Entity type for entity rockchip-mipi-csi2 was not initialized!
\[ 3.990605\] rockchip-mipi-csi2: Async registered subdev
\[ 3.990610\] rockchip-mipi-csi2: probe success, v4l2_dev:rkcif-mipi-lvds1!
\[ 3.991355\] rkisp_hw 27c00000.isp: Adding to iommu group 8
\[ 3.991470\] rkisp_hw 27c00000.isp: is_thunderboot: 0
\[ 3.991478\] rkisp_hw 27c00000.isp: Missing rockchip,grf property
\[ 3.991498\] rkisp_hw 27c00000.isp: max input:0x0@0fps
\[ 3.991619\] rkisp_hw 27c00000.isp: no find phandle sram
\[ 3.991841\] rkisp rkisp-vir0: rkisp driver version: v02.06.01
\[ 3.991923\] rkisp rkisp-vir0: No memory-region-thunderboot specified
\[ 3.992000\] rkisp rkisp-vir0: Entity type for entity rkisp-isp-subdev was not initialized!
\[ 3.992612\] rkisp rkisp-vir1: rkisp driver version: v02.06.01
\[ 3.992671\] rkisp rkisp-vir1: No memory-region-thunderboot specified
\[ 3.992730\] rkisp rkisp-vir1: Entity type for entity rkisp-isp-subdev was not initialized!
\[ 3.994408\] rkvpss_hw 27c30000.vpss: Adding to iommu group 10
\[ 3.994644\] rkvpss_hw 27c30000.vpss: failed to get cru reset
\[ 3.994922\] rkvpss rkvpss-vir0: rkvpss driver version: v00.01.00
\[ 3.995332\] rkvpss-vir0: Async subdev notifier completed
\[ 3.995426\] rkvpss rkvpss-vir1: rkvpss driver version: v00.01.00
\[ 3.995785\] rkvpss-vir1: Async subdev notifier completed
\[ 3.996027\] usbcore: registered new interface driver uvcvideo
\[ 3.997045\] Bluetooth: HCI UART driver ver 2.3
\[ 3.997055\] Bluetooth: HCI UART protocol H4 registered
\[ 3.997060\] Bluetooth: HCI UART protocol ATH3K registered
\[ 3.997091\] usbcore: registered new interface driver bfusb
\[ 3.997115\] usbcore: registered new interface driver btusb
\[ 3.998200\] cpu cpu0: bin=0
\[ 3.998420\] cpu cpu0: leakage=4
\[ 4.000602\] cpu cpu0: pvtm=1967
\[ 4.001123\] cpu cpu0: pvtm-volt-sel=7
\[ 4.002347\] cpu cpu4: bin=0
\[ 4.002552\] cpu cpu4: leakage=5
\[ 4.004716\] cpu cpu4: pvtm=2077
\[ 4.005231\] cpu cpu4: pvtm-volt-sel=5
\[ 4.006680\] cpu cpu0: avs=0
\[ 4.007508\] cpu cpu4: avs=0
\[ 4.007588\] cpu cpu0: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
\[ 4.008643\] cpu cpu0: EM: created perf domain
\[ 4.009297\] cpu cpu4: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
\[ 4.010675\] cpu cpu4: EM: created perf domain
\[ 4.012135\] OF: /sdio-pwrseq: could not get #clock-cells for /i2c@2ac40000/pmic@23
\[ 4.012424\] sdhci: Secure Digital Host Controller Interface driver
\[ 4.012431\] sdhci: Copyright(c) Pierre Ossman
\[ 4.012434\] Synopsys Designware Multimedia Card Interface Driver
\[ 4.012749\] sdhci-pltfm: SDHCI platform and OF driver helper
\[ 4.013137\] dwmmc_rockchip 2a320000.mmc: No normal pinctrl state
\[ 4.013148\] dwmmc_rockchip 2a320000.mmc: No idle pinctrl state
\[ 4.013198\] dwmmc_rockchip 2a310000.mmc: No normal pinctrl state
\[ 4.013205\] dwmmc_rockchip 2a310000.mmc: No idle pinctrl state
\[ 4.013286\] dwmmc_rockchip 2a320000.mmc: IDMAC supports 32-bit address mode.
\[ 4.013300\] dwmmc_rockchip 2a320000.mmc: Using internal DMA controller.
\[ 4.013308\] dwmmc_rockchip 2a320000.mmc: Version ID is 270a
\[ 4.013326\] dwmmc_rockchip 2a310000.mmc: IDMAC supports 32-bit address mode.
\[ 4.013329\] dwmmc_rockchip 2a320000.mmc: DW MMC controller at irq 88,32 bit host data width,256 deep fifo
\[ 4.013337\] dwmmc_rockchip 2a310000.mmc: Using internal DMA controller.
\[ 4.013344\] dwmmc_rockchip 2a310000.mmc: Version ID is 270a
\[ 4.013360\] dwmmc_rockchip 2a310000.mmc: DW MMC controller at irq 89,32 bit host data width,256 deep fifo
\[ 4.013604\] dwmmc_rockchip 2a320000.mmc: allocated mmc-pwrseq
\[ 4.013617\] mmc_host mmc0: card is non-removable.
\[ 4.014095\] mmc2: CQHCI version 5.10
\[ 4.014333\] arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
\[ 4.014366\] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
\[ 4.014683\] rk-crypto 2a400000.crypto: invalid resource
\[ 4.014999\] rk-crypto 2a400000.crypto: register to cryptodev ok!
\[ 4.015009\] rk-crypto 2a400000.crypto: CRYPTO V3.0.0.0 multi Accelerator successfully registered
\[ 4.015296\] cryptodev: driver 1.12 loaded.
\[ 4.015343\] hid: raw HID events driver (C) Jiri Kosina
\[ 4.015450\] usbcore: registered new interface driver usbhid
\[ 4.015455\] usbhid: USB HID core driver
\[ 4.018127\] optee: probing for conduit method.
\[ 4.018146\] optee: revision 3.13 (6c78a7d8)
\[ 4.018311\] optee: dynamic shared memory is enabled
\[ 4.018401\] optee: initialized driver
\[ 4.018826\] usbcore: registered new interface driver snd-usb-audio
\[ 4.022995\] rk-multicodecs es8388-sound: Has no ADC channel
\[ 4.026777\] mmc_host mmc1: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)
\[ 4.043337\] mmc2: SDHCI controller on 2a330000.mmc \[2a330000.mmc\] using ADMA 64-bit
\[ 4.082343\] input: rockchip-es8388 Headset as /devices/platform/es8388-sound/sound/card0/input2
\[ 4.083360\] Initializing XFRM netlink socket
\[ 4.083666\] NET: Registered PF_INET6 protocol family
\[ 4.084618\] Segment Routing with IPv6
\[ 4.084644\] In-situ OAM (IOAM) with IPv6
\[ 4.084691\] NET: Registered PF_PACKET protocol family
\[ 4.084705\] NET: Registered PF_KEY protocol family
\[ 4.084713\] can: controller area network core
\[ 4.084744\] NET: Registered PF_CAN protocol family
\[ 4.084753\] can: raw protocol
\[ 4.084762\] can: broadcast manager protocol
\[ 4.084784\] can: netlink gateway - max_hops=1
\[ 4.085038\] Bluetooth: RFCOMM socket layer initialized
\[ 4.085063\] Bluetooth: RFCOMM ver 1.11
\[ 4.085075\] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
\[ 4.085087\] Bluetooth: HIDP socket layer initialized
\[ 4.085121\] \[BT_RFKILL\]: Enter rfkill_rk_init
\[ 4.085128\] \[WLAN_RFKILL\]: Enter rfkill_wlan_init
\[ 4.085912\] mmc_host mmc1: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0)
\[ 4.085932\] dwmmc_rockchip 2a310000.mmc: Successfully tuned phase to 0
\[ 4.085943\] mmc1: new ultra high speed SDR104 SDHC card at address 0001
\[ 4.086048\] \[WLAN_RFKILL\]: Enter rfkill_wlan_probe
\[ 4.086084\] \[WLAN_RFKILL\]: can't find rockchip,grf property
\[ 4.086092\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: wifi_chip_type = ap6256
\[ 4.086099\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: enable wifi power control.
\[ 4.086107\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: wifi power controled by gpio.
\[ 4.086141\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: WIFI,host_wake_irq = 73, flags = 0.
\[ 4.086153\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: The ref_wifi_clk not found !
\[ 4.086160\] \[WLAN_RFKILL\]: rfkill_wlan_probe: init gpio
\[ 4.086168\] \[WLAN_RFKILL\]: rfkill_set_wifi_bt_power: 1
\[ 4.086175\] \[WLAN_RFKILL\]: Exit rfkill_wlan_probe
\[ 4.086506\] mmcblk1: mmc1:0001 SD 29.1 GiB
\[ 4.086843\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 127.
\[ 4.086866\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 77.
\[ 4.086878\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 62.
\[ 4.086888\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 79.
\[ 4.086897\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: clk_get failed!!!.
\[ 4.086934\] \[BT_RFKILL\]: Request irq for bt wakeup host
\[ 4.087181\] \[BT_RFKILL\]: \*\* disable irq
\[ 4.087283\] \[BT_RFKILL\]: bt_default device registered.
\[ 4.087385\] input: bt-powerkey as /devices/platform/wireless-bluetooth/input/input3
\[ 4.087587\] Key type dns_resolver registered
\[ 4.087784\] mmcblk1: p1
\[ 4.088838\] Loading compiled-in X.509 certificates
\[ 4.090117\] pstore: Using crash dump compression: deflate
\[ 4.095521\] rga2 27920000.rga: Adding to iommu group 2
\[ 4.095785\] rga2 27920000.rga: probe successfully, irq = 47, hw_version:3.e.19357
\[ 4.095879\] rga2 27930000.rga: Adding to iommu group 3
\[ 4.096145\] rga2 27930000.rga: probe successfully, irq = 48, hw_version:3.e.19357
\[ 4.096283\] rga: IOMMU binding successfully, default mapping core\[0x4
4.096526\] rga: Module initialized. v1.3.5
\[ 4.114268\] rockchip-csi2-dphy csi2-dcphy0: csi2 dphy0 probe successfully!
\[ 4.114542\] rockchip-csi2-dphy csi2-dphy1: csi2 dphy1 probe successfully!
\[ 4.114763\] mpp-iep2 27960000.iep: Adding to iommu group 4
\[ 4.115005\] mpp-iep2 27960000.iep: probe device
\[ 4.115143\] mpp-iep2 27960000.iep: reset_group-\>rw_sem_on=0
\[ 4.115155\] mpp-iep2 27960000.iep: reset_group-\>rw_sem_on=0
\[ 4.115166\] mpp-iep2 27960000.iep: reset_group-\>rw_sem_on=0
\[ 4.115200\] mpp-iep2 27960000.iep: allocate roi buffer failed
\[ 4.115266\] mpp-iep2 27960000.iep: probing finish
\[ 4.115474\] mpp_jpgdec 27910000.jpegd: Adding to iommu group 1
\[ 4.115711\] mpp_jpgdec 27910000.jpegd: probe device
\[ 4.115868\] mpp_jpgdec 27910000.jpegd: reset_group-\>rw_sem_on=0
\[ 4.115880\] mpp_jpgdec 27910000.jpegd: reset_group-\>rw_sem_on=0
\[ 4.115938\] mpp_jpgdec 27910000.jpegd: probing finish
\[ 4.116138\] mpp_jpgenc 27910800.jpege: Adding to iommu group 1
\[ 4.116189\] mpp_jpgenc 27910800.jpege: probe device
\[ 4.116305\] mpp_jpgenc 27910800.jpege: reset_group-\>rw_sem_on=0
\[ 4.116314\] mpp_jpgenc 27910800.jpege: reset_group-\>rw_sem_on=0
\[ 4.116353\] mpp_jpgenc 27910800.jpege: probe finish
\[ 4.116577\] mpp_rkvdec2 27b00100.rkvdec: Adding to iommu group 7
\[ 4.116841\] mpp_rkvdec2 27b00100.rkvdec: rkvdec, probing start
\[ 4.117025\] mpp_rkvdec2 27b00100.rkvdec: shared_niu_a is not found!
\[ 4.117032\] rkvdec2_init:1198: No niu aclk reset resource define
\[ 4.117040\] mpp_rkvdec2 27b00100.rkvdec: shared_niu_h is not found!
\[ 4.117045\] rkvdec2_init:1201: No niu hclk reset resource define
\[ 4.117056\] mpp_rkvdec2 27b00100.rkvdec: shared_video_cabac is not found!
Begin: Loading essential drivers ... \[ 4.117061\] rkvdec2_init:1207: No cabac reset resource define
\[ 4.117099\] mpp_rkvdec2 27b00100.rkvdec: no regulator, devfreq is disabled
\[ 4.117251\] mpp_rkvdec2 27b00100.rkvdec: sram_start 0x000000003ff88000
\[ 4.117259\] mpp_rkvdec2 27b00100.rkvdec: rcb_iova 0x0000000010000000
\[ 4.117266\] mpp_rkvdec2 27b00100.rkvdec: sram_size 491520
\[ 4.117272\] mpp_rkvdec2 27b00100.rkvdec: rcb_size 491520
done.
\[ 4.117278\] mpp_rkvdec2 27b00100.rkvdec: min_width 512
Begin: Running /scripts/init-premount ... done.
\[ 4.117304\] mpp_rkvdec2 27b00100.rkvdec: link mode probe finish
Begin: Mounting root file system ... Begin: Running /scripts/local-top ... \[ 4.117347\] mpp_rkvdec2 27b00100.rkvdec: probing finish
\[ 4.117364\] mpp_rkvdec2 27b00100.rkvdec: probing finish
done.
\[ 4.117640\] mpp_rkvenc2 27a00000.rkvenc-core: Adding to iommu group 5
Begin: Running /scripts/local-premount ... \[ 4.117933\] mpp_rkvenc2 27a00000.rkvenc-core: probing start
done.
\[ 4.118114\] mpp_rkvenc2 27a00000.rkvenc-core: failed to init opp info
\[ 4.118122\] mpp_rkvenc2 27a00000.rkvenc-core: failed to init_opp_table
\[ 4.118128\] rkvenc_init:2147: failed to add venc devfreq
\[ 4.118182\] mpp_rkvenc2 27a00000.rkvenc-core: attach ccu as core 0
\[ 4.118231\] mpp_rkvenc2 27a00000.rkvenc-core: probing finish
\[ 4.118485\] mpp_rkvenc2 27a10000.rkvenc-core: Adding to iommu group 6
\[ 4.118745\] mpp_rkvenc2 27a10000.rkvenc-core: probing start
\[ 4.118937\] mpp_rkvenc2 27a10000.rkvenc-core: failed to init opp info
\[ 4.118947\] mpp_rkvenc2 27a10000.rkvenc-core: failed to init_opp_table
\[ 4.118953\] rkvenc_init:2147: failed to add venc devfreq
\[ 4.119003\] mpp_rkvenc2 27a10000.rkvenc-core: attach ccu as core 1
\[ 4.119048\] mpp_rkvenc2 27a10000.rkvenc-core: probing finish
\[ 4.119572\] rockchip-vop2 27d00000.vop: Adding to iommu group 11
\[ 4.120185\] rockchip-vop2 27d00000.vop: \[drm:vop2_bind\] vp0 assign plane mask: Esmart0\[0x4\], primary plane phy id: Esmart0\[2
4.120209\] rockchip-vop2 27d00000.vop: \[drm:vop2_bind\] vp1 assign plane mask: Esmart1\[0x8\], primary plane phy id: Esmart1\[3
4.120222\] rockchip-vop2 27d00000.vop: \[drm:vop2_bind\] vp2 assign plane mask: Esmart2\[0x100\], primary plane phy id: Esmart2\[8
4.120508\] \[drm\] unsupported AFBC format NV12 little-endian (0x3231564e)
\[ 4.120567\] \[drm\] failed to init overlay plane Cluster0-win1
\[ 4.120625\] \[drm\] failed to init overlay plane Cluster1-win1
\[ 4.120911\] rockchip-vop2 27d00000.vop: bin=0
\[ 4.121130\] rockchip-vop2 27d00000.vop: leakage=12
\[ 4.121145\] rockchip-vop2 27d00000.vop: leakage-volt-sel=1
\[ 4.121986\] rockchip-vop2 27d00000.vop: avs=0
\[ 4.122066\] rockchip-vop2 27d00000.vop: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
\[ 4.122093\] debugfs: Directory 'vdd_logic_s0' with parent 'vdd_logic_s0' already present!
\[ 4.123182\] rockchip-vop2 27d00000.vop: Supported VOP aclk dvfs, normal mode:500000000, reset mode:594000000, advanced mode:702000000
\[ 4.123200\] rockchip-drm display-subsystem: bound 27d00000.vop (ops 0xffffffc00961d230)
\[ 4.124300\] dwhdmi-rockchip 27da0000.hdmi: registered ddc I2C bus driver
\[ 4.125021\] rockchip-drm display-subsystem: bound 27da0000.hdmi (ops 0xffffffc009636298)
\[ 4.125104\] rockchip-drm display-subsystem: bound 27d80000.dsi (ops 0xffffffc009639288)
\[ 4.125444\] rockchip-drm display-subsystem: bound 27e40000.dp (ops 0xffffffc0096398e0)
\[ 4.126677\] dw-hdmi-qp-hdcp dw-hdmi-qp-hdcp.7.auto: dw_hdcp_qp_hdcp_probe success
\[ 4.127118\] \[drm\] Initialized rockchip 4.0.0 20140818 for display-subsystem on minor 0
\[ 4.150971\] mmc2: Command Queue Engine enabled
\[ 4.150993\] mmc2: new HS400 Enhanced strobe MMC card at address 0001
\[ 4.151512\] mmcblk2: mmc2:0001 A3A551 14.6 GiB
\[ 4.156769\] mmcblk2: p1 p2 p3 p4 p5 p6 p7 p8
\[ 4.157848\] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
\[ 4.158084\] mmcblk2boot0: mmc2:0001 A3A551 4.00 MiB
\[ 4.158180\] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
\[ 4.158269\] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
\[ 4.158659\] mmcblk2boot1: mmc2:0001 A3A551 4.00 MiB
\[ 4.159151\] mmcblk2rpmb: mmc2:0001 A3A551 16.0 MiB, chardev (235:0)
\[ 4.176181\] input: adc-keys as /devices/platform/adc-keys/input/input4
\[ 4.176316\] mali 27800000.gpu: Kernel DDK version g25p0-00eac0
\[ 4.176435\] mali 27800000.gpu: GPU metrics tracepoint support enabled
\[ 4.176860\] mali 27800000.gpu: bin=0
\[ 4.176957\] rockchip-dmc dmc: bin=0
\[ 4.177082\] mali 27800000.gpu: leakage=5
\[ 4.177111\] debugfs: Directory '27800000.gpu-mali' with parent 'vdd_gpu_s0' already present!
\[ 4.177244\] rockchip-dmc dmc: leakage=12
\[ 4.177258\] rockchip-dmc dmc: leakage-volt-sel=1
\[ 4.178863\] mali 27800000.gpu: pvtm=776
\[ 4.179417\] mali 27800000.gpu: pvtm-volt-sel=4
\[ 4.179462\] debugfs: Directory '27800000.gpu-mali' with parent 'vdd_gpu_s0' already present!
\[ 4.179508\] rockchip-dmc dmc: avs=0
\[ 4.179525\] rockchip-dmc dmc: current ATF version 0x100
\[ 4.179622\] rockchip-dmc dmc: normal_rate = 1560000000
Begin: Will now check root file system ... fsck from util-linux 2.36.1-4309-dirty
\[ 4.179632\] rockchip-dmc dmc: reboot_rate = 2112000000
\[ 4.179639\] rockchip-dmc dmc: suspend_rate = 528000000
\[ 4.179646\] rockchip-dmc dmc: video_4k_rate = 1560000000
\[/sbin/fsck.ext4 (1) -- /dev/mmcblk2p6\] fsck.ext4 -y -C0 /dev/mmcblk2p6
\[ 4.179653\] rockchip-dmc dmc: video_4k_10b_rate = 1560000000
e2fsck 1.47.0 (5-Feb-2023)
\[ 4.179660\] rockchip-dmc dmc: video_svep_rate = 1560000000
/dev/mmcblk2p6: clean, 137436/228032 files, 857993/911872 blocks
\[ 4.179666\] rockchip-dmc dmc: boost_rate = 2112000000
done.
\[ 4.179674\] rockchip-dmc dmc: fixed_rate(isp\|cif0\|cif1\|dualview) = 2112000000
done.
\[ 4.179680\] rockchip-dmc dmc: performance_rate = 2112000000
Begin: Running /scripts/local-bottom ... done.
\[ 4.179687\] rockchip-dmc dmc: hdmirx_rate = 2112000000
Begin: Running /scripts/init-bottom ... e2fsck 1.47.0 (5-Feb-2023)
\[ 4.179694\] rockchip-dmc dmc: deep_suspend_rate = 2112000000
userdata: clean, 14/1104 files, 146/1102 blocks
\[ 4.179706\] rockchip-dmc dmc: failed to get vop pn to msch rl
tune2fs 1.42.12 (29-Aug-2014)
\[ 4.180086\] rockchip-dmc dmc: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
Creating journal inode:
\[ 4.180114\] debugfs: Directory 'vdd_logic_s0' with parent 'vdd_logic_s0' already present!
Filesystem too small for a journal
\[ 4.180286\] mali 27800000.gpu: avs=0
\[ 4.180315\] W : \[File\] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; \[Line\] : 144; \[Func\] : kbase_platform_rk_init(); power-off-delay-ms not available.
tune2fs: Journal must be at least 1024 blocks
\[ 4.181267\] mali 27800000.gpu: Register LUT 00070200 initialized for GPU arch 0x00070400
while trying to create journal file
\[ 4.181289\] mali 27800000.gpu: GPU identified as 0x2 arch 7.4.0 r1p0 status 0
e2fsck 1.47.0 (5-Feb-2023)
\[ 4.181403\] mali 27800000.gpu: No priority control manager is configured
oem: clean, 18/4592 files, 4305/4591 blocks
\[ 4.181411\] mali 27800000.gpu: Large page allocation set to false after hardware feature check
tune2fs 1.42.12 (29-Aug-2014)
\[ 4.181703\] mali 27800000.gpu: No memory group manager is configured
\[ 4.182552\] mali 27800000.gpu: EM: created perf domain
\[ 4.182831\] mali 27800000.gpu: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
\[ 4.183995\] mali 27800000.gpu: \* MALI kbase_mmap_min_addr compiled to CONFIG_DEFAULT_MMAP_MIN_ADDR, no runtime update possible! \*
\[ 4.184007\] mali 27800000.gpu: Probed as mali0
\[ 4.195206\] \[dhd\] _dhd_module_init: in Dongle Host Driver, version 101.10.591.52.27 (20240409-1)(20240411-2)(d83d8d7)
\[ 4.195206\] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd compiled on Apr 25 2025 at 12:53:52
Warning: overlayroot: configuring overlayroot with driver=overlay mode=device opts='dev=PARTLABEL=userdata,fstype=ext4,mkfs=1' per kernel cmdline
\[ 4.195206
4.195246\] \[dhd\] STATIC-MSG) dhd_static_buf_init : 101.10.361.36 (wlan=r892223-20231107-1)
\[ 4.195304\] \[dhd\] STATIC-MSG) dhd_init_wlan_mem : prealloc ok for index 0: 1102848(1077K)
\[ 4.195317\] \[WLAN_RFKILL\]: rockchip_wifi_get_oob_irq: Enter
\[ 4.195366\] \[dhd\] dhd_wlan_init_gpio: WL_HOST_WAKE=-1, oob_irq=112, oob_irq_flags=0x4
Success: overlayroot: configured root with 'device:dev=PARTLABEL=userdata,fstype=ext4,mkfs=1' using overlay per kernel cmdline
\[ 4.195376\] \[dhd\] dhd_wlan_init_gpio: WL_REG_ON=-1
\[ 4.195383\] \[dhd\] dhd_wifi_platform_load: Enter
\[ 4.195391\] \[dhd\] Power-up adapter 'DHD generic adapter'
\[ 4.195419\] \[dhd\] wifi_platform_set_power = 1, delay: 200 msec
\[ 4.195428\] \[dhd\] ======== PULL WL_REG_ON(-1) HIGH! ========
done.
\[ 4.195435\] \[WLAN_RFKILL\]: rockchip_wifi_power: 1
\[ 4.195444\] \[WLAN_RFKILL\]: rockchip_wifi_power: toggle = false
\[ 4.195451\] \[WLAN_RFKILL\]: wifi turn on power \[GPIO-1-0
4.195716\] rkcif rkcif-mipi-lvds: clear unready subdev num: 1
\[ 4.196297\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.196316\] rkcif-mipi-lvds: Async subdev notifier completed
\[ 4.196331\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.196338\] rkcif-mipi-lvds: There is not terminal subdev, not synchronized with ISP
\[ 4.196349\] rkcif rkcif-mipi-lvds1: clear unready subdev num: 1
\[ 4.196768\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.196786\] rkcif-mipi-lvds1: Async subdev notifier completed
\[ 4.196800\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.196807\] rkcif-mipi-lvds1: There is not terminal subdev, not synchronized with ISP
\[ 4.196854\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.196863\] rkcif-mipi-lvds1: There is not terminal subdev, not synchronized with ISP
\[ 4.196896\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.196905\] rkcif-mipi-lvds: There is not terminal subdev, not synchronized with ISP
\[ 4.197800\] RKNPU 27700000.npu: Adding to iommu group 0
\[ 4.198003\] RKNPU 27700000.npu: RKNPU: rknpu iommu is enabled, using iommu mode
\[ 4.198278\] RKNPU 27700000.npu: can't request region for resource \[mem 0x27700000-0x27707fff
4.198314\] RKNPU 27700000.npu: can't request region for resource \[mem 0x27708000-0x2770ffff
4.198670\] \[drm\] Initialized rknpu 0.9.8 20240828 for 27700000.npu on minor 1
\[ 4.200557\] RKNPU 27700000.npu: bin=0
\[ 4.200794\] RKNPU 27700000.npu: leakage=4
\[ 4.200823\] debugfs: Directory '27700000.npu-rknpu' with parent 'vdd_npu_s0' already present!
\[ 4.201072\] vendor storage:20190527 ret = 0
\[ 4.202573\] RKNPU 27700000.npu: pvtm=817
\[ 4.203063\] RKNPU 27700000.npu: pvtm-volt-sel=5
\[ 4.203112\] debugfs: Directory '27700000.npu-rknpu' with parent 'vdd_npu_s0' already present!
\[ 4.203933\] RKNPU 27700000.npu: avs=0
Welcome to Ubuntu 22.04.5 LTS!
\[ 4.204141\] RKNPU 27700000.npu: EM: created perf domain
\[ 4.204382\] RKNPU 27700000.npu: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
\[ 4.206340\] RKNPU 27700000.npu: RKNPU: nbuf region: \[0x000000003fe80000, 0x000000003ff80000), nbuf size: 0x100000
\[ 4.207821\] cfg80211: Loading compiled-in X.509 certificates for regulatory database
\[ 4.213190\] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
\[ 4.213585\] cfg80211: Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
\[ 4.213647\] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
\[ 4.213659\] cfg80211: failed to load regulatory.db
\[ 4.214579\] rockchip-pm rockchip-suspend: not set pwm-regulator-config
\[ 4.215228\] rockchip-suspend not set sleep-mode-config for mem-lite
\[ 4.215272\] rockchip-suspend not set wakeup-config for mem-lite
\[ 4.215280\] rockchip-suspend not set sleep-mode-config for mem-ultra
\[ 4.215286\] rockchip-suspend not set wakeup-config for mem-ultra
\[ 4.216119\] I : \[File\] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; \[Line\] : 407; \[Func\] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '12:53:54', on 'Apr 25 2025'.
\[ 4.216376\] Mali:
\[ 4.216378\] Mali device driver loaded
\[ 4.216482\] rkisp rkisp-vir0: clear unready subdev num: 1
\[ 4.216727\] rkisp-vir0: Async subdev notifier completed
\[ 4.216745\] rkisp rkisp-vir1: clear unready subdev num: 1
\[ 4.216853\] rkisp-vir1: Async subdev notifier completed
\[ 4.216865\] ALSA device list:
\[ 4.216870\] #0: rockchip-es8388
\[ 4.231467\] mmc_host mmc0: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)
\[ 4.248362\] Freeing unused kernel memory: 7744K
\[ 4.248444\] Run /init as init process
\[ 4.328226\] mmc_host mmc0: Bus speed (slot 0) = 50000000Hz (slot req 50000000Hz, actual 50000000HZ div = 0)
\[ 4.333070\] mmc0: new high speed SDIO card at address 0001
\[ 4.333790\] \[dhd\] dummy_probe: func-\>num=0x1;
\[ 4.333811\] \[dhd\] dummy_probe: class=0xff; vendor=0x2d0; device=0xffff
\[ 4.334035\] \[dhd\] dummy_probe: func-\>num=0x2;
\[ 4.334046\] \[dhd\] dummy_probe: class=0xff; vendor=0x2d0; device=0xffff
\[ 4.334204\] \[dhd\] dummy_probe: func-\>num=0x3;
\[ 4.334215\] \[dhd\] dummy_probe: class=0xff; vendor=0x2d0; device=0xffff
\[ 4.407247\] \[dhd\] wifi_platform_set_power = 1, sleep done: 200 msec
\[ 4.407276\] \[dhd\] wifi_platform_bus_enumerate device present 1
\[ 4.407283\] \[dhd\] ======== Card detection to detect SDIO card! ========
\[ 4.423951\] \[dhd\] bcmsdh_register: register client driver
\[ 4.424192\] \[dhd\] bcmsdh_sdmmc_probe: Enter num=1
\[ 4.424306\] \[dhd\] bcmsdh_sdmmc_probe: Enter num=2
\[ 4.424317\] \[dhd\] bus num (host idx)=0, slot num (rca)=1, caps=0x40000105
\[ 4.424327\] \[dhd\] found adapter info 'DHD generic adapter'
\[ 4.424340\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 3, size 139264
\[ 4.424394\] \[dhd\] succeed to alloc static buf
\[ 4.424402\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 4, size 0
\[ 4.424475\] \[dhd\] sdioh_attach: set sd_f2_blocksize 256
\[ 4.424526\] \[dhd\] sdioh_attach: sd clock rate = 50000000
\[ 4.425097\] \[dhd\] dhdsdio_probe : no mutex held
\[ 4.425108\] \[dhd\] dhdsdio_probe : set mutex lock
\[ 4.425274\] \[dhd\] F1 signature read @0x18000000=0x15294345
\[ 4.428958\] \[dhd\] F1 signature OK, socitype:0x1 chip:0x4345 rev:0x9 pkg:0x2
\[ 4.429625\] \[dhd\] DHD: dongle ram size is set to 819200(orig 819200) at 0x198000
\[ 4.429689\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 7, size 42288
\[ 4.429733\] \[dhd\] dhd_conf_set_chiprev : devid=0xa9bf, chip=0x4345, chiprev=9
\[ 4.429788\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 0, size 10320
\[ 4.429835\] \[dhd\] dhd_ioctl_entry_local invalid parameter net 0000000000000000 dev_priv 000000008dcaa30d
\[ 4.429850\] \[dhd\] CFG80211-ERROR) wl_is_fils_supported : FILS NOT supported, err -22
\[ 4.430301\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 5, size 65536
\[ 4.430925\] \[dhd\] CFG80211-ERROR) wl_is_fils_supported : FILS NOT supported, err -19
\[ 4.431125\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 19, size 65688
\[ 4.431425\] \[dhd\] dhd_attach(): thread:dhd_watchdog_thread:136 started
\[ 4.431721\] \[dhd\] dhd_attach(): thread:dhd_dpc:137 started
\[ 4.431896\] \[dhd\] dhd_attach(): thread:dhd_rxf:138 started
\[ 4.431912\] \[dhd\] dhd_deferred_work_init: work queue initialized
\[ 4.431920\] \[dhd\] dhd_tcpack_suppress_set: TCP ACK Suppress mode 0 -\> mode 2
\[ 4.431928\] \[dhd\] dhd_tcpack_suppress_set: TCPACK_INFO_MAXNUM=40, TCPDATA_INFO_MAXNUM=40
\[ 4.432069\] \[dhd\] sdioh_cis_read: func_cis_ptr\[0\]=0x10ac
\[ 4.442666\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 1, size 10300
\[ 4.442709\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 2, size 65536
\[ 4.442780\] \[dhd\] dhdsdio_probe_init: making DHD_BUS_DOWN
\[ 4.442944\] \[dhd\] Dongle Host Driver, version 101.10.591.52.27 (20240409-1)(20240411-2)(d83d8d7)
\[ 4.442944\] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd compiled on Apr 25 2025 at 12:53:52
\[ 4.442944
4.444397\] \[dhd\] Register interface \[wlan0\] MAC: 9c:b8:b4:36:53:1e
\[ 4.444397
4.444608\] \[dhd\] \[wlan0\] wl_android_wifi_off : g_wifi_on=1 force_off=1
\[ 4.444622\] \[dhd\] dhd_bus_devreset: == Power OFF ==
\[ 4.444829\] \[dhd\] dhd_bus_stop: making DHD_BUS_DOWN
\[ 4.444871\] \[dhd\] bcmsdh_oob_intr_unregister: Enter
\[ 4.444878\] \[dhd\] bcmsdh_oob_intr_unregister: irq is not registered
\[ 4.444893\] \[dhd\] dhd_bus_devreset: making dhdpub up FALSE
\[ 4.444901\] \[dhd\] dhd_txglom_enable: enable 0
\[ 4.444911\] \[dhd\] dhd_bus_devreset: making DHD_BUS_DOWN
\[ 4.444959\] \[dhd\] wifi_platform_set_power = 0, delay: 10 msec
\[ 4.444969\] \[dhd\] ======== PULL WL_REG_ON(-1) LOW! ========
\[ 4.444978\] \[WLAN_RFKILL\]: rockchip_wifi_power: 0
\[ OK \] Created slice Slice /system/modprobe.
\[ 4.444987\] \[WLAN_RFKILL\]: rockchip_wifi_power: toggle = false
\[ OK \] Created slice Slice /system/serial-getty.
\[ 4.444996\] \[WLAN_RFKILL\]: rockchip_wifi_power: toggle = false
\[ OK \] Created slice Slice /system/systemd-fsck.
\[ 4.445003\] \[WLAN_RFKILL\]: wifi shut off power \[GPIO-1-1
OK \] Created slice User and Session Slice.
\[ 4.455280\] \[dhd\] wifi_platform_set_power = 0, sleep done: 10 msec
\[ OK \] Started Forward Password R...uests to Wall Directory Watch.
\[ 4.455334\] \[dhd\] \[wlan0\] wl_android_wifi_off : out
\[ OK \] Reached target User and Group Name Lookups.
\[ 4.455349\] \[dhd\] wl_android_post_init: 0
\[ OK \] Reached target Slice Units.
\[ 4.455358\] \[dhd\] dhdsdio_probe : mutex is released.
\[ OK \] Reached target Mounting snaps.
\[ 4.455769\] \[dhd\] bcmsdh_sdmmc_probe: Enter num=3
\[ OK \] Reached target Mounted snaps.
\[ 4.456048\] \[dhd\] _dhd_module_init: Exit err=0
\[ OK \] Reached target Swaps.
\[ 6.119443\] rk-pcie 2a200000.pcie: PCIe Link Fail, LTSSM is 0x3, hw_retries=0
\[ OK \] Reached target Local Verity Protected Volumes.
\[ 6.167181\] EXT4-fs (mmcblk2p6): mounted filesystem with ordered data mode. Quota mode: disabled.
\[ OK \] Listening on RPCbind Server Activation Socket.
\[ 6.395799\] EXT4-fs (mmcblk2p8): mounted filesystem without journal. Quota mode: disabled.
\[ OK \] Listening on Syslog Socket.
\[ 6.653301\] systemd\[1\]: systemd 249.11-0ubuntu3.15 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +SMACK +SECCOMP +GCRYPT +GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBFDISK +PCRE2 -PWQUALITY -P11KIT -QRENCODE +BZIP2 +LZ4 +XZ +ZLIB +ZSTD -XKBCOMMON +UTMP +SYSVINIT default-hierarchy=unified)
\[ OK \] Listening on fsck to fsckd communication Socket.
\[ 6.654913\] systemd\[1\]: Detected architecture arm64.
\[ OK \] Listening on initctl Compatibility Named Pipe.
\[ 6.658812\] systemd\[1\]: Hostname set to \.
\[ OK \] Listening on Journal Socket (/dev/log).
\[ 6.840556\] systemd\[1\]: Configuration file /lib/systemd/system/usbdevice.service is marked executable. Please remove executable permission bits. Proceeding anyway.
\[ OK \] Listening on Journal Socket.
\[ 6.920775\] systemd\[1\]: Configuration file /run/systemd/system/netplan-ovs-cleanup.service is marked world-inaccessible. This has no effect as configuration data is accessible via APIs without restrictions. Proceeding anyway.
\[ OK \] Listening on udev Control Socket.
\[ 6.991839\] systemd\[1\]: /lib/systemd/system/snapd.service:23: Unknown key name 'RestartMode' in section 'Service', ignoring.
\[ OK \] Listening on udev Kernel Socket.
\[ 7.014651\] systemd\[1\]: Configuration file /lib/systemd/system/resize-userdata.service is marked executable. Please remove executable permission bits. Proceeding anyway.
Mounting /sys/kernel/config...
\[ 7.129069\] systemd\[1\]: Configuration file /lib/systemd/system/rockchip.service is marked executable. Please remove executable permission bits. Proceeding anyway.
Mounting /sys/kernel/debug...
\[ 7.130112\] systemd\[1\]: Configuration file /lib/systemd/system/rkaiq_3A.service is marked world-writable. Please remove world writability permission bits. Proceeding anyway.
Mounting Kernel Trace File System...
\[ 7.182291\] systemd\[1\]: Queued start job for default target Graphical Interface.
Starting Journal Service...
\[ 7.182340\] systemd\[1\]: Unnecessary job was removed for /dev/mmcblk2p8.
Starting Set the console keyboard layout...
\[ 7.184540\] systemd\[1\]: Created slice Slice /system/modprobe.
Starting Load Kernel Module drm...
\[ 7.185629\] systemd\[1\]: Created slice Slice /system/serial-getty.
Starting Load Kernel Module efi_pstore...
\[ 7.186420\] systemd\[1\]: Created slice Slice /system/systemd-fsck.
Starting Load Kernel Module fuse...
\[ 7.186884\] systemd\[1\]: Created slice User and Session Slice.
Starting Enable Rockchip camera engine rkaiq...
\[ 7.187289\] systemd\[1\]: Started Forward Password Requests to Wall Directory Watch.
Starting Load Kernel Modules...
\[ 7.187689\] systemd\[1\]: Condition check resulted in Arbitrary Executable File Formats File System Automount Point being skipped.
Starting Remount Root and Kernel File Systems...
\[ 7.187969\] systemd\[1\]: Reached target User and Group Name Lookups.
Starting Coldplug All udev Devices...
\[ 7.188163\] systemd\[1\]: Reached target Slice Units.
\[ OK \] Mounted /sys/kernel/config.
\[ 7.188302\] systemd\[1\]: Reached target Mounting snaps.
\[ OK \] Mounted /sys/kernel/debug.
\[ 7.188420\] systemd\[1\]: Reached target Mounted snaps.
\[ OK \] Mounted Kernel Trace File System.
\[ 7.188567\] systemd\[1\]: Reached target Swaps.
\[ OK \] Finished Load Kernel Module drm.
\[ 7.188715\] systemd\[1\]: Reached target Local Verity Protected Volumes.
\[ OK \] Finished Load Kernel Module efi_pstore.
\[ 7.189376\] systemd\[1\]: Listening on RPCbind Server Activation Socket.
\[ OK \] Finished Load Kernel Module fuse.
\[ 7.189819\] systemd\[1\]: Listening on Syslog Socket.
\[ OK \] Started Enable Rockchip camera engine rkaiq.
\[ 7.190204\] systemd\[1\]: Listening on fsck to fsckd communication Socket.
\[ OK \] Finished Load Kernel Modules.
\[ 7.190457\] systemd\[1\]: Listening on initctl Compatibility Named Pipe.
Mounting FUSE Control File System...
\[ 7.205875\] systemd\[1\]: Condition check resulted in Journal Audit Socket being skipped.
Starting Apply Kernel Variables...
\[ 7.206359\] systemd\[1\]: Listening on Journal Socket (/dev/log).
\[ OK \] Mounted FUSE Control File System.
\[ 7.206950\] systemd\[1\]: Listening on Journal Socket.
\[ OK \] Finished Remount Root and Kernel File Systems.
\[ 7.207603\] systemd\[1\]: Listening on udev Control Socket.
Starting Platform Persistent Storage Archival...
\[ 7.208052\] systemd\[1\]: Listening on udev Kernel Socket.
Starting Load/Save Random Seed...
\[ 7.208516\] systemd\[1\]: Condition check resulted in Huge Pages File System being skipped.
Starting Create System Users...
\[ 7.208744\] systemd\[1\]: Condition check resulted in POSIX Message Queue File System being skipped.
\[ OK \] Finished Apply Kernel Variables.
\[ 7.211031\] systemd\[1\]: Mounting /sys/kernel/config...
\[ OK \] Finished Platform Persistent Storage Archival.
\[ 7.213856\] systemd\[1\]: Mounting /sys/kernel/debug...
\[ OK \] Finished Load/Save Random Seed.
\[ 7.217534\] systemd\[1\]: Mounting Kernel Trace File System...
\[ OK \] Finished Create System Users.
\[ 7.219208\] systemd\[1\]: systemd-journald.service: unit configures an IP firewall, but the local system does not support BPF/cgroup firewalling.
Starting Create Static Device Nodes in /dev...
\[ 7.219274\] systemd\[1\]: (This warning is only shown for the first unit using IP firewalling.)
\[ OK \] Finished Create Static Device Nodes in /dev.
\[ 7.222102\] systemd\[1\]: Starting Journal Service...
Starting Rule-based Manage...for Device Events and Files...
\[ 7.222906\] systemd\[1\]: Condition check resulted in Kernel Module supporting RPCSEC_GSS being skipped.
\[ 7.226134\] systemd\[1\]: Starting Set the console keyboard layout...
\[ 7.226536\] systemd\[1\]: Condition check resulted in Create List of Static Device Nodes being skipped.
\[ 7.230206\] systemd\[1\]: Starting Load Kernel Module drm...
\[ 7.234492\] systemd\[1\]: Starting Load Kernel Module efi_pstore...
\[ 7.239163\] systemd\[1\]: Starting Load Kernel Module fuse...
\[ 7.242885\] systemd\[1\]: Starting Enable Rockchip camera engine rkaiq...
\[ 7.249666\] systemd\[1\]: Starting Load Kernel Modules...
\[ 7.254035\] systemd\[1\]: Starting Remount Root and Kernel File Systems...
\[ 7.260367\] systemd\[1\]: Starting Coldplug All udev Devices...
\[ 7.268583\] systemd\[1\]: Mounted /sys/kernel/config.
\[ 7.269880\] systemd\[1\]: Mounted /sys/kernel/debug.
\[ 7.270649\] systemd\[1\]: Mounted Kernel Trace File System.
\[ 7.272011\] systemd\[1\]: modprobe@drm.service: Deactivated successfully.
\[ 7.272576\] systemd\[1\]: Finished Load Kernel Module drm.
\[ 7.287583\] systemd\[1\]: modprobe@efi_pstore.service: Deactivated successfully.
\[ 7.287980\] systemd\[1\]: Finished Load Kernel Module efi_pstore.
\[ 7.288898\] systemd\[1\]: modprobe@fuse.service: Deactivated successfully.
\[ 7.289300\] systemd\[1\]: Finished Load Kernel Module fuse.
\[ 7.290150\] systemd\[1\]: Started Enable Rockchip camera engine rkaiq.
\[ 7.292372\] systemd\[1\]: Finished Load Kernel Modules.
\[ 7.295824\] systemd\[1\]: Mounting FUSE Control File System...
\[ 7.301480\] systemd\[1\]: Starting Apply Kernel Variables...
\[ 7.306142\] systemd\[1\]: Mounted FUSE Control File System.
\[ 7.317058\] systemd\[1\]: Finished Remount Root and Kernel File Systems.
\[ 7.318805\] systemd\[1\]: Starting Platform Persistent Storage Archival...
\[ 7.320529\] systemd\[1\]: Starting Load/Save Random Seed...
\[ 7.322337\] systemd\[1\]: Starting Create System Users...
\[ 7.811387\] \[dhd\] dhd_reboot_callback: code = 1
\[ 7.811400\] \[dhd\] dhd_module_cleanup: Enter
\[ 7.811446\] \[dhd\] sdioh_remove: Enter
\[ 7.811650\] \[dhd\] dhdsdio_disconnect : no mutex held
\[ 7.811658\] \[dhd\] dhdsdio_disconnect : set mutex lock
\[ 7.811666\] \[dhd\] dhd_detach: making dhdpub up FALSE
\[ 7.811672\] \[dhd\] bcmsdh_oob_intr_unregister: Enter
\[ 7.811677\] \[dhd\] bcmsdh_oob_intr_unregister: irq is not registered
\[ 7.811683\] \[dhd\] dhd_wlfc_deinit():3903, Already disabled!
\[ 7.843628\] \[dhd\] dhd_detach(): thread:dhd_watchdog_thread:136 wait for terminate
\[ 7.843646\] \[dhd\] dhd_detach(): thread:dhd_watchdog_thread:136 terminated OK
\[ 7.843670\] \[dhd\] dhd_detach(): thread:dhd_rxf:138 wait for terminate
\[ 7.843744\] \[dhd\] dhd_detach(): thread:dhd_rxf:138 terminated OK
\[ 7.843758\] \[dhd\] dhd_detach(): thread:dhd_dpc:137 wait for terminate
\[ 7.843829\] \[dhd\] dhd_dpc_thread: Unexpected up_cnt 0
\[ 7.843909\] \[dhd\] dhd_detach(): thread:dhd_dpc:137 terminated OK
\[ 7.844145\] \[dhd\] dhd_tcpack_suppress_set: TCP ACK Suppress mode 2 -\> mode 0
\[ 7.844155\] \[dhd\] dhd_tcpack_suppress_set: TCPACK_INFO_MAXNUM=40, TCPDATA_INFO_MAXNUM=40
\[ 7.844200\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 7, size 0
\[ 7.844214\] \[dhd\] dhdsdio_disconnect : mutex is released.
\[ 7.844788\] \[dhd\] unregister wifi platform drivers
\[ 7.844798\] \[dhd\] wifi_platform_bus_enumerate device present 0
\[ 7.844807\] \[dhd\] ======== Card detection to remove SDIO card! ========
\[ 7.844815\] \[dhd\] STATIC-MSG) dhd_static_buf_exit : Enter
\[ 7.844851\] \[dhd\] dhd_module_cleanup: Exit
\[ 7.916184\] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
\[ 8.248282\] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
\[ 8.319293\] rk_pcie_establish_link: 124 callbacks suppressed
\[ 8.602038\] reboot: Restarting system
DDR 584efc13bf wesley.yao 24/09/26-09:28:42,fwver: v1.07
In
ch0 ttot10
ch1 ttot10
ch0 ttot16
LPDDR4X, 2112MHz
channel\[0\] BW=16 Col=10 Bk=8 CS0 Row=16 CS=1 Die BW=16 Size=1024MB
ch1 ttot16
channel\[1\] BW=16 Col=10 Bk=8 CS0 Row=16 CS=1 Die BW=16 Size=1024MB
Manufacturer ID:0x13
CH0 RX Vref:26.9%, RX DQS Vref:30.8%, TX Vref:22.8%,0.0%
DQ roc:
p6 n0, p0 n2, p0 n2, p0 n2, p2 n0, p6 n2, p3 n0, p2 n0, p1 n0,
p2 n1, p5 n1, p1 n1, p0 n0, p2 n0, p0 n3, p2 n0, p2 n4, p6 n0,
DQ rds:h1 l0 l0 l0 l0 l0 h1 l0, l0 l0 l0 l0 l0 l0 l0 l0
DQS roc: p2, n0, p2, n0
CH1 RX Vref:24.1%, RX DQS Vref:29.2%, TX Vref:24.8%,0.0%
DQ roc:
p1 n0, p5 n0, p1 n0, p0 n1, p7 n1, p7 n1, p1 n0, p1 n1, p0 n0,
p0 n5, p6 n0, p0 n0, p0 n3, p7 n0, p6 n0, p0 n0, p5 n1, p0 n1,
DQ rds:l0 l0 l0 l0 l0 l0 l0 l0, h1 l0 h1 h1 l0 l0 l0 l0
DQS roc: p2, n0, p2, n0
stride=0x3, ddr_config=0x0
hash bank_mask0-3 0x0 0x880 0x1100 0x2200, rank_mask0 0x0
change to F1: 528MHz
ch0 ttot10
ch1 ttot10
change to F2: 1068MHz
ch0 ttot12
ch1 ttot12
change to F3: 1560MHz
ch0 ttot14
ch1 ttot14
change to F0: 2112MHz
ch0 ttot16
ch1 ttot16
out
U-Boot SPL board init
U-Boot SPL 2017.09-gdd7bc40861-240923 #vanxoak (Apr 25 2025 - 12:25:48)
sfc cmd=00H(6BH-x4)
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC error: The cmd index is 13, ret is -110
MMC error: The cmd index is 13, ret is -110
MMC error: The cmd index is 13, ret is -110
MMC error: The cmd index is 13, ret is -110
mmc_init: -110, time 61
spl: mmc init failed with error: -110
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x40040000 ... sha256(b0289677a4...) + OK
## Checking uboot 0x40200000 ... sha256(bc786bbd69...) + OK
## Checking fdt 0x4034a190 ... sha256(bc34a07574...) + OK
## Checking atf-2 0x400f0000 ... sha256(d483c14eed...) + OK
## Checking atf-3 0x3fe70000 ... sha256(1a47edbdd7...) + OK
## Checking optee 0x48400000 ... sha256(3854141a68...) + OK
Jumping to U-Boot(0x40200000) via ARM Trusted Firmware(0x40040000)
Total: 219.948/394.371 ms
INFO: Preloader serial: 0
NOTICE: BL31: v2.3():v2.3-837-g5ed489867:derrick.huang, fwver: v1.11
NOTICE: BL31: Built : 16:57:37, Sep 14 2024
INFO: ext 32k is not detected
INFO: cost 426806 us before hptimer restart
INFO: soc warm boot, reset status: 0x1
INFO: ARM GICv2 driver initialized
INFO: bypass memory repair
INFO: dfs DDR fsp_params\[0\].freq_mhz= 2112MHz
INFO: dfs DDR fsp_params\[1\].freq_mhz= 528MHz
INFO: dfs DDR fsp_params\[2\].freq_mhz= 1068MHz
INFO: dfs DDR fsp_params\[3\].freq_mhz= 1560MHz
INFO: Using opteed sec cpu_context!
INFO: boot cpu mask: 1
INFO: BL31: Initializing runtime services
INFO: BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-860-g6c78a7d8c #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #2 Mon Sep 2 11:19:55 CST 2024 aarch64, fwver: v1.04
I/TC: OP-TEE memory: TEEOS 0x200000 TA 0xc00000 SHM 0x200000
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0x40200000
INFO: SPSR = 0x3c9
U-Boot 2017.09-gdd7bc40861-240923 #vanxoak (Apr 25 2025 - 12:25:48 +0800)
Model: Rockchip RK3576 Evaluation board
MPIDR: 0x0
PreSerial: 0, raw, 0x2ad40000
DRAM: 2 GiB
Sysmem: init
Relocation Offset: 7da13000
Relocation fdt: bb9f9e70 - bb9fece0
CR: M/C/I
Using default environment
optee api revision: 2.0
mmc@2a310000: 1, mmc@2a330000: 0
Bootdev(atags): mmc 0
MMC0: HS400 Enhanced Strobe, 200Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v2
boot mode: normal
RESC: 'boot', blk@0x00021484
lib/avb/libavb_user/avb_ops_user.c: trusty_read_lock_state failed
Error determining whether device is unlocked.
Device is: UNLOCKED
DTB: rk-kernel.dtb
HASH(ce): OK
dw_dp_bind zyb enter
I2c1 speed: 100000Hz
PMIC: RK8060 (on=0x40, off=0x00)
vdd_cpu_big_s0 init 850000 uV
vdd_npu_s0 750000 uV
vdd_cpu_lit_s0 init 850000 uV
vdd_gpu_s0 init 750000 uV
vdd_logic_s0 init 750000 uV
vdd_ddr_s0 850000 uV
Could not find baseparameter partition
Model: HD-RK3576-PI Board
\*\* File not found logo/logo.bmp \*\*
Rockchip UBOOT DRM driver version: v1.0.1
Assign plane mask automatically
VOP have 3 active VP
vp0 have layer nr:1\[2 \], primary plane: 2
vp1 have layer nr:1\[3 \], primary plane: 3
vp2 have layer nr:1\[8 \], primary plane: 8
Monitor has basic audio support
Could not find baseparameter partition
color_format:1
hdmi_select_link_config use tmds mode
mode:1920x1080 bus_format:0x2025
hdmi@27da0000: detailed mode clock 148500 kHz, flags\[5
H: 1920 2008 2052 2200
V: 1080 1084 1089 1125
bus_format: 2025
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
disp_info is empty
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
VP0 set crtc_clock to 1485KHz
VOP VP0 enable Esmart0[535x147->535x147@692x466] fmt[0] addr[0xbdf00000]
CEA mode used vic=16
mtmdsclock:148500000
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
dw_hdmi_setup HDMI mode
don't use dsc mode
dw hdmi qp use tmds mode
bus_width:0x16a8c8,bit_rate:1485000
hdptx phy lane locked!
CLK: (uboot. arm: enter 1008000 KHz, init 1008000 KHz, kernel 0N/A)
bpll 816000 KHz
lpll 816000 KHz
vpll 594000 KHz
aupll 786432 KHz
cpll 1000000 KHz
gpll 1188000 KHz
ppll 1300000 KHz
aclk_bus_root 396000 KHz
pclk_bus_root 100000 KHz
hclk_bus_root 198000 KHz
aclk_top 786432 KHz
aclk_top_mid 396000 KHz
pclk_top 100000 KHz
hclk_top 200000 KHz
Net: eth0: ethernet@2a220000
Hit key to stop autoboot('CTRL+C'): 0
ANDROID: reboot reason: "(none)"
Not AVB images, AVB skip
ANDROID: sha1(bd675f0001...) + OK
Booting IMAGE kernel at 0x40400000 with fdt at 0x48300000...
Fdt Ramdisk skip relocation
Booting Android Image at 0x403ff800 ...
Kernel: 0x40400000 - 0x42be3a00 (40847 KiB)
ramdisk: 0x4a200000 - 0x4acabbc8 (10927 KiB)
Flattened Device Tree blob at 0x48300000
Booting using the fdt blob at 0x48300000
XIP Kernel Image from 0x40400000 to 0x40400000 ... OK
kernel loaded at 0x40400000, end = 0x42be3a00
Using Device Tree in place at 0000000048300000, end 0000000048344eb1
scanning bus for devices...
ufshcd_link_startup: Device not present
link startup failed -6
ufshcd_pltfrm_init() failed -6
FDT: UFS was not detected, disabling UFS.
** File not found logo/logo_kernel.bmp **
vp0, plane_mask:0x4, primary-id:2, curser-id:-1
vp1, plane_mask:0x8, primary-id:3, curser-id:-1
vp2, plane_mask:0x100, primary-id:8, curser-id:-1
reserved-memory:
drm-logo@0: addr=bdf00000 size=9a000
ramoops@40110000: addr=40110000 size=e0000
Adding bank: 0x40200000 - 0x48400000 (size: 0x08200000)
Adding bank: 0x49400000 - 0xc0000000 (size: 0x76c00000)
Total: 47361.448/52288.800 ms
Starting kernel ...
1.265905\] Booting Linux on physical CPU 0x0000000000 \[0x410fd034
1.265929\] Linux version 6.1.84 (vanxoak@fb9e42e3417d) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #52 SMP Fri Apr 25 12:55:18 CST 2025
\[ 1.268756\] random: crng init done
\[ 1.273334\] Machine model: HD-RK3576-PI Board
\[ 1.286171\] earlycon: uart8250 at MMIO32 0x000000002ad40000 (options '')
\[ 1.338446\] printk: bootconsole \[uart8250\] enabled
\[ 1.346069\] efi: UEFI not found.
\[ 1.351900\] OF: fdt: Reserved memory: failed to reserve memory for node 'drm-cubic-lut@0': base 0x0000000000000000, size 0 MiB
\[ 1.415622\] Zone ranges:
\[ 1.418405\] DMA \[mem 0x0000000040200000-0x00000000bfffffff
1.425185\] DMA32 empty
\[ 1.428336\] Normal empty
\[ 1.431487\] Movable zone start for each node
\[ 1.436162\] Early memory node ranges
\[ 1.440073\] node 0: \[mem 0x0000000040200000-0x00000000483fffff
1.446944\] node 0: \[mem 0x0000000049400000-0x00000000bfffffff
1.453816\] Initmem setup node 0 \[mem 0x0000000040200000-0x00000000bfffffff
1.462127\] On node 0, zone DMA: 512 pages in unavailable ranges
\[ 1.470327\] On node 0, zone DMA: 4096 pages in unavailable ranges
\[ 1.476924\] cma: Reserved 16 MiB at 0x00000000be800000
\[ 1.489365\] psci: probing for conduit method from DT.
\[ 1.494904\] psci: PSCIv1.1 detected in firmware.
\[ 1.499962\] psci: Using standard PSCI v0.2 function IDs
\[ 1.505689\] psci: Trusted OS migration not required
\[ 1.511039\] psci: SMC Calling Convention v1.2
\[ 1.516130\] percpu: Embedded 26 pages/cpu s68968 r8192 d29336 u106496
\[ 1.523324\] Detected VIPT I-cache on CPU0
\[ 1.527757\] CPU features: detected: ARM erratum 845719
\[ 1.533389\] alternatives: applying boot alternatives
\[ 1.539191\] Built 1 zonelists, mobility grouping on. Total pages: 511496
\[ 1.546641\] Kernel command line: storagemedia=emmc androidboot.storagemedia=emmc androidboot.mode=normal androidboot.verifiedbootstate=orange androidboot.serialno=c8ce0e22d503cd05 ro rootwait earlycon=uart8250,mmio32,0x2ad40000 console=ttyFIQ0 root=PARTLABEL=rootfs rootfstype=ext4 overlayroot=device:dev=PARTLABEL=userdata,fstype=ext4,mkfs=1 coherent_pool=1m systemd.gpt_auto=0 cgroup_enable=memory swapaccount=1 swiotlb=0x10000 net.ifnames=0 rcupdate.rcu_expedited=1 rcu_nocbs=all androidboot.fwver=ddr-v1.07-584efc13bf,bl31-v1.11,bl32-v1.04,uboot-dd7bc40861-04/25/2025
\[ 1.602141\] Unknown kernel command line parameters "storagemedia=emmc overlayroot=device:dev=PARTLABEL=userdata,fstype=ext4,mkfs=1 cgroup_enable=memory swapaccount=1", will be passed to user space.
\[ 1.621671\] Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
\[ 1.630383\] Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes, linear)
\[ 1.638877\] mem auto-init: stack:off, heap alloc:off, heap free:off
\[ 1.666710\] Memory: 1966812K/2078720K available (21504K kernel code, 3662K rwdata, 7788K rodata, 7744K init, 694K bss, 95524K reserved, 16384K cma-reserved)
\[ 1.682177\] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1
\[ 1.689363\] ftrace: allocating 65410 entries in 256 pages
\[ 1.782655\] ftrace: allocated 256 pages with 1 groups
\[ 1.788303\] trace event string verifier disabled
\[ 1.793534\] rcu: Hierarchical RCU implementation.
\[ 1.798689\] rcu: RCU event tracing is enabled.
\[ 1.803652\] All grace periods are expedited (rcu_expedited).
\[ 1.809947\] Rude variant of Tasks RCU enabled.
\[ 1.814909\] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
\[ 1.830771\] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
\[ 1.839899\] Root IRQ handler: gic_handle_irq
\[ 1.844594\] GIC: Using split EOI/Deactivate mode
\[ 1.851096\] rcu: Offload RCU callbacks from CPUs: 0-7.
\[ 1.856847\] rcu: srcu_init: Setting srcu_struct sizes based on contention.
\[ 1.892730\] arch_timer: cp15 timer(s) running at 1000.00MHz (phys).
\[ 1.899475\] clocksource: arch_sys_counter: mask: 0x1fffffffffffffff max_cycles: 0x1cd42e4dffb, max_idle_ns: 881590591483 ns
\[ 1.911378\] sched_clock: 61 bits at 1000MHz, resolution 1ns, wraps every 4398046511103ns
\[ 1.921968\] Console: colour dummy device 80x25
\[ 1.926733\] Calibrating delay loop (skipped), value calculated using timer frequency.. 2000.00 BogoMIPS (lpj=4000000)
\[ 1.938130\] pid_max: default: 32768 minimum: 301
\[ 1.943228\] Mount-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)
\[ 1.951142\] Mountpoint-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)
\[ 1.960269\] cacheinfo: Unable to detect cache hierarchy for CPU 0
\[ 1.967171\] cblist_init_generic: Setting adjustable number of callback queues.
\[ 1.974917\] cblist_init_generic: Setting shift to 3 and lim to 1.
\[ 1.981584\] rcu: Hierarchical SRCU implementation.
\[ 1.986744\] rcu: Max phase no-delay instances is 1000.
\[ 1.994889\] EFI services will not be available.
\[ 2.000113\] smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
I/TC: Secondary CPU 4 initializing
I/TC: Secondary CPU 4 switching to normal world boot
I/TC: Secondary CPU 5 initializing
I/TC: Secondary CPU 5 switching to normal world boot
I/TC: Secondary CPU 6 initializing
I/TC: Secondary CPU 6 switching to normal world boot
I/TC: Secondary CPU 7 initializing
I/TC: Secondary CPU 7 switching to normal world boot
\[ 2.013178\] Detected VIPT I-cache on CPU1
\[ 2.013243\] cacheinfo: Unable to detect cache hierarchy for CPU 1
\[ 2.013276\] CPU1: Booted secondary processor 0x0000000001 \[0x410fd034
2.021425\] Detected VIPT I-cache on CPU2
\[ 2.021469\] cacheinfo: Unable to detect cache hierarchy for CPU 2
\[ 2.021490\] CPU2: Booted secondary processor 0x0000000002 \[0x410fd034
2.029629\] Detected VIPT I-cache on CPU3
\[ 2.029671\] cacheinfo: Unable to detect cache hierarchy for CPU 3
\[ 2.029689\] CPU3: Booted secondary processor 0x0000000003 \[0x410fd034
2.037864\] CPU features: detected: Spectre-BHB
\[ 2.037871\] CPU features: detected: ARM erratum 1742098
\[ 2.037874\] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
\[ 2.037876\] Detected PIPT I-cache on CPU4
\[ 2.037924\] cacheinfo: Unable to detect cache hierarchy for CPU 4
\[ 2.037944\] CPU4: Booted secondary processor 0x0000000100 \[0x411fd080
2.046061\] Detected PIPT I-cache on CPU5
\[ 2.046103\] cacheinfo: Unable to detect cache hierarchy for CPU 5
\[ 2.046115\] CPU5: Booted secondary processor 0x0000000101 \[0x411fd080
2.054218\] Detected PIPT I-cache on CPU6
\[ 2.054257\] cacheinfo: Unable to detect cache hierarchy for CPU 6
\[ 2.054270\] CPU6: Booted secondary processor 0x0000000102 \[0x411fd080
2.062380\] Detected PIPT I-cache on CPU7
\[ 2.062419\] cacheinfo: Unable to detect cache hierarchy for CPU 7
\[ 2.062431\] CPU7: Booted secondary processor 0x0000000103 \[0x411fd080
2.062486\] smp: Brought up 1 node, 8 CPUs
\[ 2.209803\] SMP: Total of 8 processors activated.
\[ 2.214831\] CPU features: detected: 32-bit EL0 Support
\[ 2.220353\] CPU features: detected: CRC32 instructions
\[ 2.225959\] CPU: All CPU(s) started at EL2
\[ 2.230347\] alternatives: applying system-wide alternatives
\[ 2.237760\] devtmpfs: initialized
\[ 2.258169\] Registered cp15_barrier emulation handler
\[ 2.263488\] Registered setend emulation handler
\[ 2.268331\] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
\[ 2.278548\] futex hash table entries: 2048 (order: 5, 131072 bytes, linear)
\[ 2.286169\] pinctrl core: initialized pinctrl subsystem
\[ 2.291919\] DMI not present or invalid.
\[ 2.296082\] NET: Registered PF_NETLINK/PF_ROUTE protocol family
\[ 2.303223\] DMA: preallocated 1024 KiB GFP_KERNEL pool for atomic allocations
\[ 2.310983\] DMA: preallocated 1024 KiB GFP_KERNEL\|GFP_DMA pool for atomic allocations
\[ 2.319541\] DMA: preallocated 1024 KiB GFP_KERNEL\|GFP_DMA32 pool for atomic allocations
\[ 2.329990\] Registered FIQ tty driver
\[ 2.334030\] thermal_sys: Registered thermal governor 'fair_share'
\[ 2.334034\] thermal_sys: Registered thermal governor 'step_wise'
\[ 2.340421\] thermal_sys: Registered thermal governor 'user_space'
\[ 2.346711\] thermal_sys: Registered thermal governor 'power_allocator'
\[ 2.353190\] cpuidle: using governor menu
\[ 2.364333\] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
\[ 2.371583\] ASID allocator initialised with 65536 entries
\[ 2.379465\] ramoops: dmesg-0 0x18000@0x0000000040110000
\[ 2.384963\] ramoops: dmesg-1 0x18000@0x0000000040128000
\[ 2.390472\] ramoops: console 0x80000@0x0000000040140000
\[ 2.395958\] ramoops: pmsg 0x30000@0x00000000401c0000
\[ 2.401414\] printk: console \[ramoops-1\] enabled
\[ 2.406173\] pstore: Registered ramoops as persistent store backend
\[ 2.412664\] ramoops: using 0xe0000@0x40110000, ecc: 0
\[ 2.419756\] platform csi2-dcphy0: Fixed dependency cycle(s) with /mipi0-csi2
\[ 2.427184\] platform mipi0-csi2: Fixed dependency cycle(s) with /csi2-dcphy0
\[ 2.434700\] platform csi2-dphy1: Fixed dependency cycle(s) with /mipi1-csi2
\[ 2.442028\] platform mipi1-csi2: Fixed dependency cycle(s) with /csi2-dphy1
\[ 2.449668\] platform mipi0-csi2: Fixed dependency cycle(s) with /rkcif-mipi-lvds
\[ 2.457464\] platform rkcif-mipi-lvds: Fixed dependency cycle(s) with /mipi0-csi2
\[ 2.465394\] platform mipi1-csi2: Fixed dependency cycle(s) with /rkcif-mipi-lvds1
\[ 2.473258\] platform rkcif-mipi-lvds1: Fixed dependency cycle(s) with /mipi1-csi2
\[ 2.481278\] platform rkcif-mipi-lvds-sditf: Fixed dependency cycle(s) with /rkisp-vir0
\[ 2.489617\] platform rkisp-vir0: Fixed dependency cycle(s) with /rkcif-mipi-lvds-sditf
\[ 2.498010\] platform rkcif-mipi-lvds1-sditf: Fixed dependency cycle(s) with /rkisp-vir1
\[ 2.506429\] platform rkisp-vir1: Fixed dependency cycle(s) with /rkcif-mipi-lvds1-sditf
\[ 2.515087\] platform rkisp-vir0-sditf: Fixed dependency cycle(s) with /rkvpss-vir0
\[ 2.523062\] platform rkvpss-vir0: Fixed dependency cycle(s) with /rkisp-vir0-sditf
\[ 2.531100\] platform rkisp-vir1-sditf: Fixed dependency cycle(s) with /rkvpss-vir1
\[ 2.539063\] platform rkvpss-vir1: Fixed dependency cycle(s) with /rkisp-vir1-sditf
\[ 2.556628\] platform 27d00000.vop: Fixed dependency cycle(s) with /dsi@27d80000
\[ 2.564342\] platform 27d80000.dsi: Fixed dependency cycle(s) with /dsi@27d80000/dsi-panel@0
\[ 2.573107\] platform 27d80000.dsi: Fixed dependency cycle(s) with /vop@27d00000
\[ 2.581190\] platform 27d00000.vop: Fixed dependency cycle(s) with /hdmi@27da0000
\[ 2.589303\] platform 27da0000.hdmi: Fixed dependency cycle(s) with /vop@27d00000
\[ 2.597281\] platform 27e40000.dp: Fixed dependency cycle(s) with /vop@27d00000
\[ 2.625375\] rockchip-gpio 27320000.gpio: probed /pinctrl/gpio@27320000
\[ 2.632496\] rockchip-gpio 2ae10000.gpio: probed /pinctrl/gpio@2ae10000
\[ 2.639616\] rockchip-gpio 2ae20000.gpio: probed /pinctrl/gpio@2ae20000
\[ 2.646709\] rockchip-gpio 2ae30000.gpio: probed /pinctrl/gpio@2ae30000
\[ 2.653883\] rockchip-gpio 2ae40000.gpio: probed /pinctrl/gpio@2ae40000
\[ 2.660863\] rockchip-pinctrl pinctrl: probed pinctrl
\[ 2.669204\] OF: /sdio-pwrseq: could not get #clock-cells for /i2c@2ac40000/pmic@23
\[ 2.685221\] fiq_debugger fiq_debugger.0: error -ENXIO: IRQ fiq not found
\[ 2.692274\] fiq_debugger fiq_debugger.0: error -ENXIO: IRQ wakeup not found
\[ 2.699567\] fiq_debugger_probe: could not install nmi irq handler
\[\[ 2.706010\] printk: console \[ttyFIQ0\] enabled
2.706010\] printk: console \[ttyFIQ0\] enabled
\[ 2.714917\] printk: bootconsole \[uart8250\] disabled
\[ 2.714917\] printk: bootconsole \[uart8250\] disabled
\[ 2.720118\] Registered fiq debugger ttyFIQ0
\[ 2.722130\] iommu: Default domain type: Translated
\[ 2.722144\] iommu: DMA domain TLB invalidation policy: strict mode
\[ 2.722312\] SCSI subsystem initialized
\[ 2.722409\] usbcore: registered new interface driver usbfs
\[ 2.722431\] usbcore: registered new interface driver hub
\[ 2.722451\] usbcore: registered new device driver usb
\[ 2.722521\] mc: Linux media interface: v0.10
\[ 2.722543\] videodev: Linux video capture interface: v2.00
\[ 2.722583\] pps_core: LinuxPPS API ver. 1 registered
\[ 2.722590\] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti \
\[ 2.722600\] PTP clock support registered
\[ 2.722624\] EDAC MC: Ver: 3.0.0
\[ 2.723120\] arm-scmi firmware:scmi: Enabled polling mode TX channel - prot_id:16
\[ 2.723191\] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
\[ 2.723231\] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
\[ 2.724597\] Advanced Linux Sound Architecture Driver Initialized.
\[ 2.724827\] Bluetooth: Core ver 2.22
\[ 2.724848\] NET: Registered PF_BLUETOOTH protocol family
\[ 2.724854\] Bluetooth: HCI device and connection manager initialized
\[ 2.724862\] Bluetooth: HCI socket layer initialized
\[ 2.724869\] Bluetooth: L2CAP socket layer initialized
\[ 2.724888\] Bluetooth: SCO socket layer initialized
\[ 2.726242\] rockchip-cpuinfo cpuinfo: SoC : 35760000
\[ 2.726253\] rockchip-cpuinfo cpuinfo: Serial : c8ce0e22d503cd05
\[ 2.726872\] clocksource: Switched to clocksource arch_sys_counter
\[ 2.731197\] NET: Registered PF_INET protocol family
\[ 2.731289\] IP idents hash table entries: 32768 (order: 6, 262144 bytes, linear)
\[ 2.732380\] tcp_listen_portaddr_hash hash table entries: 1024 (order: 2, 16384 bytes, linear)
\[ 2.732405\] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
\[ 2.732438\] TCP established hash table entries: 16384 (order: 5, 131072 bytes, linear)
\[ 2.732520\] TCP bind hash table entries: 16384 (order: 7, 524288 bytes, linear)
\[ 2.732798\] TCP: Hash tables configured (established 16384 bind 16384)
\[ 2.732855\] UDP hash table entries: 1024 (order: 3, 32768 bytes, linear)
\[ 2.732892\] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes, linear)
\[ 2.732990\] NET: Registered PF_UNIX/PF_LOCAL protocol family
\[ 2.733205\] RPC: Registered named UNIX socket transport module.
\[ 2.733214\] RPC: Registered udp transport module.
\[ 2.733219\] RPC: Registered tcp transport module.
\[ 2.733224\] RPC: Registered tcp NFSv4.1 backchannel transport module.
\[ 2.733728\] PCI: CLS 0 bytes, default 64
\[ 2.734104\] Trying to unpack rootfs image as initramfs...
\[ 2.734481\] rockchip-thermal 2ae70000.tsadc: Missing rockchip,grf property
\[ 2.736734\] thermal thermal_zone0: power_allocator: sustainable_power will be estimated
\[ 2.736833\] thermal thermal_zone1: power_allocator: sustainable_power will be estimated
\[ 2.737007\] thermal thermal_zone3: power_allocator: sustainable_power will be estimated
\[ 2.737089\] thermal thermal_zone4: power_allocator: sustainable_power will be estimated
\[ 2.737178\] thermal thermal_zone5: power_allocator: sustainable_power will be estimated
\[ 2.737453\] rockchip-thermal 2ae70000.tsadc: tsadc is probed successfully!
\[ 2.739260\] hw perfevents: enabled with armv8_cortex_a53 PMU driver, 7 counters available
\[ 2.739880\] hw perfevents: enabled with armv8_cortex_a72 PMU driver, 7 counters available
\[ 3.028778\] Freeing initrd memory: 10924K
\[ 3.056643\] Initialise system trusted keyrings
\[ 3.056814\] workingset: timestamp_bits=62 max_order=19 bucket_order=0
\[ 3.059240\] squashfs: version 4.0 (2009/01/31) Phillip Lougher
\[ 3.059551\] NFS: Registering the id_resolver key type
\[ 3.059568\] Key type id_resolver registered
\[ 3.059575\] Key type id_legacy registered
\[ 3.059595\] ntfs: driver 2.1.32 \[Flags: R/O\].
\[ 3.059673\] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
\[ 3.059906\] fuse: init (API version 7.37)
\[ 3.060065\] SGI XFS with security attributes, no debug enabled
\[ 3.087663\] NET: Registered PF_ALG protocol family
\[ 3.087677\] Key type asymmetric registered
\[ 3.087683\] Asymmetric key parser 'x509' registered
\[ 3.087720\] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
\[ 3.087728\] io scheduler mq-deadline registered
\[ 3.087734\] io scheduler kyber registered
\[ 3.088957\] rockchip-csi2-dphy-hw 2b030000.csi2-dphy0-hw: csi2 dphy hw probe successfully!
\[ 3.089074\] rockchip-csi2-dphy-hw 2b070000.csi2-dphy1-hw: csi2 dphy hw probe successfully!
\[ 3.090225\] rockchip-usb2phy 2602e000.syscon:usb2-phy@0: error -ENXIO: IRQ index 0 not found
\[ 3.090317\] rockchip-usb2phy 2602e000.syscon:usb2-phy@0: refclk freq 24000000
\[ 3.091279\] rockchip-usb2phy 2602e000.syscon:usb2-phy@2000: error -ENXIO: IRQ index 0 not found
\[ 3.091362\] rockchip-usb2phy 2602e000.syscon:usb2-phy@2000: refclk freq 24000000
\[ 3.095375\] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy init success
\[ 3.097958\] rk-pcie 2a200000.pcie: invalid prsnt-gpios property in node
\[ 3.098427\] iep: Module initialized.
\[ 3.098539\] mpp_service mpp-srv: e1116856058d author: Chandler Chen 2024-09-27 video: rockchip: mpp: rk3562 use cru reset
\[ 3.098548\] mpp_service mpp-srv: probe start
\[ 3.098775\] rk-pcie 2a200000.pcie: max MSI vector is 32
\[ 3.098824\] rk-pcie 2a200000.pcie: host bridge /pcie@2a200000 ranges:
\[ 3.098855\] rk-pcie 2a200000.pcie: err 0x0020000000..0x00200fffff -\> 0x0020000000
\[ 3.098895\] rk-pcie 2a200000.pcie: IO 0x0020100000..0x00201fffff -\> 0x0020100000
\[ 3.098914\] rk-pcie 2a200000.pcie: MEM 0x0020200000..0x0020ffffff -\> 0x0020200000
\[ 3.098928\] rk-pcie 2a200000.pcie: MEM 0x0900000000..0x097fffffff -\> 0x0900000000
\[ 3.099051\] rk-pcie 2a200000.pcie: iATU unroll: enabled
\[ 3.099061\] rk-pcie 2a200000.pcie: iATU regions: 8 ob, 8 ib, align 64K, limit 8G
\[ 3.100671\] mpp_rkvenc2 rkvenc-ccu: probing start
\[ 3.100683\] mpp_rkvenc2 rkvenc-ccu: probing finish
\[ 3.101102\] mpp_service mpp-srv: probe success
\[ 3.110323\] dma-pl330 2ab90000.dma-controller: Loaded driver for PL330 DMAC-241330
\[ 3.110334\] dma-pl330 2ab90000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
\[ 3.111101\] dma-pl330 2abb0000.dma-controller: Loaded driver for PL330 DMAC-241330
\[ 3.111111\] dma-pl330 2abb0000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
\[ 3.111847\] dma-pl330 2abd0000.dma-controller: Loaded driver for PL330 DMAC-241330
\[ 3.111856\] dma-pl330 2abd0000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
\[ 3.112592\] rockchip-system-monitor rockchip-system-monitor: system monitor probe
\[ 3.112931\] arm-scmi firmware:scmi: Failed. SCMI protocol 22 not active.
\[ 3.113037\] Serial: 8250/16550 driver, 15 ports, IRQ sharing disabled
\[ 3.113578\] 2ad80000.serial: ttyS5 at MMIO 0x2ad80000 (irq = 43, base_baud = 11718) is a 16550A
\[ 3.120140\] dw-mipi-dsi2 27d80000.dsi: Fixed dependency cycle(s) with /dsi@27d80000/dsi-panel@0
\[ 3.120182\] mipi-dsi 27d80000.dsi.0: Fixed dependency cycle(s) with /dsi@27d80000
\[ 3.121315\] OF: graph: no port node found in /dp@27e40000
\[ 3.121643\] platform 27d00000.vop: Fixed dependency cycle(s) with /dp@27e40000
\[ 3.126333\] find panel: luckfox,tc358762
\[ 3.127344\] cacheinfo: Unable to detect cache hierarchy for CPU 0
\[ 3.127663\] brd: module loaded
\[ 3.129890\] loop: module loaded
\[ 3.130053\] zram: Added device: zram0
\[ 3.130185\] lkdtm: No crash points registered, enable through debugfs
\[ 3.132301\] CAN device driver interface
\[ 3.132426\] igb: Intel(R) Gigabit Ethernet Network Driver
\[ 3.132432\] igb: Copyright (c) 2007-2014 Intel Corporation.
\[ 3.133102\] rk_gmac-dwmac 2a220000.ethernet: IRQ eth_lpi not found
\[ 3.133247\] rk_gmac-dwmac 2a220000.ethernet: supply phy not found, using dummy regulator
\[ 3.133305\] rk_gmac-dwmac 2a220000.ethernet: clock input or output? (output).
\[ 3.133313\] rk_gmac-dwmac 2a220000.ethernet: TX delay(0x1b).
\[ 3.133320\] rk_gmac-dwmac 2a220000.ethernet: Can not read property: rx_delay.
\[ 3.133326\] rk_gmac-dwmac 2a220000.ethernet: set rx_delay to 0xffffffff
\[ 3.133386\] rk_gmac-dwmac 2a220000.ethernet: integrated PHY? (no).
\[ 3.133395\] rk_gmac-dwmac 2a220000.ethernet: cannot get clock mac_clk_rx
\[ 3.133402\] rk_gmac-dwmac 2a220000.ethernet: cannot get clock mac_clk_tx
\[ 3.133415\] rk_gmac-dwmac 2a220000.ethernet: cannot get clock clk_mac_speed
\[ 3.133653\] rk_gmac-dwmac 2a220000.ethernet: init for RGMII_RXID
\[ 3.133745\] rk_gmac-dwmac 2a220000.ethernet: User ID: 0x30, Synopsys ID: 0x51
\[ 3.133754\] rk_gmac-dwmac 2a220000.ethernet: DWMAC4/5
\[ 3.133762\] rk_gmac-dwmac 2a220000.ethernet: DMA HW capability register supported
\[ 3.133767\] rk_gmac-dwmac 2a220000.ethernet: RX Checksum Offload Engine supported
\[ 3.133773\] rk_gmac-dwmac 2a220000.ethernet: TX Checksum insertion supported
\[ 3.133778\] rk_gmac-dwmac 2a220000.ethernet: Wake-Up On Lan supported
\[ 3.133810\] rk_gmac-dwmac 2a220000.ethernet: TSO supported
\[ 3.133816\] rk_gmac-dwmac 2a220000.ethernet: Enable RX Mitigation via HW Watchdog Timer
\[ 3.133823\] rk_gmac-dwmac 2a220000.ethernet: Enabled L3L4 Flow TC (entries=2)
\[ 3.133829\] rk_gmac-dwmac 2a220000.ethernet: Enabled RFS Flow TC (entries=10)
\[ 3.133835\] rk_gmac-dwmac 2a220000.ethernet: TSO feature enabled
\[ 3.133841\] rk_gmac-dwmac 2a220000.ethernet: Using 40/40 bits DMA host/device width
\[ 3.270180\] usbcore: registered new interface driver rtl8150
\[ 3.270199\] usbcore: registered new device driver r8152-cfgselector
\[ 3.270217\] usbcore: registered new interface driver r8152
\[ 3.270233\] usbcore: registered new interface driver asix
\[ 3.270251\] usbcore: registered new interface driver ax88179_178a
\[ 3.270269\] usbcore: registered new interface driver cdc_ether
\[ 3.270285\] usbcore: registered new interface driver net1080
\[ 3.270300\] usbcore: registered new interface driver cdc_subset
\[ 3.270315\] usbcore: registered new interface driver zaurus
\[ 3.270337\] usbcore: registered new interface driver cdc_ncm
\[ 3.270353\] usbcore: registered new interface driver qmi_wwan
\[ 3.270369\] usbcore: registered new interface driver r8153_ecm
\[ 3.278945\] phy phy-2602e000.syscon:usb2-phy@0.0: illegal mode
\[ 3.278959\] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
\[ 3.279032\] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
\[ 3.279115\] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000808002010010
\[ 3.279143\] xhci-hcd xhci-hcd.0.auto: irq 61, io mem 0x23000000
\[ 3.279213\] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
\[ 3.279285\] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
\[ 3.279295\] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed
\[ 3.279357\] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01
\[ 3.279365\] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
\[ 3.279371\] usb usb1: Product: xHCI Host Controller
\[ 3.279377\] usb usb1: Manufacturer: Linux 6.1.84 xhci-hcd
\[ 3.279382\] usb usb1: SerialNumber: xhci-hcd.0.auto
\[ 3.279586\] hub 1-0:1.0: USB hub found
\[ 3.279603\] hub 1-0:1.0: 1 port detected
\[ 3.279749\] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
\[ 3.279791\] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.01
\[ 3.279799\] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
\[ 3.279805\] usb usb2: Product: xHCI Host Controller
\[ 3.279810\] usb usb2: Manufacturer: Linux 6.1.84 xhci-hcd
\[ 3.279816\] usb usb2: SerialNumber: xhci-hcd.0.auto
\[ 3.279978\] hub 2-0:1.0: USB hub found
\[ 3.279994\] hub 2-0:1.0: 1 port detected
\[ 3.280184\] phy phy-2602e000.syscon:usb2-phy@2000.1: illegal mode
\[ 3.280193\] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
\[ 3.280259\] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 3
\[ 3.280333\] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000808002010010
\[ 3.280359\] xhci-hcd xhci-hcd.1.auto: irq 62, io mem 0x23400000
\[ 3.280425\] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
\[ 3.280482\] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 4
\[ 3.280491\] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed
\[ 3.280547\] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01
\[ 3.280555\] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
\[ 3.280561\] usb usb3: Product: xHCI Host Controller
\[ 3.280567\] usb usb3: Manufacturer: Linux 6.1.84 xhci-hcd
\[ 3.280573\] usb usb3: SerialNumber: xhci-hcd.1.auto
\[ 3.280739\] hub 3-0:1.0: USB hub found
\[ 3.280755\] hub 3-0:1.0: 1 port detected
\[ 3.280892\] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
\[ 3.280933\] usb usb4: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.01
\[ 3.280941\] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
\[ 3.280947\] usb usb4: Product: xHCI Host Controller
\[ 3.280953\] usb usb4: Manufacturer: Linux 6.1.84 xhci-hcd
\[ 3.280958\] usb usb4: SerialNumber: xhci-hcd.1.auto
\[ 3.281121\] hub 4-0:1.0: USB hub found
\[ 3.281138\] hub 4-0:1.0: 1 port detected
\[ 3.281306\] usbcore: registered new interface driver cdc_acm
\[ 3.281313\] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
\[ 3.281332\] usbcore: registered new interface driver cdc_wdm
\[ 3.281444\] usbcore: registered new interface driver uas
\[ 3.281479\] usbcore: registered new interface driver usb-storage
\[ 3.281516\] usbcore: registered new interface driver usbserial_generic
\[ 3.281528\] usbserial: USB Serial support registered for generic
\[ 3.281547\] usbcore: registered new interface driver cp210x
\[ 3.281557\] usbserial: USB Serial support registered for cp210x
\[ 3.281581\] usbcore: registered new interface driver ftdi_sio
\[ 3.281591\] usbserial: USB Serial support registered for FTDI USB Serial Device
\[ 3.281635\] usbcore: registered new interface driver keyspan
\[ 3.281648\] usbserial: USB Serial support registered for Keyspan - (without firmware)
\[ 3.281658\] usbserial: USB Serial support registered for Keyspan 1 port adapter
\[ 3.281668\] usbserial: USB Serial support registered for Keyspan 2 port adapter
\[ 3.281678\] usbserial: USB Serial support registered for Keyspan 4 port adapter
\[ 3.281699\] usbcore: registered new interface driver option
\[ 3.281709\] usbserial: USB Serial support registered for GSM modem (1-port)
\[ 3.281767\] usbcore: registered new interface driver oti6858
\[ 3.281778\] usbserial: USB Serial support registered for oti6858
\[ 3.281796\] usbcore: registered new interface driver pl2303
\[ 3.281806\] usbserial: USB Serial support registered for pl2303
\[ 3.281829\] usbcore: registered new interface driver qcserial
\[ 3.281839\] usbserial: USB Serial support registered for Qualcomm USB modem
\[ 3.281862\] usbcore: registered new interface driver sierra
\[ 3.281872\] usbserial: USB Serial support registered for Sierra USB modem
\[ 3.282283\] SPI driver ads7846 has no spi_device_id for ti,tsc2046
\[ 3.282291\] SPI driver ads7846 has no spi_device_id for ti,ads7843
\[ 3.282296\] SPI driver ads7846 has no spi_device_id for ti,ads7845
\[ 3.282301\] SPI driver ads7846 has no spi_device_id for ti,ads7873
\[ 3.282327\] cyttsp5_loader_init: Parade TTSP FW Loader Driver (Built TTDA.03.08.874312) rc=0
\[ 3.282334\] cyttsp5_device_access_init: Parade TTSP Device Access Driver (Built TTDA.03.08.874312) rc=0
\[ 3.282382\] usbcore: registered new interface driver usbtouchscreen
\[ 3.282640\] .. rk pwm remotectl v2.0 init
\[ 3.282777\] input: 27330000.pwm as /devices/platform/27330000.pwm/input/input0
\[ 3.282935\] remotectl-pwm 27330000.pwm: pwm sip wakeup config error!!
\[ 3.282942\] remotectl-pwm 27330000.pwm: Donot support ATF Wakeup
\[ 3.283322\] i2c_dev: i2c /dev entries driver
\[ 3.283987\] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs1_pwrdn
\[ 3.284005\] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs3_null
\[ 3.284018\] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs2_null
\[ 3.284031\] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs1_null
\[ 3.285650\] rk806 1-0023: chip id: RK806,ver:0xa, 0x5
\[ 3.286539\] rk806 1-0023: ON: 0x40 OFF:0x0
\[ 3.295994\] input: rk805 pwrkey as /devices/platform/2ac40000.i2c/i2c-1/1-0023/rk805-pwrkey.3.auto/input/input1
\[ 3.307996\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.334880\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.354137\] rk806 1-0023: no sleep-setting state
\[ 3.354148\] rk806 1-0023: no reset-setting pinctrl state
\[ 3.354153\] rk806 1-0023: no dvs-setting pinctrl state
\[ 3.362879\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
Loading, please wait...
\[ 3.366339\] rtc-ds1307 2-0068: registered as rtc0
/dev/console is Ok
\[ 3.367371\] rtc-ds1307 2-0068: setting system clock to 2160-08-11T09:09:58 UTC (6015114598)
\[ 3.367443\] platform csi2-dcphy0: Fixed dependency cycle(s) with /i2c@2ac50000/imx219@10
\[ 3.367481\] i2c 2-0010: Fixed dependency cycle(s) with /csi2-dcphy0
starting version 237
\[ 3.368292\] platform csi2-dphy1: Fixed dependency cycle(s) with /i2c@2ac60000/imx219_b@10
\[ 3.368329\] i2c 3-0010: Fixed dependency cycle(s) with /csi2-dphy1
\[ 3.369047\] luckfox_mcu: luckfox_mcu_probe: address = 0x45
\[ 3.369057\] luckfox_mcu: send_cmds: 80
\[ 3.369208\] send command failed, ret = -6
\[ 3.369214\] luckfox_mcu: luckfox_mcu_probe: init_cmd_check failed, -6
\[ 3.369298\] luckfox-ft5406: luckfox_ft5406_probe: address = 0x38
\[ 3.390879\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.418880\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.446873\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.474875\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.502877\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.530881\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.558878\] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
\[ 3.966872\] luckfox-ft5406: luckfox_ft5406_probe: wait connected timeout
\[ 3.967444\] imx219 2-0010: driver version: 00.01.01
\[ 3.967661\] imx219 2-0010: Reading register 100 from 10 failed
\[ 3.967812\] imx219 2-0010: Reading register 100 from 10 failed
\[ 3.974244\] imx219 2-0010: Error -5 setting default controls
\[ 3.974266\] imx219: probe of 2-0010 failed with error -5
\[ 3.974488\] imx219 3-0010: driver version: 00.01.01
\[ 3.974683\] imx219 3-0010: Reading register 100 from 10 failed
\[ 3.974834\] imx219 3-0010: Reading register 100 from 10 failed
\[ 3.981270\] imx219 3-0010: Error -5 setting default controls
\[ 3.981289\] imx219: probe of 3-0010 failed with error -5
\[ 3.981847\] rkcifhw 27c10000.rkcif: Adding to iommu group 9
\[ 3.982191\] rkcifhw 27c10000.rkcif: No reserved memory region assign to CIF
\[ 3.982303\] rkcif rkcif-mipi-lvds: Adding to iommu group 9
\[ 3.982319\] rkcif rkcif-mipi-lvds: rkcif driver version: v00.02.00
\[ 3.982394\] rkcif rkcif-mipi-lvds: attach to cif hw node
\[ 3.982401\] rkcif rkcif-mipi-lvds: rkcif wait line 0
\[ 3.982406\] rkcif rkcif-mipi-lvds: rkcif fastboot reserve bufs num 3
\[ 3.982415\] : terminal subdev does not exist
\[ 3.982422\] : terminal subdev does not exist
\[ 3.982428\] : terminal subdev does not exist
\[ 3.982434\] : terminal subdev does not exist
\[ 3.982439\] : get_remote_sensor: video pad\[0\] is null
\[ 3.982444\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.982450\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.982457\] : get_remote_sensor: video pad\[0\] is null
\[ 3.982461\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.982467\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.982472\] : get_remote_sensor: video pad\[0\] is null
\[ 3.982477\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.982482\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.982487\] : get_remote_sensor: video pad\[0\] is null
\[ 3.982491\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.982496\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.983194\] rkcif rkcif-mipi-lvds: No memory-region-thunderboot specified
\[ 3.983345\] rkcif rkcif-mipi-lvds1: Adding to iommu group 9
\[ 3.983363\] rkcif rkcif-mipi-lvds1: rkcif driver version: v00.02.00
\[ 3.983414\] rkcif rkcif-mipi-lvds1: attach to cif hw node
\[ 3.983420\] rkcif rkcif-mipi-lvds1: rkcif wait line 0
\[ 3.983426\] rkcif rkcif-mipi-lvds1: rkcif fastboot reserve bufs num 3
\[ 3.983433\] : terminal subdev does not exist
\[ 3.983440\] : terminal subdev does not exist
\[ 3.983445\] : terminal subdev does not exist
\[ 3.983451\] : terminal subdev does not exist
\[ 3.983456\] : get_remote_sensor: video pad\[0\] is null
\[ 3.983460\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.983466\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.983472\] : get_remote_sensor: video pad\[0\] is null
\[ 3.983476\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.983481\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.983487\] : get_remote_sensor: video pad\[0\] is null
\[ 3.983491\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.983496\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.983502\] : get_remote_sensor: video pad\[0\] is null
\[ 3.983506\] : rkcif_update_sensor_info: stream\[0\] get remote sensor_sd failed!
\[ 3.983511\] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
\[ 3.984170\] rkcif rkcif-mipi-lvds1: No memory-region-thunderboot specified
\[ 3.985107\] rockchip-mipi-csi2-hw 27c80000.mipi0-csi2-hw: enter mipi csi2 hw probe!
\[ 3.985229\] rockchip-mipi-csi2-hw 27c80000.mipi0-csi2-hw: probe success, v4l2_dev:mipi0-csi2-hw!
\[ 3.985268\] rockchip-mipi-csi2-hw 27c90000.mipi1-csi2-hw: enter mipi csi2 hw probe!
\[ 3.985346\] rockchip-mipi-csi2-hw 27c90000.mipi1-csi2-hw: probe success, v4l2_dev:mipi1-csi2-hw!
\[ 3.985382\] rockchip-mipi-csi2-hw 27ca0000.mipi2-csi2-hw: enter mipi csi2 hw probe!
\[ 3.985455\] rockchip-mipi-csi2-hw 27ca0000.mipi2-csi2-hw: probe success, v4l2_dev:mipi2-csi2-hw!
\[ 3.985488\] rockchip-mipi-csi2-hw 27cb0000.mipi3-csi2-hw: enter mipi csi2 hw probe!
\[ 3.985558\] rockchip-mipi-csi2-hw 27cb0000.mipi3-csi2-hw: probe success, v4l2_dev:mipi3-csi2-hw!
\[ 3.985591\] rockchip-mipi-csi2-hw 27cc0000.mipi4-csi2-hw: enter mipi csi2 hw probe!
\[ 3.985663\] rockchip-mipi-csi2-hw 27cc0000.mipi4-csi2-hw: probe success, v4l2_dev:mipi4-csi2-hw!
\[ 3.986030\] rockchip-mipi-csi2 mipi0-csi2: attach to csi2 hw node
\[ 3.986058\] rkcif rkcif-mipi-lvds: Entity type for entity rockchip-mipi-csi2 was not initialized!
\[ 3.986067\] rockchip-mipi-csi2: Async registered subdev
\[ 3.986072\] rockchip-mipi-csi2: probe success, v4l2_dev:rkcif-mipi-lvds!
\[ 3.986288\] rockchip-mipi-csi2 mipi1-csi2: attach to csi2 hw node
\[ 3.986310\] rkcif rkcif-mipi-lvds1: Entity type for entity rockchip-mipi-csi2 was not initialized!
\[ 3.986317\] rockchip-mipi-csi2: Async registered subdev
\[ 3.986322\] rockchip-mipi-csi2: probe success, v4l2_dev:rkcif-mipi-lvds1!
\[ 3.987118\] rkisp_hw 27c00000.isp: Adding to iommu group 8
\[ 3.987267\] rkisp_hw 27c00000.isp: is_thunderboot: 0
\[ 3.987275\] rkisp_hw 27c00000.isp: Missing rockchip,grf property
\[ 3.987297\] rkisp_hw 27c00000.isp: max input:0x0@0fps
\[ 3.987420\] rkisp_hw 27c00000.isp: no find phandle sram
\[ 3.987678\] rkisp rkisp-vir0: rkisp driver version: v02.06.01
\[ 3.987757\] rkisp rkisp-vir0: No memory-region-thunderboot specified
\[ 3.987837\] rkisp rkisp-vir0: Entity type for entity rkisp-isp-subdev was not initialized!
\[ 3.988434\] rkisp rkisp-vir1: rkisp driver version: v02.06.01
\[ 3.988490\] rkisp rkisp-vir1: No memory-region-thunderboot specified
\[ 3.988544\] rkisp rkisp-vir1: Entity type for entity rkisp-isp-subdev was not initialized!
\[ 3.990240\] rkvpss_hw 27c30000.vpss: Adding to iommu group 10
\[ 3.990476\] rkvpss_hw 27c30000.vpss: failed to get cru reset
\[ 3.990756\] rkvpss rkvpss-vir0: rkvpss driver version: v00.01.00
\[ 3.991163\] rkvpss-vir0: Async subdev notifier completed
\[ 3.991257\] rkvpss rkvpss-vir1: rkvpss driver version: v00.01.00
\[ 3.991621\] rkvpss-vir1: Async subdev notifier completed
\[ 3.991869\] usbcore: registered new interface driver uvcvideo
\[ 3.992891\] Bluetooth: HCI UART driver ver 2.3
\[ 3.992901\] Bluetooth: HCI UART protocol H4 registered
\[ 3.992907\] Bluetooth: HCI UART protocol ATH3K registered
\[ 3.992935\] usbcore: registered new interface driver bfusb
\[ 3.992961\] usbcore: registered new interface driver btusb
\[ 3.994068\] cpu cpu0: bin=0
\[ 3.994286\] cpu cpu0: leakage=4
\[ 3.996478\] cpu cpu0: pvtm=1968
\[ 3.997004\] cpu cpu0: pvtm-volt-sel=7
\[ 3.998237\] cpu cpu4: bin=0
\[ 3.998445\] cpu cpu4: leakage=5
\[ 4.000618\] cpu cpu4: pvtm=2076
\[ 4.001136\] cpu cpu4: pvtm-volt-sel=5
\[ 4.002572\] cpu cpu0: avs=0
\[ 4.003425\] cpu cpu4: avs=0
\[ 4.003509\] cpu cpu0: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
\[ 4.004571\] cpu cpu0: EM: created perf domain
\[ 4.005228\] cpu cpu4: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
\[ 4.006340\] cpu cpu4: EM: created perf domain
\[ 4.007769\] OF: /sdio-pwrseq: could not get #clock-cells for /i2c@2ac40000/pmic@23
\[ 4.008098\] sdhci: Secure Digital Host Controller Interface driver
\[ 4.008106\] sdhci: Copyright(c) Pierre Ossman
\[ 4.008111\] Synopsys Designware Multimedia Card Interface Driver
\[ 4.008545\] sdhci-pltfm: SDHCI platform and OF driver helper
\[ 4.009168\] dwmmc_rockchip 2a320000.mmc: No normal pinctrl state
\[ 4.009182\] dwmmc_rockchip 2a320000.mmc: No idle pinctrl state
\[ 4.009343\] dwmmc_rockchip 2a320000.mmc: IDMAC supports 32-bit address mode.
\[ 4.009362\] dwmmc_rockchip 2a320000.mmc: Using internal DMA controller.
\[ 4.009372\] dwmmc_rockchip 2a320000.mmc: Version ID is 270a
\[ 4.009401\] dwmmc_rockchip 2a320000.mmc: DW MMC controller at irq 88,32 bit host data width,256 deep fifo
\[ 4.009524\] dwmmc_rockchip 2a310000.mmc: No normal pinctrl state
\[ 4.009544\] dwmmc_rockchip 2a310000.mmc: No idle pinctrl state
\[ 4.009695\] dwmmc_rockchip 2a320000.mmc: allocated mmc-pwrseq
\[ 4.009710\] mmc_host mmc0: card is non-removable.
\[ 4.009919\] dwmmc_rockchip 2a310000.mmc: IDMAC supports 32-bit address mode.
\[ 4.009945\] dwmmc_rockchip 2a310000.mmc: Using internal DMA controller.
\[ 4.009957\] dwmmc_rockchip 2a310000.mmc: Version ID is 270a
\[ 4.010000\] dwmmc_rockchip 2a310000.mmc: DW MMC controller at irq 89,32 bit host data width,256 deep fifo
\[ 4.010378\] mmc1: CQHCI version 5.10
\[ 4.010656\] arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
\[ 4.010700\] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
\[ 4.011158\] rk-crypto 2a400000.crypto: invalid resource
\[ 4.011579\] rk-crypto 2a400000.crypto: register to cryptodev ok!
\[ 4.011593\] rk-crypto 2a400000.crypto: CRYPTO V3.0.0.0 multi Accelerator successfully registered
\[ 4.012045\] cryptodev: driver 1.12 loaded.
\[ 4.012107\] hid: raw HID events driver (C) Jiri Kosina
\[ 4.012306\] usbcore: registered new interface driver usbhid
\[ 4.012313\] usbhid: USB HID core driver
\[ 4.015989\] optee: probing for conduit method.
\[ 4.016011\] optee: revision 3.13 (6c78a7d8)
\[ 4.016356\] optee: dynamic shared memory is enabled
\[ 4.016483\] optee: initialized driver
\[ 4.017044\] usbcore: registered new interface driver snd-usb-audio
\[ 4.022932\] rk-multicodecs es8388-sound: Has no ADC channel
\[ 4.023428\] mmc_host mmc2: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)
\[ 4.041570\] mmc1: SDHCI controller on 2a330000.mmc \[2a330000.mmc\] using ADMA 64-bit
\[ 4.080634\] mmc_host mmc2: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0)
\[ 4.080662\] dwmmc_rockchip 2a310000.mmc: Successfully tuned phase to 0
\[ 4.080674\] mmc2: new ultra high speed SDR104 SDHC card at address 0001
\[ 4.081227\] mmcblk2: mmc2:0001 SD 29.1 GiB
\[ 4.082179\] input: rockchip-es8388 Headset as /devices/platform/es8388-sound/sound/card0/input2
\[ 4.082824\] Initializing XFRM netlink socket
\[ 4.082929\] mmcblk2: p1
\[ 4.083049\] NET: Registered PF_INET6 protocol family
\[ 4.083584\] Segment Routing with IPv6
\[ 4.083597\] In-situ OAM (IOAM) with IPv6
\[ 4.083622\] NET: Registered PF_PACKET protocol family
\[ 4.083630\] NET: Registered PF_KEY protocol family
\[ 4.083635\] can: controller area network core
\[ 4.083652\] NET: Registered PF_CAN protocol family
\[ 4.083657\] can: raw protocol
\[ 4.083662\] can: broadcast manager protocol
\[ 4.083667\] can: netlink gateway - max_hops=1
\[ 4.083902\] Bluetooth: RFCOMM socket layer initialized
\[ 4.083923\] Bluetooth: RFCOMM ver 1.11
\[ 4.083930\] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
\[ 4.083937\] Bluetooth: HIDP socket layer initialized
\[ 4.083953\] \[BT_RFKILL\]: Enter rfkill_rk_init
\[ 4.083957\] \[WLAN_RFKILL\]: Enter rfkill_wlan_init
\[ 4.084387\] \[WLAN_RFKILL\]: Enter rfkill_wlan_probe
\[ 4.084405\] \[WLAN_RFKILL\]: can't find rockchip,grf property
\[ 4.084410\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: wifi_chip_type = ap6256
\[ 4.084414\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: enable wifi power control.
\[ 4.084418\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: wifi power controled by gpio.
\[ 4.084433\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: WIFI,host_wake_irq = 73, flags = 0.
\[ 4.084440\] \[WLAN_RFKILL\]: wlan_platdata_parse_dt: The ref_wifi_clk not found !
\[ 4.084444\] \[WLAN_RFKILL\]: rfkill_wlan_probe: init gpio
\[ 4.084448\] \[WLAN_RFKILL\]: rfkill_set_wifi_bt_power: 1
\[ 4.084452\] \[WLAN_RFKILL\]: Exit rfkill_wlan_probe
\[ 4.084742\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 127.
\[ 4.084754\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 77.
\[ 4.084762\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 62.
\[ 4.084768\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 79.
\[ 4.084773\] \[BT_RFKILL\]: bluetooth_platdata_parse_dt: clk_get failed!!!.
\[ 4.084801\] \[BT_RFKILL\]: Request irq for bt wakeup host
\[ 4.085107\] \[BT_RFKILL\]: \*\* disable irq
\[ 4.085164\] \[BT_RFKILL\]: bt_default device registered.
\[ 4.085211\] input: bt-powerkey as /devices/platform/wireless-bluetooth/input/input3
\[ 4.085417\] Key type dns_resolver registered
\[ 4.086315\] Loading compiled-in X.509 certificates
\[ 4.087373\] pstore: Using crash dump compression: deflate
\[ 4.093622\] rga2 27920000.rga: Adding to iommu group 2
\[ 4.093895\] rga2 27920000.rga: probe successfully, irq = 47, hw_version:3.e.19357
\[ 4.093994\] rga2 27930000.rga: Adding to iommu group 3
\[ 4.094206\] rga2 27930000.rga: probe successfully, irq = 48, hw_version:3.e.19357
\[ 4.094362\] rga: IOMMU binding successfully, default mapping core\[0x4
4.094537\] rga: Module initialized. v1.3.5
\[ 4.109934\] rockchip-csi2-dphy csi2-dcphy0: csi2 dphy0 probe successfully!
\[ 4.110191\] rockchip-csi2-dphy csi2-dphy1: csi2 dphy1 probe successfully!
\[ 4.110372\] mpp-iep2 27960000.iep: Adding to iommu group 4
\[ 4.110546\] mpp-iep2 27960000.iep: probe device
\[ 4.110674\] mpp-iep2 27960000.iep: reset_group-\>rw_sem_on=0
\[ 4.110685\] mpp-iep2 27960000.iep: reset_group-\>rw_sem_on=0
\[ 4.110694\] mpp-iep2 27960000.iep: reset_group-\>rw_sem_on=0
\[ 4.110719\] mpp-iep2 27960000.iep: allocate roi buffer failed
\[ 4.110736\] mpp-iep2 27960000.iep: probing finish
\[ 4.110978\] mpp_jpgdec 27910000.jpegd: Adding to iommu group 1
\[ 4.111156\] mpp_jpgdec 27910000.jpegd: probe device
\[ 4.111297\] mpp_jpgdec 27910000.jpegd: reset_group-\>rw_sem_on=0
\[ 4.111308\] mpp_jpgdec 27910000.jpegd: reset_group-\>rw_sem_on=0
\[ 4.111354\] mpp_jpgdec 27910000.jpegd: probing finish
\[ 4.111554\] mpp_jpgenc 27910800.jpege: Adding to iommu group 1
\[ 4.111601\] mpp_jpgenc 27910800.jpege: probe device
\[ 4.111704\] mpp_jpgenc 27910800.jpege: reset_group-\>rw_sem_on=0
\[ 4.111712\] mpp_jpgenc 27910800.jpege: reset_group-\>rw_sem_on=0
\[ 4.111740\] mpp_jpgenc 27910800.jpege: probe finish
\[ 4.111964\] mpp_rkvdec2 27b00100.rkvdec: Adding to iommu group 7
\[ 4.112179\] mpp_rkvdec2 27b00100.rkvdec: rkvdec, probing start
\[ 4.112354\] mpp_rkvdec2 27b00100.rkvdec: shared_niu_a is not found!
\[ 4.112362\] rkvdec2_init:1198: No niu aclk reset resource define
\[ 4.112369\] mpp_rkvdec2 27b00100.rkvdec: shared_niu_h is not found!
\[ 4.112374\] rkvdec2_init:1201: No niu hclk reset resource define
\[ 4.112384\] mpp_rkvdec2 27b00100.rkvdec: shared_video_cabac is not found!
\[ 4.112390\] rkvdec2_init:1207: No cabac reset resource define
Begin: Loading essential drivers ... \[ 4.112423\] mpp_rkvdec2 27b00100.rkvdec: no regulator, devfreq is disabled
\[ 4.112544\] mpp_rkvdec2 27b00100.rkvdec: sram_start 0x000000003ff88000
\[ 4.112552\] mpp_rkvdec2 27b00100.rkvdec: rcb_iova 0x0000000010000000
\[ 4.112559\] mpp_rkvdec2 27b00100.rkvdec: sram_size 491520
\[ 4.112564\] mpp_rkvdec2 27b00100.rkvdec: rcb_size 491520
done.
\[ 4.112571\] mpp_rkvdec2 27b00100.rkvdec: min_width 512
Begin: Running /scripts/init-premount ... done.
\[ 4.112591\] mpp_rkvdec2 27b00100.rkvdec: link mode probe finish
Begin: Mounting root file system ... Begin: Running /scripts/local-top ... \[ 4.112626\] mpp_rkvdec2 27b00100.rkvdec: probing finish
\[ 4.112642\] mpp_rkvdec2 27b00100.rkvdec: probing finish
done.
\[ 4.112826\] mpp_rkvenc2 27a00000.rkvenc-core: Adding to iommu group 5
Begin: Running /scripts/local-premount ... \[ 4.113052\] mpp_rkvenc2 27a00000.rkvenc-core: probing start
done.
\[ 4.113211\] mpp_rkvenc2 27a00000.rkvenc-core: failed to init opp info
\[ 4.113219\] mpp_rkvenc2 27a00000.rkvenc-core: failed to init_opp_table
\[ 4.113224\] rkvenc_init:2147: failed to add venc devfreq
\[ 4.113268\] mpp_rkvenc2 27a00000.rkvenc-core: attach ccu as core 0
\[ 4.113296\] mpp_rkvenc2 27a00000.rkvenc-core: probing finish
\[ 4.113445\] mpp_rkvenc2 27a10000.rkvenc-core: Adding to iommu group 6
\[ 4.113625\] mpp_rkvenc2 27a10000.rkvenc-core: probing start
\[ 4.113768\] mpp_rkvenc2 27a10000.rkvenc-core: failed to init opp info
\[ 4.113775\] mpp_rkvenc2 27a10000.rkvenc-core: failed to init_opp_table
\[ 4.113781\] rkvenc_init:2147: failed to add venc devfreq
\[ 4.113824\] mpp_rkvenc2 27a10000.rkvenc-core: attach ccu as core 1
\[ 4.113851\] mpp_rkvenc2 27a10000.rkvenc-core: probing finish
\[ 4.114032\] rockchip-vop2 27d00000.vop: Adding to iommu group 11
\[ 4.114498\] rockchip-vop2 27d00000.vop: \[drm:vop2_bind\] vp0 assign plane mask: Esmart0\[0x4\], primary plane phy id: Esmart0\[2
4.114518\] rockchip-vop2 27d00000.vop: \[drm:vop2_bind\] vp1 assign plane mask: Esmart1\[0x8\], primary plane phy id: Esmart1\[3
4.114528\] rockchip-vop2 27d00000.vop: \[drm:vop2_bind\] vp2 assign plane mask: Esmart2\[0x100\], primary plane phy id: Esmart2\[8
4.114726\] \[drm\] unsupported AFBC format NV12 little-endian (0x3231564e)
\[ 4.114770\] \[drm\] failed to init overlay plane Cluster0-win1
\[ 4.114810\] \[drm\] failed to init overlay plane Cluster1-win1
\[ 4.115052\] rockchip-vop2 27d00000.vop: bin=0
\[ 4.115258\] rockchip-vop2 27d00000.vop: leakage=12
\[ 4.115268\] rockchip-vop2 27d00000.vop: leakage-volt-sel=1
\[ 4.116054\] rockchip-vop2 27d00000.vop: avs=0
\[ 4.116127\] rockchip-vop2 27d00000.vop: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
\[ 4.116151\] debugfs: Directory 'vdd_logic_s0' with parent 'vdd_logic_s0' already present!
\[ 4.117228\] rockchip-vop2 27d00000.vop: Supported VOP aclk dvfs, normal mode:500000000, reset mode:594000000, advanced mode:702000000
\[ 4.117244\] rockchip-drm display-subsystem: bound 27d00000.vop (ops 0xffffffc00961d230)
\[ 4.118309\] dwhdmi-rockchip 27da0000.hdmi: registered ddc I2C bus driver
\[ 4.118825\] rockchip-drm display-subsystem: bound 27da0000.hdmi (ops 0xffffffc009636298)
\[ 4.118916\] rockchip-drm display-subsystem: bound 27d80000.dsi (ops 0xffffffc009639288)
\[ 4.119238\] rockchip-drm display-subsystem: bound 27e40000.dp (ops 0xffffffc0096398e0)
\[ 4.120772\] dw-hdmi-qp-hdcp dw-hdmi-qp-hdcp.7.auto: dw_hdcp_qp_hdcp_probe success
\[ 4.121262\] \[drm\] Initialized rockchip 4.0.0 20140818 for display-subsystem on minor 0
\[ 4.150344\] mmc1: Command Queue Engine enabled
\[ 4.150360\] mmc1: new HS400 Enhanced strobe MMC card at address 0001
\[ 4.150709\] mmcblk1: mmc1:0001 A3A551 14.6 GiB
\[ 4.151278\] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
\[ 4.151702\] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
\[ 4.151805\] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
\[ 4.155140\] mmcblk1: p1 p2 p3 p4 p5 p6 p7 p8
\[ 4.156183\] mmcblk1boot0: mmc1:0001 A3A551 4.00 MiB
\[ 4.156594\] mmcblk1boot1: mmc1:0001 A3A551 4.00 MiB
\[ 4.156968\] mmcblk1rpmb: mmc1:0001 A3A551 16.0 MiB, chardev (235:0)
\[ 4.161412\] input: adc-keys as /devices/platform/adc-keys/input/input4
\[ 4.161427\] mali 27800000.gpu: Kernel DDK version g25p0-00eac0
\[ 4.161528\] mali 27800000.gpu: GPU metrics tracepoint support enabled
\[ 4.162011\] rockchip-dmc dmc: bin=0
\[ 4.162025\] mali 27800000.gpu: bin=0
\[ 4.162196\] rockchip-dmc dmc: leakage=12
\[ 4.162206\] rockchip-dmc dmc: leakage-volt-sel=1
\[ 4.162360\] mali 27800000.gpu: leakage=5
\[ 4.162390\] debugfs: Directory '27800000.gpu-mali' with parent 'vdd_gpu_s0' already present!
\[ 4.164496\] rockchip-dmc dmc: avs=0
\[ 4.164509\] rockchip-dmc dmc: current ATF version 0x100
\[ 4.164555\] mali 27800000.gpu: pvtm=776
\[ 4.164582\] rockchip-dmc dmc: normal_rate = 1560000000
\[ 4.164589\] rockchip-dmc dmc: reboot_rate = 2112000000
Begin: Will now check root file system ... fsck from util-linux 2.36.1-4309-dirty
\[ 4.164594\] rockchip-dmc dmc: suspend_rate = 528000000
\[/sbin/fsck.ext4 (1) -- /dev/mmcblk1p6\] fsck.ext4 -y -C0 /dev/mmcblk1p6
\[ 4.164599\] rockchip-dmc dmc: video_4k_rate = 1560000000
e2fsck 1.47.0 (5-Feb-2023)
\[ 4.164603\] rockchip-dmc dmc: video_4k_10b_rate = 1560000000
/dev/mmcblk1p6: clean, 137436/228032 files, 857993/911872 blocks
\[ 4.164608\] rockchip-dmc dmc: video_svep_rate = 1560000000
done.
\[ 4.164612\] rockchip-dmc dmc: boost_rate = 2112000000
done.
\[ 4.164617\] rockchip-dmc dmc: fixed_rate(isp\|cif0\|cif1\|dualview) = 2112000000
Begin: Running /scripts/local-bottom ... done.
\[ 4.164622\] rockchip-dmc dmc: performance_rate = 2112000000
Begin: Running /scripts/init-bottom ... e2fsck 1.47.0 (5-Feb-2023)
\[ 4.164627\] rockchip-dmc dmc: hdmirx_rate = 2112000000
userdata was not cleanly unmounted, check forced.
\[ 4.164631\] rockchip-dmc dmc: deep_suspend_rate = 2112000000
Pass 1: Checking inodes, blocks, and sizes
\[ 4.164640\] rockchip-dmc dmc: failed to get vop pn to msch rl
Pass 2: Checking directory structure
\[ 4.164879\] rockchip-dmc dmc: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
Pass 3: Checking directory connectivity
\[ 4.164899\] debugfs: Directory 'vdd_logic_s0' with parent 'vdd_logic_s0' already present!
Pass 4: Checking reference counts
\[ 4.165116\] mali 27800000.gpu: pvtm-volt-sel=4
Pass 5: Checking group summary information
\[ 4.165168\] debugfs: Directory '27800000.gpu-mali' with parent 'vdd_gpu_s0' already present!
Free blocks count wrong (956, counted=628).
\[ 4.165893\] mali 27800000.gpu: avs=0
Fix? yes
\[ 4.165922\] W : \[File\] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; \[Line\] : 144; \[Func\] : kbase_platform_rk_init(); power-off-delay-ms not available.
\[ 4.167476\] mali 27800000.gpu: Register LUT 00070200 initialized for GPU arch 0x00070400
Free inodes count wrong (1090, counted=1037).
\[ 4.167495\] mali 27800000.gpu: GPU identified as 0x2 arch 7.4.0 r1p0 status 0
Fix? yes
\[ 4.167606\] mali 27800000.gpu: No priority control manager is configured
\[ 4.167614\] mali 27800000.gpu: Large page allocation set to false after hardware feature check
\[ 4.167772\] mali 27800000.gpu: No memory group manager is configured
userdata: \*\*\*\*\* FILE SYSTEM WAS MODIFIED \*\*\*\*\*
\[ 4.168363\] mali 27800000.gpu: EM: created perf domain
userdata: 67/1104 files (4.5% non-contiguous), 474/1102 blocks
\[ 4.168618\] mali 27800000.gpu: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
tune2fs 1.42.12 (29-Aug-2014)
\[ 4.169724\] mali 27800000.gpu: \* MALI kbase_mmap_min_addr compiled to CONFIG_DEFAULT_MMAP_MIN_ADDR, no runtime update possible! \*
Creating journal inode:
\[ 4.169733\] mali 27800000.gpu: Probed as mali0
Filesystem too small for a journal
\[ 4.180352\] \[dhd\] _dhd_module_init: in Dongle Host Driver, version 101.10.591.52.27 (20240409-1)(20240411-2)(d83d8d7)
\[ 4.180352\] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd compiled on Apr 25 2025 at 12:53:52
tune2fs: Journal must be at least 1024 blocks
\[ 4.180352
while trying to create journal file
4.180370\] \[dhd\] STATIC-MSG) dhd_static_buf_init : 101.10.361.36 (wlan=r892223-20231107-1)
e2fsck 1.47.0 (5-Feb-2023)
\[ 4.180423\] \[dhd\] STATIC-MSG) dhd_init_wlan_mem : prealloc ok for index 0: 1102848(1077K)
oem: clean, 18/4592 files, 4305/4591 blocks
\[ 4.180433\] \[WLAN_RFKILL\]: rockchip_wifi_get_oob_irq: Enter
tune2fs 1.42.12 (29-Aug-2014)
\[ 4.180480\] \[dhd\] dhd_wlan_init_gpio: WL_HOST_WAKE=-1, oob_irq=112, oob_irq_flags=0x4
Warning: overlayroot: configuring overlayroot with driver=overlay mode=device opts='dev=PARTLABEL=userdata,fstype=ext4,mkfs=1' per kernel cmdline
\[ 4.180488\] \[dhd\] dhd_wlan_init_gpio: WL_REG_ON=-1
Success: overlayroot: configured root with 'device:dev=PARTLABEL=userdata,fstype=ext4,mkfs=1' using overlay per kernel cmdline
\[ 4.180494\] \[dhd\] dhd_wifi_platform_load: Enter
done.
\[ 4.180501\] \[dhd\] Power-up adapter 'DHD generic adapter'
\[ 4.180541\] \[dhd\] wifi_platform_set_power = 1, delay: 200 msec
\[ 4.180549\] \[dhd\] ======== PULL WL_REG_ON(-1) HIGH! ========
\[ 4.180555\] \[WLAN_RFKILL\]: rockchip_wifi_power: 1
\[ 4.180562\] \[WLAN_RFKILL\]: rockchip_wifi_power: toggle = false
\[ 4.180569\] \[WLAN_RFKILL\]: wifi turn on power \[GPIO-1-0
4.180674\] rkcif rkcif-mipi-lvds: clear unready subdev num: 1
\[ 4.181191\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.181206\] rkcif-mipi-lvds: Async subdev notifier completed
\[ 4.181219\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.181226\] rkcif-mipi-lvds: There is not terminal subdev, not synchronized with ISP
\[ 4.181235\] rkcif rkcif-mipi-lvds1: clear unready subdev num: 1
\[ 4.181701\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.181716\] rkcif-mipi-lvds1: Async subdev notifier completed
\[ 4.181728\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.181735\] rkcif-mipi-lvds1: There is not terminal subdev, not synchronized with ISP
\[ 4.181820\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.181835\] rkcif-mipi-lvds1: There is not terminal subdev, not synchronized with ISP
\[ 4.181894\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 4.181903\] rkcif-mipi-lvds: There is not terminal subdev, not synchronized with ISP
\[ 4.182486\] RKNPU 27700000.npu: Adding to iommu group 0
\[ 4.182690\] RKNPU 27700000.npu: RKNPU: rknpu iommu is enabled, using iommu mode
\[ 4.183030\] RKNPU 27700000.npu: can't request region for resource \[mem 0x27700000-0x27707fff
4.183060\] RKNPU 27700000.npu: can't request region for resource \[mem 0x27708000-0x2770ffff
4.183414\] \[drm\] Initialized rknpu 0.9.8 20240828 for 27700000.npu on minor 1
\[ 4.184833\] RKNPU 27700000.npu: bin=0
\[ 4.185083\] RKNPU 27700000.npu: leakage=4
\[ 4.185115\] debugfs: Directory '27700000.npu-rknpu' with parent 'vdd_npu_s0' already present!
\[ 4.186884\] RKNPU 27700000.npu: pvtm=817
\[ 4.187501\] RKNPU 27700000.npu: pvtm-volt-sel=5
\[ 4.187563\] debugfs: Directory '27700000.npu-rknpu' with parent 'vdd_npu_s0' already present!
\[ 4.188464\] RKNPU 27700000.npu: avs=0
\[ 4.188714\] RKNPU 27700000.npu: EM: created perf domain
\[ 4.189011\] RKNPU 27700000.npu: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
Welcome to Ubuntu 22.04.5 LTS!
\[ 4.190419\] RKNPU 27700000.npu: RKNPU: nbuf region: \[0x000000003fe80000, 0x000000003ff80000), nbuf size: 0x100000
\[ 4.192664\] cfg80211: Loading compiled-in X.509 certificates for regulatory database
\[ 4.193149\] vendor storage:20190527 ret = 0
\[ 4.198904\] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
\[ 4.199254\] cfg80211: Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
\[ 4.199326\] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
\[ 4.199338\] cfg80211: failed to load regulatory.db
\[ 4.200281\] rockchip-pm rockchip-suspend: not set pwm-regulator-config
\[ 4.201047\] rockchip-suspend not set sleep-mode-config for mem-lite
\[ 4.201062\] rockchip-suspend not set wakeup-config for mem-lite
\[ 4.201070\] rockchip-suspend not set sleep-mode-config for mem-ultra
\[ 4.201076\] rockchip-suspend not set wakeup-config for mem-ultra
\[ 4.202062\] I : \[File\] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; \[Line\] : 407; \[Func\] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '12:53:54', on 'Apr 25 2025'.
\[ 4.202355\] Mali:
\[ 4.202357\] Mali device driver loaded
\[ 4.202482\] rkisp rkisp-vir0: clear unready subdev num: 1
\[ 4.202740\] rkisp-vir0: Async subdev notifier completed
\[ 4.202749\] rkisp rkisp-vir1: clear unready subdev num: 1
\[ 4.202825\] rkisp-vir1: Async subdev notifier completed
\[ 4.202834\] ALSA device list:
\[ 4.202841\] #0: rockchip-es8388
\[ 4.227045\] mmc_host mmc0: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)
\[ 4.246963\] Freeing unused kernel memory: 7744K
\[ 4.247096\] Run /init as init process
\[ 4.330597\] mmc_host mmc0: Bus speed (slot 0) = 50000000Hz (slot req 50000000Hz, actual 50000000HZ div = 0)
\[ 4.333767\] mmc0: new high speed SDIO card at address 0001
\[ 4.334352\] \[dhd\] dummy_probe: func-\>num=0x1;
\[ 4.334367\] \[dhd\] dummy_probe: class=0xff; vendor=0x2d0; device=0xffff
\[ 4.334521\] \[dhd\] dummy_probe: func-\>num=0x2;
\[ 4.334532\] \[dhd\] dummy_probe: class=0xff; vendor=0x2d0; device=0xffff
\[ 4.334684\] \[dhd\] dummy_probe: func-\>num=0x3;
\[ 4.334694\] \[dhd\] dummy_probe: class=0xff; vendor=0x2d0; device=0xffff
\[ 4.387016\] \[dhd\] wifi_platform_set_power = 1, sleep done: 200 msec
\[ 4.387044\] \[dhd\] wifi_platform_bus_enumerate device present 1
\[ 4.387051\] \[dhd\] ======== Card detection to detect SDIO card! ========
\[ 4.404077\] \[dhd\] bcmsdh_register: register client driver
\[ 4.404448\] \[dhd\] bcmsdh_sdmmc_probe: Enter num=1
\[ 4.404841\] \[dhd\] bcmsdh_sdmmc_probe: Enter num=2
\[ 4.404885\] \[dhd\] bus num (host idx)=0, slot num (rca)=1, caps=0x40000105
\[ 4.404895\] \[dhd\] found adapter info 'DHD generic adapter'
\[ 4.404907\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 3, size 139264
\[ 4.404963\] \[dhd\] succeed to alloc static buf
\[ 4.404970\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 4, size 0
\[ 4.405070\] \[dhd\] sdioh_attach: set sd_f2_blocksize 256
\[ 4.405234\] \[dhd\] sdioh_attach: sd clock rate = 50000000
\[ 4.406937\] \[dhd\] dhdsdio_probe : no mutex held
\[ 4.406964\] \[dhd\] dhdsdio_probe : set mutex lock
\[ 4.407202\] \[dhd\] F1 signature read @0x18000000=0x15294345
\[ 4.409864\] \[dhd\] F1 signature OK, socitype:0x1 chip:0x4345 rev:0x9 pkg:0x2
\[ 4.410355\] \[dhd\] DHD: dongle ram size is set to 819200(orig 819200) at 0x198000
\[ 4.410406\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 7, size 42288
\[ 4.410448\] \[dhd\] dhd_conf_set_chiprev : devid=0xa9bf, chip=0x4345, chiprev=9
\[ 4.410499\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 0, size 10320
\[ 4.410545\] \[dhd\] dhd_ioctl_entry_local invalid parameter net 0000000000000000 dev_priv 000000000c75e6ca
\[ 4.410556\] \[dhd\] CFG80211-ERROR) wl_is_fils_supported : FILS NOT supported, err -22
\[ 4.411002\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 5, size 65536
\[ 4.411897\] \[dhd\] CFG80211-ERROR) wl_is_fils_supported : FILS NOT supported, err -19
\[ 4.412175\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 19, size 65688
\[ 4.412539\] \[dhd\] dhd_attach(): thread:dhd_watchdog_thread:12f started
\[ 4.412686\] \[dhd\] dhd_attach(): thread:dhd_dpc:130 started
\[ 4.412900\] \[dhd\] dhd_attach(): thread:dhd_rxf:131 started
\[ 4.412914\] \[dhd\] dhd_deferred_work_init: work queue initialized
\[ 4.412921\] \[dhd\] dhd_tcpack_suppress_set: TCP ACK Suppress mode 0 -\> mode 2
\[ 4.412927\] \[dhd\] dhd_tcpack_suppress_set: TCPACK_INFO_MAXNUM=40, TCPDATA_INFO_MAXNUM=40
\[ 4.413007\] \[dhd\] sdioh_cis_read: func_cis_ptr\[0\]=0x10ac
\[ 4.425763\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 1, size 10300
\[ 4.425789\] \[dhd\] STATIC-MSG) dhd_wlan_mem_prealloc : section 2, size 65536
\[ 4.425850\] \[dhd\] dhdsdio_probe_init: making DHD_BUS_DOWN
\[ 4.425990\] \[dhd\] Dongle Host Driver, version 101.10.591.52.27 (20240409-1)(20240411-2)(d83d8d7)
\[ 4.425990\] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd compiled on Apr 25 2025 at 12:53:52
\[ 4.425990
4.426516\] \[dhd\] Register interface \[wlan0\] MAC: 9c:b8:b4:36:53:1e
\[ 4.426516
4.426585\] \[dhd\] \[wlan0\] wl_android_wifi_off : g_wifi_on=1 force_off=1
\[ 4.426594\] \[dhd\] dhd_bus_devreset: == Power OFF ==
\[ 4.426829\] \[dhd\] dhd_bus_stop: making DHD_BUS_DOWN
\[ 4.426931\] \[dhd\] bcmsdh_oob_intr_unregister: Enter
\[ 4.426940\] \[dhd\] bcmsdh_oob_intr_unregister: irq is not registered
\[ 4.426953\] \[dhd\] dhd_bus_devreset: making dhdpub up FALSE
\[ 4.426958\] \[dhd\] dhd_txglom_enable: enable 0
\[ 4.426965\] \[dhd\] dhd_bus_devreset: making DHD_BUS_DOWN
\[ 4.427010\] \[dhd\] wifi_platform_set_power = 0, delay: 10 msec
\[ OK \] Created slice Slice /system/modprobe.
\[ 4.427017\] \[dhd\] ======== PULL WL_REG_ON(-1) LOW! ========
\[ OK \] Created slice Slice /system/serial-getty.
\[ 4.427023\] \[WLAN_RFKILL\]: rockchip_wifi_power: 0
\[ OK \] Created slice Slice /system/systemd-fsck.
\[ 4.427031\] \[WLAN_RFKILL\]: rockchip_wifi_power: toggle = false
\[ OK \] Created slice User and Session Slice.
\[ 4.427037\] \[WLAN_RFKILL\]: rockchip_wifi_power: toggle = false
\[ OK \] Started Forward Password R...uests to Wall Directory Watch.
\[ 4.427042\] \[WLAN_RFKILL\]: wifi shut off power \[GPIO-1-1
OK \] Reached target User and Group Name Lookups.
\[ 4.438087\] \[dhd\] wifi_platform_set_power = 0, sleep done: 10 msec
\[ OK \] Reached target Slice Units.
\[ 4.438133\] \[dhd\] \[wlan0\] wl_android_wifi_off : out
\[ OK \] Reached target Mounting snaps.
\[ 4.438146\] \[dhd\] wl_android_post_init: 0
\[ OK \] Reached target Mounted snaps.
\[ 4.438153\] \[dhd\] dhdsdio_probe : mutex is released.
\[ OK \] Reached target Swaps.
\[ 4.438603\] \[dhd\] bcmsdh_sdmmc_probe: Enter num=3
\[ OK \] Reached target Local Verity Protected Volumes.
\[ 4.438726\] \[dhd\] _dhd_module_init: Exit err=0
\[ OK \] Listening on RPCbind Server Activation Socket.
\[ 6.126999\] rk-pcie 2a200000.pcie: PCIe Link Fail, LTSSM is 0x3, hw_retries=0
\[ OK \] Listening on Syslog Socket.
\[ 6.151486\] EXT4-fs (mmcblk1p6): mounted filesystem with ordered data mode. Quota mode: disabled.
\[ OK \] Listening on fsck to fsckd communication Socket.
\[ 6.398007\] EXT4-fs (mmcblk1p8): mounted filesystem without journal. Quota mode: disabled.
\[ OK \] Listening on initctl Compatibility Named Pipe.
\[ 6.688755\] systemd\[1\]: systemd 249.11-0ubuntu3.15 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +SMACK +SECCOMP +GCRYPT +GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBFDISK +PCRE2 -PWQUALITY -P11KIT -QRENCODE +BZIP2 +LZ4 +XZ +ZLIB +ZSTD -XKBCOMMON +UTMP +SYSVINIT default-hierarchy=unified)
\[ OK \] Listening on Journal Socket (/dev/log).
\[ 6.690373\] systemd\[1\]: Detected architecture arm64.
\[ OK \] Listening on Journal Socket.
\[ 6.695110\] systemd\[1\]: Hostname set to \.
\[ OK \] Listening on udev Control Socket.
\[ 6.862931\] systemd\[1\]: Configuration file /lib/systemd/system/usbdevice.service is marked executable. Please remove executable permission bits. Proceeding anyway.
\[ OK \] Listening on udev Kernel Socket.
\[ 6.943255\] systemd\[1\]: Configuration file /run/systemd/system/netplan-ovs-cleanup.service is marked world-inaccessible. This has no effect as configuration data is accessible via APIs without restrictions. Proceeding anyway.
Mounting /sys/kernel/config...
\[ 7.014591\] systemd\[1\]: /lib/systemd/system/snapd.service:23: Unknown key name 'RestartMode' in section 'Service', ignoring.
Mounting /sys/kernel/debug...
\[ 7.035745\] systemd\[1\]: Configuration file /lib/systemd/system/resize-userdata.service is marked executable. Please remove executable permission bits. Proceeding anyway.
Mounting Kernel Trace File System...
\[ 7.148130\] systemd\[1\]: Configuration file /lib/systemd/system/rockchip.service is marked executable. Please remove executable permission bits. Proceeding anyway.
Starting Journal Service...
\[ 7.149166\] systemd\[1\]: Configuration file /lib/systemd/system/rkaiq_3A.service is marked world-writable. Please remove world writability permission bits. Proceeding anyway.
Starting Set the console keyboard layout...
\[ 7.203977\] systemd\[1\]: Queued start job for default target Graphical Interface.
Starting Load Kernel Module drm...
\[ 7.204050\] systemd\[1\]: Unnecessary job was removed for /dev/mmcblk1p8.
Starting Load Kernel Module efi_pstore...
\[ 7.207479\] systemd\[1\]: Created slice Slice /system/modprobe.
Starting Load Kernel Module fuse...
\[ 7.209119\] systemd\[1\]: Created slice Slice /system/serial-getty.
Starting Enable Rockchip camera engine rkaiq...
\[ 7.210403\] systemd\[1\]: Created slice Slice /system/systemd-fsck.
Starting Load Kernel Modules...
\[ 7.211050\] systemd\[1\]: Created slice User and Session Slice.
Starting Remount Root and Kernel File Systems...
\[ 7.211566\] systemd\[1\]: Started Forward Password Requests to Wall Directory Watch.
Starting Coldplug All udev Devices...
\[ 7.211992\] systemd\[1\]: Condition check resulted in Arbitrary Executable File Formats File System Automount Point being skipped.
\[ OK \] Mounted /sys/kernel/config.
\[ 7.212303\] systemd\[1\]: Reached target User and Group Name Lookups.
\[ OK \] Mounted /sys/kernel/debug.
\[ 7.212485\] systemd\[1\]: Reached target Slice Units.
\[ OK \] Mounted Kernel Trace File System.
\[ 7.212584\] systemd\[1\]: Reached target Mounting snaps.
\[ OK \] Finished Load Kernel Module drm.
\[ 7.212671\] systemd\[1\]: Reached target Mounted snaps.
\[ OK \] Finished Load Kernel Module efi_pstore.
\[ 7.212784\] systemd\[1\]: Reached target Swaps.
\[ OK \] Finished Load Kernel Module fuse.
\[ 7.212901\] systemd\[1\]: Reached target Local Verity Protected Volumes.
\[ OK \] Started Enable Rockchip camera engine rkaiq.
\[ 7.213660\] systemd\[1\]: Listening on RPCbind Server Activation Socket.
\[ OK \] Finished Load Kernel Modules.
\[ 7.214544\] systemd\[1\]: Listening on Syslog Socket.
Mounting FUSE Control File System...
\[ 7.215721\] systemd\[1\]: Listening on fsck to fsckd communication Socket.
Starting Apply Kernel Variables...
\[ 7.216397\] systemd\[1\]: Listening on initctl Compatibility Named Pipe.
\[ OK \] Mounted FUSE Control File System.
\[ 7.232052\] systemd\[1\]: Condition check resulted in Journal Audit Socket being skipped.
\[ OK \] Finished Remount Root and Kernel File Systems.
\[ 7.232567\] systemd\[1\]: Listening on Journal Socket (/dev/log).
Starting Platform Persistent Storage Archival...
\[ 7.233052\] systemd\[1\]: Listening on Journal Socket.
Starting Load/Save Random Seed...
\[ 7.233549\] systemd\[1\]: Listening on udev Control Socket.
Starting Create System Users...
\[ 7.233870\] systemd\[1\]: Listening on udev Kernel Socket.
\[ OK \] Finished Apply Kernel Variables.
\[ 7.234235\] systemd\[1\]: Condition check resulted in Huge Pages File System being skipped.
\[ OK \] Finished Load/Save Random Seed.
\[ 7.234422\] systemd\[1\]: Condition check resulted in POSIX Message Queue File System being skipped.
\[ OK \] Finished Platform Persistent Storage Archival.
\[ 7.236235\] systemd\[1\]: Mounting /sys/kernel/config...
\[ OK \] Finished Create System Users.
\[ 7.238972\] systemd\[1\]: Mounting /sys/kernel/debug...
Starting Create Static Device Nodes in /dev...
\[ 7.242240\] systemd\[1\]: Mounting Kernel Trace File System...
\[ OK \] Finished Set the console keyboard layout.
\[ 7.244085\] systemd\[1\]: systemd-journald.service: unit configures an IP firewall, but the local system does not support BPF/cgroup firewalling.
\[ OK \] Finished Create Static Device Nodes in /dev.
\[ 7.244119\] systemd\[1\]: (This warning is only shown for the first unit using IP firewalling.)
\[ OK \] Reached target Preparation for Local File Systems.
\[ 7.246426\] systemd\[1\]: Starting Journal Service...
\[ OK \] Reached target Local File Systems.
\[ 7.247262\] systemd\[1\]: Condition check resulted in Kernel Module supporting RPCSEC_GSS being skipped.
Starting Set console font and keymap...
\[ 7.250258\] systemd\[1\]: Starting Set the console keyboard layout...
Starting Tell Plymouth To Write Out Runtime Data...
\[ 7.250711\] systemd\[1\]: Condition check resulted in Create List of Static Device Nodes being skipped.
\[ OK \] Started Setup rockchip platform environment.
\[ 7.253849\] systemd\[1\]: Starting Load Kernel Module drm...
Starting Rule-based Manage...for Device Events and Files...
\[ 7.257774\] systemd\[1\]: Starting Load Kernel Module efi_pstore...
Starting Manage USB device functions...
\[ 7.262081\] systemd\[1\]: Starting Load Kernel Module fuse...
\[ OK \] Finished Set console font and keymap.
\[ 7.266648\] systemd\[1\]: Starting Enable Rockchip camera engine rkaiq...
\[ OK \] Started Journal Service.
\[ 7.272956\] systemd\[1\]: Starting Load Kernel Modules...
Starting Flush Journal to Persistent Storage...
\[ 7.277966\] systemd\[1\]: Starting Remount Root and Kernel File Systems...
\[ OK \] Finished Tell Plymouth To Write Out Runtime Data.
\[ 7.283308\] systemd\[1\]: Starting Coldplug All udev Devices...
\[ OK \] Finished Coldplug All udev Devices.
\[ 7.291768\] systemd\[1\]: Mounted /sys/kernel/config.
\[ OK \] Finished Flush Journal to Persistent Storage.
\[ 7.292706\] systemd\[1\]: Mounted /sys/kernel/debug.
Starting Helper to synchronize boot up for ifupdown...
\[ 7.293534\] systemd\[1\]: Mounted Kernel Trace File System.
Starting Create Volatile Files and Directories...
\[ 7.294683\] systemd\[1\]: modprobe@drm.service: Deactivated successfully.
\[ OK \] Finished Helper to synchronize boot up for ifupdown.
\[ 7.295336\] systemd\[1\]: Finished Load Kernel Module drm.
Starting Raise network interfaces...
\[ 7.304925\] systemd\[1\]: modprobe@efi_pstore.service: Deactivated successfully.
\[ OK \] Finished Create Volatile Files and Directories.
\[ 7.305924\] systemd\[1\]: Finished Load Kernel Module efi_pstore.
Mounting RPC Pipe File System...
\[ 7.309939\] systemd\[1\]: modprobe@fuse.service: Deactivated successfully.
Starting RPC bind portmap service...
\[ 7.310591\] systemd\[1\]: Finished Load Kernel Module fuse.
Starting Network Name Resolution...
\[ 7.311726\] systemd\[1\]: Started Enable Rockchip camera engine rkaiq.
Starting Record System Boot/Shutdown in UTMP...
\[ 7.313081\] systemd\[1\]: Finished Load Kernel Modules.
\[ OK \] Mounted RPC Pipe File System.
\[ 7.316644\] systemd\[1\]: Mounting FUSE Control File System...
\[ OK \] Reached target rpc_pipefs.target.
\[ 7.321893\] systemd\[1\]: Starting Apply Kernel Variables...
\[ OK \] Reached target NFS client services.
\[ 7.328388\] systemd\[1\]: Mounted FUSE Control File System.
\[ OK \] Started Rule-based Manager for Device Events and Files.
\[ 7.342350\] systemd\[1\]: Finished Remount Root and Kernel File Systems.
\[ OK \] Started Dispatch Password ...ts to Console Directory Watch.
\[ 7.343996\] systemd\[1\]: Starting Platform Persistent Storage Archival...
\[ OK \] Reached target Local Encrypted Volumes.
\[ 8.252354\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
\[ OK \] Started RPC bind portmap service.
\[ 8.252385\] stream_cif_mipi_id1: update sensor info failed -19
\[ OK \] Finished Record System Boot/Shutdown in UTMP.
\[ 8.253026\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ OK \] Reached target Preparation for Remote File Systems.
\[ 8.253055\] rkcif_scale_ch0: update sensor info failed -19
\[ OK \] Reached target Remote File Systems.
\[ 8.255440\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ OK \] Reached target RPC Port Mapper.
\[ 8.255471\] stream_cif_mipi_id0: update sensor info failed -19
\[ OK \] Reached target System Initialization.
\[ 8.256234\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ OK \] Started CUPS Scheduler.
\[ 8.256253\] rkcif_tools_id2: update sensor info failed -19
\[ OK \] Started Start whoopsie on ...n of the /var/crash directory.
\[ 8.258335\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ OK \] Started Trigger anacron every hour.
\[ 8.258363\] rkcif_tools_id0: update sensor info failed -19
\[ OK \] Started Daily apt download activities.
\[ 8.263135\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[3\] get remote terminal sensor failed!
\[ OK \] Started Daily apt upgrade and clean activities.
\[ 8.263164\] rkcif_scale_ch3: update sensor info failed -19
\[ OK \] Started Daily dpkg database backup timer.
\[ 8.263760\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
\[ OK \] Started Periodic ext4 Onli...ata Check for All Filesystems.
\[ 8.263795\] rkcif_scale_ch1: update sensor info failed -19
\[ OK \] Started Discard unused blocks once a week.
\[ 8.264890\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ OK \] Started Refresh fwupd metadata regularly.
\[ 8.264920\] rkcif_scale_ch2: update sensor info failed -19
\[ OK \] Started Daily rotation of log files.
\[ 8.272934\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ OK \] Started Daily man-db regeneration.
\[ 8.272964\] stream_cif_mipi_id0: update sensor info failed -19
\[ OK \] Started Message of the Day.
\[ 8.273896\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
\[ OK \] Started Daily Cleanup of Temporary Directories.
\[ 8.273926\] stream_cif_mipi_id1: update sensor info failed -19
\[ OK \] Reached target Path Units.
\[ 8.275961\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[3\] get remote terminal sensor failed!
\[ OK \] Listening on Avahi mDNS/DNS-SD Stack Activation Socket.
\[ 8.275977\] stream_cif_mipi_id3: update sensor info failed -19
\[ OK \] Listening on CUPS Scheduler.
\[ 8.280755\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ OK \] Listening on D-Bus System Message Bus Socket.
\[ 8.280771\] stream_cif_mipi_id2: update sensor info failed -19
Starting Socket activation for snappy daemon...
\[ 8.281535\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[3\] get remote terminal sensor failed!
\[ OK \] Listening on Socket activation for snappy daemon.
\[ 8.281554\] stream_cif_mipi_id3: update sensor info failed -19
\[ OK \] Reached target Socket Units.
\[ 8.283672\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[3\] get remote terminal sensor failed!
\[ OK \] Reached target Basic System.
\[ 8.283700\] rkcif_scale_ch3: update sensor info failed -19
Starting Accounts Service...
\[ 8.285635\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ OK \] Started Run anacron jobs.
\[ 8.285669\] stream_cif_mipi_id2: update sensor info failed -19
Starting LSB: automatic crash report generation...
\[ 8.285824\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
Starting Avahi mDNS/DNS-SD Stack...
\[ 8.285840\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
Starting Bluetooth Initialization Service...
\[ 8.285843\] rkcif_scale_ch0: update sensor info failed -19
\[ OK \] Started Regular background program processing daemon.
\[ 8.285853\] rkcif_tools_id1: update sensor info failed -19
\[ OK \] Started D-Bus System Message Bus.
\[ 8.287159\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
Starting Network Manager...
\[ 8.287187\] rkcif_scale_ch2: update sensor info failed -19
\[ OK \] Started Save initial kernel messages after boot.
\[ 8.289413\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
Starting Remove Stale Onli...t4 Metadata Check Snapshots...
\[ 8.289443\] rkcif_scale_ch1: update sensor info failed -19
Starting LSB: GNOME Display Manager...
\[ 8.291776\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
Starting Dispatcher daemon for systemd-networkd...
\[ 8.291812\] rkcif_tools_id2: update sensor info failed -19
Starting Authorization Manager...
\[ 8.292014\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
Starting Power Profiles daemon...
\[ 8.292030\] rkcif_tools_id0: update sensor info failed -19
Starting Resize ext4 filesystem on userdata...
\[ 8.299460\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
Starting System Logging Service...
\[ 8.299495\] rkcif_tools_id1: update sensor info failed -19
\[ OK \] Reached target Preparation for Logins.
\[ 8.472636\] of_dma_request_slave_channel: dma-names property of node '/serial@2ad80000' missing or empty
Starting Wait until snapd is fully seeded...
Starting Switcheroo Control Proxy service...
Starting User Login Management...
Starting Disk Manager...
Starting WPA supplicant...
\[ OK \] Started LSB: GNOME Display Manager.
\[ OK \] Started System Logging Service.
\[ OK \] Finished Raise network interfaces.
\[ OK \] Started LSB: automatic crash report generation.
\[ OK \] Started Network Name Resolution.
\[ OK \] Reached target Host and Network Name Lookups.
\[ OK \] Started User Login Management.
\[ OK \] Started WPA supplicant.
\[ OK \] Started Avahi mDNS/DNS-SD Stack.
\[ OK \] Started Switcheroo Control Proxy service.
\[ OK \] Started Network Manager.
\[ OK \] Reached target Network.
Starting Network Manager Wait Online...
Starting CUPS Scheduler...
Starting Network Time Service...
Starting OpenVPN service...
Starting OpenBSD Secure Shell server...
Starting Permit User Sessions...
\[ OK \] Finished OpenVPN service.
\[ OK \] Started Authorization Manager.
\[ OK \] Finished Resize ext4 filesystem on userdata.
\[ OK \] Started Power Profiles daemon.
\[ OK \] Finished Permit User Sessions.
\[ OK \] Started Accounts Service.
\[ OK \] Reached target System Time Set.
Starting Modem Manager...
Starting Light Display Manager...
Starting Hold until boot process finishes up...
Starting Snap Daemon...
Starting Hostname Service...
\[ OK \] Finished Hold until boot process finishes up.
Starting Set console scheme...
\[ OK \] Finished Set console scheme.
\[ OK \] Created slice Slice /system/getty.
\[ OK \] Started Getty on tty1.
\[ OK \] Started CUPS Scheduler.
\[ OK \] Created slice Slice /system/usb-mount.
Starting Mount USB Drive...
Starting Mount USB Drive...
\[ OK \] Started Network Time Service.
\[ OK \] Started OpenBSD Secure Shell server.
\[ OK \] Found device /dev/ttyFIQ0.
\[ OK \] Started Serial Getty on ttyFIQ0.
\[ OK \] Reached target Login Prompts.
\[ OK \] Finished Remove Stale Onli...ext4 Metadata Check Snapshots.
Starting Save/Restore Sound Card State...
\[ OK \] Started Light Display Manager.
\[ OK \] Started Hostname Service.
\[ OK \] Finished Bluetooth Initialization Service.
\[ OK \] Finished Save/Restore Sound Card State.
\[ OK \] Started Dispatcher daemon for systemd-networkd.
\[ OK \] Reached target Sound Card.
\[ OK \] Started Disk Manager.
\[ OK \] Started Modem Manager.
\[ OK \] Listening on Load/Save RF ...itch Status /dev/rfkill Watch.
Starting Network Manager Script Dispatcher Service...
\[ OK \] Finished Mount USB Drive.
\[ OK \] Started Network Manager Script Dispatcher Service.
Starting Load/Save RF Kill Switch Status...
\[ OK \] Started Load/Save RF Kill Switch Status.
\[ OK \] Finished Mount USB Drive.
Starting Mount USB Drive...
Starting Mount USB Drive...
Starting Mount USB Drive...
Starting Mount USB Drive...
Starting Mount USB Drive...
Starting Mount USB Drive...
Starting Mount USB Drive...
Starting Mount USB Drive...
Starting Mount USB Drive...
\[ OK \] Started Snap Daemon.
\[ OK \] Started Manage USB device functions.
\[ OK \] Finished Mount USB Drive.
Starting Time \& Date Service...
\[ OK \] Finished Mount USB Drive.
\[ OK \] Finished Mount USB Drive.
\[ OK \] Finished Mount USB Drive.
\[ OK \] Finished Mount USB Drive.
\[ OK \] Finished Mount USB Drive.
\[ OK \] Finished Mount USB Drive.
\[ OK \] Finished Mount USB Drive.
\[ OK \] Found device /dev/disk/by-partlabel/userdata.
\[ OK \] Started Time \& Date Service.
Starting File System Check.../disk/by-partlabel/userdata...
\[ OK \] Started File System Check Daemon to report status.
\[ OK \] Finished File System Check...ev/disk/by-partlabel/userdata.
\[ OK \] Finished Mount USB Drive.
\[ 10.203058\] rk-pcie 2a200000.pcie: PCIe Link Fail, LTSSM is 0x3, hw_retries=1
\[ OK \] Finished Wait until snapd is fully seeded.
\[ 11.223882\] rk-pcie 2a200000.pcie: failed to initialize host
\[ OK \] Created slice User Slice of UID 0.
Starting User Runtime Directory /run/user/0...
\[ OK \] Finished User Runtime Directory /run/user/0.
Starting User Manager for UID 0...
\[ OK \] Started User Manager for UID 0.
\[ OK \] Started Session c1 of User root.
\[ OK \] Finished Network Manager Wait Online.
\[ OK \] Reached target Network is Online.
\[ OK \] Started Download data for ...ailed at package install time.
\[ OK \] Started Check to see wheth...w version of Ubuntu available.
\[ OK \] Reached target Timer Units.
\[ OK \] Started Make remote CUPS printers available locally.
Starting Tool to automatic...mit kernel crash signatures...
Starting Notify NFS peers of a restart...
\[ OK \] Started crash report submission.
\[ OK \] Started Notify NFS peers of a restart.
\[ OK \] Started Tool to automatica...ubmit kernel crash signatures.
\[ OK \] Reached target Multi-User System.
\[ OK \] Reached target Graphical Interface.
Starting Record Runlevel Change in UTMP...
\[ OK \] Finished Record Runlevel Change in UTMP.
\[ 12.711015\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 12.711059\] stream_cif_mipi_id0: update sensor info failed -19
\[ 12.711201\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
\[ 12.711214\] stream_cif_mipi_id1: update sensor info failed -19
\[ 12.711306\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ 12.711317\] rkcif_tools_id2: update sensor info failed -19
\[ 12.711404\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ 12.711416\] stream_cif_mipi_id2: update sensor info failed -19
\[ 12.711499\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[3\] get remote terminal sensor failed!
\[ 12.711510\] stream_cif_mipi_id3: update sensor info failed -19
\[ 12.711593\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 12.711604\] rkcif_scale_ch0: update sensor info failed -19
\[ 12.711683\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
\[ 12.711694\] rkcif_scale_ch1: update sensor info failed -19
\[ 12.711774\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ 12.711785\] rkcif_scale_ch2: update sensor info failed -19
\[ 12.711862\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[3\] get remote terminal sensor failed!
\[ 12.711873\] rkcif_scale_ch3: update sensor info failed -19
\[ 12.711951\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 12.711962\] rkcif_tools_id0: update sensor info failed -19
\[ 12.712044\] rkcif-mipi-lvds: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
\[ 12.712055\] rkcif_tools_id1: update sensor info failed -19
\[ 12.712190\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 12.712203\] stream_cif_mipi_id0: update sensor info failed -19
\[ 12.712307\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
\[ 12.712319\] stream_cif_mipi_id1: update sensor info failed -19
\[ 12.712404\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ 12.712414\] stream_cif_mipi_id2: update sensor info failed -19
\[ 12.712500\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[3\] get remote terminal sensor failed!
\[ 12.712511\] stream_cif_mipi_id3: update sensor info failed -19
\[ 12.712593\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 12.712605\] rkcif_scale_ch0: update sensor info failed -19
\[ 12.712685\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
\[ 12.712696\] rkcif_scale_ch1: update sensor info failed -19
\[ 12.712774\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ 12.712785\] rkcif_scale_ch2: update sensor info failed -19
\[ 12.712867\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[3\] get remote terminal sensor failed!
\[ 12.712878\] rkcif_scale_ch3: update sensor info failed -19
\[ 12.712958\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[0\] get remote terminal sensor failed!
\[ 12.712969\] rkcif_tools_id0: update sensor info failed -19
\[ 12.713047\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[1\] get remote terminal sensor failed!
\[ 12.713057\] rkcif_tools_id1: update sensor info failed -19
\[ 12.713141\] rkcif-mipi-lvds1: rkcif_update_sensor_info: stream\[2\] get remote terminal sensor failed!
\[ 12.713152\] rkcif_tools_id2: update sensor info failed -19
Ubuntu 22.04.5 LTS hd-rk3576 ttyFIQ0
hd-rk3576 login: root
Password:
Welcome to Ubuntu 22.04.5 LTS (GNU/Linux 6.1.84 aarch64)
\* Documentation: https://help.ubuntu.com
\* Management: https://landscape.canonical.com
\* Support: https://ubuntu.com/pro
This system has been minimized by removing packages and content that are
not required on a system that users do not log into.
To restore this content, you can run the 'unminimize' command.
Expanded Security Maintenance for Applications is not enabled.
0 updates can be applied immediately.
Enable ESM Apps to receive additional future security updates.
See https://ubuntu.com/esm or run: sudo pro status
The list of available updates is more than a week old.
To check for new updates run: sudo apt update
The programs included with the Ubuntu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/\*/copyright.
Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.
root@hd-rk3576:\~#
root@hd-rk3576:\~#
root@hd-rk3576:\~#
root@hd-rk3576:\~#
root@hd-rk3576:\~#
root@hd-rk3576:\~#
\[END\] 2026/4/11 19:58:19
