鸿蒙flutter第三方库适配 - 番茄钟专注

番茄钟专注应用


欢迎加入开源鸿蒙跨平台社区:

https://openharmonycrossplatform.csdn.net

适配的第三方库地址:

一、项目概述

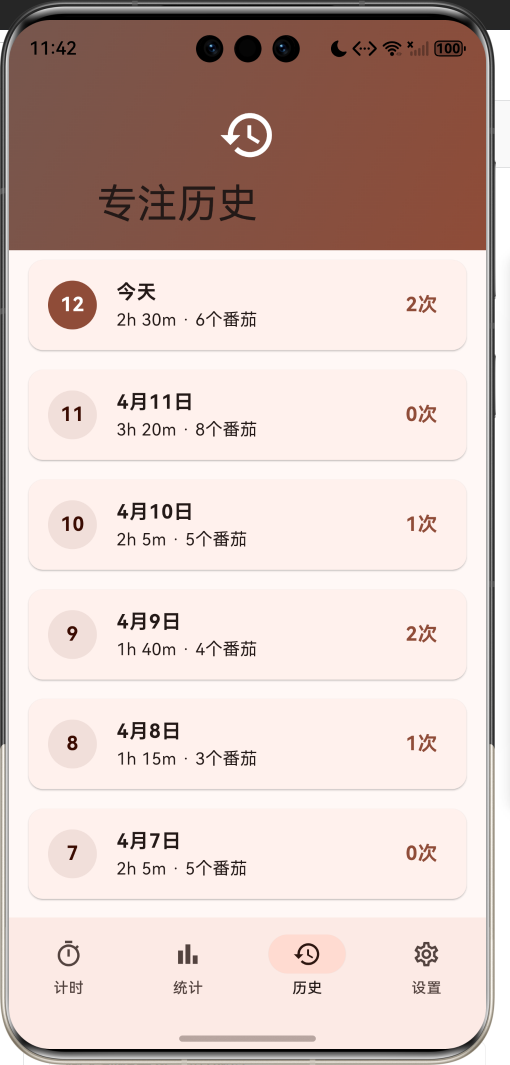

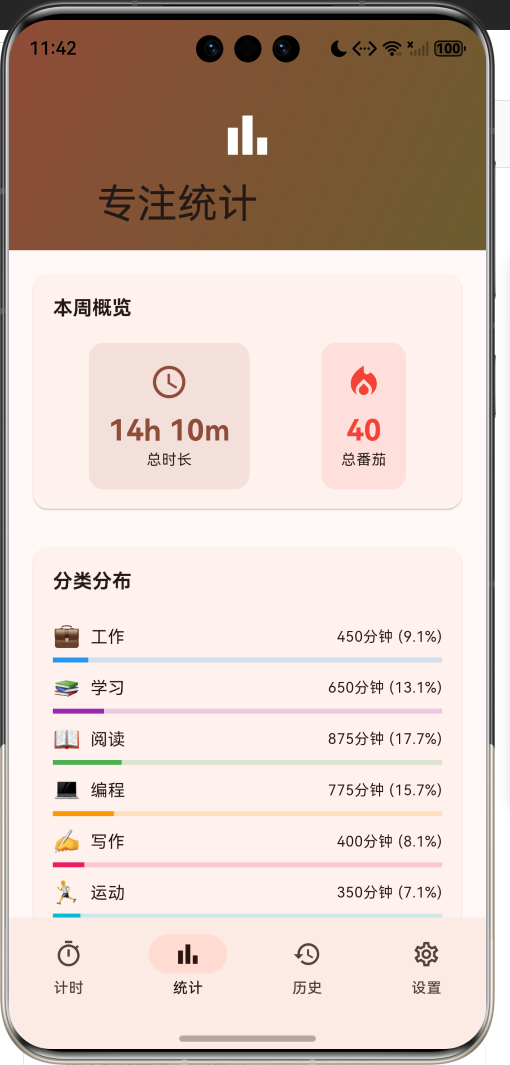

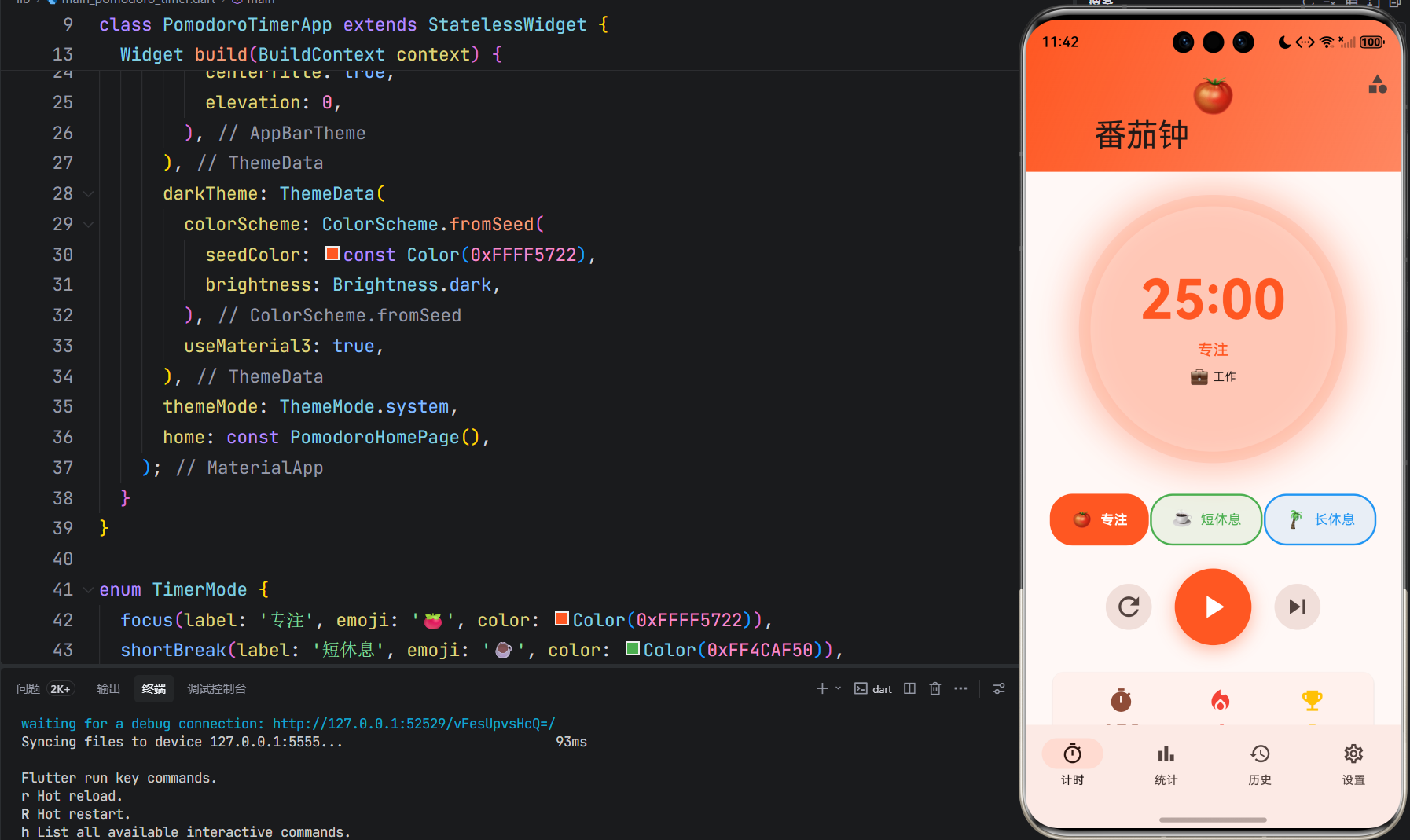

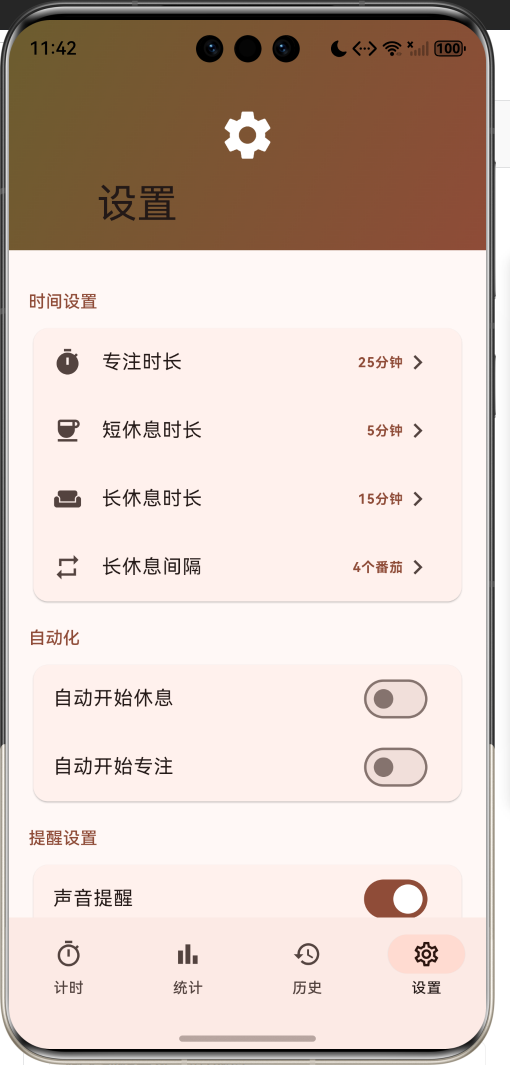

运行效果图



1.1 应用简介

番茄钟专注应用是一款基于番茄工作法的时间管理工具,致力于帮助用户提高工作效率,培养专注习惯。应用支持自定义时长、休息提醒、专注统计、白噪音背景等功能,让用户在愉悦的氛围中高效完成工作。

应用以热情的橙红色为主色调,象征专注的热情与动力。涵盖计时器、统计分析、历史记录、设置中心四大模块。用户可以开始专注计时、查看统计数据、回顾历史记录、自定义设置,打造专属的专注体验。

1.2 核心功能

功能模块 功能描述 实现方式
番茄计时 专注、短休息、长休息三种模式 定时器
自定义时长 自由设置专注和休息时长 设置配置
专注类型 工作、学习、阅读等多种类型 分类管理
专注统计 每日、每周专注数据统计 数据分析
历史记录 专注历史时间线展示 数据存储
白噪音 雨声、森林、海浪等背景音 音频播放
提醒通知 专注结束提醒通知 本地通知
屏幕常亮 专注时保持屏幕常亮 系统控制

1.3 计时模式定义

序号 模式名称 Emoji 默认时长 描述
1 专注 🍅 25分钟 专注工作时间段
2 短休息 5分钟 短暂休息调整
3 长休息 🌴 15分钟 较长休息放松

1.4 专注类型定义

序号 类型名称 Emoji 颜色 描述
1 工作 💼 蓝色 日常工作任务
2 学习 📚 紫色 学习知识技能
3 阅读 📖 绿色 阅读书籍文章
4 编程 💻 橙色 编写代码程序
5 写作 ✍️ 粉色 创作写作内容
6 运动 🏃 青色 锻炼身体运动
7 冥想 🧘 棕色 冥想放松身心
8 其他 📌 灰色 其他类型任务

1.5 白噪音类型定义

序号 音效名称 图标 描述
1 🔇 关闭白噪音
2 雨声 💧 淅淅沥沥的雨声
3 森林 🌲 鸟语花香的森林
4 海浪 🌊 波涛汹涌的海浪
5 篝火 🔥 噼啪作响的篝火
6 风声 💨 轻柔拂面的风声
7 咖啡厅 嘈杂温馨的咖啡厅
8 夜晚 🌙 宁静祥和的夜晚

1.6 技术栈

技术领域 技术选型 版本要求
开发框架 Flutter >= 3.0.0
编程语言 Dart >= 2.17.0
设计规范 Material Design 3 -
本地通知 flutter_local_notifications >= 16.0.0
数据存储 shared_preferences >= 2.0.0
音频播放 audioplayers >= 5.0.0
屏幕唤醒 wakelock >= 0.2.0
目标平台 鸿蒙OS / Android / iOS API 21+

1.7 项目结构

复制代码
lib/
└── main_pomodoro_timer.dart
    ├── PomodoroTimerApp              # 应用入口
    ├── TimerMode                     # 计时模式枚举
    ├── WhiteNoise                    # 白噪音枚举
    ├── FocusCategory                 # 专注类型枚举
    ├── FocusSession                  # 专注会话模型
    ├── DailyStats                    # 每日统计模型
    ├── PomodoroSettings              # 番茄钟设置
    ├── PomodoroController            # 番茄钟控制器
    ├── PomodoroHomePage              # 主页面(底部导航)
    ├── _buildTimerPage               # 计时页
    ├── _buildStatsPage               # 统计页
    ├── _buildHistoryPage             # 历史页
    ├── _buildSettingsPage            # 设置页
    ├── TimerCirclePainter            # 计时圆环绘制器
    └── WeeklyChartPainter            # 周统计图表绘制器

二、系统架构

2.1 整体架构图

Data Layer
Business Layer
Presentation Layer
主页面

PomodoroHomePage
计时页
统计页
历史页
设置页
计时圆环
模式选择
控制按钮
今日摘要
周概览
分类分布
趋势图表
历史列表
日期详情
时间设置
自动化设置
提醒设置
白噪音选择
番茄钟控制器

PomodoroController
计时器管理

TimerManager
统计计算器

StatsCalculator
FocusSession

专注会话
DailyStats

每日统计
PomodoroSettings

设置配置

2.2 类图设计

uses
creates
calculates
has
uses
PomodoroTimerApp
+Widget build()
<<enumeration>>
TimerMode
+String label
+String emoji
+Color color
+focus()
+shortBreak()
+longBreak()
<<enumeration>>
WhiteNoise
+String label
+IconData icon
+none()
+rain()
+forest()
+ocean()
+fire()
+wind()
+cafe()
+night()
<<enumeration>>
FocusCategory
+String label
+String emoji
+Color color
+work()
+study()
+reading()
+coding()
+writing()
+exercise()
+meditation()
+other()
FocusSession
+String id
+DateTime startTime
+DateTime endTime
+int durationMinutes
+FocusCategory category
+String? note
+bool completed
+int tomatoCount
DailyStats
+DateTime date
+int totalMinutes
+int completedSessions
+int tomatoCount
+Map<FocusCategory,int> categoryMinutes
+String totalHoursText
PomodoroSettings
+int focusDuration
+int shortBreakDuration
+int longBreakDuration
+int sessionsBeforeLongBreak
+bool autoStartBreak
+bool autoStartFocus
+bool soundEnabled
+bool vibrationEnabled
+WhiteNoise whiteNoise
+copyWith()
PomodoroController
-TimerMode _currentMode
-Timer? _timer
-int _remainingSeconds
-bool _isRunning
-PomodoroSettings _settings
+TimerMode currentMode
+int remainingSeconds
+bool isRunning
+PomodoroSettings settings
+start()
+pause()
+reset()
+skip()
+setMode()
+setCategory()
+updateSettings()

2.3 页面导航流程

计时
统计
历史
设置
暂停
完成
跳过
应用启动
主页面
底部导航
计时页
统计页
历史页
设置页
选择模式
选择类型
开始计时
计时中
暂停状态
结束提醒
切换模式
记录会话
下一模式
查看统计
查看历史
修改设置

2.4 计时流程

定时器 番茄钟控制器 计时页 用户 定时器 番茄钟控制器 计时页 用户 loop [每秒更新] 时间到 点击开始 start() 记录开始时间 启动定时器 更新剩余时间 通知UI更新 显示倒计时 点击暂停 pause() 取消定时器 点击重置 reset() 重置时间 时间结束 保存会话记录 切换到休息模式 通知模式切换 显示休息界面


三、核心模块设计

3.1 数据模型设计

3.1.1 计时模式枚举 (TimerMode)
dart 复制代码
enum TimerMode {
  focus(label: '专注', emoji: '🍅', color: Color(0xFFFF5722)),
  shortBreak(label: '短休息', emoji: '☕', color: Color(0xFF4CAF50)),
  longBreak(label: '长休息', emoji: '🌴', color: Color(0xFF2196F3));

  final String label;
  final String emoji;
  final Color color;
  const TimerMode({required this.label, required this.emoji, required this.color});
}
3.1.2 专注类型枚举 (FocusCategory)
dart 复制代码
enum FocusCategory {
  work(label: '工作', emoji: '💼', color: Color(0xFF2196F3)),
  study(label: '学习', emoji: '📚', color: Color(0xFF9C27B0)),
  reading(label: '阅读', emoji: '📖', color: Color(0xFF4CAF50)),
  coding(label: '编程', emoji: '💻', color: Color(0xFFFF9800)),
  writing(label: '写作', emoji: '✍️', color: Color(0xFFE91E63)),
  exercise(label: '运动', emoji: '🏃', color: Color(0xFF00BCD4)),
  meditation(label: '冥想', emoji: '🧘', color: Color(0xFF795548)),
  other(label: '其他', emoji: '📌', color: Color(0xFF607D8B));

  final String label;
  final String emoji;
  final Color color;
  const FocusCategory({required this.label, required this.emoji, required this.color});
}
3.1.3 专注会话模型 (FocusSession)
dart 复制代码
class FocusSession {
  final String id;
  final DateTime startTime;
  final DateTime endTime;
  final int durationMinutes;
  final FocusCategory category;
  final String? note;
  final bool completed;

  const FocusSession({
    required this.id,
    required this.startTime,
    required this.endTime,
    required this.durationMinutes,
    required this.category,
    this.note,
    required this.completed,
  });

  int get tomatoCount => (durationMinutes / 25).ceil();
}
3.1.4 每日统计模型 (DailyStats)
dart 复制代码
class DailyStats {
  final DateTime date;
  final int totalMinutes;
  final int completedSessions;
  final int tomatoCount;
  final Map<FocusCategory, int> categoryMinutes;

  const DailyStats({
    required this.date,
    this.totalMinutes = 0,
    this.completedSessions = 0,
    this.tomatoCount = 0,
    this.categoryMinutes = const {},
  });

  String get totalHoursText {
    final hours = totalMinutes ~/ 60;
    final minutes = totalMinutes % 60;
    return '${hours}h ${minutes}m';
  }
}
3.1.5 专注类型分布

35% 25% 15% 10% 8% 4% 2% 1% 专注类型分布示例 工作 学习 编程 阅读 写作 运动 冥想 其他

3.2 页面结构设计

3.2.1 主页面布局

PomodoroHomePage
IndexedStack
计时页
统计页
历史页
设置页
NavigationBar
计时 Tab
统计 Tab
历史 Tab
设置 Tab

3.2.2 计时页结构

计时页
SliverAppBar
计时圆环
模式选择器
控制按钮
今日摘要
渐变背景
模式Emoji
类型选择
倒计时显示
进度圆环
当前类型
专注模式
短休息
长休息
重置按钮
播放/暂停
跳过按钮

3.2.3 统计页结构

统计页
SliverAppBar
周概览
分类分布
周趋势图
总时长
总番茄
类型进度条
百分比显示
柱状图
日期标签

3.2.4 设置页结构

设置页
时间设置
自动化设置
提醒设置
白噪音选择
专注时长
短休息时长
长休息时长
长休息间隔
自动开始休息
自动开始专注
声音提醒
震动提醒

3.3 番茄钟控制器逻辑

开始
暂停
重置
跳过
切换模式


初始化
加载设置
设置默认模式
用户操作
操作类型
启动定时器
停止定时器
重置时间
完成当前会话
切换模式
每秒更新
时间结束?
保存会话记录
计算统计数据
切换到下一模式

3.4 统计计算逻辑

获取会话列表
按日期分组
计算每日统计
计算总时长
计算完成次数
计算番茄数
计算分类分布
汇总周统计
生成分类报告
生成周趋势数据


四、UI设计规范

4.1 配色方案

应用以热情的橙红色为主色调,象征专注的热情与动力:

颜色类型 色值 用途
主色 #FF5722 (Deep Orange) 专注模式、主题元素
辅助色 #FF7043 渐变效果
第三色 #FF8A65 卡片背景
强调色 #E64A19 按钮高亮
背景色 #FAFAFA 页面背景
卡片背景 #FFFFFF 信息卡片
专注色 #FF5722 专注模式
短休息色 #4CAF50 短休息模式
长休息色 #2196F3 长休息模式

4.2 计时模式配色

模式 色值 视觉效果
专注 #FF5722 橙红色
短休息 #4CAF50 绿色
长休息 #2196F3 蓝色

4.3 专注类型配色

类型 色值 视觉效果
工作 #2196F3 蓝色
学习 #9C27B0 紫色
阅读 #4CAF50 绿色
编程 #FF9800 橙色
写作 #E91E63 粉色
运动 #00BCD4 青色
冥想 #795548 棕色
其他 #607D8B 灰色

4.4 字体规范

元素 字号 字重 颜色
页面标题 24px Bold 主色
倒计时 48px Bold 当前模式色
模式名称 16px Medium 当前模式色
统计数字 24px Bold 主色
日期显示 16px Bold #000000
分类名称 14px Regular #333333

4.5 组件规范

4.5.1 计时圆环
复制代码
┌─────────────────────────────────────┐
│                                     │
│           ╭──────────────╮          │
│          ╱                ╲         │
│         │                  │        │
│         │     25:00       │        │
│         │                  │        │
│         │     专注        │        │
│         │                  │        │
│         │   💼 工作       │        │
│          ╲                ╱         │
│           ╰──────────────╯          │
│                                     │
└─────────────────────────────────────┘
4.5.2 模式选择器
复制代码
┌─────────────────────────────────────┐
│  [🍅 专注]  [☕ 短休息]  [🌴 长休息] │
└─────────────────────────────────────┘
4.5.3 控制按钮
复制代码
┌─────────────────────────────────────┐
│         🔄        ▶️        ⏭️      │
│        重置     开始/暂停   跳过     │
└─────────────────────────────────────┘
4.5.4 今日摘要
复制代码
┌─────────────────────────────────────┐
│   ⏱️          🔥          🏆       │
│  125分钟     5个番茄     5次完成    │
└─────────────────────────────────────┘
4.5.5 统计卡片
复制代码
┌─────────────────────────────────────┐
│  本周概览                            │
│  ┌─────────────┐ ┌─────────────┐   │
│  │ ⏱️ 总时长   │ │ 🔥 总番茄   │   │
│  │   12h 30m  │ │    25      │   │
│  └─────────────┘ └─────────────┘   │
└─────────────────────────────────────┘
4.5.6 分类分布
复制代码
┌─────────────────────────────────────┐
│  分类分布                            │
│                                     │
│  💼 工作  350分钟 (35.0%)           │
│  ═══════════════●────────────       │
│                                     │
│  📚 学习  250分钟 (25.0%)           │
│  ═══════●────────────────────       │
│                                     │
│  💻 编程  150分钟 (15.0%)           │
│  ═══●───────────────────────        │
└─────────────────────────────────────┘

五、核心功能实现

5.1 番茄钟控制器实现

dart 复制代码
class PomodoroController extends ChangeNotifier {
  TimerMode _currentMode = TimerMode.focus;
  Timer? _timer;
  int _remainingSeconds = 25 * 60;
  bool _isRunning = false;
  PomodoroSettings _settings = const PomodoroSettings();

  TimerMode get currentMode => _currentMode;
  int get remainingSeconds => _remainingSeconds;
  bool get isRunning => _isRunning;

  void start() {
    if (_isRunning) return;
    _isRunning = true;
    _startTimer();
    notifyListeners();
  }

  void pause() {
    if (!_isRunning) return;
    _isRunning = false;
    _stopTimer();
    notifyListeners();
  }

  void toggle() {
    if (_isRunning) {
      pause();
    } else {
      start();
    }
  }

  void reset() {
    _stopTimer();
    _isRunning = false;
    _setDurationForMode(_currentMode);
    notifyListeners();
  }
}

5.2 定时器实现

dart 复制代码
void _startTimer() {
  _timer = Timer.periodic(const Duration(seconds: 1), (timer) {
    if (_remainingSeconds > 0) {
      _remainingSeconds--;
      notifyListeners();
    } else {
      _completeSession();
      _moveToNextMode();
      notifyListeners();
    }
  });
}

void _stopTimer() {
  _timer?.cancel();
  _timer = null;
}

5.3 模式切换实现

dart 复制代码
void setMode(TimerMode mode) {
  _stopTimer();
  _currentMode = mode;
  _setDurationForMode(mode);
  notifyListeners();
}

void _setDurationForMode(TimerMode mode) {
  switch (mode) {
    case TimerMode.focus:
      _remainingSeconds = _settings.focusDuration * 60;
      break;
    case TimerMode.shortBreak:
      _remainingSeconds = _settings.shortBreakDuration * 60;
      break;
    case TimerMode.longBreak:
      _remainingSeconds = _settings.longBreakDuration * 60;
      break;
  }
}

void _moveToNextMode() {
  if (_currentMode == TimerMode.focus) {
    if (_completedSessions % _settings.sessionsBeforeLongBreak == 0) {
      setMode(TimerMode.longBreak);
    } else {
      setMode(TimerMode.shortBreak);
    }
  } else {
    setMode(TimerMode.focus);
  }
}

5.4 统计计算实现

dart 复制代码
void _calculateDailyStats() {
  final statsMap = <DateTime, DailyStats>{};

  for (var session in _sessions) {
    final date = DateTime(
      session.startTime.year,
      session.startTime.month,
      session.startTime.day
    );

    if (!statsMap.containsKey(date)) {
      statsMap[date] = DailyStats(date: date);
    }

    final oldStats = statsMap[date]!;
    final categoryMinutes = Map<FocusCategory, int>.from(oldStats.categoryMinutes);
    categoryMinutes[session.category] =
      (categoryMinutes[session.category] ?? 0) + session.durationMinutes;

    statsMap[date] = DailyStats(
      date: date,
      totalMinutes: oldStats.totalMinutes + session.durationMinutes,
      completedSessions: oldStats.completedSessions + (session.completed ? 1 : 0),
      tomatoCount: oldStats.tomatoCount + session.tomatoCount,
      categoryMinutes: categoryMinutes,
    );
  }

  _dailyStats.clear();
  _dailyStats.addAll(statsMap.values.toList()
    ..sort((a, b) => b.date.compareTo(a.date)));
}

5.5 计时圆环绘制实现

dart 复制代码
class TimerCirclePainter extends CustomPainter {
  final double progress;
  final Color color;
  final double strokeWidth;

  @override
  void paint(Canvas canvas, Size size) {
    final center = Offset(size.width / 2, size.height / 2);
    final radius = (size.width - strokeWidth) / 2;

    final backgroundPaint = Paint()
      ..color = color.withValues(alpha: 0.1)
      ..style = PaintingStyle.stroke
      ..strokeWidth = strokeWidth;

    canvas.drawCircle(center, radius, backgroundPaint);

    final progressPaint = Paint()
      ..color = color
      ..style = PaintingStyle.stroke
      ..strokeWidth = strokeWidth
      ..strokeCap = StrokeCap.round;

    final sweepAngle = 2 * pi * progress;
    canvas.drawArc(
      Rect.fromCircle(center: center, radius: radius),
      -pi / 2,
      sweepAngle,
      false,
      progressPaint,
    );
  }
}

六、交互设计

6.1 计时流程

定时器 控制器 计时页 用户 定时器 控制器 计时页 用户 loop [每秒] 选择专注类型 setCategory() 点击开始 start() 启动定时器 更新剩余时间 通知更新 显示倒计时 点击暂停 pause() 停止定时器 点击重置 reset() 重置显示

6.2 设置修改流程

时间设置
自动化设置
提醒设置
白噪音
打开设置页
显示当前设置
修改类型
弹出时长选择器
切换开关
切换开关
选择音效
滑动选择时长
确认修改
更新设置
保存到本地
应用新设置

6.3 统计查看流程

滚动
滚动
切换Tab
点击
打开统计页
显示周概览
查看分类分布
查看周趋势
打开历史页
查看日期列表
展开日期详情
查看分类明细


七、扩展功能规划

7.1 后续版本规划

2024-01-07 2024-01-14 2024-01-21 2024-01-28 2024-02-04 2024-02-11 2024-02-18 2024-02-25 2024-03-03 2024-03-10 2024-03-17 2024-03-24 基础UI框架 计时器核心 统计功能 本地通知 数据持久化 白噪音播放 屏幕常亮 成就系统 数据同步 V1.0 基础版本 V1.1 增强版本 V1.2 进阶版本 番茄钟专注应用开发计划

7.2 功能扩展建议

7.2.1 成就系统

成就功能:

  • 连续专注天数成就
  • 累计番茄数成就
  • 专注类型成就
  • 特殊节日成就
7.2.2 数据同步

同步功能:

  • 云端数据备份
  • 多设备同步
  • 数据导出
  • 数据恢复
7.2.3 社交功能

社交功能:

  • 分享专注成果
  • 好友排行榜
  • 专注挑战
  • 团队协作

八、注意事项

8.1 开发注意事项

  1. 后台运行:确保计时器在后台能正常运行

  2. 通知权限:申请本地通知权限

  3. 屏幕常亮:专注时保持屏幕常亮

  4. 数据持久化:正确保存用户设置和专注记录

  5. 电量优化:优化定时器减少电量消耗

8.2 常见问题

问题 原因 解决方案
计时不准确 后台被杀死 使用前台服务
通知不显示 权限未授予 申请通知权限
数据丢失 未正确保存 使用事务存储
屏幕熄灭 未设置常亮 使用wakelock
白噪音中断 音频焦点丢失 正确处理音频焦点

8.3 使用技巧

🍅 番茄钟专注使用技巧 🍅

时间管理

  • 选择适合的专注时长
  • 合理安排休息时间
  • 坚持每日专注习惯
  • 记录专注心得

效率提升

  • 选择合适的专注类型
  • 开启白噪音辅助
  • 关闭干扰通知
  • 保持专注环境

数据分析

  • 定期查看统计数据
  • 分析专注规律
  • 调整工作节奏
  • 设定专注目标

九、鸿蒙适配说明

9.1 权限配置

ohos/entry/src/main/module.json5 中添加权限:

json 复制代码
{
  "module": {
    "requestPermissions": [
      {"name": "ohos.permission.INTERNET"},
      {"name": "ohos.permission.VIBRATE"},
      {"name": "ohos.permission.KEEP_BACKGROUND_RUNNING"}
    ]
  }
}

9.2 第三方库适配状态

第三方库 适配状态 说明
flutter_local_notifications ✅ 已适配 本地通知
shared_preferences ✅ 已适配 数据存储
audioplayers ✅ 已适配 音频播放
wakelock ✅ 已适配 屏幕唤醒

9.3 运行命令

bash 复制代码
# 查看可用设备
flutter devices

# 运行到Web服务器
flutter run -d web-server -t lib/main_pomodoro_timer.dart --web-port 8148

# 运行到鸿蒙设备
flutter run -d 127.0.0.1:5555 -t lib/main_pomodoro_timer.dart

# 代码分析
flutter analyze lib/main_pomodoro_timer.dart

十、总结

番茄钟专注应用为用户提供了一套完整的时间管理解决方案。应用支持番茄工作法计时器,支持自定义时长、休息提醒、专注统计、白噪音背景等功能,帮助用户提高工作效率,培养专注习惯。

核心功能涵盖番茄计时、自定义时长、专注类型、专注统计、历史记录、白噪音、提醒通知、屏幕常亮八大模块。用户可以开始专注计时、查看统计数据、回顾历史记录、自定义设置,打造专属的专注体验。

应用采用 Material Design 3 设计规范,以热情的橙红色为主色调,象征专注的热情与动力。通过本应用,希望能够帮助用户科学管理时间,提升工作效率,享受专注带来的成就感。

番茄钟专注------让专注成为习惯


相关推荐
阿健君3 小时前
Harmony NDK 开发
harmonyos
UnicornDev4 小时前
【HarmonyOS 6】鸿蒙原生应用智能体接入
华为·harmonyos·arkts·鸿蒙·鸿蒙系统
梦想不只是梦与想4 小时前
鸿蒙中 PhotoViewPicker:选择图片或视频
harmonyos·鸿蒙·photoviewpicker
程序员老刘4 小时前
放弃折腾后端服务器后,这才是独立开发MVP的最优解
flutter·客户端·firebase
独特的螺狮粉4 小时前
云隙一言:鸿蒙Flutter框架 实现的随机名言应用
开发语言·flutter·华为·架构·开源·harmonyos
Utopia^6 小时前
鸿蒙flutter第三方库适配 - 图片拼图工具
flutter·华为·harmonyos
星释6 小时前
鸿蒙Flutter实战:29.优先使用联合插件开发鸿蒙化插件
flutter·华为·harmonyos·鸿蒙
特立独行的猫a7 小时前
OpenHarmony平台移植 gifsicle:C/C++ 三方库适配实践(Lycium / tpc_c_cplusplus)
c语言·c++·harmonyos·openharmony·三方库适配·lycium
不爱吃糖的程序媛7 小时前
鸿蒙三方库适配读懂 `README_zh.md`:中文适配说明里每段在说什么?
华为·harmonyos
