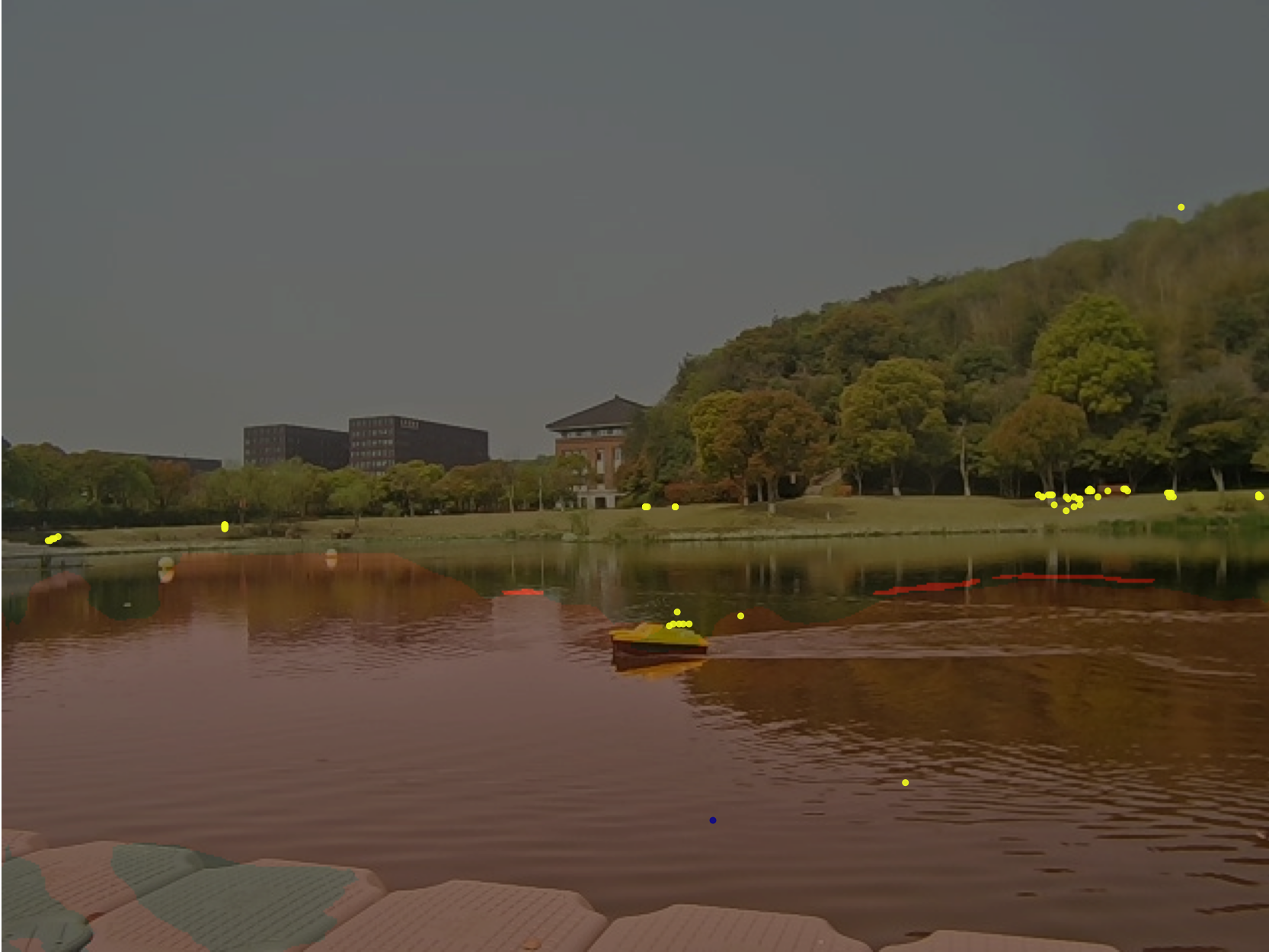

任务一：关于csv内容的补充

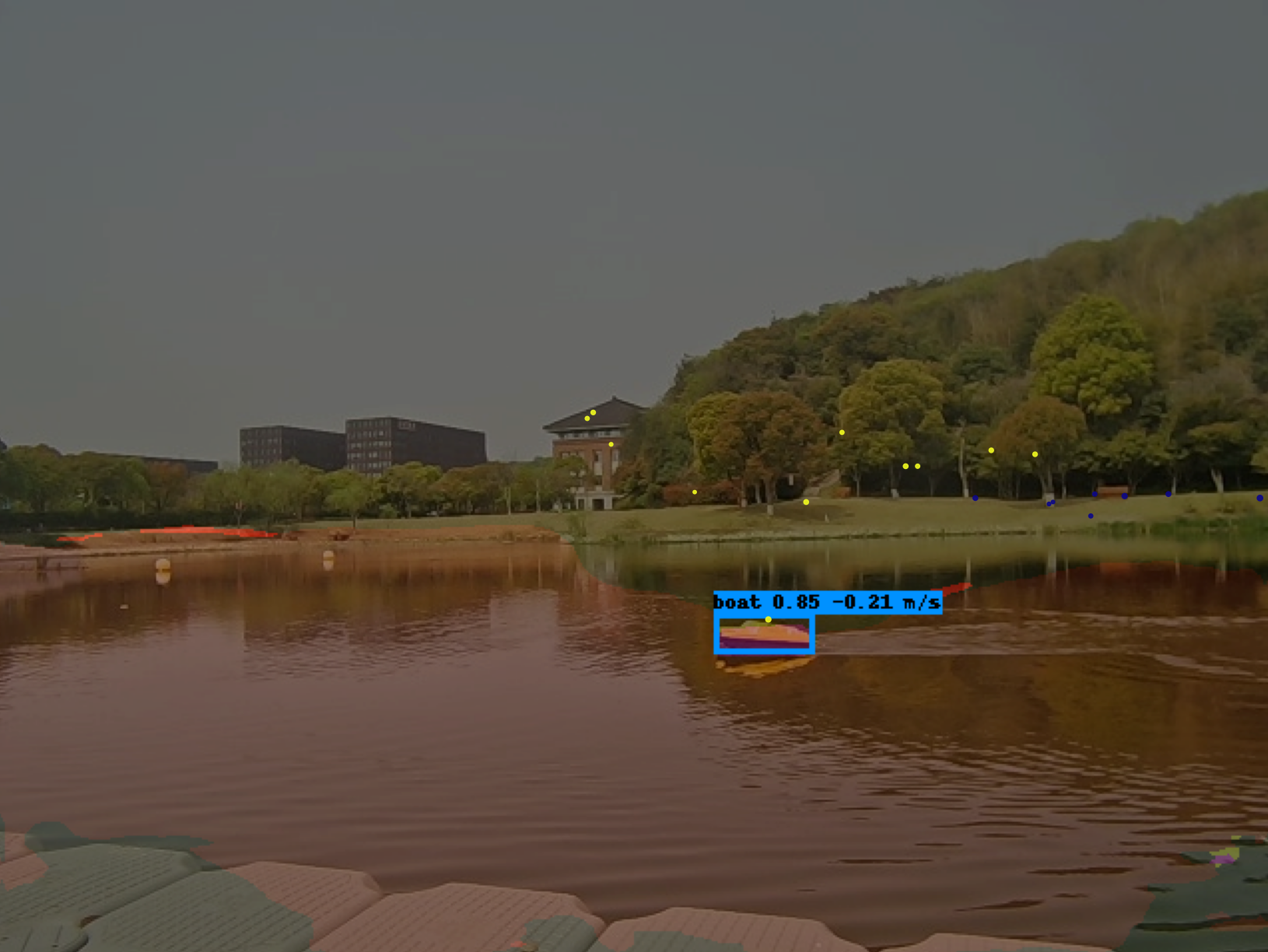

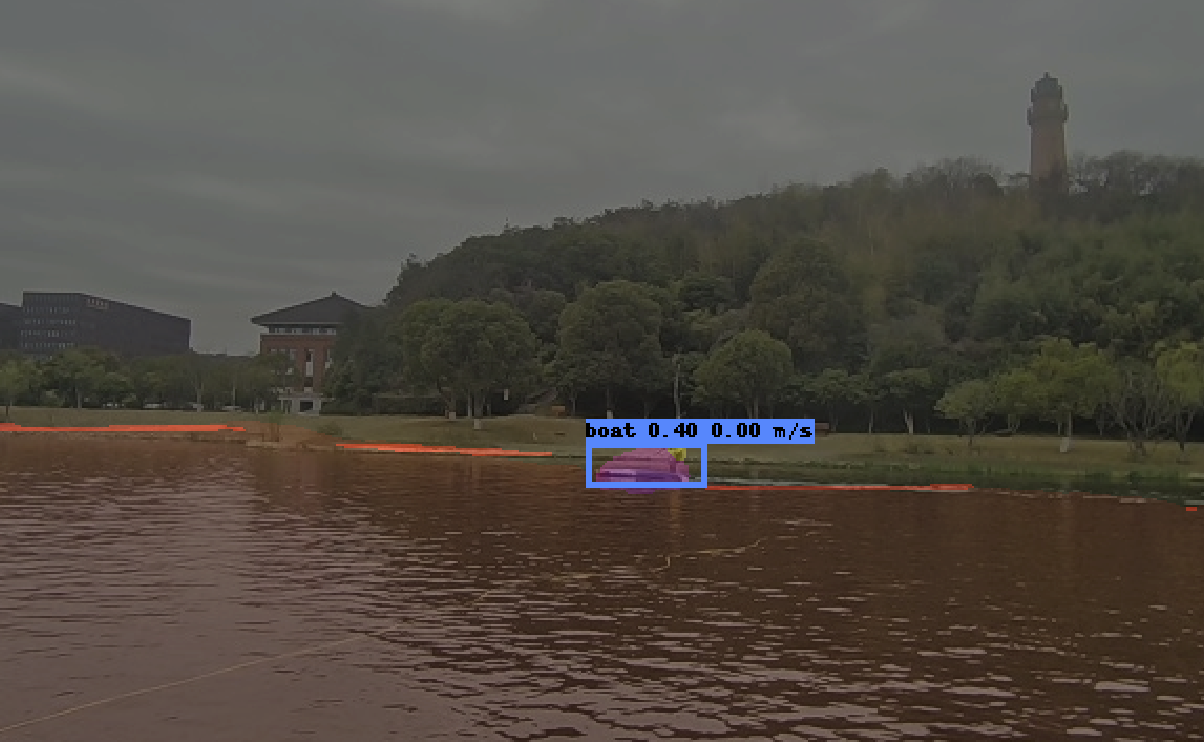

测试1：调低置信度是否能识别出来结果？

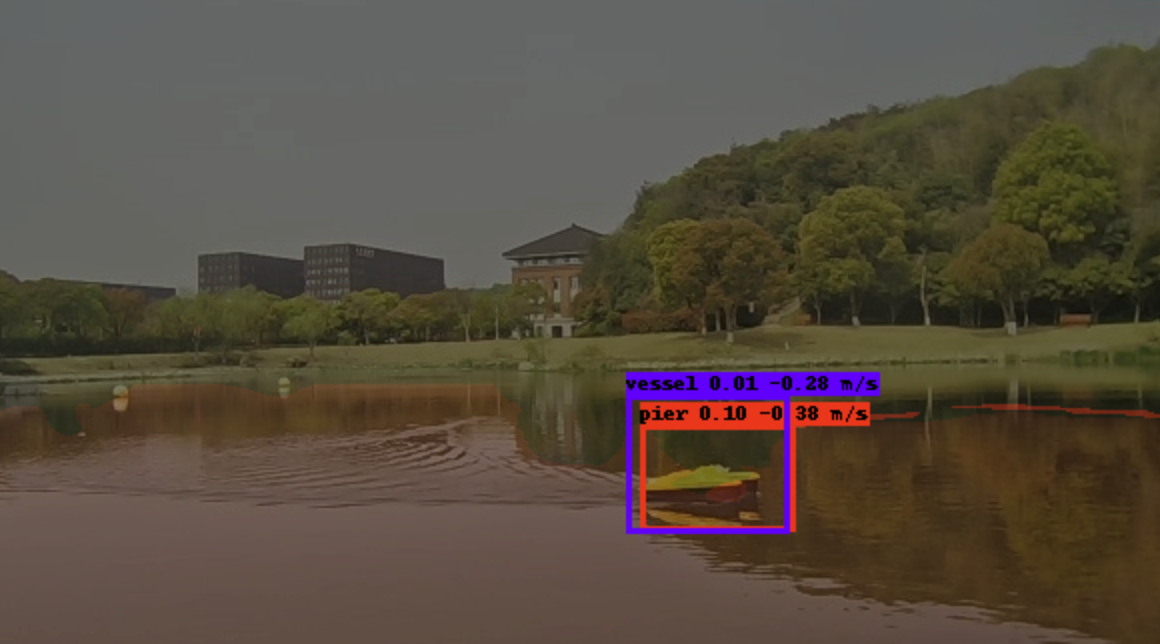

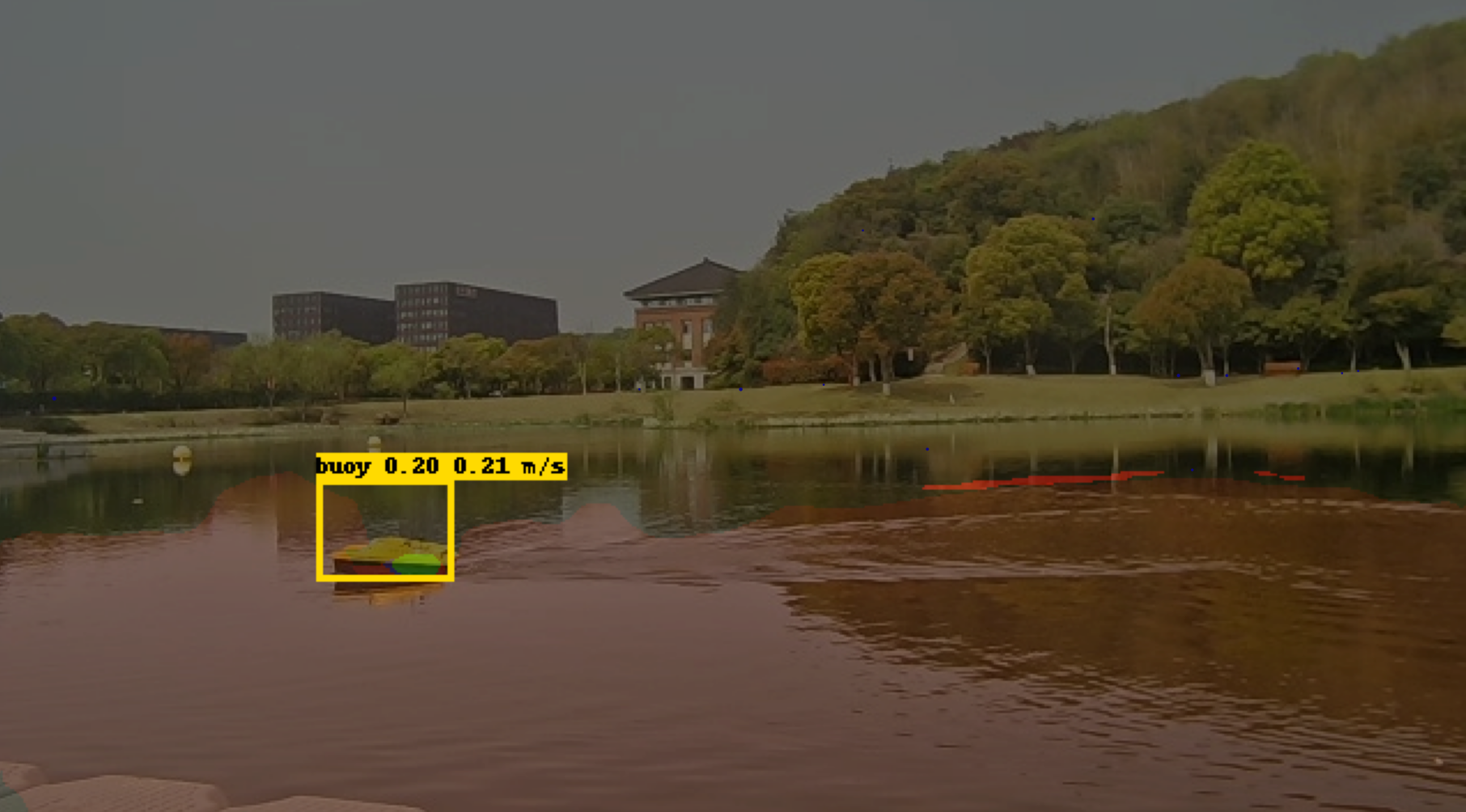

可以看到船被识别成了pier/bouy，猜想和训练集中的pier/bouy样式类似，所以检测效果很差

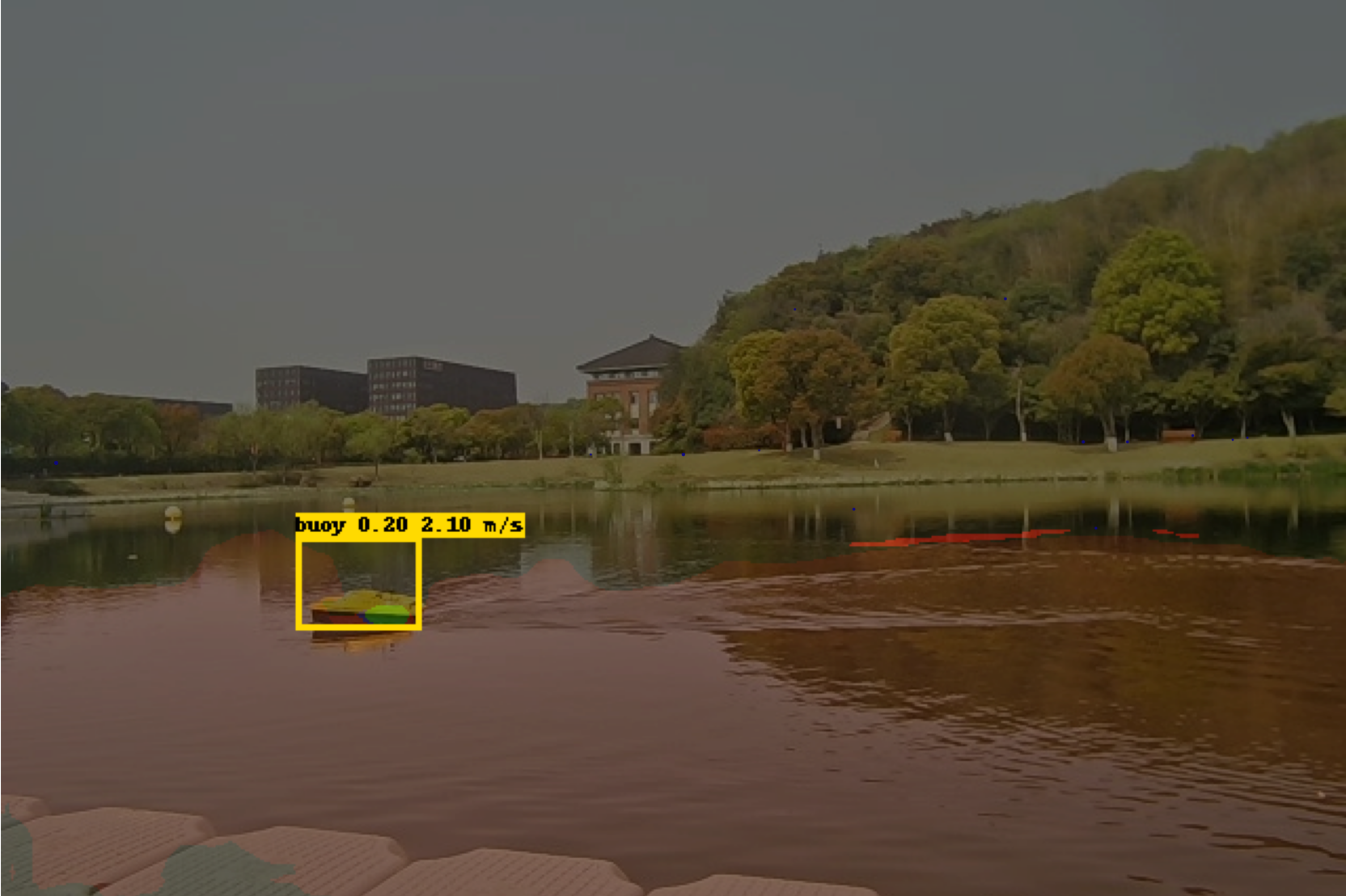

测试2：调大无人船的速度，是否还会识别为pier/bouy？
buoy的输出变大了10倍，说明雷达的点云和目标投影是正确的，但是识别结果依旧是错的
测试3：是否需要进行调整归一化？感觉实际的影响并不大
测试4：微调算法
labelImg打标签
修改utils_fit.py
import os
import torch
from tqdm import tqdm
from utils.utils import get_lr
from loss.segmentation_loss import (CE_Loss, Dice_loss, Focal_Loss,
weights_init)
from utils_seg.utils import get_lr
from utils_seg.utils_metrics import f_score
from loss.multitaskloss import HUncertainty
from loss.mgda import MGDA
from loss.pc_seg_loss import NllLoss
import torch.nn.functional as F
def fit_one_epoch(model_train, model, ema, yolo_loss, loss_history, loss_history_seg, loss_history_seg_wl, loss_history_seg_pc, eval_callback, eval_callback_seg, eval_callback_seg_w, eval_callback_seg_pc, optimizer, epoch, epoch_step,
epoch_step_val, gen, gen_val, Epoch, cuda, fp16, scaler, save_period, save_dir, dice_loss, focal_loss, cls_weights, cls_weights_wl, num_class_seg, local_rank=0, is_radar_pc_seg=False):
total_loss_det = 0
total_loss_seg = 0
total_loss_seg_w = 0
total_loss_seg_pc = 0
total_f_score = 0
total_f_score_w = 0
val_loss_det = 0
val_loss_seg = 0
val_loss_seg_w = 0
val_loss_seg_pc = 0
val_f_score = 0
val_f_score_w = 0
total_loss = 0
val_total_loss = 0
if local_rank == 0:
print('Start Train')
pbar = tqdm(total=epoch_step, desc=f'Epoch {epoch + 1}/{Epoch}', postfix=dict, mininterval=0.3)
model_train.train()
for iteration, batch in enumerate(gen):
if iteration >= epoch_step:
break
# ======================= [数据解包] =======================
# radars (RVP图) 仍然被加载，但我们稍后在模型调用中会忽略它
if is_radar_pc_seg:
# 当 is_radar_pc_seg=True 时，dataloader 返回10个元素，最后一个是 pc_evidence_maps
images, targets, radars, pngs, pngs_w, seg_labels, seg_w_labels, radar_pc_features, radar_pc_labels, pc_evidence_maps = \
batch[0], batch[1], batch[2], batch[3], batch[4], batch[5], batch[6], batch[7], batch[8], batch[9]
else:
# 当 is_radar_pc_seg=False 时，dataloader 返回8个元素，最后一个是 pc_evidence_maps
images, targets, radars, pngs, pngs_w, seg_labels, seg_w_labels, pc_evidence_maps = batch[0], batch[1], batch[2], batch[3], \
batch[4], batch[5], batch[6], batch[7]
# ========================================================================
with torch.no_grad():
weights = torch.from_numpy(cls_weights)
weights_wl = torch.from_numpy(cls_weights_wl)
if cuda:
images = images.cuda(local_rank)
targets = [ann.cuda(local_rank) for ann in targets]
# radars = radars.cuda(local_rank) # 忽略 radars
pngs = pngs.cuda(local_rank)
pngs_w = pngs_w.cuda(local_rank)
seg_labels = seg_labels.cuda(local_rank)
seg_w_labels = seg_w_labels.cuda(local_rank)
weights = weights.cuda(local_rank)
weights_wl = weights_wl.cuda(local_rank)
pc_evidence_maps = pc_evidence_maps.cuda(local_rank)
if is_radar_pc_seg:
radar_pc_features = radar_pc_features.cuda(local_rank)
radar_pc_labels = radar_pc_labels.cuda(local_rank)
optimizer.zero_grad()
if not fp16:
# ======================= [消融修改 1/4]: 移除传入模型的 radars (非 FP16) =======================
if is_radar_pc_seg:
# 原始: outputs, ..., outputs_seg_pc = model_train(images, radars, radar_pc_features, pc_evidence_maps)
outputs, outputs_seg, outputs_seg_w, outputs_seg_pc = model_train(images, radar_pc_features, pc_evidence_maps)
loss_pc_seg = F.nll_loss(
F.log_softmax(outputs_seg_pc, dim=1).permute(0, 2, 1),
radar_pc_labels.squeeze(-1),
ignore_index=-1
)
else:
# 原始: outputs, outputs_seg, outputs_seg_w = model_train(images, radars, pc_evidence_maps)
outputs, outputs_seg, outputs_seg_w = model_train(images, pc_evidence_maps)
# ===============================================================================
if focal_loss:
loss_seg = Focal_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = Focal_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
else:
loss_seg = CE_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = CE_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
if dice_loss:
main_dice = Dice_loss(outputs_seg, seg_labels)
main_dice_w = Dice_loss(outputs_seg_w, seg_w_labels)
loss_seg = loss_seg + main_dice
logg_seg_w = loss_seg_w + main_dice_w
loss_det = yolo_loss(outputs, targets)
mtl = HUncertainty(task_num=3)
if is_radar_pc_seg:
losses = [loss_seg, logg_seg_w, loss_det]
total_loss = mtl(losses) + loss_pc_seg
else:
total_loss = mtl(loss_seg, logg_seg_w, loss_det)
with torch.no_grad():
train_f_score = f_score(outputs_seg, seg_labels)
train_f_score_w = f_score(outputs_seg_w, seg_w_labels)
total_loss.backward()
optimizer.step()
else:
from torch.cuda.amp import autocast
with autocast():
# ======================= [消融修改 2/4]: 移除传入模型的 radars (FP16) =======================
if is_radar_pc_seg:
# 原始: outputs, ..., outputs_seg_pc = model_train(images, radars, radar_pc_features, pc_evidence_maps)
outputs, outputs_seg, outputs_seg_w, outputs_seg_pc = model_train(images, radar_pc_features, pc_evidence_maps)
loss_pc_seg = F.nll_loss(
F.log_softmax(outputs_seg_pc, dim=1).permute(0, 2, 1),
radar_pc_labels.squeeze(-1),
ignore_index=-1
)
else:
# 原始: outputs, outputs_seg, outputs_seg_w = model_train(images, radars, pc_evidence_maps)
outputs, outputs_seg, outputs_seg_w = model_train(images, pc_evidence_maps)
# ===============================================================================
if focal_loss:
loss_seg = Focal_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = Focal_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
else:
loss_seg = CE_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = CE_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
if dice_loss:
main_dice = Dice_loss(outputs_seg, seg_labels)
main_dice_w = Dice_loss(outputs_seg_w, seg_w_labels)
loss_seg = loss_seg + main_dice
logg_seg_w = loss_seg_w + main_dice_w
loss_det = yolo_loss(outputs, targets)
mtl = HUncertainty(task_num=3)
if is_radar_pc_seg:
losses = [loss_seg, logg_seg_w, loss_det]
total_loss = mtl(losses) + loss_pc_seg
else:
total_loss = loss_seg + logg_seg_w + loss_det
with torch.no_grad():
train_f_score = f_score(outputs_seg, seg_labels)
train_f_score_w = f_score(outputs_seg_w, seg_w_labels)
scaler.scale(total_loss).backward()
scaler.unscale_(optimizer)
torch.nn.utils.clip_grad_norm_(model_train.parameters(), max_norm=10.0)
scaler.step(optimizer)
scaler.update()
if ema:
ema.update(model_train)
total_loss_det += loss_det.item()
total_loss_seg += loss_seg.item()
total_loss_seg_w += loss_seg_w.item()
if is_radar_pc_seg:
total_loss_seg_pc += loss_pc_seg.item()
total_loss += total_loss_det + total_loss_seg + total_loss_seg_w + total_loss_seg_pc
total_f_score += train_f_score.item()
total_f_score_w += train_f_score_w.item()
if local_rank == 0:
if is_radar_pc_seg:
pbar.set_postfix(**{'detection loss': total_loss_det / (iteration + 1),
'se seg loss': total_loss_seg / (iteration + 1),
'wl seg loss': total_loss_seg_w / (iteration + 1),
'pc seg loss': total_loss_seg_pc / (iteration + 1),
'total loss': total_loss / (iteration + 1),
'f score se': total_f_score / (iteration + 1),
'f score wl': total_f_score_w / (iteration + 1),
'lr': get_lr(optimizer)})
else:
pbar.set_postfix(**{'detection loss': total_loss_det / (iteration + 1),
'se seg loss': total_loss_seg / (iteration + 1),
'wl seg loss': total_loss_seg_w / (iteration + 1),
'total loss': total_loss / (iteration + 1),
'f score se': total_f_score / (iteration + 1),
'f score wl': total_f_score_w / (iteration + 1),
'lr': get_lr(optimizer)})
pbar.update(1)
if local_rank == 0:
pbar.close()
print('Finish Train')
print('Start Validation')
pbar = tqdm(total=epoch_step_val, desc=f'Epoch {epoch + 1}/{Epoch}', postfix=dict, mininterval=0.3)
if ema:
model_train_eval = ema.ema
else:
model_train_eval = model_train.eval()
for iteration, batch in enumerate(gen_val):
if iteration >= epoch_step_val:
break
# ======================= [数据解包 - 验证] =======================
if is_radar_pc_seg:
images, targets, radars, pngs, pngs_w, seg_labels, seg_w_labels, radar_pc_features, radar_pc_labels, pc_evidence_maps = \
batch[0], batch[1], batch[2], batch[3], batch[4], batch[5], batch[6], batch[7], batch[8], batch[9]
else:
images, targets, radars, pngs, pngs_w, seg_labels, seg_w_labels, pc_evidence_maps = batch[0], batch[1], batch[2], batch[3], \
batch[4], batch[5], batch[6], batch[7]
# ======================================================================================
with torch.no_grad():
if cuda:
images = images.cuda(local_rank)
targets = [ann.cuda(local_rank) for ann in targets]
# radars = radars.cuda(local_rank) # 忽略 radars
pngs = pngs.cuda(local_rank)
pngs_w = pngs_w.cuda(local_rank)
seg_labels = seg_labels.cuda(local_rank)
seg_w_labels = seg_w_labels.cuda(local_rank)
weights = weights.cuda(local_rank)
pc_evidence_maps = pc_evidence_maps.cuda(local_rank)
if is_radar_pc_seg:
radar_pc_features = radar_pc_features.cuda(local_rank)
radar_pc_labels = radar_pc_labels.cuda(local_rank)
optimizer.zero_grad()
# ======================= [消融修改 3/4]: 移除传入模型的 radars (验证) =======================
if is_radar_pc_seg:
# 原始: outputs, ..., outputs_seg_pc = model_train_eval(images, radars, radar_pc_features, pc_evidence_maps)
outputs, outputs_seg, outputs_seg_w, outputs_seg_pc = model_train_eval(images, radar_pc_features, pc_evidence_maps)
loss_pc_seg = F.nll_loss(
F.log_softmax(outputs_seg_pc, dim=1).permute(0, 2, 1),
radar_pc_labels.squeeze(-1),
ignore_index=-1
)
else:
# 原始: outputs, outputs_seg, outputs_seg_w = model_train_eval(images, radars, pc_evidence_maps)
outputs, outputs_seg, outputs_seg_w = model_train_eval(images, pc_evidence_maps)
# ======================================================================================
if focal_loss:
loss_seg = Focal_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = Focal_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
else:
loss_seg = CE_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = CE_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
if dice_loss:
main_dice = Dice_loss(outputs_seg, seg_labels)
main_dice_w = Dice_loss(outputs_seg_w, seg_w_labels)
loss_seg = loss_seg + main_dice
loss_seg_w = loss_seg_w + main_dice_w
_f_score = f_score(outputs_seg, seg_labels)
_f_score_w = f_score(outputs_seg_w, seg_w_labels)
loss_value = yolo_loss(outputs, targets)
loss_value_seg = loss_seg
loss_value_seg_w = loss_seg_w
if is_radar_pc_seg:
loss_value_seg_pc = loss_pc_seg
val_f_score += _f_score.item()
val_f_score_w += _f_score_w.item()
val_loss_det += loss_value.item()
val_loss_seg += loss_value_seg.item()
val_loss_seg_w += loss_value_seg_w.item()
if is_radar_pc_seg:
val_loss_seg_pc += loss_value_seg_pc.item()
val_total_loss = val_loss_det + val_loss_seg + val_loss_seg_w + val_loss_seg_pc
if local_rank == 0:
if is_radar_pc_seg:
pbar.set_postfix(**{'detection val_loss': val_loss_det / (iteration + 1),
'se seg val_loss': val_loss_seg / (iteration + 1),
'wl seg val_loss': val_loss_seg_w / (iteration + 1),
'pc seg val_loss': val_loss_seg_pc / (iteration + 1),
'val loss': val_total_loss / (iteration + 1),
'f_score se': val_f_score / (iteration + 1),
'f_score wl': val_f_score_w / (iteration + 1),
})
else:
pbar.set_postfix(**{'detection val_loss': val_loss_det / (iteration + 1),
'se seg val_loss': val_loss_seg / (iteration + 1),
'wl seg val_loss': val_loss_seg_w / (iteration + 1),
'val loss': val_total_loss / (iteration + 1),
'f_score se': val_f_score / (iteration + 1),
'f_score wl': val_f_score_w / (iteration + 1),
})
pbar.update(1)
# ... (后续日志记录、模型保存等代码保持不变) ...
if local_rank == 0:
pbar.close()
print('Finish Validation')
loss_history.append_loss(epoch + 1, total_loss_det / epoch_step, val_loss_det / epoch_step_val)
loss_history_seg.append_loss(epoch + 1, total_loss_seg / epoch_step, val_loss_seg / epoch_step_val)
loss_history_seg_wl.append_loss(epoch + 1, total_loss_seg_w / epoch_step, val_loss_seg_w / epoch_step_val)
if is_radar_pc_seg:
loss_history_seg_pc.append_loss(epoch + 1, total_loss_seg_pc / epoch_step, val_loss_seg_pc / epoch_step_val)
eval_callback.on_epoch_end(epoch + 1, model_train_eval)
eval_callback_seg.on_epoch_end(epoch + 1, model_train_eval)
eval_callback_seg_w.on_epoch_end(epoch + 1, model_train_eval)
if is_radar_pc_seg:
eval_callback_seg_pc.on_epoch_end(epoch + 1, model_train_eval)
print('Epoch:' + str(epoch + 1) + '/' + str(Epoch))
if is_radar_pc_seg:
print(
'Total Loss: %.3f || Val Loss Det: %.3f || Val Loss Seg: %.3f || Val Loss Seg L: %.3f || Val Loss Seg PC: %.3f' % (
(total_loss / epoch_step,
val_loss_det / epoch_step_val,
val_loss_seg / epoch_step_val,
val_loss_seg_w / epoch_step_val,
val_loss_seg_pc / epoch_step_val)))
else:
print(
'Total Loss: %.3f || Val Loss Det: %.3f || Val Loss Seg: %.3f || Val Loss Seg L: %.3f' % (
(total_loss / epoch_step,
val_loss_det / epoch_step_val,
val_loss_seg / epoch_step_val,
val_loss_seg_w / epoch_step_val,
)))
if ema:
save_state_dict = ema.ema.state_dict()
else:
save_state_dict = model.state_dict()
if is_radar_pc_seg:
if (epoch + 1) % save_period == 0 or epoch + 1 == Epoch:
torch.save(save_state_dict, os.path.join(save_dir,
"ep%03d-loss%.3f-det_val_loss%.3f-seg_val_loss%.3f-seg_wl_val_loss%.3f-seg_pc_val_loss%.3f.pth" % (
epoch + 1, val_total_loss / epoch_step,
val_loss_det / epoch_step_val,
val_loss_seg / epoch_step_val,
val_loss_seg_w / epoch_step_val,
val_loss_seg_pc / epoch_step_val)))
if len(loss_history.val_loss) <= 1 or (val_total_loss / epoch_step_val) <= min(loss_history.val_loss) + min(
loss_history_seg.val_loss):
print('Save best model to best_epoch_weights.pth')
torch.save(save_state_dict, os.path.join(save_dir, "best_epoch_weights.pth"))
else:
if (epoch + 1) % save_period == 0 or epoch + 1 == Epoch:
torch.save(save_state_dict, os.path.join(save_dir,
"ep%03d-loss%.3f-det_val_loss%.3f-seg_val_loss%.3f-seg_wl_val_loss%.3f.pth" % (
epoch + 1, val_total_loss / epoch_step,
val_loss_det / epoch_step_val,
val_loss_seg / epoch_step_val,
val_loss_seg_w / epoch_step_val)))
if len(loss_history.val_loss) <= 1 or (val_total_loss / epoch_step_val) <= min(loss_history.val_loss) + min(
loss_history_seg.val_loss):
print('Save best model to best_epoch_weights.pth')
torch.save(save_state_dict, os.path.join(save_dir, "best_epoch_weights.pth"))
torch.save(model_train, os.path.join(save_dir, "best_epoch_weights.pt"))
torch.save(save_state_dict, os.path.join(save_dir, "last_epoch_weights.pth"))
torch.save(model_train, os.path.join(save_dir, "last_epoch_weights.pt"))修改后代码：
import os
import torch
from tqdm import tqdm
from utils.utils import get_lr
from loss.segmentation_loss import (CE_Loss, Dice_loss, Focal_Loss,
weights_init)
from utils_seg.utils import get_lr
from utils_seg.utils_metrics import f_score
from loss.multitaskloss import HUncertainty
from loss.mgda import MGDA
from loss.pc_seg_loss import NllLoss
import torch.nn.functional as F
def fit_one_epoch(model_train, model, ema, yolo_loss, loss_history, loss_history_seg, loss_history_seg_wl, loss_history_seg_pc, eval_callback, eval_callback_seg, eval_callback_seg_w, eval_callback_seg_pc, optimizer, epoch, epoch_step,
epoch_step_val, gen, gen_val, Epoch, cuda, fp16, scaler, save_period, save_dir, dice_loss, focal_loss, cls_weights, cls_weights_wl, num_class_seg, local_rank=0, is_radar_pc_seg=False):
total_loss_det = 0
total_loss_seg = 0
total_loss_seg_w = 0
total_loss_seg_pc = 0
total_f_score = 0
total_f_score_w = 0
val_loss_det = 0
val_loss_seg = 0
val_loss_seg_w = 0
val_loss_seg_pc = 0
val_f_score = 0
val_f_score_w = 0
total_loss = 0
val_total_loss = 0
if local_rank == 0:
print('Start Train')
pbar = tqdm(total=epoch_step, desc=f'Epoch {epoch + 1}/{Epoch}', postfix=dict, mininterval=0.3)
model_train.train()
for iteration, batch in enumerate(gen):
if iteration >= epoch_step:
break
# ======================= [数据解包] =======================
if is_radar_pc_seg:
images, targets, radars, pngs, pngs_w, seg_labels, seg_w_labels, radar_pc_features, radar_pc_labels, pc_evidence_maps = \
batch[0], batch[1], batch[2], batch[3], batch[4], batch[5], batch[6], batch[7], batch[8], batch[9]
else:
images, targets, radars, pngs, pngs_w, seg_labels, seg_w_labels, pc_evidence_maps = batch[0], batch[1], batch[2], batch[3], \
batch[4], batch[5], batch[6], batch[7]
# ========================================================================
with torch.no_grad():
weights = torch.from_numpy(cls_weights)
weights_wl = torch.from_numpy(cls_weights_wl)
if cuda:
images = images.cuda(local_rank)
targets = [ann.cuda(local_rank) for ann in targets]
pngs = pngs.cuda(local_rank)
pngs_w = pngs_w.cuda(local_rank)
seg_labels = seg_labels.cuda(local_rank)
seg_w_labels = seg_w_labels.cuda(local_rank)
weights = weights.cuda(local_rank)
weights_wl = weights_wl.cuda(local_rank)
pc_evidence_maps = pc_evidence_maps.cuda(local_rank)
if is_radar_pc_seg:
radar_pc_features = radar_pc_features.cuda(local_rank)
radar_pc_labels = radar_pc_labels.cuda(local_rank)
optimizer.zero_grad()
if not fp16:
if is_radar_pc_seg:
outputs, outputs_seg, outputs_seg_w, outputs_seg_pc = model_train(images, radar_pc_features, pc_evidence_maps)
loss_pc_seg = F.nll_loss(
F.log_softmax(outputs_seg_pc, dim=1).permute(0, 2, 1),
radar_pc_labels.squeeze(-1),
ignore_index=-1
)
else:
outputs, outputs_seg, outputs_seg_w = model_train(images, pc_evidence_maps)
if focal_loss:
loss_seg = Focal_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = Focal_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
else:
loss_seg = CE_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = CE_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
if dice_loss:
main_dice = Dice_loss(outputs_seg, seg_labels)
main_dice_w = Dice_loss(outputs_seg_w, seg_w_labels)
loss_seg = loss_seg + main_dice
logg_seg_w = loss_seg_w + main_dice_w
loss_det = yolo_loss(outputs, targets)
# =================================================================================
# 【微调核心修改 1/3】: 训练期屏蔽分割任务，总 Loss 仅由目标检测决定
# =================================================================================
loss_seg = loss_seg * 0.0
logg_seg_w = logg_seg_w * 0.0
if is_radar_pc_seg:
loss_pc_seg = loss_pc_seg * 0.0
total_loss = loss_det # 抛弃 MTL，完全只看检测 Loss
else:
total_loss = loss_det # 抛弃 MTL，完全只看检测 Loss
# =================================================================================
with torch.no_grad():
train_f_score = f_score(outputs_seg, seg_labels)
train_f_score_w = f_score(outputs_seg_w, seg_w_labels)
total_loss.backward()
optimizer.step()
else:
from torch.cuda.amp import autocast
with autocast():
if is_radar_pc_seg:
outputs, outputs_seg, outputs_seg_w, outputs_seg_pc = model_train(images, radar_pc_features, pc_evidence_maps)
loss_pc_seg = F.nll_loss(
F.log_softmax(outputs_seg_pc, dim=1).permute(0, 2, 1),
radar_pc_labels.squeeze(-1),
ignore_index=-1
)
else:
outputs, outputs_seg, outputs_seg_w = model_train(images, pc_evidence_maps)
if focal_loss:
loss_seg = Focal_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = Focal_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
else:
loss_seg = CE_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = CE_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
if dice_loss:
main_dice = Dice_loss(outputs_seg, seg_labels)
main_dice_w = Dice_loss(outputs_seg_w, seg_w_labels)
loss_seg = loss_seg + main_dice
logg_seg_w = loss_seg_w + main_dice_w
loss_det = yolo_loss(outputs, targets)
# =================================================================================
# 【微调核心修改 2/3】: FP16模式下，同样屏蔽分割任务
# =================================================================================
loss_seg = loss_seg * 0.0
logg_seg_w = logg_seg_w * 0.0
if is_radar_pc_seg:
loss_pc_seg = loss_pc_seg * 0.0
total_loss = loss_det # 抛弃 MTL
else:
total_loss = loss_det # 抛弃 MTL
# =================================================================================
with torch.no_grad():
train_f_score = f_score(outputs_seg, seg_labels)
train_f_score_w = f_score(outputs_seg_w, seg_w_labels)
scaler.scale(total_loss).backward()
scaler.unscale_(optimizer)
torch.nn.utils.clip_grad_norm_(model_train.parameters(), max_norm=10.0)
scaler.step(optimizer)
scaler.update()
if ema:
ema.update(model_train)
total_loss_det += loss_det.item()
total_loss_seg += loss_seg.item()
total_loss_seg_w += logg_seg_w.item() if dice_loss else loss_seg_w.item()
if is_radar_pc_seg:
total_loss_seg_pc += loss_pc_seg.item()
total_loss += total_loss_det + total_loss_seg + total_loss_seg_w + total_loss_seg_pc
total_f_score += train_f_score.item()
total_f_score_w += train_f_score_w.item()
if local_rank == 0:
if is_radar_pc_seg:
pbar.set_postfix(**{'detection loss': total_loss_det / (iteration + 1),
'se seg loss': total_loss_seg / (iteration + 1),
'wl seg loss': total_loss_seg_w / (iteration + 1),
'pc seg loss': total_loss_seg_pc / (iteration + 1),
'total loss': total_loss / (iteration + 1),
'f score se': total_f_score / (iteration + 1),
'f score wl': total_f_score_w / (iteration + 1),
'lr': get_lr(optimizer)})
else:
pbar.set_postfix(**{'detection loss': total_loss_det / (iteration + 1),
'se seg loss': total_loss_seg / (iteration + 1),
'wl seg loss': total_loss_seg_w / (iteration + 1),
'total loss': total_loss / (iteration + 1),
'f score se': total_f_score / (iteration + 1),
'f score wl': total_f_score_w / (iteration + 1),
'lr': get_lr(optimizer)})
pbar.update(1)
if local_rank == 0:
pbar.close()
print('Finish Train')
print('Start Validation')
pbar = tqdm(total=epoch_step_val, desc=f'Epoch {epoch + 1}/{Epoch}', postfix=dict, mininterval=0.3)
if ema:
model_train_eval = ema.ema
else:
model_train_eval = model_train.eval()
for iteration, batch in enumerate(gen_val):
if iteration >= epoch_step_val:
break
if is_radar_pc_seg:
images, targets, radars, pngs, pngs_w, seg_labels, seg_w_labels, radar_pc_features, radar_pc_labels, pc_evidence_maps = \
batch[0], batch[1], batch[2], batch[3], batch[4], batch[5], batch[6], batch[7], batch[8], batch[9]
else:
images, targets, radars, pngs, pngs_w, seg_labels, seg_w_labels, pc_evidence_maps = batch[0], batch[1], batch[2], batch[3], \
batch[4], batch[5], batch[6], batch[7]
with torch.no_grad():
if cuda:
images = images.cuda(local_rank)
targets = [ann.cuda(local_rank) for ann in targets]
pngs = pngs.cuda(local_rank)
pngs_w = pngs_w.cuda(local_rank)
seg_labels = seg_labels.cuda(local_rank)
seg_w_labels = seg_w_labels.cuda(local_rank)
weights = weights.cuda(local_rank)
pc_evidence_maps = pc_evidence_maps.cuda(local_rank)
if is_radar_pc_seg:
radar_pc_features = radar_pc_features.cuda(local_rank)
radar_pc_labels = radar_pc_labels.cuda(local_rank)
optimizer.zero_grad()
if is_radar_pc_seg:
outputs, outputs_seg, outputs_seg_w, outputs_seg_pc = model_train_eval(images, radar_pc_features, pc_evidence_maps)
loss_pc_seg = F.nll_loss(
F.log_softmax(outputs_seg_pc, dim=1).permute(0, 2, 1),
radar_pc_labels.squeeze(-1),
ignore_index=-1
)
else:
outputs, outputs_seg, outputs_seg_w = model_train_eval(images, pc_evidence_maps)
if focal_loss:
loss_seg = Focal_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = Focal_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
else:
loss_seg = CE_Loss(outputs_seg, pngs, weights, num_classes=num_class_seg)
loss_seg_w = CE_Loss(outputs_seg_w, pngs_w, weights_wl, num_classes=2)
if dice_loss:
main_dice = Dice_loss(outputs_seg, seg_labels)
main_dice_w = Dice_loss(outputs_seg_w, seg_w_labels)
loss_seg = loss_seg + main_dice
loss_seg_w = loss_seg_w + main_dice_w
_f_score = f_score(outputs_seg, seg_labels)
_f_score_w = f_score(outputs_seg_w, seg_w_labels)
loss_value = yolo_loss(outputs, targets)
# =================================================================================
# 【微调核心修改 3/3】: 验证集的分割 Loss 也强制清零
# 这是为了防止在保存"最好模型（Best Model）"时，受到无效分割 Loss 的干扰
# =================================================================================
loss_value_seg = loss_seg * 0.0
loss_value_seg_w = loss_seg_w * 0.0
if is_radar_pc_seg:
loss_value_seg_pc = loss_pc_seg * 0.0
# 验证集的总 Loss 现在完完全全只看目标检测（Bbox）的效果！
if is_radar_pc_seg:
val_total_loss_current = loss_value + loss_value_seg + loss_value_seg_w + loss_value_seg_pc
else:
val_total_loss_current = loss_value + loss_value_seg + loss_value_seg_w
# =================================================================================
val_f_score += _f_score.item()
val_f_score_w += _f_score_w.item()
val_loss_det += loss_value.item()
val_loss_seg += loss_value_seg.item()
val_loss_seg_w += loss_value_seg_w.item()
if is_radar_pc_seg:
val_loss_seg_pc += loss_value_seg_pc.item()
val_total_loss = val_loss_det + val_loss_seg + val_loss_seg_w + val_loss_seg_pc if is_radar_pc_seg else val_loss_det + val_loss_seg + val_loss_seg_w
if local_rank == 0:
if is_radar_pc_seg:
pbar.set_postfix(**{'detection val_loss': val_loss_det / (iteration + 1),
'se seg val_loss': val_loss_seg / (iteration + 1),
'wl seg val_loss': val_loss_seg_w / (iteration + 1),
'pc seg val_loss': val_loss_seg_pc / (iteration + 1),
'val loss': val_total_loss / (iteration + 1),
'f_score se': val_f_score / (iteration + 1),
'f_score wl': val_f_score_w / (iteration + 1),
})
else:
pbar.set_postfix(**{'detection val_loss': val_loss_det / (iteration + 1),
'se seg val_loss': val_loss_seg / (iteration + 1),
'wl seg val_loss': val_loss_seg_w / (iteration + 1),
'val loss': val_total_loss / (iteration + 1),
'f_score se': val_f_score / (iteration + 1),
'f_score wl': val_f_score_w / (iteration + 1),
})
pbar.update(1)
if local_rank == 0:
pbar.close()
print('Finish Validation')
loss_history.append_loss(epoch + 1, total_loss_det / epoch_step, val_loss_det / epoch_step_val)
loss_history_seg.append_loss(epoch + 1, total_loss_seg / epoch_step, val_loss_seg / epoch_step_val)
loss_history_seg_wl.append_loss(epoch + 1, total_loss_seg_w / epoch_step, val_loss_seg_w / epoch_step_val)
if is_radar_pc_seg:
loss_history_seg_pc.append_loss(epoch + 1, total_loss_seg_pc / epoch_step, val_loss_seg_pc / epoch_step_val)
eval_callback.on_epoch_end(epoch + 1, model_train_eval)
eval_callback_seg.on_epoch_end(epoch + 1, model_train_eval)
eval_callback_seg_w.on_epoch_end(epoch + 1, model_train_eval)
if is_radar_pc_seg:
eval_callback_seg_pc.on_epoch_end(epoch + 1, model_train_eval)
print('Epoch:' + str(epoch + 1) + '/' + str(Epoch))
if is_radar_pc_seg:
print(
'Total Loss: %.3f || Val Loss Det: %.3f || Val Loss Seg: %.3f || Val Loss Seg L: %.3f || Val Loss Seg PC: %.3f' % (
(total_loss / epoch_step,
val_loss_det / epoch_step_val,
val_loss_seg / epoch_step_val,
val_loss_seg_w / epoch_step_val,
val_loss_seg_pc / epoch_step_val)))
else:
print(
'Total Loss: %.3f || Val Loss Det: %.3f || Val Loss Seg: %.3f || Val Loss Seg L: %.3f' % (
(total_loss / epoch_step,
val_loss_det / epoch_step_val,
val_loss_seg / epoch_step_val,
val_loss_seg_w / epoch_step_val,
)))
if ema:
save_state_dict = ema.ema.state_dict()
else:
save_state_dict = model.state_dict()
if is_radar_pc_seg:
if (epoch + 1) % save_period == 0 or epoch + 1 == Epoch:
torch.save(save_state_dict, os.path.join(save_dir,
"ep%03d-loss%.3f-det_val_loss%.3f-seg_val_loss%.3f-seg_wl_val_loss%.3f-seg_pc_val_loss%.3f.pth" % (
epoch + 1, val_total_loss / epoch_step,
val_loss_det / epoch_step_val,
val_loss_seg / epoch_step_val,
val_loss_seg_w / epoch_step_val,
val_loss_seg_pc / epoch_step_val)))
if len(loss_history.val_loss) <= 1 or (val_total_loss / epoch_step_val) <= min(loss_history.val_loss) + min(
loss_history_seg.val_loss):
print('Save best model to best_epoch_weights.pth')
torch.save(save_state_dict, os.path.join(save_dir, "best_epoch_weights.pth"))
else:
if (epoch + 1) % save_period == 0 or epoch + 1 == Epoch:
torch.save(save_state_dict, os.path.join(save_dir,
"ep%03d-loss%.3f-det_val_loss%.3f-seg_val_loss%.3f-seg_wl_val_loss%.3f.pth" % (
epoch + 1, val_total_loss / epoch_step,
val_loss_det / epoch_step_val,
val_loss_seg / epoch_step_val,
val_loss_seg_w / epoch_step_val)))
if len(loss_history.val_loss) <= 1 or (val_total_loss / epoch_step_val) <= min(loss_history.val_loss) + min(
loss_history_seg.val_loss):
print('Save best model to best_epoch_weights.pth')
torch.save(save_state_dict, os.path.join(save_dir, "best_epoch_weights.pth"))
torch.save(model_train, os.path.join(save_dir, "best_epoch_weights.pt"))
torch.save(save_state_dict, os.path.join(save_dir, "last_epoch_weights.pth"))
torch.save(model_train, os.path.join(save_dir, "last_epoch_weights.pt"))修改dataloader.py
1、修改分割为全黑假图
2、注释npz的部分
3、修改labels的索引方式，置0
训练到5就开始上升了
Epoch 4/30: 100%|█| 2/2 [00:05<00:00, 2.82s/it, detection val_loss=1.6, f_score se=0.369, f_score wl=0.5, pc seg val_loss=0, se seg val_loss
Finish Validation
Epoch:4/30
Total Loss: 1.642 || Val Loss Det: 1.605 || Val Loss Seg: 0.000 || Val Loss Seg L: 0.000 || Val Loss Seg PC: 0.000
Save best model to best_epoch_weights.pth
Start Train
Epoch 5/30: 100%|█| 18/18 [01:52<00:00, 6.28s/it, detection loss=1.36, f score se=0.289, f score wl=0.5, lr=0.00049, pc seg loss=0, se seg l
Finish Train
Start Validation
Epoch 5/30: 100%|█| 2/2 [00:05<00:00, 2.79s/it, detection val_loss=1.73, f_score se=0.313, f_score wl=0.5, pc seg val_loss=0, se seg val_los
Finish Validation
