DevEcoTesting-for-handle-leak：”探索测试“工具的发掘利用与AI赋能的内存泄漏检测和复现（上）

01 引言

任何APP开发过程中，代码引起的内存泄漏都难以避免，其中有一些内存泄漏还可能会引起重大事故。以往的鸿蒙APP内存泄漏检测基本采用人类手工探索APP的方式，进行反复的点击、滑动、输入等操作，并实时监测内存泄漏日志或拉取内存快照进行分析。这种方式不但耗费人力，还效率极低，便自然地联想到鸿蒙开发者的一柄利器------ DevEcoTesting ，这是一款鸿蒙应用测试工具，可以提供多种测试功能，我们在其 探索测试 功能上进行了新的研究，对探索测试的产物进行了再次发掘利用。

02 摘要

本文从将从以下几方面来讨论该标题的前半部分------DevEcoTesting-for-handle-leak："探索测试"工具的发掘利用：

生成并找到DevEcoTesing探索测试产物
分析探索测试产物结构与内容
发掘利用探索测试产物

03 生成并找到DevEcoTesing探索测试产物

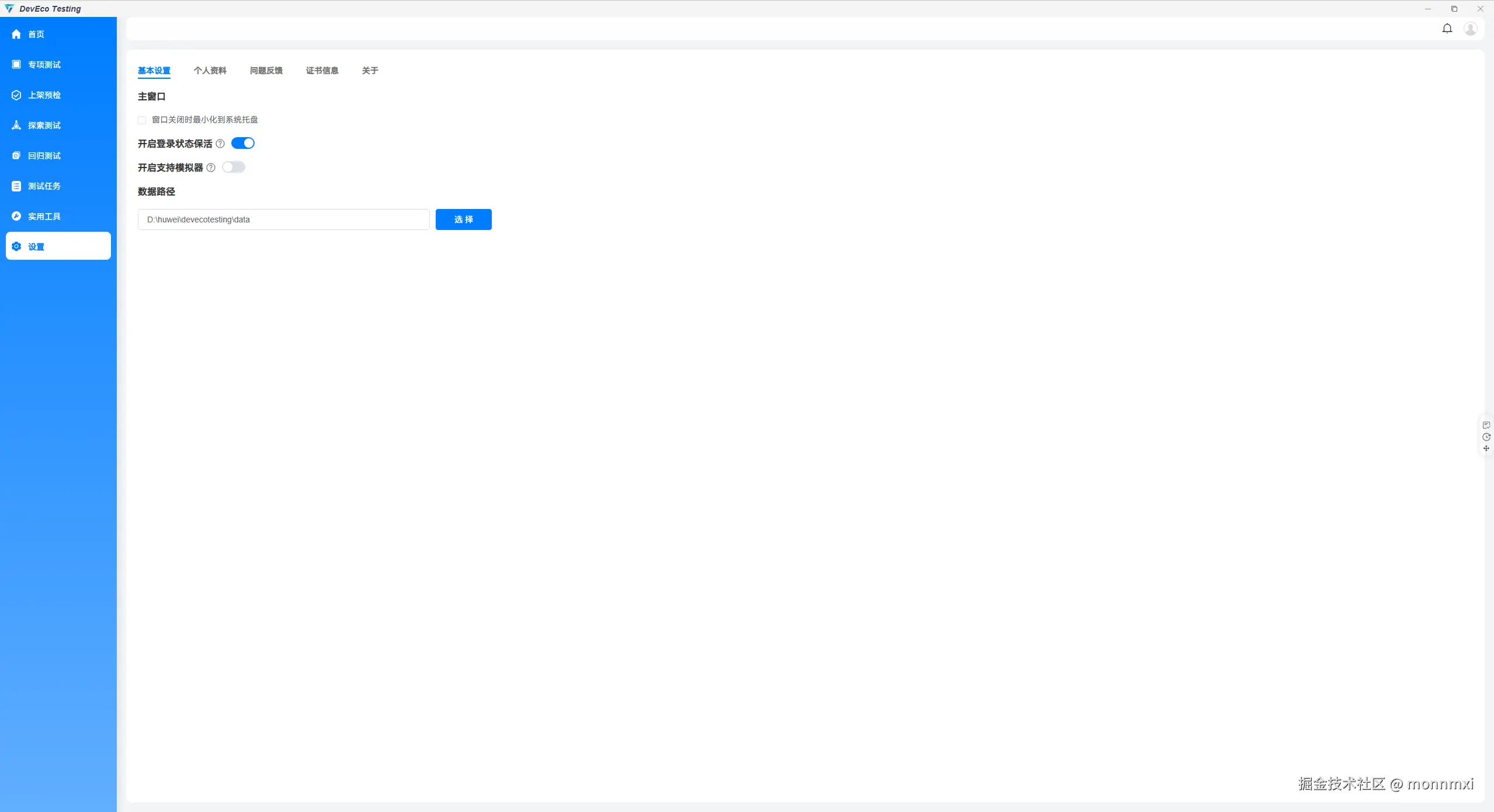

对于DevEcoTesting的数据路径，在安装时会选择一次，如果忘记了，可以在设置里找到该路径

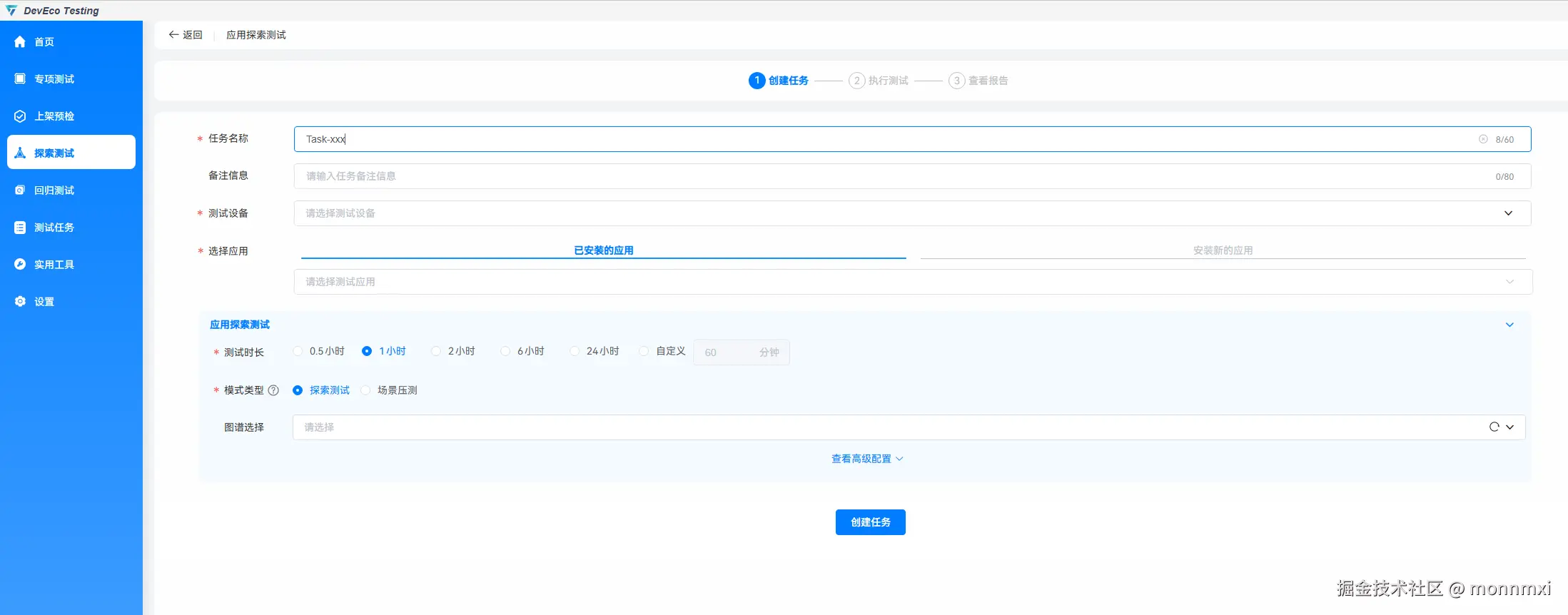

想要实现探索测试功能，只需要连接开发者模式的鸿蒙系统手机，开启USB调试后，在探索测试-应用探索测试对某个APP启动测试即可。

04 分析探索测试产物结构与内容

以我的设置举例，每一次探索测试的产物文件夹都存放在"D:\huwei\devecotesting\data\43120\tasks"这个目录下，可以通过创建时间来区分是哪一次测试的产物。

进入某一个目录后的结构是这样的：

这里我们使用 record 和 data 目录进行后续分析。首先分析record目录下的内容，只有eventSequence.json这一个文件，我们来分析它的内容：

json 复制代码

{"event":"operation","timeStamp":1770282910418,"uri":"","exactSceneId":"","actionList":[]}
{"event":"operation","timeStamp":1770282920770,"uri":"","exactSceneId":"09FC6EBCE4E86A82152CD143ABF7D39D","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Stack/Stack/Swiper"}]}
{"event":"operation","timeStamp":1770282927063,"uri":"","exactSceneId":"B810969532282B290C1C46817C3786E1","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Stack/Stack/Swiper"}]}
{"event":"operation","timeStamp":1770282933475,"uri":"","exactSceneId":"09FC6EBCE4E86A82152CD143ABF7D39D","actionList":[{"type":"CLICK","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Row/Stack[4]"}]}
{"event":"operation","timeStamp":1770282938853,"uri":"","exactSceneId":"9389E3D9E803F8262C7907662FEFD66F","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/RelativeContainer/Column[0]/__Common__/Column/Refresh"}]}
{"event":"operation","timeStamp":1770282944824,"uri":"","exactSceneId":"3AD1F91195F2E9CF1D0B3343F688BA4A","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/RelativeContainer/Column[0]/__Common__/Column/Refresh"}]}
{"event":"operation","timeStamp":1770282950967,"uri":"","exactSceneId":"9389E3D9E803F8262C7907662FEFD66F","actionList":[{"type":"CLICK","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Row/Stack[3]"}]}
{"event":"operation","timeStamp":1770282955646,"uri":"","exactSceneId":"2B121B27A0A7D1D7ABA4596B812C9AB9","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Stack/Navigation/NavBar/NavBarContent/Stack/Stack/Stack/Stack[0]/Stack/List"}]}
{"event":"operation","timeStamp":1770282961489,"uri":"","exactSceneId":"5A0656898D33E060CD1D769314010AAB","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Stack/Navigation/NavBar/NavBarContent/Stack/Stack/Stack/Stack[0]/Stack/List"}]}
{"event":"operation","timeStamp":1770282966881,"uri":"","exactSceneId":"2B121B27A0A7D1D7ABA4596B812C9AB9","actionList":[{"type":"CLICK","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Row"}]}
{"event":"operation","timeStamp":1770282971408,"uri":"","exactSceneId":"18F69BF6132F1F85AFD2ED0D0B5A8390","actionList":[{"type":"CLICK","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Row/Stack[2]"}]}
{"event":"operation","timeStamp":1770282976128,"uri":"","exactSceneId":"18F69BF6132F1F85AFD2ED0D0B5A8390","actionList":[{"type":"CLICK","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Row/Stack[1]"}]}
{"event":"operation","timeStamp":1770282980397,"uri":"","exactSceneId":"8439DBF823E2C79AE9E5759B55674BBC","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Column/Stack/Column[0]/Stack/Swiper"}]}
{"event":"operation","timeStamp":1770282985457,"uri":"","exactSceneId":"6598A30D8A7BFDCB28F3A3C66206C479","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Column/Stack/Column[0]/Stack/Swiper"}]}
{"event":"operation","timeStamp":1770282990256,"uri":"","exactSceneId":"6598A30D8A7BFDCB28F3A3C66206C479","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Column/Stack/Column[0]/Stack/Swiper"}]}
{"event":"operation","timeStamp":1770282994943,"uri":"","exactSceneId":"6598A30D8A7BFDCB28F3A3C66206C479","actionList":[{"type":"PRESS_BACK","xpath":"PRESS_BACK"}]}
{"event":"operation","timeStamp":1770283001679,"uri":"","exactSceneId":"8439DBF823E2C79AE9E5759B55674BBC","actionList":[{"type":"CLICK","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Row/Stack[0]"}]}
{"event":"operation","timeStamp":1770283006745,"uri":"","exactSceneId":"09FC6EBCE4E86A82152CD143ABF7D39D","actionList":[{"type":"CLICK","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Stack/Stack/__Common__/Stack/Column[1]/__Common__/Column/Row/Column/Column/Row/Stack[3]"}]}
{"event":"operation","timeStamp":1770283011206,"uri":"","exactSceneId":"98192559725181F7B41187DFC12CE972","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Stack/Stack/Swiper"}]}
{"event":"operation","timeStamp":1770283016569,"uri":"","exactSceneId":"98192559725181F7B41187DFC12CE972","actionList":[{"type":"SWIPE","xpath":"/root/RelativeContainer/Column/Stack/Navigation/NavBar/NavBarContent/Stack/Swiper/Stack/Stack/Stack/Swiper"}]}

这里会记录DevEcoTesting的每一次操作的时间戳、类型、对象、内容（多在输入操作时存在）。

接下来分析data目录下的内容，有一个设备号\resources目录，其中有layout和screenshot两个子目录。

screenshot目录下保存了DevEcoTesting在探索过程中的APP截图，layout目录下存放了这些时间戳对应的APP布局文件。

05 发掘利用探索测试产物

首先需要引入一些命令：

bash 复制代码

# 获取已连接设备列表
hdc list targets

# 禁用hilog二进制加密
hdc shell param set persist.sys.hilog.binary.on false

# 清理遗留的hilog
hdc rm data/log/hilog/*

# 监听hilog并捕获疑似内存泄漏点，可在子线程流式执行防止阻塞
# "handle leak"是hilog的tag，根据系统版本不同可能略有不同
hdc shell hilog | grep "handle leak"

这里为什么是疑似内存泄漏呢？是因为在内存异常增长时都会产生handle leak的日志，这有可能是进入新页面的缓存引起的，而非组件没有释放内存和回收。

通过这些命令，我们可以得到捕获到handle leak的命令，并记录其时间戳，提取其后面输出的栈状态，通过每一个被捕获点的栈状态作为唯一标识进行聚合和统计。如下：

arduino 复制代码

"#00 pc /system/lib64/platformsdk/libark_jsruntime.so",
"#01 pc /system/lib64/platformsdk/libark_jsruntime.so",
"#02 pc /system/lib64/platformsdk/libark_jsruntime.so",
"#03 pc /system/lib64/platformsdk/libace_napi.z.so",
"#04 pc /data/storage/el1/bundle/libs/arm64/libxuanji.so",
"#05 pc /data/storage/el1/bundle/libs/arm64/libxuanji.so",
"#06 pc /data/storage/el1/bundle/libs/arm64/libxuanji.so",
"#07 pc /data/storage/el1/bundle/libs/arm64/libxuanji.so",
"#08 pc /data/storage/el1/bundle/libs/arm64/libxuanji.so",
"#09 pc /data/storage/el1/bundle/libs/arm64/libxuanji.so",
"#10 pc /system/lib64/platformsdk/libuv.so",
"#11 pc /system/lib64/platformsdk/libuv.so",
"#12 pc /system/lib64/platformsdk/libruntime.z.so",
"#13 pc /system/lib64/platformsdk/libruntime.z.so",
"#14 pc /system/lib64/chipset-pub-sdk/libeventhandler.z.so",
"#15 pc /system/lib64/chipset-pub-sdk/libeventhandler.z.so",
"#16 pc /system/lib64/chipset-pub-sdk/libeventhandler.z.so",
"#17 pc /system/lib64/chipset-pub-sdk/libeventhandler.z.so",
"#18 pc /system/lib64/platformsdk/libappkit_native.z.so",
"#19 pc /system/lib64/appspawn/appspawn/libappspawn_ace.z.so",
"#20 pc /system/bin/appspawn",
"#21 pc /system/bin/appspawn",
"#22 pc /system/bin/appspawn",
"#23 pc /system/lib64/chipset-pub-sdk/libbegetutil.z.so",
"#24 pc /system/lib64/chipset-pub-sdk/libbegetutil.z.so",
"#25 pc /system/lib64/chipset-pub-sdk/libbegetutil.z.so",
"#26 pc /system/lib64/chipset-pub-sdk/libbegetutil.z.so",
"#27 pc /system/bin/appspawn",
"#28 pc /system/bin/appspawn",
"#29 pc /lib/ld-musl-aarch64.so.1",
"#30 pc /system/bin/appspawn"

这里实际是忽略了包内偏移的，即默认同一个so文件内的函数运行状态不代表宏观状态，这样既能聚合很多本质上相同、但包内函数运行位置有微小差别的内存泄漏点，又能在一定程度上实现不过度聚合、不漏报。

此时，我们便得到了所有疑似内存泄漏的时间戳。回顾前两节的内容，我们此时可以用这些时间戳在eventSequence.json中寻找时间戳前最近的几个操作事件，根据这几个操作事件的时间戳在screenshot下找到操作前后对应的截图。因为已知操作场景、操作类型、操作内容、操作结果，此时已经可以较容易地人工进行复现与压力测试了，此外，还可以去layout目录下找到对应的布局文件，进一步确认具体的操作组件，更准确地复现和压力测试。

至此，已经可以通过DevEcoTesting来做全流程的内存泄漏监测与复现压力测试了，前半部分完结，接下来将对AI赋能的内存泄漏点复现与压力测试进行讨论。
