【ReactNative鸿蒙化-三方库使用与C-API集成】

初始化ReactNayive项目

npx react-native@0.72.5 init RNNavigation --version 0.72.5
安装依赖

npm i @react-native-oh/react-native-harmony@0.72.90
修改 package.json 文件

{
"name": "RNNavigation",
"version": "0.0.1",
"private": true,
"scripts": {
"android": "react-native run-android",
"ios": "react-native run-ios",
"lint": "eslint .",
"start": "react-native start",
"test": "jest",
"harmony": "react-native bundle-harmony --dev" //需要添加的配置项
},
"dependencies": {
"@react-native-oh/react-native-harmony": "^0.72.90", //此项会自动写入
"react": "18.2.0",
"react-native": "0.72.5"
},
"devDependencies": {
"@babel/core": "^7.20.0",
"@babel/preset-env": "^7.20.0",
"@babel/runtime": "^7.20.0",
"@react-native/eslint-config": "^0.72.2",
"@react-native/metro-config": "^0.72.11",
"@tsconfig/react-native": "^3.0.0",
"@types/react": "^18.0.24",
"@types/react-test-renderer": "^18.0.0",
"babel-jest": "^29.2.1",
"eslint": "^8.19.0",
"jest": "^29.2.1",
"metro-react-native-babel-preset": "0.76.8",
"prettier": "^2.4.1",
"react-test-renderer": "18.2.0",
"typescript": "4.8.4"
},
"engines": {
"node": ">=16"
}
}

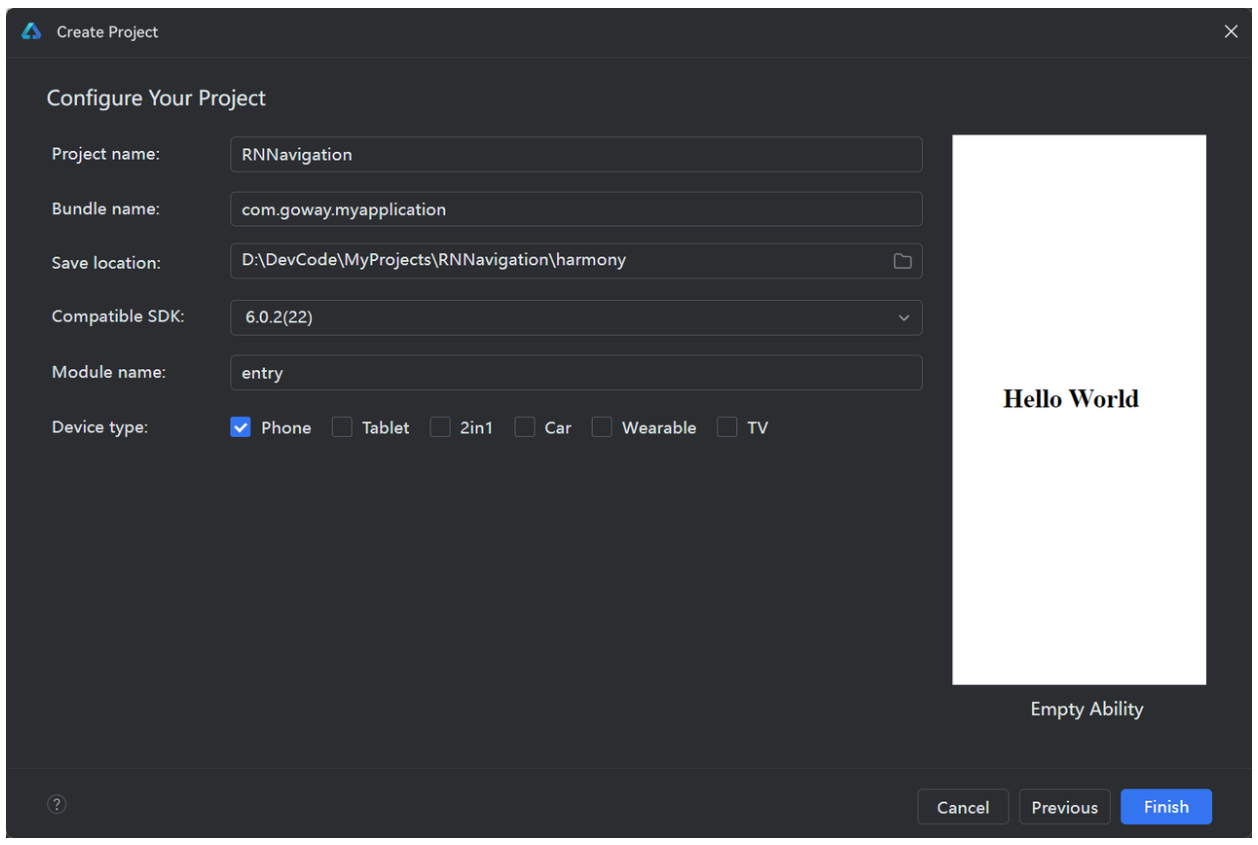

创建harmony项目

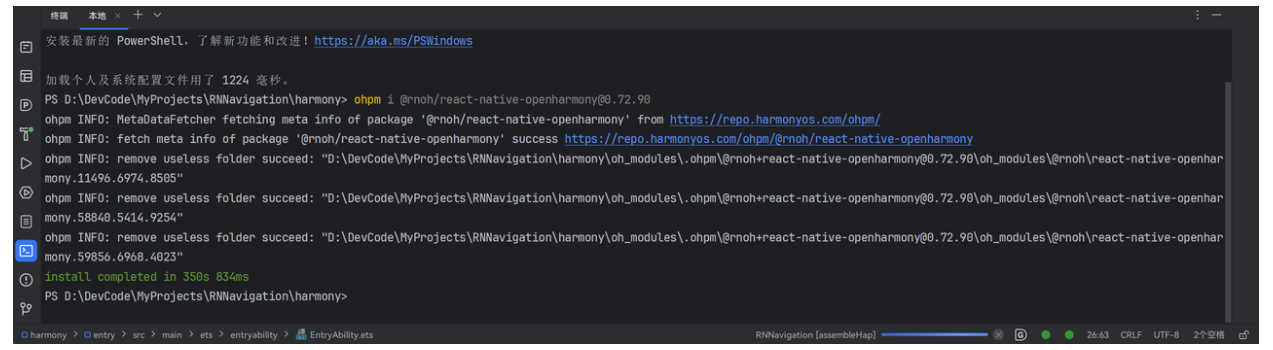

安装rn harmony 依赖

ohpm i @rnoh/react-native-openharmony@0.72.90

配置 Metro 打包器以支持 Harmony

/**
- @ProjectName : RNNavigation
- @Author : GuoJiaHui
- @Time : 2026年04月19日 10:00 AM
- @Description : Metro bundler configuration
  */
  const {getDefaultConfig, mergeConfig} = require('@react-native/metro-config');
  const {
  createHarmonyMetroConfig,
  } = require('@react-native-oh/react-native-harmony/metro.config');
/**
- Metro configuration for OpenHarmony
- Integrates RNOH-specific resolver and transformer rules.
- @type {import('metro-config').MetroConfig}
  */
  const config = {
  transformer: {
  getTransformOptions: async () => ({
  transform: {
  experimentalImportSupport: false,
  inlineRequires: true,
  },
  }),
  },
  };
module.exports = mergeConfig(
getDefaultConfig(__dirname),
createHarmonyMetroConfig({
reactNativeHarmonyPackageName: '@react-native-oh/react-native-harmony',
}),
config,
);

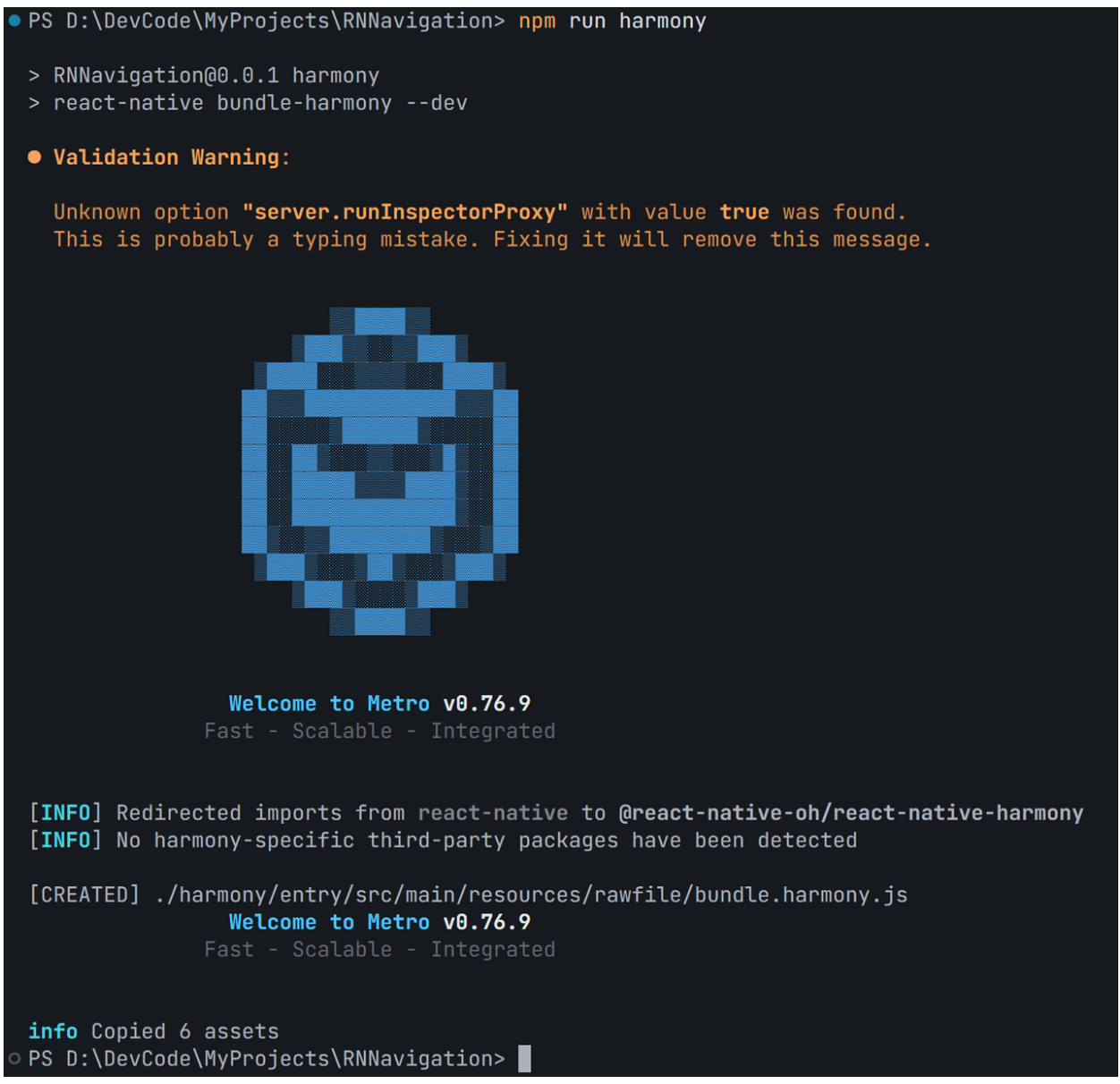

初始化编译

npm run harmony

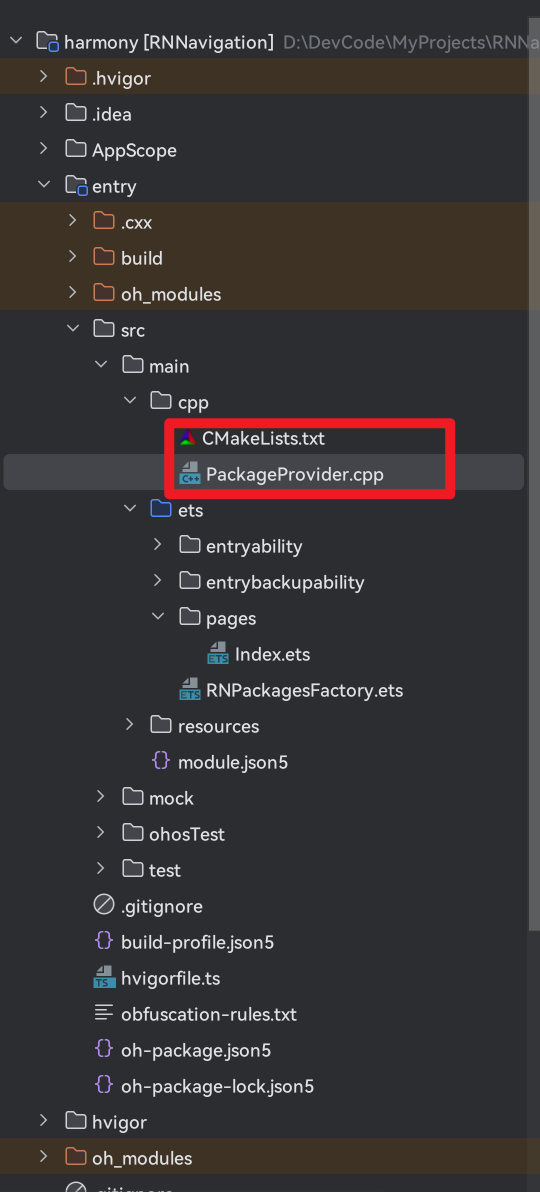

修改Haymony工程

这里需要新建两个文件

复制代码

project(rnapp)
cmake_minimum_required(VERSION 3.4.1)
set(CMAKE_SKIP_BUILD_RPATH TRUE)
set(OH_MODULE_DIR "${CMAKE_CURRENT_SOURCE_DIR}/../../../../oh_modules")
set(RNOH_APP_DIR "${CMAKE_CURRENT_SOURCE_DIR}")

set(RNOH_CPP_DIR "${OH_MODULE_DIR}/@rnoh/react-native-openharmony/src/main/cpp")
set(RNOH_GENERATED_DIR "${CMAKE_CURRENT_SOURCE_DIR}/generated")
set(CMAKE_ASM_FLAGS "-Wno-error=unused-command-line-argument -Qunused-arguments")
set(CMAKE_CXX_FLAGS "-fstack-protector-strong -Wl,-z,relro,-z,now,-z,noexecstack -s -fPIE -pie")
add_compile_definitions(WITH_HITRACE_SYSTRACE)
set(WITH_HITRACE_SYSTRACE 1) # for other CMakeLists.txt files to use

add_subdirectory("${RNOH_CPP_DIR}" ./rn)

add_library(rnoh_app SHARED
    "${RNOH_CPP_DIR}/RNOHAppNapiBridge.cpp" "./PackageProvider.cpp")

target_link_libraries(rnoh_app PUBLIC rnoh)

//
// Created on 2026/1/29.
//
// Node APIs are not fully supported. To solve the compilation error of the interface cannot be found,
// please include "napi/native_api.h".
#include "RNOH/PackageProvider.h"

using namespace rnoh;

std::vector<std::shared_ptr<Package>> PackageProvider::getPackages(Package::Context ctx) {
    return {};
}

修改这个文件 src/main/ets/entryability/EntryAbility.ets

复制代码

import { AbilityConstant, ConfigurationConstant, UIAbility, Want } from '@kit.AbilityKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { window } from '@kit.ArkUI';
import { RNAbility } from '@rnoh/react-native-openharmony';

const DOMAIN = 0x0000;

export default class EntryAbility extends RNAbility {
  protected getPagePath(): string {
    return "pages/Index"
  }
  override onCreate(want: Want): void {
    super.onCreate(want);
    try {
      this.context.getApplicationContext().setColorMode(ConfigurationConstant.ColorMode.COLOR_MODE_NOT_SET);
    } catch (err) {
      hilog.error(DOMAIN, 'testTag', 'Failed to set colorMode. Cause: %{public}s', JSON.stringify(err));
    }
    hilog.info(DOMAIN, 'testTag', '%{public}s', 'Ability onCreate');
  }

  onDestroy(): void {
    hilog.info(DOMAIN, 'testTag', '%{public}s', 'Ability onDestroy');
  }

  onWindowStageCreate(windowStage: window.WindowStage): void {
    // Main window is created, set main page for this ability
    hilog.info(DOMAIN, 'testTag', '%{public}s', 'Ability onWindowStageCreate');

    windowStage.loadContent('pages/Index', (err) => {
      if (err.code) {
        hilog.error(DOMAIN, 'testTag', 'Failed to load the content. Cause: %{public}s', JSON.stringify(err));
        return;
      }
      hilog.info(DOMAIN, 'testTag', 'Succeeded in loading the content.');
    });
  }

  onWindowStageDestroy(): void {
    // Main window is destroyed, release UI related resources
    hilog.info(DOMAIN, 'testTag', '%{public}s', 'Ability onWindowStageDestroy');
  }

  onForeground(): void {
    // Ability has brought to foreground
    hilog.info(DOMAIN, 'testTag', '%{public}s', 'Ability onForeground');
  }

  onBackground(): void {
    // Ability has back to background
    hilog.info(DOMAIN, 'testTag', '%{public}s', 'Ability onBackground');
  }
}

新建文件 src/main/ets/RNPackagesFactory.ets

复制代码

import { RNPackageContext, RNPackage } from '@rnoh/react-native-openharmony/ts';
export function createRNPackages(ctx: RNPackageContext): RNPackage[] {
  return [];
}

修改 harmony\entry\build-profile.json5

复制代码

{
  "apiType": "stageMode",
  "buildOption": {
    "externalNativeOptions":{
      "path":"./src/main/cpp/CMakeLists.txt",
      "arguments":"",
      "cppFlags":"",
      "abiFilters":["arm64-v8a","x86_64"]
    },
    "resOptions": {
      "copyCodeResource": {
        "enable": false
      }
    }
  },
  "buildOptionSet": [
    {
      "name": "release",
      "arkOptions": {
        "obfuscation": {
          "ruleOptions": {
            "enable": false,
            "files": [
              "./obfuscation-rules.txt"
            ]
          }
        }
      }
    },
  ],
  "targets": [
    {
      "name": "default"
    },
    {
      "name": "ohosTest",
    }
  ]
}

修改 index.ets

复制代码

import {
  AnyJSBundleProvider,
  ComponentBuilderContext,
  FileJSBundleProvider,
  MetroJSBundleProvider,
  ResourceJSBundleProvider,
  RNApp,
  RNOHErrorDialog,
  RNOHLogger,
  TraceJSBundleProviderDecorator,
  RNOHCoreContext
} from '@rnoh/react-native-openharmony';
import { createRNPackages } from '../RNPackagesFactory';

@Builder
export function buildCustomRNComponent(ctx: ComponentBuilderContext) {}

const wrappedCustomRNComponentBuilder = wrapBuilder(buildCustomRNComponent)

@Entry
@Component
struct Index {
  @StorageLink('RNOHCoreContext') private rnohCoreContext: RNOHCoreContext | undefined = undefined
  @State shouldShow: boolean = false
  private logger!: RNOHLogger

  aboutToAppear() {
    this.logger = this.rnohCoreContext!.logger.clone("Index")
    const stopTracing = this.logger.clone("aboutToAppear").startTracing();

    this.shouldShow = true
    stopTracing();
  }

  onBackPress(): boolean | undefined {
    // NOTE: this is required since `Ability`'s `onBackPressed` function always
    // terminates or puts the app in the background, but we want Ark to ignore it completely
    // when handled by RN
    this.rnohCoreContext!.dispatchBackPress()
    return true
  }

  build() {
    Column() {
      if (this.rnohCoreContext && this.shouldShow) {
        if (this.rnohCoreContext?.isDebugModeEnabled) {
          RNOHErrorDialog({ ctx: this.rnohCoreContext })
        }
        RNApp({
          rnInstanceConfig: {
            createRNPackages,
            enableNDKTextMeasuring: true, // 该项必须为true，用于开启NDK文本测算
            enableBackgroundExecutor: false,
            enableCAPIArchitecture: true, // 该项必须为true，用于开启CAPI
            arkTsComponentNames: []
          },
          initialProps: { "foo": "bar" } as Record<string, string>,
          appKey: "RNNavigation",
          wrappedCustomRNComponentBuilder: wrappedCustomRNComponentBuilder,
          onSetUp: (rnInstance) => {
            rnInstance.enableFeatureFlag("ENABLE_RN_INSTANCE_CLEAN_UP")
          },
          jsBundleProvider: new TraceJSBundleProviderDecorator(
            new AnyJSBundleProvider([
              new MetroJSBundleProvider(),
              // NOTE: to load the bundle from file, place it in
              // `/data/app/el2/100/base/com.rnoh.tester/files/bundle.harmony.js`
              // on your device. The path mismatch is due to app sandboxing on OpenHarmony
              new FileJSBundleProvider('/data/storage/el2/base/files/bundle.harmony.js'),
              new ResourceJSBundleProvider(this.rnohCoreContext.uiAbilityContext.resourceManager, 'hermes_bundle.hbc'),
              new ResourceJSBundleProvider(this.rnohCoreContext.uiAbilityContext.resourceManager, 'bundle.harmony.js')
            ]),
            this.rnohCoreContext.logger),
        })
      }
    }
    .height('100%')
    .width('100%')
  }
}

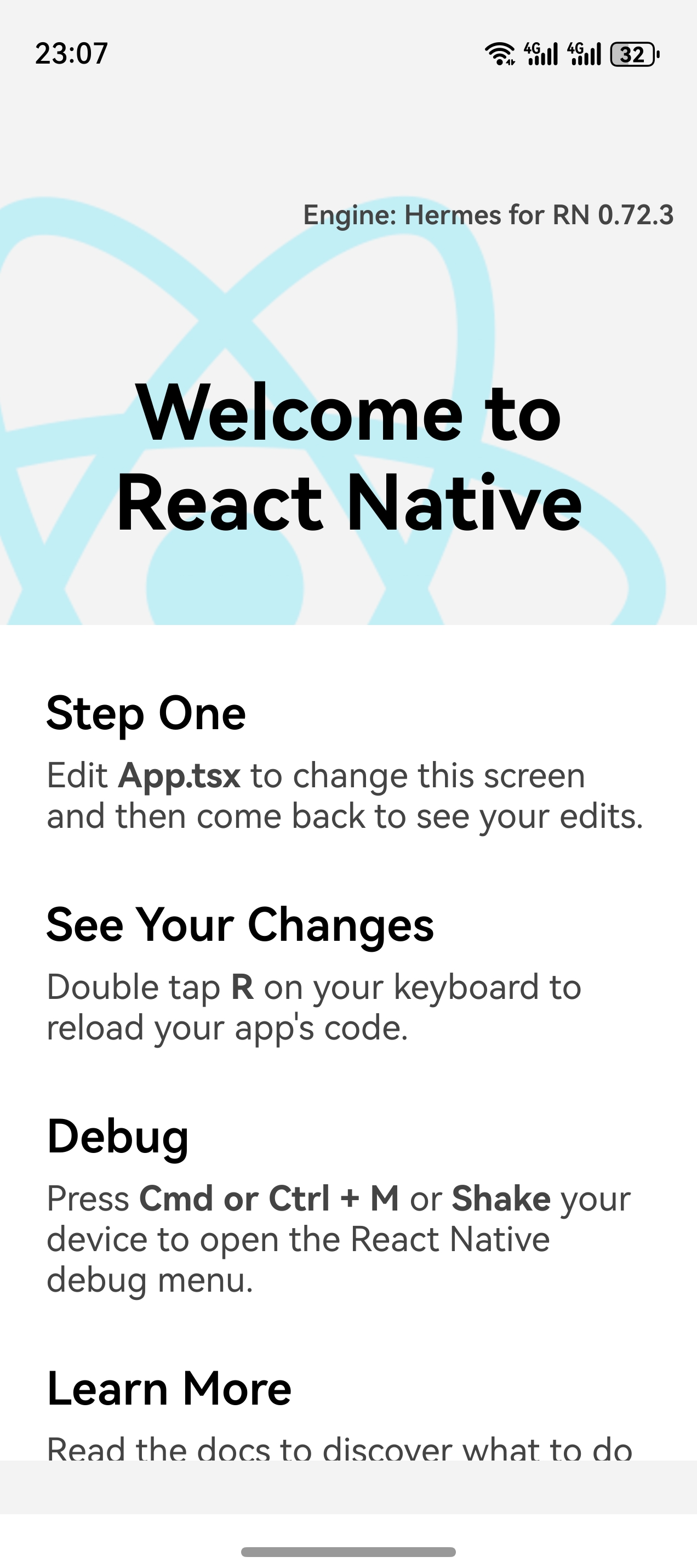

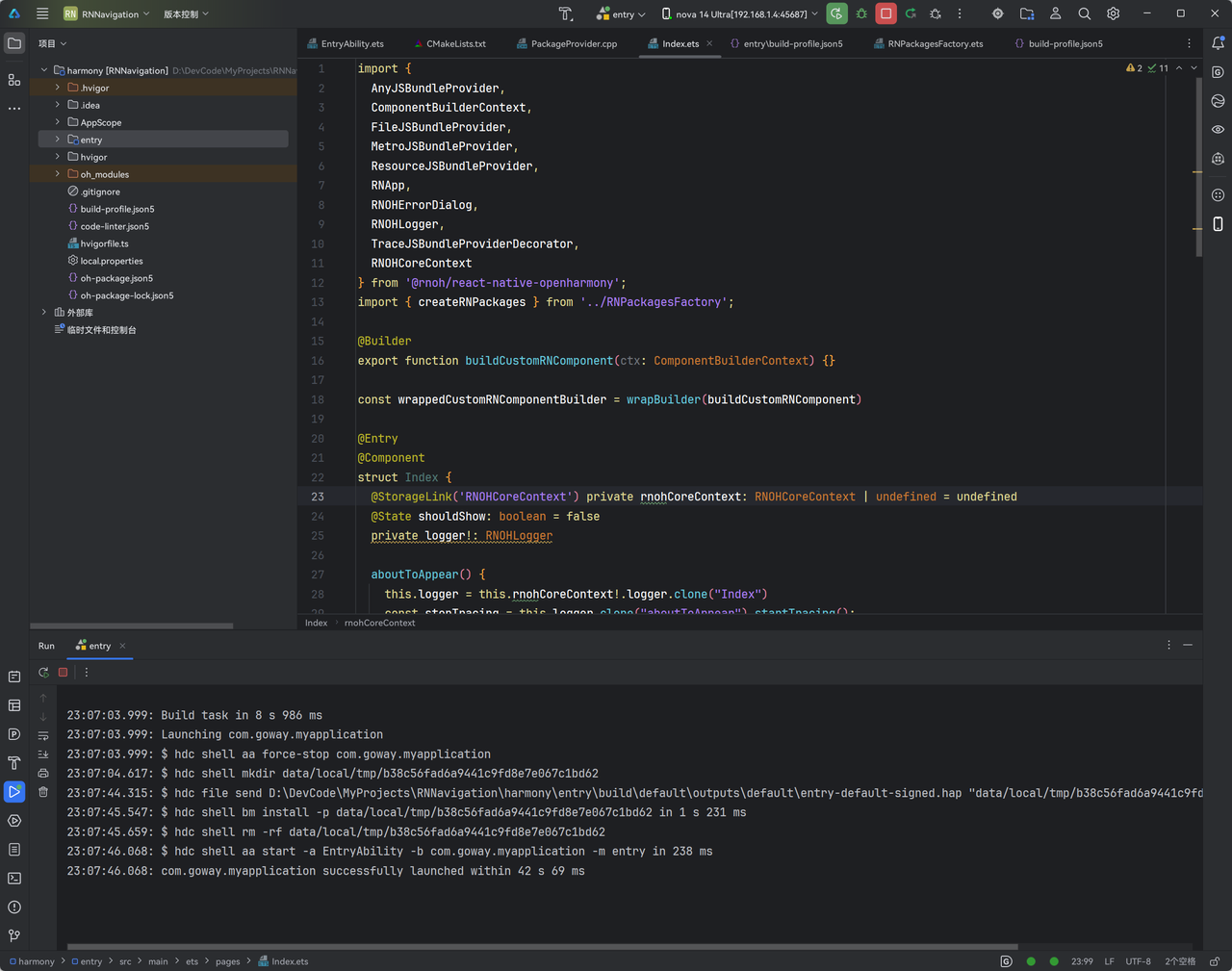

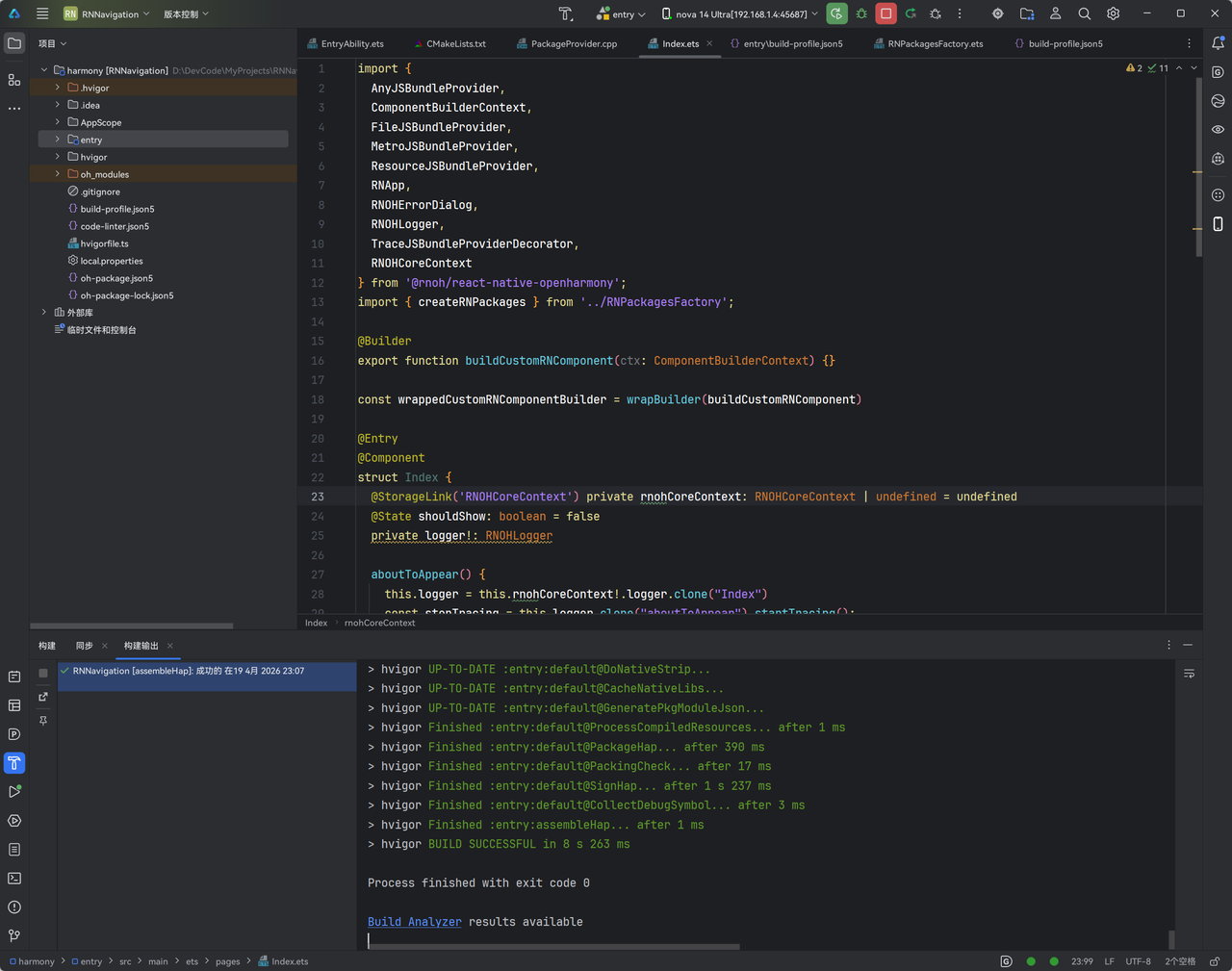

运行项目

至此，完成了ReactNative for OpenHarmany的工程初始化

模板工程地址：RNNavigation

React Native 三方库使用与集成

通过 react-navigation 实战案例，完成从 三方库引入 、业务页面实现 到 C-API 高性能架构配置 及 原生模块底层桥接 的全链路开发。

章节一：三方库的选择与集成

在 HarmonyOS RN 开发中，第一步是确保你使用的三方库能够运行在鸿蒙系统上。

1.1 识别适配包 (TPL)

为什么需要适配版本？

在 HarmonyOS RN 中，带有原生代码（C++/ArkUI）的三方库需要经过专门适配才能运行。

命名规范 ：通常带有 @react-native-oh-tpl 前缀。
版本匹配 ：确保适配包的版本与你项目中的 react-native-harmony 版本兼容。

1.2 安装核心依赖

以导航库为例，安装以下核心组件：

复制代码

# 安装基础导航容器
npm install @react-navigation/native@6.1.17
# 安装鸿蒙适配的原生组件 (TPL 版本)
# 提示：^ 符号表示兼容后续小版本更新
npm install @react-native-oh-tpl/react-native-gesture-handler@^2.14.16
npm install @react-native-oh-tpl/react-native-safe-area-context@^4.7.4-0.2.1
npm install @react-native-oh-tpl/react-native-screens@^3.34.0-0.0.1
npm install @react-native-oh-tpl/stack@6.4.0-0.0.4

章节二：业务页面与导航体系实现

2.1 规范化开发：路由常量

文件： src/constants/routes.ts 操作： 严禁使用硬编码字符串。定义全大写的路由常量，便于在原生侧注册白名单时参考。

复制代码

/**
 * 首页路由常量
 * 对应 Tab 中的第一个页面
 */

export const ROUTE_HOME = 'HOME';

/**
 * 详情页路由常量
 * 用于展示点击列表后的具体内容，演示参数传递
 */

export const ROUTE_DETAILS = 'DETAILS';

/**
 * 教学说明/关于页路由常量
 * 对应 Tab 中的第二个页面
 */

export const ROUTE_INFO = 'INFO';

/**
 * 演示列表页路由常量
 * 用于展示不同的导航案例，演示堆栈跳转
 */

export const ROUTE_DEMO_LIST = 'DEMO_LIST';

/**
 * 标签页导航器路由常量
 * 这是一个"包装路由"，它包裹了首页和关于页
 */

export const ROUTE_TAB_NAVIGATOR = 'TAB_NAVIGATOR';

2.2 嵌套导航实现逻辑

文件： RootNavigator.tsx 操作要点：

初始化 Stack：创建根导航器，负责管理全局页面（如详情页、登录页）。
初始化 Tabs：创建底部菜单导航器。

嵌套声明 ：将 TabNavigator 作为 Stack.Screen 的一个 component 传入。

/**

@ProjectName : RNNavigation
@Author : GuoJiaHui
@Time : 2026年04月20日 00:25 AM
@Description : 根导航器配置。这里展示了 React Navigation 的灵魂：嵌套导航。
教学点：
1. 堆栈导航 (Stack)：像剥洋葱，一层包一层，适合从列表页跳到详情页。
1. 标签导航 (Tab)：像切频道，平级切换，适合底部菜单。
1. 嵌套逻辑：Stack 里面可以装 Tab，Tab 里面也可以装 Stack。

import React from 'react';

// 核心容器：负责管理整个导航状态

import {NavigationContainer} from '@react-navigation/native';

// 堆栈导航器：实现页面推入和弹出的效果

import {createStackNavigator} from '@react-native-oh-tpl/stack';

// 底部标签导航器：实现底部 Tab 切换效果

import {createBottomTabNavigator} from '@react-navigation/bottom-tabs';

// 导入所有页面

import HomePage from '../pages/HomePage';

import DemoListPage from '../pages/DemoListPage';

import DetailsPage from '../pages/DetailsPage';

import InfoPage from '../pages/InfoPage';

// 导入路由常量：统一路由名称，防止手抖写错

import {

ROUTE_HOME,

ROUTE_DEMO_LIST,

ROUTE_DETAILS,

ROUTE_INFO,

ROUTE_TAB_NAVIGATOR,

} from '../constants/routes';

// 创建两个导航器工厂实例

const Stack = createStackNavigator();

const Tab = createBottomTabNavigator();

/**

【内层导航】底部标签页导航器
负责应用底部的两个主入口：首页、关于页。

const TabNavigator = () => {

console.log('[RootNavigator] 渲染底部 Tab 栏');

return (

复制代码

 <Tab.Navigator

   screenOptions={{

     tabBarActiveTintColor: '#4F46E5', // 选中时的颜色（教学 Indigo 色）

     tabBarInactiveTintColor: '#94A3B8', // 未选中时的颜色

     headerShown: false, // 隐藏 Tab 内部页面的默认顶部标题，因为我们通常在 Stack 里统一定义

     tabBarStyle: {

       backgroundColor: '#FFFFFF',

       borderTopWidth: 0,

       elevation: 10, // 鸿蒙/安卓的阴影

       height: 60,

       paddingBottom: 8,

     },

   }}>

   <Tab.Screen

     name={ROUTE_HOME}

     component={HomePage}

     options={{tabBarLabel: '首页'}}

   />

   <Tab.Screen

     name={ROUTE_INFO}

     component={InfoPage}

     options={{tabBarLabel: '关于'}}

   />

 </Tab.Navigator>

);

};

/**

【外层导航】根堆栈导航器
负责处理全局的页面跳转逻辑。

export const RootNavigator = () => {

console.log('[RootNavigator] 初始化全局 Stack 导航');

return (

复制代码

 /**

  * NavigationContainer 是导航系统的根。

  * 所有的导航器（Stack, Tab 等）必须被它包裹。

  */

 <NavigationContainer>

   <Stack.Navigator

     initialRouteName={ROUTE_TAB_NAVIGATOR} // 应用启动时首先显示哪个路由

     screenOptions={{

       // 全局统一的顶部标题栏样式

       headerStyle: {

         backgroundColor: '#EEF2FF',

         elevation: 0, // 去掉阴影，让 UI 看起来更现代、平滑

       },

       headerTintColor: '#312E81', // 标题和返回按钮的颜色

       headerTitleStyle: {fontWeight: 'bold'},

       headerBackTitleVisible: false, // 隐藏 iOS 风格的返回文字，只留箭头

     }}>

     {/*

       1. 嵌套路由：第一个页面就是上面的 TabNavigator。

       这意味着我们的底部菜单是应用的主框架。

     */}

     <Stack.Screen

       name={ROUTE_TAB_NAVIGATOR}

       component={TabNavigator}

       options={{headerShown: false}} // 隐藏外层 Stack 的标题，使用内层或不显示

     />



     {/*

       2. 独立页面：这些页面不在底部菜单里。

       当我们在首页点击"开始学习"时，会通过 Stack 把 DemoListPage 推到屏幕前。

     */}

     <Stack.Screen

       name={ROUTE_DEMO_LIST}

       component={DemoListPage}

       options={{title: '学习演示'}}

     />



     {/*

       3. 动态标题页面：演示如何根据参数动态设置标题。

     */}

     <Stack.Screen

       name={ROUTE_DETAILS}

       component={DetailsPage}

       options={({route}: any) => ({

         title: route.params?.title || '详情', // 如果传了 title 参数就用它，否则默认显示"详情"

       })}

     />

   </Stack.Navigator>

 </NavigationContainer>

);

};

章节三：开启 C-API 高性能架构

3.1 核心配置步骤

文件： Index.ets 操作细节：

启用标志位 ：设置 enableCAPIArchitecture: true。
文本测算优化 ：设置 enableNDKTextMeasuring: true（这是 C-API 架构下的推荐配置，能大幅提升文字渲染性能）。
设置 appKey ：确保 appKey 与 JS 侧 AppRegistry.registerComponent 的第一个参数完全一致。

import {
AnyJSBundleProvider,
ComponentBuilderContext,
FileJSBundleProvider,
MetroJSBundleProvider,
ResourceJSBundleProvider,
RNApp,
RNOHErrorDialog,
RNOHLogger,
TraceJSBundleProviderDecorator,
RNOHCoreContext
} from '@rnoh/react-native-openharmony';
import { createRNPackages } from '../RNPackagesFactory';
import { SAFE_AREA_VIEW_TYPE, SafeAreaView, SAFE_AREA_PROVIDER_TYPE, SafeAreaProvider } from "@react-native-oh-tpl/react-native-safe-area-context";
import { componentBuilder as RNScreensComponentBuilder } from '@react-native-oh-tpl/react-native-screens';

@Builder
export function buildCustomRNComponent(ctx: ComponentBuilderContext) {
if (ctx.componentName === SAFE_AREA_VIEW_TYPE) {
SafeAreaView({
ctx: ctx.rnComponentContext,
tag: ctx.tag,
buildCustomComponent: buildCustomRNComponent
})
} else if (ctx.componentName === SAFE_AREA_PROVIDER_TYPE) {
SafeAreaProvider({
ctx: ctx.rnComponentContext,
tag: ctx.tag,
buildCustomComponent: buildCustomRNComponent
})
} else {
RNScreensComponentBuilder(ctx)
}
}

const wrappedCustomRNComponentBuilder = wrapBuilder(buildCustomRNComponent)

@Entry
@Component
struct Index {
@StorageLink('RNOHCoreContext') private rnohCoreContext: RNOHCoreContext | undefined = undefined
@State shouldShow: boolean = false
private logger!: RNOHLogger

aboutToAppear() {
this.logger = this.rnohCoreContext!.logger.clone("Index")
const stopTracing = this.logger.clone("aboutToAppear").startTracing();
复制代码
```
 this.shouldShow = true
 stopTracing();
```
}

onBackPress(): boolean | undefined {
// NOTE: this is required since Ability's onBackPressed function always
// terminates or puts the app in the background, but we want Ark to ignore it completely // when handled by RN this.rnohCoreContext!.dispatchBackPress()
return true
}

build() {
Column() {
if (this.rnohCoreContext && this.shouldShow) {
if (this.rnohCoreContext?.isDebugModeEnabled) {
RNOHErrorDialog({ ctx: this.rnohCoreContext })
}
RNApp({
rnInstanceConfig: {
createRNPackages,
enableNDKTextMeasuring: true, // 该项必须为true，用于开启NDK文本测算
enableBackgroundExecutor: false,
enableCAPIArchitecture: true, // 该项必须为true，用于开启CAPI
arkTsComponentNames: [
SAFE_AREA_VIEW_TYPE,
SAFE_AREA_PROVIDER_TYPE,
"RNSScreen",
"RNSScreenContainer",
"RNSScreenNavigationContainer",
"RNSScreenStack",
"RNSScreenStackHeaderConfig",
"RNSScreenStackHeaderSubview",
"RNSFullWindowOverlay",
"RNSModalScreen",
"RNSSearchBar"
]
},
initialProps: { "foo": "bar" } as Record<string, string>,
appKey: "rn-navigation",
wrappedCustomRNComponentBuilder: wrappedCustomRNComponentBuilder,
onSetUp: (rnInstance) => {
rnInstance.enableFeatureFlag("ENABLE_RN_INSTANCE_CLEAN_UP")
},
jsBundleProvider: new TraceJSBundleProviderDecorator(
new AnyJSBundleProvider([
new MetroJSBundleProvider(),
// NOTE: to load the bundle from file, place it in
// /data/app/el2/100/base/com.rnoh.tester/files/bundle.harmony.js // on your device. The path mismatch is due to app sandboxing on OpenHarmony new FileJSBundleProvider('/data/storage/el2/base/files/bundle.harmony.js'),
new ResourceJSBundleProvider(this.rnohCoreContext.uiAbilityContext.resourceManager, 'hermes_bundle.hbc'),
new ResourceJSBundleProvider(this.rnohCoreContext.uiAbilityContext.resourceManager, 'bundle.harmony.js')
]),
this.rnohCoreContext.logger),
})
}
} .height('100%')
.width('100%')
}
}

章节四：原生模块底层桥接

这是最核心的步骤，决定了三方库的原生功能（如手势、屏幕管理）能否被 JS 调用。

4.1 第一步：Native 依赖链接 (ohpm)

在 harmony/oh-package.json5 中链接本地 HAR 包，并使用 overrides 确保所有模块引用的 RNOH 版本一致。

复制代码

{
  "modelVersion": "6.0.2",
  "description": "Please describe the basic information.",
  "dependencies": {
    "@rnoh/react-native-openharmony": "0.72.90",
    "@react-native-oh-tpl/react-native-safe-area-context": "file:../node_modules/@react-native-oh-tpl/react-native-safe-area-context/harmony/safe_area.har",
    "@react-native-oh-tpl/react-native-gesture-handler": "file:../node_modules/@react-native-oh-tpl/react-native-gesture-handler/harmony/gesture_handler.har",
    "@react-native-oh-tpl/react-native-screens": "file:../node_modules/@react-native-oh-tpl/react-native-screens/harmony/screens.har"
  },
  "overrides": {
    "@rnoh/react-native-openharmony": "0.72.90"
  },
  "devDependencies": {
    "@ohos/hypium": "1.0.25",
    "@ohos/hamock": "1.0.0"
  },
  "dynamicDependencies": {}
}

4.2 第二步：C++ 源码链接 (CMake)

在 harmony/entry/src/main/cpp/CMakeLists.txt 中引入三方库的 C++ 部分。

复制代码

project(rnapp)
cmake_minimum_required(VERSION 3.28)

#  核心修复：强制 Ninja 将超长参数写入临时 .rsp 文件，绕过 Windows 命令行长度限制
set(CMAKE_NINJA_FORCE_RESPONSE_FILE "ON" CACHE BOOL "Force response file usage" FORCE)

set(CMAKE_SKIP_BUILD_RPATH TRUE)
set(OH_MODULE_DIR "${CMAKE_CURRENT_SOURCE_DIR}/../../../../oh_modules")
set(RNOH_APP_DIR "${CMAKE_CURRENT_SOURCE_DIR}")

set(RNOH_CPP_DIR "${OH_MODULE_DIR}/@rnoh/react-native-openharmony/src/main/cpp")
set(RNOH_GENERATED_DIR "${CMAKE_CURRENT_SOURCE_DIR}/generated")
set(CMAKE_ASM_FLAGS "-Wno-error=unused-command-line-argument -Qunused-arguments")
set(CMAKE_CXX_FLAGS "-fstack-protector-strong -Wl,-z,relro,-z,now,-z,noexecstack -s -fPIE -pie")
add_compile_definitions(WITH_HITRACE_SYSTRACE)
set(WITH_HITRACE_SYSTRACE 1) # for other CMakeLists.txt files to use

add_subdirectory("${RNOH_CPP_DIR}" ./rn)

# 包含 codegen 生成的源码
file(GLOB_RECURSE GENERATED_SRC "${RNOH_GENERATED_DIR}/*.cpp")

# RNOH_BEGIN: add_package_subdirectories
add_subdirectory("${OH_MODULE_DIR}/@react-native-oh-tpl/react-native-safe-area-context/src/main/cpp" ./safe_area)
add_subdirectory("${OH_MODULE_DIR}/@react-native-oh-tpl/react-native-gesture-handler/src/main/cpp" ./gesture_handler)
add_subdirectory("${OH_MODULE_DIR}/@react-native-oh-tpl/react-native-screens/src/main/cpp" ./screens)
# RNOH_END: add_package_subdirectories

add_library(rnoh_app SHARED
    "${RNOH_CPP_DIR}/RNOHAppNapiBridge.cpp"
    "./PackageProvider.cpp"
    ${GENERATED_SRC}
)

target_include_directories(rnoh_app PUBLIC "${CMAKE_CURRENT_SOURCE_DIR}")
target_link_libraries(rnoh_app PUBLIC rnoh)

# RNOH_BEGIN: link_packages
target_link_libraries(rnoh_app PUBLIC rnoh_safe_area)
target_link_libraries(rnoh_app PUBLIC rnoh_gesture_handler)
target_link_libraries(rnoh_app PUBLIC rnoh_screens)
# RNOH_END: link_packages

4.3 第三步：Codegen 自动生成胶水代码

运行 Codegen 工具，根据 JS 定义自动生成 C++ 的 TurboModule 声明和 JSI 绑定代码。

复制代码

npx react-native codegen-harmony --rnoh-module-path ./harmony/oh_modules/@rnoh/react-native-openharmony

生成产物 ：位于 harmony/entry/src/main/cpp/generated。

Pasted image 20260420230702.png

4.4 第四步：原生包注册 (PackageProvider.cpp)

文件参考 ：PackageProvider.cpp 在 C++ 侧同时注册 Codegen 生成包 和 三方库原生包。

复制代码

#include "RNOH/PackageProvider.h"
#include "generated/RNOHGeneratedPackage.h"
#include "SafeAreaViewPackage.h"
#include "RnohReactNativeHarmonyGestureHandlerPackage.h"
#include "RnohReactNativeHarmonyScreensPackage.h"

using namespace rnoh;

std::vector<std::shared_ptr<Package>> PackageProvider::getPackages(Package::Context ctx) {
    return {
        std::make_shared<RNOHGeneratedPackage>(ctx),
        std::make_shared<SafeAreaViewPackage>(ctx),
        std::make_shared<RnohReactNativeHarmonyGestureHandlerPackage>(ctx),
        std::make_shared<RnohReactNativeHarmonyScreensPackage>(ctx)
    };
}

4.5 第五步：ArkTS 工厂注册 (RNPackagesFactory.ets)

文件参考 ：RNPackagesFactory.ets 在 ArkTS 侧导出 Package 实例。

复制代码

import { RNPackageContext, RNPackage } from '@rnoh/react-native-openharmony/ts';
import { SafeAreaViewPackage } from '@react-native-oh-tpl/react-native-safe-area-context/ts';
import RNGestureHandlerPackage from '@react-native-oh-tpl/react-native-gesture-handler';
import RNOHScreensPackage from '@react-native-oh-tpl/react-native-screens';

export function createRNPackages(ctx: RNPackageContext): RNPackage[] {
  return [
    new SafeAreaViewPackage(ctx),
    new RNGestureHandlerPackage(ctx),
    new RNOHScreensPackage(ctx)
  ];
}

章节五：白名单与组件构建器

在 C-API 架构下，某些组件仍需通过 ArkTS 渲染，必须在 Index.ets 中显式声明。

5.1 ArkTS 组件白名单

在 arkTsComponentNames 数组中填入需要 ArkTS 参与渲染的组件名（如 RNSScreenStack）。

复制代码

import {
  AnyJSBundleProvider,
  ComponentBuilderContext,
  FileJSBundleProvider,
  MetroJSBundleProvider,
  ResourceJSBundleProvider,
  RNApp,
  RNOHErrorDialog,
  RNOHLogger,
  TraceJSBundleProviderDecorator,
  RNOHCoreContext
} from '@rnoh/react-native-openharmony';
import { createRNPackages } from '../RNPackagesFactory';
import { SAFE_AREA_VIEW_TYPE, SafeAreaView, SAFE_AREA_PROVIDER_TYPE, SafeAreaProvider } from "@react-native-oh-tpl/react-native-safe-area-context";
import { componentBuilder as RNScreensComponentBuilder } from '@react-native-oh-tpl/react-native-screens';

@Builder
export function buildCustomRNComponent(ctx: ComponentBuilderContext) {
  if (ctx.componentName === SAFE_AREA_VIEW_TYPE) {
    SafeAreaView({
      ctx: ctx.rnComponentContext,
      tag: ctx.tag,
      buildCustomComponent: buildCustomRNComponent
    })
  } else if (ctx.componentName === SAFE_AREA_PROVIDER_TYPE) {
    SafeAreaProvider({
      ctx: ctx.rnComponentContext,
      tag: ctx.tag,
      buildCustomComponent: buildCustomRNComponent
    })
  } else {
    RNScreensComponentBuilder(ctx)
  }
}

const wrappedCustomRNComponentBuilder = wrapBuilder(buildCustomRNComponent)

@Entry
@Component
struct Index {
  @StorageLink('RNOHCoreContext') private rnohCoreContext: RNOHCoreContext | undefined = undefined
  @State shouldShow: boolean = false
  private logger!: RNOHLogger

  aboutToAppear() {
    this.logger = this.rnohCoreContext!.logger.clone("Index")
    const stopTracing = this.logger.clone("aboutToAppear").startTracing();

    this.shouldShow = true
    stopTracing();
  }

  onBackPress(): boolean | undefined {
    // NOTE: this is required since `Ability`'s `onBackPressed` function always
    // terminates or puts the app in the background, but we want Ark to ignore it completely    // when handled by RN    this.rnohCoreContext!.dispatchBackPress()
    return true
  }

  build() {
    Column() {
      if (this.rnohCoreContext && this.shouldShow) {
        if (this.rnohCoreContext?.isDebugModeEnabled) {
          RNOHErrorDialog({ ctx: this.rnohCoreContext })
        }
        RNApp({
          rnInstanceConfig: {
            createRNPackages,
            enableNDKTextMeasuring: true, // 该项必须为true，用于开启NDK文本测算
            enableBackgroundExecutor: false,
            enableCAPIArchitecture: true, // 该项必须为true，用于开启CAPI
            arkTsComponentNames: [
              SAFE_AREA_VIEW_TYPE,
SAFE_AREA_PROVIDER_TYPE,
              "RNSScreen",
              "RNSScreenContainer",
              "RNSScreenNavigationContainer",
              "RNSScreenStack",
              "RNSScreenStackHeaderConfig",
              "RNSScreenStackHeaderSubview",
              "RNSFullWindowOverlay",
              "RNSModalScreen",
              "RNSSearchBar"
            ]
          },
          initialProps: { "foo": "bar" } as Record<string, string>,
          appKey: "rn-navigation",
          wrappedCustomRNComponentBuilder: wrappedCustomRNComponentBuilder,
          onSetUp: (rnInstance) => {
            rnInstance.enableFeatureFlag("ENABLE_RN_INSTANCE_CLEAN_UP")
          },
          jsBundleProvider: new TraceJSBundleProviderDecorator(
            new AnyJSBundleProvider([
              new MetroJSBundleProvider(),
              // NOTE: to load the bundle from file, place it in
              // `/data/app/el2/100/base/com.rnoh.tester/files/bundle.harmony.js`              // on your device. The path mismatch is due to app sandboxing on OpenHarmony              new FileJSBundleProvider('/data/storage/el2/base/files/bundle.harmony.js'),
              new ResourceJSBundleProvider(this.rnohCoreContext.uiAbilityContext.resourceManager, 'hermes_bundle.hbc'),
              new ResourceJSBundleProvider(this.rnohCoreContext.uiAbilityContext.resourceManager, 'bundle.harmony.js')
            ]),
            this.rnohCoreContext.logger),
        })
      }
    }    .height('100%')
    .width('100%')
  }
}

5.2 委托构建器

使用三方库提供的 componentBuilder 来处理这些组件的创建。

复制代码

if (ctx.componentName === "RNSScreenStack") {
  RNScreensComponentBuilder(ctx);
}

总结：集成全景图

JS 层：安装 TPL 依赖，编写业务代码。
构建层：运行 Codegen 生成 C++ 桥接文件。
C++ 层 ：CMake 链接源码，PackageProvider 注册生成的包和三方库包。
ArkTS 层 ：RNPackagesFactory 导出实例，Index.ets 配置白名单和构建器。

掌握了这套路线，你就能在 HarmonyOS 环境中游刃有余地集成任何复杂的 React Native 三方库。
