任何复杂事物的背后，都有一些不可再分解的基本事实。找到它们，你就找到了理解整件事的钥匙。
首先他是一个注解,我们要知道这个注解干了什么.
注解的定义

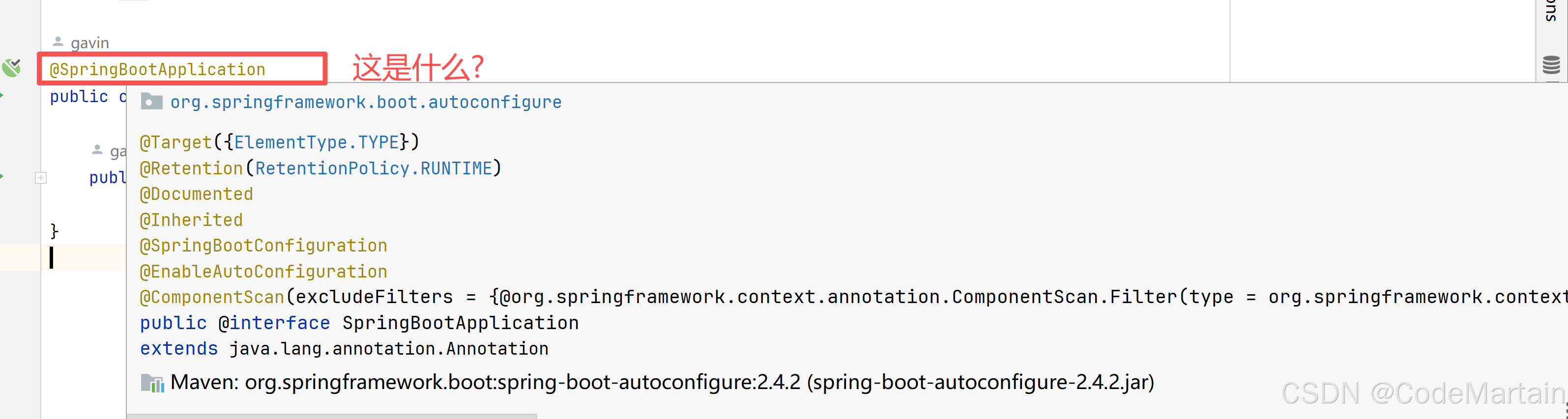

先看这个@SpringBootApplication 注解的定义
java
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//
package org.springframework.boot.autoconfigure;
import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Inherited;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
import org.springframework.beans.factory.support.BeanNameGenerator;
import org.springframework.boot.SpringBootConfiguration;
import org.springframework.boot.context.TypeExcludeFilter;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.FilterType;
import org.springframework.context.annotation.ComponentScan.Filter;
import org.springframework.core.annotation.AliasFor;
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(
excludeFilters = {@Filter(
type = FilterType.CUSTOM,
classes = {TypeExcludeFilter.class}
), @Filter(
type = FilterType.CUSTOM,
classes = {AutoConfigurationExcludeFilter.class}
)}
)
public @interface SpringBootApplication {
@AliasFor(
annotation = EnableAutoConfiguration.class
)
Class<?>[] exclude() default {};
@AliasFor(
annotation = EnableAutoConfiguration.class
)
String[] excludeName() default {};
@AliasFor(
annotation = ComponentScan.class,
attribute = "basePackages"
)
String[] scanBasePackages() default {};
@AliasFor(
annotation = ComponentScan.class,
attribute = "basePackageClasses"
)
Class<?>[] scanBasePackageClasses() default {};
@AliasFor(
annotation = ComponentScan.class,
attribute = "nameGenerator"
)
Class<? extends BeanNameGenerator> nameGenerator() default BeanNameGenerator.class;
@AliasFor(
annotation = Configuration.class
)
boolean proxyBeanMethods() default true;
}我们可以看到,这个注解上还有很多注解
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(
excludeFilters = {@Filter(
type = FilterType.CUSTOM,
classes = {TypeExcludeFilter.class}
), @Filter(
type = FilterType.CUSTOM,
classes = {AutoConfigurationExcludeFilter.class}
)}
)元注解
@Target--注解的作用位置
@Target({ElementType.TYPE}) ~一种可以应用到其他类/接口/枚举/注解上的注解
Target--- 注解作用的目标
ElementType---规定了注解作用的元素
java
public enum ElementType {
/** Class, interface (including annotation interface), enum, or record
* declaration */
TYPE, //类、接口、枚举、注解
/** Field declaration (includes enum constants) */
FIELD, // 属性字段
/** Method declaration */
METHOD,//方法
/** Formal parameter declaration */
PARAMETER,//参数
/** Constructor declaration */
CONSTRUCTOR,//构造函数
/** Local variable declaration */
LOCAL_VARIABLE,//局部变量
/** Annotation interface declaration (Formerly known as an annotation type.) */
ANNOTATION_TYPE,//注解
/** Package declaration */
PACKAGE,//包
/**
* Type parameter declaration
*
* @since 1.8
*/
TYPE_PARAMETER,//类参数
/**
* Use of a type
*
* @since 1.8
*/
TYPE_USE,//任何类型使用的地方
/**
* Module declaration.
*
* @since 9
*/
MODULE, //模块上
/**
* Record component
*
* @jls 8.10.3 Record Members
* @jls 9.7.4 Where Annotations May Appear
*
* @since 16
*/
RECORD_COMPONENT;//record组件上
}我们看到@SpringBootApplication 上的 @Target({ElementType.TYPE}) ,所以他只能作用于 类上
@Retention注解的生命周期
@Retention(RetentionPolicy.RUNTIME) --决定注解的生命周期
java
public enum RetentionPolicy {
/**
* Annotations are to be discarded by the compiler.
*/
SOURCE, // 只作用于源码,编译后丢弃
/**
* Annotations are to be recorded in the class file by the compiler
* but need not be retained by the VM at run time. This is the default
* behavior.
*/
CLASS,//编译进class文件,但运行时不加载
/**
* Annotations are to be recorded in the class file by the compiler and
* retained by the VM at run time, so they may be read reflectively.
*
* @see java.lang.reflect.AnnotatedElement
*/
RUNTIME //运行时存活,可以反射读取

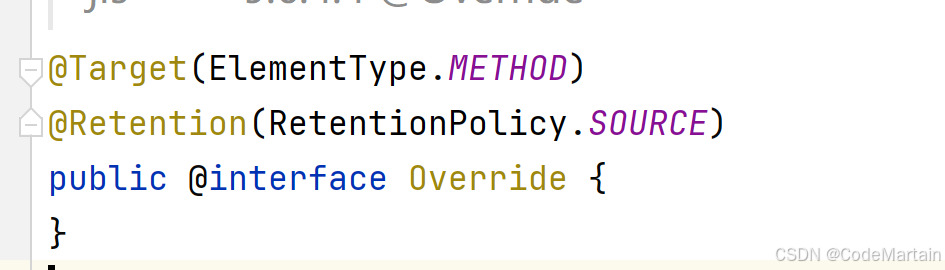

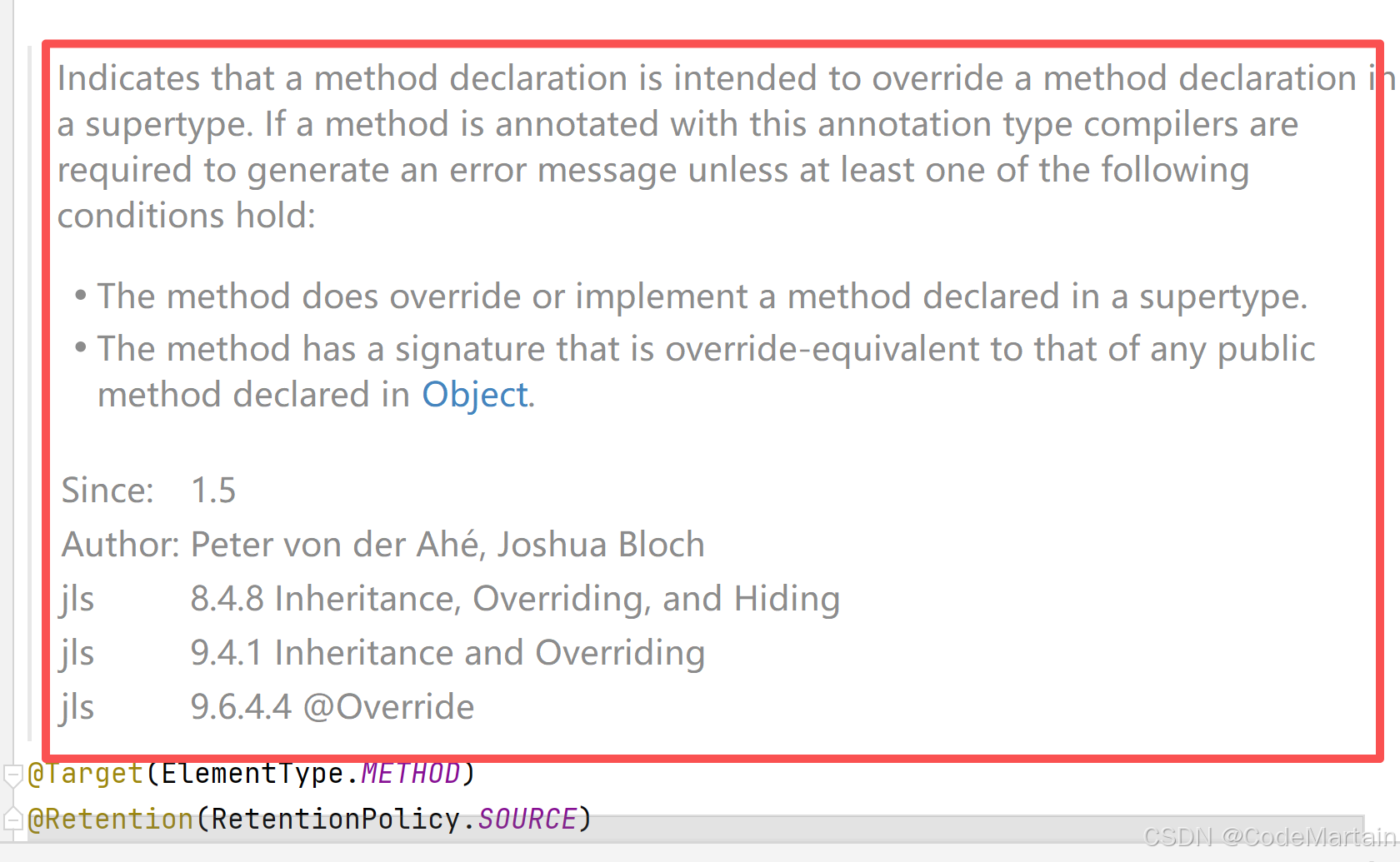

}@RetentionPolicy (RetentionPolicy.SOURCE) 举个例子

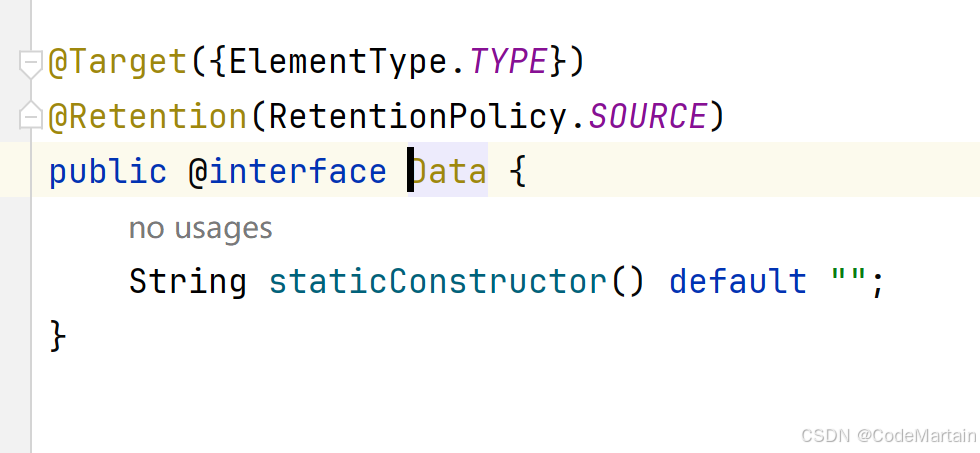

还有lombok的@Data
作用就是编译时生成.class,他的使命就完成了
@RetentionPolicy (RetentionPolicy.CLASS) 举个例子
编译进class文件,但是JVM不加载

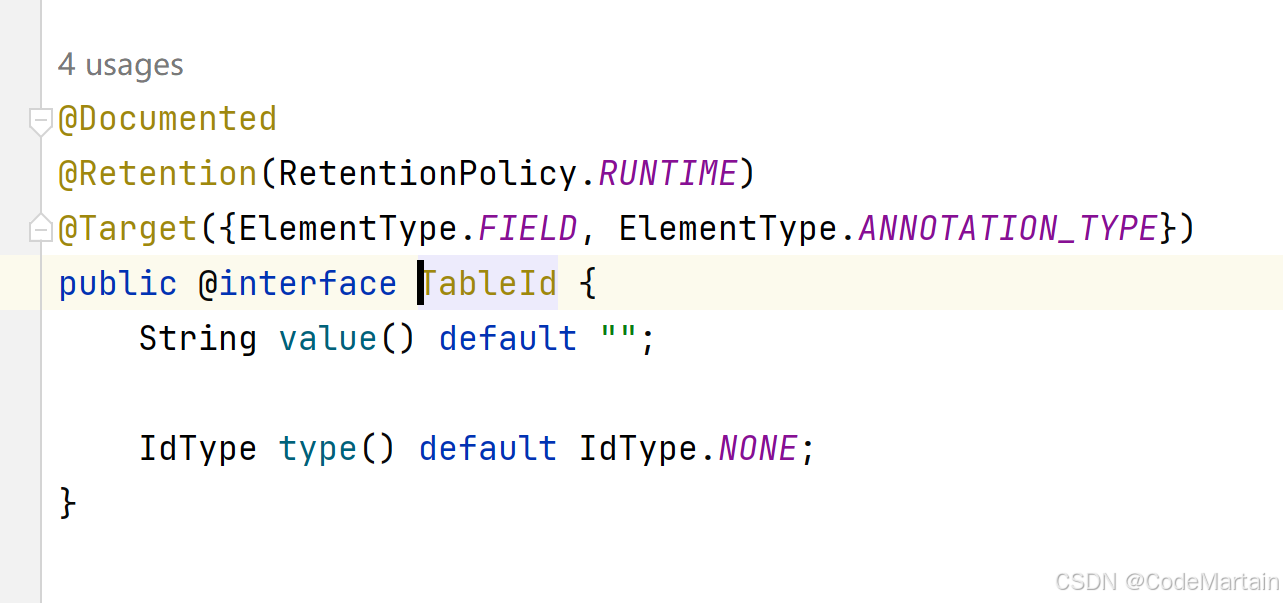

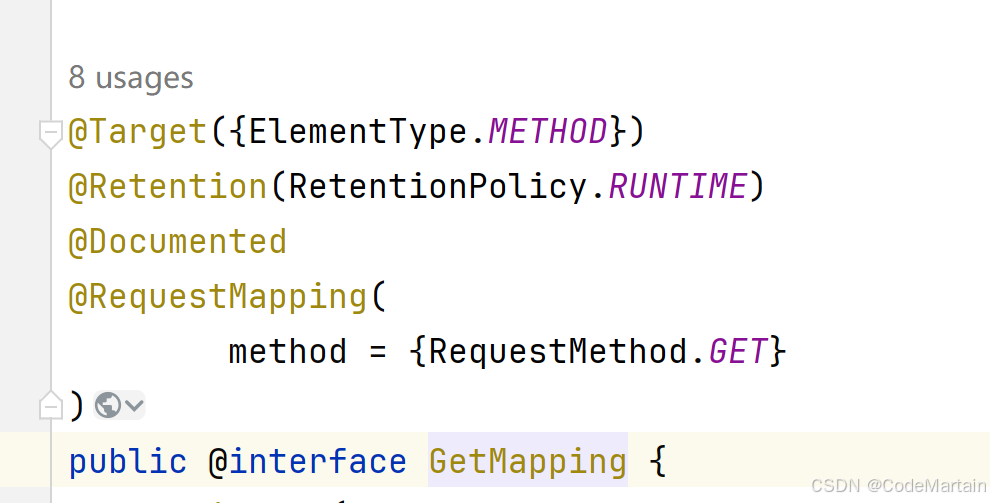

@RetentionPolicy (RetentionPolicy.RUNTIME)
这个最常见了
spring boot里最常见的就是这类
java
@SpringBootApplication
@Controller
@Service
@Autowired这些注解在spring 运行时通过反射读取
@Documented
这个跟API文档生成有关,
加了这个注解,那么生成的API文档可以看到
@Inherited
注解可以被子类继承,即父类有这个注解,子类也会自动给有这个注解
java
@Inherited
@MyAnnotation
public class Parent {
}
// 子类自动继承 @MyAnnotation
public class Child extends Parent {
}下面的这三个注解是springboot 自动装配实现的精髓

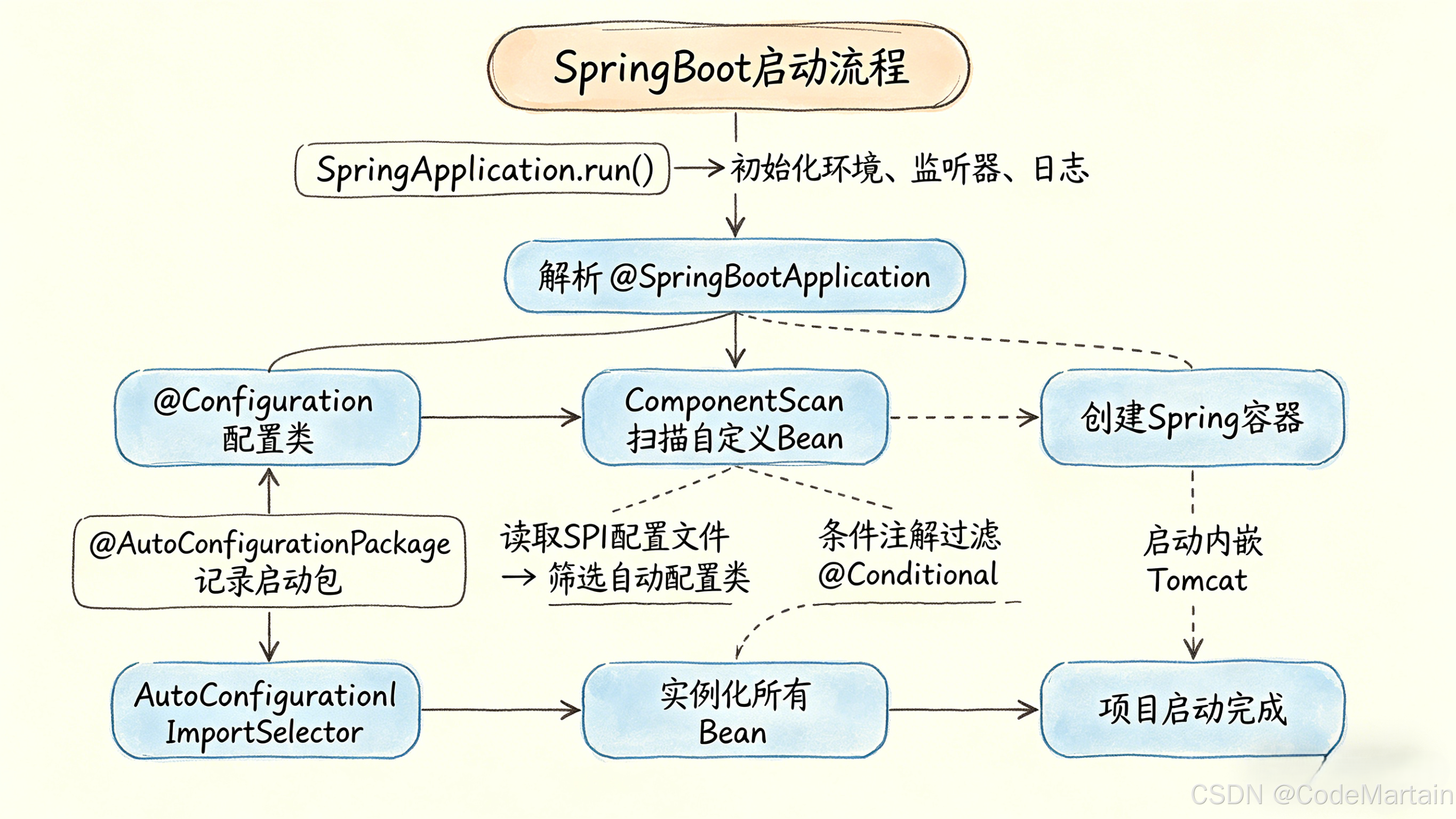

springboot 自动装配原理
@SpringBootConfiguration
java
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Configuration
public @interface SpringBootConfiguration {
@AliasFor(
annotation = Configuration.class
)
boolean proxyBeanMethods() default true;
}该注解作用域类上,运行时生效,是spring的配置功能

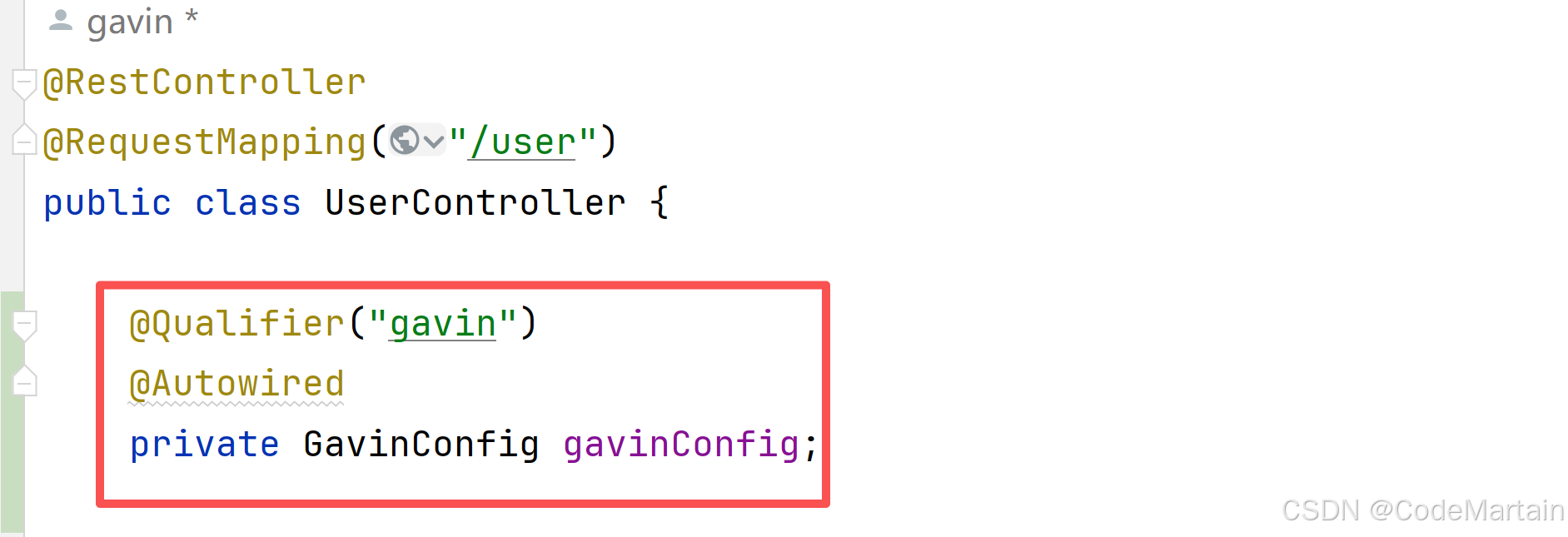

我们可以看到这个注解本质就是一个被spring管理的bean
java
@Configuration(value = "gavin")
public class GavinConfig {
public GavinConfig createConfig(){
System.out.println("-------------输出一段文字------------");
return new GavinConfig( );
}
}所以加上这个注解后的类 其实就相当于
下面这样
java
@Component(value = "gavin")
public class GavinConfig {
public GavinConfig createConfig(){
System.out.println("-------------输出一段文字------------");
return new GavinConfig( );
}
}
@EnableAutoConfiguration
java
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import({AutoConfigurationImportSelector.class})
public @interface EnableAutoConfiguration {
String ENABLED_OVERRIDE_PROPERTY = "spring.boot.enableautoconfiguration";
Class<?>[] exclude() default {};
String[] excludeName() default {};
}可以看到这个注解上多了 @AutoConfigurationPackage 跟@Import
@AutoConfigurationPackage注解 自动配置包,spring 会自动锁定启动类所在的包
java
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Import({AutoConfigurationPackages.Registrar.class})
public @interface AutoConfigurationPackage {
String[] basePackages() default {};
Class<?>[] basePackageClasses() default {};
}这个注解里有一个 @Import注解,是springboot 自动装配的核心
java
static class Registrar implements ImportBeanDefinitionRegistrar, DeterminableImports {
Registrar() {
}
// 拿到启动类的包名
public void registerBeanDefinitions(AnnotationMetadata metadata, BeanDefinitionRegistry registry) {
AutoConfigurationPackages.register(registry, (String[])(new PackageImports(metadata)).getPackageNames().toArray(new String[0]));
}
//拿到包名之后,放进一个set集合里
public Set<Object> determineImports(AnnotationMetadata metadata) {
return Collections.singleton(new PackageImports(metadata));
}
}可以看到一个静态类, registerBeanDefinitions 方法作用~把启动类所在的包名，自动注册到 Spring 容器里，供第三方框架使用！
@Import({AutoConfigurationImportSelector.class})
这个注解作用是去classpath下扫描所有自动配置类,然后批量导入Spring 容器
java
public class AutoConfigurationImportSelector implements DeferredImportSelector, BeanClassLoaderAware, ResourceLoaderAware, BeanFactoryAware, EnvironmentAware, Ordered {
private static final AutoConfigurationEntry EMPTY_ENTRY = new AutoConfigurationEntry();
private static final String[] NO_IMPORTS = new String[0];
private static final Log logger = LogFactory.getLog(AutoConfigurationImportSelector.class);
private static final String PROPERTY_NAME_AUTOCONFIGURE_EXCLUDE = "spring.autoconfigure.exclude";
private ConfigurableListableBeanFactory beanFactory;
private Environment environment;
private ClassLoader beanClassLoader;
private ResourceLoader resourceLoader;
private ConfigurationClassFilter configurationClassFilter;
public AutoConfigurationImportSelector() {
}
// 哪些应该导入spring 容器
public String[] selectImports(AnnotationMetadata annotationMetadata) {
if (!this.isEnabled(annotationMetadata)) {
return NO_IMPORTS;
} else {
AutoConfigurationEntry autoConfigurationEntry = this.getAutoConfigurationEntry(annotationMetadata);
return StringUtils.toStringArray(autoConfigurationEntry.getConfigurations());
}
}
public Predicate<String> getExclusionFilter() {
return this::shouldExclude;
}
//排除的类
private boolean shouldExclude(String configurationClassName) {
return this.getConfigurationClassFilter().filter(Collections.singletonList(configurationClassName)).isEmpty();
}
//自动装配核心方法
protected AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) {
//
if (!this.isEnabled(annotationMetadata)) {
return EMPTY_ENTRY;
} else {
AnnotationAttributes attributes = this.getAttributes(annotationMetadata);
List<String> configurations = this.getCandidateConfigurations(annotationMetadata, attributes);
configurations = this.removeDuplicates(configurations);
Set<String> exclusions = this.getExclusions(annotationMetadata, attributes);
this.checkExcludedClasses(configurations, exclusions);
configurations.removeAll(exclusions);
configurations = this.getConfigurationClassFilter().filter(configurations);
this.fireAutoConfigurationImportEvents(configurations, exclusions);
return new AutoConfigurationEntry(configurations, exclusions);
}
}
public Class<? extends DeferredImportSelector.Group> getImportGroup() {
return AutoConfigurationGroup.class;
}
protected boolean isEnabled(AnnotationMetadata metadata) {
return this.getClass() == AutoConfigurationImportSelector.class ? (Boolean)this.getEnvironment().getProperty("spring.boot.enableautoconfiguration", Boolean.class, true) : true;
}
protected AnnotationAttributes getAttributes(AnnotationMetadata metadata) {
String name = this.getAnnotationClass().getName();
AnnotationAttributes attributes = AnnotationAttributes.fromMap(metadata.getAnnotationAttributes(name, true));
Assert.notNull(attributes, () -> {
return "No auto-configuration attributes found. Is " + metadata.getClassName() + " annotated with " + ClassUtils.getShortName(name) + "?";
});
return attributes;
}
protected Class<?> getAnnotationClass() {
return EnableAutoConfiguration.class;
}
// 去读取自动化配置类,加载到spring容器里
protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
List<String> configurations = SpringFactoriesLoader.loadFactoryNames(this.getSpringFactoriesLoaderFactoryClass(), this.getBeanClassLoader());
Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories. If you are using a custom packaging, make sure that file is correct.");
return configurations;
}
protected Class<?> getSpringFactoriesLoaderFactoryClass() {
return EnableAutoConfiguration.class;
}
private void checkExcludedClasses(List<String> configurations, Set<String> exclusions) {
List<String> invalidExcludes = new ArrayList(exclusions.size());
Iterator var4 = exclusions.iterator();
while(var4.hasNext()) {
String exclusion = (String)var4.next();
if (ClassUtils.isPresent(exclusion, this.getClass().getClassLoader()) && !configurations.contains(exclusion)) {
invalidExcludes.add(exclusion);
}
}
if (!invalidExcludes.isEmpty()) {
this.handleInvalidExcludes(invalidExcludes);
}
}
protected void handleInvalidExcludes(List<String> invalidExcludes) {
StringBuilder message = new StringBuilder();
Iterator var3 = invalidExcludes.iterator();
while(var3.hasNext()) {
String exclude = (String)var3.next();
message.append("\t- ").append(exclude).append(String.format("%n"));
}
throw new IllegalStateException(String.format("The following classes could not be excluded because they are not auto-configuration classes:%n%s", message));
}
protected Set<String> getExclusions(AnnotationMetadata metadata, AnnotationAttributes attributes) {
Set<String> excluded = new LinkedHashSet();
excluded.addAll(this.asList(attributes, "exclude"));
excluded.addAll(Arrays.asList(attributes.getStringArray("excludeName")));
excluded.addAll(this.getExcludeAutoConfigurationsProperty());
return excluded;
}
protected List<String> getExcludeAutoConfigurationsProperty() {
Environment environment = this.getEnvironment();
if (environment == null) {
return Collections.emptyList();
} else if (environment instanceof ConfigurableEnvironment) {
Binder binder = Binder.get(environment);
return (List)binder.bind("spring.autoconfigure.exclude", String[].class).map(Arrays::asList).orElse(Collections.emptyList());
} else {
String[] excludes = (String[])environment.getProperty("spring.autoconfigure.exclude", String[].class);
return excludes != null ? Arrays.asList(excludes) : Collections.emptyList();
}
}
protected List<AutoConfigurationImportFilter> getAutoConfigurationImportFilters() {
return SpringFactoriesLoader.loadFactories(AutoConfigurationImportFilter.class, this.beanClassLoader);
}
private ConfigurationClassFilter getConfigurationClassFilter() {
if (this.configurationClassFilter == null) {
List<AutoConfigurationImportFilter> filters = this.getAutoConfigurationImportFilters();
Iterator var2 = filters.iterator();
while(var2.hasNext()) {
AutoConfigurationImportFilter filter = (AutoConfigurationImportFilter)var2.next();
this.invokeAwareMethods(filter);
}
this.configurationClassFilter = new ConfigurationClassFilter(this.beanClassLoader, filters);
}
return this.configurationClassFilter;
}
protected final <T> List<T> removeDuplicates(List<T> list) {
return new ArrayList(new LinkedHashSet(list));
}
protected final List<String> asList(AnnotationAttributes attributes, String name) {
String[] value = attributes.getStringArray(name);
return Arrays.asList(value);
}
private void fireAutoConfigurationImportEvents(List<String> configurations, Set<String> exclusions) {
List<AutoConfigurationImportListener> listeners = this.getAutoConfigurationImportListeners();
if (!listeners.isEmpty()) {
AutoConfigurationImportEvent event = new AutoConfigurationImportEvent(this, configurations, exclusions);
Iterator var5 = listeners.iterator();
while(var5.hasNext()) {
AutoConfigurationImportListener listener = (AutoConfigurationImportListener)var5.next();
this.invokeAwareMethods(listener);
listener.onAutoConfigurationImportEvent(event);
}
}
}
protected List<AutoConfigurationImportListener> getAutoConfigurationImportListeners() {
return SpringFactoriesLoader.loadFactories(AutoConfigurationImportListener.class, this.beanClassLoader);
}
private void invokeAwareMethods(Object instance) {
if (instance instanceof Aware) {
if (instance instanceof BeanClassLoaderAware) {
((BeanClassLoaderAware)instance).setBeanClassLoader(this.beanClassLoader);
}
if (instance instanceof BeanFactoryAware) {
((BeanFactoryAware)instance).setBeanFactory(this.beanFactory);
}
if (instance instanceof EnvironmentAware) {
((EnvironmentAware)instance).setEnvironment(this.environment);
}
if (instance instanceof ResourceLoaderAware) {
((ResourceLoaderAware)instance).setResourceLoader(this.resourceLoader);
}
}
}
public void setBeanFactory(BeanFactory beanFactory) throws BeansException {
Assert.isInstanceOf(ConfigurableListableBeanFactory.class, beanFactory);
this.beanFactory = (ConfigurableListableBeanFactory)beanFactory;
}
protected final ConfigurableListableBeanFactory getBeanFactory() {
return this.beanFactory;
}
public void setBeanClassLoader(ClassLoader classLoader) {
this.beanClassLoader = classLoader;
}
protected ClassLoader getBeanClassLoader() {
return this.beanClassLoader;
}
public void setEnvironment(Environment environment) {
this.environment = environment;
}
protected final Environment getEnvironment() {
return this.environment;
}
public void setResourceLoader(ResourceLoader resourceLoader) {
this.resourceLoader = resourceLoader;
}
protected final ResourceLoader getResourceLoader() {
return this.resourceLoader;
}
public int getOrder() {
return 2147483646;
}
protected static class AutoConfigurationEntry {
private final List<String> configurations;
private final Set<String> exclusions;
private AutoConfigurationEntry() {
this.configurations = Collections.emptyList();
this.exclusions = Collections.emptySet();
}
AutoConfigurationEntry(Collection<String> configurations, Collection<String> exclusions) {
this.configurations = new ArrayList(configurations);
this.exclusions = new HashSet(exclusions);
}
public List<String> getConfigurations() {
return this.configurations;
}
public Set<String> getExclusions() {
return this.exclusions;
}
}
// 一个静态类, 作用延迟加载自动配置,先加载用户自己的bean,在加载自动配置
private static class AutoConfigurationGroup implements DeferredImportSelector.Group, BeanClassLoaderAware, BeanFactoryAware, ResourceLoaderAware {
private final Map<String, AnnotationMetadata> entries = new LinkedHashMap();
private final List<AutoConfigurationEntry> autoConfigurationEntries = new ArrayList();
private ClassLoader beanClassLoader;
private BeanFactory beanFactory;
private ResourceLoader resourceLoader;
private AutoConfigurationMetadata autoConfigurationMetadata;
private AutoConfigurationGroup() {
}
//类加载器
public void setBeanClassLoader(ClassLoader classLoader) {
this.beanClassLoader = classLoader;
}
public void setBeanFactory(BeanFactory beanFactory) {
this.beanFactory = beanFactory;
}
public void setResourceLoader(ResourceLoader resourceLoader) {
this.resourceLoader = resourceLoader;
}
public void process(AnnotationMetadata annotationMetadata, DeferredImportSelector deferredImportSelector) {
Assert.state(deferredImportSelector instanceof AutoConfigurationImportSelector, () -> {
return String.format("Only %s implementations are supported, got %s", AutoConfigurationImportSelector.class.getSimpleName(), deferredImportSelector.getClass().getName());
});
AutoConfigurationEntry autoConfigurationEntry = ((AutoConfigurationImportSelector)deferredImportSelector).getAutoConfigurationEntry(annotationMetadata);
this.autoConfigurationEntries.add(autoConfigurationEntry);
Iterator var4 = autoConfigurationEntry.getConfigurations().iterator();
while(var4.hasNext()) {
String importClassName = (String)var4.next();
this.entries.putIfAbsent(importClassName, annotationMetadata);
}
}
public Iterable<DeferredImportSelector.Group.Entry> selectImports() {
if (this.autoConfigurationEntries.isEmpty()) {
return Collections.emptyList();
} else {
Set<String> allExclusions = (Set)this.autoConfigurationEntries.stream().map(AutoConfigurationEntry::getExclusions).flatMap(Collection::stream).collect(Collectors.toSet());
Set<String> processedConfigurations = (Set)this.autoConfigurationEntries.stream().map(AutoConfigurationEntry::getConfigurations).flatMap(Collection::stream).collect(Collectors.toCollection(LinkedHashSet::new));
processedConfigurations.removeAll(allExclusions);
return (Iterable)this.sortAutoConfigurations(processedConfigurations, this.getAutoConfigurationMetadata()).stream().map((importClassName) -> {
return new DeferredImportSelector.Group.Entry((AnnotationMetadata)this.entries.get(importClassName), importClassName);
}).collect(Collectors.toList());
}
}
private AutoConfigurationMetadata getAutoConfigurationMetadata() {
if (this.autoConfigurationMetadata == null) {
this.autoConfigurationMetadata = AutoConfigurationMetadataLoader.loadMetadata(this.beanClassLoader);
}
return this.autoConfigurationMetadata;
}
private List<String> sortAutoConfigurations(Set<String> configurations, AutoConfigurationMetadata autoConfigurationMetadata) {
return (new AutoConfigurationSorter(this.getMetadataReaderFactory(), autoConfigurationMetadata)).getInPriorityOrder(configurations);
}
private MetadataReaderFactory getMetadataReaderFactory() {
try {
return (MetadataReaderFactory)this.beanFactory.getBean("org.springframework.boot.autoconfigure.internalCachingMetadataReaderFactory", MetadataReaderFactory.class);
} catch (NoSuchBeanDefinitionException var2) {
return new CachingMetadataReaderFactory(this.resourceLoader);
}
}
}
private static class ConfigurationClassFilter {
private final AutoConfigurationMetadata autoConfigurationMetadata;
private final List<AutoConfigurationImportFilter> filters;
ConfigurationClassFilter(ClassLoader classLoader, List<AutoConfigurationImportFilter> filters) {
this.autoConfigurationMetadata = AutoConfigurationMetadataLoader.loadMetadata(classLoader);
this.filters = filters;
}
List<String> filter(List<String> configurations) {
long startTime = System.nanoTime();
String[] candidates = StringUtils.toStringArray(configurations);
boolean skipped = false;
Iterator var6 = this.filters.iterator();
int i;
while(var6.hasNext()) {
AutoConfigurationImportFilter filter = (AutoConfigurationImportFilter)var6.next();
boolean[] match = filter.match(candidates, this.autoConfigurationMetadata);
for(i = 0; i < match.length; ++i) {
if (!match[i]) {
candidates[i] = null;
skipped = true;
}
}
}
if (!skipped) {
return configurations;
} else {
List<String> result = new ArrayList(candidates.length);
String[] var12 = candidates;
int var14 = candidates.length;
for(i = 0; i < var14; ++i) {
String candidate = var12[i];
if (candidate != null) {
result.add(candidate);
}
}
if (AutoConfigurationImportSelector.logger.isTraceEnabled()) {
int numberFiltered = configurations.size() - result.size();
AutoConfigurationImportSelector.logger.trace("Filtered " + numberFiltered + " auto configuration class in " + TimeUnit.NANOSECONDS.toMillis(System.nanoTime() - startTime) + " ms");
}
return result;
}
}
}
}自动装配的流程
- 启动类 @SpringBootApplication
- 开启 @EnableAutoConfiguration
- @Import(AutoConfigurationImportSelector.class)
- 执行 selectImports()
- 读取 META-INF/spring/...imports 文件
- 获取所有自动配置类
- 排除不需要的
- 根据 @Conditional 过滤
- 返回最终需要装配的列表
- Spring 加载这些配置类 → 自动创建DataSource、Tomcat、Redis...
spring在启动时还有一个其他注解
\常用四大条件注解（必背）
@ConditionalOnClass项目里存在某个类，才装配→ 你引入了依赖，才自动配
@ConditionalOnMissingBean容器没有这个 Bean，Spring 才自己创建→ 你自定义了配置，就覆盖默认配置
@ConditionalOnPropertyyml 配置文件开启某项配置，才装配
@ConditionalOnMissingClass不存在某个类，才装配
