K8S集群部署Dashboard

参考资料：

参考视频：

https://ke.gupaoedu.cn/play/288/5/34868?phaseId=6

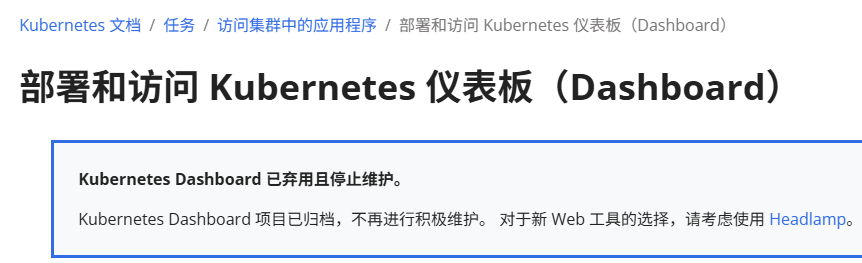

官方部署教程

https://kubernetes.io/zh-cn/docs/tasks/access-application-cluster/web-ui-dashboard/

k8s多节点仪表盘（web界面）部署，和谷歌浏览器访问问题解决

说明：

更成熟的K8S集群监控是Prometheus，Dashboard其实很多企业都不使用了，后续本人会完善Prometheus的部署方法

部署步骤：

在master节点创建dashboard.yaml，内容为：

bash 复制代码

apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    # Allows editing resource and makes sure it is created first.
    addonmanager.kubernetes.io/mode: EnsureExists
  name: kubernetes-dashboard-settings
  namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: Reconcile
  name: kubernetes-dashboard
  namespace: kube-system
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kubernetes-dashboard
  namespace: kube-system
  labels:
    k8s-app: kubernetes-dashboard
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
spec:
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
      annotations:
        scheduler.alpha.kubernetes.io/critical-pod: ''
        seccomp.security.alpha.kubernetes.io/pod: 'docker/default'
    spec:
      priorityClassName: system-cluster-critical
      containers:
      - name: kubernetes-dashboard
        image: rancher/kubernetes-dashboard-amd64:v1.8.3
        resources:
          limits:
            cpu: 100m
            memory: 300Mi
          requests:
            cpu: 50m
            memory: 100Mi
        ports:
        - containerPort: 8443
          protocol: TCP
        args:
          # PLATFORM-SPECIFIC ARGS HERE
          - --auto-generate-certificates
        volumeMounts:
        - name: kubernetes-dashboard-certs
          mountPath: /certs
        - name: tmp-volume
          mountPath: /tmp
        livenessProbe:
          httpGet:
            scheme: HTTPS
            path: /
            port: 8443
          initialDelaySeconds: 30
          timeoutSeconds: 30
      volumes:
      - name: kubernetes-dashboard-certs
        secret:
          secretName: kubernetes-dashboard-certs
      - name: tmp-volume
        emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      tolerations:
      - key: "CriticalAddonsOnly"
        operator: "Exists"
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: Reconcile
  name: kubernetes-dashboard-minimal
  namespace: kube-system
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
- apiGroups: [""]
  resources: ["secrets"]
  resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs"]
  verbs: ["get", "update", "delete"]
  # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
- apiGroups: [""]
  resources: ["configmaps"]
  resourceNames: ["kubernetes-dashboard-settings"]
  verbs: ["get", "update"]
  # Allow Dashboard to get metrics from heapster.
- apiGroups: [""]
  resources: ["services"]
  resourceNames: ["heapster"]
  verbs: ["proxy"]
- apiGroups: [""]
  resources: ["services/proxy"]
  resourceNames: ["heapster", "http:heapster:", "https:heapster:"]
  verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: kubernetes-dashboard-minimal
  namespace: kube-system
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: Reconcile
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard-minimal
subjects:
- kind: ServiceAccount
  name: kubernetes-dashboard
  namespace: kube-system
---
apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    # Allows editing resource and makes sure it is created first.
    addonmanager.kubernetes.io/mode: EnsureExists
  name: kubernetes-dashboard-certs
  namespace: kube-system
type: Opaque
---
apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    # Allows editing resource and makes sure it is created first.
    addonmanager.kubernetes.io/mode: EnsureExists
  name: kubernetes-dashboard-key-holder
  namespace: kube-system
type: Opaque
---
apiVersion: v1
kind: Service
metadata:
  name: kubernetes-dashboard
  namespace: kube-system
  labels:
    k8s-app: kubernetes-dashboard
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
spec:
  selector:
    k8s-app: kubernetes-dashboard
  ports:
  - port: 443
    targetPort: 8443
    nodePort: 30018
  type: NodePort
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard-admin
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: kubernetes-dashboard
  namespace: kube-system

yml中有个镜像，最好先拉取一下

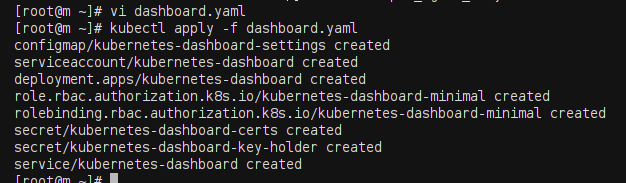

执行该yml文件

bash 复制代码

kubectl apply -f dashboard.yaml

查看资源

bash 复制代码

kubectl get pods -n kube-system
kubectl get pods -n kube-system -o wide
kubectl get svc -n kube-system
kubectl get deploy kubernetes-dashboard -n kube-system

需要找到仪表盘被部署到了哪个节点上，拿具体节点的IP进行访问

bash 复制代码

kubectl get pods -n kube-system -o wide|grep dashboard

然后查询该节点的IP

bash 复制代码

kubectl get nodes -o wide

然后就可以用浏览器访问了（非谷歌浏览器）

【谷歌浏览器需要特别的配置，参考文章】

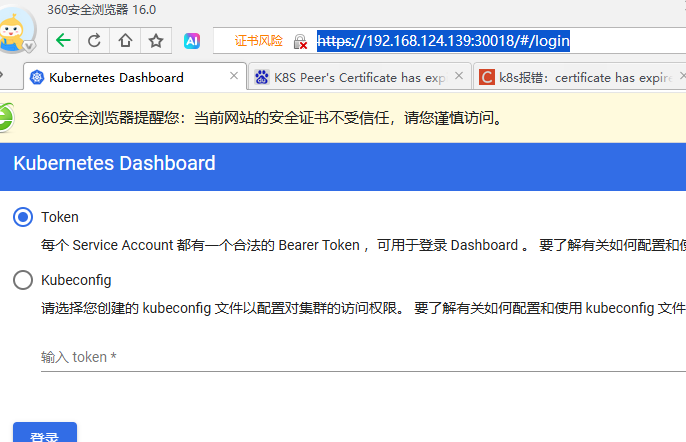

访问网址为【https访问方式，替换成自己的IP】

https://192.168.124.139:30018/#/login

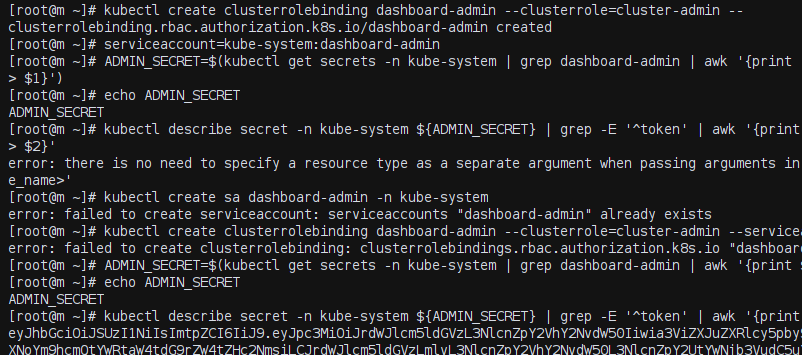

在主节点执行，生成token

bash 复制代码

# 创建service account
kubectl create sa dashboard-admin -n kube-system

# 创建角色绑定关系
kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin

# 查看dashboard-admin的secret名字
ADMIN_SECRET=$(kubectl get secrets -n kube-system | grep dashboard-admin | awk '{print $1}')
echo ADMIN_SECRET

# 打印secret的token
kubectl describe secret -n kube-system ${ADMIN_SECRET} | grep -E '^token' | awk '{print $2}'

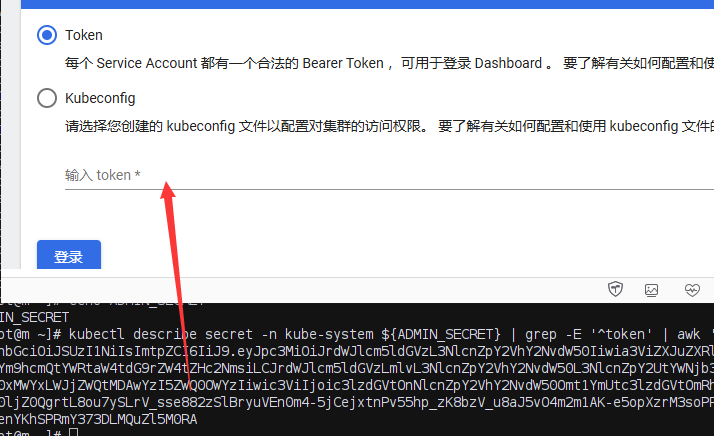

然后把生成的token填入登录界面即可

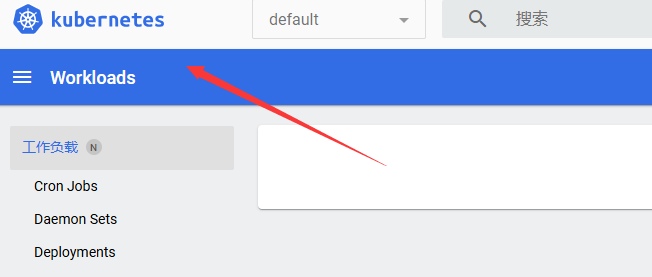

登录成功
