Prometheus监控主机，Grafana成图

全部使用官方 GitHub 源的部署方案，下载链接来自官方，无需镜像。

官方下载地址汇总

组件官方下载地址
Node Exporter https://github.com/prometheus/node_exporter/releases/download/v1.8.2/node_exporter-1.8.2.linux-amd64.tar.gz
Prometheus https://github.com/prometheus/prometheus/releases/download/v3.5.0/prometheus-3.5.0.linux-amd64.tar.gz
AlertManager https://github.com/prometheus/alertmanager/releases/download/v0.28.0/alertmanager-0.28.0.linux-amd64.tar.gz
Grafana

https://dl.grafana.com/oss/release/grafana-11.6.0.linux-amd64.tar.gz

一、部署 Node Exporter（官方源）

bash

创建工作目录

sudo mkdir -p /data/node_exporter/logs

下载官方版本（GitHub Release）

cd /tmp

wget https://github.com/prometheus/node_exporter/releases/download/v1.8.2/node_exporter-1.8.2.linux-amd64.tar.gz

tar xvf node_exporter-1.8.2.linux-amd64.tar.gz

sudo cp node_exporter-1.8.2.linux-amd64/node_exporter /data/node_exporter/

验证

/data/node_exporter/node_exporter --version

启动脚本

bash

sudo tee /data/node_exporter/start.sh <<'EOF'

#!/bin/bash

cd /data/node_exporter

nohup ./node_exporter

--web.listen-address="0.0.0.0:9100"

--collector.disable-defaults

--collector.cpu

--collector.meminfo

--collector.filesystem

--collector.diskstats

--collector.netdev

--collector.loadavg

--collector.time

--collector.uname \

logs/node_exporter.log 2>&1 &

echo $! > node_exporter.pid

echo "Node Exporter started with PID: $(cat node_exporter.pid)"

EOF

sudo tee /data/node_exporter/stop.sh <<'EOF'

#!/bin/bash

if [ -f /data/node_exporter/node_exporter.pid ]; then

kill $(cat /data/node_exporter/node_exporter.pid)

rm -f /data/node_exporter/node_exporter.pid

echo "Node Exporter stopped"

else

pkill -f "node_exporter.*9100"

EOF

sudo chmod +x /data/node_exporter/*.sh

sudo /data/node_exporter/start.sh

验证

sleep 2

curl http://localhost:9100/metrics | head -5

二、部署 Prometheus（官方源）

bash

创建工作目录

sudo mkdir -p /data/prometheus/{data,rules,logs}

下载官方版本

cd /tmp

wget https://github.com/prometheus/prometheus/releases/download/v3.5.0/prometheus-3.5.0.linux-amd64.tar.gz

tar xvf prometheus-3.5.0.linux-amd64.tar.gz

sudo cp prometheus-3.5.0.linux-amd64/prometheus /data/prometheus/

sudo cp prometheus-3.5.0.linux-amd64/promtool /data/prometheus/

sudo cp -r prometheus-3.5.0.linux-amd64/consoles /data/prometheus/

sudo cp -r prometheus-3.5.0.linux-amd64/console_libraries /data/prometheus/

设置权限

sudo chmod +x /data/prometheus/prometheus

配置文件

bash

sudo tee /data/prometheus/prometheus.yml <<'EOF'

global:

scrape_interval: 15s

evaluation_interval: 15s

external_labels:

monitor: 'vm-monitor'

alerting:

alertmanagers:

static_configs:
targets: []

rule_files: []

scrape_configs:

job_name: 'prometheus'

static_configs:
- targets: ['localhost:9090']
  labels:
  service: 'prometheus'
job_name: 'node_exporter'

scrape_interval: 30s

static_configs:
- targets:
  - 'localhost:9100'
    labels:
    environment: 'production'
    EOF
    启动脚本
    bash
    sudo tee /data/prometheus/start.sh <<'EOF'
    #!/bin/bash
    cd /data/prometheus
    nohup ./prometheus
    --config.file=/data/prometheus/prometheus.yml
    --storage.tsdb.path=/data/prometheus/data
    --storage.tsdb.retention.time=30d
    --web.enable-lifecycle \

logs/prometheus.log 2>&1 &

echo $! > prometheus.pid

echo "Prometheus started with PID: (catprometheus.pid)"echo"WebUI:http://(cat prometheus.pid)" echo "Web UI: http://(catprometheus.pid)"echo"WebUI:http://(hostname -I | awk '{print $1}'):9090"

EOF

sudo tee /data/prometheus/stop.sh <<'EOF'

#!/bin/bash

if [ -f /data/prometheus/prometheus.pid ]; then

kill $(cat /data/prometheus/prometheus.pid)

rm -f /data/prometheus/prometheus.pid

echo "Prometheus stopped"

else

pkill -f "prometheus.*config.file"

EOF

sudo chmod +x /data/prometheus/*.sh

sudo /data/prometheus/start.sh

验证

sleep 3

curl http://localhost:9090/-/healthy

三、部署 Grafana（官方源）

bash

创建工作目录

sudo mkdir -p /data/grafana/{data,logs,plugins}

下载官方版本

cd /tmp

wget https://dl.grafana.com/oss/release/grafana-11.6.0.linux-amd64.tar.gz

tar xvf grafana-11.6.0.linux-amd64.tar.gz

sudo cp -r grafana-11.6.0/* /data/grafana/

配置文件

sudo tee /data/grafana/conf/custom.ini <<'EOF'

paths

data = /data/grafana/data

logs = /data/grafana/logs

plugins = /data/grafana/plugins

server

http_port = 3000

auth

disable_login_form = false

users

allow_sign_up = false

EOF

启动脚本

bash

sudo tee /data/grafana/start.sh <<'EOF'

#!/bin/bash

cd /data/grafana

nohup ./bin/grafana-server

--config=/data/grafana/conf/custom.ini

--homepath=/data/grafana \

logs/grafana.log 2>&1 &

echo $! > grafana.pid

echo "Grafana started with PID: (catgrafana.pid)"echo"GrafanaUI:http://(cat grafana.pid)" echo "Grafana UI: http://(catgrafana.pid)"echo"GrafanaUI:http://(hostname -I | awk '{print $1}'):3000 (admin/admin)"

EOF

sudo tee /data/grafana/stop.sh <<'EOF'

#!/bin/bash

if [ -f /data/grafana/grafana.pid ]; then

kill $(cat /data/grafana/grafana.pid)

rm -f /data/grafana/grafana.pid

echo "Grafana stopped"

else

pkill -f "grafana-server"

EOF

sudo chmod +x /data/grafana/*.sh

sudo /data/grafana/start.sh

四、统一管理脚本

bash

sudo tee /usr/local/bin/monitor-control <<'EOF'

#!/bin/bash

SERVICES="node_exporter prometheus grafana"

case "$1" in

start)

echo "Starting all monitoring services..."

/data/node_exporter/start.sh 2>/dev/null || echo "Node Exporter already running"

sleep 2

/data/prometheus/start.sh 2>/dev/null || echo "Prometheus already running"

sleep 2

/data/grafana/start.sh 2>/dev/null || echo "Grafana already running"

echo "All services started"

;;

stop)

echo "Stopping all monitoring services..."

/data/node_exporter/stop.sh 2>/dev/null

/data/prometheus/stop.sh 2>/dev/null

/data/grafana/stop.sh 2>/dev/null

echo "All services stopped"

;;

status)

echo "=== Node Exporter ="
ps aux | grep -v grep | grep "node_exporter.*9100" && echo "Running" || echo "Stopped"
echo "= Prometheus ="
ps aux | grep -v grep | grep "prometheus.*config" && echo "Running" || echo "Stopped"
echo "= Grafana ==="

ps aux | grep -v grep | grep "grafana-server" && echo "Running" || echo "Stopped"

;;

restart)

$0 stop

sleep 3

$0 start

;;

echo "Usage: $0 {start|stop|restart|status}"

exit 1

;;

esac

EOF

sudo chmod +x /usr/local/bin/monitor-control

五、测试验证

bash

启动所有服务

sudo monitor-control start

查看状态

sudo monitor-control status

测试各服务

curl http://localhost:9090/-/healthy # Prometheus

curl http://localhost:9100/metrics | head # Node Exporter

curl http://localhost:3000/api/health # Grafana

六、添加其他虚拟机

在其他虚拟机上部署 Node Exporter：

bash

在每一台被监控虚拟机上执行

mkdir -p /data/node_exporter/logs

cd /tmp

wget https://github.com/prometheus/node_exporter/releases/download/v1.8.2/node_exporter-1.8.2.linux-amd64.tar.gz

tar xvf node_exporter-1.8.2.linux-amd64.tar.gz

cp node_exporter-1.8.2.linux-amd64/node_exporter /data/node_exporter/

cd /data/node_exporter

nohup ./node_exporter --web.listen-address="0.0.0.0:9100" > logs/node_exporter.log 2>&1 &

然后在 Prometheus 配置中添加新目标并热加载：

bash

编辑 /data/prometheus/prometheus.yml，在 targets 中添加新 IP

curl -X POST http://localhost:9090/-/reload

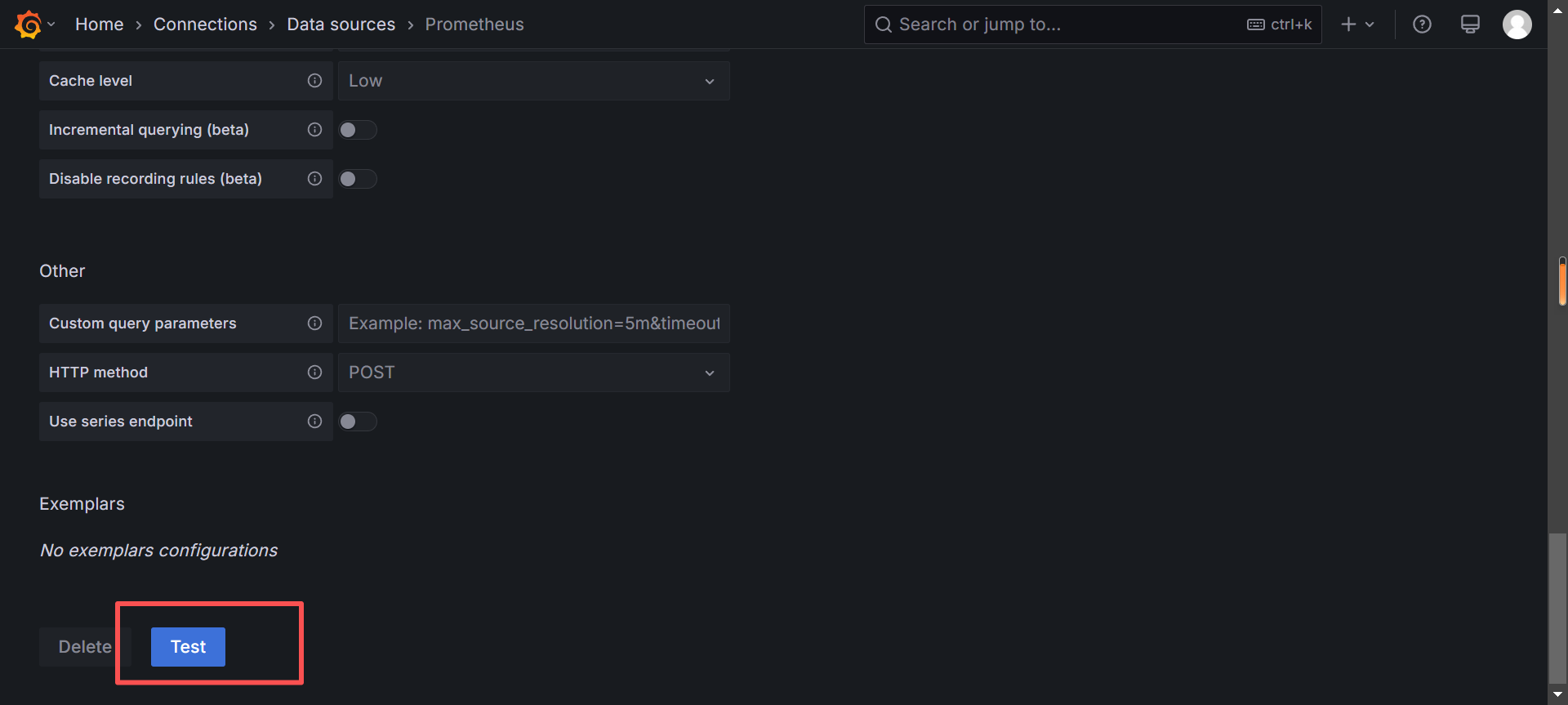

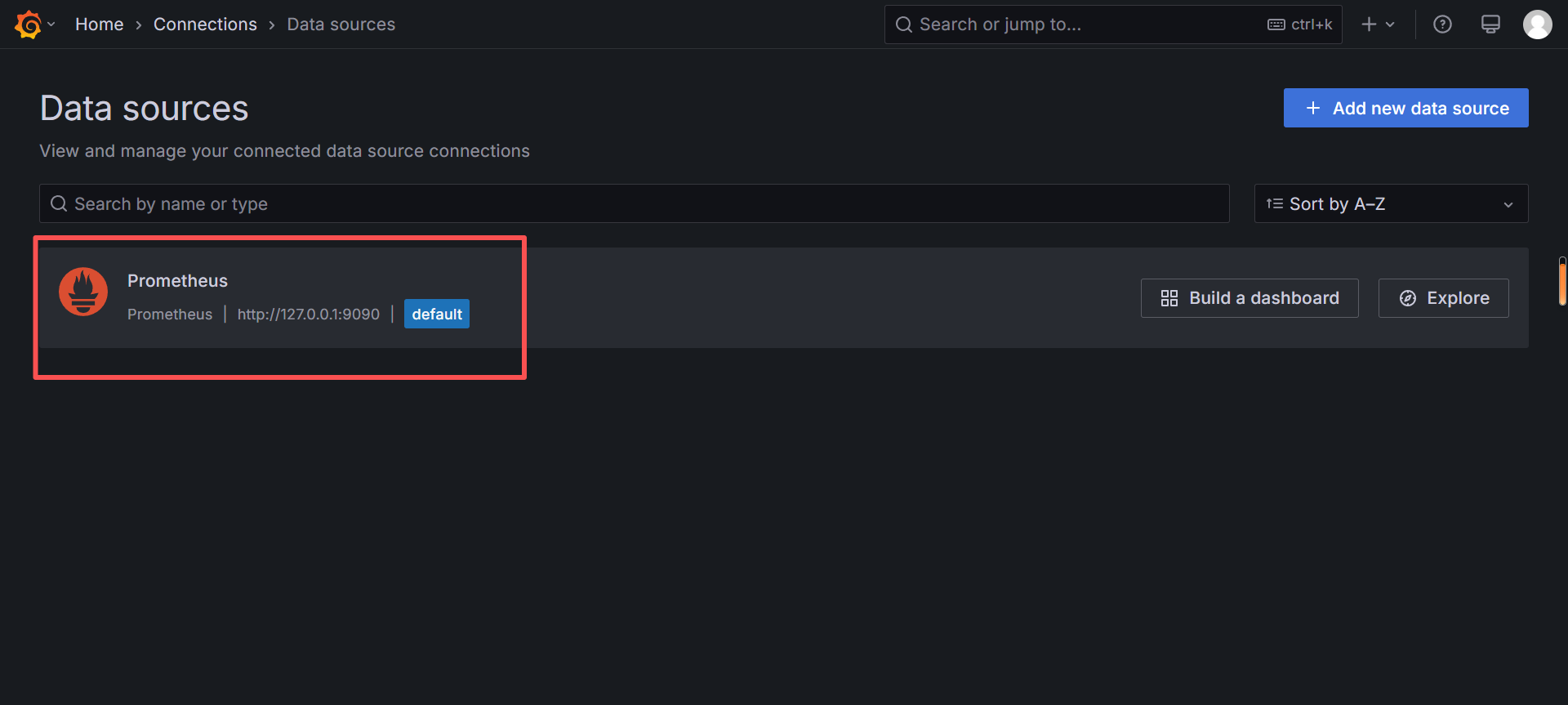

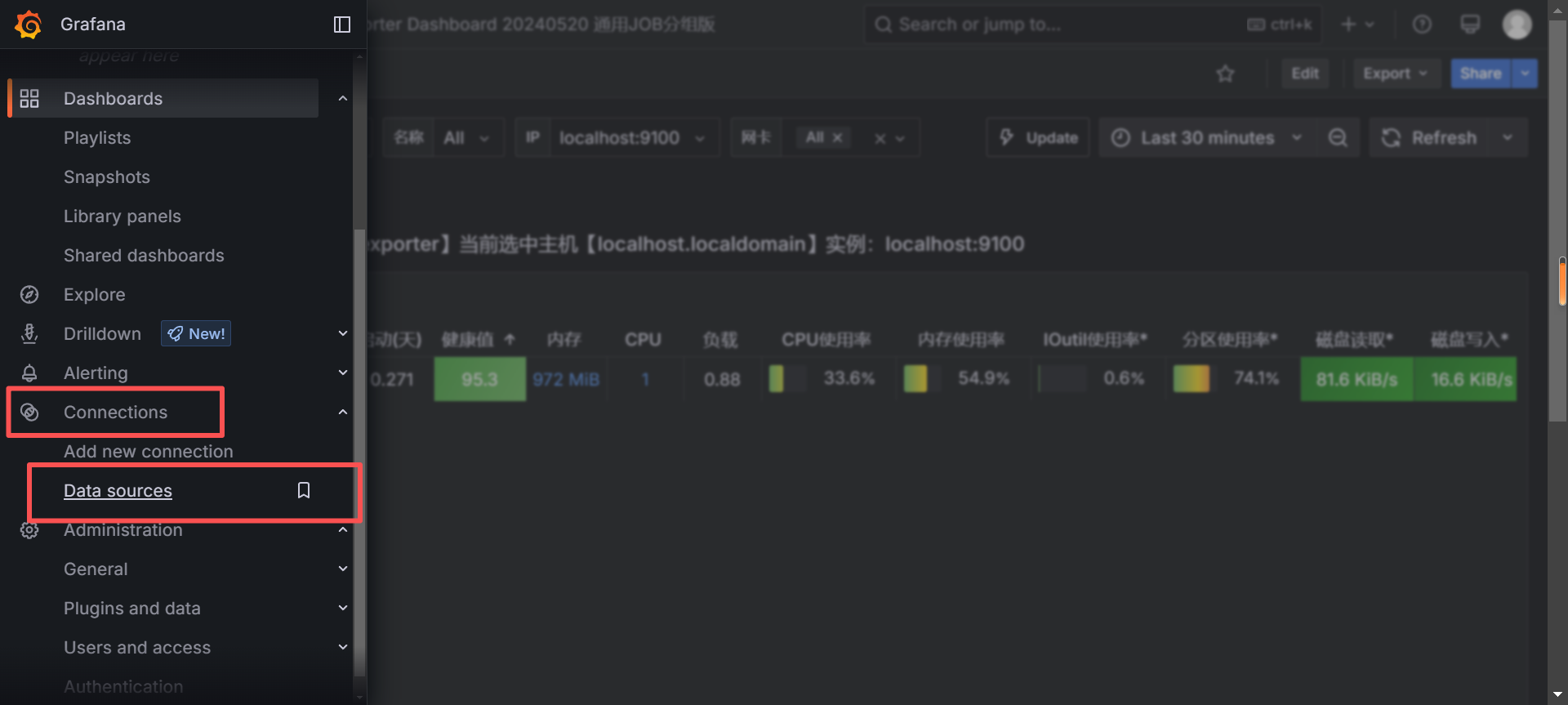

六、Grafana添加Prometheus数据源

这里最好是填写http://127.0.0.1:9090，这样不会识别到ipv6.

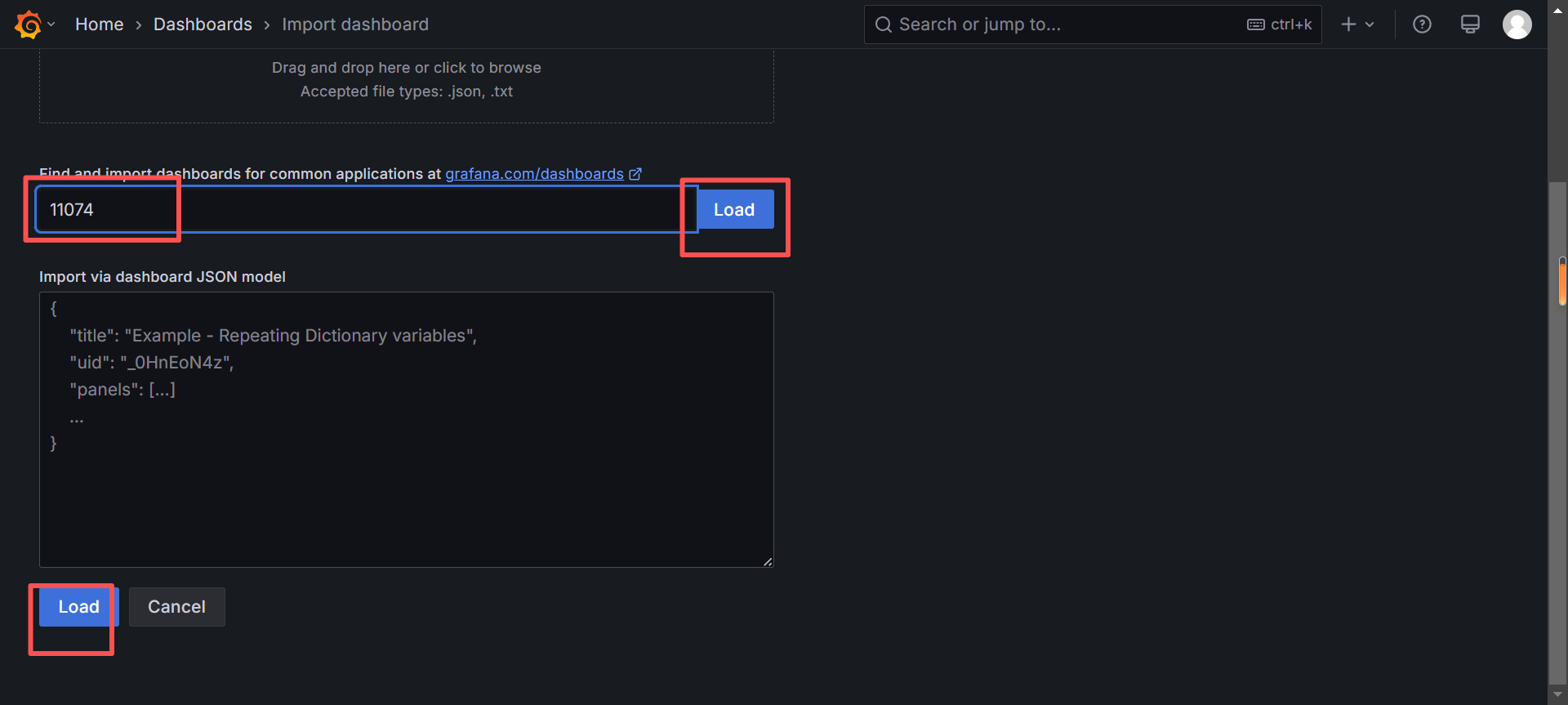

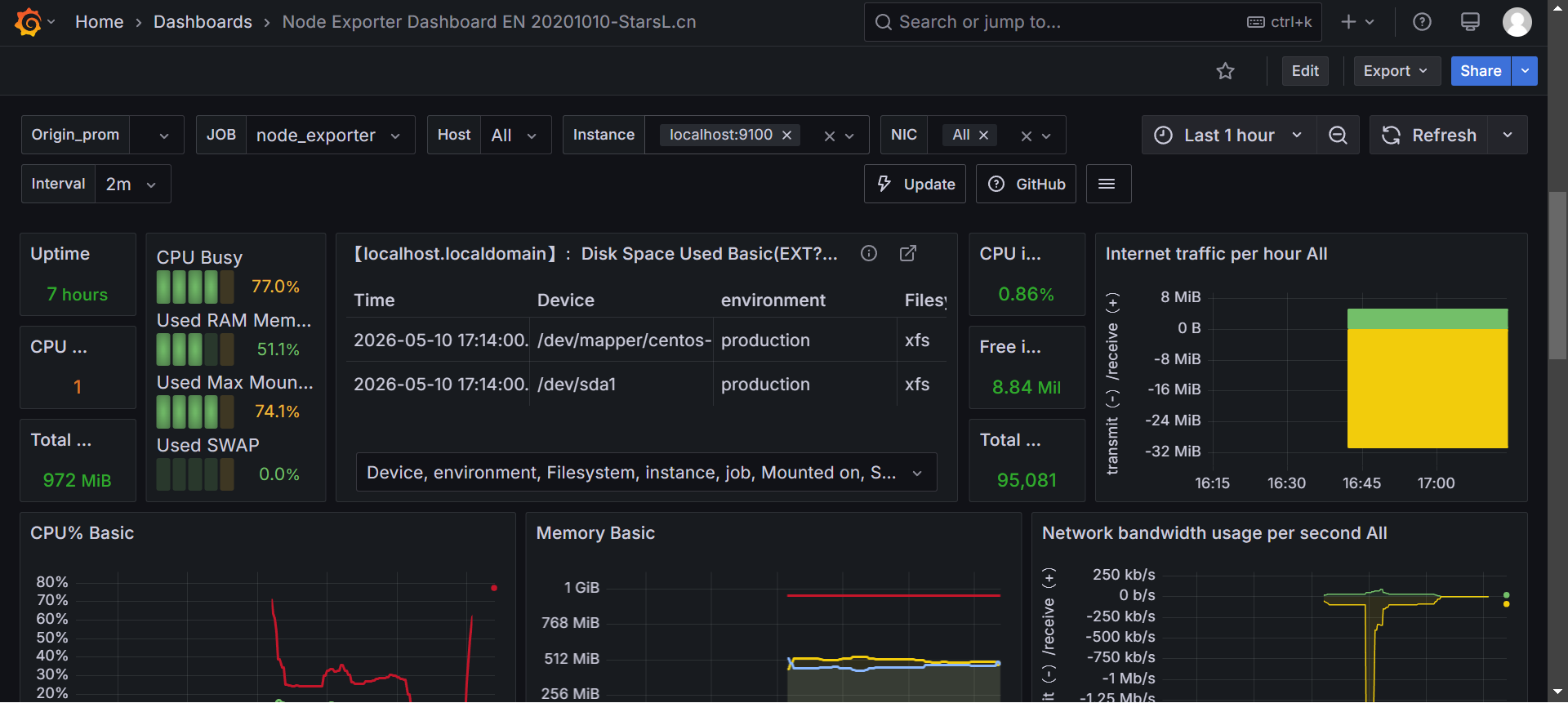

七、给数据源添加面板

八、配置告警（AlertManager）

3.1 下载并安装 AlertManager

bash

创建工作目录

mkdir -p /data/alertmanager/{data,logs}

下载官方版本

cd /tmp

wget https://github.com/prometheus/alertmanager/releases/download/v0.28.0/alertmanager-0.28.0.linux-amd64.tar.gz

tar xvf alertmanager-0.28.0.linux-amd64.tar.gz

cp alertmanager-0.28.0.linux-amd64/alertmanager /data/alertmanager/

cp alertmanager-0.28.0.linux-amd64/amtool /data/alertmanager/

chmod +x /data/alertmanager/alertmanager

3.2 配置 AlertManager

bash

sudo tee /data/alertmanager/alertmanager.yml <<'EOF'

global:

resolve_timeout: 5m

smtp_smarthost: 'smtp.example.com:587' # 配置邮件服务器

smtp_from: 'alertmanager@example.com'

smtp_auth_username: 'your-username'

smtp_auth_password: 'your-password'

route:

group_by: ['alertname', 'severity']

group_wait: 30s

group_interval: 5m

repeat_interval: 4h

receiver: 'default-receiver'

routes:

match:

severity: critical

receiver: critical-receiver

receivers:

name: 'default-receiver'

email_configs:
- to: 'ops-team@example.com'
name: 'critical-receiver'

email_configs:
- to: 'oncall@example.com'
  webhook_configs:
- url: 'https://your-webhook-url' # 可对接钉钉/企微/飞书

inhibit_rules:

source_match:
severity: 'critical'
target_match:
severity: 'warning'
equal: ['instance', 'alertname']
EOF
3.3 启动 AlertManager
bash
sudo tee /data/alertmanager/start.sh <<'EOF'
#!/bin/bash
cd /data/alertmanager
nohup ./alertmanager
--config.file=/data/alertmanager/alertmanager.yml
--web.listen-address="0.0.0.0:9093"
--storage.path=/data/alertmanager/data \

logs/alertmanager.log 2>&1 &

echo $! > alertmanager.pid

echo "AlertManager started with PID: (catalertmanager.pid)"echo"AlertManagerUI:http://(cat alertmanager.pid)" echo "AlertManager UI: http://(catalertmanager.pid)"echo"AlertManagerUI:http://(hostname -I | awk '{print $1}'):9093"

EOF

sudo tee /data/alertmanager/stop.sh <<'EOF'

#!/bin/bash

if [ -f /data/alertmanager/alertmanager.pid ]; then

kill $(cat /data/alertmanager/alertmanager.pid)

rm -f /data/alertmanager/alertmanager.pid

else

pkill -f "alertmanager.*config.file"

EOF

sudo chmod +x /data/alertmanager/*.sh

sudo /data/alertmanager/start.sh

3.4 配置 Prometheus 对接 AlertManager

编辑 /data/prometheus/prometheus.yml，添加以下配置：

yaml

告警配置

alerting:

alertmanagers:

static_configs:
targets: ['localhost:9093'] # AlertManager 地址

告警规则文件

rule_files:

"rules/*.yml"

3.5 创建告警规则

bash

mkdir -p /data/prometheus/rules

sudo tee /data/prometheus/rules/node_alerts.yml <<'EOF'

groups:
name: node_alerts

interval: 30s

rules:

1. 节点宕机告警
- alert: InstanceDown
  expr: up{job="node_exporter"} == 0
  for: 1m
  labels:
  severity: critical
  annotations:
  summary: "实例 {{ $labels.instance }} 已宕机" description: "{{$ labels.instance }} 已宕机超过 1 分钟"
2. CPU 使用率过高告警
- alert: HighCPUUsage
  expr: 100 - (avg by (instance) (rate(node_cpu_seconds_total{mode="idle"}[5m])) * 100) > 80
  for: 5m
  labels:
  severity: warning
  annotations:
  summary: "{{ $labels.instance }} CPU 使用率过高" description: "CPU 使用率已超过 80%，当前值: {{$ value }}%"
3. 内存使用率过高告警
- alert: HighMemoryUsage
  expr: (1 - (node_memory_MemAvailable_bytes / node_memory_MemTotal_bytes)) * 100 > 90
  for: 5m
  labels:
  severity: warning
  annotations:
  summary: "{{ $labels.instance }} 内存使用率过高" description: "内存使用率已超过 90%，当前值: {{$ value }}%"
4. 磁盘空间不足告警
- alert: DiskSpaceLow
  expr: (1 - node_filesystem_avail_bytes{mountpoint="/"} / node_filesystem_size_bytes{mountpoint="/"}) * 100 > 85
  for: 5m
  labels:
  severity: warning
  annotations:
  summary: "{{ $labels.instance }} 磁盘空间不足" description: "磁盘使用率已超过 85%，当前值: {{$ value }}%"
5. 系统负载过高告警
- alert: HighSystemLoad
  expr: node_load5 / count by (instance) (node_cpu_seconds_total{mode="idle"}) > 2
  for: 5m
  labels:
  severity: warning
  annotations:
  summary: "{{ $labels.instance }} 系统负载过高"
  description: "5分钟平均负载超过 CPU 核心数的 2 倍"
  EOF
  3.6 加载配置并验证
  bash
