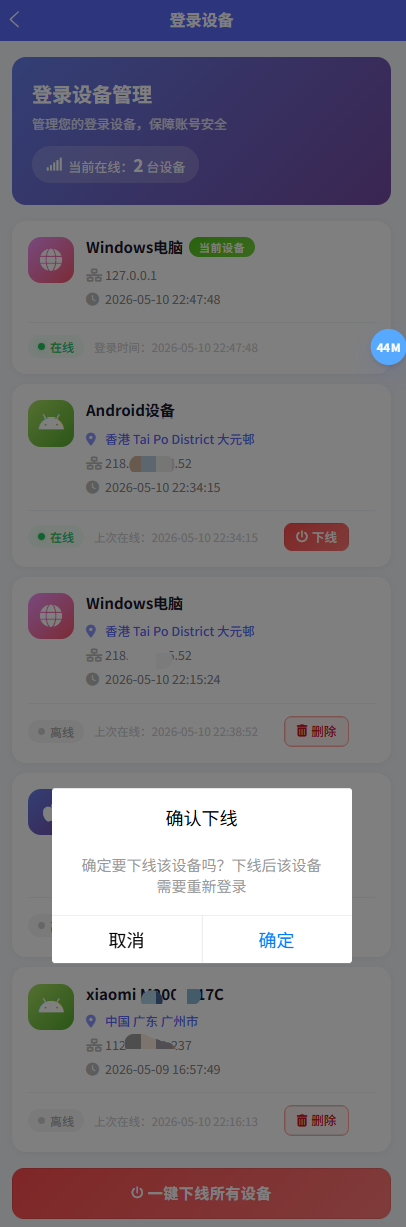

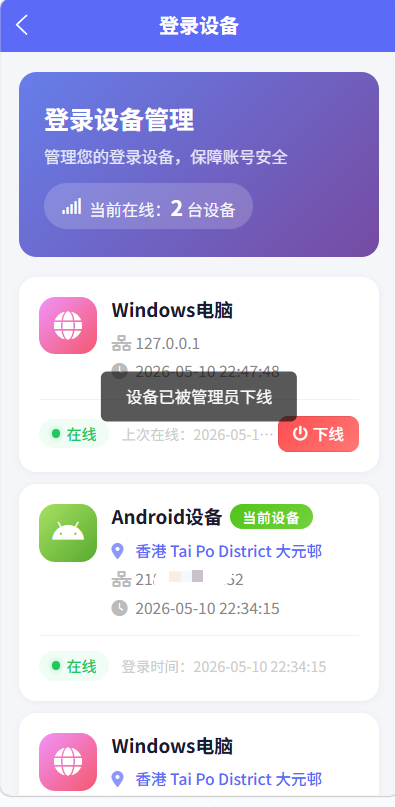

踢人下线效果
1. SSE 推送功能完整架构
1.1 整体架构图
数据存储
后端层
前端层
POST /sse/set-cookie
GET /sse/subscribe
验证token+device_id
注册连接
推送事件
消费消息
30s轮询
App.vue - 应用入口
SSEClient 客户端
Cookie设置模块
fetch+ReadableStream
轮询降级模块
路由层 routes/sse.py
SSE管理器 utils/sse.py
消息队列 queue.Queue
连接状态字典 _connections
Cookie验证模块
内存连接池
设备黑名单
数据库 user_login_device
1.2 前端 SSE 连接建立流程
SSEManager /sse/subscribe /sse/set-cookie SSEClient App.vue SSEManager /sse/subscribe /sse/set-cookie SSEClient App.vue loop [每30秒] connect(callback) 检查token是否存在 检查是否重复连接 POST {token, device_id} 设置HttpOnly Cookie GET /sse/subscribe register(user_id, device_id) 返回 (queue, conn_id) 返回 EventStream 派发 connected 事件 启动心跳检测 : heartbeat 更新 lastHeartbeatTime
1.3 前端核心实现代码
文件 : sse.js
js
class SSEClient {
constructor() {
this.eventSource = null;
this.reconnectTimer = null;
this.pollingTimer = null;
this.isMiniProgram = false;
this.reconnectAttempts = 0;
this.maxReconnectAttempts = 5;
this.reconnectDelay = 3000;
this.onDeviceKicked = null;
this.heartbeatTimer = null;
this.lastHeartbeatTime = null;
this.isConnected = false;
this.isConnecting = false;
this._abortController = null;
}
async connect(onDeviceKicked) {
this.onDeviceKicked = onDeviceKicked;
const token = getToken();
if (!token) return;
if (this.eventSource && this.eventSource.readyState === 1) return;
if (this.isConnecting) return;
this.isConnecting = true;
// #ifdef H5
const cookieSet = await this.setupCookie();
if (cookieSet) {
this.startSSE();
} else {
this.isConnecting = false;
}
return;
// #endif
// #ifdef MP-WEIXIN
this.isMiniProgram = true;
this.startPolling();
this.isConnecting = false;
return;
// #endif
}
async setupCookie() {
const token = getToken();
if (!token) return false;
const deviceInfo = getDeviceInfo();
const baseURL = getBaseURL();
try {
const response = await uni.request({
url: `${baseURL}/sse/set-cookie`,
method: 'POST',
header: { 'Content-Type': 'application/json' },
data: {
token: token,
device_id: deviceInfo.device_id
},
withCredentials: true
});
return response.statusCode === 200;
} catch (e) {
console.error('SSE Cookie设置异常', e);
return false;
}
}
startSSE() {
if (this.eventSource && this.eventSource.readyState !== 2) {
this.eventSource.close();
this.eventSource = null;
this.stopHeartbeat();
}
const baseURL = getBaseURL();
const url = `${baseURL}/sse/subscribe`;
const controller = new AbortController();
this._abortController = controller;
const esWrapper = {
readyState: 0,
_listeners: {},
close() {
this.readyState = 2;
controller.abort();
},
addEventListener(event, handler) {
if (!this._listeners[event]) this._listeners[event] = [];
this._listeners[event].push(handler);
},
_emit(event, data) {
(this._listeners[event] || []).forEach(h => h(data));
}
};
this.eventSource = esWrapper;
esWrapper.readyState = 0;
fetch(url, {
method: 'GET',
headers: { 'Accept': 'text/event-stream' },
credentials: 'include',
signal: controller.signal
}).then(response => {
if (!response.ok) throw new Error(`HTTP ${response.status}`);
esWrapper.readyState = 1;
this.reconnectAttempts = 0;
this.isConnected = true;
this.isConnecting = false;
this.startHeartbeat();
const reader = response.body.getReader();
const decoder = new TextDecoder();
let buffer = '';
const readStream = () => {
reader.read().then(({ done, value }) => {
if (done) {
this._handleError(esWrapper);
return;
}
this.lastHeartbeatTime = Date.now();
buffer += decoder.decode(value, { stream: true });
const lines = buffer.split('\n');
buffer = lines.pop() || '';
let currentEvent = null;
let currentData = '';
for (const line of lines) {
if (line.startsWith('event:')) {
currentEvent = line.slice(6).trim();
} else if (line.startsWith('data:')) {
currentData += line.slice(5).trim();
} else if (line === '' && currentData) {
const eventName = currentEvent || 'message';
try {
esWrapper._emit(eventName, { data: currentData });
this._dispatchSSEEvent(eventName, currentData);
} catch (e) {
console.error('SSE事件派发异常', e);
}
currentEvent = null;
currentData = '';
} else if (line.startsWith(':')) {
// 服务端心跳注释
}
}
readStream();
}).catch(err => {
if (err.name === 'AbortError') return;
this._handleError(esWrapper);
this.isConnecting = false;
});
};
readStream();
}).catch(err => {
if (err.name === 'AbortError') return;
this._handleError(esWrapper);
this.isConnecting = false;
});
}
_dispatchSSEEvent(eventName, rawData) {
if (eventName === 'connected') {
console.log('SSE连接成功', rawData);
} else if (eventName === 'device_kicked') {
console.log('设备被下线', rawData);
try { this.handleDeviceKicked(JSON.parse(rawData)); } catch {}
} else if (eventName === 'device_list_changed') {
console.log('设备列表变化', rawData);
try {
uni.$emit('device-list-changed', JSON.parse(rawData));
} catch {}
} else if (eventName === 'error') {
console.error('SSE服务端错误', rawData);
}
}
startHeartbeat() {
this.lastHeartbeatTime = Date.now();
this.heartbeatTimer = setInterval(() => {
const now = Date.now();
const timeSinceLastHeartbeat = now - this.lastHeartbeatTime;
if (timeSinceLastHeartbeat > 60000) {
console.log('SSE心跳超时，连接可能已断开');
if (this.eventSource) {
this.eventSource.close();
this.eventSource = null;
}
this.scheduleReconnect();
}
}, 30000);
}
handleDeviceKicked(data) {
clearAuth();
uni.removeStorageSync('device_id');
uni.removeStorageSync('ip_info');
uni.removeStorageSync('ip_info_time');
this.disconnect();
uni.showToast({
title: data.reason || '您的设备已被下线',
icon: 'none',
duration: 2000
});
setTimeout(() => {
uni.reLaunch({
url: '/pages/auth/login'
});
}, 2000);
if (this.onDeviceKicked) {
this.onDeviceKicked(data);
}
}
scheduleReconnect() {
if (this.reconnectAttempts >= this.maxReconnectAttempts) return;
this.reconnectAttempts++;
const delay = this.reconnectDelay * this.reconnectAttempts;
this.reconnectTimer = setTimeout(async () => {
const newToken = getToken();
if (!newToken) {
this.disconnect();
return;
}
const cookieSet = await this.setupCookie();
if (cookieSet) {
this.startSSE();
} else {
this.isConnecting = false;
}
}, delay);
}
disconnect() {
this.isConnected = false;
this.isConnecting = false;
this.stopHeartbeat();
if (this.eventSource) {
this.eventSource.close();
this.eventSource = null;
}
if (this._abortController) {
this._abortController.abort();
this._abortController = null;
}
if (this.pollingTimer) {
clearInterval(this.pollingTimer);
this.pollingTimer = null;
}
if (this.reconnectTimer) {
clearTimeout(this.reconnectTimer);
this.reconnectTimer = null;
}
this.reconnectAttempts = 0;
}
}
export const sseClient = new SSEClient();1.4 后端 SSE 服务端实现
文件 : routes/sse.py
python
@sse_bp.route('/subscribe', methods=['GET', 'OPTIONS'])
def subscribe():
"""SSE订阅端点"""
if request.method == 'OPTIONS':
response = Response('', status=204)
response.headers['Access-Control-Allow-Origin'] = request.headers.get('Origin', 'http://localhost:5173')
response.headers['Access-Control-Allow-Credentials'] = 'true'
return response
# 优先从Cookie获取token
token = request.cookies.get('sse_token')
if not token:
auth_header = request.headers.get('Authorization', '')
if auth_header.startswith('Bearer '):
token = auth_header[7:]
# 获取device_id
device_id = request.cookies.get('sse_device_id') or request.headers.get('X-Device-Id')
if not token or not device_id:
return Response(
f"data: {json.dumps({'event': 'error', 'data': {'msg': '缺少认证信息'}})}\n\n",
mimetype='text/event-stream'
)
# 验证token
try:
decoded = decode_token(token)
user_id = decoded.get('sub')
if not user_id:
return Response(
f"data: {json.dumps({'event': 'error', 'data': {'msg': '无效的Token'}})}\n\n",
mimetype='text/event-stream'
)
except Exception as e:
return Response(
f"data: {json.dumps({'event': 'error', 'data': {'msg': 'Token验证失败'}})}\n\n",
mimetype='text/event-stream'
)
# 注册SSE连接
q, conn_id = sse_manager.register(user_id, device_id)
def event_stream():
try:
yield f"data: {json.dumps({'event': 'connected', 'data': {'user_id': user_id, 'device_id': device_id, 'conn_id': conn_id}})}\n\n"
sse_manager.heartbeat(user_id, device_id, conn_id)
cleanup_counter = 0
while True:
try:
message = q.get(timeout=30)
if message.get('event') == '__exit__':
break
sse_manager.heartbeat(user_id, device_id, conn_id)
yield f"event: {message['event']}\ndata: {json.dumps(message['data'])}\nid: {int(time.time() * 1000)}\n\n"
except queue.Empty:
sse_manager.heartbeat(user_id, device_id, conn_id)
yield ": heartbeat\n\n"
cleanup_counter += 1
if cleanup_counter >= 10:
cleaned = sse_manager.cleanup_stale_connections()
if cleaned > 0:
current_app.logger.info(f"SSE僵尸清理完成: 清理{cleaned}个")
cleanup_counter = 0
except GeneratorExit:
pass
finally:
sse_manager.unregister(user_id, device_id, conn_id)
return Response(
stream_with_context(event_stream()),
mimetype='text/event-stream',
headers={
'Cache-Control': 'no-cache',
'X-Accel-Buffering': 'no',
'Connection': 'keep-alive',
'Access-Control-Allow-Origin': request.headers.get('Origin', 'http://localhost:5173'),
'Access-Control-Allow-Credentials': 'true'
}
)1.5 SSE 连接管理器
文件 : utils/sse.py
python
class SSEManager:
"""SSE连接管理器"""
def __init__(self):
# 存储结构: {user_id: {device_id: {conn_id: {'queue': q, 'created_at': ts, 'last_active': ts}}}}
self._connections = {}
self._lock = threading.Lock()
def register(self, user_id, device_id):
"""注册SSE连接，返回 (消息队列, 连接ID)"""
user_id = str(user_id)
conn_id = str(uuid.uuid4())[:8]
now = _time.time()
with self._lock:
if user_id not in self._connections:
self._connections[user_id] = {}
if device_id not in self._connections[user_id]:
self._connections[user_id][device_id] = {}
device_conns = self._connections[user_id][device_id]
# 超出单设备最大连接数，自动清理最老的连接
if len(device_conns) >= MAX_CONNECTIONS_PER_DEVICE:
oldest_conn_id = min(device_conns.keys(),
key=lambda cid: device_conns[cid]['created_at'])
del device_conns[oldest_conn_id]
q = queue.Queue()
device_conns[conn_id] = {
'queue': q,
'created_at': now,
'last_active': now
}
return q, conn_id
def unregister(self, user_id, device_id, conn_id=None):
"""注销SSE连接"""
user_id = str(user_id)
with self._lock:
if user_id not in self._connections:
return
if device_id not in self._connections[user_id]:
return
if conn_id:
self._connections[user_id][device_id].pop(conn_id, None)
else:
self._connections[user_id][device_id].clear()
if not self._connections[user_id][device_id]:
del self._connections[user_id][device_id]
if not self._connections[user_id]:
del self._connections[user_id]
def push(self, user_id, device_id, event_type, data):
"""向指定设备的所有连接推送消息"""
user_id = str(user_id)
with self._lock:
device_conns = self._connections.get(user_id, {}).get(device_id, {}).copy()
if not device_conns:
return False
success = False
for conn_id, conn_info in device_conns.items():
try:
q = conn_info['queue']
message = {
'event': event_type,
'data': data,
'timestamp': get_now().strftime('%Y-%m-%d %H:%M:%S')
}
q.put_nowait(message)
self.heartbeat(user_id, device_id, conn_id)
success = True
except queue.Full:
pass
return success
def push_to_all_devices(self, user_id, event_type, data):
"""向用户所有设备的所有连接推送消息"""
user_id = str(user_id)
with self._lock:
user_connections = self._connections.get(user_id, {}).copy()
if not user_connections:
return 0
success_count = 0
total_conns = 0
for device_id, device_conns in user_connections.items():
for conn_id, conn_info in device_conns.items():
total_conns += 1
try:
q = conn_info['queue']
message = {
'event': event_type,
'data': data,
'timestamp': get_now().strftime('%Y-%m-%d %H:%M:%S')
}
q.put_nowait(message)
self.heartbeat(user_id, device_id, conn_id)
success_count += 1
except queue.Full:
pass
return success_count
def kick_device(self, user_id, device_id, event_type, data):
"""踢出设备的所有连接：推送消息后发送退出信号"""
user_id = str(user_id)
with self._lock:
device_conns = self._connections.get(user_id, {}).get(device_id, {}).copy()
if not device_conns:
return False
success = False
for conn_id, conn_info in device_conns.items():
try:
q = conn_info['queue']
# 先推送下线事件
message = {
'event': event_type,
'data': data,
'timestamp': get_now().strftime('%Y-%m-%d %H:%M:%S')
}
q.put_nowait(message)
# 发送退出消息，让生成器主动断开
exit_message = {
'event': 'sse_exit',
'data': {'reason': '设备被管理员下线'},
'timestamp': get_now().strftime('%Y-%m-%d %H:%M:%S')
}
q.put_nowait(exit_message)
success = True
except queue.Full:
pass
return success
def cleanup_stale_connections(self):
"""清理所有僵尸连接"""
now = _time.time()
cleaned = 0
with self._lock:
to_remove = []
for user_id, devices in list(self._connections.items()):
for device_id, conns in list(devices.items()):
for conn_id, conn_info in list(conns.items()):
last_active = conn_info.get('last_active', conn_info['created_at'])
if now - last_active > STALE_CONNECTION_TIMEOUT:
to_remove.append((user_id, device_id, conn_id))
for user_id, device_id, conn_id in to_remove:
self._connections[user_id][device_id].pop(conn_id, None)
cleaned += 1
for user_id, devices in list(self._connections.items()):
for device_id in list(devices.keys()):
if not devices[device_id]:
del devices[device_id]
if not devices:
del self._connections[user_id]
return cleaned2. 用户强制下线功能分析
2.1 强制下线流程图
被踢设备B SSE管理器 数据库 后端API 管理员设备A 被踢设备B SSE管理器 数据库 后端API 管理员设备A DELETE /devices/{device_id} 查询设备记录 返回设备信息 kick_device(user_id, device_id, 'device_kicked', data) 查找设备的所有SSE连接 推送 device_kicked 事件 推送 sse_exit 事件 清空本地认证信息 显示下线提示 跳转登录页 更新设备状态 is_online=0 push_to_all_devices('device_list_changed') 推送设备列表变化事件 刷新设备列表
2.2 后端下线核心逻辑
文件 : routes/device.py
python
def _kick_device(device, reason='设备已被管理员下线'):
"""下线设备并触发黑名单+SSE推送"""
# 1. 先写入黑名单缓存（阻止设备重新连接）
device_blacklist.add(device.device_id, time.time())
# 2. 通过SSE推送下线事件到指定设备，并关闭连接
push_success = sse_manager.kick_device(device.user_id, device.device_id, 'device_kicked', {
'device_id': device.device_id,
'device_name': device.device_name,
'reason': reason,
'timestamp': get_now().strftime('%Y-%m-%d %H:%M:%S')
})
# 3. 等待短暂时间确保消息被消费
if push_success:
time.sleep(0.1)
# 4. 最后修改数据库状态
device.is_online = 0
device.last_online_time = get_now()
device.token = None
@device_bp.route('/devices/<device_id>', methods=['DELETE'])
@jwt_required()
def offline_device(device_id):
"""下线指定设备"""
user_id = get_jwt_identity()
try:
device = UserLoginDevice.query.filter_by(
user_id=user_id,
device_id=device_id
).first()
if not device:
return jsonify({"msg": "设备不存在"}), 404
_kick_device(device, '设备已被管理员下线')
db.session.commit()
# 通知该用户其他在线设备刷新列表
sse_manager.push_to_all_devices(
user_id, 'device_list_changed',
{'device_id': device_id, 'action': 'offline'}
)
return jsonify({"msg": "设备已下线"})
except Exception as e:
db.session.rollback()
return jsonify({"msg": "设备下线失败"}), 500
@device_bp.route('/devices/offline-all', methods=['POST'])
@jwt_required()
def offline_all_devices():
"""一键下线所有设备"""
user_id = get_jwt_identity()
current_device_id = request.headers.get('X-Device-Id')
try:
devices = UserLoginDevice.query.filter_by(user_id=user_id).all()
count = 0
for device in devices:
if device.device_id != current_device_id:
_kick_device(device, '设备已被管理员下线')
count += 1
db.session.commit()
sse_manager.push_to_all_devices(
user_id, 'device_list_changed',
{'action': 'offline_all', 'count': count}
)
return jsonify({
"msg": f"已成功下线 {count} 台设备",
"count": count
})
except Exception as e:
db.session.rollback()
return jsonify({"msg": "一键下线失败"}), 5002.3 前端设备管理页面
文件 : pages/profile/device-manage.vue
vue
<template>
<view class="device-container">
<view class="device-header">
<text class="header-title">登录设备管理</text>
<text class="header-desc">管理您的登录设备，保障账号安全</text>
<view class="online-count">
<text class="count-icon fa-solid fa-signal"></text>
<text class="count-text">当前在线：<text class="count-number">{{ onlineCount }}</text> 台设备</text>
</view>
</view>
<view class="device-list">
<view v-for="device in deviceList" :key="device.device_id" class="device-card">
<view class="device-info">
<view class="device-icon-wrapper" :class="getDeviceIconClass(device.device_type)">
<text class="device-icon" :class="getDeviceIcon(device.device_type)"></text>
</view>
<view class="device-detail">
<view class="device-name-row">
<text class="device-name">{{ device.device_name }}</text>
<text v-if="device.is_current" class="current-badge">当前设备</text>
</view>
<view class="device-meta">
<text v-if="device.login_address" class="meta-item meta-item-address">
<text class="meta-icon fa-solid fa-location-dot"></text>
<text class="meta-text">{{ device.login_address }}</text>
</text>
<text class="meta-item">
<text class="meta-icon fa-solid fa-clock"></text>
<text class="meta-text">{{ device.login_time }}</text>
</text>
</view>
</view>
</view>
<view class="device-actions-bar">
<view class="status-section">
<template v-if="device.is_current">
<view class="status-tag status-tag--online">
<view class="status-dot status-dot-online"></view>
<text>在线</text>
</view>
</template>
<template v-else-if="device.is_online === 1">
<view class="status-tag status-tag--online">
<view class="status-dot status-dot-online"></view>
<text>在线</text>
</view>
<button class="action-btn action-btn--danger" @click="handleOffline(device.device_id)">
<text class="btn-icon fa-solid fa-power-off"></text>
<text>下线</text>
</button>
</template>
<template v-else>
<view class="status-tag status-tag--offline">
<view class="status-dot status-dot-offline"></view>
<text>离线</text>
</view>
<button class="action-btn action-btn--ghost-danger" @click="handleDelete(device.device_id)">
<text class="btn-icon fa-solid fa-trash-can"></text>
<text>删除</text>
</button>
</template>
</view>
</view>
</view>
</view>
<view class="footer-actions">
<button class="offline-all-btn" @click="handleOfflineAll">
<text class="btn-icon fa-solid fa-power-off"></text>
<text>一键下线所有设备</text>
</button>
</view>
</view>
</template>
<script setup>
import { ref, computed } from 'vue';
import { onShow, onHide } from '@dcloudio/uni-app';
import { deviceApi } from '../../apis';
const deviceList = ref([]);
const loading = ref(true);
const onlineCount = computed(() => {
return deviceList.value.filter(device => device.is_online === 1).length;
});
onShow(async () => {
await loadDeviceList();
uni.$on('device-list-changed', handleDeviceListChanged);
});
onHide(() => {
uni.$off('device-list-changed', handleDeviceListChanged);
});
const handleDeviceListChanged = (data) => {
console.log('收到设备列表变化通知:', data);
loadDeviceList();
};
const loadDeviceList = async () => {
try {
loading.value = true;
const res = await deviceApi.getDeviceList();
deviceList.value = res.data || [];
} catch (error) {
uni.showToast({ title: error.msg || '获取设备列表失败', icon: 'none' });
} finally {
loading.value = false;
}
};
const handleOffline = (deviceId) => {
uni.showModal({
title: '确认下线',
content: '确定要下线该设备吗？下线后该设备需要重新登录',
success: async (res) => {
if (res.confirm) {
try {
await deviceApi.offlineDevice(deviceId);
uni.showToast({ title: '设备已下线', icon: 'success' });
await loadDeviceList();
} catch (error) {
uni.showToast({ title: error.msg || '下线失败', icon: 'none' });
}
}
}
});
};
const handleOfflineAll = () => {
uni.showModal({
title: '确认下线所有设备',
content: '确定要下线所有设备吗？当前设备不会下线',
success: async (res) => {
if (res.confirm) {
try {
const result = await deviceApi.offlineAllDevices();
uni.showToast({ title: result.msg || '已下线所有设备', icon: 'success' });
await loadDeviceList();
} catch (error) {
uni.showToast({ title: error.msg || '下线失败', icon: 'none' });
}
}
}
});
};
const getDeviceIcon = (deviceType) => {
const iconMap = {
'android': 'fa-brands fa-android',
'ios': 'fa-brands fa-apple',
'h5': 'fa-solid fa-globe',
'pc': 'fa-solid fa-desktop',
'mini': 'fa-brands fa-weixin',
'app': 'fa-solid fa-mobile-screen'
};
return iconMap[deviceType] || 'fa-solid fa-laptop';
};
</script>3. 登录/登出通知功能分析
3.1 登录通知流程图
其他在线设备 SSE管理器 数据库 后端API 新登录设备 其他在线设备 SSE管理器 数据库 后端API 新登录设备 POST /login {username, password, device_id} 验证用户名密码 生成JWT token 保存设备信息 (is_online=1) push_to_all_devices('device_list_changed', {action: 'login'}) 推送设备列表变化事件 触发 device-list-changed 事件 刷新设备列表 返回 access_token 保存token 初始化SSE连接
3.2 后端登录接口实现
文件 : routes/auth.py
python
@auth_bp.route('/login', methods=['POST'])
def login():
"""用户登录（用户名密码或手机号验证码）"""
data = request.get_json()
login_type = data.get('type', 'password')
device_id = data.get('device_id')
device_name = data.get('device_name', '未知设备')
device_type = data.get('device_type', 'h5')
public_ip = data.get('public_ip')
login_address = data.get('login_address')
if login_type == 'password':
username = data.get('username')
password = data.get('password')
user = User.query.filter_by(username=username).first()
if user and check_password_hash(user.password_hash, password):
if not user.is_active:
return jsonify({"msg": "账号未激活，请先验证您的邮箱", "need_verification": True}), 403
# 生成JWT token，包含device_id
access_token = create_access_token(
identity=str(user.id),
additional_claims={'device_id': device_id}
)
# 保存设备信息
save_device_info(user.id, device_id, device_name, device_type, access_token, public_ip, login_address)
# 通知该用户其他在线设备刷新设备列表
sse_manager.push_to_all_devices(
user.id, 'device_list_changed',
{'device_id': device_id, 'device_name': device_name, 'action': 'login'}
)
return jsonify({
"access_token": access_token,
"user_id": user.id,
"username": user.username
})
return jsonify({"msg": "用户名或密码错误"}), 401
def save_device_info(user_id, device_id, device_name, device_type, token, public_ip=None, login_address=None):
"""保存或更新设备信息"""
try:
device = UserLoginDevice.query.filter_by(user_id=user_id, device_id=device_id).first()
login_ip = public_ip or get_client_ip()
final_address = login_address or get_ip_location(login_ip)
expire_time = get_now() + timedelta(seconds=current_app.config.get('JWT_ACCESS_TOKEN_EXPIRES', 86400))
if device:
device.login_ip = login_ip
device.login_address = final_address
device.login_time = get_now()
device.expire_time = expire_time
device.is_online = 1
device.token = token
device.device_name = device_name
device.device_type = device_type
else:
device = UserLoginDevice(
user_id=user_id,
device_id=device_id,
device_name=device_name,
device_type=device_type,
login_ip=login_ip,
login_address=final_address,
login_time=get_now(),
expire_time=expire_time,
is_online=1,
token=token
)
db.session.add(device)
db.session.commit()
# 登录成功后，从黑名单中移除该设备
device_blacklist.remove(device_id)
except Exception as e:
db.session.rollback()3.3 登出通知流程
其他在线设备 SSE管理器 数据库 后端API 当前设备 其他在线设备 SSE管理器 数据库 后端API 当前设备 POST /logout {X-Device-Id} 查询当前设备记录 返回设备信息 更新设备状态 is_online=0 清空token push_to_all_devices('device_list_changed', {action: 'logout'}) 推送设备列表变化事件 刷新设备列表 返回 "退出登录成功" 清空本地认证信息 跳转登录页
3.4 后端登出接口
python
@device_bp.route('/logout', methods=['POST'])
@jwt_required()
def logout():
"""退出登录（下线当前设备）"""
user_id = get_jwt_identity()
try:
current_device_id = request.headers.get('X-Device-Id')
if not current_device_id:
return jsonify({"msg": "设备ID不能为空"}), 400
device = UserLoginDevice.query.filter_by(
user_id=user_id,
device_id=current_device_id
).first()
if device:
device.is_online = 0
device.last_online_time = get_now()
device.token = None
db.session.commit()
# 通知该用户其他在线设备刷新列表
sse_manager.push_to_all_devices(
user_id, 'device_list_changed',
{'device_id': current_device_id, 'action': 'logout'}
)
else:
current_app.logger.warning(f"未找到设备记录: user_id={user_id}, device_id={current_device_id}")
return jsonify({"msg": "退出登录成功"})
except Exception as e:
db.session.rollback()
return jsonify({"msg": "退出登录失败"}), 5004. 数据模型与状态管理
4.1 设备数据模型
文件 : models/user_login_device.py
python
class UserLoginDevice(db.Model):
"""用户登录设备表"""
__tablename__ = 'user_login_device'
id = db.Column(db.Integer, primary_key=True, autoincrement=True)
user_id = db.Column(db.Integer, db.ForeignKey('user.id'), nullable=False, index=True)
device_id = db.Column(db.String(128), nullable=False, index=True)
device_name = db.Column(db.String(128), nullable=False)
device_type = db.Column(db.String(32), nullable=False)
login_ip = db.Column(db.String(64))
login_address = db.Column(db.String(256))
login_time = db.Column(db.DateTime, default=get_now, nullable=False)
last_online_time = db.Column(db.DateTime)
expire_time = db.Column(db.DateTime)
is_online = db.Column(db.Integer, default=1, nullable=False)
token = db.Column(db.Text)
created_at = db.Column(db.DateTime, default=get_now, nullable=False)
updated_at = db.Column(db.DateTime, default=get_now, onupdate=get_now, nullable=False)4.2 设备状态流转图
初始状态
登录成功
主动登出
被管理员下线
Token过期
SSE断开超时
重新登录
离线
在线
4.3 SSE 连接状态图
开始连接
连接成功
连接失败
收到心跳
收到 sse_exit
心跳超时
客户端主动断开
自动重连
达到最大重连次数
CONNECTING
OPEN
CLOSED

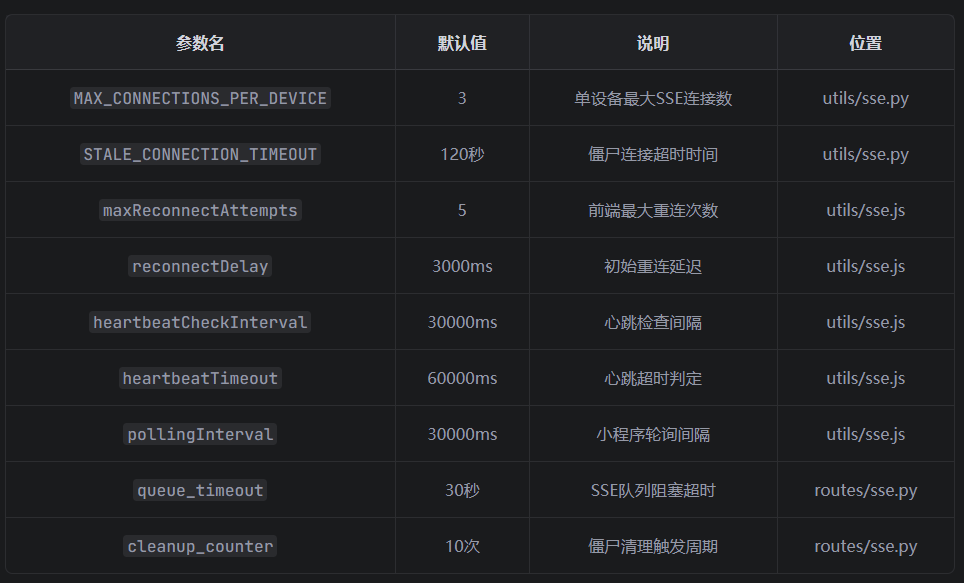

5.核心配置参数表

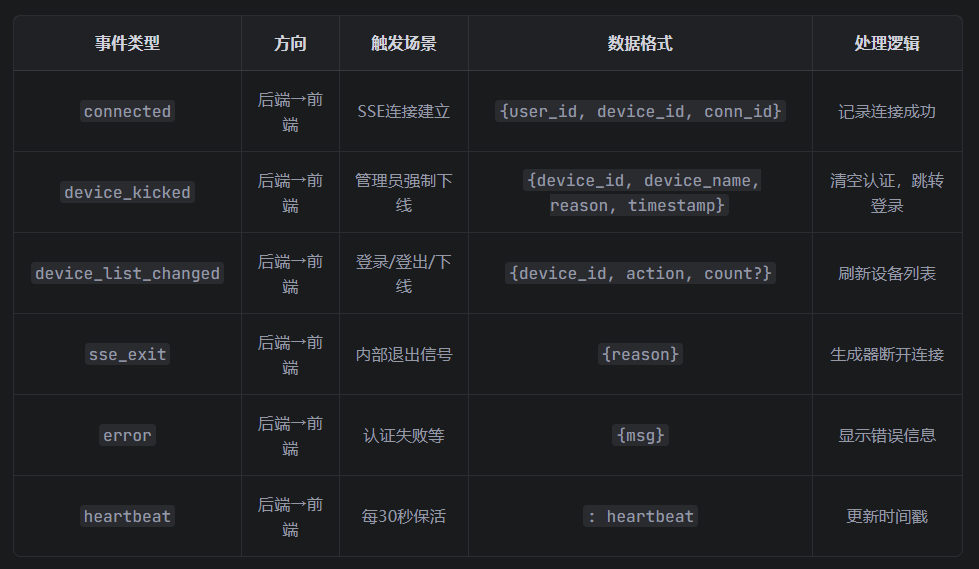

6. 事件类型完整对照表

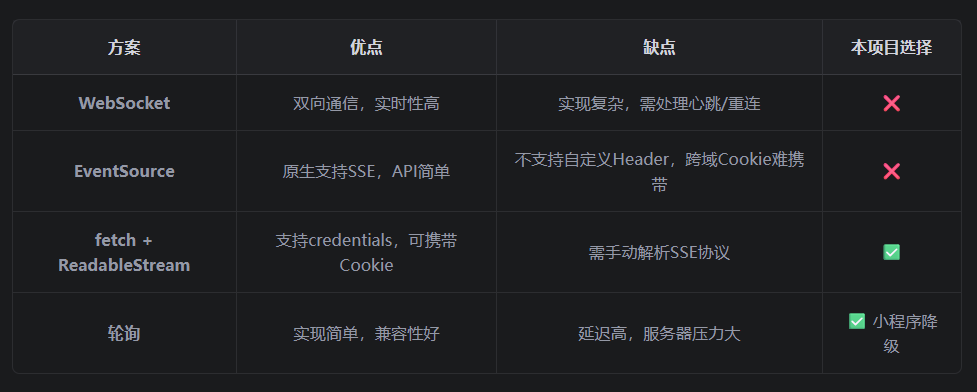

7. 技术选型对比
8. 潜在问题与改进建议
8.1 当前存在的问题
-
device_id 一致性风险
- 登录时： data.get('device_id')
- SSE时： cookies.get('sse_device_id')
- 如果前端两次传入不一致，会导致下线失败
-
消息可靠性
- 使用内存队列，服务重启后消息丢失
- 被踢设备如果SSE已断开，无法收到下线通知
-
竞态条件
- 黑名单写入与SSE推送非原子操作
- 可能出现设备被踢后重新连接成功的情况
8.2 改进建议
1.增加 device_id 一致性校验
python
# 在 subscribe 函数中
jwt_device_id = decoded.get('device_id')
cookie_device_id = request.cookies.get('sse_device_id')
if jwt_device_id and cookie_device_id and jwt_device_id != cookie_device_id:
current_app.logger.error(f"设备ID不匹配！jwt={jwt_device_id}, cookie={cookie_device_id}")2.使用 Redis 做消息队列
- 确保服务重启后消息不丢失
- 支持离线消息补发
3.原子化下线操作
python
# 先清SSE队列，再写黑名单，最后更新数据库
with db.session.begin():
sse_manager.kick_device(...)
device_blacklist.add(...)
device.is_online = 04.增加下线补偿机制
- 被踢设备下次请求时检查黑名单
- 如果在黑名单中，强制登出
9. 完整数据流图
强制下线流程
SSE连接流程
用户登录流程
是
否
用户输入账号密码
前端生成device_id
POST /login
验证成功?
生成JWT token
保存设备信息到DB
SSE广播 device_list_changed
其他设备刷新列表
返回错误
App启动
检查token存在
POST /sse/set-cookie
GET /sse/subscribe
注册SSE连接
返回EventStream
派发connected事件
启动心跳检测
管理员点击下线
DELETE /devices/id
写入黑名单
SSE推送 device_kicked
被踢设备清空认证
跳转登录页
更新DB is_online=0
SSE广播 device_list_changed
其他设备刷新列表
