前言
在Kubernetes集群微服务架构中，服务对外暴露与流量路由是网络治理的核心环节。传统NodePort、LoadBalancer暴露方式存在端口杂乱、成本偏高、路由不灵活等短板。Ingress作为K8s核心网络资源对象，依托七层代理能力，实现域名与路径路由、负载均衡及证书统一管理，成为集群外部流量接入的关键入口。本文将全面解析Ingress核心原理、规则配置与实战应用
一、Ingress基础知识
1.1 Ingress是什么
Ingress 是 K8s 集群的七层HTTP/HTTPS流量入口，负责外部访问进集群的路由规则
1，之前讲的的 Service（NodePort/ClusterIP）是四层转发，只做端口转发，不能按域名、路径分发
2，Ingress 工作在 7层 ，可以按 域名、URL路径 把请求转发到不同 Service
3，本身只是 路由规则配置 ，真正转发流量靠 Ingress Controller （如 Nginx-Ingress）
4，还能统一配置 域名、SSL证书、限流、重写、负载均衡，替代多个 NodePort，更规范好维护
对service不了解的小伙伴可以看我这篇文章https://blog.csdn.net/m0_63756214/article/details/160856966?spm=1001.2014.3001.5501
1.2 Ingress Controller是什么
Ingress 只是一段规则配置（yaml资源对象），本身不会处理流量
Ingress Controller 是真正干活的程序 ，一般以 Pod 形式跑在集群里，比如 Nginx Ingress Controller
它的作用：
实时监听 K8s 里所有 Ingress 规则，自动把规则转换成 Nginx 配置，真正接管、转发七层HTTP/HTTPS流量
访问链路：外网请求 → Ingress Controller(Pod) → 匹配 Ingress规则 → Service → 后端Pod
1.3 Ingress和service区别
| 对比维度 | Service | Ingress |
|---|---|---|
| 网络层级 | 四层 TCP/UDP | 七层 HTTP/HTTPS |
| 核心作用 | 集群内部服务发现、Pod负载均衡 | 集群外部流量入口、HTTP路由分发 |
| 路由能力 | 仅IP+端口转发，不支持域名、路径 | 支持域名匹配、URL路径路由、请求重写 |
| 适用场景 | 集群内部服务互访、TCP长连接、非HTTP业务 | 对外暴露Web服务、多域名统一接入、HTTPS证书统一管理 |
| 依赖关系 | 直接关联Pod，可独立使用 | 不能直接连Pod，必须依赖Service作为后端 |
| 附加功能 | 无高级HTTP特性 | 支持SSL卸载、限流、灰度发布、路径重写 |
二、Ingress实战
2.1 http代理pod
创建Ingress Controller
yaml
## 1. 直接运行官方标准完整版 Nginx Ingress Controller 部署清单（我没有这样做），官网下载的可能需要改
root@k8s-master1:~# kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.15.1/deploy/static/provider/cloud/deploy.yaml
yaml
## 2. 我是先下载了这个yaml，然后查看并修改了一下内容，可以直接运行
root@k8s-master1:~# wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.15.1/deploy/static/provider/cloud/deploy.yaml
root@k8s-master1:~# ls
deploy.yaml
yaml
root@k8s-master1:~# vim ingress-deploy.yaml
apiVersion: v1
kind: Namespace
metadata:
name: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
---
# Source: ingress-nginx/templates/controller-serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx
namespace: ingress-nginx
automountServiceAccountToken: true
---
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
data:
allow-snippet-annotations: 'true'
---
# Source: ingress-nginx/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
name: ingress-nginx
rules:
- apiGroups:
- ''
resources:
- configmaps
- endpoints
- nodes
- pods
- secrets
- namespaces
verbs:
- list
- watch
- apiGroups:
- ''
resources:
- nodes
verbs:
- get
- apiGroups:
- ''
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- ''
resources:
- events
verbs:
- create
- patch
- apiGroups:
- networking.k8s.io
resources:
- ingresses/status
verbs:
- update
- apiGroups:
- networking.k8s.io
resources:
- ingressclasses
verbs:
- get
- list
- watch
---
# Source: ingress-nginx/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
name: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: ingress-nginx
subjects:
- kind: ServiceAccount
name: ingress-nginx
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx
namespace: ingress-nginx
rules:
- apiGroups:
- ''
resources:
- namespaces
verbs:
- get
- apiGroups:
- ''
resources:
- configmaps
- pods
- secrets
- endpoints
verbs:
- get
- list
- watch
- apiGroups:
- ''
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- networking.k8s.io
resources:
- ingresses/status
verbs:
- update
- apiGroups:
- networking.k8s.io
resources:
- ingressclasses
verbs:
- get
- list
- watch
- apiGroups:
- ''
resources:
- configmaps
resourceNames:
- ingress-controller-leader
verbs:
- get
- update
- apiGroups:
- ''
resources:
- configmaps
verbs:
- create
- apiGroups:
- ''
resources:
- events
verbs:
- create
- patch
---
# Source: ingress-nginx/templates/controller-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx
namespace: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: ingress-nginx
subjects:
- kind: ServiceAccount
name: ingress-nginx
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-service-webhook.yaml
apiVersion: v1
kind: Service
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller-admission
namespace: ingress-nginx
spec:
type: ClusterIP
ports:
- name: https-webhook
port: 443
targetPort: webhook
appProtocol: https
selector:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-service.yaml
apiVersion: v1
kind: Service
metadata:
annotations:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
spec:
type: NodePort
ipFamilyPolicy: SingleStack
ipFamilies:
- IPv4
ports:
- name: http
port: 80
protocol: TCP
targetPort: http
appProtocol: http
- name: https
port: 443
protocol: TCP
targetPort: https
appProtocol: https
selector:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
spec:
replicas: 2
selector:
matchLabels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
revisionHistoryLimit: 10
minReadySeconds: 0
template:
metadata:
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
spec:
hostNetwork: true
affinity:
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 100
podAffinityTerm:
labelSelector:
matchLabels:
app.kubernetes.io/name: ingress-nginx
topologyKey: kubernetes.io/hostname
dnsPolicy: ClusterFirstWithHostNet
containers:
- name: controller
image: registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:v1.1.0
imagePullPolicy: IfNotPresent
lifecycle:
preStop:
exec:
command:
- /wait-shutdown
args:
- /nginx-ingress-controller
- --election-id=ingress-controller-leader
- --controller-class=k8s.io/ingress-nginx
- --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
- --validating-webhook=:8443
- --validating-webhook-certificate=/usr/local/certificates/cert
- --validating-webhook-key=/usr/local/certificates/key
securityContext:
capabilities:
drop:
- ALL
add:
- NET_BIND_SERVICE
runAsUser: 101
allowPrivilegeEscalation: true
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: LD_PRELOAD
value: /usr/local/lib/libmimalloc.so
livenessProbe:
failureThreshold: 5
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 1
readinessProbe:
failureThreshold: 3
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 1
ports:
- name: http
containerPort: 80
protocol: TCP
- name: https
containerPort: 443
protocol: TCP
- name: webhook
containerPort: 8443
protocol: TCP
volumeMounts:
- name: webhook-cert
mountPath: /usr/local/certificates/
readOnly: true
resources:
requests:
cpu: 100m
memory: 90Mi
nodeSelector:
kubernetes.io/os: linux
serviceAccountName: ingress-nginx
terminationGracePeriodSeconds: 300
volumes:
- name: webhook-cert
secret:
secretName: ingress-nginx-admission
---
# Source: ingress-nginx/templates/controller-ingressclass.yaml
# We don't support namespaced ingressClass yet
# So a ClusterRole and a ClusterRoleBinding is required
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: nginx
namespace: ingress-nginx
spec:
controller: k8s.io/ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml
# before changing this value, check the required kubernetes version
# https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
name: ingress-nginx-admission
webhooks:
- name: validate.nginx.ingress.kubernetes.io
matchPolicy: Equivalent
rules:
- apiGroups:
- networking.k8s.io
apiVersions:
- v1
operations:
- CREATE
- UPDATE
resources:
- ingresses
failurePolicy: Fail
sideEffects: None
admissionReviewVersions:
- v1
clientConfig:
service:
namespace: ingress-nginx
name: ingress-nginx-controller-admission
path: /networking/v1/ingresses
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: ingress-nginx-admission
namespace: ingress-nginx
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: ingress-nginx-admission
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
rules:
- apiGroups:
- admissionregistration.k8s.io
resources:
- validatingwebhookconfigurations
verbs:
- get
- update
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: ingress-nginx-admission
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
name: ingress-nginx-admission
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: ingress-nginx-admission
namespace: ingress-nginx
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
rules:
- apiGroups:
- ''
resources:
- secrets
verbs:
- get
- create
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: ingress-nginx-admission
namespace: ingress-nginx
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
name: ingress-nginx-admission
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: ingress-nginx-admission-create
namespace: ingress-nginx
annotations:
helm.sh/hook: pre-install,pre-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
template:
metadata:
name: ingress-nginx-admission-create
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
containers:
- name: create
image: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.1.1
imagePullPolicy: IfNotPresent
args:
- create
- --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
- --namespace=$(POD_NAMESPACE)
- --secret-name=ingress-nginx-admission
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
securityContext:
allowPrivilegeEscalation: false
restartPolicy: OnFailure
serviceAccountName: ingress-nginx-admission
nodeSelector:
kubernetes.io/os: linux
securityContext:
runAsNonRoot: true
runAsUser: 2000
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: ingress-nginx-admission-patch
namespace: ingress-nginx
annotations:
helm.sh/hook: post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
template:
metadata:
name: ingress-nginx-admission-patch
labels:
helm.sh/chart: ingress-nginx-4.0.10
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 1.1.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
containers:
- name: patch
image: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.1.1
imagePullPolicy: IfNotPresent
args:
- patch
- --webhook-name=ingress-nginx-admission
- --namespace=$(POD_NAMESPACE)
- --patch-mutating=false
- --secret-name=ingress-nginx-admission
- --patch-failure-policy=Fail
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
securityContext:
allowPrivilegeEscalation: false
restartPolicy: OnFailure
serviceAccountName: ingress-nginx-admission
nodeSelector:
kubernetes.io/os: linux
securityContext:
runAsNonRoot: true
runAsUser: 2000
yaml
root@k8s-master1:~# kubectl apply -f deploy.yaml
root@k8s-master1:~# kubectl get pod -n ingress-nginx
NAME READY STATUS RESTARTS AGE
ingress-nginx-admission-create-gczfr 0/1 Completed 0 35s
ingress-nginx-admission-patch-zq242 0/1 Completed 0 35s
ingress-nginx-controller-68d5d5f554-248mv 0/1 Running 0 35s
ingress-nginx-controller-68d5d5f554-8btj9 0/1 Running 0 35s创建ingress
yaml
## 创建Deployment，然后创建service暴露端口，再创建ingress设置转发规则，就可以实现七层负载均衡
root@k8s-master1:~# vim ingress-deploy-tomcat.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: tomcat-deploy
spec:
selector:
matchLabels:
app: tomcat
replicas: 2
template:
metadata:
labels:
app: tomcat
spec:
containers:
- name: tomcat
image: tomcat:8.0.45
---
apiVersion: v1
kind: Service
metadata:
name: tomcat-service
spec:
ports:
- port: 8080
name: http
targetPort: 8080
selector:
app: tomcat
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-tomcat
spec:
ingressClassName: nginx # 指定使用 nginx ingress 控制器
rules: # 域名转发规则表
- host: www.jack.com # 匹配的域名，访问www.jack.com就会走下面
http: # Ingress内部转发到后端Service时用 HTTP 协议，一般都是http
paths:
- path: / # 匹配根路径
pathType: Prefix # 前缀匹配
# 转发到哪里
backend:
service:
name: tomcat-service
port:
number: 8080 # 转发到service的8080
yaml
root@k8s-master1:~# kubectl apply -f ingress-deploy-tomcat.yaml
root@k8s-master1:~# kubectl get ingress
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress-tomcat nginx www.jack.com 192.168.13.139,192.168.13.140 80 51s
root@k8s-master1:~# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
tomcat-deploy-64485964bf-ll65h 1/1 Running 0 58s 10.244.36.82 k8s-node1 <none> <none>
tomcat-deploy-64485964bf-m4cxn 1/1 Running 0 58s 10.244.169.158 k8s-node2 <none> <none>
## http 80 = ingress-nginx 自己监听的内部端口，集群内部用的端口;https 443一样的道理
## 32737 = 宿主机暴露的端口，外部入口；如果使用https则30101是外部入口
root@k8s-master1:~# kubectl get svc -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller NodePort 10.99.9.141 <none> 80:32737/TCP,443:30101/TCP 10m
ingress-nginx-controller-admission ClusterIP 10.96.203.208 <none> 443/TCP 10m
## 这里我修改了两个tomcat的页面，方便待会观察
root@k8s-master1:~# curl 10.244.36.82:8080
1111111
root@k8s-master1:~# curl 10.244.169.158:8080
22222Ingress 靠域名区分不同业务网站，我们自定义测试域名，公网没有解析

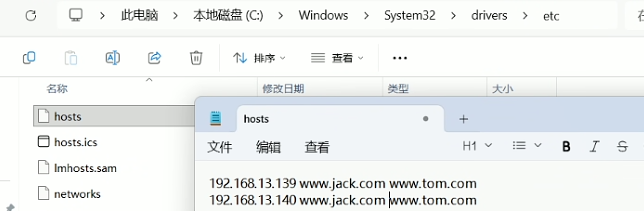

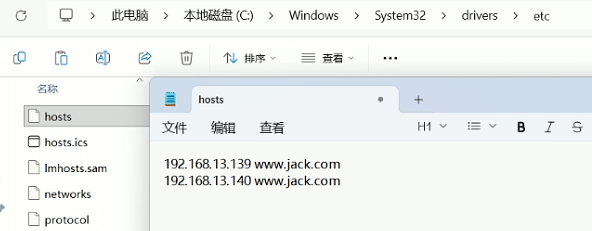

所以必须在电脑 hosts 绑定域名 → node节点ip
192.168.13.139/140是我node节点的ip，也就是k8s-node1和k8s-node2节点的ip

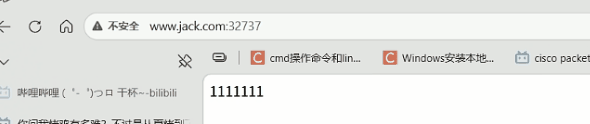

浏览器访问域名:32737，会有轮询效果
上述流程
你的电脑
↓ (访问 www.jack.com:32737)
节点机器（k8s-node1/k8s-node2）
↓ (32737 端口)
ingress-nginx-controller
↓ (内部 80 端口)
Ingress 规则（www.jack.com）
↓
tomcat-service
↓ (8080 端口)
Tomcat Pod（8080 端口）
2.2 https代理pod
由于上一步已经创建过ingress controller，所以这一次不用创建
创建tls证书
yaml
## 1. 生成私钥文件 tls.key
root@k8s-master1:~# openssl genrsa -out tls.key 2048
## 2. 生成证书文件 tls.crt
root@k8s-master1:~# openssl req -new -x509 -key tls.key -out tls.crt -subj /C=CN/ST=Beijing/L=Beijing/O=DevOps/CN=www.jack.com
root@k8s-master1:~# cat tls.crt | base64 -w 0 # 复制显示的内容
root@k8s-master1:~# cat tls.key | base64 -w 0 # 复制显示的内容
## 3. 创建secret存放私钥证书
root@k8s-master1:~# vim secret.yaml
# 用来存储 https 证书的 Secret
apiVersion: v1
kind: Secret
metadata:
# 名字和你命令里一致
name: tomcat-ingress-secret
namespace: default
# 类型：tls 证书（固定写法）
type: kubernetes.io/tls
# 证书内容（必须是 base64 编码）
data:
# 把你本地 tls.crt 文件内容 base64 编码后填在这里
tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURrekNDQW51Z0F3SUJBZ0lVUHhse...
# 把你本地 tls.key 文件内容 base64 编码后填在这里
tls.key: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS...
root@k8s-master1:~# kubectl apply -f secret.yaml
root@k8s-master1:~# kubectl get secret
NAME TYPE DATA AGE
tomcat-ingress-secret kubernetes.io/tls 2 4s创建ingress
yaml
# 创建ingress，由于上面已经创建过pod和service，这里可以和上面共用
root@k8s-master1:~# vim ingress-tomcat-tls.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-tomcat-tls
spec:
ingressClassName: nginx
tls:
- hosts:
- www.tom.com
secretName: tomcat-ingress-secret # 引用私钥证书
rules:
- host: www.tom.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: tomcat-service
port:
number: 8080
root@k8s-master1:~# kubectl apply -f ingress-tomcat-tls.yaml
root@k8s-master1:~# kubectl get ingress
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress-tomcat nginx www.jack.com 192.168.13.139,192.168.13.140 80 93m
ingress-tomcat-tls nginx www.tom.com 192.168.13.139,192.168.13.140 80, 443 104s在电脑上做解析

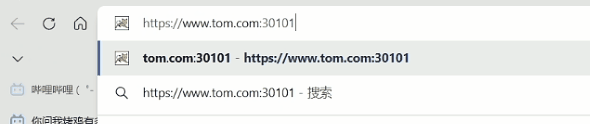

浏览器访问https://域名:30101
注：
文中若有疏漏，欢迎大家指正赐教。
本文为100%原创，转载请务必标注原创作者，尊重劳动成果。
求赞、求关注、求评论！你的支持是我更新的最大动力，评论区等你～
