在cursor中配置c/c++开发环境

安装插件

1. c/c++插件 ms-vscode.cpptools
   C++拓展新版本不支持cursor，需要将版本退回到1.23.6之前的，如果无法安装回退版本，解决方案是下载github源码上特定版本的visx文件。v1.23.6
   例如本次使用的就是cpptools-windows-x64.vsix
2. cmake插件 ms-vscode.cmake-tools

配置文件

1. launch.json

{
	"version": "0.2.0",
	"configurations": [
		{
			"name": "Debug mine-cpp",
			"type": "cppdbg",
			"request": "launch",
			"program": "${workspaceFolder}/build/mine-cpp.exe",
			"cwd": "${workspaceFolder}",
			"MIMode": "gdb",
			"miDebuggerPath": "C:/MinGW/bin/gdb.exe",
			"preLaunchTask": "CMake: build"
		}
	]
}

2. settings.json

{
	"cmake.cmakePath": "C:/Program Files/CMake/bin/cmake.exe",
	"cmake.sourceDirectory": "${workspaceFolder}",
	"cmake.useCMakePresets": "always",
	"cmake.environment": {
		"PATH": "C:\\MinGW\\bin;C:\\Program Files\\CMake\\bin;${env:PATH}"
	},
	"cmake.enableLanguageServices": true,
	"terminal.integrated.env.windows": {
		"PATH": "C:\\MinGW\\bin;C:\\Program Files\\CMake\\bin;${env:PATH}"
	},
	"C_Cpp.default.compileCommands": "${workspaceFolder}/build/compile_commands.json",
	"C_Cpp.default.compilerPath": "C:/MinGW/bin/g++.exe",
	"C_Cpp.default.cppStandard": "c++17",
	"C_Cpp.default.intelliSenseMode": "windows-gcc-x64"
}

3. tasks.json

{
	"version": "2.0.0",
	"tasks": [
		{
			"label": "CMake: build",
			"type": "shell",
			"command": "cmake",
			"args": ["--build", "${workspaceFolder}/build"],
			"options": {
				"cwd": "${workspaceFolder}",
				"env": {
					"PATH": "C:\\MinGW\\bin;C:\\Program Files\\CMake\\bin;${env:PATH}"
				}
			},
			"group": { "kind": "build", "isDefault": true },
			"problemMatcher": ["$gcc"]
		},
		{
			"label": "CMake: clean",
			"type": "shell",
			"command": "cmake",
			"args": ["--build", "${workspaceFolder}/build", "--target", "clean"],
			"options": {
				"cwd": "${workspaceFolder}",
				"env": {
					"PATH": "C:\\MinGW\\bin;C:\\Program Files\\CMake\\bin;${env:PATH}"
				}
			},
			"problemMatcher": []
		}
	]
}

4. CMakeLists.txt

cmake_minimum_required(VERSION 3.16)
project(mine-cpp LANGUAGES CXX)

set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)
set(CMAKE_CXX_EXTENSIONS OFF)
set(CMAKE_EXPORT_COMPILE_COMMANDS ON)

add_executable(mine-cpp src/main.cpp src/byte_demo.cpp)

5. CMakePresets.json

{
	"version": 3,
	"configurePresets": [
		{
			"name": "mingw-debug",
			"displayName": "MinGW Makefiles --- Debug",
			"generator": "MinGW Makefiles",
			"binaryDir": "${sourceDir}/build",
			"cacheVariables": {
				"CMAKE_BUILD_TYPE": "Debug",
				"CMAKE_EXPORT_COMPILE_COMMANDS": "ON",
				"CMAKE_CXX_COMPILER": "C:/MinGW/bin/g++.exe",
				"CMAKE_MAKE_PROGRAM": "C:/MinGW/bin/mingw32-make.exe"
			}
		}
	],
	"buildPresets": [
		{
			"name": "mingw-debug",
			"configurePreset": "mingw-debug"
		}
	]
}

配置cmake预设

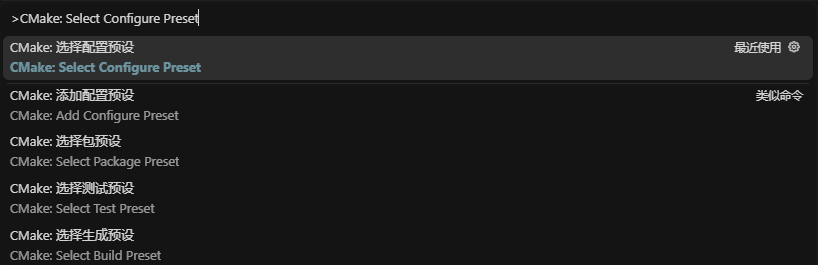

1. ctrl+shift+p,输入CMake: Select Configure Preset


2. 选择MinGW Makefiles --- Debug

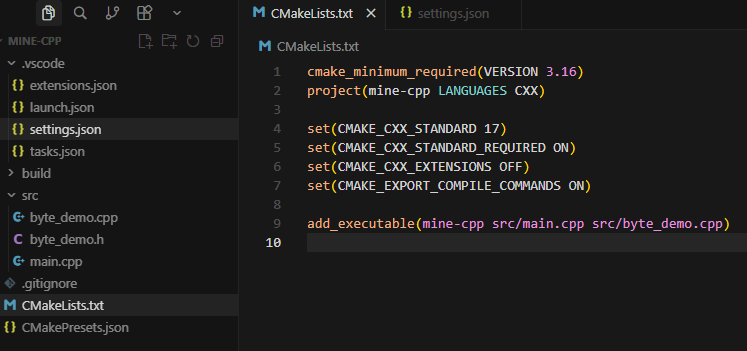

完整结构
