配置RIP动态路由协议

小梦爱安全2026-05-19 12:07

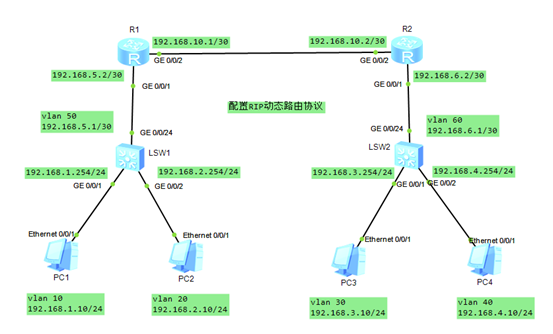

一、网络拓扑

二、实验配置过程

LSW1 配置：

复制代码

<Huawei>sys

[Huawei]sysname LSW1

[LSW1]vlan batch 10 20 30 40 50 60

[LSW1]int Vlan 10

[LSW1-Vlanif10]ip address 192.168.1.254 24

[LSW1-Vlanif10]int vlan 20

[LSW1-Vlanif20]ip address 192.168.2.254 24

[LSW1-Vlanif20]int vlan 50

[LSW1-Vlanif50]ip address 192.168.5.1 30

//启动rip路由协议

[LSW1]rip

[LSW1-rip-1]network 192.168.1.0

[LSW1-rip-1]network 192.168.2.0

[LSW1-rip-1]network 192.168.5.0



[LSW1]int g0/0/1

[LSW1-GigabitEthernet0/0/1]port link-type access

[LSW1-GigabitEthernet0/0/1]port default vlan 10

[LSW1-GigabitEthernet0/0/1]int g0/0/2

[LSW1-GigabitEthernet0/0/2]port link-type access

[LSW1-GigabitEthernet0/0/2]port default vlan 20

[LSW1-GigabitEthernet0/0/2]int g0/0/24

[LSW1-GigabitEthernet0/0/24]port link-type access

[LSW1-GigabitEthernet0/0/24]port default vlan 50

LSW2 配置：

复制代码

<Huawei>sys

[Huawei]sysname LSW2

[LSW2]vlan batch 10 20 30 40 50 60

[LSW2]int Vlan 30

[LSW2-Vlanif30]ip address 192.168.3.254 24

[LSW2-Vlanif40]int vlan 40

[LSW2-Vlanif40]ip address 192.168.4.254 24

[LSW2-Vlanif40]int vlan 60

[LSW2-Vlanif60]ip address 192.168.6.1 30

//启动rip路由协议

[LSW2]rip

[LSW2-rip-1]network 192.168.3.0

[LSW2-rip-1]network 192.168.4.0

[LSW2-rip-1]network 192.168.6.0



[LSW2]int g0/0/1

[LSW2-GigabitEthernet0/0/1]port link-type access

[LSW2-GigabitEthernet0/0/1]port default vlan 30

[LSW2-GigabitEthernet0/0/1]int g0/0/2

[LSW2-GigabitEthernet0/0/2]port link-type access

[LSW2-GigabitEthernet0/0/2]port default vlan 40

[LSW2-GigabitEthernet0/0/2]int g0/0/24

[LSW2-GigabitEthernet0/0/24]port link-type access

[LSW2-GigabitEthernet0/0/24]port default vlan 60

R1 配置：

复制代码

<Huawei>sys

[Huawei]sysname R1

[R1]int g0/0/1

[R1-GigabitEthernet0/0/1]ip address 192.168.5.2 30

[R1-GigabitEthernet0/0/1]int g0/0/2

[R1-GigabitEthernet0/0/2]ip address 192.168.10.1 30

//启动rip路由协议,发布网段

[R1]rip

[R1-rip-1]network 192.168.5.0

[R1-rip-1]network 192.168.10.0

R2 配置：

复制代码

<Huawei>sys

[Huawei]sysname R2

[R2]int g0/0/1

[R2-GigabitEthernet0/0/1]ip address 192.168.6.2 30

[R2-GigabitEthernet0/0/1]int g0/0/2

[R2-GigabitEthernet0/0/2]ip address 192.168.10.2 30

//启动rip路由协议,发布网段

[R2]rip

[R2-rip-1]network 192.168.6.0

[R2-rip-1]network 192.168.10.0

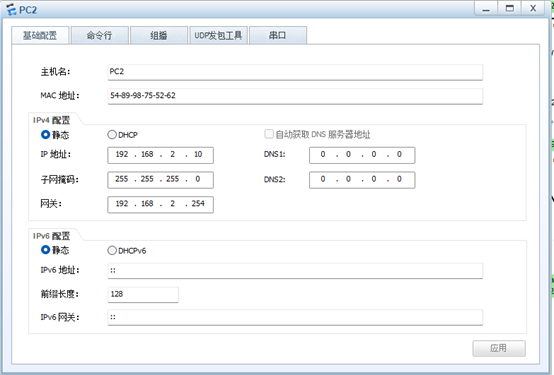

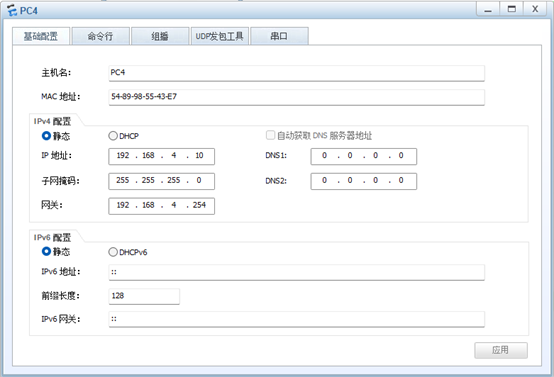

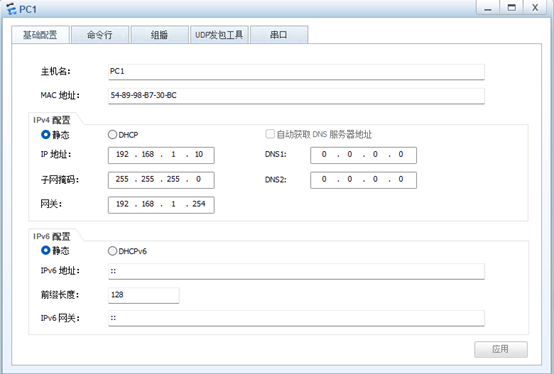

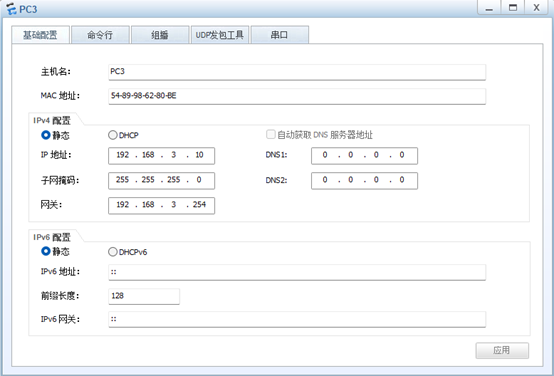

PC1 、PC2、PC3、PC4配置：

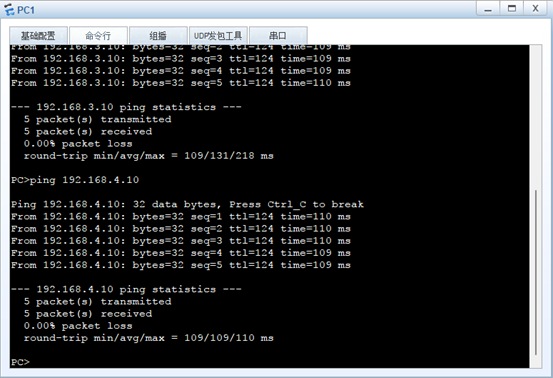

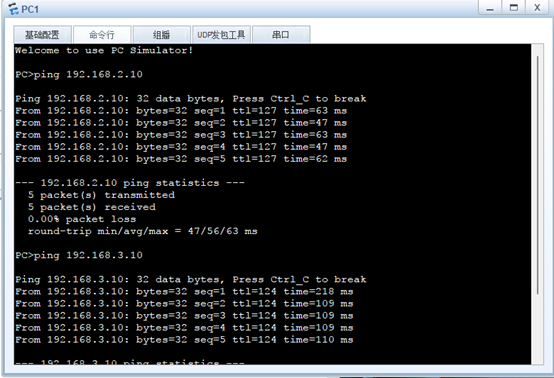

三、结果测试
