StreamX(StreamPark 2.1.7) 更改人大金仓KES数据存储-Docker 版

斯普润布特2026-05-26 11:35

  • 下载StreamPark 2.1.7（官方下载地址、csdn下载地址）

    bash 复制代码
    wget https://www.apache.org/dyn/closer.lua/streampark/2.1.7/apache-streampark_2.12-2.1.7-bin.tar.gz?action=download

  • 文件名恢复

    bash 复制代码
    mv "apache-streampark_2.12-2.1.7-bin.tar.gz?action=download" apache-streampark_2.12-2.1.7-bin.tar.gz

  • 解压

    bash 复制代码
     tar -zxvf  apache-streampark_2.12-2.1.7-bin.tar.gz

  • SQL准备(支持人大金仓运行的hsql)

    sql 复制代码
    -- t_access_token DDL
DROP TABLE IF EXISTS "t_access_token";
CREATE TABLE "t_access_token" (
"id" bigint NOT NULL,
"user_id" bigint,
"token" varchar(1024),
"expire_time" timestamp(0),
"description" varchar(255),
"status" smallint,
"create_time" timestamp(0),
"modify_time" timestamp(0),
CONSTRAINT "t_access_token_pkey" PRIMARY KEY ("id"));

-- t_alert_config DDL
DROP TABLE IF EXISTS "t_alert_config";
CREATE SEQUENCE IF NOT EXISTS "t_alert_config_id_seq";
CREATE TABLE "t_alert_config" (
"id" bigint NOT NULL DEFAULT nextval('t_alert_config_id_seq'::regclass),
"user_id" bigint,
"alert_name" varchar(128),
"alert_type" integer DEFAULT 0,
"email_params" varchar(255),
"sms_params" text,
"ding_talk_params" text,
"we_com_params" varchar(255),
"http_callback_params" text,
"lark_params" text,
"create_time" timestamp(0),
"modify_time" timestamp(0),
CONSTRAINT "t_alert_config_pkey" PRIMARY KEY ("id"));

-- t_app_backup DDL
DROP TABLE IF EXISTS "t_app_backup";
CREATE SEQUENCE IF NOT EXISTS "t_app_backup_id_seq";
CREATE TABLE "t_app_backup" (
"id" bigint NOT NULL DEFAULT nextval('t_app_backup_id_seq'::regclass),
"app_id" bigint,
"sql_id" bigint,
"config_id" bigint,
"version" integer,
"path" text,
"description" varchar(255),
"create_time" timestamp(0),
CONSTRAINT "t_app_backup_pkey" PRIMARY KEY ("id"));

-- t_app_build_pipe DDL
DROP TABLE IF EXISTS "t_app_build_pipe";
CREATE TABLE "t_app_build_pipe" (
"app_id" bigint NOT NULL,
"pipe_type" smallint,
"pipe_status" smallint,
"cur_step" smallint,
"total_step" smallint,
"steps_status" text,
"steps_status_ts" text,
"error" text,
"build_result" text,
"modify_time" timestamp(0),
CONSTRAINT "t_app_build_pipe_pkey" PRIMARY KEY ("app_id"));

-- t_external_link DDL
DROP TABLE IF EXISTS "t_external_link";
CREATE SEQUENCE IF NOT EXISTS "t_external_link_id_seq";
CREATE TABLE "t_external_link" (
"id" bigint NOT NULL DEFAULT nextval('t_external_link_id_seq'::regclass),
"badge_label" varchar(64),
"badge_name" varchar(64),
"badge_color" varchar(64),
"link_url" text,
"create_time" timestamp(0),
"modify_time" timestamp(0),
CONSTRAINT "t_external_link_pkey" PRIMARY KEY ("id"));

-- t_flink_app DDL
DROP TABLE IF EXISTS "t_flink_app";
CREATE SEQUENCE IF NOT EXISTS "t_flink_app_id_seq";
CREATE TABLE "t_flink_app" (
"id" bigint NOT NULL DEFAULT nextval('t_flink_app_id_seq'::regclass),
"team_id" bigint NOT NULL,
"job_type" smallint,
"execution_mode" smallint,
"resource_from" smallint,
"project_id" bigint,
"job_name" varchar(255),
"module" varchar(255),
"jar" varchar(255),
"jar_check_sum" bigint,
"main_class" varchar(255),
"dependency" text,
"args" text,
"options" text,
"hot_params" text,
"user_id" bigint,
"app_type" smallint,
"duration" bigint,
"job_id" varchar(64),
"job_manager_url" varchar(255),
"version_id" bigint,
"cluster_id" varchar(45),
"k8s_namespace" varchar(63),
"flink_image" varchar(128),
"state" integer,
"restart_size" integer,
"restart_count" integer,
"cp_threshold" integer,
"cp_max_failure_interval" integer,
"cp_failure_rate_interval" integer,
"cp_failure_action" smallint,
"dynamic_properties" text,
"description" varchar(255),
"resolve_order" smallint,
"k8s_rest_exposed_type" smallint,
"jm_memory" integer,
"tm_memory" integer,
"total_task" integer,
"total_tm" integer,
"total_slot" integer,
"available_slot" integer,
"option_state" smallint,
"tracking" smallint,
"create_time" timestamp(0),
"modify_time" timestamp(0),
"option_time" timestamp(0),
"release" smallint DEFAULT 1,
"build" smallint DEFAULT 1,
"start_time" timestamp(0),
"end_time" timestamp(0),
"alert_id" bigint,
"k8s_pod_template" text,
"k8s_jm_pod_template" text,
"k8s_tm_pod_template" text,
"k8s_hadoop_integration" smallint DEFAULT 0,
"flink_cluster_id" bigint,
"ingress_template" text,
"default_mode_ingress" text,
"tags" varchar(500),
CONSTRAINT "t_flink_app_pkey" PRIMARY KEY ("id"));

-- t_flink_cluster DDL
DROP TABLE IF EXISTS "t_flink_cluster";
CREATE SEQUENCE IF NOT EXISTS "t_flink_cluster_id_seq";
CREATE TABLE "t_flink_cluster" (
"id" bigint NOT NULL DEFAULT nextval('t_flink_cluster_id_seq'::regclass),
"address" varchar(150),
"cluster_id" varchar(45),
"cluster_name" varchar(128) NOT NULL,
"options" text,
"yarn_queue" varchar(128),
"execution_mode" smallint NOT NULL DEFAULT 1,
"version_id" bigint NOT NULL,
"k8s_namespace" varchar(63) DEFAULT 'default'::varchar,
"service_account" varchar(64),
"description" varchar(255),
"user_id" bigint,
"flink_image" varchar(128),
"dynamic_properties" text,
"k8s_rest_exposed_type" smallint DEFAULT 2,
"k8s_hadoop_integration" smallint DEFAULT 0,
"k8s_conf" varchar(255),
"resolve_order" integer,
"exception" text,
"cluster_state" smallint DEFAULT 0,
"create_time" timestamp(0),
CONSTRAINT "t_flink_cluster_pkey" PRIMARY KEY ("id"));

-- t_flink_config DDL
DROP TABLE IF EXISTS "t_flink_config";
CREATE SEQUENCE IF NOT EXISTS "t_flink_config_id_seq";
CREATE TABLE "t_flink_config" (
"id" bigint NOT NULL DEFAULT nextval('t_flink_config_id_seq'::regclass),
"app_id" bigint NOT NULL,
"format" smallint NOT NULL DEFAULT 0,
"version" integer NOT NULL,
"latest" smallint NOT NULL DEFAULT 0,
"content" text NOT NULL,
"create_time" timestamp(0),
CONSTRAINT "t_flink_config_pkey" PRIMARY KEY ("id"));

-- t_flink_effective DDL
DROP TABLE IF EXISTS "t_flink_effective";
CREATE SEQUENCE IF NOT EXISTS "t_flink_effective_id_seq";
CREATE TABLE "t_flink_effective" (
"id" bigint NOT NULL DEFAULT nextval('t_flink_effective_id_seq'::regclass),
"app_id" bigint NOT NULL,
"target_type" smallint NOT NULL,
"target_id" bigint NOT NULL,
"create_time" timestamp(0),
CONSTRAINT "t_flink_effective_pkey" PRIMARY KEY ("id"));

-- t_flink_env DDL
DROP TABLE IF EXISTS "t_flink_env";
CREATE SEQUENCE IF NOT EXISTS "t_flink_env_id_seq";
CREATE TABLE "t_flink_env" (
"id" bigint NOT NULL DEFAULT nextval('t_flink_env_id_seq'::regclass),
"flink_name" varchar(128) NOT NULL,
"flink_home" varchar(255) NOT NULL,
"version" varchar(64) NOT NULL,
"scala_version" varchar(64) NOT NULL,
"flink_conf" text NOT NULL,
"is_default" smallint NOT NULL DEFAULT 0,
"description" varchar(255),
"create_time" timestamp(0),
CONSTRAINT "t_flink_env_pkey" PRIMARY KEY ("id"));

-- t_flink_log DDL
DROP TABLE IF EXISTS "t_flink_log";
CREATE SEQUENCE IF NOT EXISTS "t_flink_log_id_seq";
CREATE TABLE "t_flink_log" (
"id" bigint NOT NULL DEFAULT nextval('t_flink_log_id_seq'::regclass),
"app_id" bigint,
"yarn_app_id" varchar(64),
"job_manager_url" varchar(255),
"success" smallint,
"exception" text,
"option_time" timestamp(0),
"option_name" smallint,
CONSTRAINT "t_flink_log_pkey" PRIMARY KEY ("id"));

-- t_flink_project DDL
DROP TABLE IF EXISTS "t_flink_project";
CREATE SEQUENCE IF NOT EXISTS "t_flink_project_id_seq";
CREATE TABLE "t_flink_project" (
"id" bigint NOT NULL DEFAULT nextval('t_flink_project_id_seq'::regclass),
"team_id" bigint NOT NULL,
"name" varchar(255),
"url" varchar(255),
"refs" varchar(255),
"user_name" varchar(64),
"password" varchar(64),
"prvkey_path" varchar(128),
"pom" varchar(255),
"build_args" varchar(255),
"type" smallint,
"repository" smallint,
"last_build" timestamp(0),
"description" varchar(255),
"build_state" smallint DEFAULT '-1'::integer,
"create_time" timestamp(0),
"modify_time" timestamp(0),
CONSTRAINT "t_flink_project_pkey" PRIMARY KEY ("id"));

-- t_flink_savepoint DDL
DROP TABLE IF EXISTS "t_flink_savepoint";
CREATE SEQUENCE IF NOT EXISTS "t_flink_savepoint_id_seq";
CREATE TABLE "t_flink_savepoint" (
"id" bigint NOT NULL DEFAULT nextval('t_flink_savepoint_id_seq'::regclass),
"app_id" bigint NOT NULL,
"chk_id" bigint,
"type" smallint,
"path" varchar(255),
"latest" smallint NOT NULL DEFAULT 1,
"trigger_time" timestamp(0),
"create_time" timestamp(0),
CONSTRAINT "t_flink_savepoint_pkey" PRIMARY KEY ("id"));

-- t_flink_sql DDL
DROP TABLE IF EXISTS "t_flink_sql";
CREATE SEQUENCE IF NOT EXISTS "t_flink_sql_id_seq";
CREATE TABLE "t_flink_sql" (
"id" bigint NOT NULL DEFAULT nextval('t_flink_sql_id_seq'::regclass),
"app_id" bigint,
"sql" text,
"dependency" text,
"version" integer,
"candidate" smallint NOT NULL DEFAULT 1,
"create_time" timestamp(0),
CONSTRAINT "t_flink_sql_pkey" PRIMARY KEY ("id"));

-- t_member DDL
DROP TABLE IF EXISTS "t_member";
CREATE SEQUENCE IF NOT EXISTS "t_member_id_seq";
CREATE TABLE "t_member" (
"id" bigint NOT NULL DEFAULT nextval('t_member_id_seq'::regclass),
"team_id" bigint NOT NULL,
"user_id" bigint NOT NULL,
"role_id" bigint NOT NULL,
"create_time" timestamp(0),
"modify_time" timestamp(0),
CONSTRAINT "t_member_pkey" PRIMARY KEY ("id"));

-- t_menu DDL
DROP TABLE IF EXISTS "t_menu";
CREATE SEQUENCE IF NOT EXISTS "t_menu_menu_id_seq";
CREATE TABLE "t_menu" (
"menu_id" bigint NOT NULL DEFAULT nextval('t_menu_menu_id_seq'::regclass),
"parent_id" bigint NOT NULL,
"menu_name" varchar(64) NOT NULL,
"path" varchar(64),
"component" varchar(64),
"perms" varchar(64),
"icon" varchar(64),
"type" bpchar(2),
"display" smallint NOT NULL DEFAULT 1,
"order_num" integer,
"create_time" timestamp(0),
"modify_time" timestamp(0),
CONSTRAINT "t_menu_pkey" PRIMARY KEY ("menu_id"));

-- t_message DDL
DROP TABLE IF EXISTS "t_message";
CREATE SEQUENCE IF NOT EXISTS "t_message_id_seq";
CREATE TABLE "t_message" (
"id" bigint NOT NULL DEFAULT nextval('t_message_id_seq'::regclass),
"app_id" bigint,
"user_id" bigint,
"type" smallint,
"title" varchar(255),
"context" text,
"is_read" smallint DEFAULT 0,
"create_time" timestamp(0),
CONSTRAINT "t_message_pkey" PRIMARY KEY ("id"));

-- t_role DDL
DROP TABLE IF EXISTS "t_role";
CREATE SEQUENCE IF NOT EXISTS "t_role_role_id_seq";
CREATE TABLE "t_role" (
"role_id" bigint NOT NULL DEFAULT nextval('t_role_role_id_seq'::regclass),
"role_name" varchar(64) NOT NULL,
"create_time" timestamp(0),
"modify_time" timestamp(0),
"description" varchar(255),
CONSTRAINT "t_role_pkey" PRIMARY KEY ("role_id"));

-- t_role_menu DDL
DROP TABLE IF EXISTS "t_role_menu";
CREATE SEQUENCE IF NOT EXISTS "t_role_menu_id_seq";
CREATE TABLE "t_role_menu" (
"id" bigint NOT NULL DEFAULT nextval('t_role_menu_id_seq'::regclass),
"role_id" bigint NOT NULL,
"menu_id" bigint NOT NULL,
CONSTRAINT "t_role_menu_pkey" PRIMARY KEY ("id"));

-- t_setting DDL
DROP TABLE IF EXISTS "t_setting";
CREATE TABLE "t_setting" (
"order_num" integer,
"setting_key" varchar(64) NOT NULL,
"setting_value" text,
"setting_name" varchar(255),
"description" varchar(255),
"type" smallint NOT NULL,
CONSTRAINT "t_setting_pkey" PRIMARY KEY ("setting_key"));

-- t_team DDL
DROP TABLE IF EXISTS "t_team";
CREATE SEQUENCE IF NOT EXISTS "t_team_id_seq";
CREATE TABLE "t_team" (
"id" bigint NOT NULL DEFAULT nextval('t_team_id_seq'::regclass),
"team_name" varchar(64) NOT NULL,
"description" varchar(255),
"create_time" timestamp(0),
"modify_time" timestamp(0),
CONSTRAINT "t_team_pkey" PRIMARY KEY ("id"));

-- t_user DDL
DROP TABLE IF EXISTS "t_user";
CREATE SEQUENCE IF NOT EXISTS "t_user_user_id_seq";
CREATE TABLE "t_user" (
"user_id" bigint NOT NULL DEFAULT nextval('t_user_user_id_seq'::regclass),
"username" varchar(64) NOT NULL,
"nick_name" varchar(64) NOT NULL,
"salt" varchar(26),
"password" varchar(64) NOT NULL,
"email" varchar(64),
"user_type" integer NOT NULL,
"login_type" smallint DEFAULT 0,
"last_team_id" bigint,
"status" bpchar(1) NOT NULL,
"create_time" timestamp(0),
"modify_time" timestamp(0),
"last_login_time" timestamp(0),
"sex" bpchar(1),
"avatar" varchar(128),
"description" varchar(255),
CONSTRAINT "t_user_pkey" PRIMARY KEY ("user_id"));

-- t_variable DDL
DROP TABLE IF EXISTS "t_variable";
CREATE SEQUENCE IF NOT EXISTS "t_variable_id_seq";
CREATE TABLE "t_variable" (
"id" bigint NOT NULL DEFAULT nextval('t_variable_id_seq'::regclass),
"variable_code" varchar(128) NOT NULL,
"variable_value" text NOT NULL,
"description" text,
"creator_id" bigint NOT NULL,
"team_id" bigint NOT NULL,
"desensitization" smallint NOT NULL DEFAULT 0,
"create_time" timestamp(0),
"modify_time" timestamp(0),
CONSTRAINT "t_variable_pkey" PRIMARY KEY ("id"));

-- t_yarn_queue DDL
DROP TABLE IF EXISTS "t_yarn_queue";
CREATE SEQUENCE IF NOT EXISTS "t_yarn_queue_id_seq";
CREATE TABLE "t_yarn_queue" (
"id" bigint NOT NULL DEFAULT nextval('t_yarn_queue_id_seq'::regclass),
"team_id" bigint NOT NULL,
"queue_label" varchar(128) NOT NULL,
"description" varchar(255),
"create_time" timestamp(0),
"modify_time" timestamp(0),
CONSTRAINT "t_yarn_queue_pkey" PRIMARY KEY ("id"));

-- t_alert_config Constraints
CREATE INDEX "inx_alert_user" ON "t_alert_config" USING btree ("user_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST);

-- t_flink_app Constraints
CREATE INDEX "inx_job_type" ON "t_flink_app" USING btree ("job_type"  "pg_catalog"."int2_ops" ASC NULLS FIRST);
CREATE INDEX "inx_team" ON "t_flink_app" USING btree ("team_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST);
CREATE INDEX "inx_track" ON "t_flink_app" USING btree ("tracking"  "pg_catalog"."int2_ops" ASC NULLS FIRST);

-- t_flink_cluster Constraints
CREATE UNIQUE INDEX "id_unique" ON "t_flink_cluster" USING btree ("cluster_id" COLLATE "pg_catalog"."ci_x_icu" "pg_catalog"."text_ops" ASC NULLS FIRST,"address" COLLATE "pg_catalog"."ci_x_icu" "pg_catalog"."text_ops" ASC NULLS FIRST,"execution_mode"  "pg_catalog"."int2_ops" ASC NULLS FIRST);

-- t_flink_effective Constraints
CREATE UNIQUE INDEX "un_effective_inx" ON "t_flink_effective" USING btree ("app_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST,"target_type"  "pg_catalog"."int2_ops" ASC NULLS FIRST);

-- t_flink_env Constraints
CREATE UNIQUE INDEX "un_env_name" ON "t_flink_env" USING btree ("flink_name" COLLATE "pg_catalog"."ci_x_icu" "pg_catalog"."text_ops" ASC NULLS FIRST);

-- t_flink_project Constraints
CREATE INDEX "inx_team_idx" ON "t_flink_project" USING btree ("team_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST);

-- t_member Constraints
CREATE UNIQUE INDEX "un_user_team_role_inx" ON "t_member" USING btree ("user_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST,"team_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST,"role_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST);

-- t_message Constraints
CREATE INDEX "inx_mes_user" ON "t_message" USING btree ("user_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST);

-- t_role_menu Constraints
CREATE UNIQUE INDEX "un_role_menu_inx" ON "t_role_menu" USING btree ("role_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST,"menu_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST);

-- t_team Constraints
CREATE UNIQUE INDEX "team_name_idx" ON "t_team" USING btree ("team_name" COLLATE "pg_catalog"."ci_x_icu" "pg_catalog"."text_ops" ASC NULLS FIRST);

-- t_user Constraints
CREATE UNIQUE INDEX "un_username" ON "t_user" USING btree ("username" COLLATE "pg_catalog"."ci_x_icu" "pg_catalog"."text_ops" ASC NULLS FIRST);

-- t_variable Constraints
CREATE UNIQUE INDEX "un_team_vcode_inx" ON "t_variable" USING btree ("team_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST,"variable_code" COLLATE "pg_catalog"."ci_x_icu" "pg_catalog"."text_ops" ASC NULLS FIRST);

-- t_yarn_queue Constraints
CREATE UNIQUE INDEX "unq_team_id_queue_label" ON "t_yarn_queue" USING btree ("team_id"  "pg_catalog"."int8_ops" ASC NULLS FIRST,"queue_label" COLLATE "pg_catalog"."ci_x_icu" "pg_catalog"."text_ops" ASC NULLS FIRST);

-- t_flink_app DML
INSERT INTO "t_flink_app" ("id","team_id","job_type","execution_mode","resource_from","project_id","job_name","module","jar","jar_check_sum","main_class","dependency","args","options","hot_params","user_id","app_type","duration","job_id","job_manager_url","version_id","cluster_id","k8s_namespace","flink_image","state","restart_size","restart_count","cp_threshold","cp_max_failure_interval","cp_failure_rate_interval","cp_failure_action","dynamic_properties","description","resolve_order","k8s_rest_exposed_type","jm_memory","tm_memory","total_task","total_tm","total_slot","available_slot","option_state","tracking","create_time","modify_time","option_time","release","build","start_time","end_time","alert_id","k8s_pod_template","k8s_jm_pod_template","k8s_tm_pod_template","k8s_hadoop_integration","flink_cluster_id","ingress_template","default_mode_ingress","tags") VALUES (100000,100000,2,4,NULL,NULL,'Flink SQL Demo',NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL,100000,1,NULL,NULL,NULL,NULL,NULL,NULL,NULL,0,0,NULL,NULL,NULL,NULL,NULL,NULL,'Flink SQL Demo',0,NULL,NULL,NULL,NULL,NULL,NULL,NULL,0,0,'2026-05-21 17:00:40','2026-05-21 17:00:40',NULL,1,1,NULL,NULL,NULL,NULL,NULL,NULL,0,NULL,NULL,NULL,'streampark,test');
-- t_flink_effective DML
INSERT INTO "t_flink_effective" ("id","app_id","target_type","target_id","create_time") VALUES (100000,100000,2,100000,'2026-05-21 17:00:40');
-- t_flink_project DML
INSERT INTO "t_flink_project" ("id","team_id","name","url","refs","user_name","password","prvkey_path","pom","build_args","type","repository","last_build","description","build_state","create_time","modify_time") VALUES (100000,100000,'streampark-quickstart','https://github.com/apache/streampark-quickstart','release-2.0.0',NULL,NULL,NULL,NULL,NULL,1,1,NULL,'streampark-quickstart',-1,'2026-05-21 17:00:40','2026-05-21 17:00:40');
-- t_flink_sql DML
INSERT INTO "t_flink_sql" ("id","app_id","sql","dependency","version","candidate","create_time") VALUES (100000,100000,'eNqlUUtPhDAQvu+vmFs1AYIHT5s94AaVqGxSSPZIKgxrY2mxrdGfb4GS3c0+LnJo6Mz36syapkmZQpk8vKbQMMt2KOFmAe5rK4Nf3yhrhCwvA1/TTDaqO61UxmooSprlT1PDGkgKEKpmwvIOjWVdP3W2zpG+JfQFHjfU46xxrVvYZuWztye1khJrqzSBFRCfjUwSYQiqt1xJJvyPcbWJp9WPCXvUoUEn0ZAVufcs0nIUjYn2L4s++YiY75eBLr+2Dnl3GYKTWRyfQKYRRR2XZxXmNvu9yh9GHAmUO/sxyMRkGNly4c714RZ7zaWtLHsX+N9NjvVrWxm99jmyvEhpOUhujmIYFI5zkCOYzYIj11a7QH7Tyz+nE8bw',NULL,1,1,'2026-05-21 17:00:40');
-- t_member DML
INSERT INTO "t_member" ("id","team_id","user_id","role_id","create_time","modify_time") VALUES (100000,100000,100000,100001,'2026-05-21 17:00:42','2026-05-21 17:00:42');
-- t_menu DML
INSERT INTO "t_menu" ("menu_id","parent_id","menu_name","path","component","perms","icon","type","display","order_num","create_time","modify_time") VALUES (110000,0,'menu.system','/system','PageView',NULL,NULL,'0',1,3,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120000,0,'Apache Flink','/flink','PageView',NULL,NULL,'0',1,1,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(130000,0,'menu.setting','/setting','PageView',NULL,NULL,'0',1,2,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110100,110000,'menu.userManagement','/system/user','system/user/User',NULL,'user','0',1,1,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110200,110000,'menu.roleManagement','/system/role','system/role/Role',NULL,'smile','0',1,2,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110300,110000,'menu.menuManagement','/system/menu','system/menu/Menu','menu:view','bars','0',1,3,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110400,110000,'menu.tokenManagement','/system/token','system/token/Token',NULL,'lock','0',1,1,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110500,110000,'menu.teamManagement','/system/team','system/team/Team',NULL,'team','0',1,2,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110600,110000,'menu.memberManagement','/system/member','system/member/Member',NULL,'usergroup-add','0',1,2,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120100,120000,'menu.project','/flink/project','flink/project/View',NULL,'github','0',1,1,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120200,120000,'menu.application','/flink/app','flink/app/View',NULL,'mobile','0',1,2,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120300,120000,'menu.variable','/flink/variable','flink/variable/View',NULL,'code','0',1,3,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(130100,130000,'setting.system','/setting/system','setting/System/index',NULL,'database','0',1,1,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(130200,130000,'setting.alarm','/setting/alarm','setting/Alarm/index',NULL,'alert','0',1,2,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(130300,130000,'setting.flinkHome','/setting/flinkHome','setting/FlinkHome/index',NULL,'desktop','0',1,3,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(130400,130000,'setting.flinkCluster','/setting/flinkCluster','setting/FlinkCluster/index','menu:view','cluster','0',1,4,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(130500,130000,'setting.externalLink','/setting/externalLink','setting/ExternalLink/index','menu:view','link','0',1,5,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(130600,130000,'setting.yarnQueue','/setting/yarnQueue','setting/YarnQueue/index','menu:view','bars','0',1,6,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110101,110100,'add',NULL,NULL,'user:add',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110102,110100,'update',NULL,NULL,'user:update',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110103,110100,'delete',NULL,NULL,'user:delete',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110104,110100,'reset',NULL,NULL,'user:reset',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110105,110100,'types',NULL,NULL,'user:types',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110106,110100,'view',NULL,NULL,'user:view',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110201,110200,'add',NULL,NULL,'role:add',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110202,110200,'update',NULL,NULL,'role:update',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110203,110200,'delete',NULL,NULL,'role:delete',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110204,110200,'view',NULL,NULL,'role:view',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110401,110400,'add',NULL,NULL,'token:add',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110402,110400,'delete',NULL,NULL,'token:delete',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110403,110400,'view',NULL,NULL,'token:view',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110501,110500,'add',NULL,NULL,'team:add',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110502,110500,'update',NULL,NULL,'team:update',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110503,110500,'delete',NULL,NULL,'team:delete',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110504,110500,'view',NULL,NULL,'team:view',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110601,110600,'add',NULL,NULL,'member:add',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110602,110600,'update',NULL,NULL,'member:update',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110603,110600,'delete',NULL,NULL,'member:delete',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110604,110600,'role view',NULL,NULL,'role:view',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(110605,110600,'view',NULL,NULL,'member:view',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120101,120100,'add','/flink/project/add','flink/project/Add','project:create','','0',0,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120102,120100,'build',NULL,NULL,'project:build',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120103,120100,'delete',NULL,NULL,'project:delete',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120104,120100,'edit','/flink/project/edit','flink/project/Edit','project:update',NULL,'0',0,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120105,120100,'view',NULL,NULL,'project:view',NULL,'1',1,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120201,120200,'add','/flink/app/add','flink/app/Add','app:create','','0',0,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120202,120200,'detail app','/flink/app/detail','flink/app/Detail','app:detail','','0',0,NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40'),(120203,120200,'edit flink','/flink/app/edit_flink','flink/app/EditFlink','app:update','','0',0,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120204,120200,'edit streampark','/flink/app/edit_streampark','flink/app/EditStreamPark','app:update','','0',0,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120205,120200,'mapping',NULL,NULL,'app:mapping',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120206,120200,'release',NULL,NULL,'app:release',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120207,120200,'start',NULL,NULL,'app:start',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120208,120200,'clean',NULL,NULL,'app:clean',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120209,120200,'cancel',NULL,NULL,'app:cancel',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120210,120200,'savepoint delete',NULL,NULL,'savepoint:delete',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120211,120200,'backup rollback',NULL,NULL,'backup:rollback',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120212,120200,'backup delete',NULL,NULL,'backup:delete',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120213,120200,'conf delete',NULL,NULL,'conf:delete',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120214,120200,'delete',NULL,NULL,'app:delete',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120215,120200,'copy',NULL,NULL,'app:copy',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120216,120200,'view',NULL,NULL,'app:view',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120217,120200,'savepoint trigger',NULL,NULL,'savepoint:trigger',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120218,120200,'sql delete',NULL,NULL,'sql:delete',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120301,120300,'add',NULL,NULL,'variable:add',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120302,120300,'update',NULL,NULL,'variable:update',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120303,120300,'delete',NULL,NULL,'variable:delete',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120304,120300,'depend apps','/flink/variable/depend_apps','flink/variable/DependApps','variable:depend_apps','','0',0,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120305,120300,'show original',NULL,NULL,'variable:show_original',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120306,120300,'view',NULL,NULL,'variable:view',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(120307,120300,'depend view',NULL,NULL,'variable:depend_apps',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130101,130100,'view',NULL,NULL,'setting:view',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130102,130100,'setting update',NULL,NULL,'setting:update',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130401,130400,'add cluster','/setting/add_cluster','setting/FlinkCluster/AddCluster','cluster:create','','0',0,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130402,130400,'edit cluster','/setting/edit_cluster','setting/FlinkCluster/EditCluster','cluster:update','','0',0,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130501,130500,'link view',NULL,NULL,'externalLink:view',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130502,130500,'link create',NULL,NULL,'externalLink:create',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130503,130500,'link update',NULL,NULL,'externalLink:update',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130504,130500,'link delete',NULL,NULL,'externalLink:delete',NULL,'1',1,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130601,130600,'add yarn queue',NULL,NULL,'yarnQueue:create','','1',0,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130602,130600,'edit yarn queue',NULL,NULL,'yarnQueue:update','','1',0,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41'),(130603,130600,'delete yarn queue',NULL,NULL,'yarnQueue:delete','','1',0,NULL,'2026-05-21 17:00:41','2026-05-21 17:00:41');
-- t_role DML
INSERT INTO "t_role" ("role_id","role_name","create_time","modify_time","description") VALUES (100001,'developer','2026-05-21 17:00:41','2026-05-21 17:00:41','developer'),(100002,'team admin','2026-05-21 17:00:41','2026-05-21 17:00:41','Team Admin has all permissions inside the team.');
-- t_role_menu DML
INSERT INTO "t_role_menu" ("id","role_id","menu_id") VALUES (1,100001,120000),(2,100001,120100),(3,100001,120101),(4,100001,120102),(5,100001,120104),(6,100001,120105),(7,100001,120200),(8,100001,120201),(9,100001,120202),(10,100001,120203),(11,100001,120204),(12,100001,120206),(13,100001,120207),(14,100001,120208),(15,100001,120209),(16,100001,120210),(17,100001,120211),(18,100001,120212),(19,100001,120213),(20,100001,120215),(21,100001,120216),(22,100001,120217),(23,100001,120300),(24,100001,120304),(25,100001,120306),(26,100001,120307),(27,100001,130000),(28,100001,130100),(29,100001,130101),(30,100002,110000),(31,100002,110600),(32,100002,110601),(33,100002,110602),(34,100002,110603),(35,100002,110604),(36,100002,110605),(37,100002,120000),(38,100002,120100),(39,100002,120101),(40,100002,120102),(41,100002,120103),(42,100002,120104),(43,100002,120105),(44,100002,120200),(45,100002,120201),(46,100002,120202),(47,100002,120203),(48,100002,120204),(49,100002,120205),(50,100002,120206),(51,100002,120207),(52,100002,120208),(53,100002,120209),(54,100002,120210),(55,100002,120211),(56,100002,120212),(57,100002,120213),(58,100002,120214),(59,100002,120215),(60,100002,120216),(61,100002,120217),(62,100002,120218),(63,100002,120300),(64,100002,120301),(65,100002,120302),(66,100002,120303),(67,100002,120304),(68,100002,120305),(69,100002,120306),(70,100002,120307),(71,100002,130000),(72,100002,130100),(73,100002,130101),(74,100002,130200),(75,100002,130300),(76,100002,130400),(77,100002,130401),(78,100002,130402),(79,100002,130500),(80,100002,130501),(81,100002,130502),(82,100002,130503),(83,100002,130504),(84,100002,130600),(85,100002,130601),(86,100002,130602),(87,100002,130603);
-- t_setting DML
INSERT INTO "t_setting" ("order_num","setting_key","setting_value","setting_name","description","type") VALUES (1,'streampark.maven.settings',NULL,'Maven Settings File Path','Maven Settings.xml full path',1),(2,'streampark.maven.central.repository',NULL,'Maven Central Repository','Maven private server address',1),(3,'streampark.maven.auth.user',NULL,'Maven Central Repository Auth User','Maven private server authentication username',1),(4,'streampark.maven.auth.password',NULL,'Maven Central Repository Auth Password','Maven private server authentication password',1),(5,'alert.email.host',NULL,'Alert Email Smtp Host','Alert Mailbox Smtp Host',1),(6,'alert.email.port',NULL,'Alert Email Smtp Port','Smtp Port of the alarm mailbox',1),(7,'alert.email.from',NULL,'Alert Sender Email','Email to send alerts',1),(8,'alert.email.userName',NULL,'Alert  Email User','Authentication username used to send alert emails',1),(9,'alert.email.password',NULL,'Alert Email Password','Authentication password used to send alarm email',1),(10,'alert.email.ssl','false','Alert Email SSL','Whether to enable SSL in the mailbox that sends the alert',2),(11,'docker.register.address',NULL,'Docker Register Address','Docker container service address',1),(12,'docker.register.user',NULL,'Docker Register User','Docker container service authentication username',1),(13,'docker.register.password',NULL,'Docker Register Password','Docker container service authentication password',1),(14,'docker.register.namespace',NULL,'Docker namespace','Namespace for docker image used in docker building env and target image register',1),(15,'ingress.mode.default',NULL,'Ingress domain address','Automatically generate an nginx-based ingress by passing in a domain name',1);
-- t_team DML
INSERT INTO "t_team" ("id","team_name","description","create_time","modify_time") VALUES (100000,'default',NULL,'2026-05-21 17:00:40','2026-05-21 17:00:40');
-- t_user DML
INSERT INTO "t_user" ("user_id","username","nick_name","salt","password","email","user_type","login_type","last_team_id","status","create_time","modify_time","last_login_time","sex","avatar","description") VALUES (100000,'admin','','rh8b1ojwog777yrg0daesf04gk','2513f3748847298ea324dffbf67fe68681dd92315bda830065facd8efe08f54f',NULL,1,0,100000,'1','2026-05-21 17:00:42','2026-05-21 17:00:42',NULL,'0',NULL,NULL);

  • 更改配置文件

    bash 复制代码
    vim /opt/streampark/apache-streampark_2.12-2.1.7-bin/conf/config.yaml


#
# StreamPark 2.1.7 + 人大金仓（方案 A：jdbc:postgresql + 内置 org.postgresql.Driver）
# 部署路径：复制到 $STREAMPARK_HOME/conf/config.yaml
# 若存在 conf/application.yml，请重命名备份，避免优先走旧配置。
#

logging:
  level:
    root: info

server:
  port: 10000
  session:
    ttl: 2h
  undertow:
    buffer-size: 1024
    direct-buffers: true
    threads:
      io: 16
      worker: 256

datasource:
  dialect: pgsql
  username: hydrogen
  password: Catarc@2026
  url: jdbc:postgresql://10.13.73.7:54321/hydrogen_db?stringtype=unspecified&currentSchema=stream_park&autosave=always&cleanupSavepoints=true

streampark:
  workspace:
    local: /tmp/streampark
    remote: hdfs:///streampark/
  proxy:
    lark-url:
    yarn-url:
  yarn:
    http-auth: 'simple'
  hadoop-user-name: hdfs
  project:
    max-build: 16
  openapi.white-list:

security:
  kerberos:
    login:
      debug: false
      enable: false
      keytab:
      krb5:
      principal:
    ttl: 2h

ldap:
  base-dn: dc=streampark,dc=com
  enable: false
  username: cn=Manager,dc=streampark,dc=com
  password: streampark
  urls: ldap://99.99.99.99:389
  user:
    email-attribute: mail
    identity-attribute: uid

  • 编写Dockerfile

    bash 复制代码
    vim /opt/streampark/apache-streampark_2.12-2.1.7-bin/Dockerfile

FROM openjdk:11-jre-slim

WORKDIR /streampark

RUN mkdir -p /tmp/streampark && chmod 777 /tmp/streampark

COPY . .

EXPOSE 10000

# 与官方镜像一致：前台启动，便于 Docker 保活与排错
ENTRYPOINT ["/streampark/bin/streampark.sh", "start_docker"]

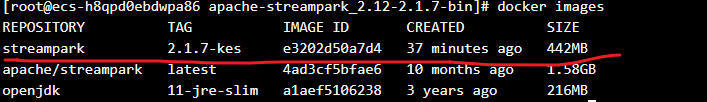

  • 构建镜像

    bash 复制代码
    cd /opt/streampark/apache-streampark_2.12-2.1.7-bin

docker build -t streampark:2.1.7-kes .

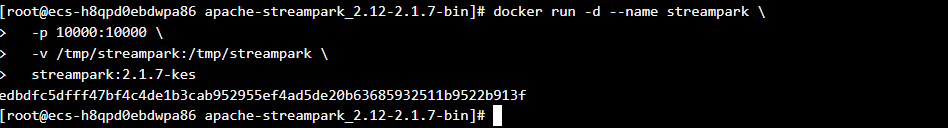

  • 启动实例

    bash 复制代码
    docker run -d --name streampark \
  -p 10000:10000 \
  -v /tmp/streampark:/tmp/streampark \
  streampark:2.1.7-kes

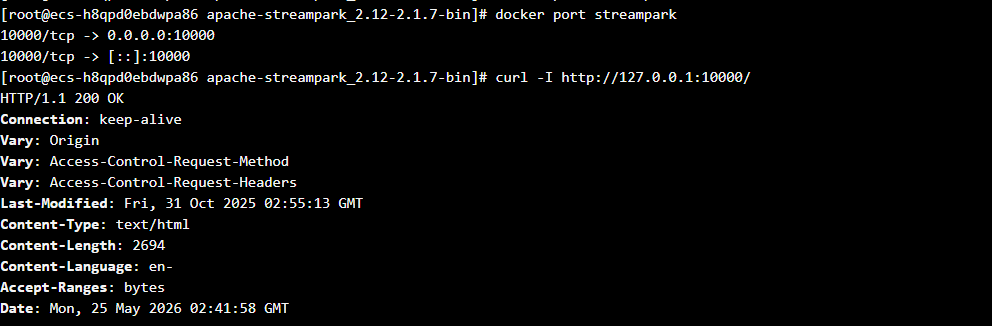

  • 端口检查

    bash 复制代码
    docker port streampark

curl -I http://127.0.0.1:10000/

  • 镜像备份

    bash 复制代码
    docker save -o streampark-2.1.7-kes.tar streampark:2.1.7-kes

  • 镜像恢复

    bash 复制代码
    docker load -i streampark:2.1.7-kes

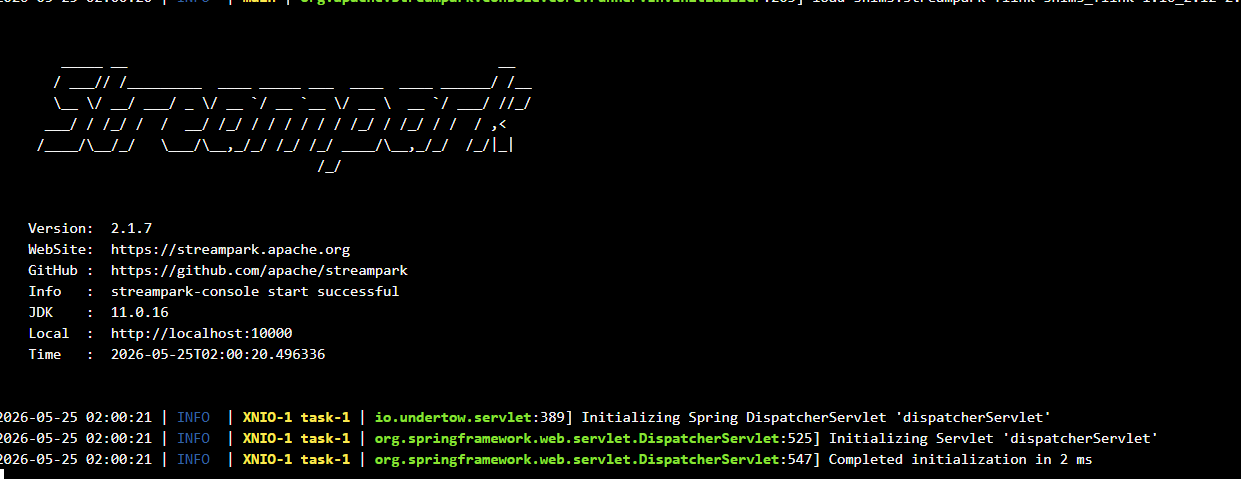

  • 问题定位

    bash 复制代码
    # 1. 看真实启动日志（banner 打印不代表启动成功）
docker exec -it streampark tail -200 /streampark/logs/streampark.out

# 2. 搜数据库相关错误
docker exec -it streampark grep -iE "error|exception|flyway|datasource|SQLException" /streampark/logs/streampark.out | tail -50

# 3. 从容器内测金仓连通性
docker exec -it streampark bash -c "apt-get update -qq && apt-get install -y -qq netcat-openbsd 2>/dev/null; nc -zv 10.13.73.7 54321"

相关推荐
Oflycomm34 分钟前
COMPUTEX 2026 落幕10天复盘：蓝牙模组被重新定义，多协议AIoT节点成定局
iot·蓝牙模组·边缘ai·qogrisys·多协议集成
码云骑士43 分钟前
28-Docker部署Django（下）-docker-compose编排与静态文件处理
docker·容器·django
至乐活着2 小时前
Docker Compose多服务编排实战：从零搭建Node.js+MySQL+Redis全栈应用
docker·微服务·devops·容器编排·compose
木雷坞2 小时前
Firecrawl Docker Compose 自托管排查：镜像、Redis、队列和 Playwright
redis·docker·容器·firecrawl
whyfail2 小时前
Colima：把 Docker Desktop 从 Mac 上“瘦身”的那把刀
macos·docker·容器
Volunteer Technology3 小时前
Flink状态管理与容错（一）
大数据·数据库·flink
大佐不会说日语～4 小时前
在 Windows 本地用 Docker 部署向量模型（bge-m3）
windows·docker·容器·llm·ollama
xsc-xyc4 小时前
CasaOS + Docker 挂载外接硬盘部署 Jellyfin 私人影院
运维·docker·容器
码云骑士4 小时前
27-Docker部署Django（上）-从2GB到180MB的镜像瘦身实战
docker·容器·django
日取其半万世不竭5 小时前
PostgreSQL 跑在 Docker 里怎么备份？恢复成功才算备份成功
数据库·docker·postgresql
热门推荐
012026年6月AI行业全景：从百模大战到Agent元年，这30天发生了什么？022026 AI 编程工具终极实战指南：Cursor vs Claude Code vs Copilot，开发者该怎么选？032026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf04HTTP 与 HTTPS 的区别：从原理到实战详解05【AI】2026 年具身智能模型和世界模型总结06GitHub 镜像站点07上线仅72小时被强制下架：Claude Fable 5 的短命08AI科技热点日报 | 2026年6月1日09Claude Code、Codex、Cursor三分天下：2026年AI编程Agent生态全景剖析10《置身钉内》原文-可播放阅读
