第 28 篇专门处理失败态。相机失败不能只靠 catch 打日志，而要把权限失败、设备为空、会话失败、Surface 销毁和资源释放都变成可恢复流程。
学习目标
- 把相机失败拆成权限、能力、会话、资源四类。
- 知道哪些状态字段负责 UI 提示，哪些字段负责资源释放。
- 理解为什么失败后要先清状态再释放资源。
- 能设计一个可以重新进入的相机页，而不是失败一次就卡死。
一、失败态是相机页质量的分水岭
相机功能最容易在演示时正常，在真实用户手里出问题。用户可能拒绝权限，设备可能没有前摄，Surface 可能因为页面切换销毁，PhotoSession 可能在 commitConfig 或 start 时失败。第 28 篇要做的不是列异常码，而是把失败态写成产品流程。
双镜记忆相机的原则是：任何失败都不能留下黑屏和脏资源。页面要么能说明当前缺什么，要么能释放干净，下一次进入时重新探测。

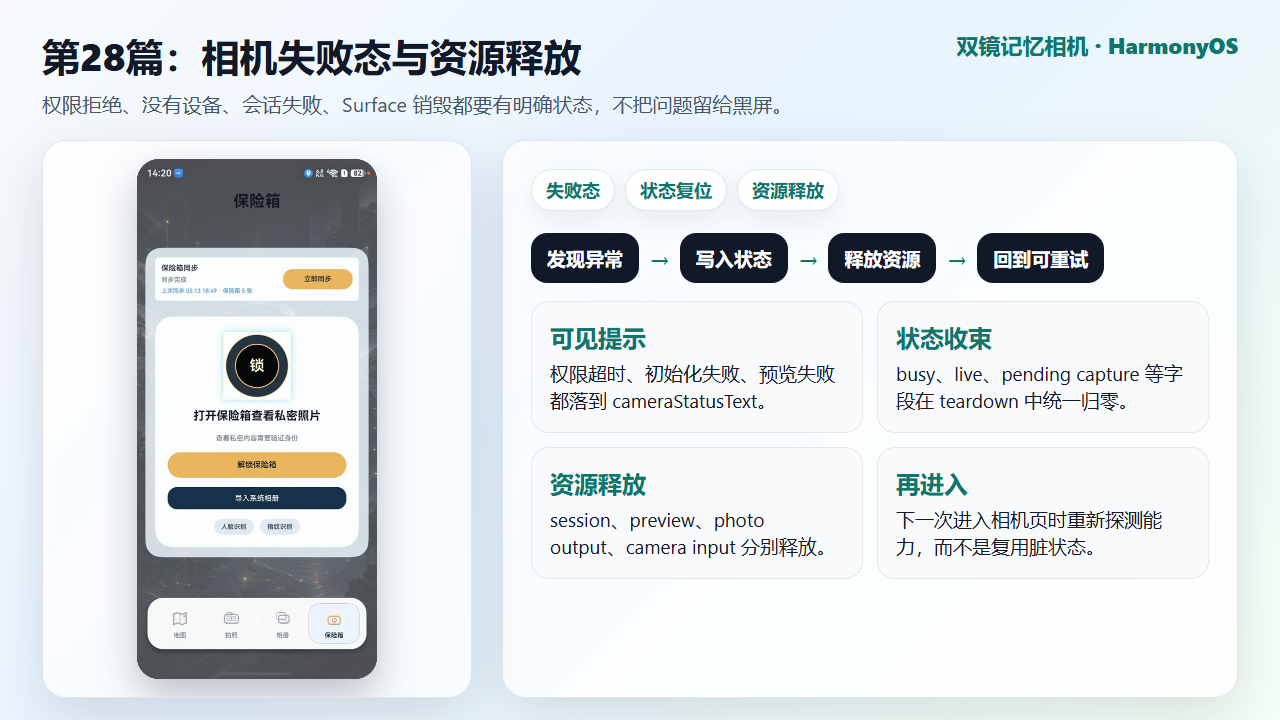

图 1 失败态处理目标：状态可见、资源可释放、流程可重试
二、状态字段先分层，失败时才不会乱
项目把相机状态拆成权限、能力、会话、预览、拍摄中的 pending 数据。cameraPermissionReady 表示是否能继续 CameraKit 初始化；cameraCapabilityChecked 表示本轮能力探测是否结束；dualCameraSupported 和 singleCameraSupported 决定 UI 走双摄还是单摄；cameraStatusText 负责把关键问题显示给用户。
另一组 pendingCapture 字段用于拍照保存流程。失败释放时，如果这些字段不清，下一次拍照可能误以为上一轮还有未完成输出。状态字段越细，失败处理越能精确。

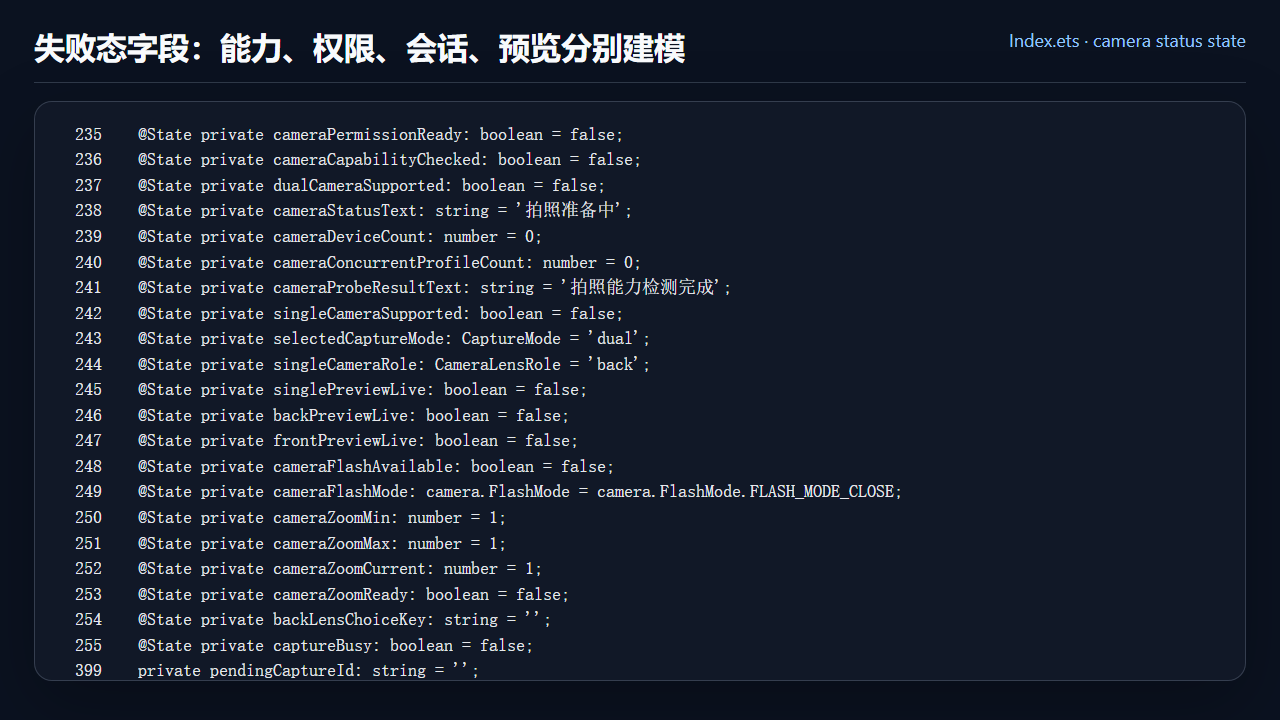

图 2 相机失败态相关状态字段与 pending 拍摄字段
ts
@State private cameraPermissionReady: boolean = false;
@State private cameraCapabilityChecked: boolean = false;
@State private dualCameraSupported: boolean = false;
@State private cameraStatusText: string = '拍照准备中';
@State private cameraDeviceCount: number = 0;
@State private cameraConcurrentProfileCount: number = 0;
@State private cameraProbeResultText: string = '拍照能力检测完成';
@State private singleCameraSupported: boolean = false;
@State private selectedCaptureMode: CaptureMode = 'dual';
@State private singleCameraRole: CameraLensRole = 'back';
@State private singlePreviewLive: boolean = false;
@State private backPreviewLive: boolean = false;
@State private frontPreviewLive: boolean = false;
@State private cameraFlashAvailable: boolean = false;
@State private cameraFlashMode: camera.FlashMode = camera.FlashMode.FLASH_MODE_CLOSE;
@State private cameraZoomMin: number = 1;
@State private cameraZoomMax: number = 1;
@State private cameraZoomCurrent: number = 1;
@State private cameraZoomReady: boolean = false;
@State private backLensChoiceKey: string = '';
@State private captureBusy: boolean = false;
private pendingCaptureId: string = '';
@State private pendingCaptureMode: 'dual' | 'single' | 'sequence' = 'dual';
@State private pendingSingleCaptureRole: CameraLensRole = 'back';
private pendingBackCapturePath: string = '';
private pendingFrontCapturePath: string = '';
@State private backCaptureDelivered: boolean = false;
@State private frontCaptureDelivered: boolean = false;
private pendingCaptureLatitude: number = 0;
private pendingCaptureLongitude: number = 0;
private pendingCapturePlace: string = '';
private pendingCaptureTitle: string = '';
private pendingWatermarkStyle: WatermarkStyleKey = 'none';三、初始化失败：不要继续创建会话
prepareCameraCapability 里有几个关键 return。权限没通过，设置 cameraCapabilityChecked 并返回；设备列表为空，结束探测并返回；只有单摄设备时，不再探测双摄，而是进入单摄预览；CameraKit 初始化抛异常时，把 dualCameraSupported 和 singleCameraSupported 都置为 false，并写入状态文本。
这些分支的共同点是"不让失败继续扩大"。只要前置条件不满足，就不要创建 input、output 和 session。这样失败只停留在入口层，用户可以处理权限或换设备，页面也可以重新触发 prepare。

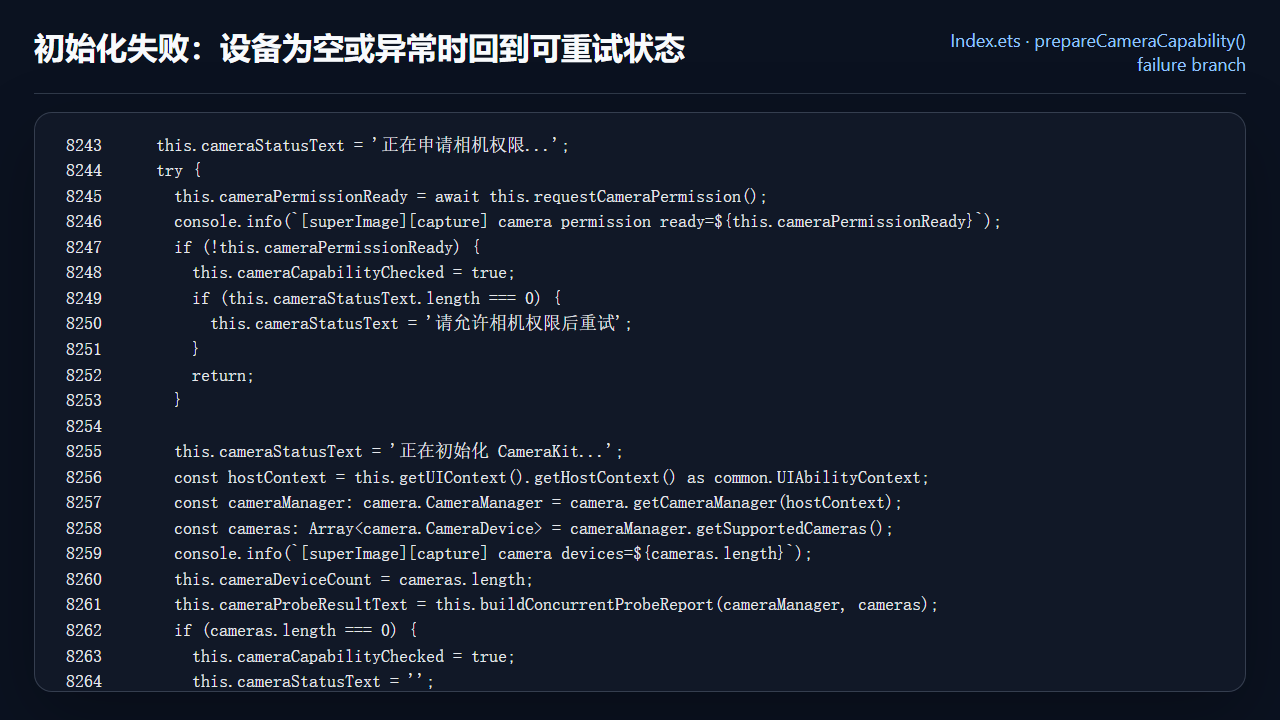

图 3 CameraKit 初始化中的失败分支与可重试状态
ts
this.cameraStatusText = '正在申请相机权限...';
try {
this.cameraPermissionReady = await this.requestCameraPermission();
console.info(`[superImage][capture] camera permission ready=${this.cameraPermissionReady}`);
if (!this.cameraPermissionReady) {
this.cameraCapabilityChecked = true;
if (this.cameraStatusText.length === 0) {
this.cameraStatusText = '请允许相机权限后重试';
}
return;
}
this.cameraStatusText = '正在初始化 CameraKit...';
const hostContext = this.getUIContext().getHostContext() as common.UIAbilityContext;
const cameraManager: camera.CameraManager = camera.getCameraManager(hostContext);
const cameras: Array<camera.CameraDevice> = cameraManager.getSupportedCameras();
console.info(`[superImage][capture] camera devices=${cameras.length}`);
this.cameraDeviceCount = cameras.length;
this.cameraProbeResultText = this.buildConcurrentProbeReport(cameraManager, cameras);
if (cameras.length === 0) {
this.cameraCapabilityChecked = true;
this.cameraStatusText = '';
return;
}
const officialPair = this.getOfficialConcurrentCameraPair(cameraManager);
const backDevice = officialPair.backDevice ??
this.findCameraDeviceByPosition(cameras, camera.CameraPosition.CAMERA_POSITION_BACK);
const frontDevice = officialPair.frontDevice ??
this.findCameraDeviceByPosition(cameras, camera.CameraPosition.CAMERA_POSITION_FRONT);
const fallbackSingleDevice = backDevice ?? frontDevice ?? cameras[0];
this.cameraManager = cameraManager;
this.backCameraDevice = backDevice;
this.frontCameraDevice = frontDevice;
this.preferredBackSingleCameraDevice = backDevice;
this.singleCameraDevice = fallbackSingleDevice;
this.singleCameraRole = this.getCameraRole(fallbackSingleDevice);
this.singleCameraSupported = true;
this.refreshBackLensOptions(cameras, backDevice);
if (!backDevice || !frontDevice) {
this.cameraCapabilityChecked = true;
this.cameraStatusText = '';
await this.ensureCameraPreview();
return;
}
const concurrentInfos = officialPair.concurrentInfos;
this.concurrentInfos = concurrentInfos;
this.cameraCapabilityChecked = true;
this.cameraConcurrentProfileCount = concurrentInfos.length;
this.dualCameraSupported = concurrentInfos.length > 0;
if (this.dualCameraSupported) {
this.cameraStatusText = '';
await this.ensureCameraPreview();
} else {
this.cameraStatusText = '';
await this.ensureCameraPreview();
}
} catch (error) {
const err = error as BusinessError;
this.cameraCapabilityChecked = true;
this.dualCameraSupported = false;
this.singleCameraSupported = false;
this.singlePreviewLive = false;
this.cameraStatusText = `CameraKit 初始化失败 ${err.code}`;
} finally {四、释放资源：先断开引用，再逐层 release
teardownDualPreview 是失败态的核心收口。它先把当前 session、output、input 保存到局部变量，再把组件字段置空。这样做可以让 UI 状态立即回到"没有活动会话"，同时保留旧资源的引用用于后续 release。
随后依次释放 PhotoSession、PreviewOutput、PhotoOutput，最后关闭 CameraInput。这个顺序符合资源依赖：会话先停，输出再放，输入最后关。resetCaptureState 为 true 时，还会清空 pendingCapture、缩略图和水印状态，避免一次失败污染下一次拍摄。

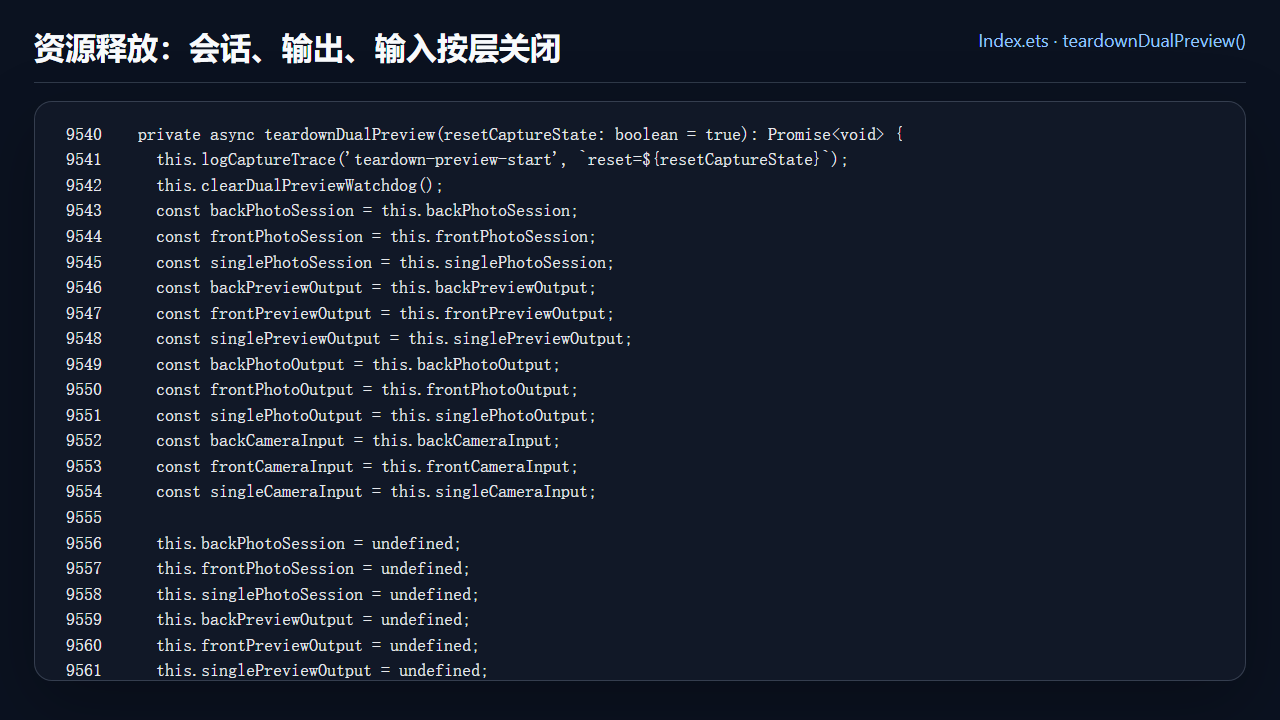

图 4 teardownDualPreview 统一释放相机会话、输出和输入
ts
private async teardownDualPreview(resetCaptureState: boolean = true): Promise<void> {
this.logCaptureTrace('teardown-preview-start', `reset=${resetCaptureState}`);
this.clearDualPreviewWatchdog();
const backPhotoSession = this.backPhotoSession;
const frontPhotoSession = this.frontPhotoSession;
const singlePhotoSession = this.singlePhotoSession;
const backPreviewOutput = this.backPreviewOutput;
const frontPreviewOutput = this.frontPreviewOutput;
const singlePreviewOutput = this.singlePreviewOutput;
const backPhotoOutput = this.backPhotoOutput;
const frontPhotoOutput = this.frontPhotoOutput;
const singlePhotoOutput = this.singlePhotoOutput;
const backCameraInput = this.backCameraInput;
const frontCameraInput = this.frontCameraInput;
const singleCameraInput = this.singleCameraInput;
this.backPhotoSession = undefined;
this.frontPhotoSession = undefined;
this.singlePhotoSession = undefined;
this.backPreviewOutput = undefined;
this.frontPreviewOutput = undefined;
this.singlePreviewOutput = undefined;
this.backPhotoOutput = undefined;
this.frontPhotoOutput = undefined;
this.singlePhotoOutput = undefined;
this.backCameraInput = undefined;
this.frontCameraInput = undefined;
this.singleCameraInput = undefined;
this.cameraSessionActive = false;
this.cameraSessionPreparing = false;
this.singlePreviewLive = false;
this.backPreviewLive = false;
this.frontPreviewLive = false;
this.resetCameraZoomState();
this.cameraFlashAvailable = false;
this.cameraFlashMode = camera.FlashMode.FLASH_MODE_CLOSE;
this.cameraFlashSupportedModes = [];
if (resetCaptureState) {
this.captureBusy = false;
this.sequentialCaptureQueued = false;
this.markAllPhotoOutputsReady();
this.pendingCaptureMode = 'dual';
this.pendingSingleCaptureRole = 'back';
this.backCaptureDelivered = false;
this.frontCaptureDelivered = false;
this.pendingCaptureId = '';
this.pendingBackCapturePath = '';
this.pendingFrontCapturePath = '';
this.pendingCaptureLatitude = 0;
this.pendingCaptureLongitude = 0;
this.pendingCapturePlace = '';
this.pendingCaptureTitle = '';
this.clearPendingWatermark();
this.cameraSequentialThumbnailUri = '';
this.cameraSequentialThumbnailLabel = '';
}
await this.releasePhotoSession(backPhotoSession);
await this.releasePhotoSession(frontPhotoSession);
await this.releasePhotoSession(singlePhotoSession);
await this.releasePreviewOutput(backPreviewOutput);
await this.releasePreviewOutput(frontPreviewOutput);
await this.releasePreviewOutput(singlePreviewOutput);
await this.releasePhotoOutput(backPhotoOutput);
await this.releasePhotoOutput(frontPhotoOutput);
await this.releasePhotoOutput(singlePhotoOutput);
await this.closeCameraInput(backCameraInput);
await this.closeCameraInput(frontCameraInput);
await this.closeCameraInput(singleCameraInput);
this.logCaptureTrace('teardown-preview-finished', `reset=${resetCaptureState}`);五、用户看到的应该是路径，而不是异常
失败态最终要落到用户体验。权限失败时提示允许权限；Surface 未就绪时提示正在准备画面并稍后重试；设备为空时不进入会话；预览失败时释放并允许重新进入。开发时可以看日志，用户不能看日志，所以 cameraStatusText 和按钮可用性必须替用户说明下一步。
这篇完成后，day06 的相机基础链路就闭合了：第 24 篇做入口探测，第 25 篇接住预览，第 26 篇建立单摄会话，第 27 篇控制镜头和参数，第 28 篇处理失败与释放。后面继续做双摄拍照、图库保存和端云同步时，这条链路会承担稳定底座。
本篇检查清单
- 失败态按权限、设备、会话、资源释放拆分，而不是只写一个 catch。
- 初始化失败时不会继续创建 PhotoSession。
- teardownDualPreview 先清字段，再按 session、output、input 顺序释放旧资源。
- pendingCapture 状态在重置时被统一清理。
- 正文配图包含失败态运行目标、状态字段、初始化失败分支和资源释放源码。
今日练习
- 拒绝 CAMERA 权限后进入相机页，确认页面可见提示而不是黑屏。
- 切换页面或旋转窗口后检查 Surface 销毁是否触发 teardown。
- 在 ensureSinglePreview 的 catch 中加入一次日志，确认失败后可以再次进入相机页。
