【手撸IM】SycllaDB 消息存储基础

1. 背景

1.1 IM 消息存储的核心要求

IM系统的消息存储需要满足以下关键特性：

• 海量数据与高并发写入：消息量可达万亿级，需支撑持续高吞吐写入
• 低延迟：消息收发及历史消息查询的P99延迟需控制在毫秒级
• 消息漫游：支持按会话(Timeline)组织消息，按时间序高效分页拉取
• 高扩展与高可用：线性扩展能力，自动故障转移，无需业务层介入分片
• 存储成本可控：高压缩率，支持TTL自动清理过期数据

1.2 主流存储方案对比

方案	优势	不足
MySQL	ACID，易用	B+Tree大表写入差，分库分表复杂
MongoDB	文档模型，自动分片	数据量大时内存瓶颈，延迟飙升
Cassandra	线性扩展，去中心化	读放大严重，Java GC导致延迟尖刺
ScyllaDB	高性能C++实现，无GC，Cassandra兼容	相对较新

1.3 为什么选择 ScyllaDB

• Shard-per-Core架构：每核独立分片，无锁竞争，性能随核心数线性增长
• 无GC停顿：C++实现，彻底规避Java GC带来的延迟毛刺（Discord迁移后P99从40-125ms降至15ms）
• 读性能优于Cassandra：LSM树实现更高效，读放大问题得到缓解
• 生态兼容：完全兼容Cassandra CQL和驱动，迁移成本低
• 运维友好：压缩更高效，修复操作对业务影响小

2. SycllDB 使用要点

2.1 服务器配置 & 高可用

官方推荐的最小配置为：4C/16G

最小高可用需3台

生产环境上线建议：3台4C/16G/500GB SSD服务器（测试/小规模生产可以2C/8G）

2.2 Keyspace

可以类比为数据库（Database），Keyspace = 一组"表 + 副本策略 + 分布规则"的逻辑容器。

CREATE KEYSPACE IF NOT EXISTS im_offline
WITH replication = {
  'class': 'NetworkTopologyStrategy',    --SimpleStrategy：单机/测试环境；NetworkTopologyStrategy：生产多机房 / 多节点
  'datacenter1': 3  --数据中心副本数量；
}

节点数	RF建议
1	RF=1
3	RF=3（最小生产高可用）
5+	RF=3 或 RF=5（看成本）

2.3 Key

ScyllaDB 的表设计遵循 Query-Driven Design 原则，即先确定查询模式，再设计数据模型 （partition key / clustering key）。系统不支持高效的全表扫描查询，因此非基于分区键的扫描查询在大规模数据场景下应避免使用。

Scylla/Cassandra 的硬约束是：查询必须命中分区键，否则就会变成 scan/二级索引（不可靠、不可控）。

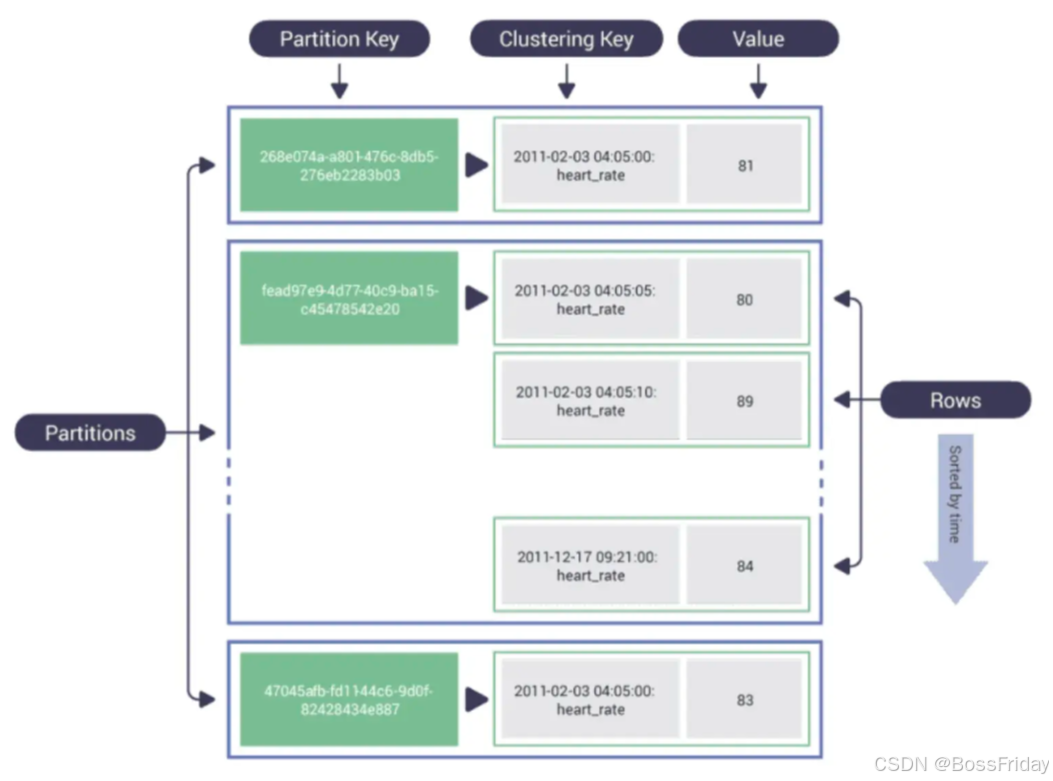

Partition Key（分区键） ：决定数据存到哪个节点、哪个 partition。

Clustering Key（聚簇键） ：决定partition 内部排序。

PRIMARY KEY（主键） ：主键是"复合概念"，PRIMARY KEY =Partition Key + Clustering Key，例如：PRIMARY KEY ((app_id, user_id, day_bucket, box_type), data_time, msg_id)，partition key：(app_id, user_id, day_bucket, box_type)，ScyllaDB 会：hash(app_id+user_id+day_bucket+box_type)->token，然后token → 某节点。

2.4 Compaction

ScyllaDB / Cassandra 底层思想和 LevelDB非常接近，因此可以把ScyllaDB 类比为一个分布式的LevelDB，基于LevelDB实现的NoSQL DB 一般都有一个共性：大规模整理期间性能急剧下降，因此compaction机制的选择非常重要。

WAL

MemTable（内存）
   ↓ flush
SSTable1
SSTable2
SSTable3
...

Compaction：
SSTable1
SSTable2
SSTable3
   ↓ merge
SSTable_new

如上，可以认为ScyllaDB 的整理是：后台自动合并 SSTable（可以理解为排好序的 KV 文件），同时清理 TTL 过期数据、排序数据、降低读放大等。ScyllaDB 比 Cassandra 更强的原因之一是专门优化了Compaction，例如：动态控制 Compaction IO 避免打爆磁盘、Compaction task 避免锁竞争，Streaming Compaction 边处理边合并等，支持的CompactionStrategy有：

CompactionStrategy	简称	核心思想	优点	缺点	典型场景	是否适合 IM
SizeTieredCompactionStrategy	STCS	按 SSTable 大小分组后合并	写入吞吐高；默认策略；通用性强；	读放大较高；TTL/tombstone 场景表现一般	通用 KV、普通业务表	一般
LeveledCompactionStrategy	LCS	将 SSTable 分层（L0/L1/L2...），控制每层大小	读性能极强；查询延迟稳定；读放大小；	写放大高；Compaction CPU/IO 压力大	用户资料、配置表、随机读热点表	不推荐
TimeWindowCompactionStrategy	TWCS	按时间窗口组织 SSTable，只在窗口内 Compaction	TTL 极友好；时序写入性能强；tombstone（删除标记） 少；	不适合频繁更新旧数据；乱序时间写入会退化	IM、日志、IoT、Metrics、事件流	强烈推荐

由于IM消息存储涉及：day_bucket、msgTime、TTL，是一个标准的时序模型，因此选择TWCS会：

• 降低 tombstone
• 降低 compaction IO
• 降低读放大
• 提高写入稳定性

2.5 Materialized View

What

可以将物化视图理解为自动维护的另一张表（自动同步索引表），而不是MySQL 那种"运行时动态 SQL 视图"。它真的会：写磁盘、生成 SSTable、参与 Compaction、占用空间。

Why

Scylla/Cassandra不支持任意 ORDER BY，不支持跨 partition 排序。IM中离线消息正向读，历史消息倒序读，因此历史消息表通常会建立im_history_messages_time_desc的MV，可以理解为一张按 DESC 排序重新存储的一张镜像表。

How

顾虑于Cassandra的MV的数据一致性问题，很多基于 Apache Cassandra / ScyllaDB 的 IM 系统，最终都会：放弃 Materialized View，改成"应用层双写两张表"。因为：

• MV repair 成本高
• MV 历史上一致性坑较多
• debug困难
• backfill复杂
• 大集群 compact 压力更大

2. 消息存储设计

公共原则：

1、所有相关数据库均开启WAL（durable_writes = true），不开：不开启写入更快，但是宕机可能丢数据。

2、消息存储会分为离线消息存储和历史消息存储2类，离线消息存储：写多读多、写扩散、TTL默认7天；历史消息存储：写少读少，不写扩展（群聊只存1条上行）、TTL默认180天；压测选择离线消息存储做为压测环境。

2.1 离线消息

2.1.1 im_offline_messages

读写说明：写多读多、写扩散、TTL默认7天；

CREATE KEYSPACE IF NOT EXISTS im_offline
WITH replication = {
  'class': 'SimpleStrategy',     --生产环境：NetworkTopologyStrategy
  'datacenter1': 1               --生产环境：3
}
AND durable_writes = true;

USE im_offline;

CREATE TABLE IF NOT EXISTS im_offline_messages (
    -- 分区键：用户 + 天 + 箱子
    app_id             bigint,
    user_id            text,
    day_bucket         int,       -- yyyyMMdd
    box_type           tinyint,   -- 0=InBox 收件箱, 1=SendBox 发件箱（下发时 direction = box_type）

    -- 聚簇键：时间 + 消息 ID（防同毫秒冲突）
    data_time          bigint,    -- 毫秒
    msg_id             text,

    -- 消息Profile列
    from_id            text,      -- 发送方 userId
    target_id          text,      -- 会话对端：单聊=对端 userId；群=groupId
    state_flag         bigint,    -- 状态（按位与）
    conversation_type  tinyint,   -- 会话类型：1：单聊；2：群聊；
    msg_type           text,      -- 对应 classname，如 CallingMsg
    content            blob,      -- 消息体

    PRIMARY KEY ((app_id, user_id, day_bucket, box_type), data_time, msg_id)
) WITH CLUSTERING ORDER BY (data_time ASC, msg_id ASC)
  AND compaction = {
    'class': 'TimeWindowCompactionStrategy',
    'compaction_window_unit': 'DAYS',
    'compaction_window_size': 1
  }
  AND default_time_to_live = 604800;  -- 默认 7 天；INSERT 时用 USING TTL 按 app 覆盖

2.1.2 写入

1. 接收方收件箱

INSERT INTO im_offline.im_offline_messages (
  app_id, user_id, day_bucket, box_type,
  data_time, msg_id,
  from_id, target_id, state_flag, conversation_type, msg_type, content
) VALUES (
  10001, 'user_B', 20260527, 0,
  1716789012345, 'msg-uuid-001',
  'user_A', 'user_A', 16, 0, 'TxtMsg', 0x48656c6c6f
)
USING TTL 604800;

2.发送方发件箱

INSERT INTO im_offline.im_offline_messages (
  app_id, user_id, day_bucket, box_type,
  data_time, msg_id,
  from_id, target_id, state_flag, conversation_type, msg_type, content
) VALUES (
  10001, 'user_A', 20260527, 1,
  1716789012345, 'msg-uuid-001',
  'user_A', 'user_B', 16, 0, 'TxtMsg', 0x48656c6c6f
)
USING TTL 604800;

2.1.3 读取

处理原则：

批量拉消息时一般是收件箱+发件箱一起批量拉某个时间点之后的N条消息（例如：100条），但是做不到"一条 CQL 同时拉收件箱+发件箱 + 跨天 + limit100"（因为分区键里有 box_type 和 day_bucket）。通常的做法是：应用层并行/串行执行两条查询（InBox/SendBox），各自跨天迭代，再把结果按 data_time 归并，最终取前 100 条。

--收件箱：拉某时间之后最多 100 条（单天）

SELECT data_time, msg_id, from_id, target_id,
       state_flag, conversation_type, msg_type, content
FROM im_offline.im_offline_messages
WHERE app_id = ?
  AND user_id = ?
  AND day_bucket = ?
  AND box_type = 0
  AND data_time > ?
LIMIT ?;

--发件箱：拉某时间之后最多 100 条（单天）

SELECT data_time, msg_id, from_id, target_id,
       state_flag, conversation_type, msg_type, content
FROM im_offline.im_offline_messages
WHERE app_id = ?
  AND user_id = ?
  AND day_bucket = ?
  AND box_type = 1
  AND data_time > ?
LIMIT ?;

3. SycllaDB 压力测试

3.1 压测方法

1、构造100万用户Id，读/写均按照环形规则构造消息的FromId/ToId，例如：user1/user2, user2/user3 ... 最后一个用户/第一个用户...。这样消息并发读写时From/To均可以快速计算出来：fromId= userIdList.get(currentSampleIndex % userIdList.size())，targetId = userIdList.get((currentSampleIndex + 1) % userIdList.size());

@SamplerType(name = SYCLLA_DB_SAMPLER)
public class SycllaDBSampler extends BaseAppSampler {

    private static final Logger LOGGER = LogManager.getLogger(SycllaDBSampler.class);

    private List<String> userIdList = new ArrayList<>();
    private CqlSession cqlSession;
    private int cmdType;
    private boolean isAsync;
    private PreparedStatement insertStmt;
    private PreparedStatement selectStmt;

    public SycllaDBSampler(AppSamplerSetting config) {
        super(config);
    }

    @Override
    public void sampleStarted() {
        try {
            this.init();

            this.insertStmt = this.cqlSession.prepare(
                    "INSERT INTO im_offline_messages (" +
                            "app_id, user_id, day_bucket, box_type, " +
                            "data_time, msg_id, from_id, target_id, " +
                            "state_flag, conversation_type, msg_type, content) " +
                            "VALUES (?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?)");

            this.selectStmt = this.cqlSession.prepare(
                    "SELECT * FROM im_offline_messages " +
                            "WHERE app_id=? AND user_id=? AND day_bucket=? AND box_type=? LIMIT 10"
            );

            LOGGER.info("SycllaDBSampler testStarted() done.");
        } catch (Exception ex) {
            LOGGER.error("SycllaDBSampler.sampleStarted() error!", ex);
        }
    }

    @Override
    public SampleResult sample() {
        SampleResult sampleResult = new SampleResult();
        try {
            int currentSampleIndex = this.sampleIndex.getAndIncrement();
            switch (this.cmdType) {
                case 0:
                    this.writeStressTest(sampleResult, currentSampleIndex);
                    break;
                case 1:
                    this.readStressTest(sampleResult, currentSampleIndex);
                    break;
                default:
                    throw new PocException("Invalid cmdType !");
            }
        } catch (Exception ex) {
            LOGGER.error("SycllaDBSampler.sample() error!", ex);
            if (ex instanceof InterruptedException) {
                Thread.currentThread().interrupt();
            }

            return SamplerUtils.buildSampleResult(this.config.getSampleLabel(),
                    String.valueOf(CODE_SAMPLE_ERROR),
                    ex.getMessage(),
                    false);
        }

        return sampleResult;
    }

    @Override
    public void sampleEnded() {
        try {
            if (Objects.nonNull(this.cqlSession)) {
                this.cqlSession.close();
            }

            LOGGER.info("SycllaDBSampler sampleEnded() done.");
        } catch (Exception ex) {
            LOGGER.error("SycllaDBSampler.sampleEnded() error!", ex);
        }
    }

    /**
     * writeStressTest
     */
    private void writeStressTest(SampleResult sampleResult, int currentIndex) throws InterruptedException {
        String fromId = this.userIdList.get(currentIndex % this.userIdList.size());
        String targetId = this.userIdList.get((currentIndex + 1) % this.userIdList.size());
        String msgId = UUIDUtil.getUUID().toString();
        long timestamp = System.currentTimeMillis();
        BoundStatement insert = this.insertStmt.bind(APP_ID,
                fromId,
                DAY_BUCKET,
                BOX_TYPE,
                timestamp,
                msgId,
                fromId,
                targetId,
                STATE_FLAG,
                CONVERSATION_TYPE,
                MSG_TYPE,
                CONTENT_DATA);
        if (this.isAsync) {
            this.asyncWrite(sampleResult, insert, currentIndex);
        } else {
            this.syncWrite(sampleResult, insert, currentIndex);
        }
    }

    /**
     * readStressTest
     */
    private void readStressTest(SampleResult sampleResult, int currentIndex) throws InterruptedException {
        String userId = this.userIdList.get(currentIndex % this.userIdList.size());
        BoundStatement select = this.selectStmt.bind(APP_ID, userId, DAY_BUCKET, BOX_TYPE);

        if (this.isAsync) {
            this.asyncRead(sampleResult, select, currentIndex);
        } else {
            this.syncRead(sampleResult, select, currentIndex);
        }
    }

    /**
     * asyncRead
     */
    private void asyncRead(SampleResult sampleResult, BoundStatement select, int currentIndex) throws InterruptedException {
        CountDownLatch latch = new CountDownLatch(1);
        sampleResult.sampleStart();
        this.cqlSession.executeAsync(select).whenComplete((rs, ex) -> {
            try {
                if (ex != null) {
                    sampleResult.sampleEnd();
                    sampleResult.setSuccessful(false);
                    sampleResult.setResponseCode(String.valueOf(CODE_SAMPLE_ERROR));
                    sampleResult.setResponseMessage(ex.getMessage());
                } else {
                    int rowCount = countRows(rs);
                    sampleResult.sampleEnd();

                    sampleResult.setSuccessful(true);
                    sampleResult.setResponseCode(String.valueOf(CODE_SUCCESS));
                    sampleResult.setResponseMessage("OK");

                    if (currentIndex % 1000 == 0) {
                        LOGGER.info("asyncRead done, currentIndex: {}, time: {}, rowCount: {} ", currentIndex, sampleResult.getTime(), rowCount);
                    }
                }
            } finally {
                latch.countDown();
            }
        });

        latch.await();
    }

    /**
     * syncRead
     */
    private void syncRead(SampleResult sampleResult, BoundStatement select, int currentIndex) {
        sampleResult.sampleStart();
        ResultSet rs = this.cqlSession.execute(select);
        int rowCount = countRows(rs);
        sampleResult.sampleEnd();

        sampleResult.setSuccessful(true);
        sampleResult.setResponseCode(String.valueOf(CODE_SUCCESS));
        sampleResult.setResponseMessage("OK");

        if (currentIndex % 1000 == 0) {
            LOGGER.info("syncRead done, currentIndex: {}, time: {}, rowCount: {} ", currentIndex, sampleResult.getTime(), rowCount);
        }
    }

    /**
     * syncWrite
     */
    private void syncWrite(SampleResult sampleResult, BoundStatement insert, int currentIndex) {
        sampleResult.sampleStart();
        this.cqlSession.execute(insert);
        sampleResult.sampleEnd();
        sampleResult.setSuccessful(true);
        sampleResult.setResponseCode(String.valueOf(CODE_SUCCESS));
        sampleResult.setResponseMessage("OK");

        if (currentIndex % 1000 == 0) {
            LOGGER.info("syncWrite done, currentIndex: {}, time: {}", currentIndex, sampleResult.getTime());
        }
    }

    /**
     * asyncWrite
     */
    private void asyncWrite(SampleResult sampleResult, BoundStatement insert, int currentIndex) throws InterruptedException {
        CountDownLatch latch = new CountDownLatch(1);
        sampleResult.sampleStart();
        this.cqlSession.executeAsync(insert).whenComplete((rs, ex) -> {
            try {
                if (ex != null) {
                    sampleResult.sampleEnd();
                    sampleResult.setSuccessful(false);
                    sampleResult.setResponseCode(String.valueOf(CODE_SAMPLE_ERROR));
                    sampleResult.setResponseMessage(ex.getMessage());
                } else {
                    sampleResult.sampleEnd();
                    sampleResult.setSuccessful(true);
                    sampleResult.setResponseCode(String.valueOf(CODE_SUCCESS));
                    sampleResult.setResponseMessage("OK");

                    if (currentIndex % 1000 == 0) {
                        LOGGER.info("asyncWrite done, currentIndex: {}, time: {}", currentIndex, sampleResult.getTime());
                    }
                }
            } finally {
                latch.countDown();
            }
        });

        latch.await();
    }


    /**
     * init
     */
    private CqlSession init() throws PocException {
        // initUserIdList
        for (int i = 0; i < 1000000; i++) {
            this.userIdList.add("POC-User-" + i);
        }

        // initCqlSession
        LinkedHashMap<String, String> varSettingMap = SamplerUtils.getKvMap(this.config.getSampleVar());
        String host = varSettingMap.get("host");
        int port = Integer.parseInt(varSettingMap.get("port"));
        String keySpace = varSettingMap.get("keySpace");
        this.cmdType = Integer.parseInt(varSettingMap.get("cmdType"));
        this.isAsync = Boolean.parseBoolean(varSettingMap.get("isAsync"));

        DriverConfigLoader driverConfigLoader = DriverConfigLoader.programmaticBuilder()
                .withString(DefaultDriverOption.SESSION_NAME, "im-test-session")
                .withDuration(DefaultDriverOption.REQUEST_TIMEOUT, Duration.ofSeconds(15))
                .withInt(DefaultDriverOption.CONNECTION_POOL_LOCAL_SIZE, 16)
                .withInt(DefaultDriverOption.CONNECTION_POOL_REMOTE_SIZE, 1)
                .withInt(DefaultDriverOption.CONNECTION_MAX_REQUESTS, 2048)
                .withString(DefaultDriverOption.REQUEST_THROTTLER_CLASS, "ConcurrencyLimitingRequestThrottler")
                .withInt(DefaultDriverOption.REQUEST_THROTTLER_MAX_CONCURRENT_REQUESTS, 20000)
                .withInt(DefaultDriverOption.REQUEST_THROTTLER_MAX_QUEUE_SIZE, 200000)
                .build();

        this.cqlSession = CqlSession.builder()
                .withConfigLoader(driverConfigLoader)
                .addContactPoint(new InetSocketAddress(host, port))
                .withLocalDatacenter("datacenter1")
                .withKeyspace(keySpace)
                .build();
        String releaseVersion = this.cqlSession.execute("SELECT release_version FROM system.local").one().getString("release_version");
        LOGGER.info("CqlSession init done: {}", releaseVersion);

        return this.cqlSession;
    }

    /**
     * countRows
     */
    @SuppressWarnings({"squid:S1481"})
    private static int countRows(AsyncResultSet rs) {
        int count = 0;
        AsyncResultSet current = rs;
        while (true) {
            for (var row : current.currentPage()) {
                count++;
            }

            if (!current.hasMorePages()) {
                break;
            }

            current = current.fetchNextPage().toCompletableFuture().join();
        }

        return count;
    }

    /**
     * countRows
     */
    @SuppressWarnings({"squid:S1481"})
    private static int countRows(ResultSet rs) {
        int count = 0;
        for (var row : rs) {
            count++;
        }

        return count;
    }

    private static final long APP_ID = 100000L;
    private static final int DAY_BUCKET = Integer.parseInt(DateUtil.date2Str(new Date(), DateUtil.DEFAULT_DATE_HYPHEN_FORMAT));
    private static final byte BOX_TYPE = (byte) 0;
    private static final long STATE_FLAG = 0L;
    private static final byte CONVERSATION_TYPE = (byte) 1;
    private static final String MSG_TYPE = "Chat";
    private static final String CONTENT = "{\n" +
            "  \"messageId\": \"6oNL9o7tX8\",\n" +
            "  \"fromUserId\": \"10020439\",\n" +
            "  \"fromUserName\": \"\",\n" +
            "  \"content\": {\n" +
            "    \"callId\": \"4cd5433f92e74c71\",\n" +
            "    \"roomId\": 0,\n" +
            "    \"roomType\": 0,\n" +
            "    \"groupCid\": \"\",\n" +
            "    \"kickedUid\": \"\",\n" +
            "    \"status\": \"OnApply\",\n" +
            "    \"video\": true,\n" +
            "    \"senderId\": \"10020439\",\n" +
            "    \"audio\": true,\n" +
            "    \"isAnswered\": false,\n" +
            "    \"ownerId\": \"10020439\",\n" +
            "    \"ownerName\": \"ownerName\",\n" +
            "    \"callerList\": [\"10020439\", \"10018215\"],\n" +
            "    \"deviceKey\": \"android\",\n" +
            "    \"sdkProvider\": \"agora\",\n" +
            "    \"toRtcTokenList\": \"[{\\\"userId\\\":\\\"10018215\\\",\\\"token\\\":\\\"007eJxTY...\\\"}]\",\n" +
            "    \"encryptionKey\": \"2e65abf873a63313f42a859e0dc6b92c\",\n" +
            "    \"encryptionSalt\": \"drdwNQF5lpI9Wa6guAFt7fgynMm6lVCZ4+qw8q9vy8U=\",\n" +
            "    \"serverUrl\": \"\",\n" +
            "    \"serverOptions\": null\n" +
            "  },\n" +
            "  \"isEdit\": 0,\n" +
            "  \"replyToMessageId\": \"\",\n" +
            "  \"replyTo\": \"\",\n" +
            "  \"replyName\": \"\",\n" +
            "  \"replyUserId\": \"\",\n" +
            "  \"replyToType\": \"\",\n" +
            "  \"timeSend\": 1775808825451,\n" +
            "  \"type\": \"Calling\",\n" +
            "  \"toUserId\": \"10018215\",\n" +
            "  \"to\": [\"Static\"],\n" +
            "  \"toJid\": [\"10018215\"],\n" +
            "  \"atUserIds\": [],\n" +
            "  \"extraData\": \"\"\n" +
            "}";
    private static final ByteBuffer CONTENT_DATA = ByteBuffer.wrap(CONTENT.getBytes(StandardCharsets.UTF_8));
}
