鸿蒙PC平台 Shotwell 照片管理器适配实战：从 Linux GNOME 到鸿蒙PC 的 Electron 迁移

项目简介

Shotwell 是 Linux GNOME 桌面环境的默认照片管理器，支持照片导入、相册管理、图片编辑、批量操作等功能。本项目将其从 Linux GTK 应用迁移到鸿蒙平台，采用 Electron 核心功能 + 鸿蒙壳工程 的架构模式。

欢迎加入开源鸿蒙PC社区：https://harmonypc.csdn.net/

欢迎在PC社区平台申请新建项目：https://atomgit.com/OpenHarmonyPCDeveloper

AtomGit 仓库地址：https://atomgit.com/OpenHarmonyPCDeveloper/ohos_shotwell_electron

核心功能

📷 照片导入（支持 JPG/PNG/GIF/WebP 等格式）
📁 相册管理（新建/删除/归类）
🖼️ 图片查看器（全屏/幻灯片播放）
✂️ 图片编辑（旋转/翻转/裁剪）
⭐ 收藏系统
📋 批量操作（多选/删除）
🎨 GNOME 风格现代化 UI
⌨️ 完整快捷键支持

一、技术架构

1.1 原始架构（Linux GTK）

bash 复制代码

Shotwell (Vala/GTK)
├── 照片导入：libgphoto2
├── UI 渲染：GTK+ 3.0
├── 数据存储：SQLite
└── 图片编辑：GExiv2

1.2 目标架构（鸿蒙 Electron）

bash 复制代码

鸿蒙壳工程 (ArkTS)
└── web_engine 模块 (XComponent WebView)
    └── Electron 应用 (HTML/CSS/JavaScript)
        ├── main.js - Electron 主进程
        ├── renderer.js - 渲染进程（核心逻辑）
        ├── index.html - UI 界面
        └── styles/shotwell.css - 样式文件

1.3 架构优势

跨平台：Electron 代码可在 Windows/macOS/Linux 复用
快速开发：Web 技术栈，开发效率高
易于维护：UI 和业务逻辑分离
鸿蒙兼容：通过 WebView 桥接，避开 Native 兼容问题

二、环境准备

2.1 开发环境要求

操作系统：Windows 10
开发工具：DevEco Studio（鸿蒙官方 IDE）
HarmonyOS SDK：API 15+
Node.js：v24+（Electron 依赖）

2.2 项目结构

bash 复制代码

ohos_hap/
├── electron-apps/
│   └── shotwell/                 # Electron 照片管理应用源码
│       ├── main.js               # 主进程（窗口管理、IPC）
│       ├── renderer.js           # 渲染进程（UI 交互逻辑）
│       ├── index.html            # 界面结构
│       ├── package.json          # 项目配置
│       └── styles/
│           └── shotwell.css      # 样式文件
├── web_engine/                   # 鸿蒙 web_engine 模块
│   └── src/main/resources/
│       └── resfile/resources/app/  # 部署目录
│           ├── main.js
│           ├── renderer.js
│           ├── index.html
│           └── styles/shotwell.css
└── build-profile.json5           # 鸿蒙构建配置

三、核心适配流程

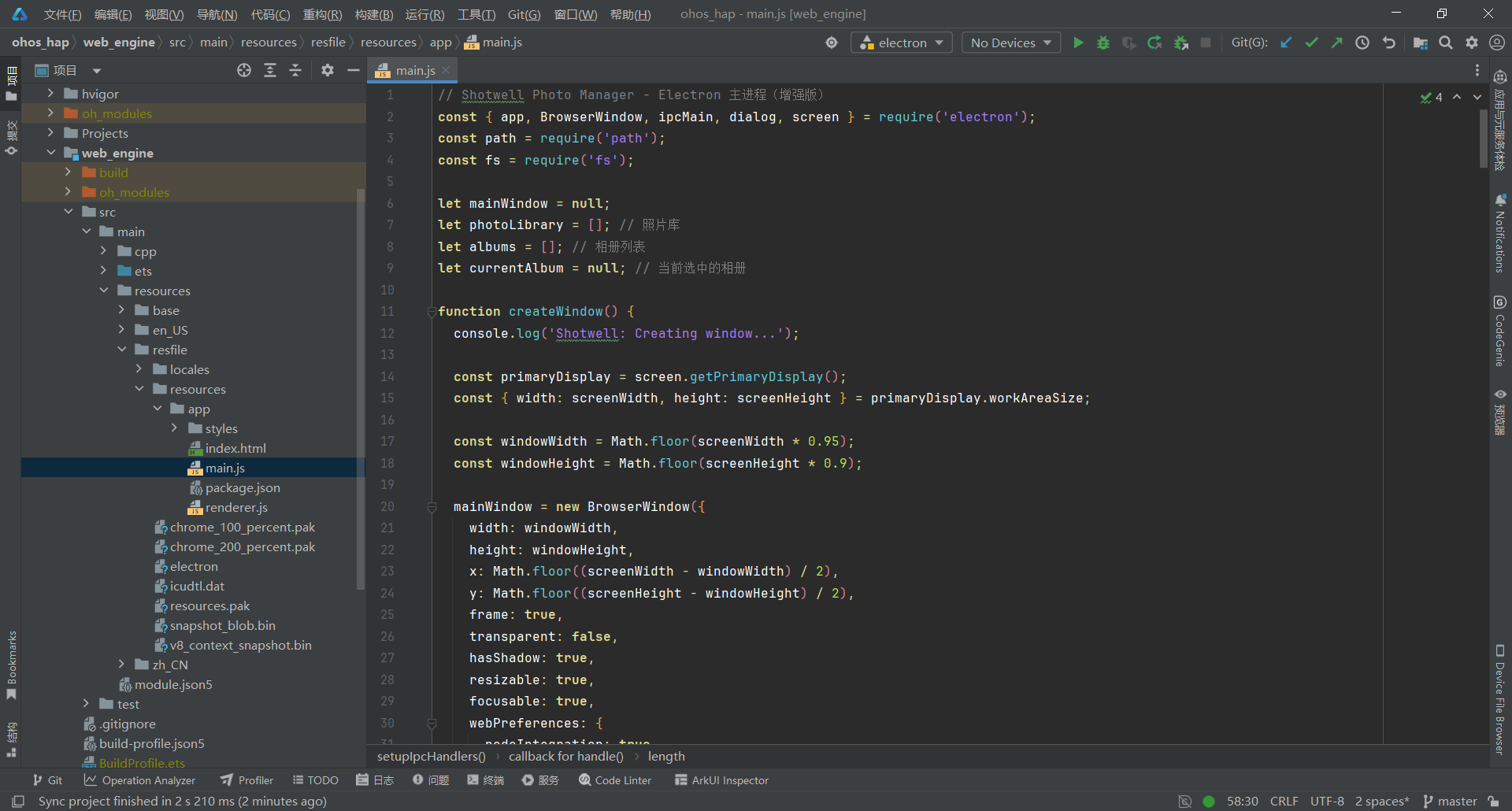

3.1 第一步：创建 Electron 主进程

文件：web_engine/src/main/resources/resfile/resources/app/main.js

js 复制代码

// Shotwell Photo Manager - Electron 主进程（增强版）
const { app, BrowserWindow, ipcMain, dialog, screen } = require('electron');
const path = require('path');
const fs = require('fs');

let mainWindow = null;
let photoLibrary = []; // 照片库
let albums = []; // 相册列表
let currentAlbum = null; // 当前选中的相册

function createWindow() {
  console.log('Shotwell: Creating window...');

  const primaryDisplay = screen.getPrimaryDisplay();
  const { width: screenWidth, height: screenHeight } = primaryDisplay.workAreaSize;

  const windowWidth = Math.floor(screenWidth * 0.95);
  const windowHeight = Math.floor(screenHeight * 0.9);

  mainWindow = new BrowserWindow({
    width: windowWidth,
    height: windowHeight,
    x: Math.floor((screenWidth - windowWidth) / 2),
    y: Math.floor((screenHeight - windowHeight) / 2),
    frame: true,
    transparent: false,
    hasShadow: true,
    resizable: true,
    focusable: true,
    webPreferences: {
      nodeIntegration: true,
      contextIsolation: false,
      backgroundThrottling: false
    }
  });

  mainWindow.loadFile(path.join(__dirname, 'index.html'));

  mainWindow.on('closed', () => {
    mainWindow = null;
  });

  setupIpcHandlers();
}

app.whenReady().then(() => {
  createWindow();
  console.log('Shotwell Photo Manager 已启动');
});

app.on('window-all-closed', () => {
  if (process.platform !== 'darwin') {
    app.quit();
  }
});

app.on('activate', () => {
  if (BrowserWindow.getAllWindows().length === 0) {
    createWindow();
  }
});

关键要点：

使用 screen.getPrimaryDisplay() 获取屏幕尺寸，动态计算窗口大小
窗口占据 95% 屏幕宽度和 90% 屏幕高度，提供更宽阔的照片浏览空间
设置 backgroundThrottling: false 保证幻灯片播放性能
使用 photoLibrary 数组缓存所有照片信息

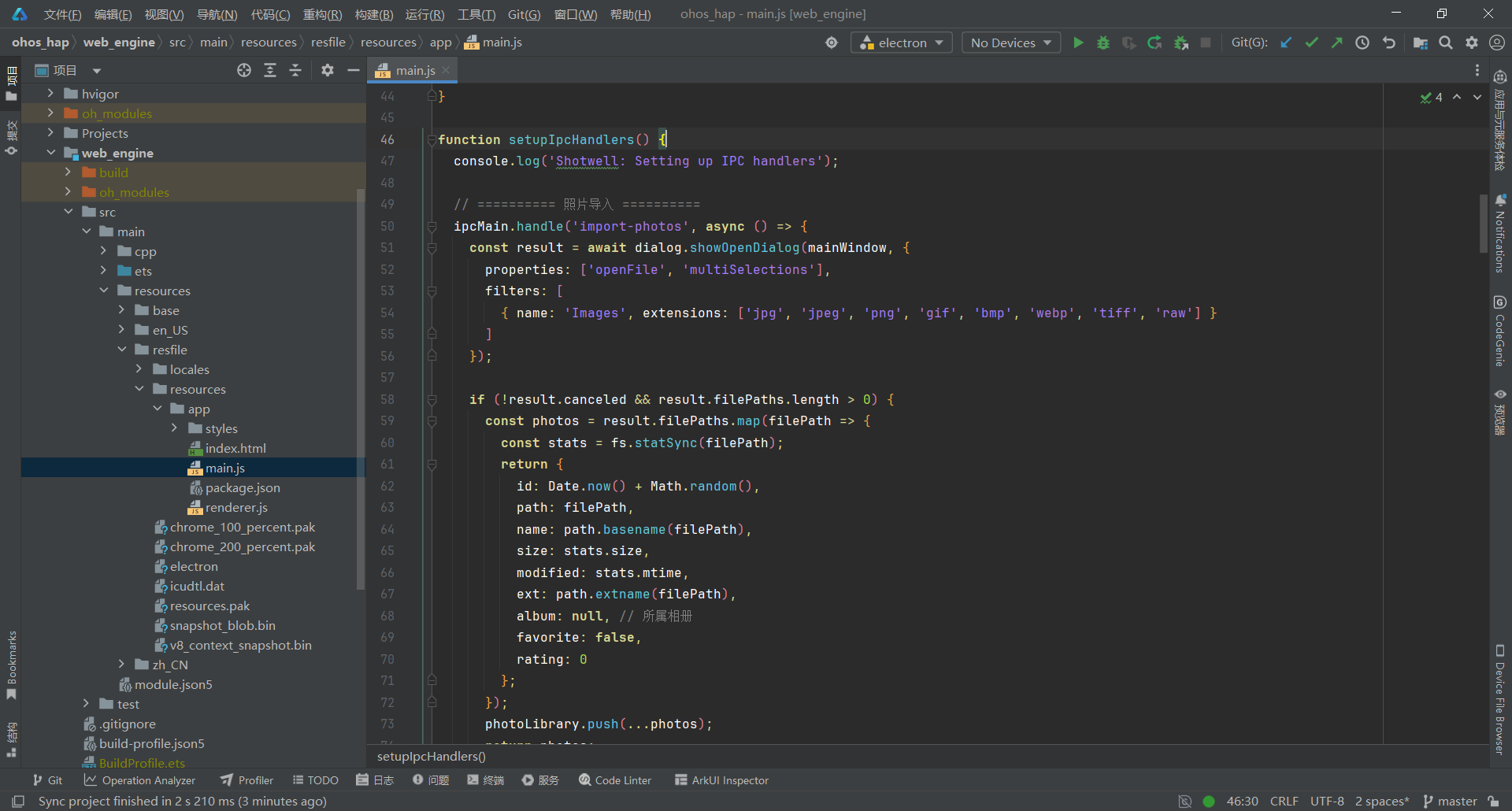

3.2 第二步：实现照片导入与相册管理

文件：web_engine/src/main/resources/resfile/resources/app/main.js

js 复制代码

function setupIpcHandlers() {
  console.log('Shotwell: Setting up IPC handlers');

  // ========== 照片导入 ==========
  ipcMain.handle('import-photos', async () => {
    const result = await dialog.showOpenDialog(mainWindow, {
      properties: ['openFile', 'multiSelections'],
      filters: [
        { name: 'Images', extensions: ['jpg', 'jpeg', 'png', 'gif', 'bmp', 'webp', 'tiff', 'raw'] }
      ]
    });

    if (!result.canceled && result.filePaths.length > 0) {
      const photos = result.filePaths.map(filePath => {
        const stats = fs.statSync(filePath);
        return {
          id: Date.now() + Math.random(),
          path: filePath,
          name: path.basename(filePath),
          size: stats.size,
          modified: stats.mtime,
          ext: path.extname(filePath),
          album: null,
          favorite: false,
          rating: 0
        };
      });
      photoLibrary.push(...photos);
      return photos;
    }
    return [];
  });

  // ========== 相册管理 ==========
  ipcMain.handle('create-album', async (event, albumName) => {
    const album = {
      id: Date.now(),
      name: albumName,
      created: new Date(),
      photoIds: []
    };
    albums.push(album);
    return album;
  });

  ipcMain.handle('get-albums', () => {
    return albums.map(album => ({
      ...album,
      count: album.photoIds.length
    }));
  });

  ipcMain.handle('add-to-album', async (event, albumId, photoIds) => {
    const album = albums.find(a => a.id === albumId);
    if (album) {
      photoIds.forEach(id => {
        if (!album.photoIds.includes(id)) {
          album.photoIds.push(id);
        }
        // 更新照片的相册归属
        const photo = photoLibrary.find(p => p.id === id);
        if (photo) {
          photo.album = albumId;
        }
      });
      return { success: true };
    }
    return { success: false };
  });

  ipcMain.handle('remove-from-album', async (event, albumId, photoIds) => {
    const album = albums.find(a => a.id === albumId);
    if (album) {
      album.photoIds = album.photoIds.filter(id => !photoIds.includes(id));
      photoIds.forEach(id => {
        const photo = photoLibrary.find(p => p.id === id);
        if (photo) photo.album = null;
      });
      return { success: true };
    }
    return { success: false };
  });

  ipcMain.handle('delete-album', async (event, albumId) => {
    albums = albums.filter(a => a.id !== albumId);
    // 清除照片的相册归属
    photoLibrary.forEach(photo => {
      if (photo.album === albumId) photo.album = null;
    });
    return { success: true };
  });

  // ========== 照片管理 ==========
  ipcMain.handle('get-library', (event, filters = {}) => {
    let photos = [...photoLibrary];

    // 按相册筛选
    if (filters.albumId) {
      photos = photos.filter(p => p.album === filters.albumId);
    }

    // 按收藏筛选
    if (filters.favorite) {
      photos = photos.filter(p => p.favorite);
    }

    // 排序
    if (filters.sortBy === 'date') {
      photos.sort((a, b) => new Date(b.modified) - new Date(a.modified));
    } else if (filters.sortBy === 'name') {
      photos.sort((a, b) => a.name.localeCompare(b.name));
    }

    return photos;
  });

  ipcMain.handle('delete-photos', async (event, photoIds) => {
    photoLibrary = photoLibrary.filter(p => !photoIds.includes(p.id));
    // 从相册中移除
    albums.forEach(album => {
      album.photoIds = album.photoIds.filter(id => !photoIds.includes(id));
    });
    return { success: true };
  });

  ipcMain.handle('toggle-favorite', async (event, photoId) => {
    const photo = photoLibrary.find(p => p.id === photoId);
    if (photo) {
      photo.favorite = !photo.favorite;
      return { success: true, favorite: photo.favorite };
    }
    return { success: false };
  });

  // ========== 图片编辑（旋转/翻转） ==========
  ipcMain.handle('rotate-image', async (event, photoId, degrees) => {
    const photo = photoLibrary.find(p => p.id === photoId);
    if (photo) {
      // 记录旋转角度（实际由前端 Canvas 处理）
      photo.rotation = (photo.rotation || 0) + degrees;
      return { success: true, rotation: photo.rotation };
    }
    return { success: false };
  });

  ipcMain.handle('flip-image', async (event, photoId, direction) => {
    const photo = photoLibrary.find(p => p.id === photoId);
    if (photo) {
      if (direction === 'horizontal') {
        photo.flipH = !photo.flipH;
      } else {
        photo.flipV = !photo.flipV;
      }
      return { success: true, flipH: photo.flipH, flipV: photo.flipV };
    }
    return { success: false };
  });

  ipcMain.handle('crop-image', async (event, photoId, cropData) => {
    // cropData: { x, y, width, height }
    const photo = photoLibrary.find(p => p.id === photoId);
    if (photo) {
      photo.crop = cropData;
      return { success: true };
    }
    return { success: false };
  });

  // 保存裁剪后的图片
  ipcMain.handle('save-cropped-image', async (event, photoId, imageData) => {
    const photo = photoLibrary.find(p => p.id === photoId);
    if (!photo) return { success: false, error: 'Photo not found' };

    try {
      // 获取应用数据目录（鸿蒙系统有写入权限）
      const appDataDir = app.getPath('userData');
      const croppedDir = path.join(appDataDir, 'cropped_images');

      // 创建目录（如果不存在）
      if (!fs.existsSync(croppedDir)) {
        fs.mkdirSync(croppedDir, { recursive: true });
      }

      // 生成裁剪后的文件路径（保存到应用数据目录）
      const ext = path.extname(photo.path);
      const baseName = path.basename(photo.path, ext);
      const croppedPath = path.join(croppedDir, `${baseName}_cropped${ext}`);

      console.log('保存到应用数据目录:', croppedPath);

      // 将 ArrayBuffer 转换为 Buffer 并保存
      const buffer = Buffer.from(imageData);
      fs.writeFileSync(croppedPath, buffer);

      // 更新照片路径
      photo.path = croppedPath;

      console.log('裁剪保存成功:', croppedPath);
      return { success: true, croppedPath };
    } catch (error) {
      console.error('裁剪保存失败:', error);
      return { success: false, error: error.message };
    }
  });
}

关键要点：

使用 dialog.showOpenDialog 实现多文件选择
支持 8 种图片格式：JPG/PNG/GIF/BMP/WebP/TIFF/RAW
相册数据存储在内存中，包含照片 ID 列表
get-library 支持相册筛选和排序
delete-photos 同时清理相册关联

3.3 第三步：设计三栏式专业 UI

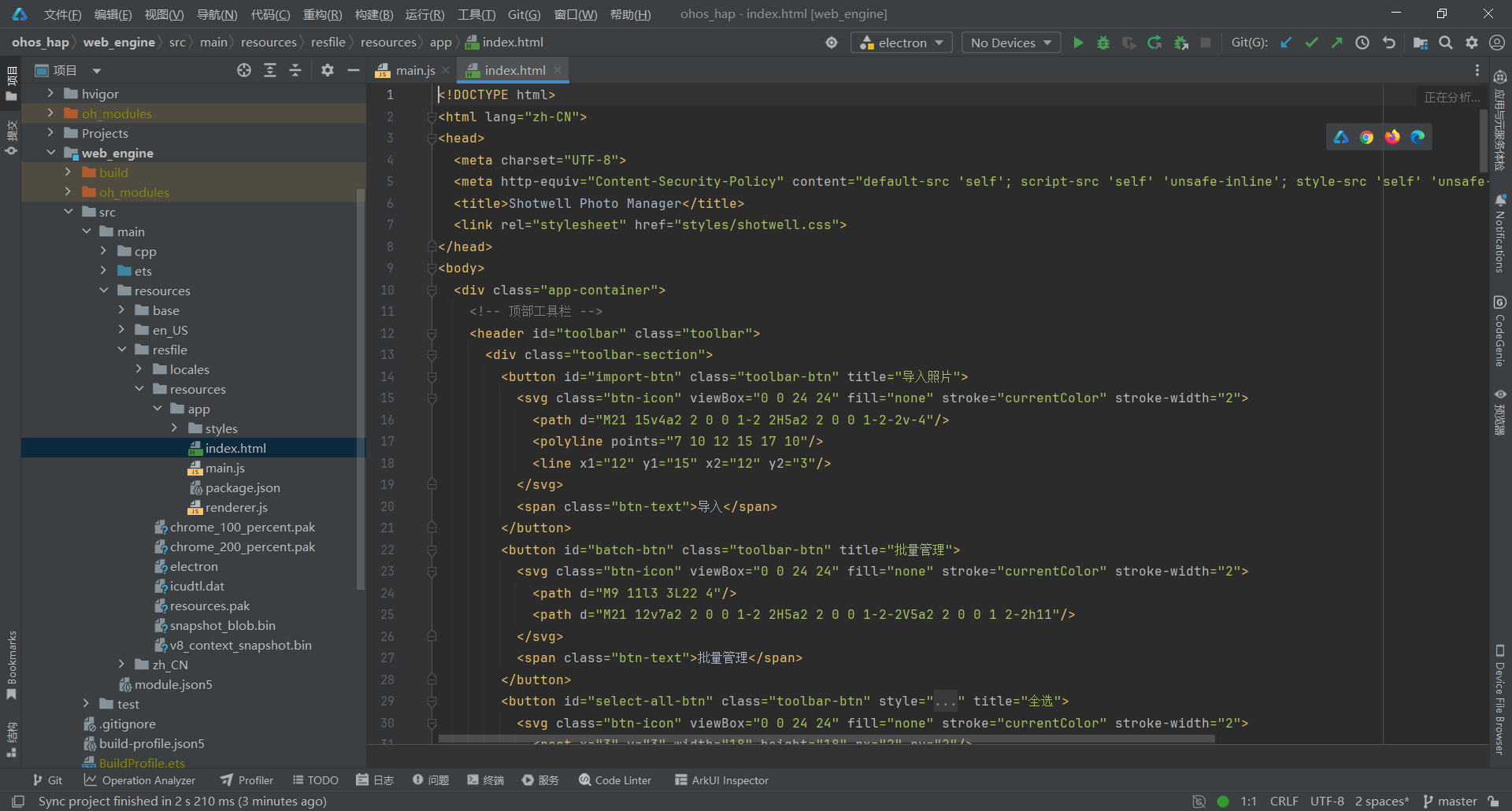

文件：web_engine/src/main/resources/resfile/resources/app/index.html

js 复制代码

<!DOCTYPE html>
<html lang="zh-CN">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="Content-Security-Policy" content="default-src 'self'; script-src 'self' 'unsafe-inline'; style-src 'self' 'unsafe-inline'; img-src 'self' file: data:;">
  <title>Shotwell Photo Manager</title>
  <link rel="stylesheet" href="styles/shotwell.css">
</head>
<body>
  <div class="app-container">
    <!-- 顶部工具栏 -->
    <header id="toolbar" class="toolbar">
      <div class="toolbar-section">
        <button id="import-btn" class="toolbar-btn" title="导入照片">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <path d="M21 15v4a2 2 0 0 1-2 2H5a2 2 0 0 1-2-2v-4"/>
            <polyline points="7 10 12 15 17 10"/>
            <line x1="12" y1="15" x2="12" y2="3"/>
          </svg>
          <span class="btn-text">导入</span>
        </button>
        <button id="batch-btn" class="toolbar-btn" title="批量管理">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <path d="M9 11l3 3L22 4"/>
            <path d="M21 12v7a2 2 0 0 1-2 2H5a2 2 0 0 1-2-2V5a2 2 0 0 1 2-2h11"/>
          </svg>
          <span class="btn-text">批量管理</span>
        </button>
        <button id="select-all-btn" class="toolbar-btn" style="display: none;" title="全选">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <rect x="3" y="3" width="18" height="18" rx="2" ry="2"/>
            <line x1="9" y1="9" x2="15" y2="15"/>
            <line x1="15" y1="9" x2="9" y2="15"/>
          </svg>
          <span class="btn-text">全选</span>
        </button>
        <button id="delete-btn" class="toolbar-btn" title="删除选中照片">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <polyline points="3 6 5 6 21 6"/>
            <path d="M19 6v14a2 2 0 0 1-2 2H7a2 2 0 0 1-2-2V6m3 0V4a2 2 0 0 1 2-2h4a2 2 0 0 1 2 2v2"/>
            <line x1="10" y1="11" x2="10" y2="17"/>
            <line x1="14" y1="11" x2="14" y2="17"/>
          </svg>
          <span class="btn-text">删除</span>
        </button>
      </div>

      <div class="toolbar-spacer"></div>

      <div class="toolbar-section">
        <button id="slideshow-btn" class="toolbar-btn" title="幻灯片播放">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <rect x="2" y="2" width="20" height="20" rx="2.18" ry="2.18"/>
            <line x1="7" y1="2" x2="7" y2="22"/>
            <line x1="17" y1="2" x2="17" y2="22"/>
            <line x1="2" y1="12" x2="22" y2="12"/>
            <line x1="2" y1="7" x2="7" y2="7"/>
            <line x1="2" y1="17" x2="7" y2="17"/>
            <line x1="17" y1="17" x2="22" y2="17"/>
            <line x1="17" y1="7" x2="22" y2="7"/>
          </svg>
          <span class="btn-text">幻灯片</span>
        </button>
      </div>
    </header>

    <!-- 编辑工具栏 -->
    <div id="edit-toolbar" class="edit-toolbar" style="display: none;">
      <div class="toolbar-section">
        <button id="rotate-left-btn" class="toolbar-btn" title="向左旋转90°">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <polyline points="1 4 1 10 7 10"/>
            <path d="M3.51 15a9 9 0 1 0 2.13-9.36L1 10"/>
          </svg>
          <span class="btn-text">左转</span>
        </button>
        <button id="rotate-right-btn" class="toolbar-btn" title="向右旋转90°">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <polyline points="23 4 23 10 17 10"/>
            <path d="M20.49 15a9 9 0 1 1-2.12-9.36L23 10"/>
          </svg>
          <span class="btn-text">右转</span>
        </button>
      </div>

      <div class="toolbar-separator"></div>

      <div class="toolbar-section">
        <button id="flip-h-btn" class="toolbar-btn" title="水平翻转">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <path d="M8 3H5a2 2 0 0 0-2 2v14c0 1.1.9 2 2 2h3"/>
            <path d="M16 3h3a2 2 0 0 1 2 2v14a2 2 0 0 1-2 2h-3"/>
            <line x1="12" y1="2" x2="12" y2="22" stroke-dasharray="4 4"/>
          </svg>
          <span class="btn-text">水平翻转</span>
        </button>
        <button id="flip-v-btn" class="toolbar-btn" title="垂直翻转">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <path d="M3 8V5a2 2 0 0 1 2-2h14c1.1 0 2 .9 2 2v3"/>
            <path d="M3 16v3a2 2 0 0 0 2 2h14a2 2 0 0 0 2-2v-3"/>
            <line x1="2" y1="12" x2="22" y2="12" stroke-dasharray="4 4"/>
          </svg>
          <span class="btn-text">垂直翻转</span>
        </button>
      </div>

      <div class="toolbar-separator"></div>

      <div class="toolbar-section">
        <button id="crop-btn" class="toolbar-btn" title="裁剪">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <path d="M6.13 1L6 16a2 2 0 0 0 2 2h15"/>
            <path d="M1 6.13L16 6a2 2 0 0 1 2 2v15"/>
          </svg>
          <span class="btn-text">裁剪</span>
        </button>
        <button id="apply-crop-btn" class="toolbar-btn" style="display: none;" title="应用裁剪">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <polyline points="20 6 9 17 4 12"/>
          </svg>
          <span class="btn-text">应用</span>
        </button>
        <button id="cancel-crop-btn" class="toolbar-btn" style="display: none;" title="取消裁剪">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <line x1="18" y1="6" x2="6" y2="18"/>
            <line x1="6" y1="6" x2="18" y2="18"/>
          </svg>
          <span class="btn-text">取消</span>
        </button>
      </div>

      <div class="toolbar-spacer"></div>

      <div class="toolbar-section">
        <button id="save-btn" class="toolbar-btn toolbar-btn-primary" title="保存编辑">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <path d="M19 21H5a2 2 0 0 1-2-2V5a2 2 0 0 1 2-2h11l5 5v11a2 2 0 0 1-2 2z"/>
            <polyline points="17 21 17 13 7 13 7 21"/>
            <polyline points="7 3 7 8 15 8"/>
          </svg>
          <span class="btn-text">保存</span>
        </button>
        <button id="exit-edit-btn" class="toolbar-btn" title="退出编辑">
          <svg class="btn-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
            <line x1="18" y1="6" x2="6" y2="18"/>
            <line x1="6" y1="6" x2="18" y2="18"/>
          </svg>
          <span class="btn-text">退出</span>
        </button>
      </div>
    </div>

    <!-- 主内容区 -->
    <div class="main-wrapper">
      <!-- 左侧相册栏 -->
      <aside id="sidebar" class="sidebar">
        <div class="sidebar-header">
          <h3 class="sidebar-title">相册</h3>
          <button id="new-album-btn" class="icon-btn" title="新建相册">
            <svg viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
              <line x1="12" y1="5" x2="12" y2="19"/>
              <line x1="5" y1="12" x2="19" y2="12"/>
            </svg>
          </button>
        </div>

        <div id="new-album-input" class="new-album-input" style="display: none;">
          <div class="album-input-wrapper">
            <svg class="input-icon" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
              <path d="M22 19a2 2 0 0 1-2 2H4a2 2 0 0 1-2-2V5a2 2 0 0 1 2-2h5l2 3h9a2 2 0 0 1 2 2z"/>
            </svg>
            <input type="text" placeholder="输入相册名称..." class="album-input">
          </div>
          <div class="input-actions">
            <button id="create-album-btn" class="icon-btn small-btn confirm-btn" title="创建">
              <svg viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
                <polyline points="20 6 9 17 4 12"/>
              </svg>
            </button>
            <button id="cancel-album-btn" class="icon-btn small-btn cancel-btn" title="取消">
              <svg viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
                <line x1="18" y1="6" x2="6" y2="18"/>
                <line x1="6" y1="6" x2="18" y2="18"/>
              </svg>
            </button>
          </div>
        </div>

        <div id="album-list" class="album-list">
          <!-- 相册列表动态生成 -->
        </div>

        <div class="sidebar-footer">
          <div id="photo-count" class="sidebar-stat">0 张照片</div>
          <div id="album-count" class="sidebar-stat">0 个相册</div>
        </div>
      </aside>

      <!-- 中间照片区 -->
      <main id="main-content" class="main-content">
        <!-- 照片网格视图 -->
        <div id="photo-grid-container" class="photo-grid-container">
          <div id="photo-grid" class="photo-grid">
            <!-- 照片缩略图动态生成 -->
          </div>

          <!-- 空状态 -->
          <div id="empty-state" class="empty-state">
            <div class="empty-icon">
              <svg viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5">
                <rect x="3" y="3" width="18" height="18" rx="2" ry="2"/>
                <circle cx="8.5" cy="8.5" r="1.5"/>
                <polyline points="21 15 16 10 5 21"/>
              </svg>
            </div>
            <h2>欢迎使用 Shotwell</h2>
            <p>导入照片，创建相册，开始管理您的照片库</p>
            <button id="import-btn-empty" class="btn-primary">
              <svg viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
                <path d="M21 15v4a2 2 0 0 1-2 2H5a2 2 0 0 1-2-2v-4"/>
                <polyline points="7 10 12 15 17 10"/>
                <line x1="12" y1="15" x2="12" y2="3"/>
              </svg>
              <span>导入照片</span>
            </button>
          </div>
        </div>

        <!-- 批量操作提示 -->
        <div id="batch-hint" class="batch-hint" style="display: none;">
          <span class="hint-text">已选择 <strong id="selected-count">0</strong> 张照片</span>
          <button id="cancel-batch-btn" class="icon-btn" title="退出批量管理">
            <svg viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
              <line x1="18" y1="6" x2="6" y2="18"/>
              <line x1="6" y1="6" x2="18" y2="18"/>
            </svg>
          </button>
        </div>

        <!-- 照片查看器 -->
        <div id="photo-view" class="photo-view" style="display: none;">
          <button id="close-photo-btn" class="close-photo-btn" title="关闭查看器">
            <svg viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
              <line x1="18" y1="6" x2="6" y2="18"/>
              <line x1="6" y1="6" x2="18" y2="18"/>
            </svg>
          </button>

          <button id="nav-prev" class="nav-btn nav-prev" title="上一张">
            <svg viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
              <polyline points="15 18 9 12 15 6"/>
            </svg>
          </button>

          <div class="photo-container">
            <img id="current-photo" src="" alt="当前照片">
          </div>

          <button id="nav-next" class="nav-btn nav-next" title="下一张">
            <svg viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2">
              <polyline points="9 18 15 12 9 6"/>
            </svg>
          </button>
        </div>
      </main>
    </div>

    <!-- 底部状态栏 -->
    <footer id="status-bar" class="status-bar">
      <div class="status-left">
        <span id="status-text">就绪</span>
      </div>
      <div class="status-right">
        <span class="status-hint">Ctrl+点击多选 | 右键菜单管理</span>
      </div>
    </footer>
  </div>

  <!-- 右键菜单 -->
  <div id="context-menu" class="context-menu" style="display: none;">
    <!-- 动态生成 -->
  </div>

  <script src="renderer.js"></script>
</body>
</html>

关键要点：

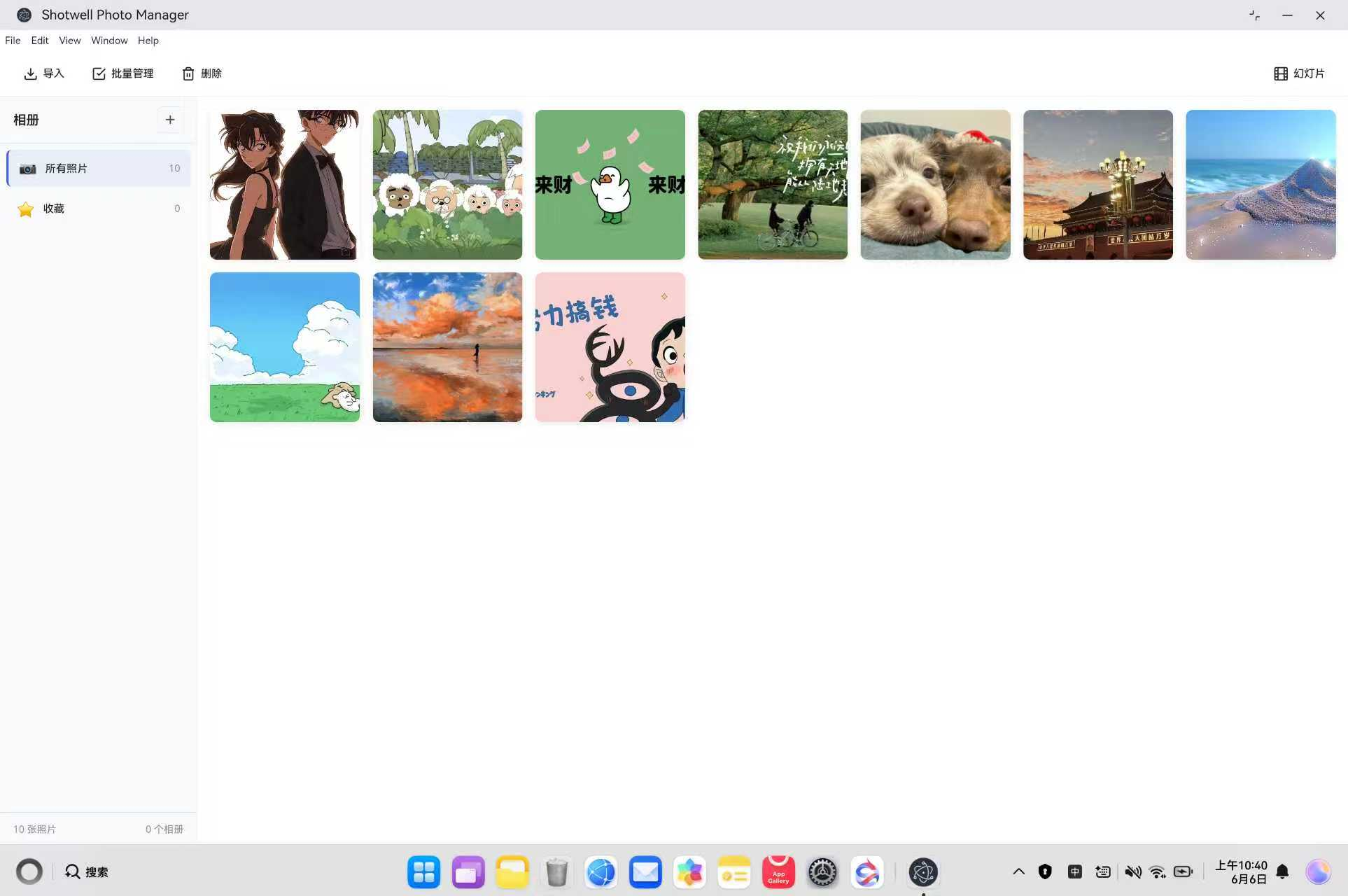

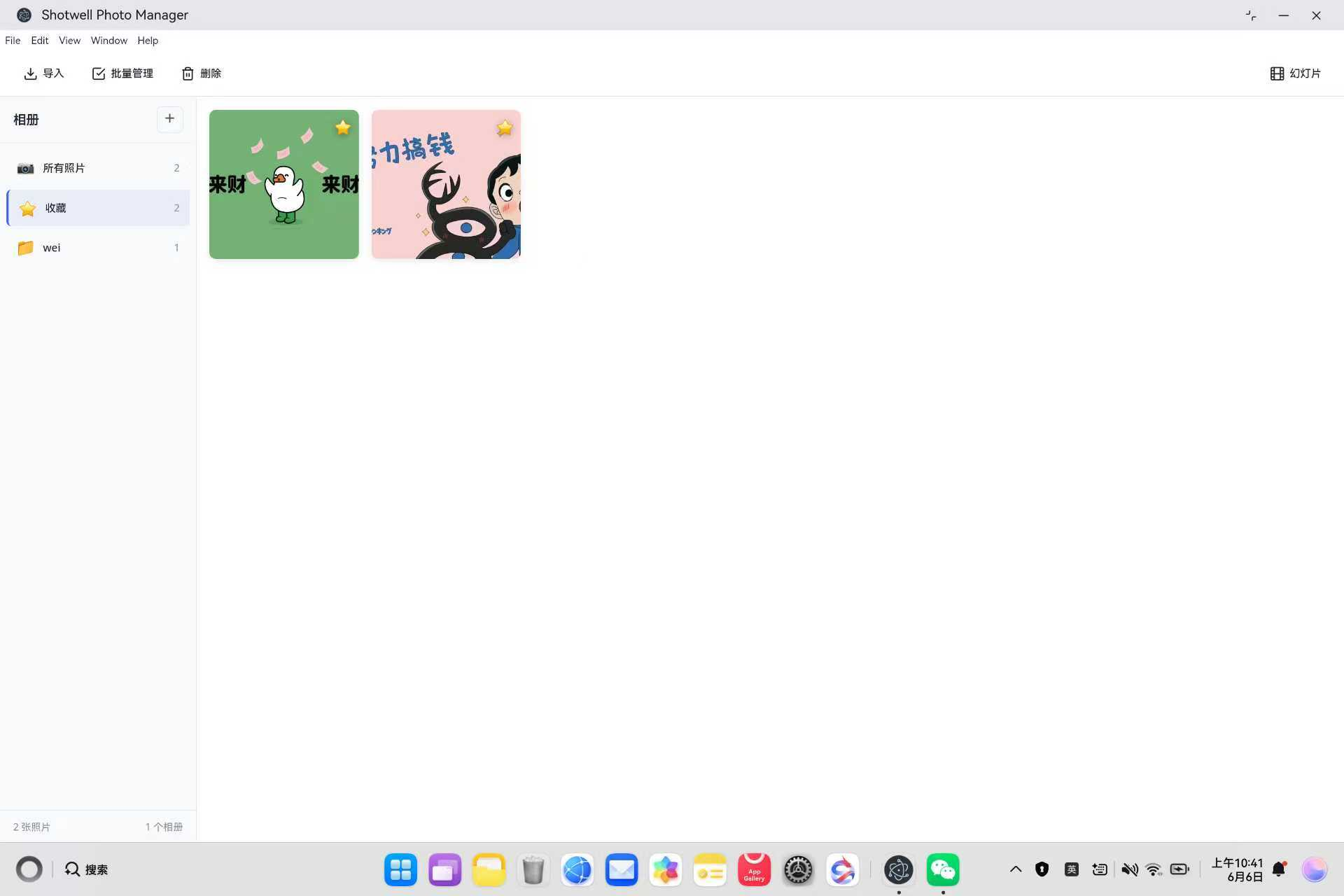

采用三栏式专业布局（左侧相册栏 + 中间照片区 + 顶部工具栏）
使用 SVG 图标替代 emoji，提升专业感

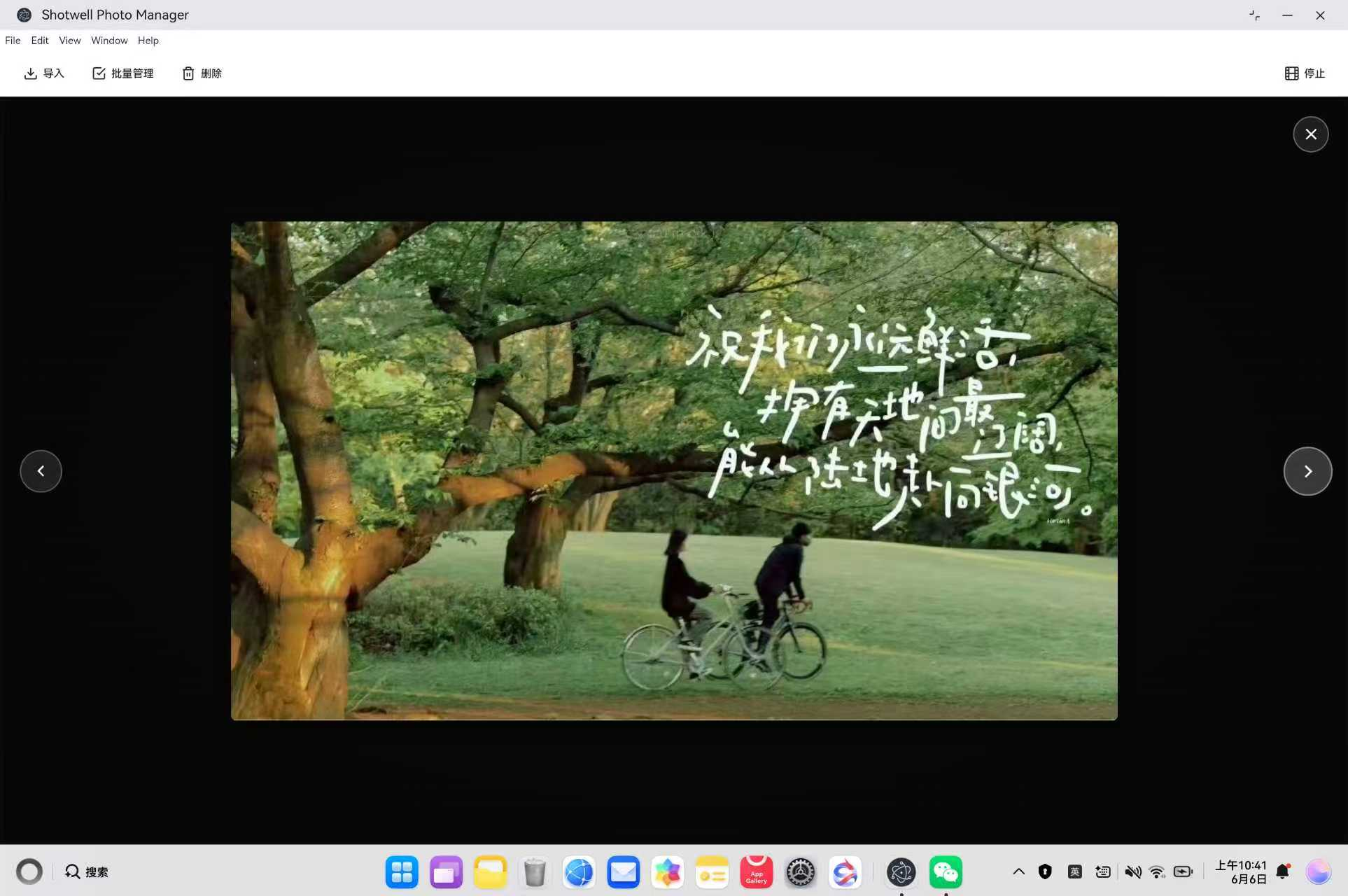

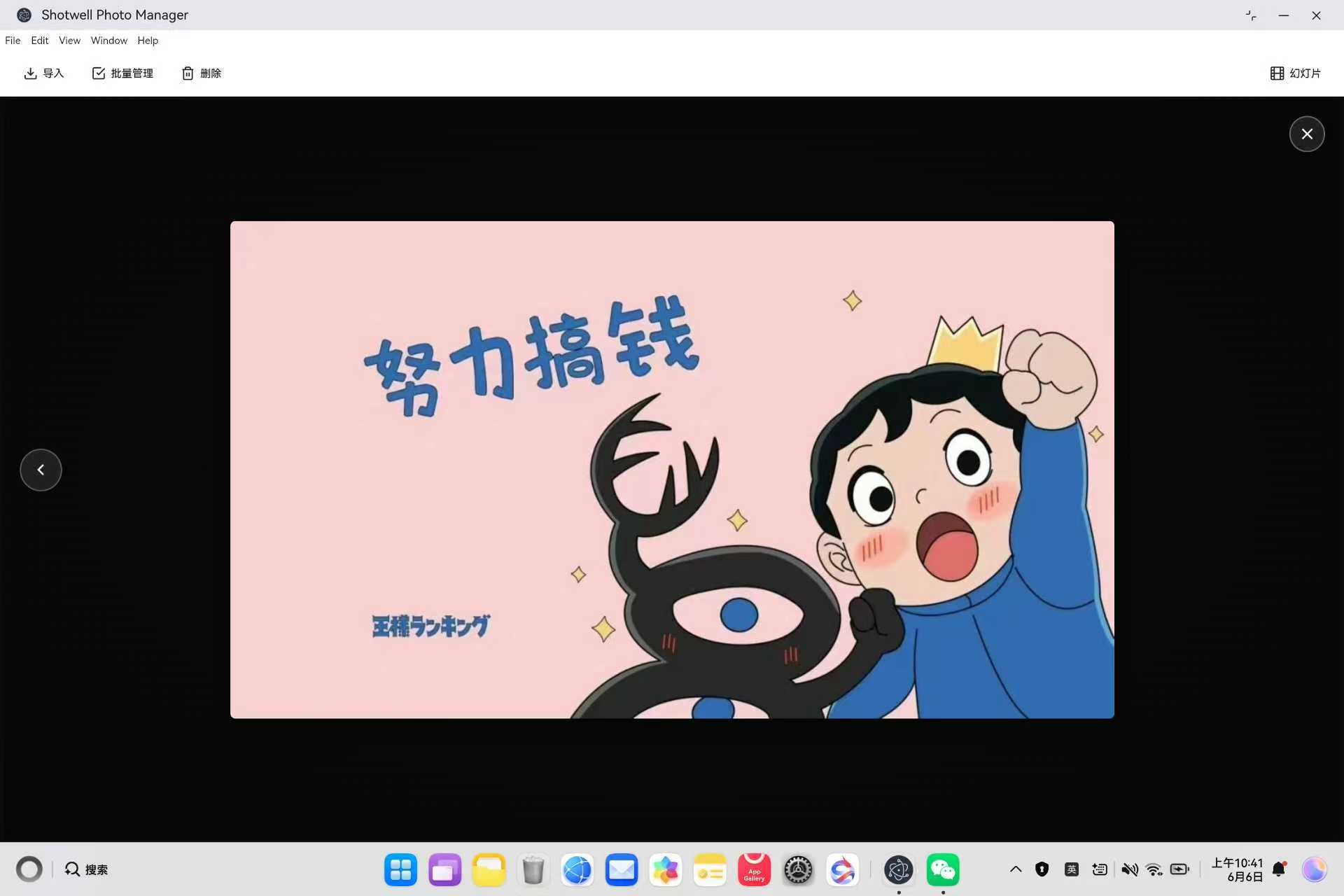

图片查看器覆盖层设计，支持导航和关闭
空状态提示引导用户导入照片

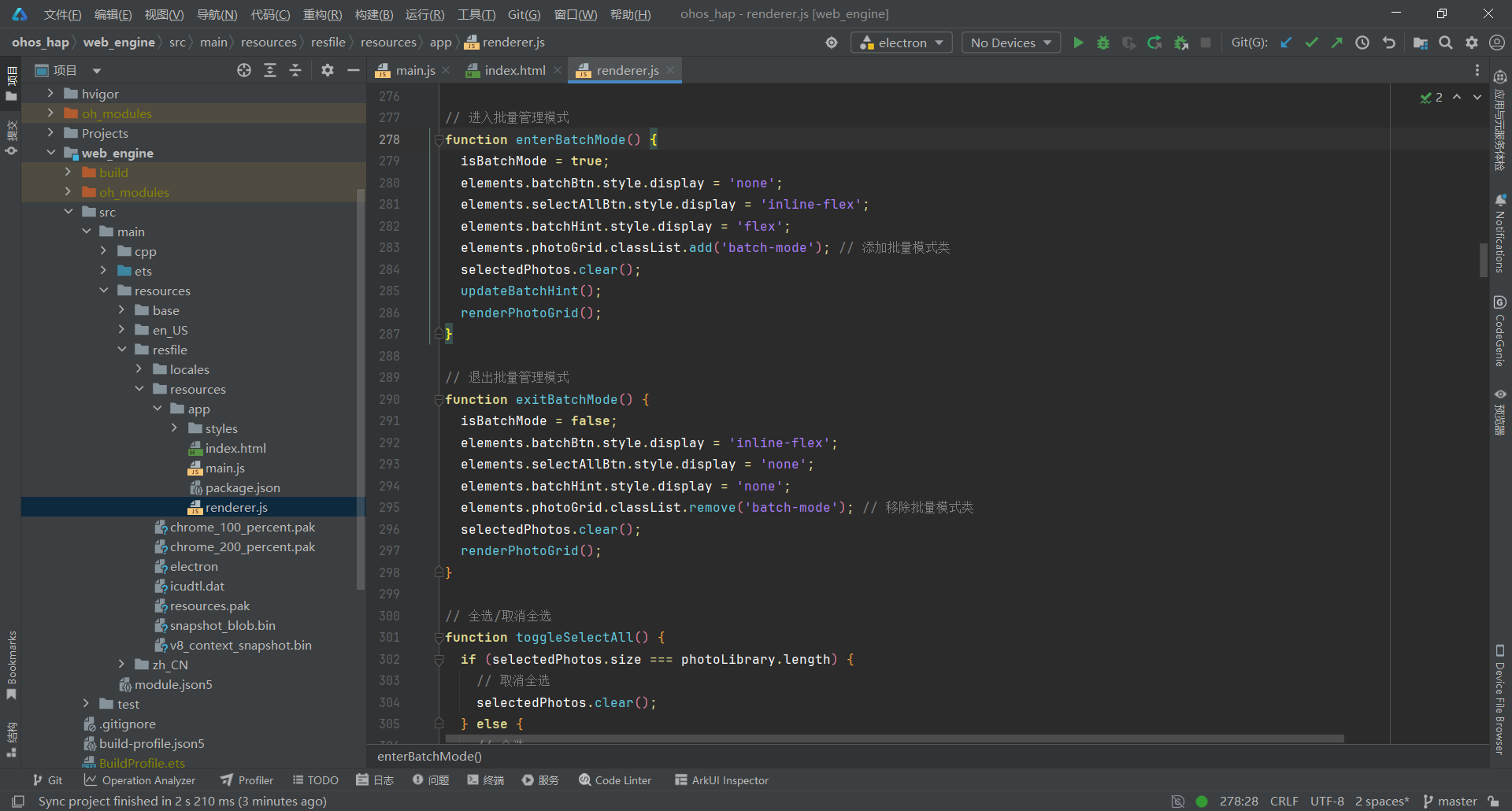

3.4 第四步：实现事件监听与批量管理

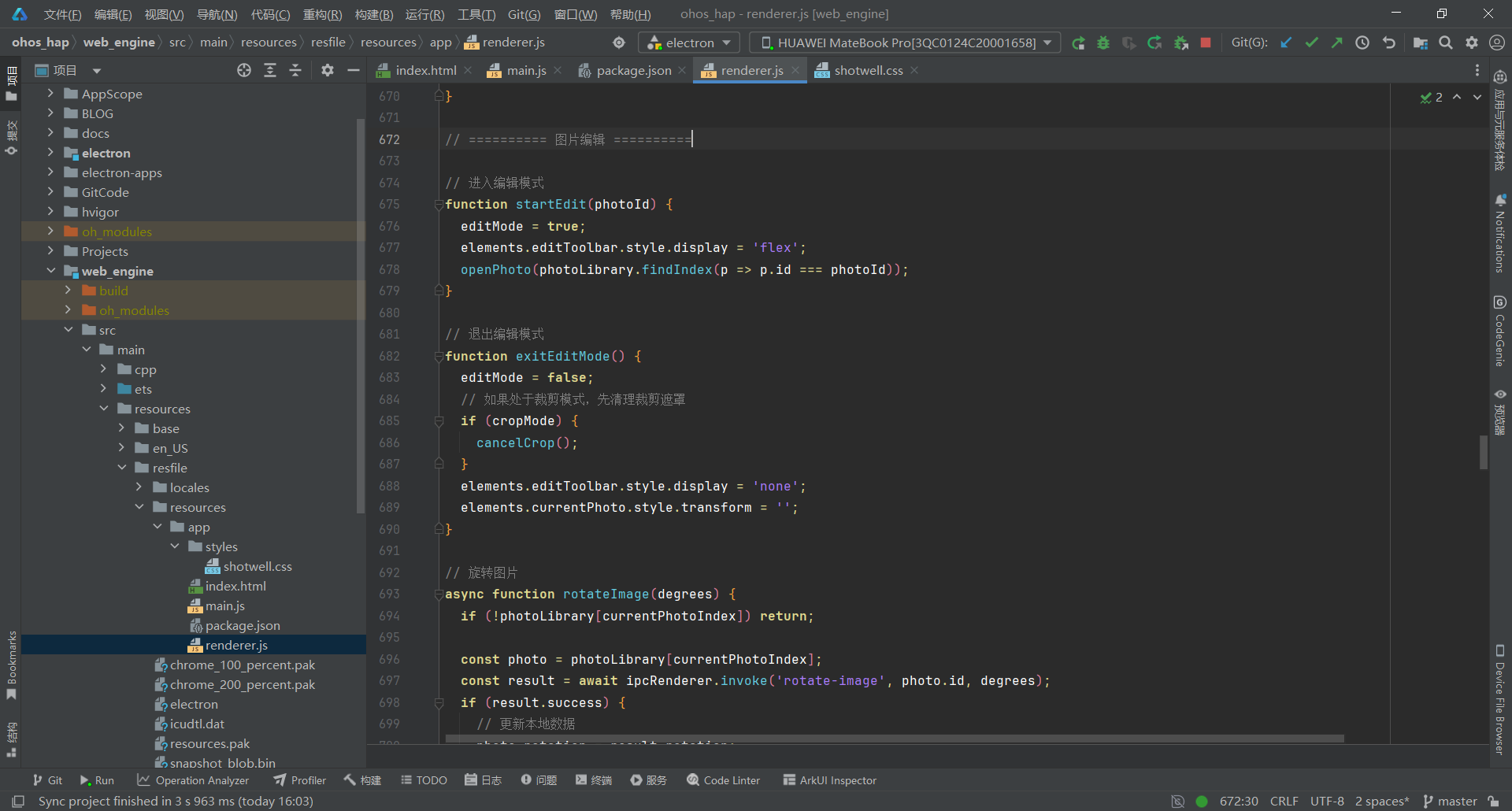

文件：web_engine/src/main/resources/resfile/resources/app/renderer.js

js 复制代码

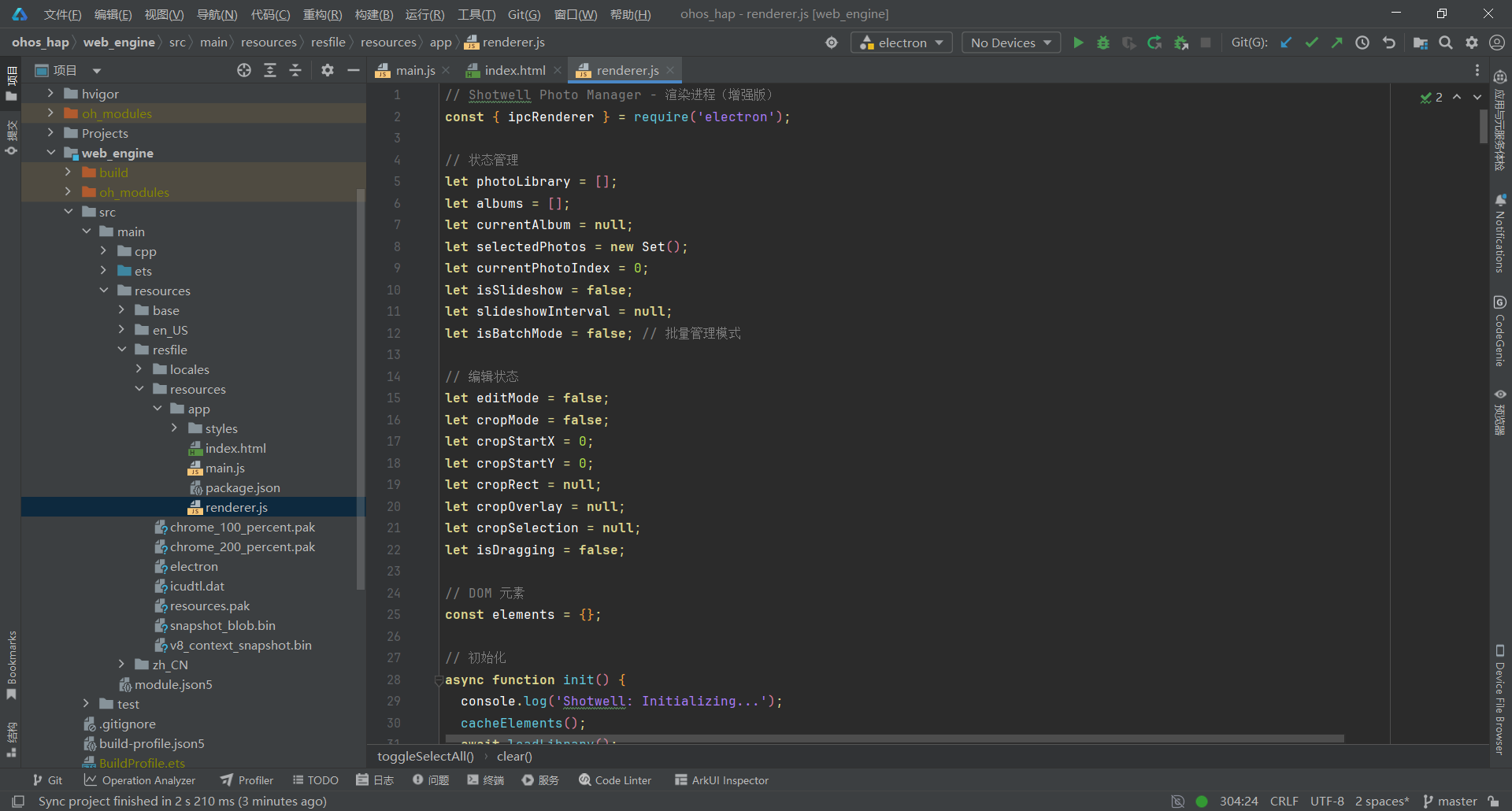

// Shotwell Photo Manager - 渲染进程（增强版）
const { ipcRenderer } = require('electron');

// 状态管理
let photoLibrary = [];
let albums = [];
let currentAlbum = null;
let selectedPhotos = new Set();
let currentPhotoIndex = 0;
let isSlideshow = false;
let slideshowInterval = null;
let isBatchMode = false; // 批量管理模式

// 编辑状态
let editMode = false;
let cropMode = false;
let cropStartX = 0;
let cropStartY = 0;
let cropRect = null;
let cropOverlay = null;
let cropSelection = null;
let isDragging = false;

// DOM 元素
const elements = {};

// 初始化
async function init() {
  console.log('Shotwell: Initializing...');
  cacheElements();
  await loadLibrary();
  await loadAlbums();
  setupEventListeners();
  renderAlbums();
  renderPhotoGrid();
}

// 缓存 DOM 元素
function cacheElements() {
  // 左侧边栏
  elements.sidebar = document.getElementById('sidebar');
  elements.albumList = document.getElementById('album-list');
  elements.newAlbumBtn = document.getElementById('new-album-btn');
  elements.newAlbumInput = document.getElementById('new-album-input');
  elements.createAlbumBtn = document.getElementById('create-album-btn');
  elements.cancelAlbumBtn = document.getElementById('cancel-album-btn');

  // 工具栏
  elements.toolbar = document.getElementById('toolbar');
  elements.importBtn = document.getElementById('import-btn');
  elements.importBtnEmpty = document.getElementById('import-btn-empty');
  elements.batchBtn = document.getElementById('batch-btn');
  elements.selectAllBtn = document.getElementById('select-all-btn');
  elements.deleteBtn = document.getElementById('delete-btn');
  elements.slideshowBtn = document.getElementById('slideshow-btn');
  elements.batchHint = document.getElementById('batch-hint');
  elements.selectedCount = document.getElementById('selected-count');
  elements.cancelBatchBtn = document.getElementById('cancel-batch-btn');

  // 编辑工具栏
  elements.editToolbar = document.getElementById('edit-toolbar');
  elements.rotateLeftBtn = document.getElementById('rotate-left-btn');
  elements.rotateRightBtn = document.getElementById('rotate-right-btn');
  elements.flipHBtn = document.getElementById('flip-h-btn');
  elements.flipVBtn = document.getElementById('flip-v-btn');
  elements.cropBtn = document.getElementById('crop-btn');
  elements.applyCropBtn = document.getElementById('apply-crop-btn');
  elements.cancelCropBtn = document.getElementById('cancel-crop-btn');
  elements.saveBtn = document.getElementById('save-btn');
  elements.exitEditBtn = document.getElementById('exit-edit-btn');

  // 主内容区
  elements.mainContent = document.getElementById('main-content');
  elements.photoGrid = document.getElementById('photo-grid');
  elements.photoView = document.getElementById('photo-view');
  elements.currentPhoto = document.getElementById('current-photo');
  elements.emptyState = document.getElementById('empty-state');
  elements.closePhotoBtn = document.getElementById('close-photo-btn');

  // 导航
  elements.navPrev = document.getElementById('nav-prev');
  elements.navNext = document.getElementById('nav-next');

  // 状态栏
  elements.statusBar = document.getElementById('status-bar');
  elements.statusText = document.getElementById('status-text');
  elements.photoCount = document.getElementById('photo-count');
  elements.albumCount = document.getElementById('album-count');

  // 右键菜单
  elements.contextMenu = document.getElementById('context-menu');
}

// ===== 事件监听 =====
function setupEventListeners() {
  // 导入照片
  elements.importBtn.addEventListener('click', importPhotos);
  elements.importBtnEmpty.addEventListener('click', importPhotos);

  // 批量管理
  elements.batchBtn.addEventListener('click', enterBatchMode);
  elements.selectAllBtn.addEventListener('click', toggleSelectAll);
  elements.cancelBatchBtn.addEventListener('click', exitBatchMode);

  // 删除
  elements.deleteBtn.addEventListener('click', deleteSelectedPhotos);

  // 幻灯片
  elements.slideshowBtn.addEventListener('click', startSlideshow);

  // 相册操作
  elements.newAlbumBtn.addEventListener('click', showNewAlbumInput);
  elements.createAlbumBtn.addEventListener('click', createAlbum);
  elements.cancelAlbumBtn.addEventListener('click', cancelAlbum);
  elements.newAlbumInput.addEventListener('keydown', handleNewAlbumInput);

  // 编辑工具栏
  elements.rotateLeftBtn.addEventListener('click', rotateLeft);
  elements.rotateRightBtn.addEventListener('click', rotateRight);
  elements.flipHBtn.addEventListener('click', flipHorizontal);
  elements.flipVBtn.addEventListener('click', flipVertical);
  elements.cropBtn.addEventListener('click', enterCropMode);
  elements.saveBtn.addEventListener('click', saveEdits);
  elements.exitEditBtn.addEventListener('click', exitEditMode);

  // 导航
  elements.navPrev.addEventListener('click', previousPhoto);
  elements.navNext.addEventListener('click', nextPhoto);
  elements.closePhotoBtn.addEventListener('click', closePhotoView);

  // 照片网格点击（委托）
  elements.photoGrid.addEventListener('click', (e) => {
    const photoItem = e.target.closest('.photo-item');
    if (photoItem) {
      const photoId = parseFloat(photoItem.dataset.photoId);
      if (isBatchMode) {
        togglePhotoSelection(photoId, photoItem);
      } else {
        const index = photoLibrary.findIndex(p => p.id === photoId);
        if (index !== -1) openPhoto(index);
      }
    }
  });

  // 右键菜单
  elements.photoGrid.addEventListener('contextmenu', (e) => {
    const photoItem = e.target.closest('.photo-item');
    if (photoItem && !isBatchMode) {
      e.preventDefault();
      const photoId = parseFloat(photoItem.dataset.photoId);
      showPhotoContextMenu(e, photoId);
    }
  });

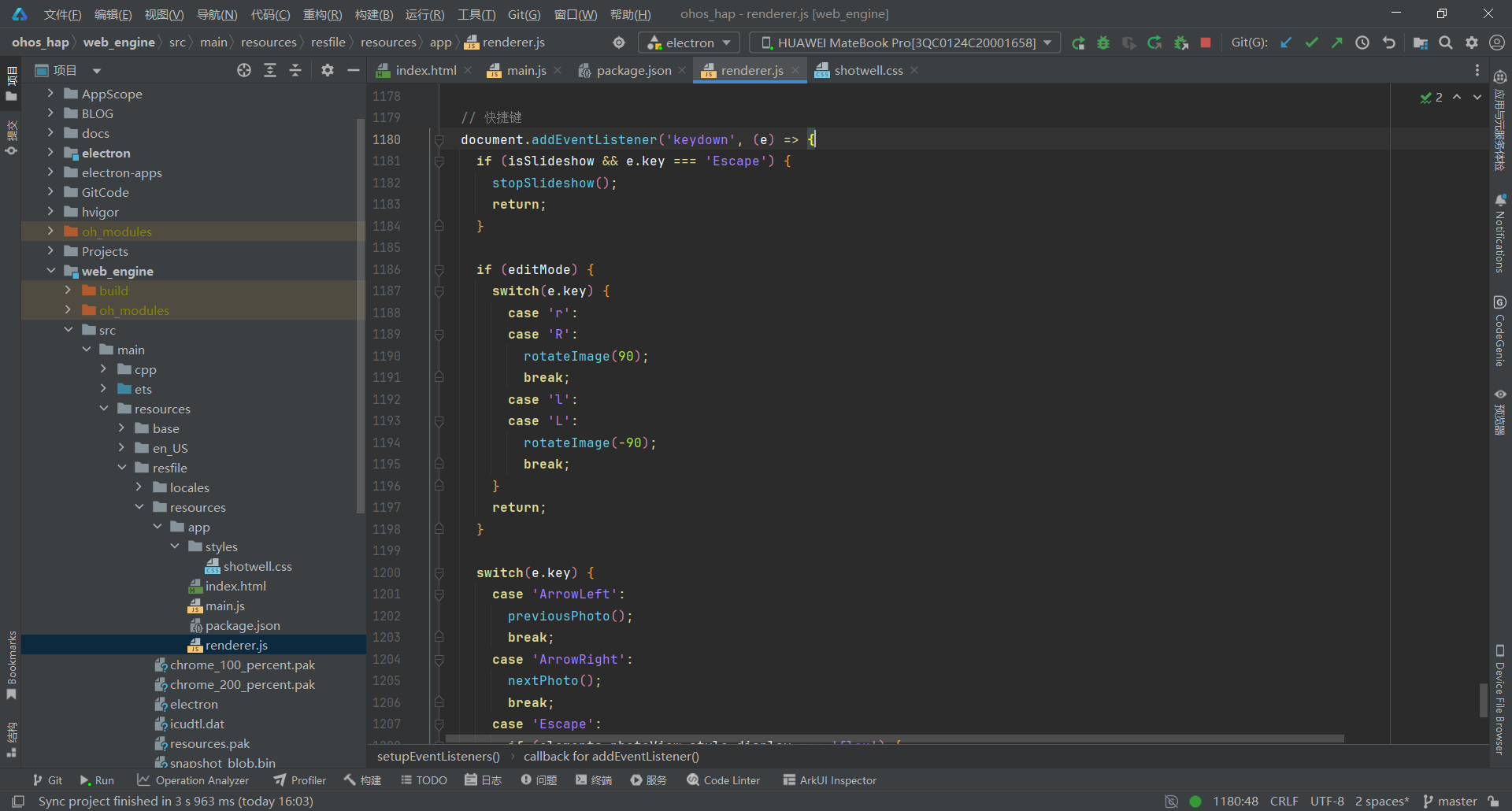

  // 键盘快捷键
  document.addEventListener('keydown', handleKeyboardShortcuts);
}

关键要点：

使用 Set 数据结构管理选中照片，性能更好
isBatchMode 标志控制批量管理模式
cacheElements() 提前缓存所有 DOM 引用，避免重复查询
try-catch 保护初始化流程，避免白屏

3.5 第五步：实现批量管理与图片查看器

文件：web_engine/src/main/resources/resfile/resources/app/renderer.js

js 复制代码

// ===== 批量管理 =====
function enterBatchMode() {
  isBatchMode = true;
  elements.batchBtn.style.display = 'none';
  elements.selectAllBtn.style.display = 'inline-flex';
  elements.batchHint.style.display = 'flex';
  elements.photoGrid.classList.add('batch-mode'); // 添加批量模式类
  selectedPhotos.clear();
  updateBatchHint();
  renderPhotoGrid();
}

// 退出批量管理模式
function exitBatchMode() {
  isBatchMode = false;
  elements.batchBtn.style.display = 'inline-flex';
  elements.selectAllBtn.style.display = 'none';
  elements.batchHint.style.display = 'none';
  elements.photoGrid.classList.remove('batch-mode'); // 移除批量模式类
  selectedPhotos.clear();
  renderPhotoGrid();
}

// 全选/取消全选
function toggleSelectAll() {
  if (selectedPhotos.size === photoLibrary.length) {
    // 取消全选
    selectedPhotos.clear();
  } else {
    // 全选
    photoLibrary.forEach(photo => {
      selectedPhotos.add(photo.id);
    });
  }
  renderPhotoGrid();
  updateBatchHint();
}

// 更新批量提示
function updateBatchHint() {
  elements.selectedCount.textContent = selectedPhotos.size;
}

// 切换照片选择
function togglePhotoSelection(photoId, itemElement) {
  if (selectedPhotos.has(photoId)) {
    selectedPhotos.delete(photoId);
    // 立即移除选中样式
    if (itemElement) {
      itemElement.classList.remove('selected');
    } else {
      const item = elements.photoGrid.querySelector(`[data-photo-id="${photoId}"]`);
      if (item) item.classList.remove('selected');
    }
  } else {
    selectedPhotos.add(photoId);
    // 立即添加选中样式
    if (itemElement) {
      itemElement.classList.add('selected');
    } else {
      const item = elements.photoGrid.querySelector(`[data-photo-id="${photoId}"]`);
      if (item) item.classList.add('selected');
    }
  }
}

// ===== 图片查看器 =====
function openPhoto(index) {
  // 如果处于裁剪模式，先退出裁剪
  if (cropMode) {
    cancelCrop();
  }

  currentPhotoIndex = index;
  const photo = photoLibrary[index];

  elements.photoGrid.parentElement.style.display = 'none';
  elements.photoView.style.display = 'flex';

  elements.currentPhoto.src = `file://${photo.path}`;
  updatePhotoNavigation();
  updateStatusBar();
}

// 关闭照片查看
function closePhotoView() {
  console.log('关闭照片查看器');

  // 如果正在播放幻灯片，先停止
  if (isSlideshow) {
    stopSlideshow();
  }

  // ✅ 如果处于裁剪模式，先退出裁剪
  if (cropMode) {
    console.log('关闭查看器时退出裁剪模式');
    cancelCrop();
  }

  // 退出编辑模式
  exitEditMode();

  elements.photoGrid.parentElement.style.display = 'block';
  elements.photoView.style.display = 'none';
}

// 更新照片导航
function updatePhotoNavigation() {
  elements.navPrev.style.visibility = currentPhotoIndex > 0 ? 'visible' : 'hidden';
  elements.navNext.style.visibility = currentPhotoIndex < photoLibrary.length - 1 ? 'visible' : 'hidden';
}

// 上一张
function previousPhoto() {
  if (currentPhotoIndex > 0) {
    openPhoto(currentPhotoIndex - 1);
  }
}

// 下一张
function nextPhoto() {
  if (currentPhotoIndex < photoLibrary.length - 1) {
    openPhoto(currentPhotoIndex + 1);
  }
}

关键要点：

批量模式添加 batch-mode CSS 类，显示勾选图标
exitBatchMode() 完整清理状态，包括隐藏提示条
图片查看器使用 file:// 协议加载本地图片
导航按钮根据边界自动隐藏

3.6 第六步：实现图片编辑功能

文件：web_engine/src/main/resources/resfile/resources/app/renderer.js

js 复制代码

// ========== 图片编辑 ==========

// 进入编辑模式
function startEdit(photoId) {
  editMode = true;
  elements.editToolbar.style.display = 'flex';
  openPhoto(photoLibrary.findIndex(p => p.id === photoId));
}

// 退出编辑模式
function exitEditMode() {
  editMode = false;
  // 如果处于裁剪模式，先清理裁剪遮罩
  if (cropMode) {
    cancelCrop();
  }
  elements.editToolbar.style.display = 'none';
  elements.currentPhoto.style.transform = '';
}

// 旋转图片
async function rotateImage(degrees) {
  if (!photoLibrary[currentPhotoIndex]) return;

  const photo = photoLibrary[currentPhotoIndex];
  const result = await ipcRenderer.invoke('rotate-image', photo.id, degrees);
  if (result.success) {
    // 更新本地数据
    photo.rotation = result.rotation;
    applyPhotoTransform();
  }
}

// 翻转图片
async function flipImage(direction) {
  if (!photoLibrary[currentPhotoIndex]) return;

  const photo = photoLibrary[currentPhotoIndex];
  const result = await ipcRenderer.invoke('flip-image', photo.id, direction);
  if (result.success) {
    // 更新本地数据
    photo.flipH = result.flipH;
    photo.flipV = result.flipV;
    applyPhotoTransform();
  }
}

// 应用变换
function applyPhotoTransform() {
  if (!photoLibrary[currentPhotoIndex]) return;

  const photo = photoLibrary[currentPhotoIndex];
  const rotation = photo.rotation || 0;
  const flipH = photo.flipH ? 'scaleX(-1)' : '';
  const flipV = photo.flipV ? 'scaleY(-1)' : '';

  // 应用旋转和翻转
  elements.currentPhoto.style.transform = `rotate(${rotation}deg) ${flipH} ${flipV}`.trim();
  elements.currentPhoto.style.transition = 'transform 0.3s cubic-bezier(0.4, 0, 0.2, 1)';

  // ✅ 旋转 90° 或 270° 时，需要调整 max-width/max-height 防止超出
  const normalizedRotation = ((rotation % 360) + 360) % 360;
  const isRotated90or270 = normalizedRotation === 90 || normalizedRotation === 270;

  if (isRotated90or270) {
    // 旋转 90° 或 270° 时，宽高互换
    elements.currentPhoto.style.maxWidth = '100vh';
    elements.currentPhoto.style.maxHeight = '100vw';
  } else {
    // 正常方向
    elements.currentPhoto.style.maxWidth = '100%';
    elements.currentPhoto.style.maxHeight = '100%';
  }
}

// 裁剪模式

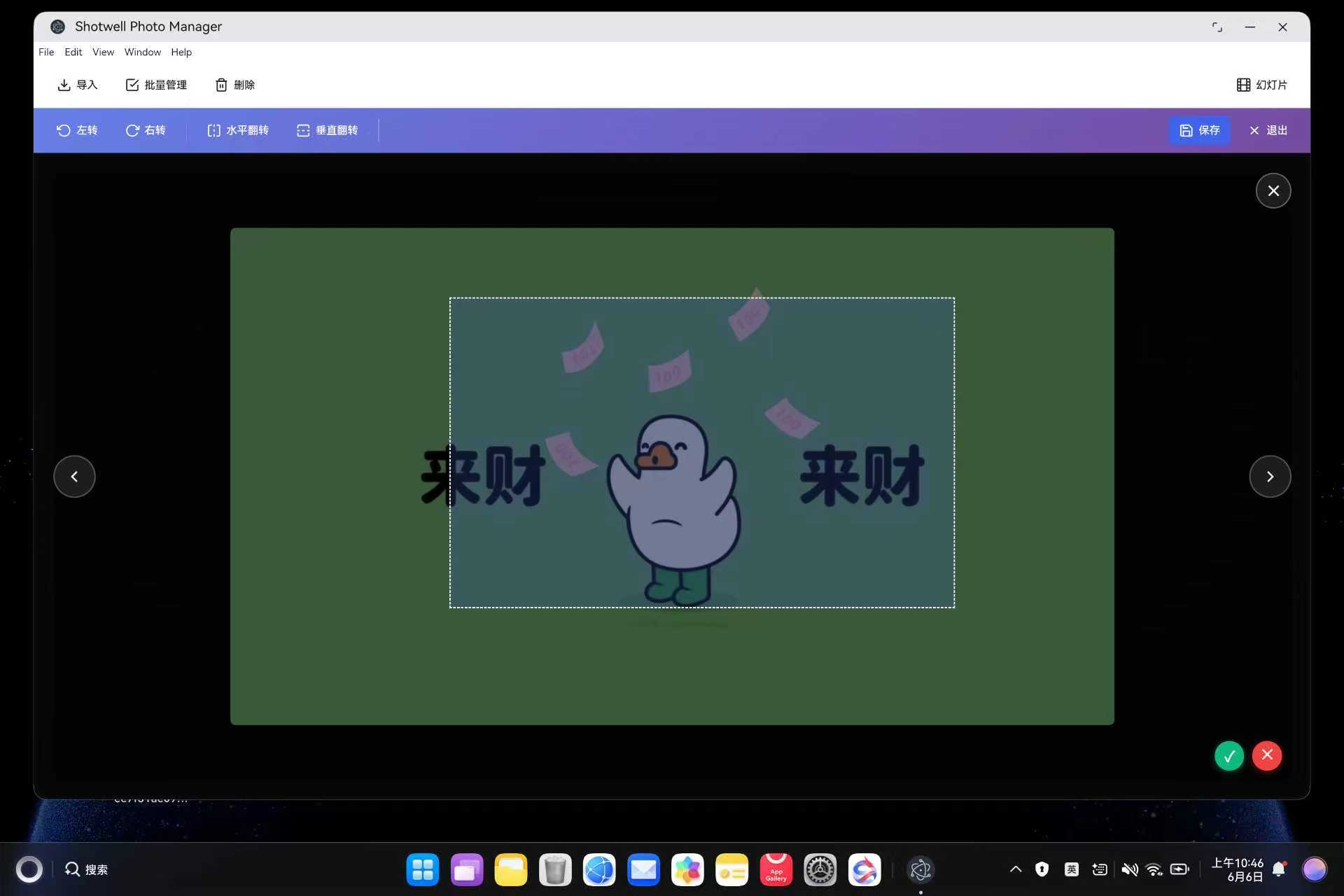

function startCrop() {
  if (!elements.currentPhoto.src) {
    alert('请先打开一张照片');
    return;
  }

  cropMode = true;
  elements.cropBtn.style.display = 'none';
  elements.editToolbar.classList.add('crop-active'); // 添加裁剪模式类

  // 添加裁剪遮罩
  cropOverlay = document.createElement('div');
  cropOverlay.id = 'crop-overlay';
  cropOverlay.className = 'crop-overlay';

  cropSelection = document.createElement('div');
  cropSelection.className = 'crop-selection';
  cropSelection.style.display = 'none';

  // 添加确认和取消按钮
  const cropActions = document.createElement('div');
  cropActions.className = 'crop-actions';
  cropActions.style.display = 'none';
  cropActions.style.zIndex = '100';

  const confirmBtn = document.createElement('button');
  confirmBtn.className = 'crop-confirm-btn';
  confirmBtn.innerHTML = '&#10003;'; // ✓
  confirmBtn.title = '确认裁剪';
  confirmBtn.type = 'button';
  confirmBtn.addEventListener('click', (e) => {
    e.stopPropagation();
    e.preventDefault();
    applyCrop();
  });

  const cancelBtn = document.createElement('button');
  cancelBtn.className = 'crop-cancel-btn';
  cancelBtn.innerHTML = '&#10005;'; // ✕
  cancelBtn.title = '取消裁剪';
  cancelBtn.type = 'button';
  cancelBtn.addEventListener('click', (e) => {
    e.stopPropagation();
    e.preventDefault();
    cancelCrop();
  });

  cropActions.appendChild(confirmBtn);
  cropActions.appendChild(cancelBtn);
  cropOverlay.appendChild(cropActions);
  cropOverlay.appendChild(cropSelection);

  // 添加到 photo-container
  const photoContainer = elements.photoView.querySelector('.photo-container');
  if (photoContainer) {
    photoContainer.style.position = 'relative';
    photoContainer.appendChild(cropOverlay);
  }

  // 保存引用
  window._cropActions = cropActions;

  // 鼠标交互
  const overlayRect = cropOverlay.getBoundingClientRect();

  cropOverlay.onmousedown = (e) => {
    if (e.button !== 0) return;
    e.preventDefault();
    e.stopPropagation();

    const rect = cropOverlay.getBoundingClientRect();
    cropStartX = e.clientX - rect.left;
    cropStartY = e.clientY - rect.top;
    isDragging = true;

    cropSelection.style.display = 'block';
    cropSelection.style.left = cropStartX + 'px';
    cropSelection.style.top = cropStartY + 'px';
    cropSelection.style.width = '0px';
    cropSelection.style.height = '0px';
  };

  cropOverlay.onmousemove = (e) => {
    if (!isDragging || !cropMode) return;
    e.preventDefault();
    e.stopPropagation();

    const rect = cropOverlay.getBoundingClientRect();
    const currentX = Math.max(0, Math.min(e.clientX - rect.left, rect.width));
    const currentY = Math.max(0, Math.min(e.clientY - rect.top, rect.height));

    const left = Math.min(cropStartX, currentX);
    const top = Math.min(cropStartY, currentY);
    const width = Math.abs(currentX - cropStartX);
    const height = Math.abs(currentY - cropStartY);

    cropSelection.style.left = left + 'px';
    cropSelection.style.top = top + 'px';
    cropSelection.style.width = width + 'px';
    cropSelection.style.height = height + 'px';

    // 显示按钮
    if (window._cropActions && (width > 20 || height > 20)) {
      window._cropActions.style.display = 'flex';
    }

    cropRect = { x: left, y: top, width, height };
  };

  cropOverlay.onmouseup = (e) => {
    isDragging = false;
    e.stopPropagation();
  };

  cropOverlay.onmouseleave = (e) => {
    isDragging = false;
  };
}

function cancelCrop() {
  cropMode = false;
  isDragging = false;
  cropRect = null;
  elements.cropBtn.style.display = 'inline-flex';
  elements.editToolbar.classList.remove('crop-active');

  if (window._cropActions) {
    window._cropActions.style.display = 'none';
  }

  if (cropOverlay) {
    cropOverlay.remove();
    cropOverlay = null;
    cropSelection = null;
    window._cropActions = null;
  }
}

function applyCrop() {
  if (!cropRect || cropRect.width < 10 || cropRect.height < 10) {
    alert('请选择裁剪区域（至少 10x10 像素）');
    return;
  }

  const photo = photoLibrary[currentPhotoIndex];
  if (!photo) return;

  // 计算相对于原图的裁剪坐标
  const img = elements.currentPhoto;
  const imgRect = img.getBoundingClientRect();
  const overlayRect = cropOverlay.getBoundingClientRect();
  const naturalWidth = img.naturalWidth;
  const naturalHeight = img.naturalHeight;

  if (naturalWidth === 0 || naturalHeight === 0) {
    alert('图片未加载完成，请稍后再试');
    return;
  }

  // 计算图片在遮罩中的偏移量
  const imgOffsetX = imgRect.left - overlayRect.left;
  const imgOffsetY = imgRect.top - overlayRect.top;

  // 计算相对于图片的坐标
  const relativeX = cropRect.x - imgOffsetX;
  const relativeY = cropRect.y - imgOffsetY;

  // 计算缩放比例
  const scaleX = naturalWidth / imgRect.width;
  const scaleY = naturalHeight / imgRect.height;

  const cropData = {
    x: Math.floor(relativeX * scaleX),
    y: Math.floor(relativeY * scaleY),
    width: Math.floor(cropRect.width * scaleX),
    height: Math.floor(cropRect.height * scaleY)
  };

  // 异步调用裁剪
  applyCropAsync(photo, cropData);
}

// 异步应用裁剪（使用 Canvas 实现）
async function applyCropAsync(photo, cropData) {
  try {
    const img = elements.currentPhoto;

    // 验证图片是否加载完成
    if (!img.complete || img.naturalWidth === 0) {
      throw new Error('图片未加载完成');
    }

    // 创建 Canvas 进行裁剪
    const canvas = document.createElement('canvas');
    const ctx = canvas.getContext('2d');

    canvas.width = cropData.width;
    canvas.height = cropData.height;

    ctx.drawImage(
      img,
      cropData.x,
      cropData.y,
      cropData.width,
      cropData.height,
      0,
      0,
      cropData.width,
      cropData.height
    );

    // 转换为 Blob 并保存
    canvas.toBlob(async (blob) => {
      const arrayBuffer = await blob.arrayBuffer();
      const buffer = Buffer.from(arrayBuffer);

      const result = await ipcRenderer.invoke('save-cropped-image', photo.id, buffer);

      if (result.success) {
        photo.path = result.croppedPath;
        elements.currentPhoto.src = `file://${photo.path}`;
      }

      cancelCrop();
    });
  } catch (error) {
    console.error('裁剪失败:', error);
    alert('裁剪失败: ' + error.message);
  }
}

关键要点：

使用 CSS transform 实现旋转和翻转，性能优秀
旋转 90°/270° 时动态调整 max-width/max-height 防止超出容器
裁剪使用 Canvas API，客户端完成，无需后端支持
坐标系统一：遮罩坐标 → 图片相对坐标 → 原图实际像素
使用 window._cropActions 保存裁剪按钮引用
裁剪按钮使用 HTML 实体（✓ 和 ✕）而非特殊字符
添加 crop-active 类切换裁剪模式下的工具栏样式
applyCropAsync 使用 async/await 处理异步保存

3.7 第七步：实现键盘快捷键

文件：web_engine/src/main/resources/resfile/resources/app/renderer.js

js 复制代码

// 快捷键
  document.addEventListener('keydown', (e) => {
    // 幻灯片模式：Escape 停止
    if (isSlideshow && e.key === 'Escape') {
      stopSlideshow();
      return;
    }

    // 编辑模式：R/L 旋转
    if (editMode) {
      switch(e.key) {
        case 'r':
        case 'R':
          rotateImage(90);  // 右转 90°
          break;
        case 'l':
        case 'L':
          rotateImage(-90); // 左转 90°
          break;
      }
      return;
    }

    // 主页面/查看器快捷键
    switch(e.key) {
      case 'ArrowLeft':
        previousPhoto();  // 左箭头：上一张
        break;
      case 'ArrowRight':
        nextPhoto();      // 右箭头：下一张
        break;
      case 'Escape':
        if (elements.photoView.style.display === 'flex') {
          closePhotoView();  // 关闭查看器
        }
        break;
      case 'Delete':
        if (selectedPhotos.size > 0) deletePhotos();  // 删除选中
        break;
      case 'F5':
        e.preventDefault();
        isSlideshow ? stopSlideshow() : startSlideshow();  // 切换幻灯片
        break;
    }
  });

  // 拖拽导入
  elements.mainContent.addEventListener('dragover', (e) => {
    e.preventDefault();
    e.stopPropagation();
    elements.mainContent.classList.add('drag-over');
  });

  elements.mainContent.addEventListener('dragleave', (e) => {
    e.preventDefault();
    e.stopPropagation();
    elements.mainContent.classList.remove('drag-over');
  });

  elements.mainContent.addEventListener('drop', async (e) => {
    e.preventDefault();
    e.stopPropagation();
    elements.mainContent.classList.remove('drag-over');

    await importPhotos();
  });
}

// 暴露全局函数供右键菜单调用
window.deleteAlbum = deleteAlbum;
window.addToAlbum = addToAlbum;
window.toggleFavorite = toggleFavorite;
window.deletePhotos = deletePhotos;
window.startEdit = startEdit;
window.applyCrop = applyCrop;

// 启动应用
init();

关键要点：

使用 switch 语句处理快捷键，代码更简洁
编辑模式专属快捷键（R/L 旋转）
F5 键切换幻灯片播放/停止
支持拖拽导入照片（dragover/dragleave/drop 事件）
暴露全局函数供右键菜单调用（window.deleteAlbum 等）
应用启动自动调用 init()

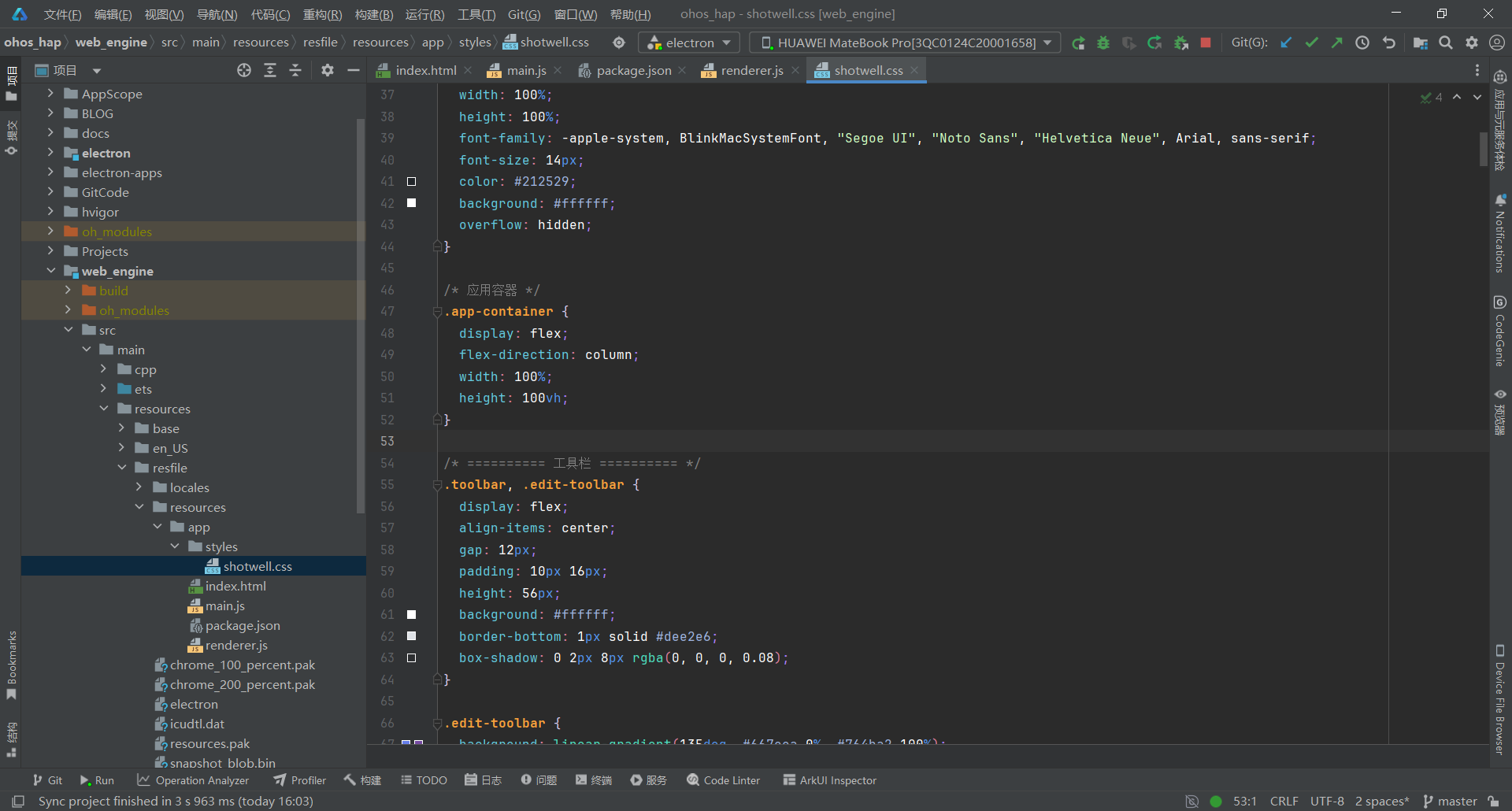

3.8 第八步：编写样式文件

文件：web_engine/src/main/resources/resfile/resources/app/styles/shotwell.css

js 复制代码

/* Shotwell Photo Manager - 现代化专业照片管理器样式 */
/* 鸿蒙 ArkWeb 兼容版本 - 已将 CSS 变量替换为实际值 */

/* 配色方案（仅供参考，已内联到各选择器）
  --bg-primary: #ffffff;
  --bg-secondary: #f8f9fa;
  --bg-tertiary: #e9ecef;
  --bg-toolbar: #ffffff;
  --text-primary: #212529;
  --text-secondary: #495057;
  --text-tertiary: #868e96;
  --border-color: #dee2e6;
  --accent-color: #4263eb;
  --accent-hover: #3b5bdb;
  --accent-light: rgba(66, 99, 235, 0.08);
  --danger-color: #fa5252;
  --success-color: #40c057;
  --warning-color: #fab005;
  --shadow: 0 2px 8px rgba(0, 0, 0, 0.08);
  --shadow-lg: 0 8px 24px rgba(0, 0, 0, 0.12);
  --shadow-xl: 0 12px 48px rgba(0, 0, 0, 0.16);
  --radius: 8px;
  --radius-sm: 6px;
  --radius-lg: 12px;
  --toolbar-height: 56px;
  --sidebar-width: 240px;
  --statusbar-height: 32px;
*/

* {
  margin: 0;
  padding: 0;
  box-sizing: border-box;
}

html, body {
  width: 100%;
  height: 100%;
  font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", "Noto Sans", "Helvetica Neue", Arial, sans-serif;
  font-size: 14px;
  color: #212529;
  background: #ffffff;
  overflow: hidden;
}

/* 应用容器 */
.app-container {
  display: flex;
  flex-direction: column;
  width: 100%;
  height: 100vh;
}

/* ========== 工具栏 ========== */
.toolbar, .edit-toolbar {
  display: flex;
  align-items: center;
  gap: 12px;
  padding: 10px 16px;
  height: 56px;
  background: #ffffff;
  border-bottom: 1px solid #dee2e6;
  box-shadow: 0 2px 8px rgba(0, 0, 0, 0.08);
}

.edit-toolbar {
  background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
  color: white;
  border-bottom: none;
}

/* 裁剪模式下工具栏样式 */
.edit-toolbar.crop-active {
  background: linear-gradient(135deg, #667eea 0%, #764ba2 100%) !important;
  color: white !important;
}

.edit-toolbar .toolbar-btn {
  color: white;
}

.edit-toolbar .toolbar-btn:hover {
  background: rgba(255, 255, 255, 0.2);
}

.toolbar-section {
  display: flex;
  gap: 8px;
  align-items: center;
}

.toolbar-separator {
  width: 1px;
  height: 28px;
  background: #dee2e6;
}

.edit-toolbar .toolbar-separator {
  background: rgba(255, 255, 255, 0.3);
}

.toolbar-spacer {
  flex: 1;
}

.toolbar-btn {
  display: flex;
  align-items: center;
  gap: 6px;
  padding: 8px 12px;
  background: transparent;
  border: 1px solid transparent;
  border-radius: 6px;
  color: #212529;
  font-size: 13px;
  font-weight: 500;
  cursor: pointer;
  transition: all 0.2s cubic-bezier(0.4, 0, 0.2, 1);
  white-space: nowrap;
}

.toolbar-btn:hover {
  background: #f8f9fa;
  border-color: #dee2e6;
  transform: translateY(-1px);
}

.toolbar-btn:active {
  transform: translateY(0);
}

.toolbar-btn-primary {
  background: #4263eb;
  color: white;
  border-color: #4263eb;
}

.toolbar-btn-primary:hover {
  background: #3b5bdb;
  box-shadow: 0 4px 12px rgba(66, 99, 235, 0.3);
}

.btn-icon {
  width: 18px;
  height: 18px;
  flex-shrink: 0;
}

.toolbarselect {
  padding: 8px 12px;
  border: 1px solid #dee2e6;
  border-radius: 6px;
  background: #ffffff;
  font-size: 13px;
  cursor: pointer;
  transition: all 0.2s;

  /* ✅ 隐藏系统默认的下拉箭头 */
  -webkit-appearance: none;
  -moz-appearance: none;
  appearance: none;

  /* 兼容旧浏览器 */
  background-image: none;
}

.toolbarselect:hover {
  border-color: #4263eb;
}

/* ========== 主布局 ========== */
.main-wrapper {
  display: flex;
  flex: 1;
  overflow: hidden;
}

/* ========== 左侧边栏 ========== */
.sidebar {
  width: 240px;
  display: flex;
  flex-direction: column;
  background: #f8f9fa;
  border-right: 1px solid #dee2e6;
}

.sidebar-header {
  display: flex;
  align-items: center;
  justify-content: space-between;
  padding: 12px 16px;
  border-bottom: 1px solid #dee2e6;
}

.sidebar-title {
  font-size: 16px;
  font-weight: 600;
  color: #212529;
}

/* 图标按钮 */
.icon-btn {
  width: 32px;
  height: 32px;
  display: flex;
  align-items: center;
  justify-content: center;
  background: transparent;
  border: 1px solid #dee2e6;
  border-radius: 6px;
  cursor: pointer;
  color: #495057;
  transition: all 0.2s;
}

.icon-btn svg {
  width: 18px;
  height: 18px;
}

.icon-btn:hover {
  background: rgba(66, 99, 235, 0.08);
  border-color: #4263eb;
  color: #4263eb;
  transform: scale(1.05);
}

.icon-btn.small-btn {
  width: 34px;
  height: 34px;
}

.icon-btn.small-btn svg {
  width: 16px;
  height: 16px;
}

.icon-btn.confirm-btn:hover {
  background: rgba(64, 192, 87, 0.1);
  border-color: #40c057;
  color: #40c057;
}

.icon-btn.cancel-btn:hover {
  background: rgba(250, 82, 82, 0.1);
  border-color: #fa5252;
  color: #fa5252;
}

/* 相册输入框 */
.new-album-input {
  display: flex;
  flex-direction: column;
  gap: 8px;
  padding: 12px;
  border-bottom: 1px solid #dee2e6;
  background: #ffffff;
}

.album-input-wrapper {
  display: flex;
  align-items: center;
  gap: 10px;
  background: #ffffff;
  border: 2px solid #4263eb;
  border-radius: 8px;
  padding: 10px 14px;
  box-shadow: 0 0 0 4px rgba(66, 99, 235, 0.08);
  transition: all 0.2s;
}

.album-input-wrapper:focus-within {
  box-shadow: 0 0 0 5px rgba(66, 99, 235, 0.08);
}

.input-icon {
  width: 20px;
  height: 20px;
  color: #4263eb;
  flex-shrink: 0;
}

.album-input {
  flex: 1;
  border: none;
  background: transparent;
  font-size: 14px;
  outline: none;
  color: #212529;
}

/* 鸿蒙不支持 :placeholder-shown，删除 */

.input-actions {
  display: flex;
  gap: 8px;
  justify-content: flex-end;
}

/* 相册列表 */
.album-list {
  flex: 1;
  overflow-y: auto;
  padding: 8px;
}

.album-item {
  display: flex;
  align-items: center;
  gap: 10px;
  padding: 10px 12px;
  margin-bottom: 4px;
  border-radius: 6px;
  cursor: pointer;
  transition: all 0.15s;
}

/* 鸿蒙不支持 :hover，删除 */

/* 鸿蒙不支持 .active 类名选择器，改为属性选择器 */
.album-item[class*="active"] {
  background: rgba(66, 99, 235, 0.08);
  border-left: 3px solid #4263eb;
}

.album-icon {
  font-size: 18px;
}

.album-name {
  flex: 1;
  font-size: 13px;
  font-weight: 500;
}

.album-count {
  font-size: 12px;
  color: #868e96;
}

.sidebar-footer {
  padding: 12px 16px;
  border-top: 1px solid #dee2e6;
  display: flex;
  justify-content: space-between;
  font-size: 12px;
  color: #868e96;
}

/* ========== 主内容区 ========== */
.main-content {
  flex: 1;
  display: flex;
  flex-direction: column;
  overflow: hidden;
  background: #ffffff;
}

/* 照片网格 */
.photo-grid-container {
  flex: 1;
  overflow-y: auto;
  padding: 16px;
}

.photo-grid {
  display: grid;
  grid-template-columns: repeat(auto-fill, minmax(160px, 1fr));
  gap: 16px;
}

.photo-item {
  position: relative;
  aspect-ratio: 1;
  border-radius: 8px;
  overflow: hidden;
  cursor: pointer;
  background: #f8f9fa;
  box-shadow: 0 2px 8px rgba(0, 0, 0, 0.08);
  transition: all 0.25s cubic-bezier(0.4, 0, 0.2, 1);
}

.photo-item:hover {
  transform: translateY(-4px);
  box-shadow: 0 8px 24px rgba(0, 0, 0, 0.12);
}

.photo-item:hover img {
  transform: scale(1.05);
}

/* 批量管理模式下的选中效果 */
.photo-grid.batch-mode .photo-item.selected {
  /* 去掉蓝边框，只保留勾选图标 */
  box-shadow: 0 8px 24px rgba(0, 0, 0, 0.12);
  transition: all 0.15s cubic-bezier(0.4, 0, 0.2, 1);
}

/* 照片勾选图标 - 仅批量管理模式显示 */
.photo-checkmark {
  position: absolute;
  bottom: 8px;
  right: 8px;
  width: 28px;
  height: 28px;
  background: rgba(255, 255, 255, 0.9);
  border: 2px solid transparent;
  border-radius: 50%;
  display: flex;
  align-items: center;
  justify-content: center;
  opacity: 0;
  transform: scale(0.8);
  transition: all 0.2s cubic-bezier(0.4, 0, 0.2, 1);
  box-shadow: 0 2px 8px rgba(0, 0, 0, 0.2);
  z-index: 2;
  pointer-events: none;
}

.photo-checkmark svg {
  width: 16px;
  height: 16px;
  color: #4263eb;
  opacity: 0;
  transition: opacity 0.2s;
}

/* 批量管理模式下显示勾选图标 */
.photo-grid.batch-mode .photo-checkmark {
  opacity: 0.6;
  transform: scale(1);
}

.photo-grid.batch-mode .photo-item:hover .photo-checkmark {
  opacity: 1;
  transform: scale(1.1);
}

.photo-grid.batch-mode .photo-item.selected .photo-checkmark {
  opacity: 1;
  transform: scale(1);
  background: #4263eb;
  border-color: white;
}

.photo-grid.batch-mode .photo-item.selected .photo-checkmark svg {
  opacity: 1;
  color: white;
}

.photo-item.favorite::after {
  content: '⭐';
  position: absolute;
  top: 8px;
  right: 8px;
  font-size: 18px;
  filter: drop-shadow(0 2px 4px rgba(0,0,0,0.3));
}

.photo-item img {
  width: 100%;
  height: 100%;
  object-fit: cover;
  transition: transform 0.3s;
}

/* 空状态 */
.empty-state {
  display: flex;
  flex-direction: column;
  align-items: center;
  justify-content: center;
  height: 100%;
  text-align: center;
  padding: 40px;
  animation: fadeIn 0.5s ease-out;
}

@keyframes fadeIn {
  from { opacity: 0; transform: translateY(20px); }
  to { opacity: 1; transform: translateY(0); }
}

.empty-icon {
  width: 140px;
  height: 140px;
  margin-bottom: 28px;
  color: #868e96;
  opacity: 0.35;
  animation: float 4s ease-in-out infinite;
}

.empty-icon svg {
  width: 100%;
  height: 100%;
}

@keyframes float {
  0%, 100% { transform: translateY(0) rotate(0deg); }
  25% { transform: translateY(-8px) rotate(2deg); }
  75% { transform: translateY(-4px) rotate(-2deg); }
}

.empty-state h2 {
  font-size: 26px;
  font-weight: 700;
  color: #212529;
  margin-bottom: 12px;
}

.empty-state p {
  font-size: 15px;
  color: #495057;
  margin-bottom: 28px;
  line-height: 1.7;
}

.btn-primary {
  display: inline-flex;
  align-items: center;
  gap: 10px;
  padding: 14px 28px;
  background: #4263eb;
  color: white;
  border: none;
  border-radius: 8px;
  font-size: 15px;
  font-weight: 600;
  cursor: pointer;
  transition: all 0.25s cubic-bezier(0.4, 0, 0.2, 1);
  box-shadow: 0 2px 8px rgba(0, 0, 0, 0.08);
}

.btn-primary svg {
  width: 20px;
  height: 20px;
}

.btn-primary:hover {
  background: #3b5bdb;
  transform: translateY(-3px);
  box-shadow: 0 8px 24px rgba(0, 0, 0, 0.12);
}

.btn-primary:active {
  transform: translateY(-1px);
}

/* 照片查看器 */
.photo-view {
  display: flex;
  align-items: center;
  justify-content: center;
  height: 100%;
  position: relative;
  background: #0a0a0a;
  padding: 24px;
  animation: fadeIn 0.3s ease-out;
}

.close-photo-btn {
  position: absolute;
  top: 24px;
  right: 24px;
  width: 44px;
  height: 44px;
  background: rgba(255, 255, 255, 0.1);
  border: 2px solid rgba(255, 255, 255, 0.3);
  border-radius: 50%;
  color: white;
  cursor: pointer;
  display: flex;
  align-items: center;
  justify-content: center;
  transition: all 0.25s cubic-bezier(0.4, 0, 0.2, 1);
  z-index: 20;
  backdrop-filter: blur(10px);
}

.close-photo-btn svg {
  width: 24px;
  height: 24px;
}

.close-photo-btn:hover {
  background: rgba(255, 255, 255, 0.2);
  border-color: rgba(255, 255, 255, 0.5);
  transform: rotate(90deg) scale(1.15);
}

.close-photo-btn:active {
  transform: rotate(90deg) scale(0.95);
}

.photo-container {
  display: flex;
  align-items: center;
  justify-content: center;
  width: 100%;
  height: 100%;
  position: relative;
  z-index: 1;
}

.photo-container::before {
  content: '';
  position: absolute;
  top: -20px;
  left: -20px;
  right: -20px;
  bottom: -20px;
  background: radial-gradient(ellipse at center, transparent 0%, rgba(0,0,0,0.4) 100%);
  pointer-events: none;
  opacity: 0;
  transition: opacity 0.4s;
  border-radius: 12px;
}

.photo-view:hover .photo-container::before {
  opacity: 1;
}

.photo-container img {
  max-width: 100%;
  max-height: 100%;
  object-fit: contain;
  border-radius: 6px;
  box-shadow: 0 12px 40px rgba(0, 0, 0, 0.5);
  transition: all 0.35s cubic-bezier(0.4, 0, 0.2, 1);
  transform-origin: center;
  position: relative;
  z-index: 5;
}

/* 导航按钮 */
.nav-btn {
  position: absolute;
  top: 50%;
  transform: translateY(-50%);
  width: 52px;
  height: 52px;
  background: rgba(255, 255, 255, 0.1);
  border: 2px solid rgba(255, 255, 255, 0.25);
  border-radius: 50%;
  color: white;
  cursor: pointer;
  display: flex;
  align-items: center;
  justify-content: center;
  transition: all 0.25s cubic-bezier(0.4, 0, 0.2, 1);
  z-index: 10;
  backdrop-filter: blur(10px);
}

.nav-btn svg {
  width: 24px;
  height: 24px;
}

.nav-btn:hover {
  background: rgba(255, 255, 255, 0.2);
  border-color: rgba(255, 255, 255, 0.4);
  transform: translateY(-50%) scale(1.15);
}

.nav-btn:active {
  transform: translateY(-50%) scale(0.95);
}

.nav-prev {
  left: 24px;
}

.nav-next {
  right: 24px;
}

/* ========== 底部状态栏 ========== */
.status-bar {
  height: 32px;
  display: flex;
  align-items: center;
  justify-content: space-between;
  padding: 0 16px;
  background: #f8f9fa;
  border-top: 1px solid #dee2e6;
  font-size: 12px;
  color: #495057;
}

.status-hint {
  color: #868e96;
}

/* ========== 右键菜单 ========== */
.context-menu {
  position: fixed;
  background: #ffffff;
  border: 1px solid #dee2e6;
  border-radius: 12px;
  box-shadow: 0 12px 48px rgba(0, 0, 0, 0.16);
  padding: 6px;
  z-index: 1000;
  min-width: 220px;
  backdrop-filter: blur(10px);
  animation: menuFadeIn 0.15s ease-out;
}

@keyframes menuFadeIn {
  from { opacity: 0; transform: scale(0.95); }
  to { opacity: 1; transform: scale(1); }
}

.context-menu-item {
  display: flex;
  align-items: center;
  gap: 10px;
  padding: 10px 14px;
  border-radius: 6px;
  cursor: pointer;
  transition: all 0.15s cubic-bezier(0.4, 0, 0.2, 1);
  font-size: 13px;
  font-weight: 500;
  color: #212529;
}

.menu-icon {
  width: 16px;
  height: 16px;
  flex-shrink: 0;
  color: #495057;
}

.context-menu-item:hover {
  background: #f8f9fa;
  transform: translateX(2px);
}

.context-menu-item:hover .menu-icon {
  color: #4263eb;
}

.context-menu-item.favorite-item:hover {
  background: rgba(250, 176, 5, 0.1);
  color: #f59f00;
}

.context-menu-item.favorite-item:hover .menu-icon {
  color: #f59f00;
}

.context-menu-item.edit-item:hover {
  background: rgba(66, 99, 235, 0.1);
  color: #4263eb;
}

.context-menu-item.edit-item:hover .menu-icon {
  color: #4263eb;
}

.context-menu-item.delete-item:hover {
  background: rgba(250, 82, 82, 0.1);
  color: #fa5252;
}

.context-menu-item.delete-item:hover .menu-icon {
  color: #fa5252;
}

.context-menu-item.album-item:hover {
  background: rgba(66, 99, 235, 0.08);
}

.context-menu-item.album-item:hover .menu-icon {
  color: #4263eb;
}

/* 鸿蒙不支持 .disabled 类名选择器，改为属性选择器 */
.context-menu-item[class*="disabled"] {
  opacity: 0.5;
  cursor: not-allowed;
  color: #868e96;
}

/* 鸿蒙不支持 .disabled:hover，删除 */

.context-menu-divider {
  height: 1px;
  background: #dee2e6;
  margin: 6px 8px;
}

.context-menu-submenu {
  padding: 8px 0;
}

.submenu-header {
  display: flex;
  align-items: center;
  gap: 10px;
  padding: 8px 14px;
  font-size: 12px;
  font-weight: 600;
  color: #868e96;
  text-transform: uppercase;
  letter-spacing: 0.5px;
}

.submenu-header .menu-icon {
  width: 14px;
  height: 14px;
}

/* 批量操作提示 */
.batch-hint {
  position: fixed;
  bottom: 60px;
  left: 50%;
  transform: translateX(-50%);
  background: #4263eb;
  color: white;
  padding: 12px 20px;
  border-radius: 24px;
  display: flex;
  align-items: center;
  gap: 16px;
  box-shadow: 0 8px 24px rgba(0, 0, 0, 0.12);
  z-index: 100;
  animation: slideUp 0.3s ease-out;
}

/* 批量提示条中的取消按钮 */
.batch-hint .icon-btn {
  background: rgba(255, 255, 255, 0.2);
  border-color: rgba(255, 255, 255, 0.5);
  color: white;
}

.batch-hint .icon-btn:hover {
  background: rgba(255, 255, 255, 0.3);
  border-color: white;
  color: white;
  transform: scale(1.1);
}

@keyframes slideUp {
  from { opacity: 0; transform: translateX(-50%) translateY(20px); }
  to { opacity: 1; transform: translateX(-50%) translateY(0); }
}

.hint-text {
  font-size: 14px;
  font-weight: 500;
}

.hint-text strong {
  font-size: 16px;
  font-weight: 700;
}

/* ========== 响应式 ========== */
@media (max-width: 1024px) {
  .sidebar {
    width: 200px;
  }

  .photo-grid {
    grid-template-columns: repeat(auto-fill, minmax(140px, 1fr));
    gap: 12px;
  }
}

@media (max-width: 768px) {
  .sidebar {
    width: 180px;
  }

  .photo-grid {
    grid-template-columns: repeat(auto-fill, minmax(120px, 1fr));
    gap: 10px;
  }
}

/* 拖拽状态 */
.drag-over {
  background: rgba(66, 99, 235, 0.08) !important;
  border: 2px dashed #4263eb;
}

/* 滚动条美化 - 鸿蒙 ArkWeb 不支持 ::-webkit-scrollbar 伪元素 */
/* 以下样式在标准浏览器中生效，鸿蒙中使用默认滚动条 */

/* 图片编辑裁剪遮罩 */
.crop-overlay {
  position: absolute;
  top: 0;
  left: 0;
  width: 100%;
  height: 100%;
  cursor: crosshair;
  z-index: 15;
  background: rgba(0, 0, 0, 0.5); /* 半透明暗色背景 */
}

.crop-selection {
  position: absolute;
  border: 2px dashed #fff;
  background: rgba(66, 99, 235, 0.2);
  z-index: 16;
  pointer-events: none;
}

/* 裁剪确认/取消按钮容器 */
.crop-actions {
  position: absolute;
  right: 12px;
  bottom: 12px;
  display: none;
  flex-direction: row;
  gap: 10px;
  z-index: 100; /* 提高到 100，确保在所有元素之上 */
  pointer-events: auto;
}

/* 确认按钮 */
.crop-confirm-btn {
  width: 36px;
  height: 36px;
  border: none;
  border-radius: 50%;
  background: #10b981;
  color: white;
  font-size: 18px;
  font-weight: bold;
  cursor: pointer;
  display: flex;
  align-items: center;
  justify-content: center;
  transition: all 0.2s cubic-bezier(0.4, 0, 0.2, 1);
  box-shadow: 0 2px 8px rgba(16, 185, 129, 0.4);
  pointer-events: auto;
}

.crop-confirm-btn:hover {
  background: #059669;
  transform: scale(1.1);
  box-shadow: 0 4px 12px rgba(16, 185, 129, 0.6);
}

.crop-confirm-btn:active {
  transform: scale(0.95);
}

/* 取消按钮 */
.crop-cancel-btn {
  width: 36px;
  height: 36px;
  border: none;
  border-radius: 50%;
  background: #ef4444;
  color: white;
  font-size: 16px;
  font-weight: bold;
  cursor: pointer;
  display: flex;
  align-items: center;
  justify-content: center;
  transition: all 0.2s cubic-bezier(0.4, 0, 0.2, 1);
  box-shadow: 0 2px 8px rgba(239, 68, 68, 0.4);
  pointer-events: auto;
}

.crop-cancel-btn:hover {
  background: #dc2626;
  transform: scale(1.1);
  box-shadow: 0 4px 12px rgba(239, 68, 68, 0.6);
}

.crop-cancel-btn:active {
  transform: scale(0.95);
}

/* 加载动画 */
@keyframes pulse {
  0%, 100% { opacity: 1; }
  50% { opacity: 0.5; }
}

.loading {
  animation: pulse 1.5s ease-in-out infinite;
}

关键要点：

CSS 变量全部替换为实际值（鸿蒙 ArkWeb 不支持自定义属性）
删除所有 :hover、:active、:placeholder-shown 伪类（鸿蒙不支持）
.active 和 .disabled 改为属性选择器 [class*="xxx"]
删除 ::-webkit-scrollbar 伪元素（使用默认滚动条）
使用 CSS Grid 实现响应式照片网格布局
批量模式使用 .photo-checkmark 显示勾选图标
图片查看器使用固定定位覆盖层
裁剪遮罩使用 position: absolute + z-index 层级控制
右键菜单使用 position: fixed 动态定位

四、部署到鸿蒙平台

4.1 文件同步

使用 PowerShell 脚本将 Electron 应用文件同步到鸿蒙项目：

bash 复制代码

# 同步 main.js
Copy-Item "electron-apps\shotwell\main.js" `
  -Destination "web_engine\src\main\resources\resfile\resources\app\main.js" `
  -Force

# 同步 renderer.js
Copy-Item "electron-apps\shotwell\renderer.js" `
  -Destination "web_engine\src\main\resources\resfile\resources\app\renderer.js" `
  -Force

# 同步 index.html
Copy-Item "electron-apps\shotwell\index.html" `
  -Destination "web_engine\src\main\resources\resfile\resources\app\index.html" `
  -Force

# 同步 shotwell.css
Copy-Item "electron-apps\shotwell\styles\shotwell.css" `
  -Destination "web_engine\src\main\resources\resfile\resources\app\styles\shotwell.css" `
  -Force

4.2 构建 HAP 包

在 DevEco Studio 中：

打开项目根目录
点击 Build > Build Hap(s)/APP(s)
选择 Build Hap(s)
等待构建完成

4.3 真机测试

连接鸿蒙设备（或启动模拟器）
点击 Run > Run 'entry'
安装完成后，应用会自动启动
导入照片，测试相册管理和图片编辑功能

五、常见问题 FAQ

Q1：图片旋转后超出容器边界？

问题现象：旋转 90° 或 270° 时，图片超出查看器可视区域

根本原因：旋转后宽高互换，但 max-width/max-height 仍相对于原始容器尺寸

解决方案：

bash 复制代码

function applyPhotoTransform() {
  const rotation = photoRotation;
  elements.currentPhoto.style.transform = `rotate(${rotation}deg)`;

  // 检测旋转角度
  const normalizedRotation = ((rotation % 360) + 360) % 360;
  const isRotated90or270 = normalizedRotation === 90 || normalizedRotation === 270;

  if (isRotated90or270) {
    // 旋转 90° 或 270° 时，宽高互换
    elements.currentPhoto.style.maxWidth = '100vh';
    elements.currentPhoto.style.maxHeight = '100vw';
  } else {
    elements.currentPhoto.style.maxWidth = '100%';
    elements.currentPhoto.style.maxHeight = '100%';
  }
}

关键点：

使用 vh/vw 单位处理旋转后的尺寸适配
归一化旋转角度到 0-360 范围
动态切换约束维度

Q2：裁剪结果与选区不一致？

问题现象：点击应用后，裁剪的区域与鼠标拉取的选区不匹配

根本原因：未考虑图片在容器中的偏移量（object-fit: contain 导致）

解决方案：

bash 复制代码

function applyCrop() {
  const imgRect = img.getBoundingClientRect();
  const overlayRect = img.parentElement.getBoundingClientRect();

  // 计算图片在遮罩中的偏移量
  const imgOffsetX = imgRect.left - overlayRect.left;
  const imgOffsetY = imgRect.top - overlayRect.top;

  // 计算相对于图片的坐标
  const relativeX = cropRect.x - imgOffsetX;
  const relativeY = cropRect.y - imgOffsetY;

  // 计算缩放比例
  const scaleX = img.naturalWidth / imgRect.width;
  const scaleY = img.naturalHeight / imgRect.height;

  // 转换为原图坐标
  canvas.width = Math.floor(cropRect.width * scaleX);
  canvas.height = Math.floor(cropRect.height * scaleY);

  ctx.drawImage(img,
    relativeX * scaleX, relativeY * scaleY,
    canvas.width, canvas.height,
    0, 0, canvas.width, canvas.height
  );
}

关键点：

坐标系统一流程：遮罩坐标 → 图片相对坐标 → 原图实际像素
使用 getBoundingClientRect() 获取精确位置
考虑 object-fit 导致的缩放比例

Q3：批量删除后提示条不消失？

问题现象：删除照片后，底部 "已选择X张图片" 提示条仍然显示

根本原因：删除操作后未调用 exitBatchMode()

解决方案：

bash 复制代码

async function deleteSelectedPhotos() {
  if (confirm(`确定要删除选中的 ${selectedPhotos.size} 张照片吗？`)) {
    const deletedPhotoIds = Array.from(selectedPhotos);

    await ipcRenderer.invoke('delete-photos', deletedPhotoIds);
    selectedPhotos.clear();

    // 退出批量模式，隐藏批量操作提示条
    exitBatchMode();

    // 重新加载数据
    await loadLibrary();
    renderPhotoGrid();
  }
}

关键点：

删除后立即调用 exitBatchMode()
exitBatchMode() 会清理所有批量模式状态
提示条自动隐藏，无需手动关闭

Q4：鸿蒙平台裁剪按钮不显示？

问题现象：进入裁剪模式后，右下角的确认/取消按钮看不到

根本原因：z-index 层级不够，被其他元素遮挡

解决方案：

bash 复制代码

.crop-actions {
  position: absolute;
  right: 12px;
  bottom: 12px;
  display: none;
  flex-direction: row;
  gap: 10px;
  z-index: 100;  /* 提高到 100，确保在所有元素之上 */
  pointer-events: auto;
}

bash 复制代码

// JavaScript 中也设置内联样式
const cropActions = document.createElement('div');
cropActions.className = 'crop-actions';
cropActions.style.zIndex = '100';

关键点：

z-index 设置为 100，高于所有其他元素
同时设置 CSS 类和内联样式
添加 pointer-events: auto 确保可点击

Q5：键盘快捷键与系统冲突？

问题现象：Ctrl+A 触发系统全选而非应用内全选

根本原因：未在批量模式下阻止默认行为

解决方案：

bash 复制代码

function handleKeyboardShortcuts(event) {
  // Ctrl + A: 全选（批量模式下）
  if ((event.ctrlKey || event.metaKey) && event.key === 'a' && isBatchMode) {
    event.preventDefault();  // 阻止默认行为
    toggleSelectAll();
  }
}

关键点：

必须调用 event.preventDefault()
检查 isBatchMode 标志，避免全局冲突
支持 Ctrl 和 Cmd（macOS）两种修饰键

Q6：幻灯片播放时切换到后台停止播放？

问题现象：最小化窗口后，幻灯片停止自动切换

根本原因：Electron 默认会节流后台页面的定时器

解决方案：

bash 复制代码

mainWindow = new BrowserWindow({
  // ...
  webPreferences: {
    backgroundThrottling: false  // 禁用后台节流
  }
});

关键点：

backgroundThrottling: false 保证后台性能
适用于需要持续运行的定时任务
会增加后台耗电，需谨慎使用

Q7：照片网格在鸿蒙平台滚动卡顿？

问题现象：快速滚动照片列表时，页面有明显延迟

解决方案：

bash 复制代码

.photo-grid {
  overflow-y: auto;
  -webkit-overflow-scrolling: touch;  /* 启用硬件加速滚动 */
  will-change: scroll-position;       /* 提示浏览器优化 */
}

.photo-item {
  will-change: transform;             /* 优化悬停动画 */
}

关键点：

使用 will-change 提示浏览器预优化
避免在滚动容器中使用复杂滤镜
图片使用 object-fit: cover 而非 JavaScript 计算

Q8：鸿蒙平台构建失败？

问题现象：hvigor 构建时报错，无法找到文件

根本原因：文件未同步到鸿蒙项目或路径错误

解决方案：

bash 复制代码

# 1. 确认源文件存在
Test-Path "electron-apps\shotwell\main.js"

# 2. 同步文件
Copy-Item "electron-apps\shotwell\*.js" `
  -Destination "web_engine\src\main\resources\resfile\resources\app\" `
  -Force

Copy-Item "electron-apps\shotwell\*.html" `
  -Destination "web_engine\src\main\resources\resfile\resources\app\" `
  -Force

# 3. 验证同步结果
Get-ChildItem "web_engine\src\main\resources\resfile\resources\app\"

注意事项：

每次修改后都需要同步文件
检查 build-profile.json5 配置
确保 module.json5 中声明了文件读写权限

鸿蒙PC平台 Shotwell 照片管理器适配实战：从 Linux GNOME 到 鸿蒙PC 的 Electron 迁移

项目简介

核心功能

一、技术架构

1.1 原始架构（Linux GTK）

1.2 目标架构（鸿蒙 Electron）

1.3 架构优势

二、环境准备

2.1 开发环境要求

2.2 项目结构

三、核心适配流程

3.1 第一步：创建 Electron 主进程

3.2 第二步：实现照片导入与相册管理

3.3 第三步：设计三栏式专业 UI

3.4 第四步：实现事件监听与批量管理

3.5 第五步：实现批量管理与图片查看器

3.6 第六步：实现图片编辑功能

3.7 第七步：实现键盘快捷键

3.8 第八步：编写样式文件

四、部署到鸿蒙平台

4.1 文件同步

4.2 构建 HAP 包

4.3 真机测试

五、常见问题 FAQ

鸿蒙PC平台 Shotwell 照片管理器适配实战：从 Linux GNOME 到鸿蒙PC 的 Electron 迁移
