k8s1.36部署helm和storageclass

爱吃龙利鱼2026-06-15 9:11

Ip	主机名	cpu	内存
192.168.10.12	master01	4c	6G
192.168.10.13	node1	4c	6G
192.168.10.14	node2	4c	6G
192.168.10.100	nfs	2c	2g

组件	版本
Ubuntu	Ubuntu 26.04 server
containerd	v2 2.2.2
Kubernetes	v1.36.1

helm部署

powershell 复制代码

 curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3
 chmod 700 get_helm.sh
 ./get_helm.sh

部署storageclass

nfs服务器(192.168.10.100)上添加一块硬盘/dev/sdb\

复制代码

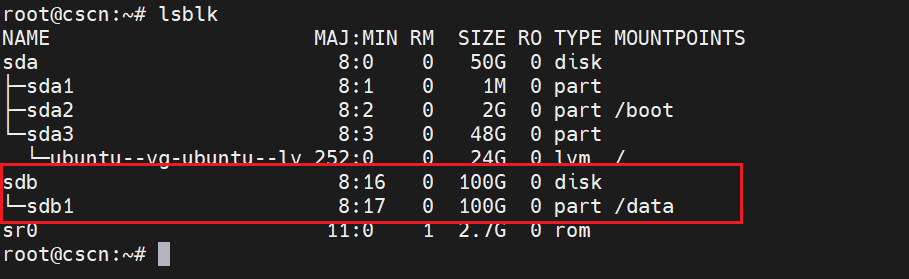

lsblk

sdb是新加的盘，这里我已经做好配置了，所以有个sdb1

powershell 复制代码

# 创建 GPT 分区表
parted /dev/sdb mklabel gpt
# 创建一个从 0% 到 100% 的主分区
parted -a opt /dev/sdb mkpart primary xfs 0% 100%
mkfs.xfs /dev/sdb1
mkdir -p /data/nfs
mount /dev/sdb1 /data
# 获取uuid
sudo blkid /dev/sdb1
vim /etc/fstab
UUID=你的UUID  /data  xfs  defaults  0  0
mount -a

powershell 复制代码

helm repo add nfs-subdir-external-provisioner https://kubernetes-sigs.github.io/nfs-subdir-external-provisioner/
helm repo update
apt install -y nfs-common
helm pull nfs-subdir-external-provisioner/nfs-subdir-external-provisioner
helm install nfs-client nfs-subdir-external-provisioner-4.0.18.tgz \
  -n nfs-provisioner \
  --create-namespace \
  --set nfs.server=192.168.10.100 \
  --set nfs.path=/data/nfs \
  --set storageClass.name=nfs-client \
  --set storageClass.defaultClass=true \
  --set storageClass.archiveOnDelete=false \
  --set image.repository=registry.cn-beijing.aliyuncs.com/pylixm/nfs-subdir-external-provisioner \
  --set image.tag=v4.0.0 \
  --set imagePullPolicy=IfNotPresent
