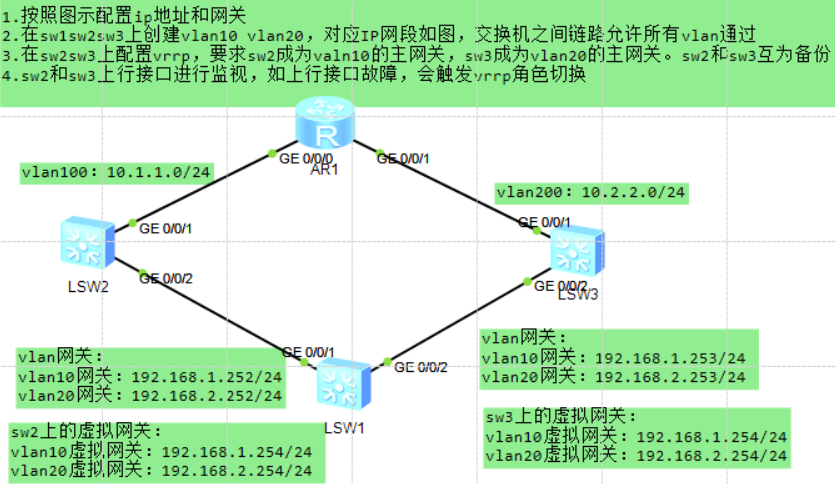

实验要求：
1.按照图示配置ip地址和网关
2.在sw1sw2sw3上创建vlan10 vlan20，对应IP网段如图，交换机之间链路允许所有vlan通过
3.在sw2sw3上配置vrrp，要求sw2成为valn10的主网关，sw3成为vlan20的主网关。sw2和sw3互为备份
4.sw2和sw3上行接口进行监视，如上行接口故障，会触发vrrp角色切换
sw1(Vlan+Trunk接口配置)
<Huawei>undo terminal monitor Info: Current terminal monitor is off.
<Huawei>sys
Huaweisysname sw1
sw1vlan batch 10 20
交换机与交换机之间trunk干道
sw1int g0/0/1
sw1-GigabitEthernet0/0/1port link-type trunk
sw1-GigabitEthernet0/0/1port trunk allow-pass vlan 10 20
sw1-GigabitEthernet0/0/1q
sw1int g 0/0/2
sw1-GigabitEthernet0/0/2po li t
sw1-GigabitEthernet0/0/2po t a v 10 20
sw1display vlan（查）
[sw1]dis vlan
The total number of vlans is : 3
--------------------------------------------------------------------------------
U: Up; D: Down; TG: Tagged; UT: Untagged;
MP: Vlan-mapping; ST: Vlan-stacking;
#: ProtocolTransparent-vlan; *: Management-vlan;
--------------------------------------------------------------------------------
VID Type Ports
--------------------------------------------------------------------------------
1 common UT:GE0/0/1(U) GE0/0/2(U) GE0/0/3(D) GE0/0/4(D)
GE0/0/5(D) GE0/0/6(D) GE0/0/7(D) GE0/0/8(D)
GE0/0/9(D) GE0/0/10(D) GE0/0/11(D) GE0/0/12(D)
GE0/0/13(D) GE0/0/14(D) GE0/0/15(D) GE0/0/16(D)
GE0/0/17(D) GE0/0/18(D) GE0/0/19(D) GE0/0/20(D)
GE0/0/21(D) GE0/0/22(D) GE0/0/23(D) GE0/0/24(D)
10 common TG:GE0/0/1(U) GE0/0/2(U)
20 common TG:GE0/0/1(U) GE0/0/2(U)
VID Status Property MAC-LRN Statistics Description
--------------------------------------------------------------------------------
1 enable default enable disable VLAN 0001
10 enable default enable disable VLAN 0010
20 enable default enable disable VLAN 0020 sw2(Vlan+Trunk+Access+Vlanif接口配置)
sw2vlan b 10 20 100
sw2int g0/0/2
sw2-GigabitEthernet0/0/2po li t
sw2-GigabitEthernet0/0/2po t a v 10 20
sw2-GigabitEthernet0/0/2q
交换机和路由器之间是access接入模式
---------->(1)是路由器的那个接口无法识别带标签的
---------->(2)是这两个线上只需要跑vlan100即可所以access干道可以满足
sw2int g0/0/1
sw2-GigabitEthernet0/0/1port link access
sw2-GigabitEthernet0/0/1port default vlan 100
sw2-GigabitEthernet0/0/1q
sw2interface Vlanif 10（虚拟子接口配IP地址）
sw2-Vlanif10ip add 192.168.1.252 24
sw2-Vlanif10int v 20
sw2-Vlanif20ip add 192.168.2.252 24
sw2-Vlanif20q
sw2int v 100
sw2-Vlanif100ip add 10.1.1.2 24
sw2-Vlanif100q
sw2display ip interface brief （查）
[sw2]dis ip int b
*down: administratively down
^down: standby
(l): loopback
(s): spoofing
The number of interface that is UP in Physical is 5
The number of interface that is DOWN in Physical is 1
The number of interface that is UP in Protocol is 4
The number of interface that is DOWN in Protocol is 2
Interface IP Address/Mask Physical Protocol
MEth0/0/1 unassigned down down
NULL0 unassigned up up(s)
Vlanif1 unassigned up down
Vlanif10 192.168.1.252/24 up up
Vlanif20 192.168.2.252/24 up up
Vlanif100 10.1.1.2/24 up up sw3(Vlan+Trunk+Access+Vlanif接口配置)
Huaweisys sw3
sw3vlan batch 10 20 200
sw3int g0/0/2
sw3-GigabitEthernet0/0/2po li t
sw3-GigabitEthernet0/0/2po t a v 10 20
sw3-GigabitEthernet0/0/2q
sw3int g0/0/1
sw3-GigabitEthernet0/0/1po li ac
sw3-GigabitEthernet0/0/1po de v 200
sw3-GigabitEthernet0/0/1q
sw3interface Vlanif 10 （只有三层交换机支持 Vlanif 接口，用于实现 VLAN 间路由）
sw3-Vlanif10ip add 192.168.1.253 24
sw3-Vlanif10int v 20
sw3-Vlanif20ip add 192.168.2.253 24
sw3-Vlanif20int v 200
sw3-Vlanif200ip add 10.2.2.3 24
sw3-Vlanif200q
sw3display ip interface brief（查）
[sw3]dis ip int b
*down: administratively down
^down: standby
(l): loopback
(s): spoofing
The number of interface that is UP in Physical is 5
The number of interface that is DOWN in Physical is 1
The number of interface that is UP in Protocol is 4
The number of interface that is DOWN in Protocol is 2
Interface IP Address/Mask Physical Protocol
MEth0/0/1 unassigned down down
NULL0 unassigned up up(s)
Vlanif1 unassigned up down
Vlanif10 192.168.1.253/24 up up
Vlanif20 192.168.2.253/24 up up
Vlanif200 10.2.2.3/24 up up r1
Huaweisys r1
r1int g 0/0/0
r1-GigabitEthernet0/0/0ip add 10.1.1.1 24
r1-GigabitEthernet0/0/0int g0/0/1
r1-GigabitEthernet0/0/1ip add 10.2.2.1 24
r1display ip interface brief （查）
[r1]display ip interface brief
*down: administratively down
^down: standby
(l): loopback
(s): spoofing
The number of interface that is UP in Physical is 3
The number of interface that is DOWN in Physical is 1
The number of interface that is UP in Protocol is 3
The number of interface that is DOWN in Protocol is 1
Interface IP Address/Mask Physical Protocol
GigabitEthernet0/0/0 10.1.1.1/24 up up
GigabitEthernet0/0/1 10.2.2.1/24 up up
GigabitEthernet0/0/2 unassigned down down
NULL0 unassigned up up(s) sw2虚拟IP地址 修改主设备优先级
sw2interface Vlanif 10
sw2-Vlanif10vrrp vrid 1 virtual-ip 192.168.1.254 （虚拟IP地址）
sw2-Vlanif10vrrp vrid 1 priority 120 （修改优先级为120master）
sw2-Vlanif10q
sw2interface Vlanif 20
sw2-Vlanif20vrrp vrid 2 virtual-ip 192.168.2.254
sw2-Vlanif20q（默认优先级为100不改！）
sw2display vrrp brief （查看vrrp的主备情况）
[sw2]dis vrrp brief
VRID State Interface Type Virtual IP
----------------------------------------------------------------
1 Master Vlanif10 Normal 192.168.1.254
2 Backup Vlanif20 Normal 192.168.2.254
----------------------------------------------------------------
Total:2 Master:1 Backup:1 Non-active:0
[sw2]dis vrrp
Vlanif10 | Virtual Router 1
State : Master
Virtual IP : 192.168.1.254
Master IP : 192.168.1.252
PriorityRun : 120
PriorityConfig : 120
MasterPriority : 120
Preempt : YES Delay Time : 0 s
TimerRun : 1 s
TimerConfig : 1 s
Auth type : NONE
Virtual MAC : 0000-5e00-0101
Check TTL : YES
Config type : normal-vrrp
Create time : 2026-07-16 09:47:19 UTC-08:00
Last change time : 2026-07-16 09:47:22 UTC-08:00
Vlanif20 | Virtual Router 2
State : Backup
Virtual IP : 192.168.2.254
Master IP : 192.168.2.253
PriorityRun : 100
PriorityConfig : 100
MasterPriority : 120
Preempt : YES Delay Time : 0 s
TimerRun : 1 s
TimerConfig : 1 s
Auth type : NONE
Virtual MAC : 0000-5e00-0102
Check TTL : YES
Config type : normal-vrrp
Create time : 2026-07-16 09:48:14 UTC-08:00
Last change time : 2026-07-16 19:28:58 UTC-08:00sw2display vrrp
[sw2]dis vrrp
Vlanif10 | Virtual Router 1
State : Master（状态）
Virtual IP : 192.168.1.254（虚拟IP地址）
Master IP : 192.168.1.252（真实IP地址）
PriorityRun : 120
PriorityConfig : 120
MasterPriority : 120（优先级）
Preempt : YES （开启抢占模式） Delay Time : 0 s(抢占延迟时间)
TimerRun : 1 s（vrrp心跳报文的发送时间间隔）
TimerConfig : 1 s（vrrp心跳报文的发送时间间隔）
Auth type : NONE（备份组之间发送报文不需要密码验证）
Virtual MAC : 0000-5e00-0101（虚拟mac地址，最后面的01就是vrrp的编号）
Check TTL : YES
Config type : normal-vrrp
Create time : 2026-07-16 09:47:19 UTC-08:00
Last change time : 2026-07-16 09:47:22 UTC-08:00
Vlanif20 | Virtual Router 2
State : Backup
Virtual IP : 192.168.2.254
Master IP : 192.168.2.253
PriorityRun : 100
PriorityConfig : 100
MasterPriority : 120
Preempt : YES Delay Time : 0 s
TimerRun : 1 s
TimerConfig : 1 s
Auth type : NONE
Virtual MAC : 0000-5e00-0102
Check TTL : YES
Config type : normal-vrrp
Create time : 2026-07-16 09:48:14 UTC-08:00
Last change time : 2026-07-16 19:28:58 UTC-08:00sw3虚拟IP地址 修改主设备优先级
sw3interface Vlanif 10
sw3-Vlanif10vrrp vrid 1 virtual-ip 192.168.1.254
sw3-Vlanif10q（默认优先级为100不改！）
sw3interface Vlanif 20
sw3-Vlanif20vrrp vrid 2 virtual-ip 192.168.2.254
sw3-Vlanif20vrrp vrid 2 priority 120 （修改优先级为120master）
sw3-Vlanif20q
sw3display vrrp brief （查看vrrp的主备情况）
[sw3]dis vrrp brief
VRID State Interface Type Virtual IP
----------------------------------------------------------------
1 Backup Vlanif10 Normal 192.168.1.254
2 Master Vlanif20 Normal 192.168.2.254
----------------------------------------------------------------
Total:2 Master:1 Backup:1 Non-active:0 配置完成后，r1的g0/0/0接口，shut线路变红，sw2和sw3查vrrp简表没有变化，是因为还没有开启监控上行链路
sw2开启监控上行链路
---------->在master节点上配置，优先级剪掉后一定要小于backup
sw2interface Vlanif10
sw2-Vlanif10vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 30
sw3开启监控上行链路
sw3interface Vlanif20
sw3-Vlanif20vrrp vrid 2 track interface Vlanif 20 reduced 30
两种方式都可！！！
抢占延迟
---------->抢占延迟只能配置在主网关上，延迟15s，让主网关故障恢复后，稳定运行15s再抢占，目的是避免震荡。
sw2-Vlanif10vrrp vrid 1 preempt-mode timer delay 15
sw3-Vlanif20vrrp vrid 2 preempt-mode timer delay 15
VRRP虚拟路由器冗余协议（virtual router redudany protocol）
···Master主设备 Backup备份设备
···VRRP协议在IPv4环境里，专门用来收发协议报文的组播IP地址224.0.0.18
···VRRP虚拟mac地址固定地址：标准格式------00-00-5E-00-01{VRID}
如何选举主设备master，备份设备backup，选举顺序固定不变？
（1）设备VRRP优先级
优先级数值越大，越优先成为主网关
（2）真实接口IP地址
IP地址数值越大，优先成为主网关
···备份设备连续3秒没有收到主设备发来的心跳报文，直接判定主设备故障宕机，备份设备立即升级为新主网关，接管全网网关转发业务，内网终端全程无感知！
