第06章:结构化输出 (上)

1、结构化输出概述

1.1 什么是结构化输出

LangChain的结构化输出(Structured Output) 指的是:

要求模型最终返回一个符合预定义结构的数据对象,例如固定字段的JSON、Pydantic 模型、 TypedDict,而不再是无格式的自然语言文本。

它的核心目标是把" 自然语言回答 "变成" 程序可以稳定消费的数据 "。

例如,不是让模型输出:

盗梦空间在2010年上映,导演是克里斯托弗·诺兰,评分9.3。

而是让它输出成类似这样的结构

复制代码
{
    "title": "盗梦空间",
    "year": 2010,
    "director": "克里斯托弗·诺兰",
    "rating": 9.3
}

这样做的价值主要有三点:

  • 更容易被代码处理:下游系统可以直接读字段,而不是再从自然语言里做解析。
  • 结果更稳定:减少"模型说法变了但意思差不多"导致的解析失败。
  • 更适合工程化:适用于表单抽取、分类、路由、调用工具参数生成、工作流状态传递等场景。

1.2 传统方式 vs 结构化输出

1、传统的几种方式(繁琐、不推荐)

复制代码
# 1. 提示词要求JSON
prompt = "以JSON格式返回:{name, age, occupation}"
response = model.invoke(prompt)

# 2. 手动解析
import json
data = json.loads(response.content)

# 3. 手动验证类型
if not isinstance(data['age'], int):
    raise ValueError("age must be int")

# 4. 手动创建对象
person = Person(**data)

2、结构化输出(简洁)

复制代码
# 一步到位
structured_llm = model.with_structured_output(Person)
person = structured_llm.invoke("张三是一名 30 岁的软件工程师")
# ✅ 自动解析、验证、创建对象

为什么第2种结构化输出机制这么受欢迎?

在没有 Pydantic 等结构化方案之前,开发者需要写大量的 Prompt 苦口婆心地求大模型"请返回 JSON, 不要带任何解释",然后自己写繁琐的 json.loads() 和 try...except 。

而有了 Pydantic 等结构化方案结合 .with_structured_output() 之后:

  • Prompt 变干净了: 字段的 description 直接充当了 Prompt 的一部分。
  • 类型安全: 编辑器能自动补全,代码运行前就能做类型检查。
  • 极其稳定: 依托大模型厂商底层的 JSON 模式,输出错误率降到了极低。

1.3 结构化输出模式

目前LangChain 1.x 支持多种Schema与结构化输出方式:

  • Pydantic(字段校验、描述、嵌套结构,功能最丰富)
  • TypedDict(轻量类型约束)
  • JSON Schema(与前后端/跨语言接口最通用)
  • dataclass

模型对象可以调用 with_structured_output() 绑定输出模式(schema)。

只有 Pydantic 返回的是Schema类实例,其余三种方式返回的都是 字典 ;也只有 Pydantic 在类型不 匹配时会抛出异常。

问题:现在所有模型都支持"本章要讲解的结构化输出方式"吗?

大部分现代模型支持(通过函数调用):

  • ✅ OpenAI (gpt-4, gpt-3.5-turbo)
  • ✅ Anthropic (claude-3)
  • ✅ Groq (llama-3)
  • ❌ 某些旧模型不支持 如果不支持,LangChain 会回退到提示词 + JSON 解析

2、四种模式的使用

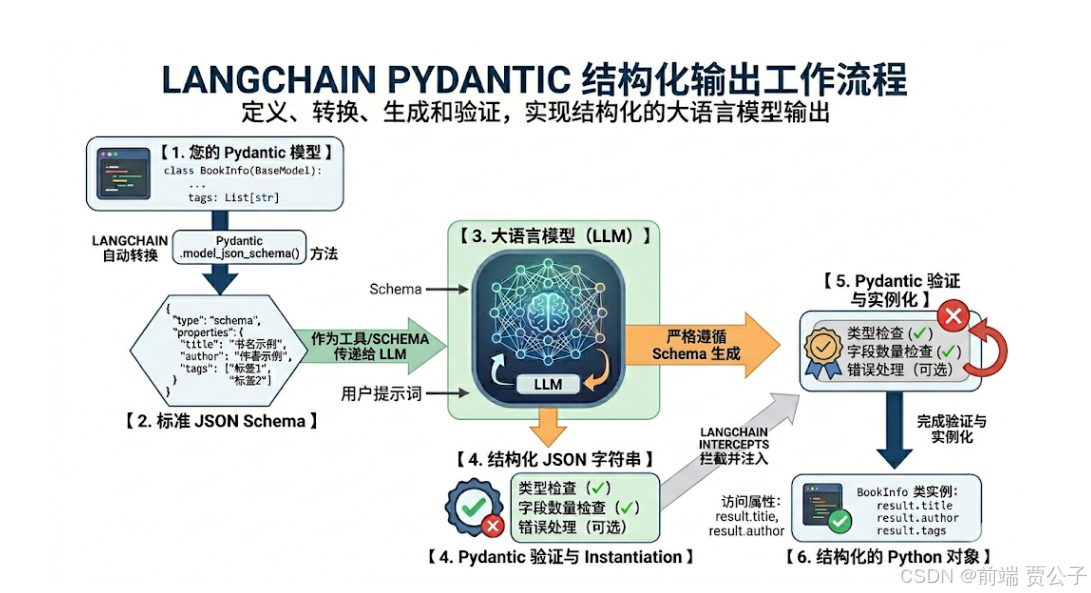

2.1 模式1:Pydantic

它通过在运行时强制执行类型提示,确保数据的正确性和一致性,是 生产场景首选 。

2.1.1 基本使用

需要满足的几个要素:

  • 所有结构化输出的数据模型都必须继承 BaseModel
  • 使用 类型提示 。Pydantic 支持丰富的字段类型:str 、int、float、Listxxx、Optionalxxx等
  • 使用 Field() 添加字段默认值和描述,帮助 LLM 理解字段含义

举例1:

1)大模型的初始化

复制代码
from  langchain_community.chat_models import ChatTongyi
from dotenv import load_dotenv


load_dotenv()

# api_key 与 api_base 会自动获取 .env下的 DASHSCOPE_API_KEY
model = ChatTongyi(
    model = 'qwen3.7-max',

)

2)定义 Pydantic 模型

使用清晰的字段描述;没有描述,LLM 可能格式错误

复制代码
from pydantic import BaseModel, Field
class Person(BaseModel):
    """人物信息"""
    name: str = Field(description="姓名")
    age: int = Field(description="年龄")
    occupation: str = Field(description="职业")

LangChain 会要求 LLM 的输出必须能填充这些字段。

3)使用 with_structured_output 即可引导模型进行结构化输出:

复制代码
response = model.invoke("张三是一名30岁的软件工程师")
# 创建结构化输出的
structured_llm = model.with_structured_output(Person)
# 调用
result = structured_llm.invoke("张三是一名 30 岁的软件工程师")
print(result)
print(type(result))
# result 是 Person 实例
print(result.name) # "张三"
print(result.age) # 30
print(result.occupation) # "软件工程师"

说明:没有描述,LLM 可能格式错误。

复制代码
name='张三' age=30 occupation='软件工程师'
<class '__main__.Person'>
张三
30
软件工程师

举例2:

复制代码
from pydantic import BaseModel, Field


# 定义输出结构
class SentimentAnalysis(BaseModel):
    """情感分析结果"""

    sentiment: str = Field(
        description="情感倾向:positive/negative/neutral"
    )
    confidence: float = Field(
        description="置信度,0-1之间"
    )
    keywords: list[str] = Field(
        description="关键词列表"
    )


# 创建结构化输出模型
structured_model = model.with_structured_output(SentimentAnalysis)

# 待分析文本
text = "这个课程内容很实用,学到了很多知识,强烈推荐!"

# 调用模型
result = structured_model.invoke(
    f"分析以下文本的情感:\n{text}"
)

# 输出结果
print(f"类型: {type(result)}")
print(f"情感: {result.sentiment}")
print(f"置信度: {result.confidence}")
print(f"关键词: {result.keywords}")

类型: <class '__main__.SentimentAnalysis'>
情感: positive
置信度: 0.95
关键词: ['实用', '学到了很多', '强烈推荐', '课程', '知识']

2.1.2 高级特性

情况1:可选字段 「Optional」

问题:LLM 未填充某些字段怎么办?

使用 Optional 指定字段为可选的

举例:

复制代码
from typing import Optional
from pydantic import BaseModel, Field
class Person(BaseModel):
    """人物信息"""
    name: str = Field(description="姓名")
    age: Optional[str] = Field(description="年龄")
    occupation: str = Field(description="职业")

structured_llm = model.with_structured_output(Person)
structured_llm.invoke("张三是一名医生")

Person(name='张三', age='未知', occupation='医生')

情况2:默认值 「default」

LLM 未提供的信息会使用默认值。格式如下:

Field(default="默认值", description="描述")

注意:不同模型提供商对default字段的支持是不同的。

复制代码
from pydantic import BaseModel, Field

class Person(BaseModel):
    """人物信息"""
    name: str = Field(description="姓名")
    age: int = Field(1, description="年龄")
    occupation: str = Field(description="职业")

structured_llm = model.with_structured_output(Person)
structured_llm.invoke("张三是一名医生")

Person(name='张三', age=1, occupation='医生')

举例2:

复制代码
class Config(BaseModel):
    timeout: Optional[int] = Field(30,description="超时时间(单位秒)")
    retry: bool = Field(False,description="是否支持重试")
    max_attempts: int = Field(6,description="最大重试次数")
# 测试
structured_llm = model.with_structured_output(Config)
structured_llm.invoke("配置要求:支持重试,最多重试5次")

Config(timeout=30, retry=True, max_attempts=5)

举例3:

复制代码
from typing import Optional
from pydantic import BaseModel, Field

# 假设你已经定义了 model_with_openrouter
# from your_module import model_with_openrouter

class Product(BaseModel):
    """产品信息"""
    name: str = Field(description="产品名称")
    price: float = Field(description="价格")
    description: Optional[str] = Field(description="产品描述")
    stock: int = Field(default=100, description="库存")

# 测试
structured_llm = model.with_structured_output(Product)

print("\n场景1:完整信息")
result1 = structured_llm.invoke("iPhone 15 售价 5999 元,最新款智能手机,库存50台")
print(result1)

print("\n场景2:缺少描述和库存")
result2 = structured_llm.invoke("MacBook Pro 售价 12999 元")
print(result2)

场景1:完整信息

name='iPhone 15' price=5999.0 description='最新款智能手机' stock=50

场景2:缺少描述和库存

name='MacBook Pro' price=12999.0 description=None stock=100

情况3:枚举类型 「Literal」

问题:如何限制字段的可选值? 回答:使用枚举

复制代码
from enum import Enum
from typing import Optional
from pydantic import BaseModel, Field

# 定义你的优先级枚举类
class Priority(str, Enum):
    LOW = "低"
    MEDIUM = "中"
    HIGH = "高"

class CustomerInfo(BaseModel):
    """客户信息"""
    name: str = Field(description="客户姓名")
    phone: str = Field(description="电话号码")
    email: Optional[str] = Field(description="邮箱")
    issue: str = Field(description="问题描述")
    urgency: Priority = Field(description="紧急程度")

# 测试
structured_llm = model.with_structured_output(CustomerInfo)

conversation = """
客服: 您好,请问有什么可以帮助您?
客户: 我是王小明,电话 138-1234-5678,我的订单一直没发货,很着急!
客服: 好的,我帮您查一下
"""

result = structured_llm.invoke(f"从以下客服对话中提取客户信息:\n{conversation}")
print(result)
print("\n提取结果:")
print(f" 客户: {result.name}")
print(f" 电话: {result.phone}")
print(f" 邮箱: {result.email or '未提供'}")
print(f" 问题: {result.issue}")
print(f" 紧急程度: {result.urgency.value}")

如果嫌单独定义一个 Enum 类太麻烦,也可以直接导入 typing 中的 Literal ,直接在字段里把允许 的值写死。

复制代码
from typing import Optional,Literal
from pydantic import BaseModel, Field


class CustomerInfo(BaseModel):
    """客户信息"""
    name: str = Field(description="客户姓名")
    phone: str = Field(description="电话号码")
    email: Optional[str] = Field(description="邮箱")
    issue: str = Field(description="问题描述")
    urgency: Literal["低","中","高"] = Field(description="紧急程度")

# 测试
structured_llm = model.with_structured_output(CustomerInfo)

conversation = """
客服: 您好,请问有什么可以帮助您?
客户: 我是王小明,电话 138-1234-5678,我的订单一直没发货,很着急!
客服: 好的,我帮您查一下
"""

result = structured_llm.invoke(f"从以下客服对话中提取客户信息:\n{conversation}")
print(result)
print("\n提取结果:")
print(f" 客户: {result.name}")
print(f" 电话: {result.phone}")
print(f" 邮箱: {result.email or '未提供'}")
print(f" 问题: {result.issue}")
print(f" 紧急程度: {result.urgency}")

应用场景:

  • 自动填充 CRM 系统
  • 工单自动分类
  • 客服辅助
情况4:列表提取 「List」
复制代码
from typing import List
from pydantic import BaseModel, Field
class Person(BaseModel):
    """人物信息"""
    name:str = Field(description="姓名")
    age:int =Field(description="年龄")

class PersonList(Person):
    people:List[Person]

structured_llm = model.with_structured_output(PersonList)
result = structured_llm.invoke("张三 30岁,李四 25岁")
print(result)

name='张三' age=30 people=Person(name='张三', age=30), Person(name='李四', age=25)

举例2:产品评论分析

复制代码
class Review(BaseModel):
    """产品评论"""
    product: str
    rating: int = Field(description="评分 1-5")
    pros: List[str] = Field(description="优点列表")
    cons: List[str] = Field(description="缺点列表")
structured_llm = model.with_structured_output(Review)
review = structured_llm.invoke("""
    iPhone 17 很棒!摄像头强大,手感好。但是价格贵,没有充电器。4分。
    """)
print(review)

应用场景: 批量处理用户评论, 自动生成分析报告 ,发现产品改进点

举例3:文档信息提取

复制代码
from typing import List
from pydantic import BaseModel, Field


class Invoice(BaseModel):
    """发票信息"""

    invoice_number: str = Field(description="发票号")
    date: str = Field(description="日期")
    total_amount: float = Field(description="总金额")
    items: List[str] = Field(description="商品")


# 测试
structured_llm = model.with_structured_output(Invoice)

invoice_text = """
发票号: INV-2024-001
日期: 2024-01-15
总金额: 1299.00
商品: MacBook Pro, AppleCare+
"""

invoice = structured_llm.invoke(f"提取发票信息:{invoice_text}")
print(invoice)

invoice_number='INV-2024-001' date='2024-01-15' total_amount=1299.0 items='MacBook Pro', 'AppleCare+'

应用场景: 自动化财务处理, OCR 后结构化, 数据录入

情况5:嵌套结构
复制代码
from pydantic import BaseModel, Field

class Address(BaseModel):
    """地点描述"""
    city:str = Field(description="城市")
    district:str =Field(description="区域")

class Company(BaseModel):
    name:str =Field(description="公司名称")
    address:Address = Field(description="公司所在地")

structured_model = model.with_structured_output(Company)
response= structured_model.invoke("阿里巴巴在杭州的滨江区")
print(response)

name='阿里巴巴' address=Address(city='杭州', district='滨江区')

举例2:

复制代码
from typing import List
from pydantic import BaseModel, Field

# 1. 定义嵌套的 Pydantic 模型
class Actor(BaseModel):
    """演员信息"""

    name: str = Field(description="演员姓名")
    role: str = Field(description="饰演的角色")


class Movie(BaseModel):
    """电影信息"""

    title: str = Field(description="电影标题")
    year: int = Field(description="上映年份")
    director: str = Field(description="导演")
    cast: List[Actor] = Field(description="演员列表")
    rating: float = Field(description="评分")


# 2. 初始化模型并绑定输出结构
structured_model = model.with_structured_output(Movie)

# 3. 调用模型,直接获取 Movie 实例
response = structured_model.invoke("请介绍电影《盗梦空间》")

# 4. 访问结构化数据
print(f"电影名: {response.title}")
print(f"上映年份: {response.year}")
print(f"导演: {response.director}")
print(f"演员列表: {response.cast}")
print(f"评分: {response.rating}")

上代码输出结果如下

电影名: 盗梦空间

上映年份: 2010

导演: 克里斯托弗·诺兰

演员列表: Actor(name='莱昂纳多·迪卡普里奥', role='柯布 (Cobb)'), Actor(name='约瑟夫·高登-莱维特', role='亚瑟 (Arthur)'), Actor(name='艾伦·佩吉', role='阿丽阿德妮 (Ariadne)'), Actor(name='汤姆·哈迪', role='伊姆斯 (Eames)'), Actor(name='渡边谦', role='斋藤 (Saito)'), Actor(name='玛丽昂·歌迪亚', role='梅尔 (Mal)')

评分: 9.3

说明:LLM 能力有限,复杂嵌套结构可能会出错。所以建议:

  • 嵌套层级 ≤ 3 层
  • 使用清晰的 description
  • 必要时拆分成多个调用

举例3:

复制代码
from typing import List
from pydantic import BaseModel, Field


# 评论维度
class Aspect(BaseModel):
    """评论维度"""

    name: str = Field(description="维度名称,如:质量、价格、服务")
    score: int = Field(description="评分,1-5")
    comment: str = Field(description="具体评价")


# 产品评论分析
class ProductReview(BaseModel):
    """产品评论分析"""

    overall_sentiment: str = Field(
        description="整体情感:positive / negative / neutral"
    )
    overall_score: int = Field(description="综合评分,1-5")
    aspects: List[Aspect] = Field(description="各维度评价")
    summary: str = Field(description="一句话总结")


# 创建结构化模型
structured_model = model.with_structured_output(ProductReview)

# 测试评论
review_text = """
这款笔记本电脑性能非常强大,运行大型软件毫无压力。
屏幕色彩鲜艳,看视频很舒服。
不过价格有点贵,而且风扇噪音较大。
客服态度很好,物流也快。
总体来说还是值得购买的。
"""

# 调用模型
result = structured_model.invoke(
    f"分析以下产品评论:\n{review_text}"
)

# 输出结果
print(f"整体情感: {result.overall_sentiment}")
print(f"综合评分: {result.overall_score}/5")

print("\n各维度评价:")
for aspect in result.aspects:
    print(f" - {aspect.name}: {aspect.score}/5 - {aspect.comment}")

print(f"\n总结:{result.summary}")

整体情感: positive

综合评分: 4/5

各维度评价:

  • 性能: 5/5 - 性能非常强大,运行大型软件毫无压力

  • 屏幕: 5/5 - 色彩鲜艳,看视频很舒服

  • 价格: 3/5 - 价格有点贵,性价比一般

  • 噪音: 2/5 - 风扇噪音较大,影响使用体验

  • 服务: 5/5 - 客服态度很好,令人满意

  • 物流: 5/5 - 物流速度快,配送及时

总结:性能和屏幕表现出色,服务与物流令人满意,但价格偏高且风扇噪音较大,总体仍值得购买。

情况6:限制条件

举例1:

复制代码
from pydantic import BaseModel, Field
class User(BaseModel):
    name:str = Field(description="姓名",min_length=2,max_length=50)
    age:int =Field(description='年龄',le=150)
    email:str=Field(description="邮箱")


try:
    # user1=User(name="张三", age=20, email="张三@qq.com")
    user2=User(name="张三", age=200, email="张三@qq.com")
    # print(user1)
    print(user2)
except ValueError as e:
    print(f"[FAIL] 验证失败(符合预期): {e.errors()[0]['msg']}")

FAIL 验证失败(符合预期): Input should be less than or equal to 150

举例2:

复制代码
from pydantic import BaseModel, Field


class Product(BaseModel):
    """产品信息(严格验证)"""

    name: str = Field(
        description="产品名称(字符串类型)",
        min_length=2,
    )
    price: float = Field(
        description="价格,数字类型",
        gt=0,  # 必须大于 0
    )
    stock: int = Field(
        description="库存,整数类型",
        ge=0,  # 必须大于等于 0
    )


# 创建结构化模型
structured_llm = model.with_structured_output(Product)

# 正常数据
# response = structured_llm.invoke(
#     "华为 Mate 80 Pro Max,价格是7999,当前库存100"
# )

# 非法数据
response = structured_llm.invoke(
    "华为 Mate 80 Pro Max,价格是-7999,当前库存-100"
)

print(response)

None

2.1.3 工作流程图解

第1步:定义结构

比如:

复制代码
from pydantic import BaseModel, Field
class Person(BaseModel):
    """人物信息"""
    name: str = Field(description="姓名")
    age: int = Field(description="年龄")
    occupation: str = Field(description="职业")
第2步:协议转换 LangChain

内部会调用 Pydantic 的底层方法(如 model_json_schema() ),将你写的 Python 代码自 动转换成标准的 JSON Schema。

这个 JSON Schema 是一段严格的 JSON 文本,详细描述了有哪些字段、字段类型是什么( string , array 等)以及字段的描述( description )。

第3步:模型交互与强约束

LangChain 会将这个 JSON Schema 包装进给大模型的 API 请求中。

现代方法( .with_structured_output ): 现代大模型(如 OpenAI、Anthropic、Gemini 等)普 遍支持"函数调用/工具调用(Function/Tool Calling)"或"JSON Mode"。LangChain 会把 JSON Schema 作为 Tools 传入。

大模型侧的约束: 像 OpenAI 的 strict=True 参数,会启动模型的语法采样约束(Grammarbased sampling)。大模型在解码生成 token 时,不是瞎猜,而是严格按照 JSON Schema 的语 法树进行选择,从而在模型底层级保证了输出格式绝不走样。

第4步:自动解析与验证

当大模型返回符合 JSON 规范的字符串后,LangChain 的 PydanticStructuredOutputParser (解析 器)会接管工作:

  1. 解析(Parsing): 将字符串解析为 Python 字典。

  2. 验证(Validation): 将字典喂给你的 Pydantic 模型。Pydantic 会自动检查数据类型是否正确。 如果模型漏掉了必填字段,或者类型错误,这里会直接抛出验证错误(或者触发 LangChain 的重 试机制)。

  3. 返回(Return): 如果通过验证,你拿到的不再是冷冰冰的字符串,而是一个直接可以点出属性 的 Python Pydantic 对象(例如 result.title )。

相关推荐
IT_陈寒4 小时前
Vue开发者必知:5个让你效率翻倍的隐藏技巧
前端·人工智能·后端
进击的荆棘4 小时前
Linux网络——网络基础概念
linux·运维·服务器·网络
deli0074 小时前
12 个请求挤一条连接:HTTP/1.1 队头阻塞 vs HTTP/2 多路复用实测
前端
.YM.Z4 小时前
从操作系统进入Linux进程概念及进程状态
linux·运维·服务器
这个昵称不容易4 小时前
SpringBoot 医疗病历交互系统毕设:192 个 Java 文件、256 个接口、22 张表,附真实运行截图
java·springboot·毕设
deli0074 小时前
TCP 为什么会粘包?4 种拆包方案 49 字节实测对比
前端
deli0075 小时前
32K 上下文塞满后,AI 最先忘掉什么?120 轮对话实测
前端
deli0076 小时前
手机拍灯为什么有一条条黑纹?PWM 240Hz 实测
前端
忆挽篱笙歌10 小时前
通信连接,匿名管道
linux·服务器·网络
wangruofeng11 小时前
AI Models 1.1.0 发布,查大模型价格、对比模型和找 API 地址
前端·aigc·ai编程
