旁挂组网双机热备负载分担

wgh6532026-08-11 10:14

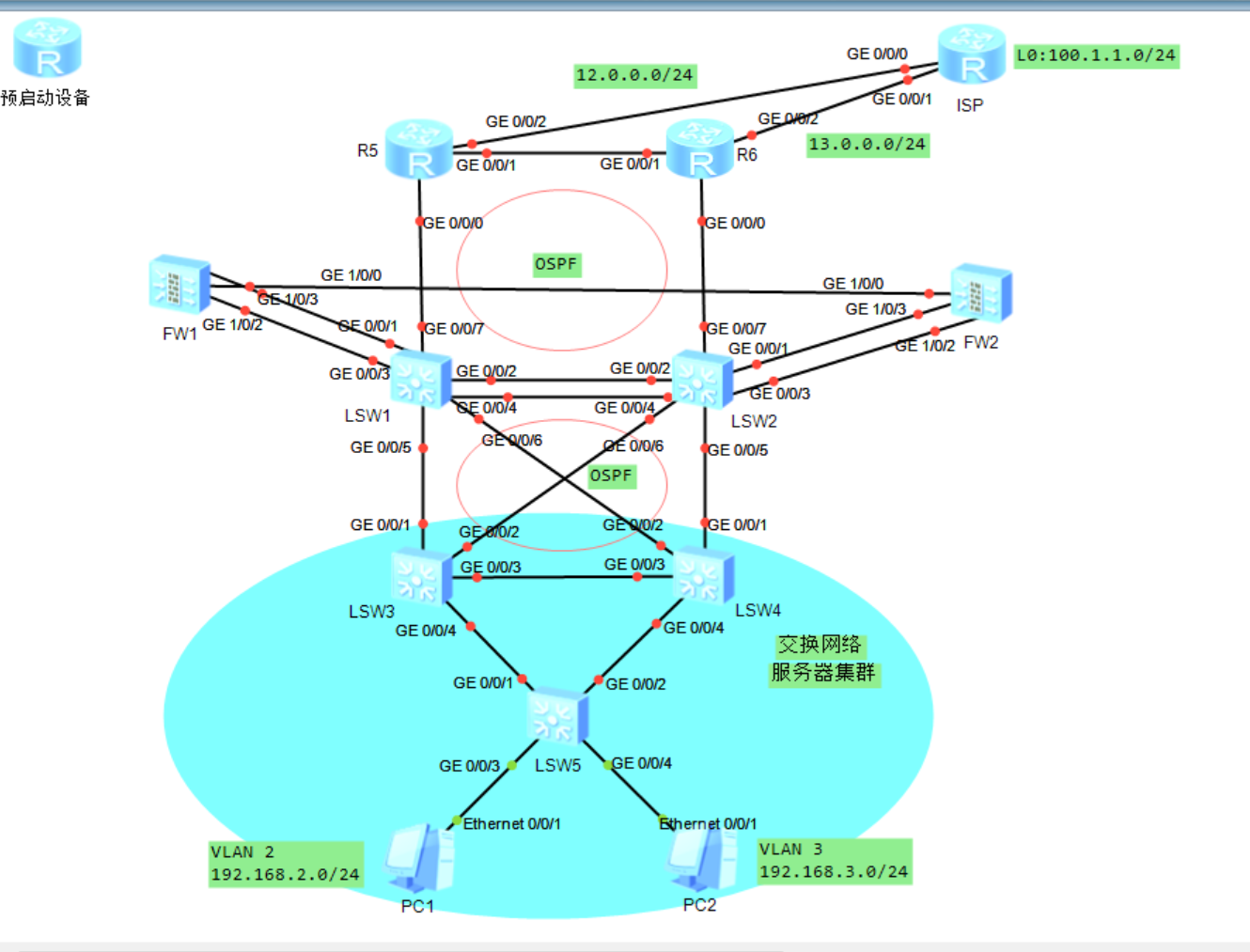

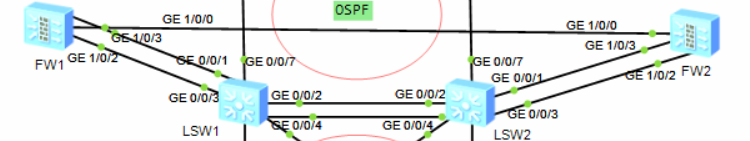

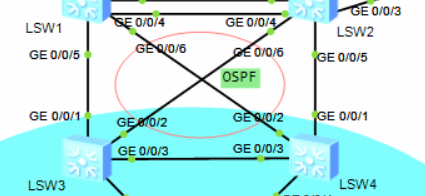

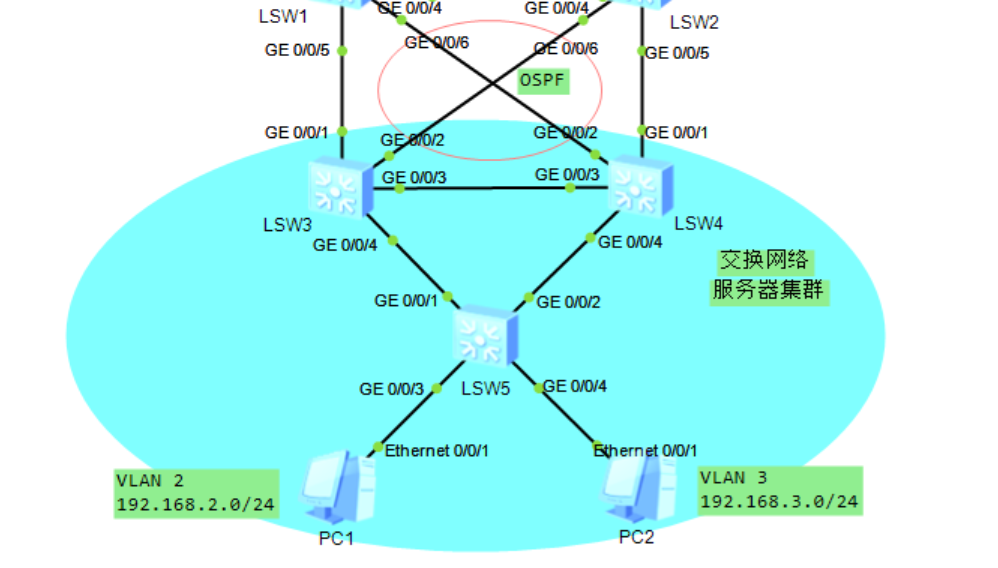

拓扑图

需求：

复制代码
1.SW3的流量
    正常情况:SW1_VRF--FW1--SW1_Public--R5
    故障情况:SW2_VRF--FW2--SW2_Public--R6
2.SW4的流量
    正常情况:SW2_VRF--FW2--SW2_Public--R6
    故障情况:SW1_VRF--FW1--SW1_Public--R5
3.交换网络负载均衡

二层交换配置

sw3上

复制代码
[sw3]vlan batch 2 3
[sw3]int g0/0/3
[sw3-GigabitEthernet0/0/3]po li t

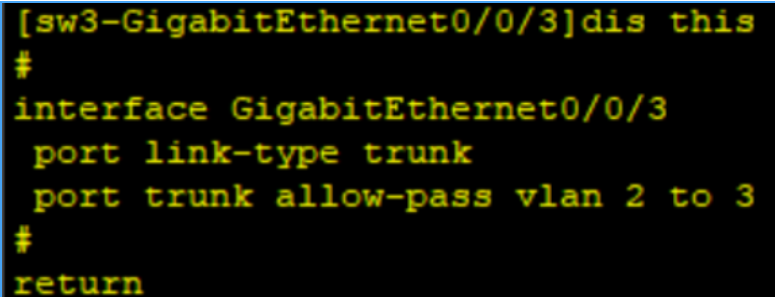

[sw3-GigabitEthernet0/0/3]po t all v 2 3
[sw3]int g0/0/4
[sw3-GigabitEthernet0/0/4]po li t

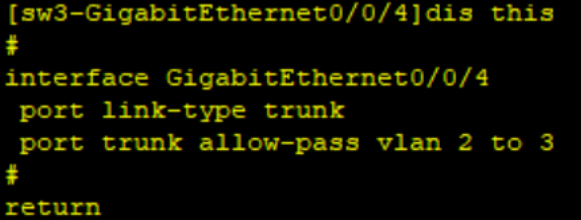

[sw3-GigabitEthernet0/0/4]po t all v 2 3

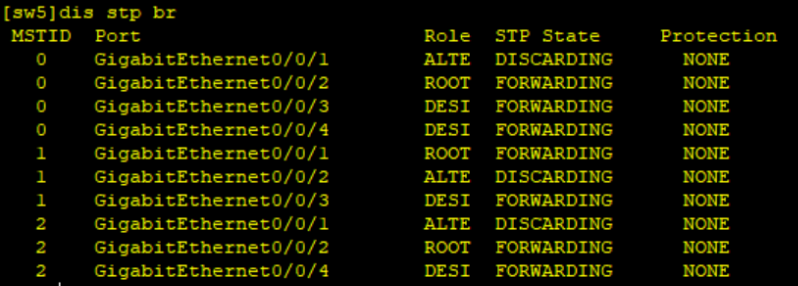

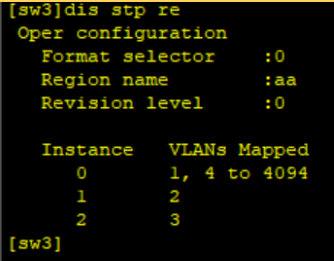

MSTP配置
[sw3]stp enable
[sw3]stp mode mstp
[sw3]stp region-configuration
[sw3-mst-region]region-name aa
[sw3-mst-region]instance 1 vlan 2
[sw3-mst-region]instance 2 vlan 3
[sw3-mst-region]active region-configuration
Info: This operation may take a few seconds. Please wait for a moment...done.
[sw3-mst-region]q

[sw3]stp instance 1 root primary ---实例1作为主根

[sw3]stp instance 2 root secondary --实例2为备份根

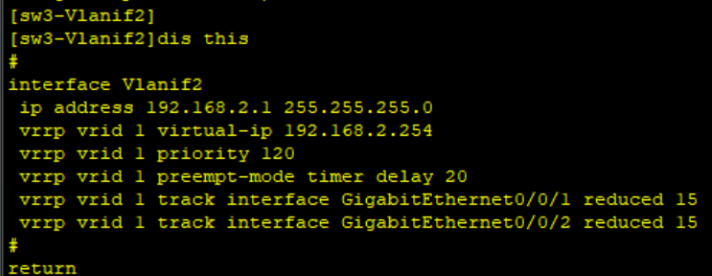

[sw3]interface Vlanif 2
[sw3-Vlanif2]ip add 192.168.2.1 24
[sw3-Vlanif2]vrrp vrid 1 virtual-ip 192.168.2.254
[sw3-Vlanif2]vrrp vrid 1 priority 120---修改优先级

抢占延时
[sw3-Vlanif2]vrrp vrid 1 preempt-mode  timer delay 20

上行链路的监控
[sw3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 15
[sw3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 15


vlanif 3
[sw3]interface Vlanif 3
[sw3-Vlanif3]ip add 192.168.3.1 24
[sw3-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254

sw4上

复制代码
[sw4]vlan batch 2 3
[sw4]int GigabitEthernet 0/0/3
[sw4-GigabitEthernet0/0/3]PO li t
[sw4-GigabitEthernet0/0/3]po t all v 2 3
[sw4-GigabitEthernet0/0/3]int g0/0/4
[sw4-GigabitEthernet0/0/4]po li t
[sw4-GigabitEthernet0/0/4]po t all v 2 3

[sw4]stp enable
[sw4]stp mode mstp

[sw4]stp region-configuration
[sw4-mst-region]region-name aa

[sw4-mst-region]instance 1 vlan 2
[sw4-mst-region]instance 2 vlan 3

[sw4-mst-region]active region-configuration

[sw4]stp instance 1 root secondary ---实例1 备份根
[sw4]stp instance 2 root primary -----实例2 主根

[sw4]interface Vlanif 2
[sw4-Vlanif2]ip add 192.168.2.2 24
[sw4-Vlanif2]vrrp vrid 1 virtual-ip  192.168.2.254
[sw4]interface Vlanif 3
[sw4-Vlanif3]ip add 192.168.3.2 24
[sw4-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254

[sw4-Vlanif3]vrrp vrid 1 priority 120
[sw4-Vlanif3]vrrp vrid 1 preempt-mode timer delay 20
[sw4-Vlanif3]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 15
[sw4-Vlanif3]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 15

sw5上

复制代码
[sw5]vlan batch  2 3

[sw5]int g 0/0/3
[sw5-GigabitEthernet0/0/3]po li a
[sw5-GigabitEthernet0/0/3]po de v 2

[sw5-GigabitEthernet0/0/3]int g 0/0/4
[sw5-GigabitEthernet0/0/4]po li a
[sw5-GigabitEthernet0/0/4]po de v 3

[sw5]int g0/0/1
[sw5-GigabitEthernet0/0/1]po li t
[sw5-GigabitEthernet0/0/1]po t all vlan 2 3

[sw5-GigabitEthernet0/0/1]int g0/0/2
[sw5-GigabitEthernet0/0/2]po li t
[sw5-GigabitEthernet0/0/2]po t all vlan 2 3

[sw5]stp en
[sw5]stp enable
[sw5]stp mode mstp
[sw5]stp re
[sw5-mst-region]region-name aa

[sw5-mst-region]instance 1 vlan 2
[sw5-mst-region]instance 2 vlan 3

[sw5-mst-region]active region-configuration

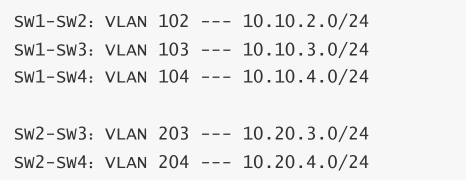

核心层配置

sw3上

复制代码
[sw3]vlan b 103 203
[sw3]int g0/0/1
[sw3-GigabitEthernet0/0/1]po li a
[sw3-GigabitEthernet0/0/1]po de v 103
[sw3-GigabitEthernet0/0/1]undo stp enable

[sw3]int g0/0/2
[sw3-GigabitEthernet0/0/2]po li a
[sw3-GigabitEthernet0/0/2]po de v 203
[sw3-GigabitEthernet0/0/2]undo stp enable

[sw3]int Vlanif 103
[sw3-Vlanif103]ip add 10.10.3.3 24

[sw3-Vlanif103]int vlanif 203
[sw3-Vlanif203]ip add 10.20.3.3 24

[sw3]ospf 1 router-id 3.3.3.3
[sw3-ospf-1]a 0
[sw3-ospf-1-area-0.0.0.0]network 10.10.3.3 0.0.0.0
[sw3-ospf-1-area-0.0.0.0]network 10.20.3.3 0.0.0.0
[sw3-ospf-1-area-0.0.0.0]network 192.168.2.1 0.0.0.0

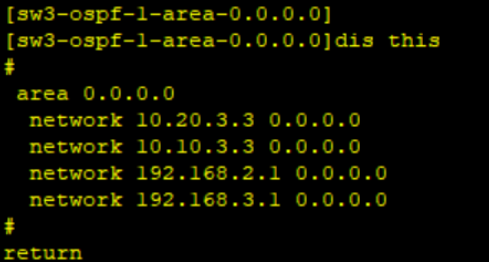

[sw3-ospf-1-area-0.0.0.0]network 192.168.3.1 0.0.0.0

sw4上

复制代码
[sw4]vlan batch 104 204
[sw4]int g0/0/1
[sw4-GigabitEthernet0/0/1]po li a
[sw4-GigabitEthernet0/0/1]po de v 204
[sw4-GigabitEthernet0/0/1]undo stp enable
[sw4]int g0/0/2
[sw4-GigabitEthernet0/0/2]po li a
[sw4-GigabitEthernet0/0/2]po de v 104
[sw4-GigabitEthernet0/0/2]undo stp enable

[sw4]int Vlanif 104
[sw4-Vlanif104]ip add 10.10.4.4 24

[sw4-Vlanif104]int vlanif 204
[sw4-Vlanif204]ip add 10.20.4.4 24

[sw4]ospf 1 router-id 4.4.4.4
[sw4-ospf-1]a 0
[sw4-ospf-1-area-0.0.0.0]netw 10.10.4.4 0.0.0.0
[sw4-ospf-1-area-0.0.0.0]netw 10.20.4.4 0.0.0.0

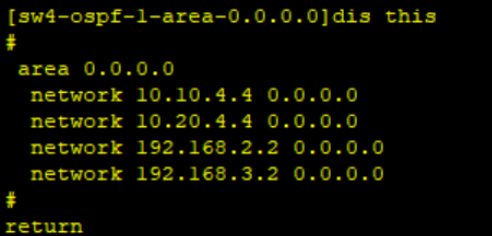

[sw4-ospf-1-area-0.0.0.0]netw 192.168.2.2 0.0.0.0
[sw4-ospf-1-area-0.0.0.0]netw 192.168.3.2 0.0.0.0
复制代码
[sw1]IP vpn-instance VRF ---创建VRF空间
[sw1-vpn-instance-VRF]route-distinguisher 100:1 ---设定RD值
[sw1-vpn-instance-VRF-af-ipv4]vpn-target 100:1 both  ---设定RT值

[sw2]IP vpn-instance VRF ---创建VRF空间
[sw2-vpn-instance-VRF]route-distinguisher 100:1 ---设定RD值
[sw2-vpn-instance-VRF-af-ipv4]vpn-target 100:1 both  ---设定RT值

sw1

复制代码
[sw1]vlan batch 102 103 104
[sw1]int g0/0/5
[sw1-GigabitEthernet0/0/5]po li a
[sw1-GigabitEthernet0/0/5]po de v 103
[sw1-GigabitEthernet0/0/5]undo stp enable

[sw1-GigabitEthernet0/0/5]int g0/0/4
[sw1-GigabitEthernet0/0/4]po li t
[sw1-GigabitEthernet0/0/4]undo po t all v 1
[sw1-GigabitEthernet0/0/4]po t all v 102
[sw1-GigabitEthernet0/0/4]undo stp enable

[sw1-GigabitEthernet0/0/4]int g0/0/6
[sw1-GigabitEthernet0/0/6]po li a
[sw1-GigabitEthernet0/0/6]po de vlan 104
[sw1-GigabitEthernet0/0/6]undo stp enable

配置接口
[sw1]interface vlan
[sw1]interface Vlanif 102
[sw1-Vlanif102]ip binding vpn-instance VRF ---将接口划入到VRF这个交换机中，在接口进行配置之前进行
[sw1-Vlanif102]ip add 10.10.2.1 24

[sw1-Vlanif102]int vlanif 103
[sw1-Vlanif103]ip binding vpn-instance VRF
[sw1-Vlanif103]ip add 10.10.3.1 24

[sw1-Vlanif103]int v 104
[sw1-Vlanif104]ip binding vpn-instance VRF
[sw1-Vlanif104]ip add 10.10.4.1 24

sw2

复制代码
[sw2]vlan batch 102 203 204
[sw2]int g0/0/5
[sw2-GigabitEthernet0/0/5]po li a
[sw2-GigabitEthernet0/0/5]po de v 204
[sw2-GigabitEthernet0/0/5]undo stp enable

[sw2-GigabitEthernet0/0/5]int g0/0/6
[sw2-GigabitEthernet0/0/6]po li a
[sw2-GigabitEthernet0/0/6]po de v 203
[sw2-GigabitEthernet0/0/6]undo stp enable

[sw2-GigabitEthernet0/0/6]int g0/0/4
[sw2-GigabitEthernet0/0/4]po li t
[sw2-GigabitEthernet0/0/4]po t all vlan 102
[sw2-GigabitEthernet0/0/4]undo po t all v 1
[sw2-GigabitEthernet0/0/4]undo stp enable

配置接口
[sw2]int v 102
[sw2-Vlanif102]ip binding vpn-instance VRF
[sw2-Vlanif102]ip add 10.10.2.2 24

[sw2-Vlanif102]int v 203
[sw2-Vlanif203]ip binding vpn-instance VRF
[sw2-Vlanif203]IP ADD 10.20.3.2 24

[sw2-Vlanif203]INT v 204
[sw2-Vlanif204]ip binding vpn-instance VRF
[sw2-Vlanif204]ip add 10.20.4.2 24

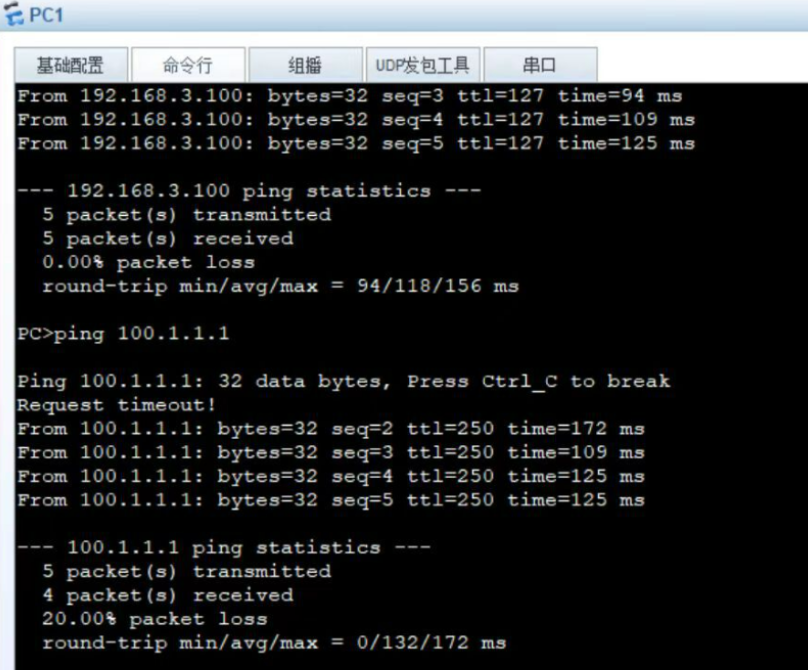

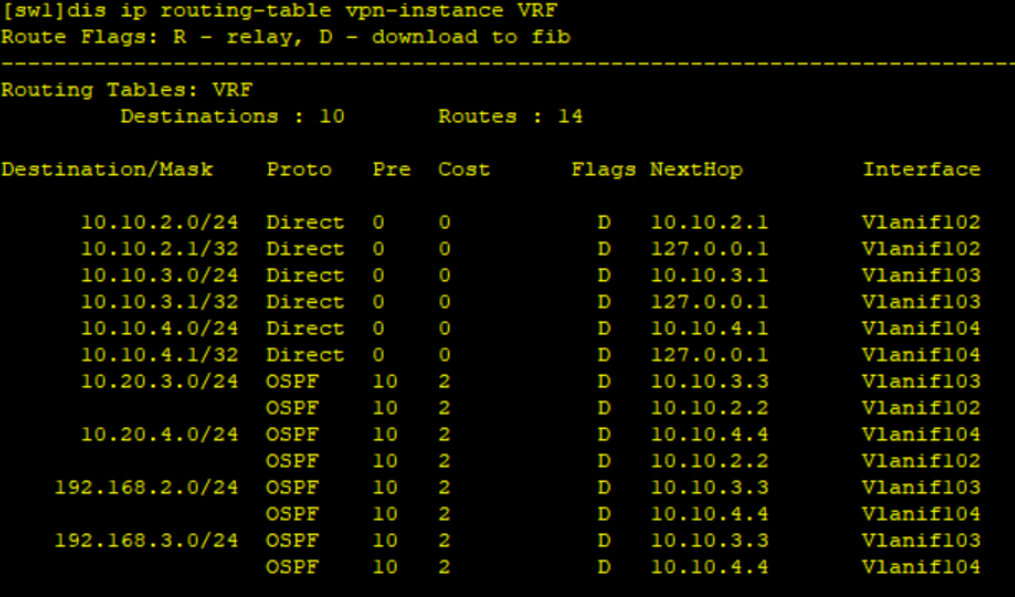

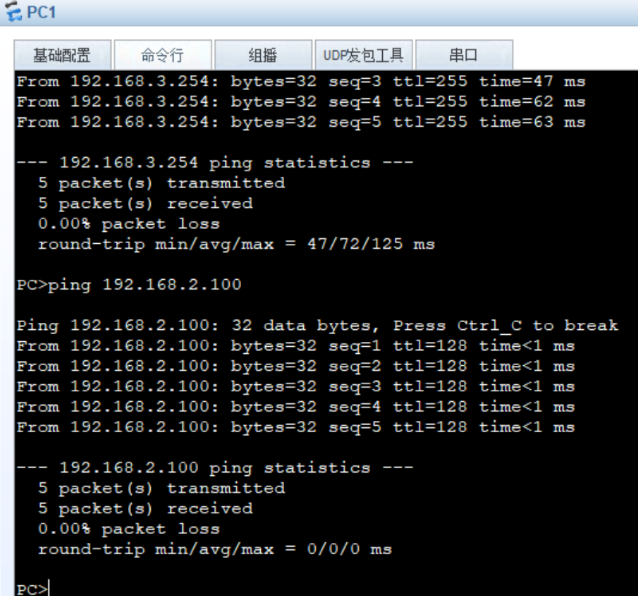

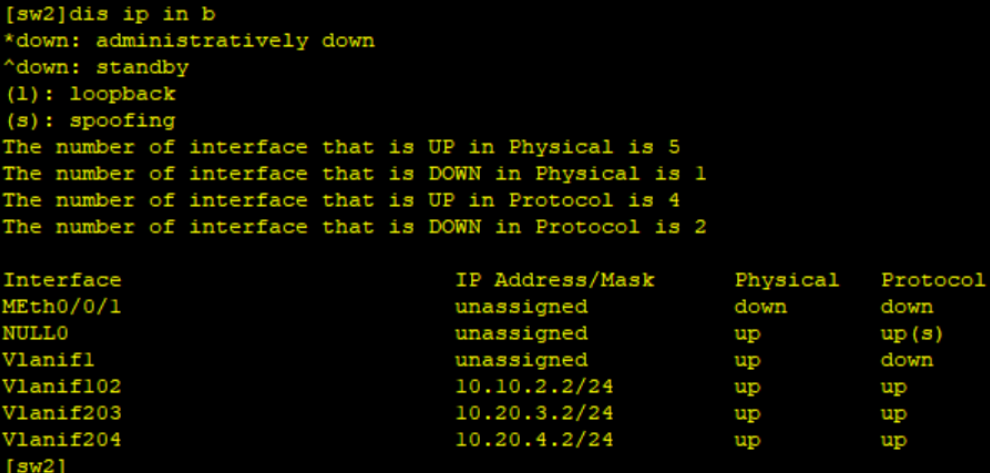

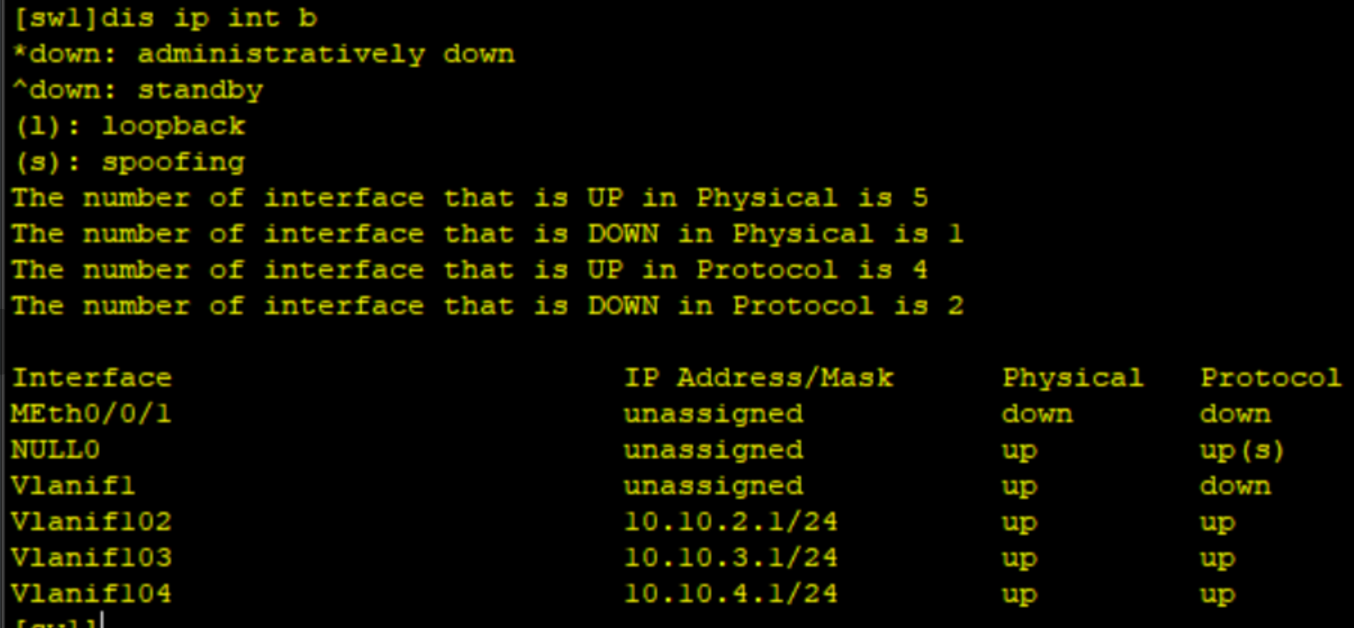

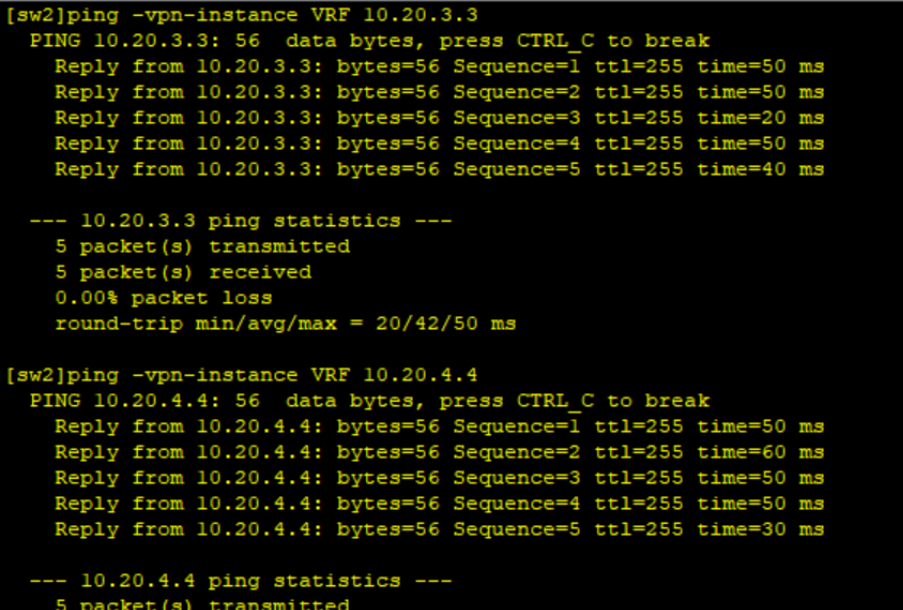

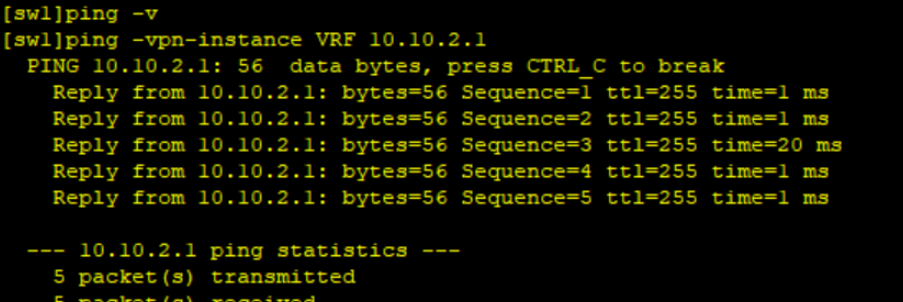

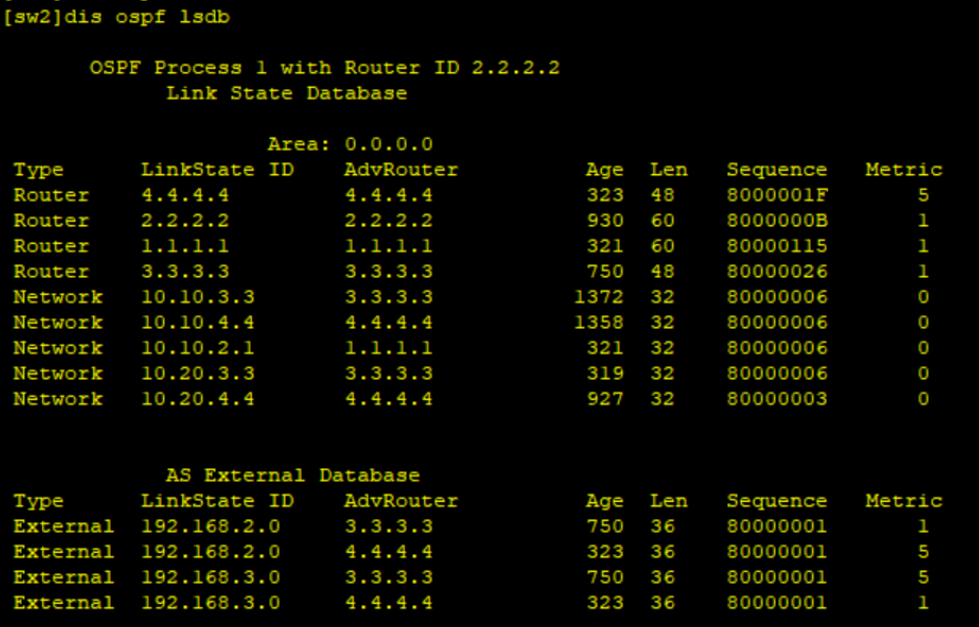

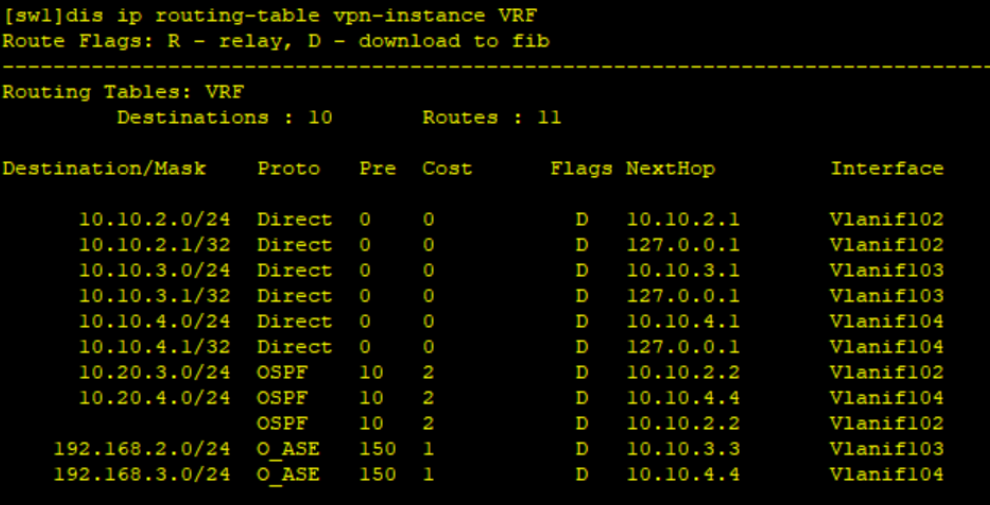

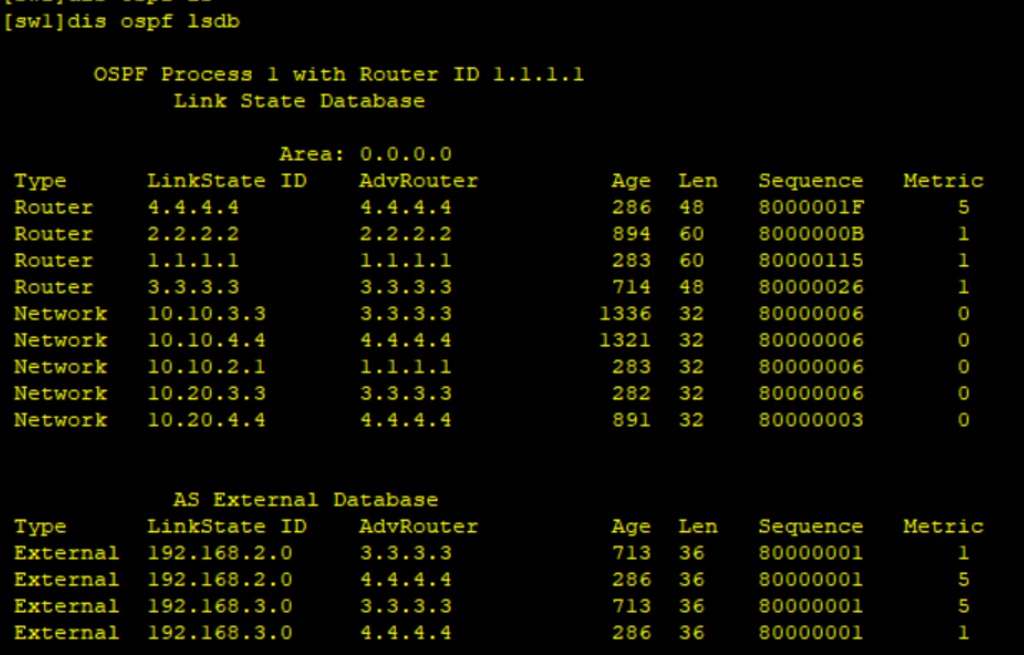

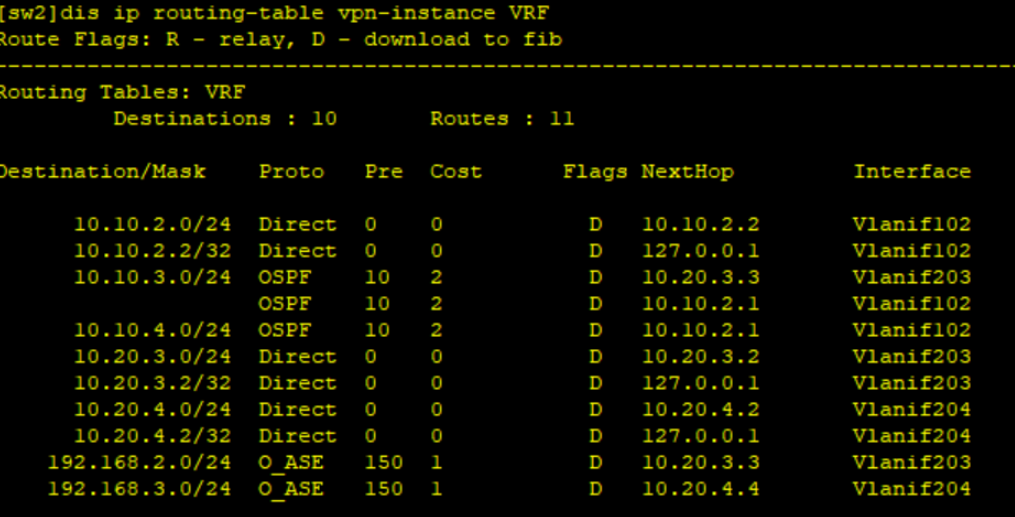

测试

ospf

复制代码
配置ospf
[sw1]ospf 1 router-id 1.1.1.1 vpn-instance VRF ---代表在名称为VPN
[sw1-ospf-1]a 0
[sw1-ospf-1-area-0.0.0.0]net 10.10.2.1 0.0.0.0
[sw1-ospf-1-area-0.0.0.0]net 10.10.3.1 0.0.0.0
[sw1-ospf-1-area-0.0.0.0]net 10.10.4.1 0.0.0.0


[sw2]ospf 1 router-id 2.2.2.2 vpn-instance VRF
[sw2-ospf-1]a 0
[sw2-ospf-1-area-0.0.0.0]net 10.10.2.2 0.0.0.0
[sw2-ospf-1-area-0.0.0.0]net 10.20.3.2 0.0.0.0
[sw2-ospf-1-area-0.0.0.0]net 10.20.4.2 0.0.0.0

路由策略

复制代码
SW3:
	主要流量发给SW1,备份发给SW2
SW4:
	主要流量发给SW1,备份发给SW2
SW1:
	192.168.2.0/24--->主要发给SW3,备份发给SW4
	192.168.3.0/24--->主要发给SW4,备份发给SW3
SW2:
	192.168.2.0/24--->主要发给SW3,备份发给SW4
	192.168.3.0/24--->主要发给SW4,备份发给SW3

[sw3]int v 203
[sw3-Vlanif203]ospf cost 5 ---增大开销

[sw4]int v104
[sw4-Vlanif104]ospf cost 5


[sw3-ospf-1-area-0.0.0.0]undo  network 192.168.2.1 0.0.0.0
[sw3-ospf-1-area-0.0.0.0]undo  network 192.168.3.1 0.0.0.0


[sw4-ospf-1-area-0.0.0.0]undo network 192.168.2.2 0.0.0.0
[sw4-ospf-1-area-0.0.0.0]undo network 192.168.3.2 0.0.0.0

1.抓流量
[sw3]ip ip-prefix aa permit 192.168.3.0 24
[sw3]ip ip-prefix bb permit 192.168.2.0 24

2.做策略
[sw3]route-policy aa permit node 10
[sw3-route-policy]if-match ip-prefix aa
[sw3-route-policy]apply cost 5
[sw3-route-policy]q
[sw3]route-policy aa permit node 20
[sw3-route-policy]if-match ip-prefix bb

3.调用
[sw3-ospf-1]import-route direct route-policy aa


[sw4]ip ip-prefix aa permit 192.168.2.0 24
[sw4]ip ip-prefix bb permit 192.168.3.0 24

[sw4]route-policy aa permit node 10
[sw4-route-policy]if-match  ip-prefix aa
[sw4-route-policy]apply cost 5
[sw4-route-policy]q
[sw4]route-policy aa permit  node 20
[sw4-route-policy]if-match ip-prefix bb

[sw4]ospf 1
[sw4-ospf-1]import-route direct route-policy  aa

VRF交换机和防火墙的路由交互

sw1

复制代码
[sw1] vlan b 401 402
[sw1]int g0/0/3
[sw1-GigabitEthernet0/0/3]po li t
[sw1-GigabitEthernet0/0/3]po t all v 401 402
[sw1-GigabitEthernet0/0/3]int g 0/0/4
[sw1-GigabitEthernet0/0/4]po li t
[sw1-GigabitEthernet0/0/4]po t all v 401 402
[sw1]int Vlanif 401
[sw1-Vlanif401]ip binding vpn-instance VRF
[sw1-Vlanif401]ip add 10.40.1.1 24
[sw1-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[sw1-Vlanif401]vrrp vrid 1 priority 120
[sw1-Vlanif401]vrrp vrid 1 preempt-mode timer delay 60
[sw1-Vlanif401]vrrp vrid 1 track interface GigabitEthernet 0/0/3 reduced 30

[sw1]int v 402
[sw1-Vlanif402]ip binding vpn-instance VRF
[sw1-Vlanif402]ip add 10.40.2.1 24
[sw1-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100

sw2

复制代码
[sw2]vlan b 401 402
[sw2]int g0/0/3
[sw2-GigabitEthernet0/0/3]po li t
[sw2-GigabitEthernet0/0/3]po t all v 401 402
[sw2-GigabitEthernet0/0/3]q
[sw2]int g0/0/4
[sw2-GigabitEthernet0/0/4]po li t
[sw2-GigabitEthernet0/0/4]po t all v 401 402
[sw2-Vlanif401]ip b vpn-instance VRF
[sw2-Vlanif401]ip add 10.40.1.2 24
[sw2-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[sw2-Vlanif402]vrrp vrid 2 priority 120
[sw2-Vlanif402]vrrp vrid 2 preempt-mode timer delay 60
[sw2-Vlanif402]vrrp vrid 2 track interface GigabitEthernet 0/0/3 reduced 30

FW1

复制代码
[FW1]vlan b 401 402 403 404
[FW1]int g1/0/0
[FW1-GigabitEthernet1/0/0]ip add 10.10.10.1 30

[FW1-GigabitEthernet1/0/2]int g1/0/2.401
[FW1-GigabitEthernet1/0/2.401]ip add 10.40.1.10 24
[FW1-GigabitEthernet1/0/2.401]vlan-type dot1q 401

[FW1-GigabitEthernet1/0/2.401]int g1/0/2.402
[FW1-GigabitEthernet1/0/2.402]ip add 10.40.2.10 24
[FW1-GigabitEthernet1/0/2.402]vlan-type dot1q 402

[FW1-GigabitEthernet1/0/2.402]int g1/0/3.403
[FW1-GigabitEthernet1/0/3.403]ip add 10.40.3.10 24
[FW1-GigabitEthernet1/0/3.403]vlan-type dot1q 403

[FW1-GigabitEthernet1/0/3.403]int g1/0/3.404
[FW1-GigabitEthernet1/0/3.404]ip add 10.40.4.10 24
[FW1-GigabitEthernet1/0/3.404]vlan-type dot1q 404

[FW1]firewall zone trust
[FW1-zone-trust]add interface GigabitEthernet 1/0/2.401
[FW1-zone-trust]add interface GigabitEthernet 1/0/2.402

[FW1]firewall zone untrust
[FW1-zone-untrust]add interface GigabitEthernet 1/0/3.403
[FW1-zone-untrust]add interface GigabitEthernet 1/0/3.404

[FW1]firewall zone dmz
[FW1-zone-dmz]add interface g1/0/0

[FW1]int g1/0/2.401
[FW1-GigabitEthernet1/0/2.401]vrrp vrid 5 virtual-ip 10.40.1.200 ac

[FW1-GigabitEthernet1/0/2.401]int g1/0/2.402
[FW1-GigabitEthernet1/0/2.402]vrrp vrid 6 virtual-ip 10.40.2.200 standby

[FW1-GigabitEthernet1/0/2.402]int g1/0/3.403
[FW1-GigabitEthernet1/0/3.403]vrrp vrid 7 virtual-ip 10.40.3.200 ac

[FW1-GigabitEthernet1/0/3.403]int g1/0/3.404
[FW1-GigabitEthernet1/0/3.404]vrrp vrid 8 virtual-ip 10.40.4.200 standby


[FW1]hrp mirror session enable  ---快速备份
[FW1] hrp int g1/0/0 remote 10.10.10.2
[FW1] hrp ena

HRP_S[FW1]ip route-static 0.0.0.0 0 10.40.3.100
HRP_S[FW1]ip route-static 0.0.0.0 0 10.40.4.100 preference 70
HRP_M[FW1]ip route-static 192.168.0.0 16 10.40.1.100
HRP_M[FW1]ip route-static 192.168.0.0 16 10.40.2.100 preference 70

FW2

复制代码
[FW2]vlan batch 401 402 403 404
[FW2]interface GigabitEthernet 1/0/0
[FW2-GigabitEthernet1/0/0]ip add 10.10.10.2 30

[FW2]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]ip address 10.40.1.20 24
[FW2-GigabitEthernet1/0/2.401]vlan-type dot1q 401

[FW2]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]ip add 10.40.2.20 24
[FW2-GigabitEthernet1/0/2.402]vlan-type dot1q 402

[FW2]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]ip add 10.40.3.20 24
[FW2-GigabitEthernet1/0/1.403]vlan-type dot1q 403

[FW2]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]ip add 10.40.4.20 24
[FW2-GigabitEthernet1/0/1.404]vlan-type dot1q 404

[FW2]firewall zone trust
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.401
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.402

[FW2]firewall zone untrust
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.403
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.404

[FW2]firewall zone dmz
[FW2-zone-dmz]add interface GigabitEthernet 1/0/0

[FW2]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]vrrp vrid 5 virtual-ip 10.40.1.200 standby
[FW2]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]vrrp vrid 6 virtual-ip 10.40.2.200 active

[FW2]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]vrrp vrid 7 virtual-ip 10.40.3.200 standby
[FW2]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]vrrp vrid 8 virtual-ip 10.40.4.200 active

[FW2]hrp mirror session enable
[FW2]hrp interface GigabitEthernet 1/0/0 remote 10.10.10.1
[FW2]hrp enable

HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.4.100
HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.3.100 preference 70

HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.2.100
HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.1.100 preference 70

[SW1]vlan batch 403 404
[SW1]interface GigabitEthernet 0/0/3
[SW1-GigabitEthernet0/0/3]port link-type trunk
[SW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 403 404
[SW1]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port link-type trunk
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW1]interface Vlanif 403
[SW1-Vlanif403]ip address 10.40.3.1 24
[SW1-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[SW1-Vlanif403]vrrp vrid 3 priority 120
[SW1-Vlanif403]vrrp vrid 3 preempt-mode timer delay 60
[SW1-Vlanif403]vrrp vrid 3 track interface GigabitEthernet 0/0/3 reduced 30
[SW1]interface Vlanif 404
[SW1-Vlanif404]ip add 10.40.4.1 24
[SW1-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100

[SW2]vlan batch 403 404
[SW2]interface GigabitEthernet 0/0/2
[SW2-GigabitEthernet0/0/2]port link-type trunk
[SW2-GigabitEthernet0/0/2]port trunk allow-pass vlan 403 404
[SW2]interface GigabitEthernet 0/0/4
[SW2-GigabitEthernet0/0/4]port link-type trunk
[SW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW2]interface  Vlanif 403
[SW2-Vlanif403]ip address 10.40.3.2 24
[SW2-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[SW2]interface Vlanif 404
[SW2-Vlanif404]ip address 10.40.4.2 24
[SW2-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100
[SW2-Vlanif404]vrrp vrid 4 priority 120
[SW2-Vlanif404]vrrp vrid 4 preempt-mode timer delay 60
[SW2-Vlanif404]vrrp vrid 4 track interface GigabitEthernet 0/0/2 reduced 30

R1

复制代码
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]ip add 10.11.1.2 24
[R1]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]ip address 10.12.2.1 24



[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]ip add 12.0.0.1 24
[R1]ip route-static 0.0.0.0 0 12.0.0.100
[R1-ospf-1]default-route-advertise
[R1]acl 2000
[R1-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]nat outbound 2000

R2

复制代码
[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ip add 10.22.2.2 24
[R2]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]ip add 10.12.2.2 14

[R2]ospf 1 router-id 4.4.4.4
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 10.22.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]network 10.12.2.2 0.0.0.0

[R2]interface GigabitEthernet 0/0/2
[R2-GigabitEthernet0/0/2]ip add 13.0.0.1 24
[R2]ip route-static 0.0.0.0 0 13.0.0.100
[R2-ospf-1]default-route-advertise

[R2]acl 2000
[R2-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R2]int g 0/0/2
[R2-GigabitEthernet0/0/2]nat outbound 2000

ISP

复制代码
[ISP]interface GigabitEthernet 0/0/0
[ISP-GigabitEthernet0/0/0]ip add 12.0.0.100 24
[ISP]interface GigabitEthernet 0/0/1
[ISP-GigabitEthernet0/0/1]ip add 13.0.0.100 24
[ISP]interface LoopBack 0
[ISP-LoopBack0]ip add 100.1.1.1 24

[SW1-ospf-2]import-route static
[SW2-ospf-2]import-route static

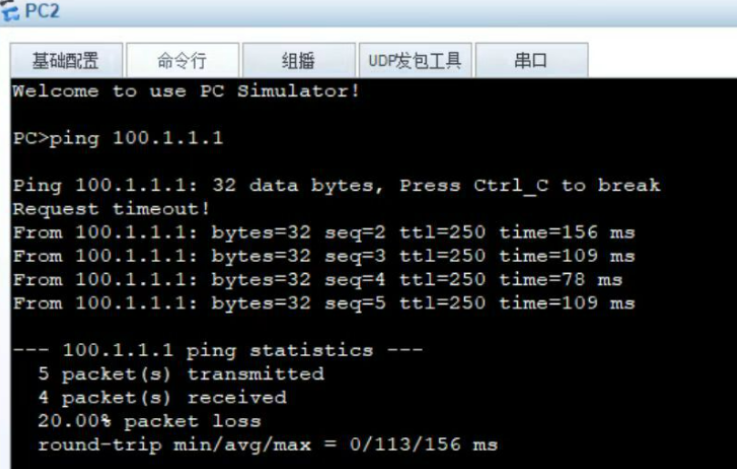

测试

相关推荐
2401_894915531 小时前
部署 GEO 优化源码常见报错排查：端口、伪静态、缓存问题解决
java·运维·服务器·后端·缓存·开源
Lysander.Jovian1 小时前
Nginx服务2
运维·数据库·nginx
小张同学a.1 小时前
zabbix企业级监控平台4——分布式监控与grafana数据可视化
linux·运维·数据库·分布式·信息可视化·zabbix·grafana
酷可达拉斯2 小时前
自动化运维-从零开始编写ansible剧本（二）
linux·运维·服务器·centos·自动化
A-刘晨阳2 小时前
Kubernetes 非共享存储详解：emptyDir 与 hostPath 从入门到实践
运维·云原生·容器·kubernetes·hostpath·emptydir
Nomarsgo2 小时前
联控 Lionconit PTC-1006手持工业平板电脑在野外输电线路巡检中的应用方案
运维·科技·自动化·汽车·电脑
瀚高PG实验室3 小时前
几种因网络波动导致应用与数据库操作异常的现象
运维·网络·数据库·postgresql·瀚高数据库
风曦Kisaki3 小时前
# Kubernetes（K8s）笔记Day15：K8s网络工作原理【Pod 网络模型，CNI 网络插件，Calico 工作模式详解，BGP协议，路由反射器】
运维·网络·nginx·云原生·容器·kubernetes
allforgood3 小时前
管理 SELinux 安全性
linux·运维·网络
热门推荐
01VSCode+CodeX扩展，无法启动02GitHub 镜像站点03国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）04如何新建文件夹？ 电脑新建文件夹的4种方法052026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？06微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新07AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路08历年考研数学一、数学二、数学三真题试卷及答案PDF09Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费102026年7月AI圈大地震：GPT-5.6被政府限制、Claude入驻Slack、Anthropic自研芯片
