k8s集群部署的方法

小小克2026-08-23 9:38

k8s集群部署的方法

一.构建harbor镜像仓库

1.部署docker本地仓库

复制代码
[root@harbor ~]# cat > /etc/yum.repos.d/docker.repo <<EOF
[docker]
name = docker
baseurl = https://mirrors.aliyun.com/docker-ce/linux/rhel/9.6/x86_64/stable/
gpgcheck = 0
EOF
[root@harbor ~]# dnf install httpd createrepo -y
[root@harbor ~]# mkdir  /var/www/html/docker/ -p
[root@harbor ~]# vim /etc/httpd/conf/httpd.conf
Listen 4444
[root@harbor ~]# systemctl enable --now httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.

[root@harbor ~]# dnf  install docker-ce --downloadonly  --destdir /mnt/ -y
[root@harbor ~]# mv /mnt/*.rpm /var/www/html/docker/
[root@harbor ~]# createrepo -v /var/www/html/docker/
12:10:16: Version: 0.20.1 (Features: LegacyWeakdeps )
12:10:16: Signal handler setup
12:10:16: Thread pool ready
Directory walk started
12:10:16: Adding pkg: /var/www/html/docker/containerd.io-2.3.3-1.el9.x86_64.rpm
12:10:16: Adding pkg: /var/www/html/docker/docker-buildx-plugin-0.36.1-1.el9.x86_64.rpm
12:10:16: Adding pkg: /var/www/html/docker/docker-ce-29.7.2-1.el9.x86_64.rpm
12:10:16: Adding pkg: /var/www/html/docker/docker-ce-cli-29.7.2-1.el9.x86_64.rpm
12:10:16: Adding pkg: /var/www/html/docker/docker-ce-rootless-extras-29.7.2-1.el9.x86_64.rpm
12:10:16: Adding pkg: /var/www/html/docker/docker-compose-plugin-5.5.0-1.el9.x86_64.rpm
12:10:16: Dir to scan: /var/www/html/docker/.repodata
12:10:16: Package count: 6
Directory walk done - 6 packages
Temporary output repo path: /var/www/html/docker/.repodata/
12:10:16: Creating .xml.gz files
12:10:16: Setting number of packages
Preparing sqlite DBs
12:10:16: Creating databases
12:10:16: Thread pool user data ready
Pool started (with 5 workers)
Pool finished
12:10:16: Generating repomd.xml
12:10:16: Old repodata doesn't exists: Cannot rename /var/www/html/docker/repodata/ -> /var/www/html/docker/repodata.old.33377.20260822121016.888003: cp: ????'/var/www/html/docker/repodata/' ?????(stat): ????????? : Child process exited with code 1
12:10:16: Renamed /var/www/html/docker/.repodata/ -> /var/www/html/docker/repodata/
12:10:16: Memory cleanup
12:10:16: All done

[root@harbor ~]# vim /etc/yum.repos.d/docker.repo
[docker]
name = docker
baseurl = http://172.25.254.250:4444/docker
gpgcheck = 0

2.安装docker在harbor仓库节点

复制代码
[root@harbor ~]# dnf install docker-ce -y
[root@harbor ~]# echo br_netfilter > /etc/modules-load.d/docker_mod.conf
[root@harbor ~]# modprobe -a br_netfilter
[root@harbor ~]# vim /etc/sysctl.d/docker.conf
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1
[root@harbor ~]# systemctl restart  systemd-modules-load.service
[root@harbor ~]# sysctl  --system
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1

[root@harbor ~]# vim /lib/systemd/system/docker.service
ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --iptables=true

[root@harbor ~]# systemctl daemon-reload
[root@harbor ~]# systemctl enable --now docker
Created symlink /etc/systemd/system/multi-user.target.wants/docker.service → /usr/lib/systemd/system/docker.service.

3.生成key

复制代码
[root@harbor ~]# mkdir /data/certs -p
[root@harbor ~]# openssl req -newkey  rsa:4096 \
> -nodes -sha256 -keyout /data/certs/timinglee.org.key \
> -addext "subjectAltName = DNS:reg.timinglee.org" \
> -x509 -days 365 -out /data/certs/timinglee.org.crt
.+.+...+..+...+................+..+..................+......+.+++++++++++++++++++++++++++++++++++++++++++++*....+.....+...+...+...+......+.+........+..........+.....+....+..+...+..........+.....+.......+.........+..+.............+...............+......+......+..+++++++++++++++++++++++++++++++++++++++++++++*...+.............+..+......+.....................+.+.................................+..............+.+.........+...+...............+...+...........+.+..+......+............+...+...............+................+...+...............+.....+...+....+.....+.+...+...............+.....+....+..+.........+.......+...............+.....+...............+....+.........+......+......+........+......+................+........+..........+...........+....+.........+..+................+..+......+.+......+...+.....+......+...+.+......+......+.........+...+...........+....+..+.+..+...+.........+...+......+.........+......+.+...+..+++++
....+.....+.+......+.....+....+.....+...+...+.........+.+...+.........+...+..+.......+...............+...+......+.....+......+..........+......+...+..+...+.........+...+...+.+...+...+............+..+...+.......+...+......+..+...+.+........+...+...+......+.+..+.+......+.....+...+.+++++++++++++++++++++++++++++++++++++++++++++*..+++++++++++++++++++++++++++++++++++++++++++++*.+....+...+.....+................+.........+.....................+.....+.+...+..+.+...............+........+...........................+....+...+...+..+.+..+.......+..+...+............+...+..................+...+.+...+......+..+..........+...+...............+.........+.....+..........+..+...+......+.+........+......+.......+.............................+++++
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:Shannxi
Locality Name (eg, city) [Default City]:Xi'an
Organization Name (eg, company) [Default Company Ltd]:kubernetes
Organizational Unit Name (eg, section) []:harbor
Common Name (eg, your name or your server's hostname) []:reg.timinglee.org
Email Address []:admin@timinglee.org

4.编辑harbor配置文件

复制代码
[root@harbor ~]# rm -rf haproxy-2.3.tar.gz
[root@harbor ~]# ls
公共  模板  视频  图片  文档  下载  音乐  桌面  anaconda-ks.cfg  harbor-offline-installer-v2.5.4.tgz
[root@harbor ~]# tar zxf harbor-offline-installer-v2.5.4.tgz -C /opt/
[root@harbor ~]# cd /opt/harbor/
[root@harbor harbor]# ls
common.sh  harbor.v2.5.4.tar.gz  harbor.yml.tmpl  install.sh  LICENSE  prepare
[root@harbor harbor]# cp harbor.yml.tmpl harbor.yml

[root@harbor harbor]# vim harbor.yml
# Configuration file of Harbor

# The IP address or hostname to access admin UI and registry service.
# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
hostname: reg.timinglee.org

# http related config
http:
  # port for http, default is 80. If https enabled, this port will redirect to https port
  port: 80

# https related config
https:
  # https port for harbor, default is 443
  port: 443
  # The path of cert and key files for nginx
  certificate: /data/certs/timinglee.org.crt
  private_key: /data/certs/timinglee.org.key

# # Uncomment following will enable tls communication between all harbor components
# internal_tls:
#   # set enabled to true means internal tls is enabled
#   enabled: true
#   # put your cert and key files on dir
#   dir: /etc/harbor/tls/internal

# Uncomment external_url if you want to enable external proxy
# And when it enabled the hostname will no longer used
# external_url: https://reg.mydomain.com:8433

# The initial password of Harbor admin
# It only works in first time to install harbor
# Remember Change the admin password from UI after launching Harbor.
harbor_admin_password: lee
[root@harbor harbor]# ./install.sh --with-chartmuseum
[root@harbor ~]# vim /lib/systemd/system/harbor.service
[Unit]
Description=harbor with Docker Compose
Documentation=https://reg.timinglee.com/compose/
After=docker.service network-online.target
Requires=docker.service

[Service]
Type=oneshot
WorkingDirectory=/opt/harbor
ExecStart=/usr/bin/docker compose up -d
ExecStop=/usr/bin/docker compose down
RemainAfterExit=yes

[Install]
WantedBy=multi-user.target

[root@harbor harbor]# docker compose  down
WARN[0000] /opt/harbor/docker-compose.yml: the attribute `version` is obsolete, it will be ignored, please remove it to avoid potential confusion
[+] down 12/12
 ✔ Container harbor-jobservice       Removed                                        0.2s
 ✔ Container nginx                   Removed                                        0.3s
 ✔ Container chartmuseum             Removed                                        0.2s
 ✔ Container registryctl             Removed                                       10.2s
 ✔ Container harbor-portal           Removed                                        0.2s
 ✔ Container harbor-core             Removed                                        3.2s
 ✔ Container registry                Removed                                        0.1s
 ✔ Container redis                   Removed                                        0.3s
 ✔ Container harbor-db               Removed                                        0.2s
 ✔ Container harbor-log              Removed                                       10.2s
 ✔ Network harbor_harbor-chartmuseum Removed                                        0.1s
 ✔ Network harbor_harbor             Removed                                        0.1s


[root@harbor harbor]# cd
[root@harbor ~]# systemctl enable --now harbor
Created symlink /etc/systemd/system/multi-user.target.wants/harbor.service → /usr/lib/systemd/system/harbor.service.
[root@harbor ~]# cd /opt/harbor/
[root@harbor harbor]# docker compose  ps
WARN[0000] /opt/harbor/docker-compose.yml: the attribute `version` is obsolete, it will be ignored, please remove it to avoid potential confusion
NAME                IMAGE                                COMMAND                   SERVICE       CREATED          STATUS                             PORTS
chartmuseum         goharbor/chartmuseum-photon:v2.5.4   "./docker-entrypoint..."   chartmuseum   26 seconds ago   Up 25 seconds (health: starting)
harbor-core         goharbor/harbor-core:v2.5.4          "/harbor/entrypoint...."   core          26 seconds ago   Up 25 seconds (health: starting)
harbor-db           goharbor/harbor-db:v2.5.4            "/docker-entrypoint...."   postgresql    26 seconds ago   Up 25 seconds (health: starting)
harbor-jobservice   goharbor/harbor-jobservice:v2.5.4    "/harbor/entrypoint...."   jobservice    26 seconds ago   Up 24 seconds (health: starting)
harbor-log          goharbor/harbor-log:v2.5.4           "/bin/sh -c /usr/loc..."   log           26 seconds ago   Up 25 seconds (health: starting)   127.0.0.1:1514->10514/tcp
harbor-portal       goharbor/harbor-portal:v2.5.4        "nginx -g 'daemon of..."   portal        26 seconds ago   Up 25 seconds (health: starting)
nginx               goharbor/nginx-photon:v2.5.4         "nginx -g 'daemon of..."   proxy         26 seconds ago   Up 24 seconds (health: starting)   0.0.0.0:80->8080/tcp, [::]:80->8080/tcp, 0.0.0.0:443->8443/tcp, [::]:443->8443/tcp
redis               goharbor/redis-photon:v2.5.4         "redis-server /etc/r..."   redis         26 seconds ago   Up 25 seconds (health: starting)
registry            goharbor/registry-photon:v2.5.4      "/home/harbor/entryp..."   registry      26 seconds ago   Up 25 seconds (health: starting)
registryctl         goharbor/harbor-registryctl:v2.5.4   "/home/harbor/start...."   registryctl   26 seconds ago   Up 25 seconds (health: starting)

5.启动并验证

复制代码
[root@harbor harbor]# mkdir  /etc/docker/certs.d/reg.timinglee.org/ -p
[root@harbor harbor]# cp /data/certs/timinglee.org.crt  /etc/docker/certs.d/reg.timinglee.org/ca.crt
[root@harbor harbor]# vim /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
172.25.254.250    harbor reg.timinglee.org

[root@harbor harbor]# systemctl restart docker
[root@harbor harbor]# docker compose up -d
WARN[0000] /opt/harbor/docker-compose.yml: the attribute `version` is obsolete, it will be ignored, please remove it to avoid potential confusion
[+] up 10/10
 ✔ Container harbor-core       Running                                              0.0s
 ✔ Container registryctl       Running                                              0.0s
 ✔ Container nginx             Running                                              0.0s
 ✔ Container harbor-portal     Running                                              0.0s
 ✔ Container harbor-log        Running                                              0.0s
 ✔ Container harbor-db         Running                                              0.0s
 ✔ Container chartmuseum       Running                                              0.0s
 ✔ Container harbor-jobservice Running                                              0.0s
 ✔ Container registry          Running                                              0.0s
 ✔ Container redis             Running                                              0.0s
[root@harbor harbor]# docker login  reg.timinglee.org -u admin
Password:

WARNING! Your credentials are stored unencrypted in '/root/.docker/config.json'.
Configure a credential helper to remove this warning. See
https://docs.docker.com/go/credential-store/

Login Succeeded

二.构建部署kubernetes所需主机

主机名 ip 配置 角色
harbor.timinglee.org 172.25.254.250 cpu1、mem1G harbor仓库
master 172.25.254.100 cpu4、mem>4G master，k8s集群控制节点
node1 172.25.254.10 cpu2、mem2G worker、k8s集群控制节点
node2 172.25.254.20 cpu2、mem 2G worker，k8s集群工作节点

所有主机配置

关闭swap

复制代码
systemctl disable --now  swap.target
systemctl mask swap.target
sed '/swap/s/^/#/g' -i /etc/fstab

安装docker

复制代码
在新的机子上做
[root@master ~]# cat > /etc/yum.repos.d/docker.repo <<EOF
[docker]
name = docker
baseurl = http://172.25.254.250:4444/docker
gpgcheck = 0
EOF

[root@master ~]# dnf install docker-ce -y

[root@master ~]# echo br_netfilter > /etc/modules-load.d/docker_mod.conf
[root@master ~]# modprobe -a br_netfilter
[root@master ~]# vim /etc/sysctl.d/docker.conf
[root@master ~]# systemctl restart  systemd-modules-load.service
[root@master ~]# sysctl  --system
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1

[root@harbor ~]# vim /lib/systemd/system/docker.service
ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --iptables=true
[root@harbor ~]# systemctl daemon-reload
[root@harbor ~]# systemctl enable --now docker

配置可以使用harbor仓库

复制代码
mkdir  /etc/docker/certs.d/reg.timinglee.org/ -p
#在harbor主机中分发证书到所有主机
[root@harbor ~]# for i in 100 10 20
> do
> scp /data/certs/timinglee.org.crt root@172.25.254.$i:/etc/docker/certs.d/reg.timinglee.org/ca.crt
> done

systemctl enable  docker
systemctl restart docker

所有主机配置docker加速器

复制代码
cat >/etc/docker/daemon.json <<EOF
{
  "registry-mirrors":["https://reg.timinglee.org"]
}
EOF
systemctl restart docker

docker info
可以看到
Registry Mirrors:
  https://reg.timinglee.org/

所有主机彼此建立解析

复制代码
 vim /etc/hosts

127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
172.25.254.100     master
172.25.254.10      node1
172.25.254.20      node2
172.25.254.250     reg.timinglee.org

所有主机配置kubernetes安装源

复制代码
 vim /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name = kubernetes
baseurl = https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.35/rpm/
gpgcheck = 0


#检测
dnf list kubelet

 reboot
swapon  -s  没有任何输出表示ok

三.kubernetes的部署

利用Ansible部署kubernetes运行环境

1.安装ansible

复制代码
[root@harbor ~]# vim /etc/yum.repos.d/epel.repo
[epel]
name = epel
baseurl = https://mirrors.aliyun.com/epel/9/Everything/x86_64/
gpgcheck = 0

[root@harbor ~]# dnf install ansible-core.x86_64 ansible.noarch -y

2.配置所需用户

复制代码
[root@harbor ~]# useradd  devops
[root@harbor ~]# echo lee | passwd --stdin devops
更改用户 devops 的密码 。
passwd：所有的身份验证令牌已经成功更新。
[root@harbor ~]# su - devops
[devops@harbor ~]$ mkdir  ansible
[devops@harbor ~]$ cd ansible/
[devops@harbor ansible]$

3.生成ansible的临时配置文件并建立运行环境

复制代码
[devops@harbor ansible]$ vim inventory
[servers]
172.25.254.100
172.25.254.20
172.25.254.10
[devops@harbor ansible]$ vim ansible.cfg
[defaults]
inventory = /home/devops/ansible/inventory
remote_user = root
ask_pass = false
host_key_checking = false

[devops@harbor ansible]$ vim ansible.cfg
[defaults]
inventory = /home/devops/ansible/inventory
remote_user = root
ask_pass = false
host_key_checking = false


[devops@harbor ansible]$ ssh-keygen
Generating public/private ed25519 key pair.
Enter file in which to save the key (/home/devops/.ssh/id_ed25519):
Enter passphrase for "/home/devops/.ssh/id_ed25519" (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/devops/.ssh/id_ed25519
Your public key has been saved in /home/devops/.ssh/id_ed25519.pub
The key fingerprint is:
SHA256:rum5aTyEBFFVNBm3A/B2x8JA0jVRbPwZ0Gl8k3Y5eAU devops@harbor
The key's randomart image is:
+--[ED25519 256]--+
|  .o..+*O+==o+Eo=|
|  .    oo* ++.*Bo|
|   .    o *.ooo++|
|    .  . . +  o  |
|   . .  S        |
|    . ..         |
|     o  .        |
|      +=         |
|     oBo         |
+----[SHA256]-----+

[devops@harbor ansible]$ ssh-copy-id root@172.25.254.100
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/home/devops/.ssh/id_ed25519.pub"
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@172.25.254.100's password:

Number of key(s) added: 1

Now try logging into the machine, with: "ssh 'root@172.25.254.100'"
and check to make sure that only the key(s) you wanted were added.

[devops@harbor ansible]$ ssh-copy-id root@172.25.254.10
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/home/devops/.ssh/id_ed25519.pub"
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@172.25.254.10's password:

Number of key(s) added: 1

Now try logging into the machine, with: "ssh 'root@172.25.254.10'"
and check to make sure that only the key(s) you wanted were added.

[devops@harbor ansible]$ ssh-copy-id root@172.25.254.20
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/home/devops/.ssh/id_ed25519.pub"
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@172.25.254.20's password:

Number of key(s) added: 1

Now try logging into the machine, with: "ssh 'root@172.25.254.20'"
and check to make sure that only the key(s) you wanted were added.

 [devops@harbor ansible]$ ansible all -m ping
172.25.254.20 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
172.25.254.100 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
172.25.254.10 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}

[devops@harbor ansible]$  ansible all -m user -a "name=devops state=present"
172.25.254.10 | CHANGED => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": true,
    "comment": "",
    "create_home": true,
    "group": 1001,
    "home": "/home/devops",
    "name": "devops",
    "shell": "/bin/bash",
    "state": "present",
    "system": false,
    "uid": 1001
}
172.25.254.20 | CHANGED => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": true,
    "comment": "",
    "create_home": true,
    "group": 1001,
    "home": "/home/devops",
    "name": "devops",
    "shell": "/bin/bash",
    "state": "present",
    "system": false,
    "uid": 1001
}
172.25.254.100 | CHANGED => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": true,
    "comment": "",
    "create_home": true,
    "group": 1001,
    "home": "/home/devops",
    "name": "devops",
    "shell": "/bin/bash",
    "state": "present",
    "system": false,
    "uid": 1001
}

[devops@harbor ansible]$ ansible all -m shell -a 'echo "lee" | passwd --stdin devops'
172.25.254.20 | CHANGED | rc=0 >>
更改用户 devops 的密码 。
passwd：所有的身份验证令牌已经成功更新。
172.25.254.10 | CHANGED | rc=0 >>
更改用户 devops 的密码 。
passwd：所有的身份验证令牌已经成功更新。
172.25.254.100 | CHANGED | rc=0 >>
更改用户 devops 的密码 。
passwd：所有的身份验证令牌已经成功更新。

[devops@harbor ansible]$ ansible all -m lineinfile -a 'path=/etc/sudoers line="devops    ALL=(ALL)    NOPASSWD: ALL" insertafter=EOF'
172.25.254.10 | CHANGED => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "backup": "",
    "changed": true,
    "msg": "line added"
}
172.25.254.20 | CHANGED => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "backup": "",
    "changed": true,
    "msg": "line added"
}
172.25.254.100 | CHANGED => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "backup": "",
    "changed": true,
    "msg": "line added"
}

4.生成ansible的主配置文件并测试

复制代码
[devops@harbor ansible]$ vim ansible.cfg
[defaults]
inventory = /home/devops/ansible/inventory
remote_user = devops
ask_pass = false
host_key_checking = false

[privilege_escalation]
become = true
become_method = sudo
become_user = root
become_ask_pass = false

[devops@harbor ansible]$ ansible all -m shell -a 'whoami '
172.25.254.20 | CHANGED | rc=0 >>
root
172.25.254.10 | CHANGED | rc=0 >>
root
172.25.254.100 | CHANGED | rc=0 >>
root

5.利用ansible剧本部署docker

复制代码
[devops@harbor ansible]$ vim kubernetes-devops.yml
- name: devops k8s from ansible
  hosts: all
  tasks:
    - name: setup docker repo
      yum_repository:
        name: docker
        description: docker
        baseurl: http://172.25.254.254:4444/docker
        file: docker
        gpgcheck: no

    - name: install docker
      dnf:
        name: docker-ce
        state: present

    - name: setup docker.service
      replace:
        path: /lib/systemd/system/docker.service
        regexp: "ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock"
        replace: "ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock  --iptables=true"

    - name: setup docker registry
      copy:
        content: |
          {
            "registry-mirrors":["https://reg.timinglee.org"]
          }
        dest: /etc/docker/daemon.json

    - name: setup docker certs
      file:
        path: /etc/docker/certs.d/reg.timinglee.org
        state: directory

    - name: cp certs file
      copy:
        src: "{{item.src}}"
        dest: "{{item.dest}}"
        remote_src: yes
      loop:
        - src: /etc/docker/certs.d/reg.timinglee.org/ca.crt
          dest: /etc/docker/certs.d/reg.timinglee.org/ca.crt
        - src: /etc/docker/certs.d/reg.timinglee.org/ca.crt
          dest: /etc/pki/ca-trust/source/anchors/ca.crt

    - name: load module
      copy:
        dest: "{{item.dest}}"
        content: "{{item.value}}"
      loop:
        - dest: /etc/modules-load.d/docker_mod.conf
          value: br_netfilter
        - dest: /etc/sysctl.d/docker.conf
          value: |
            net.bridge.bridge-nf-call-iptables = 1
            net.bridge.bridge-nf-call-ip6tables = 1
            net.ipv4.ip_forward = 1

    - name: update ca cert
      shell: "update-ca-trust extract;sysctl --system"
      changed_when: false

    - name: start services
      service:
        name: "{{item}}"
        state: restarted
        enabled: yes
      loop:
        - docker
        - systemd-modules-load.service

[devops@harbor ansible]$ ansible-playbook kubernetes-devops.yml

6.利用ansible安装cri-dockerd

复制代码
[root@harbor ~]# ls
公共  图片  音乐             cri-dockerd-0.4.4.amd64.tgz
模板  文档  桌面             harbor-offline-installer-v2.5.4.tgz
视频  下载  anaconda-ks.cfg
[root@harbor ~]# cp /root/cri-dockerd-0.4.4.amd64.tgz /home/devops/ansible/
[root@harbor ~]# chown devops:devops /home/devops/ansible/cri-dockerd-0.4.4.amd64.tgz

[root@harbor ~]# su - devops
[devops@harbor ~]$ cd ansible/
[devops@harbor ansible]$ ls
ansible.cfg  cri-dockerd-0.4.4.amd64.tgz  inventory  kubernetes-devops.yml
[devops@harbor ansible]$ tar zxf cri-dockerd-0.4.4.amd64.tgz
[devops@harbor ansible]$ cd cri-dockerd/
[devops@harbor cri-dockerd]$ ls
cri-dockerd  cri-docker.service  cri-docker.socket

[devops@harbor cri-dockerd]$ vim cri-docker.service
[Service]
Type=notify
ExecStart=/usr/bin/cri-dockerd --container-runtime-endpoint fd:// --network-plugin=cni --pod-infra-container-image=reg.timinglee.org/k8s/pause:3.10.1
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always

[devops@harbor ansible]$ vim kubernetes-devops.yml
- name: devops k8s from ansible
  hosts: all
  tasks:
  - name: setup docker repo
    yum_repository:
      name: docker
      description: docker
      baseurl: http://172.25.254.254:4444/docker
      file: docker
      gpgcheck: no

  - name: install docker
    dnf:
      name: docker-ce
      state: present


  - name: setup docker.service
    replace:
      path: /lib/systemd/system/docker.service
      regexp: "ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock"
      replace: "ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock  --iptables=true"

  - name: setup docker registry
    copy:
      content: |
        {
          "registry-mirrors":["https://reg.timinglee.org"]
        }
      dest: /etc/docker/daemon.json

  - name: setup docker certs
    file:
      path: /etc/docker/certs.d/reg.timinglee.org
      state: directory


  - name: cp certs file
    copy:
      src: "{{item.src}}"
      dest: "{{item.dest}}"
    loop:
      - src: /etc/docker/certs.d/reg.timinglee.org/ca.crt
        dest: /etc/docker/certs.d/reg.timinglee.org/ca.crt

      - src: /etc/docker/certs.d/reg.timinglee.org/ca.crt
        dest: /etc/pki/ca-trust/source/anchors/ca.crt


########################################################
  - name: stup cri-dockerd
    copy:
      src: "{{item.src}}"
      dest: "{{item.dest}}"
      mode: '0755'
    loop:
      - src: ./cri-dockerd/cri-dockerd
        dest: /usr/bin/cri-dockerd

      - src: "./cri-dockerd/cri-docker.service"
        dest: "/lib/systemd/system/cri-docker.service"

      - src: "./cri-dockerd/cri-docker.socket"
        dest: "/lib/systemd/system/cri-docker.socket"

  - name: update ca cert
    shell: "update-ca-trust extract;sysctl --system;systemctl daemon-reload"

  - name: start services
    service:
      name: "{{item}}"
      state: restarted
      enabled: yes
    loop:
      - docker
      - systemd-modules-load.service
      - cri-docker

[devops@harbor ansible]$ ansible-playbook kubernetes-devops.yml

[root@master ~]# vim /lib/systemd/system/cri-docker.service
[Service]
Type=notify
ExecStart=/usr/local/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=reg.timinglee.org/k8s/pause:3.10.1 --container-runtime-endpoint fd://
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always
[root@master ~]# systemctl daemon-reload
[root@node1 ~]# systemctl restart cri-docker

7.利用ansible部署k8s软件

复制代码
#将下面内容继续添加到文件里
[devops@harbor ansible]$ vim kubernetes-devops.yml
- name: install kubernetes from ansible
  hosts: all
  tasks:
  - name: setup k8s repo
    yum_repository:
      name: kubernetes
      description: kubernetes
      baseurl: https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.35/rpm
      file: kubernetes
      gpgcheck: no

  - name: install software in master
    dnf:
      name: "{{item}}"
      state: present
    loop:
      - kubeadm-1.35.7-150500.1.1
      - kubelet-1.35.7-150500.1.1
      - kubectl-1.35.7-150500.1.1
    when: inventory_hostname == "172.25.254.100"

  - name: install software in work node
    dnf:
      name: "{{item}}"
      state: present
    loop:
      - kubeadm-1.35.7-150500.1.1
      - kubelet-1.35.7-150500.1.1
    when: inventory_hostname == "172.25.254.10" or inventory_hostname == "172.25.254.20"

  - name: setup kubectl kubeadm complication
    lineinfile:
      path: /root/.bashrc
      line: |
        source <(kubectl completion bash)
        source <(kubeadm completion bash)
    when: inventory_hostname == "172.25.254.100"

  - name: start kubelet
    service:
      name: kubelet
      state: started
      enabled: yes
[devops@harbor ansible]$ ansible-playbook kubernetes-devops.yml

让补齐功能生效

复制代码
[root@k8s-master mnt]# source  ~/.bashrc
[root@k8s-master mnt]# kubectl 命令后按2此tab键
alpha          (Commands for features in alpha)
annotate       (更新一个资源的注解)
api-resources  (Print the supported API resources on the server)
api-versions   (Print the supported API versions on the server, in the form of "group/version")
apply          (Apply a configuration to a resource by file name or stdin)
attach         (挂接到一个运行中的容器)
auth           (Inspect authorization)
autoscale      (Auto-scale a deployment, replica set, stateful set, or replication controller)
certificate    (Modify certificate resources)

[root@k8s-master mnt] # kubeadm
certs       config      init        kubeconfig  token       version
completion  help        join        reset       upgrade


[root@master mnt]# systemctl status kubelet.service
● kubelet.service - kubelet: The Kubernetes Node Agent
     Loaded: loaded (/usr/lib/systemd/system/kubelet.service; enabled; preset: disabled)
    Drop-In: /usr/lib/systemd/system/kubelet.service.d
             └─10-kubeadm.conf
     Active: activating (auto-restart) (Result: exit-code) since Sat 2026-08-22 14:47:35 CST; 6s ago
       Docs: https://kubernetes.io/docs/
    Process: 20443 ExecStart=/usr/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_KUB>
   Main PID: 20443 (code=exited, status=1/FAILURE)
        CPU: 23ms

8月 22 14:47:35 master systemd[1]: kubelet.service: Main process exited, code=exited, status=1/FAILURE
8月 22 14:47:35 master systemd[1]: kubelet.service: Failed with result 'exit-code'.
lines 1-12/12 (END)

在master中初始化kubernetes集群

在master中完成集群初始化

复制代码
[root@master ~]# kubeadm config images list
I0822 15:08:36.584592    3162 version.go:260] remote version is much newer: v1.36.4; falling back to: stable-1.35
registry.k8s.io/kube-apiserver:v1.35.8
registry.k8s.io/kube-controller-manager:v1.35.8
registry.k8s.io/kube-scheduler:v1.35.8
registry.k8s.io/kube-proxy:v1.35.8
registry.k8s.io/coredns/coredns:v1.13.1
registry.k8s.io/pause:3.10.1
registry.k8s.io/etcd:3.6.6-0
[root@master ~]# kubeadm config images pull \
> --image-repository registry.aliyuncs.com/google_containers \
> --kubernetes-version v1.35.8 \
> --cri-socket=unix:///var/run/cri-dockerd.sock
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-apiserver:v1.35.8
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-controller-manager:v1.35.8
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-scheduler:v1.35.8
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-proxy:v1.35.8
[config/images] Pulled registry.aliyuncs.com/google_containers/coredns:v1.13.1
[config/images] Pulled registry.aliyuncs.com/google_containers/pause:3.10.1
[config/images] Pulled registry.aliyuncs.com/google_containers/etcd:3.6.6-0


[root@master ~]# docker  login  reg.timinglee.org -u admin
Password:

WARNING! Your credentials are stored unencrypted in '/root/.docker/config.json'.
Configure a credential helper to remove this warning. See
https://docs.docker.com/go/credential-store/

Login Succeeded

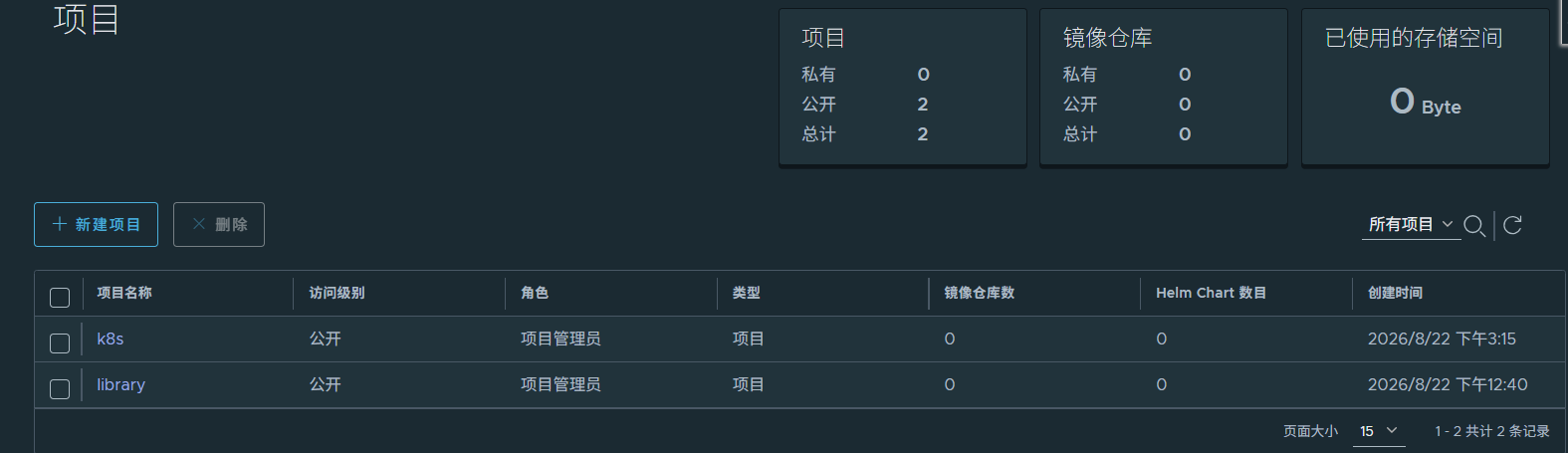

[root@master ~]# docker images  --format  "{{.Repository}}:{{.Tag}}" | awk -F "/" '/google/{system("docker tag "$0" reg.timinglee.org/k8s/"$3)}'

[root@master ~]# docker images  --format  "{{.Repository}}:{{.Tag}}" | awk -F "/" '/timinglee/{system("docker push "$0)}'

首先要创建k8s

复制代码
[root@master ~]# kubeadm init --pod-network-cidr=10.244.0.0/16 \
 --image-repository reg.timinglee.org/k8s \
  --kubernetes-version v1.35.8 \
   --cri-socket=unix:///var/run/cri-dockerd.sock
.
.
.
kubeadm join 172.25.254.100:6443 --token wm1hvf.mykag6j3900dbilb \
        --discovery-token-ca-cert-hash sha256:6454295c25081331e13eebefcd0cab26b03ebdf0a121e554b397faf799238dd2


#如果初始化出问题
[root@master ~]# kubeadm reset  --cri-socket=unix:///var/run/cri-dockerd.sock #可以重置集群设定

添加kubernets环境变量到本机

复制代码
[root@master ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" > ~/.bash_profile
[root@master ~]# source  ~/.bash_profile
[root@master ~]# kubectl get nodes
NAME     STATUS     ROLES           AGE     VERSION
master   NotReady   control-plane   4m36s   v1.35.7

添加node节点到本集群

复制代码
[root@node1 ~]# kubeadm join 172.25.254.100:6443 --token wm1hvf.mykag6j3900dbilb \
        --discovery-token-ca-cert-hash sha256:6454295c25081331e13eebefcd0cab26b03ebdf0a121e554b397faf799238dd2 --cri-socket=unix:///var/run/cri-dockerd.sock
[preflight] Running pre-flight checks
        [WARNING SystemVerification]: kernel release 5.14.0-687.5.3.el9_8.x86_64 is unsupported. Supported LTS versions from the 5.x series are 5.4, 5.10 and 5.15. Any 6.x version is also supported. For cgroups v2 support, the recommended version is 5.10 or newer
[preflight] Reading configuration from the "kubeadm-config" ConfigMap in namespace "kube-system"...
[preflight] Use 'kubeadm init phase upload-config kubeadm --config your-config-file' to re-upload it.
W0822 16:39:45.426279   28063 utils.go:69] The recommended value for "bindAddress" in "KubeProxyConfiguration" is: ::; the provided value is: 0.0.0.0
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/instance-config.yaml"
[patches] Applied patch of type "application/strategic-merge-patch+json" to target "kubeletconfiguration"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-check] Waiting for a healthy kubelet at http://127.0.0.1:10248/healthz. This can take up to 4m0s
[kubelet-check] The kubelet is healthy after 518.270485ms
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.

# 测试
[root@master ~]# kubectl get nodes
NAME     STATUS     ROLES           AGE    VERSION
master   NotReady   control-plane   6m5s   v1.35.7
node1    NotReady   <none>          8s     v1.35.7
node2    NotReady   <none>          16s    v1.35.7


#如果做错可执行下面操作，然后重复上述操作
[root@node1 ~]# kubeadm reset --cri-socket unix:///var/run/cri-dockerd.sock

安装网络插件

复制代码
[root@master ~]# ls
公共  视频  文档  音乐  anaconda-ks.cfg
模板  图片  下载  桌面  kube-flannel-v0.28.9.tar.gz
[root@master ~]# tar zxf kube-flannel-v0.28.9.tar.gz
[root@master ~]# cd flannel/
[root@master flannel]# docker load -i kube-flannel-v0.28.9.tar
Loaded image: ghcr.io/flannel-io/flannel-cni-plugin:v1.9.1-flannel3
Loaded image: ghcr.io/flannel-io/flannel:v0.28.9
复制代码

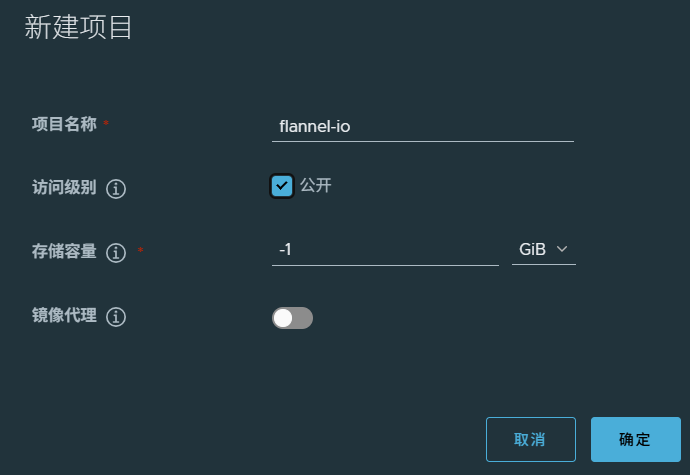

[root@master ~]# docker tag ghcr.io/flannel-io/flannel-cni-plugin:v1.9.1-flannel3 reg.timinglee.org/flannel-io/flannel-cni-plugin:v1.9.1-flannel3
[root@master ~]# docker push  reg.timinglee.org/flannel-io/flannel-cni-plugin:v1.9.1-flannel3
The push refers to repository [reg.timinglee.org/flannel-io/flannel-cni-plugin]
55afa1ecc21d: Pushed
e25563266d98: Pushed
v1.9.1-flannel3: digest: sha256:b60bc0d7ea43bc261720e4e12870f23e9b73127138e7aa8769aabab980e85153 size: 673

i Info → Not all multiplatform-content is present and only the available single-platform image was pushed
          sha256:9fccdf677e6e26e76a4aa60da2113bab9852e8317287ba51b2c29778d2351345 -> sha256:b60bc0d7ea43bc261720e4e12870f23e9b73127138e7aa8769aabab980e85153
[root@master ~]# docker tag ghcr.io/flannel-io/flannel:v0.28.9 reg.timinglee.org/flannel-io/flannel:v0.28.9
[root@master ~]# docker push reg.timinglee.org/flannel-io/flannel:v0.28.9
The push refers to repository [reg.timinglee.org/flannel-io/flannel]
f923fe4d6cdf: Pushed
464e53b89363: Pushed
55afa1ecc21d: Mounted from flannel-io/flannel-cni-plugin
552426a46922: Pushed
779e1d234370: Pushed
74f5049831bd: Pushed
fef9ba352c99: Pushed
7e7d4790580f: Pushed
4f4fb700ef54: Pushed
dde022ac8ed4: Pushed
v0.28.9: digest: sha256:d666a036197fe6c8928f82b670d89f38f5830d25e70bfcc35641da06f03cfcad size: 2197

i Info → Not all multiplatform-content is present and only the available single-platform image was pushed
          sha256:708a2c9c1cfbfe529d1dbb249cb7113af117f3ed26b5e3e4c8ee015e10555204 -> sha256:d666a036197fe6c8928f82b670d89f38f5830d25e70bfcc35641da06f03cfcad

[root@master ~]# cd flannel/
[root@master flannel]# vim kube-flannel.yml
[root@master flannel]#  grep -n  image: kube-flannel.yml
148:        image: flannel-io/flannel:v0.28.9
175:        image: flannel-io/flannel-cni-plugin:v1.9.1-flannel3
186:        image: flannel-io/flannel:v0.28.9

[root@master flannel]# kubectl apply -f kube-flannel.yml
namespace/kube-flannel created
serviceaccount/flannel created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created

[root@master flannel]# kubectl get  nodes
NAME     STATUS   ROLES           AGE    VERSION
master   Ready    control-plane   133m   v1.35.7
node1    Ready    <none>          127m   v1.35.7
node2    Ready    <none>          127m   v1.35.7

到此k8s部署完成

相关推荐
kobeyyl1 小时前
K8s集群部署核心原理与主流部署方法全解析
云原生·容器·kubernetes
IT大白鼠2 小时前
Kubernetes Goat：云原生安全靶场实践指南
安全·云原生·kubernetes
无望__wsk3 小时前
k8s部署
云原生·容器·kubernetes
万里侯15 小时前
GitOps 2026年演进趋势：从配置管理到环境即代码的范式转移及Pull vs Push模型的再思考
微服务·容器·k8s
acd1200916 小时前
一次线上OOM排查实录：从jmap到代码重构，我踩过的坑全在这了
容器·重构·kubernetes
易番番ERP16 小时前
以销定采模式下，ERP如何帮助贸易企业管住订单真实利润
大数据·低代码·微服务·云原生·成本核算·易番番erp·以销定采
吕海洋17 小时前
目前可用的docker源2026.08
运维·docker·容器
人间凡尔赛18 小时前
2026 后端架构三驾马车：Wasm 容器上 K8s、存算分离与 AI 原生
后端·云原生·架构
gsls20080819 小时前
Penpot Docker 部署与 MCP 服务配置文档
运维·docker·容器·原型·penpot
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02GitHub 镜像站点03微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新042026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？05历年考研数学一、数学二、数学三真题试卷及答案PDF06Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费07AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路082026年7月AI圈大地震：GPT-5.6被政府限制、Claude入驻Slack、Anthropic自研芯片09VSCode+CodeX扩展，无法启动10如何新建文件夹？ 电脑新建文件夹的4种方法
