kubernetes 环境部署

奇特認2026-08-23 23:41

1.构建部署kubernetes所需主机

|--------|----------------|-------------|-------------------|
| harbor | 172.25.254.200 | cpu1,内存2G | harbor仓库 |
| master | 172.25.254.100 | cpu2,内存>4G | maseter,k8s集群控制节点 |
| node1 | 172.25.254.10 | cpu2,内存2G | worker,k8s集群工作节点 |
| node2 | 172.25.254.20 | cpu2,内存2G | worker,k8s集群工作节点 |

2.构建harbor镜像仓库

部署docker本地仓库

cpp 复制代码
[root@harbor ~]# dnf remove  podman -y
正在更新 Subscription Management 软件仓库。
无法读取客户身份

[root@harbor ~]# dnf install httpd -y
正在更新 Subscription Management 软件仓库。
无法读取客户身份

[root@harbor harbor]# vim /etc/httpd/conf/httpd.conf
Listen 1111

[root@harbor docker]# systemctl enable --now httpd

[root@harbor ~]# mkdir /var/www/html/docker -p

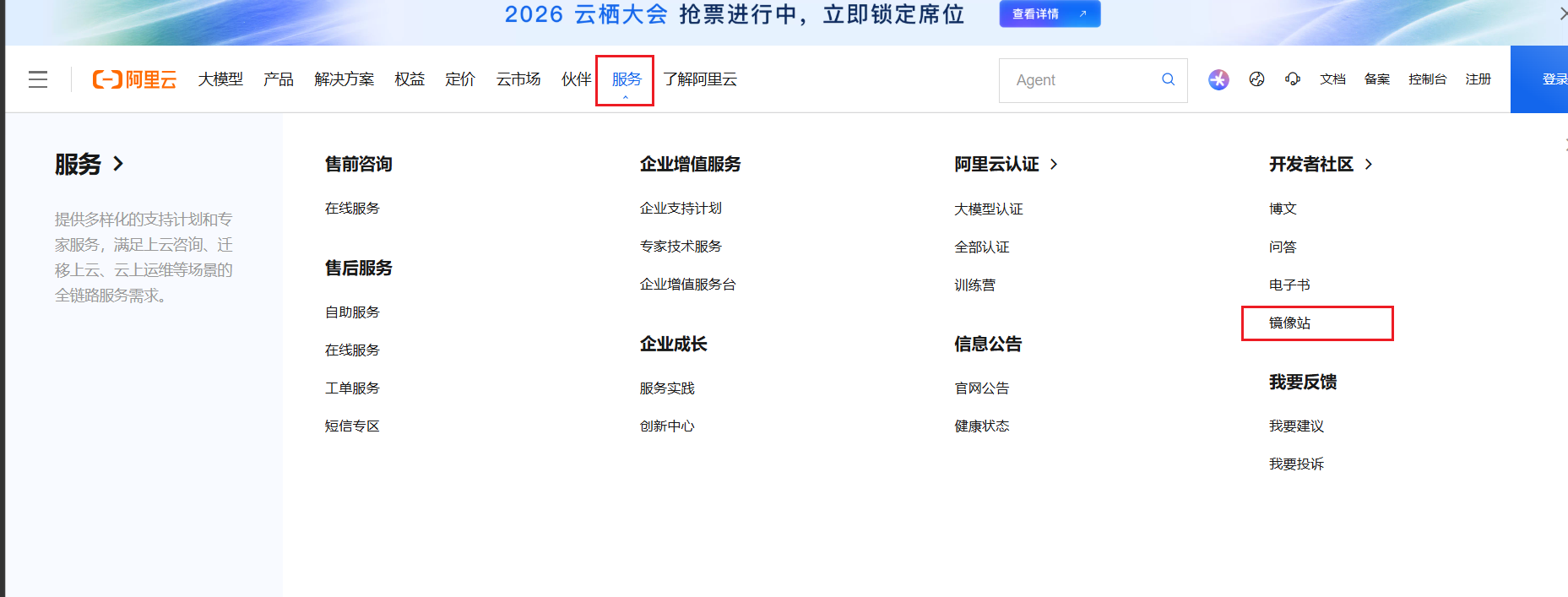

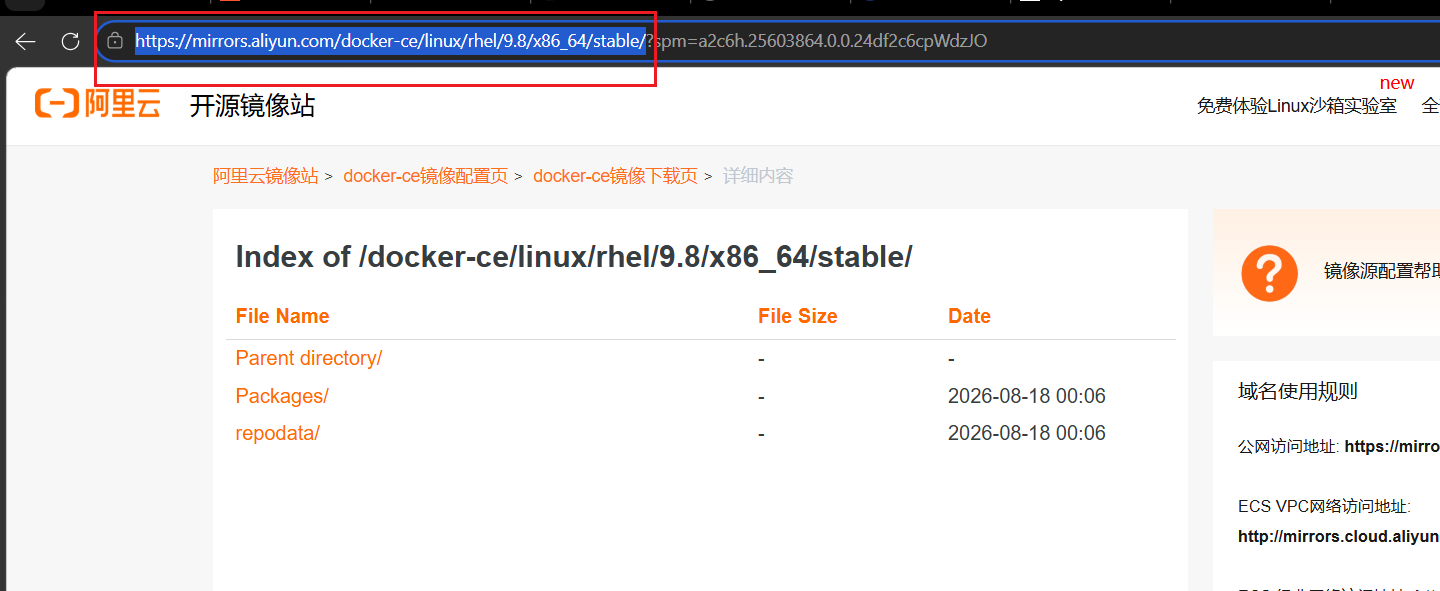

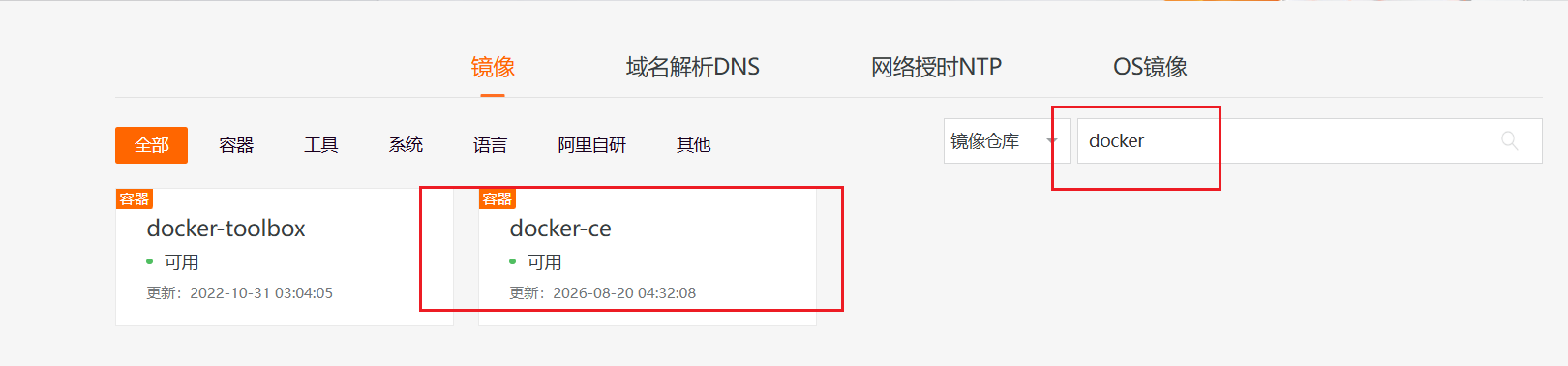

复制这个下载地址

cs 复制代码
[root@harbor ~]# cd /etc/yum.repos.d/
[root@harbor yum.repos.d]# vim docker.repo
[docker]
name = docker
baseurl = https://mirrors.aliyun.com/docker-ce/linux/rhel/9.8/x86_64/stable/
gpgcheck = 0


[root@harbor ~]# dnf install docker-ce  --downloadonly  --destdir /mnt/
正在更新 Subscription Management 软件仓库。
无法读取客户身份

[root@harbor ~]# mv /mnt/*.rpm  /var/www/html/docker/

[root@harbor ~]# cd /var/www/html/docker/

[root@harbor docker]# dnf install createrepo

[root@harbor docker]# createrepo -v /var/www/html/docker/


[root@harbor docker]# vim /etc/yum.repos.d/docker.repo
[docker]
name = docker
baseurl = http://172.25.254.200:1111/docker/
gpgcheck = 0


[root@harbor ~]# dnf install docker-ce -y
cpp 复制代码
[root@harbor ~]# echo br_netfilter > /etc/modules-load.d/docker_mod.conf

[root@harbor ~]# modprobe -a br_netfilter

[root@harbor ~]# vim /etc/sysctl.d/docker.conf
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1

[root@harbor ~]# systemctl restart  systemd-modules-load.service

[root@harbor ~]# sysctl  --system

[root@harbor ~]# vim /lib/systemd/system/docker.service
ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
--iptables=true #加入 --iptables=true

[root@harbor ~]# systemctl daemon-reload

[root@harbor ~]# systemctl enable docker.service

生成仓库密钥key

cpp 复制代码
[root@harbor ~]# mkdir /data/certs -p
[root@harbor ~]# openssl req -newkey  rsa:4096 \
> -nodes -sha256 -keyout /data/certs/xiao.org.key \
> -addext "subjectAltName = DNS:reg.xiao.org" \
> -x509 -days 365 -out /data/certs/xiao.org.crt


Country Name (2 letter code) [XX]:cn
State or Province Name (full name) []:cq
Locality Name (eg, city) [Default City]:ps
Organization Name (eg, company) [Default Company Ltd]:k8s
Organizational Unit Name (eg, section) []:harbor
Common Name (eg, your name or your server's hostname) []:reg.xiao.org
Email Address []:

编辑harbor配置文件

cpp 复制代码
[root@harbor ~]# ls
anaconda-ks.cfg  harbor-offline-installer-v2.5.4.tgz
[root@harbor ~]# tar zxf harbor-offline-installer-v2.5.4.tgz  -C /opt/
[root@harbor ~]# cd /opt/harbor/
[root@harbor harbor]# ls
common.sh  harbor.v2.5.4.tar.gz  harbor.yml.tmpl  install.sh  LICENSE  prepare
[root@harbor harbor]# cp harbor.yml.tmpl  harbor.yml
[root@harbor harbor]# vim harbor.yml
hostname: reg.xiao.org
  certificate: /data/certs/xiao.org.crt
  private_key: /data/certs/xiao.org.key
harbor_admin_password: 123

[root@harbor harbor]# ./install.sh --with-chartmuseum
cpp 复制代码
#编写启动脚本
[root@harbor ~]# vim /lib/systemd/system/harbor.service
[Unit]
Description=harbor with Docker Compose
Documentation=https://reg.timinglee.com/compose/
After=docker.service network-online.target
Requires=docker.service

[Service]
Type=oneshot
WorkingDirectory=/opt/harbor
ExecStart=/usr/bin/docker compose up -d
ExecStop=/usr/bin/docker compose down
RemainAfterExit=yes

[Install]
WantedBy=multi-user.target


[root@harbor ~]# systemctl daemon-reload
cpp 复制代码
[root@harbor ~]# systemctl stop harbor.service

[root@harbor harbor]# docker compose down
#当关闭harbor时，会自动删除容器，开启时又自动启动容器

[root@harbor ~]# systemctl restart harbor.service
[root@harbor harbor]# docker compose ps

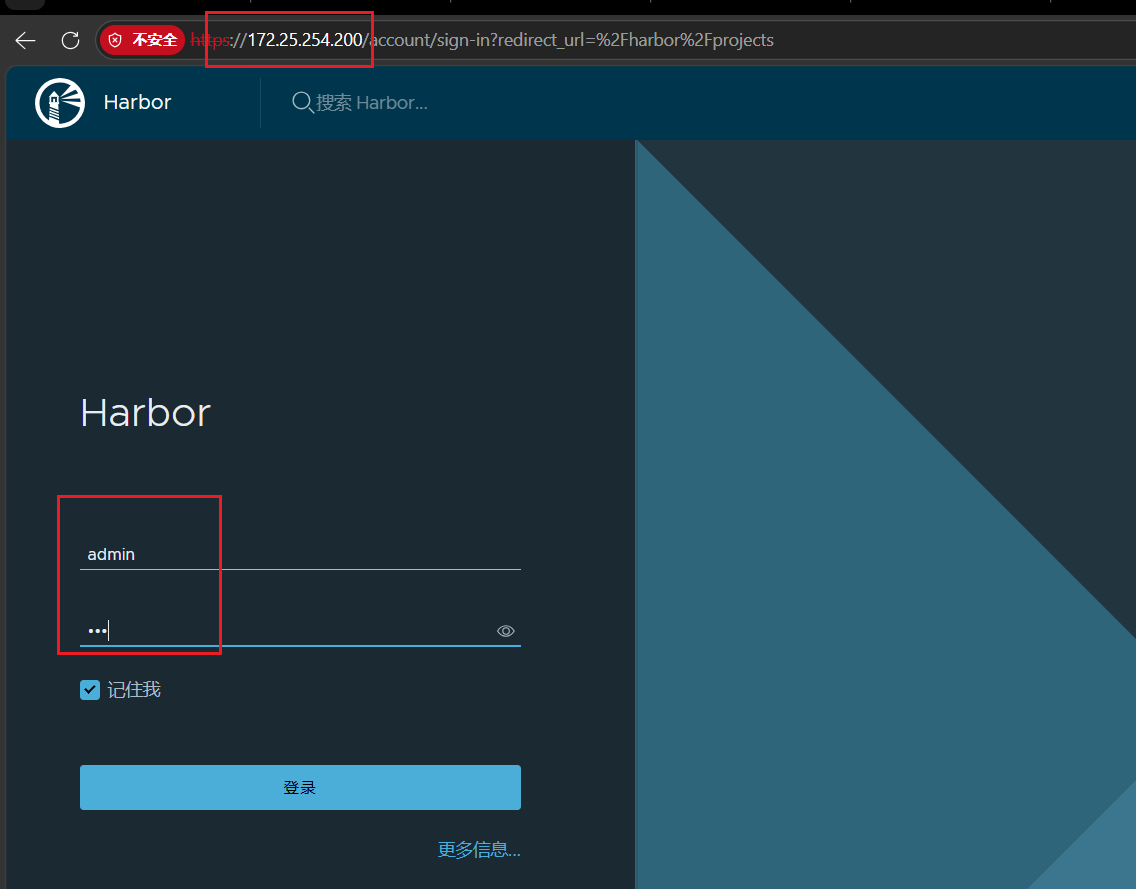

启动并验证

cpp 复制代码
[root@harbor harbor]# mkdir /etc/docker/certs.d/reg.xiao.org/ -p

[root@harbor harbor]# cp /data/certs/xiao.org.crt  /etc/docker/certs.d/reg.xiao.                                                           org/ca.crt

[root@harbor harbor]# vim /etc/hosts

[root@harbor harbor]# systemctl restart docker

[root@harbor harbor]# docker compose  up -d


[root@harbor harbor]# docker login reg.xiao.org -u admin
Password:

WARNING! Your credentials are stored unencrypted in '/root/.docker/config.json'.
Configure a credential helper to remove this warning. See
https://docs.docker.com/go/credential-store/

Login Succeeded

#将swap注释掉，然后重启生效

cpp 复制代码
[root@master ~]# vim /etc/hosts
172.25.254.100     master
172.25.254.10     node1
172.25.254.20     node2
172.25.254.200     reg.xiao.org

[root@master ~]# for i in 10 20
> do
> scp /etc/hosts  root@172.25.254.$i:/etc/hosts
> done


[root@master ~]# vim /etc/fstab
#/dev/mapper/rhel-swap   none                    swap    defaults        0 0
#注释  swap

[root@master ~]# reboot   #重启

3.利用Ansible部署kubernetes运行环境

cpp 复制代码
[root@harbor ~]# vim /etc/yum.repos.d/docker.repo
[root@harbor ~]# cd /etc/yum.repos.d/
[root@harbor yum.repos.d]# ls
aliyun.repo  redhat.repo  rhel9.repo
[root@harbor yum.repos.d]# vim epel.repo
[epel]
name = epel
baseurl = https://mirrors.aliyun.com/epel/9/Everything/x86_64/
gpgcheck = 0

[root@harbor yum.repos.d]# dnf install ansible-core.x86_64  ansible.noarch -y
正在更新 Subscription Management 软件仓库。
无法读取客户身份

配置所需用户

cpp 复制代码
[root@harbor yum.repos.d]# useradd devops
[root@harbor yum.repos.d]# echo 123 | passwd --stdin devops
更改用户 devops 的密码 。
passwd：所有的身份验证令牌已经成功更新。
[root@harbor yum.repos.d]# su - devops
[devops@harbor ~]$ mkdir ansible
[devops@harbor ~]$ cd ansible/

生成ansible的临时配置文件并建立运行环境

cpp 复制代码
[devops@harbor ansible]$ vim inventory
[servers]
172.25.254.100
172.25.254.10
172.25.254.20
#编辑主机清单文件 `inventory`，用来定义 Ansible 要管理哪些主机。

[devops@harbor ansible]$ vim ansible.cfg
[defaults]
inventory = /home/devops/ansible/inventory  # 指定主机清单文件路径
remote_user = root                          # 连接远端机器使用root用户
ask_pass = false                            # 不交互式询问ssh密码（使用密钥登录）
host_key_checking = false                   # 关闭主机指纹检查，避免第一次连接确认yes/no卡住


[devops@harbor ansible]$ ansible all -m ping
172.25.254.20 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
172.25.254.10 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
172.25.254.100 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}

#- `ansible all`：对清单中所有主机执行任务
#- `-m ping`：调用`ping`模块，ansible 最基础连通性测试
#全部返回 pong，代表环境完全通了
cpp 复制代码
#1 创建devops用户
ansible all -m user -a "name=devops state=present"

#2 设置密码123（RHEL9兼容）
ansible all -m shell -a 'echo "devops:123" | chpasswd'

#3 安全配置sudo免密，放到sudoers.d目录
ansible all -m lineinfile -a 'path=/etc/sudoers.d/devops line="devops    ALL=(ALL)    NOPASSWD: ALL" create=yes '

生成ansible的主配置文件并测试

cpp 复制代码
[devops@harbor ansible]$ vim ansible.cfg
[defaults]
inventory = /home/devops/ansible/inventory
remote_user = devops         # SSH登录远端机器先用 devops 用户登录
ask_pass = false             # 不询问ssh登录密码（依赖ssh密钥）
host_key_checking = false    # 关闭主机指纹确认

[privilege_escalation]       # ✅权限提升（提权）配置段
become = true                 # 开启提权，相当于命令行加 -b
become_method = sudo          # 提权方式使用 sudo
become_user = root            # 提权到 root 用户
become_ask_pass = false       # sudo不需要输入密码（依赖NOPASSWD sudo权限）


[devops@harbor ansible]$ ansible all -m shell -a 'whoami '
172.25.254.100 | CHANGED | rc=0 >>
root
172.25.254.10 | CHANGED | rc=0 >>
root
172.25.254.20 | CHANGED | rc=0 >>
root

利用ansible剧本部署docker

cpp 复制代码
[devops@harbor ansible]$ vim docker-devops.yml
---
- name: devops k8s from ansible
  hosts: all
  tasks:
    - name: setup docker repo
      yum_repository:
        name: docker
        description: docker
        baseurl: http://172.25.254.200:1111/docker
        file: docker
        gpgcheck: no

    - name: install docker
      dnf:
        name: docker-ce
        state: present

    - name: setup docker.service
      replace:
        path: /lib/systemd/system/docker.service
        regexp: 'ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock'
        replace: 'ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --iptables=true'

    - name: setup docker registry
      copy:
        dest: /etc/docker/daemon.json
        content: '{"registry-mirrors": ["https://reg.xiao.org"]}'

    - name: setup docker certs
      file:
        path: /etc/docker/certs.d/reg.timinglee.org
        state: directory

    - name: cp certs file
      copy:
        src: "{{ item.src }}"
        dest: "{{ item.dest }}"
      loop:
        - { src: /etc/docker/certs.d/reg.xiao.org/ca.crt, dest: /etc/docker/certs.d/reg.xiao.org/ca.crt }
        - { src: /etc/docker/certs.d/reg.xiao.org/ca.crt, dest: /etc/pki/ca-trust/source/anchors/ca.crt }

    - name: load module br_netfilter
      copy:
        dest: /etc/modules-load.d/docker_mod.conf
        content: br_netfilter

    - name: load module sysctl
      copy:
        dest: /etc/sysctl.d/docker.conf
        content: |
          net.bridge.bridge-nf-call-iptables=1
          net.bridge.bridge-nf-call-ip6tables=1
          net.ipv4.ip_forward=1

    - name: update ca cert
      shell: update-ca-trust extract && sysctl --system

    - name: start services
      service:
        name: "{{ item }}"
        state: restarted
        enabled: yes
      loop:
        - docker
        - systemd-modules-load.service


[devops@harbor ansible]$ ansible-playbook docker-devops.yml

利用ansible安装cri-dockerd

cpp 复制代码
[devops@harbor ansible]$ ls
ansible.cfg  cri-dockerd-0.4.4.amd64.tgz  docker-devops.yml  inventory

[devops@harbor ansible]$ tar zxf cri-dockerd-0.4.4.amd64.tgz

[devops@harbor ansible]$ ls
ansible.cfg  cri-dockerd-0.4.4.amd64.tgz  inventory
cri-dockerd  docker-devops.yml
[devops@harbor ansible]$ cd cri-dockerd/

[devops@harbor cri-dockerd]$ ls
cri-dockerd  cri-docker.service  cri-docker.socket

[devops@harbor cri-dockerd]$ vim cri-docker.service

ExecStart=/usr/bin/cri-dockerd --container-runtime-endpoint fd://  --network-plugin=cni --pod-infra-container-image=reg.xiao.org/k8s/pause:3.10.1  #加入后面这一段
cpp 复制代码
[devops@harbor ansible]$ vim  kubernetes-devops.yml
 1 ---
  2 - name: devops k8s from ansible
  3   hosts: all
  4   tasks:
  5     - name: setup docker repo
  6       yum_repository:
  7         name: docker
  8         description: docker
  9         baseurl: http://172.25.254.200:1111/docker
 10         file: docker
 11         gpgcheck: no
 12
 13     - name: install docker
 14       dnf:
 15         name: docker-ce
 16         state: present
 17
 18     - name: setup docker.service
 19       replace:
 20         path: /lib/systemd/system/docker.service
 21         regexp: 'ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock'
 22         replace: 'ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --iptables=true'
 23
 24     - name: setup docker registry
 25       copy:
 26         dest: /etc/docker/daemon.json
 27         content: '{"registry-mirrors": ["https://reg.xiao.org"]}'
 28
 29     - name: setup docker certs
 30       file:
 31         path: /etc/docker/certs.d/reg.xiao.org
 32         state: directory
 33
 34     - name: cp certs file
 35       copy:
 36         src: "{{ item.src }}"
 37         dest: "{{ item.dest }}"
 38       loop:
 39         - { src: /etc/docker/certs.d/reg.xiao.org/ca.crt, dest: /etc/docker/certs.d/reg.xiao.org/ca.crt       }
 40         - { src: /etc/docker/certs.d/reg.xiao.org/ca.crt, dest: /etc/pki/ca-trust/source/anchors/ca.crt       }
 41
 42     - name: load module br_netfilter
 43       copy:
 44         dest: /etc/modules-load.d/docker_mod.conf
 45         content: br_netfilter
 46
 47     - name: load module sysctl
 48       copy:
 49         dest: /etc/sysctl.d/docker.conf
 50         content: |
 51           net.bridge.bridge-nf-call-iptables=1
 52           net.bridge.bridge-nf-call-ip6tables=1
 53           net.ipv4.ip_forward=1
 54
 55     - name: update ca cert
 56       shell: update-ca-trust extract && sysctl --system
 57
 58     - name: start services
 59       service:
 60         name: "{{ item }}"
 61         state: restarted
 62         enabled: yes
 63       loop:
 64         - docker
 65         - systemd-modules-load.service
 66
 67     - name: setup cri-docker
 68       copy:
 69         src: "{{item.src}}"
 70         dest: "{{item.dest}}"
 71         mode: '0755'
 72       loop:
 73         - src: ./cri-dockerd/cri-dockerd
 74           dest: /usr/bin/cri-dockerd
 75         - src: ./cri-dockerd/cri-docker.service
 76           dest: /lib/systemd/system/cri-docker.service
 77         - src: ./cri-dockerd/cri-docker.socket
 78           dest: /lib/systemd/system/cri-docker.socket
 79
 80     - name: update ca cert
 81       shell: "update-ca-trust extract;sysctl --system;systemctl daemon-reload"
 82
 83     - name: start services
 84       service:
 85         name: "{{item}}"
 86         state: restarted
 87         enabled: yes
 88       loop:
 89         - docker
 90         - systemd-modules-load.service
 91         - cri-docker


[devops@harbor ansible]$ ansible-playbook docker-devops.yml

用ansible部署k8s软件

cpp 复制代码
[root@harhor ~]# cd /etc/yum.repos.d/
[root@harhor yum.repos.d]# ls
aliyun.repo  docker.repo  epel.repo  redhat.repo  rhel9.repo
[root@harhor yum.repos.d]# vim kubernetes.repo
[k8s]
name = k8s
baseurl = https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.35/rpm/
gpgcheck =0


[root@harhor yum.repos.d]# dnf list kubeadm  --showduplicates
kubeadm.x86_64                                           1.35.7-150500.1.1                                           k8s
[root@harhor yum.repos.d]# dnf list kubeadm-1.35.7-150500.1.1  --showduplicates
正在更新 Subscription Management 软件仓库。
[root@harhor yum.repos.d]# dnf list kubeadm-1.35.7-150500.1.1  kubelet-1.35.7-150500.1.1  kubectl-1.35.7-150500.1.1  --showduplicates
正在更新 Subscription Management 软件仓库。
cpp 复制代码
[devops@harbor ansible]$ vim  kubernetes-devops.yml
- name: install kubernetes from ansible
  hosts: all
  tasks:
  - name: setup k8s repo
    yum_repository:
      name: kubernetes
      description: kubernetes
      baseurl: https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.35/rpm
      file: kubernetes
      gpgcheck: no

  - name: install software in master
    dnf:
      name: "{{item}}"
      state: present
    loop:
      - kubeadm-1.35.7-150500.1.1
      - kubelet-1.35.7-150500.1.1
      - kubectl-1.35.7-150500.1.1
    when: inventory_hostname == "172.25.254.100"

  - name: install software in work node
    dnf:
      name: "{{item}}"
      state: present
    loop:
      - kubeadm-1.35.7-150500.1.1
      - kubelet-1.35.7-150500.1.1
    when: inventory_hostname == "172.25.254.10" or inventory_hostname == "172.25.254.20"

  - name: setup kubectl kubeadm complication
    lineinfile:
      path: /root/.bashrc
      line: |
        source <(kubectl completion bash)
        source <(kubeadm completion bash)
    when: inventory_hostname == "172.25.254.100"

  - name: start kubelet
    service:
      name: kubelet
      state: started
      enabled: yes
cpp 复制代码
#让补齐功能生效
[root@master mnt]# source ~/.bashrc
[root@k8s-master mnt]# systemctl status kubelet.service
#注意：此时kubelet 不能启动是正常的

4.下载kubernetes集群所需镜像

cpp 复制代码
查看镜像
[root@master ~]# kubeadm config images list
I0820 23:18:27.955971   66565 version.go:260] remote version is much newer: v1.36.4; falling back to: stable-1.35
registry.k8s.io/kube-apiserver:v1.35.7
registry.k8s.io/kube-controller-manager:v1.35.7
registry.k8s.io/kube-scheduler:v1.35.7
registry.k8s.io/kube-proxy:v1.35.7
registry.k8s.io/coredns/coredns:v1.13.1
registry.k8s.io/pause:3.10.1
registry.k8s.io/etcd:3.6.6-0

下载镜像
[root@master ~]#  kubeadm config images pull \
> --image-repository registry.aliyuncs.com/google_containers \
> --kubernetes-version v1.35.7 \
> --cri-socket=unix:///var/run/cri-dockerd.sock

上传镜像到本地harbor

cpp 复制代码
#登录认证
[root@master ~]# docker  login  reg.timinglee.org -u admin
Password:

WARNING! Your credentials are stored unencrypted in '/root/.docker/config.json'.
Configure a credential helper to remove this warning. See
https://docs.docker.com/go/credential-store/

Login Succeeded

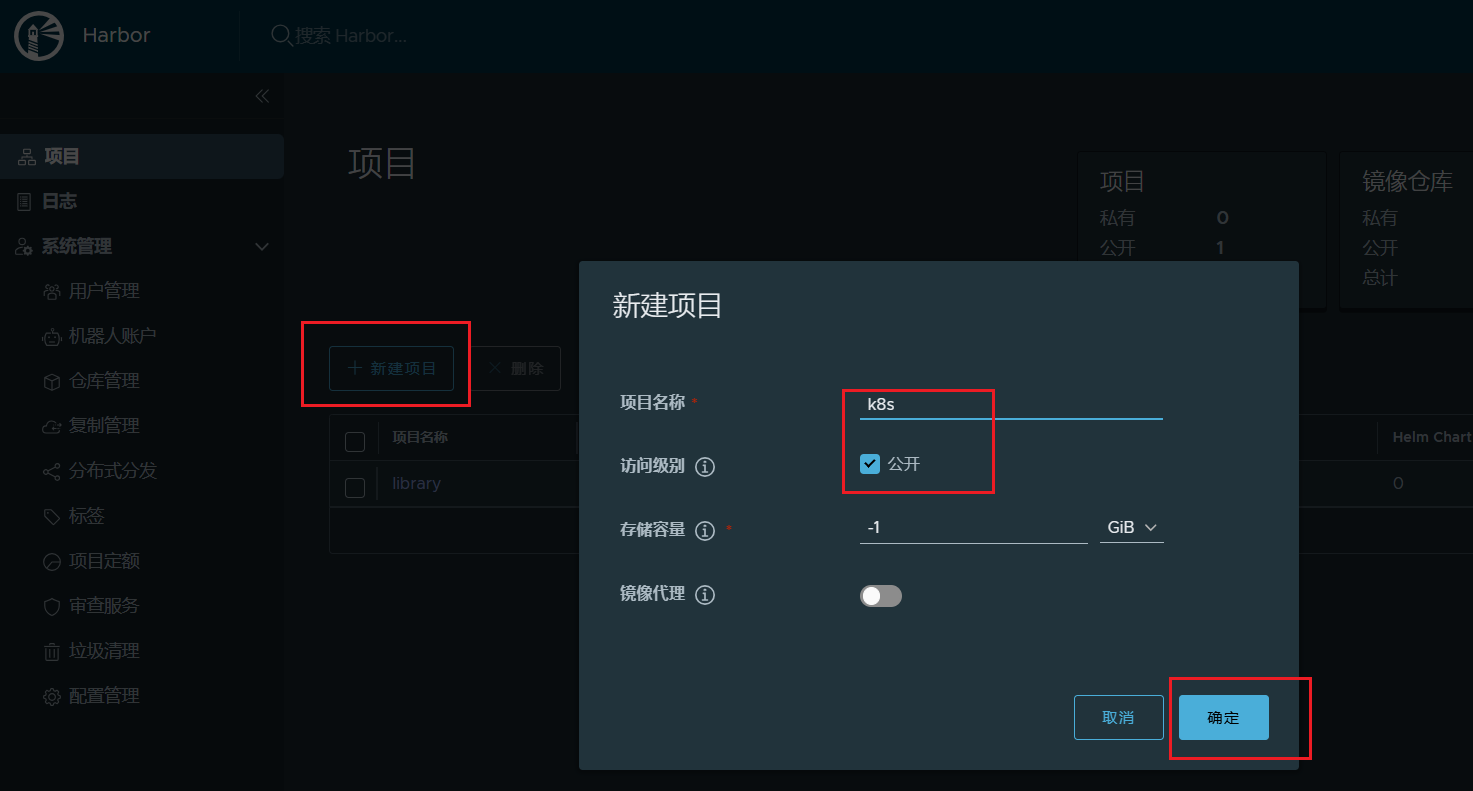

#上传镜像， 注意你的harbor里面必须有k8s才会成功
[root@master ~]# docker images  --format  "{{.Repository}}:{{.Tag}}" | awk -F "/" '/google/{system("docker tag "$0" reg.timinglee.org/k8s/"$3)}'

[root@master ~]# docker images  --format  "{{.Repository}}:{{.Tag}}" | awk -F "/" '/timinglee/{system("docker push "$0)}'

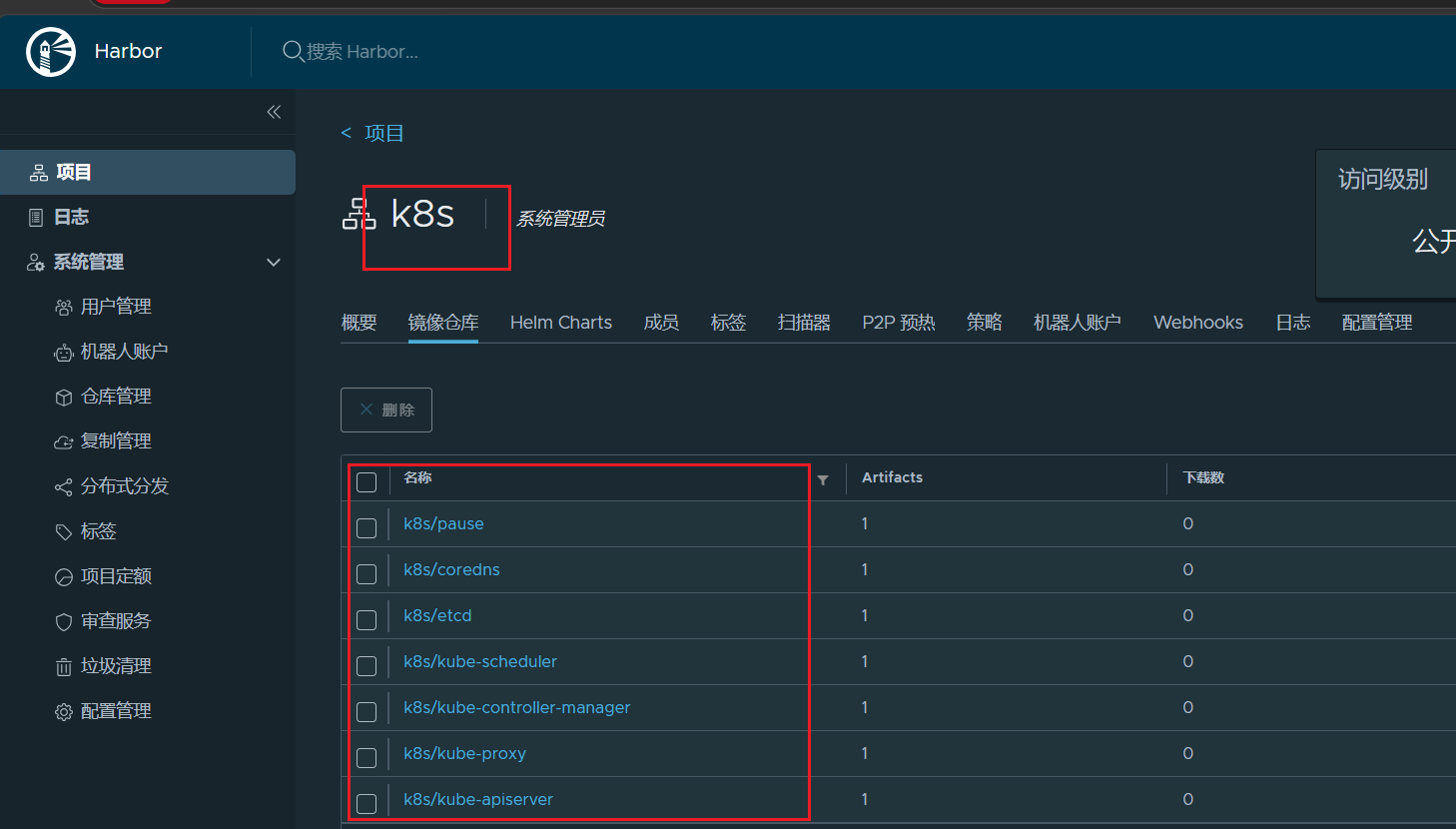

上传成功

5.在master中初始化kubernetes集群

在master中完成集群初始化

cpp 复制代码
[root@master ~]# kubeadm init --pod-network-cidr=10.244.0.0/16 \
> --image-repository reg.xiao.org/k8s \
> --kubernetes-version v1.35.7 \
> --cri-socket=unix:///var/run/cri-dockerd.sock


Then you can join any number of worker nodes by running the following on each as                                                                               root:

kubeadm join 172.25.254.100:6443 --token nc59pb.vcn5hbqak2rphr7r \
        --discovery-token-ca-cert-hash sha256:97be669e0881a04f8b3970fd0c504ee2b4                                                                              0932d6ebea1a2e49f06d796cd32262
#注意：上面这一长串是自动生成的，每个人都不一样。

添加kubernets环境变量到本机

cpp 复制代码
[root@master ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" > ~/.bash_profile
[root@master ~]# source  ~/.bash_profile
[root@master ~]#  kubectl get nodes
NAME     STATUS     ROLES           AGE     VERSION
master   NotReady   control-plane   2m58s   v1.35.7

添加node节点到本集群

cpp 复制代码
[root@node2 ~]# kubeadm join 172.25.254.100:6443 --token nc59pb.vcn5hbqak2rphr7r --discovery-token-ca-cert-hash sha256:97be669e0881a04f8b3970fd0c504ee2b40932d6ebea1a2e49f06d796cd32262   --cri-socket=unix:///var/run/cri-dockerd.sock

#在两台node主机上加入上面的命令，使他们加入master 集群


#加入成功后，在master主机上可以看到他们已经加入集群
[root@master ~]#  kubectl get nodes
NAME     STATUS     ROLES           AGE   VERSION
master   NotReady   control-plane   10m   v1.35.7
node1    NotReady   <none>          43s   v1.35.7
node2    NotReady   <none>          5s    v1.35.7

6.安装网络插件

cpp 复制代码
[root@master ~]# ls
anaconda-ks.cfg  kube-flannel-v0.28.9.tar.gz
[root@master ~]# tar zxf kube-flannel-v0.28.9.tar.gz
[root@master ~]# ls
anaconda-ks.cfg  flannel  kube-flannel-v0.28.9.tar.gz
[root@master ~]# cd flannel/
[root@master flannel]# ls
kube-flannel-v0.28.9.tar  kube-flannel.yml

#导入镜像
[root@master flannel]# docker load -i kube-flannel-v0.28.9.tar
Loaded image: ghcr.io/flannel-io/flannel-cni-plugin:v1.9.1-flannel3
Loaded image: ghcr.io/flannel-io/flannel:v0.28.9

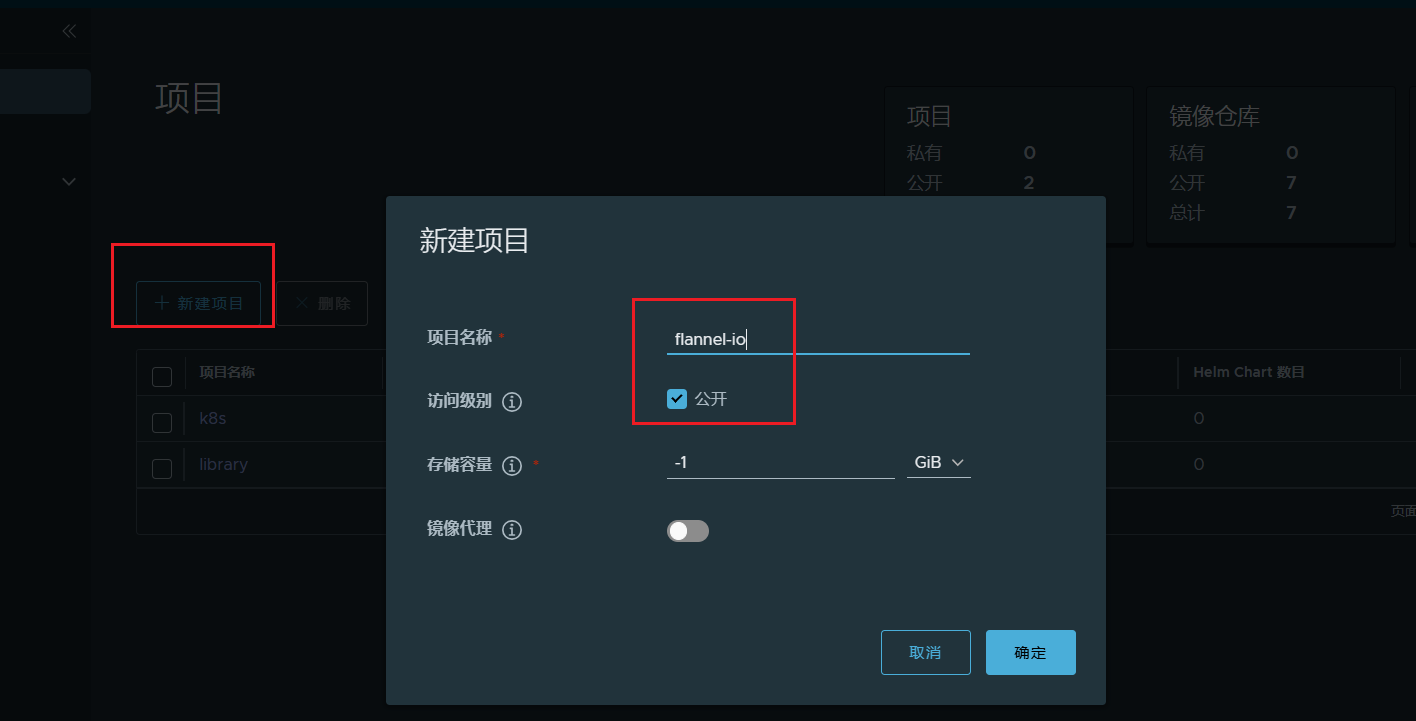

#上传镜像
[root@master flannel]# docker tag ghcr.io/flannel-io/flannel-cni-plugin:v1.9.1-f                                                                              lannel3  reg.xiao.org/flannel-io/flannel-cni-plugin:v1.9.0-flannel3
[root@master flannel]# docker  push   reg.xiao.org/flannel-io/flannel-cni-plugin                                                                              :v1.9.0-flannel3


[root@master flannel]# docker tag ghcr.io/flannel-io/flannel:v0.28.9  reg.xiao.o                                                                              rg/flannel-io/flannel:v0.28.9
[root@master flannel]# docker push   reg.xiao.org/flannel-io/flannel:v0.28.9
cpp 复制代码
[root@master ~]# vim kube-flannel.yml
        image: flannel-io/flannel:v0.28.1
        image: flannel-io/flannel-cni-plugin:v1.9.0-flannel1
        image: flannel-io/flannel:v0.28.1
[root@master flannel]# grep -n image: kube-flannel.yml
148:        image: ghcr.io/flannel-io/flannel:v0.28.9
175:        image: ghcr.io/flannel-io/flannel-cni-plugin:v1.9.1-flannel3
186:        image: ghcr.io/flannel-io/flannel:v0.28.9


[root@master flannel]# ls
kube-flannel-v0.28.9.tar  kube-flannel.yml
[root@master flannel]# vim kube-flannel.yml
[root@master flannel]# kubectl apply -f kube-flannel.yml
namespace/kube-flannel created
serviceaccount/flannel created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created

[root@master flannel]# kubectl get nodes
NAME     STATUS   ROLES           AGE   VERSION
master   Ready    control-plane   36m   v1.35.7
node1    Ready    <none>          26m   v1.35.7
node2    Ready    <none>          25m   v1.35.7
相关推荐
ltl1 小时前
etcd 深度解剖：Watch、MVCC 与 Kubernetes 里的角色
kubernetes
mohesashou2 小时前
红帽linux的K8S部署
linux·kubernetes·ansible
CJY6214 小时前
k8s集群部署的方法原理
云原生·容器·kubernetes
JavaPub-rodert5 小时前
使用 Docker 部署 Ollama：Docker Compose 一键运行 DeepSeek-R1 1.5B
运维·docker·容器
ZY小袁5 小时前
K8S集群部署（脚本方法）
云原生·容器·kubernetes
FoldWinCard6 小时前
K8s集群部署的方法原理
大数据·容器·kubernetes
二宝哥9 小时前
docker安装apisix
docker·容器·apisix
Kina_C10 小时前
从零搭建Kubernetes集群：Harbor私有仓库 + K8s v1.35 + Flannel网络插件完整部署指南
网络·容器·kubernetes
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02GitHub 镜像站点03微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新042026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？05历年考研数学一、数学二、数学三真题试卷及答案PDF06Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费07AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路082026年7月AI圈大地震：GPT-5.6被政府限制、Claude入驻Slack、Anthropic自研芯片09VSCode+CodeX扩展，无法启动10如何新建文件夹？ 电脑新建文件夹的4种方法
