一.pod的两种创建方式
1.命令式
bash
#先下载nginx:latest镜像
#运行nginx:latest
[root@master ~]# kubectl run webpod --image nginx:latest --port 80
#查看pod情况
[root@master ~]# kubectl get pods
webpod 1/1 Running 0 33s
#查看pod详细信息
[root@master ~]# kubectl describe pods webpod
Name: webpod
Namespace: default
Priority: 0
Service Account: default
Node: node2/172.25.254.20
Start Time: Sun, 29 Mar 2026 10:18:15 +0800
Labels: run=webpod
Annotations: <none>
Status: Running
IP: 10.244.2.2
IPs:
IP: 10.244.2.2
Containers:
webpod:
Container ID: docker://688436b733ca8843f6946814f78bf59f865877081820ca43dda1c33f409ac10d
Image: nginx:latest
Image ID: docker-pullable://nginx@sha256:127262f8c4c716652d0e7863bba3b8c45bc9214a57d13786c854272102f7c945
Port: 80/TCP
Host Port: 0/TCP
State: Running
Started: Sun, 29 Mar 2026 10:18:30 +0800
Ready: True
Restart Count: 0
Environment: <none>
Mounts:
/var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-nt87d (ro)
Conditions:
Type Status
PodReadyToStartContainers True
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
kube-api-access-nt87d:
Type: Projected (a volume that contains injected data from multiple sources)
TokenExpirationSeconds: 3607
ConfigMapName: kube-root-ca.crt
Optional: false
DownwardAPI: true
QoS Class: BestEffort
Node-Selectors: <none>
Tolerations: node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 24s default-scheduler Successfully assigned default/webpod to node2
Normal Pulling 24s kubelet spec.containers{webpod}: Pulling image "nginx:latest"
Normal Pulled 20s kubelet spec.containers{webpod}: Successfully pulled image "nginx:latest" in 3.7s (3.7s including waiting). Image size: 187694648 bytes.
Normal Created 9s kubelet spec.containers{webpod}: Container created
Normal Started 9s kubelet spec.containers{webpod}: Container started
[root@master ~]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
webpod 1/1 Running 0 2m46s 10.244.2.2 node2 <none> <none>
#删除pod
[root@master ~]# kubectl delete pods webpod
pod "webpod" deleted from default namespace2.yaml文件方式
bash
[root@master ~]# kubectl create deployment test --image nginx --replicas 1 --dry-run=client -o yaml > test.yml
[root@master ~]# vim test.yml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: test
name: test
spec:
replicas: 1
selector:
matchLabels:
app: test
template:
metadata:
labels:
app: test
spec:
containers:
- image: nginx
name: nginx
#建立式
[root@master ~]# kubectl create -f test.yml
deployment.apps/test created
[root@master ~]# kubectl get pods
NAME READY STATUS RESTARTS AGE
test-56848fd9dc-h2sct 1/1 Running 0 8s
[root@master ~]# kubectl delete -f test.yml
deployment.apps "test" deleted from default namespace
[root@master ~]# kubectl get pods
No resources found in default namespace.
#声明式
[root@master ~]# kubectl apply -f test.yml
deployment.apps/test created
[root@master ~]# kubectl get pods
NAME READY STATUS RESTARTS AGE
test-56848fd9dc-cxtnp 1/1 Running 0 1s
#注意建立只能建立不能更新，声明可以
[root@master ~]# vim test.yml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: test
name: test
spec:
replicas: 2 #只修改pod数量
。。。。。。。。。。。。。。。。。。
[root@master ~]# kubectl create -f test.yml
Error from server (AlreadyExists): error when creating "test.yml": deployments.apps "test" already exists
[root@master ~]# kubectl apply -f test.yml
deployment.apps/test configured
[root@master ~]# kubectl get pods
NAME READY STATUS RESTARTS AGE
test-56848fd9dc-9sw95 1/1 Running 0 8s
test-56848fd9dc-cxtnp 1/1 Running 0 2m42s二.K8S 核心资源 & 常用 kubectl 命令实操
环境：K8s v1.35.3 三节点集群（1master+2node）
节点是 K8s 底层宿主机，全部 Ready 代表集群基础正常
bash
# 查看所有节点
[root@k8s-master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
webcluster-77c87d9946-5qbxt 1/1 Running 0 16s
webcluster-77c87d9946-95b2g 1/1 Running 0 16s
#查看指定命名空间的pods
[root@master pod]# kubectl get namespaces
NAME STATUS AGE
default Active 3d3h
kube-flannel Active 3d2h
kube-node-lease Active 3d3h
kube-public Active 3d3h
kube-system Active 3d3h
[root@master pod]# kubectl -n kube-flannel get pods
NAME READY STATUS RESTARTS AGE
kube-flannel-ds-5xlw5 1/1 Running 3 (4h26m ago) 3d2h
kube-flannel-ds-9q8ps 1/1 Running 2 (4h26m ago) 3d2h
kube-flannel-ds-tkxt5 1/1 Running 3 (4h26m ago) 3d2h
[root@master pod]#
# 自定义命名空间
[root@k8s-master ~]# kubectl create namespace timinglee
NAME STATUS AGE
default Active 4h22m
kube-flannel Active 3h32m
kube-node-lease Active 4h22m
kube-public Active 4h22m
kube-system Active 4h22m
timinglee Active 5s
# 指定ns创建nginx pod
[root@k8s-master ~]# kubectl -n timinglee run testpod --image nginx:latest
# 交互式启动busybox
[root@k8s-master ~]# kubectl run testpod -it --image busybox
# Ctrl+P+Q 后台退出
# 重新附着终端
[root@k8s-master ~]# kubectl attach pods/testpod -it
# 进入容器shell（生产常用）
[root@k8s-master ~]# kubectl exec -it pods/testpod -c testpod -- /bin/sh
# 本地文件拷入pod
[root@k8s-master ~]# kubectl cp testpod.yml testpod:/ -c testpod
# 查看所有deployment控制器
[root@k8s-master ~]# kubectl get deployments
# 查看所有svc
[root@k8s-master ~]# kubectl get svc
#查看资源类型
[root@master ~]# kubectl api-resources | grep dep
deployments deploy apps/v1 true Deployment
[root@master ~]# kubectl api-resources
# 编辑修改副本数
[root@master ~]# kubectl edit deploy test
# 补丁修改副本
[root@master ~]# kubectl patch deploy test -p '{"spec":{"replicas":1}}'
# 命令行快速扩缩容
[root@master ~]# kubectl scale deployment test --replicas=6
[root@master ~]# kubectl scale deployment test --replicas=1
# 暴露deployment，内部访问80
[root@master ~]# kubectl expose deployment test --port 80 --target-port 80
# 查看service详情
[root@master ~]# kubectl describe svc test
# 查看pod日志
[root@master ~]# kubectl logs pod/xxx
# 查看pod及标签
[root@master ~]# kubectl get pods --show-labels
# 给pod打标签
[root@master ~]# kubectl label pods testpod name=lee
# 删除指定标签（key后加-）
[root@master ~]# kubectl label pods testpod name-
#管理集群资源发布rollout
[root@k8s-master pod]# kubectl create deployment webcluster --image myapp:v1 --replicas 2 --dry-run=client -o yaml > webcluster.yml
[root@k8s-master pod]# vim webcluster.yml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: webcluster
name: webcluster
spec:
replicas: 2
selector:
matchLabels:
app: webcluster
template:
metadata:
labels:
app: webcluster
spec:
containers:
- image: myapp:v1
name: myapp
[root@k8s-master pod]# kubectl apply -f webcluster.yml
deployment.apps/webcluster created
[root@k8s-master pod]# kubectl get deployments.apps
NAME READY UP-TO-DATE AVAILABLE AGE
webcluster 2/2 2 2 7s
[root@k8s-master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
webcluster-77c87d9946-5qbxt 1/1 Running 0 16s
webcluster-77c87d9946-95b2g 1/1 Running 0 16s
[root@k8s-master pod]# kubectl rollout status deployment webcluster
deployment "webcluster" successfully rolled out
deployment.apps/webcluster resumed
[root@k8s-master pod]# kubectl rollout restart deployment webcluster
deployment.apps/webcluster restarted
[root@k8s-master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
webcluster-7bfd865747-jmhwl 1/1 Running 0 6s
webcluster-7bfd865747-qv2xt 1/1 Running 0 8s
[root@k8s-master pod]# kubectl rollout restart deployment webcluster
deployment.apps/webcluster restarted
[root@k8s-master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
webcluster-7bfd865747-jmhwl 1/1 Running 0 19s
webcluster-7bfd865747-qv2xt 0/1 Completed 0 21s
webcluster-9787d97f6-z7xv5 1/1 Running 0 1s
webcluster-9787d97f6-zl6q2 0/1 ContainerCreating 0 0s三.Pod的管理
1.自助式管理pod
bash
#先在harbor上推送myapp:v1,myapp:v2
[root@master pod]# kubectl run myappv2 --image myapp:v2 --port 80
pod/myappv2 created
[root@master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
myappv2 0/1 ContainerCreating 0 8s #创建中
[root@master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
myappv2 0/1 ErrImagePull 0 20s #镜像拉取失败
[root@master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
myappv2 0/1 ImagePullBackOff 0 3m48s #尝试从新拉去镜像
[root@master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
myappv2 1/1 Running 0 4m20s
[root@master pod]# kubectl delete pods myappv2
pod "myappv2" deleted from default namespace
[root@master pod]# kubectl get pods
No resources found in default namespace. 2.利用控制器管理pod
bash
[root@master pod]# kubectl create deployment webcluster --image myapp:v2 --replicas 1
deployment.apps/webcluster created
[root@master pod]# kubectl get deployments.apps -o wide
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
webcluster 1/1 1 1 14s myapp myapp:v2 app=webcluster
#修改pods里的容器数量
[root@master pod]# kubectl scale deployment webcluster --replicas 2
deployment.apps/webcluster scaled
[root@master pod]# kubectl scale deployment webcluster --replicas 1
#把 Pod webcluster-6c8b4bb9d7-jsjws 的 app 标签删掉
[root@master pod]# kubectl label pods webcluster-6c8b4bb9d7-jsjws app-
pod/webcluster-6c8b4bb9d7-jsjws unlabeled
#把 Pod webcluster-6c8b4bb9d7-jsjws 的 app 标签改为app=webcluster
[root@master pod]# kubectl label pods webcluster-6c8b4bb9d7-jsjws app=webcluster
pod/webcluster-6c8b4bb9d7-jsjws labeled
#暴漏控制器（设定访问pod的vip）
[root@master pod]# kubectl expose deployment webcluster --port 80 --target-port 80
[root@master pod]# kubectl describe svc webcluster | tail -n 10
IP Family Policy: SingleStack
IP Families: IPv4
IP: 10.98.36.168
IPs: 10.98.36.168
Port: <unset> 80/TCP
TargetPort: 80/TCP
Endpoints: 10.244.1.12:80
Session Affinity: None
Internal Traffic Policy: Cluster
Events: <none>
[root@master pod]# curl 10.98.36.168
Hello MyApp | Version: v2 | <a href="hostname.html">Pod Name</a>
#更新版本
[root@master pod]# kubectl set image deployments webcluster myapp=myapp:v1
deployment.apps/webcluster image updated
[root@master pod]# curl 10.98.36.168
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>
[root@master pod]# kubectl rollout history deployment webcluster
deployment.apps/webcluster
REVISION CHANGE-CAUSE
1 <none>
2 <none>
[root@master pod]# kubectl rollout undo deployment webcluster --to-revision 1
deployment.apps/webcluster rolled back
[root@master pod]# curl 10.98.36.168
Hello MyApp | Version: v2 | <a href="hostname.html">Pod Name</a>
#删除控制器管理的pod
[root@master ~]# kubectl get pods -o wide --show-labels
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES LABELS
webcluster-6c8b4bb9d7-gcb2p 1/1 Running 0 4m54s 10.244.2.7 node1 <none> <none> app=webcluster,pod-template-hash=6c8b4bb9d7
webcluster-6c8b4bb9d7-wqj69 1/1 Running 0 4m43s 10.244.1.4 node2 <none> <none> app=webcluster,pod-template-hash=6c8b4bb9d7
[root@master ~]# kubectl delete deployment webcluster
deployment.apps "webcluster" deleted from default namespace
[root@master ~]# kubectl get pods
No resources found in default namespace.四.利用yaml文件部署应用
1.运行单个容器（images）
bash
#运行单个容器
[root@master pod]# kubectl run lee1 --image myapp:v1 --dry-run=client -o yaml > 1test.yml
[root@master pod]# vim 1test.yml
apiVersion: v1
kind: Pod
metadata:
labels:
name: lee1
name: lee1
spec:
containers:
- image: myapp:v1
name: myappv1
[root@master pod]# kubectl apply -f 1test.yml
pod/lee1 created
[root@master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
lee1 1/1 Running 0 2s
[root@master pod]# kubectl describe pods
Name: lee1
Namespace: default
Priority: 0
Service Account: default
Node: node2/172.25.254.20
Start Time: Sun, 29 Mar 2026 15:15:50 +0800
Labels: run=lee1
Annotations: <none>
Status: Running
IP: 10.244.2.23
IPs:
IP: 10.244.2.23
Containers:
myappv1:
Container ID: docker://3b8b569e18a5d8dcfa55fe7fb6b3abecde985e38ea1eaf72e5c5f160e638ca42
Image: myapp:v1
Image ID: docker-pullable://myapp@sha256:9eeca44ba2d410e54fccc54cbe9c021802aa8b9836a0bcf3d3229354e4c8870e
Port: <none>
Host Port: <none>
State: Running
Started: Sun, 29 Mar 2026 15:15:50 +0800
Ready: True
Restart Count: 0
Environment: <none>
Mounts:
/var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-x26c2 (ro)
Conditions:
Type Status
PodReadyToStartContainers True
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
kube-api-access-x26c2:
Type: Projected (a volume that contains injected data from multiple sources)
TokenExpirationSeconds: 3607
ConfigMapName: kube-root-ca.crt
Optional: false
DownwardAPI: true
QoS Class: BestEffort
Node-Selectors: <none>
Tolerations: node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 16s default-scheduler Successfully assigned default/lee1 to node2
Normal Pulled 16s kubelet spec.containers{myappv1}: Container image "myapp:v1" already present on machine and can be accessed by the pod
Normal Created 16s kubelet spec.containers{myappv1}: Container created
Normal Started 16s kubelet spec.containers{myappv1}: Container started
[root@master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
lee1 1/1 Running 0 78s
[root@master pod]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
lee1 1/1 Running 0 82s 10.244.2.23 node2 <none> <none>
[root@master pod]# kubectl delete -f 1test.yml
pod "lee1" deleted from default namespace2.运行多个容器（images）
bash
[root@master pod]# cp 1test.yml 2test.yml
[root@master pod]# vim 2test.yml
apiVersion: v1
kind: Pod
metadata:
labels:
run: lee1
name: lee1
spec:
containers:
- image: myapp:v1
name: myappv1
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 20000
[root@master pod]# kubectl apply -f 2test.yml
pod/lee1 created
[root@master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
lee1 2/2 Running 0 4s
[root@master pod]# kubectl delete -f 2test.yml --force3.理解pod里的网络整合
bvash
[root@master pod]# cp 2test.yml 3test.yml
[root@master pod]# vim 3test.yml
apiVersion: v1
kind: Pod
metadata:
labels:
run: lee1
name: lee1
spec:
containers:
- image: myapp:v1
name: myappv1
- image: busyboxplus:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 20000
[root@master pod]# kubectl apply -f 3test.yml
pod/lee1 created
[root@master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
lee1 2/2 Running 0 17s
[root@master pod]# kubectl exec -it pods/lee1 -c busybox -- /bin/sh
[ root@lee1:/ ]$ curl localhost
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>4.端口映射（port）
b
[root@master pod]# cp 1test.yml 4test.yml
[root@master pod]# vim 4test.yml
apiVersion: v1
kind: Pod
metadata:
labels:
run: lee1
name: lee1
spec:
containers:
- image: myapp:v1
name: myappv1
ports:
- name: webport
containerPort: 80
hostPort: 80
protocol: TCP
[root@master pod]# kubectl apply -f 4test.yml
pod/lee1 created
[root@master pod]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
lee1 1/1 Running 0 7s 10.244.2.31 node2 <none> <none>
[root@master pod]# curl 172.25.254.20
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>5.选择运行节点（nodeSelector）
bash
[root@master pod]# cp 4test.yml 5test.yml
#选择两个node不同的标签来区分
[root@master ~]# kubectl get nodes --show-labels
NAME STATUS ROLES AGE VERSION LABELS
master Ready control-plane 19h v1.35.3 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=master,kubernetes.io/os=linux,node-role.kubernetes.io/control-plane=,node.kubernetes.io/exclude-from-external-load-balancers=
node1 Ready <none> 19h v1.35.3 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=node1,kubernetes.io/os=linux #io/hostname=node1
node2 Ready <none> 19h v1.35.3 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=node2,kubernetes.io/os=linux #io/hostname=node2
[root@master pod]# vim 5test.yml
apiVersion: v1
kind: Pod
metadata:
labels:
run: lee1
name: lee1
spec:
nodeSelector:
kubernetes.io/hostname: node1
containers:
- image: myapp:v1
name: myappv1
ports:
- name: webport
containerPort: 80
hostPort: 80
protocol: TCP
[root@master pod]# kubectl apply -f 5test.yml
pod/lee1 created
[root@master pod]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
lee1 1/1 Running 0 5s 10.244.1.14 node1 <none> <none>6.共享宿主机网络（hostNetwork）
bash
root@master pod]# cp 5test.yml 6test.yml
[root@master pod]# vim 6test.yml
apiVersion: v1
kind: Pod
metadata:
labels:
run: lee1
name: lee1
spec:
hostNetwork: true
nodeSelector:
kubernetes.io/hostname: node1
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 1000
[root@master pod]# kubectl apply -f 6test.yml
pod/lee1 created
[root@master pod]# kubectl exec -it pods/lee1 -c busybox -- /bin/sh
/ #
/ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq qlen 1000
link/ether 00:0c:29:67:23:76 brd ff:ff:ff:ff:ff:ff
inet 172.25.254.10/24 brd 172.25.254.255 scope global noprefixroute eth0
valid_lft forever preferred_lft forever
inet6 fe80::7a35:2bf3:8ff4:9419/64 scope link noprefixroute
valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue
link/ether 3a:0c:33:9f:d9:36 brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
valid_lft forever preferred_lft forever
4: flannel.1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue
link/ether 06:c7:70:fe:6f:e6 brd ff:ff:ff:ff:ff:ff
inet 10.244.1.0/32 scope global flannel.1
valid_lft forever preferred_lft forever
inet6 fe80::4c7:70ff:fefe:6fe6/64 scope link
valid_lft forever preferred_lft forever
5: cni0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue qlen 1000
link/ether 7a:22:fc:84:3f:e2 brd ff:ff:ff:ff:ff:ff
inet 10.244.1.1/24 brd 10.244.1.255 scope global cni0
valid_lft forever preferred_lft forever
inet6 fe80::7822:fcff:fe84:3fe2/64 scope link
valid_lft forever preferred_lft forever
/ #7.在pod中指定变量（env）
bash
[root@k8s-master pod]# vim mysql.yml
apiVersion: v1
kind: Pod
metadata:
labels:
run: mysql
name: mysql
spec:
containers:
- image: mysql:8.0
name: mysql8
env:
- name: MYSQL_ROOT_PASSWORD
value: lee
- image: phpmyadmin:latest
name: mysqladmin
env:
- name: PMA_ARBITRARY
value: "1"
ports:
- name: phpadminport
containerPort: 80
hostPort: 80
protocol: TCP
[root@k8s-master pod]# kubectl apply -f mysql.yml
[root@k8s-master pod]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
mysql 2/2 Running 0 36s 10.244.1.44 k8s-node1 <none> <none>
#在浏览器中访问 node下面看到的主机ip8.资源优先级
1.BestEffort没有做任何资源限制，资源使用优先级最低
bash
[root@k8s-master pod]# vim testpod.yaml
apiVersion: v1
kind: Pod
metadata:
labels:
run: testpod
name: testpod
spec:
hostNetwork: true
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 10000
apiVersion: v1
kind: Pod
metadata:
labels:
run: testpod
name: testpod
spec:
hostNetwork: true
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 10000
[root@k8s-master pod]# kubectl describe pods testpod | grep "QoS Class:"
QoS Class: BestEffort2.Burstable 设定了资源限制，但是期望值和限制值不同，资源使用优先级次之
bash
[root@k8s-master pod]# vim testpod.yaml
apiVersion: v1
kind: Pod
metadata:
labels:
run: testpod
name: testpod
spec:
hostNetwork: true
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 10000
apiVersion: v1
kind: Pod
metadata:
labels:
run: testpod
name: testpod
spec:
hostNetwork: true
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 10000
resources:
limits:
cpu: 700m
memory: 200M
requests:
cpu: 500m
memory: 100M
[root@k8s-master pod]# kubectl apply -f testpod.yaml
pod/testpod unchanged
[root@k8s-master pod]# kubectl describe pods testpod | grep "QoS Class:"
QoS Class: Burstable3.Guaranteed期望值和最大使用限制相同，优先级最高
[root@k8s-master pod]# vim testpod.yaml
apiVersion: v1
kind: Pod
metadata:
labels:
run: testpod
name: testpod
spec:
hostNetwork: true
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 10000
apiVersion: v1
kind: Pod
metadata:
labels:
run: testpod
name: testpod
spec:
hostNetwork: true
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 10000
resources:
limits:
cpu: 500m
memory: 100M
requests:
cpu: 500m
memory: 100M
[root@k8s-master pod]# kubectl apply -f testpod.yaml
pod/testpod created
[root@k8s-master pod]# kubectl describe pods testpod | grep "QoS Class:"
QoS Class: Guaranteed9.容器重启规则
1.Always 无论什么原因都会从新运行pod
apiVersion: v1
kind: Pod
metadata:
labels:
run: testpod
name: testpod
spec:
hostNetwork: true
restartPolicy: Always
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 60
[root@k8s-master pod]# kubectl get pods -o wide -w
[root@k8s-node2 ~]# docker rm -f 3051d9de4c362.OnFailure 非正常管关闭会从其pod
apiVersion: v1
kind: Pod
metadata:
labels:
run: testpod
name: testpod
spec:
hostNetwork: true
restartPolicy: OnFailure
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 30
[root@k8s-master pod]# kubectl get pods -o wide -w
[root@k8s-node2 ~]# docker rm -f 3051d9de4c36
#等30秒后让容器中的命令运行完成后再次观察3.Never pod关闭后不重启
apiVersion: v1
kind: Pod
metadata:
labels:
run: testpod
name: testpod
spec:
hostNetwork: true
restartPolicy: OnFailure
containers:
- image: busybox:latest
name: busybox
command:
- /bin/sh
- -c
- sleep 30
[root@k8s-master pod]# kubectl get pods -o wide -w

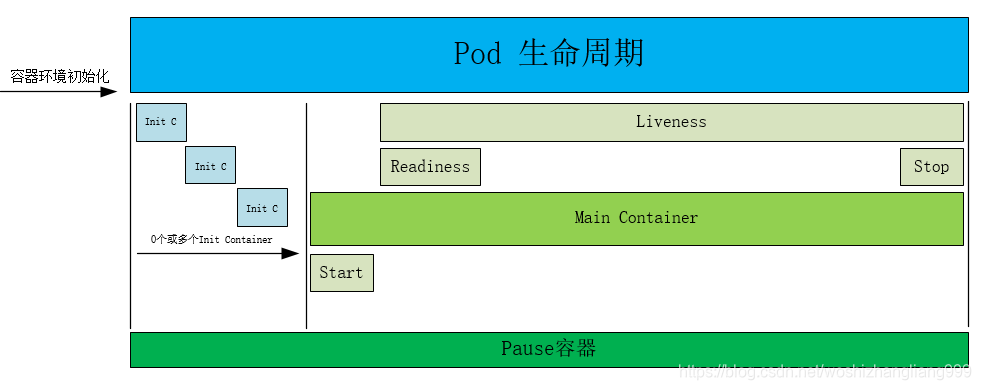

[root@k8s-node2 ~]# docker rm -f 3051d9de4c365.pod的生命周期
先从仓库拉取镜像------>然后再运行init容器安装一些应用容器中不存在的东西，如实用工具或个性化代码等。------> 之后运行应用容器使用启动探针（StartupProbe）判断容器服务是否准备，并禁用就绪和存活探针，直到启动探针检查完成，并只执行一次后续不在使用，之后使用就绪探针（readinessProbe）判断服务是否准备好，没好直接在所有的server上去除该pod的ip，不会杀死容器。用存活探针（livenessProbe）判断容器是否运行，没运行直接杀死容器重新运行一个新的容器，但pod不会杀死，杀死的是pod里面的容器
1.init 容器
bash
#init 容器的核心是：主容器要等它执行完、成功退出，才能启动！
[root@master pod]# cp 1test.yml init.yml
[root@master pod]# vim init.yml
apiVersion: v1
kind: Pod
metadata:
labels:
run: lee1
name: lee1
spec:
initContainers:
- name: init-myservice
image: busybox
command: ["sh","-c","until test -e /testfile;do echo wating for myservice; sleep 2;done"]
containers:
- image: myapp:v1
name: myappv1
[root@master pod]# kubectl apply -f init.yml
pod/lee1 created
[root@master pod]# watch -n 1 kubectl get pods #监控命令
NAME READY STATUS RESTARTS AGE
lee1 0/1 Init:0/1 0 3s
[root@master pod]# kubectl exec -it pods/lee1 -c init-myservice -- /bin/sh
/ #
/ #
[root@master pod]# kubectl exec -it pods/lee1 -c init-myservice -- /bin/sh
/ #
/ # touch /testfile #执行完指定的命令之后才启动容器
/ # command terminated with exit code 137
[root@master pod]# kubectl get pods
NAME READY STATUS RESTARTS AGE
lee1 1/1 Running 0 2m32s2.livenessprobe（存活探针）
bash
#创建一个 Deployment（无状态应用控制器，，用来管理 Pod，pod的标识），名字叫 webcluster
#replicas 1（创建pod数量一个）
#--dry-run=client 只模拟，不执行
[root@master pod]# kubectl create deployment webcluster --image myapp:v1 --replicas 1 --
[root@master pod]# kubectl create deployment webcluster --image myapp:v1 --replicas 1 --dry-run=client -o yaml > liveness.yml #"帮我生成一个 YAML 文件，不真正创建资源"
[root@master pod]# kubectl expose deployment webcluster --port 80 --target-port 80 --dry-run=client -o yaml >> liveness.yml
[root@master ~]# vim liveness.yml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: webcluster
name: webcluster
spec:
replicas: 1
selector:
matchLabels:
app: webcluster
template:
metadata:
labels:
app: webcluster
spec:
containers:
- image: myapp:v1
name: myapp
livenessProbe:
exec:
command:
- /bin/bash
- -c
- killall -0 nginx
---
apiVersion: v1
kind: Service
metadata:
labels:
app: webcluster
name: webcluster
spec:
ports:
- port: 80
protocol: TCP
targetPort: 80
selector:
app: webcluster
#删除由liveness。yml创建的资源
[root@master pod]# kubectl delete -f liveness.yml
deployment.apps "webcluster" deleted from default namespace
Error from server (NotFound): error when deleting "liveness.yml": services "webcluster" not found
[root@master pod]# kubectl apply -f liveness.yml
deployment.apps/webcluster created
service/webcluster created
#测试liveness
[root@master pod]# watch -n 1 "kubectl get pods ;kubectl describe svc webcluster | tail -n 10"
NAME READY STATUS RESTARTS AGE
webcluster-584fddd575-4ttz9 1/1 Running 3 (2s ago) 92s
IP Family Policy: SingleStack
IP Families: IPv4
IP: 10.105.47.234
IPs: 10.105.47.234
Port: <unset> 80/TCP
TargetPort: 80/TCP
Endpoints: 10.244.2.36:80
Session Affinity: Non.e
Internal Traffic Policy: Cluster
Events: <none>
[root@master pod]# kubectl exec -it pods/webcluster-7fd94cc55b-pgdx6 -c myapp -- /bin/sh
/ # nginx -s stop
2026/03/29 08:50:02 [notice] 59#59: signal process started
/ # command terminated with exit code 1373.ReadinessProbe（ 就绪探针）
bash
[root@master pod]# cp liveness.yml ReadinessProbe.yml
[root@master pod]# vim ReadinessProbe.yml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: webcluster
name: webcluster
spec:
replicas: 1
selector:
matchLabels:
app: webcluster
template:
metadata:
labels:
app: webcluster
spec:
containers:
- image: myapp:v1
name: myapp
readinessProbe:
httpGet:
path: /test.html
port: 80
initialDelaySeconds: 1
periodSeconds: 3
timeoutSeconds: 1
#initialDelaySeconds: 1 #容器启动后要等待多少秒后就探针开始工作，默认是 0
#periodSeconds: 1 #执行探测的时间间隔，默认为 10s
#timeoutSeconds: 1 #探针执行检测请求后，等待响应的超时时间，默认为 1s
#如果有/test.html这个发布目录，就启动容器，否者就每间隔3秒查看一次，直到出现它然后再启动容器，期间不会删除容器
---
apiVersion: v1
kind: Service
metadata:
labels:
app: webcluster
name: webcluster
spec:
ports:
- port: 80
protocol: TCP
targetPort: 80
selector:
app: webcluster
[root@master pod]# kubectl apply -f ReadinessProbe.yml
deployment.apps/webcluster configured
service/webcluster unchanged
#监控
[root@master pod]# watch -n 1 "kubectl get pods ;kubectl describe svc webcluster | tail -n 10"
6
NAME READY STATUS RESTARTS AGE
webcluster-6bc85dfc84-zk4mn 0/1 Running 0 7s
IP Family Policy: SingleStack
IP Families: IPv4
IP: 10.107.142.60
IPs: 10.107.142.60
Port: <unset> 80/TCP
TargetPort: 80/TCP
Endpoints:
Session Affinity: None
Internal Traffic Policy: Cluster
Events: <none>
#查看上方监控变化
[root@master pod]# kubectl exec -it pods/webcluster-6bc85dfc84-zk4mn -c myapp -- /bin/sh
/ # echo timinglee > /usr/share/nginx/html/test.html
/ # rm -fr /usr/share/nginx/html/test.html
/ # echo timinglee > /usr/share/nginx/html/test.html
/ #
