[hadoop高可用架构]

系统环境：Centos7 selinux and iptables is disabled
Hadoop 、jdk、zookeeper程序使用nfs共享同步配置文件

软件版本：hadoop-3.3.6.tar.gz

apache-zookeeper-3.8.6-bin.tar.gz

jdk-8u181-linux-x64.tar.gz

主机列表

|-----------------|-------|--------------------------------------------------|
| IP | 主机名 | 角色 |
| 192.168.247.132 | node1 | NameNode DFSZKFailoverController ResourceManager |
| 192.168.36.133 | node2 | JournalNode QuorumPeerMain DataNode NodeManager |
| 192.168.36.134 | node3 | JournalNode QuorumPeerMain DataNode NodeManager |
| 192.168.36.135 | node4 | JournalNode QuorumPeerMain DataNode NodeManager |
| 192.168.36.136 | node5 | NameNode DFSZKFailoverController ResourceManager |

node2~node5:
yum install -y nfs-utils
mount 192.168.247.132:/home/hadoop/ /home/hadoop/

zookeeper集群部署

安装zookeeper

修改目录所有权

$root@node1 \~$ # chown -R hadoop:hadoop /home/hadoop/apache-zookeeper-3.8.6-bin

清理之前的数据

$hadoop@node1 \~$ $ rm -fr /tmp/*

$hadoop@node2 \~$ $ rm -fr /tmp/*

$hadoop@node3 \~$ $ rm -fr /tmp/*

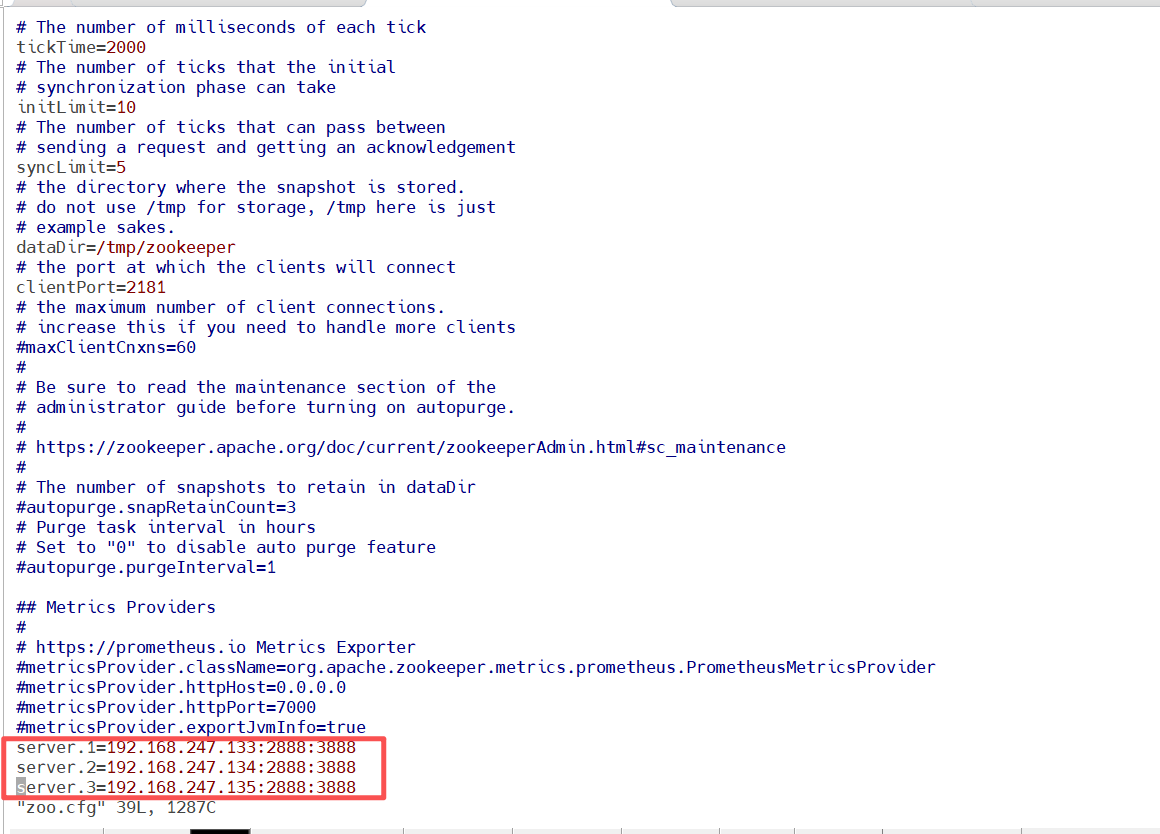

修改配置文件

$hadoop@node2 \~$ $ cd /home/hadoop/apache-zookeeper-3.8.6-bin/conf

$hadoop@node2 conf$ $ cp zoo_sample.cfg zoo.cfg

在/tmp/zookeeper目录中创建myid文件，写入一个唯一的数字

$hadoop@node2 \~$ $ mkdir /tmp/zookeeper

$hadoop@node2 \~$ $ echo 1 > /tmp/zookeeper/myid

$hadoop@node3 \~$ $ echo 2 > /tmp/zookeeper/myid

$hadoop@node4 \~$ $ echo 3 > /tmp/zookeeper/myid

在各节点启动服务

bin/zkServer.sh start

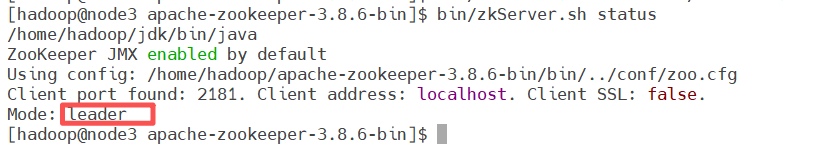

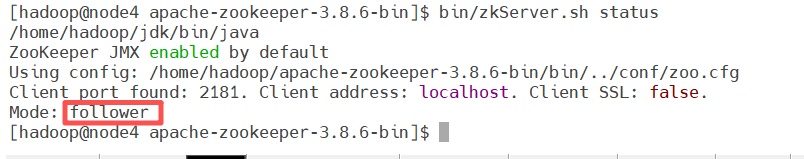

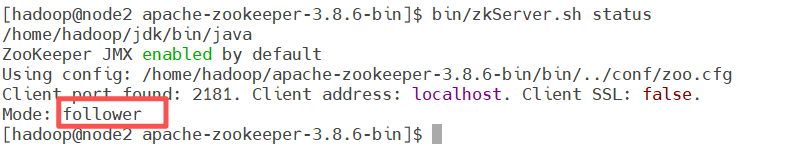

查看节点状态

bin/zkServer.sh status

Hadoop配置

编辑 core-site.xml

$hadoop@node1 hadoop$ $ vim /home/hadoop/hadoop/etc/hadoop/core-site.xml

<configuration>
<property>
<name>fs.defaultFS</name>
<value>hdfs://masters</value>
</property>

<property>
<name>ha.zookeeper.quorum</name>
<value>192.168.247.133:2181,192.168.247.134:2181,192.168.247.135:2181</value>
</property>
</configuration>
