k8s控制器管理

控制器管理

• 一.Replicaset控制器
• • 1.建立控制器
  • 2.测试功能
• 二.deployment
• • 1.监控
  • 2.建立deployment控制器
  • 3.升级和回滚
• 三.版本更新管理及优化
• • 1.查看更新策略信息
  • 2.设定更新策略
  • 3.更新暂停和恢复
• 四.DaemonSet
• 五.Job控制器
• 六.Cronjob控制器

一.Replicaset控制器

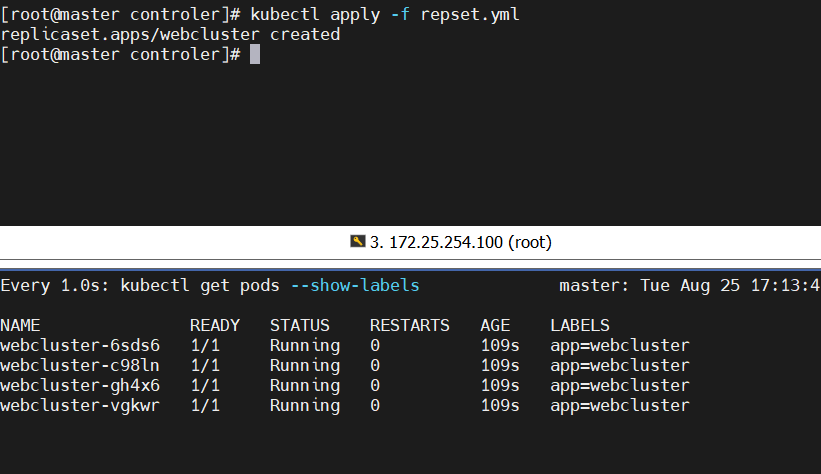

1.建立控制器

[root@master controler]# kubectl create deployment webcluster --image myapp:v1  --dry-run=client -o yaml  > repset.yml
apiVersion: apps/v1
kind: ReplicaSet
metadata:
  labels:
    app: webcluster
  name: webcluster
spec:
  replicas: 4
  selector:
    matchLabels:
      app: webcluster
        #  strategy: {}
  template:
    metadata:
      labels:
        app: webcluster
    spec:
      containers:
      - image: myapp:v1
        name: myapp

拉伸

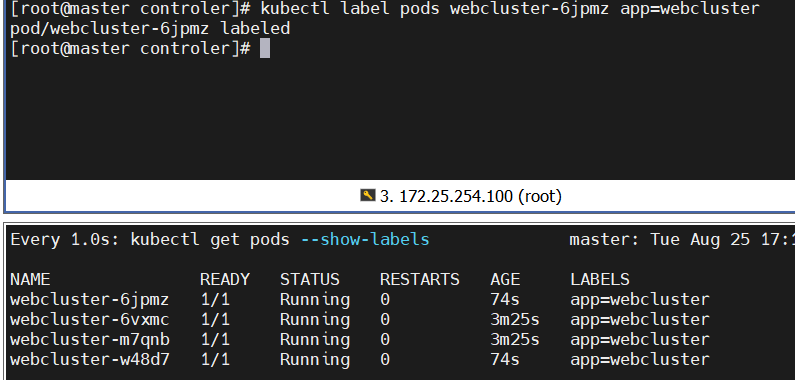

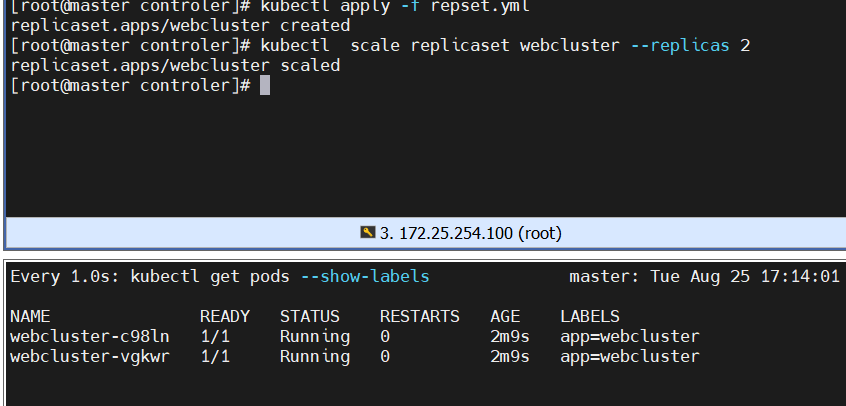

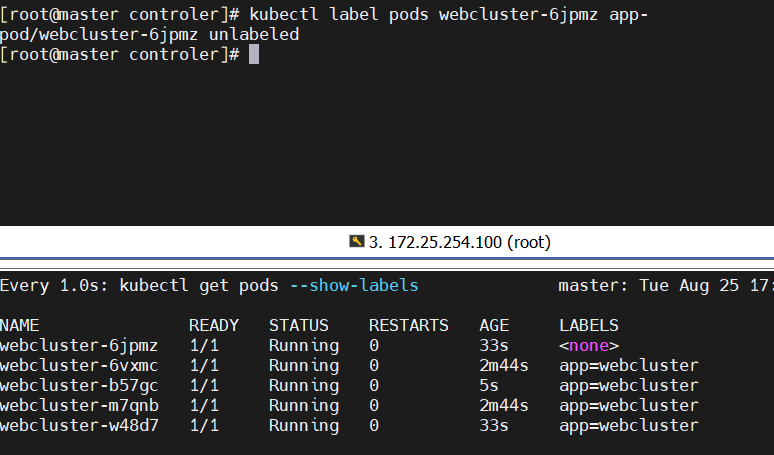

2.测试功能

二.deployment

1.监控

[root@master ~]# watch -n 1 " kubectl get pods   --show-labels;echo ====;kubectl get replicasets.apps"

2.建立deployment控制器

[root@master controler]# kubectl create deployment webcluster --image myapp:v1  --dry-run=client -o yaml  > dep.yml
[root@master controler]# vim dep.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: webcluster
  name: webcluster
spec:
  minReadySeconds: 5
  replicas: 2
  selector:
    matchLabels:
      app: webcluster
#  strategy: {}
  template:
    metadata:
      labels:
        app: webcluster
    spec:
      containers:
      - image: myapp:v1
        name: myapp
#        resources: {}

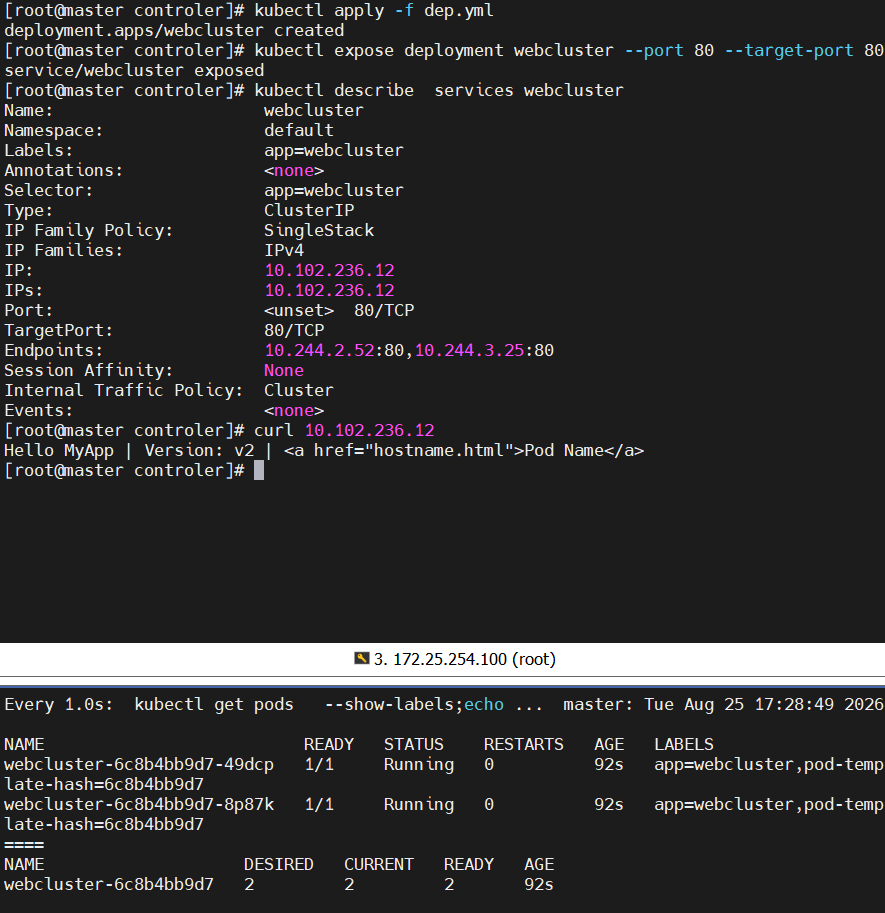

[root@master controler]# kubectl apply -f dep.yml
deployment.apps/webcluster created

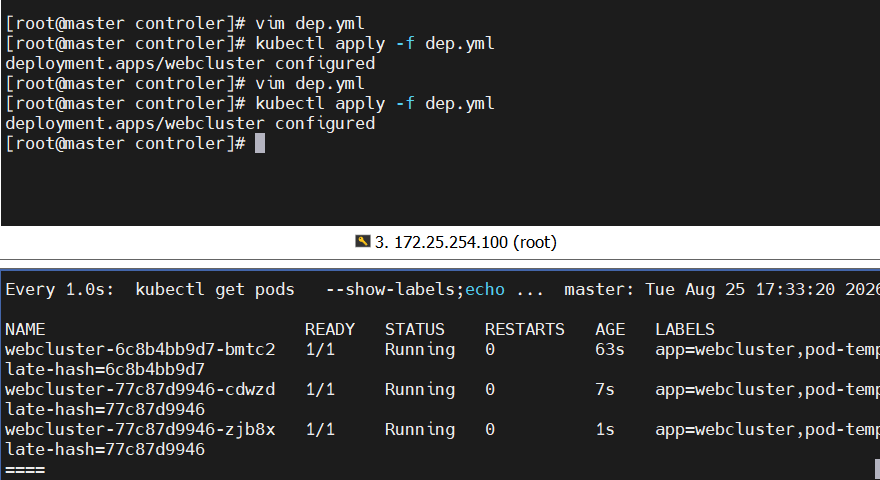

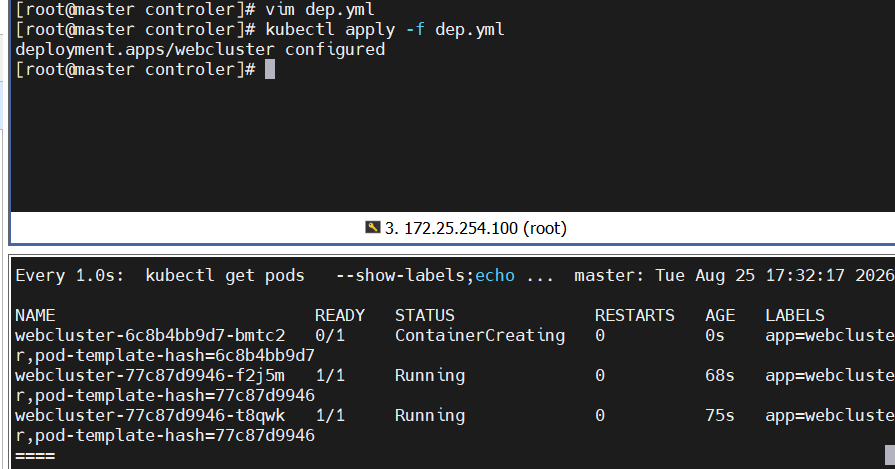

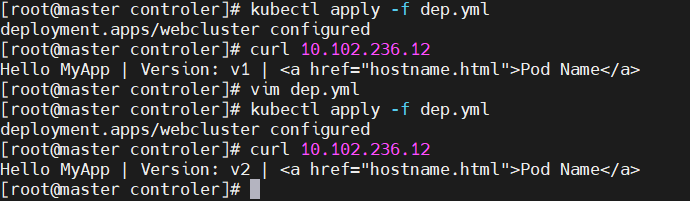

3.升级和回滚

三.版本更新管理及优化

[root@master controler]# vim dep.yml
spec:
  minReadySeconds: 5
  replicas: 6				#把pod数量设定为6方便观察
  selector:

[root@master controler]# kubectl apply -f dep.yml
deployment.apps/webcluster configured

1.查看更新策略信息

[root@master controler]# kubectl describe deployments.apps webcluster
RollingUpdateStrategy:  25% max unavailable, 25% max surge

2.设定更新策略

[root@master controler]# vim dep.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: webcluster
  name: webcluster
spec:
  minReadySeconds: 5
  replicas: 6
  selector:
    matchLabels:
      app: webcluster
  strategy:
    rollingUpdate:
      maxSurge: 1					#更新时pod数量最多比期望值多一个
      maxUnavailable: 0				#不能使用pod数量比期望值数量多0
  template:
    metadata:
      labels:
        app: webcluster
    spec:
      containers:
      - image: myapp:v2
        name: myapp
          # resources: {}
[root@master controler]# kubectl apply -f dep.yml


[root@master controler]# kubectl describe deployments.apps webcluster
RollingUpdateStrategy:  0 max unavailable, 1 max surge

3.更新暂停和恢复

[root@master controler]# kubectl rollout history deployment webcluster
deployment.apps/webcluster
REVISION  CHANGE-CAUSE
5         <none>
6         <none>

[root@master controler]# kubectl rollout pause deployment webcluster   #暂停更新
deployment.apps/webcluster paused
[root@master controler]# vim dep.yml
      containers:
      - image: myapp:v2
        name: myapp

[root@master controler]# kubectl rollout resume deployment webcluster			#开启更新
deployment.apps/webcluster resumed

[root@master controler]# kubectl rollout history deployment webcluster
deployment.apps/webcluster
REVISION  CHANGE-CAUSE
6         <none>
7         <none>

四.DaemonSet

[root@master controler]# kubectl create deployment daemonset --image myapp:v1 --dry-run=client -o yaml  > daemonset.yml
[root@master controler]# vim daemonset.yml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    app: daemonset
  name: daemonset
spec:
  selector:
    matchLabels:
      app: daemonset
  template:
    metadata:
      labels:
        app: daemonset
    spec:
      containers:
      - image: myapp:v1
        name: myapp

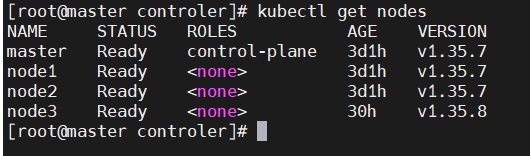

#另外开启一个主机node3，并设定在初始化集群时的所有设定确保所有服务的开启
#在master中重新生成集群主机注册时需要的token
[root@master controler]# kubeadm token create --print-join-command
kubeadm join 172.25.254.100:6443 --token gbhcbd.ivfk0bvi9kgp2lqc --discovery-token-ca-cert-hash sha256:6454295c25081331e13eebefcd0cab26b03ebdf0a121e554b397faf799238dd2


[root@node3 ~]# kubeadm join 172.25.254.100:6443 --token wn1egx.sv3qgc2a7my26huu --discovery-token-ca-cert-hash sha256:6454295c25081331e13eebefcd0cab26b03ebdf0a121e554b397faf799238dd2 --cri-socket=unix:///var/run/cri-dockerd.sock

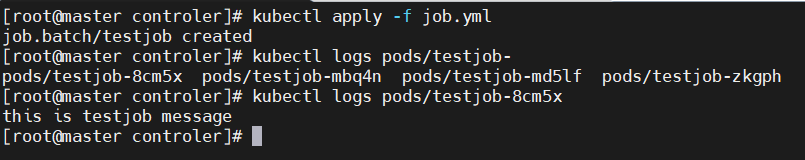

五.Job控制器

[root@master controler]# vim job.yml
apiVersion: batch/v1
kind: Job
metadata:
  name: testjob
spec:
  completions: 6
  parallelism: 2
  backoffLimit: 4
  template:
    spec:
      containers:
      - image: busybox:latest
        name: testjob
        command: ["/bin/sh","-c"]
        args:
        - |
          echo this is testjob message
          sleep 10
      restartPolicy: Never

六.Cronjob控制器

[root@master controler]# kubectl create cronjob cronjob --image busybox  --schedule "* * * * *" --dry-run=client -o yaml > cronjob.yml

[root@master controler]# vim cronjob.yml
apiVersion: batch/v1
kind: CronJob
metadata:
  name: cronjob
spec:
  jobTemplate:
    metadata:
      name: cronjob
    spec:
      template:
        spec:
          containers:
          - image: busybox
            name: cronjob
            command:
              - /bin/sh
              - -c
              - echo "hello timinglee"
          restartPolicy: OnFailure
  schedule: '* * * * *'

[root@master controler]# kubectl apply -f cronjob.yml
cronjob.batch/cronjob created

[root@master controler]# kubectl get cronjobs.batch
NAME      SCHEDULE    TIMEZONE   SUSPEND   ACTIVE   LAST SCHEDULE   AGE
cronjob   * * * * *   <none>     False     0        <none>          24s

[root@master controler]# kubectl logs cronjob-29794219-fr85d
hello timinglee
