【深度学习实验】—— 基于 LSTM 与 Optuna 调参的丙型肝炎预测

文章目录

  • [1. 简介](#1. 简介)
  • [2. 环境](#2. 环境)
  • [3. 代码实现](#3. 代码实现)
    • [3.1 前期准备](#3.1 前期准备)
      • [3.1.1 导入库与设置设备](#3.1.1 导入库与设置设备)
      • [3.1.2 数据读取与标签编码](#3.1.2 数据读取与标签编码)
      • [3.1.3 相关性分析与缺失值处理](#3.1.3 相关性分析与缺失值处理)
      • [3.1.4 划分训练集和测试集](#3.1.4 划分训练集和测试集)
    • [3.2 随机森林基线模型](#3.2 随机森林基线模型)
      • [3.2.1 特征重要性](#3.2.1 特征重要性)
      • [3.2.2 基线结果](#3.2.2 基线结果)
    • [3.3 LSTM 模型建立与训练](#3.3 LSTM 模型建立与训练)
      • [3.3.1 数据标准化与加载](#3.3.1 数据标准化与加载)
      • [3.3.2 定义 LSTM 网络模型](#3.3.2 定义 LSTM 网络模型)
      • [3.3.3 定义训练和测试函数](#3.3.3 定义训练和测试函数)
      • [3.3.4 Optuna 超参数搜索](#3.3.4 Optuna 超参数搜索)
      • [3.3.5 训练模型](#3.3.5 训练模型)
  • [4. 模型评估](#4. 模型评估)

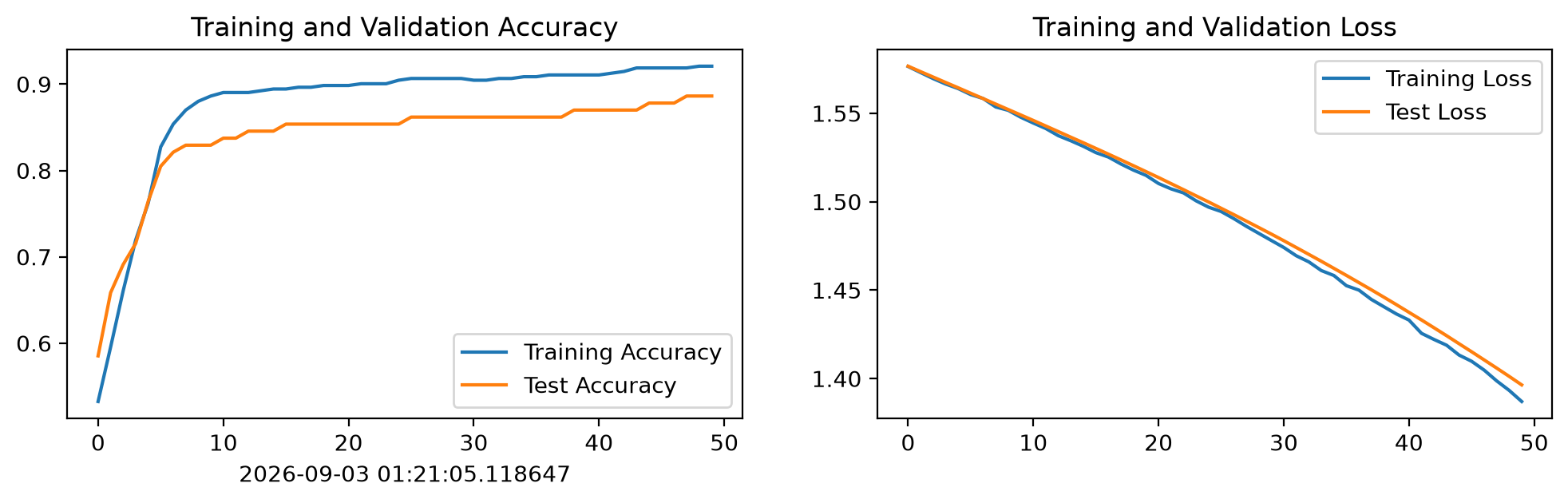

    • [4.1 可视化训练过程](#4.1 可视化训练过程)
    • [4.2 模型结果对比](#4.2 模型结果对比)
  • [5. 总结](#5. 总结)

1. 简介

本项目使用 Hepatitis C(丙型肝炎)血液检测数据集,根据年龄、性别及多项生化指标预测受试者类别。实验先以随机森林建立基线模型,再利用 PyTorch 搭建单层 LSTM 网络完成五分类,并使用 Optuna 搜索合适的超参数。

项目 内容
模型 RandomForestRegressor(基线)+ 单层 LSTM
任务 五分类:Blood Donor / suspect Blood Donor / Hepatitis / Fibrosis / Cirrhosis
数据集 615 条记录、12 个特征;训练集 492 条、测试集 123 条
最佳参数 hidden_size=192lr=2.282961835545562e-05
测试结果 随机森林准确率 89%;LSTM 第 50 轮测试准确率约 88.6%

2. 环境

  • 语言环境:Python(.venv312
  • 编译器:Jupyter Notebook
  • 深度学习环境:PyTorch
  • 主要库:pandas、scikit-learn、matplotlib、seaborn、torchinfo、Optuna
  • 运行设备:CPU(Notebook 输出为 device(type='cpu')

3. 代码实现

3.1 前期准备

3.1.1 导入库与设置设备

python 复制代码
import pandas as pd
import torch
import torch.utils.data as data
import matplotlib.pyplot as plt
import seaborn as sns
from torch import nn
from sklearn.preprocessing import LabelEncoder, StandardScaler
from sklearn.model_selection import train_test_split
from sklearn.ensemble import RandomForestRegressor
from sklearn.metrics import classification_report
from torch.utils.data import DataLoader
from torchinfo import summary
import numpy as np
import optuna

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(device)
bash 复制代码
device(type='cpu')

3.1.2 数据读取与标签编码

数据集位于 ./Data/HepatitisCdata.csv,共有 615 条记录。CategorySex 为字符串类型,使用 LabelEncoder 编码;第一列是样本编号,因此删除。

python 复制代码
df = pd.read_csv('./Data/HepatitisCdata.csv')

le = LabelEncoder()
df["Category"] = le.fit_transform(df["Category"])
df["Sex"] = le.fit_transform(df["Sex"])
df = df.iloc[:, 1:]
df.head()

处理后数据有 13 列:Category 为标签,其余 12 列为输入特征,分别是 Age、Sex、ALB、ALP、ALT、AST、BIL、CHE、CHOL、CREA、GGT 和 PROT。

3.1.3 相关性分析与缺失值处理

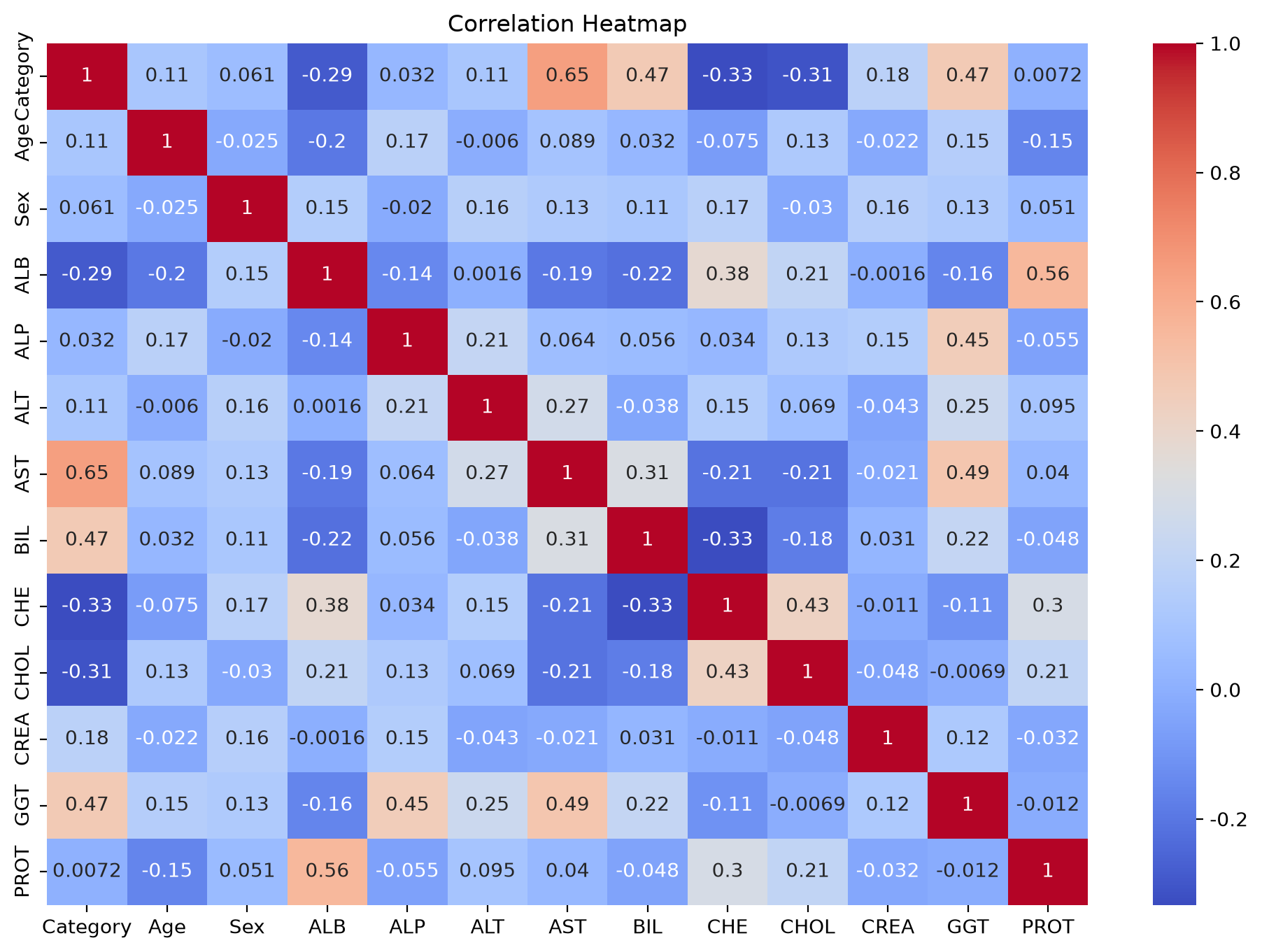

使用相关性热力图观察特征间关系,再检查缺失值。ALB、ALP、ALT、CHOL 和 PROT 存在缺失值,Notebook 将它们填充为 0。

python 复制代码
numeric_cols = df.select_dtypes(include=['int64', 'float64'])
plt.figure(figsize=(12, 8))
sns.heatmap(numeric_cols.corr(), cmap='coolwarm', annot=True)
plt.title("Correlation Heatmap")
plt.show()
python 复制代码
df.isnull().any()
bash 复制代码
Unnamed: 0	Category	Age	Sex	ALB	ALP	ALT	AST	BIL	CHE	CHOL	CREA	GGT	PROT
0	1	0=Blood Donor	32	m	38.5	52.5	7.7	22.1	7.5	6.93	3.23	106.0	12.1	69.0
1	2	0=Blood Donor	32	m	38.5	70.3	18.0	24.7	3.9	11.17	4.80	74.0	15.6	76.5
2	3	0=Blood Donor	32	m	46.9	74.7	36.2	52.6	6.1	8.84	5.20	86.0	33.2	79.3
3	4	0=Blood Donor	32	m	43.2	52.0	30.6	22.6	18.9	7.33	4.74	80.0	33.8	75.7
4	5	0=Blood Donor	32	m	39.2	74.1	32.6	24.8	9.6	9.15	4.32	76.0	29.9	68.7

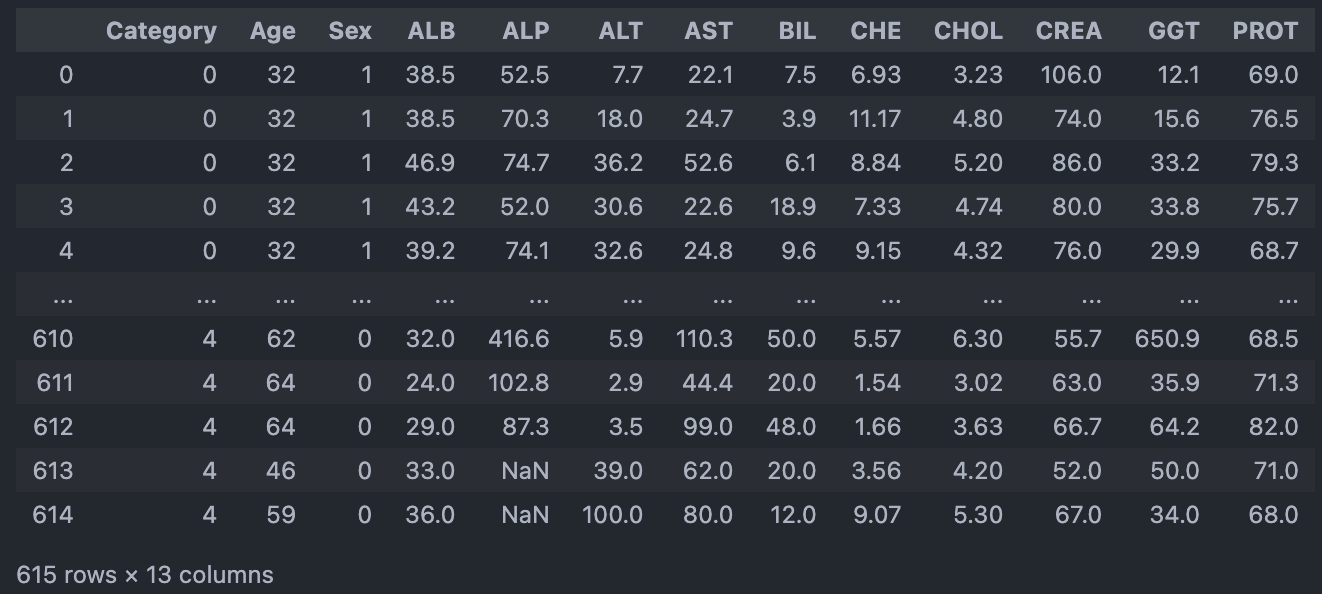

Category	Age	Sex	ALB	ALP	ALT	AST	BIL	CHE	CHOL	CREA	GGT	PROT
0	0	32	1	38.5	52.5	7.7	22.1	7.5	6.93	3.23	106.0	12.1	69.0
1	0	32	1	38.5	70.3	18.0	24.7	3.9	11.17	4.80	74.0	15.6	76.5
2	0	32	1	46.9	74.7	36.2	52.6	6.1	8.84	5.20	86.0	33.2	79.3
3	0	32	1	43.2	52.0	30.6	22.6	18.9	7.33	4.74	80.0	33.8	75.7
4	0	32	1	39.2	74.1	32.6	24.8	9.6	9.15	4.32	76.0	29.9	68.7
...	...	...	...	...	...	...	...	...	...	...	...	...	...
610	4	62	0	32.0	416.6	5.9	110.3	50.0	5.57	6.30	55.7	650.9	68.5
611	4	64	0	24.0	102.8	2.9	44.4	20.0	1.54	3.02	63.0	35.9	71.3
612	4	64	0	29.0	87.3	3.5	99.0	48.0	1.66	3.63	66.7	64.2	82.0
613	4	46	0	33.0	NaN	39.0	62.0	20.0	3.56	4.20	52.0	50.0	71.0
614	4	59	0	36.0	NaN	100.0	80.0	12.0	9.07	5.30	67.0	34.0	68.0
615 rows × 13 columns
