Unisoc 展锐平台Camera摄像头分辨率适配

临期冰淇淋2026-09-21 10:47

如下可以修改相机可以匹配多少分辨率

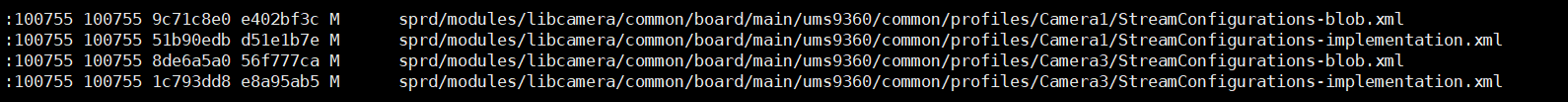

sprd/modules/libcamera/common/board/main/ums9360/common/profiles/Camera1/StreamConfigurations-blob.xml

sprd/modules/libcamera/common/board/main/ums9360/common/profiles/Camera1/StreamConfigurations-implementation.xml

sprd/modules/libcamera/common/board/main/ums9360/common/profiles/Camera3/StreamConfigurations-blob.xml

sprd/modules/libcamera/common/board/main/ums9360/common/profiles/Camera3/StreamConfigurations-implementation.xml

复制代码

+        <StreamInfo>
+            <Width>4208</Width>
+            <Height>3120</Height>
+            <MinDuration>33000000</MinDuration>
+            <StallDuration>33333333</StallDuration>
+        </StreamInfo>

如下可以修改相机app的分辨率

复制代码

diff --git a/sprd/vnd_mpool/module/vendor/media/codec/msoc/qogirl8/media_profiles.xml b/sprd/vnd_mpool/module/vendor/media/codec/msoc/qogirl8/media_profiles.xml
index 3795c23..7b1f32d 100755
--- a/sprd/vnd_mpool/module/vendor/media/codec/msoc/qogirl8/media_profiles.xml
+++ b/sprd/vnd_mpool/module/vendor/media/codec/msoc/qogirl8/media_profiles.xml
@@ -205,7 +205,19 @@
                    channels="1" />
         </EncoderProfile>

-        <EncoderProfile quality="480p" fileFormat="mp4" duration="60">
+        <EncoderProfile quality="cif" fileFormat="mp4" duration="60">
+            <Video codec="h264"
+                   bitRate="4000000"
+                   width="352"
+                   height="288"
+                   frameRate="30" />
+            <Audio codec="aac"
+                   bitRate="64000"
+                   sampleRate="44100"
+                   channels="1" />
+        </EncoderProfile>
+
+        <EncoderProfile quality="vga" fileFormat="mp4" duration="60">
             <Video codec="h264"
                    bitRate="4000000"
                    width="640"
@@ -217,10 +229,22 @@
                    channels="1" />
         </EncoderProfile>

+        <EncoderProfile quality="480p" fileFormat="mp4" duration="60">
+            <Video codec="h264"
+                   bitRate="4000000"
+                   width="720"
+                   height="480"
+                   frameRate="30" />
+            <Audio codec="aac"
+                   bitRate="64000"
+                   sampleRate="44100"
+                   channels="1" />
+        </EncoderProfile>
