aws(学习笔记第三十一课) aws cdk深入学习（batch-arm64-instance-type）

aws(学习笔记第三十一课)

aws cdk深入学习

学习内容：

深入练习aws cdk下部署batch-arm64-instance-type

1. 深入练习`aws cdk`下部署`batch-arm64-instance-type`

代码链接
- 代码链接
  代码链接 -> batch-arm64-instance-type
- 之前代码学习
  之前学习代码链接 -> aws(学习笔记第十八课) 使用aws cdk(python)进行部署
batch-arm64-instance-type代码测试
- setup环境
  - setup virtual environment
    shell 复制代码
```
python3 -m venv .venv
```
  - 激活python virtual environment
    shell 复制代码
```
source .venv/Scripts/activate #这里使用的是git bash
```
  - 安装python的依赖包
    shell 复制代码
```
 pip install -r requirements.txt
```
  - 代码中cdk.json的python3进行替换
    这里的phthon3没有配置，所以不能执行python3，讲这里改成了python。

代码执行

预先执行cdk bootstrap
cdk提供了bootstrap命令来创建cdk执行需要的前提条件。

shell 复制代码

CDKToolkit: creating CloudFormation changeset...
CDKToolkit |  0/12 | 21:22:46 | REVIEW_IN_PROGRESS   | AWS::CloudFormation::Stack | CDKToolkit User Initiated
CDKToolkit |  0/12 | 21:22:52 | CREATE_IN_PROGRESS   | AWS::CloudFormation::Stack | CDKToolkit User Initiated
CDKToolkit |  0/12 | 21:22:56 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | FilePublishingRole
CDKToolkit |  0/12 | 21:22:56 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | CloudFormationExecutionRole
CDKToolkit |  0/12 | 21:22:56 | CREATE_IN_PROGRESS   | AWS::ECR::Repository    | ContainerAssetsRepository
CDKToolkit |  0/12 | 21:22:56 | CREATE_IN_PROGRESS   | AWS::S3::Bucket         | StagingBucket
CDKToolkit |  0/12 | 21:22:56 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | ImagePublishingRole
CDKToolkit |  0/12 | 21:22:56 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | LookupRole
CDKToolkit |  0/12 | 21:22:56 | CREATE_IN_PROGRESS   | AWS::SSM::Parameter     | CdkBootstrapVersion
CDKToolkit |  0/12 | 21:22:57 | CREATE_IN_PROGRESS   | AWS::SSM::Parameter     | CdkBootstrapVersion Resource creation Initiated
CDKToolkit |  0/12 | 21:22:57 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | FilePublishingRole Resource creation Initiated
CDKToolkit |  0/12 | 21:22:57 | CREATE_IN_PROGRESS   | AWS::ECR::Repository    | ContainerAssetsRepository Resource creation Initiated
CDKToolkit |  0/12 | 21:22:57 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | CloudFormationExecutionRole Resource creation Initiated
CDKToolkit |  0/12 | 21:22:57 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | ImagePublishingRole Resource creation Initiated
CDKToolkit |  0/12 | 21:22:57 | CREATE_IN_PROGRESS   | AWS::S3::Bucket         | StagingBucket Resource creation Initiated
CDKToolkit |  0/12 | 21:22:57 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | LookupRole Resource creation Initiated
CDKToolkit |  1/12 | 21:22:57 | CREATE_COMPLETE      | AWS::SSM::Parameter     | CdkBootstrapVersion
CDKToolkit |  2/12 | 21:22:58 | CREATE_COMPLETE      | AWS::ECR::Repository    | ContainerAssetsRepository
CDKToolkit |  3/12 | 21:23:12 | CREATE_COMPLETE      | AWS::S3::Bucket         | StagingBucket
CDKToolkit |  3/12 | 21:23:14 | CREATE_IN_PROGRESS   | AWS::S3::BucketPolicy   | StagingBucketPolicy
CDKToolkit |  3/12 | 21:23:15 | CREATE_IN_PROGRESS   | AWS::S3::BucketPolicy   | StagingBucketPolicy Resource creation Initiated
CDKToolkit |  4/12 | 21:23:15 | CREATE_COMPLETE      | AWS::S3::BucketPolicy   | StagingBucketPolicy
CDKToolkit |  5/12 | 21:23:16 | CREATE_COMPLETE      | AWS::IAM::Role          | ImagePublishingRole
CDKToolkit |  6/12 | 21:23:16 | CREATE_COMPLETE      | AWS::IAM::Role          | FilePublishingRole
CDKToolkit |  7/12 | 21:23:16 | CREATE_COMPLETE      | AWS::IAM::Role          | CloudFormationExecutionRole
CDKToolkit |  7/12 | 21:23:16 | CREATE_IN_PROGRESS   | AWS::IAM::Policy        | FilePublishingRoleDefaultPolicy
CDKToolkit |  8/12 | 21:23:16 | CREATE_COMPLETE      | AWS::IAM::Role          | LookupRole
CDKToolkit |  8/12 | 21:23:17 | CREATE_IN_PROGRESS   | AWS::IAM::Policy        | ImagePublishingRoleDefaultPolicy
CDKToolkit |  8/12 | 21:23:17 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | DeploymentActionRole
CDKToolkit |  8/12 | 21:23:18 | CREATE_IN_PROGRESS   | AWS::IAM::Policy        | FilePublishingRoleDefaultPolicy Resource creation Initiated
CDKToolkit |  8/12 | 21:23:18 | CREATE_IN_PROGRESS   | AWS::IAM::Policy        | ImagePublishingRoleDefaultPolicy Resource creation Initiated
CDKToolkit |  8/12 | 21:23:19 | CREATE_IN_PROGRESS   | AWS::IAM::Role          | DeploymentActionRole Resource creation Initiated
CDKToolkit |  9/12 | 21:23:34 | CREATE_COMPLETE      | AWS::IAM::Policy        | FilePublishingRoleDefaultPolicy
CDKToolkit | 10/12 | 21:23:34 | CREATE_COMPLETE      | AWS::IAM::Policy        | ImagePublishingRoleDefaultPolicy
CDKToolkit | 11/12 | 21:23:38 | CREATE_COMPLETE      | AWS::IAM::Role          | DeploymentActionRole
CDKToolkit | 12/12 | 21:23:39 | CREATE_COMPLETE      | AWS::CloudFormation::Stack | CDKToolkit
 ✅  Environment aws://081353481087/ap-northeast-1 bootstrapped.

这里，cdk bootstrap命令执行完之后，会生成一个CDKToolkit名字的cloudformation。

如果由于平时的误删除之类的操作，会使CDKToolkit的创建的cdk deploy需要的前提条件遭到破坏。这时如果重新执行cdk bootstrap会导致没有差分执行出来。这时候需要将CDKToolkit这个cloudformation删除掉，之后执行cdk bootstrap命令，这样就会重新生成cdk deploy执行的所有条件。

执行cdk --require-approval never deploy

如果执行不加上--require-approval never，会导致错误，所以这里加上该选项。
Trouble Shouting

如果存在默认的vpc，这里会出现如下错误。

原因在于:
Fn:GetAZs这个函数调用的话，会只返回default VPC的Available Zone的数量，从而影响cdk的执行。

对策：

所以要删除default VPC，不过不用担心，default VPC可以重新创建，大可放心。

代码解析

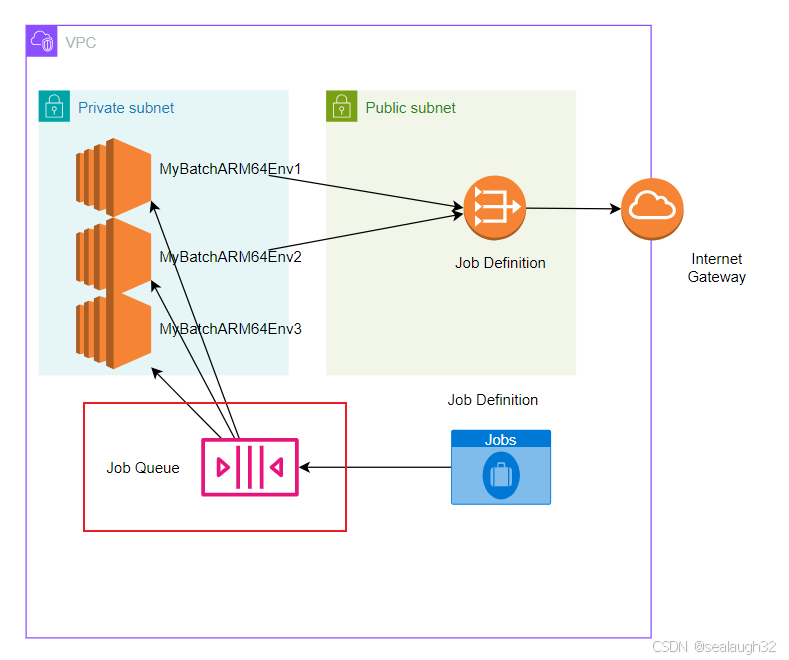

全体架构
作成VPC
python 复制代码
```
 # This resource alone will create a private/public subnet in each AZ as well as nat/internet gateway(s)
vpc = ec2.Vpc(self, "VPC")
```
创建一下service组件：
- 一个VPC
- 一个public subnet
- 一个private subnet
- 一个Internet Gateway
- 一个NAT Gateway Compute Environment通过这个NAT Gateway访问internet

创建Job Queue

python 复制代码

# Create AWS Batch Job Queue
self.batch_queue = batch.JobQueue(self, "JobQueueArm64")
```![在这里插入图片描述](https://i-blog.csdnimg.cn/direct/176bc23f45574046aa99e801861c9014.png)

创建Compute Environment，并将每个Compute Environment分配给JobQueue

python 复制代码

        # For loop to create Batch Compute Environments
        for i in range(count):
            name = "MyBatchARM64Env" + str(i)
            batch_environment = batch.ManagedEc2EcsComputeEnvironment(self, name,
                spot=True,
                spot_bid_percentage=75,
                instance_types=[ec2.InstanceType("c7g.medium"),ec2.InstanceType("c7g.large")],
                use_optimal_instance_classes=False,
                vpc_subnets=ec2.SubnetSelection(subnet_type=ec2.SubnetType.PRIVATE_WITH_NAT),
                vpc=vpc
            )

            self.batch_queue.add_compute_environment(batch_environment, i)

创建Job Defintion

python 复制代码

       # Create ECS Job Definition to submit job in batch job queue.
        batch_jobDef = batch.EcsJobDefinition(self, "MyJobDefArm64",
                                           container=batch.EcsEc2ContainerDefinition(self, "CDKJobDefArm64",
                                               image=ecs.ContainerImage.from_registry("public.ecr.aws/amazonlinux/amazonlinux:latest"),
                                               command=["sleep", "60"],
                                               memory=Size.mebibytes(512),
                                               cpu=1
                                           )
        )

执行job
- 投入新的Job
- Job执行成功
