插爆区域引小buf搬出去

pro modify_txi_insert {file1} {
	set rptId [open "${file1}_mod.tcl"  w 0750]
	set fileId [open ${file1} r 0750]
	set filePtr [split [read $fileId] \n]
	close $filePtr
	for {set lineNum 0} {$lineNum < [llength $filePtr]} {incr lineNum} {
		set line [lindex $filePtr $lineNum]
		if {[regexp {^insert_buffer} $line]} {
			regexp {^\s*(\S*)\s*(\S*)\s*(\S*)} $line match end pin cell
			puts $pin

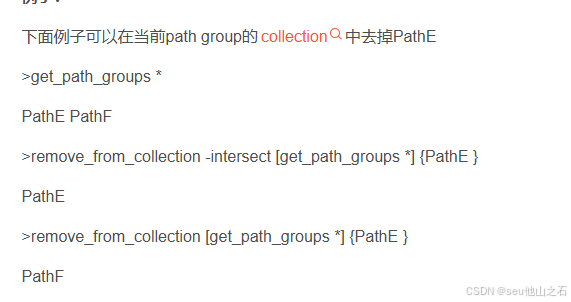

			foreach_in_col pin1 [remove_from_collection [all_fanin -to $pin -flat -levels 1] [get_pins $pin]] {
				set pin_name [get_attr [get_pins $pin1] full_name]
				if {[regexp "/I$" $pin_name]} {
					puts $rptId "$end $pin_name $cell"
				} else {
					puts "$pin is not connect to port buffer"
				}
			}
		}
	}
	close $rpdId
}

处理的文本格式如下

 insert_buffer $pin1/D BUFFD4.*
 insert_buffer $pin2/D DELD1.*
