Mybatis源码分析

Mybatis解析

0.引入

Mybatis源码也是对Jbdc的再一次封装,不管怎么进行包装,还是会有获取链接、preparedStatement、封装参数、执行这些步骤的。本文来探索一下其运行原理。下面从最简单的mybatis使用案例，来看看mybatis的步骤。

public class Test01 {
    // 测试方法！============
    public static void main(String[] args) {
        String configFile = "mybatis-config.xml";
        try (
            // 1. 加载配置文件
            InputStream inputStream = Resources.getResourceAsStream(configFile)) {
            // 2. 创建 SqlSessionFactory 对象
            SqlSessionFactory sessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
            // 3. 获取 SqlSession 对象
            SqlSession sqlSession = sessionFactory.openSession();
            // 获取mapper
            InventoryMapper inventoryMapper = sqlSession.getMapper(InventoryMapper.class);
            // 调用mapper的方法
            List<Inventory> allInventory = inventoryMapper.getAllInventory();
            for (Inventory inventory : allInventory) {
                System.out.println(inventory);
            }

            // System.out.println(inventoryMapper.getInventoryById(1));
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
    }
}
// 实体类对象
@AllArgsConstructor
@NoArgsConstructor
@Data
public class Inventory implements Serializable {
    private static final long serialVersionUID = 1L;
    private Integer goodsId;
    private String goodsName;
    private Date createTime;
    private Date modifyTime;
    private Integer inventory;
}

数据库配置文件

db.driver=com.mysql.cj.jdbc.Driver
db.url=jdbc:mysql://127.0.0.1:3306/trans_inventory?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=Asia/Shanghai
db.username=root
db.password=123456

配置文件如下：

<?xml version="1.0" encoding="utf-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <properties resource="db.properties" />
    <settings>
        <!--开启驼峰命名-->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
    </settings>
    <!-- 配置mybatis的环境信息 -->
    <environments default="development">
        <environment id="development">
            <!-- 配置JDBC事务控制，由mybatis进行管理 -->
            <transactionManager type="jdbc" />
            <!-- 配置数据源，采用dbcp连接池 -->
            <dataSource type="pooled">
                <property name="driver" value="${db.driver}" />
                <property name="url" value="${db.url}" />
                <property name="username" value="${db.username}" />
                <property name="password" value="${db.password}" />
            </dataSource>
        </environment>
    </environments>
    <mappers> <!--mapper映射文件-->
        <mapper resource="mapper/InventoryMapper.xml" />
    </mappers>
</configuration>

mapper接口和xml文件

public interface InventoryMapper {
    List<Inventory> getAllInventory();
    Inventory getInventoryById(@Param("id") Integer id);
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.feng.mapper.InventoryMapper">
    <select id="getAllInventory" resultType="com.feng.entity.Inventory">
        select *
        from inventory
    </select>

    <select id="getInventoryById" resultType="com.feng.entity.Inventory">
        select *
        from inventory
        where goods_id = #{id}
    </select>
</mapper>

1.加载配置文件

InputStream inputStream = Resources.getResourceAsStream(configFile)

可以看到是这一行代码。其中Resources是Mybatis的工具类。从这个开始一层一层往下看

public class Resources {
    // new 了一个ClassLoaderWrapper对象
    private static final ClassLoaderWrapper classLoaderWrapper = new ClassLoaderWrapper();

	public static InputStream getResourceAsStream(String resource) throws IOException {
        return getResourceAsStream(null, resource);
    }

    // loader = null, resource = "xxxx.xml"
    public static InputStream getResourceAsStream(ClassLoader loader, String resource) throws IOException {
        // ====================== 这一行
        InputStream in = classLoaderWrapper.getResourceAsStream(resource, loader);
        if (in == null) {
          throw new IOException("Could not find resource " + resource);
        }
        return in;
    }
}


public class ClassLoaderWrapper {
    ClassLoader defaultClassLoader;
    ClassLoader systemClassLoader;
	// --------- 构造函数
    ClassLoaderWrapper() {
        try {
            // jdk的方法，得到系统类加载器
            systemClassLoader = ClassLoader.getSystemClassLoader();
        } catch (SecurityException ignored) {
            // AccessControlException on Google App Engine
        }
    }

    public InputStream getResourceAsStream(String resource, ClassLoader classLoader) {
        // getResourceAsStream()方法里面用到了 getClassLoaders(null)
        return getResourceAsStream(resource, getClassLoaders(classLoader));
    }
    // 得到所有的类加载器:::classLoader = null
    ClassLoader[] getClassLoaders(ClassLoader classLoader) {
        return new ClassLoader[] { classLoader, defaultClassLoader, Thread.currentThread().getContextClassLoader(),
                                  getClass().getClassLoader(), systemClassLoader };
    }
    // 遍历所有的类加载器，谁加载到了就返回谁的inputStream
    InputStream getResourceAsStream(String resource, ClassLoader[] classLoader) {
        for (ClassLoader cl : classLoader) {
            if (null != cl) {
                // try to find the resource as passed
                InputStream returnValue = cl.getResourceAsStream(resource);
                // now, some class loaders want this leading "/", so we'll add it and try again if we didn't find the resource
                if (null == returnValue) {
                    returnValue = cl.getResourceAsStream("/" + resource);
                }

                if (null != returnValue) {
                    return returnValue;
                }
            }
        }
        return null;
    }
}

主要是通过ClassLoader.getResourceAsStream()方法获取指定的classpath路径下的Resource

2.创建SqlSessionFactory

// 2. 创建 SqlSessionFactory 对象
SqlSessionFactory sessionFactory = new SqlSessionFactoryBuilder().build(inputStream);

第一步，无参构造函数创建了一个SqlSessionFactoryBuilder对象，然后调用其build方法。这很明显是"建造者设计模式"。

主要来看后面的build(inputStream)方法

public class SqlSessionFactoryBuilder {
    public SqlSessionFactory build(InputStream inputStream) {
        return build(inputStream, null, null);
    }

    public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
        try {
          //1.创建一个xml解析的builder，是建造者模式
          XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
          // 2.上面创建的parser.parse()【可以理解为创建Configuration对象，并设置其属性】
          return build(parser.parse()); // 3.build出SqlSessionFactory
        } catch (Exception e) {
          throw ExceptionFactory.wrapException("Error building SqlSession.", e);
        } finally {
          ErrorContext.instance().reset();
          try {
            if (inputStream != null) {
              inputStream.close();
            }
          } catch (IOException e) {
            // Intentionally ignore. Prefer previous error.
          }
        }
     }
    // 3.我们发现SqlSessionFactory默认是DefaultSqlSessionFactory类型的
    public SqlSessionFactory build(Configuration config) {
        return new DefaultSqlSessionFactory(config);
     }
}


// XMLConfigBuilder.java里面
public XMLConfigBuilder(InputStream inputStream, String environment, Properties props) {
    this(Configuration.class, inputStream, environment, props);
  }
public XMLConfigBuilder(Class<? extends Configuration> configClass, InputStream inputStream, String environment,
      Properties props) {
    this(configClass, new XPathParser(inputStream, true, props, new XMLMapperEntityResolver()), environment, props);
  }
private XMLConfigBuilder(Class<? extends Configuration> configClass, XPathParser parser, String environment,
      Properties props) {
    super(newConfig(configClass));
    ErrorContext.instance().resource("SQL Mapper Configuration");
    this.configuration.setVariables(props);
    this.parsed = false;
    this.environment = environment;
    this.parser = parser;
  }

【XMLConfigBuilder类】parser.parse()

public Configuration parse() {
    if (parsed) {
      throw new BuilderException("Each XMLConfigBuilder can only be used once.");
    }
    parsed = true;
    // 一级结点configuration【可以想一想mybatis的配置文件的样子】
    parseConfiguration(parser.evalNode("/configuration"));
    return configuration;
  }
// ===========解析各个结点！！！！！
// ----里面的各个方法都会把解析好的属性设置到configuration成员变量里面
private void parseConfiguration(XNode root) {
    try {
      // issue #117 read properties first
      propertiesElement(root.evalNode("properties"));
      Properties settings = settingsAsProperties(root.evalNode("settings"));
      loadCustomVfsImpl(settings);
      loadCustomLogImpl(settings);
      typeAliasesElement(root.evalNode("typeAliases"));
      pluginsElement(root.evalNode("plugins"));
      objectFactoryElement(root.evalNode("objectFactory"));
      objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
      reflectorFactoryElement(root.evalNode("reflectorFactory"));
      settingsElement(settings);
      /*
       <!-- 配置mybatis的环境信息 -->
    <environments default="development">
        <environment id="development">
            <!-- 配置JDBC事务控制，由mybatis进行管理 -->
            <transactionManager type="jdbc" />
            <!-- 配置数据源，采用dbcp连接池 -->
            <dataSource type="pooled">
                <property name="driver" value="${db.driver}" />
                <property name="url" value="${db.url}" />
                <property name="username" value="${db.username}" />
                <property name="password" value="${db.password}" />
            </dataSource>
        </environment>
    </environments>
      */
      environmentsElement(root.evalNode("environments"));
      databaseIdProviderElement(root.evalNode("databaseIdProvider"));
      typeHandlersElement(root.evalNode("typeHandlers"));
      //===重点关注一下这个。。。====
      mappersElement(root.evalNode("mappers"));
    } catch (Exception e) {
      throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
    }
  }

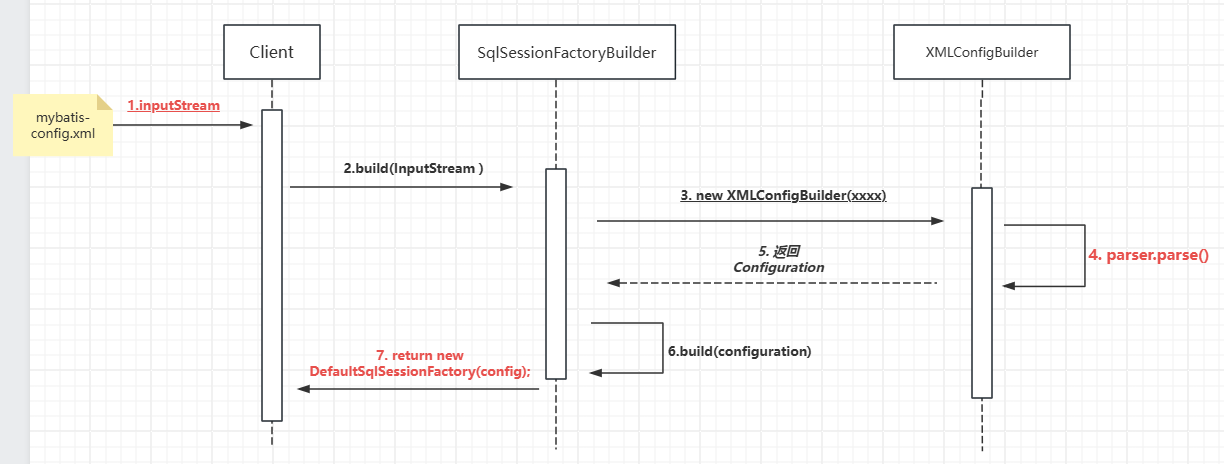

看到这里，我们可以大致梳理一下mybatis初始化的时序图；

调用SqlSessionFactoryBuilder对象的build(inputStream)方法；

SqlSessionFactoryBuilder会根据输入流inputStream等信息创建XMLConfigBuilder对象;

SqlSessionFactoryBuilder调用XMLConfigBuilder对象的parse()方法；

XMLConfigBuilder对象返回Configuration对象；

SqlSessionFactoryBuilder根据Configuration对象创建一个DefaultSessionFactory对象；

SqlSessionFactoryBuilder返回 DefaultSessionFactory对象给Client，供Client使用。

mappersElement(root.evalNode("mappers")) 解析mappers标签

/*
<mappers> <!--mapper映射文件-->
    <mapper resource="mapper/InventoryMapper.xml" />
    <mapper ...........>
</mappers>
*/
private void mappersElement(XNode context) throws Exception {
    //若没有 <mappers> 配置节点，直接返回，无需处理
    if (context == null) {
      return;
    }
    //遍历子节点 context是<mappers>
    for (XNode child : context.getChildren()) { // <mapper>
      //1.如果是包扫描方式
      //扫描指定包路径下的所有 Mapper 接口
      //通过 configuration.addMappers(mapperPackage) 调用,
      //利用反射扫描包中的接口，并自动注册这些 Mapper
      if ("package".equals(child.getName())) {
        String mapperPackage = child.getStringAttribute("name");
        configuration.addMappers(mapperPackage);
      } else {
        //若非 <package> 节点，则处理 <mapper> 配置
        /*
        <mapper resource="..."/> <!-- 类路径下的 XML -->
        <mapper url="..."/>      <!-- 网络或磁盘的 XML -->
        <mapper class="..."/>    <!-- Mapper 接口类 -->
        */
        String resource = child.getStringAttribute("resource");
        String url = child.getStringAttribute("url");
        String mapperClass = child.getStringAttribute("class");
        // resource方式----
        if (resource != null && url == null && mapperClass == null) {
          ErrorContext.instance().resource(resource);
          try (InputStream inputStream = Resources.getResourceAsStream(resource)) {
            XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource,
                configuration.getSqlFragments());
            mapperParser.parse();
          }
        //url方式-----
        } else if (resource == null && url != null && mapperClass == null) {
          ErrorContext.instance().resource(url);
          try (InputStream inputStream = Resources.getUrlAsStream(url)) {
            XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url,
                configuration.getSqlFragments());
            mapperParser.parse();
          }
        // class方式----
        } else if (resource == null && url == null && mapperClass != null) {
          Class<?> mapperInterface = Resources.classForName(mapperClass);
          configuration.addMapper(mapperInterface);
        } else {
          throw new BuilderException(
              "A mapper element may only specify a url, resource or class, but not more than one.");
        }
      }
    }
  }

mapperParser.parse();

public void parse() {
    if (!configuration.isResourceLoaded(resource)) {
      // 1.
      configurationElement(parser.evalNode("/mapper"));
      configuration.addLoadedResource(resource);
      //2.把namespace（接口类型）和工厂类绑定起来
      bindMapperForNamespace();
    }
    // 3.
    parsePendingResultMaps();
    parsePendingCacheRefs();
    // 4.
    parsePendingStatements();
  }

• 第一个： configurationElement(parser.evalNode("/mapper"));

private void configurationElement(XNode context) {
    try {
      String namespace = context.getStringAttribute("namespace");
      if (namespace == null || namespace.isEmpty()) {
        throw new BuilderException("Mapper's namespace cannot be empty");
      }
      builderAssistant.setCurrentNamespace(namespace);
      cacheRefElement(context.evalNode("cache-ref"));
      cacheElement(context.evalNode("cache"));
      parameterMapElement(context.evalNodes("/mapper/parameterMap"));
      resultMapElements(context.evalNodes("/mapper/resultMap"));
      sqlElement(context.evalNodes("/mapper/sql"));
      // 看这里
      buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
    } catch (Exception e) {
      throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
    }
  }

解析标签，可以很清楚的看到有resultMap，很熟悉吧。除此之外，context.evalNodes("select|insert|update|delete")是不是更熟悉了？

解析增删改查：

//buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
private void buildStatementFromContext(List<XNode> list) {
    if (configuration.getDatabaseId() != null) {
      buildStatementFromContext(list, configuration.getDatabaseId());
    }
    buildStatementFromContext(list, null);
  }
private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
    //循环增删改查标签
    for (XNode context : list) {
      final XMLStatementBuilder statementParser = new XMLStatementBuilder(configuration, builderAssistant, context,
          requiredDatabaseId);
      try {
        statementParser.parseStatementNode(); // 看下面的====
      } catch (IncompleteElementException e) {
        configuration.addIncompleteStatement(statementParser);
      }
    }
  }

// 解析增删改查标签的具体方法

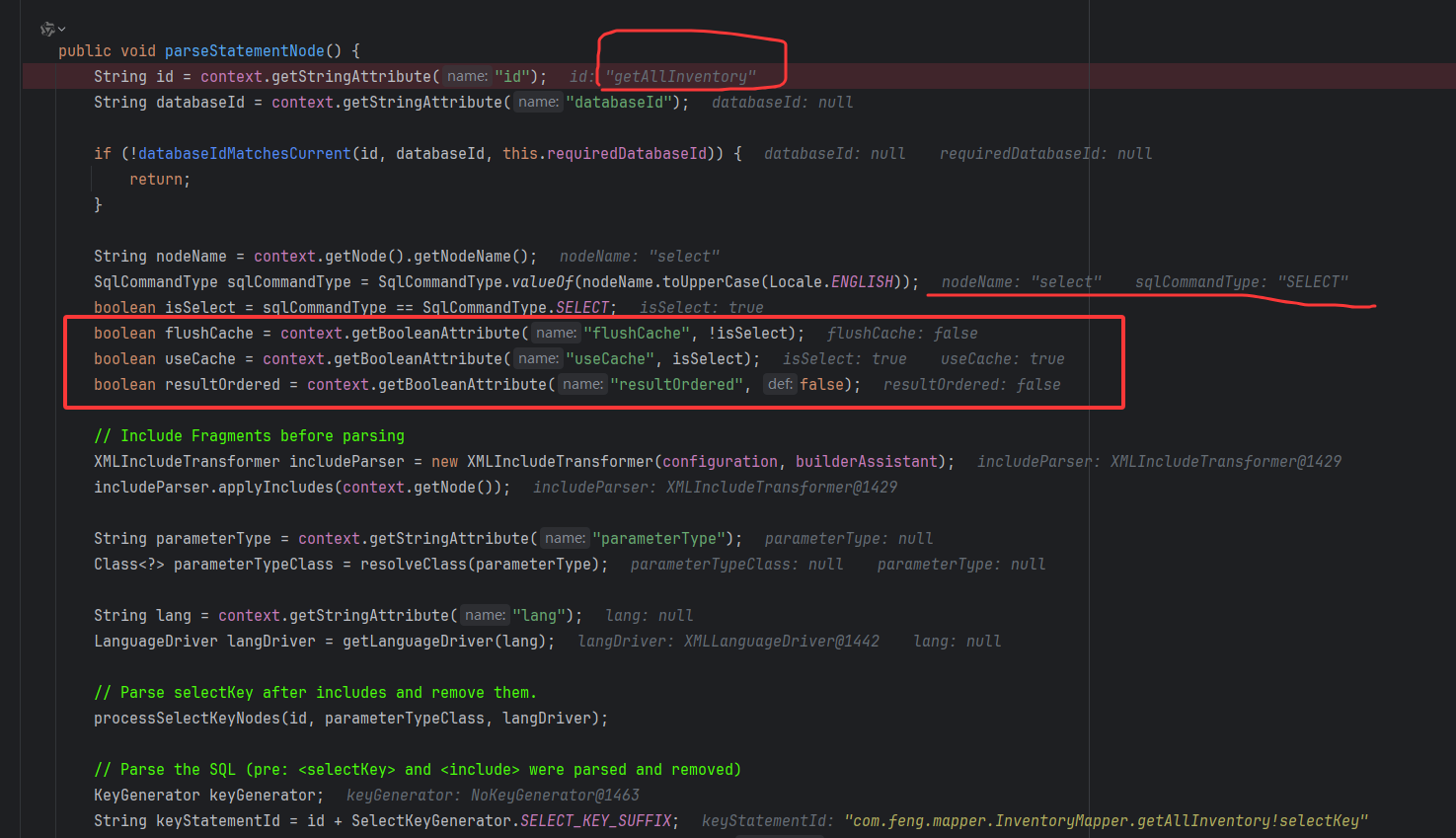

public void parseStatementNode() {
    String id = context.getStringAttribute("id");
    String databaseId = context.getStringAttribute("databaseId");

    if (!databaseIdMatchesCurrent(id, databaseId, this.requiredDatabaseId)) {
      return;
    }

    String nodeName = context.getNode().getNodeName();
    //1.SQL 类型判断
    SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
    boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
    boolean flushCache = context.getBooleanAttribute("flushCache", !isSelect);
    //查询操作（SELECT）默认使用缓存
    boolean useCache = context.getBooleanAttribute("useCache", isSelect);
    boolean resultOrdered = context.getBooleanAttribute("resultOrdered", false);

    // 将 <include refid="..."> 替换为对应的 SQL 片段（如公共的列名列表），实现代码复用
    XMLIncludeTransformer includeParser = new XMLIncludeTransformer(configuration, builderAssistant);
    includeParser.applyIncludes(context.getNode());

    String parameterType = context.getStringAttribute("parameterType");
    Class<?> parameterTypeClass = resolveClass(parameterType);

    String lang = context.getStringAttribute("lang");
    LanguageDriver langDriver = getLanguageDriver(lang);

    // Parse selectKey after includes and remove them.
    processSelectKeyNodes(id, parameterTypeClass, langDriver);

    // Parse the SQL (pre: <selectKey> and <include> were parsed and removed)
    KeyGenerator keyGenerator;
    String keyStatementId = id + SelectKeyGenerator.SELECT_KEY_SUFFIX;
    keyStatementId = builderAssistant.applyCurrentNamespace(keyStatementId, true);
    if (configuration.hasKeyGenerator(keyStatementId)) {
      keyGenerator = configuration.getKeyGenerator(keyStatementId);
    } else {
      keyGenerator = context.getBooleanAttribute("useGeneratedKeys",
          configuration.isUseGeneratedKeys() && SqlCommandType.INSERT.equals(sqlCommandType))
              ? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
    }

    /*
    动态 SQL 解析：将包含 ${}、#{}、<if>、<foreach> 的 SQL 转换为可执行的 SqlSource 对象。
	最终 SQL：根据参数生成实际执行的 SQL 及参数映射（如预编译的 PreparedStatement）
    */
    SqlSource sqlSource = langDriver.createSqlSource(configuration, context, parameterTypeClass);
    StatementType statementType = StatementType
        .valueOf(context.getStringAttribute("statementType", StatementType.PREPARED.toString()));
    Integer fetchSize = context.getIntAttribute("fetchSize");
    Integer timeout = context.getIntAttribute("timeout");
    String parameterMap = context.getStringAttribute("parameterMap");
    String resultType = context.getStringAttribute("resultType");
    Class<?> resultTypeClass = resolveClass(resultType);
    String resultMap = context.getStringAttribute("resultMap");
    if (resultTypeClass == null && resultMap == null) {
      resultTypeClass = MapperAnnotationBuilder.getMethodReturnType(builderAssistant.getCurrentNamespace(), id);
    }
    String resultSetType = context.getStringAttribute("resultSetType");
    ResultSetType resultSetTypeEnum = resolveResultSetType(resultSetType);
    if (resultSetTypeEnum == null) {
      resultSetTypeEnum = configuration.getDefaultResultSetType();
    }
    String keyProperty = context.getStringAttribute("keyProperty");
    String keyColumn = context.getStringAttribute("keyColumn");
    String resultSets = context.getStringAttribute("resultSets");
    boolean dirtySelect = context.getBooleanAttribute("affectData", Boolean.FALSE);

    // 将所有配置封装为 MappedStatement 并注册到 Configuration，供后续执行使用
    builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType, fetchSize, timeout, parameterMap,
        parameterTypeClass, resultMap, resultTypeClass, resultSetTypeEnum, flushCache, useCache, resultOrdered,
        keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets, dirtySelect);
  }

parseStatementNode()该方法负责将 XML 中的 SQL 节点解析为 MyBatis 内部可执行的 MappedStatement，处理包括动态 SQL、参数映射、主键生成、缓存配置等核心逻辑。

• 第二个 bindMapperForNamespace()

// 2.bindMapperForNamespace();往下走会发现是这个
public <T> void addMapper(Class<T> type) {
    if (type.isInterface()) {
      if (hasMapper(type)) {
        throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
      }
      boolean loadCompleted = false;
      try {
        knownMappers.put(type, new MapperProxyFactory<>(type));
        // It's important that the type is added before the parser is run
        // otherwise the binding may automatically be attempted by the
        // mapper parser. If the type is already known, it won't try.
        MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
        parser.parse();
        loadCompleted = true;
      } finally {
        if (!loadCompleted) {
          knownMappers.remove(type);
        }
      }
    }
  }

上述源码表明，每一个mapper接口，和一个Mapper代理工厂对应起来的，存到map里面的。 【 放在knownMappers 】

回到这一节最开始

// 3.我们发现SqlSessionFactory默认是DefaultSqlSessionFactory类型的
public SqlSessionFactory build(Configuration config) {
    return new DefaultSqlSessionFactory(config);
}

这样SqlSessionFactory创建完成了。!!上面中间一大坨都是mybatis的初始化工作

3.SqlSession会话

//3. 获取 SqlSession 对象
SqlSession sqlSession = sessionFactory.openSession();

从上面看出，sessionFactory的类型是DefaultSqlSessionFactory的，所以上面的opensession()是它的方法。

public class DefaultSqlSessionFactory implements SqlSessionFactory {
	@Override
    public SqlSession openSession() {
        // Configuration类中有默认的protected ExecutorType defaultExecutorType = ExecutorType.SIMPLE;
        return openSessionFromDataSource(configuration.getDefaultExecutorType(), null, false);
    }

    // autoCommit: 是否自动提交事务！-- 这里传过来是false
    private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level,
      boolean autoCommit) {
        Transaction tx = null;
        try {
            // 获取环境配置
            /*
            从全局 Configuration 对象中获取环境配置（<environments> 标签的配置），
            包含 数据源（DataSource） 和 事务工厂（TransactionFactory） 信息
            */
            final Environment environment = configuration.getEnvironment();
            // 获取事务工厂 我们配置的是jdbc
            final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
            //基于数据源生成事务对象 Transaction
            //level：事务隔离级别（如 READ_COMMITTED），若未指定则使用数据库默认。
            //autoCommit：是否自动提交事务。这里是false，如果是修改数据库的话
            //需手动调用 sqlSession.commit()。
            tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
            final Executor executor = configuration.newExecutor(tx, execType);
            // MyBatis 默认的 SqlSession 实现，持有 Executor 和 Configuration 对象。
            return new DefaultSqlSession(configuration, executor, autoCommit);
        } catch (Exception e) {
            closeTransaction(tx); // may have fetched a connection so lets call close()
            throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
        } finally {
            ErrorContext.instance().reset();
        }
    }
}

上述方法用于从数据源（DataSource）中创建一个新的 SqlSession 实例，核心流程包含 事务初始化 、执行器创建 和 会话构建 三个阶段。

其中，执行器Executor有三类：

• SIMPLE：普通执行器（默认）。
• REUSE：重用预处理语句（PreparedStatement）。
• BATCH：批量执行更新操作。

public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
    executorType = executorType == null ? defaultExecutorType : executorType;
    Executor executor;
    if (ExecutorType.BATCH == executorType) { // BATCH -- 批处理
      executor = new BatchExecutor(this, transaction);
    } else if (ExecutorType.REUSE == executorType) {
      executor = new ReuseExecutor(this, transaction);
    } else { // ===== 普通执行器
      executor = new SimpleExecutor(this, transaction);
    }
    //若二级缓存开启（cacheEnabled=true），会用 CachingExecutor 包装基础执行器。
    if (cacheEnabled) {
      executor = new CachingExecutor(executor);
    }
    return (Executor) interceptorChain.pluginAll(executor);
  }

4.获取Mapper

InventoryMapper inventoryMapper = sqlSession.getMapper(InventoryMapper.class);

从上面可以知道，sqlSession的类型是DefaultSqlSession。

// 它持有Configuration、Executor
public class DefaultSqlSession implements SqlSession {
    @Override
    public <T> T getMapper(Class<T> type) {
        return configuration.getMapper(type, this);
    }
}
// Configuration.java
public class Configuration {
    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
        return mapperRegistry.getMapper(type, sqlSession);
    }
    // 从knownMappers的Map里根据接口类型(interface mapper.UserMapper)取出对应的工厂类。
    // 在第二节里面【 每一个mapper接口，和一个Mapper代理工厂对应起来的，存到map里面的。】
    @SuppressWarnings("unchecked")
    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
        final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
        if (mapperProxyFactory == null) {
            throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
        }
        try {
            return mapperProxyFactory.newInstance(sqlSession);
        } catch (Exception e) {
            throw new BindingException("Error getting mapper instance. Cause: " + e, e);
        }
    }
}

// mapperProxyFactory.newInstance(sqlSession);======
public class MapperProxyFactory<T> {
    private final Class<T> mapperInterface;
    private final Map<Method, MapperMethodInvoker> methodCache = new ConcurrentHashMap<>();
	....

    @SuppressWarnings("unchecked")
    protected T newInstance(MapperProxy<T> mapperProxy) {
        // jdk动态代理--一看mapperProxy就是实现了jdk的InvocationHandler
        return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
    }

    public T newInstance(SqlSession sqlSession) {
        final MapperProxy<T> mapperProxy = new MapperProxy<>(sqlSession, mapperInterface, methodCache);
        return newInstance(mapperProxy);
    }

}

MapperProxy<T>

public class MapperProxy<T> implements InvocationHandler, Serializable {
    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        try {
            if (Object.class.equals(method.getDeclaringClass())) {
                return method.invoke(this, args);
            }
            return cachedInvoker(method).invoke(proxy, method, args, sqlSession);
        } catch (Throwable t) {
            throw ExceptionUtil.unwrapThrowable(t);
        }
    }
}

5.执行sql

List<Inventory> allInventory = inventoryMapper.getAllInventory();

既然是生成的代理对象，那么肯定是执行的代理方法涩。invoke() 上一节的末尾

public class MapperProxy<T> implements InvocationHandler, Serializable {
    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        try {
            //判断是否需要去执行SQL还是直接执行方法
            if (Object.class.equals(method.getDeclaringClass())) {
                return method.invoke(this, args);
            }
            return cachedInvoker(method).invoke(proxy, method, args, sqlSession);
        } catch (Throwable t) {
            throw ExceptionUtil.unwrapThrowable(t);
        }
    }
    //为 Mapper 接口方法 创建并缓存调用器（MapperMethodInvoker）
    private MapperMethodInvoker cachedInvoker(Method method) throws Throwable {
        try {
            // 1.缓存检查与创建
            //利用 methodCache 缓存已处理的 Method 对象，避免重复创建 Invoker。
            //类似 Java 8 Map 的 computeIfAbsent：若缓存中不存在该 Method，
            // 则通过 Lambda 表达式创建 Invoker 并存入缓存。
            return MapUtil.computeIfAbsent(methodCache, method, m -> {
                //2.1处理普通接口方法（非 default）
                if (!m.isDefault()) {
                    return new PlainMethodInvoker(new MapperMethod(mapperInterface, method, sqlSession.getConfiguration()));
                }
                //2.2 default
                try {
                    if (privateLookupInMethod == null) {
                        return new DefaultMethodInvoker(getMethodHandleJava8(method));
                    }
                    return new DefaultMethodInvoker(getMethodHandleJava9(method));
                } catch (IllegalAccessException | InstantiationException | InvocationTargetException
                         | NoSuchMethodException e) {
                    throw new RuntimeException(e);
                }
            });
        } catch (RuntimeException re) {
            Throwable cause = re.getCause();
            throw cause == null ? re : cause;
        }
    }


}

new PlainMethodInvoker(new MapperMethod(mapperInterface, method, sqlSession.getConfiguration()))

PlainMethodInvoker是MapperProxy的静态内部类

private static class PlainMethodInvoker implements MapperMethodInvoker {
    ....
    @Override
    public Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable {
        // 调用的是MapperMethod::execute()方法
      return mapperMethod.execute(sqlSession, args);
    }
}

MapperMethod：核心类，将方法调用转换为 SQL 操作：

• 解析方法参数。
• 匹配对应的 SQL 语句（通过 SqlCommand）。
• 处理返回结果（通过 MethodSignature）。

// ==MapperMethod.java
public class MapperMethod {
    // 下面的源码一目了然了吧
    public Object execute(SqlSession sqlSession, Object[] args) {
        Object result;
        switch (command.getType()) {
            case INSERT: {
                Object param = method.convertArgsToSqlCommandParam(args);
                result = rowCountResult(sqlSession.insert(command.getName(), param));
                break;
            }
            case UPDATE: {
                Object param = method.convertArgsToSqlCommandParam(args);
                result = rowCountResult(sqlSession.update(command.getName(), param));
                break;
            }
            case DELETE: {
                Object param = method.convertArgsToSqlCommandParam(args);
                result = rowCountResult(sqlSession.delete(command.getName(), param));
                break;
            }
            case SELECT:
                if (method.returnsVoid() && method.hasResultHandler()) {
                    executeWithResultHandler(sqlSession, args);
                    result = null;
                } else if (method.returnsMany()) {
                    result = executeForMany(sqlSession, args);
                } else if (method.returnsMap()) {
                    result = executeForMap(sqlSession, args);
                } else if (method.returnsCursor()) {
                    result = executeForCursor(sqlSession, args);
                } else {
                    Object param = method.convertArgsToSqlCommandParam(args);
                    result = sqlSession.selectOne(command.getName(), param);
                    if (method.returnsOptional() && (result == null || !method.getReturnType().equals(result.getClass()))) {
                        result = Optional.ofNullable(result);
                    }
                }
                break;
            case FLUSH:
                result = sqlSession.flushStatements();
                break;
            default:
                throw new BindingException("Unknown execution method for: " + command.getName());
        }
        if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
            throw new BindingException("Mapper method '" + command.getName()
                                       + "' attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
        }
        return result;
    }
}

对于我们的例子，执行的是查询方法【List allInventory = inventoryMapper.getAllInventory();】

// ==MapperMethod.java
result = executeForMany(sqlSession, args); // 肯定就是走到这里来了

private <E> Object executeForMany(SqlSession sqlSession, Object[] args) {
    List<E> result;
    Object param = method.convertArgsToSqlCommandParam(args);
    if (method.hasRowBounds()) {
        RowBounds rowBounds = method.extractRowBounds(args);
        // 这俩
        result = sqlSession.selectList(command.getName(), param, rowBounds);
    } else {
        result = sqlSession.selectList(command.getName(), param); // 这俩
    }
    // issue #510 Collections & arrays support
    if (!method.getReturnType().isAssignableFrom(result.getClass())) {
        if (method.getReturnType().isArray()) {
            return convertToArray(result);
        }
        return convertToDeclaredCollection(sqlSession.getConfiguration(), result);
    }
    return result;
}
// result = sqlSession.selectList(command.getName(), param);
// 一层层往下会来到
// DefaultSqlsession.java===
private <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds, ResultHandler handler) {
    try {
        MappedStatement ms = configuration.getMappedStatement(statement);
        dirty |= ms.isDirtySelect();
        // 会发现---是执行器运行的sql
        return executor.query(ms, wrapCollection(parameter), rowBounds, handler);
    } catch (Exception e) {
        throw ExceptionFactory.wrapException("Error querying database.  Cause: " + e, e);
    } finally {
        ErrorContext.instance().reset();
    }
}

// CachingExecutor.java
@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler)
    throws SQLException {
    BoundSql boundSql = ms.getBoundSql(parameterObject);
    CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
    return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}
@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler,
                         CacheKey key, BoundSql boundSql) throws SQLException {
    Cache cache = ms.getCache();
    if (cache != null) {
        flushCacheIfRequired(ms);
        if (ms.isUseCache() && resultHandler == null) {
            ensureNoOutParams(ms, boundSql);
            @SuppressWarnings("unchecked")
            List<E> list = (List<E>) tcm.getObject(cache, key);
            if (list == null) {
                list = delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
                tcm.putObject(cache, key, list); // issue #578 and #116
            }
            return list;
        }
    }
    // delegate就是一个Executor类型的
    return delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}

//继续往下到了BaseExecutor.java
private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds,
      ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    List<E> list;
    localCache.putObject(key, EXECUTION_PLACEHOLDER);
    try {
        // 执行查询
        list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
    } finally {
        localCache.removeObject(key);
    }
    localCache.putObject(key, list);
    if (ms.getStatementType() == StatementType.CALLABLE) {
        localOutputParameterCache.putObject(key, parameter);
    }
    return list;
}
// 一直往下PreparedStatementHandler.java
@Override
public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
    // PreparedStatement---它是java.sql包下面的了，所以说底层还是jdbc嚯
    PreparedStatement ps = (PreparedStatement) statement;
    ps.execute();
    return resultSetHandler.handleResultSets(ps);
}

6.mybatis的一二级缓存

一级缓存

MyBatis 的一级缓存是基于 SqlSession 的，也称为会话级缓存。在同一个 SqlSession 中，执行相同的 SQL 查询时，MyBatis 会先从一级缓存中查找是否有对应的结果，如果有则直接返回，而不会再次执行 SQL 查询，从而提高查询性能。

当一个 SqlSession 执行增、删、改操作时，MyBatis 会清空该 SqlSession 的一级缓存，以保证数据的一致性。

二级缓存

二级缓存是基于 Mapper （命名空间）的，也称为全局缓存。多个 SqlSession 可以共享同一个 Mapper 的二级缓存。当开启二级缓存后，不同的 SqlSession 执行相同命名空间下的相同 SQL 查询时，会先从二级缓存中查找结果。

同样，当执行增、删、改操作时，MyBatis 会清空该命名空间下的二级缓存。

一级缓存源码分析

在 MyBatis 中，一级缓存的实现主要涉及 PerpetualCache 类和 BaseExecutor 类。

PerpetualCache 是一个简单的基于 HashMap 的缓存实现，用于存储缓存数据：

public class PerpetualCache implements Cache {
  private final String id;
  private final Map<Object, Object> cache = new HashMap<>();
  public PerpetualCache(String id) {
    this.id = id;
  }
  @Override
  public String getId() {
    return id;
  }
  @Override
  public int getSize() {
    return cache.size();
  }
  @Override
  public void putObject(Object key, Object value) {
    cache.put(key, value);
  }
  @Override
  public Object getObject(Object key) {
    return cache.get(key);
  }
  @Override
  public Object removeObject(Object key) {
    return cache.remove(key);
  }
  @Override
  public void clear() {
    cache.clear();
  }
  // 其他方法省略
}

BaseExecutor 是 MyBatis 执行器的基类，其中包含了一级缓存的逻辑：

public abstract class BaseExecutor implements Executor {

  protected PerpetualCache localCache;

  protected BaseExecutor(Configuration configuration, Transaction transaction) {
    this.localCache = new PerpetualCache("LocalCache");
    // 其他初始化代码
  }

  @Override
  public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
    BoundSql boundSql = ms.getBoundSql(parameter);
    CacheKey key = createCacheKey(ms, parameter, rowBounds, boundSql);
    return query(ms, parameter, rowBounds, resultHandler, key, boundSql);
  }

  @SuppressWarnings("unchecked")
  @Override
  public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
    if (closed) {
      throw new ExecutorException("Executor was closed.");
    }
    if (queryStack == 0 && ms.isFlushCacheRequired()) {
      clearLocalCache();
    }
    List<E> list;
    try {
      queryStack++;
      list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
      if (list != null) {
        handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
      } else {
        list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
      }
    } finally {
      queryStack--;
    }
    // 其他代码省略
    return list;
  }

  private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    List<E> list;
    localCache.putObject(key, EXECUTION_PLACEHOLDER);
    try {
      list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
    } finally {
      localCache.removeObject(key);
    }
    localCache.putObject(key, list);
    return list;
  }

  @Override
  public int update(MappedStatement ms, Object parameter) throws SQLException {
    ErrorContext.instance().resource(ms.getResource()).activity("executing an update").object(ms.getId());
    if (closed) {
      throw new ExecutorException("Executor was closed.");
    }
    clearLocalCache();
    return doUpdate(ms, parameter);
  }

  protected void clearLocalCache() {
    localCache.clear();
  }
  // 其他方法省略
}

在 query 方法中，首先会根据查询条件生成一个 CacheKey，然后从 localCache 中查找是否有对应的结果。如果有则直接返回，否则从数据库中查询，并将结果存入缓存。在 update 方法中，会调用 clearLocalCache 方法清空一级缓存。

二级缓存源码分析

二级缓存的实现涉及 CachingExecutor 类和 Cache 接口的实现类。

CachingExecutor 是一个装饰器类，用于处理二级缓存：

public class CachingExecutor implements Executor {
  private final Executor delegate;
  private final TransactionalCacheManager tcm = new TransactionalCacheManager();

  public CachingExecutor(Executor delegate) {
    this.delegate = delegate;
  }

  @Override
  public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
    BoundSql boundSql = ms.getBoundSql(parameterObject);
    CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
    return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
  }

  @SuppressWarnings("unchecked")
  @Override
  public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
      throws SQLException {
    Cache cache = ms.getCache();
    if (cache != null) {
      flushCacheIfRequired(ms);
      if (ms.isUseCache() && resultHandler == null) {
        ensureNoOutParams(ms, boundSql);
        @SuppressWarnings("unchecked")
        List<E> list = (List<E>) tcm.getObject(cache, key);
        if (list == null) {
          list = delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
          tcm.putObject(cache, key, list); // issue #578 and #116
        }
        return list;
      }
    }
    return delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
  }

  @Override
  public int update(MappedStatement ms, Object parameterObject) throws SQLException {
    flushCacheIfRequired(ms);
    return delegate.update(ms, parameterObject);
  }

  private void flushCacheIfRequired(MappedStatement ms) {
    Cache cache = ms.getCache();
    if (cache != null && ms.isFlushCacheRequired()) {
      tcm.clear(cache);
    }
  }
  // 其他方法省略
}

在 query 方法中，首先会获取 Mapper 的二级缓存对象。如果缓存存在且开启了缓存使用，则从缓存中查找结果。如果缓存中没有结果，则委托给实际的执行器进行查询，并将结果存入缓存。在 update 方法中，会调用 flushCacheIfRequired 方法清空该命名空间下的二级缓存。

总的来说，MyBatis 的一级缓存和二级缓存都是通过 Cache 接口的实现类来存储缓存数据的。**一级缓存基于 SqlSession，二级缓存基于 Mapper 命名空间。**在执行查询时，会先从缓存中查找结果，避免重复查询数据库；在执行增、删、改操作时，会清空相应的缓存，保证数据的一致性。

end.参考

1. https://segmentfault.com/a/1190000038832242#item-3
2. https://mp.weixin.qq.com/s/StHODDhhmaAeuSC6FzBvoQ

引入小节的代码样例仓库见：https://gitee.com/quercus-sp204/sourcecode-and-demos

里面的【mybatis-analysis】模块
mybatis分析
