vue+d3js+fastapi实现天气柱状图折线图饼图

勘察加熊人2025-04-11 8:03

说明：

vue+d3js+fastapi实现天气柱状图折线图饼图

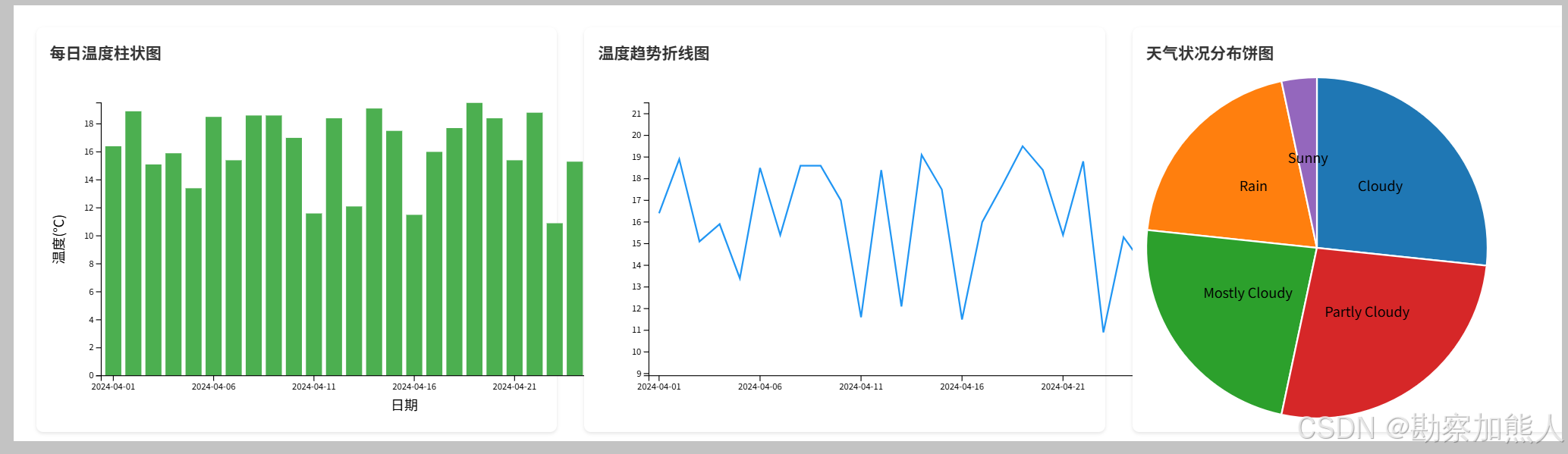

效果图：

step0:postman

bash 复制代码
1. 生成天气数据（POST请求）：


URL: http://localhost:8000/generate-data/?year=2024&month=3&seed=42
方法: POST
Headers:
  Content-Type: application/json
成功响应示例：
{
    "status": "success",
    "message": "成功生成31条天气数据",
    "year": 2024,
    "month": 3
}



2. 查询天气数据（GET请求）：


URL: http://localhost:8000/weather-data/?year=2024&month=4
方法: GET
成功响应示例：



{
    "status": "success",
    "count": 31,
    "year": 2024,
    "month": 3,
    "data": [
        {
            "record_date": "2024-03-01",
            "temperature": 16.4,
            "humidity": 72,
            "precipitation": 0.0,
            "wind_speed": 7.2,
            "weather_condition": "Cloudy"
        },

        {
            "record_date": "2024-03-31",
            "temperature": 17.3,
            "humidity": 62,
            "precipitation": 3.8,
            "wind_speed": 1.4,
            "weather_condition": "Rain"
        }
    ]
}

step1:sql

sql 复制代码
CREATE TABLE weather_data (
    id INT AUTO_INCREMENT PRIMARY KEY,
    record_date DATE NOT NULL,
    temperature DECIMAL(4,1) NOT NULL,  -- 格式：-99.9 到 99.9
    humidity TINYINT UNSIGNED NOT NULL,  -- 范围：0-100
    precipitation DECIMAL(5,1) NOT NULL, -- 最大999.9mm
    wind_speed DECIMAL(4,1) NOT NULL,   -- 最大99.9m/s
    weather_condition VARCHAR(50) NOT NULL,  -- 修改列名
    INDEX (record_date)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

select *from weather_data;

step2:python test

C:\Users\wangrusheng\PycharmProjects\FastAPIProject1\hello.py

python 复制代码
import random
from datetime import date
from decimal import Decimal
import calendar
import pymysql.cursors
import json
# 数据库配置（根据实际情况修改）
DB_CONFIG = {
    'host': 'localhost',
    'user': 'root',
    'password': '123456',
    'db': 'db_school',
    'charset': 'utf8mb4',
    'cursorclass': pymysql.cursors.DictCursor
}


def generate_temperature(rng, min_temp=10.0, max_temp=20.0):
    """生成温度数据（均匀分布）"""
    temp = rng.uniform(min_temp, max_temp)
    return round(temp, 1)


def generate_humidity(rng):
    """生成湿度数据（正态分布）"""
    humidity = rng.gauss(60, 15)
    humidity = max(0, min(humidity, 100))
    return int(round(humidity))


def generate_precipitation(rng):
    """生成降水量数据（20%概率下雨）"""
    if rng.random() < 0.2:
        amount = rng.expovariate(1 / 5.0)  # 平均5mm
        amount = max(0.1, min(amount, 30.0))
        return round(amount, 1)
    return 0.0


def generate_wind_speed(rng):
    """生成风速数据（伽马分布）"""
    speed = rng.gammavariate(2, 2)
    speed = max(0.0, min(speed, 20.0))
    return round(speed, 1)


def get_weather_condition(temperature, precipitation, humidity, rng):
    """根据天气参数判断天气状况"""
    if precipitation > 0:
        return 'Snow' if temperature < 3.0 else 'Rain'
    if humidity >= 70:
        return 'Cloudy'
    if humidity <= 30:
        return 'Sunny'
    return rng.choice(['Partly Cloudy', 'Mostly Cloudy'])


def generate_monthly_weather_data(year, month, rng=None):
    """生成整月天气数据"""
    if rng is None:
        rng = random.Random()

    _, num_days = calendar.monthrange(year, month)
    data = []

    for day in range(1, num_days + 1):
        record_date = date(year, month, day)
        temperature = generate_temperature(rng)
        humidity = generate_humidity(rng)
        precipitation = generate_precipitation(rng)
        wind_speed = generate_wind_speed(rng)
        condition = get_weather_condition(
            temperature, precipitation, humidity, rng
        )

        data.append({
            'record_date': record_date,
            'temperature': temperature,
            'humidity': humidity,
            'precipitation': precipitation,
            'wind_speed': wind_speed,
            'weather_condition': condition
        })

    return data


def insert_weather_data(data):
    """批量插入天气数据到数据库"""
    connection = pymysql.connect(**DB_CONFIG)
    try:
        with connection.cursor() as cursor:
            sql = """
                INSERT INTO weather_data
                (record_date, temperature, humidity, precipitation, wind_speed, weather_condition)
                VALUES (%s, %s, %s, %s, %s, %s)
            """
            params = [
                (
                    d['record_date'],
                    d['temperature'],
                    d['humidity'],
                    d['precipitation'],
                    d['wind_speed'],
                    d['weather_condition']
                )
                for d in data
            ]
            cursor.executemany(sql, params)
        connection.commit()
        return len(data)
    except Exception as e:
        connection.rollback()
        raise e
    finally:
        connection.close()


def get_weather_data(year: int, month: int) -> list:
    """从数据库获取指定年月的天气数据并转换为JSON兼容格式"""
    connection = pymysql.connect(**DB_CONFIG)
    try:
        with connection.cursor() as cursor:
            sql = """
                SELECT record_date, temperature, humidity,
                       precipitation, wind_speed, weather_condition
                FROM weather_data
                WHERE YEAR(record_date) = %s AND MONTH(record_date) = %s
                ORDER BY record_date
            """
            cursor.execute(sql, (year, month))
            results = cursor.fetchall()

            # 转换日期和数值类型
            for record in results:
                record['record_date'] = record['record_date'].isoformat()
                # 处理Decimal类型（如果存在）
                for key in ['temperature', 'precipitation', 'wind_speed']:
                    if isinstance(record[key], Decimal):
                        record[key] = float(record[key])
            return results
    finally:
        connection.close()


if __name__ == '__main__':
    # 示例：生成并插入2024年4月的天气数据
    year = 2024
    month = 4

    # 创建带种子的随机生成器（保证结果可复现）
    rng = random.Random(42)

    try:
        # 生成模拟数据
        weather_data = generate_monthly_weather_data(year, month, rng)

        # 插入数据库
        # inserted_count = insert_weather_data(weather_data)
        # print(f"成功插入{inserted_count}条天气数据")
        # 获取并打印JSON数据
        weather_json = get_weather_data(year, month)
        print(json.dumps(weather_json, indent=2, ensure_ascii=False))

    except Exception as e:
        print(f"操作失败: {str(e)}")

step3:python fastapi

C:\Users\wangrusheng\PycharmProjects\FastAPIProject1\main.py

python 复制代码
from fastapi import FastAPI, HTTPException, Query
from datetime import date
from decimal import Decimal
from typing import Optional
import random
import calendar
import pymysql.cursors
import json
from fastapi.middleware.cors import CORSMiddleware
app = FastAPI()
# CORS配置
app.add_middleware(
    CORSMiddleware,
    allow_origins=["*"],
    allow_credentials=True,
    allow_methods=["*"],
    allow_headers=["*"],
)
# 数据库配置（根据实际情况修改）
DB_CONFIG = {
    'host': 'localhost',
    'user': 'root',
    'password': '123456',
    'db': 'db_school',
    'charset': 'utf8mb4',
    'cursorclass': pymysql.cursors.DictCursor
}

# 以下保持原有函数定义不变（generate_temperature、generate_humidity等）
# [原有函数定义区，保持与问题中完全相同的函数实现]


def generate_temperature(rng, min_temp=10.0, max_temp=20.0):
    """生成温度数据（均匀分布）"""
    temp = rng.uniform(min_temp, max_temp)
    return round(temp, 1)


def generate_humidity(rng):
    """生成湿度数据（正态分布）"""
    humidity = rng.gauss(60, 15)
    humidity = max(0, min(humidity, 100))
    return int(round(humidity))


def generate_precipitation(rng):
    """生成降水量数据（20%概率下雨）"""
    if rng.random() < 0.2:
        amount = rng.expovariate(1 / 5.0)  # 平均5mm
        amount = max(0.1, min(amount, 30.0))
        return round(amount, 1)
    return 0.0


def generate_wind_speed(rng):
    """生成风速数据（伽马分布）"""
    speed = rng.gammavariate(2, 2)
    speed = max(0.0, min(speed, 20.0))
    return round(speed, 1)


def get_weather_condition(temperature, precipitation, humidity, rng):
    """根据天气参数判断天气状况"""
    if precipitation > 0:
        return 'Snow' if temperature < 3.0 else 'Rain'
    if humidity >= 70:
        return 'Cloudy'
    if humidity <= 30:
        return 'Sunny'
    return rng.choice(['Partly Cloudy', 'Mostly Cloudy'])


def generate_monthly_weather_data(year, month, rng=None):
    """生成整月天气数据"""
    if rng is None:
        rng = random.Random()

    _, num_days = calendar.monthrange(year, month)
    data = []

    for day in range(1, num_days + 1):
        record_date = date(year, month, day)
        temperature = generate_temperature(rng)
        humidity = generate_humidity(rng)
        precipitation = generate_precipitation(rng)
        wind_speed = generate_wind_speed(rng)
        condition = get_weather_condition(
            temperature, precipitation, humidity, rng
        )

        data.append({
            'record_date': record_date,
            'temperature': temperature,
            'humidity': humidity,
            'precipitation': precipitation,
            'wind_speed': wind_speed,
            'weather_condition': condition
        })

    return data


def insert_weather_data(data):
    """批量插入天气数据到数据库"""
    connection = pymysql.connect(**DB_CONFIG)
    try:
        with connection.cursor() as cursor:
            sql = """
                INSERT INTO weather_data
                (record_date, temperature, humidity, precipitation, wind_speed, weather_condition)
                VALUES (%s, %s, %s, %s, %s, %s)
            """
            params = [
                (
                    d['record_date'],
                    d['temperature'],
                    d['humidity'],
                    d['precipitation'],
                    d['wind_speed'],
                    d['weather_condition']
                )
                for d in data
            ]
            cursor.executemany(sql, params)
        connection.commit()
        return len(data)
    except Exception as e:
        connection.rollback()
        raise e
    finally:
        connection.close()


def get_weather_data(year: int, month: int) -> list:
    """从数据库获取指定年月的天气数据并转换为JSON兼容格式"""
    connection = pymysql.connect(**DB_CONFIG)
    try:
        with connection.cursor() as cursor:
            sql = """
                SELECT record_date, temperature, humidity,
                       precipitation, wind_speed, weather_condition
                FROM weather_data
                WHERE YEAR(record_date) = %s AND MONTH(record_date) = %s
                ORDER BY record_date
            """
            cursor.execute(sql, (year, month))
            results = cursor.fetchall()

            # 转换日期和数值类型
            for record in results:
                record['record_date'] = record['record_date'].isoformat()
                # 处理Decimal类型（如果存在）
                for key in ['temperature', 'precipitation', 'wind_speed']:
                    if isinstance(record[key], Decimal):
                        record[key] = float(record[key])
            return results
    finally:
        connection.close()



@app.post("/generate-data/")
async def generate_weather_data(
    year: int = Query(..., ge=2000, le=2100, description="年份"),
    month: int = Query(..., ge=1, le=12, description="月份"),
    seed: Optional[int] = Query(None, description="随机种子（可选）")
):
    """生成并插入指定月份的天气数据"""
    try:
        rng = random.Random(seed) if seed else random.Random()
        weather_data = generate_monthly_weather_data(year, month, rng)
        inserted_count = insert_weather_data(weather_data)
        return {
            "status": "success",
            "message": f"成功生成{inserted_count}条天气数据",
            "year": year,
            "month": month
        }
    except ValueError as e:
        raise HTTPException(status_code=400, detail=str(e))
    except Exception as e:
        raise HTTPException(status_code=500, detail=f"数据库操作失败: {str(e)}")

@app.get("/weather-data/")
async def get_weather(
    year: int = Query(..., ge=2000, le=2100, description="年份"),
    month: int = Query(..., ge=1, le=12, description="月份")
):
    """获取指定月份的天气数据"""
    try:
        data = get_weather_data(year, month)
        return {
            "status": "success",
            "count": len(data),
            "year": year,
            "month": month,
            "data": data
        }
    except Exception as e:
        raise HTTPException(status_code=500, detail=f"数据查询失败: {str(e)}")

if __name__ == "__main__":
    import uvicorn
    uvicorn.run(app, host="0.0.0.0", port=8000)

step4:vue

C:\Users\wangrusheng\PycharmProjects\untitled3\src\views\Lottery.vue

typescript 复制代码
<template>
  <div>
    <div class="controls">
      <input v-model.number="year" type="number" placeholder="年份">
      <input v-model.number="month" type="number" placeholder="月份" min="1" max="12">
      <button @click="fetchData">查询</button>
      <button @click="generateData">生成数据</button>
    </div>

    <div class="charts-container">
      <div class="chart-box">
        <h3>每日温度柱状图</h3>
        <div ref="barChart" class="chart"></div>
      </div>

      <div class="chart-box">
        <h3>温度趋势折线图</h3>
        <div ref="lineChart" class="chart"></div>
      </div>

      <div class="chart-box">
        <h3>天气状况分布饼图</h3>
        <div ref="pieChart" class="chart"></div>
      </div>
    </div>
  </div>
</template>

<script>
import * as d3 from 'd3';
import axios from 'axios';

export default {
  data() {
    return {
      weatherData: [],
      year: null,
      month: null
    };
  },
  methods: {
    async fetchData() {
      if (!this.validateInput()) return;

      try {
        const response = await axios.get('http://localhost:8000/weather-data/', {
          params: { year: this.year, month: this.month }
        });
        this.weatherData = response.data.data;
        this.redrawCharts();
      } catch (error) {
        this.handleError(error, '查询');
      }
    },

    async generateData() {
      if (!this.validateInput()) return;

      try {
        const response = await axios.post('http://localhost:8000/generate-data/', null, {
          params: { year: this.year, month: this.month, seed: 42 },
          headers: { 'Content-Type': 'application/json' }
        });
        alert(`生成成功：${response.data.message}`);
        await this.fetchData();
      } catch (error) {
        this.handleError(error, '生成');
      }
    },

    validateInput() {
      if (!this.year || !this.month) {
        alert('请填写年份和月份');
        return false;
      }
      if (this.month < 1 || this.month > 12) {
        alert('月份必须为1-12');
        return false;
      }
      return true;
    },

    handleError(error, operation) {
      console.error(`${operation}失败:`, error);
      alert(`${operation}失败，请检查控制台`);
    },

    redrawCharts() {
      this.clearCharts();
      this.drawBarChart();
      this.drawLineChart();
      this.drawPieChart();
    },

    clearCharts() {
      [this.$refs.barChart, this.$refs.lineChart, this.$refs.pieChart]
        .forEach(ref => ref.innerHTML = '');
    },

    // 各图表绘制方法（保持原有实现，开头添加清除逻辑）
    // 绘制柱状图
    drawBarChart() {
      const margin = { top: 30, right: 30, bottom: 50, left: 60 };
      const width = 800 - margin.left - margin.right;
      const height = 400 - margin.top - margin.bottom;

      const svg = d3.select(this.$refs.barChart)
        .append('svg')
        .attr('width', width + margin.left + margin.right)
        .attr('height', height + margin.top + margin.bottom)
        .append('g')
        .attr('transform', `translate(${margin.left},${margin.top})`);

      // 创建比例尺
      const x = d3.scaleBand()
        .domain(this.weatherData.map(d => d.record_date))
        .range([0, width])
        .padding(0.2);

      const y = d3.scaleLinear()
        .domain([0, d3.max(this.weatherData, d => d.temperature)])
        .range([height, 0]);

      // 添加柱状
      svg.selectAll("rect")
        .data(this.weatherData)
        .join("rect")
          .attr("x", d => x(d.record_date))
          .attr("y", d => y(d.temperature))
          .attr("width", x.bandwidth())
          .attr("height", d => height - y(d.temperature))
          .attr("fill", "#4CAF50");

      // 添加坐标轴
      svg.append("g")
        .attr("transform", `translate(0,${height})`)
        .call(d3.axisBottom(x).tickValues(x.domain().filter((d,i) => !(i%5))));

      svg.append("g")
        .call(d3.axisLeft(y));

      // 添加标签
      svg.append("text")
        .attr("transform", `translate(${width/2}, ${height + 40})`)
        .style("text-anchor", "middle")
        .text("日期");

      svg.append("text")
        .attr("transform", "rotate(-90)")
        .attr("y", 0 - margin.left)
        .attr("x",0 - (height / 2))
        .attr("dy", "1em")
        .style("text-anchor", "middle")
        .text("温度(℃)");
    },



    // 绘制折线图
    drawLineChart() {
      const margin = { top: 30, right: 30, bottom: 50, left: 60 };
      const width = 800 - margin.left - margin.right;
      const height = 400 - margin.top - margin.bottom;

      const svg = d3.select(this.$refs.lineChart)
        .append('svg')
        .attr('width', width + margin.left + margin.right)
        .attr('height', height + margin.top + margin.bottom)
        .append('g')
        .attr('transform', `translate(${margin.left},${margin.top})`);

      // 创建比例尺
      const x = d3.scaleBand()
        .domain(this.weatherData.map(d => d.record_date))
        .range([0, width]);

      const y = d3.scaleLinear()
        .domain([d3.min(this.weatherData, d => d.temperature) - 2, d3.max(this.weatherData, d => d.temperature) + 2])
        .range([height, 0]);

      // 创建折线生成器
      const line = d3.line()
        .x(d => x(d.record_date) + x.bandwidth()/2)
        .y(d => y(d.temperature));

      // 绘制折线
      svg.append("path")
        .datum(this.weatherData)
        .attr("fill", "none")
        .attr("stroke", "#2196F3")
        .attr("stroke-width", 2)
        .attr("d", line);

      // 添加坐标轴
      svg.append("g")
        .attr("transform", `translate(0,${height})`)
        .call(d3.axisBottom(x).tickValues(x.domain().filter((d,i) => !(i%5))));

      svg.append("g")
        .call(d3.axisLeft(y));
    },

    // 绘制饼图
    drawPieChart() {
      const width = 400;
      const height = 400;
      const radius = Math.min(width, height) / 2;

      const svg = d3.select(this.$refs.pieChart)
        .append('svg')
        .attr('width', width)
        .attr('height', height)
        .append('g')
        .attr('transform', `translate(${width/2},${height/2})`);

      // 统计天气状况
      const data = Array.from(
        d3.rollup(this.weatherData,
          v => v.length,
          d => d.weather_condition
        ),
        ([name, value]) => ({name, value})
      );

      // 创建颜色比例尺
      const color = d3.scaleOrdinal()
        .domain(data.map(d => d.name))
        .range(d3.schemeCategory10);

      // 饼图生成器
      const pie = d3.pie()
        .value(d => d.value);

      // 弧形生成器
      const arc = d3.arc()
        .innerRadius(0)
        .outerRadius(radius);

      // 绘制扇形
      const arcs = svg.selectAll("arc")
        .data(pie(data))
        .enter()
        .append("g")
        .attr("class", "arc");

      arcs.append("path")
        .attr("d", arc)
        .attr("fill", d => color(d.data.name))
        .attr("stroke", "white")
        .style("stroke-width", "2px");

      // 添加标签
      arcs.append("text")
        .attr("transform", d => `translate(${arc.centroid(d)})`)
        .attr("text-anchor", "middle")
        .text(d => d.data.name);
    }


  }
};
</script>

<style>
.controls {
  padding: 1rem;
  display: flex;
  gap: 1rem;
  align-items: center;
}

.controls input {
  padding: 0.5rem;
  border: 1px solid #ddd;
  border-radius: 4px;
  width: 120px;
}

.controls button {
  padding: 0.5rem 1rem;
  background: #2196F3;
  color: white;
  border: none;
  border-radius: 4px;
  cursor: pointer;
}

.controls button:hover {
  background: #1976D2;
}

.charts-container {
  display: flex;
  flex-direction: column;
  gap: 2rem;
  padding: 2rem;
}

.chart-box {
  background: white;
  padding: 1rem;
  border-radius: 8px;
  box-shadow: 0 2px 4px rgba(0,0,0,0.1);
  width: 100%;
}

.chart-box h3 {
  margin: 0 0 1rem;
  color: #333;
}

.chart {
  width: 100%;
  height: 400px;
}
</style>

end

//我是分割线

step101: old vue

typescript 复制代码
下面的代码修改：

1.年份 月份 改为可选，
2.新增两个按钮，查询和添加
3.查询和添加，需要做网络请求
4.三个图表 需要垂直排列

1. 生成天气数据（POST请求）：


URL: http://localhost:8000/generate-data/?year=2024&month=3&seed=42
方法: POST
Headers:
  Content-Type: application/json
成功响应示例：
{
    "status": "success",
    "message": "成功生成31条天气数据",
    "year": 2024,
    "month": 3
}

<template>
  <div class="charts-container">
    <div class="chart-box">
      <h3>每日温度柱状图</h3>
      <div ref="barChart" class="chart"></div>
    </div>

    <div class="chart-box">
      <h3>温度趋势折线图</h3>
      <div ref="lineChart" class="chart"></div>
    </div>

    <div class="chart-box">
      <h3>天气状况分布饼图</h3>
      <div ref="pieChart" class="chart"></div>
    </div>
  </div>
</template>

<script>
import * as d3 from 'd3';
import axios from 'axios';

export default {
  data() {
    return {
      weatherData: []
    };
  },
  async mounted() {
    try {
      const response = await axios.get('http://localhost:8000/weather-data/?year=2024&month=4');
      this.weatherData = response.data.data;
      this.drawBarChart();
      this.drawLineChart();
      this.drawPieChart();
    } catch (error) {
      console.error('数据获取失败:', error);
    }
  },
  methods: {
    // 绘制柱状图
    drawBarChart() {
      const margin = { top: 30, right: 30, bottom: 50, left: 60 };
      const width = 800 - margin.left - margin.right;
      const height = 400 - margin.top - margin.bottom;

      const svg = d3.select(this.$refs.barChart)
        .append('svg')
        .attr('width', width + margin.left + margin.right)
        .attr('height', height + margin.top + margin.bottom)
        .append('g')
        .attr('transform', `translate(${margin.left},${margin.top})`);

      // 创建比例尺
      const x = d3.scaleBand()
        .domain(this.weatherData.map(d => d.record_date))
        .range([0, width])
        .padding(0.2);

      const y = d3.scaleLinear()
        .domain([0, d3.max(this.weatherData, d => d.temperature)])
        .range([height, 0]);

      // 添加柱状
      svg.selectAll("rect")
        .data(this.weatherData)
        .join("rect")
          .attr("x", d => x(d.record_date))
          .attr("y", d => y(d.temperature))
          .attr("width", x.bandwidth())
          .attr("height", d => height - y(d.temperature))
          .attr("fill", "#4CAF50");

      // 添加坐标轴
      svg.append("g")
        .attr("transform", `translate(0,${height})`)
        .call(d3.axisBottom(x).tickValues(x.domain().filter((d,i) => !(i%5))));

      svg.append("g")
        .call(d3.axisLeft(y));

      // 添加标签
      svg.append("text")
        .attr("transform", `translate(${width/2}, ${height + 40})`)
        .style("text-anchor", "middle")
        .text("日期");

      svg.append("text")
        .attr("transform", "rotate(-90)")
        .attr("y", 0 - margin.left)
        .attr("x",0 - (height / 2))
        .attr("dy", "1em")
        .style("text-anchor", "middle")
        .text("温度(℃)");
    },

    // 绘制折线图
    drawLineChart() {
      const margin = { top: 30, right: 30, bottom: 50, left: 60 };
      const width = 800 - margin.left - margin.right;
      const height = 400 - margin.top - margin.bottom;

      const svg = d3.select(this.$refs.lineChart)
        .append('svg')
        .attr('width', width + margin.left + margin.right)
        .attr('height', height + margin.top + margin.bottom)
        .append('g')
        .attr('transform', `translate(${margin.left},${margin.top})`);

      // 创建比例尺
      const x = d3.scaleBand()
        .domain(this.weatherData.map(d => d.record_date))
        .range([0, width]);

      const y = d3.scaleLinear()
        .domain([d3.min(this.weatherData, d => d.temperature) - 2, d3.max(this.weatherData, d => d.temperature) + 2])
        .range([height, 0]);

      // 创建折线生成器
      const line = d3.line()
        .x(d => x(d.record_date) + x.bandwidth()/2)
        .y(d => y(d.temperature));

      // 绘制折线
      svg.append("path")
        .datum(this.weatherData)
        .attr("fill", "none")
        .attr("stroke", "#2196F3")
        .attr("stroke-width", 2)
        .attr("d", line);

      // 添加坐标轴
      svg.append("g")
        .attr("transform", `translate(0,${height})`)
        .call(d3.axisBottom(x).tickValues(x.domain().filter((d,i) => !(i%5))));

      svg.append("g")
        .call(d3.axisLeft(y));
    },

    // 绘制饼图
    drawPieChart() {
      const width = 400;
      const height = 400;
      const radius = Math.min(width, height) / 2;

      const svg = d3.select(this.$refs.pieChart)
        .append('svg')
        .attr('width', width)
        .attr('height', height)
        .append('g')
        .attr('transform', `translate(${width/2},${height/2})`);

      // 统计天气状况
      const data = Array.from(
        d3.rollup(this.weatherData,
          v => v.length,
          d => d.weather_condition
        ),
        ([name, value]) => ({name, value})
      );

      // 创建颜色比例尺
      const color = d3.scaleOrdinal()
        .domain(data.map(d => d.name))
        .range(d3.schemeCategory10);

      // 饼图生成器
      const pie = d3.pie()
        .value(d => d.value);

      // 弧形生成器
      const arc = d3.arc()
        .innerRadius(0)
        .outerRadius(radius);

      // 绘制扇形
      const arcs = svg.selectAll("arc")
        .data(pie(data))
        .enter()
        .append("g")
        .attr("class", "arc");

      arcs.append("path")
        .attr("d", arc)
        .attr("fill", d => color(d.data.name))
        .attr("stroke", "white")
        .style("stroke-width", "2px");

      // 添加标签
      arcs.append("text")
        .attr("transform", d => `translate(${arc.centroid(d)})`)
        .attr("text-anchor", "middle")
        .text(d => d.data.name);
    }
  }
};
</script>

<style>
.charts-container {
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(400px, 1fr));
  gap: 2rem;
  padding: 2rem;
}

.chart-box {
  background: white;
  padding: 1rem;
  border-radius: 8px;
  box-shadow: 0 2px 4px rgba(0,0,0,0.1);
}

.chart-box h3 {
  margin: 0 0 1rem;
  color: #333;
}

.chart {
  width: 100%;
  height: 400px;
}
</style>

step102：c++ 模拟数据

C:\Users\wangrusheng\source\repos\CMakeProject1\CMakeProject1\CMakeProject1.cpp

cpp 复制代码
#include <iostream>
#include <random>
#include <vector>
#include <string>
#include <iomanip>
#include <cmath>

struct WeatherData {
    int day;
    double temperature;
    int humidity;
    double precipitation;
    double wind_speed;
    std::string condition;
};

// 生成温度（可指定范围）
double generate_temperature(std::mt19937& gen, double min_temp = 10.0, double max_temp = 20.0) {
    std::uniform_real_distribution<double> dist(min_temp, max_temp);
    return std::round(dist(gen) * 10) / 10.0; // 保留1位小数
}

// 生成湿度（正态分布）
int generate_humidity(std::mt19937& gen) {
    std::normal_distribution<double> dist(60.0, 15.0);
    double humidity = dist(gen);
    humidity = std::clamp(humidity, 0.0, 100.0);
    return static_cast<int>(std::round(humidity));
}

// 生成降水量（20%概率下雨）
double generate_precipitation(std::mt19937& gen) {
    std::bernoulli_distribution rain_dist(0.2);
    if (rain_dist(gen)) {
        std::exponential_distribution<double> amount_dist(1.0 / 5.0); // 平均5mm
        double amount = amount_dist(gen);
        amount = std::clamp(amount, 0.1, 30.0);
        return std::round(amount * 10) / 10.0; // 保留1位小数
    }
    return 0.0;
}

// 生成风速（伽马分布）
double generate_wind_speed(std::mt19937& gen) {
    std::gamma_distribution<double> dist(2.0, 2.0);
    double speed = dist(gen);
    speed = std::clamp(speed, 0.0, 20.0);
    return std::round(speed * 10) / 10.0; // 保留1位小数
}

// 生成天气状况
std::string get_condition(double temp, double precip, int humidity) {
    if (precip > 0) {
        return (temp < 3.0) ? "Snow" : "Rain";
    }

    if (humidity >= 70) return "Cloudy";
    if (humidity <= 30) return "Sunny";

    // 随机选择部分多云或阴天
    static std::vector<std::string> options = { "Partly Cloudy", "Mostly Cloudy" };
    std::uniform_int_distribution<int> dist(0, 1);
    std::mt19937 temp_gen(std::random_device{}());
    return options[dist(temp_gen)];
}

// 生成完整月份数据
std::vector<WeatherData> generate_april_data(std::mt19937& gen) {
    std::vector<WeatherData> data;
    for (int day = 1; day <= 30; ++day) {
        WeatherData wd;
        wd.day = day;
        wd.temperature = generate_temperature(gen);
        wd.humidity = generate_humidity(gen);
        wd.precipitation = generate_precipitation(gen);
        wd.wind_speed = generate_wind_speed(gen);
        wd.condition = get_condition(wd.temperature, wd.precipitation, wd.humidity);
        data.push_back(wd);
    }
    return data;
}

int main() {
    // 初始化随机数生成器
    std::random_device rd;
    std::mt19937 gen(rd());

    // 生成数据
    auto weather_data = generate_april_data(gen);

    // 输出CSV格式
    std::cout << "Day,Temperature,Humidity,Precipitation,Wind Speed,Condition\n";
    for (const auto& wd : weather_data) {
        std::cout << wd.day << ","
            << std::fixed << std::setprecision(1) << wd.temperature << "°C,"
            << wd.humidity << "%,"
            << wd.precipitation << "mm,"
            << wd.wind_speed << "m/s,"
            << wd.condition << "\n";
    }

    return 0;
}

end

相关推荐
MurphyChen5 分钟前
前端请求进化史 ：从 Form 到 Server Actions 🚀
前端·javascript·面试
兰德里的折磨55019 分钟前
基于若依和elementui实现文件上传（导入Excel表）
前端·elementui·excel
喝拿铁写前端23 分钟前
一个列表页面，初级中级高级前端之间的鸿沟就显出来了
前端·架构·代码规范
编程毕设1 小时前
【开题报告+论文+源码】基于SpringBoot+Vue的招聘管理系统的设计与实现
vue.js·spring boot·后端
magic 2451 小时前
ES6变量声明：let、var、const全面解析
前端·javascript·ecmascript·es6
M_chen_M2 小时前
es6学习02-let命令和const命令
前端·学习·es6
好_快2 小时前
Lodash源码阅读-dropWhile
前端·javascript·源码阅读
M_chen_M2 小时前
JS6(ES6)学习01-babel转码器
前端·学习·es6
好_快2 小时前
Lodash源码阅读-dropRightWhile
前端·javascript·源码阅读
二川bro2 小时前
Vue 项目中 package.json 文件的深度解析
前端·vue.js·json
热门推荐
01我决定放弃搞 Java 了02RAG 实践- Ollama+RagFlow 部署本地知识库03从零安装 LLaMA-Factory 微调 Qwen 大模型成功及所有的坑04Vue3 + TypeScript 的 Hooks 实用示例05DeepSeek RAGFlow构建本地知识库系统06如何在WPS和Word/Excel中直接使用DeepSeek功能07【WRF理论第十三期】详细介绍 Registry 的作用、结构和内容08汽车上的各种质量：整备质量、总质量、装载质量、簧上质量、簧下质量09DeepSeek各版本说明与优缺点分析10快刷每日面经😋
