在嵌入式系统开发中，显示设备是与用户交互的重要界面之一。STM32作为一款功能强大的微控制器，支持多种外设接口，其中并口屏的驱动应用非常广泛，其抗干扰性比其他接口更为出色。本文将通过一个实际案例，介绍如何使用STM32驱动并口屏，并展示其原理和实现过程。

书接上文STM32并口屏应用实例：点亮你的显示世界之原理篇我们继续进行并口屏的显示程序设计。

一、页面刷新设计

1.1 画布设置

这里我们讲一下为什么我们使用画布来完成显示刷新。显示刷新有两种方式：第一，通过寻址后向LCD目标地区写入数据，局部更新显示内容，局部更新是指仅对屏幕中发生变化的区域进行更新，而不重新绘制整个屏幕。这种方式类似于在一张纸上只修改需要更改的部分，而不重新绘制整个画面。第二，画布更新是指每次显示更新时，将整个屏幕的内容重新绘制并发送到LCD显示模块。这种方式类似于在一张纸上重新绘制整个画面，而不是只修改部分区域。

优缺点分析：

画布更新的优点

实现简单画布更新的实现相对简单，不需要复杂的逻辑来判断哪些区域发生了变化。开发者只需要将完整的图像数据发送到LCD，由硬件完成显示即可。这种方式在软件开发中减少了逻辑复杂度，降低了出错的可能性。示例：假设需要在屏幕上绘制一个动态的图形（如时钟），使用画布更新时，开发者只需在每次更新时重新绘制整个屏幕，而无需考虑哪些像素是未变化的。
硬件兼容性好对于一些硬件性能较低的系统，全屏更新可以避免复杂的硬件操作。例如，某些LCD驱动芯片可能对局部更新的支持有限，或者需要额外的硬件资源来实现局部刷新。而全屏更新则对硬件要求较低，几乎所有LCD屏都能很好地支持。
显示效果一致全屏更新可以确保屏幕显示内容的一致性，避免因局部更新可能出现的视觉撕裂或闪烁问题。例如，在快速动态显示（如游戏或动画）中，全屏更新可以提供更流畅的视觉体验。
适合动态内容对于显示内容频繁变化的场景（如动画、视频播放等），全屏更新可以更高效地处理显示任务。每次更新都重新绘制整个屏幕，避免了局部更新可能带来的复杂性（如多次局部刷新导致的延迟）。

局部更新的缺点

实现复杂局部更新需要开发者精确地判断哪些区域发生了变化，并仅对这些区域进行更新。这需要额外的逻辑来跟踪屏幕内容的变化，增加了软件实现的复杂度。示例：如果需要在屏幕上动态更新一个数字（如计数器），局部更新需要精确地找到数字所在区域，并仅更新该区域。这需要开发者维护一个屏幕状态的副本，以判断哪些像素需要更新。
硬件支持有限并非所有LCD屏都支持高效的局部更新。某些屏幕可能需要额外的硬件支持（如DMA、双缓冲等）来实现局部刷新，否则可能会导致性能下降或显示异常。
可能引入视觉问题局部更新可能会导致屏幕显示的不一致性，例如在更新过程中可能出现闪烁或撕裂现象。特别是在动态显示场景中，局部更新可能无法提供流畅的视觉效果。
不适合频繁更新对于显示内容频繁变化的场景，局部更新可能并不高效。每次更新都需要判断哪些区域需要刷新，这可能会引入额外的延迟，反而不如全屏更新来得高效。

画布更新的适用场景

动态显示内容：如动画、视频播放等场景，全屏更新可以提供更流畅的视觉效果。
硬件资源有限：对于硬件性能较低的系统，全屏更新可以避免复杂的硬件操作。
开发时间紧张：全屏更新的实现相对简单，适合在开发时间有限的情况下快速实现显示功能。
显示内容频繁变化：当屏幕内容大部分区域都会发生变化时，全屏更新可以避免复杂的局部更新逻辑。

局部更新的适用场景

尽管局部更新在某些情况下可能不如画布更新高效，但在以下场景中仍有其优势：

静态显示内容：当屏幕大部分区域是静态的，只有小部分区域需要动态更新时（如仪表盘、电子书等），局部更新可以节省资源。
低功耗需求：在需要低功耗的应用中，局部更新可以减少屏幕刷新的功耗，延长设备的续航时间。
硬件支持良好：如果硬件平台对局部更新有良好的支持（如支持DMA操作或双缓冲），局部更新可以提高显示效率。

二、程序设计

2.1 原理

再复述一遍安时原理，与后面要写的程序接口相呼应。

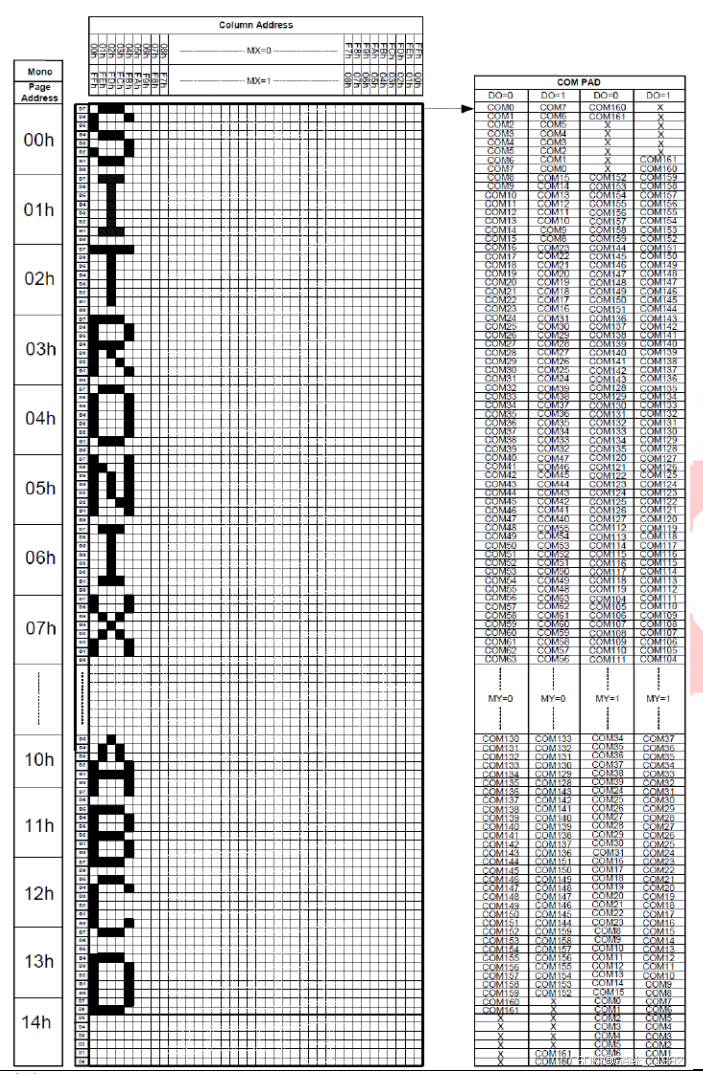

请留意页的定义：PAGE,与平时所讲的"页"并不是一个意思，在此表示 8 个行就是一个"页"，

一个个 256*64 点阵的屏分为 8 个"页"，从第 0"页"到第 7"页"。

DB7--DB0 的排列方向：数据是从下向上排列的。最低位 D0 是在最上面，最高位 D7 是在最下面。

每一位（bit）数据对应一个点阵，通常"1"代表点亮该点阵，"0"代表关掉该点阵.如下图所示：

整个LCD显示屏就是由这些页(像素点阵)组成。

所以，显示原理就是通过工具降我们要显示的字符转换成点阵数据，然后通过显示接口将显示内容写入到对应的页和列。

2.2 接口设计

寻址函数

c 复制代码

/**********************************************************************************************
函数名称: 	Api_lcd_address
功能描述: 	写 LCD 行列地址：X 为起始的列地址Column，Y 为起始的行地址Page，x_total,y_total 分别为列地址及行地址的起点到终点的差值
			x_total 表示写多少个Column(写多少列 字库中的一个Byte)
			y_total 表示写多少个Page  (一般都是汉字16x16和字母8x16写2个Page, 宽x高)
输　入:   	无
输　出:   	无
**************************************************************************************************/
void Api_lcd_address(int x, int y, int x_total, int y_total)
{
	x=x-1;
	y=y-1;

	Api_transfer_cmd_lcd(0x15);	//Set Column Address
	Api_transfer_data_lcd(x);
	Api_transfer_data_lcd(x+x_total-1);

	Api_transfer_cmd_lcd(0x75);	//Set Page Address
	Api_transfer_data_lcd(y);
	Api_transfer_data_lcd(y+y_total-1);
	Api_transfer_cmd_lcd(0x30);
	Api_transfer_cmd_lcd(0x5c);
}

2.3 显示函数接口

根据上一节的寻址函数，我们可以通过对LCD现实屏对应的行列坐标的像素点进行操作。

2.3.1 清屏函数

c 复制代码

/*************************************************************************************************
函数名称: 	Api_clear_screen
功能描述: 	清屏
输　入:   	无
输　出:   	无
*************************************************************************************************/
void Api_clear_screen(void)
{
	int i,j;
	Api_lcd_address(0,0,256,34);
	for(i=0;i<34;i++)
	{
		for(j=0;j<256;j++)
		{
			Api_transfer_data_lcd(0x00);
		}
	}
}

2.3.2 显示256*64点阵的图像

c 复制代码

/****************************************************************************************************
函数名称: 	Api_disp_256x64
功能描述: 	显示256*64点阵的图像
输　入:
输　出:   	无
***************************************************************************************************/
void Api_disp_256x64(int x, int y, uchar *dp)
{
	int i,j;
	Api_lcd_address(x,y,256,8);
	for(i=0;i<8;i++)
	{
		for(j=0;j<256;j++)
		{
			Api_transfer_data_lcd(*dp);
			dp++;
		}
	}
}

2.3.3 画布定义

c 复制代码

/**
  * @brief  OLED 的宽度和高度
  */
#define LCD_WIDTH              256
#define LCD_HEIGHT             64

//LCD的显存
static uint8_t sg_arrFrameBuffer[LCD_HEIGHT / 8][LCD_WIDTH] = {0};  // LCD画布 [Page][Column]

画布操作函数

c 复制代码

/******************************************************************************************************
函数名称: 	Api_disp_canvas_clear
功能描述: 	画布绘画
输　入:
输　出:   	无
*********************************************************************************************************/
void Api_disp_canvas_clear(void)
{
	memset(sg_arrFrameBuffer, 0x00, sizeof(sg_arrFrameBuffer));
}

/**************************************************************************************************
函数名称: 	Api_disp_canvas_painting
功能描述: 	画布绘画
输　入:
输　出:   	无
*******************************************************************************************************/
void Api_disp_canvas_paint(void)
{
	Api_disp_256x64(0, 1, sg_arrFrameBuffer[0]);
}

汉字字符串显示

c 复制代码

/*****************************************************************************************************
函数名称: 	Api_display_label_16x16
功能描述: 	写入一组16x16点阵的汉字字符串（字符串表格中需含有此字）
输　入:   	(页，列，汉字字符串）
输　出:   	无
*******************************************************************************************************/
void Api_display_label_16x16(LcdTxType_e type, uchar column, uchar page, uchar *text, int Len)
{
	uchar i,j,k,m;
	uint32_t address = 0;
	j=0;

	for(m=0; m<Len; m++)
	{
		i=0;
		if(column>255)
		{
			column=0;
			page+=2;
		}
		if(LCD_PAINTING == type)
		{
			Api_lcd_address(column, page+1, 16,2);
		}
		if(address !=1)
		{
			for(k=0;k<2;k++)
			{
				for(i=0;i<16;i++)
				{
					sg_arrFrameBuffer[page+k][column+i] = text[address];
					if(LCD_PAINTING == type)
					{
						Api_transfer_data_lcd(text[address]);
					}
					address++;
				}
			}
			j +=2;
		}
		else
		{
			for(k=0;k<2;k++)
			{
				for(i=0;i<16;i++)
				{
					sg_arrFrameBuffer[page+k][column+i] = 0x00;
					if(LCD_PAINTING == type)
					{
						Api_transfer_data_lcd(0x00);
					}
				}
			}
			j++;
		}
		column+=16;
	}
}

数字英文字符串显示

c 复制代码

/*********************************************************************************************************************
函数名称: 	Api_display_string_8x16
功能描述:
输　入:
输　出:   	无
*********************************************************************************************************************/
void Api_display_string_8x16(LcdTxType_e type, uchar column, uchar page, uchar *text)
{
	char str = text[0];
	uchar i,j,k;
	int idx = 0, address = 0;
	j=0;

	if(column>248)
	{
		column=1;
		page+=2;
	}
	while(text[j]!='\0')
	{
		str = text[j];
		if(column>248)
		{
			column=1;
			page+=2;
		}

		if(LCD_PAINTING == type)
		{
			Api_lcd_address(column, page+1, 8,2);
		}
		if ((idx = IsCharExit(str, ' ', '~')) >= 0)
		{
			address = idx * 16;
			for(k=0;k<2;k++)
			{
				for(i=0;i<8;i++)
				{
					sg_arrFrameBuffer[page+k][column+i] = ASCII_8X16_DATA[address];
					if(LCD_PAINTING == type)
					{
						Api_transfer_data_lcd(ASCII_8X16_DATA[address]);
					}
					address++;
				}
			}
		}
		else
		{
			for(k=0;k<2;k++)
			{
				for(i=0;i<8;i++)
				{
					sg_arrFrameBuffer[page+k][column+i] = 0x00;
					if(LCD_PAINTING == type)
					{
						Api_transfer_data_lcd(0x00);
					}
				}
			}
		}
		column +=8;
		j++;
	}
}

2.4 显示应用

2.4.1 字库

故障信息

c 复制代码

uchar AlarmInfo16x16[]={
/*--  文字:  故  --*/
/*--  新宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
0x08,0x08,0x08,0xFF,0x08,0x08,0x0A,0x04,0x1B,0xE8,0x08,0x08,0x0F,0x08,0x08,0x00,
0x00,0xFE,0x84,0x84,0x84,0xFE,0x01,0x02,0x84,0x68,0x10,0x68,0x84,0x02,0x01,0x00,

/*--  文字:  障  --*/
/*--  新宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
0x00,0x7F,0x40,0x44,0x5B,0x60,0x08,0x4B,0x6A,0x5A,0xCA,0x5A,0x6A,0x4B,0x08,0x00,
0x00,0xFF,0x10,0x08,0x10,0xE0,0x08,0xE8,0xA8,0xA8,0xBF,0xA8,0xA8,0xE8,0x08,0x00,

/*--  文字:  信  --*/
/*--  新宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
0x00,0x01,0x06,0x1F,0xE0,0x00,0x20,0x24,0x24,0xA4,0x64,0x24,0x24,0x24,0x20,0x00,
0x80,0x00,0x00,0xFF,0x00,0x00,0x00,0x9F,0x92,0x92,0x92,0x92,0x92,0x9F,0x00,0x00,

/*--  文字:  息  --*/
/*--  新宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
0x00,0x00,0x00,0x3F,0x2A,0x2A,0x6A,0xAA,0x2A,0x2A,0x2A,0x3F,0x00,0x00,0x00,0x00,
0x02,0x0C,0x00,0xC0,0x9C,0x82,0x82,0xA2,0x9A,0x82,0x82,0xCE,0x00,0x10,0x0C,0x00,
};

无故障

c 复制代码

uchar AlarmNONE16x16[]={
/*--  文字:  无  --*/
/*--  新宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
0x00,0x02,0x42,0x42,0x42,0x43,0x7E,0x42,0x43,0x42,0x42,0x42,0x02,0x02,0x00,0x00,
0x01,0x02,0x04,0x08,0x30,0xC0,0x00,0x00,0xFC,0x02,0x02,0x02,0x02,0x0E,0x00,0x00,

/*--  文字:  故  --*/
/*--  新宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
0x08,0x08,0x08,0xFF,0x08,0x08,0x0A,0x04,0x1B,0xE8,0x08,0x08,0x0F,0x08,0x08,0x00,
0x00,0xFE,0x84,0x84,0x84,0xFE,0x01,0x02,0x84,0x68,0x10,0x68,0x84,0x02,0x01,0x00,

/*--  文字:  障  --*/
/*--  新宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
0x00,0x7F,0x40,0x44,0x5B,0x60,0x08,0x4B,0x6A,0x5A,0xCA,0x5A,0x6A,0x4B,0x08,0x00,
0x00,0xFF,0x10,0x08,0x10,0xE0,0x08,0xE8,0xA8,0xA8,0xBF,0xA8,0xA8,0xE8,0x08,0x00,
};

字符串&数字

c 复制代码

/**
  * @brief      8 * 16 ASCII字符集点阵.
  */
const unsigned char ASCII_8X16_DATA[] =
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",0*/
0x00,0x00,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xCC,0x00,0x00,0x00,0x00,/*"!",1*/
0x00,0x08,0x30,0x40,0x08,0x30,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*""",2*/
0x00,0x02,0x03,0x1E,0x02,0x03,0x1E,0x00,0x00,0x20,0xFC,0x20,0x20,0xFC,0x20,0x00,/*"#",3*/
0x00,0x0E,0x11,0x11,0x3F,0x10,0x0C,0x00,0x00,0x18,0x04,0x04,0xFF,0x84,0x78,0x00,/*"$",4*/
0x0F,0x10,0x0F,0x01,0x06,0x18,0x00,0x00,0x00,0x8C,0x30,0xC0,0x78,0x84,0x78,0x00,/*"%",5*/
0x00,0x0F,0x10,0x11,0x0E,0x00,0x00,0x00,0x78,0x84,0xC4,0x34,0x98,0xE4,0x84,0x08,/*"&",6*/
0x00,0x48,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"'",7*/
0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,/*"(",8*/
0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,/*")",9*/
0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,/*"*",10*/
0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0xF0,0x80,0x80,0x80,/*"+",11*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x09,0x0E,0x00,0x00,0x00,0x00,0x00,/*",",12*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,/*"-",13*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x00,0x00,0x00,/*".",14*/
0x00,0x00,0x00,0x00,0x03,0x1C,0x20,0x00,0x00,0x06,0x18,0xE0,0x00,0x00,0x00,0x00,/*"/",15*/
0x00,0x07,0x08,0x10,0x10,0x08,0x07,0x00,0x00,0xF0,0x08,0x04,0x04,0x08,0xF0,0x00,/*"0",16*/
0x00,0x00,0x08,0x08,0x1F,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0xFC,0x04,0x04,0x00,/*"1",17*/
0x00,0x0E,0x10,0x10,0x10,0x10,0x0F,0x00,0x00,0x0C,0x14,0x24,0x44,0x84,0x0C,0x00,/*"2",18*/
0x00,0x0C,0x10,0x10,0x10,0x11,0x0E,0x00,0x00,0x18,0x04,0x84,0x84,0x44,0x38,0x00,/*"3",19*/
0x00,0x00,0x01,0x02,0x0C,0x1F,0x00,0x00,0x00,0x60,0xA0,0x24,0x24,0xFC,0x24,0x24,/*"4",20*/
0x00,0x1F,0x11,0x11,0x11,0x10,0x10,0x00,0x00,0x98,0x04,0x04,0x04,0x88,0x70,0x00,/*"5",21*/
0x00,0x07,0x08,0x11,0x11,0x09,0x00,0x00,0x00,0xF0,0x88,0x04,0x04,0x04,0xF8,0x00,/*"6",22*/
0x00,0x18,0x10,0x10,0x11,0x16,0x18,0x00,0x00,0x00,0x00,0x7C,0x80,0x00,0x00,0x00,/*"7",23*/
0x00,0x0E,0x11,0x10,0x10,0x11,0x0E,0x00,0x00,0x38,0x44,0x84,0x84,0x44,0x38,0x00,/*"8",24*/
0x00,0x0F,0x10,0x10,0x10,0x08,0x07,0x00,0x00,0x80,0x48,0x44,0x44,0x88,0xF0,0x00,/*"9",25*/
0x00,0x00,0x00,0x03,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x00,/*":",26*/
0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,0x00,/*";",27*/
0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x04,0x00,/*"<",28*/
0x00,0x02,0x02,0x02,0x02,0x02,0x02,0x00,0x00,0x40,0x40,0x40,0x40,0x40,0x40,0x00,/*"=",29*/
0x00,0x10,0x08,0x04,0x02,0x01,0x00,0x00,0x00,0x04,0x08,0x10,0x20,0x40,0x80,0x00,/*">",30*/
0x00,0x0E,0x12,0x10,0x10,0x11,0x0E,0x00,0x00,0x00,0x00,0x0C,0xEC,0x00,0x00,0x00,/*"?",31*/
0x03,0x0C,0x13,0x14,0x17,0x08,0x07,0x00,0xE0,0x18,0xE4,0x14,0xF4,0x14,0xE8,0x00,/*"@",32*/
0x00,0x00,0x03,0x1C,0x07,0x00,0x00,0x00,0x04,0x3C,0xC4,0x40,0x40,0xE4,0x1C,0x04,/*"A",33*/
0x10,0x1F,0x11,0x11,0x11,0x0E,0x00,0x00,0x04,0xFC,0x04,0x04,0x04,0x88,0x70,0x00,/*"B",34*/
0x03,0x0C,0x10,0x10,0x10,0x10,0x1C,0x00,0xE0,0x18,0x04,0x04,0x04,0x08,0x10,0x00,/*"C",35*/
0x10,0x1F,0x10,0x10,0x10,0x08,0x07,0x00,0x04,0xFC,0x04,0x04,0x04,0x08,0xF0,0x00,/*"D",36*/
0x10,0x1F,0x11,0x11,0x17,0x10,0x08,0x00,0x04,0xFC,0x04,0x04,0xC4,0x04,0x18,0x00,/*"E",37*/
0x10,0x1F,0x11,0x11,0x17,0x10,0x08,0x00,0x04,0xFC,0x04,0x00,0xC0,0x00,0x00,0x00,/*"F",38*/
0x03,0x0C,0x10,0x10,0x10,0x1C,0x00,0x00,0xE0,0x18,0x04,0x04,0x44,0x78,0x40,0x00,/*"G",39*/
0x10,0x1F,0x10,0x00,0x00,0x10,0x1F,0x10,0x04,0xFC,0x84,0x80,0x80,0x84,0xFC,0x04,/*"H",40*/
0x00,0x10,0x10,0x1F,0x10,0x10,0x00,0x00,0x00,0x04,0x04,0xFC,0x04,0x04,0x00,0x00,/*"I",41*/
0x00,0x00,0x10,0x10,0x1F,0x10,0x10,0x00,0x03,0x01,0x01,0x01,0xFE,0x00,0x00,0x00,/*"J",42*/
0x10,0x1F,0x11,0x03,0x14,0x18,0x10,0x00,0x04,0xFC,0x04,0x80,0x64,0x1C,0x04,0x00,/*"K",43*/
0x10,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0x04,0x04,0x04,0x04,0x0C,0x00,/*"L",44*/
0x10,0x1F,0x1F,0x00,0x1F,0x1F,0x10,0x00,0x04,0xFC,0x80,0x7C,0x80,0xFC,0x04,0x00,/*"M",45*/
0x10,0x1F,0x0C,0x03,0x00,0x10,0x1F,0x10,0x04,0xFC,0x04,0x00,0xE0,0x18,0xFC,0x00,/*"N",46*/
0x07,0x08,0x10,0x10,0x10,0x08,0x07,0x00,0xF0,0x08,0x04,0x04,0x04,0x08,0xF0,0x00,/*"O",47*/
0x10,0x1F,0x10,0x10,0x10,0x10,0x0F,0x00,0x04,0xFC,0x84,0x80,0x80,0x80,0x00,0x00,/*"P",48*/
0x07,0x08,0x10,0x10,0x10,0x08,0x07,0x00,0xF0,0x08,0x14,0x14,0x0C,0x0A,0xF2,0x00,/*"Q",49*/
0x10,0x1F,0x11,0x11,0x11,0x11,0x0E,0x00,0x04,0xFC,0x04,0x00,0xC0,0x30,0x0C,0x04,/*"R",50*/
0x00,0x0E,0x11,0x10,0x10,0x10,0x1C,0x00,0x00,0x1C,0x04,0x84,0x84,0x44,0x38,0x00,/*"S",51*/
0x18,0x10,0x10,0x1F,0x10,0x10,0x18,0x00,0x00,0x00,0x04,0xFC,0x04,0x00,0x00,0x00,/*"T",52*/
0x10,0x1F,0x10,0x00,0x00,0x10,0x1F,0x10,0x00,0xF8,0x04,0x04,0x04,0x04,0xF8,0x00,/*"U",53*/
0x10,0x1E,0x11,0x00,0x00,0x13,0x1C,0x10,0x00,0x00,0xE0,0x1C,0x70,0x80,0x00,0x00,/*"V",54*/
0x10,0x1F,0x00,0x1F,0x00,0x1F,0x10,0x00,0x00,0xC0,0x7C,0x80,0x7C,0xC0,0x00,0x00,/*"W",55*/
0x10,0x18,0x16,0x01,0x01,0x16,0x18,0x10,0x04,0x0C,0x34,0xC0,0xC0,0x34,0x0C,0x04,/*"X",56*/
0x10,0x1C,0x13,0x00,0x13,0x1C,0x10,0x00,0x00,0x00,0x04,0xFC,0x04,0x00,0x00,0x00,/*"Y",57*/
0x08,0x10,0x10,0x10,0x13,0x1C,0x10,0x00,0x04,0x1C,0x64,0x84,0x04,0x04,0x18,0x00,/*"Z",58*/
0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,/*"[",59*/
0x00,0x20,0x1C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x1C,0x03,0x00,/*"\",60*/
0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,/*"]",61*/
0x00,0x00,0x20,0x40,0x40,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"^",62*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,/*"_",63*/
0x00,0x40,0x40,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"`",64*/
0x00,0x00,0x01,0x01,0x01,0x00,0x00,0x00,0x00,0x98,0x24,0x24,0x48,0xFC,0x04,0x00,/*"a",65*/
0x08,0x0F,0x00,0x01,0x01,0x00,0x00,0x00,0x00,0xFC,0x88,0x04,0x04,0x88,0x70,0x00,/*"b",66*/
0x00,0x00,0x00,0x01,0x01,0x01,0x00,0x00,0x00,0x70,0x88,0x04,0x04,0x04,0x88,0x00,/*"c",67*/
0x00,0x00,0x01,0x01,0x01,0x09,0x0F,0x00,0x00,0xF8,0x04,0x04,0x04,0x08,0xFC,0x04,/*"d",68*/
0x00,0x00,0x01,0x01,0x01,0x01,0x00,0x00,0x00,0xF8,0x24,0x24,0x24,0x24,0xE8,0x00,/*"e",69*/
0x00,0x01,0x01,0x07,0x09,0x09,0x04,0x00,0x00,0x04,0x04,0xFC,0x04,0x04,0x00,0x00,/*"f",70*/
0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x00,0x00,0xD6,0x29,0x29,0x29,0xC9,0x06,0x00,/*"g",71*/
0x08,0x0F,0x00,0x01,0x01,0x01,0x00,0x00,0x04,0xFC,0x84,0x00,0x00,0x04,0xFC,0x04,/*"h",72*/
0x00,0x01,0x19,0x19,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0xFC,0x04,0x04,0x00,0x00,/*"i",73*/
0x00,0x00,0x00,0x01,0x19,0x19,0x00,0x00,0x00,0x03,0x01,0x01,0x01,0xFE,0x00,0x00,/*"j",74*/
0x08,0x0F,0x00,0x00,0x01,0x01,0x01,0x00,0x04,0xFC,0x24,0x60,0x94,0x0C,0x04,0x00,/*"k",75*/
0x00,0x08,0x08,0x1F,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0xFC,0x04,0x04,0x00,0x00,/*"l",76*/
0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x00,0x04,0xFC,0x04,0x00,0xFC,0x04,0x00,0xFC,/*"m",77*/
0x01,0x01,0x00,0x01,0x01,0x01,0x00,0x00,0x04,0xFC,0x84,0x00,0x00,0x04,0xFC,0x04,/*"n",78*/
0x00,0x00,0x01,0x01,0x01,0x01,0x00,0x00,0x00,0xF8,0x04,0x04,0x04,0x04,0xF8,0x00,/*"o",79*/
0x01,0x01,0x00,0x01,0x01,0x00,0x00,0x00,0x01,0xFF,0x89,0x04,0x04,0x88,0x70,0x00,/*"p",80*/
0x00,0x00,0x00,0x01,0x01,0x00,0x01,0x00,0x00,0x70,0x88,0x04,0x04,0x89,0xFF,0x01,/*"q",81*/
0x01,0x01,0x01,0x00,0x01,0x01,0x01,0x00,0x04,0x04,0xFC,0x84,0x04,0x00,0x80,0x00,/*"r",82*/
0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x00,0x00,0xCC,0x24,0x24,0x24,0x24,0x98,0x00,/*"s",83*/
0x00,0x01,0x01,0x07,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0xF8,0x04,0x04,0x08,0x00,/*"t",84*/
0x01,0x01,0x00,0x00,0x00,0x01,0x01,0x00,0x00,0xF8,0x04,0x04,0x04,0x08,0xFC,0x04,/*"u",85*/
0x01,0x01,0x01,0x00,0x01,0x01,0x01,0x00,0x00,0xC0,0x30,0x0C,0x30,0xC0,0x00,0x00,/*"v",86*/
0x01,0x01,0x00,0x01,0x01,0x00,0x01,0x01,0x80,0x70,0x0C,0x30,0xE0,0x1C,0x60,0x80,/*"w",87*/
0x00,0x01,0x01,0x01,0x00,0x01,0x01,0x00,0x00,0x04,0x8C,0x70,0x74,0x8C,0x04,0x00,/*"x",88*/
0x01,0x01,0x01,0x00,0x00,0x01,0x01,0x01,0x00,0x81,0x61,0x1E,0x18,0x60,0x80,0x00,/*"y",89*/
0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x00,0x00,0x84,0x0C,0x34,0x44,0x84,0x0C,0x00,/*"z",90*/
0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,/*"{",91*/
0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,/*"|",92*/
0x40,0x40,0x3F,0x00,0x00,0x00,0x00,0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,/*"}",93*/
0x00,0x40,0x80,0x40,0x40,0x20,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"~",94*/
};

2.4.2 显示示例

进一步的，通过在LCD的页，列坐标上写入定义好的数据，将会显示出我们需要的内容。程序设计将在下一章STM32并口屏应用实例：点亮你的显示世界之程序篇内容中作详细讲解分析。

c 复制代码

char cmd_str[20];

Api_display_string_8x16(type,  20, 1, (uchar *)"4.");
Api_display_label_16x16(type,  36, 1, AlarmInfo16x16, sizeof(AlarmInfo16x16)/32);
Api_display_string_8x16(type, 100, 1, (uchar *)":");
Api_display_label_16x16(type, 134, 1, AlarmNONE16x16, sizeof(AlarmNONE16x16)/32);

Api_display_string_8x16(type, 20, 3, (uchar *)"5.ModSta1 :");
memset(cmd_str, 0, 20);
snprintf(cmd_str, 20, "0x%08X", pSt_DisPara.pU32_DCstatus1);
Api_display_string_8x16(type, 118, 3, (uchar *)cmd_str);

Api_display_string_8x16(type, 20, 5, (uchar *)"6.ModSta2 :");
memset(cmd_str, 0, 20);
snprintf(cmd_str, 20, "0x%08X", pSt_DisPara.pU32_DCstatus2)

三、效果展示

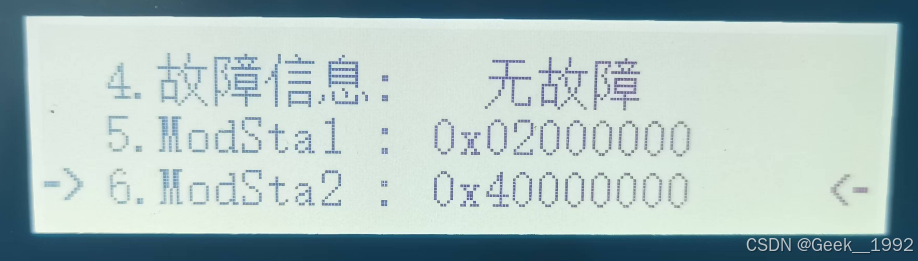

通过上述代码，我们成功驱动了8位并口的液晶屏，实现了参数的显示。如下：

复制代码

特殊符号显示
中英文字符串显示
十六进制数据显示
十进制数据显示

四、总结

本文通过一个实际案例，展示了如何使用STM32驱动8位并口屏。通过硬件连接和软件编程，我们实现了屏幕的初始化、数据传输和显示功能。并口屏以其快速的数据传输能力，在嵌入式显示领域具有广泛的应用前景。希望本文能为你的项目提供参考和启发。

一般LCD都会设计多种通信接口，例如，在我们示例中所应用的JLX25664有设计IIC接口、4线SPI接口，并口包括6800和8080系列的并口，区别只是在通信调用接口不同，寄存器地址和寄存器数据控制写入的逻辑大差不差，需要的可进一步阅读LCD规格书。如果自己找不到的话需要的可以联系交流。
