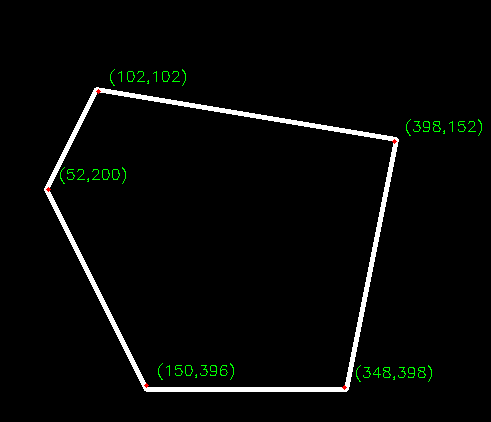

效果图
轮廓检测方法：
python
import cv2
import numpy as np
# 创建画布
canvas_size = 500
img = np.zeros((canvas_size, canvas_size, 3), dtype=np.uint8) # 可视化用彩色图像
binary = np.zeros((canvas_size, canvas_size), dtype=np.uint8) # 处理用二值图像
# 定义多边形顶点（示例为五边形）
vertices = np.array([[100, 100], [400, 150], [350, 400], [150, 400], [50, 200]], dtype=np.int32)
# 绘制带厚度的白色多边形
cv2.polylines(img, [vertices], isClosed=True, color=(255, 255, 255), thickness=2)
cv2.polylines(binary, [vertices], isClosed=True, color=255, thickness=2)
# 轮廓检测
contours, hierarchy = cv2.findContours(binary, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)
# 筛选内轮廓（具有父轮廓的）
inner_contours = []
if hierarchy is not None:
hierarchy = hierarchy[0] # 去除外层维度
for i, (_, _, _, parent_idx) in enumerate(hierarchy):
if parent_idx != -1: # 存在父轮廓的即为内轮廓
inner_contours.append(contours[i])
# 处理找到的第一个内轮廓
if inner_contours:
# 使用多边形近似算法
epsilon = 0.01 * cv2.arcLength(inner_contours[0], True)
approx = cv2.approxPolyDP(inner_contours[0], epsilon, True)
# 提取顶点坐标
inner_vertices = approx.reshape(-1, 2)
# 可视化标记
for (x, y) in inner_vertices:
cv2.circle(img, (x, y), 2, (0, 0, 255), -1) # 红色标记顶点
cv2.putText(img, f"({x},{y})", (x + 10, y - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 255, 0), 1)
# 显示结果
cv2.imshow('Polygon with Inner Vertices', img)
cv2.waitKey(0)
cv2.destroyAllWindows()
# 输出顶点坐标
if inner_contours:
print("内轮廓顶点坐标：")
print(inner_vertices)
else:
print("未检测到内轮廓")
