GraphRAG: 解锁大模型对叙述性私有数据的检索能力

之前在做一个智能客服相关项目的时候,基于传统RAG方式总感觉回答单一,缺少全局性,微软开源的GraphRAG引起了一些轰动,下面主要通过微软他们自己的微软博客去做相关的一点分析。

简单来说,微软开源的GraphRAG技术,是一种结合了知识图谱的检索增强生成技术,可以显著提升AI知识库的性能。GraphRAG能够捕捉实体之间的复杂关系和层次结构,从而提升检索的精确度。然而,GraphRAG的使用成本较高,尤其是在处理大文档时,需要调用大量的API请求。此外,使用本地大模型时,提取实体的过程较为漫长,且嵌入环节可能出现报错。尽管如此,GraphRAG的开源旨在依靠社群的力量去优化它。

为什么我们需要GraphRAG

LLM 面临的最大挑战(也是最大的机遇)或许是将其强大的能力扩展到解决训练数据之外的问题,并使用 LLM 从未见过的数据获得可比的结果。这为数据调查开辟了新的可能性,例如根据上下文和数据集识别主题和语义概念。在本文中,我们介绍了微软研究院创建的 GraphRAG,这是增强 LLM 能力的一项重大进步。

检索增强生成 (RAG) 是一种根据用户查询搜索信息并提供结果作为生成 AI 答案的参考的技术。该技术是大多数基于 LLM 的工具的重要组成部分,大多数 RAG 方法都使用向量相似性作为搜索技术。GraphRAG 使用 LLM 生成的知识图谱,在对复杂信息进行文档分析时显著提高问答性能。这建立在我们最近的研究基础之上,该研究指出在私有数据集上执行发现时提示词增强(prompt augmentation)的能力。

在这里,我们将私有数据集定义为 LLM 未经过训练且从未见过的数据,例如企业的专有研究、商业文档或通信。Baseline RAG 是为了帮助解决这个问题而创建的,但我们观察到 Baseline RAG 表现非常差的情况。例如:

  • Baseline RAG 很难将各个点连接起来。当回答问题需要通过共享属性遍历不同的信息片段以提供新的综合见解时,就会发生这种情况。
  • 当被要求全面理解大型数据集甚至单个大型文档中的总结语义概念时,Baseline RAG 表现不佳。

为了解决这一问题,技术社区正在努力开发扩展和增强 RAG 的方法(例如 LlamaIndex)。微软研究院的新方法 GraphRAG 使用 LLM 创建基于私有数据集的知识图谱。然后,此图谱与图机器学习一起使用,在查询时执行提示词增强。GraphRAG 在回答上述两类问题方面表现出显著的进步,表现出的智能或掌握程度优于之前应用于私有数据集的其他方法。

将 RAG 应用于私有数据集

为了证明 GraphRAG 的有效性,让我们首先使用新闻文章中的暴力事件信息 (VIINA) 数据集 进行调查。之所以选择此数据集,是因为它的复杂性以及存在不同意见和部分信息。这是一个混乱的真实世界测试案例,而且时间还很短,因此没有被纳入 LLM 基础模型的训练中。

在本研究中,我们使用了2023年6月来自俄罗斯和乌克兰新闻来源的数千篇新闻文章,以创建一个私有数据集,我们将在该数据集上执行基于 LLM 的检索。该数据集太大,无法放入 LLM 上下文窗口,因此需要采用 RAG 方法。

我们从一个探索性查询开始,该查询针对基线 RAG 系统和我们的新方法 GraphRAG 提出:

Query: "What is Novorossiya?"

Baseline RAG GraphRAG
The term "Novorossiya" is not mentioned in the provided context. However, to provide some information, Novorossiya, or New Russia, is a historical term referring to a region in the south of Ukraine that was conquered by the Russian Empire in the 18th century. In recent years, the term has been revived by Russian-backed separatists in Eastern Ukraine to refer to the territories they claim, but it is not officially recognized as a separate entity by international bodies. 1. Novorossiya, also known as New Russia, is a term with historical and contemporary significance. Historically, it referred to a region in the southern part of the Russian Empire that is now part of Ukraine. In the contemporary context, it has been used by pro-Russian separatists to refer to certain areas of Ukraine [Data: Entities (6494, 912, 6493)]. 2. The term Novorossiya has been used in the context of a political movement in Ukraine, particularly by Russian nationalists. This movement has been associated with efforts to destabilize Ukraine and create a so-called "Novorossiya" [Data: Entities (912); Relationships (15211, 15206)]. The term has also been used to denote a separatist state in Ukraine, known as the Federal Republic of Novorossiya (FRN) [Data: Entities (7690)].

在这些结果中,我们可以看到两个系统都表现良好 - 突出显示了基线 RAG 表现良好的一类查询。让我们尝试一个需要连接点的查询:

Query: "What has Novorossiya done?"

Baseline RAG GraphRAG
The text does not provide specific information on what Novorossiya has done. 1. Novorossiya, a political movement in Ukraine, has been involved in a series of destructive activities, particularly targeting various entities in Ukraine [Entities (6494, 912)]. The movement has been linked to plans to destroy properties of several Ukrainian entities, including Rosen, the Odessa Canning Factory, the Odessa Regional Radio Television Transmission Center, and the National Television Company of Ukraine [Relationships (15207, 15208, 15209, 15210)]. In addition to these, Novorossiya has also been associated with plans to destroy properties of Roshen, the Odessa Conservatory Factory, the Odesa Regional Radio Television Transmission Center, and the National Telecommunications Company of Ukraine [Relationships (8329, 8330, 8331, 8332)]. Furthermore, Novorossiya has been implicated in plans to blow up ATMs of PrivatBank, the largest state bank in Ukraine[Relationships (8335, 8335)]. 2. The Office of the General Prosecutor in Ukraine has reported on the creation of Novorossiya, indicating the government's awareness and potential concern over the activities of this movement [Relationships (8264, 8264)]. The destructive activities of Novorossiya have had significant impacts on the targeted entities and have likely contributed to the ongoing tensions and conflicts in the region. / In summary, Novorossiya has been involved in a series of destructive activities targeting various entities in Ukraine. These activities have had significant impacts on the targeted entities and have likely contributed to the ongoing tensions and conflicts in the region. The Ukrainian government, through the Office of the General Prosecutor, has acknowledged the existence and activities of Novorossiya, indicating a level of concern over the movement's actions.

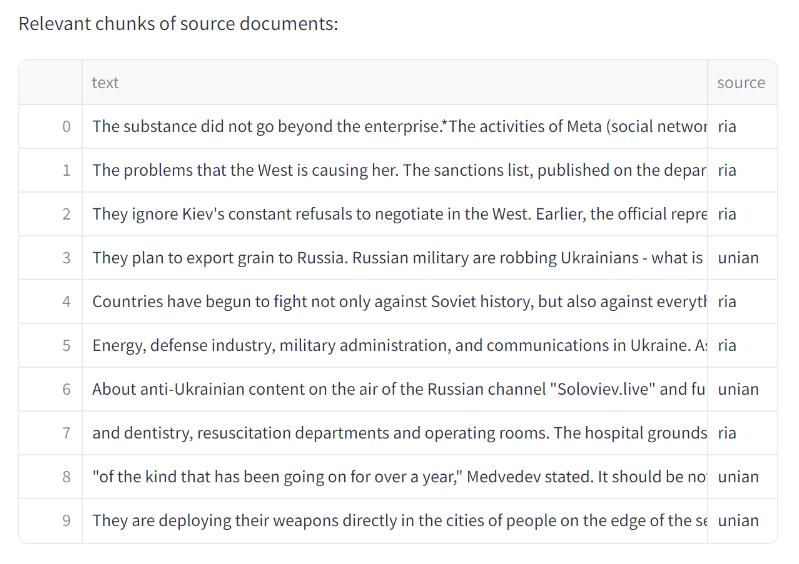

基线 RAG 无法回答这个问题。查看插入上下文窗口的源文档(见下图),没有任何文本片段讨'Novorossiya',导致此问题。

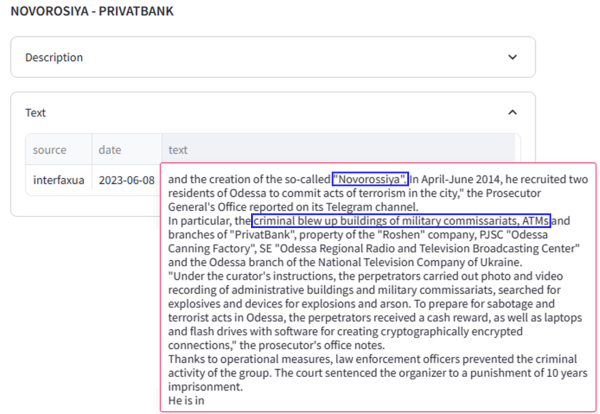

相比之下,GraphRAG 方法在查询 Novorossiya 中发现了一个实体。这使得 LLM 能够在图中立足,并通过指向原始支持文本的链接得出包含出处的更优答案。例如,下图 2 显示了 LLM 用于 LLM 生成的声明"Novorossiya has been implicated in plans to blow up ATMs"的确切内容。我们看到了原始源文档(经过英文翻译)中的片段,LLM 使用该片段通过图中两个实体之间存在的关系来支持这一断言。

通过使用 LLM 生成的知识图谱,GraphRAG 极大地改进了 RAG 的"检索"部分,用更高相关性的内容填充上下文窗口,从而得到更好的答案并捕获证据来源。

能够信任和验证 LLM 生成的结果始终很重要。我们关心的是结果是否正确、连贯,并准确代表源材料中的内容。GraphRAG 在生成每个响应时提供出处或来源基础信息。它表明答案是基于数据集的。每个断言的引用来源随时可用,也使人类用户能够快速准确地直接对照原始源材料审核 LLM 的输出。

然而,这并不是使用 GraphRAG 所能实现的全部。

全数据集推理

Baseline RAG 很难处理需要汇总整个数据集的信息才能得出答案的查询。诸如"数据中的前 5 个主题是什么?"之类的查询表现不佳,因为 Baseline RAG 依赖于对数据集内语义相似的文本内容进行向量搜索。查询中没有任何内容可以将其引导至正确的信息。

但是,使用 GraphRAG,我们可以回答这些问题,因为 LLM 生成的知识图谱的结构告诉我们整个数据集的结构(以及主题)。这允许将私有数据集组织成预先汇总的有意义的语义集群。在响应用户查询时,LLM 使用这些集群来总结这些主题。

我们通过向这两个系统提出以下问题来说明全数据集推理能力:

Query: "What are the top 5 themes in the data?"

Baseline RAG GraphRAG
1. Improving the quality of life in cities and urban development. 2. The meeting between Vladimir Putin and the President of the United Arab Emirates, Mohammed bin Zayed Al Nahyan. 3. The National Rating of the Investment Climate in the Regions of Russia. 4. The state of the Russian economy and the growth of domestic brands. 5. The discussion on the meaning of life and the role of science in understanding it. 1. The data presents a wide range of themes, but the top five most prevalent themes can be identified as follows: 2. Conflict and Military Activity: A significant portion of the data revolves around the ongoing conflict in Ukraine, with numerous reports detailing military activities, occupations, and attacks by various entities. This theme includes the actions of the Ukrainian military, Russian forces, and various other military units and entities [Data: Reports (513, 241, 151, 493, 343, +more)]. 3. Political and Governmental Entities: Many reports focus on political figures and governmental entities, highlighting their roles, relationships, and actions in the context of the current situation. This includes entities like the Kremlin, the President of Ukraine, the US State Department, and various regional administrations [Data: Reports (98, 493, 265, 129, 196, +more)]. 4. Infrastructure and Environmental Concerns: Several reports highlight potential environmental impacts and infrastructure threats. These include potential environmental damage due to industrial activities, flooding crises, and threats to infrastructure due to military conflicts [Data: Reports (308, 154, 201, 348, 216, +more)]. 5. Community Analysis and Threat Assessment: Several reports provide detailed analyses of specific communities, often centered around a particular location or entity. These analyses typically discuss the key entities within the community, their relationships, and any associated threats. Many reports also include assessments of potential threats associated with the entities or situations they discuss [Data: Reports (323, 596, 518, 583, 179, +more)]. 6. Health, Humanitarian Concerns, and Emergency Situations: Some reports focus on health and humanitarian issues, such as the Shereshevsky-Turner Syndrome community and the potential risk of intestinal diseases in the Odessa region. The data also covers emergency situations, including natural disasters, accidents, and attacks [Data: Reports (204, 149, 372, 154, 532, +more)]. 7. These themes provide a comprehensive overview of the current situation, highlighting the complexity and interconnectedness of the issues at hand.

查看基线 RAG 的结果,我们发现列出的主题与两国之间的战争没有太大关系。正如预期的那样,向量搜索检索到不相关的文本,这些文本被插入到 LLM 的上下文窗口中。所包含的结果很可能与"主题"一词有关,导致对数据集中发生的事情的评估不太有用。

观察 GraphRAG 的结果,我们可以清楚地看到,结果与整个数据集的情况更加一致。答案提供了在数据集中观察到的五个主要主题以及支持细节。参考报告由 LLM 为 GraphRAG 中的每个语义集群预先生成,进而提供对原始源材料的出处。

创建 LLM 生成的知识图谱

我们注意到 GraphRAG 所依据的基本流程,它建立在我们之前使用图形机器学习的研究GitHub仓库之上:(面试时会考,译者注)

  • LLM 处理整个私有数据集,创建对源数据中所有实体和关系的引用,然后使用这些引用创建 LLM 生成的知识图谱。
  • 然后使用此图谱创建自下而上的聚类,将数据分层组织成语义聚类(下图中用不同颜色表示)。这种分区允许预先总结语义概念和主题,这有助于全面理解数据集。
  • 在查询时,这两种结构都用于在回答问题时为 LLM 上下文窗口提供材料。

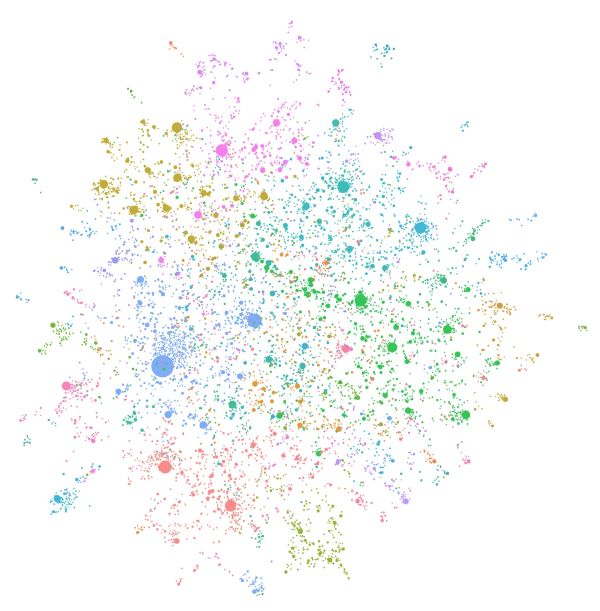

上图显示了该图的示例可视化。每个圆圈都是一个实体(例如,一个人、一个地方或一个组织),实体大小代表该实体所具有的关系数量,颜色代表相似实体的分组。颜色分区是一种构建在图形结构之上的自下而上的聚类方法,它使我们能够在不同抽象层次上回答问题。

总结

​场景​ 传统RAG缺陷 GraphRAG优势
​跨文档主题总结​ 答案零散、遗漏隐性关联 社区摘要整合多视角,生成连贯洞见
​细粒度访问控制​ 权限管理依赖简单元数据 图谱动态绑定"用户-资源-上下文"关系链
​实时数据分析​ 增量更新成本高 图结构局部更新,降低重构开销

应用前景与挑战​

  • ​爆发领域​​:法律合规(跨判例关联分析)|医疗诊断(病症-药品-研究联动)|舆情监控(事件演化图谱)。

  • ​现存挑战​​:图谱构建成本高(需LLM多轮提取)|实时响应延迟(复杂图遍历耗时)|数据质量敏感(关系错误传导)。
