Flink03-学习-套接字分词流自动写入工具

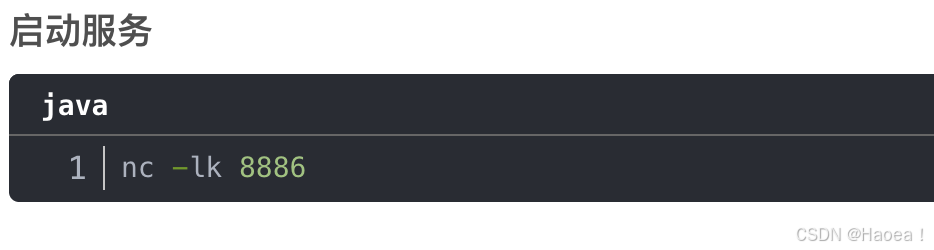

上一节中通过如下命令启动服务摸来模拟Socket流。

现在我们写一个ServerSocket来模拟让流自动写入不用手动操作。

pom.xml和上一节一致不需要修改

编写代码

同样适用Socket流

 // 使用socket流创建一个从 socket 读取文本的数据流，以换行符 \n 作为分隔符
            DataStreamSource<String> stringDataStreamSource = executionEnvironment.socketTextStream(ip, port, "\n");


FlinkServer

继承Thread启动线程

package org.example.snow.demo3;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.functions.KeySelector;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.windowing.assigners.SlidingProcessingTimeWindows;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.Collector;

/**
 * @author snowsong
 */
public class FlinkServer extends Thread{
    @Override
    public void run() {
            String ip = "0.0.0.0";
            int port = 8886;
            StreamExecutionEnvironment executionEnvironment = StreamExecutionEnvironment.getExecutionEnvironment();
            // 使用socket流创建一个从 socket 读取文本的数据流，以换行符 \n 作为分隔符
            DataStreamSource<String> stringDataStreamSource = executionEnvironment.socketTextStream(ip, port, "\n");
            SingleOutputStreamOperator<Tuple2<String, Long>> tuple2SingleOutputStreamOperator = stringDataStreamSource.flatMap(new FlatMapFunction<String, Tuple2<String, Long>>() {

                @Override
                public void flatMap(String s, Collector<Tuple2<String, Long>> collector) throws Exception {
                    String[] splits = s.split("\\s");
                    for (String word : splits) {
                        collector.collect(Tuple2.of(word, 1L));
                    }
                }
            });
            SingleOutputStreamOperator<Tuple2<String, Long>> word = tuple2SingleOutputStreamOperator
                    .keyBy(new KeySelector<Tuple2<String, Long>, Object>() {
                        @Override
                        public Object getKey(Tuple2<String, Long> stringLongTuple2) throws Exception {
                            return stringLongTuple2.f0;
                        }
                    })
                    .window(SlidingProcessingTimeWindows.of(Time.seconds(5), Time.seconds(1)))
                    .sum(1);
            word.print();
            try {
                executionEnvironment.execute("stream!");
            } catch (Exception e) {
                throw new RuntimeException(e);
            }
        }

}

NumRandom

使用ServerSocket实现一个持续的流输出

package org.example.snow.demo3;

import java.io.OutputStream;
import java.io.PrintWriter;
import java.net.InetSocketAddress;
import java.net.ServerSocket;
import java.net.Socket;
import java.util.Random;

/**
 * @author snowsong
 */
public class RandomNumClient extends Thread {
    @Override
    public void run() {
        // 随机生成数字
        String ip = "0.0.0.0";
        int port = 8886;
        try {
            ServerSocket serverSocket = new ServerSocket();
            InetSocketAddress address = new InetSocketAddress(ip, port);
            // 灵活绑定服务器地址
            serverSocket.bind(address);
            // 监听并接收客户端的连接请求，有阻塞特性，当调用该方法的时候，线程会暂停执行，直到有客户端连接上来
            Socket accept = serverSocket.accept();
            // 获取输入流，读取客户端发送的数据
            OutputStream outputStream = accept.getOutputStream();
            // 包装成打印流，方便写入数据 true 自动刷新缓冲区
            PrintWriter printWriter = new PrintWriter(outputStream, true);
            Random random = new Random();
            // 遍历
            for (int i = 0; i < 10; i++) {
                // 生成随机数
                int num = random.nextInt(10) + 1;
                printWriter.println("随机数：" + num);
                System.out.println("send to flink:" + num);
                Thread.sleep(100);
            }
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
        super.run();
    }
}

启动类

package org.example.snow.demo3;

/**
 * @author snowsong
 */
public class StartApp {
    public static void main(String[] args) throws Exception {
        RandomNumClient randomNumClient = new RandomNumClient();
        FlinkServer flinkServer = new FlinkServer();
        flinkServer.start();
        randomNumClient.start();
    }
}

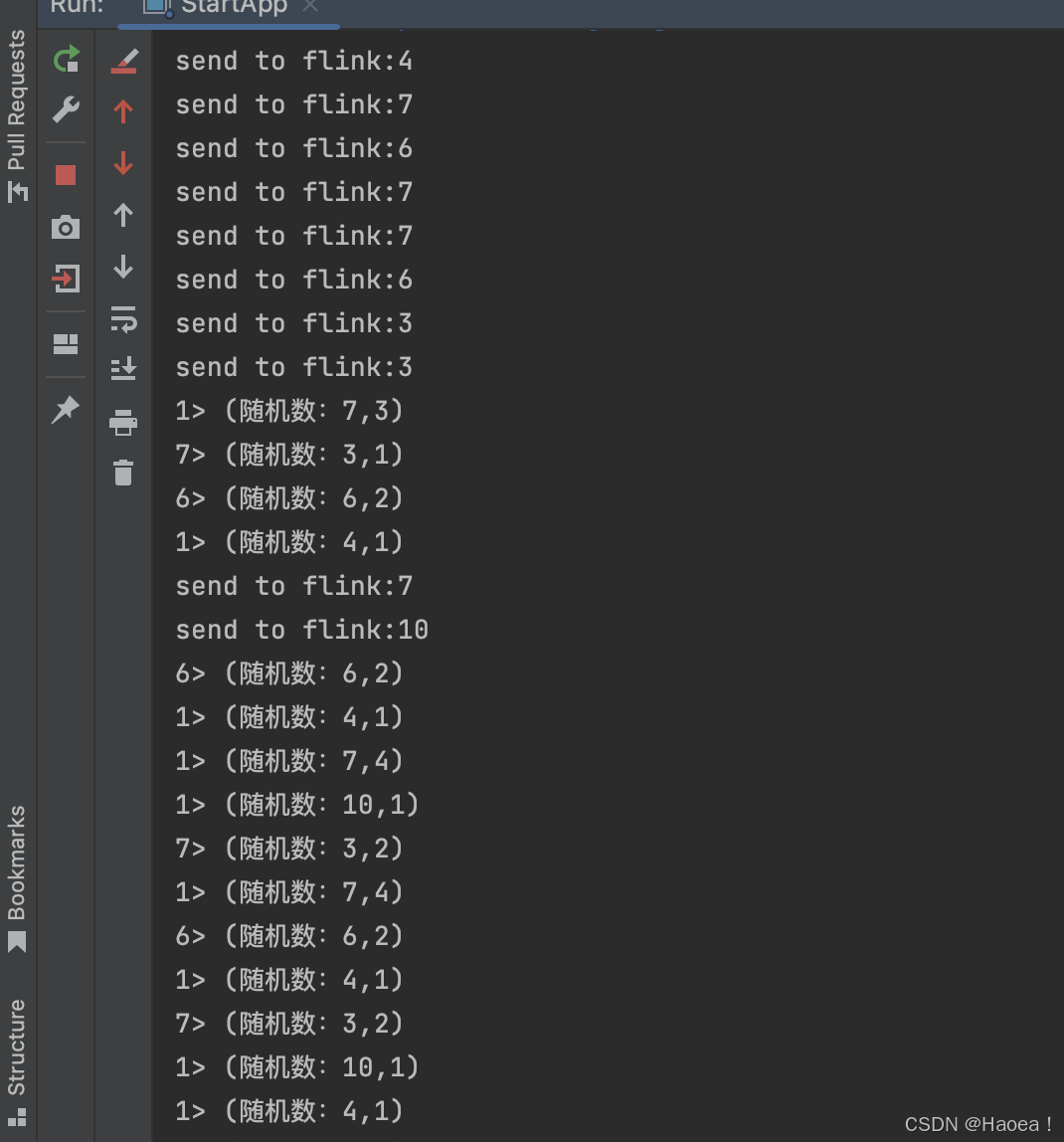

运行结果
