订单初版—8.取消订单实现的重构文档一

东阳马生架构2025-07-16 9:22

大纲

1.取消订单的流程回顾

2.拦截履约、取消订单与释放资产的强一致问题

3.取消订单与拦截履约的AT分布式事务

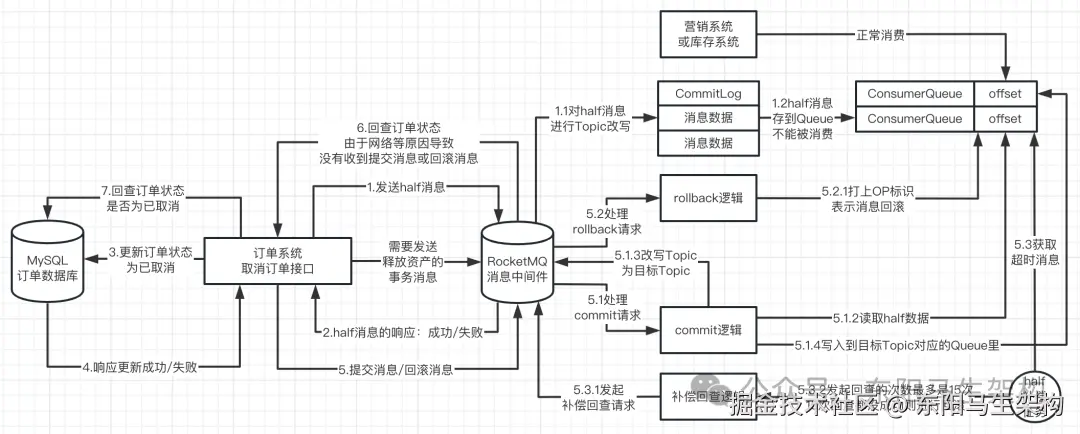

4.释放资产的RocketMQ事务消息原理

5.释放资产的设计：异步化 + 扩展性 + 消息不丢失

6.消费释放资产消息后进行多路推送MQ消息的设计

7.释放具体资产时的幂等性保障

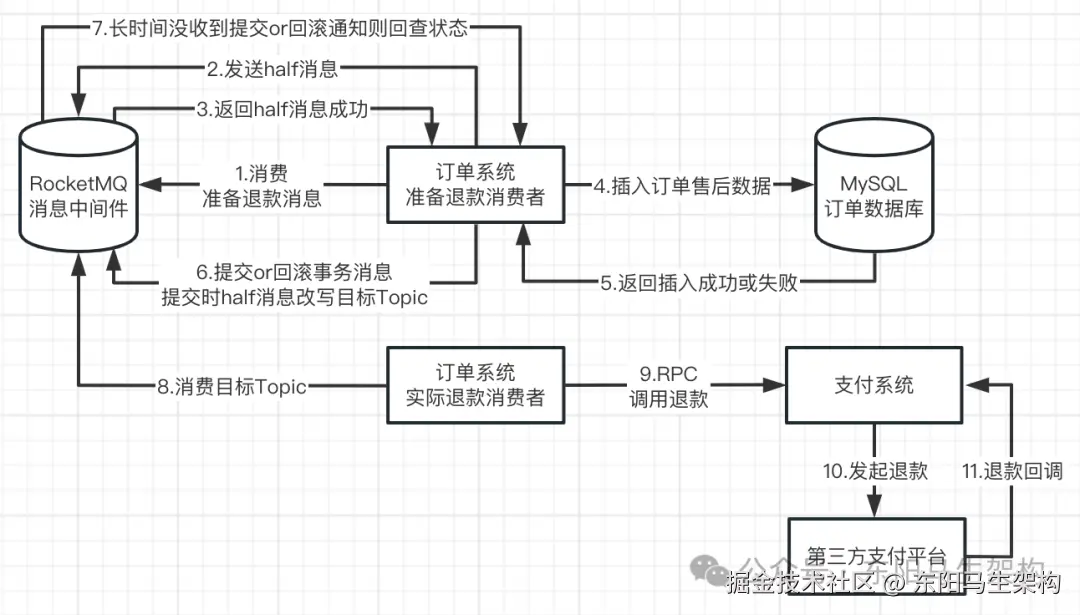

8.双异步退款链路强一致方案

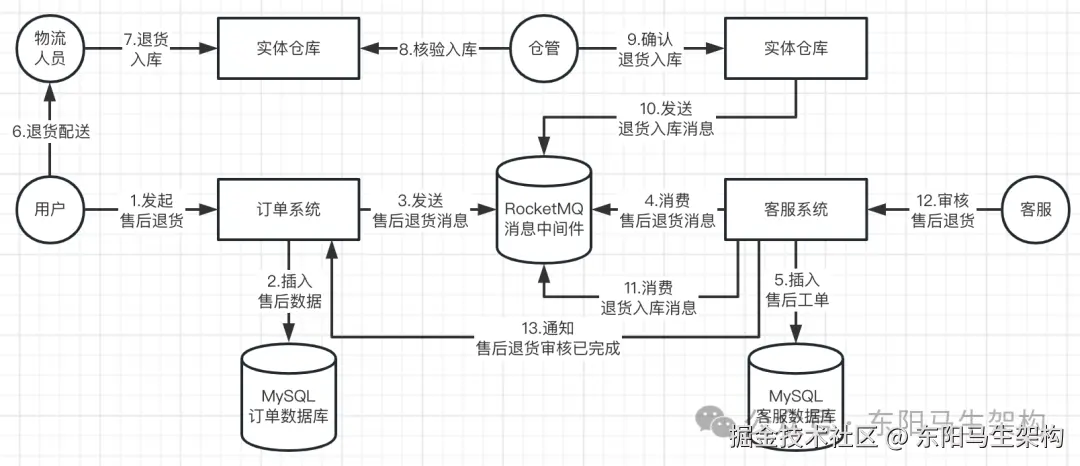

9.发起售后退货链路数据一致方案

10.审核售后退货链路数据一致方案

11.拣货出库和缺品退款的业务场景

12.缺品退款一致性事务代码流程

13.进行代码重构的要点与示例

14.自动关单功能业务流程梳理

15.XXL-Job分布式调度系统架构原理分析

16.基于XXL-Job分布式调度的定时关单功能实现

17.订单系统与XXL-Job配合运行原理

18.根据XXL-Job源码来验证关单分布式调度原理

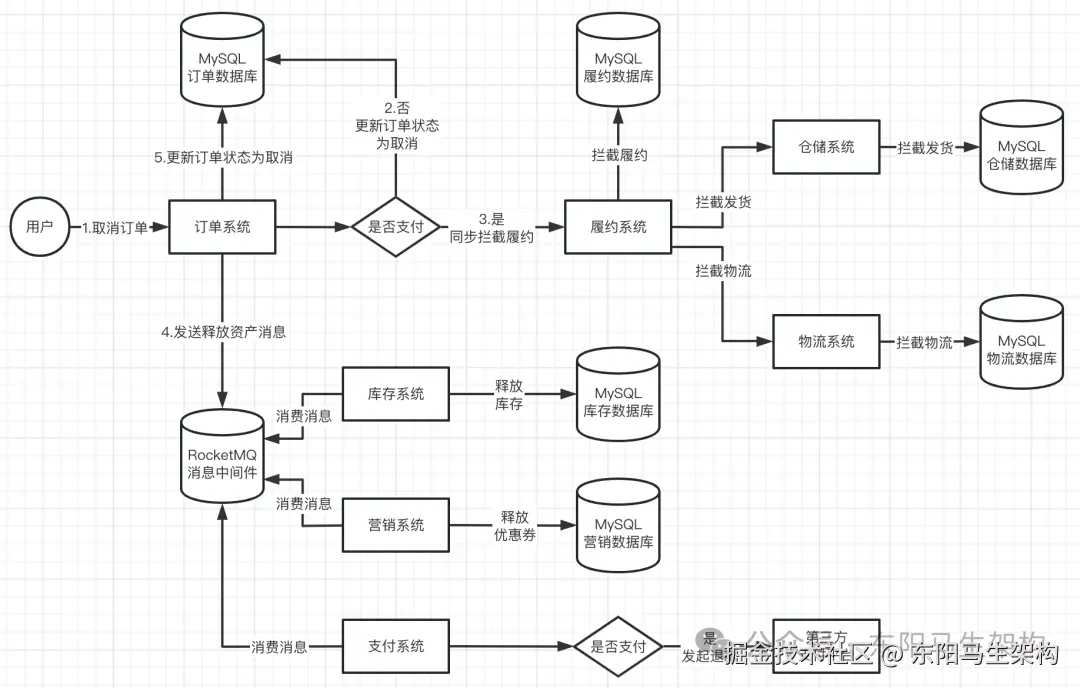

1.取消订单的流程回顾

订单逆向链路有三个核心环节：取消订单 + 售后处理 + 缺品退款。

2.拦截履约、取消订单与释放资产的强一致问题

更新订单状态为已取消 + 拦截履约，要绑定成刚性事务，确保强一致。否则可能会出现数据不一致的情况，比如订单已取消，但还是配送了。因此，可以使用Seata的AT模式。

更新订单状态 + 发送释放资产的消息，也需要确保强一致。否则也可能出现数据不一致的情况，比如订单已取消，但优惠券没释放。因此，可以使用RocketMQ的事务消息，确保一起成功，一起失败。

3.取消订单与拦截履约的AT分布式事务

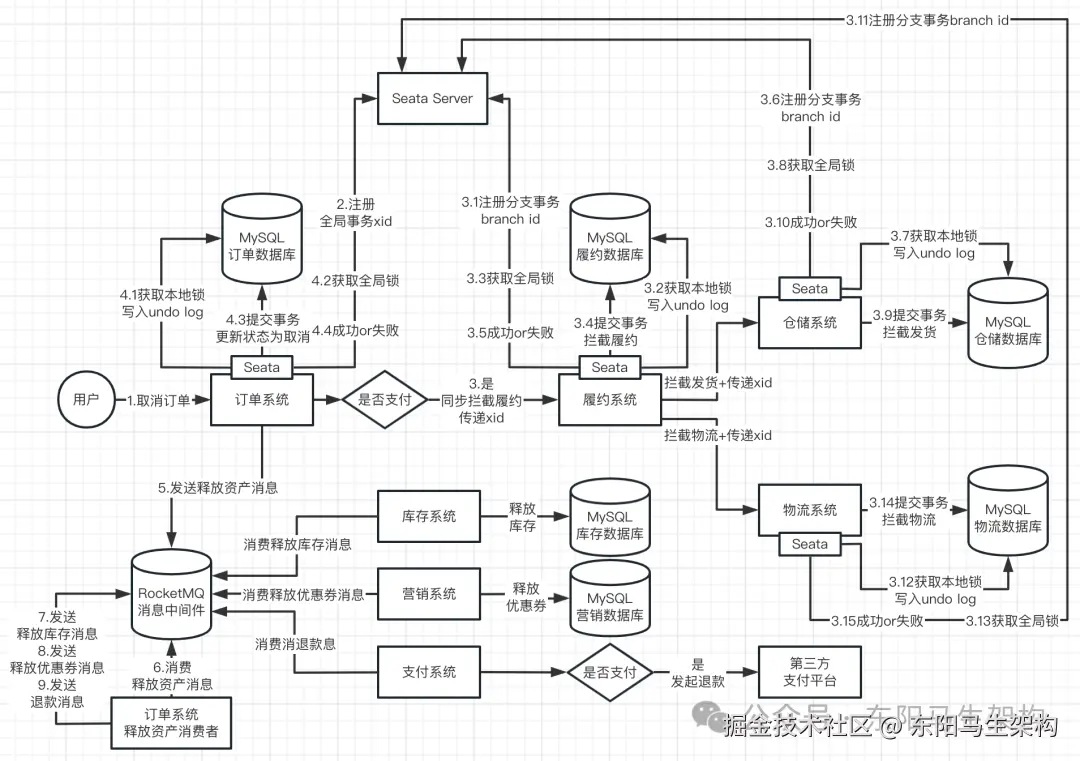

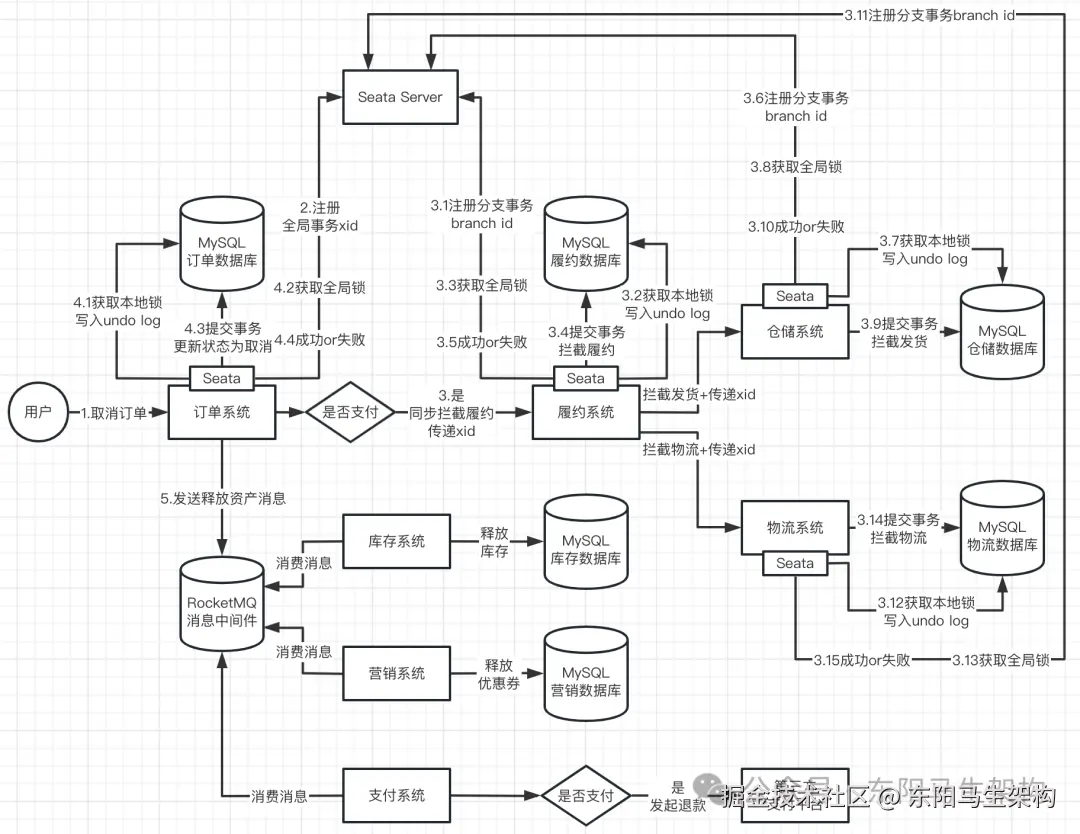

(1)原理流程图

(2)具体实现

(1)原理流程图

(2)具体实现

一.通过事务消息来更新订单状态+发送释放资产消息

二.添加@GlobalTransactional注解开启AT模式

三.履约系统对拦截履约的处理

一.通过事务消息来更新订单状态+发送释放资产消息

typescript 复制代码
@RestController
@RequestMapping("/afterSale")
public class AfterSaleController {
    @Autowired
    private OrderAfterSaleService orderAfterSaleService;
    ...

    //用户手动取消订单
    @PostMapping("/cancelOrder")
    public JsonResult<Boolean> cancelOrder(@RequestBody CancelOrderRequest cancelOrderRequest) {
        return orderAfterSaleService.cancelOrder(cancelOrderRequest);
    }
    ...
}

@Service
public class OrderAfterSaleServiceImpl implements OrderAfterSaleService {
    @Autowired
    private AfterSaleManager afterSaleManager;
    ...

    //取消订单/超时未支付取消
    @Override
    public JsonResult<Boolean> cancelOrder(CancelOrderRequest cancelOrderRequest) {
        //入参检查
        checkCancelOrderRequestParam(cancelOrderRequest);

        //分布式锁
        String orderId = cancelOrderRequest.getOrderId();
        String key = RedisLockKeyConstants.CANCEL_KEY + orderId;
        boolean lock = redisLock.tryLock(key);
        if (!lock) {
            throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_REPEAT);
        }

        try {
            //执行取消订单
            return executeCancelOrder(cancelOrderRequest, orderId);
        } catch (Exception e) {
            log.error("biz error", e);
            throw new OrderBizException(e.getMessage());
        } finally {
            redisLock.unlock(key);
        }
    }

    @Override
    public JsonResult<Boolean> executeCancelOrder(CancelOrderRequest cancelOrderRequest, String orderId) {
        //1.组装数据
        OrderInfoDO orderInfoDO = findOrderInfo(orderId);
        CancelOrderAssembleRequest cancelOrderAssembleRequest = buildAssembleRequest(orderId, cancelOrderRequest, orderInfoDO);
        if (cancelOrderAssembleRequest.getOrderInfoDTO().getOrderStatus() >= OrderStatusEnum.OUT_STOCK.getCode()) {
            throw new OrderBizException(OrderErrorCodeEnum.CURRENT_ORDER_STATUS_CANNOT_CANCEL);
        }

        TransactionMQProducer producer = defaultProducer.getProducer();
        producer.setTransactionListener(new TransactionListener() {
            @Override
            public LocalTransactionState executeLocalTransaction(Message message, Object o) {
                try {
                    //2.执行履约取消、更新订单状态、新增订单日志操作
                    afterSaleManager.cancelOrderFulfillmentAndUpdateOrderStatus(cancelOrderAssembleRequest);
                    return LocalTransactionState.COMMIT_MESSAGE;
                } catch (Exception e) {
                    log.error("system error", e);
                    return LocalTransactionState.ROLLBACK_MESSAGE;
                }
            }

            @Override
            public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {
                //查询订单状态是否已更新为"已取消"
                OrderInfoDO orderInfoByDatabase = orderInfoDAO.getByOrderId(orderId);
                if (OrderStatusEnum.CANCELED.getCode().equals(orderInfoByDatabase.getOrderStatus())) {
                    return LocalTransactionState.COMMIT_MESSAGE;
                }
                return LocalTransactionState.ROLLBACK_MESSAGE;
            }
        });

        try {
            Message message = new Message(RocketMqConstant.RELEASE_ASSETS_TOPIC, JSONObject.toJSONString(cancelOrderAssembleRequest).getBytes(StandardCharsets.UTF_8));
            //3.发送事务消息 释放权益资产
            TransactionSendResult result = producer.sendMessageInTransaction(message, cancelOrderAssembleRequest);
            if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {
                throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_PROCESS_FAILED);
            }
            return JsonResult.buildSuccess(true);
        } catch (Exception e) {
            throw new OrderBizException(OrderErrorCodeEnum.SEND_TRANSACTION_MQ_FAILED);
        }
    }
    ...
}

二.添加@GlobalTransactional注解开启AT模式

scss 复制代码
@Service
public class AfterSaleManagerImpl implements AfterSaleManager {
    @DubboReference(version = "1.0.0")
    private FulfillApi fulfillApi;
    ...

    @Override
    @GlobalTransactional(rollbackFor = Exception.class)
    public void cancelOrderFulfillmentAndUpdateOrderStatus(CancelOrderAssembleRequest cancelOrderAssembleRequest) {
        //履约取消
        cancelFulfill(cancelOrderAssembleRequest);

        //更新订单状态和记录订单操作日志
        updateOrderStatusAndSaveOperationLog(cancelOrderAssembleRequest);
    }

    //调用履约拦截订单
    private void cancelFulfill(CancelOrderAssembleRequest cancelOrderAssembleRequest) {
        OrderInfoDTO orderInfoDTO = cancelOrderAssembleRequest.getOrderInfoDTO();
        if (OrderStatusEnum.CREATED.getCode().equals(orderInfoDTO.getOrderStatus())) {
            return;
        }
        CancelFulfillRequest cancelFulfillRequest = orderConverter.convertCancelFulfillRequest(orderInfoDTO);
        fulfillRemote.cancelFulfill(cancelFulfillRequest);
    }

    //更新订单状态和记录订单操作日志
    private void updateOrderStatusAndSaveOperationLog(CancelOrderAssembleRequest cancelOrderAssembleRequest) {
        //更新订单表
        OrderInfoDO orderInfoDO = orderConverter.orderInfoDTO2DO(cancelOrderAssembleRequest.getOrderInfoDTO());
        orderInfoDO.setCancelType(cancelOrderAssembleRequest.getCancelType().toString());
        orderInfoDO.setOrderStatus(OrderStatusEnum.CANCELED.getCode());
        orderInfoDO.setCancelTime(new Date());
        orderInfoDAO.updateOrderInfo(orderInfoDO);
        log.info("更新订单信息OrderInfo状态: orderId:{},status:{}", orderInfoDO.getOrderId(), orderInfoDO.getOrderStatus());

        //新增订单操作操作日志表
        Integer cancelType = Integer.valueOf(orderInfoDO.getCancelType());
        String orderId = orderInfoDO.getOrderId();
        OrderOperateLogDO orderOperateLogDO = new OrderOperateLogDO();
        orderOperateLogDO.setOrderId(orderId);
        orderOperateLogDO.setPreStatus(cancelOrderAssembleRequest.getOrderInfoDTO().getOrderStatus());
        orderOperateLogDO.setCurrentStatus(OrderStatusEnum.CANCELED.getCode());
        orderOperateLogDO.setOperateType(OrderOperateTypeEnum.AUTO_CANCEL_ORDER.getCode());
        if (OrderCancelTypeEnum.USER_CANCELED.getCode().equals(cancelType)) {
            orderOperateLogDO.setOperateType(OrderOperateTypeEnum.MANUAL_CANCEL_ORDER.getCode());
            orderOperateLogDO.setRemark(OrderOperateTypeEnum.MANUAL_CANCEL_ORDER.getMsg()
                + orderOperateLogDO.getPreStatus() + "-" + orderOperateLogDO.getCurrentStatus());
        }
        if (OrderCancelTypeEnum.TIMEOUT_CANCELED.getCode().equals(cancelType)) {
            orderOperateLogDO.setOperateType(OrderOperateTypeEnum.AUTO_CANCEL_ORDER.getCode());
            orderOperateLogDO.setRemark(OrderOperateTypeEnum.AUTO_CANCEL_ORDER.getMsg()
                + orderOperateLogDO.getPreStatus() + "-" + orderOperateLogDO.getCurrentStatus());
        }
        orderOperateLogDAO.save(orderOperateLogDO);
        log.info("新增订单操作日志OrderOperateLog状态,orderId:{}, PreStatus:{},CurrentStatus:{}", orderInfoDO.getOrderId(),
            orderOperateLogDO.getPreStatus(), orderOperateLogDO.getCurrentStatus());
    }
    ...
}

@Component
public class FulfillRemote {
    @DubboReference(version = "1.0.0")
    private FulfillApi fulfillApi;

    //取消订单履约
    public void cancelFulfill(CancelFulfillRequest cancelFulfillRequest) {
        JsonResult<Boolean> jsonResult = fulfillApi.cancelFulfill(cancelFulfillRequest);
        if (!jsonResult.getSuccess()) {
            throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_FULFILL_ERROR);
        }
    }
}

三.履约系统对拦截履约的处理

scss 复制代码
@DubboService(version = "1.0.0", interfaceClass = FulfillApi.class, retries = 0)
public class FulfillApiImpl implements FulfillApi {
    @Autowired
    private FulfillService fulfillService;

    @Autowired
    private TmsRemote tmsRemote;

    @Autowired
    private WmsRemote wmsRemote;
    ...

    @Override
    public JsonResult<Boolean> cancelFulfill(CancelFulfillRequest cancelFulfillRequest) {
        log.info("取消履约：request={}", JSONObject.toJSONString(cancelFulfillRequest));
        //1.取消履约单
        fulfillService.cancelFulfillOrder(cancelFulfillRequest.getOrderId());
        //2.取消捡货
        wmsRemote.cancelPickGoods(cancelFulfillRequest.getOrderId());
        //3.取消发货
        tmsRemote.cancelSendOut(cancelFulfillRequest.getOrderId());
        return JsonResult.buildSuccess(true);
    }
    ...
}

@Service
public class FulfillServiceImpl implements FulfillService {
    @Autowired
    private OrderFulfillDAO orderFulfillDAO;

    @Autowired
    private OrderFulfillItemDAO orderFulfillItemDAO;
    ...

    @Override
    public void cancelFulfillOrder(String orderId) {
        //1.查询履约单
        OrderFulfillDO orderFulfill = orderFulfillDAO.getOne(orderId);
        //2.移除履约单
        if (null != orderFulfill) {
            orderFulfillDAO.removeById(orderFulfill.getId());
            //3.查询履约单条目
            List<OrderFulfillItemDO> fulfillItems = orderFulfillItemDAO.listByFulfillId(orderFulfill.getFulfillId());
            //4.移除履约单条目
            for (OrderFulfillItemDO item : fulfillItems) {
                orderFulfillItemDAO.removeById(item.getId());
            }
        }
    }
    ...
}

@Component
public class WmsRemote {
    @DubboReference(version = "1.0.0", retries = 0)
    private WmsApi wmsApi;
    ...

    //取消捡货
    public void cancelPickGoods(String orderId) {
        JsonResult<Boolean> jsonResult = wmsApi.cancelPickGoods(orderId);
        if (!jsonResult.getSuccess()) {
            throw new FulfillBizException(jsonResult.getErrorCode(), jsonResult.getErrorMessage());
        }
    }
}

@Component
public class TmsRemote {
    @DubboReference(version = "1.0.0", retries = 0)
    private TmsApi tmsApi;
    ...

    //取消发货
    public void cancelSendOut(String orderId) {
        JsonResult<Boolean> jsonResult = tmsApi.cancelSendOut(orderId);
        if (!jsonResult.getSuccess()) {
            throw new FulfillBizException(jsonResult.getErrorCode(), jsonResult.getErrorMessage());
        }
    }
}

@DubboService(version = "1.0.0", interfaceClass = WmsApi.class, retries = 0)
public class WmsApiImpl implements WmsApi {
    ...
    @Transactional(rollbackFor = Exception.class)
    @Override
    public JsonResult<Boolean> cancelPickGoods(String orderId) {
        log.info("取消捡货,orderId={}", orderId);
        //1.查询出库单
        List<DeliveryOrderDO> deliveryOrders = deliveryOrderDAO.listByOrderId(orderId);
        if (CollectionUtils.isNotEmpty(deliveryOrders)) {
            //2.移除出库单
            List<Long> ids = deliveryOrders.stream().map(DeliveryOrderDO::getId).collect(Collectors.toList());
            deliveryOrderDAO.removeByIds(ids);
            //3.移除条目
            List<String> deliveryOrderIds = deliveryOrders.stream().map(DeliveryOrderDO::getDeliveryOrderId).collect(Collectors.toList());
            List<DeliveryOrderItemDO> items = deliveryOrderItemDAO.listByDeliveryOrderIds(deliveryOrderIds);
            if (CollectionUtils.isNotEmpty(items)) {
                ids = items.stream().map(DeliveryOrderItemDO::getId).collect(Collectors.toList());
                deliveryOrderItemDAO.removeByIds(ids);
            }
        }
        return JsonResult.buildSuccess(true);
    }
    ...
}

@DubboService(version = "1.0.0", interfaceClass = TmsApi.class, retries = 0)
public class TmsApiImpl implements TmsApi {
    ...
    @Transactional(rollbackFor = Exception.class)
    @Override
    public JsonResult<Boolean> cancelSendOut(String orderId) {
        log.info("取消发货,orderId={}", orderId);
        //1.查询物流单
        List<LogisticOrderDO> logisticOrders = logisticOrderDAO.listByOrderId(orderId);
        //2.移除物流单
        if (CollectionUtils.isNotEmpty(logisticOrders)) {
            List<Long> ids = logisticOrders.stream().map(LogisticOrderDO::getId).collect(Collectors.toList());
            logisticOrderDAO.removeByIds(ids);
        }
        return JsonResult.buildSuccess(true);
    }
    ...
}

如果履约系统取消履约时，先发送取消履约的消息到MQ。虽然可以提升拦截履约接口的性能 + 提高拦截履约的扩展性。但是可能会出现如下的情形：订单状态已取消 + 优惠券已释放 + 已退款，但是订单却还在履约配送中。这种情况下，可能需要订单履约配送各环节需要对订单状态进行判断。

typescript 复制代码
@DubboService(version = "1.0.0", interfaceClass = FulfillApi.class, retries = 0)
public class FulfillApiImpl implements FulfillApi {
    ...
    @Override
    public JsonResult<Boolean> cancelFulfill(CancelFulfillRequest cancelFulfillRequest) {
        log.info("取消履约：request={}", JSONObject.toJSONString(cancelFulfillRequest));

        //发送取消履约消息
        defaultProducer.sendMessage(RocketMqConstant.CANCEL_FULFILL_TOPIC, JSONObject.toJSONString(cancelFulfillRequest), "取消履约");

        return JsonResult.buildSuccess(true);
    }
    ...
}

@Configuration
public class ConsumerConfig {
    @Autowired
    private RocketMQProperties rocketMQProperties;
    ...

    //取消履约消息消费者
    @Bean("cancelFulfillConsumer")
    public DefaultMQPushConsumer cancelFulfillConsumer(CancelFulfillTopicListener cancelFulfillTopicListener) throws MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(CANCEL_FULFILL_CONSUMER_GROUP);
        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());
        consumer.subscribe(CANCEL_FULFILL_TOPIC, "*");
        consumer.registerMessageListener(cancelFulfillTopicListener);
        consumer.start();
        return consumer;
    }
    ...
}

//消费取消订单履约消息
@Component
public class CancelFulfillTopicListener implements MessageListenerConcurrently {
    @Autowired
    private FulfillService fulfillService;

    @DubboReference(version = "1.0.0", retries = 0)
    private WmsApi wmsApi;

    @DubboReference(version = "1.0.0", retries = 0)
    private TmsApi tmsApi;

    @Override
    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {
        try {
            for (MessageExt messageExt : msgs) {
                String message = new String(messageExt.getBody());
                CancelFulfillRequest request = JSON.parseObject(message, CancelFulfillRequest.class);

                //1.取消履约单
                fulfillService.cancelFulfillOrder(request.getOrderId());

                //2.取消捡货
                wmsApi.cancelPickGoods(request.getOrderId());

                //3.取消发货
                tmsApi.cancelSendOut(request.getOrderId());
            }
            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        } catch (Exception e) {
            log.error("消费取消订单履约消息", e);
            return ConsumeConcurrentlyStatus.RECONSUME_LATER;
        }
    }
}

4.释放资产的RocketMQ事务消息原理

typescript 复制代码
@Service
public class OrderAfterSaleServiceImpl implements OrderAfterSaleService {
    @Autowired
    private AfterSaleManager afterSaleManager;
    ...

    //取消订单/超时未支付取消
    @Override
    public JsonResult<Boolean> cancelOrder(CancelOrderRequest cancelOrderRequest) {
        //入参检查
        checkCancelOrderRequestParam(cancelOrderRequest);

        //分布式锁
        String orderId = cancelOrderRequest.getOrderId();
        String key = RedisLockKeyConstants.CANCEL_KEY + orderId;
        boolean lock = redisLock.tryLock(key);
        if (!lock) {
            throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_REPEAT);
        }

        try {
            //执行取消订单
            return executeCancelOrder(cancelOrderRequest, orderId);
        } catch (Exception e) {
            log.error("biz error", e);
            throw new OrderBizException(e.getMessage());
        } finally {
            redisLock.unlock(key);
        }
    }

    @Override
    public JsonResult<Boolean> executeCancelOrder(CancelOrderRequest cancelOrderRequest, String orderId) {
        //1.组装数据
        OrderInfoDO orderInfoDO = findOrderInfo(orderId);
        CancelOrderAssembleRequest cancelOrderAssembleRequest = buildAssembleRequest(orderId, cancelOrderRequest, orderInfoDO);
        if (cancelOrderAssembleRequest.getOrderInfoDTO().getOrderStatus() >= OrderStatusEnum.OUT_STOCK.getCode()) {
            throw new OrderBizException(OrderErrorCodeEnum.CURRENT_ORDER_STATUS_CANNOT_CANCEL);
        }

        TransactionMQProducer producer = defaultProducer.getProducer();
        producer.setTransactionListener(new TransactionListener() {
            @Override
            public LocalTransactionState executeLocalTransaction(Message message, Object o) {
                try {
                    //2.执行履约取消、更新订单状态、新增订单日志操作
                    afterSaleManager.cancelOrderFulfillmentAndUpdateOrderStatus(cancelOrderAssembleRequest);
                    return LocalTransactionState.COMMIT_MESSAGE;
                } catch (Exception e) {
                    log.error("system error", e);
                    return LocalTransactionState.ROLLBACK_MESSAGE;
                }
            }

            @Override
            public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {
                //查询订单状态是否已更新为"已取消"
                OrderInfoDO orderInfoByDatabase = orderInfoDAO.getByOrderId(orderId);
                if (OrderStatusEnum.CANCELED.getCode().equals(orderInfoByDatabase.getOrderStatus())) {
                    return LocalTransactionState.COMMIT_MESSAGE;
                }
                return LocalTransactionState.ROLLBACK_MESSAGE;
            }
        });

        try {
            Message message = new Message(RocketMqConstant.RELEASE_ASSETS_TOPIC, JSONObject.toJSONString(cancelOrderAssembleRequest).getBytes(StandardCharsets.UTF_8));
            //3.发送事务消息 释放权益资产
            TransactionSendResult result = producer.sendMessageInTransaction(message, cancelOrderAssembleRequest);
            if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {
                throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_PROCESS_FAILED);
            }
            return JsonResult.buildSuccess(true);
        } catch (Exception e) {
            throw new OrderBizException(OrderErrorCodeEnum.SEND_TRANSACTION_MQ_FAILED);
        }
    }
    ...
}

5.释放资产的设计：异步化 + 扩展性 + 消息不丢失

(1)异步化 + 扩展性 + 消息不丢失

(2)取消订单释放资产的代码实现 + 具体业务流程

(1)异步化 + 扩展性 + 消息不丢失

一.异步化

从接口性能上来说，需要异步。如果取消订单时，除了同步更新订单状态 + 同步拦截履约外。还要同步释放库存 + 释放优惠券 + 退款，则可能会非常耗时，性能很差。

从业务语义上来说，可以异步。取消订单时，如果履约能拦截成功则进行取消，如果拦截失败则不取消。所以，只要成功拦截履约 + 更新订单为已取消，就可以返回响应给用户了。

二.扩展性

如果以后增加更多的资产类型，比如用户虚拟币、用户积分、信贷资产等，那么可以直接在消费释放资产的Listener中添加这些资产类型即可。引入释放资产的Topic，可以提高扩展性，然后进行具体释放的消息会通过多路推送到MQ。

三.消息不丢失

更新订单状态为已取消 + 发送释放资产消息到MQ时，使用了RocketMQ的事务消息，来保证更新订单状态 + 发送消息一起成功。

消费释放资产消息时，会继续多路发送具体的资产释放消息到MQ，如果出现发送失败则会返回RECONSUME_LATER给MQ进行重试，从而确保消息能发送到MQ。

(2)取消订单释放资产的代码实现 + 具体业务流程

一.取消订单释放资产的代码实现

typescript 复制代码
@Configuration
public class ConsumerConfig {
    @Autowired
    private RocketMQProperties rocketMQProperties;
    ...

    //释放资产消息消费者
    @Bean("releaseAssetsConsumer")
    public DefaultMQPushConsumer releaseAssetsConsumer(ReleaseAssetsListener releaseAssetsListener) throws MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(RELEASE_ASSETS_CONSUMER_GROUP);
        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());
        consumer.subscribe(RELEASE_ASSETS_TOPIC, "*");
        consumer.registerMessageListener(releaseAssetsListener);
        consumer.start();
        return consumer;
    }
    ...
}

//监听并消费释放资产消息
@Component
public class ReleaseAssetsListener implements MessageListenerConcurrently {
    @Autowired
    private DefaultProducer defaultProducer;

    @Autowired
    private OrderItemDAO orderItemDAO;

    @Override
    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {
        try {
            for (MessageExt messageExt : list) {
                //1.消费到释放资产message
                String message = new String(messageExt.getBody());
                log.info("ReleaseAssetsListener message:{}", message);
                CancelOrderAssembleRequest cancelOrderAssembleRequest = JSONObject.parseObject(message, CancelOrderAssembleRequest.class);
                OrderInfoDTO orderInfoDTO = cancelOrderAssembleRequest.getOrderInfoDTO();

                //2.发送取消订单退款请求MQ
                if (orderInfoDTO.getOrderStatus() > OrderStatusEnum.CREATED.getCode()) {
                    defaultProducer.sendMessage(RocketMqConstant.CANCEL_REFUND_REQUEST_TOPIC,
                        JSONObject.toJSONString(cancelOrderAssembleRequest), "取消订单退款");
                }

                //3.发送释放库存MQ
                ReleaseProductStockRequest releaseProductStockRequest = buildReleaseProductStock(orderInfoDTO, orderItemDAO);
                defaultProducer.sendMessage(RocketMqConstant.CANCEL_RELEASE_INVENTORY_TOPIC,
                    JSONObject.toJSONString(releaseProductStockRequest), "取消订单释放库存");

                //4.发送释放优惠券MQ
                if (!Strings.isNullOrEmpty(orderInfoDTO.getCouponId())) {
                    ReleaseUserCouponRequest releaseUserCouponRequest = buildReleaseUserCoupon(orderInfoDTO);
                    defaultProducer.sendMessage(RocketMqConstant.CANCEL_RELEASE_PROPERTY_TOPIC,
                        JSONObject.toJSONString(releaseUserCouponRequest), "取消订单释放优惠券");
                }
            }
            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        } catch (Exception e) {
            log.error("consumer error", e);
            return ConsumeConcurrentlyStatus.RECONSUME_LATER;
        }
    }
    ...
}

二.取消订单释放资产的具体业务流程

6.消费释放资产消息后进行多路推送MQ消息的设计

(1)增加释放资产消息的消费者进行多路推送的疑问

(2)增加释放资产消息的消费者进行多路推送的原因

(1)增加释放资产消息的消费者进行多路推送的疑问

为什么要通过"释放资产消息"的消费者来进行多路推送MQ消息？为什么不让各业务系统直接消费"释放资产消息"？比如库存系统直接消费"释放资产消息"来释放库存，营销系统直接消费"释放资产消息"来释放优惠券，支付系统直接消费"释放资产消息"来进行退款处理。

如果省略掉"释放资产消息的消费者"，其实也可以实现异步化 + 扩展性。当新增一种释放的资产，只需对应业务系统订阅"释放资产消息"即可。但是最佳实践还是：增加一个"释放资产消息的消费者"来进行多路推送MQ消息。

(2)增加释放资产消息的消费者进行多路推送的原因

原因一： 如果库存系统释放库存时，只能订阅"释放资产消息"，可能会导致：别的业务场景也需要释放库存时，产生Topic混乱。

如果有另外的业务场景也需要释放库存，比如提前购业务需要释放库存。提前购业务要实现释放库存，可以发送两种消息到MQ来实现。

第一种消息是：向MQ也发送"释放资产消息"。这样其实就不合理了，因为该业务只需要释放库存。然后它发送的消息却会被营销系统进行消费，并判断是否需要释放优惠券，以及被支付系统进行消费，并判断是否需要退款。

第二种消息是：向MQ发送另外一个Topic消息，比如"提前购释放资产消息"。那么此时，就需要库存系统增加一个Topic进行消费。这样就导致库存系统为了释放库存，需要监听多个来自订单系统的Topic，这也是不合理的。

原因二： 各个业务系统应该都有一些对外开放的Topic来与自己进行交互。如果没有这些公开的Topic，则只能通过RPC进行调用来交互了。

"释放资产消息"是为取消订单的场景量身定制的，"释放资产消息的消费者"也是为取消订单的场景量身定制的，"释放资产消息的消费者"会进行多路MQ消息推送来实现可扩展性。

"释放资产消息"及其消费者是专门服务于取消订单场景的，与场景强耦合。"释放库存消息"及其消费者也专门服务于库存系统的，与库存系统强耦合。"释放优惠券消息"及其消费者也专门服务于营销系统，与营销系统强耦合。

各个业务系统都应该提供一些Topic公开让其他系统进行业务处理。比如库存系统可公开一个Topic，让其他系统可进行扣减库存、释放库存。营销系统也可公开一个Topic，让其他系统可进行优惠券释放等。

每个系统要把自己能够让其他系统来进行交互的一些Topic给开放出来，这样对于取消订单的场景，就可以找各个系统对外开放的Topic。然后把相应的消息推送到这些开放的Topic，来实现业务逻辑。

7.释放具体资产时的幂等性保障

(1)加分布式锁的两个场景总结

(2)消费释放库存消息时的幂等性处理

(3)消费释放优惠券消息时的幂等性处理

(1)加分布式锁的两个场景总结

场景一： 不同接口间操作同一个数据，防止并发，比如取消订单和支付回调。

场景二： 消费MQ消息时，防止可能会出现重复消息导致不同机器的并发消费。

所以消费MQ消息时，一般都会使用分布式锁 + 状态前置检查来实现幂等。

(2)消费释放库存消息时的幂等性处理

typescript 复制代码
@Configuration
public class ConsumerConfig {
    @Autowired
    private RocketMQProperties rocketMQProperties;

    //释放库存消息消费者
    @Bean("releaseInventoryConsumer")
    public DefaultMQPushConsumer releaseInventoryConsumer(ReleaseInventoryListener releaseInventoryListener) throws MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(RocketMqConstant.RELEASE_INVENTORY_CONSUMER_GROUP);
        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());
        consumer.subscribe(RocketMqConstant.CANCEL_RELEASE_INVENTORY_TOPIC, "*");
        consumer.registerMessageListener(releaseInventoryListener);
        consumer.start();
        return consumer;
    }
    ...
}

//监听并消费释放库存消息
@Component
public class ReleaseInventoryListener implements MessageListenerConcurrently {
    @DubboReference(version = "1.0.0")
    private InventoryApi inventoryApi;

    @Override
    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {
        try {
            for (MessageExt msg : list) {
                String content = new String(msg.getBody(), StandardCharsets.UTF_8);
                log.info("ReleaseInventoryConsumer message:{}", content);
                ReleaseProductStockRequest releaseProductStockRequest = JSONObject.parseObject(content, ReleaseProductStockRequest.class);

                //释放库存
                JsonResult<Boolean> jsonResult = inventoryApi.cancelOrderReleaseProductStock(releaseProductStockRequest);
                if (!jsonResult.getSuccess()) {
                    throw new InventoryBizException(InventoryErrorCodeEnum.CONSUME_MQ_FAILED);
                }
            }
            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        } catch (Exception e) {
            log.error("consumer error", e);
            return ConsumeConcurrentlyStatus.RECONSUME_LATER;
        }
    }
}

@DubboService(version = "1.0.0", interfaceClass = InventoryApi.class, retries = 0)
public class InventoryApiImpl implements InventoryApi {
    @Autowired
    private InventoryService inventoryService;
    ...

    //回滚库存
    @Override
    public JsonResult<Boolean> cancelOrderReleaseProductStock(ReleaseProductStockRequest releaseProductStockRequest) {
        log.info("开始执行回滚库存,orderId:{}", releaseProductStockRequest.getOrderId());
        List<String> redisKeyList = Lists.newArrayList();

        //分布式锁
        for (ReleaseProductStockRequest.OrderItemRequest orderItemRequest : releaseProductStockRequest.getOrderItemRequestList()) {
            //lockKey: #MODIFY_PRODUCT_STOCK_KEY: skuCode
            String lockKey = RedisLockKeyConstants.MODIFY_PRODUCT_STOCK_KEY + orderItemRequest.getSkuCode();
            redisKeyList.add(lockKey);
        }

        boolean lock = redisLock.multiLock(redisKeyList);
        if (!lock) {
            throw new InventoryBizException(InventoryErrorCodeEnum.RELEASE_PRODUCT_SKU_STOCK_ERROR);
        }

        try {
            //执行释放库存
            Boolean result = inventoryService.releaseProductStock(releaseProductStockRequest);
            return JsonResult.buildSuccess(result);
        } catch (InventoryBizException e) {
            log.error("biz error", e);
            return JsonResult.buildError(e.getErrorCode(), e.getErrorMsg());
        } catch (Exception e) {
            log.error("system error", e);
            return JsonResult.buildError(e.getMessage());
        } finally {
            //释放分布式锁
            redisLock.unMultiLock(redisKeyList);
        }
    }
    ...
}

@Service
public class InventoryServiceImpl implements InventoryService {
    ...
    //释放商品库存
    @Override
    public Boolean releaseProductStock(ReleaseProductStockRequest releaseProductStockRequest) {
        //检查入参
        checkReleaseProductStockRequest(releaseProductStockRequest);
        String orderId = releaseProductStockRequest.getOrderId();
        List<ReleaseProductStockRequest.OrderItemRequest> orderItemRequestList = releaseProductStockRequest.getOrderItemRequestList();
        for (ReleaseProductStockRequest.OrderItemRequest orderItemRequest : orderItemRequestList) {
            String skuCode = orderItemRequest.getSkuCode();

            //1.添加redis释放库存锁，作用
            //(1)防同一笔订单重复释放
            //(2)重量级锁，保证mysql+redis扣库存的原子性，同一时间只能有一个订单来释放，需要锁查询+扣库存
            String lockKey = RedisLockKeyConstants.RELEASE_PRODUCT_STOCK_KEY + skuCode;
            //获取不到锁，等待3s
            Boolean locked = redisLock.tryLock(lockKey, CoreConstant.DEFAULT_WAIT_SECONDS);
            if (!locked) {
                log.error("无法获取释放库存锁,orderId={},skuCode={}", orderId, skuCode);
                throw new InventoryBizException(InventoryErrorCodeEnum.RELEASE_PRODUCT_SKU_STOCK_LOCK_CANNOT_ACQUIRE);
            }

            try {
                //2.查询mysql库存数据
                ProductStockDO productStockDO = productStockDAO.getBySkuCode(skuCode);
                if (productStockDO == null) {
                    throw new InventoryBizException(InventoryErrorCodeEnum.PRODUCT_SKU_STOCK_NOT_FOUND_ERROR);
                }

                //3.查询redis库存数据
                String productStockKey = CacheSupport.buildProductStockKey(skuCode);
                Map<String, String> productStockValue = redisCache.hGetAll(productStockKey);
                if (productStockValue.isEmpty()) {
                    //如果查询不到redis库存数据，将mysql库存数据放入redis，以mysql的数据为准
                    addProductStockProcessor.addStockToRedis(productStockDO);
                }
                Integer saleQuantity = orderItemRequest.getSaleQuantity();

                //4.校验是否释放过库存
                ProductStockLogDO productStockLog = productStockLogDAO.getLog(orderId, skuCode);
                if (null != productStockLog && productStockLog.getStatus().equals(StockLogStatusEnum.RELEASED.getCode())) {
                    log.info("已释放过库存,orderId={},skuCode={}", orderId, skuCode);
                    return true;
                }

                //5.释放库存
                releaseProductStockProcessor.doRelease(orderId, skuCode, saleQuantity, productStockLog);
            } finally {
                redisLock.unlock(lockKey);
            }
        }
        return true;
    }
    ...
}

(3)消费释放优惠券消息时的幂等性处理

typescript 复制代码
@Configuration
public class ConsumerConfig {
    @Autowired
    private RocketMQProperties rocketMQProperties;

    //释放优惠券消息的消费者
    @Bean("releaseInventoryConsumer")
    public DefaultMQPushConsumer releaseInventoryConsumer(ReleasePropertyListener releasePropertyListener) throws MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(RocketMqConstant.RELEASE_PROPERTY_CONSUMER_GROUP);
        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());
        consumer.subscribe(RocketMqConstant.CANCEL_RELEASE_PROPERTY_TOPIC, "*");
        consumer.registerMessageListener(releasePropertyListener);
        consumer.start();
        return consumer;
    }
}

//监听并消费释放优惠券消息
@Component
public class ReleasePropertyListener implements MessageListenerConcurrently {
    @DubboReference(version = "1.0.0")
    private MarketApi marketApi;

    @Override
    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {
        try {
            for (MessageExt msg : list) {
                String content = new String(msg.getBody(), StandardCharsets.UTF_8);
                log.info("ReleasePropertyConsumer message:{}", content);
                ReleaseUserCouponRequest releaseUserCouponRequest = JSONObject.parseObject(content, ReleaseUserCouponRequest.class);

                //释放优惠券
                JsonResult<Boolean> jsonResult = marketApi.releaseUserCoupon(releaseUserCouponRequest);
                if (!jsonResult.getSuccess()) {
                    throw new MarketBizException(MarketErrorCodeEnum.CONSUME_MQ_FAILED);
                }
            }
            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        } catch (Exception e) {
            log.error("consumer error", e);
            return ConsumeConcurrentlyStatus.RECONSUME_LATER;
        }
    }
}

@DubboService(version = "1.0.0", interfaceClass = MarketApi.class, retries = 0)
public class MarketApiImpl implements MarketApi {
    @Autowired
    private CouponService couponService;
    ...

    //回退用户使用的优惠券
    @Override
    public JsonResult<Boolean> releaseUserCoupon(ReleaseUserCouponRequest releaseUserCouponRequest) {
        log.info("开始执行回滚优惠券,couponId:{}", releaseUserCouponRequest.getCouponId());
        //分布式锁
        String couponId = releaseUserCouponRequest.getCouponId();
        String key = RedisLockKeyConstants.RELEASE_COUPON_KEY + couponId;
        boolean lock = redisLock.lock(key);
        if (!lock) {
            throw new MarketBizException(MarketErrorCodeEnum.RELEASE_COUPON_FAILED);
        }

        try {
            //执行释放优惠券
            Boolean result = couponService.releaseUserCoupon(releaseUserCouponRequest);
            return JsonResult.buildSuccess(result);
        } catch (MarketBizException e) {
            log.error("biz error", e);
            return JsonResult.buildError(e.getErrorCode(), e.getErrorMsg());
        } catch (Exception e) {
            log.error("system error", e);
            return JsonResult.buildError(e.getMessage());
        } finally {
            redisLock.unlock(key);
        }
    }
    ...
}

@Service
public class CouponServiceImpl implements CouponService {
    ...
    //释放用户优惠券
    @Override
    public Boolean releaseUserCoupon(ReleaseUserCouponRequest releaseUserCouponRequest) {
        String userId = releaseUserCouponRequest.getUserId();
        String couponId = releaseUserCouponRequest.getCouponId();
        CouponDO couponAchieve = couponDAO.getUserCoupon(userId, couponId);
        if (CouponUsedStatusEnum.UN_USED.getCode().equals(couponAchieve.getUsed())) {
            log.info("当前用户未使用优惠券,不用回退,userId:{},couponId:{}", userId, couponId);
            return true;
        }
        couponAchieve.setUsed(CouponUsedStatusEnum.UN_USED.getCode());
        couponAchieve.setUsedTime(null);
        couponDAO.updateById(couponAchieve);
        return true;
    }
    ...
}

8.双异步退款链路强一致方案

(1)什么是双异步

(2)使用事务消息保证数据库和MQ的数据一致性

(3)消费准备退款消息时使用事务消息来进行处理

(4)消费实际退款消息失败时会通过重试确保成功

(1)什么是双异步

异步一： 消费释放资产消费者，首先会更新订单 + 发送准备退款消息到MQ。

异步二： 然后订单系统会消费准备退款消息，再发送实际退款消息到MQ。

(2)使用事务消息保证数据库和MQ的数据一致性

订单系统消费准备退款消息时，会插入订单售后数据到数据库 + 发送MQ，此时需要使用事务消息保证数据库和MQ的数据一致性。

(3)消费准备退款消息时使用事务消息来进行处理

java 复制代码
@Configuration
public class ConsumerConfig {
    @Autowired
    private RocketMQProperties rocketMQProperties;
    ...

    //消费退款准备请求消息的消费者
    @Bean("cancelRefundConsumer")
    public DefaultMQPushConsumer cancelRefundConsumer(CancelRefundListener cancelRefundListener) throws MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(RocketMqConstant.REQUEST_CONSUMER_GROUP);
        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());
        consumer.subscribe(RocketMqConstant.CANCEL_REFUND_REQUEST_TOPIC, "*");
        consumer.registerMessageListener(cancelRefundListener);
        consumer.start();
        return consumer;
    }
    ...
}

@Component
public class CancelRefundListener implements MessageListenerConcurrently {
    @Autowired
    private OrderAfterSaleService orderAfterSaleService;

    @Override
    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {
        try {
            for (MessageExt messageExt : list) {
                String message = new String(messageExt.getBody());
                CancelOrderAssembleRequest cancelOrderAssembleRequest = JSONObject.parseObject(message, CancelOrderAssembleRequest.class);
                log.info("CancelRefundConsumer message:{}", message);
                //执行 取消订单/超时未支付取消 前的操作
                JsonResult<Boolean> jsonResult = orderAfterSaleService.processCancelOrder(cancelOrderAssembleRequest);
                if (!jsonResult.getSuccess()) {
                    throw new OrderBizException(OrderErrorCodeEnum.CONSUME_MQ_FAILED);
                }
            }
            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        } catch (Exception e) {
            log.error("consumer error", e);
            return ConsumeConcurrentlyStatus.RECONSUME_LATER;
        }
    }
}

@Service
public class OrderAfterSaleServiceImpl implements OrderAfterSaleService {
    ...
    @Override
    public JsonResult<Boolean> processCancelOrder(CancelOrderAssembleRequest cancelOrderAssembleRequest) {
        String orderId = cancelOrderAssembleRequest.getOrderId();
        //分布式锁
        String key = RedisLockKeyConstants.REFUND_KEY + orderId;
        try {
            boolean lock = redisLock.lock(key);
            if (!lock) {
                throw new OrderBizException(OrderErrorCodeEnum.PROCESS_REFUND_REPEAT);
            }
            //执行退款前的准备工作
            //生成售后订单号
            OrderInfoDTO orderInfoDTO = cancelOrderAssembleRequest.getOrderInfoDTO();
            OrderInfoDO orderInfoDO = orderInfoDTO.clone(OrderInfoDO.class);
            String afterSaleId = orderNoManager.genOrderId(OrderNoTypeEnum.AFTER_SALE.getCode(), orderInfoDO.getUserId());

            //1.计算 取消订单 退款金额
            CancelOrderRefundAmountDTO cancelOrderRefundAmountDTO = calculatingCancelOrderRefundAmount(cancelOrderAssembleRequest);
            cancelOrderAssembleRequest.setCancelOrderRefundAmountDTO(cancelOrderRefundAmountDTO);
            TransactionMQProducer producer = defaultProducer.getProducer();
            producer.setTransactionListener(new TransactionListener() {
                @Override
                public LocalTransactionState executeLocalTransaction(Message message, Object o) {
                    try {
                        //2.取消订单操作 记录售后信息
                        afterSaleManager.insertCancelOrderAfterSale(cancelOrderAssembleRequest, AfterSaleStatusEnum.REVIEW_PASS.getCode(), orderInfoDO, afterSaleId);
                        return LocalTransactionState.COMMIT_MESSAGE;
                    } catch (Exception e) {
                        log.error("system error", e);
                        return LocalTransactionState.ROLLBACK_MESSAGE;
                    }
                }

                @Override
                public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {
                    // 查询售后数据是否插入成功
                    AfterSaleInfoDO afterSaleInfoDO = afterSaleInfoDAO.getOneByAfterSaleId(Long.valueOf(afterSaleId));
                    List<AfterSaleItemDO> afterSaleItemDOList = afterSaleItemDAO.listByAfterSaleId(Long.valueOf(afterSaleId));
                    List<AfterSaleLogDO> afterSaleLogDOList = afterSaleLogDAO.listByAfterSaleId(Long.valueOf(afterSaleId));
                    List<AfterSaleRefundDO> afterSaleRefundDOList = afterSaleRefundDAO.listByAfterSaleId(Long.valueOf(afterSaleId));
                    if (afterSaleInfoDO != null && afterSaleItemDOList.isEmpty() && afterSaleLogDOList.isEmpty() && afterSaleRefundDOList.isEmpty()) {
                        return LocalTransactionState.COMMIT_MESSAGE;
                    }
                    return LocalTransactionState.ROLLBACK_MESSAGE;
                }
            });

            try {
                //3.组装事务MQ消息
                ActualRefundMessage actualRefundMessage = new ActualRefundMessage();
                actualRefundMessage.setOrderId(cancelOrderAssembleRequest.getOrderId());
                actualRefundMessage.setLastReturnGoods(cancelOrderAssembleRequest.isLastReturnGoods());
                actualRefundMessage.setAfterSaleId(Long.valueOf(afterSaleId));
                Message message = new Message(RocketMqConstant.ACTUAL_REFUND_TOPIC, JSONObject.toJSONString(actualRefundMessage).getBytes(StandardCharsets.UTF_8));
                //4.发送事务MQ消息--实际退款消息
                TransactionSendResult result = producer.sendMessageInTransaction(message, actualRefundMessage);
                if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {
                    throw new OrderBizException(OrderErrorCodeEnum.PROCESS_REFUND_FAILED);
                }
                return JsonResult.buildSuccess(true);
            } catch (Exception e) {
                throw new OrderBizException(OrderErrorCodeEnum.SEND_TRANSACTION_MQ_FAILED);
            }
        } finally {
            redisLock.unlock(key);
        }
    }
    ...
}

(4)消费实际退款消息失败时会通过重试确保成功

scss 复制代码
@Configuration
public class ConsumerConfig {
    @Autowired
    private RocketMQProperties rocketMQProperties;
    ...

    //消费实际退款消息的消费者
    @Bean("actualRefundConsumer")
    public DefaultMQPushConsumer actualRefundConsumer(ActualRefundListener actualRefundListener) throws MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(ACTUAL_REFUND_CONSUMER_GROUP);
        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());
        consumer.subscribe(ACTUAL_REFUND_TOPIC, "*");
        consumer.registerMessageListener(actualRefundListener);
        consumer.start();
        return consumer;
    }
    ...
}

@Component
public class ActualRefundListener implements MessageListenerConcurrently {
    @Autowired
    private OrderAfterSaleService orderAfterSaleService;

    @Override
    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {
        try {
            for (MessageExt messageExt : list) {
                String message = new String(messageExt.getBody());
                ActualRefundMessage actualRefundMessage = JSONObject.parseObject(message, ActualRefundMessage.class);
                log.info("ActualRefundConsumer message:{}", message);
                JsonResult<Boolean> jsonResult = orderAfterSaleService.refundMoney(actualRefundMessage);
                if (!jsonResult.getSuccess()) {
                    throw new OrderBizException(jsonResult.getErrorCode(), jsonResult.getErrorMessage());
                }
            }
            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        } catch (Exception e) {
            log.error("consumer error", e);
            return ConsumeConcurrentlyStatus.RECONSUME_LATER;
        }
    }
}

@Service
public class OrderAfterSaleServiceImpl implements OrderAfterSaleService {
    ...
    //进行实际退款处理
    @Override
    public JsonResult<Boolean> refundMoney(ActualRefundMessage actualRefundMessage) {
        Long afterSaleId = actualRefundMessage.getAfterSaleId();
        String key = RedisLockKeyConstants.REFUND_KEY + afterSaleId;
        try {
            boolean lock = redisLock.lock(key);
            if (!lock) {
                throw new OrderBizException(OrderErrorCodeEnum.REFUND_MONEY_REPEAT);
            }

            AfterSaleInfoDO afterSaleInfoDO = afterSaleInfoDAO.getOneByAfterSaleId(actualRefundMessage.getAfterSaleId());
            AfterSaleRefundDO afterSaleRefundDO = afterSaleRefundDAO.findOrderAfterSaleStatus(String.valueOf(afterSaleId));
            //1.封装调用支付退款接口的数据
            PayRefundRequest payRefundRequest = buildPayRefundRequest(actualRefundMessage, afterSaleRefundDO);
            //2.执行退款
            payRemote.executeRefund(payRefundRequest);
            //3.本次售后的订单条目是当前订单的最后一笔，发送事务MQ退优惠券，此时isLastReturnGoods标记是true
            if (actualRefundMessage.isLastReturnGoods()) {
                TransactionMQProducer producer = defaultProducer.getProducer();
                //组装事务MQ消息体
                ReleaseUserCouponRequest releaseUserCouponRequest = buildLastOrderReleasesCouponMessage(producer, afterSaleInfoDO, afterSaleId, actualRefundMessage);
                try {
                    //4.发送事务消息 释放优惠券
                    Message message = new Message(RocketMqConstant.CANCEL_RELEASE_PROPERTY_TOPIC, JSONObject.toJSONString(releaseUserCouponRequest).getBytes(StandardCharsets.UTF_8));
                    TransactionSendResult result = producer.sendMessageInTransaction(message, releaseUserCouponRequest);
                    if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {
                        throw new OrderBizException(OrderErrorCodeEnum.REFUND_MONEY_RELEASE_COUPON_FAILED);
                    }
                    return JsonResult.buildSuccess(true);
                } catch (Exception e) {
                    throw new OrderBizException(OrderErrorCodeEnum.SEND_TRANSACTION_MQ_FAILED);
                }
            } else {
                //当前售后条目非本订单的最后一笔 和 取消订单，在此更新售后状态后流程结束
                //更新售后单状态
                updateAfterSaleStatus(afterSaleInfoDO, AfterSaleStatusEnum.REVIEW_PASS.getCode(), AfterSaleStatusEnum.REFUNDING.getCode());
                return JsonResult.buildSuccess(true);
            }
        } catch (OrderBizException e) {
            log.error("system error", e);
            return JsonResult.buildError(e.getMessage());
        } finally {
            redisLock.unlock(key);
        }
    }

    private ReleaseUserCouponRequest buildLastOrderReleasesCouponMessage(TransactionMQProducer producer, AfterSaleInfoDO afterSaleInfoDO, Long afterSaleId, ActualRefundMessage actualRefundMessage) {
        producer.setTransactionListener(new TransactionListener() {
            @Override
            public LocalTransactionState executeLocalTransaction(Message msg, Object arg) {
                try {
                    //更新售后单状态
                    updateAfterSaleStatus(afterSaleInfoDO, AfterSaleStatusEnum.REVIEW_PASS.getCode(), AfterSaleStatusEnum.REFUNDING.getCode());
                    return LocalTransactionState.COMMIT_MESSAGE;
                } catch (Exception e) {
                    log.error("system error", e);
                    return LocalTransactionState.ROLLBACK_MESSAGE;
                }
            }

            @Override
            public LocalTransactionState checkLocalTransaction(MessageExt msg) {
                //查询售后单状态是"退款中"
                AfterSaleInfoDO afterSaleInfoDO = afterSaleInfoDAO.getOneByAfterSaleId(afterSaleId);
                if (AfterSaleStatusEnum.REFUNDING.getCode().equals(afterSaleInfoDO.getAfterSaleStatus())) {
                    return LocalTransactionState.COMMIT_MESSAGE;
                }
                return LocalTransactionState.ROLLBACK_MESSAGE;
            }
        });

        //组装释放优惠券权益消息数据
        String orderId = actualRefundMessage.getOrderId();
        OrderInfoDO orderInfoDO = orderInfoDAO.getByOrderId(orderId);
        ReleaseUserCouponRequest releaseUserCouponRequest = new ReleaseUserCouponRequest();
        releaseUserCouponRequest.setCouponId(orderInfoDO.getCouponId());
        releaseUserCouponRequest.setUserId(orderInfoDO.getUserId());
        return releaseUserCouponRequest;
    }
    ...

    //支付退款回调处理
    @Override
    @Transactional(rollbackFor = Exception.class)
    public JsonResult<Boolean> receivePaymentRefundCallback(RefundCallbackRequest payRefundCallbackRequest) {
        String afterSaleId = payRefundCallbackRequest.getAfterSaleId();
        String key = RedisLockKeyConstants.REFUND_KEY + afterSaleId;
        try {
            boolean lock = redisLock.lock(key);
            if (!lock) {
                throw new OrderBizException(OrderErrorCodeEnum.PROCESS_PAY_REFUND_CALLBACK_REPEAT);
            }

            //1.入参校验
            checkRefundCallbackParam(payRefundCallbackRequest);
            //2.获取三方支付退款的返回结果
            Integer afterSaleStatus;
            Integer refundStatus;
            String refundStatusMsg;
            if (RefundStatusEnum.REFUND_SUCCESS.getCode().equals(payRefundCallbackRequest.getRefundStatus())) {
                afterSaleStatus = AfterSaleStatusEnum.REFUNDED.getCode();
                refundStatus = RefundStatusEnum.REFUND_SUCCESS.getCode();
                refundStatusMsg = RefundStatusEnum.REFUND_SUCCESS.getMsg();
            } else {
                afterSaleStatus = AfterSaleStatusEnum.FAILED.getCode();
                refundStatus = RefundStatusEnum.REFUND_FAIL.getCode();
                refundStatusMsg = RefundStatusEnum.REFUND_FAIL.getMsg();
            }
            //3.更新售后记录，支付退款回调更新售后信息
            updatePaymentRefundCallbackAfterSale(payRefundCallbackRequest, afterSaleStatus, refundStatus, refundStatusMsg);
            //4.发短信
            sendRefundMobileMessage(afterSaleId);
            //5.发APP通知
            sendRefundAppMessage(afterSaleId);
            return JsonResult.buildSuccess();
        } catch (Exception e) {
            log.error(e.getMessage());
            throw new OrderBizException(OrderErrorCodeEnum.PROCESS_PAY_REFUND_CALLBACK_FAILED);
        } finally {
            redisLock.unlock(key);
        }
    }
    ...
}

9.发起售后退货链路数据一致方案

(1)用户发起售后退货的处理链路

(2)插入售后数据 + 发送售后退货消息到MQ时使用事务消息来保证一致性

(1)用户发起售后退货的处理链路

(2)插入售后数据 + 发送售后退货消息到MQ时使用事务消息来保证一致性

scss 复制代码
@RestController
@RequestMapping("/afterSale")
public class AfterSaleController {
    ...
    //用户发起退货售后
    @PostMapping("/applyAfterSale")
    public JsonResult<Boolean> applyAfterSale(@RequestBody ReturnGoodsOrderRequest returnGoodsOrderRequest) {
        //分布式锁
        String orderId = returnGoodsOrderRequest.getOrderId();
        String key = RedisLockKeyConstants.REFUND_KEY + orderId;
        boolean lock = redisLock.tryLock(key);
        if (!lock) {
            throw new OrderBizException(OrderErrorCodeEnum.PROCESS_AFTER_SALE_RETURN_GOODS);
        }
        try {
            return orderAfterSaleService.processApplyAfterSale(returnGoodsOrderRequest);
        } finally {
            redisLock.unlock(key);
        }
    }
    ...
}

@Service
public class OrderAfterSaleServiceImpl implements OrderAfterSaleService {
    ...
    //当前业务限制说明：
    //目前业务限定，一笔订单包含多笔订单条目，每次手动售后只能退一笔条目，不支持单笔条目多次退不同数量
    //举例：
    //一笔订单包含订单条目A(购买数量10)和订单条目B(购买数量1)，每一次可单独发起：售后订单条目A or 售后订单条目B
    //如果是售后订单条目A，那么就是把A中购买数量10全部退掉
    //如果是售后订单条目B，那么就是把B中购买数量1全部退款
    //暂不支持第一次退A中的3条，第二次退A中的2条，第三次退A中的5条这种退法
    @Override
    @Transactional(rollbackFor = Exception.class)
    public JsonResult<Boolean> processApplyAfterSale(ReturnGoodsOrderRequest returnGoodsOrderRequest) {
        //参数校验
        checkAfterSaleRequestParam(returnGoodsOrderRequest);
        try {
            //1.售后单状态验证
            //用order id和sku code查到售后id
            String orderId = returnGoodsOrderRequest.getOrderId();
            String skuCode = returnGoodsOrderRequest.getSkuCode();
            //场景校验逻辑：
            //第一种场景：订单条目A是第一次发起手动售后，此时售后订单条目表没有该订单的记录，orderIdAndSkuCodeList是空，正常执行后面的售后逻辑
            //第二种场景：订单条目A已发起过售后，非"撤销成功"状态的售后单不允许重复发起售后
            List<AfterSaleItemDO> orderIdAndSkuCodeList = afterSaleItemDAO.getOrderIdAndSkuCode(orderId, skuCode);
            if (!orderIdAndSkuCodeList.isEmpty()) {
                //查询订单条目所属的售后单状态
                Long afterSaleId = orderIdAndSkuCodeList.get(0).getAfterSaleId();
                AfterSaleInfoDO afterSaleInfoDO = afterSaleInfoDAO.getOneByAfterSaleId(afterSaleId);
                if (!AfterSaleStatusEnum.REVOKE.getCode().equals(afterSaleInfoDO.getAfterSaleStatus())) {
                    //非"撤销成功"状态的售后单不能重复发起售后
                    throw new OrderBizException(OrderErrorCodeEnum.PROCESS_APPLY_AFTER_SALE_CANNOT_REPEAT);
                }
            }

            //2.封装数据
            ReturnGoodsAssembleRequest returnGoodsAssembleRequest = buildReturnGoodsData(returnGoodsOrderRequest);

            //3.计算退货金额
            returnGoodsAssembleRequest = calculateReturnGoodsAmount(returnGoodsAssembleRequest);

            TransactionMQProducer producer = defaultProducer.getProducer();
            ReturnGoodsAssembleRequest finalReturnGoodsAssembleRequest = returnGoodsAssembleRequest;

            //4.生成售后订单号
            OrderInfoDTO orderInfoDTO = returnGoodsAssembleRequest.getOrderInfoDTO();
            OrderInfoDO orderInfoDO = orderConverter.orderInfoDTO2DO(orderInfoDTO);
            String afterSaleId = orderNoManager.genOrderId(OrderNoTypeEnum.AFTER_SALE.getCode(), orderInfoDO.getUserId());
            producer.setTransactionListener(new TransactionListener() {
                @Override
                public LocalTransactionState executeLocalTransaction(Message message, Object o) {
                    try {
                        //5.售后数据落库
                        insertReturnGoodsAfterSale(finalReturnGoodsAssembleRequest, AfterSaleStatusEnum.COMMITED.getCode(), afterSaleId, orderInfoDO, orderInfoDTO);
                        return LocalTransactionState.COMMIT_MESSAGE;
                    } catch (Exception e) {
                        log.error("system error", e);
                        return LocalTransactionState.ROLLBACK_MESSAGE;
                    }
                }

                @Override
                public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {
                    //查询售后数据是否插入成功
                    AfterSaleInfoDO afterSaleInfoDO = afterSaleInfoDAO.getOneByAfterSaleId(Long.valueOf(afterSaleId));
                    List<AfterSaleItemDO> afterSaleItemDOList = afterSaleItemDAO.listByAfterSaleId(Long.valueOf(afterSaleId));
                    List<AfterSaleLogDO> afterSaleLogDOList = afterSaleLogDAO.listByAfterSaleId(Long.valueOf(afterSaleId));
                    List<AfterSaleRefundDO> afterSaleRefundDOList = afterSaleRefundDAO.listByAfterSaleId(Long.valueOf(afterSaleId));
                    if (afterSaleInfoDO != null && !afterSaleItemDOList.isEmpty() && !afterSaleLogDOList.isEmpty() && !afterSaleRefundDOList.isEmpty()) {
                        return LocalTransactionState.COMMIT_MESSAGE;
                    }
                    return LocalTransactionState.ROLLBACK_MESSAGE;
                }
            });

            try {
                //6.组装发送消息数据
                CustomerReceiveAfterSaleRequest customerReceiveAfterSaleRequest = orderConverter.convertReturnGoodsAssembleRequest(returnGoodsAssembleRequest);
                customerReceiveAfterSaleRequest.setAfterSaleId(afterSaleId);
                Message message = new Message(RocketMqConstant.AFTER_SALE_CUSTOMER_AUDIT_TOPIC, JSONObject.toJSONString(customerReceiveAfterSaleRequest).getBytes(StandardCharsets.UTF_8));
                //7.发起客服审核
                TransactionSendResult result = producer.sendMessageInTransaction(message, customerReceiveAfterSaleRequest);
                if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {
                    throw new OrderBizException(OrderErrorCodeEnum.SEND_AFTER_SALE_CUSTOMER_AUDIT_MQ_FAILED);
                }
                return JsonResult.buildSuccess(true);
            } catch (Exception e) {
                throw new OrderBizException(OrderErrorCodeEnum.SEND_TRANSACTION_MQ_FAILED);
            }
        } catch (BaseBizException e) {
            log.error("system error", e);
            return JsonResult.buildError(e.getMessage());
        }
    }
    ...
}

@Configuration
public class ConsumerConfig {
    @Autowired
    private RocketMQProperties rocketMQProperties;

    //客服接收售后申请消费者
    @Bean("afterSaleCustomerAudit")
    public DefaultMQPushConsumer afterSaleCustomerAudit(AfterSaleCustomerAuditTopicListener afterSaleCustomerAuditTopicListener) throws MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(AFTER_SALE_CUSTOMER_AUDIT_GROUP);
        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());
        consumer.subscribe(AFTER_SALE_CUSTOMER_AUDIT_TOPIC, "*");
        consumer.registerMessageListener(afterSaleCustomerAuditTopicListener);
        consumer.start();
        return consumer;
    }
}

@Component
public class AfterSaleCustomerAuditTopicListener implements MessageListenerConcurrently {
    @Autowired
    private CustomerService customerService;

    @Override
    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {
        try {
            for (MessageExt messageExt : list) {
                String message = new String(messageExt.getBody());
                log.info("AfterSaleCustomerAuditTopicListener message:{}", message);
                CustomerReceiveAfterSaleRequest customerReceiveAfterSaleRequest = JSON.parseObject(message, CustomerReceiveAfterSaleRequest.class);
                //客服接收订单系统的售后申请
                JsonResult<Boolean> jsonResult = customerService.receiveAfterSale(customerReceiveAfterSaleRequest);
                if (!jsonResult.getSuccess()) {
                    throw new CustomerBizException(CustomerErrorCodeEnum.PROCESS_RECEIVE_AFTER_SALE);
                }
            }
            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        } catch (Exception e) {
            log.error("consumer error", e);
            return ConsumeConcurrentlyStatus.RECONSUME_LATER;
        }
    }
}

@Service
public class CustomerServiceImpl implements CustomerService {
    ...
    @Override
    public JsonResult<Boolean> receiveAfterSale(CustomerReceiveAfterSaleRequest customerReceiveAfterSaleRequest) {
        //1.校验入参
        checkCustomerReceiveAfterSaleRequest(customerReceiveAfterSaleRequest);

        //2.分布式锁
        String afterSaleId = customerReceiveAfterSaleRequest.getAfterSaleId();
        String key = RedisLockKeyConstants.REFUND_KEY + afterSaleId;
        boolean lock = redisLock.tryLock(key);
        if (!lock) {
            throw new CustomerBizException(CustomerErrorCodeEnum.PROCESS_RECEIVE_AFTER_SALE_REPEAT);
        }

        try {
            JsonResult<Long> afterSaleRefundIdJsonResult = afterSaleRemote.customerFindAfterSaleRefundInfo(customerReceiveAfterSaleRequest);
            //3.保存售后申请数据
            customerReceiveAfterSaleRequest.setAfterSaleRefundId(afterSaleRefundIdJsonResult.getData());
            CustomerReceivesAfterSaleInfoDO customerReceivesAfterSaleInfoDO = customerConverter.convertCustomerReceivesAfterSalInfoDO(customerReceiveAfterSaleRequest);
            customerReceivesAfterSaleInfoDAO.save(customerReceivesAfterSaleInfoDO);
            log.info("客服保存售后申请信息成功，afterSaleId:{}", customerReceiveAfterSaleRequest.getAfterSaleId());
            return JsonResult.buildSuccess(true);
        } catch (Exception e) {
            throw new CustomerBizException(CustomerErrorCodeEnum.SAVE_AFTER_SALE_INFO_FAILED);
        } finally {
            //4.放锁
            redisLock.unlock(key);
        }
    }
    ...
}
相关推荐
Dcs13 分钟前
Java 开发者必读：近期框架更新汇总（Spring gRPC、Micronaut、Quarkus 等）
java
Pi_Qiu_1 小时前
Python初学者笔记第十三期 -- （常用内置函数）
java·笔记·python
hsx6661 小时前
Android 基础筑基（一）
java
hy.z_7771 小时前
【数据结构】反射、枚举 和 lambda表达式
android·java·数据结构
從南走到北1 小时前
JAVA青企码协会模式系统源码支持微信公众号+微信小程序+H5+APP
java·微信·微信小程序·小程序·uni-app·微信公众平台
草履虫建模2 小时前
Ajax原理、用法与经典代码实例
java·前端·javascript·ajax·intellij-idea
强哥叨逼叨2 小时前
别被假象迷惑！揭秘 Java 线程池中“线程空着但任务卡着”的真相
java
_extraordinary_2 小时前
Java 栈和队列
java·开发语言
codervibe2 小时前
无微信依赖！纯网页扫码登录实现方案详解
java·后端
间彧2 小时前
RedisTemplate介绍与使用
java·redis
热门推荐
01全球最强模型Grok4，国内已可免费使用！（附教程）02KGG转MP3工具|非KGM文件|解密音频03Coze扣子平台完整体验和实践（附国内和国际版对比）04《深入设计模式》模式结构汇总05使用Ruby接入实时行情API教程06扣子（coze）实战|我用扣子搭建了一个自动分析小红薯笔记内容的AI应用|详细步骤拆解07基于odoo17的设计模式详解---单例模式08集群聊天服务器---MySQL数据库的建立09DeepSeek各版本说明与优缺点分析10LOT: 通过逻辑增强大型语言模型的零样本Chain-of-Thought推理能力
