vue vxe-table grid 通过配置 ajax 方式自动请求数据，适用于简单场景的列表
当系统中很多页面都是简单列表时，每次都要手动去请求接口后再负责，过程就会比较冗余繁琐，这是就可以通过 grid 配置 ajax 来实现自动请求加载数据。
查看官网：vxetable.cn
gitbub：github.com/x-extends/v...
gitee：gitee.com/x-extends/v...

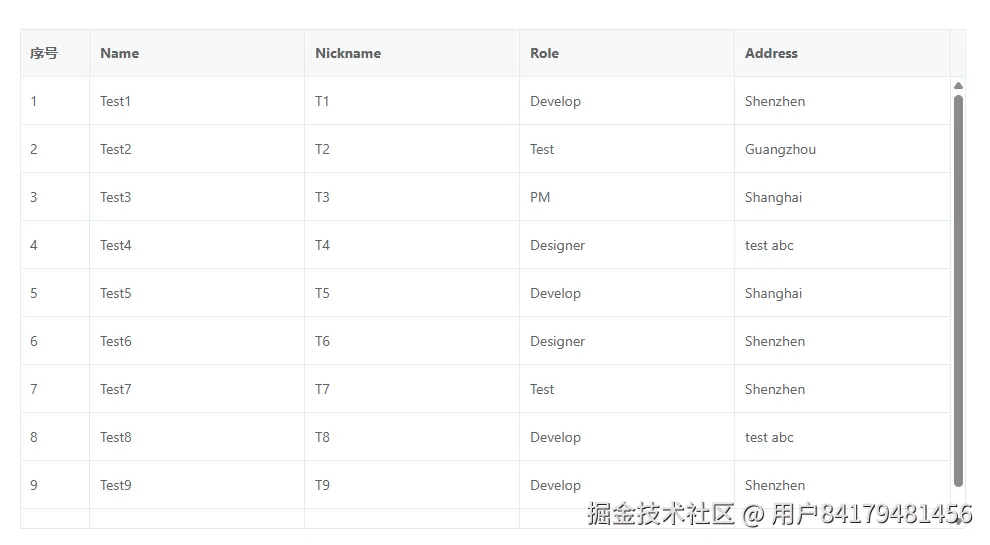

普通列表
通过 proxy-config.ajax.query 配置查询接口
html
<template>
<div>
<vxe-grid v-bind="gridOptions"></vxe-grid>
</div>
</template>
<script lang="ts" setup>
import { reactive } from 'vue'
import type { VxeGridProps } from 'vxe-table'
interface RowVO {
id: number
name: string
nickname: string
role: string
sex: string
age: number
address: string
}
// 模拟后台接口
const findList = () => {
console.log('调用查询接口')
return new Promise<RowVO[]>(resolve => {
setTimeout(() => {
const list = [
{ id: 10001, name: 'Test1', nickname: 'T1', role: 'Develop', sex: 'Man', age: 28, address: 'Shenzhen' },
{ id: 10002, name: 'Test2', nickname: 'T2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
{ id: 10003, name: 'Test3', nickname: 'T3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },
{ id: 10004, name: 'Test4', nickname: 'T4', role: 'Designer', sex: 'Women', age: 23, address: 'test abc' },
{ id: 10005, name: 'Test5', nickname: 'T5', role: 'Develop', sex: 'Women', age: 30, address: 'Shanghai' },
{ id: 10006, name: 'Test6', nickname: 'T6', role: 'Designer', sex: 'Women', age: 21, address: 'Shenzhen' },
{ id: 10007, name: 'Test7', nickname: 'T7', role: 'Test', sex: 'Man', age: 29, address: 'Shenzhen' },
{ id: 10008, name: 'Test8', nickname: 'T8', role: 'Develop', sex: 'Man', age: 35, address: 'test abc' },
{ id: 10009, name: 'Test9', nickname: 'T9', role: 'Develop', sex: 'Man', age: 35, address: 'Shenzhen' },
{ id: 100010, name: 'Test10', nickname: 'T10', role: 'Develop', sex: 'Man', age: 35, address: 'Guangzhou' }
]
resolve(list)
}, 300)
})
}
const gridOptions = reactive<VxeGridProps<RowVO>>({
border: true,
height: 500,
proxyConfig: {
// showLoading: false, // 关闭加载中
ajax: {
query: () => {
// 默认接收 Promise<RowVO[]>
return findList()
}
}
},
columns: [
{ type: 'seq', width: 70 },
{ field: 'name', title: 'Name' },
{ field: 'nickname', title: 'Nickname' },
{ field: 'role', title: 'Role' },
{ field: 'address', title: 'Address', showOverflow: true }
]
})

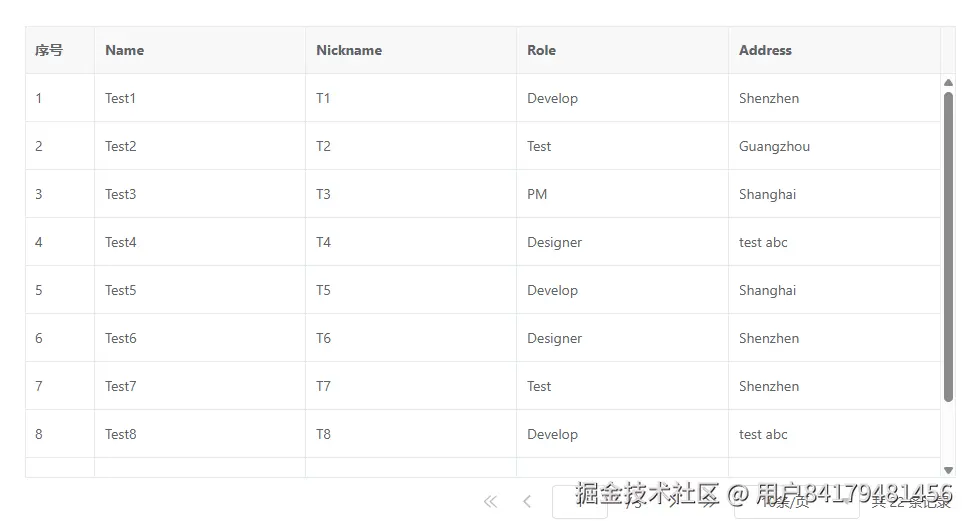

</script>分页列表
分页查询跟列表查询的配置是一模一样的，区别就是多加一个分页配置项 page-config，以及接口响应结果带分页信息
html
<template>
<div>
<vxe-grid v-bind="gridOptions"></vxe-grid>
</div>
</template>
<script lang="ts" setup>
import { reactive } from 'vue'
import type { VxeGridProps } from 'vxe-table'
interface RowVO {
id: number
name: string
nickname: string
role: string
sex: string
age: number
address: string
}
const list = [
{ id: 10001, name: 'Test1', nickname: 'T1', role: 'Develop', sex: 'Man', age: 28, address: 'Shenzhen' },
{ id: 10002, name: 'Test2', nickname: 'T2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
{ id: 10003, name: 'Test3', nickname: 'T3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },
{ id: 10004, name: 'Test4', nickname: 'T4', role: 'Designer', sex: 'Women', age: 23, address: 'test abc' },
{ id: 10005, name: 'Test5', nickname: 'T5', role: 'Develop', sex: 'Women', age: 30, address: 'Shanghai' },
{ id: 10006, name: 'Test6', nickname: 'T6', role: 'Designer', sex: 'Women', age: 21, address: 'Shenzhen' },
{ id: 10007, name: 'Test7', nickname: 'T7', role: 'Test', sex: 'Man', age: 29, address: 'Shenzhen' },
{ id: 10008, name: 'Test8', nickname: 'T8', role: 'Develop', sex: 'Man', age: 35, address: 'test abc' },
{ id: 10009, name: 'Test9', nickname: 'T9', role: 'Develop', sex: 'Man', age: 35, address: 'Shenzhen' },
{ id: 100010, name: 'Test10', nickname: 'T10', role: 'Develop', sex: 'Man', age: 35, address: 'Guangzhou' },
{ id: 100011, name: 'Test11', nickname: 'T11', role: 'Develop', sex: 'Man', age: 49, address: 'Guangzhou' },
{ id: 100012, name: 'Test12', nickname: 'T12', role: 'Develop', sex: 'Women', age: 45, address: 'Shanghai' },
{ id: 100013, name: 'Test13', nickname: 'T13', role: 'Test', sex: 'Women', age: 35, address: 'Guangzhou' },
{ id: 100014, name: 'Test14', nickname: 'T14', role: 'Test', sex: 'Man', age: 29, address: 'Shanghai' },
{ id: 100015, name: 'Test15', nickname: 'T15', role: 'Develop', sex: 'Man', age: 39, address: 'Guangzhou' },
{ id: 100016, name: 'Test16', nickname: 'T16', role: 'Test', sex: 'Women', age: 35, address: 'Guangzhou' },
{ id: 100017, name: 'Test17', nickname: 'T17', role: 'Test', sex: 'Man', age: 39, address: 'Shanghai' },
{ id: 100018, name: 'Test18', nickname: 'T18', role: 'Develop', sex: 'Man', age: 44, address: 'Guangzhou' },
{ id: 100019, name: 'Test19', nickname: 'T19', role: 'Develop', sex: 'Man', age: 39, address: 'Guangzhou' },
{ id: 100020, name: 'Test20', nickname: 'T20', role: 'Test', sex: 'Women', age: 35, address: 'Guangzhou' },
{ id: 100021, name: 'Test21', nickname: 'T21', role: 'Test', sex: 'Man', age: 39, address: 'Shanghai' },
{ id: 100022, name: 'Test22', nickname: 'T22', role: 'Develop', sex: 'Man', age: 44, address: 'Guangzhou' }
]
// 模拟后端接口
const findPageList = (pageSize: number, currentPage: number) => {
console.log(`调用查询接口 pageSize=${pageSize} currentPage=${currentPage}`)
return new Promise<{
result: RowVO[]
page: {
total: number
}
}>(resolve => {
setTimeout(() => {
resolve({
result: list.slice((currentPage - 1) * pageSize, currentPage * pageSize),
page: {
total: list.length
}
})
}, 100)
})
}
const gridOptions = reactive<VxeGridProps<RowVO>>({
border: true,
height: 500,
pagerConfig: {}, // 启用分页
proxyConfig: {
// showLoading: false, // 关闭加载中
// response: {
// result: 'result', // 配置响应结果列表字段
// total: 'page.total' // 配置响应结果总页数字段
// },
ajax: {
query: ({ page }) => {
// 默认接收 Promise<{ result: RowVO[], page: { total: 100 } }>
return findPageList(page.pageSize, page.currentPage)
}
}
},
columns: [
{ type: 'seq', width: 70 },
{ field: 'name', title: 'Name' },
{ field: 'nickname', title: 'Nickname' },
{ field: 'role', title: 'Role' },
{ field: 'address', title: 'Address', showOverflow: true }
]
})
</script>
