网络安全实验06 部署防火墙主备备份双机热备，提高网络可靠性

90后小陈老师2025-07-22 17:55

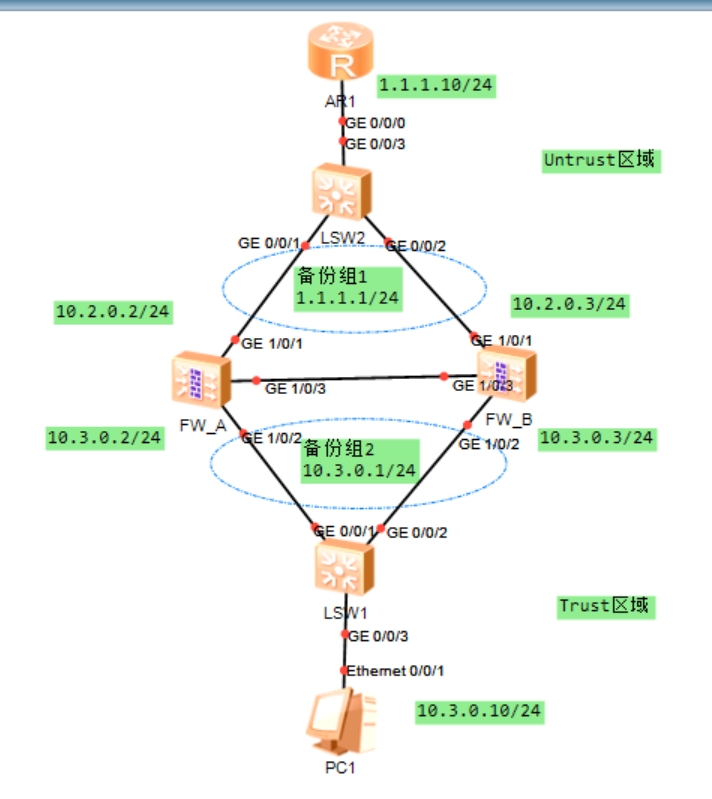

1.操作步骤

用户名：admin

密码：Admin@123

新密码：Huawei@123

步骤1：配置防火墙网络的基本参数

（1）配置防火墙接口IP地址

防火墙A

复制代码
interface GigabitEthernet1/0/1
 undo shutdown
 ip address 10.2.0.2 255.255.255.0
#
interface GigabitEthernet1/0/2
 undo shutdown
 ip address 10.3.0.2 255.255.255.0
#
interface GigabitEthernet1/0/3
 undo shutdown
 ip address 10.10.0.1 255.255.255.252

防火墙B（这里咱们可以直接修改A的配置然后粘贴到防火墙B中运行即可）

复制代码
interface GigabitEthernet1/0/1
 undo shutdown
 ip address 10.2.0.3 255.255.255.0
#
interface GigabitEthernet1/0/2
 undo shutdown
 ip address 10.3.0.3 255.255.255.0
#
interface GigabitEthernet1/0/3
 undo shutdown
 ip address 10.10.0.2 255.255.255.252

（2）将接口加入安全区域

防火墙A

复制代码
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/2
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet1/0/3

防火墙B

复制代码
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/2
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet1/0/3

（3）设置默认路由

防火墙A、B

复制代码
ip route-static 0.0.0.0 0 1.1.1.10

步骤2：配置双击热备主备备份

（1）配置VRRP备份组（防火墙A设置为active，防火墙B设置为standby）

防火墙A

复制代码
interface GigabitEthernet1/0/1
 undo shutdown
 ip address 10.2.0.2 255.255.255.0
 vrrp vrid 1 virtual-ip 1.1.1.1 255.255.255.0 active
#
interface GigabitEthernet1/0/2
 undo shutdown
 ip address 10.3.0.2 255.255.255.0
 vrrp vrid 2 virtual-ip 10.3.0.1 active

防火墙B

复制代码
interface GigabitEthernet1/0/1
 undo shutdown
 ip address 10.2.0.2 255.255.255.0
 vrrp vrid 1 virtual-ip 1.1.1.1 255.255.255.0 standby
#
interface GigabitEthernet1/0/2
 undo shutdown
 ip address 10.3.0.2 255.255.255.0
 vrrp vrid 2 virtual-ip 10.3.0.1 standby

（2）指定心跳接口并启用双击热备功能

防火墙A

复制代码
hrp inter g 1/0/3 remote 10.10.0.2
hrp enable

防火墙B

复制代码
hrp inter g 1/0/3 remote 10.10.0.1
hrp enable

步骤3：配置安全策略（只需配置防火墙A，策略会自动备份到防火墙B中）

复制代码
security-policy
 rule name trust_to_untrust
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  action permit

步骤4：配置NAT（只需配置防火墙A，策略会自动备份到防火墙B中）

（1）配置NAT地址池

复制代码
nat address-group group01 0
 mode pat
 route enable
 section 0 1.1.1.11 1.1.1.20

（2）配置NAT策略

复制代码
nat-policy
 rule name trust_to_untrust
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  action source-nat address-group group01

步骤5：配置路由器

（1）配置路由器R1的接口IP地址

复制代码
interface GigabitEthernet0/0/0
 ip address 1.1.1.10 255.255.255.0

interface LoopBack0
 ip address 2.2.2.2 255.255.255.255

（2）配置默认路由

复制代码
ip route-static 10.3.0.0 24 1.1.1.1

步骤6：配置交换机和内网终端

（1）配置交换机VLAN

交换机1（vlan 3）

复制代码
vlan batch 3

interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 3
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 3
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 3

交换机2（vlan 2）

复制代码
vlan batch 2

interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 2
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 2
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 2

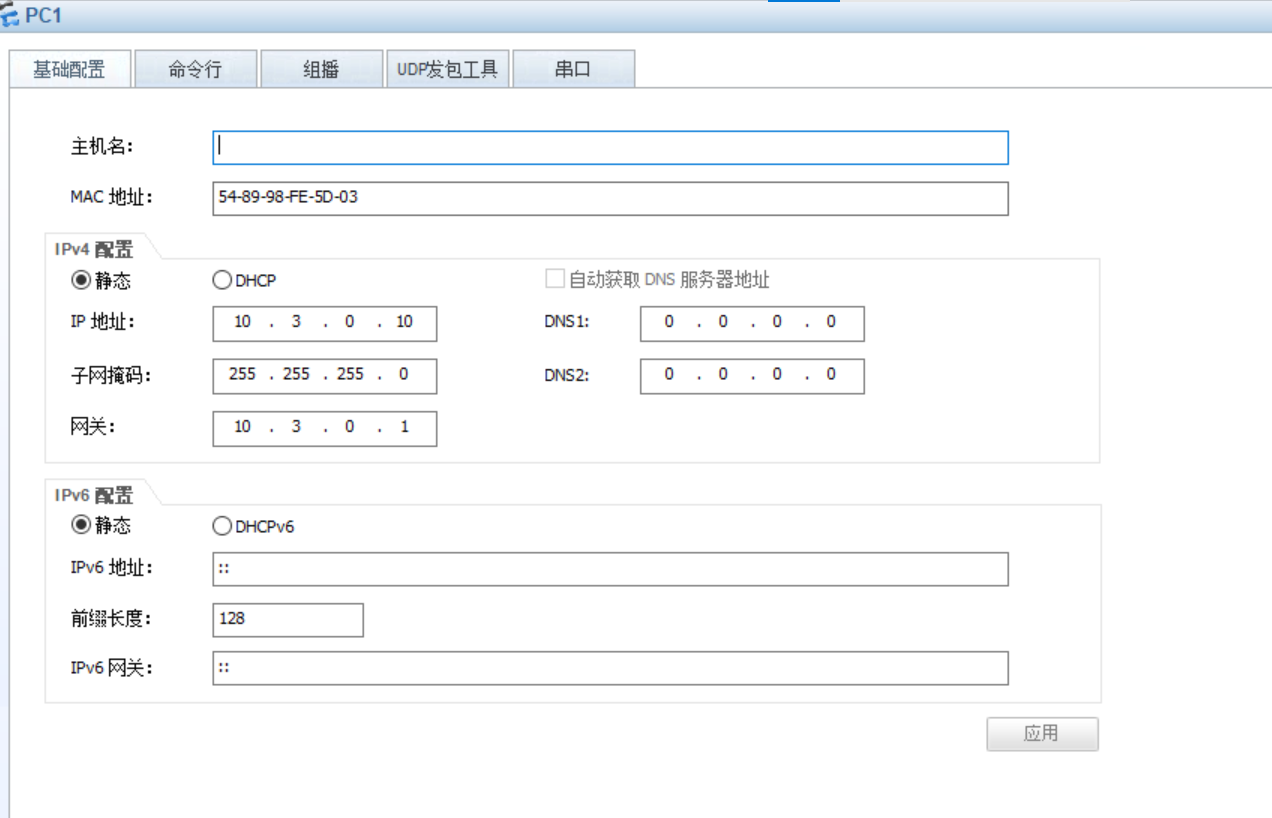

（2）配置内网主机的网络参数

2.所有配置

2.1 防火墙A

复制代码
2024-04-01 04:07:16.430
!Software Version V500R005C10SPC300
#
sysname USG6000V1
#
 l2tp domain suffix-separator @
#
 ipsec sha2 compatible enable
#
undo telnet server enable
undo telnet ipv6 server enable
#
 hrp enable
 hrp interface GigabitEthernet1/0/3 remote 10.10.0.2
#
 update schedule location-sdb weekly Sun 00:41
#
 firewall defend action discard
#
 banner enable
#
 user-manage web-authentication security port 8887
 undo privacy-statement english
 undo privacy-statement chinese
page-setting
 user-manage security version tlsv1.1 tlsv1.2
password-policy
 level high
user-manage single-sign-on ad
user-manage single-sign-on tsm
user-manage single-sign-on radius
user-manage auto-sync online-user
#
 web-manager security version tlsv1.1 tlsv1.2
 web-manager enable
 web-manager security enable
#
firewall dataplane to manageplane application-apperceive default-action drop
#
 undo ips log merge enable
#
 decoding uri-cache disable
#
 update schedule ips-sdb daily 06:58
 update schedule av-sdb daily 06:58
 update schedule sa-sdb daily 06:58
 update schedule cnc daily 06:58
 update schedule file-reputation daily 06:58
#
ip vpn-instance default
 ipv4-family
#
 time-range worktime
  period-range 08:00:00 to 18:00:00 working-day
#
ike proposal default
 encryption-algorithm aes-256 aes-192 aes-128
 dh group14
 authentication-algorithm sha2-512 sha2-384 sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
aaa
 authentication-scheme default
 authentication-scheme admin_local
 authentication-scheme admin_radius_local
 authentication-scheme admin_hwtacacs_local
 authentication-scheme admin_ad_local
 authentication-scheme admin_ldap_local
 authentication-scheme admin_radius
 authentication-scheme admin_hwtacacs
 authentication-scheme admin_ad
authorization-scheme default
 accounting-scheme default
 domain default
  service-type internetaccess ssl-vpn l2tp ike
  internet-access mode password
  reference user current-domain
 manager-user audit-admin
  password cipher @%@%bQO[W~6U+3a_#jH=8h/&+cZoy\]zIv|,'~avU,5gheL*cZr+@%@%
  service-type web terminal
  level 15

 manager-user api-admin
  password cipher @%@%D<Du*bM;j-simMD!QcV3@9i/SVk5;q]os)28bZ8oAH#V9i2@@%@%
  level 15

 manager-user admin
  password cipher @%@%ub8%>qVGN&TFNwV#37T$K`55&H_y18!\\+A)a63_,j2I`58K@%@%
  service-type web terminal
  level 15

 role system-admin
 role device-admin
 role device-admin(monitor)
 role audit-admin
 bind manager-user audit-admin role audit-admin
 bind manager-user admin role system-admin
#
l2tp-group default-lns
#
interface GigabitEthernet0/0/0
 undo shutdown
 ip binding vpn-instance default
 ip address 192.168.0.1 255.255.255.0
 alias GE0/METH
#
interface GigabitEthernet1/0/0
 undo shutdown
#
interface GigabitEthernet1/0/1
 undo shutdown
 ip address 10.2.0.2 255.255.255.0
 vrrp vrid 1 virtual-ip 1.1.1.1 255.255.255.0 active
#
interface GigabitEthernet1/0/2
 undo shutdown
 ip address 10.3.0.2 255.255.255.0
 vrrp vrid 2 virtual-ip 10.3.0.1 active
#
interface GigabitEthernet1/0/3
 undo shutdown
 ip address 10.10.0.1 255.255.255.252
#
interface GigabitEthernet1/0/4
 undo shutdown
#
interface GigabitEthernet1/0/5
 undo shutdown
#
interface GigabitEthernet1/0/6
 undo shutdown
#
interface Virtual-if0
#
interface NULL0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/2
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet1/0/3
#
ip route-static 0.0.0.0 0.0.0.0 1.1.1.10
#
undo ssh server compatible-ssh1x enable
ssh authentication-type default password
ssh server cipher aes256_ctr aes128_ctr
ssh server hmac sha2_256 sha1
ssh client cipher aes256_ctr aes128_ctr
ssh client hmac sha2_256 sha1
#
firewall detect ftp
#
user-interface con 0
 authentication-mode aaa
user-interface vty 0 4
 authentication-mode aaa
user-interface vty 16 20
#
pki realm default
#
sa
#
location
#
nat address-group group01 0
 mode pat
 route enable
 section 0 1.1.1.11 1.1.1.20
#
multi-linkif
 mode proportion-of-weight
#
right-manager server-group
#
device-classification
 device-group pc
 device-group mobile-terminal
 device-group undefined-group
#
user-manage server-sync tsm
#
security-policy
 rule name trust_to_untrust
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  action permit
#
auth-policy
#
traffic-policy
#
policy-based-route
#
nat-policy
 rule name trust_to_untrust
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  action source-nat address-group group01
#
quota-policy
#
pcp-policy
#
dns-transparent-policy
#
rightm-policy
#
return

2.2 防火墙B

复制代码
2024-04-01 04:09:43.320
!Software Version V500R005C10SPC300
#
sysname USG6000V1
#
 l2tp domain suffix-separator @
#
 ipsec sha2 compatible enable
#
undo telnet server enable
undo telnet ipv6 server enable
#
 hrp enable
 hrp interface GigabitEthernet1/0/3 remote 10.10.0.1
#
 update schedule location-sdb weekly Sun 00:57
#
 firewall defend action discard
#
 banner enable
#
 user-manage web-authentication security port 8887
 undo privacy-statement english
 undo privacy-statement chinese
page-setting
 user-manage security version tlsv1.1 tlsv1.2
password-policy
 level high
user-manage single-sign-on ad
user-manage single-sign-on tsm
user-manage single-sign-on radius
user-manage auto-sync online-user
#
 web-manager security version tlsv1.1 tlsv1.2
 web-manager enable
 web-manager security enable
#
firewall dataplane to manageplane application-apperceive default-action drop
#
 undo ips log merge enable
#
 decoding uri-cache disable
#
 update schedule ips-sdb daily 03:25
 update schedule av-sdb daily 03:25
 update schedule sa-sdb daily 03:25
 update schedule cnc daily 03:25
 update schedule file-reputation daily 03:25
#
ip vpn-instance default
 ipv4-family
#
 time-range worktime
  period-range 08:00:00 to 18:00:00 working-day
#
ike proposal default
 encryption-algorithm aes-256 aes-192 aes-128
 dh group14
 authentication-algorithm sha2-512 sha2-384 sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
aaa
 authentication-scheme default
 authentication-scheme admin_local
 authentication-scheme admin_radius_local
 authentication-scheme admin_hwtacacs_local
 authentication-scheme admin_ad_local
 authentication-scheme admin_ldap_local
 authentication-scheme admin_radius
 authentication-scheme admin_hwtacacs
 authentication-scheme admin_ad
 authorization-scheme default
 accounting-scheme default
 domain default
  service-type internetaccess ssl-vpn l2tp ike
  internet-access mode password
  reference user current-domain
 manager-user audit-admin
  password cipher @%@%mP$t!]$4])5jt|=X$O^/Xk$|S"O+&d}uF5Y%O7T,2\X>k$"X@%@%
  service-type web terminal
  level 15

 manager-user api-admin
  password cipher @%@%W$k|O1{h6SU+H{3`'<(&_zm`eL2c4=f,'4ROt#2|w%w&zmc_@%@%
  level 15

 manager-user admin
  password cipher @%@%9bc@-D"ccG=!J*4!c<>IKAU(Wh-e9'nBFDD~J$Q>*uO#AU+K@%@%
  service-type web terminal
  level 15

 role system-admin
 role device-admin
 role device-admin(monitor)
 role audit-admin
 bind manager-user audit-admin role audit-admin
 bind manager-user admin role system-admin
#
l2tp-group default-lns
#
interface GigabitEthernet0/0/0
 undo shutdown
 ip binding vpn-instance default
 ip address 192.168.0.1 255.255.255.0
 alias GE0/METH
#
interface GigabitEthernet1/0/0
 undo shutdown
#
interface GigabitEthernet1/0/1
 undo shutdown
 ip address 10.2.0.2 255.255.255.0
 vrrp vrid 1 virtual-ip 1.1.1.1 255.255.255.0 standby
#
interface GigabitEthernet1/0/2
 undo shutdown
 ip address 10.3.0.2 255.255.255.0
 vrrp vrid 2 virtual-ip 10.3.0.1 standby
#
interface GigabitEthernet1/0/3
 undo shutdown
 ip address 10.10.0.2 255.255.255.252
#
interface GigabitEthernet1/0/4
 undo shutdown
#
interface GigabitEthernet1/0/5
 undo shutdown
#
interface GigabitEthernet1/0/6
 undo shutdown
#
interface Virtual-if0
#
interface NULL0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/2
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet1/0/3
#
ip route-static 0.0.0.0 0.0.0.0 1.1.1.10
#
undo ssh server compatible-ssh1x enable
ssh authentication-type default password
ssh server cipher aes256_ctr aes128_ctr
ssh server hmac sha2_256 sha1
ssh client cipher aes256_ctr aes128_ctr
ssh client hmac sha2_256 sha1
#
firewall detect ftp
#
user-interface con 0
 authentication-mode aaa
user-interface vty 0 4
 authentication-mode aaa
 protocol inbound ssh
user-interface vty 16 20
#
pki realm default
#
sa
#
location
#
multi-linkif
 mode proportion-of-weight
#
right-manager server-group
#
device-classification
 device-group pc
 device-group mobile-terminal
 device-group undefined-group
#
user-manage server-sync tsm
#
security-policy
#
auth-policy
#
traffic-policy
#
policy-based-route
#
nat-policy
#
quota-policy
#
pcp-policy
#
dns-transparent-policy
#
rightm-policy
#
return

2.3 路由器AR1

复制代码
[V200R003C00]
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
 drop illegal-mac alarm
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
#
interface Ethernet0/0/2
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface GigabitEthernet0/0/0
 ip address 1.1.1.10 255.255.255.0
#
interface GigabitEthernet0/0/1
#
interface NULL0
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255
#
ip route-static 10.3.0.0 255.255.255.0 1.1.1.1
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

2.4 SW1

复制代码
sysname Huawei
#
vlan batch 3
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 3
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 3
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return

2.5 SW2

复制代码
#
sysname Huawei
#
vlan batch 2
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 2
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 2
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 2
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return
相关推荐
lichenyang45319 分钟前
Http和Https
网络·网络协议·http
KUKUKAKASSAN42 分钟前
虚拟机扩展磁盘容量后扩展分区大小
linux·运维·服务器
努力一点94842 分钟前
安装docker可视化工具 Portainer中文版（ubuntu上演示，所有docker通用） 支持控制各种容器，容器操作简单化 降低容器门槛
linux·运维·服务器·人工智能·ubuntu·docker·容器
朱包林43 分钟前
ansible批量部署zabbix客户端
linux·运维·服务器·云计算·ansible·zabbix
胖大和尚44 分钟前
使用 sshfs 工具将远程 Linux 主机的文件夹挂载到本地
linux·服务器·网络
伏加特遇上西柚1 小时前
Nginx的location匹配规则
android·运维·nginx
chen_note1 小时前
Linux网络信息（含ssh服务和rsync）
linux·运维·服务器·网络·ssh·远程工作·rsync
安心落意2 小时前
Windows Server2022下使用SQL Server2019开发版搭建高可用集群
网络·windows·数据挖掘·数据库高可用·aways on
cpsvps_net3 小时前
云服务器磁盘IO性能优化的测试与配置方法
运维·服务器·性能优化
沙老师3 小时前
移除debian升级后没用的垃圾
运维·服务器·debian
热门推荐
01【2025.7.18】更新vscode后所有.vue文件template标签后报红的临时解决办法，Vue - Official 插件3.0.2导致02全球最强模型Grok4，国内已可免费使用！（附教程）03这次领先Cursor！体验了Trae 2.0 SOLO 模式，超酷！04Cursor Claude 模型无法使用的解决方法05KGG转MP3工具|非KGM文件|解密音频06Cursor限制国内用户使用Claude模型？附简单解决方案！07Vue (Official) v3.0.2 新特性 为非类npm环境引入 globalTypesPath 选项08赛博保姆出列！Gemini CLI & Claude Code + Kimi 手把手教程09【暑期多校补题记录】2025牛客多校(1)(2) 杭电多校(1)102024电赛H题参考方案（+视频演示）——自动行使小车
