Ubuntu/Debian 搭建 Nginx RTMP 服务器全攻略

Ubuntu/Debian 搭建 Nginx RTMP 服务器全攻略

    • [一. 安装依赖 (Ubuntu/Debian 系统)](#一. 安装依赖 (Ubuntu/Debian 系统))
    • [二. 配置安装Nginx 安装 nginx-rtmp-module 模块](#二. 配置安装Nginx 安装 nginx-rtmp-module 模块)
    • [三. 实现 RTMP 推流的关键步骤:](#三. 实现 RTMP 推流的关键步骤:)
    • [四. 启动Nginx时的权限问题](#四. 启动Nginx时的权限问题)
    • [五. 安装配置 FFmpeg](#五. 安装配置 FFmpeg)
    • [六. 推流-拉流测试](#六. 推流-拉流测试)
      • [使用 OBS Studio、FFmpeg 等工具推流到 Nginx 服务器:](#使用 OBS Studio、FFmpeg 等工具推流到 Nginx 服务器:)
      • [使用 VLC 或其他 RTMP 客户端拉流:](#使用 VLC 或其他 RTMP 客户端拉流:)
    • [七. 自启动Nginx](#七. 自启动Nginx)

Nginx 本身并不原生支持 RTMP 推流功能。Nginx 是一个高性能的 HTTP 和反向代理服务器,默认情况下主要用于处理 HTTP请求。要实现 RTMP(实时消息传输协议)的推流和拉流功能,需要通过 第三方模块 扩展 Nginx 的能力。
RTMP 是一种用于低延迟实时音视频传输的协议,其处理逻辑与 HTTP 不同。Nginx 本身并未内置 RTMP 协议的支持,因此需要通过nginx-rtmp-module 这样的第三方模块来实现 RTMP 功能。

一. 安装依赖 (Ubuntu/Debian 系统)

  1. 安装 C 编译器和依赖库
bash 复制代码
# 安装 GCC、G++ 和编译 Nginx 所需的依赖库
sudo apt update
sudo apt install -y build-essential gcc g++ make
  1. 验证编译器是否安装成功
    安装完成后,检查 GCC 和 G++ 是否可用:
bash 复制代码
gcc --version
g++ --version
  1. 安装 PCRE 依赖库
    Nginx 的 HTTP 重写模块(--with-http_rewrite_module)需要 PCRE 库支持。
bash 复制代码
sudo apt install -y libpcre3 libpcre3-dev
  1. 安装 OpenSSL 依赖
bash 复制代码
sudo apt install -y openssl libssl-dev
  1. 安装 zlib 依赖
bash 复制代码
sudo apt install -y zlib1g zlib1g-dev

二. 配置安装Nginx 安装 nginx-rtmp-module 模块

  1. 安装 nginx与nginx-rtmp-module 模块
    源码编译安装(推荐):
bash 复制代码
# 下载 Nginx 源码和模块源码
wget https://nginx.org/download/nginx-1.26.0.tar.gz
wget https://github.com/arut/nginx-rtmp-module/archive/refs/tags/v1.2.2.tar.gz

# 解压源码
tar -zxvf nginx-1.26.0.tar.gz
tar -zxvf v1.2.2.tar.gz

# 进入 Nginx 源码目录,配置编译选项
cd nginx-1.26.0
./configure --add-module=../nginx-rtmp-module-1.2.2 --with-http_ssl_module

# 编译并安装 Nginx
# 在配置成功后,需要执行以下命令完成编译和安装:
make
sudo make install
  1. 提示:安装成功
bash 复制代码
Configuration summary
  + using system PCRE library
  + using system OpenSSL library
  + using system zlib library

  nginx path prefix: "/usr/local/nginx"
  nginx binary file: "/usr/local/nginx/sbin/nginx"
  nginx modules path: "/usr/local/nginx/modules"
  nginx configuration prefix: "/usr/local/nginx/conf"
  nginx configuration file: "/usr/local/nginx/conf/nginx.conf"
  nginx pid file: "/usr/local/nginx/logs/nginx.pid"
  nginx error log file: "/usr/local/nginx/logs/error.log"
  nginx http access log file: "/usr/local/nginx/logs/access.log"
  nginx http client request body temporary files: "client_body_temp"
  nginx http proxy temporary files: "proxy_temp"
  nginx http fastcgi temporary files: "fastcgi_temp"
  nginx http uwsgi temporary files: "uwsgi_temp"
  nginx http scgi temporary files: "scgi_temp"

依赖库已正确使用:

PCRE、OpenSSL、zlib 三个依赖库均使用系统自带版本(using system)。

Nginx 安装路径:

安装目录为 /usr/local/nginx,包含二进制文件、配置文件、日志目录等。

  1. 查看 Nginx 版本和模块信息是否生效
bash 复制代码
/usr/local/nginx/sbin/nginx -V
bash 复制代码
# 输出信息
wlj@wlj-virtual:~$ /usr/local/nginx/sbin/nginx -V
nginx version: nginx/1.26.0
built by gcc 11.4.0 (Ubuntu 11.4.0-1ubuntu1~22.04)
built with OpenSSL 3.0.2 15 Mar 2022
TLS SNI support enabled
configure arguments: --add-module=../nginx-rtmp-module-1.2.2

三. 实现 RTMP 推流的关键步骤:

  1. 配置 Nginx 的 RTMP 模块 / 配置RTMP服务
    编辑 Nginx 配置文件 /usr/local/nginx/conf/nginx.conf,添加 RTMP 配置段(完整):
bash 复制代码
#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}
rtmp {
    server {
        listen 1935;  # RTMP 默认端口
        chunk_size 4096;

        application live {
            live on;          # 开启直播模式
            hls on;           # 启用 HLS 切片
            hls_path /usr/local/nginx/html/hls;  # HLS 文件存储路径
            hls_fragment 4s;  # HLS 分片时长
        }
    }
}

http {
    include       mime.types;
    default_type  application/octet-stream;

    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;

    server {
        listen       80;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
            index  index.html index.htm;
        }

        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }
        location /hls {
            types { # HLS 文件类型映射
     		 application/vnd.apple.mpegurl m3u8;
               	 video/mp2t ts;
	    }
            add_header Cache-Control no-cache;
            add_header Access-Control-Allow-Origin *;
            root /usr/local/nginx/html;  # HLS 文件访问路径
        }
        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
    }


    # another virtual host using mix of IP-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


    # HTTPS server
    #
    #server {
    #    listen       443 ssl;
    #    server_name  localhost;

    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;

    #    ssl_session_cache    shared:SSL:1m;
    #    ssl_session_timeout  5m;

    #    ssl_ciphers  HIGH:!aNULL:!MD5;
    #    ssl_prefer_server_ciphers  on;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}

}

配置文件结构解析

RTMP 模块配置

bash 复制代码
rtmp {
    server {
        listen 1935;  # 监听 RTMP 默认端口
        chunk_size 4096;

        application live {
            live on;          # 开启直播模式
            hls on;           # 启用 HLS 切片
            hls_path /usr/local/nginx/html/hls;  # HLS 文件存储路径
            hls_fragment 4s;  # HLS 分片时长
        }
    }
}

作用:该模块配置 RTMP 服务器,监听 1935 端口,并支持:

  • 推流地址:rtmp://<服务器IP>/live/<stream_key>
  • HLS 拉流地址:http://<服务器IP>/hls/<stream_key>.m3u8

HTTP 模块配置

bash 复制代码
http {
    ...
    server {
        listen 80;
        ...
        location /hls {
            types {
                application/vnd.apple.mpegurl m3u8;
                video/mp2t ts;
            }
            add_header Cache-Control no-cache;
            add_header Access-Control-Allow-Origin *;
            root /usr/local/nginx/html;  # HLS 文件访问路径
        }
    }
}

作用:该模块配置 HTTP 服务器,支持通过 HTTP 提供 HLS 流媒体文件(.m3u8 和 .ts 文件)。

  1. 使用管理员权限,启动 Nginx 服务:
bash 复制代码
sudo /usr/local/nginx/sbin/nginx
  1. 启动或重启 Nginx
bash 复制代码
sudo /usr/local/nginx/sbin/nginx -s reload  # 如果已运行

# 进入 Nginx 安装目录(默认路径)
# 启动 Nginx
sudo /usr/local/nginx/sbin/nginx # 直接启动
  1. 检查进程是否启动
bash 复制代码
ps -elf | grep nginx

wlj@wlj-virtual:/usr/local/nginx/conf$ ps -elf | grep nginx
1 S root        4192    1486  0  80   0 -  4372 -      13:51 ?        00:00:00 nginx: master process /usr/local/nginx/sbin/nginx
5 S nobody     35561    4192  0  80   0 -  4622 -      17:06 ?        00:00:00 nginx: worker process
5 S nobody     35562    4192  0  80   0 -  4495 -      17:06 ?        00:00:00 nginx: cache manager process
0 S wlj        36211   35420  0  80   0 -  3075 pipe_r 17:15 pts/3    00:00:00 grep --color=auto nginx

四. 启动Nginx时的权限问题

权限问题(open() "/usr/local/nginx/logs/error.log" failed (13: Permission denied))

需要配置权限问题,否则将导致Nginx无法访问HLS文件调整logs文件目录的权限或所有权,因此需要解决权限问题:

  1. 路径确认:检查实际安装路径
bash 复制代码
whereis nginx
  1. 检查 PID 文件路径
bash 复制代码
sudo /usr/local/nginx/sbin/nginx -t
输出:
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful

PID 文件配置:

确保 nginx.conf 中有 pid 指令:

bash 复制代码
pid /usr/local/nginx/logs/nginx.pid;

如无则添加,并创建目录:

bash 复制代码
sudo mkdir -p /usr/local/nginx/logs
bash 复制代码
ps -elf | grep nginx

wlj@wlj-virtual:/usr/local/nginx/conf$ ps -elf | grep nginx
1 S root        4192    1486  0  80   0 -  4372 -      13:51 ?        00:00:00 nginx: master process /usr/local/nginx/sbin/nginx
5 S nobody     35561    4192  0  80   0 -  4622 -      17:06 ?        00:00:00 nginx: worker process
5 S nobody     35562    4192  0  80   0 -  4495 -      17:06 ?        00:00:00 nginx: cache manager process
0 S wlj        36211   35420  0  80   0 -  3075 pipe_r 17:15 pts/3    00:00:00 grep --color=auto nginx
bash 复制代码
sudo chown -R nobody:nogroup /usr/local/nginx/html/hls
sudo chmod -R 755 /usr/local/nginx/html/hls
sudo chmod -R 755 /usr/local/nginx/logs

五. 安装配置 FFmpeg

  1. 安装 NASM 或 YASM
  • 推荐使用nasm,因为FFmpeg的新特性可能依赖新指令集,且nasm有更好的维护。
  • 如果系统非常旧,yasm可能更容易安装到旧版本,但新系统建议nasm。
bash 复制代码
sudo apt install nasm # 推荐
sudo apt install yasm
bash 复制代码
nasm --version   # 应输出类似 "NASM version 2.15.05"
yasm --version   # 可选,应输出类似 "yasm 1.3.0"
  1. 安装 pkg-config 工具
    pkg-config 工具需要安装,可能导致后续依赖库的检测和编译失败。
bash 复制代码
sudo apt install pkg-config
  1. 配置 FFmpeg
    下载地址
bash 复制代码
/* Download ffmpeg */
tar -zxvf ffmpeg-4.3.2.tar.gz
./configure --enable-shared
make -j4
sudo make install
  1. 查询 FFmpeg 的版本信息
bash 复制代码
ffmpeg -version
  1. 更新系统的动态链接器缓存
    即使库文件被复制到了 /usr/local/lib,Linux 的动态链接器(ld.so)可能还不知道这个路径,所以需要此命令。
bash 复制代码
sudo ldconfig
bash 复制代码
wlj@wlj-virtual:~/Desktop/FFmpeg-n4.3.2$ ffmpeg -version
ffmpeg version 4.3.2 Copyright (c) 2000-2021 the FFmpeg developers
built with gcc 11 (Ubuntu 11.4.0-1ubuntu1~22.04)
configuration: --enable-shared
libavutil      56. 51.100 / 56. 51.100
libavcodec     58. 91.100 / 58. 91.100
libavformat    58. 45.100 / 58. 45.100
libavdevice    58. 10.100 / 58. 10.100
libavfilter     7. 85.100 /  7. 85.100
libswscale      5.  7.100 /  5.  7.100
libswresample   3.  7.100 /  3.  7.100

六. 推流-拉流测试

  • 启动 Nginx:
bash 复制代码
sudo /usr/local/nginx/sbin/nginx
  • 检查防火墙:
bash 复制代码
sudo ufw status
sudo ufw allow 1935

验证 RTMP 服务是否正常

检查端口监听:

bash 复制代码
netstat -tuln | grep 1935

查看 Nginx 日志:

bash 复制代码
tail -f /var/log/nginx/error.log

使用 OBS Studio、FFmpeg 等工具推流到 Nginx 服务器:

  1. OBS 推流地址:
bash 复制代码
rtmp://127.0.0.1:1935/live/test
  1. FFmpeg 推流命令:
bash 复制代码
ffmpeg -re -i input.mp4 -c copy -f flv rtmp://127.0.0.1:1935/live/test
ffmpeg -re -f h264 -i input.h264 -c:v copy -an -f flv rtmp://127.0.0.1:1935/live/test
  • -re 按照原始帧率读取输入文件(模拟实时流速度),直播推流必须添加
  • -c copy 直接复制视频和音频流,不重新编码(要求MP4内的编码是RTMP兼容的H.264+AAC)
  • -c:v copy: 直接复制视频流,不重新编码。
  • -f flv 强制输出为FLV格式(RTMP协议的标准容器格式)
  • -f h264: 强制指定输入格式为原始H.264流(关键参数)。
  • -an: 禁用音频(输入文件无音频)。

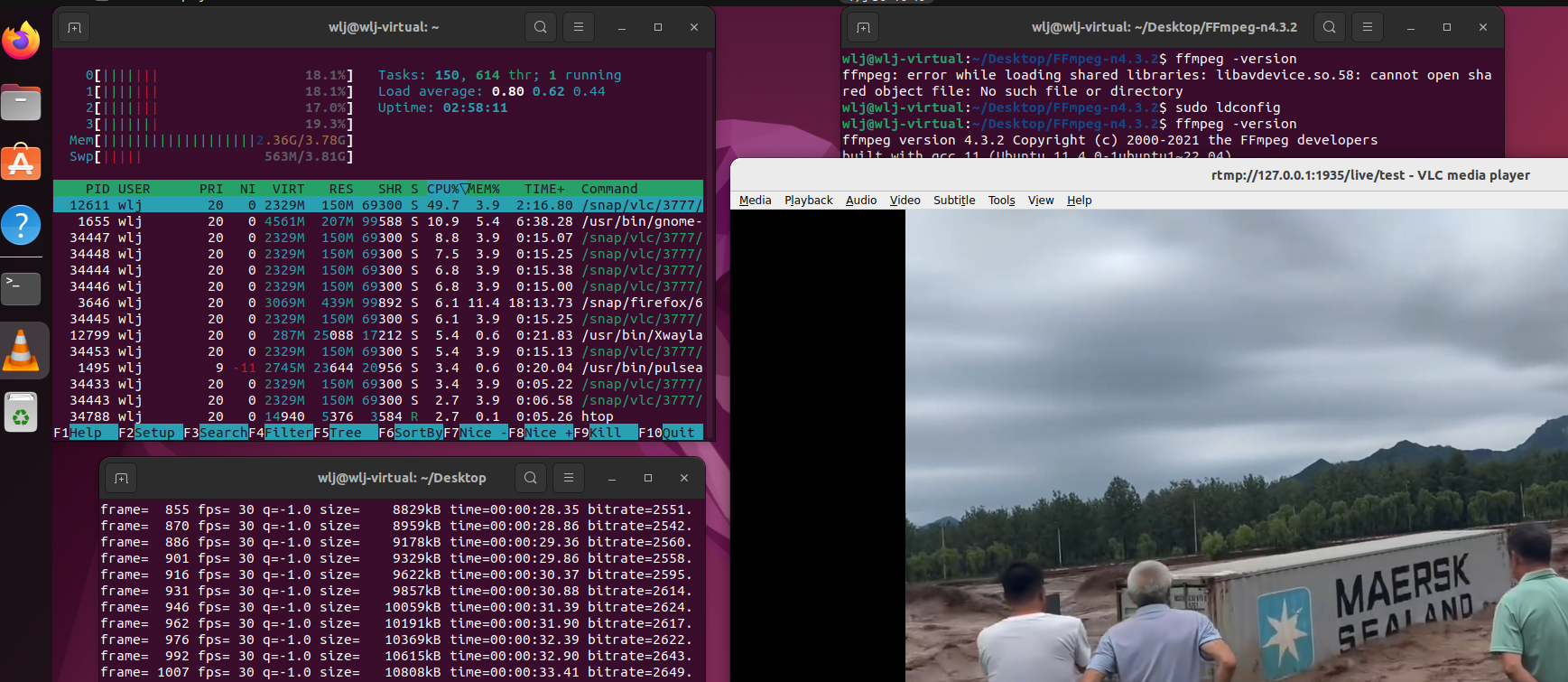

循环推流(持续直播):

bash 复制代码
ffmpeg -re -stream_loop -1 -i input.mp4 -c copy -f flv rtmp://127.0.0.1:1935/live/test

待 5-10 秒,让 Nginx 生成 .m3u8 和 .ts 文件。

访问 HLS 文件:

浏览器或 VLC 播放:

  • 本地测试:使用 127.0.0.1 或局域网 IP。
  • 远程服务器:使用公网 IP。
  • 推流地址格式:rtmp://:<端口>/live/<流名>

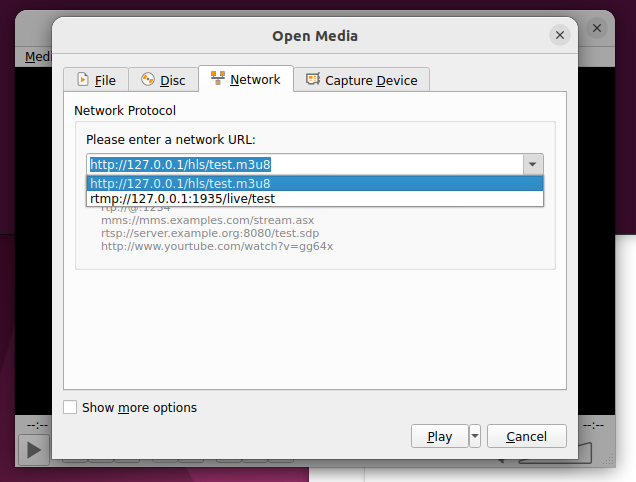

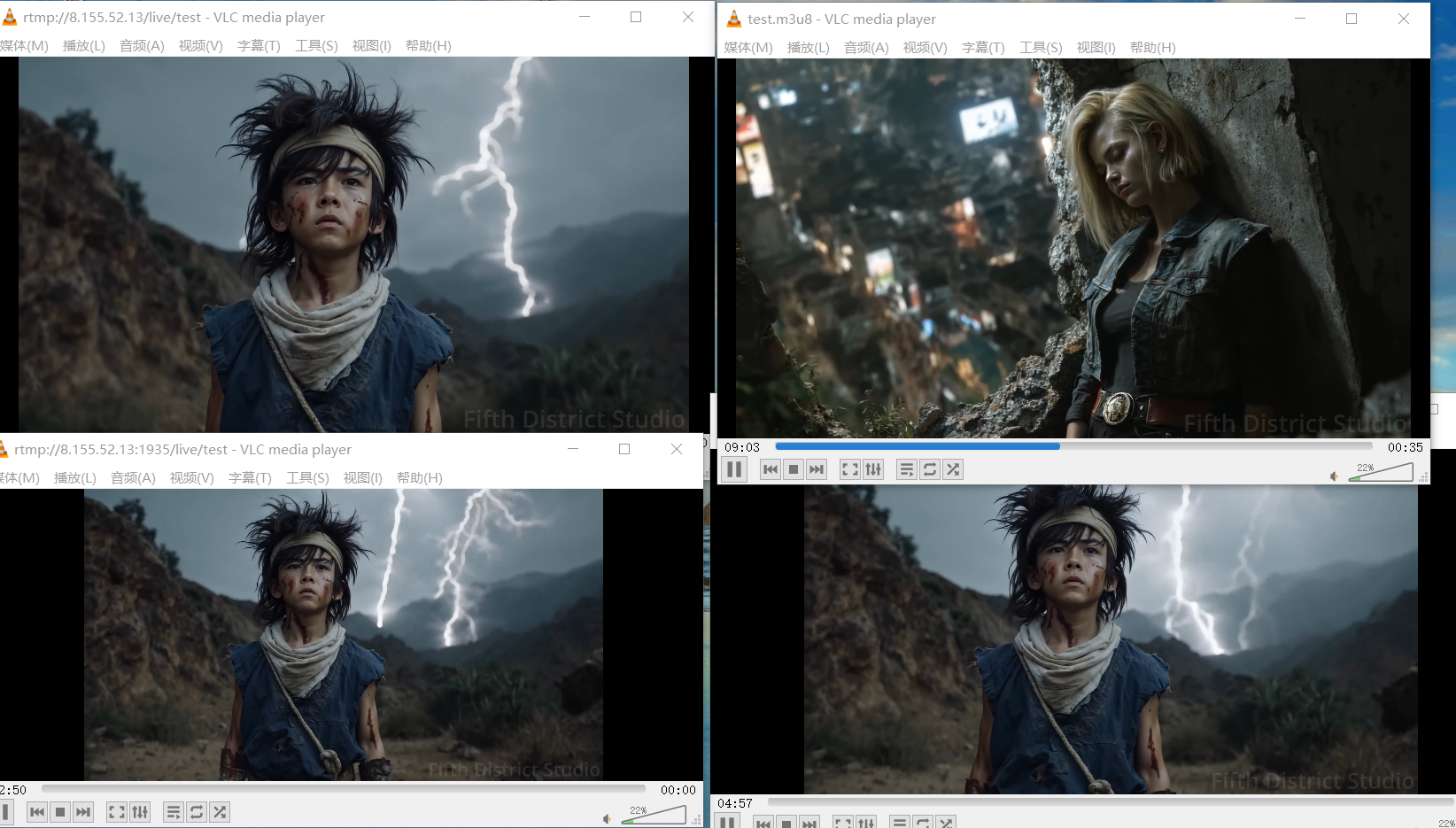

使用 VLC 或其他 RTMP 客户端拉流:

bash 复制代码
rtmp://127.0.0.1:1935/live/test
http://127.0.0.1/hls/test.m3u8


  • 关键点:确保 Nginx 正确加载 RTMP 模块,配置路径和权限正确,防火墙开放必要端口。
  • 验证步骤:推流 → 检查 HLS 文件 → 拉流测试 → 查看统计页面。
  • 扩展功能:可通过添加 HTTPS、限制连接数、配置负载均衡等进一步优化。

七. 自启动Nginx

要实现 Nginx 自动启动,可以根据您的操作系统选择不同的方法。以下是 Linux(基于 Systemd)的详细步骤:

  1. Linux 系统(基于 Systemd)创建 Systemd 服务文件

  2. 创建一个 Nginx 的 Systemd 服务配置文件:

bash 复制代码
sudo vim /etc/systemd/systm/nginx.service
  1. 添加以下内容(根据实际路径修改):
bash 复制代码
[Unit]
Description=Nginx Web Server
After=network.target

[Service]
Type=forking
PIDFile=/usr/local/nginx/logs/nginx.pid

ExecStartPre=/usr/local/nginx/sbin/nginx -t
ExecStart=/usr/local/nginx/sbin/nginx
ExecReload=/usr/local/nginx/sbin/nginx -s reload
ExecStop=/usr/local/nginx/sbin/nginx -s quit
PrivateTmp=true

[Install]
WantedBy=multi-user.target
  1. 加载 Systemd 配置
bash 复制代码
# 重新加载 Systemd 配置
sudo systemctl daemon-reload

# 启动并启用 Nginx 自启动
sudo systemctl start nginx
sudo systemctl enable nginx

# 验证自启动状态
sudo systemctl is-enabled nginx  # 应返回 "enabled"

检查 Nginx 状态
sudo systemctl status nginx

扩展功能建议

  1. 配置 HTTPS
    安装 OpenSSL 依赖(已通过 ./configure 集成)。
    生成 SSL 证书(测试可用自签名证书):
    bash
    深色版本
    openssl req -x509 -nodes -days 365 -newkey 2048 -keyout /usr/local/nginx/conf/server.key -out /usr/local/nginx/conf/server.crt
    修改 nginx.conf:
    nginx
    深色版本
    server {
    listen 443 ssl;
    server_name example.com;
    ssl_certificate /usr/local/nginx/conf/server.crt;
    ssl_certificate_key /usr/local/nginx/conf/server.key;
    ...
    }
  2. 启用 RTMP 推流
相关推荐
自由鬼2 小时前
如何处理Y2K38问题
java·运维·服务器·程序人生·安全·操作系统
敲上瘾2 小时前
渗透测试常用指令
服务器·测试工具·网络安全·压力测试
北极糊的狐4 小时前
“我们无法设置移动热点”、网卡异常、电脑网络适配器没有2.4GHz 802.11n信道宽度和5.2GHz 802.11n信道宽度
运维·服务器
我爱996!5 小时前
SpringMVC——响应
java·服务器·前端
obboda6 小时前
Linux基础复习:字符输入与输出
linux·运维·服务器
Aspartame~8 小时前
企业级WEB应用服务器TOMCAT
java·运维·服务器·tomcat
拾心219 小时前
【运维基础】Linux 进程调度管理
linux·运维·服务器
~狂想家~10 小时前
Ubuntu20.04安装和配置Samba实现Win11下共享文件夹
linux·ubuntu·samba
ansondroider10 小时前
Ubuntu 抽取系统制作便于chroot的镜像文件
linux·ubuntu·chroot
努力一点94811 小时前
ubuntu22.04系统入门 linux入门 简单命令基础复习 实现以及实践
linux·运维·服务器·ubuntu·gpu算力
