Map和Set
- map和set用于搜索
- 搜索树,二叉搜索树 -> AVL树 -> 红黑树
- AVL树:高度平衡的二叉搜索树
- TreeMap和TreeSet底层是红黑树,每次存储元素都得进行大小比较
二叉搜索树
- 二叉搜索树:如果左子树不为空,那么左子树所有节点都小于根节点,如果右子树不为空,那么右子树所有节点都大于根节点,它的左右子树都是二叉搜索树
- 二叉搜索树的中序遍历是有序的
查找
- 比key大往右找,比key小往左找
java
// 查找
public boolean search(int key){
TreeNode cur = root;
while(cur != null){
if(cur.val > key){
cur = cur.left;
}else if(cur.val < key){
cur = cur.right;
}else{
return true;
}
}
return false;
}
分析:
- 时间复杂度:
最好情况:O(logN),完全二叉树
最坏情况:O(N),单分支的二叉树
插入
java
// 插入
public boolean insert(int key){
TreeNode node = new TreeNode(key);
TreeNode parent = null;
if(root == null){
root = node;
return true;
}
TreeNode cur = root;
while(cur != null){
if(cur.val < key){
parent = cur;
cur = cur.right;
}else if(cur.val > key){
parent = cur;
cur = cur.left;
}else{
// 在二叉搜索树中只能不能有相同的数字,比如5,有一个5就可以了,只要有这个数就可以了
return false;
}
}
if(parent.val < key){
parent.right= node;
}else{
parent.left = node;
}
return true;
}
删除

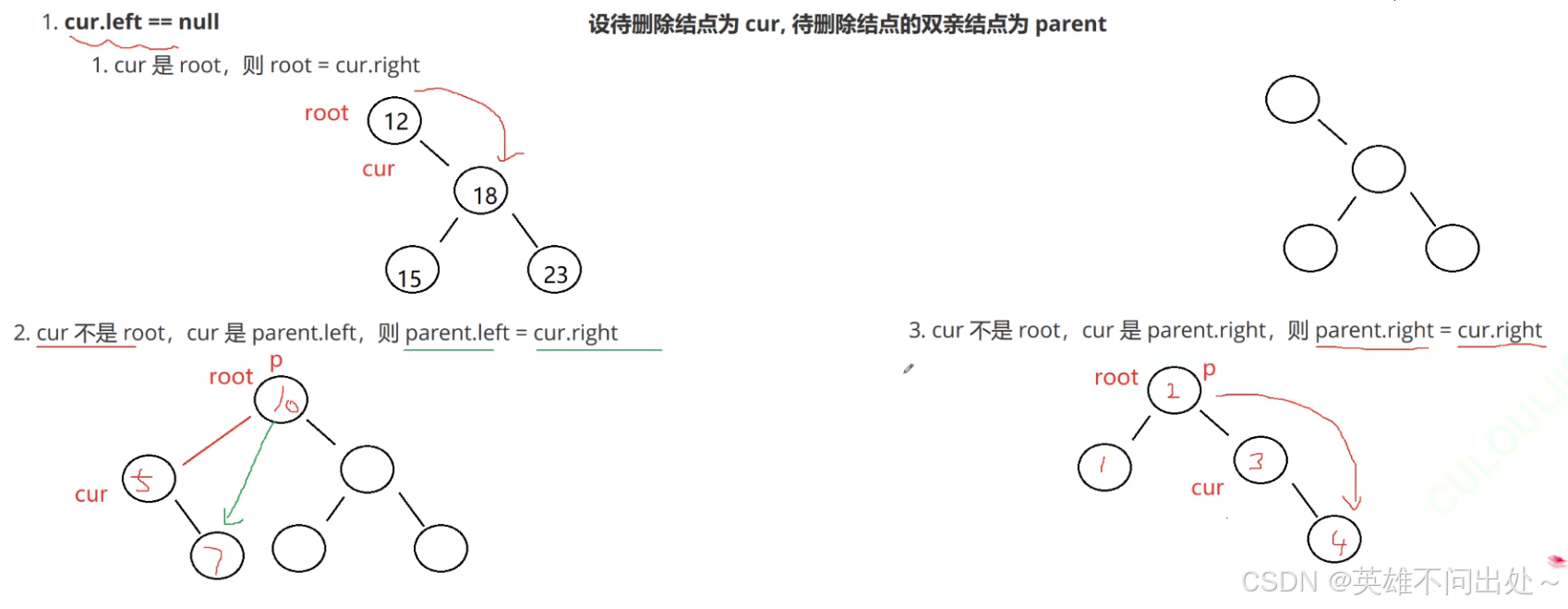

- 第一种情况:cur.left == null
要删除的节点是cur
cur是根节点
cur是某个节点的左边
cur是某个节点的右边

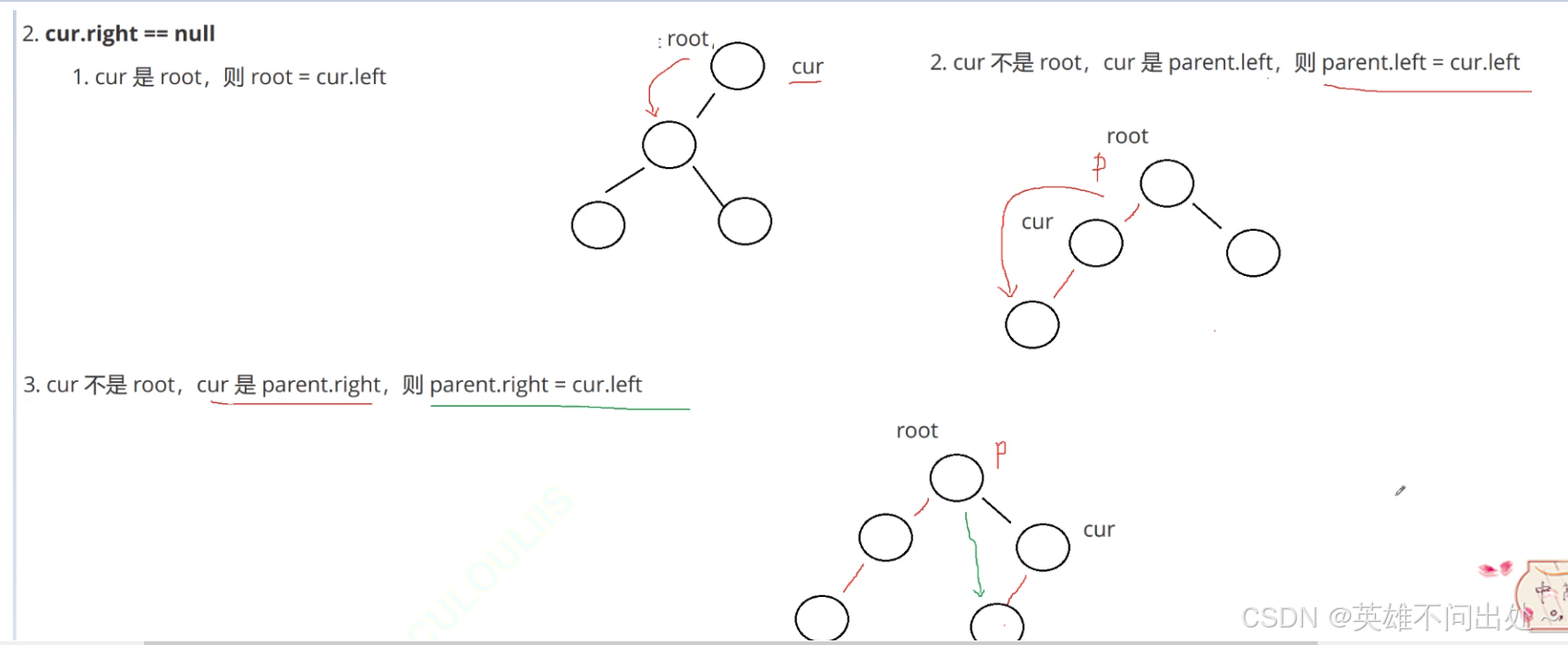

- 第二种情况:cur.right == null
要删除的节点是cur
cur是根节点
cur是某个节点的左边
cur是某个节点的右边

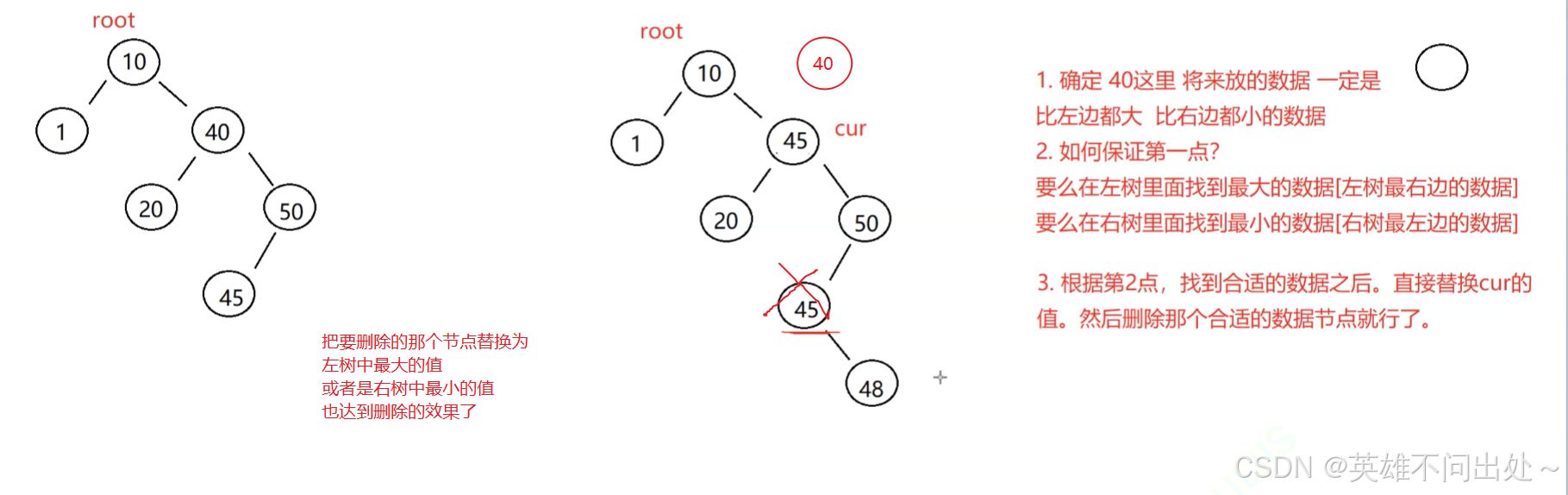

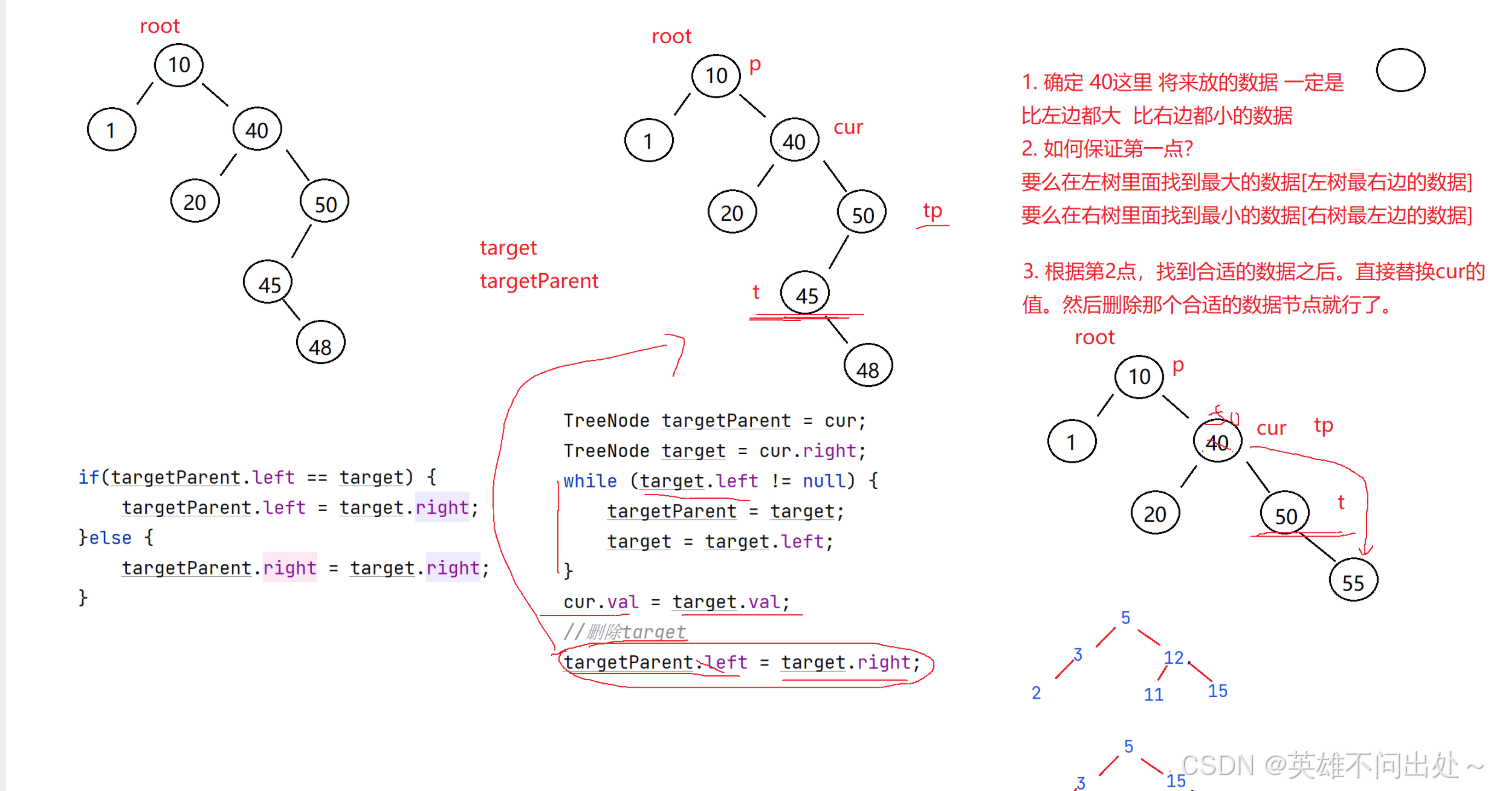

- 第三种情况:cur.left != null && cur.right != null
使用替换法进行删除
替换为左树中最大的值
或者是右树中最小的值
替换完之后删除这个去替换的值
java
// 删除
private void removeNode(TreeNode cur, TreeNode parent) {
if(cur.left == null){
// 要删除的是根节点
if(cur == root){
root = cur.right;
}else if(cur == parent.left){
parent.left = cur.right;
}else{
parent.right = cur.right;
}
}else if(cur.right == null){
if(cur == root){
root = cur.left;
}else if(cur == parent.left){
parent.left = cur.left;
}else{
parent.right = cur.left;
}
}else{
// cur.left != null && cur.right != null
TreeNode parentTarget = cur;
TreeNode target = cur.right;
// 在右树中找最小值
while(target.left != null){
parentTarget = target;
target = target.left;
}
// 直到找到右树中的最左边的树
cur.val = target.val;
// 删除target
if(parentTarget.left == target) {
parentTarget.left = target.right;
}else{
// parentTarget.right == target
parentTarget.right = target.right;
}
}
}
Map
- map是一种(k,v)结构的数据结构
- map可以进行去重,TreeMap不可以插入null的key,HashMap可以插入null的key,因为红黑树是要进行比较的,哈希表是不进行比较的
java
Map<String,Integer> map = new TreeMap<>();// 底层是红黑树,查找的时间复杂度O(N*logN)
Map<String,Integer> map1 = new HashMap<>();// 底层是哈希表,查找的时间复杂度O(1)
// 哈希表 = 数组 + 链表 + 红黑树
Map的使用

java
public static void main(String[] args) {
Map<String,Integer> map = new TreeMap<>();// 底层是红黑树,查找的时间复杂度O(N*logN)
// 插入元素
map.put("push",3);// push出现了3次
// 获取元素,给定一个key值可以获取它的value值
Integer val = map.get("push");
Integer val1 = map.get("aaa");// null
// 获取val值,如果没有这个值,返回一个默认值
Integer val2 = map.getOrDefault("bbb",99999);
System.out.println(val);
// 删除key值
// map.remove("push");
// 把所有的key放入一个集合中
Set<String> set = map.keySet();
System.out.println(set);
// 获取values中的所有值
ArrayList<Integer> value = new ArrayList(map.values());
System.out.println(value);

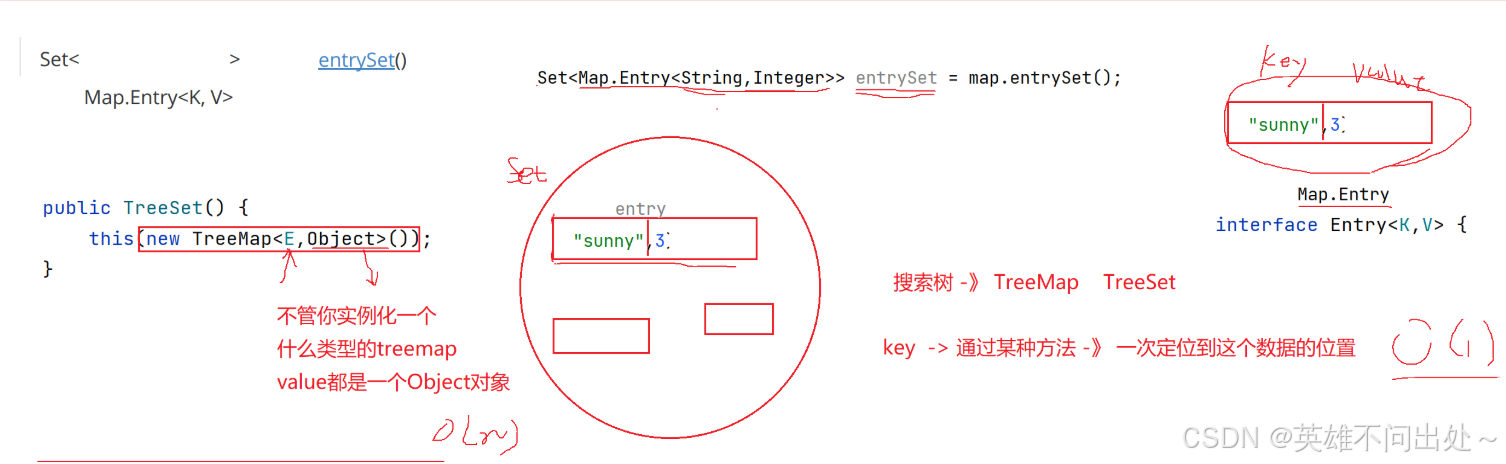

// 把Map.Entry<String,Integer>当做Set中的一个节点
// map.entrySet()用于获取这种节点
Set<Map.Entry<String,Integer>> entrySet = map.entrySet();
for(Map.Entry<String,Integer> entry : entrySet){
System.out.println("key: " + entry.getKey() + " value: " + entry.getValue());
}
// boolean map.containsKey("push"); 判断是否含有key
// boolean map.containsValue(3); 判断是否含有value
Map<String,Integer> map1 = new HashMap<>();// 底层是哈希表,查找的时间复杂度O(1)
// 哈希表 = 数组 + 链表 + 红黑树
}
Set
- set是一种只有key的模型
Set的使用
- Set是要进行去重的
- TreeSet不可以插入null的key,HashSet可以插入null的key,因为红黑树是要进行比较的,哈希表是不进行比较的
java
public static void main(String[] args) {
Set<String> set = new TreeSet<>();
set.add("push");
set.add("hello");
set.add("world");
// set是无序的
System.out.println(set);
Iterator<String> it = set.iterator();
while(it.hasNext()){
System.out.println(it.next());
}
}
哈希表
- 查找可以一次定位到该元素,时间复杂度为O(1)

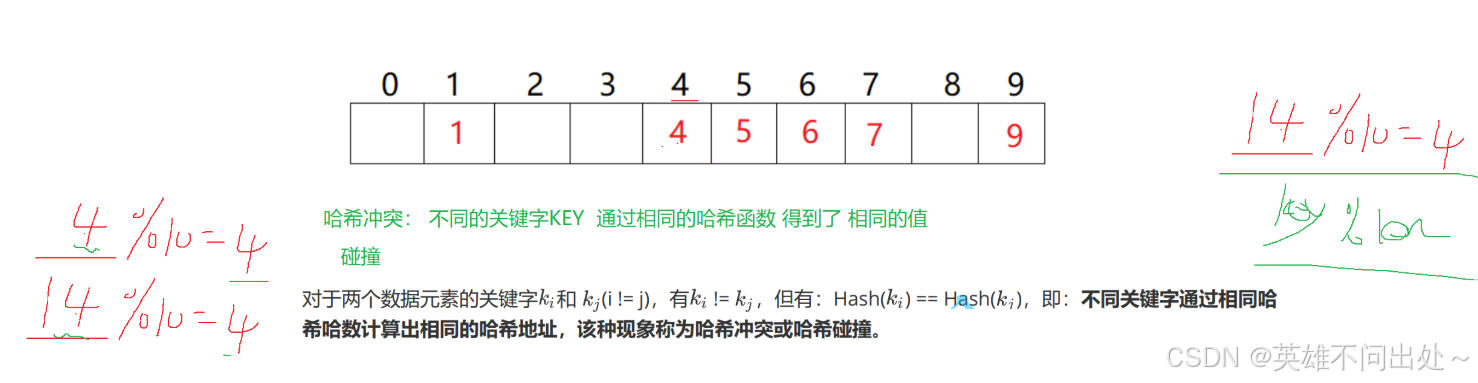

- 哈希冲突(碰撞):不同的key通过相同的哈希函数得到相同的值
哈希冲突是必然产生的,我们要做的是降低冲突的概率

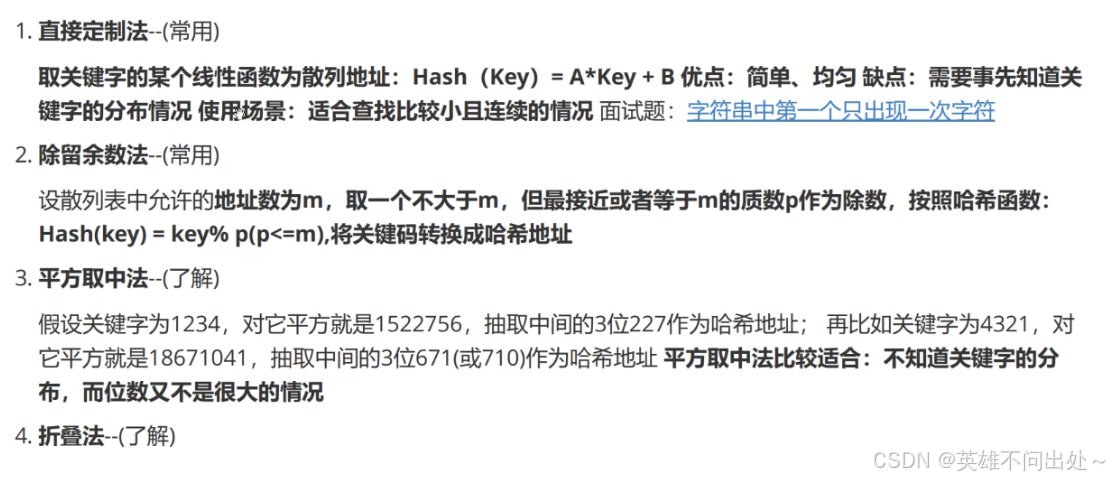

解决哈希冲突 :哈希函数的设计要合理
哈希函数要简单
哈希表中要均匀分到数组中去
哈希表的范围要合理,比如有m个地址,存储位置就是[0,m-1]

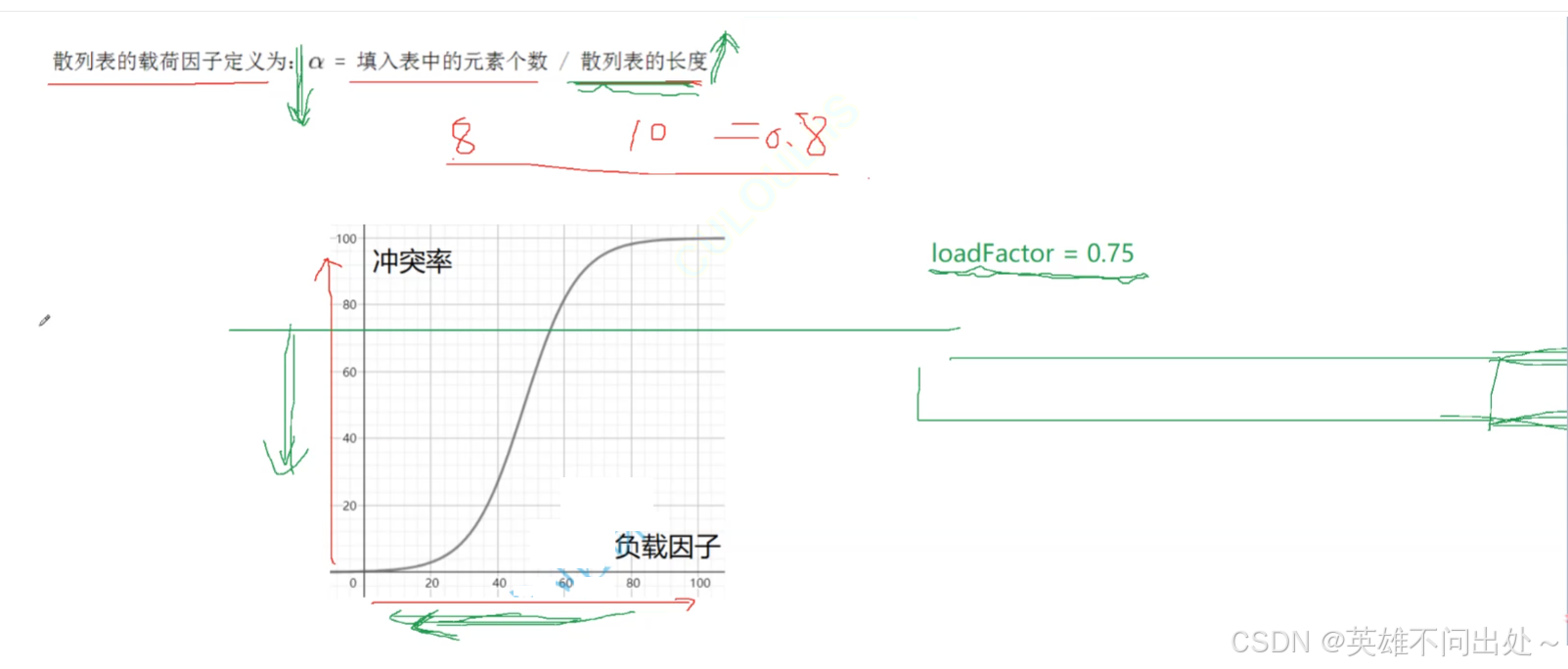

负载因子的调节(重点)
- 负载因子影响了哈希冲突,负载因子越大冲突率越高
- 哈希表中的负载因子定义为:
a = 填入表中的元素个数 / 哈希表的长度
比如:a = 8 / 10 = 0.8 - 如果降低冲突率就要降低负载因子,因此要扩容哈希表的大小,不增加插入的元素是不现实的,给定一个阈值,如果超过了就扩大哈希表的容量
闭散列

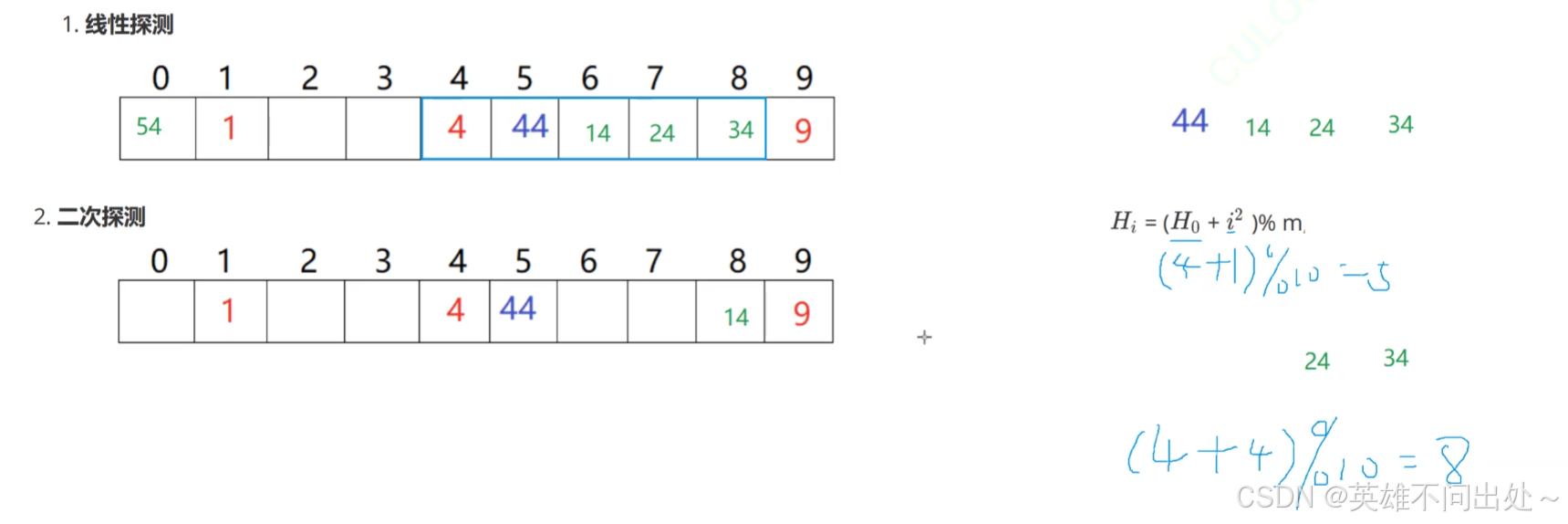

- 开放定址法,如果没有达到阈值,但是冲突了,就放到冲突的下一个空的位置上,这个也叫线性探测
- 线性探测的缺点:把冲突的元素都集中放到了一起
- 二次探测:为了解决线性探测的缺点,通过公式进行处理,H0是当前冲突的位置,i是出现冲突的次数,m是哈希表的大小,Hi表示冲突后,下一次要放的位置

- 线性探测对于空间的利用率不高

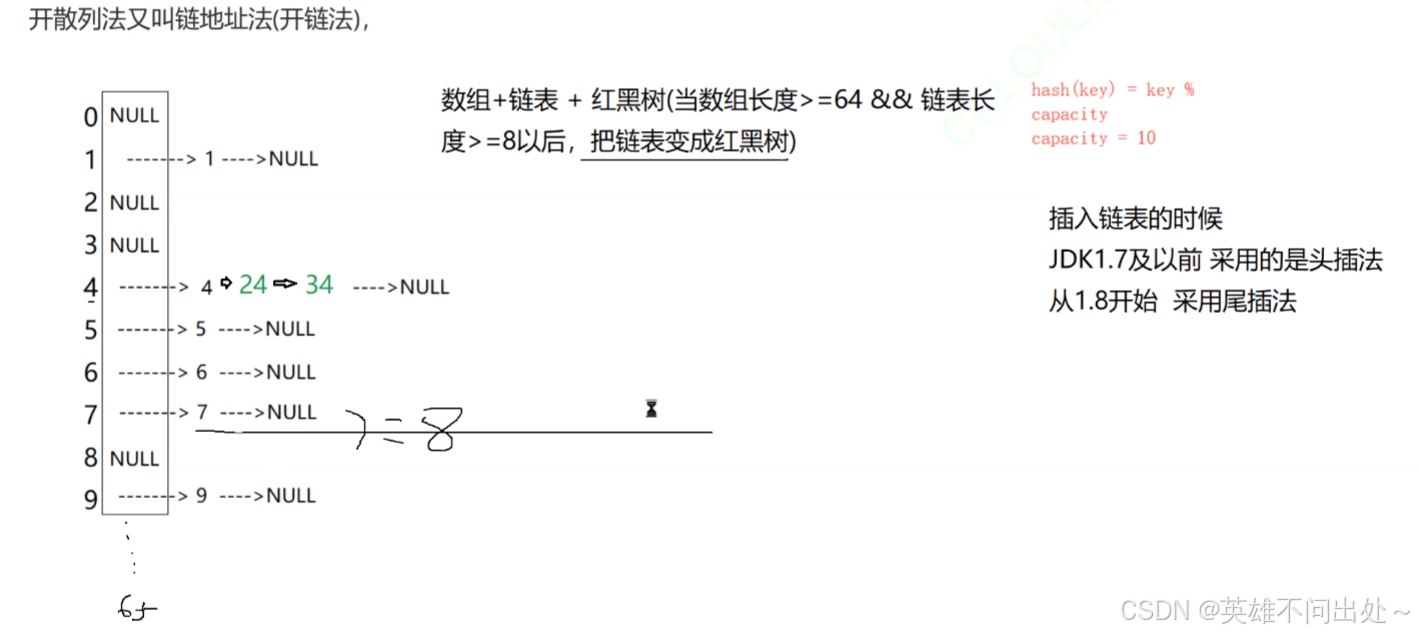

开散列
- 开散列:又叫链地址法,为了解决空间利用率不高的问题,开散列是数组 + 链表 + 红黑树的模式
- 把冲突的元素挂到同一个空间下的链表上
- Java是采用开散列的方式实现的

-

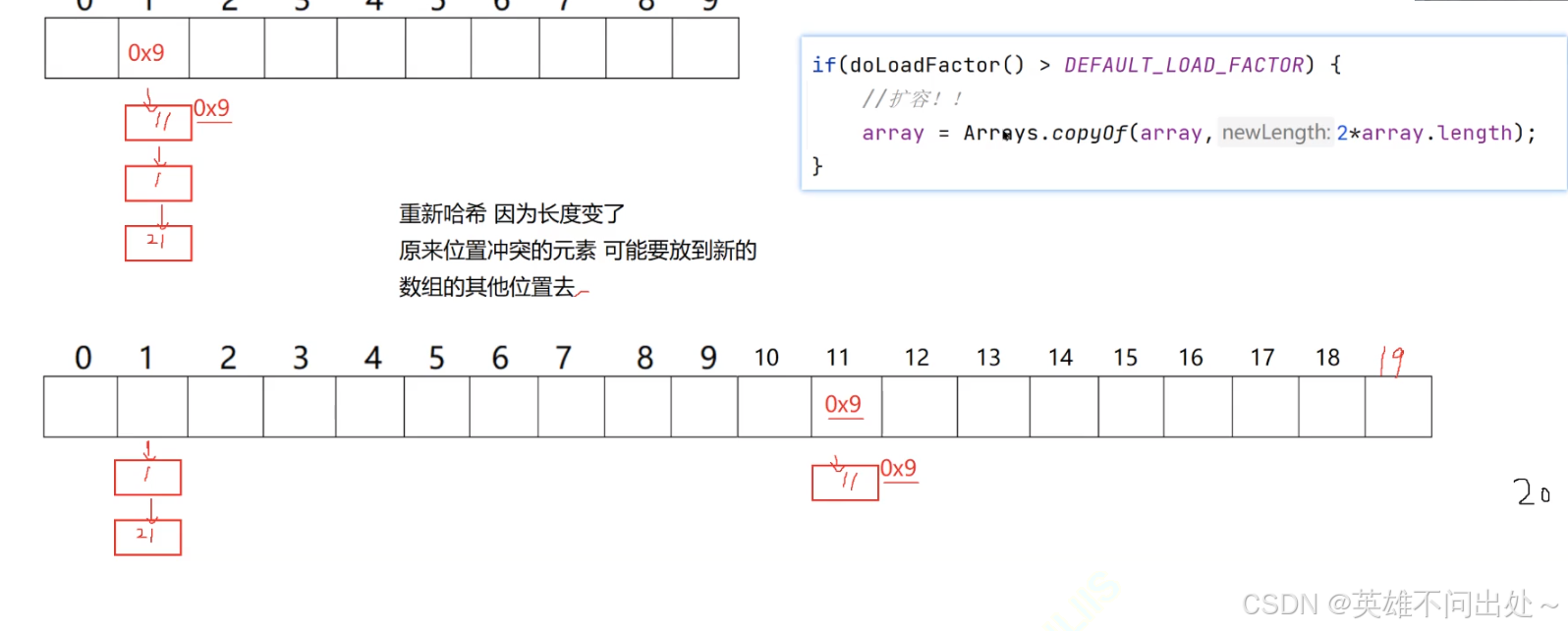

扩容之后需要重新哈希,因为数组长度变了,要重新计算节点存放的位置
-
遍历哈希数组中每个数组元素,都要重新计算节点位置
java
package Demo1;
import java.util.Arrays;
public class HashBuck {
// 链表数组,数组中的每一个元素都时链表的头结点
public class Node{
public int key;
public int val;
public Node next;
public Node(int key, int val) {
this.key = key;
this.val = val;
}
}
public Node[] array;
public int usedSize;
public static final float DEFAULT_LOAD_FACTOR = 0.75f;
public HashBuck(){
array = new Node[10];
}
public void put(int key,int value){
int index = key % array.length;
// 遍历index下标的链表 是否存在key 存在就更新value 不存在就头插这个节点
Node node = new Node(key,value);
// 该链表的头结点
Node cur = array[index];
while(cur != null){
if(cur.key == key){
// 如果插入的这个key相同就替换这个key
cur.val = value;
return;
}
cur = cur.next;
}
// 没有找到这个节点就头插
node.next = array[index];
array[index] = node;
usedSize++;
// 负载因子大于阈值
if(doLoadFactor() > DEFAULT_LOAD_FACTOR){
// 扩容
// array = Arrays.copyOf(array,2*array.length);
resize();
}
}
private void resize(){
// 建一个新的数组
Node[] newArray = new Node[2*array.length];
for(int i = 0;i < array.length;i++){
Node cur = array[i];
while(cur != null){
Node tmp = cur.next;
// 每次都要算新数组的下标因为是一个链表有很多个节点
int newIndex = cur.key % newArray.length;
// 头插法
cur.next = newArray[newIndex];
newArray[newIndex] = cur;
cur = tmp;
}
}
array = newArray;
}
// 计算负载因子
private float doLoadFactor(){
return usedSize * 1.0f / array.length;
}
// 获取对应key的value值
public int get(int key){
int index = key % array.length;
Node cur = array[index];
while(cur != null){
if(cur.key == key){
// 如果插入的这个key相同就替换这个key
return cur.val;
}
cur = cur.next;
}
return -1;
}
}
-
HashMap是线程不安全的,因为采用了头插法,后面采用了尾插法变得安全了,ConcurrentHashMap是线程安全的,之后学到了线程就可以理解了
-

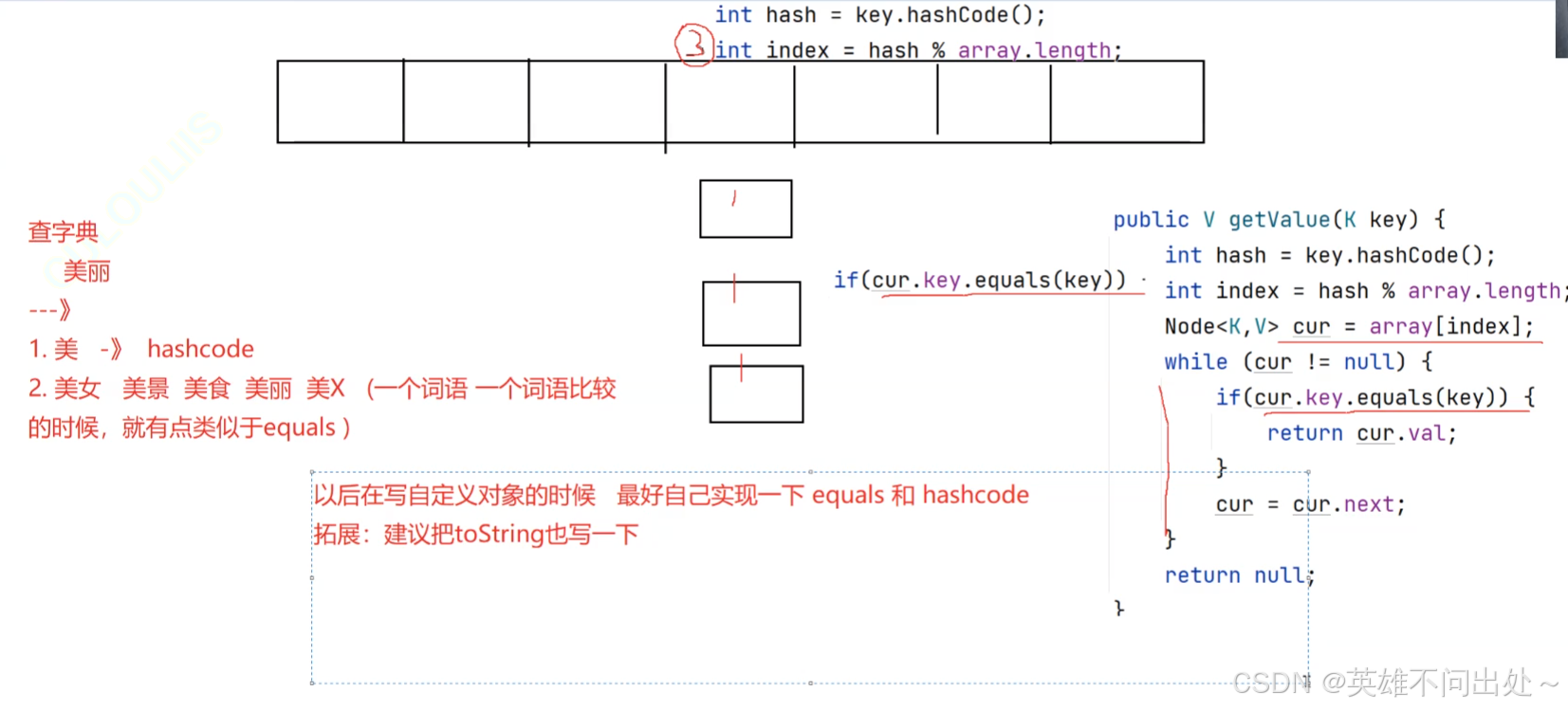

如果key是String,Person类型就不能除以数组的长度了,该怎么找到对应的下标呢?
可以用hashcode来将自定义类型转化为整形类型
hashCode和equals
HashMap和HashSet
java
public static void main(String[] args) {
HashMap<String,Integer> hashMap = new HashMap<>();
hashMap.put("hello",2);
hashMap.put("abcde",10);
hashMap.put("abc",11);
Integer val = hashMap.get("hello");
System.out.println(val);
// 遍历map
System.out.println(hashMap);
for(Map.Entry<String,Integer> entry : hashMap.entrySet()){
System.out.println("key:" + entry.getKey() + " value:" + entry.getValue());
}
// Map不支持迭代器遍历,Set支持迭代器遍历
// 可以将Map转化为Set进行迭代器遍历
HashMap<Student,Integer> hashMap1 = new HashMap<>();
hashMap1.put(new Student(),2);
hashMap1.put(new Student(),2);
hashMap1.put(null,2);
// TreeMap<Student,Integer> hashMap2 = new TreeMap<>();
// hashMap2.put(new Student(),3);
// hashMap2.put(new Student(),3);
// Sutdent不能进行比较
// set可以去重,Set的底层是HashMap
// 每次存储元素的时候,默认的value都是一个Object对象
HashSet<String> set = new HashSet<>();
set.add("hello");
set.add("world");
set.add("hello");
System.out.println(set);
}
面试题
统计6个数中数字出现的次数
java
public static void main(String[] args) {
int[] array = {1,1,2,2,3,3};
HashMap<Integer,Integer> map = new HashMap<>();
for(int i = 0;i < array.length;i++){
if(!map.containsKey(array[i])){
map.put(array[i],1);
}else{
int k = map.get(array[i]);
k++;
map.put(array[i],k);
}
}
System.out.println(map);
}

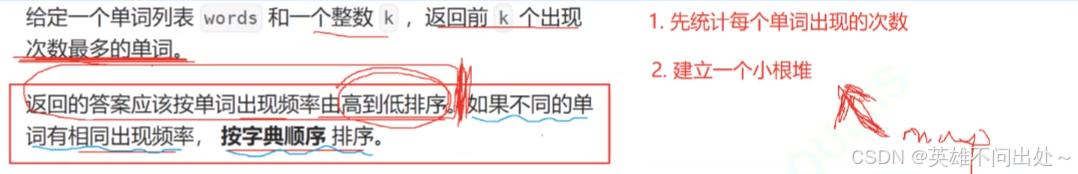

如果频率相同放入堆中要使用大根堆,要让love排在i的前面
java
class Solution {
public List<String> topKFrequent(String[] words, int k) {
// 1. 统计单词出现的次数
Map<String,Integer> map = new HashMap<>();
for(String s : words){
if(!map.containsKey(s)){
map.put(s,1);
}else{
int val = map.get(s);
map.put(s,val+1);
}
}
// 2. 把单词和出现的次数当做一个整体放入小根堆中
PriorityQueue<Map.Entry<String,Integer>> minHeap = new PriorityQueue<>(
new Comparator<Map.Entry<String,Integer>>(){
public int compare(Map.Entry<String,Integer> o1,Map.Entry<String,Integer> o2){
// 放元素的时候,如果频率相同,我们转变为大根堆 -> 按照单词的字典序进行排序
if(o1.getValue().compareTo(o2.getValue()) == 0){
return o2.getKey().compareTo(o1.getKey());
}
return o1.getValue().compareTo(o2.getValue());
}
});
for(Map.Entry<String,Integer> entry : map.entrySet()){
if(minHeap.size() < k){
// 没有放满小根堆
minHeap.add(entry);
}else{
// 放满了和堆顶元素比较大小
// 如果比堆顶元素还大,就入堆
int v = minHeap.peek().getValue();
if(v < entry.getValue()){
minHeap.poll();
minHeap.offer(entry);
}else{
// 出现频率相同,比较字典序大小
if(v == entry.getValue()){
if(minHeap.peek().getKey().compareTo(entry.getKey()) > 0){
minHeap.poll();
minHeap.offer(entry);
}
}
}
}
}
// 2 3 4 -> 4 3 2
List<String> arr = new ArrayList<>();
for(int i = 0;i < k;i++){
Map.Entry<String,Integer> top = minHeap.poll();
arr.add(top.getKey());
}
// 逆置
Collections.reverse(arr);
return arr;
}
}

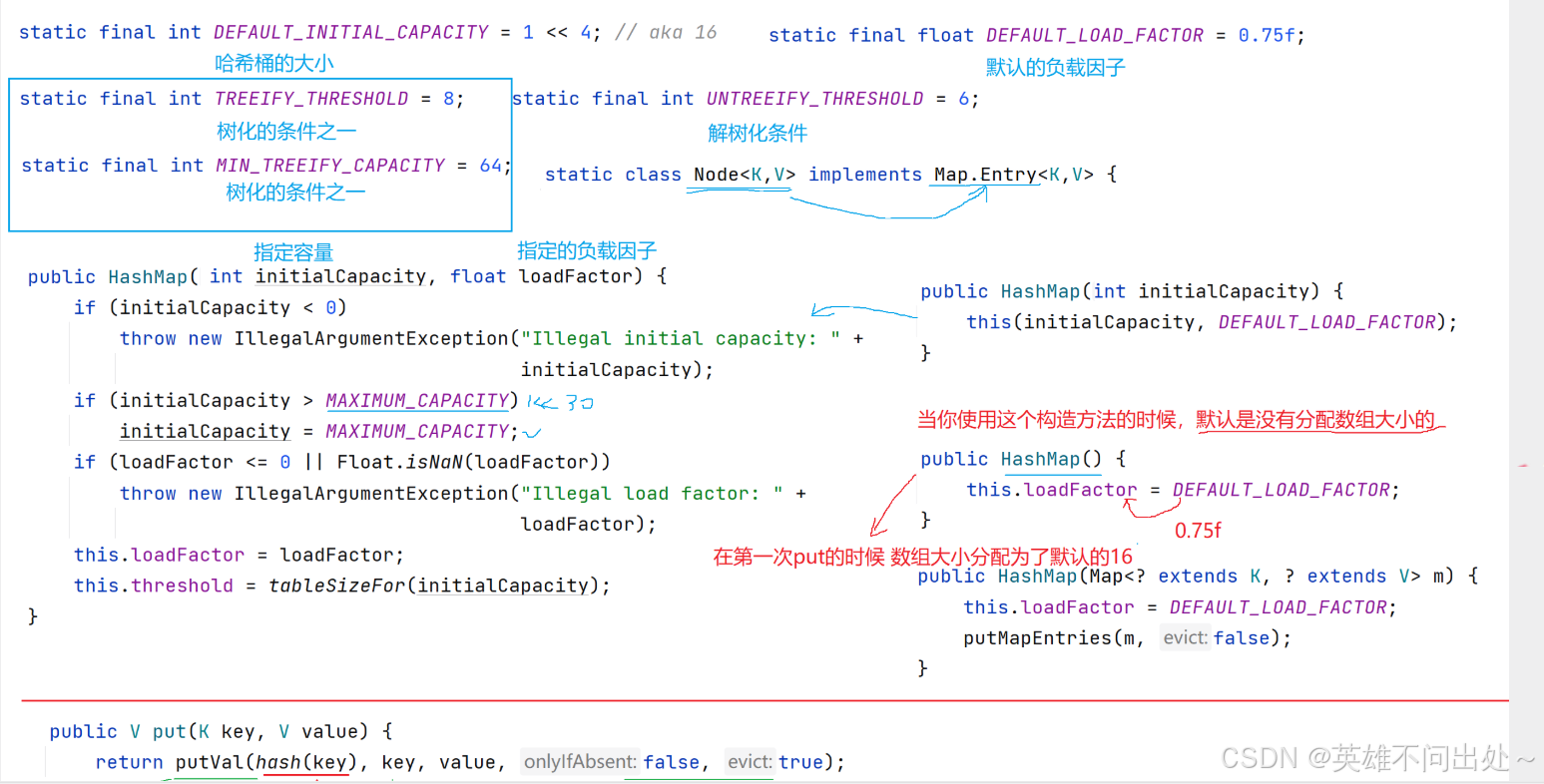

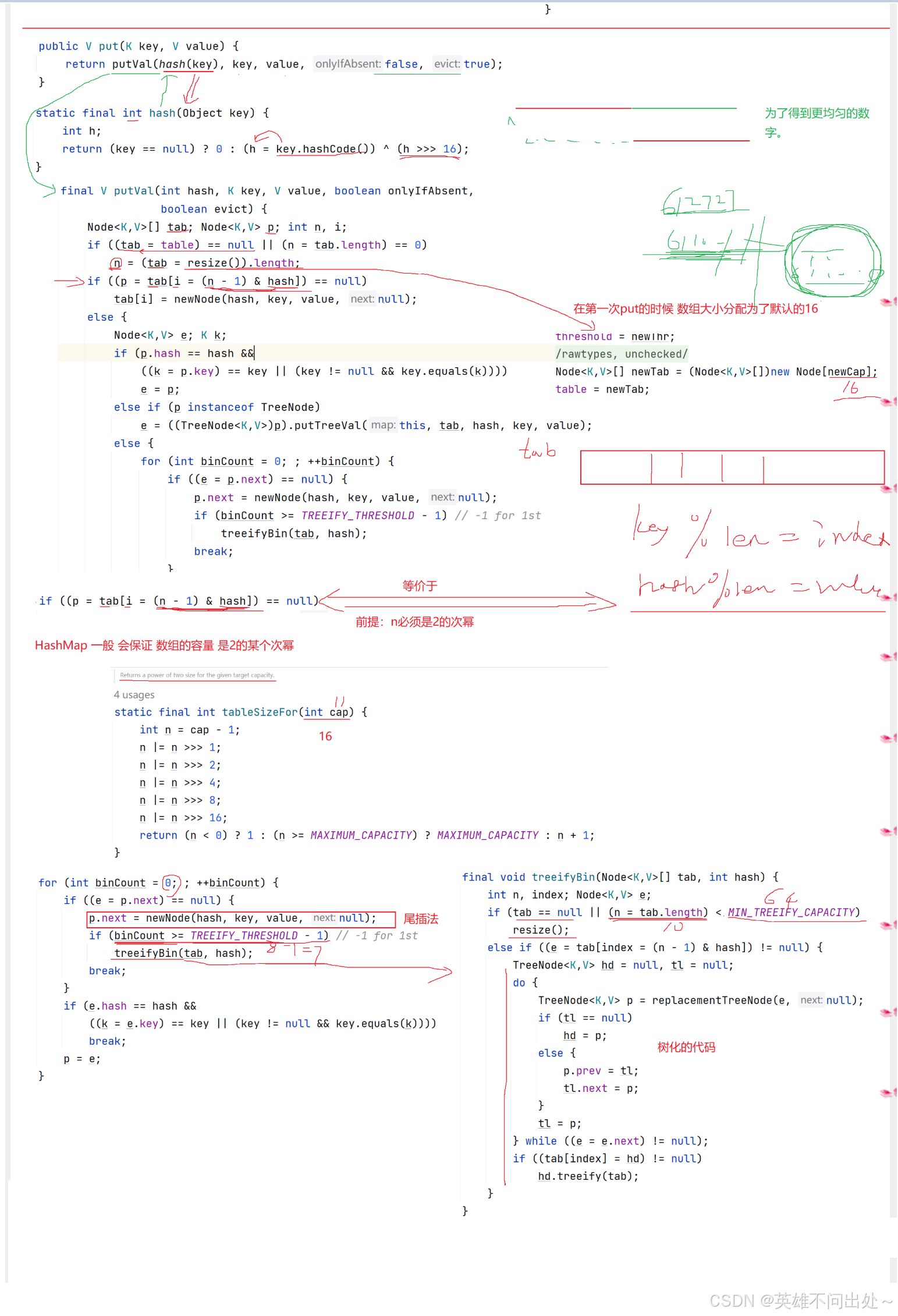

HashMap的源码
- 如果达到一定条件会把哈希表编程红黑树:如果链表的长度大于8并且数组的长度大于64就会进行树化
